Ikegami PM-509
Matt Ross
September 21, 2024, 10:21 pm
December 27, 2024, 1:41 am
September 21, 2024, 10:21 pm
December 27, 2024, 1:41 am
Summary
5" monochrome broadcast monitor. Very small and lightweight.
Manuals
Notes

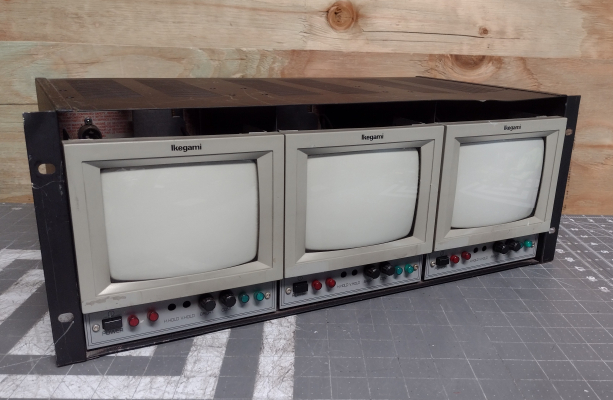

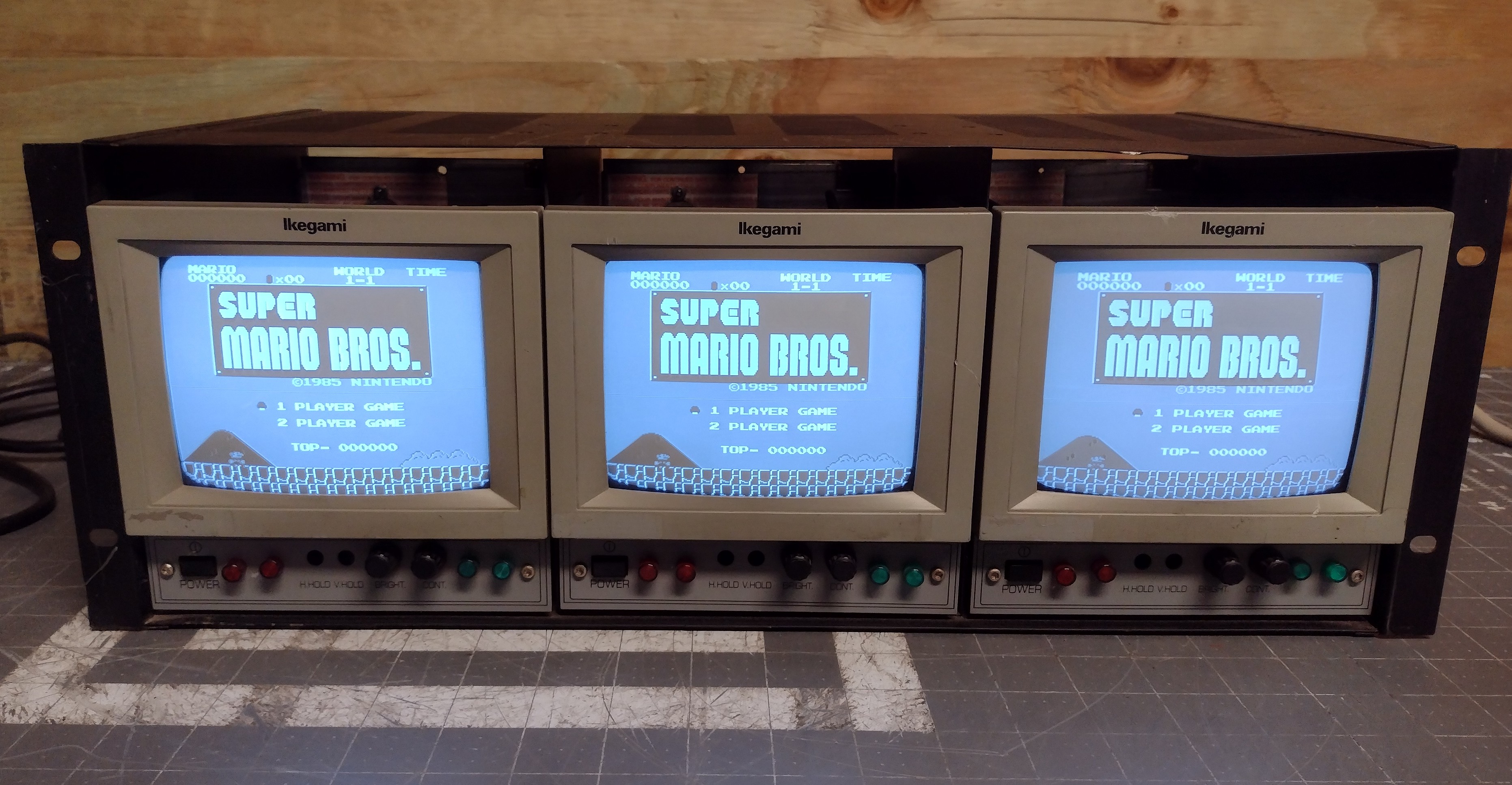

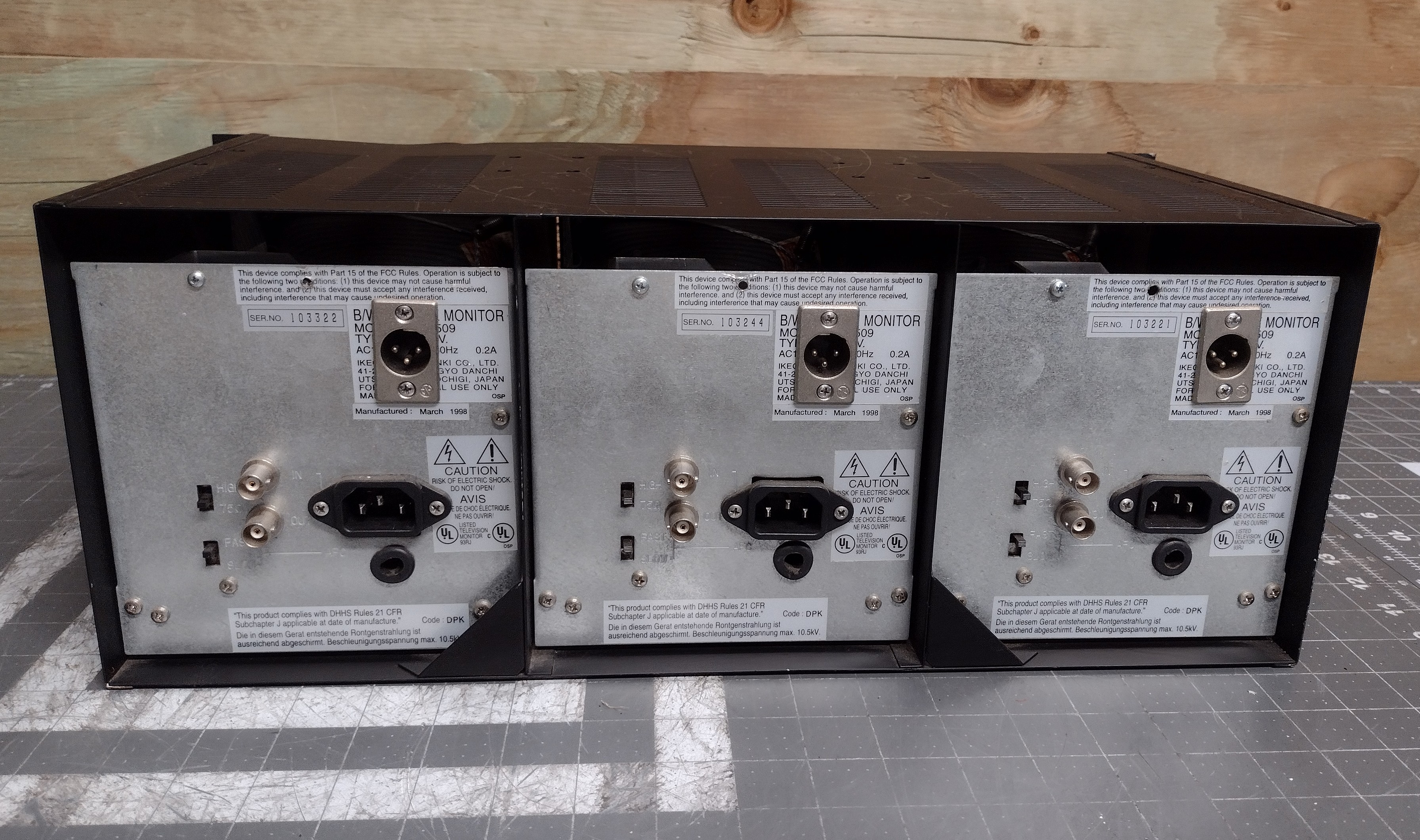

Can be rack mounted in sets of 3. In this configuration, the top of the case can be removed for extra ventilation.
This monitor often suffers from bad solder joints, especially on the yoke connector and the main power filter capacitor.
Gallery
| Specifications | |
|---|---|
| Brand: | Ikegami |
| Manufacturer: | Ikegami |
| Model: | 509 |
| Series: | PM |
| Viewable Size: | 5" |
| Inputs: | Composite |
| Native Resolutions: | 240p, 480i |
| Linecount: | 700 TVL |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | Monochrome |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, External Potentiometers |
| Flyback: | KFS-21829 |
| Tube: | Teletube , 0198 |
| Deflection: | 70° |
| Mask: | Monochrome Tube (no mask) |
| Tint: | None |
| Removable Glare Film: | No |
| Speakers: | None |
| Weight: | 6.6 lbs (3 kg) |
| Dimensions (W/H/D): |
147 x 154 x 221 mm
(5.8 x 6.1 x 8.7") |
| Application: | Professional |
| Cabinet Material: | Metal |
| Country of Manufacture: | Japan |
| Mounting: | Rackable |
| Tag: | Needs Service Manual, Needs Pictures |
