Ikegami PM-9050

Matt Ross
September 21, 2024, 10:20 pm
December 27, 2024, 1:41 am

Summary

9" monochrome broadcast monitor with two video inputs. Small & lightweight, with a very clean 800 TVL picture.

Manuals

Notes

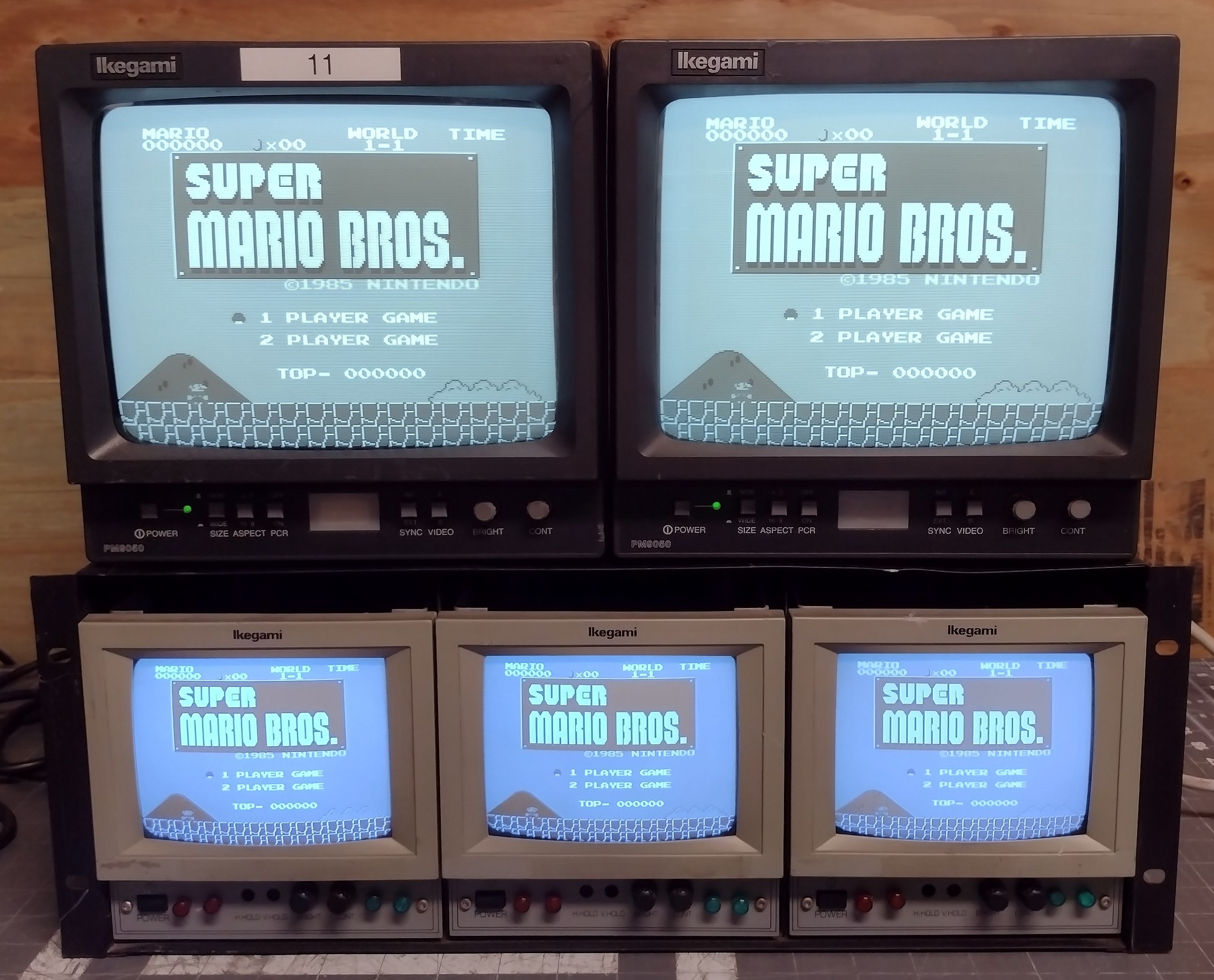

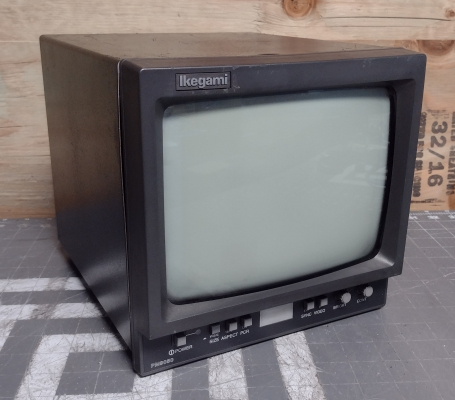

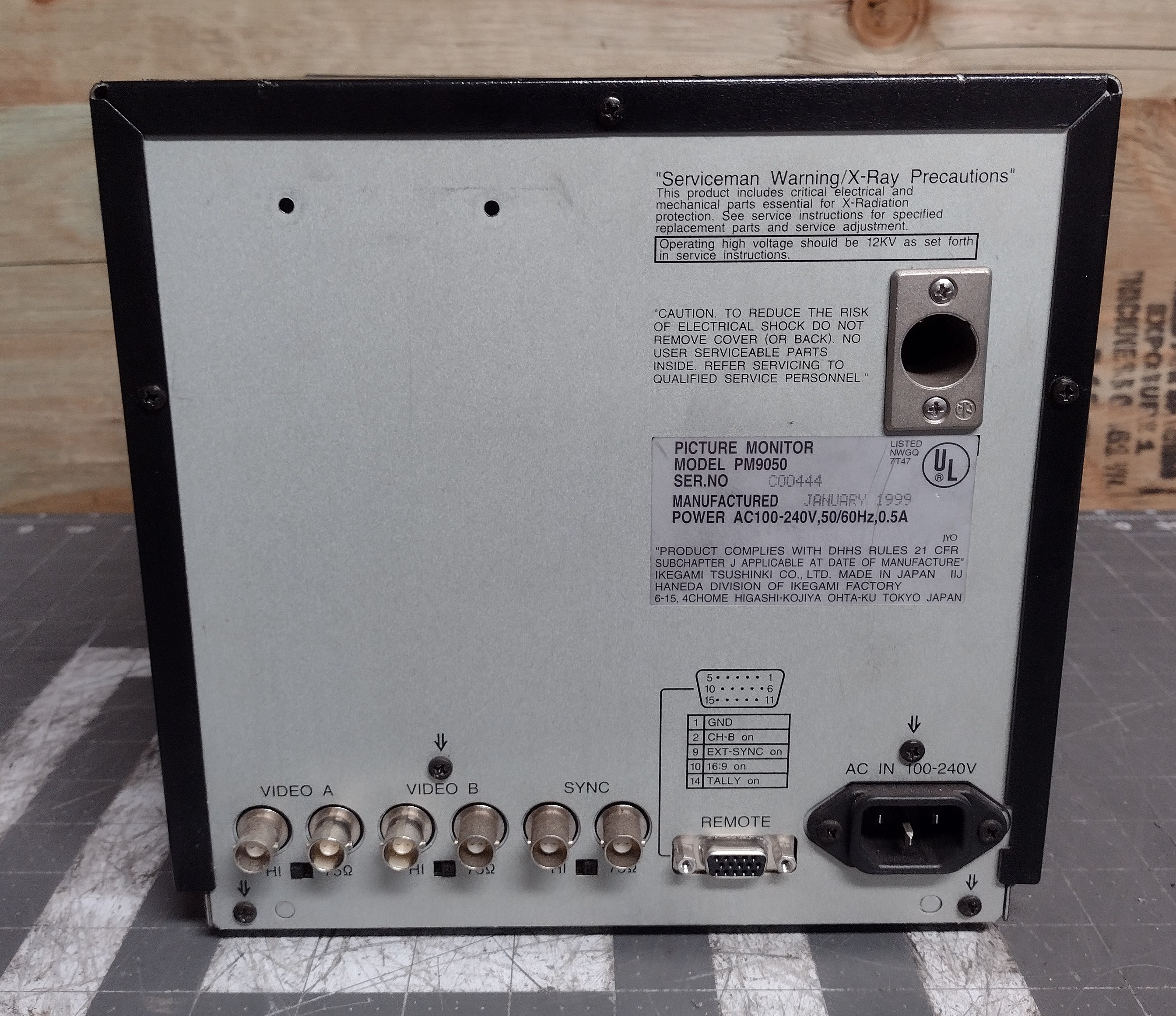

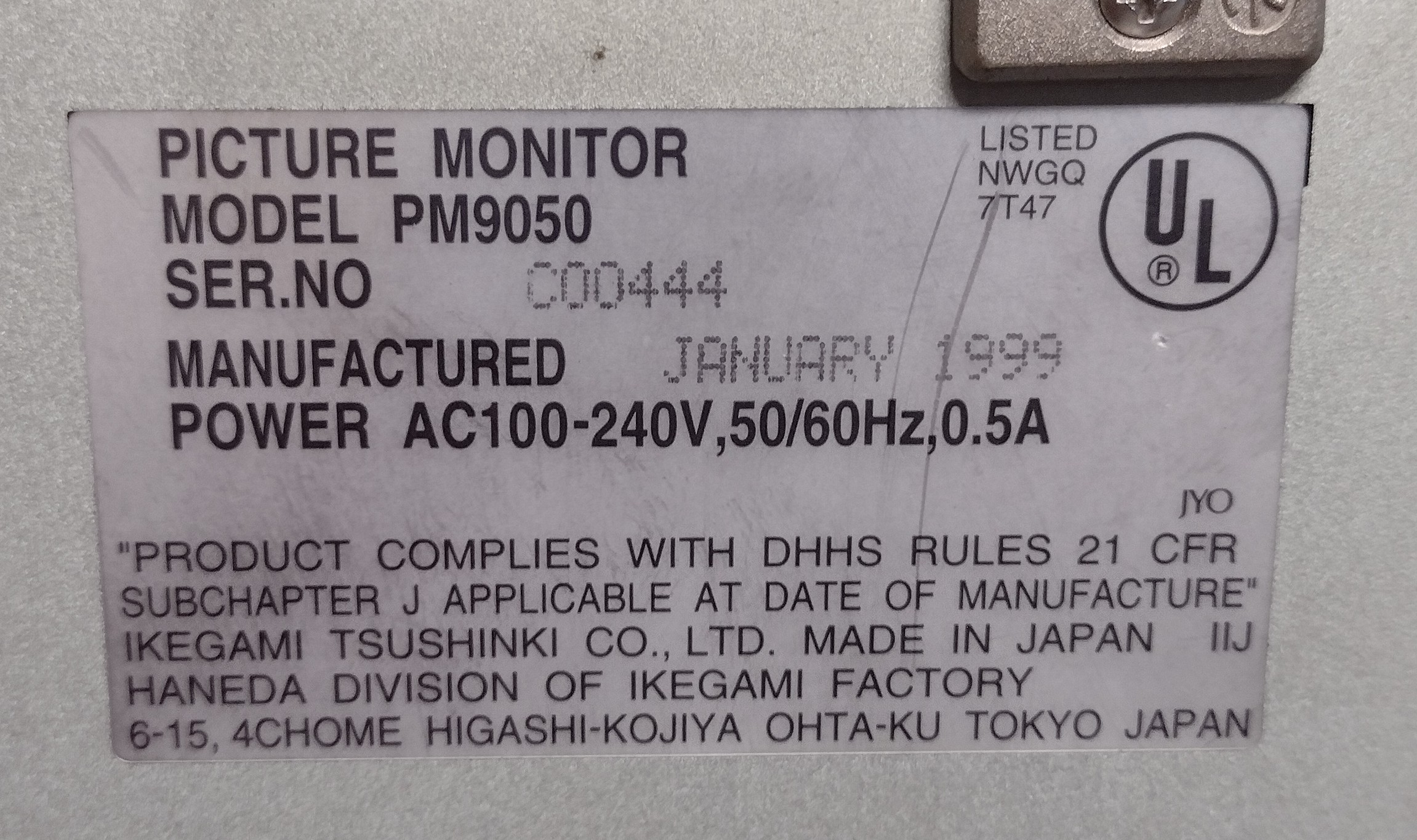

The monitor in these photos was modified with a circular connector on the back of the case above the label; normally this is not present.

Gallery

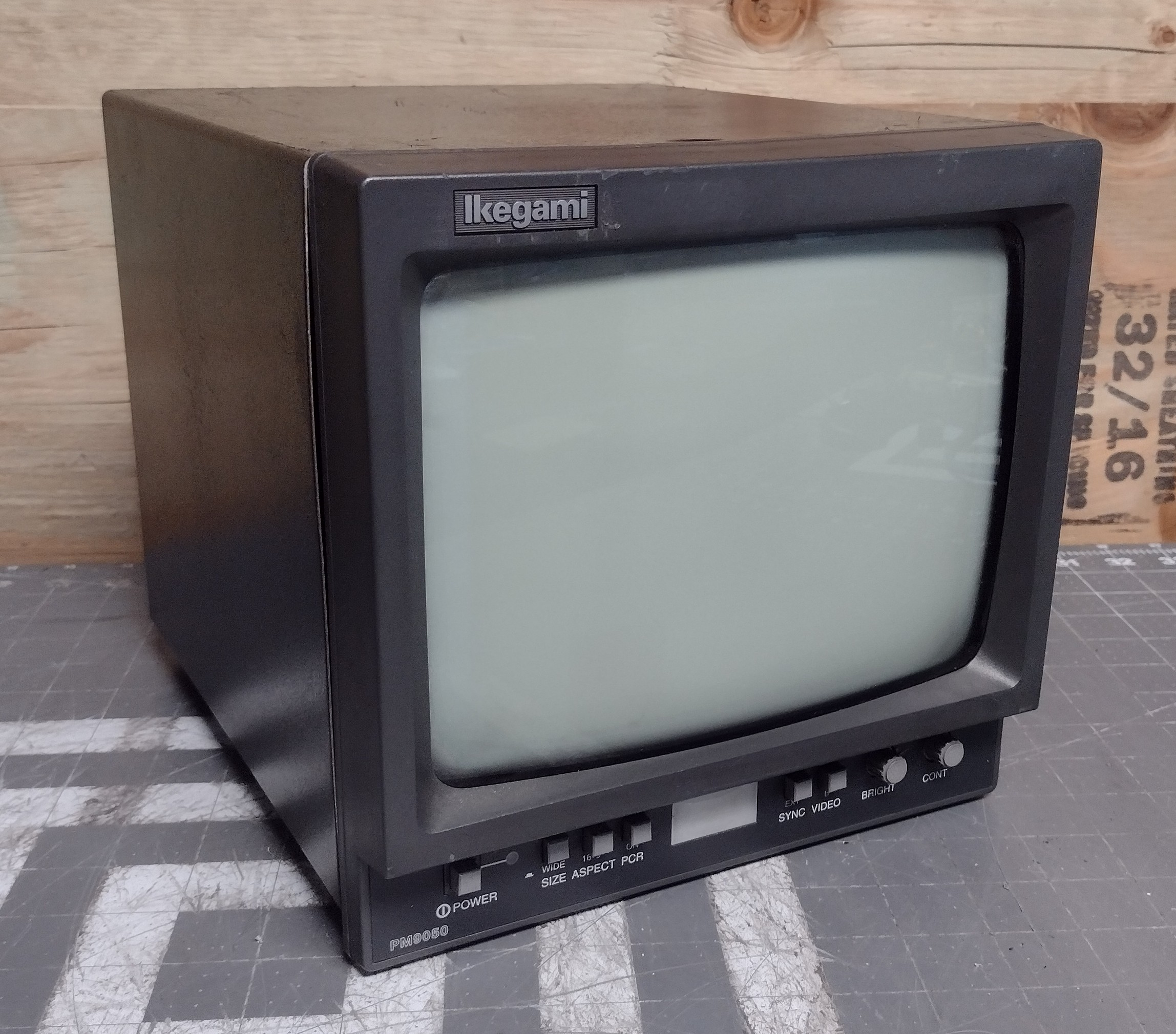

Ikegami PM-9050 Ikegami PM-9050 Ikegami PM-9050 Ikegami PM-9050
Specifications
Brand: Ikegami
Manufacturer: Ikegami
Model: 9050
Series: PM
Viewable Size: 9"
Inputs: Composite
Sync: CSYNC
Native Resolutions: 240p, 480i
Linecount: 800 TVL
Horizontal Scan Range: 15 kHz
Vertical Scan Range: 60 Hz
Formats: Monochrome
Aspect: 4:3
Adjustments: Internal Potentiometers, External Potentiometers
Tube: Toshiba
Deflection: 90°
Mask: Monochrome Tube (no mask)
Tint: None
Speakers: None
Weight: 9.7 lbs (4.4 kg)
Dimensions (W/H/D): 220 x 215 x 255 mm
(8.6 x 8.4 x 10")
Application: Professional
Cabinet Material: Metal
Launched: 1998
Country of Manufacture: Japan
Mounting: Rackable
Degaussing: Not Applicable
Tag: Needs Service Manual, Needs Pictures, Needs Tube Info
