Summary

High resolution broadcast monitor with a 14" (13" viewable) 700 TVL resolution. NOTE: According to Ikegami this monitor only supports RGB OR YPbPr but NOT BOTH. It is determined by how it was ordered/spec'd by Ikegami. Both variants support Composite NTSC as well.

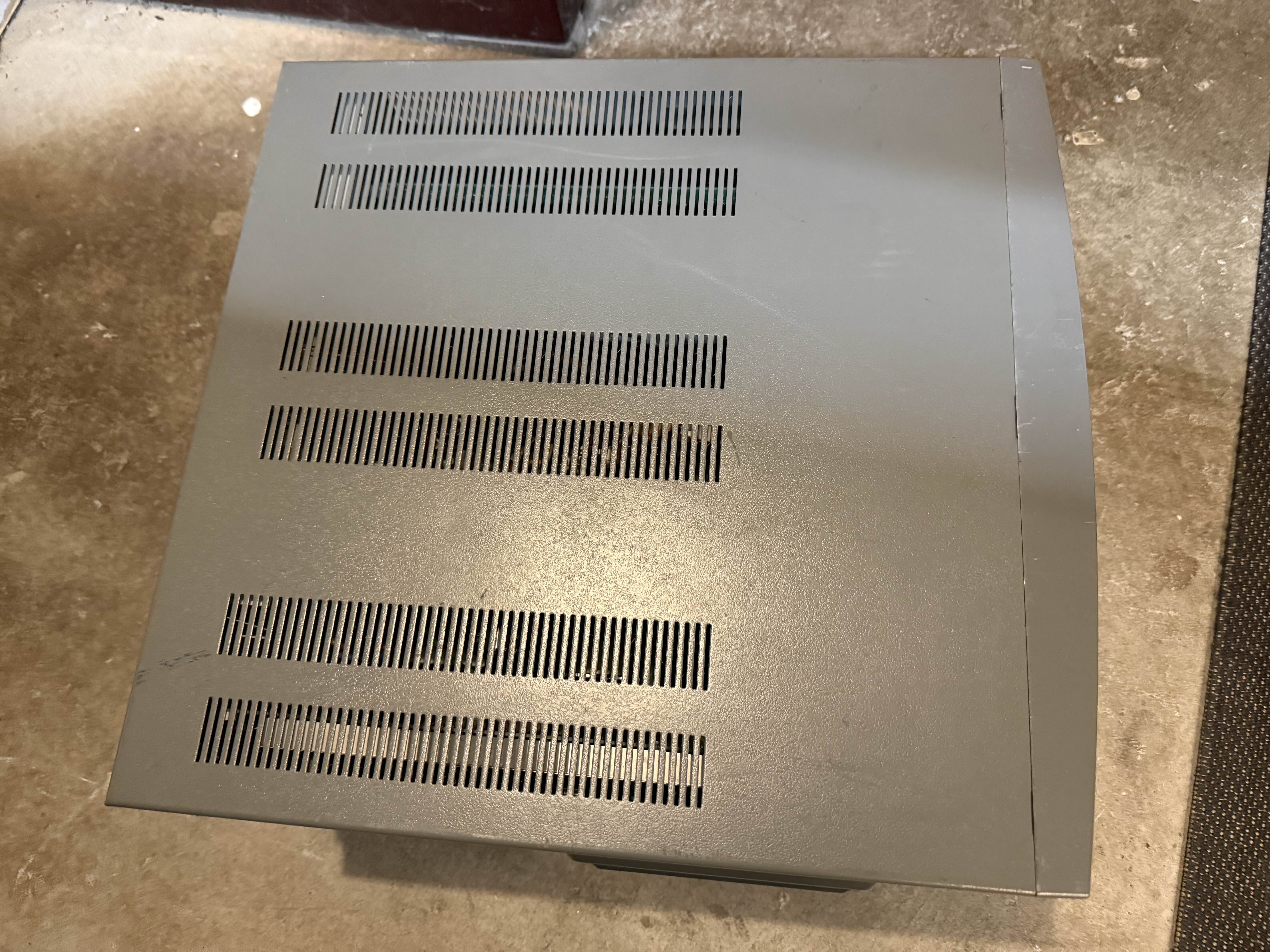

Very well built, with a metal frame and a cast steel front bezel.

Ikegami 19-Series Monitors feature High Resolution Shadow Mask CRT's with Self-Converging In-Line Guns and American Standard Matched Phosphors (6500K). The 19-Series are available in 8.5V, 13V and 19V and are engineered to provide superb resolution, excellent stability, easy maintenance and low power consumption in a sleek, streamlined design.

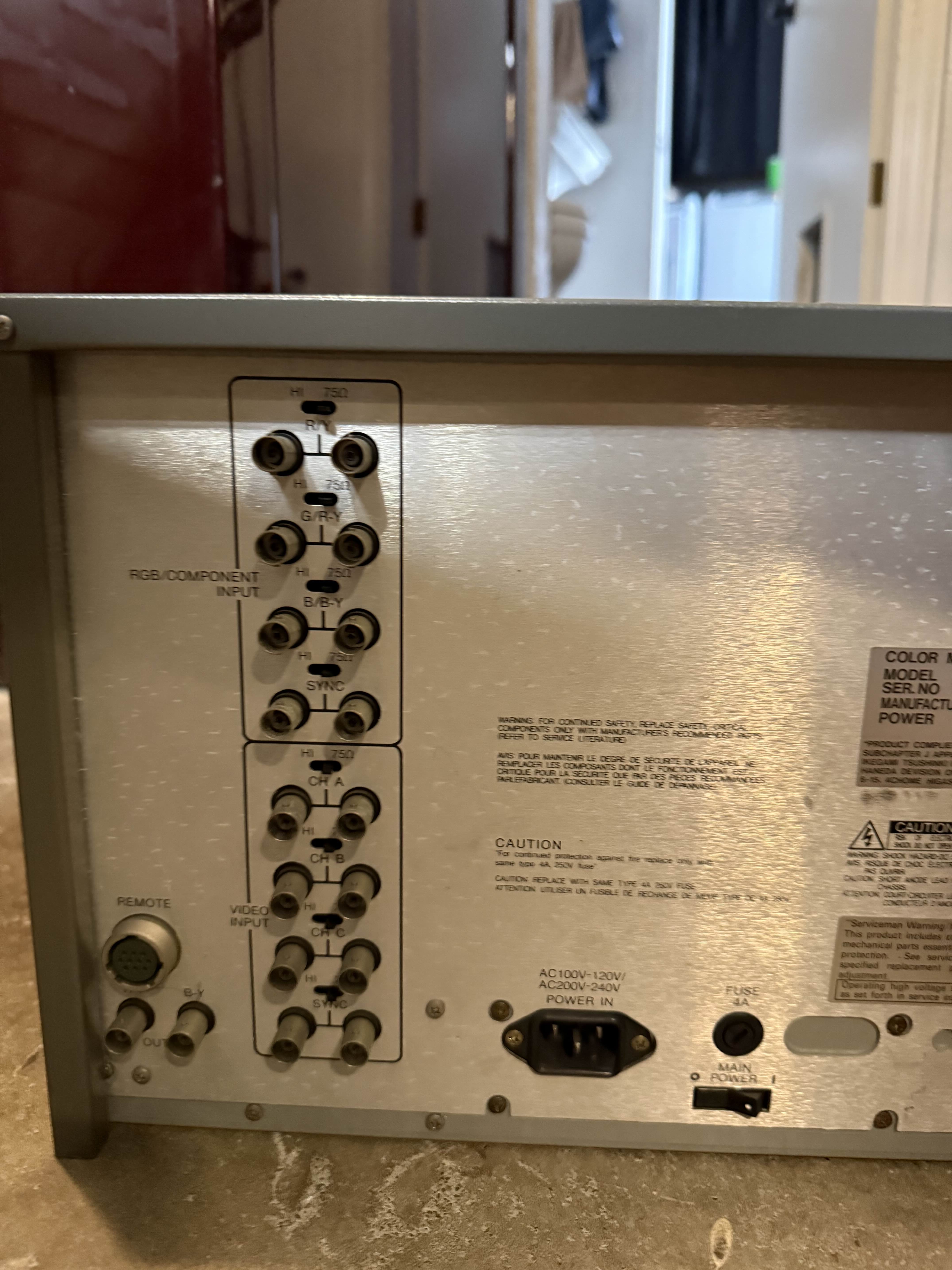

19 Series monitors are available in RGB, and also available with Component. Monitors are switchable between Component and NTSC, or between RGB and NTSC. Monitor switching is accommodated through the rear remote connector, with an external control switch or front panel switch.

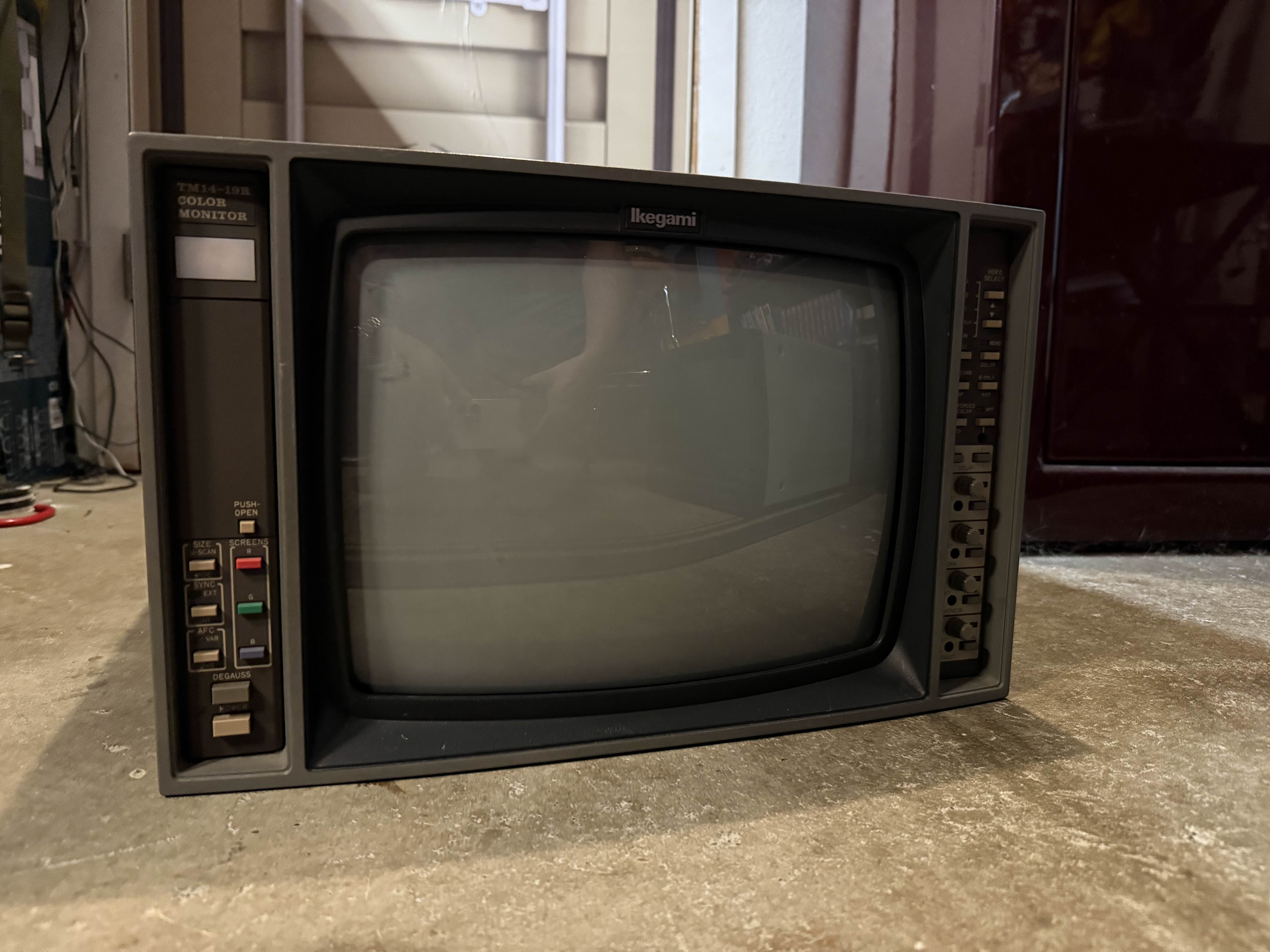

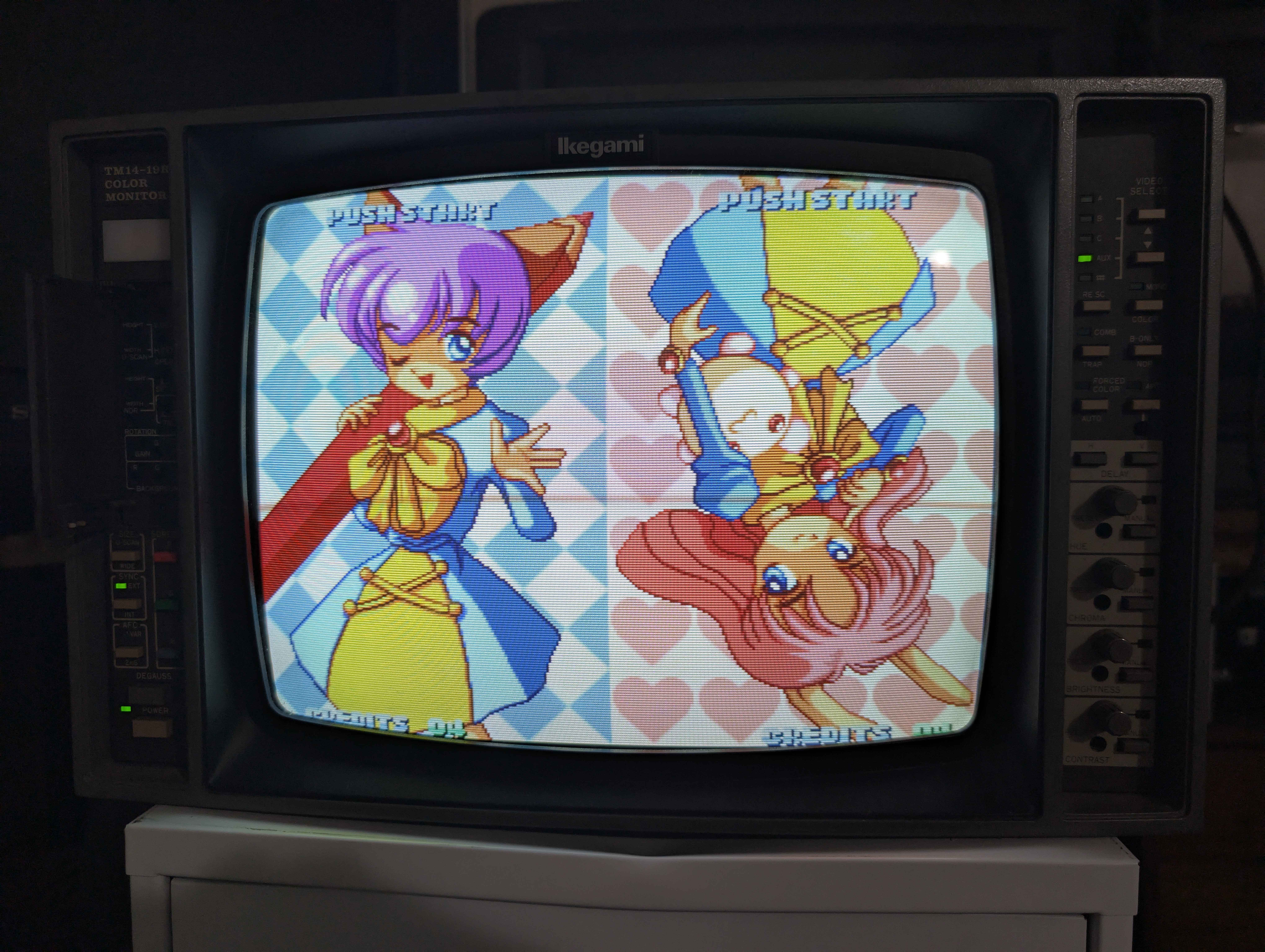

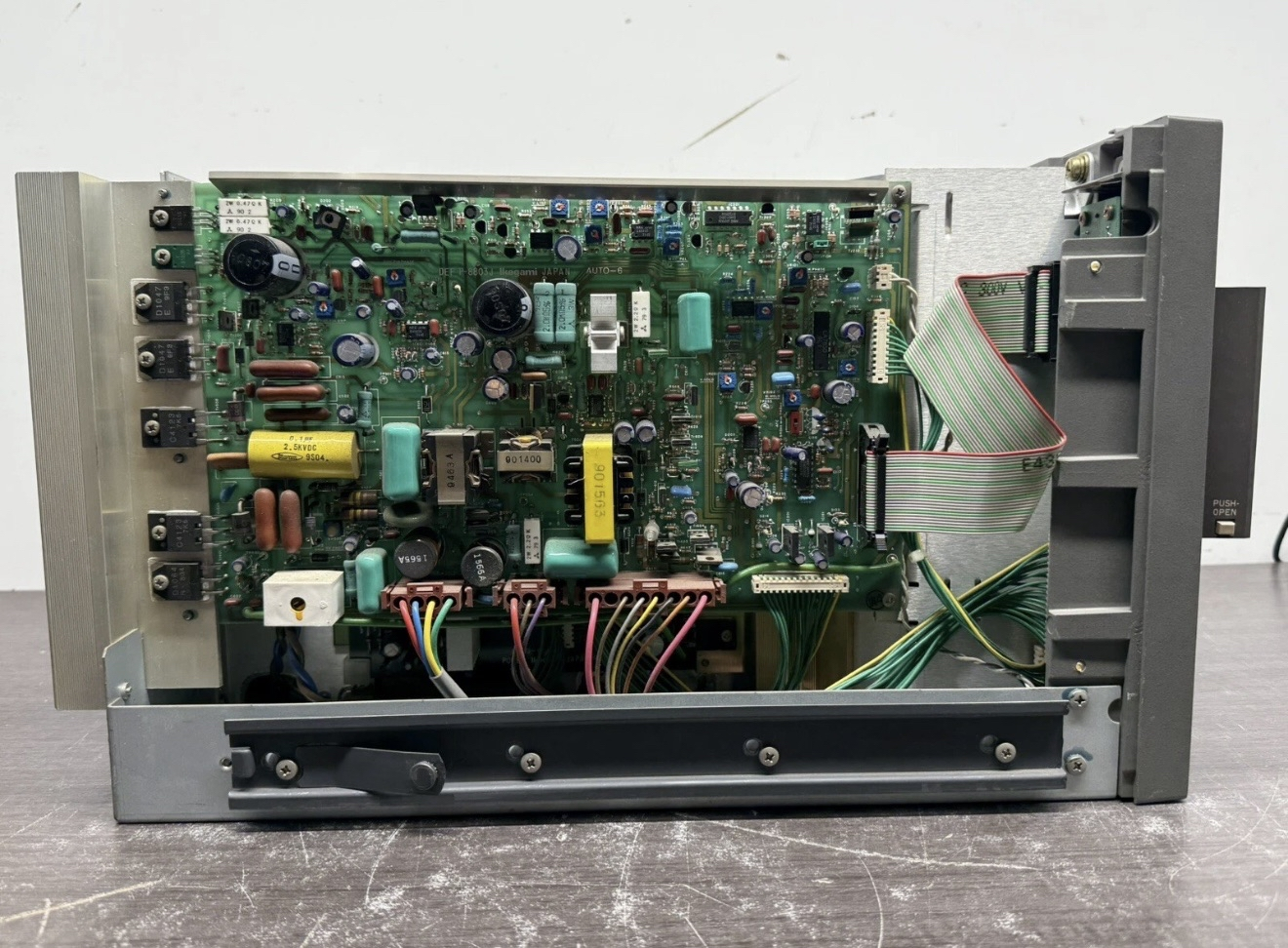

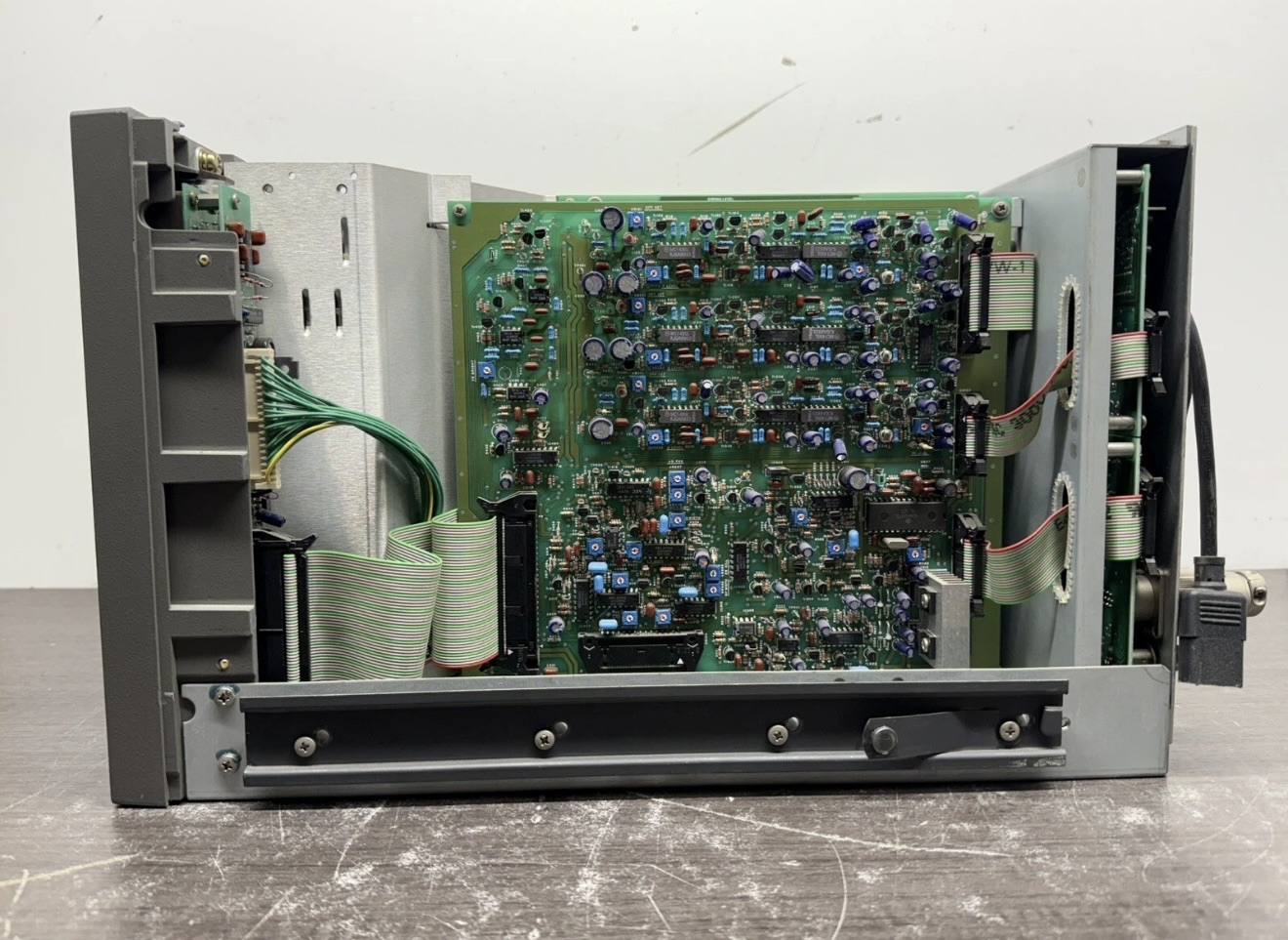

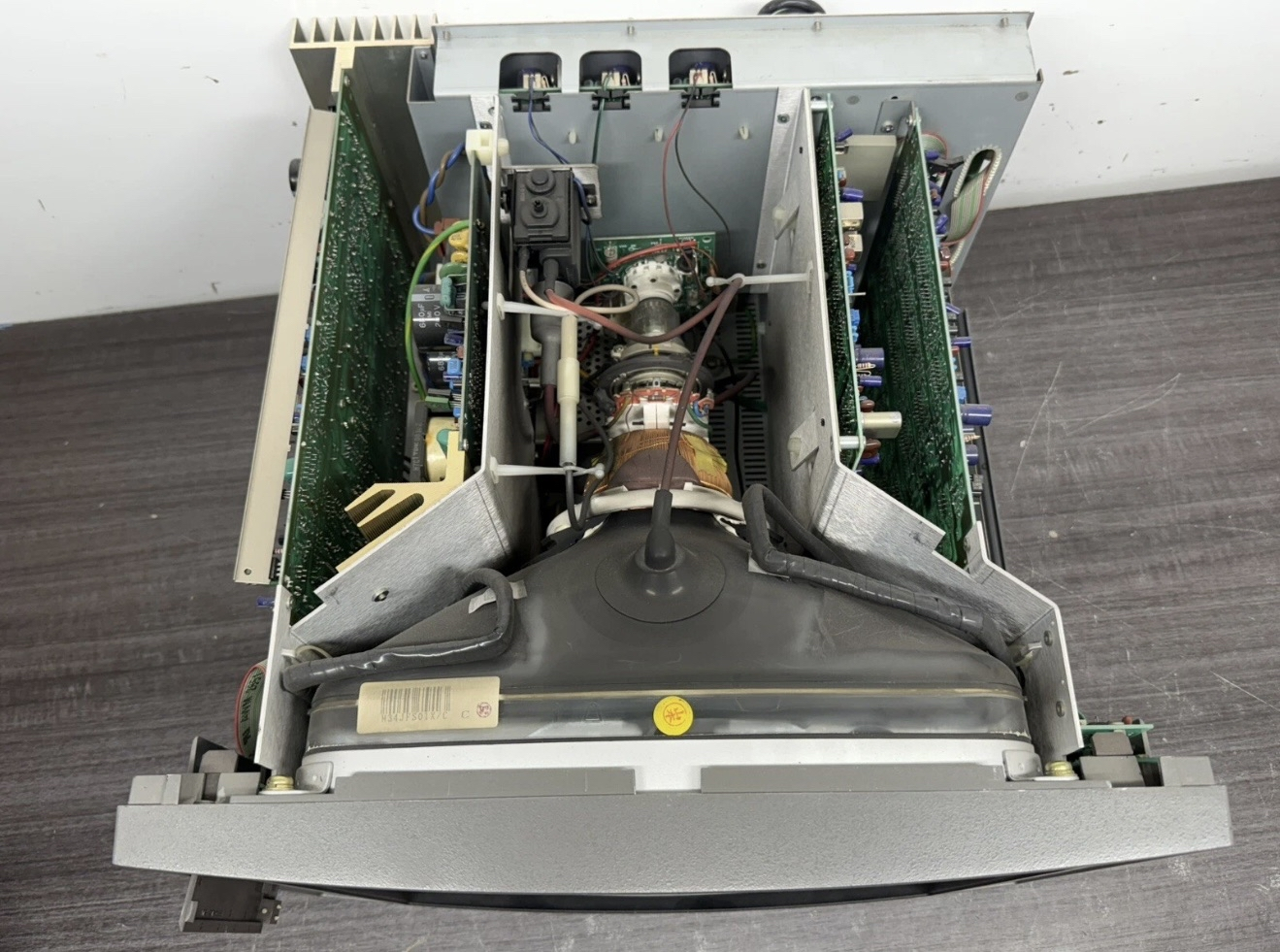

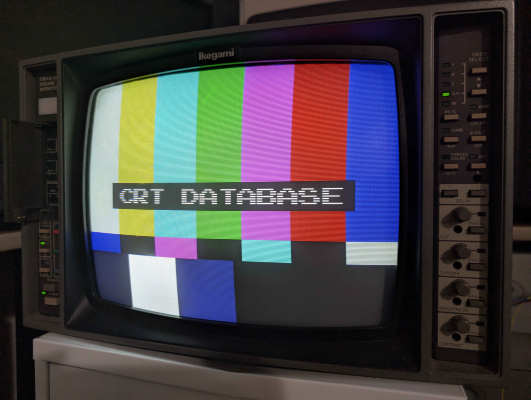

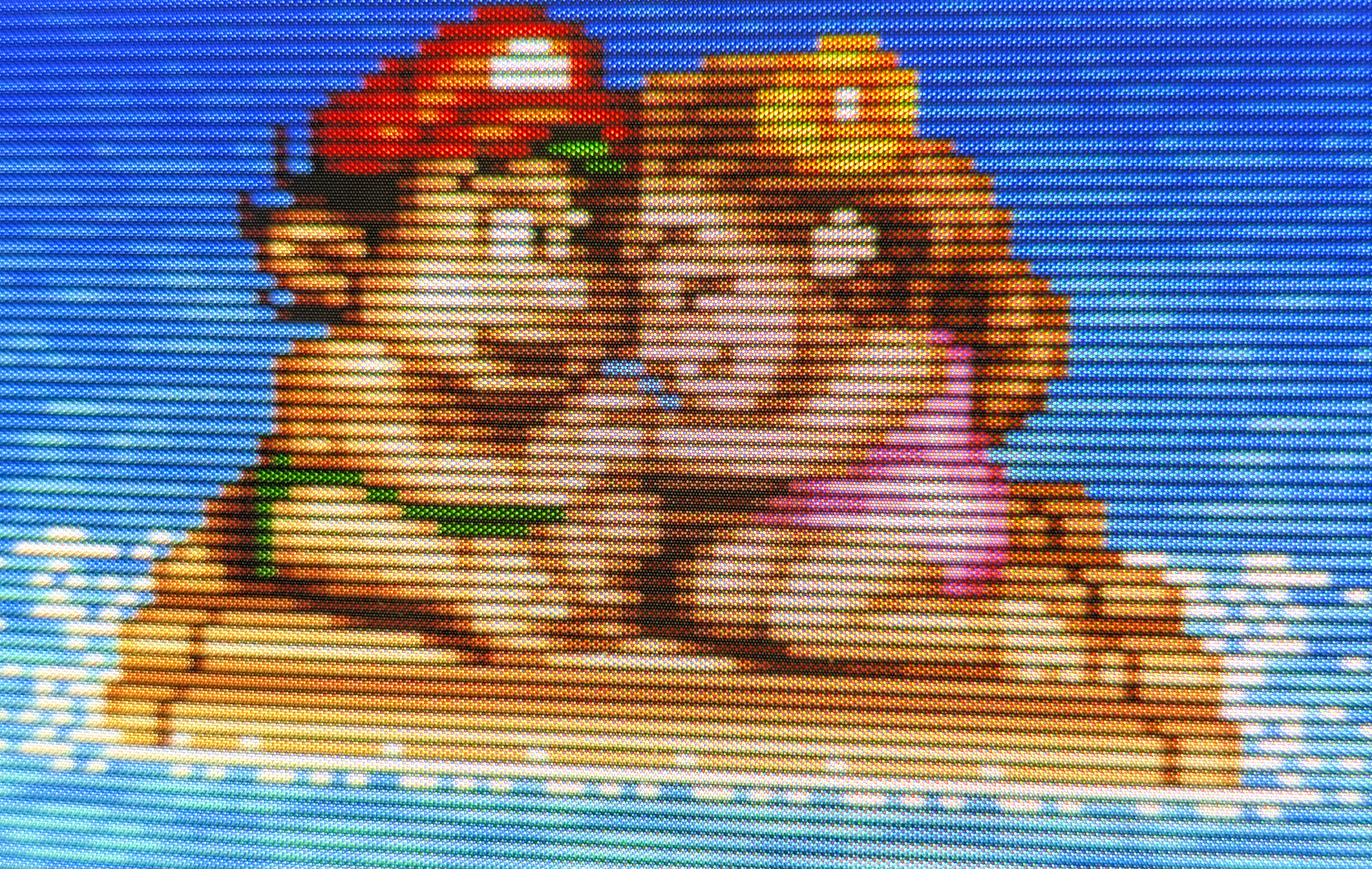

Thanks to ScottyB635 and doggy for the gallery photos, and ConsoleMods for the brochure PDF.

Manuals

• User Manual not available - please contact me on Discord if you find a copy.
• Service Manual (closest available)

Media & Promo Materials

• Ikegami Monitor Catalog

Notes
