Summary
9" CCTV monitor, manufactured by a Korean company and sold by Ikegami. Includes two composite and one S-Video input, along with mono speaker.
Literature
Notes
The jungle chip used in this monitor has RGB and YPbPr input pins, and can almost certainly be modded for RGB. It would be helpful to find a service manual, however, in order to compensate for horizontal shift.

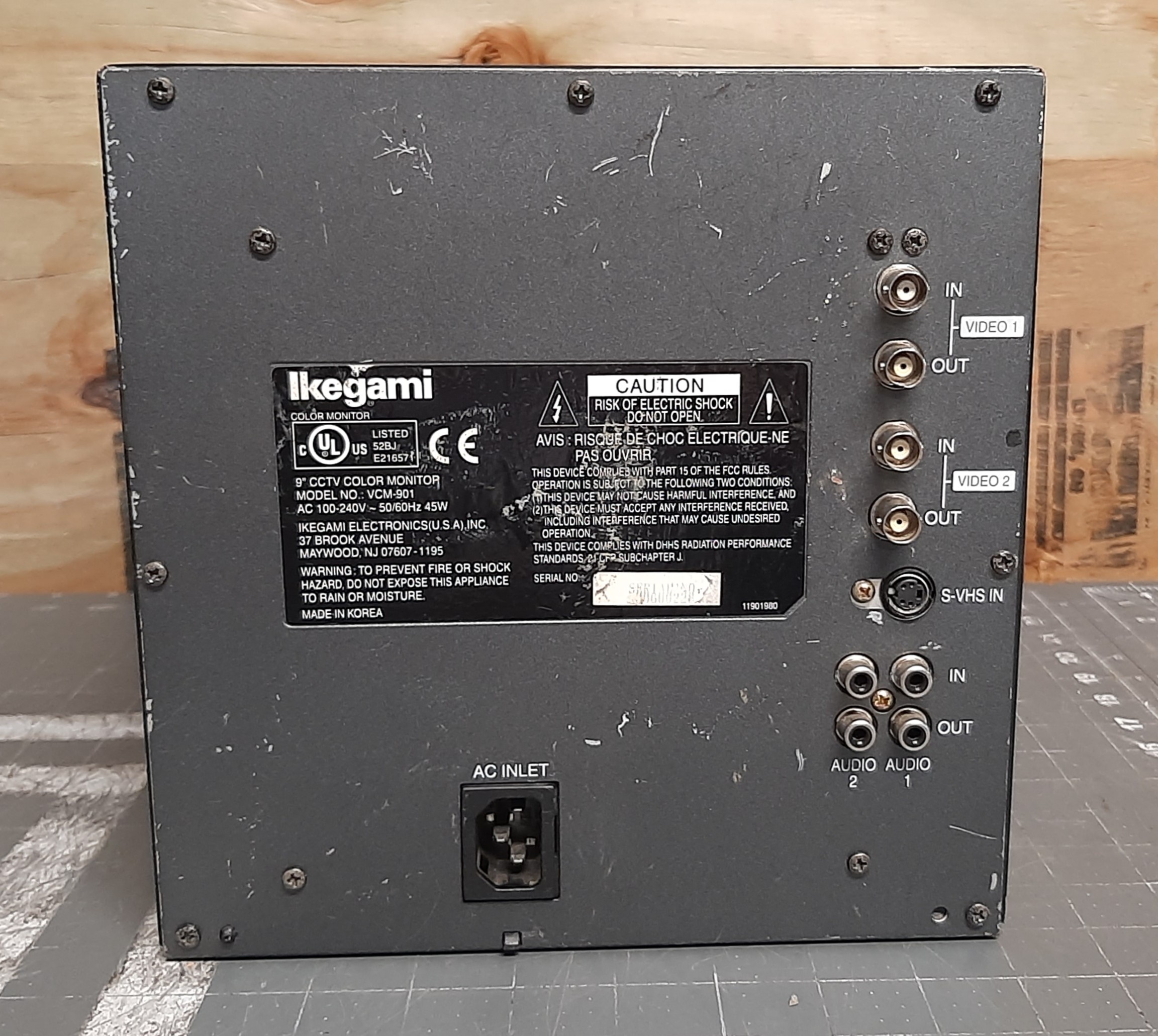

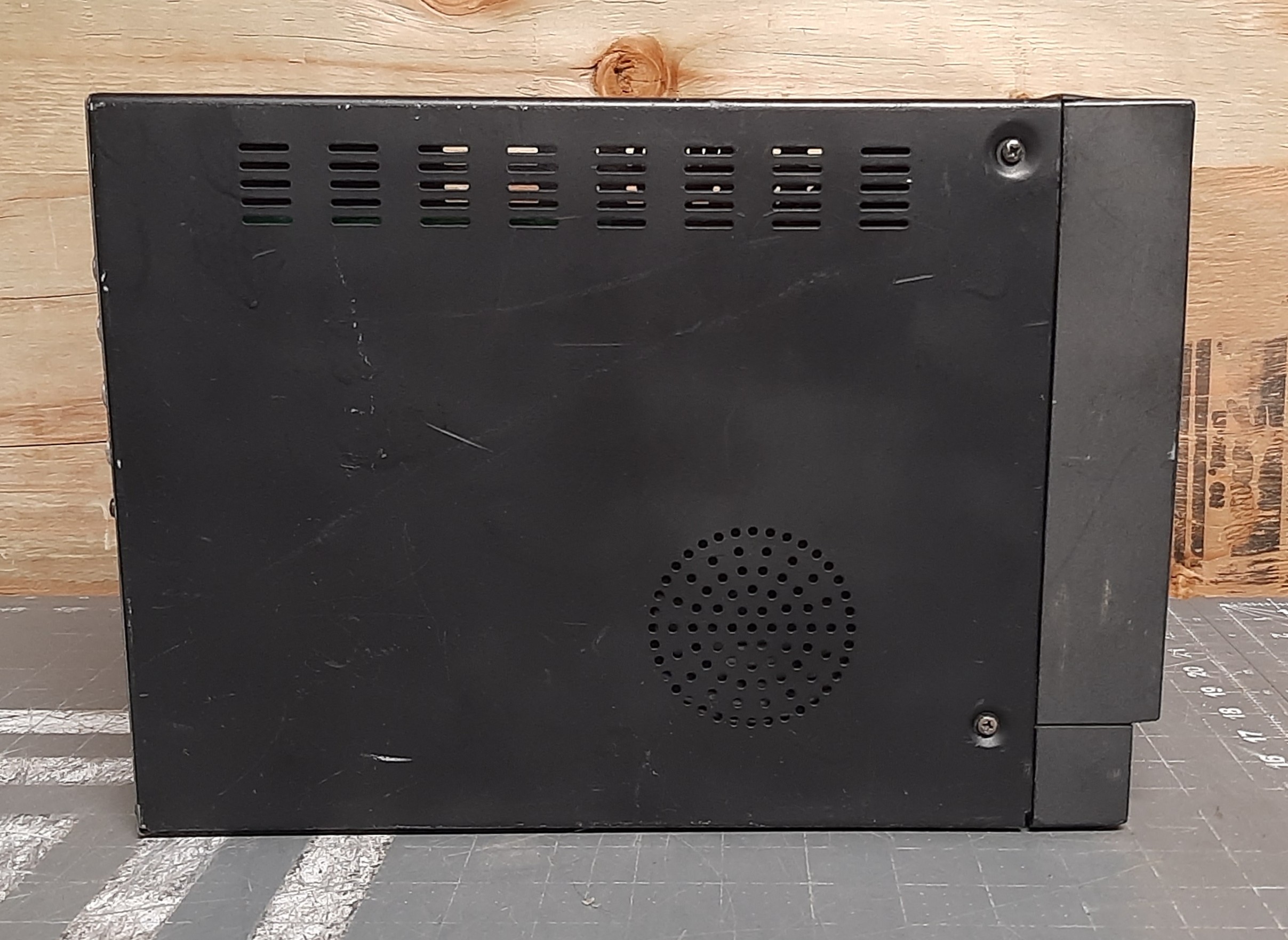

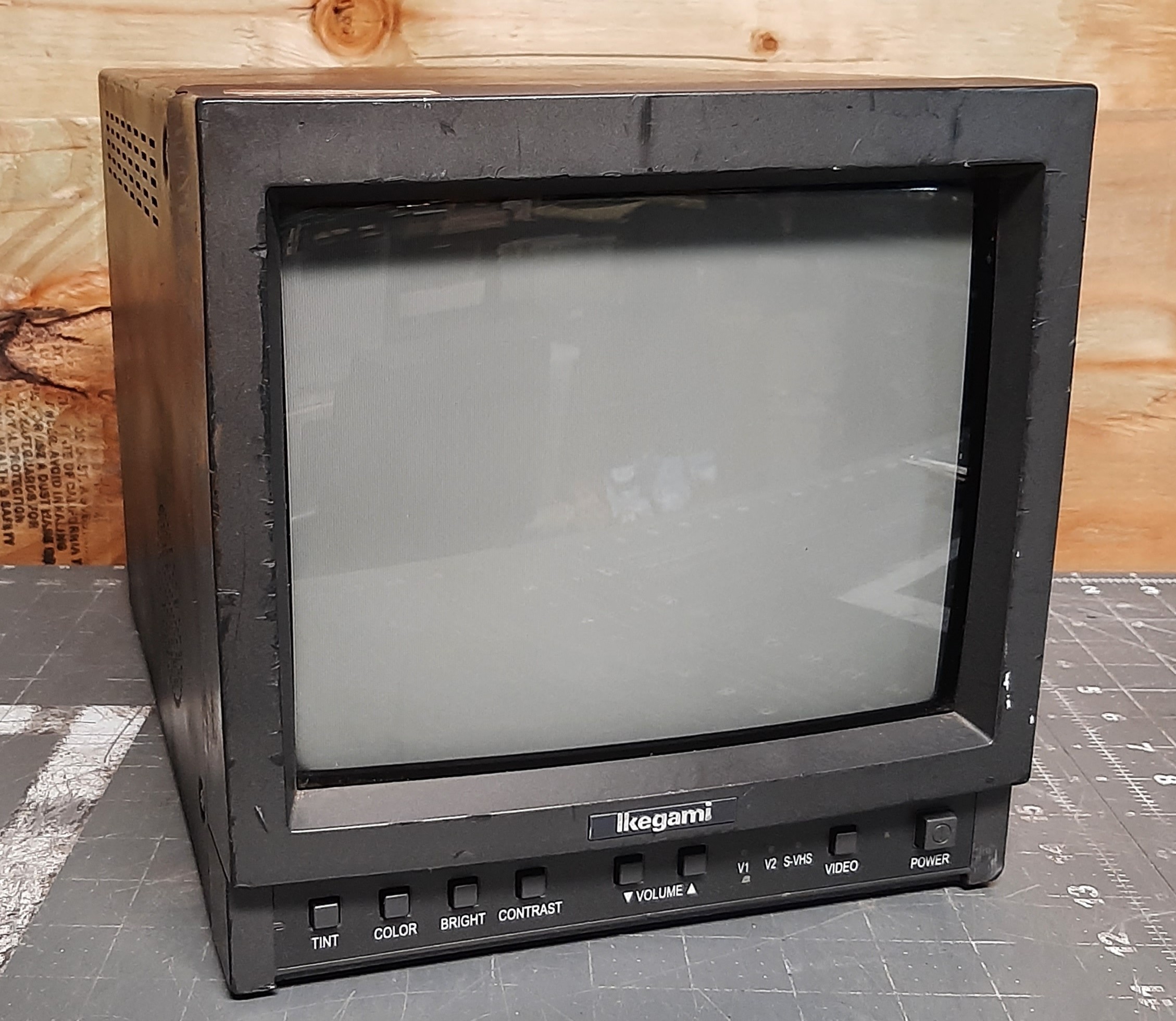

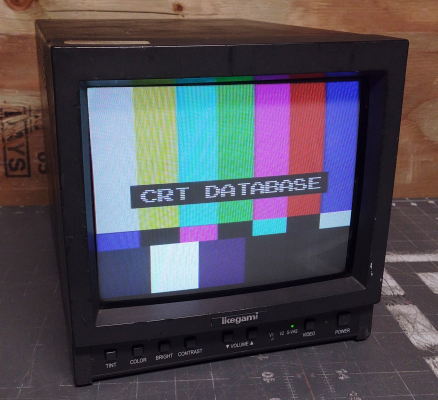

Gallery
| Specifications | |
|---|---|
| Brand: | Ikegami |
| Manufacturer: | KTV Corporation |
| Model: | VCM-901 |
| Series: | VCM |
| Viewable Size: | 9" |
| Inputs: | Composite, S-Video |
| Native Resolutions: | 240p, 480i |
| Linecount: | 300 TVL |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 50 Hz, 60 Hz |
| Formats: | NTSC, PAL |
| Aspect: | 4:3 |
| Adjustments: | Front Mounted Buttons |
| Horz. Output Transistor: | D2499 |
| Vertical Output IC: | TDA8356 |
| Jungle: | TDA8842 |
| Flyback: | MCE-09A07 |
| Tube: | Panasonic , A22JWG099X11 , A22JWG099X |
| Deflection: | 90° |
| Mask: |
Slot
|
| Pitch: | 0.5 mm |
| Tint: | Dark |
| Yoke: | KDY3CFB32M |
| Yoke Horz. Inductance: | 5.298 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 25.04 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | 7.2 ohm |
| Yoke Vert. Resistance: | 11.1 ohm |
| Speakers: | Mono |
| Weight: | 15 lbs (7 kg) |
| Application: | Commercial |
| Country of Manufacture: | Korea |
| Mounting: | Rackable |
| Degaussing: | Automatic on Power-on |
