Summary

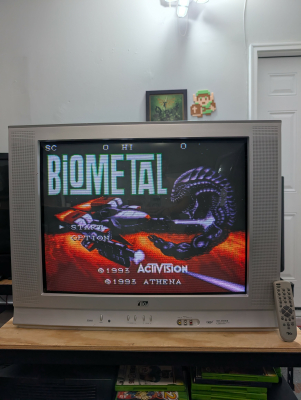

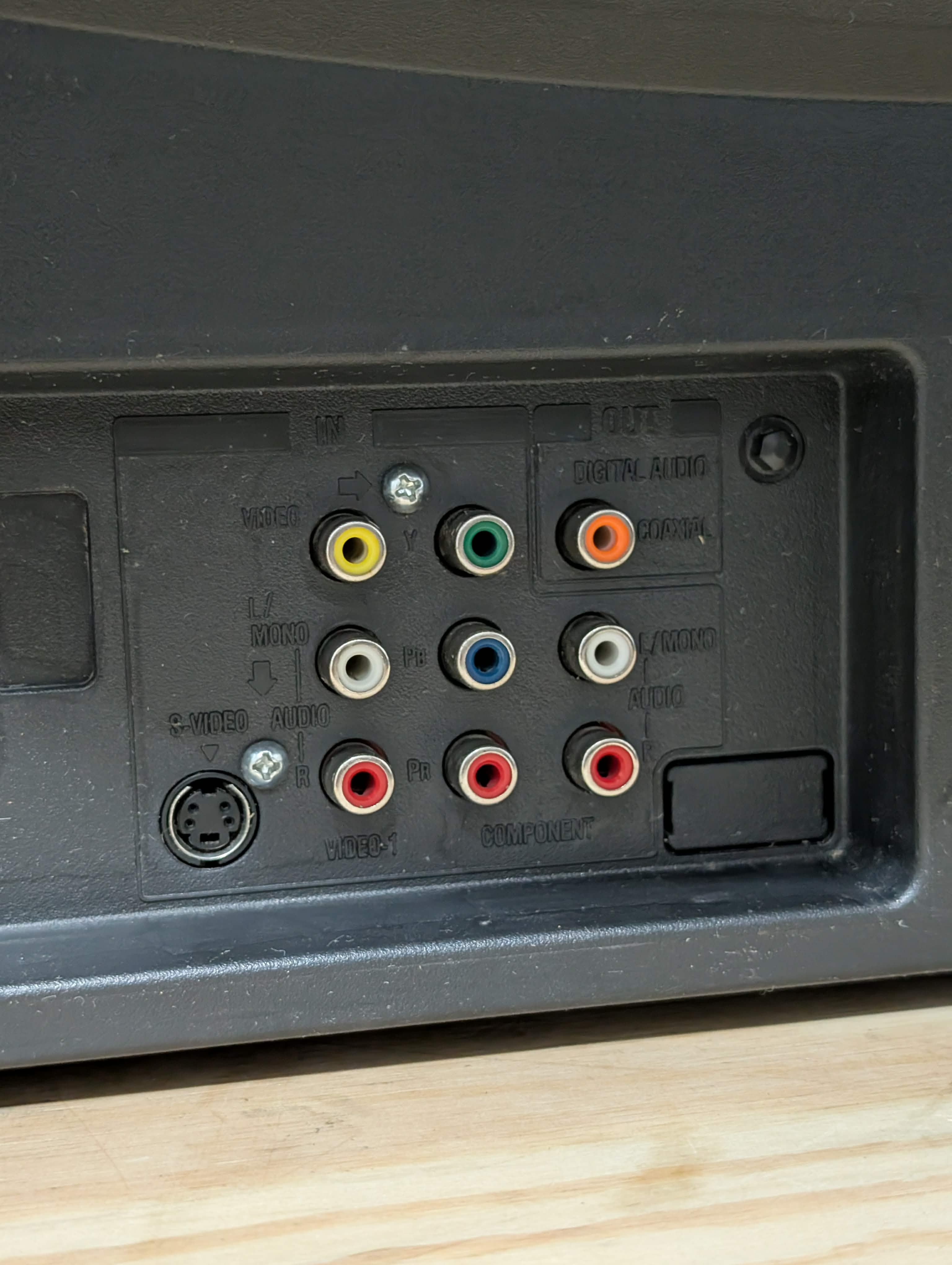

27" curved-screen CRT by Ilo, made by Orion in Thailand in 2006. Has RF, composite, s-video, and component inputs with stereo sound. Also features a digital tuner and digital audio output.
(Special thanks to Michael Lopez for the pics!)
Manuals
Notes
This set is essentially a rebadge of a Toshiba 27D46. Component video quality from the Sanyo jungle chip is underwhelming, but over composite and s-video it fares better.
Gallery
| Specifications | |
|---|---|
| Brand: | Ilo |
| Manufacturer: | Orion |
| Model: | DTV2784 |
| Series: | DTV |
| Viewable Size: | 27" |
| Input Signals: | Composite, S-Video, RF, Component YPbPr |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Vertical Output IC: | Sanyo, LA7847 |
| Jungle IC: | Sanyo, LA76327M-B-MPB-E, LA76327M |
| Comb Filtering: | 3-Line Digital |
| Comb Filter IC: | Sanyo, LA76605M-TLM |
| Flyback: | FJN27A003M |
| Focus Type: | Single |
| Tube: | Matsushita-Toshiba , M68LWF088X , M68LWF088X50 |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Speakers: | Stereo, 1W x 2 |

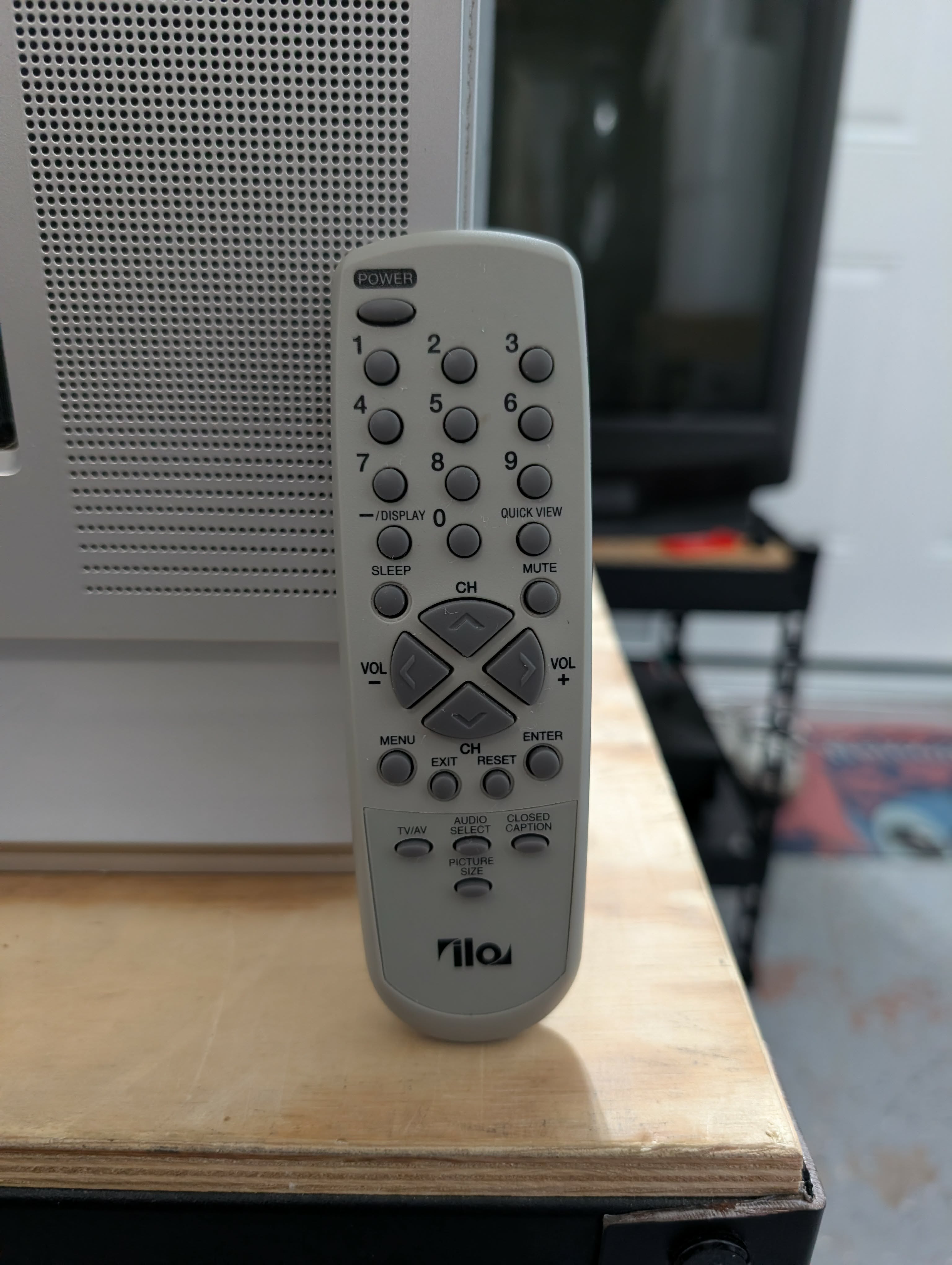

| Remote: | RC-KL |
| Chassis: | M3W423 |
| Weight: | 77.2 lbs (35 kg) |
| Dimensions (W/H/D): |
740 x 572 x 490 mm
(29.1 x 22.5 x 19.3") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2006 |
| MSRP: | 249 USD |
| Country of Manufacture: | Thailand |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
