Summary

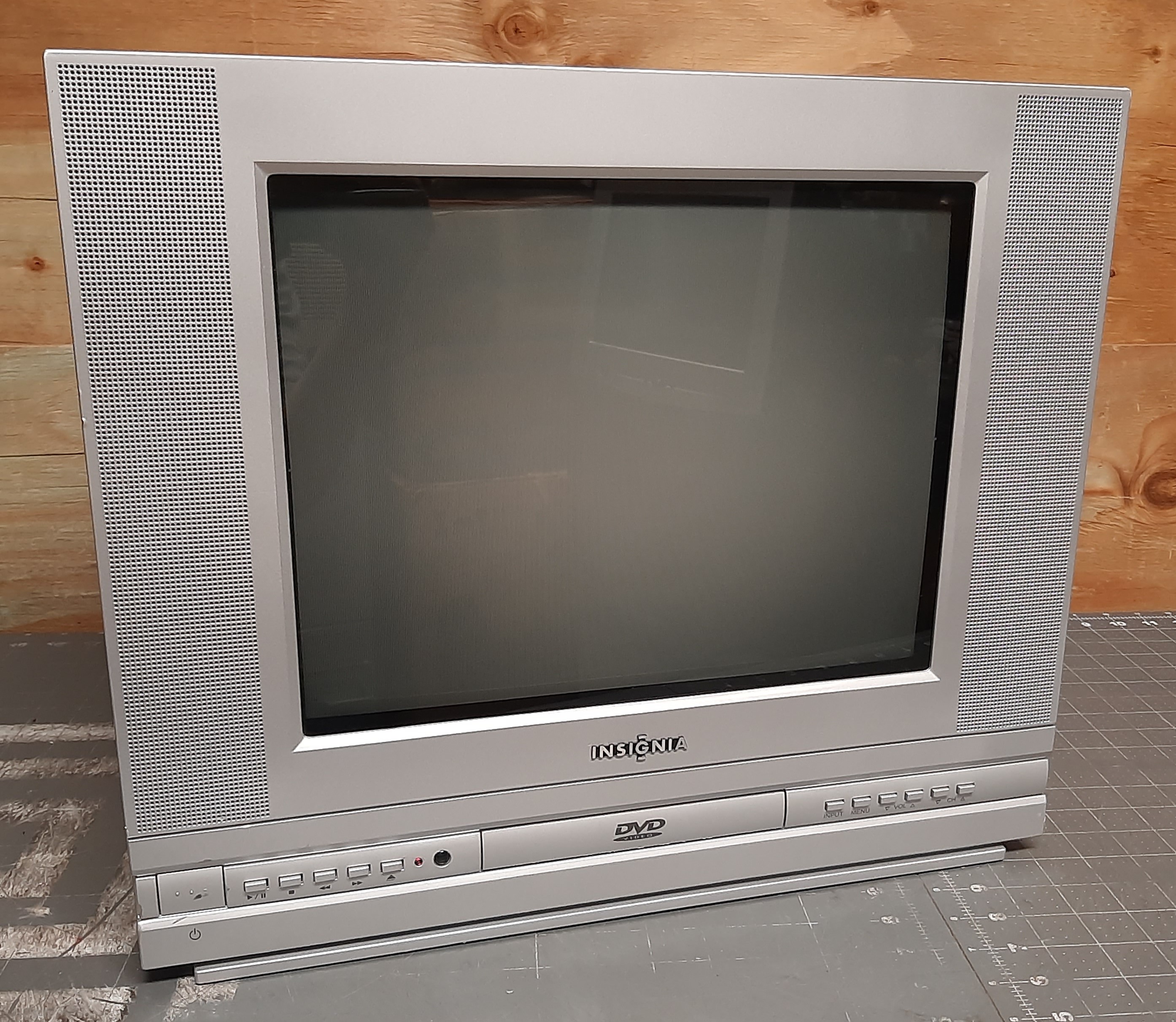

14" flat TV/DVD combo, sold by Best Buy under the Insignia label. Has RF and two composite inputs. Manufactured by Konka.
Literature
Notes

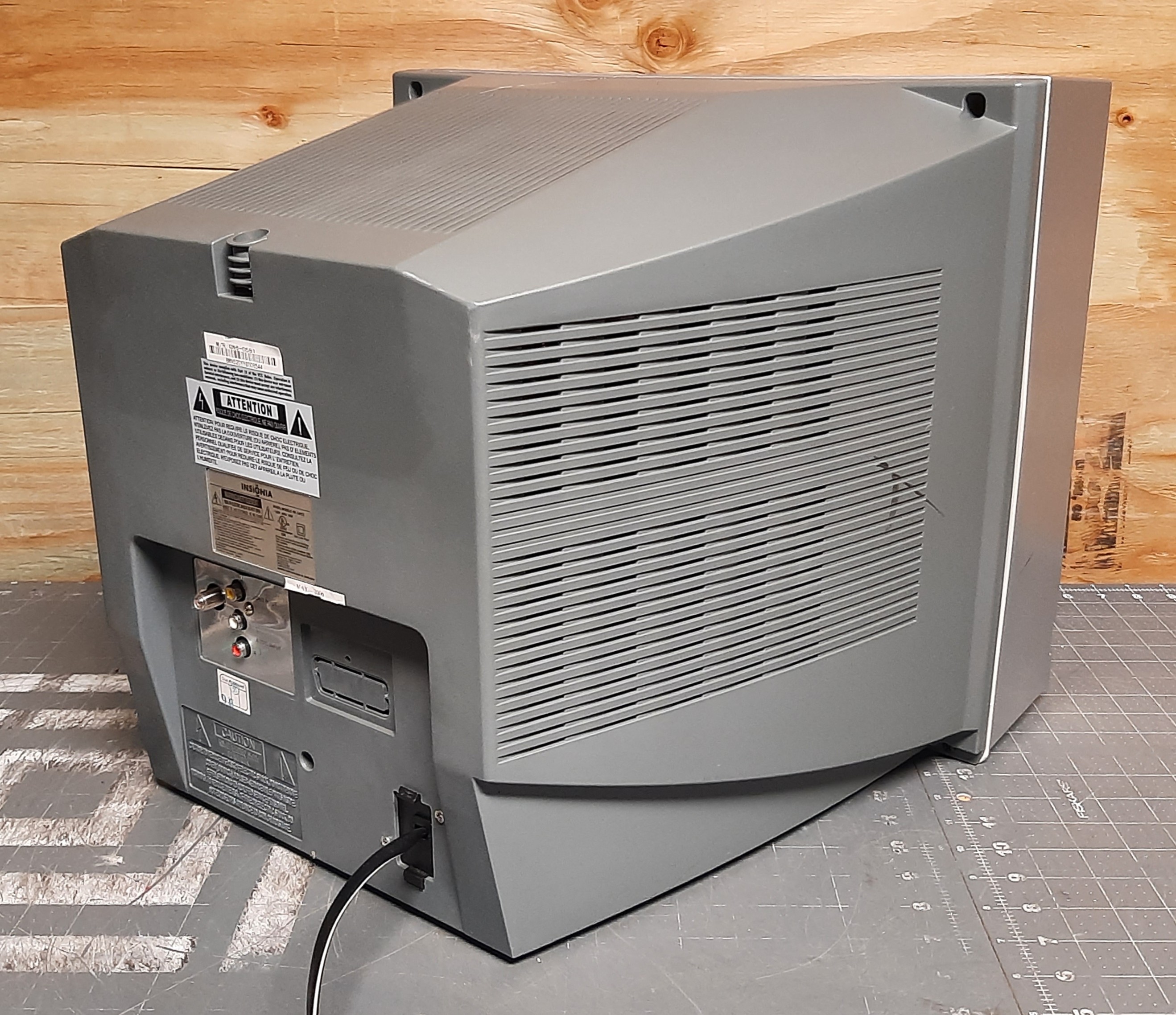

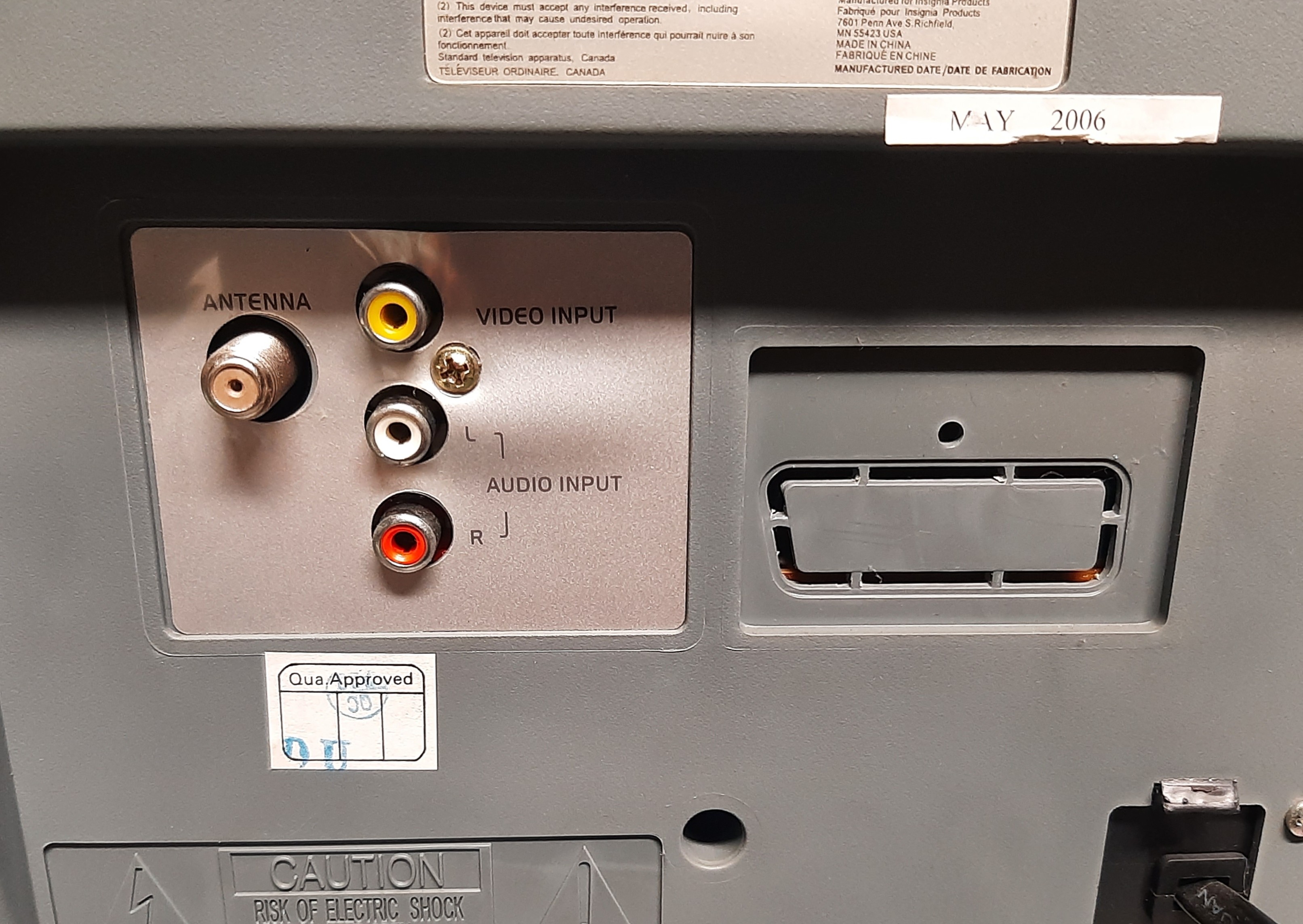

The back of the case has a cutout for a SCART connector. However, there is no corresponding circuitry behind it.
While not verified, service menu operation is likely the same as on the IS-TV040918, also made by Konka.

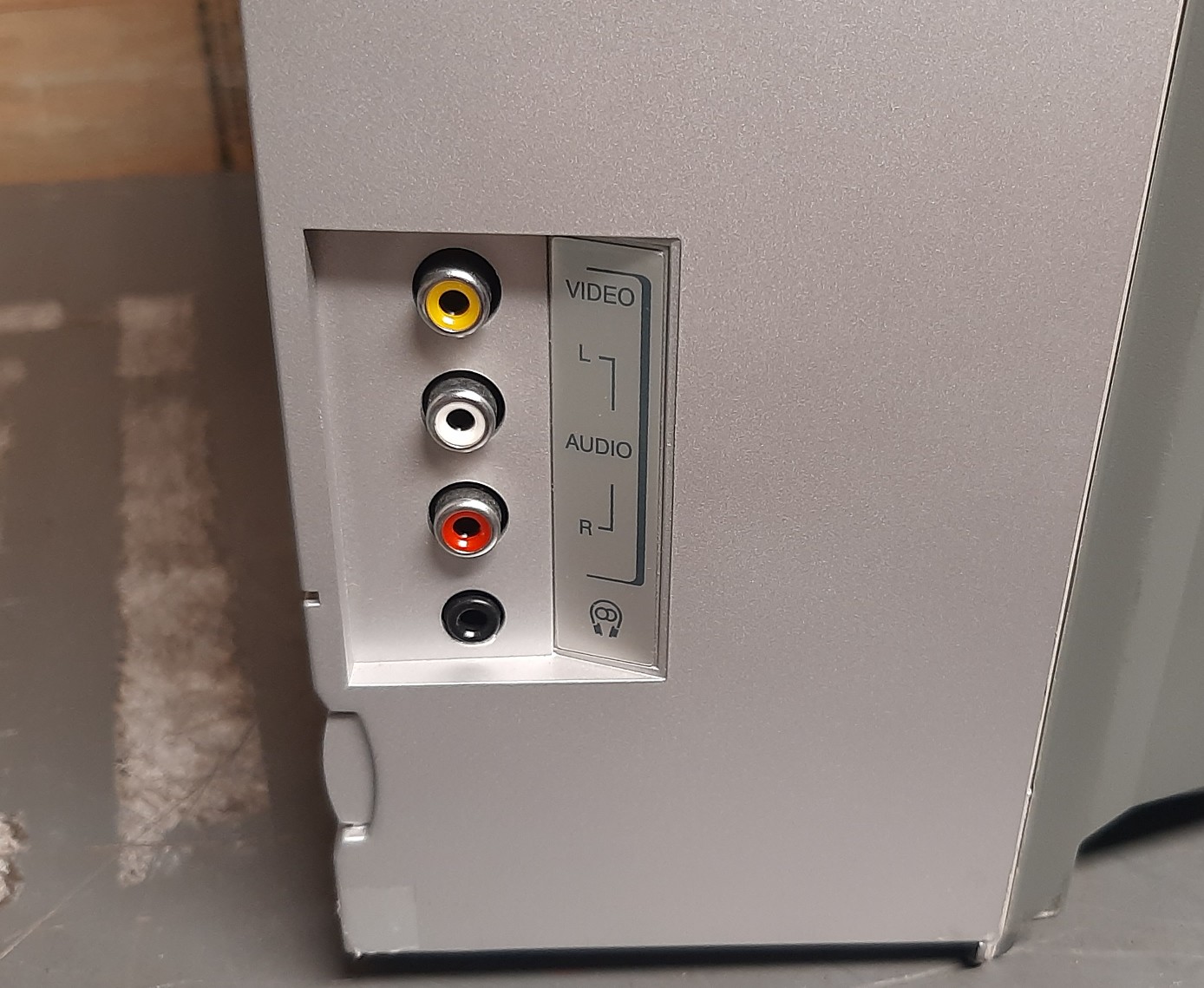

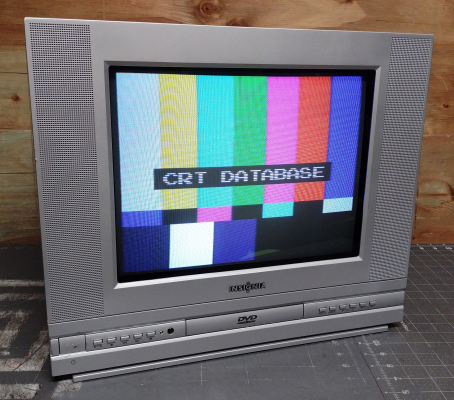

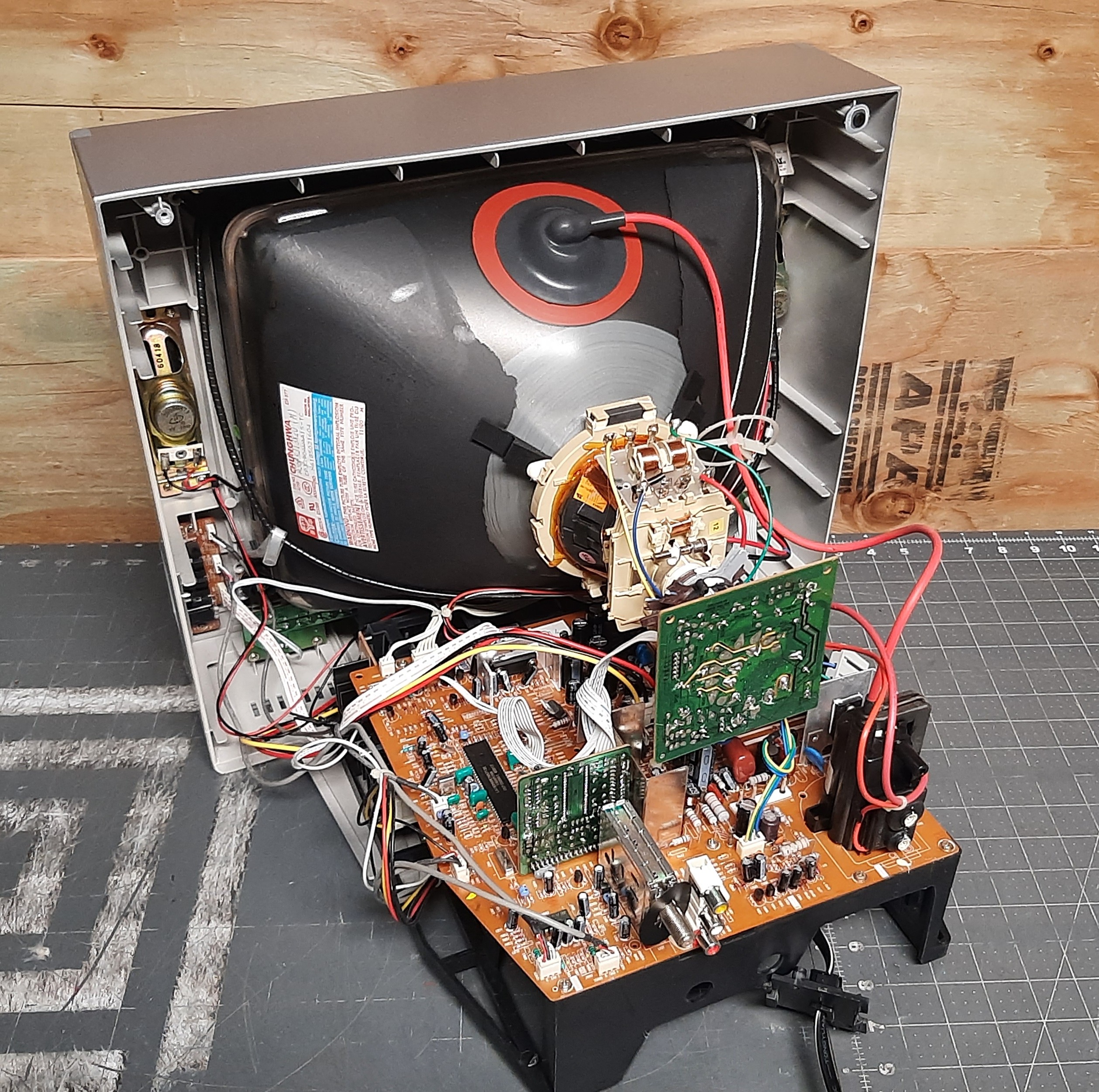

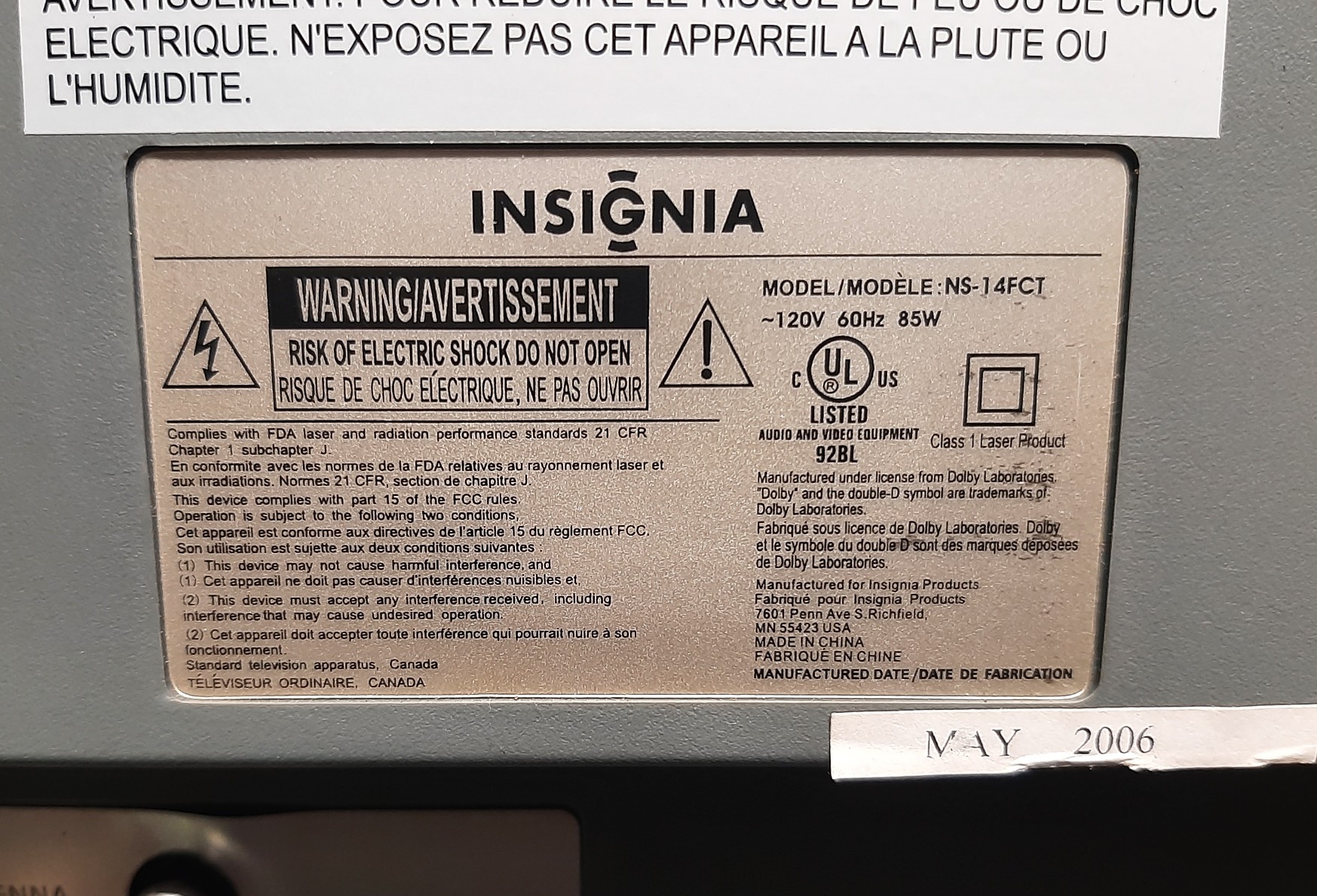

Gallery
| Specifications | |
|---|---|
| Brand: | Insignia |
| Manufacturer: | Konka |
| Model: | NS-14CTV |
| Series: | TV/DVD Combo |
| Viewable Size: | 14" |
| Inputs: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls |
| Horz. Output Transistor: | D2102 |
| Vertical Output IC: | LA78040 |
| Jungle IC: | LA76950N |
| Comb Filtering: | None |
| Flyback: | JF0501-19521 |
| Focus Type: | Single |
| Tube: | Chunghwa , A36AKJ13X20 , A36AKJ13X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke Horz. Inductance: | 2.615 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 5.210 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | 0.38 ohm |
| Yoke Vert. Resistance: | 6.02 ohm |
| Speakers: | Stereo |
| Remote: | KK-Y295J |
| Weight: | 30.6 lbs (13.9 kg) |
| Dimensions (W/H/D): |
438 x 371 x 432 mm
(17.2 x 14.6 x 17") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2006 |
| Country of Manufacture: | China |
| Market: | North America |
| Power Standard: | 120v |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Service Manual |
