Insignia NS-14FTV

SegaSaturn94
August 10, 2025, 12:03 pm
August 19, 2025, 5:11 am

Summary

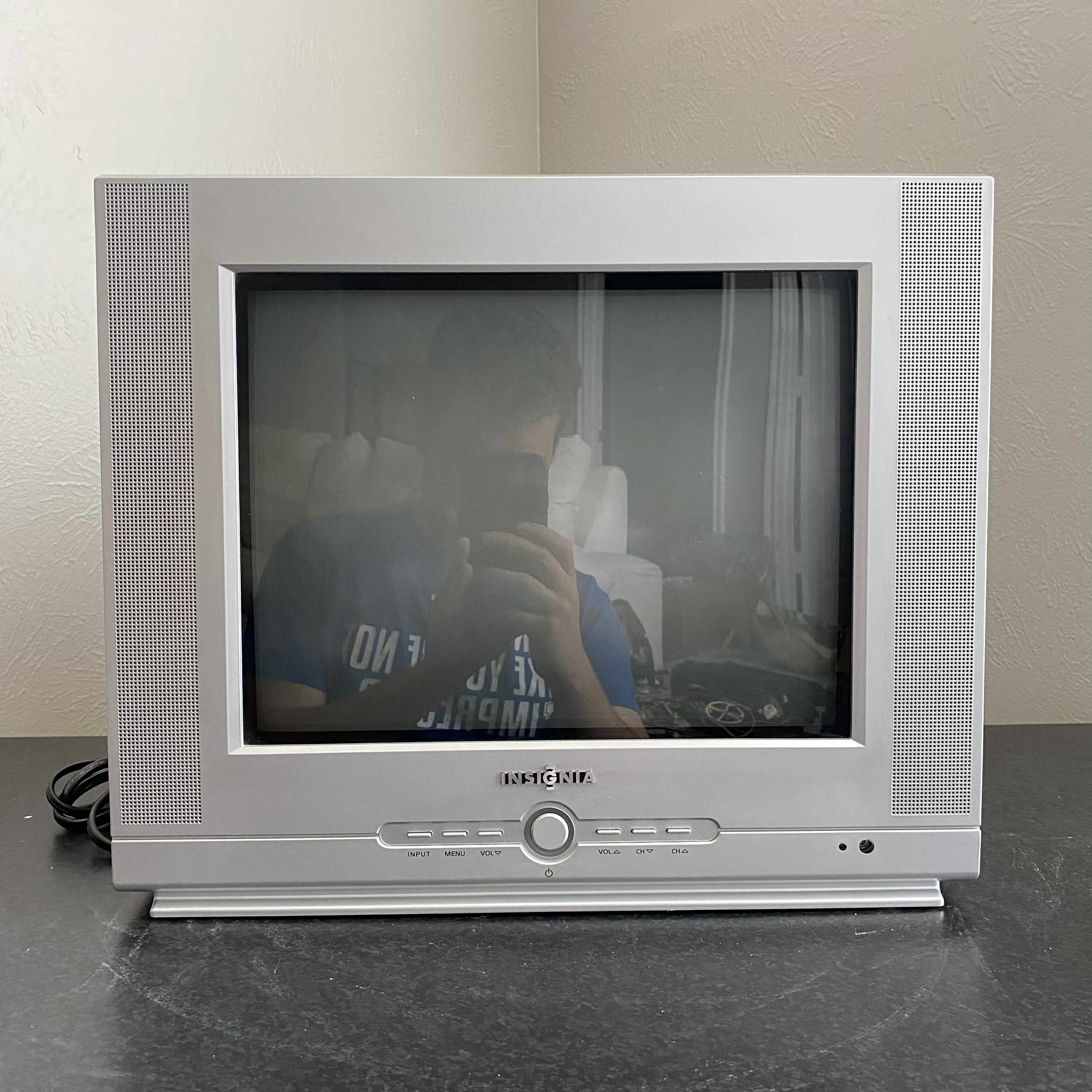

14" flat CRT by Insignia, sold at Best Buy in 2006. Has RF, composite, and s-video inputs. Originally manufactured by Konka in China.

(Special thanks to Kyle Mazabob for most of the pics!)

Literature

Notes

The back of the case has a cutout for a SCART connector. However, there is no corresponding circuitry behind it.

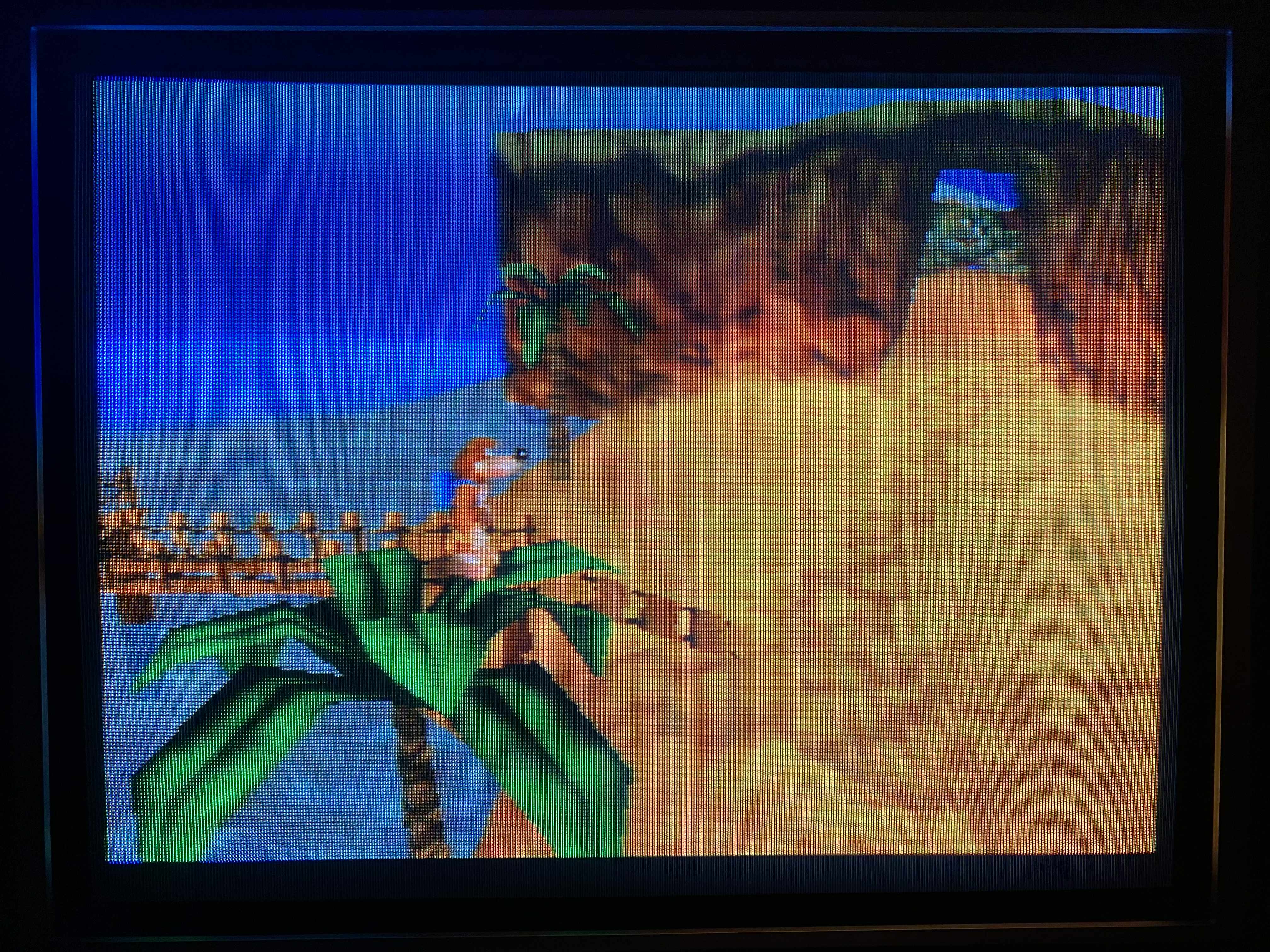

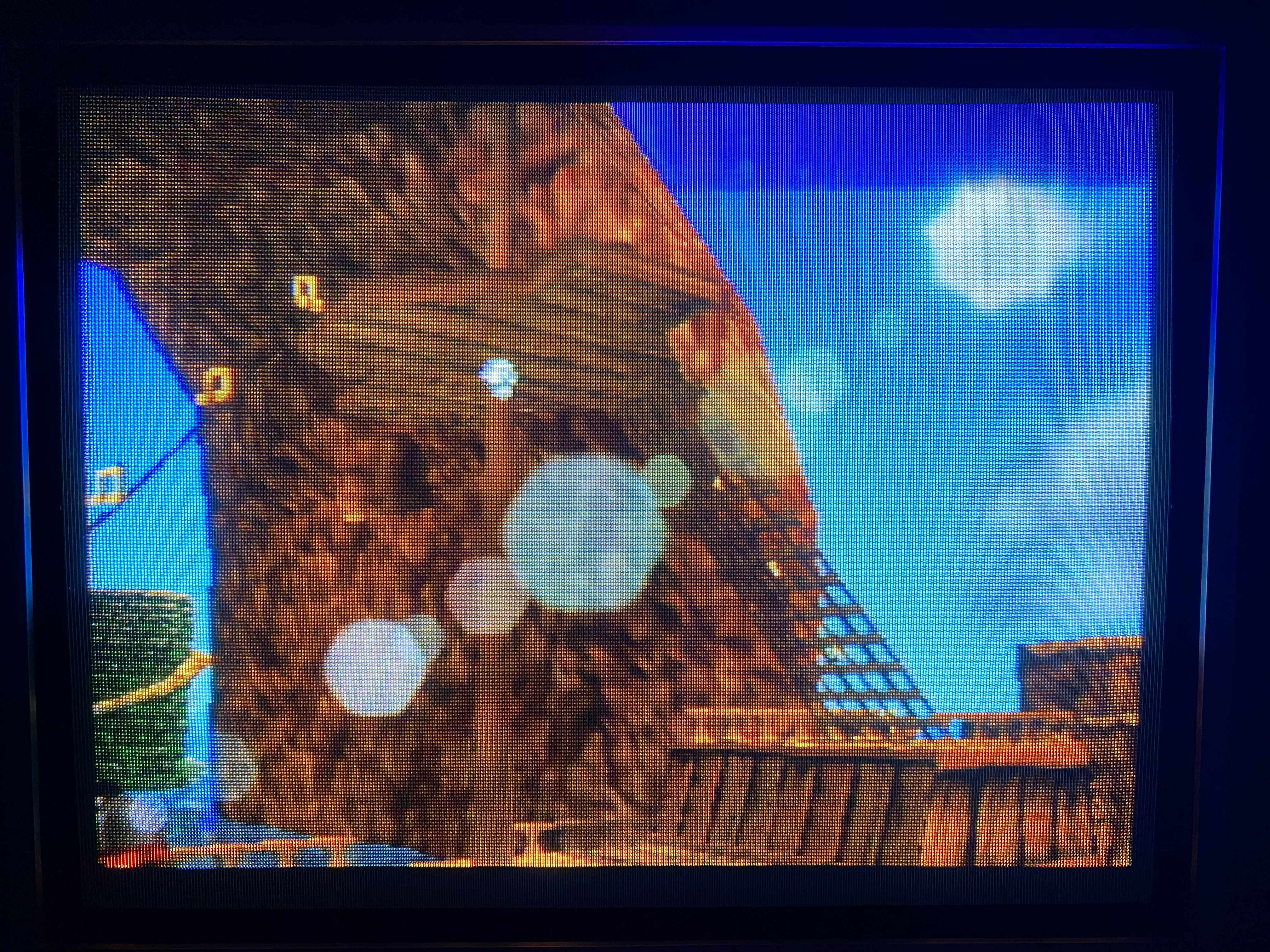

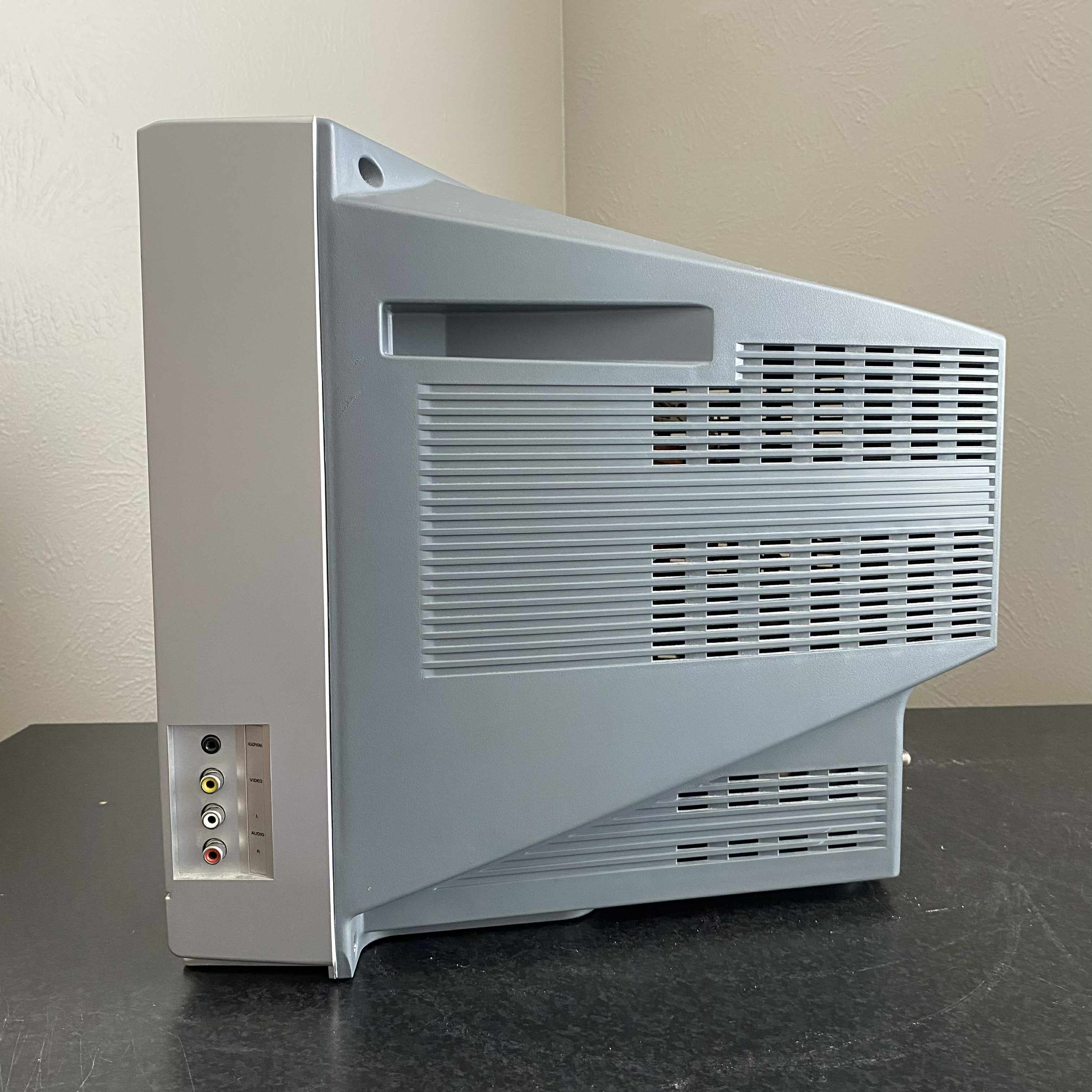

Gallery

Insignia NS-14FTV Insignia NS-14FTV Insignia NS-14FTV Insignia NS-14FTV Insignia NS-14FTV Insignia NS-14FTV Insignia NS-14FTV Insignia NS-14FTV Insignia NS-14FTV Insignia NS-14FTV Insignia NS-14FTV Insignia NS-14FTV Insignia NS-14FTV Insignia NS-14FTV Insignia NS-14FTV Insignia NS-14FTV Insignia NS-14FTV Insignia NS-14FTV Insignia NS-14FTV Insignia NS-14FTV Insignia NS-14FTV Insignia NS-14FTV Insignia NS-14FTV Insignia NS-14FTV
Specifications
Brand: Insignia

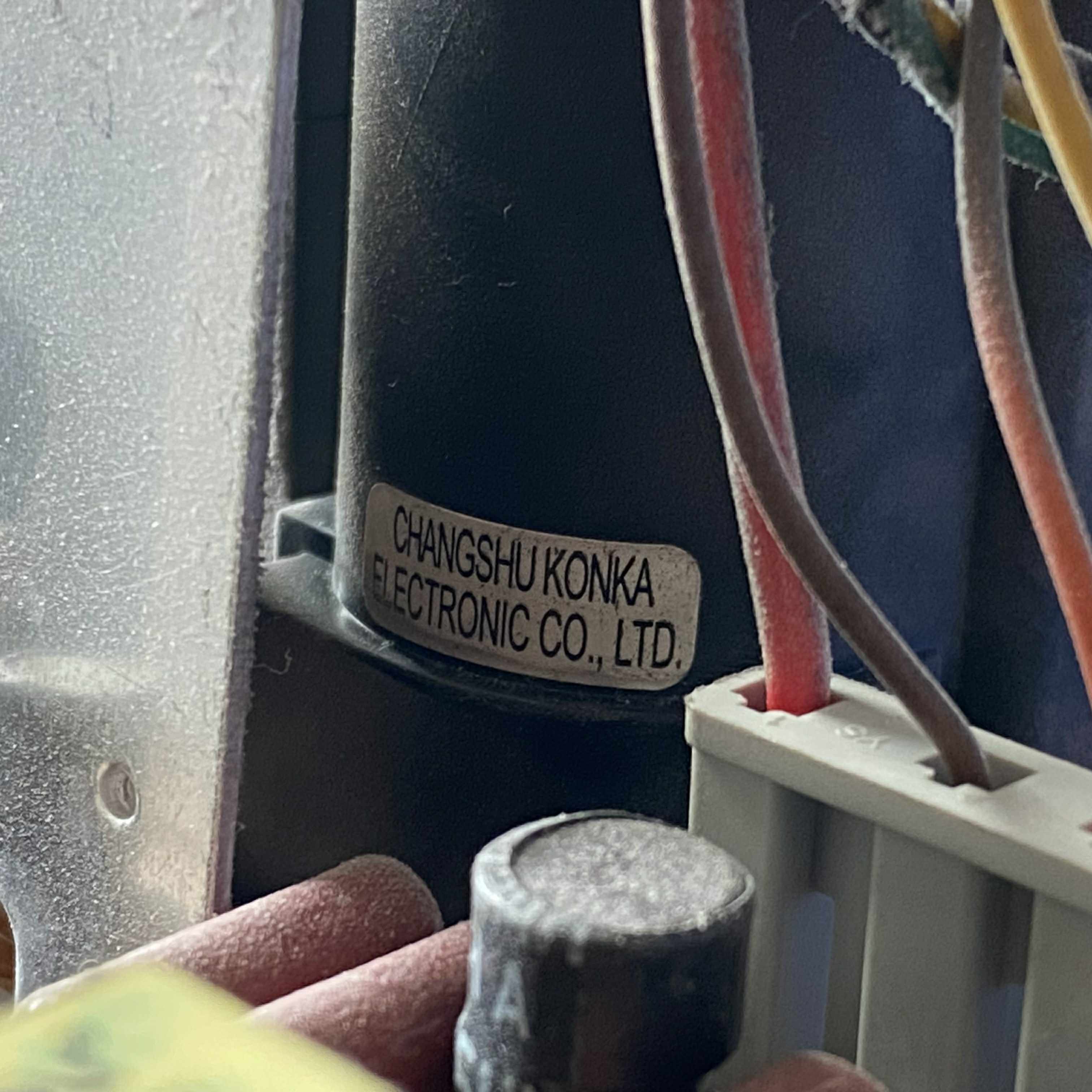

Manufacturer: Konka
Model: NS-14FTV
Series: FTV
Viewable Size: 14"

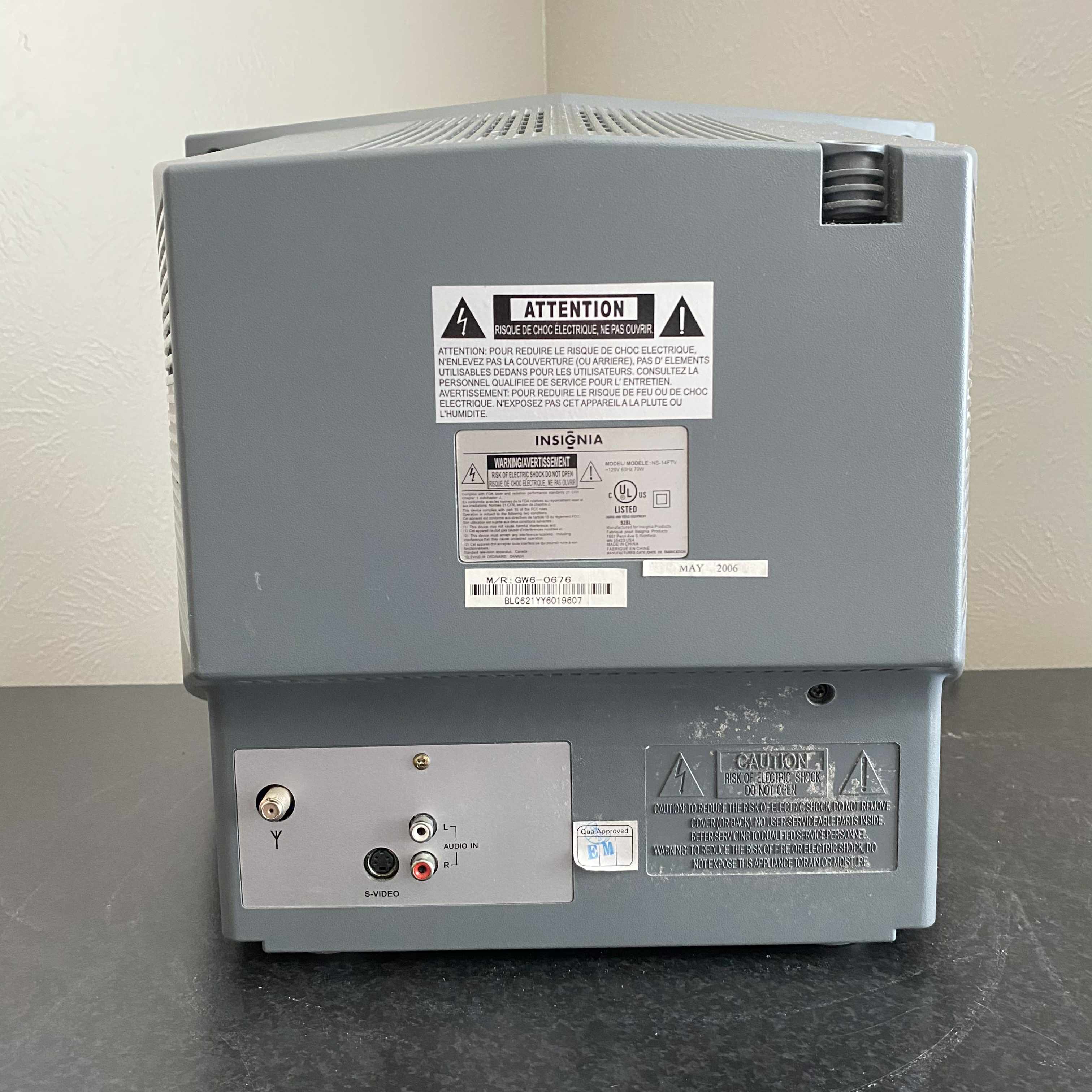

Inputs: Composite, S-Video, RF
Native Resolutions: 240p, 480i
Horizontal Scan Range: 15 kHz
Vertical Scan Range: 60 Hz
Formats: NTSC
Aspect: 4:3

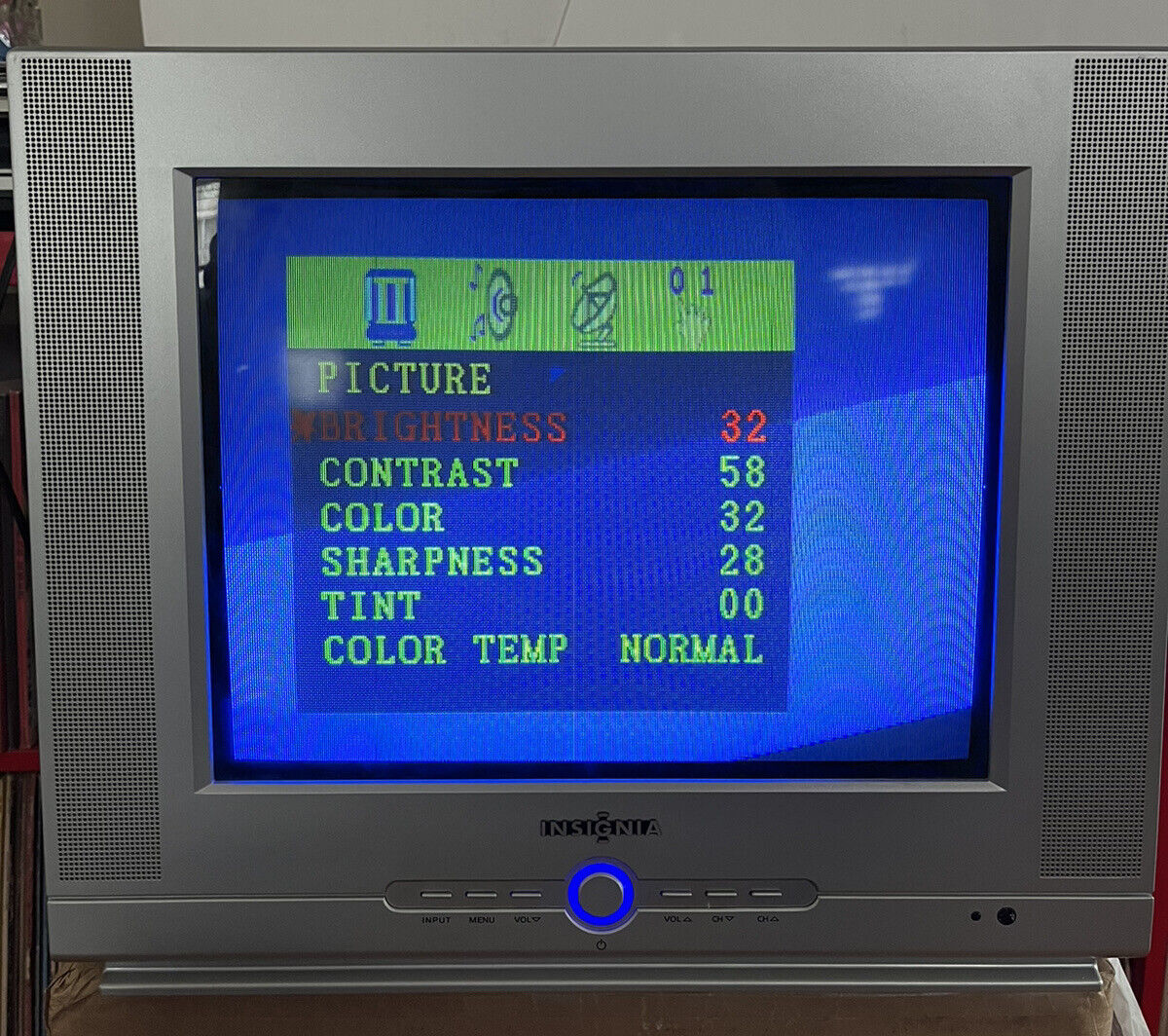

Adjustments: OSD Customer Controls, OSD Service Menu

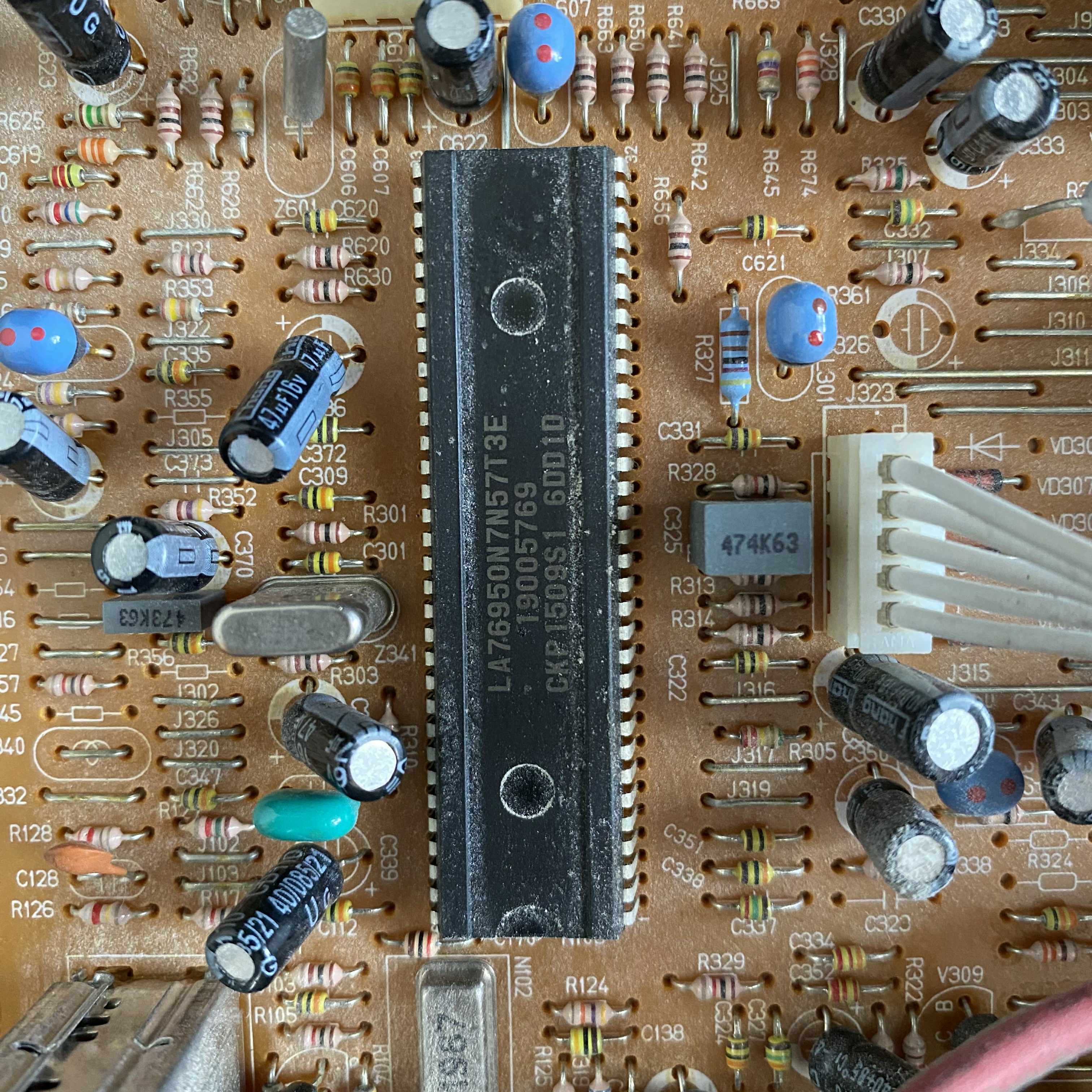

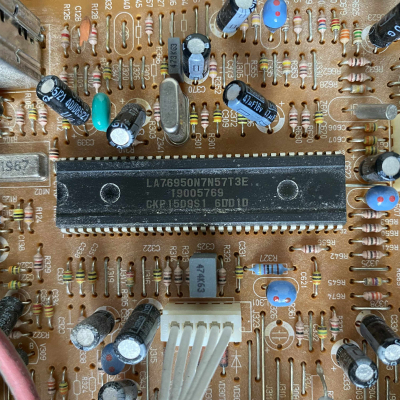

Jungle IC: Sanyo, LA76950N

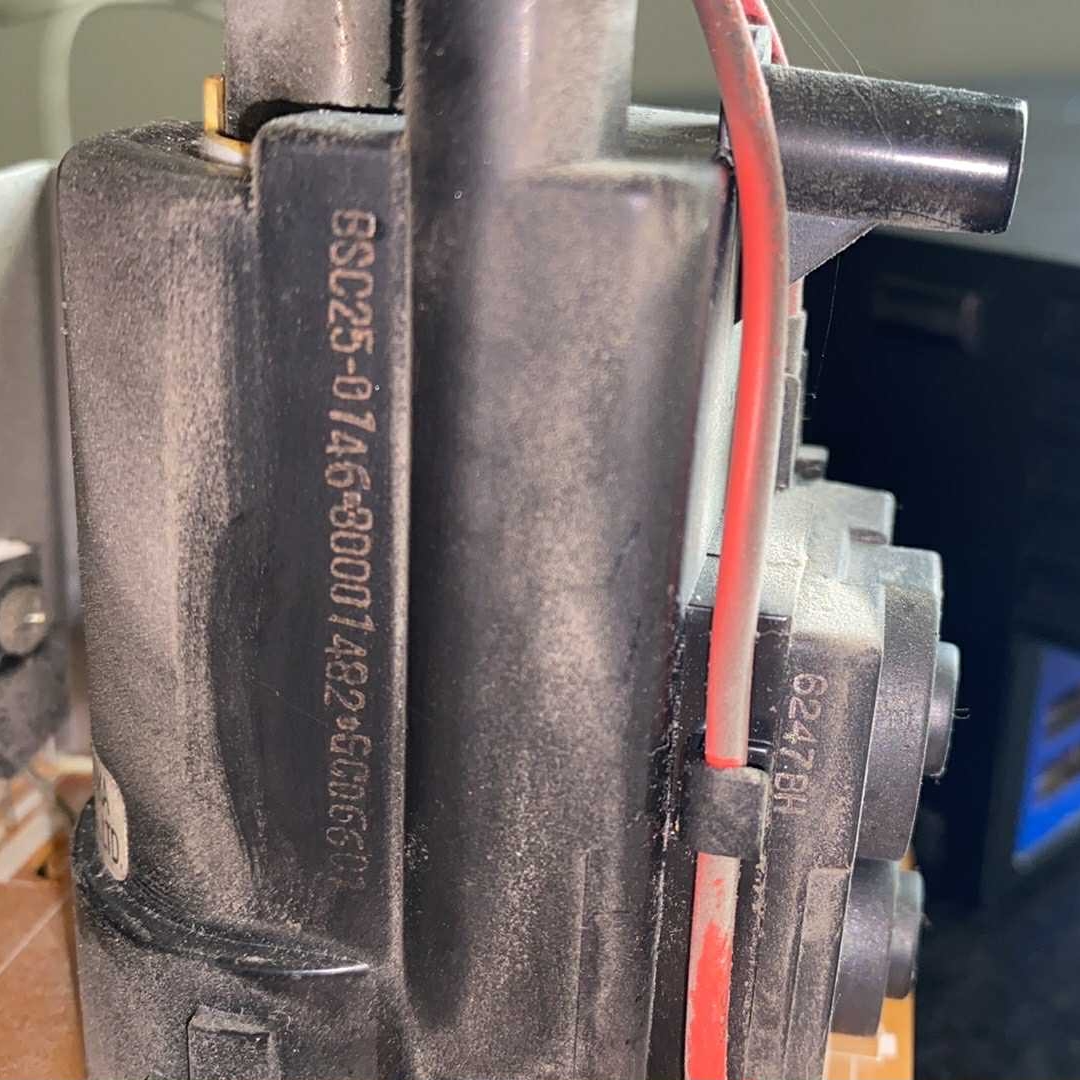

Flyback: BSC25-0146

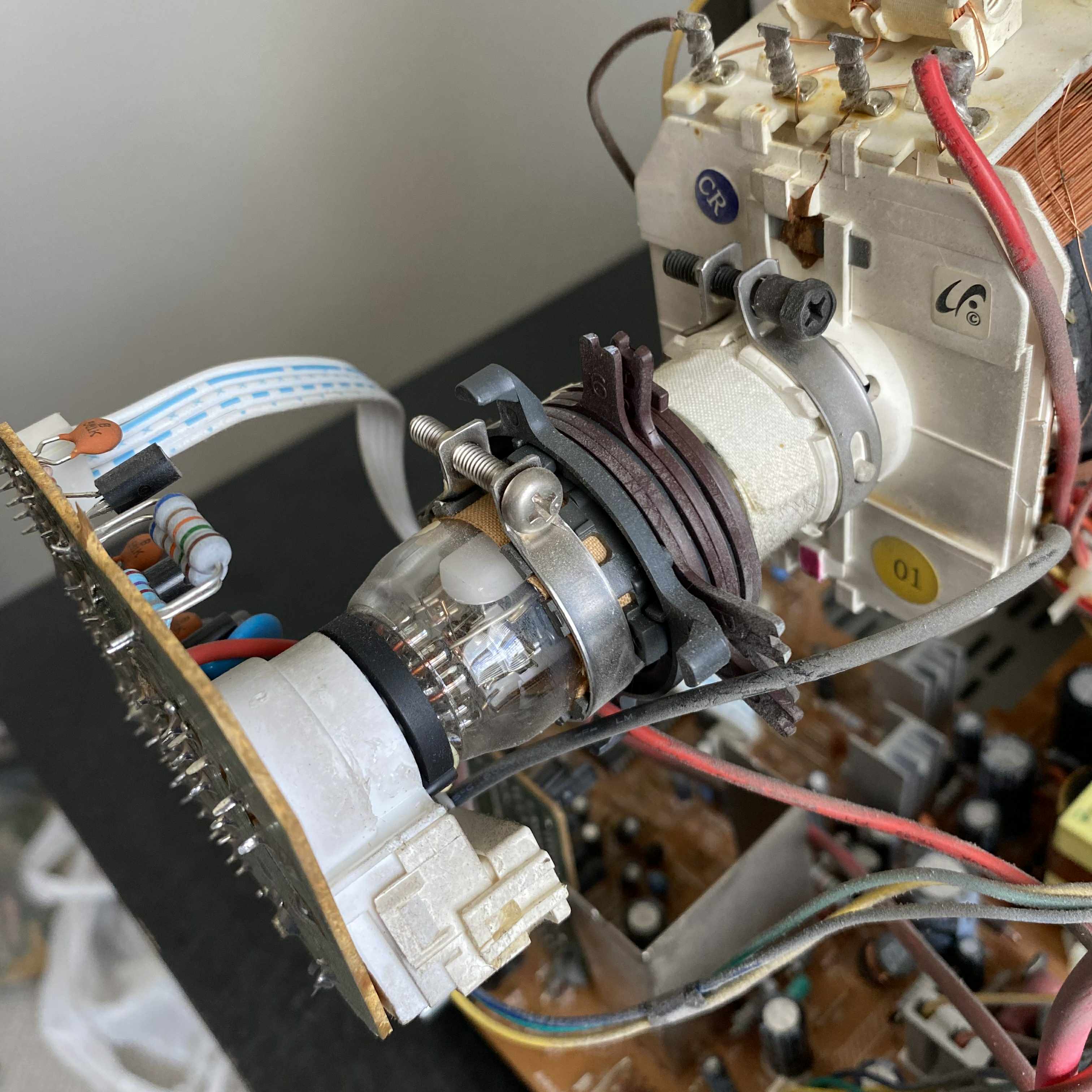

Focus Type: Single

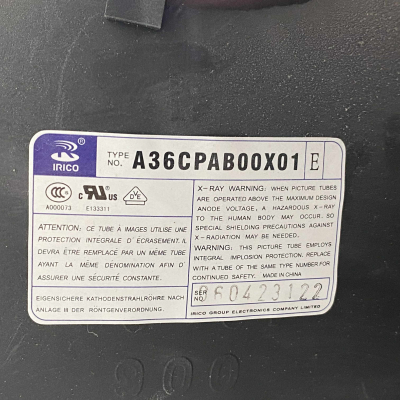

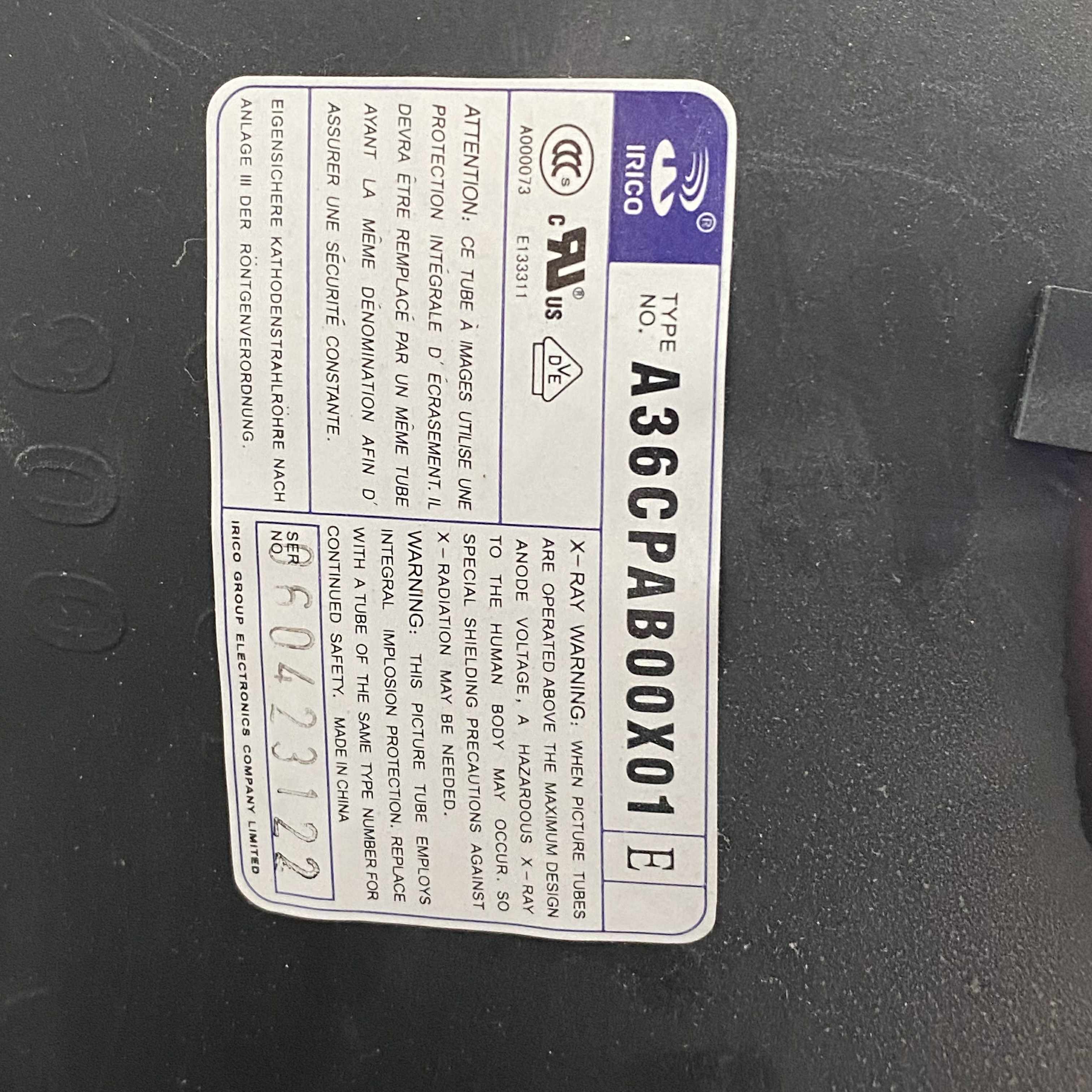

Tube: Irico , A36CPAB00X , A36CPAB00X01
Heater Voltage: 6.3v
Mask: Slot
Tint: Dark
Removable Glare Film: No

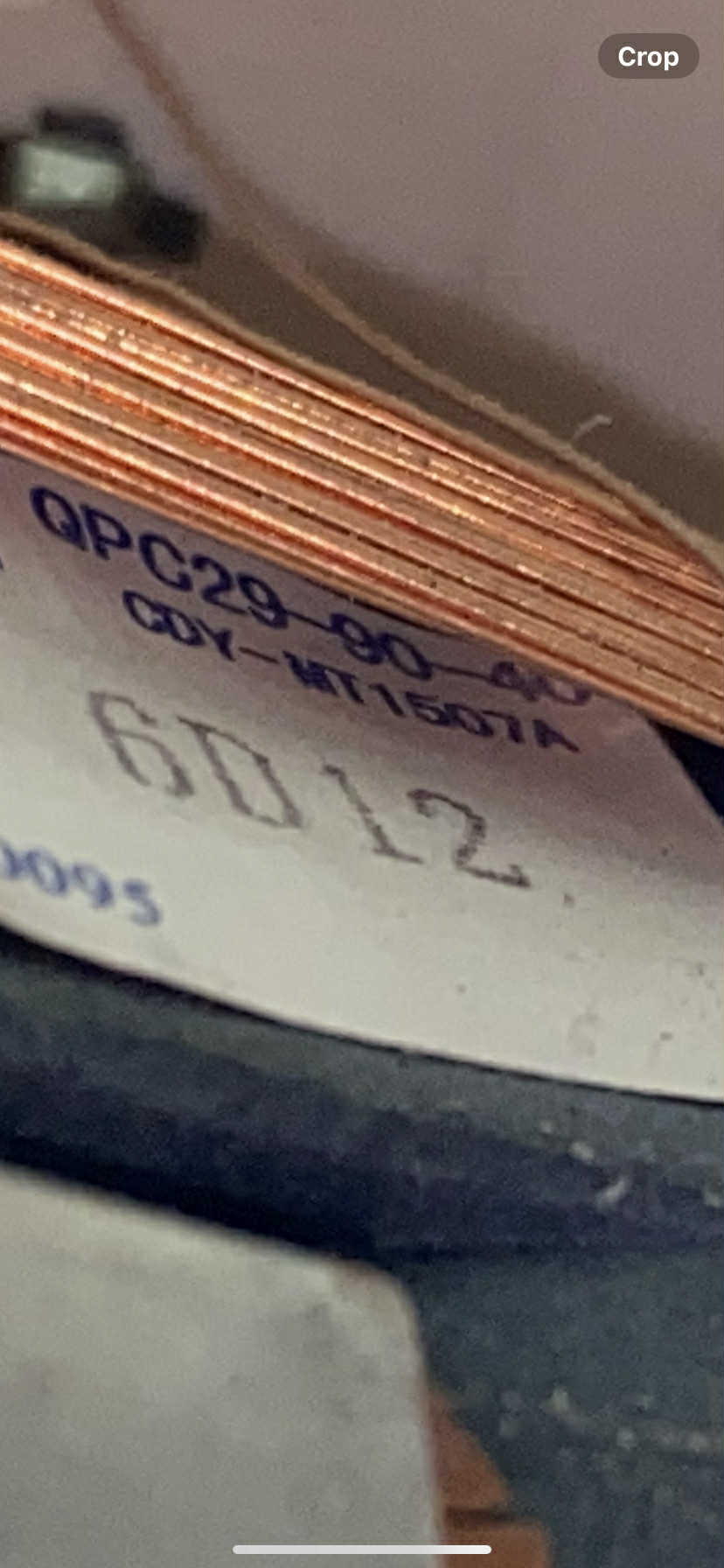

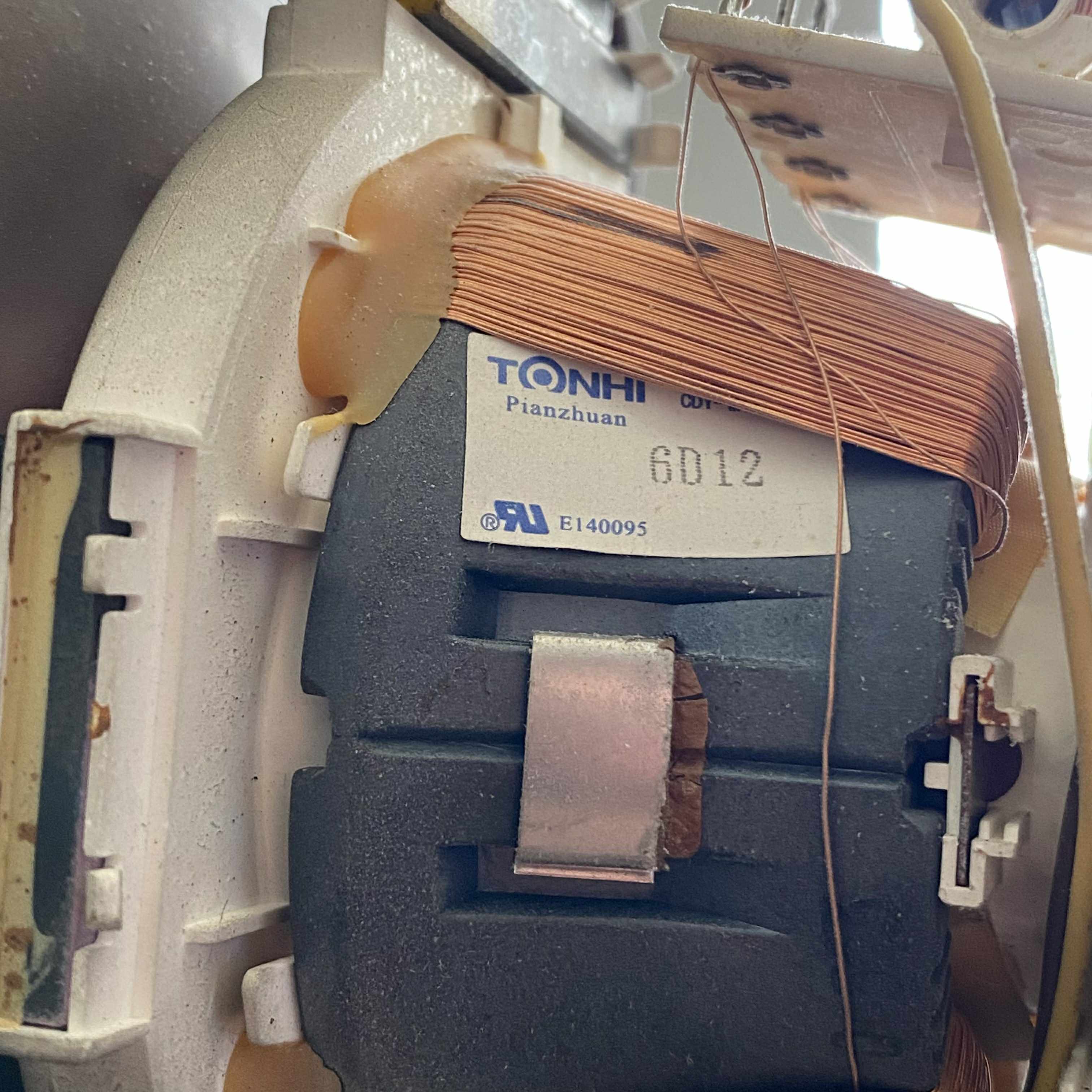

Yoke: CDY-MT1507A, QPC29-90-40

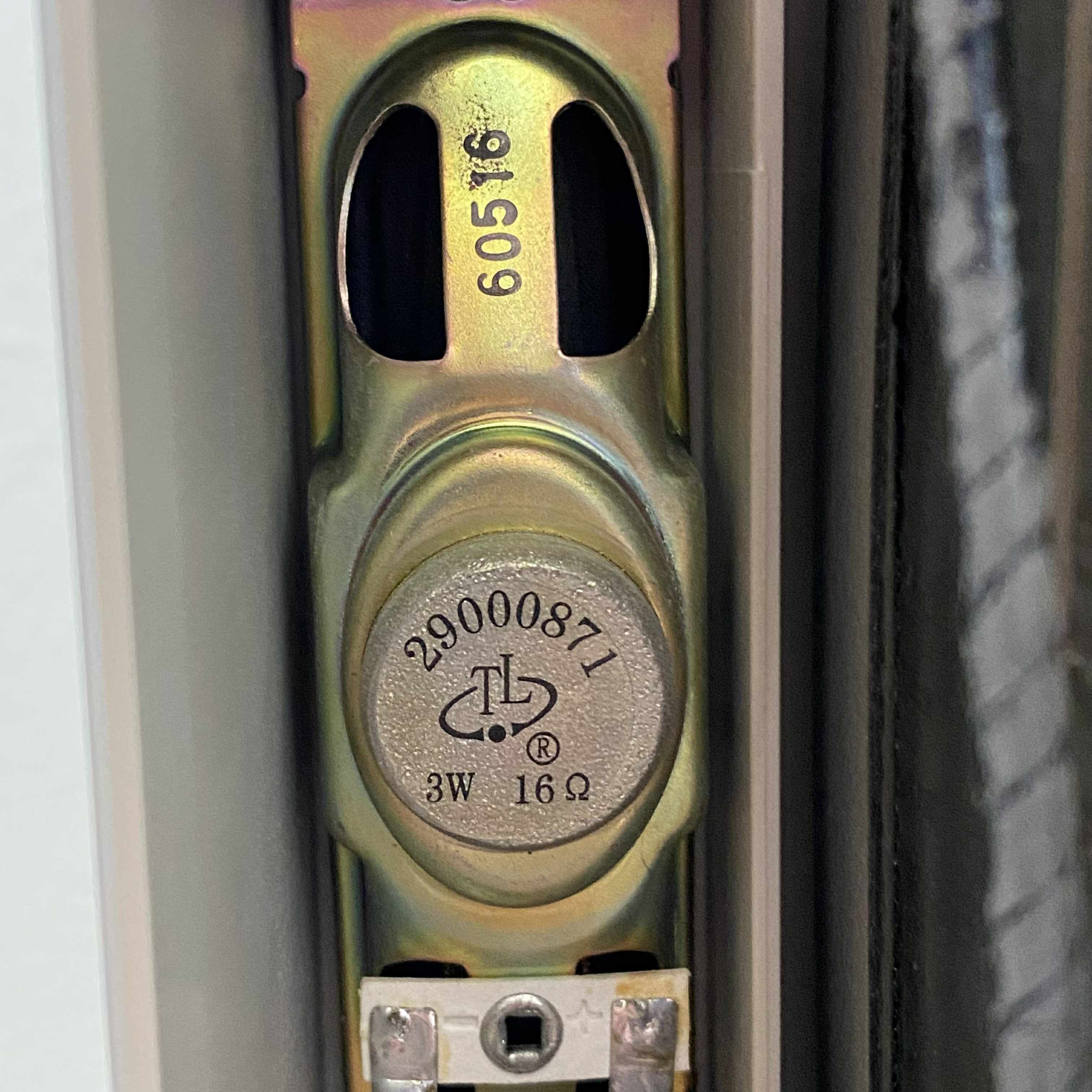

Speakers: Stereo, Headphone Jack, 3W x 2

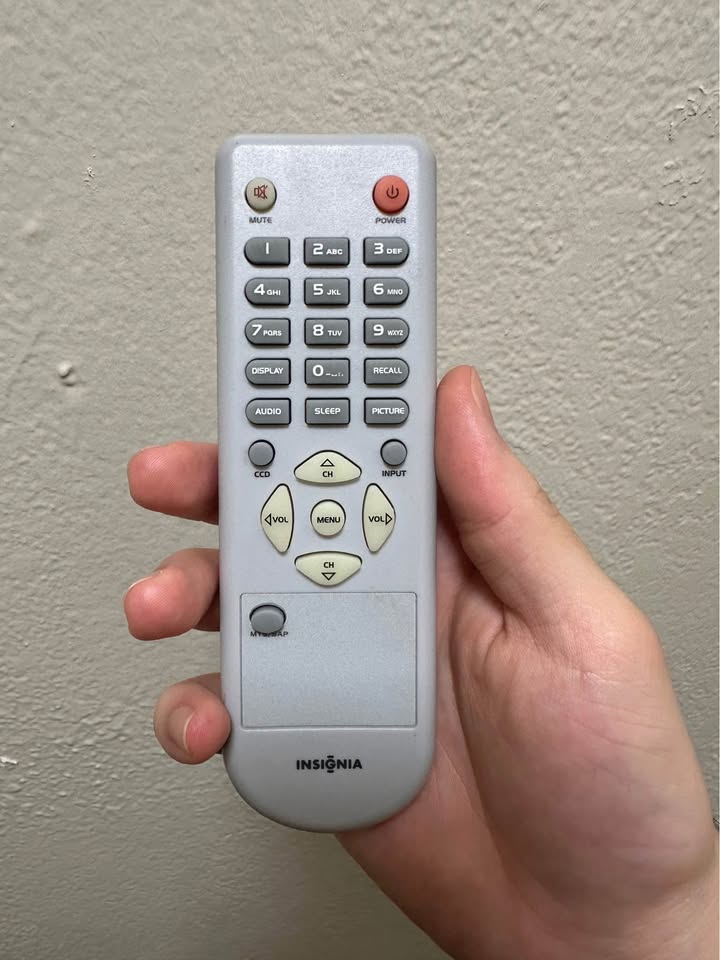

Remote: KKY299A

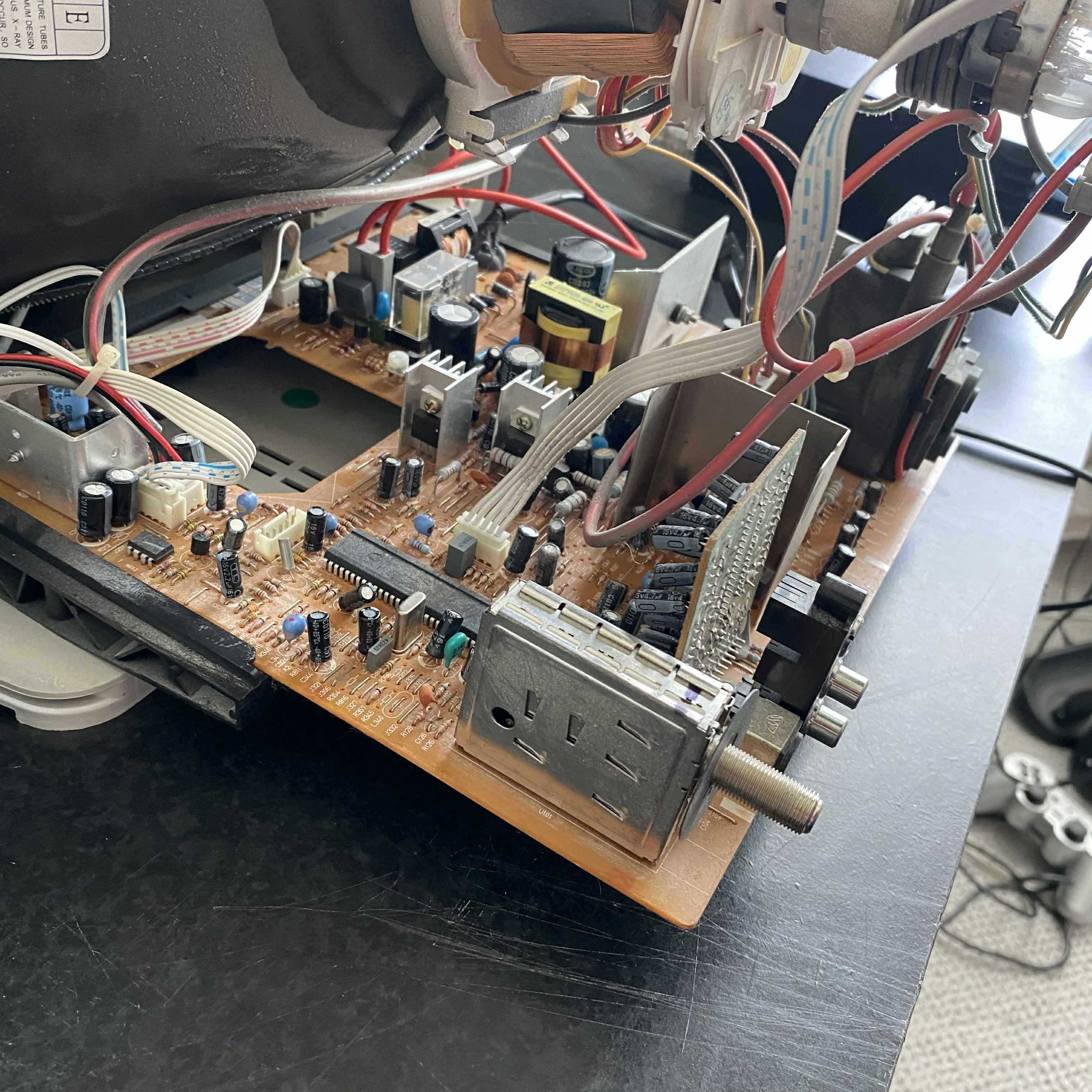

Chassis: K20SA311U
Weight: 24.25 lbs (11 kg)
Dimensions (W/H/D): 420 x 354 x 383 mm
(16.5 x 13.9 x 15.1")
Application: Consumer
Cabinet Material: Plastic
Launched: 2006
MSRP: 109 USD
Country of Manufacture: China
Market: North America
Power Standard: 120v
Mounting: Table Surface (Standard)
Degaussing: Automatic on Power-on
Tag: Needs Service Manual
