Summary

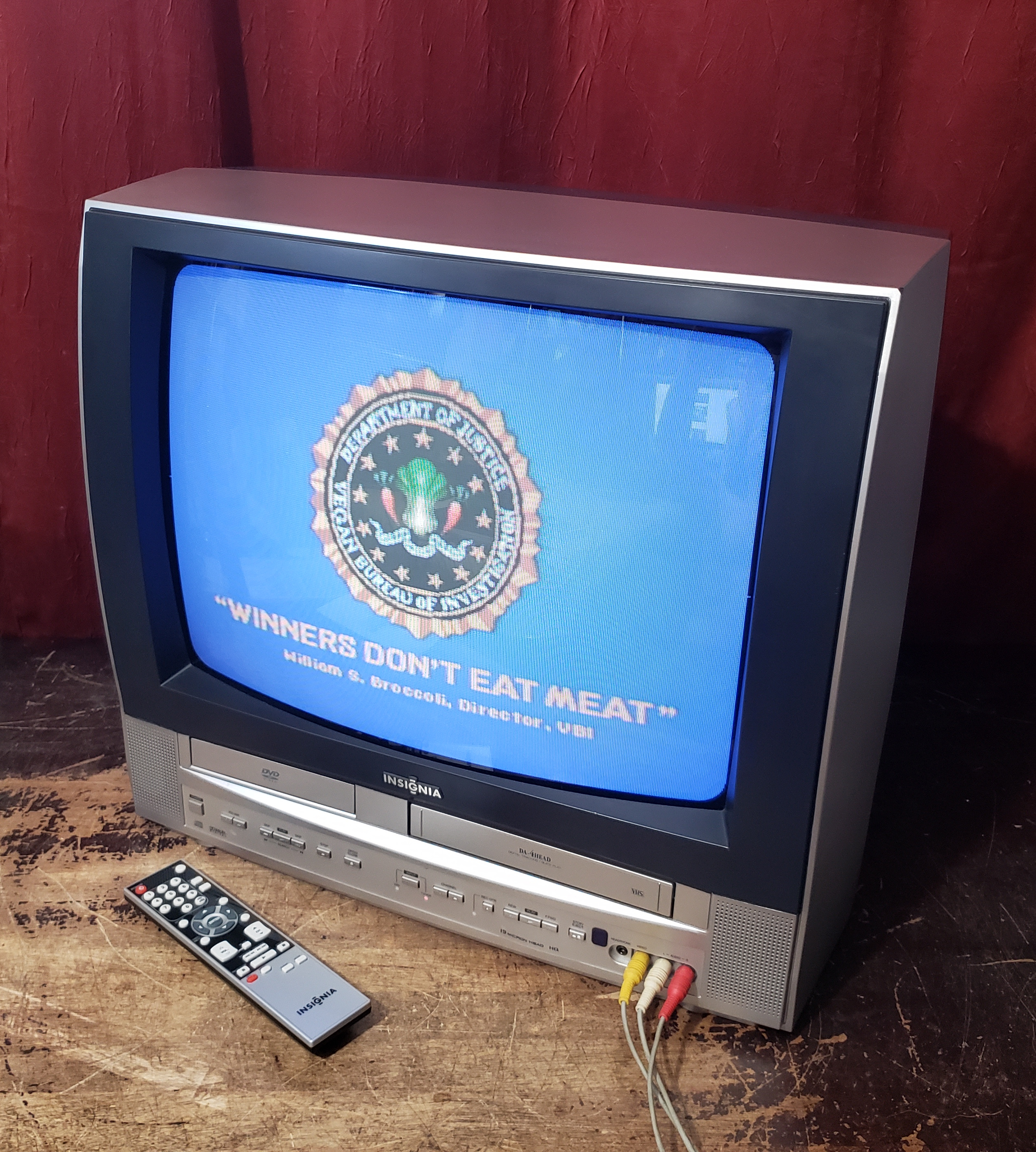

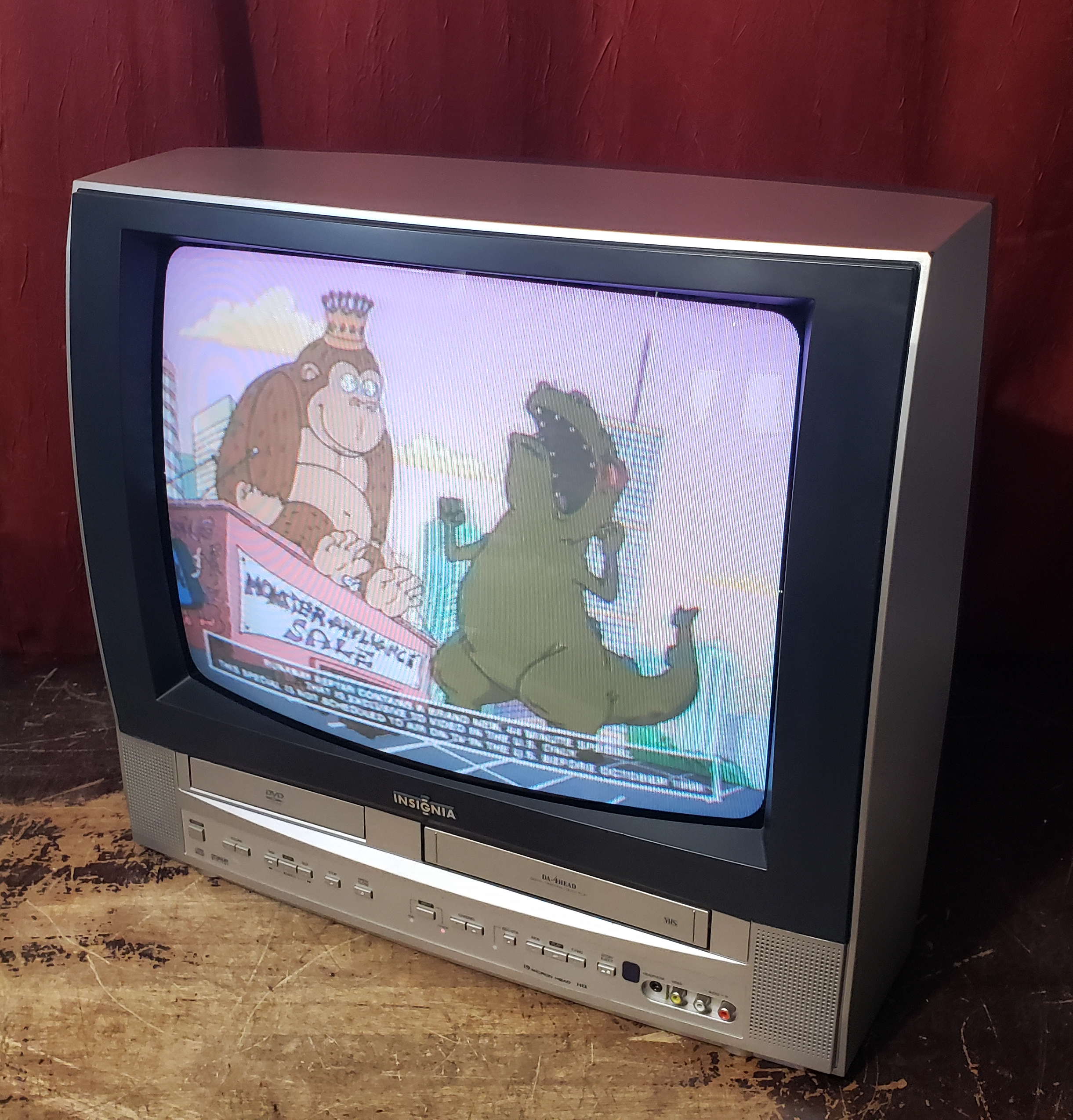

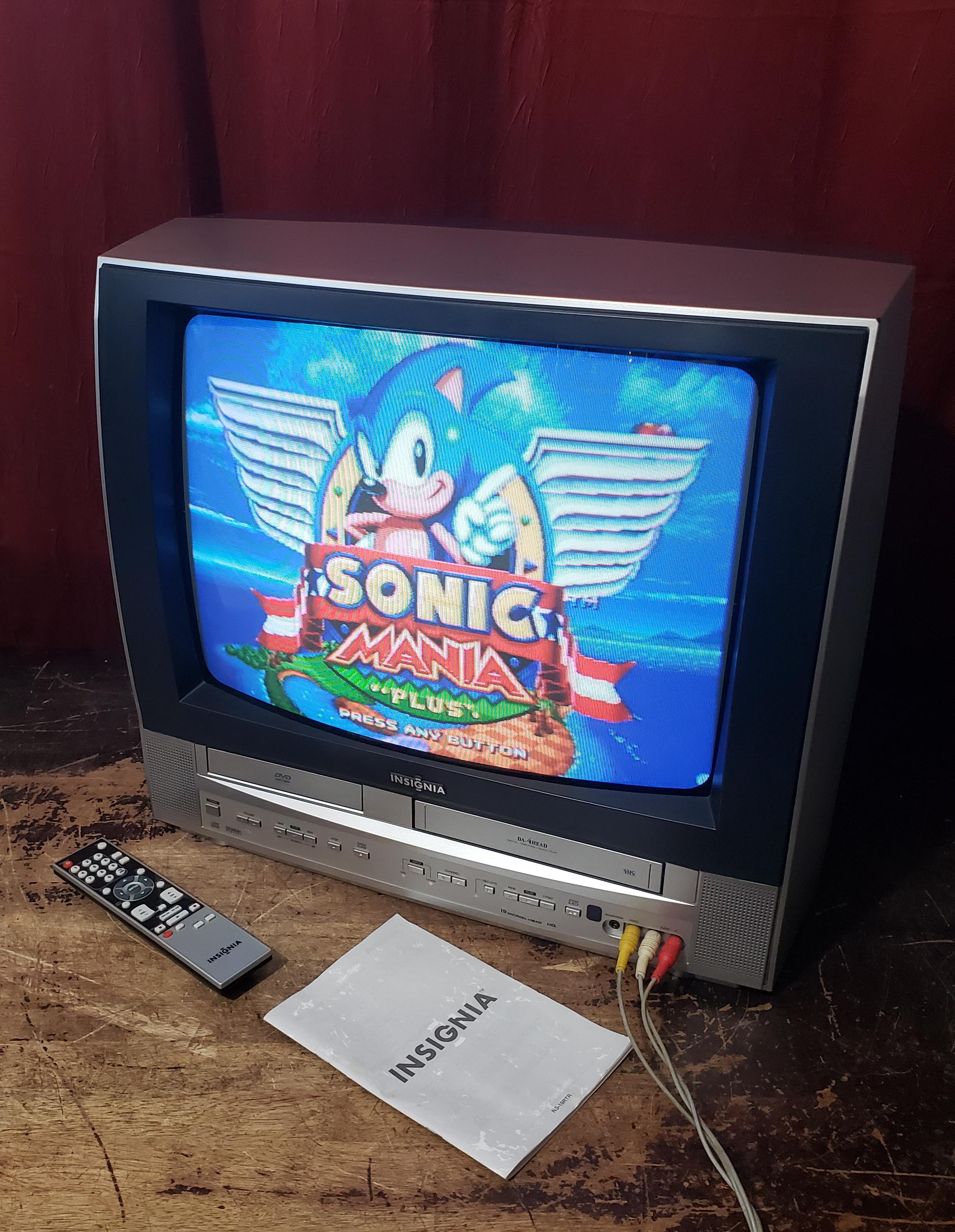

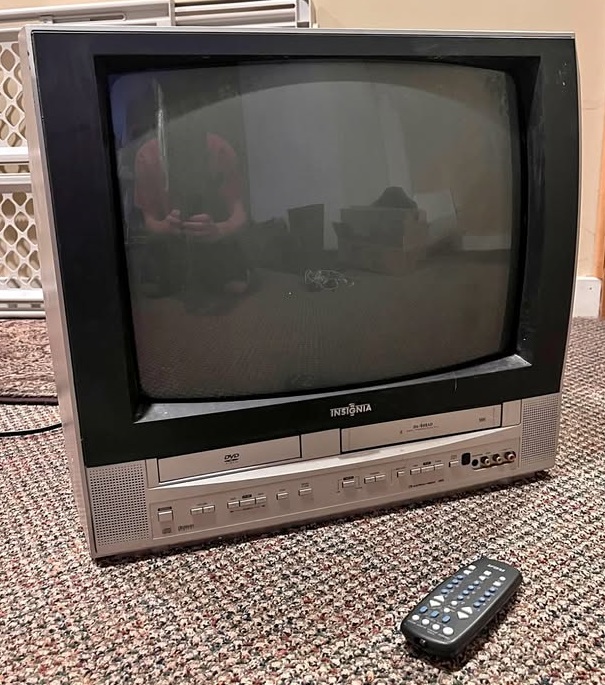

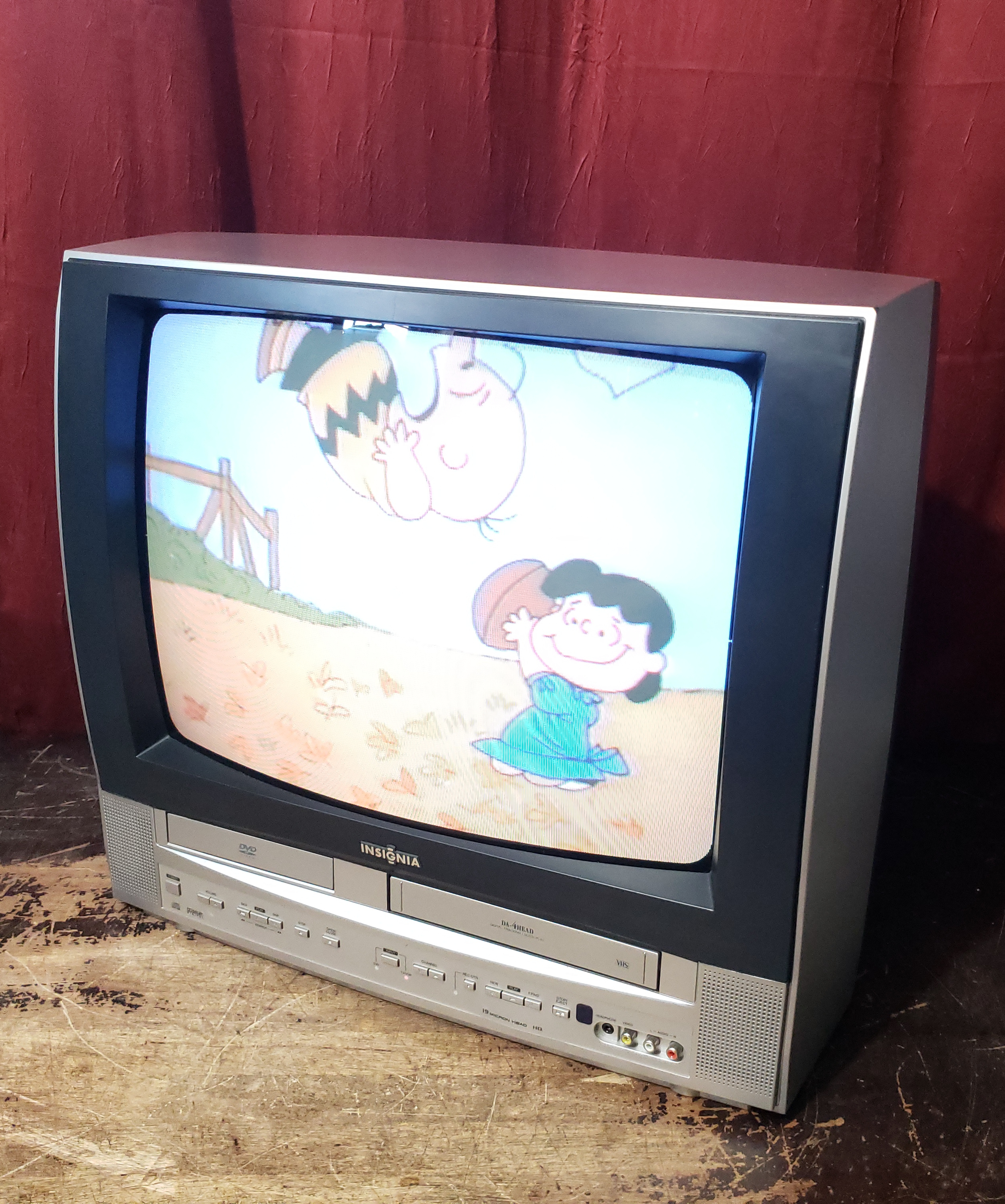

19in Television w/ built in DVD and VHS. Also known as Sylvania 6719DG / Emerson EWC19T5.
Manuals
- User manual
- Service manual different badging
Notes
Insignia is Best Buy's in-house branding.
Gallery
| Specifications | |
|---|---|
| Brand: | Insignia |
| Manufacturer: | Funai |
| Model: | NS-19RTR |
| Series: | TV/VCR/DVD Combo |
| Viewable Size: | 19" |
| Input Signals: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Vertical Output IC: | LA78040A |
| Comb Filtering: | None |
| Jungle IC: | M61275FP |

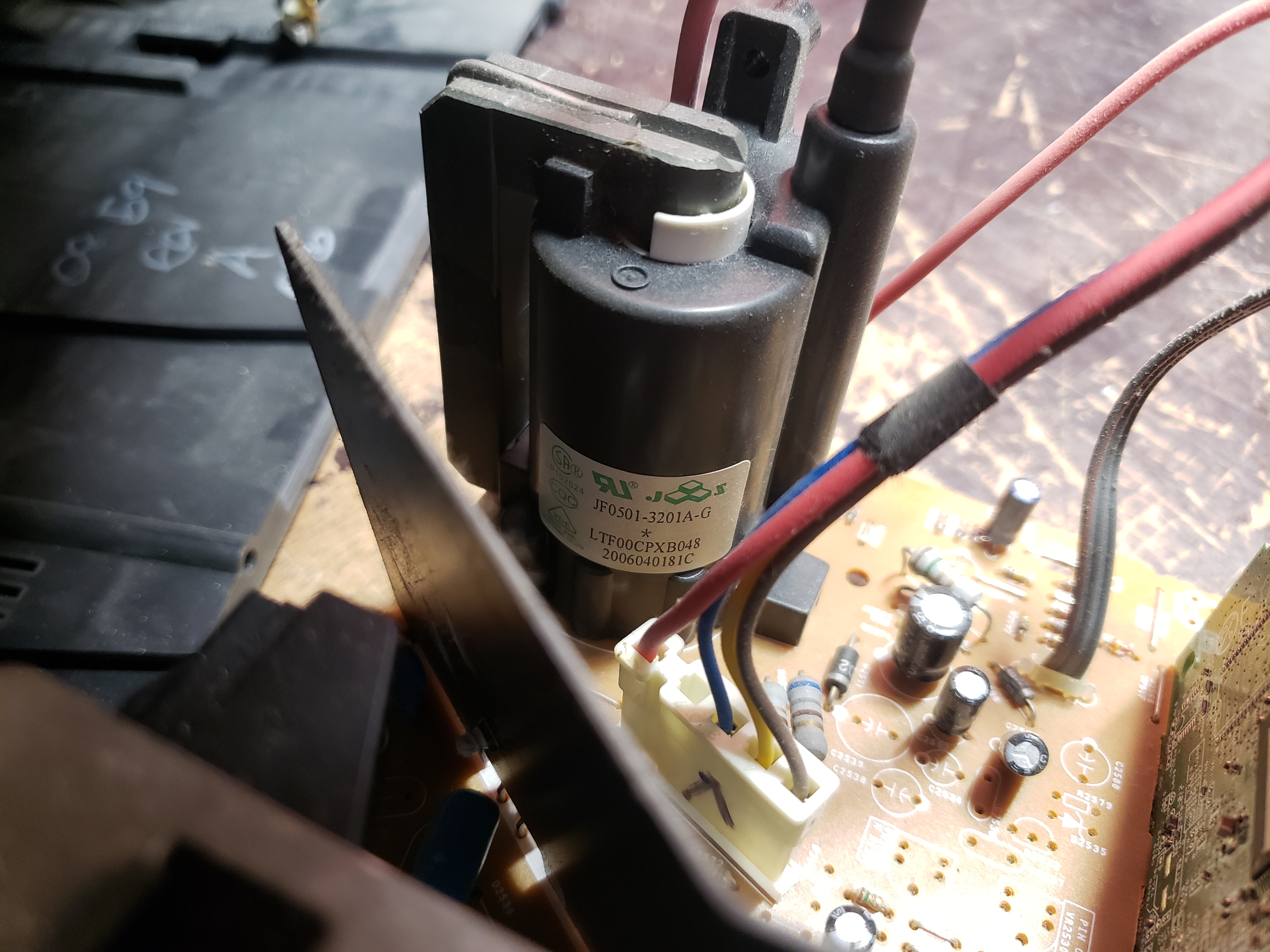

| Flyback: | JF0501-3201A-G, LTF00CPXB048 |
| Focus Type: | Single |

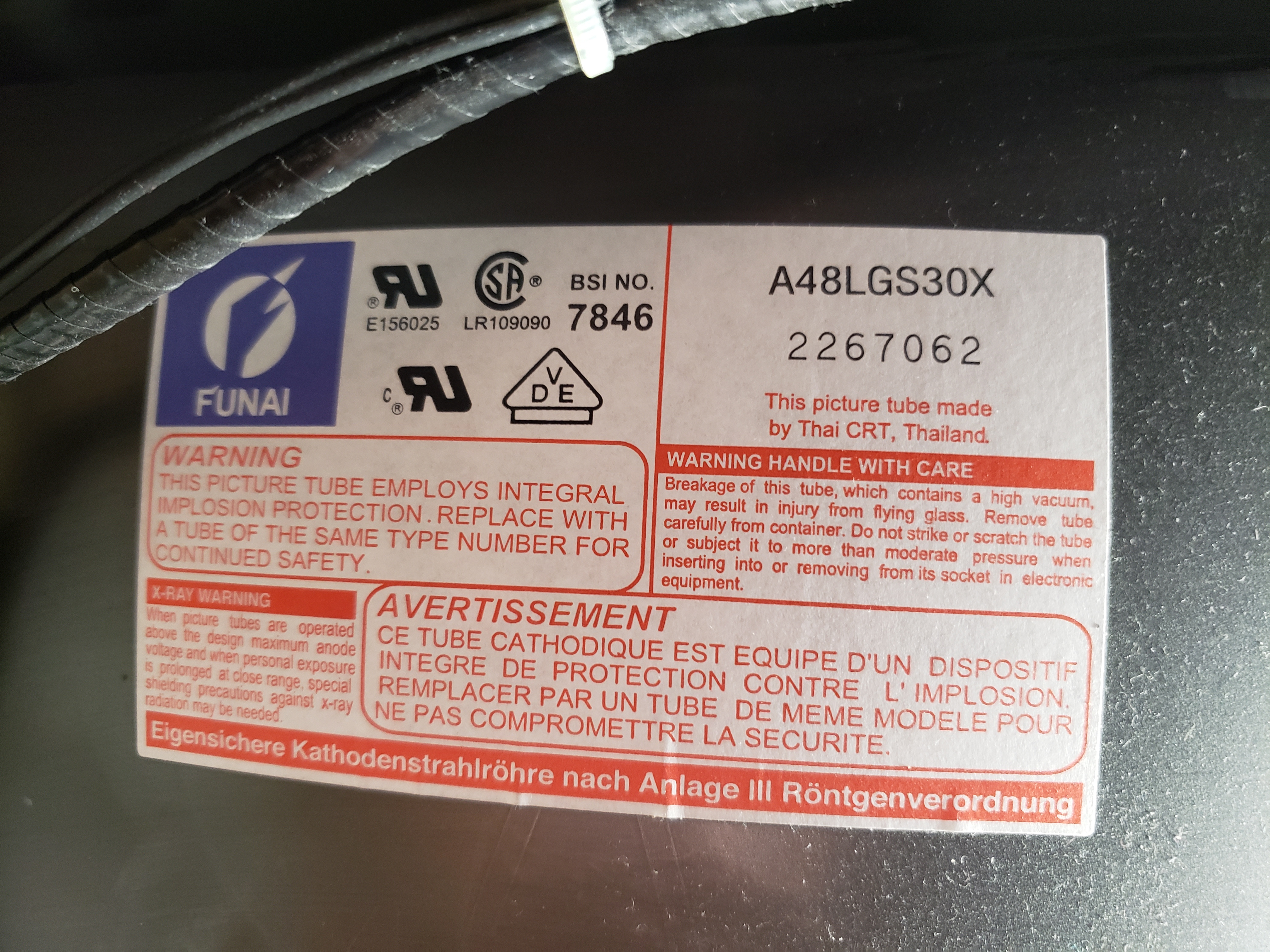

| Tube: | Thai CRT Co. , A48LGS30X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |

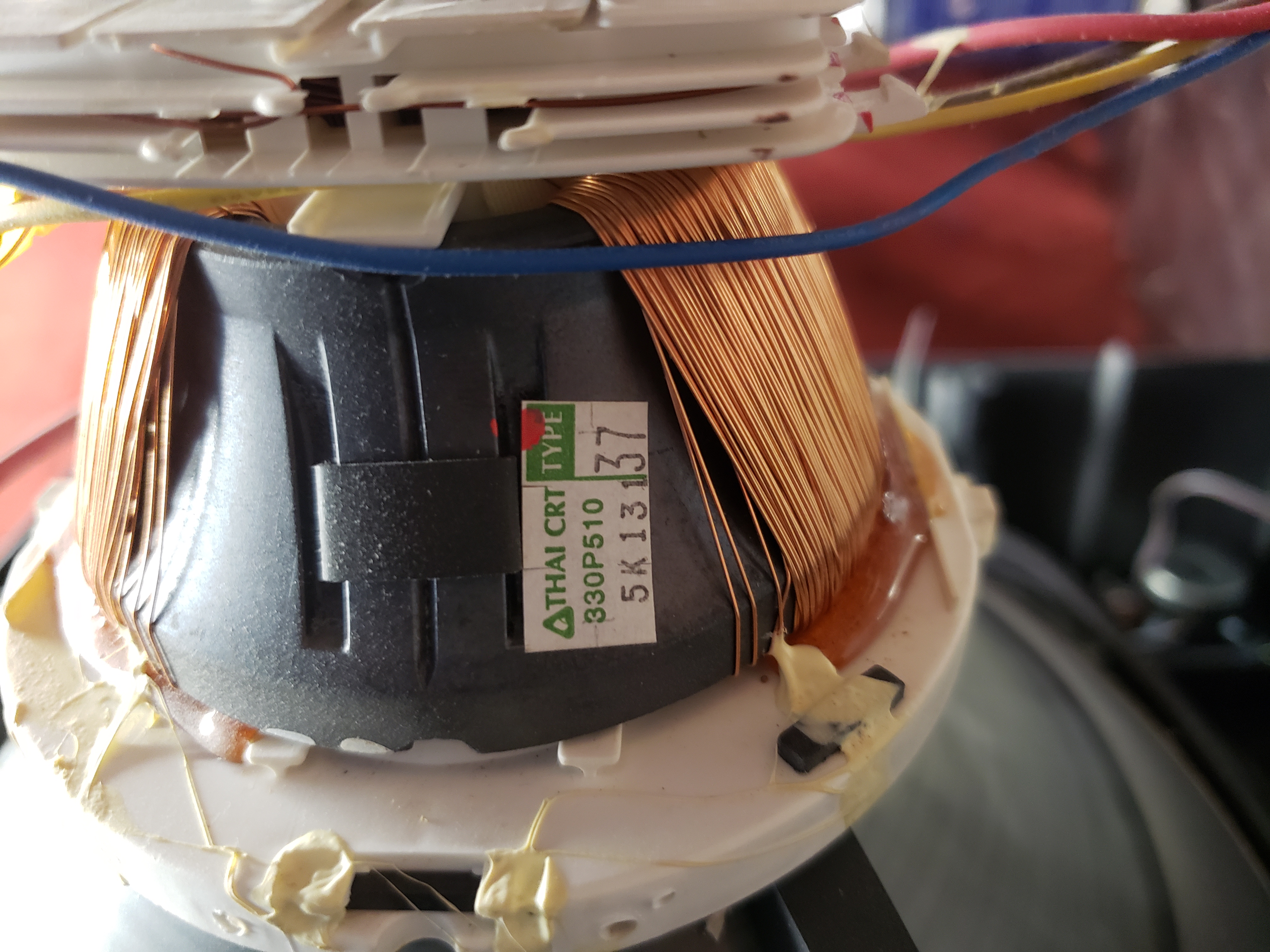

| Yoke: | LLBYOOZMS016, 330P510 |
| Yoke Horz. Inductance: | 2.649 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 27.91 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | 3.96 ohm |
| Yoke Vert. Resistance: | 13.65 ohm |
| Speakers: | Stereo, Headphone Jack, 1W x 2 |

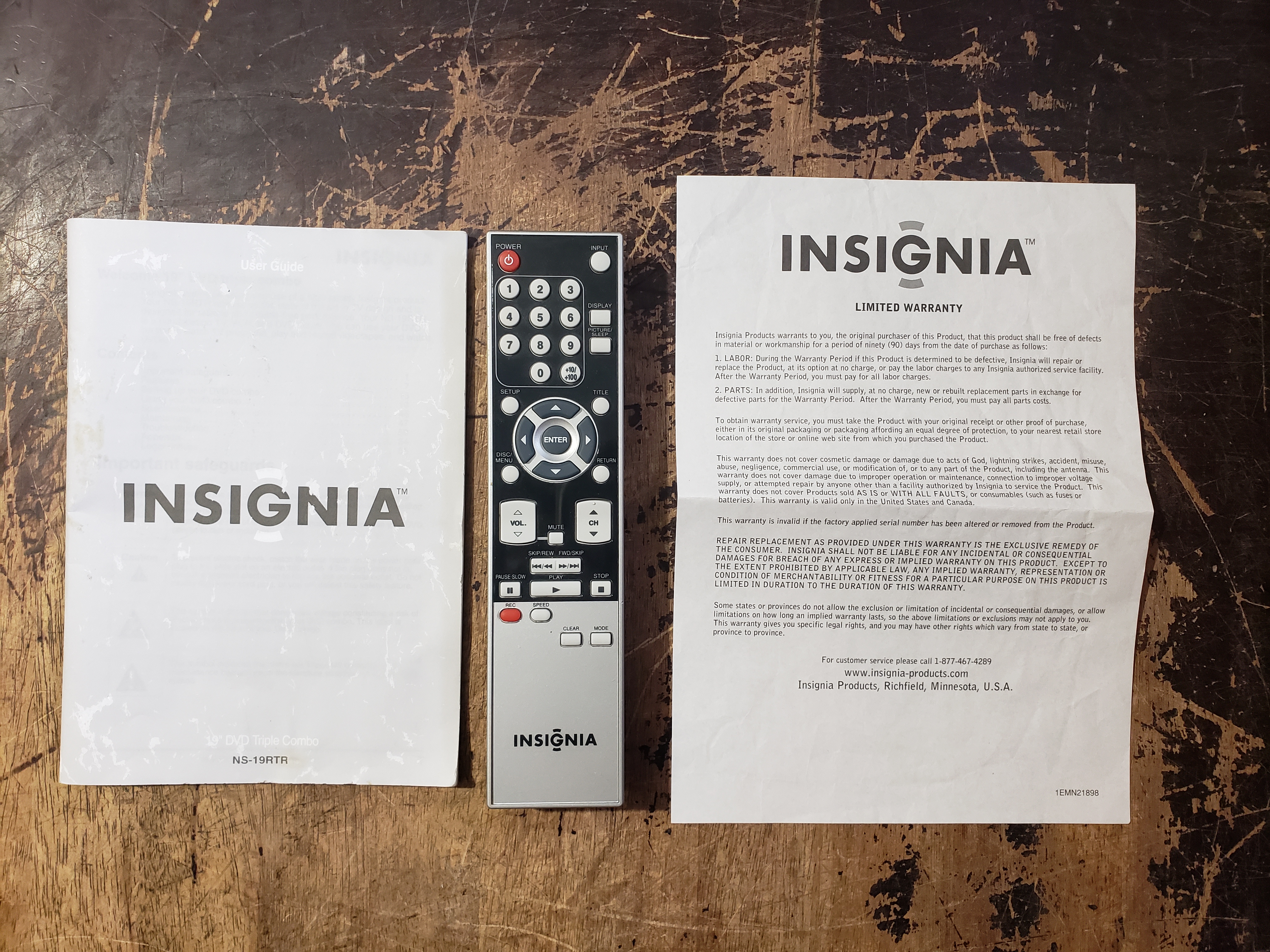

| Remote: | NF000UD |
| Chassis: | BT1200F01013 |
| Weight: | 43.2 lbs (19.6 kg) |
| Dimensions (W/H/D): |
556 x 500 x 476 mm
(21.9 x 19.7 x 18.7") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2006 |
| MSRP: | 199 USD |
| Country of Manufacture: | Thailand |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Tag: | Needs Pictures |
