Insignia NS-F20TV
SegaSaturn94
November 19, 2024, 10:01 pm
October 2, 2025, 1:56 am
November 19, 2024, 10:01 pm
October 2, 2025, 1:56 am
Summary

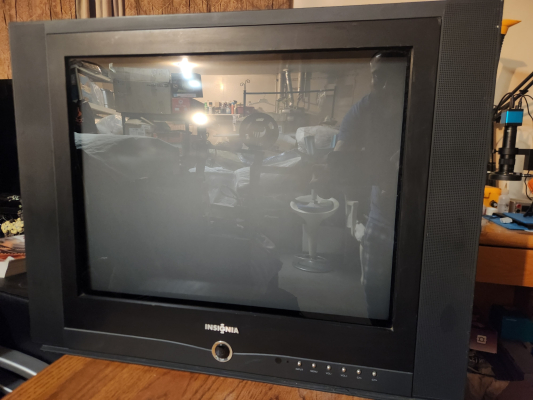

20" flat CRT by Insignia, sold at best buy stores in 2007. Has a full set of inputs: RF, composite, s-video and component. Originally manufactured by Prima in China, a rebadge of their C2012.
(Special thanks to Johnathan Sanchez for the pics!)
Manuals
Notes

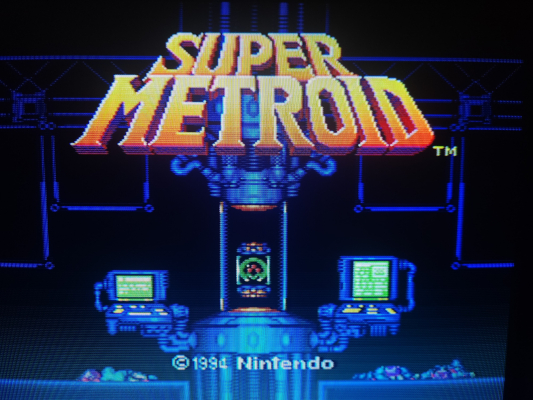

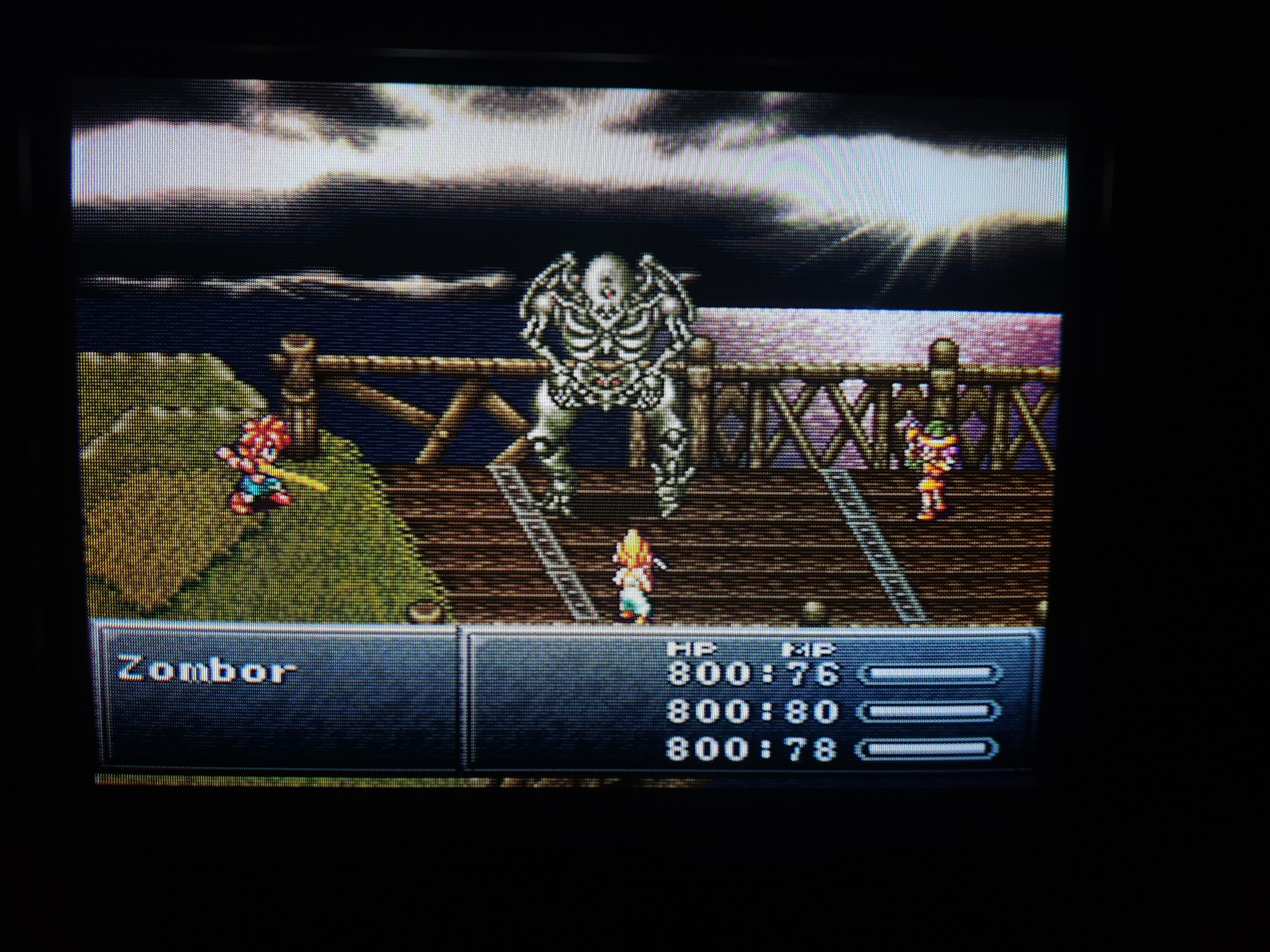

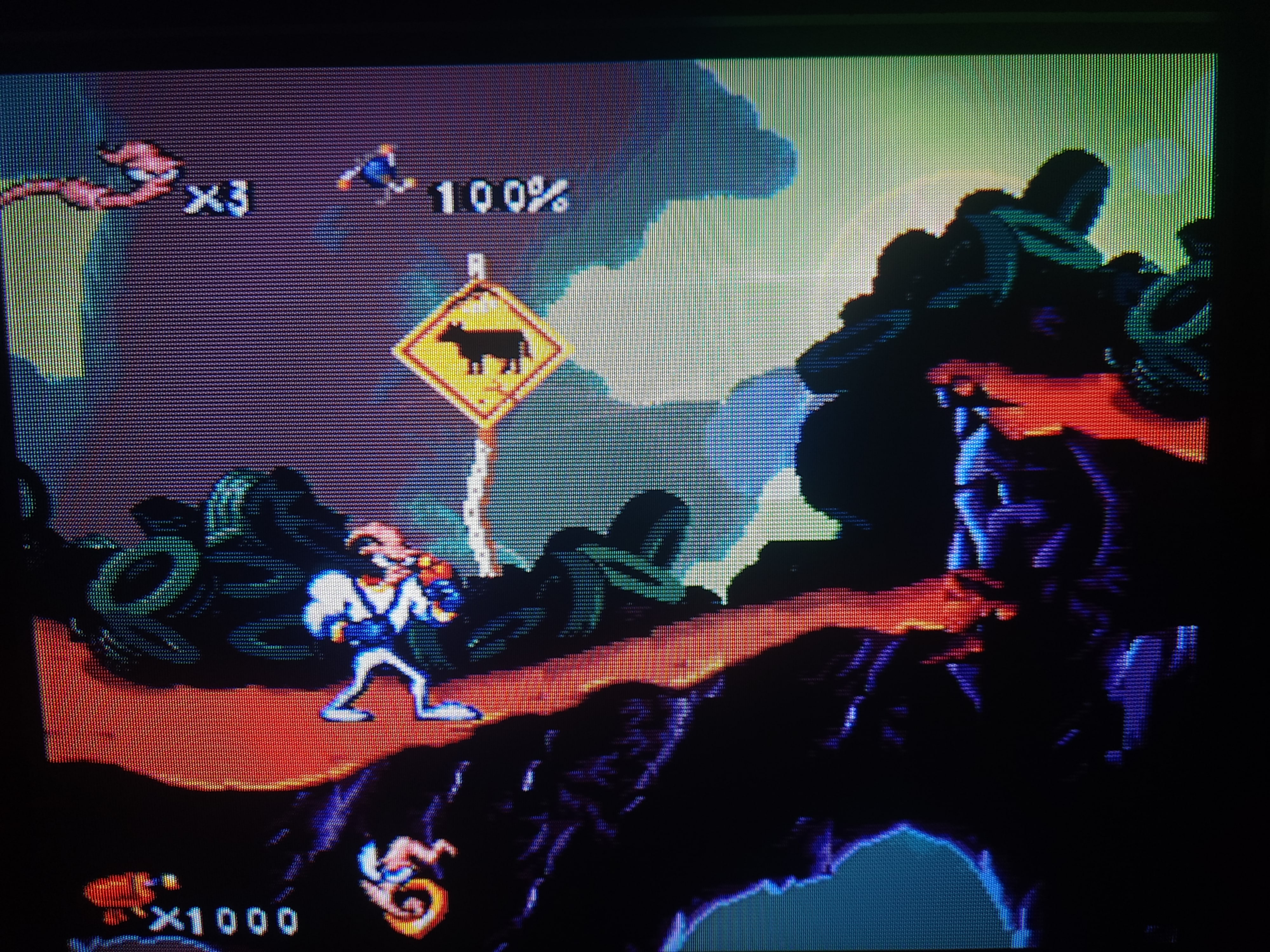

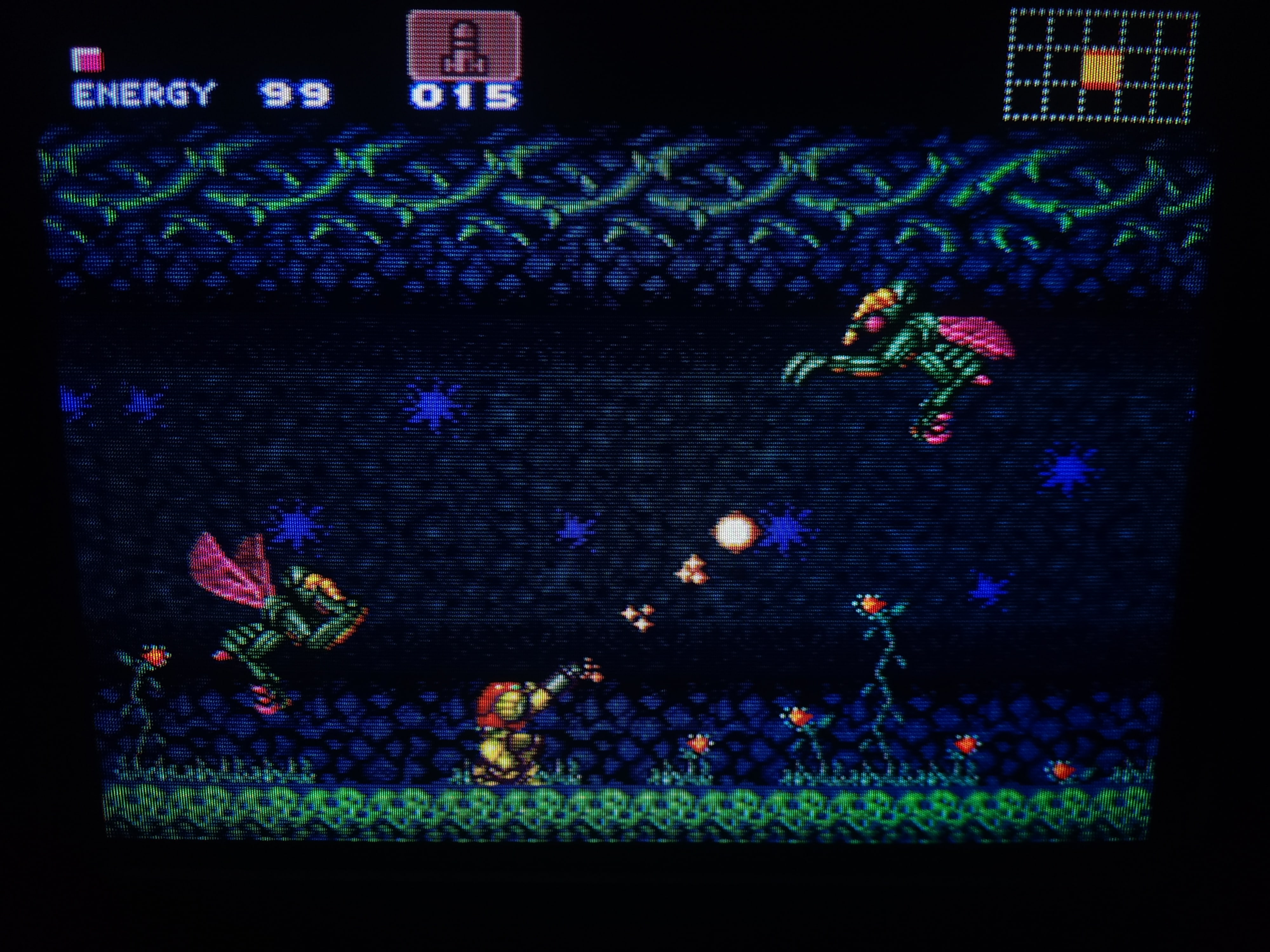

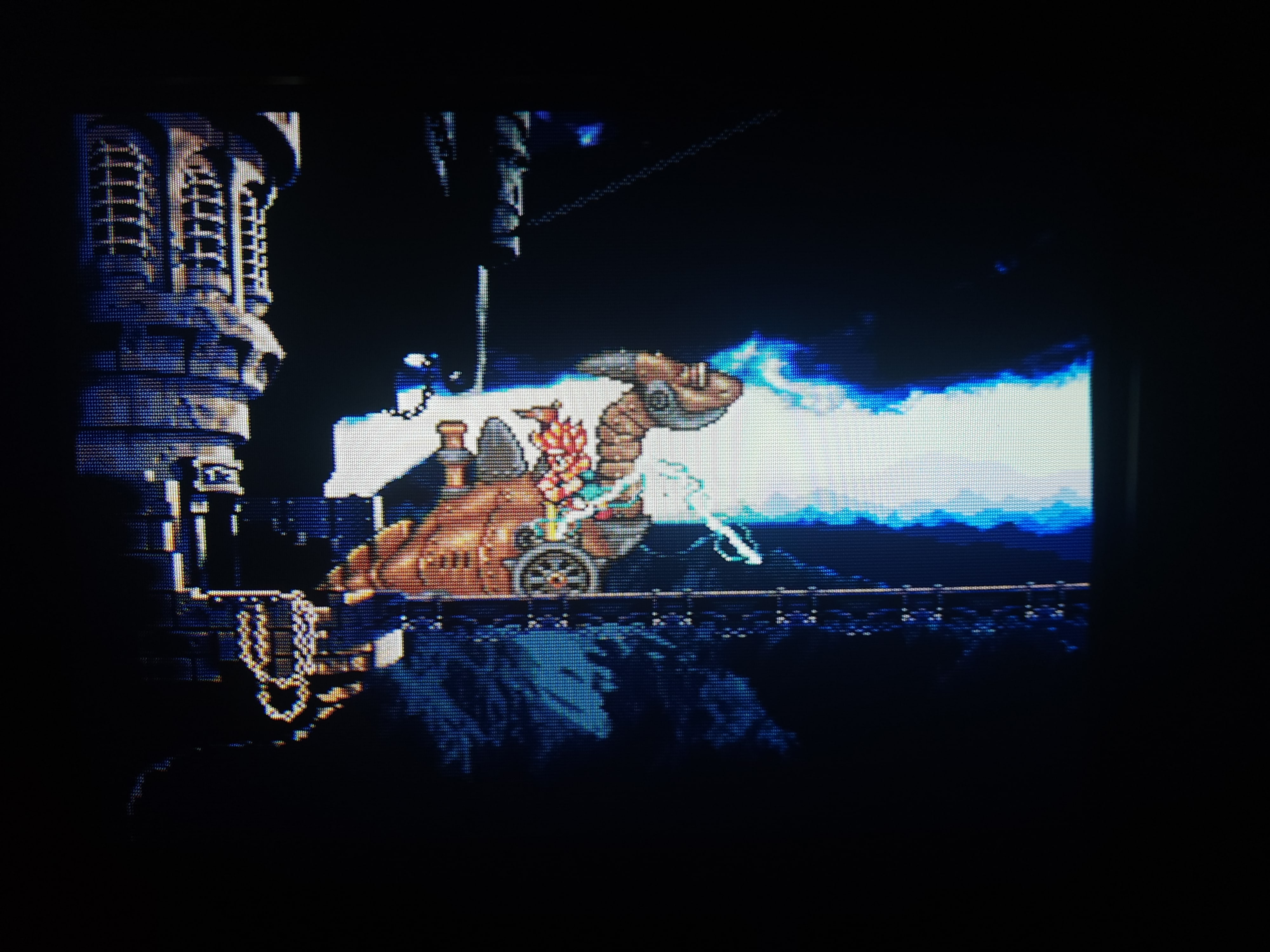

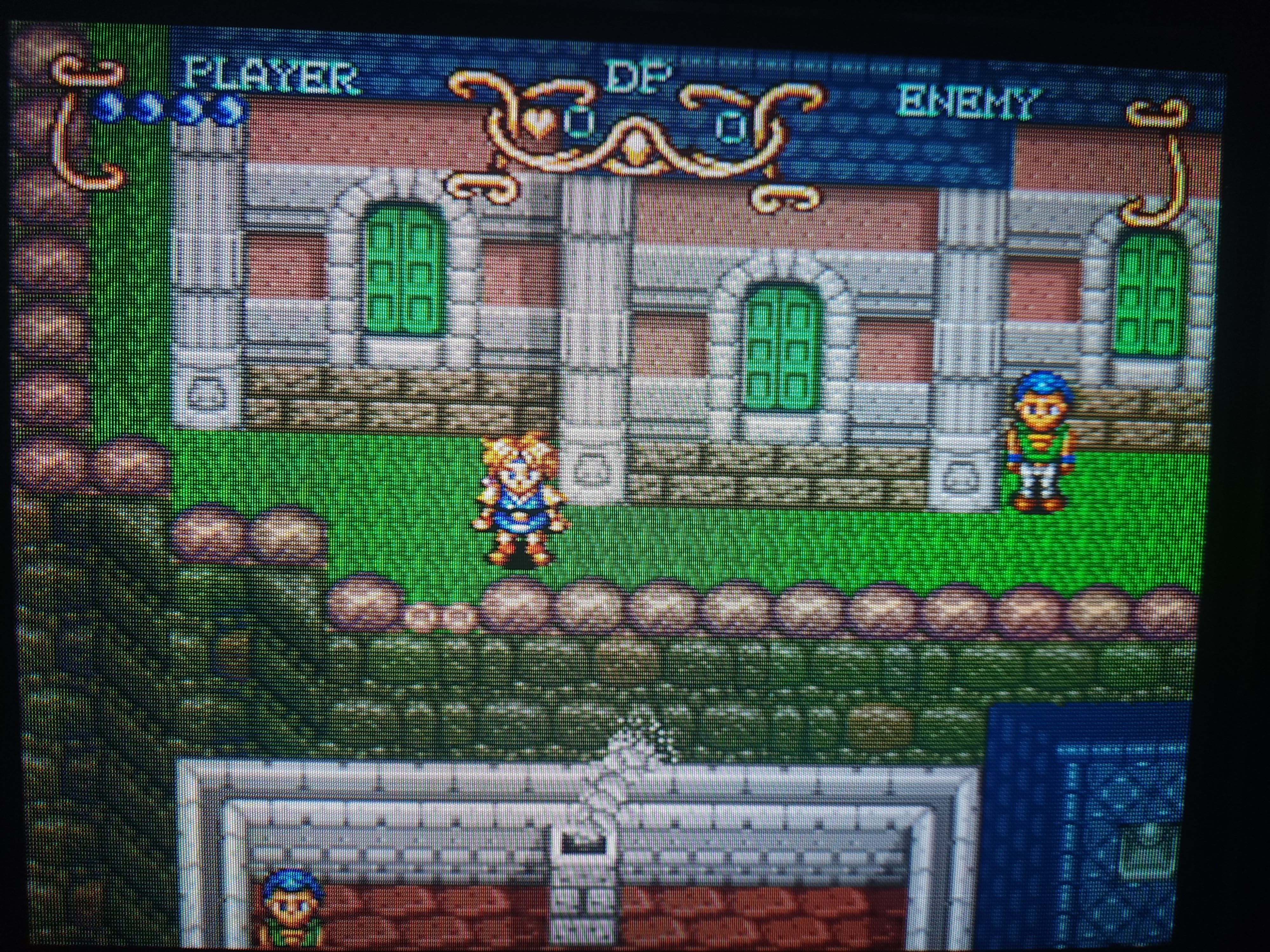

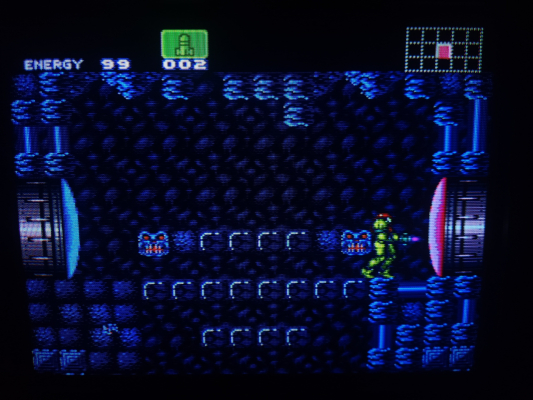

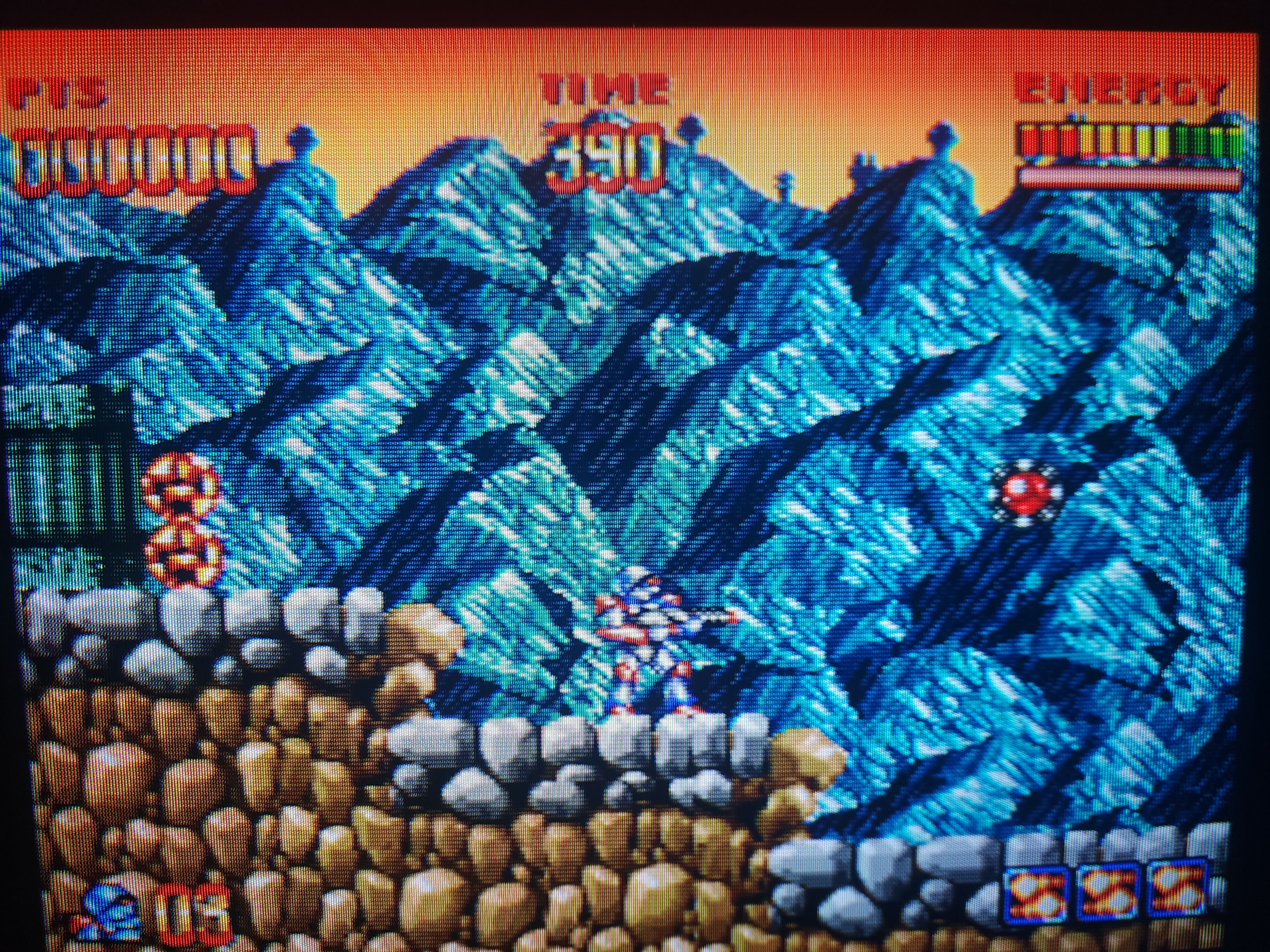

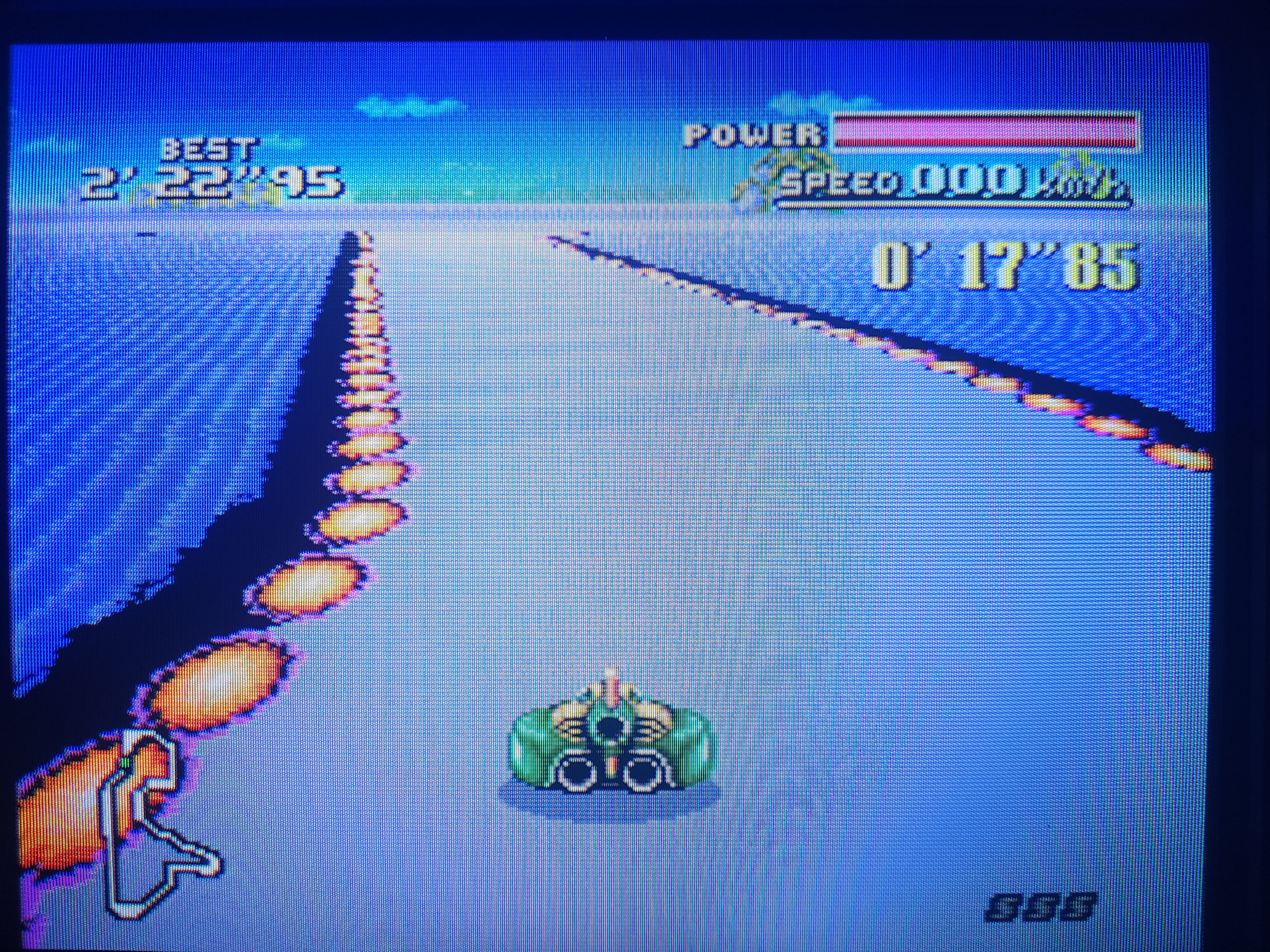

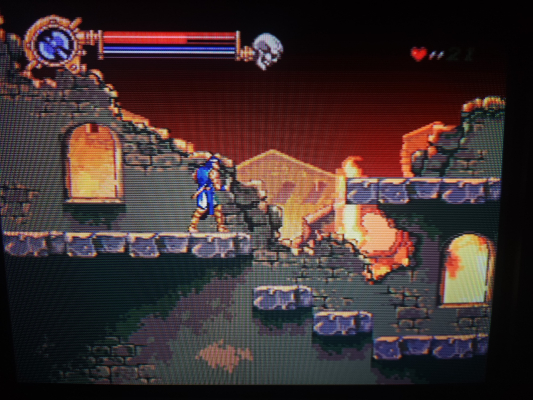

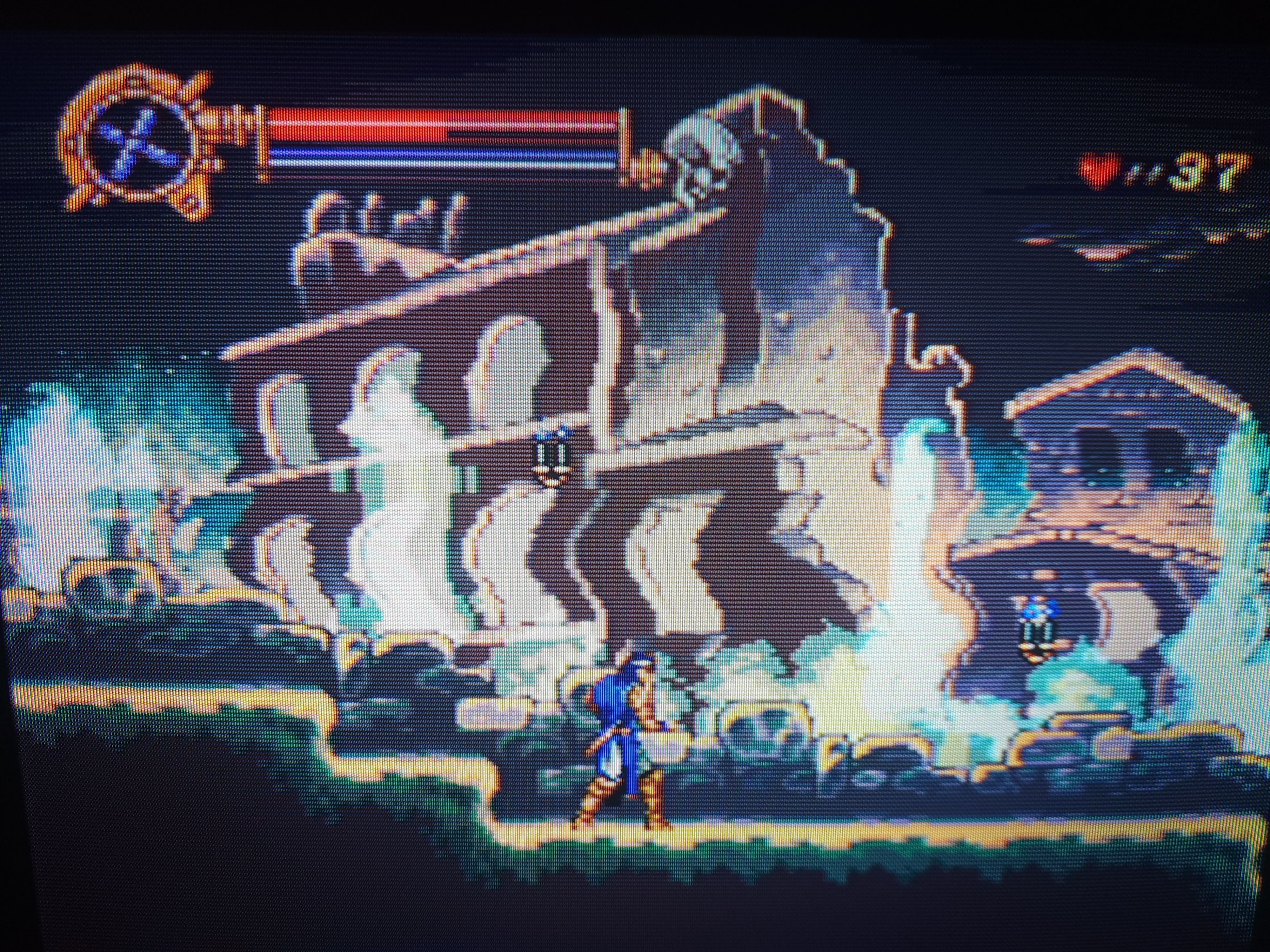

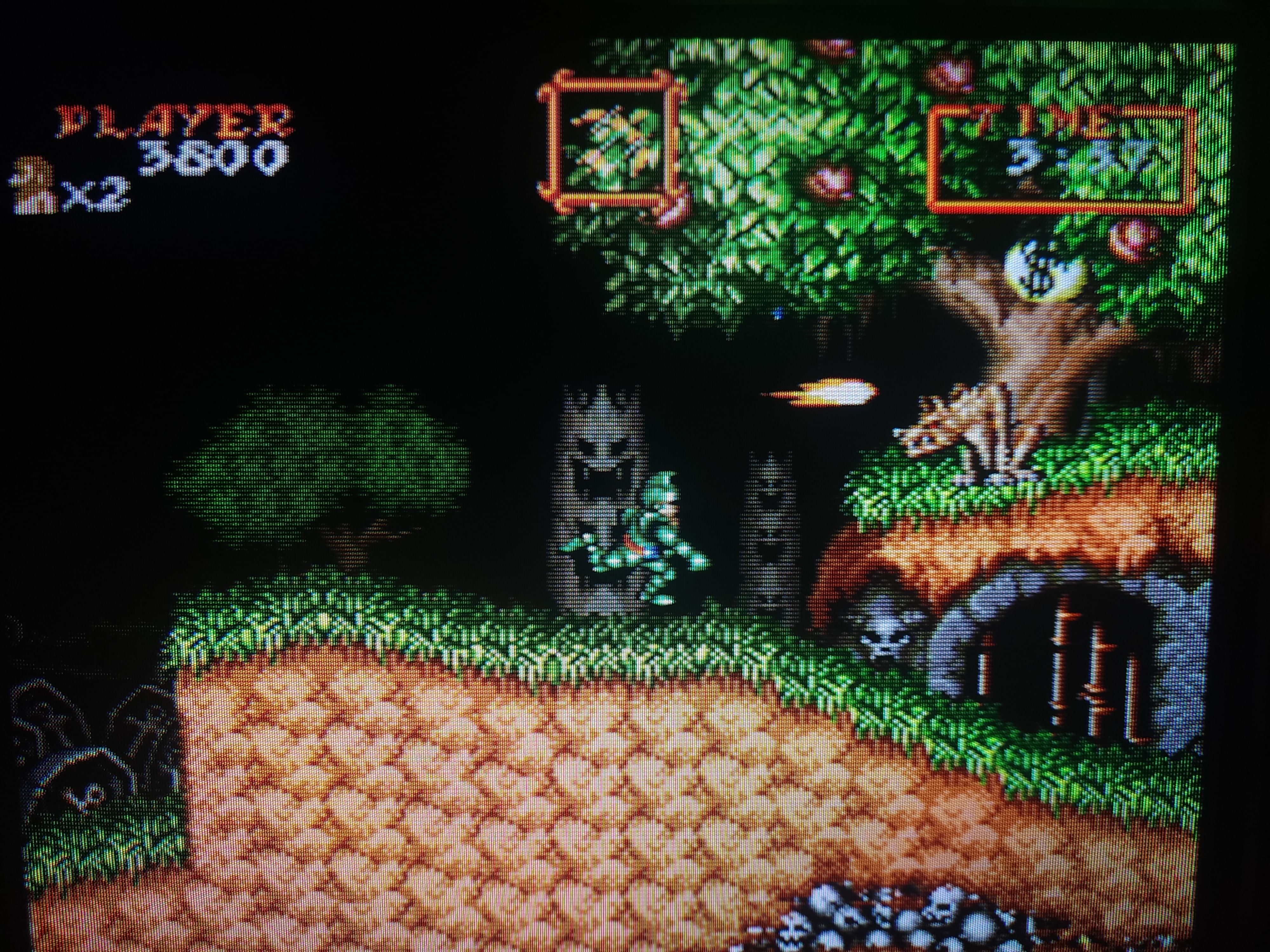

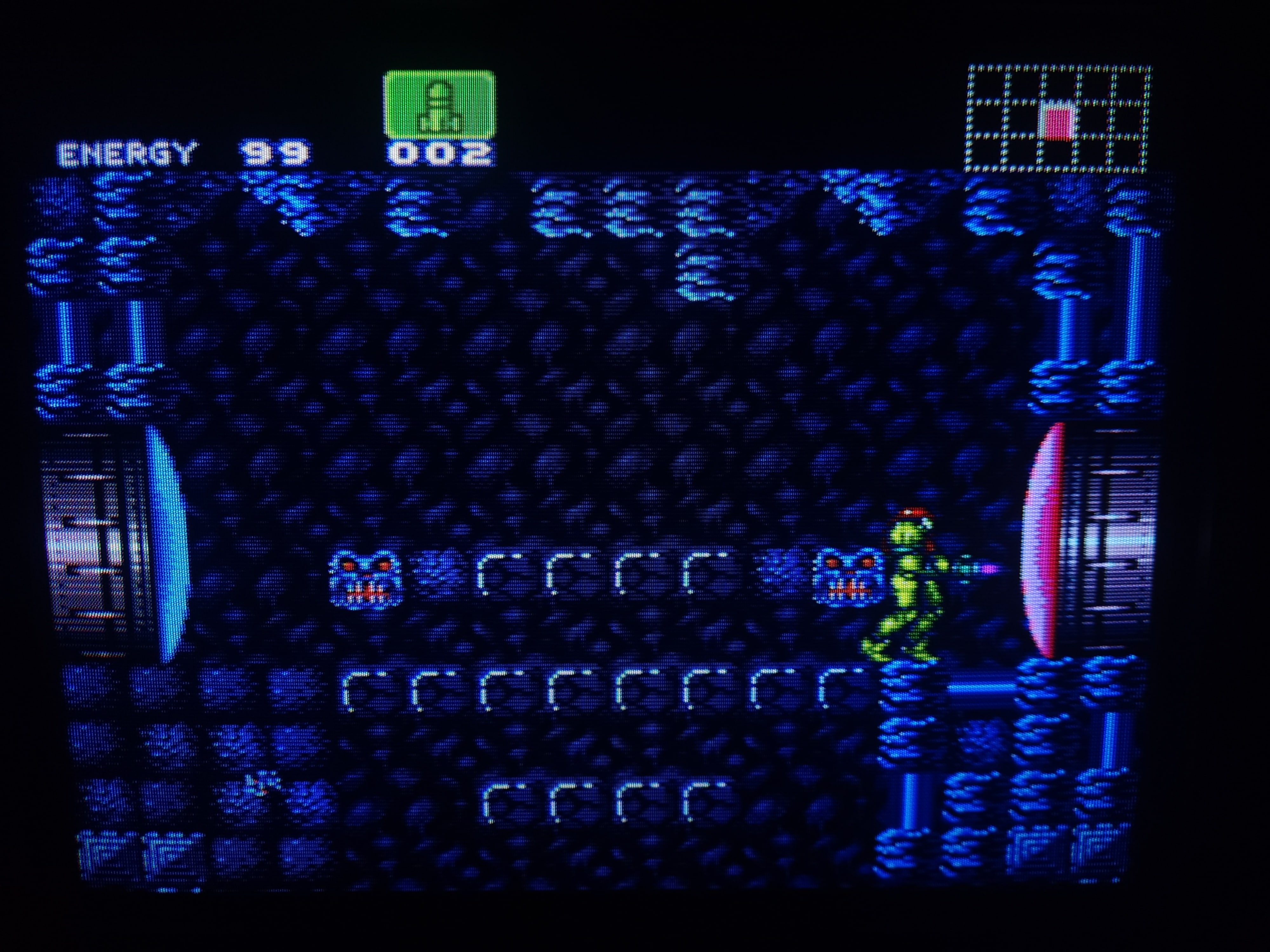

Set has some red push to take into account. But otherwise, the component signal looks great.

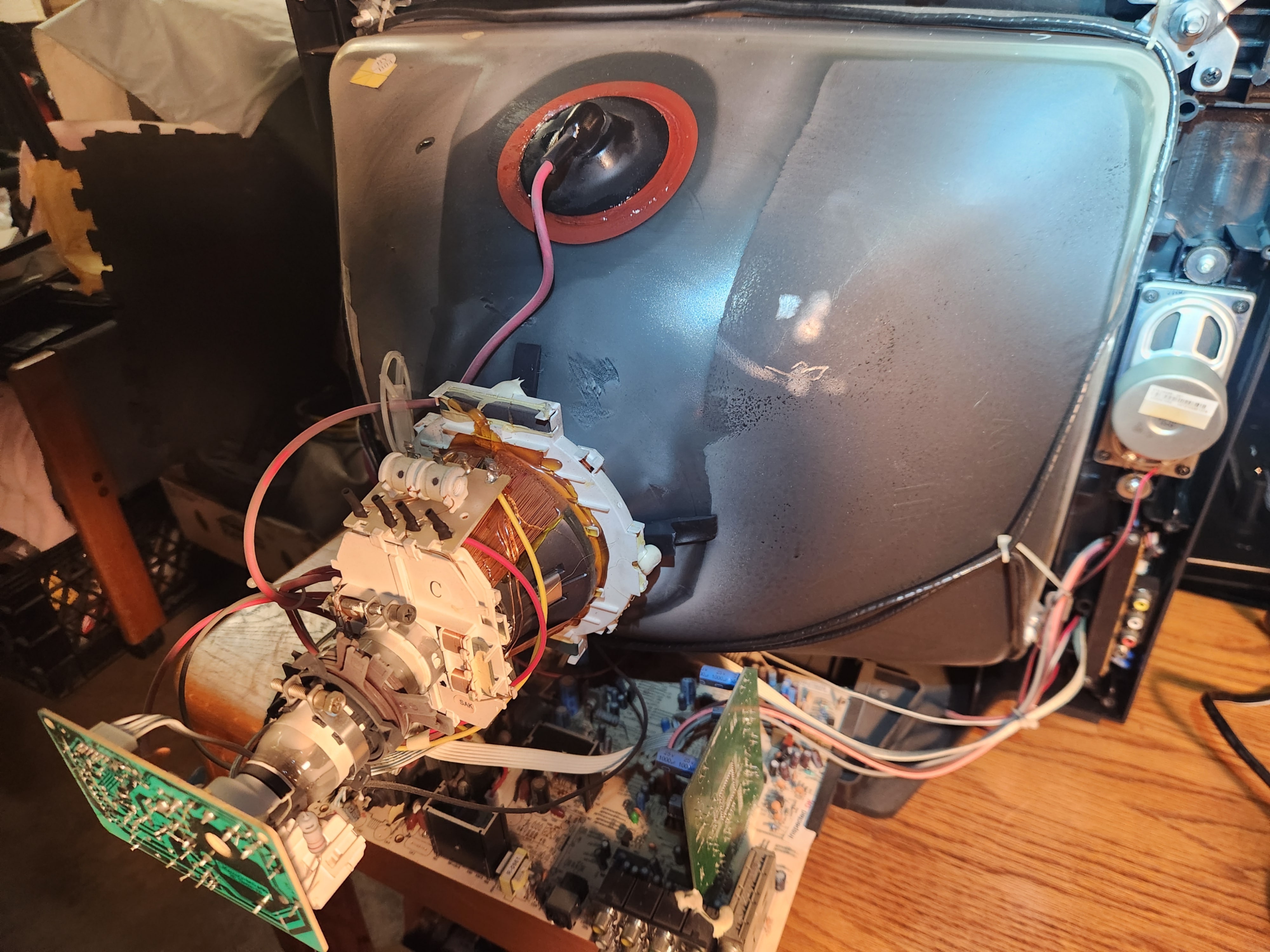

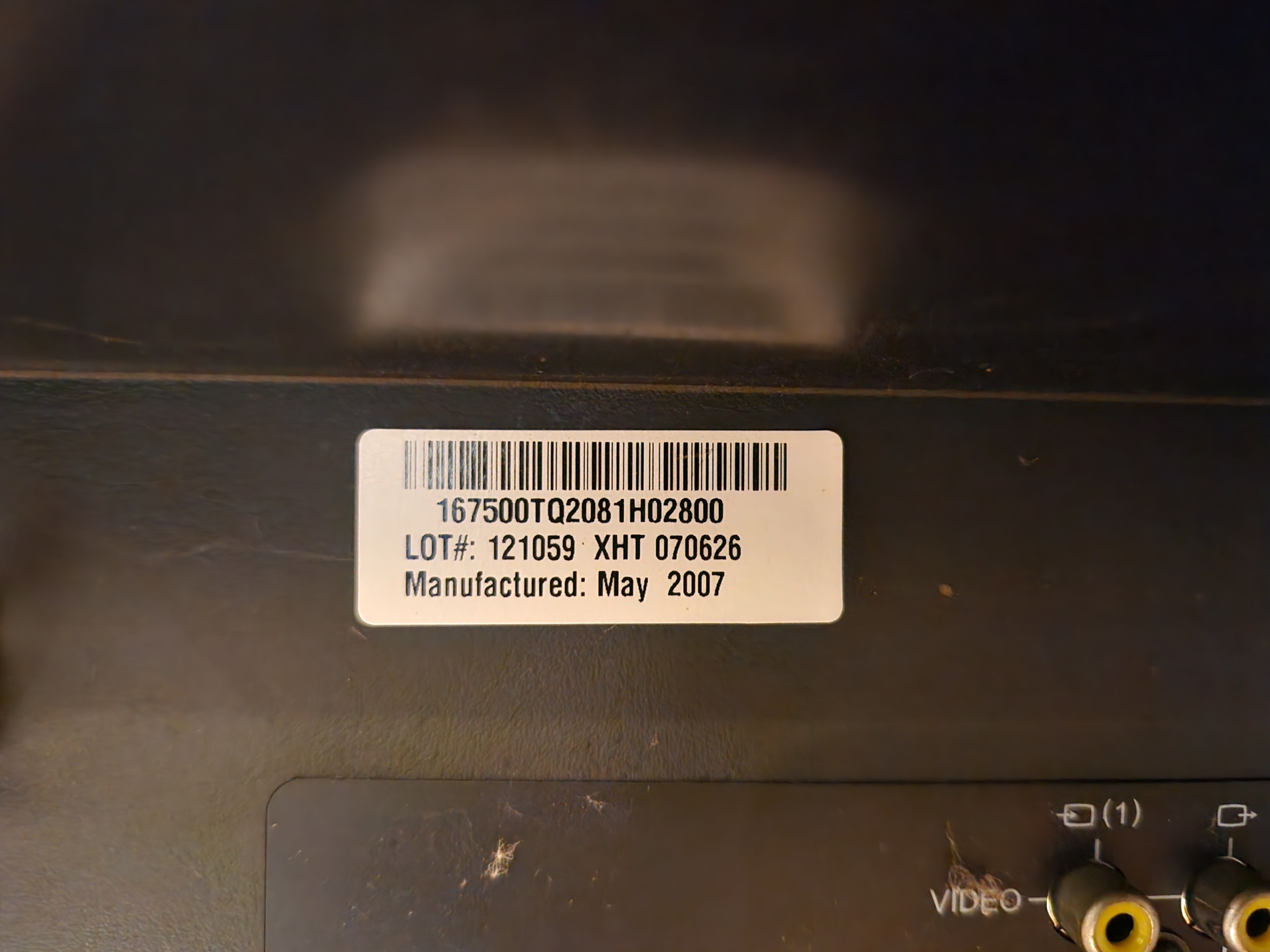

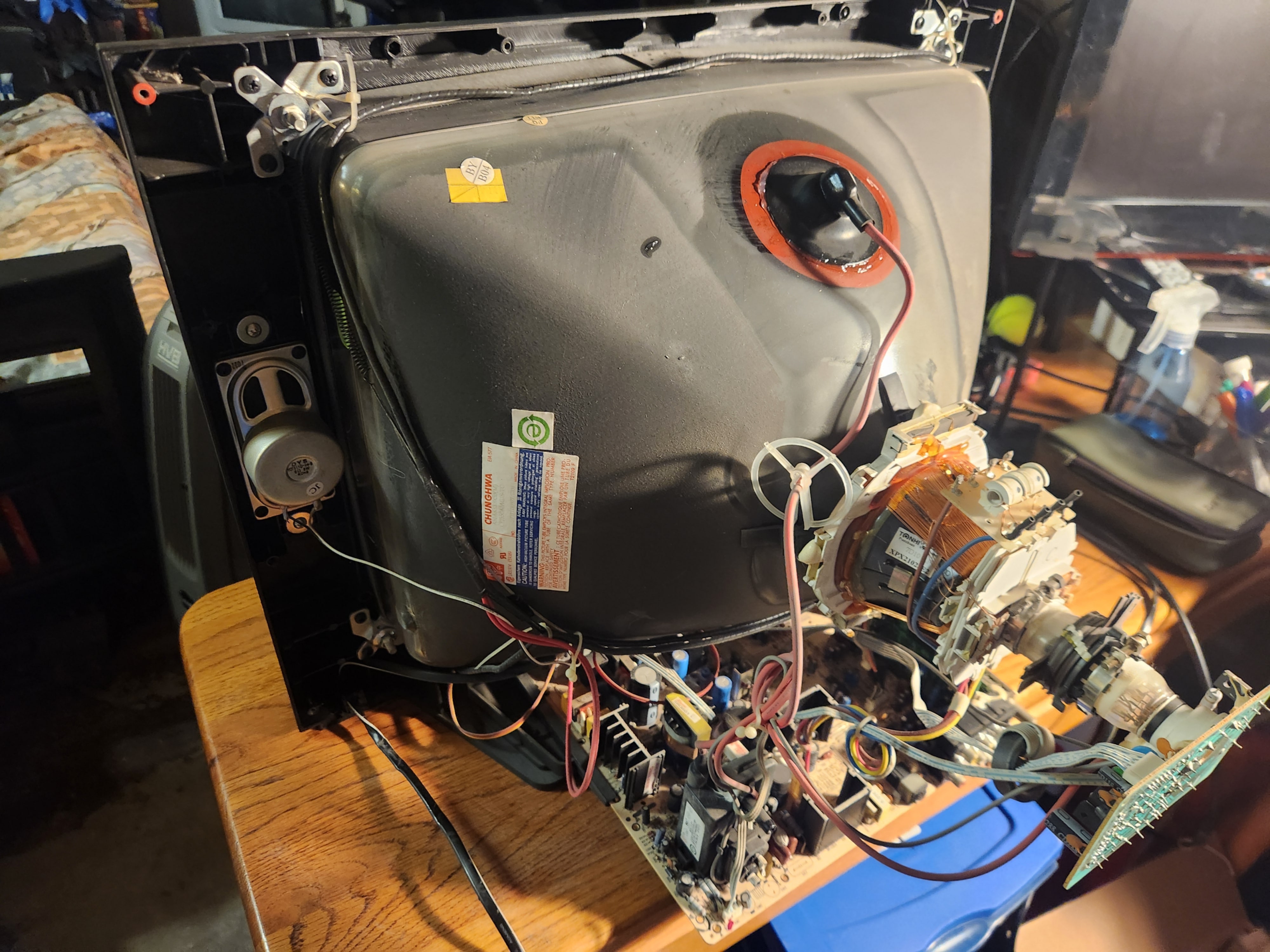

Gallery
























Specifications | |
---|---|
Brand: | Insignia |
Manufacturer: | Prima |
Model: | NS-F20TV |
Series: | NS |
Viewable Size: | 20" |

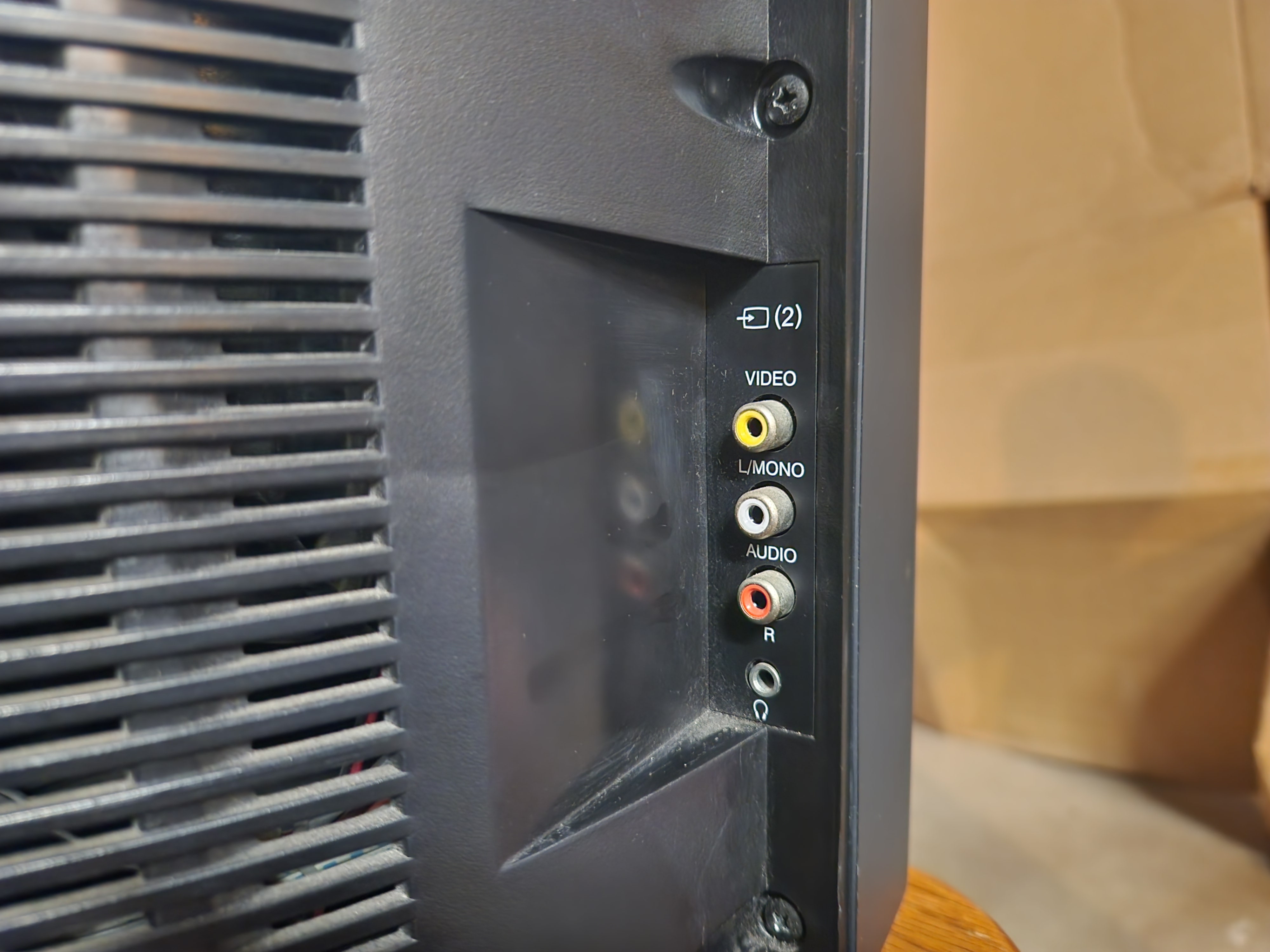

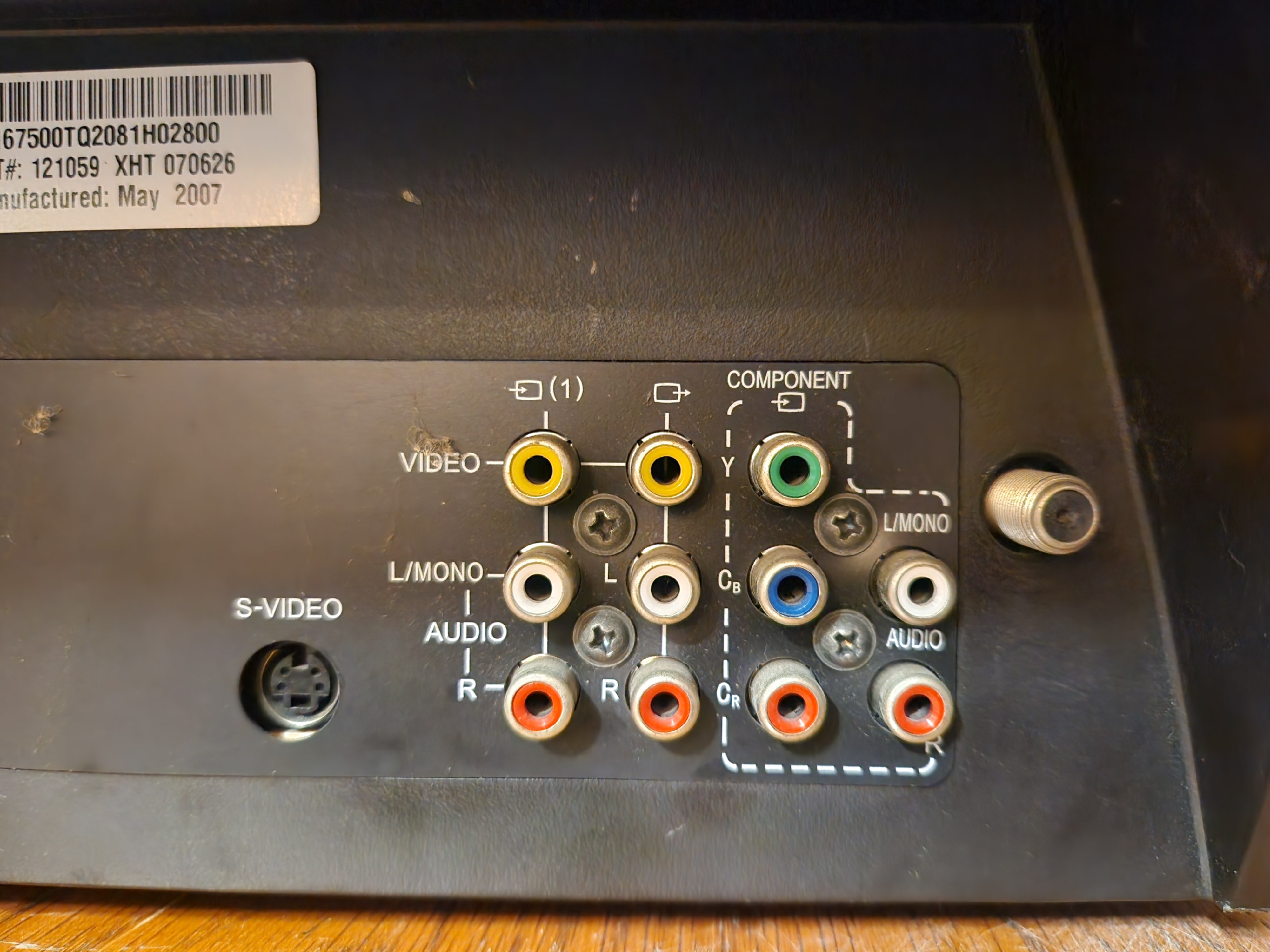

Inputs: | Composite, S-Video, RF, Component YPbPr |
Native Resolutions: | 240p, 480i |
Horizontal Scan Range: | 15 kHz |
Vertical Scan Range: | 60 Hz |
Formats: | NTSC |
Aspect: | 4:3 |

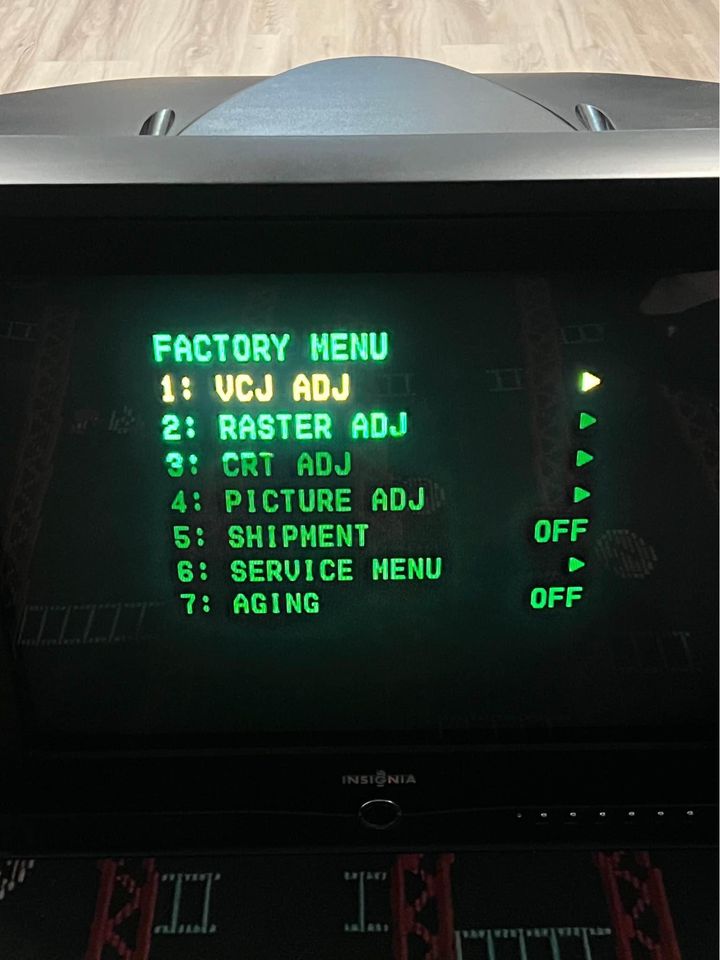

Adjustments: | OSD Customer Controls, OSD Service Menu |
Jungle IC: | Renesas, R8A66953FP |
Flyback: | BSC2-01 |
Focus Type: | Single |

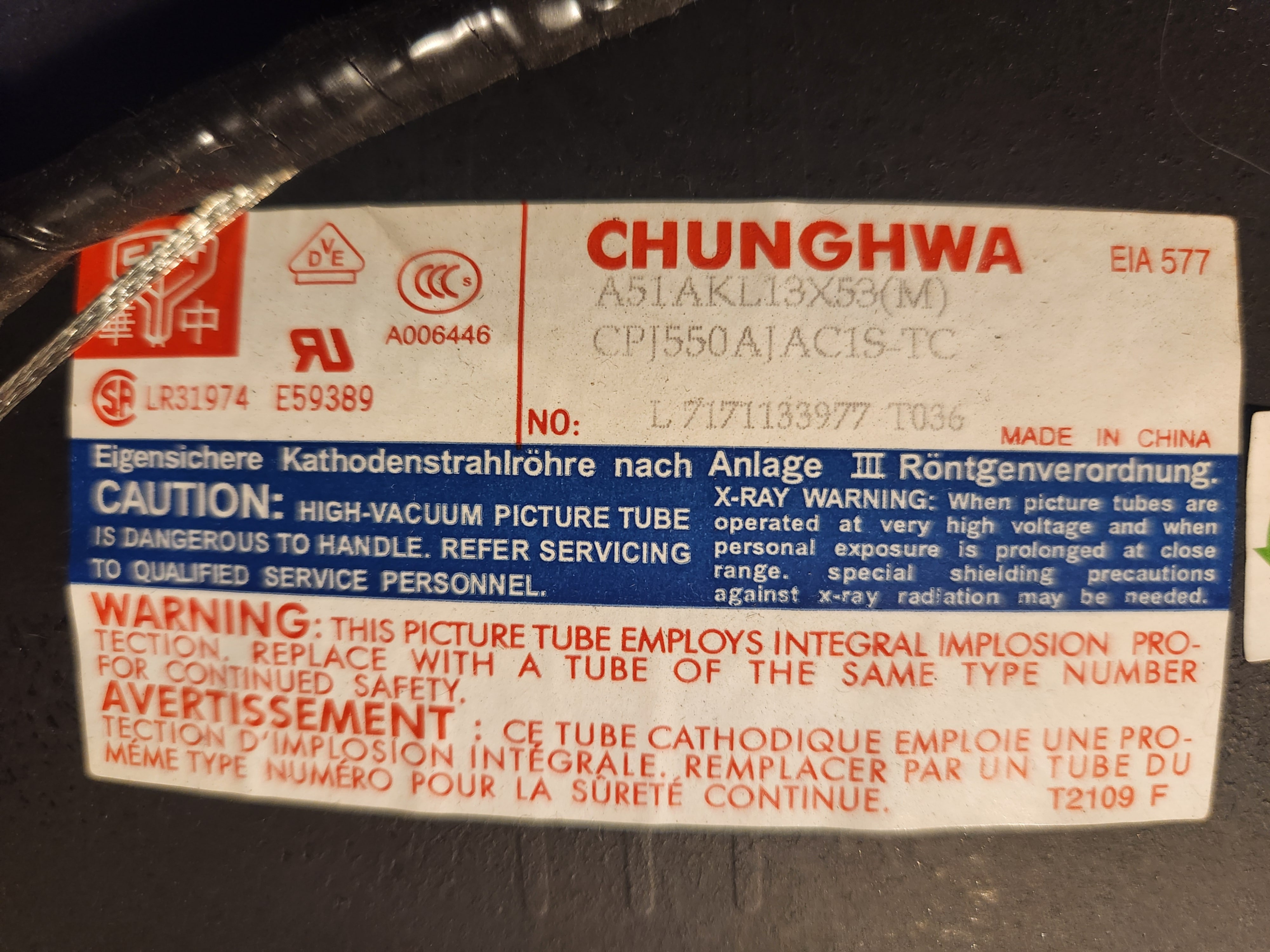

Tube: | Chunghwa , A51AKL13X , A51AKL13X53 |
Heater Voltage: | 6.3v |
Mask: |
Slot
![]() |
Tint: | Dark |
Removable Glare Film: | No |
Yoke: | XPX21023E2 |
Speakers: | Stereo, 3W x 2 |

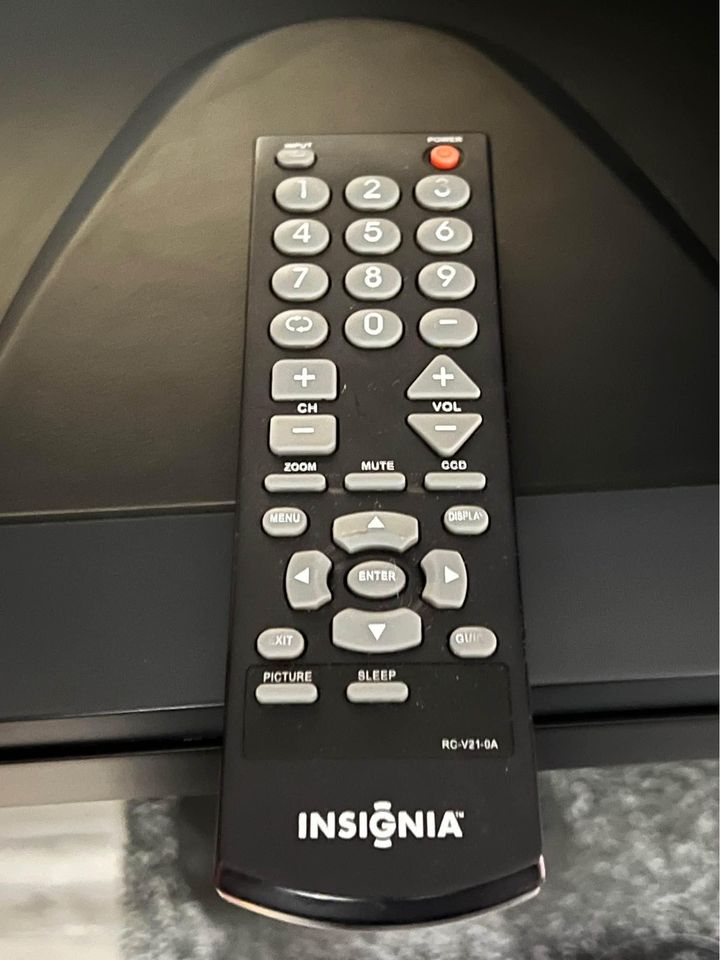

Remote: | RC-V21-0A |

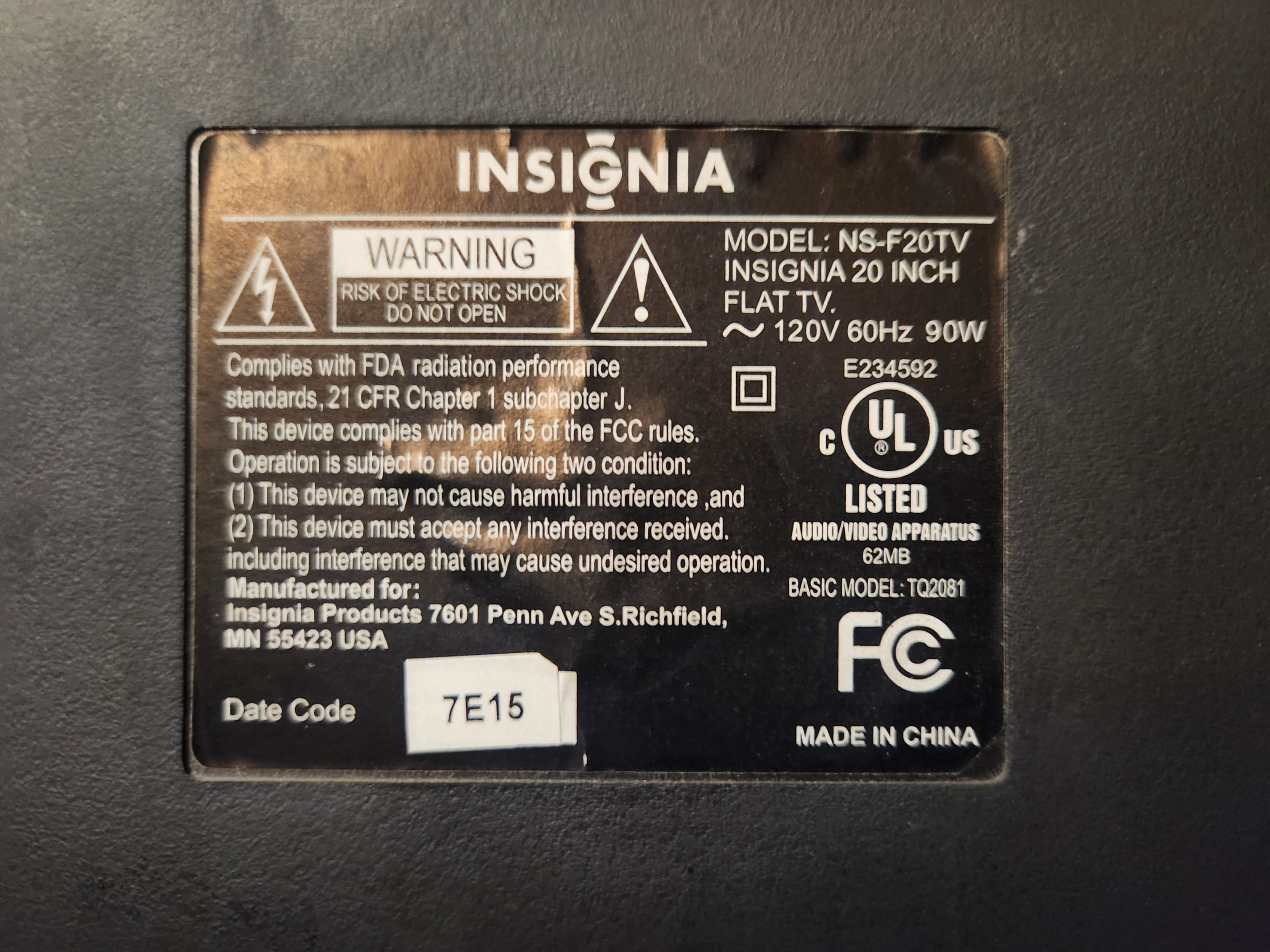

Chassis: | TQ2081 |
Weight: | 48.5 lbs (22 kg) |
Dimensions (W/H/D): |
590 x 457 x 475 mm
(23.2 x 18 x 18.7") |
Application: | Consumer |
Cabinet Material: | Plastic |
Launched: | 2007 |
MSRP: | 169 USD |
Country of Manufacture: | China |
Market: | North America |
Power Standard: | 120v |
Mounting: | Table Surface (Standard) |
Degaussing: | Automatic on Power-on |
Tag: | Needs Service Manual |
