Summary

Legendary widescreen computer monitor originally popularized by its use in game development. Specifically, John Carmack used one during the development of DOOM and Quake.

Also known as the Panasonic TX-8DW71W.

Literature

Notes

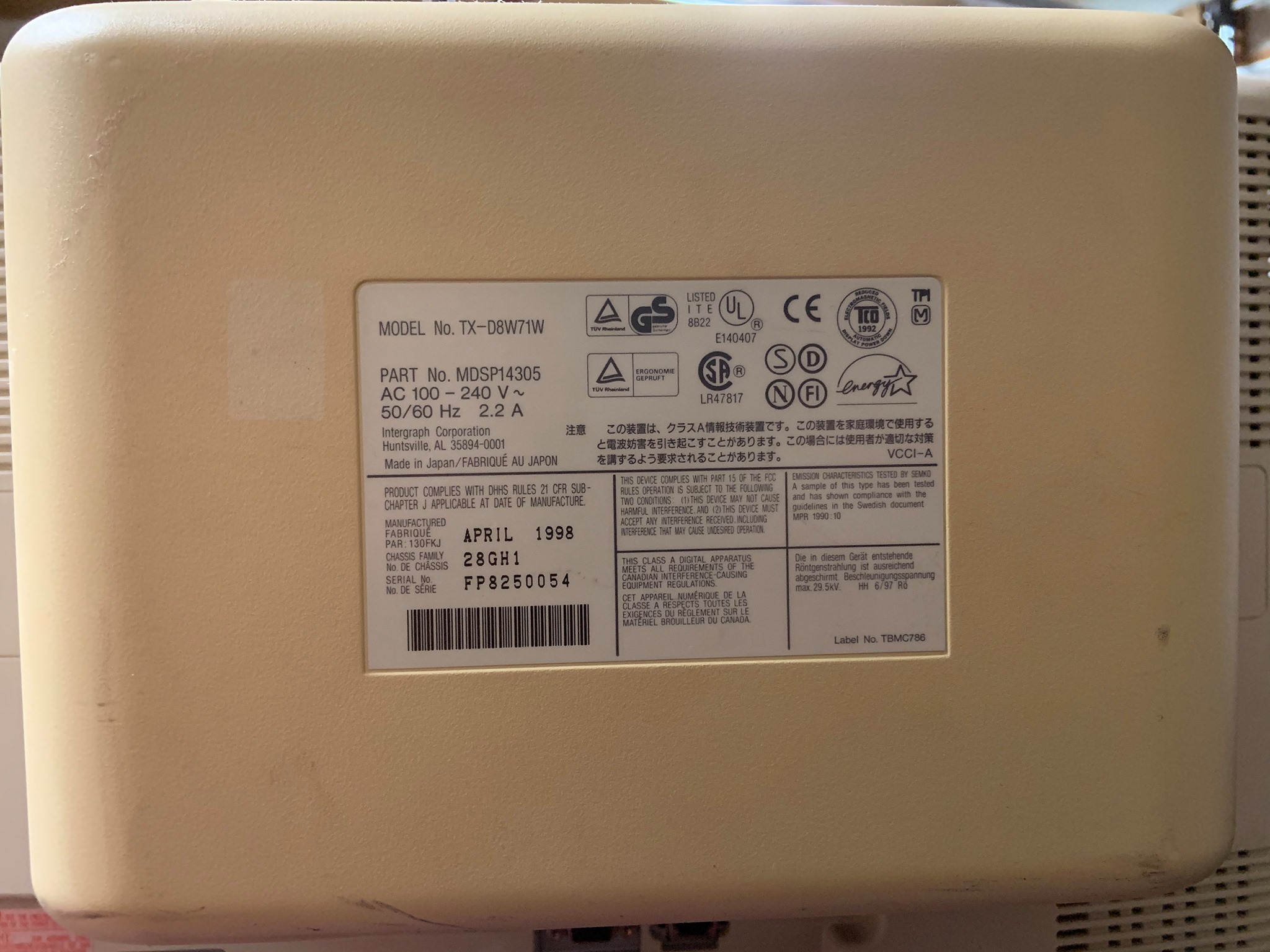

Rumored to also be sold as the Panasonic TX-D8W71W.

Maximum addressable resolution: 2,048x1,152 Maximum refresh rate: 85 Hz @ 1,920x1,080 Maximum refresh rate at maximum resolution: 80 Hz @ 2,048x1,152

Gallery

<img title="Click to view image in new tab" alt="Intergraph InterView 28hd96" class="gallery_item rounded" src="/images/8/d/4/1/9/8d41906deefd8b808d1daac534b65051d4802232-img5410.png" /> <img title="Click to view image in new tab" alt="Intergraph InterView 28hd96" class="gallery_item rounded" src="/images/c/a/a/d/a/caadaf7d9de202dca02563e8f2a5c26d0572bf87-label.jpeg" /> <img title="Click to view image in new tab" alt="Intergraph InterView 28hd96" class="gallery_item rounded" src="/images/3/3/d/0/f/33d0f4f29bd84b4e0bb1be9a8caa6553b7a0ee42-screenshot-2023-07-21-142407.png" /> <img title="Click to view image in new tab" alt="Intergraph InterView 28hd96" class="gallery_item rounded" src="/images/2/6/f/b/0/26fb02f6b540fd6cc4a421531da08390a0b7e7e4-screenshot-2023-07-20-232834.png" />
<img title="Click to view in new tab" alt="" class="rounded" id="featured" src="/images/1/b/f/e/e/1bfeec10c963852f67bab4a5520e9b19cff2b0cd-img5411.jpg" />
Specifications
Brand: <a href="/search?manufacturer=Intergraph">Intergraph</a>
Manufacturer: <a href="/search?actual_manufacturer=Panasonic">Panasonic</a>
Model: <a href="/search?model=28hd96">28hd96</a>
Series: <a href="/search?series=InterView&manufacturer=Intergraph">InterView</a>
Viewable Size: <a href="/search?size=26%2C26">26"</a>

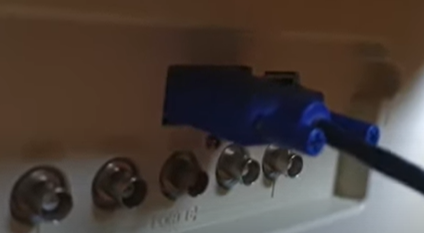

Input Signals: <a href="/search?inputs=VGA">VGA</a>, <a href="/search?inputs=RGB">RGB</a>, <a href="/search?inputs=BNC">BNC</a>
Native Resolutions: <a href="/search?resolutions=VGA">VGA</a>, <a href="/search?resolutions=SVGA">SVGA</a>, <a href="/search?resolutions=XGA">XGA</a>, <a href="/search?resolutions=SXGA">SXGA</a>, <a href="/search?resolutions=1080i">1080i</a>, <a href="/search?resolutions=UXGA">UXGA</a>, <a href="/search?resolutions=480p">480p</a>, <a href="/search?resolutions=1080p%4030f">1080p@30f</a>, <a href="/search?resolutions=1080p%4060f">1080p@60f</a>
Horizontal Scan Range: <a href="/search?horizontal=30%2C30">30 kHz</a>, <a href="/search?horizontal=96%2C96">96 kHz</a>
Vertical Scan Range: <a href="/search?vertical=50%2C50">50 Hz</a>, <a href="/search?vertical=160%2C160">160 Hz</a>
Aspect: <a href="/search?aspect=16%3A9">16:9</a>

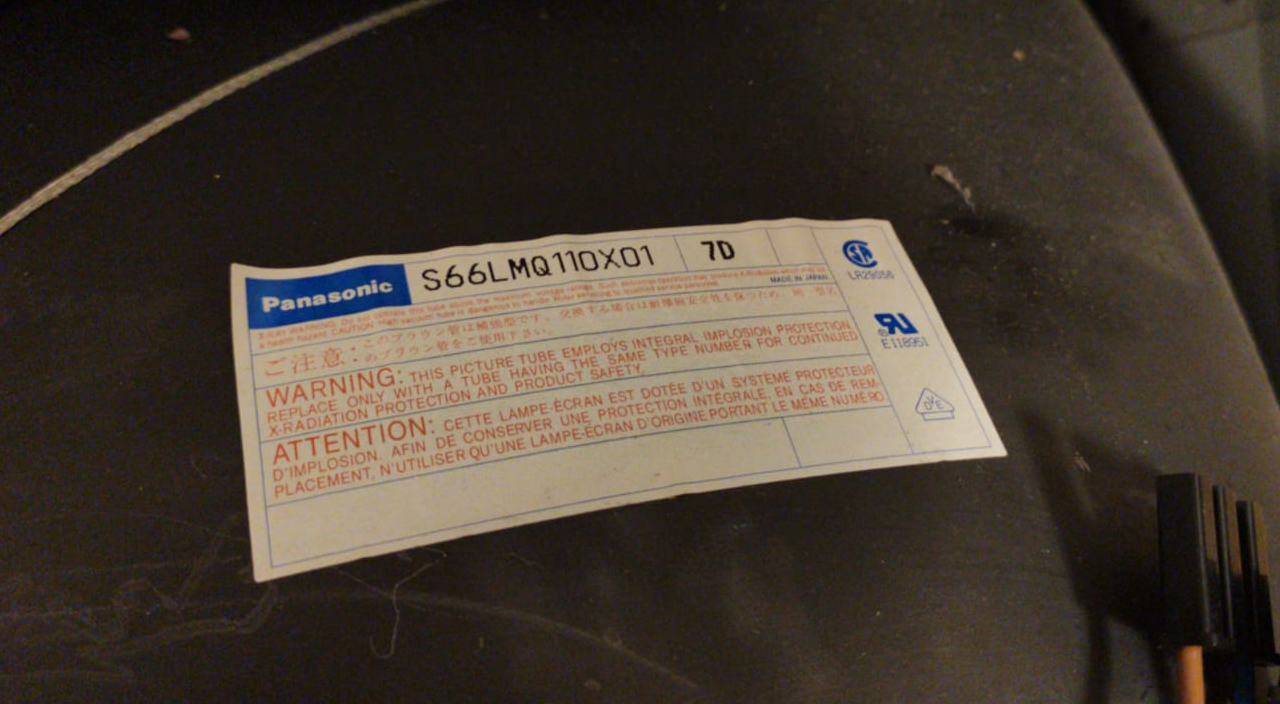

Tube: <a href="/search?tube=Panasonic">Panasonic</a> , <a href="/search?tube=S66LMQ110X01">S66LMQ110X01</a>
Deflection: <a href="/search?deflection=110">110°</a>
Mask: <a href="/search?mask=Shadow">Shadow</a>, <a href="/search?mask=Invar">Invar</a>
Pitch: <a href="/search?pitch=0.32%2C0.32">0.32 mm</a>
Weight: 101.2 lbs (45.9 kg)
Application: <a href="/search?application=Computer%20Monitor">Computer Monitor</a>
Cabinet Material: <a href="/search?cabinet_material=Plastic">Plastic</a>
Launched: <a href="/search?launched=1998%2C1998">1998</a>
Degaussing: <a href="/search?degaussing=Automatic%20on%20Power-on">Automatic on Power-on</a>
Tag: <a href="/search?tag=Hall%20of%20Fame">Hall of Fame</a>
