Summary
18" CRT by JCPenney, sold at their stores in 1983. Originally manufactured by NEC in Japan.
Manuals
(None at this time)
Notes
This model is particularly special in that it is one of the very few sets containing an 18"-viewable tube, which just so happens to be compatible with the chassis in Nintendo's Red Tent arcade cabs.

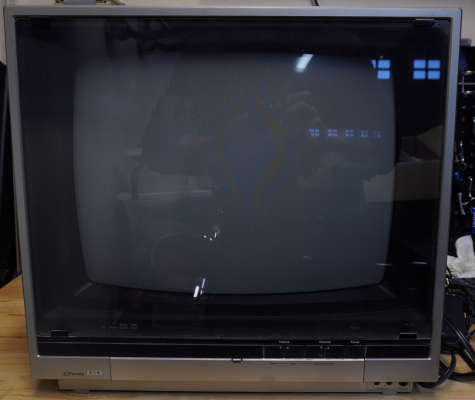

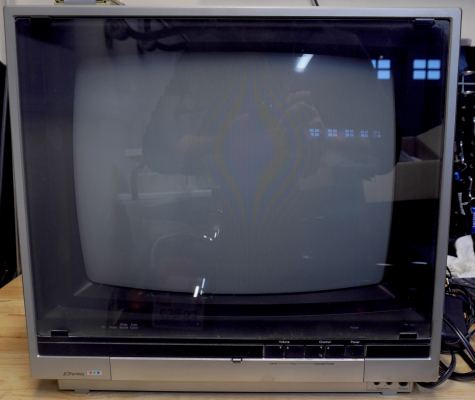

Gallery
| Specifications | |
|---|---|
| Brand: | JCPenney |
| Manufacturer: | NEC |
| Model: | 685-2073 |
| Series: | 685 |
| Viewable Size: | 18" |

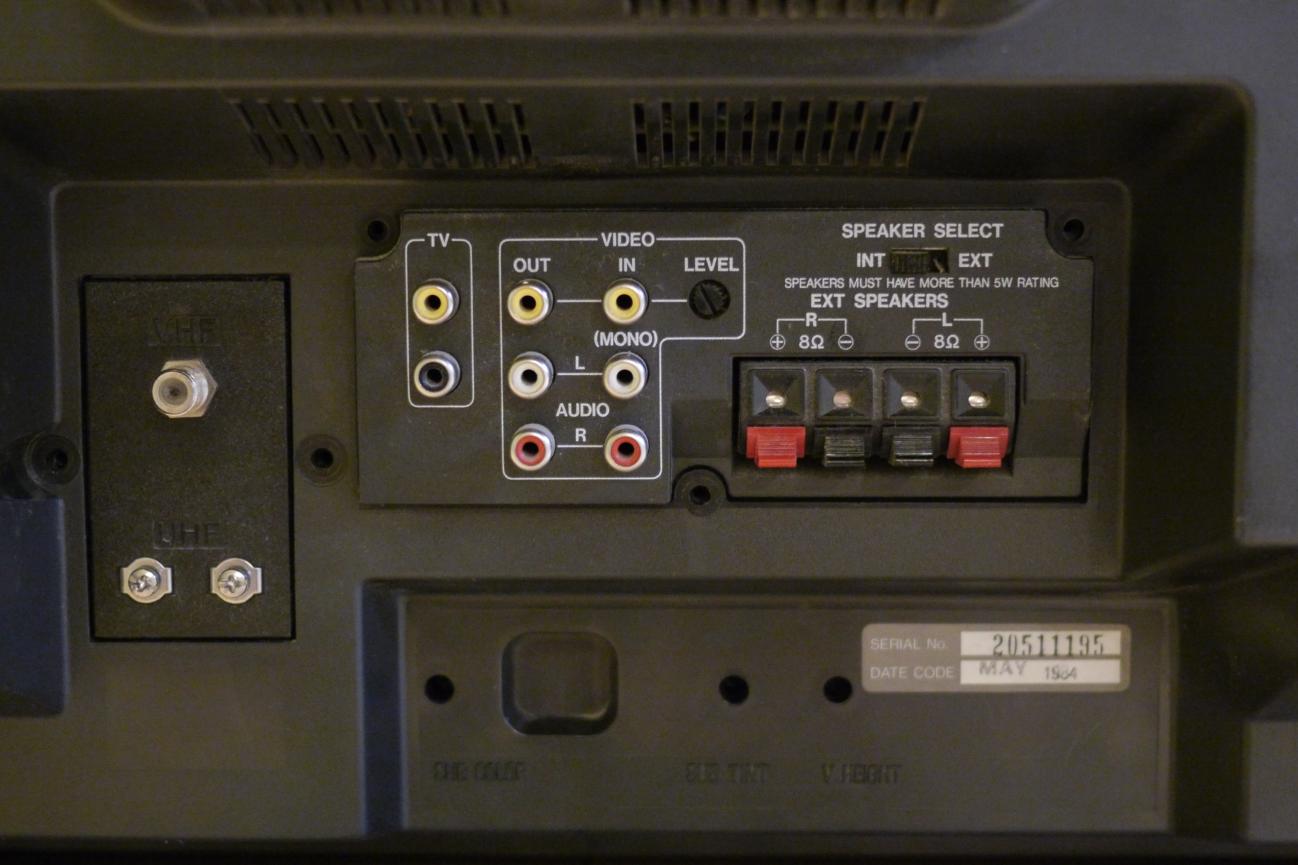

| Inputs: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, External Potentiometers |
| Focus Type: | Single |
| Tube: | Hitachi , 470RDB22-TC03 |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Light, Detachable Sunshade |
| Removable Glare Film: | No |
| Yoke: | 89-2034-00 |
| Speakers: | Stereo, 3W x 2 |
| Chassis: | 685-2073-00 |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1983 |
| Country of Manufacture: | Japan |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs Service Manual |
