JVC 3240
March 16, 2026, 3:03 pm
March 16, 2026, 9:42 pm
March 16, 2026, 9:42 pm
Summary

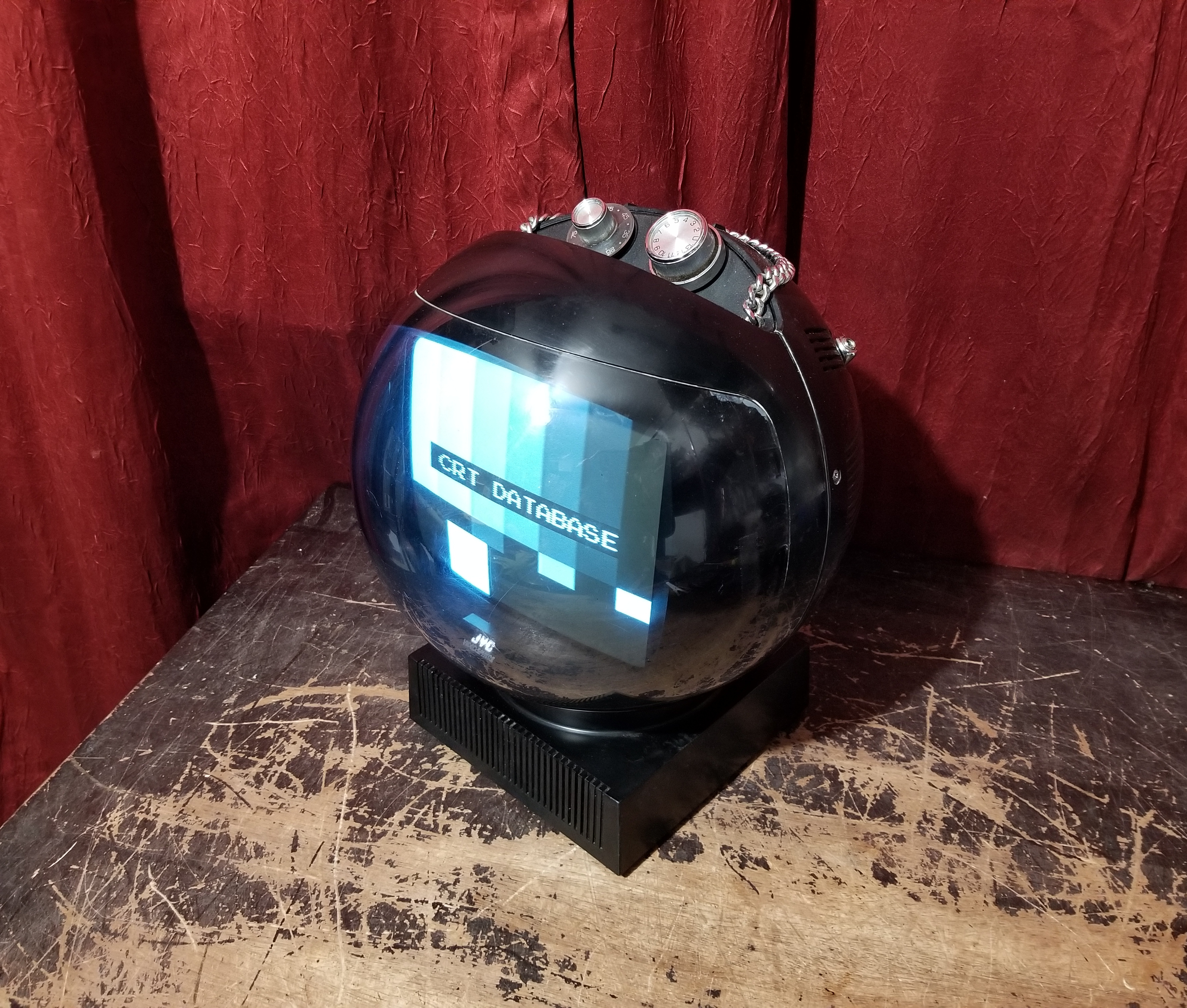

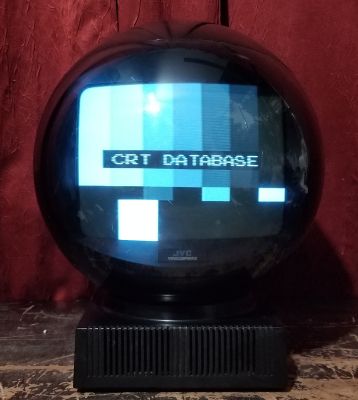

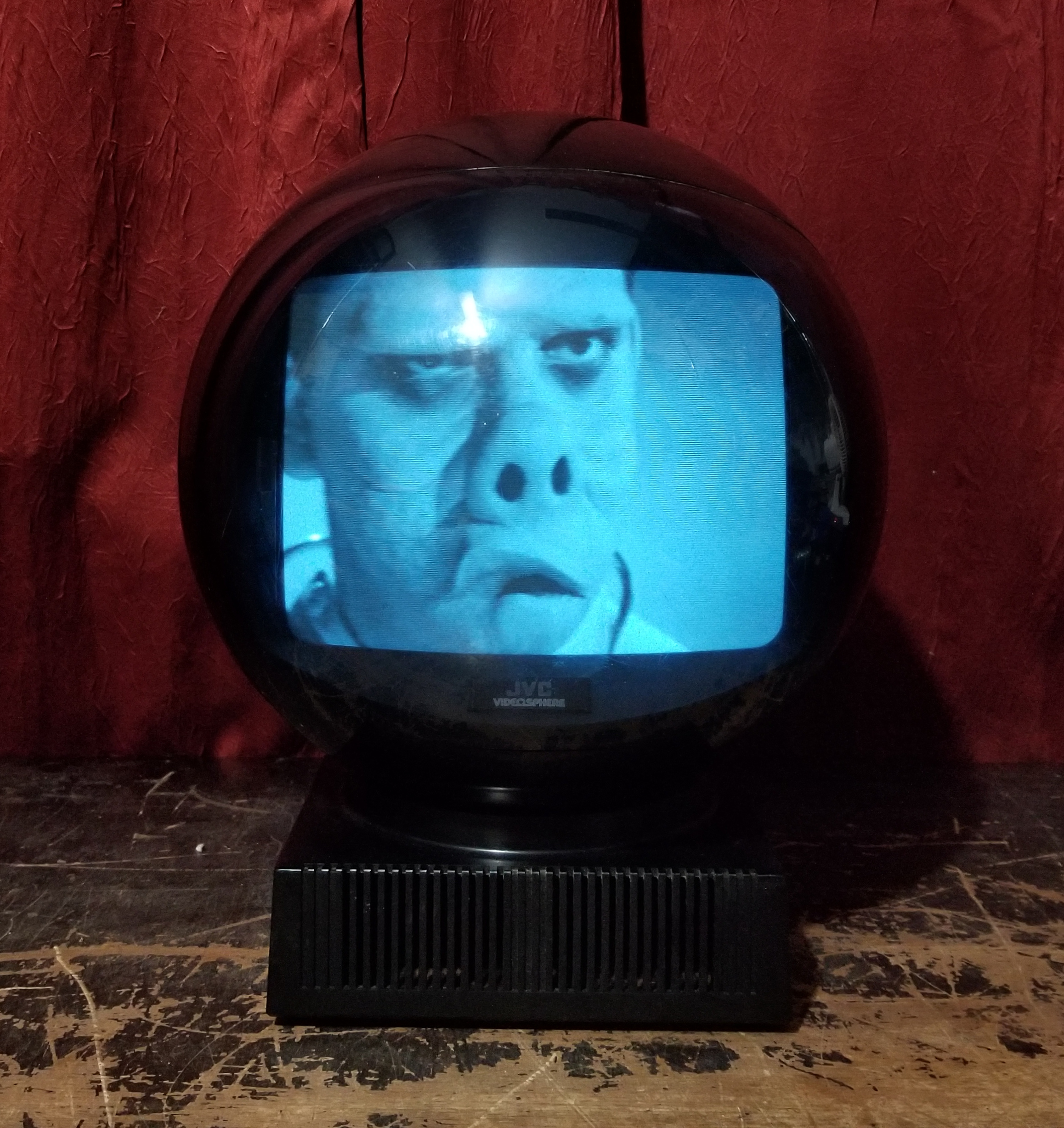

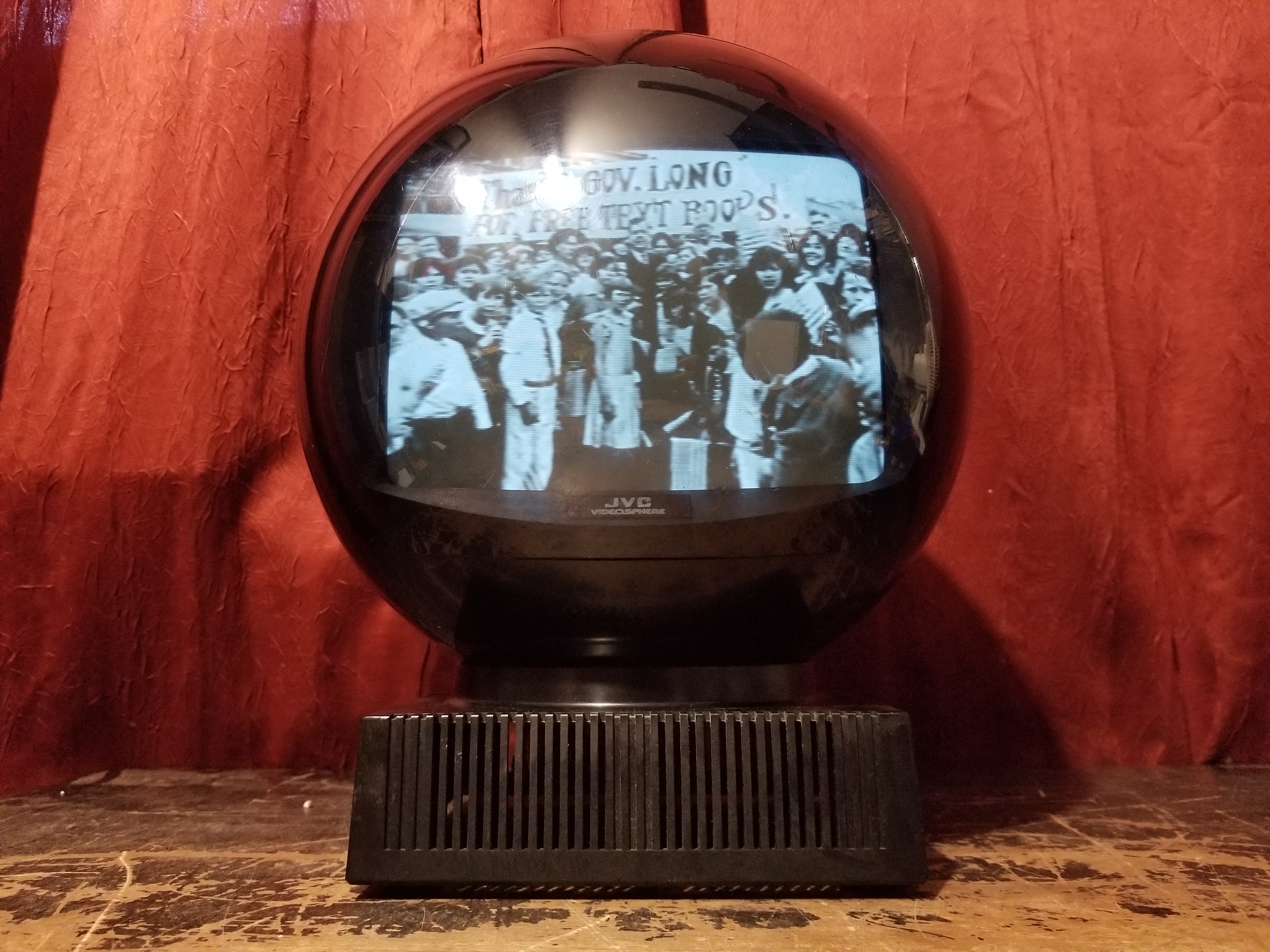

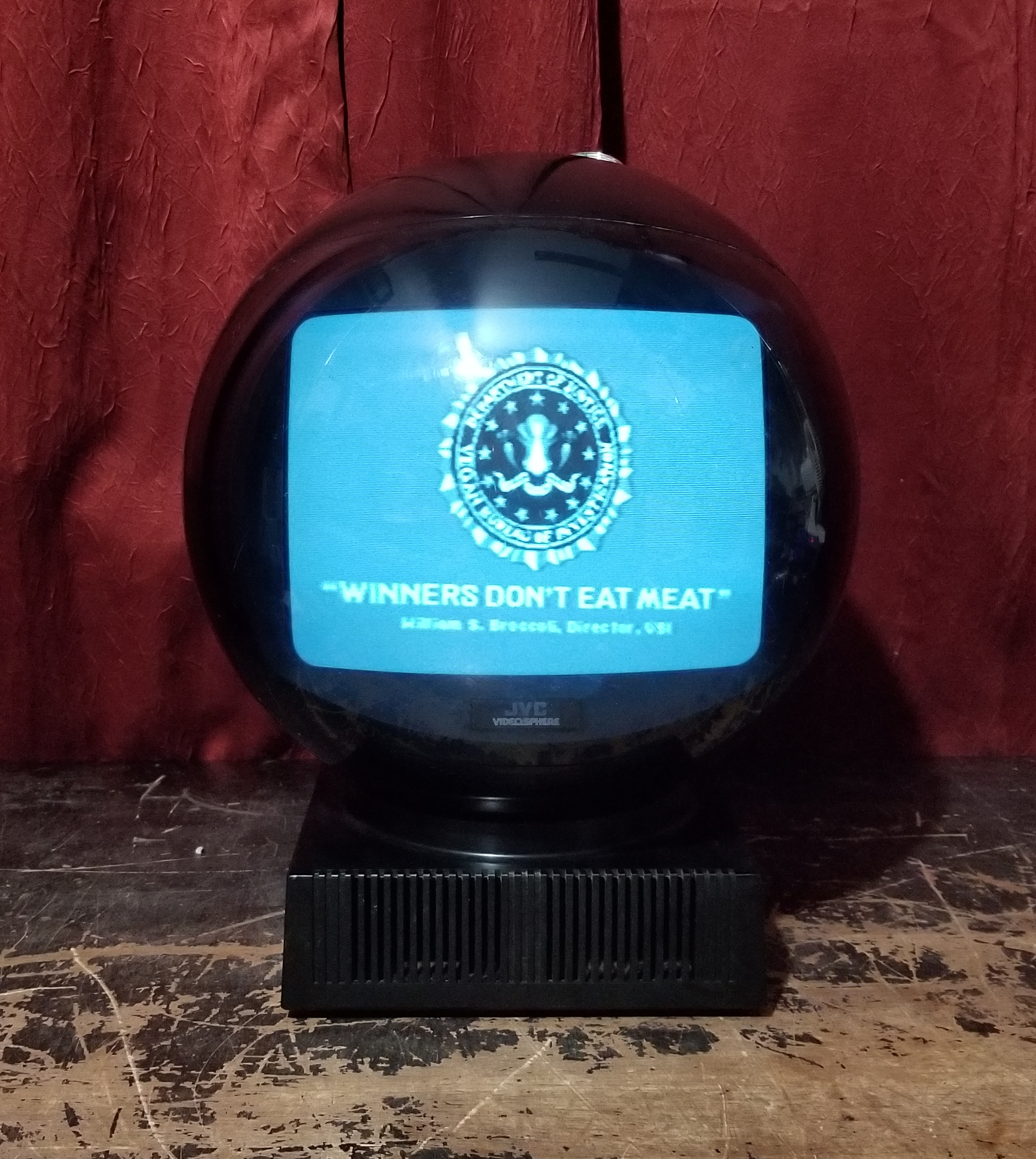

Meet JVC's Videosphere. A ball to watch. The personal, portable TV that goes anywhere. Swivels and tilts on its own base...or hangs like a mobile from its carrying chain to give you the best viewing angle from any position. Big 38 square inch (9-inch diagonal) glare-free screen for personal or group viewing. Sharp black and white 83-channel reception.

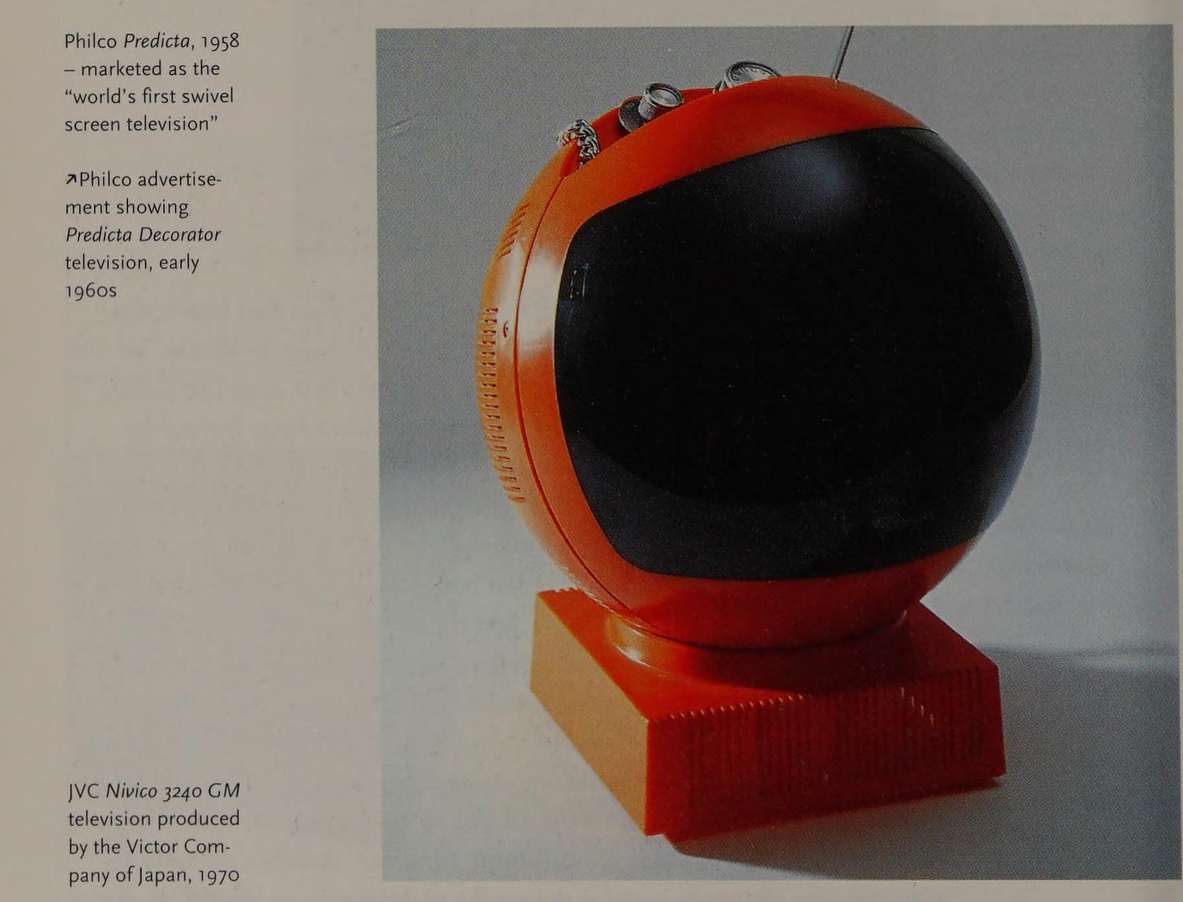

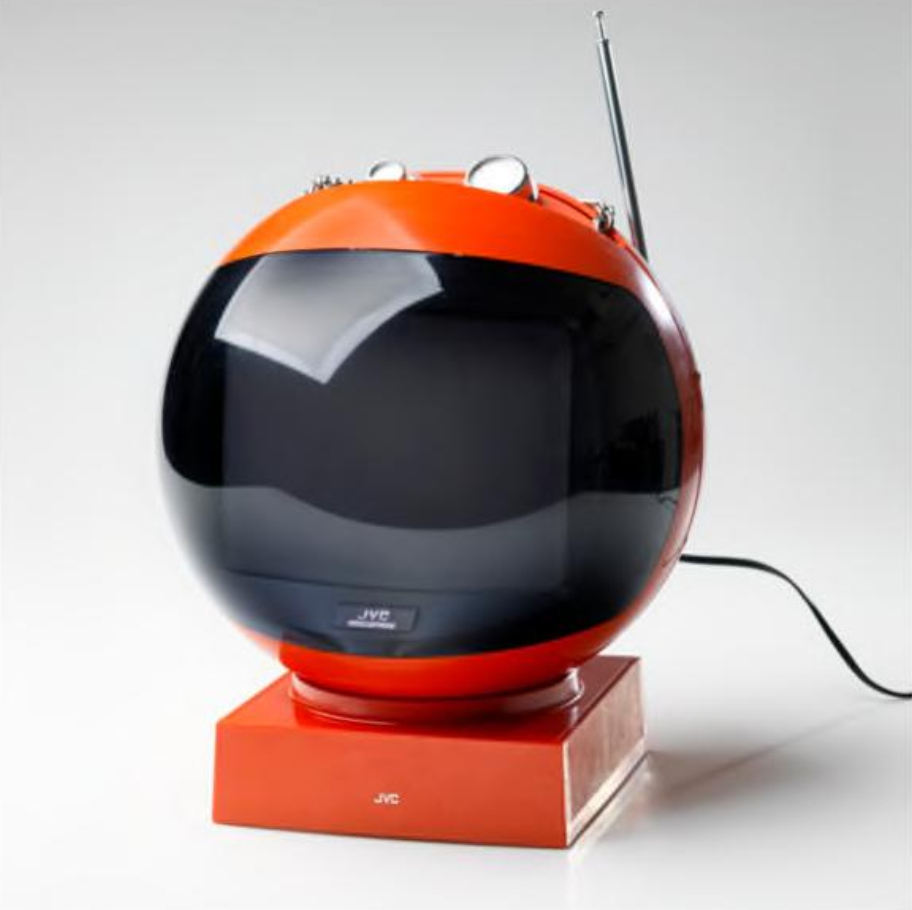

Came in multiple colors including "Moon White" and "Mars".

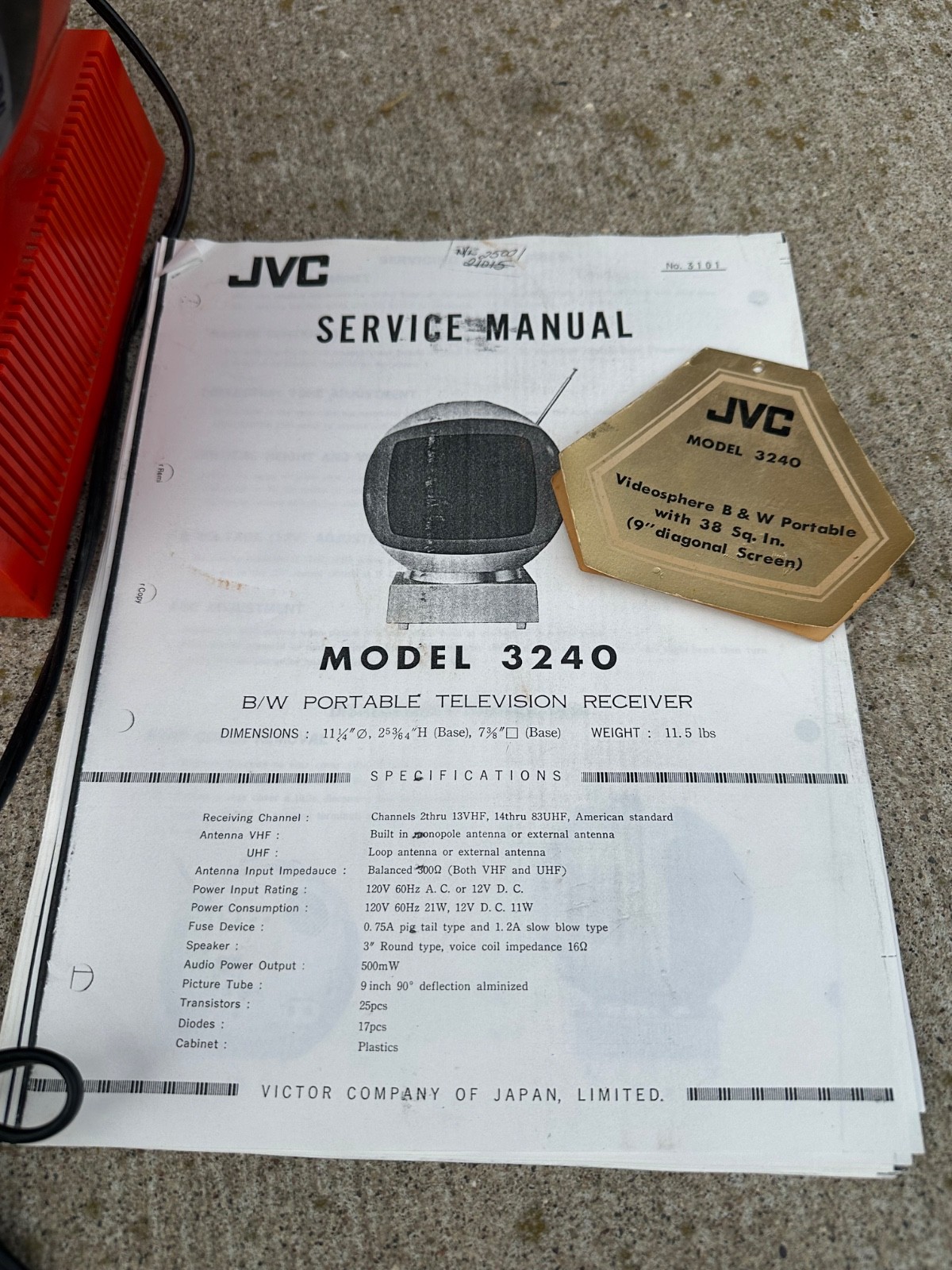

Manuals
Notes

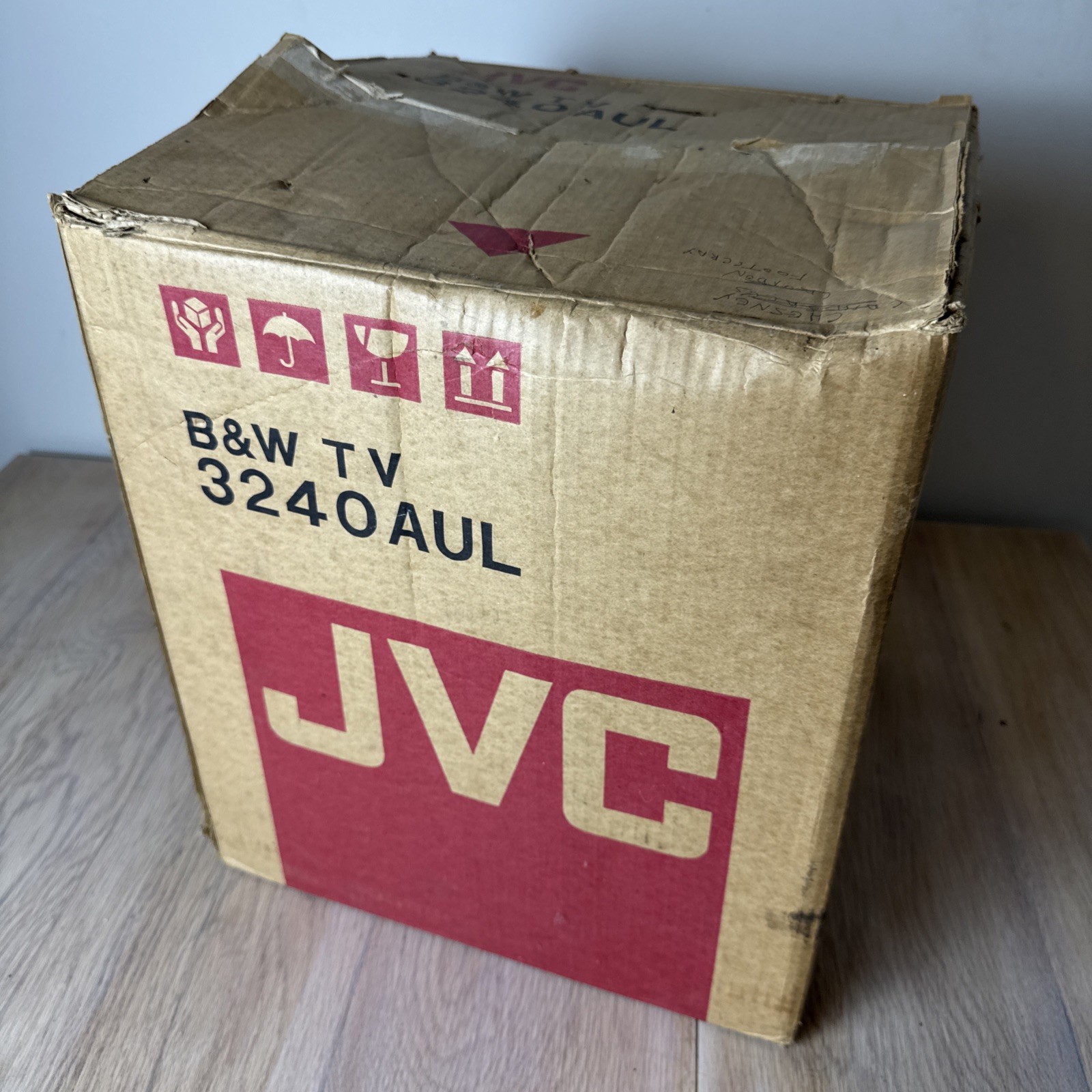

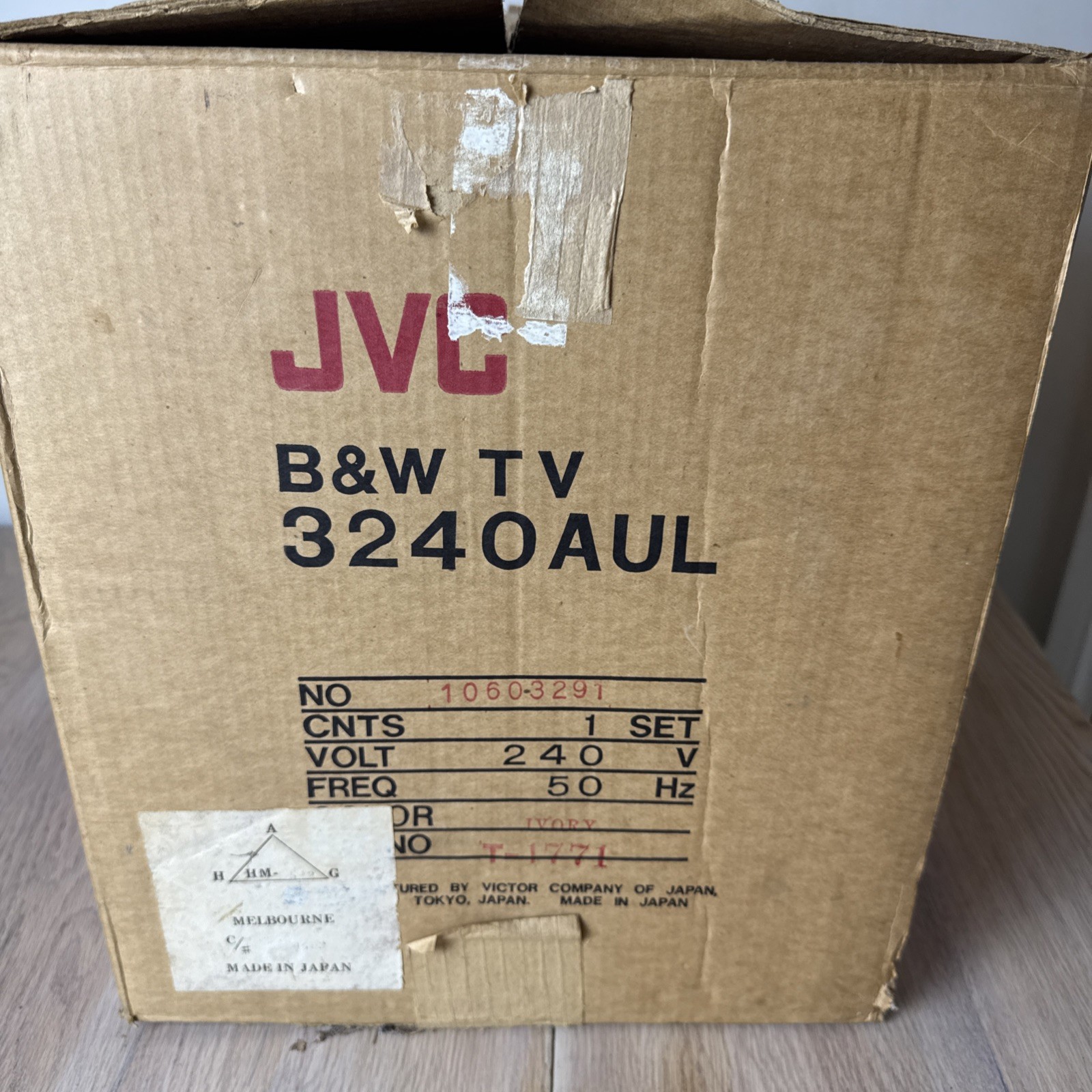

Model 3241 included an alarm clock in the base. The 3240AUL is 240V 50Hz.
Repair Notes

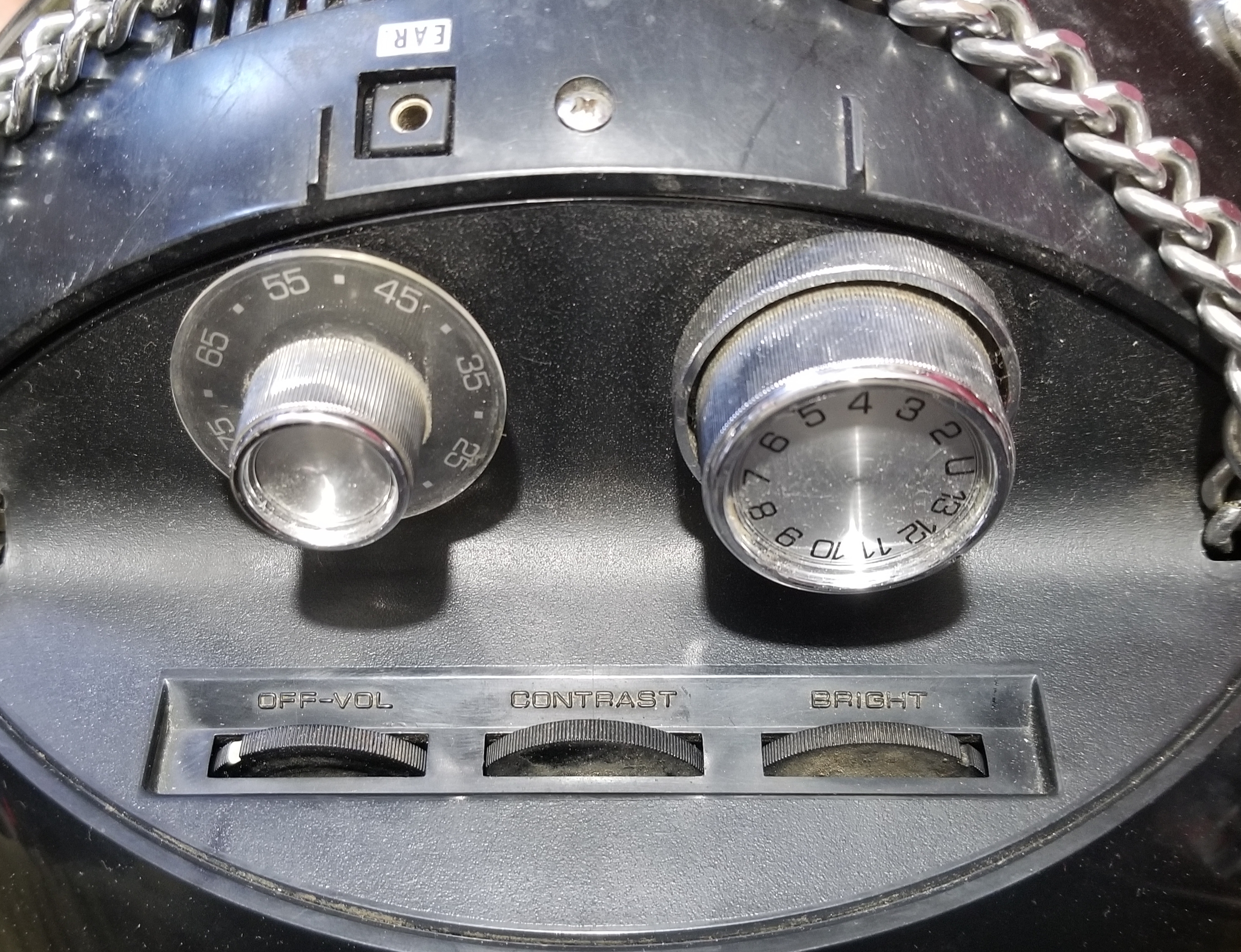

One unit would not turn on or would very intermittently turn on due to a dirty power switch pot. Spraying inside the power switch pot with contact cleaner fixed it.

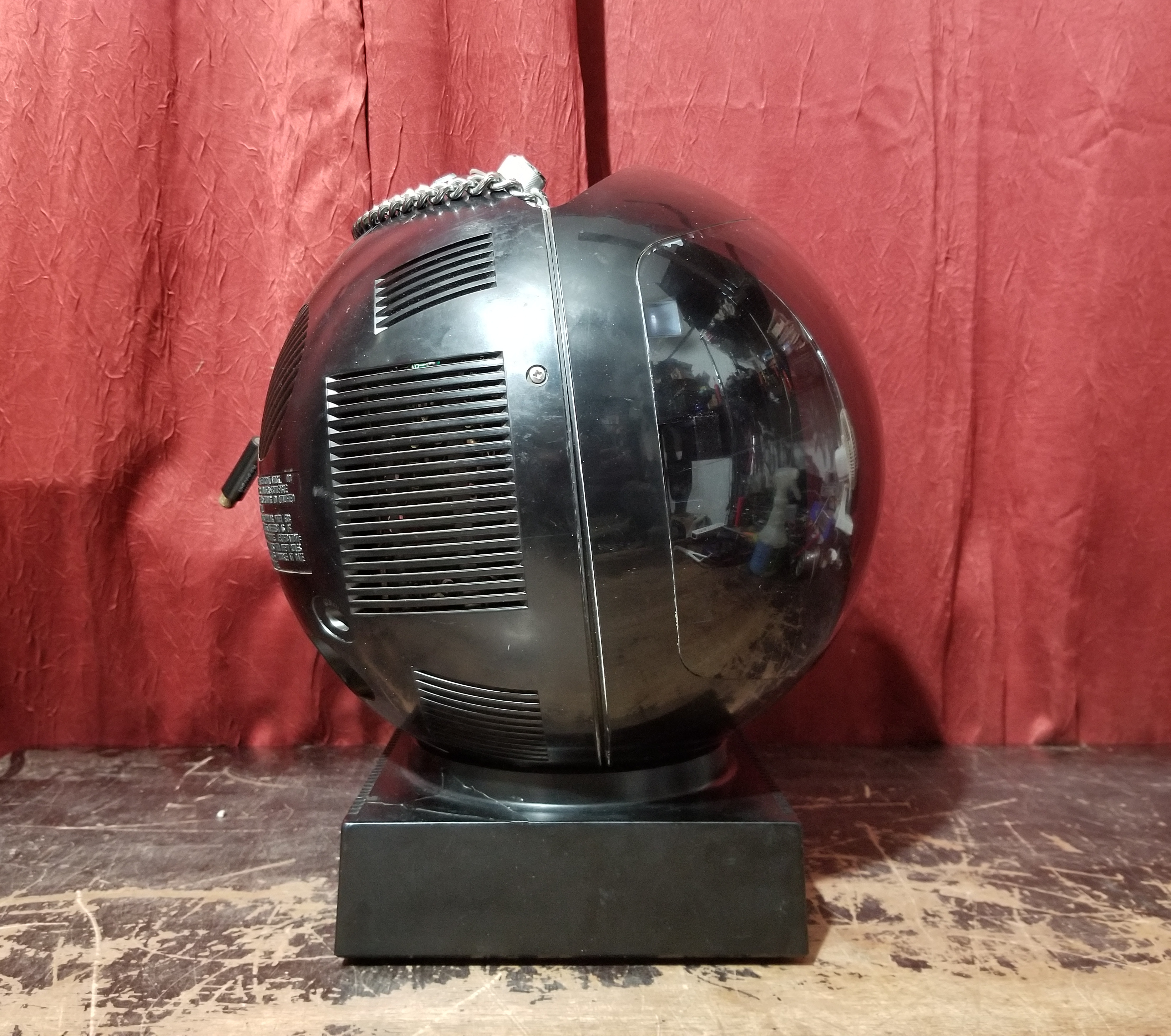

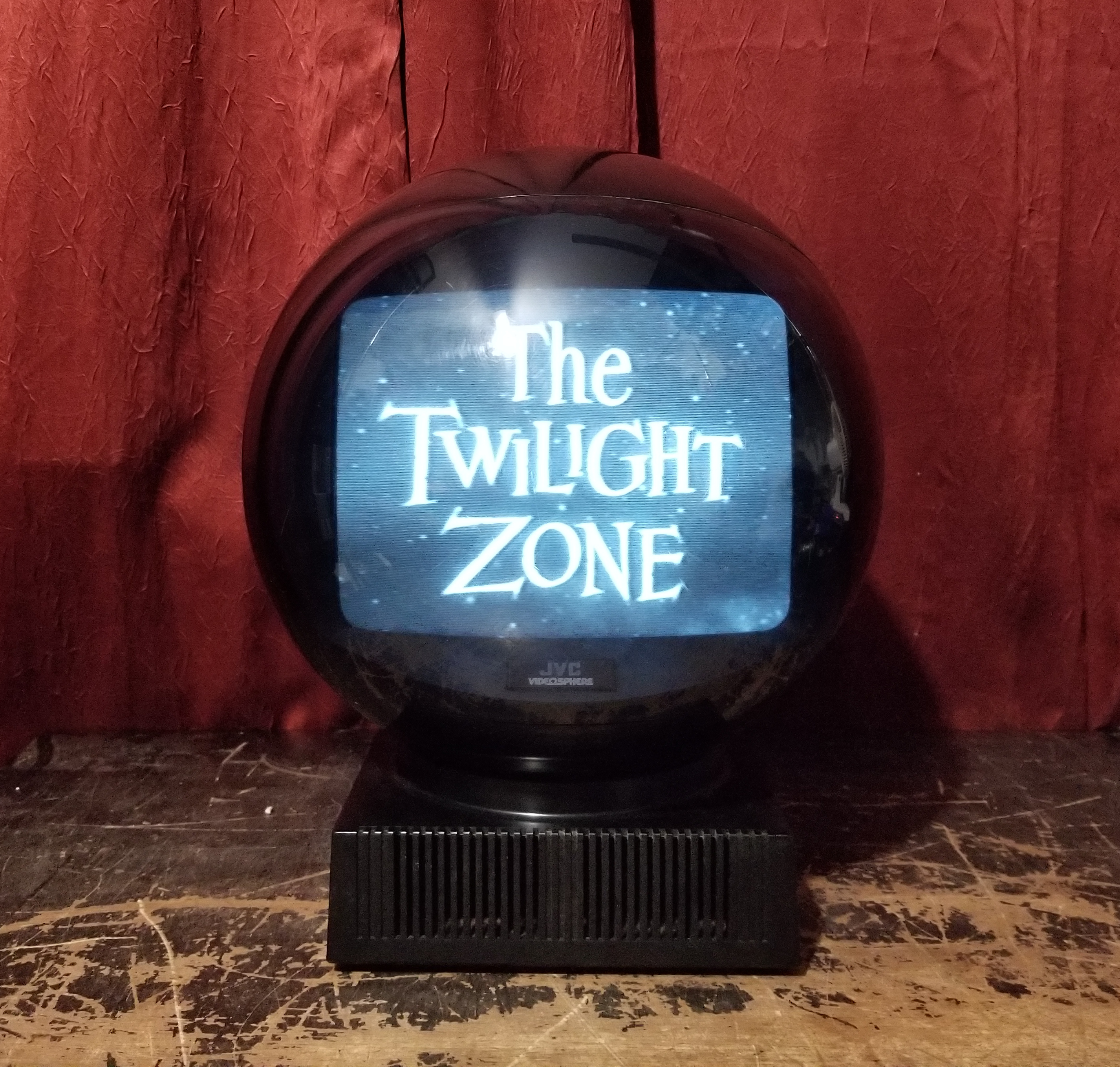

Gallery
| Specifications | |
|---|---|
| Brand: | JVC |
| Manufacturer: | JVC |
| Model: | 3240 |
| Series: | Videosphere |
| Viewable Size: | 9" |
| Input Signals: | RF, Composite Luminance |
| Native Resolutions: | 240p, 480i |
| Formats: | Monochrome |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, External Potentiometers |
| Horz. Output Transistor: | 2SC681A |
| Vertical Output IC: | 2SB341V |

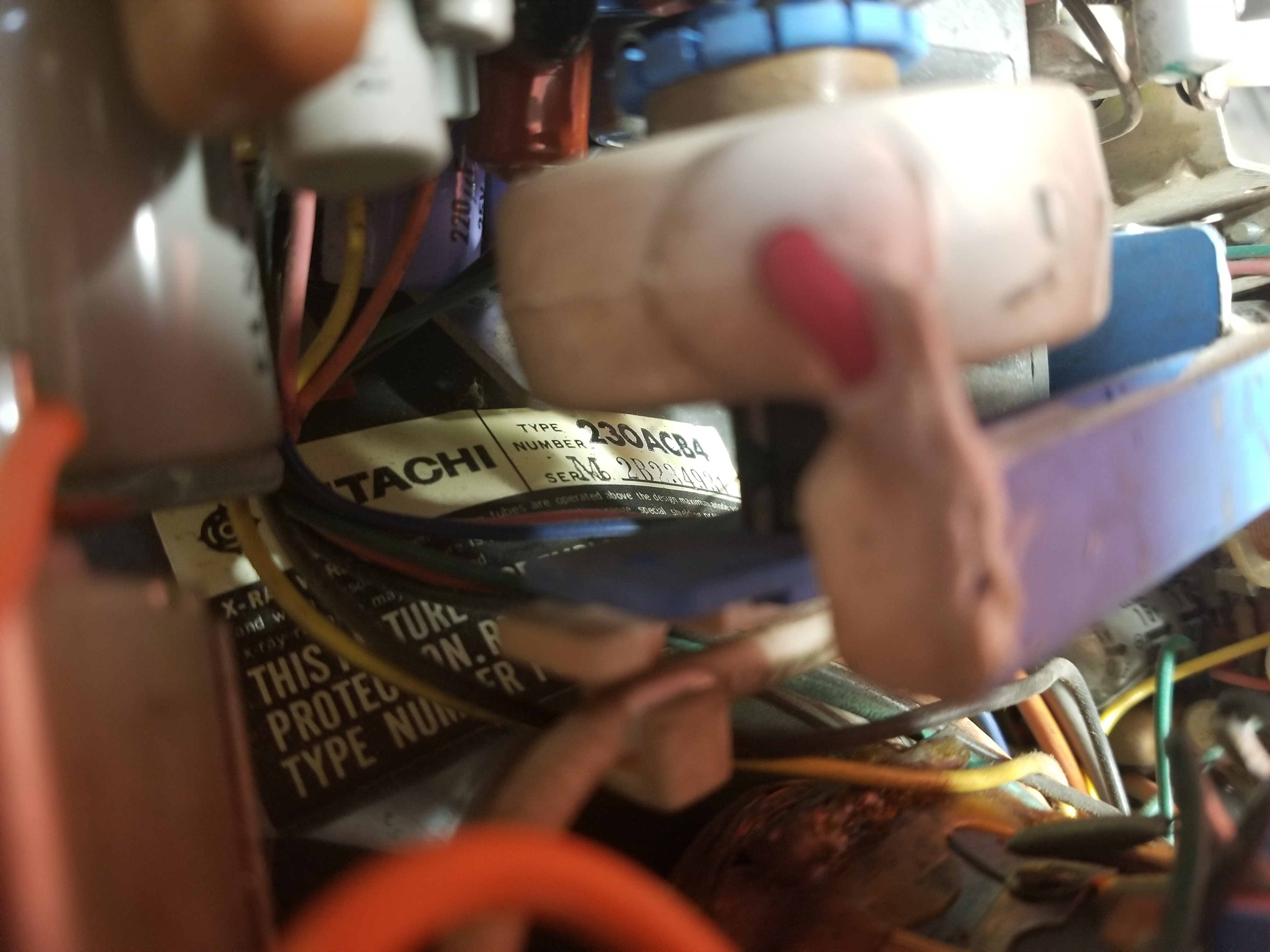

| Tube: | Hitachi , 230ACB4 |
| Heater Voltage: | 12v |
| Deflection: | 90° |
| Mask: | Monochrome Tube (no mask) |
| Tint: | Detachable Sunshade |

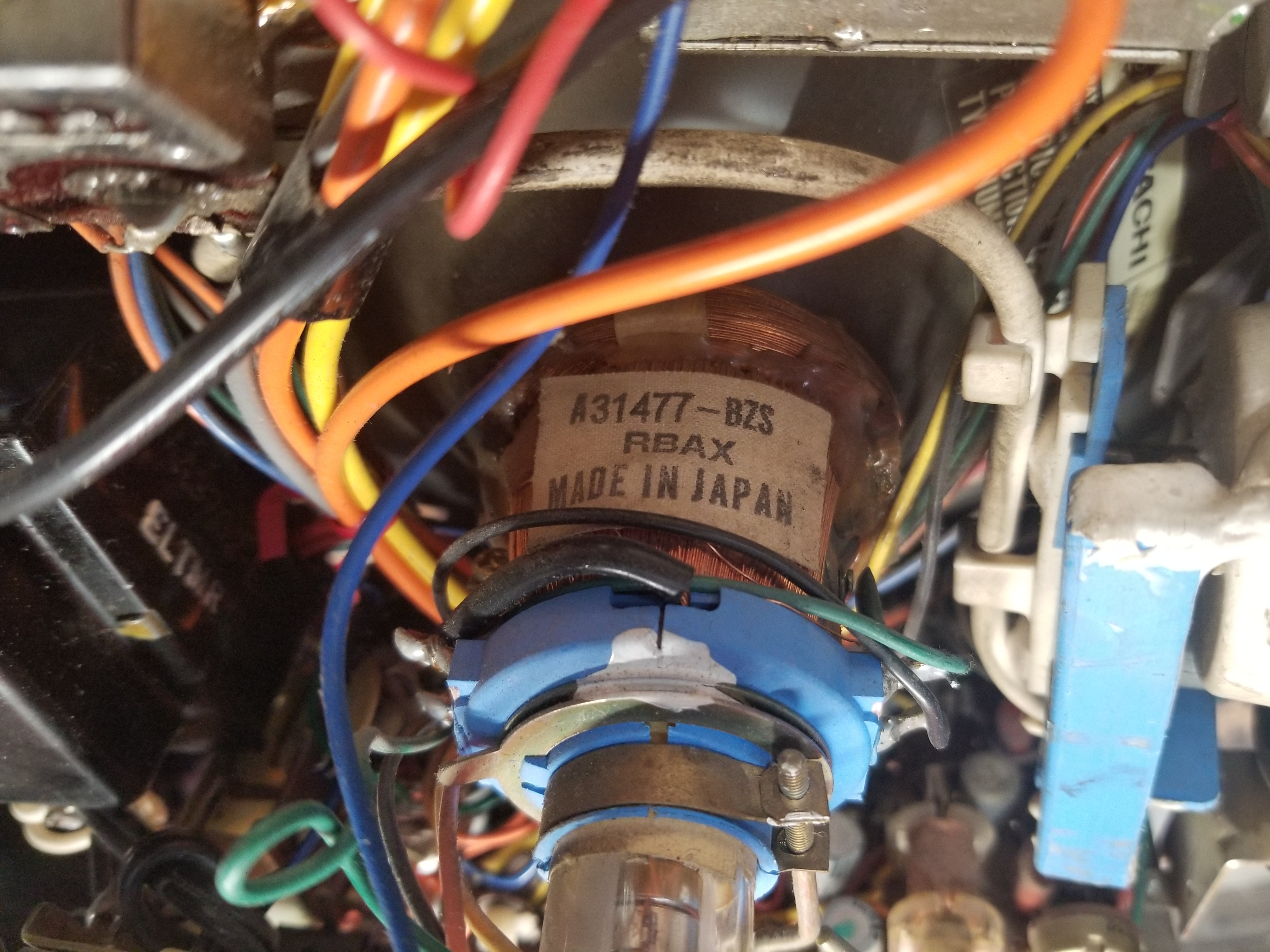

| Yoke: | A31477-BZS |
| Speakers: | Mono |
| Weight: | 11.5 lbs (5.2 kg) |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1971 |
| MSRP: | 159 USD |
| Country of Manufacture: | Japan |
| Market: | North America |
| Power Standard: | 120v, 12VDC |
| Mounting: | Carrying Handle, OEM Stand |
| Tag: | Needs Owners Manual, Needs Measurements, Needs Yoke Info, Repair Log, Portable |
