Summary

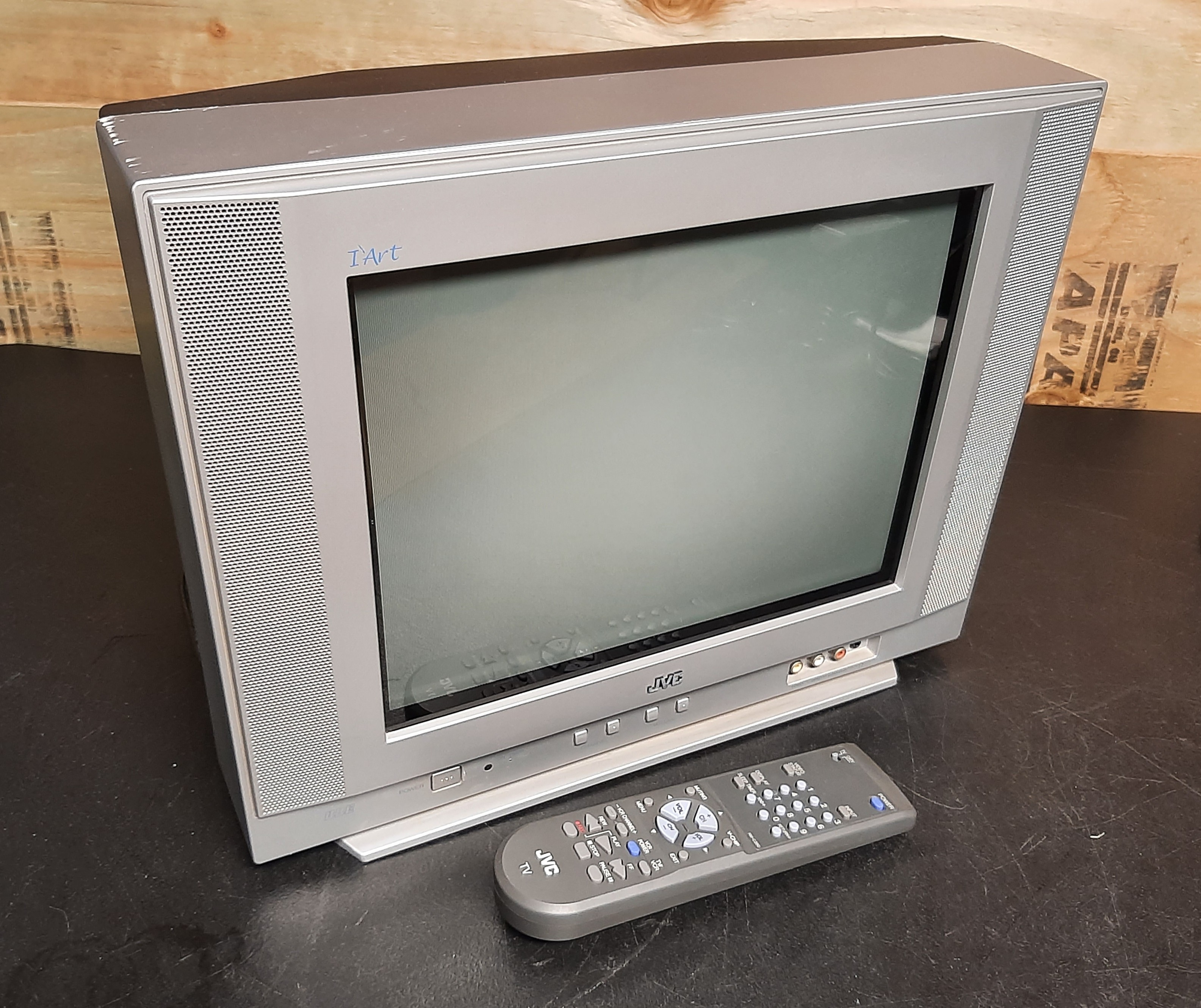

Small flat-screen TV, manufactured by Orion and sold as part of JVC's premium I'Art series. It is one of the few TVs of its size equipped with S-Video and Component inputs.
Manuals
Notes
This TV is identical to the Toshiba 14AF42. Service menu operation is the same as the Toshiba AF series and other Orion-produced TVs.
Like other Orion TVs, this model lacks an input select button on the front panel - you can change the inputs using the channel-down button to go below channel 003.

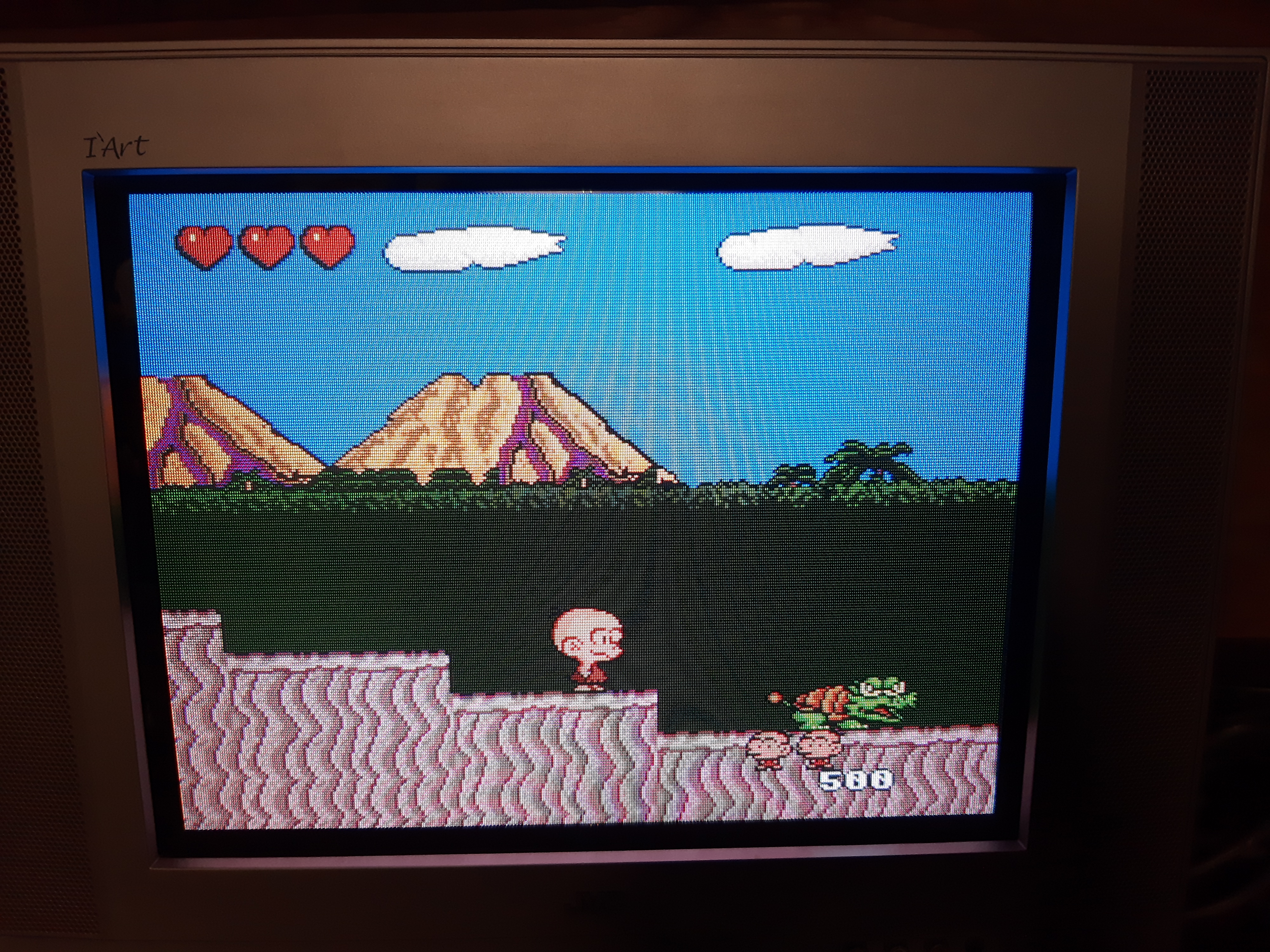

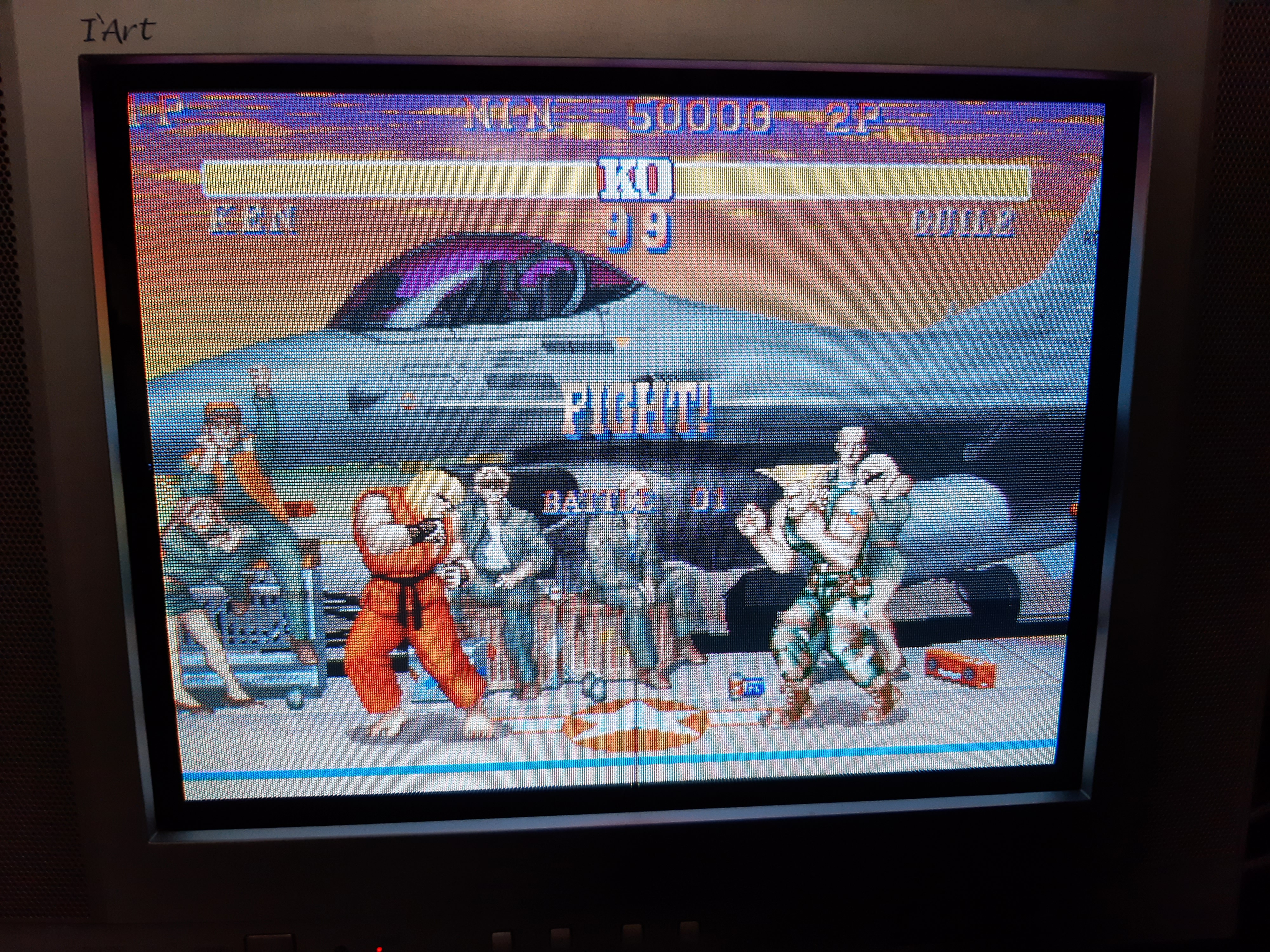

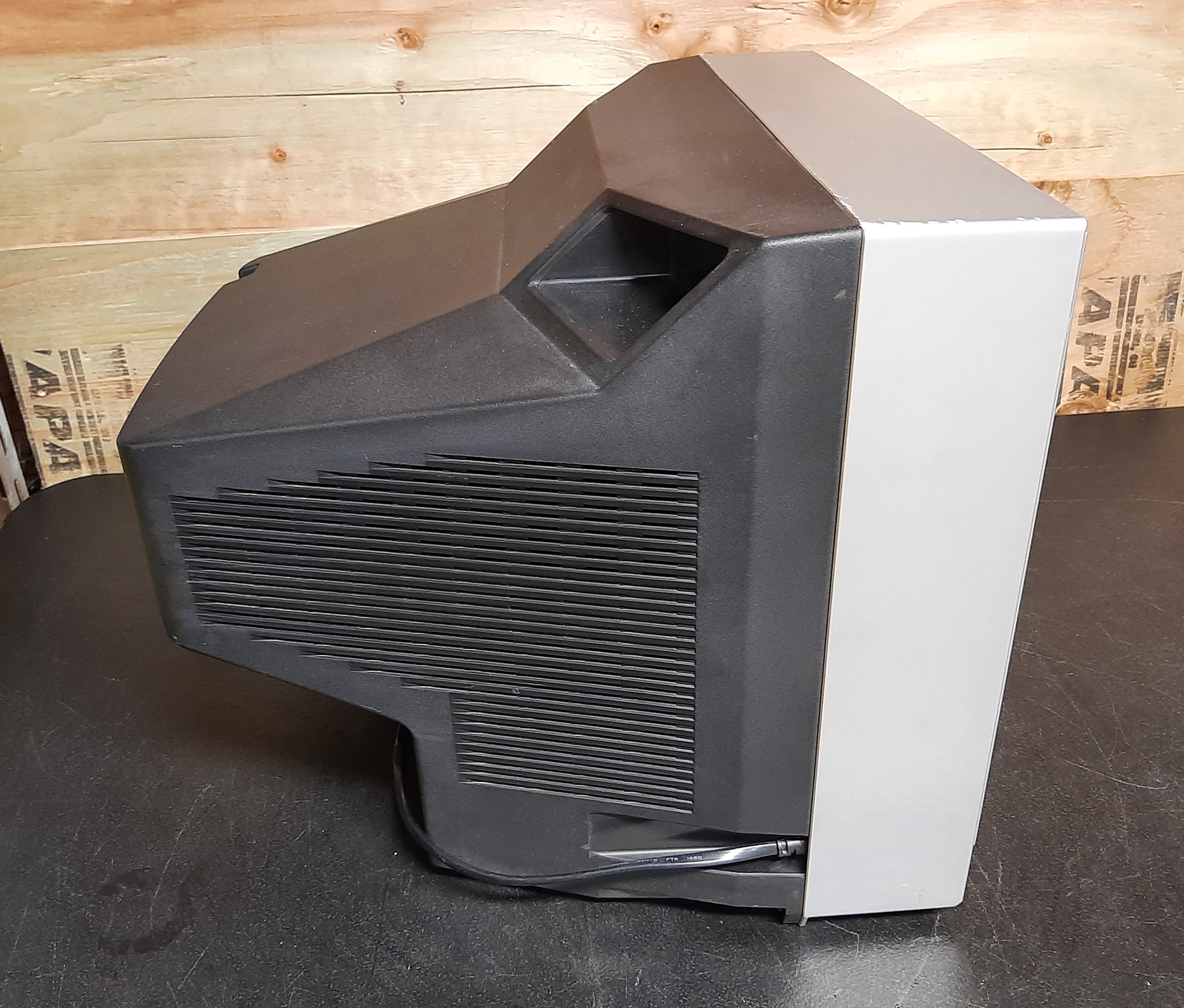

Gallery
| Specifications | |
|---|---|
| Brand: | JVC |
| Manufacturer: | Orion |
| Model: | AV-14F703 |
| Series: | I'Art |
| Viewable Size: | 14" |

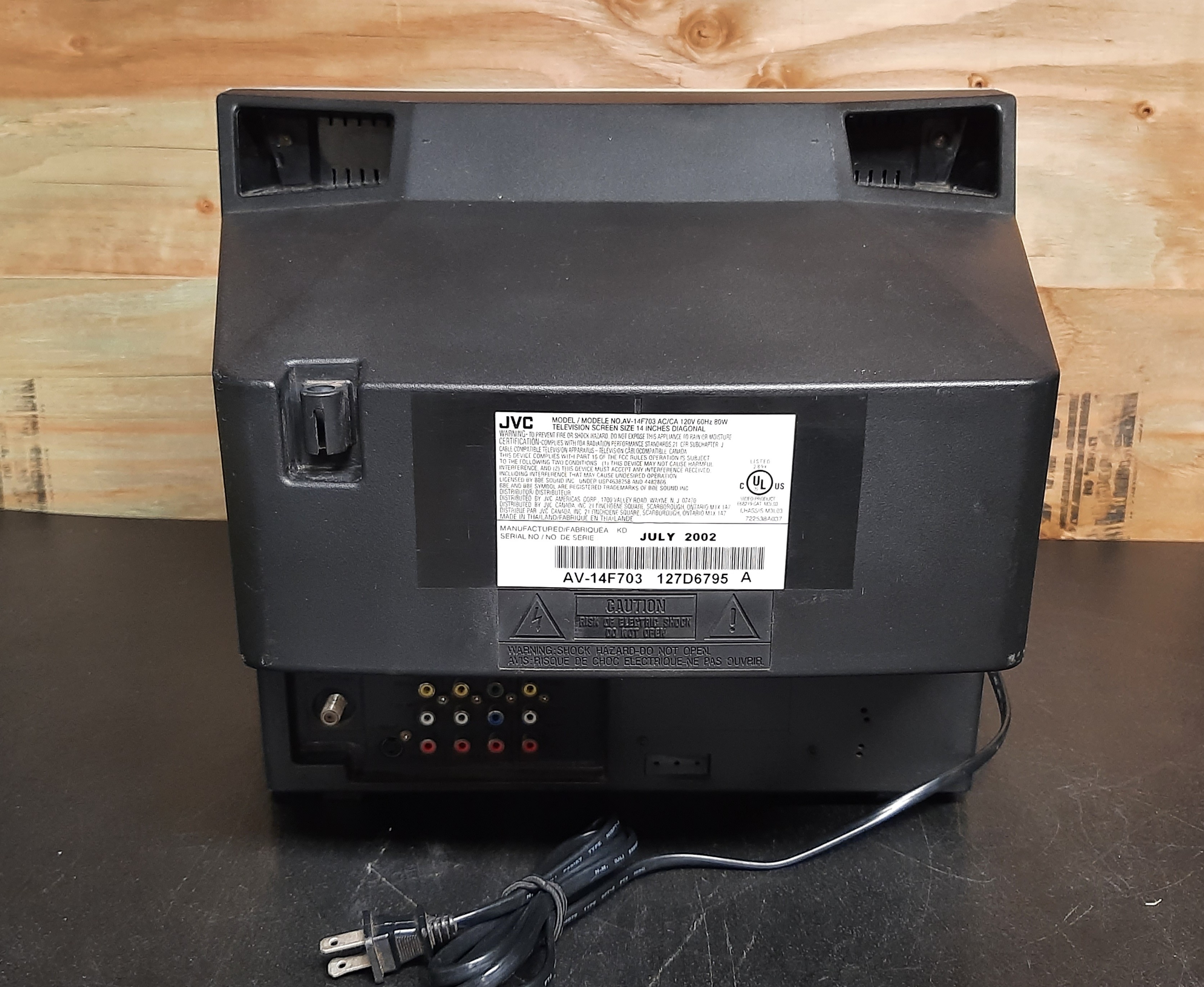

| Inputs: | Composite, S-Video, RF, Component YPbPr |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Jungle IC: | TB1253N |
| Tube: | Orion , A36AKJ13X05 , A36AKJ13X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Speakers: | Stereo |
| Weight: | 26.4 lbs (12 kg) |
| Dimensions (W/H/D): |
432 x 394 x 345 mm
(17 x 15.5 x 13.6") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2002 |
| Country of Manufacture: | Thailand |
| Mods: | RGB via Mux |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Pictures |
