Summary
Affordably priced, feature packed 20'' Stereo TV offering something for everybody. MTS Stereo with dbx and SAP, universal remote controls, and AV Inputs.

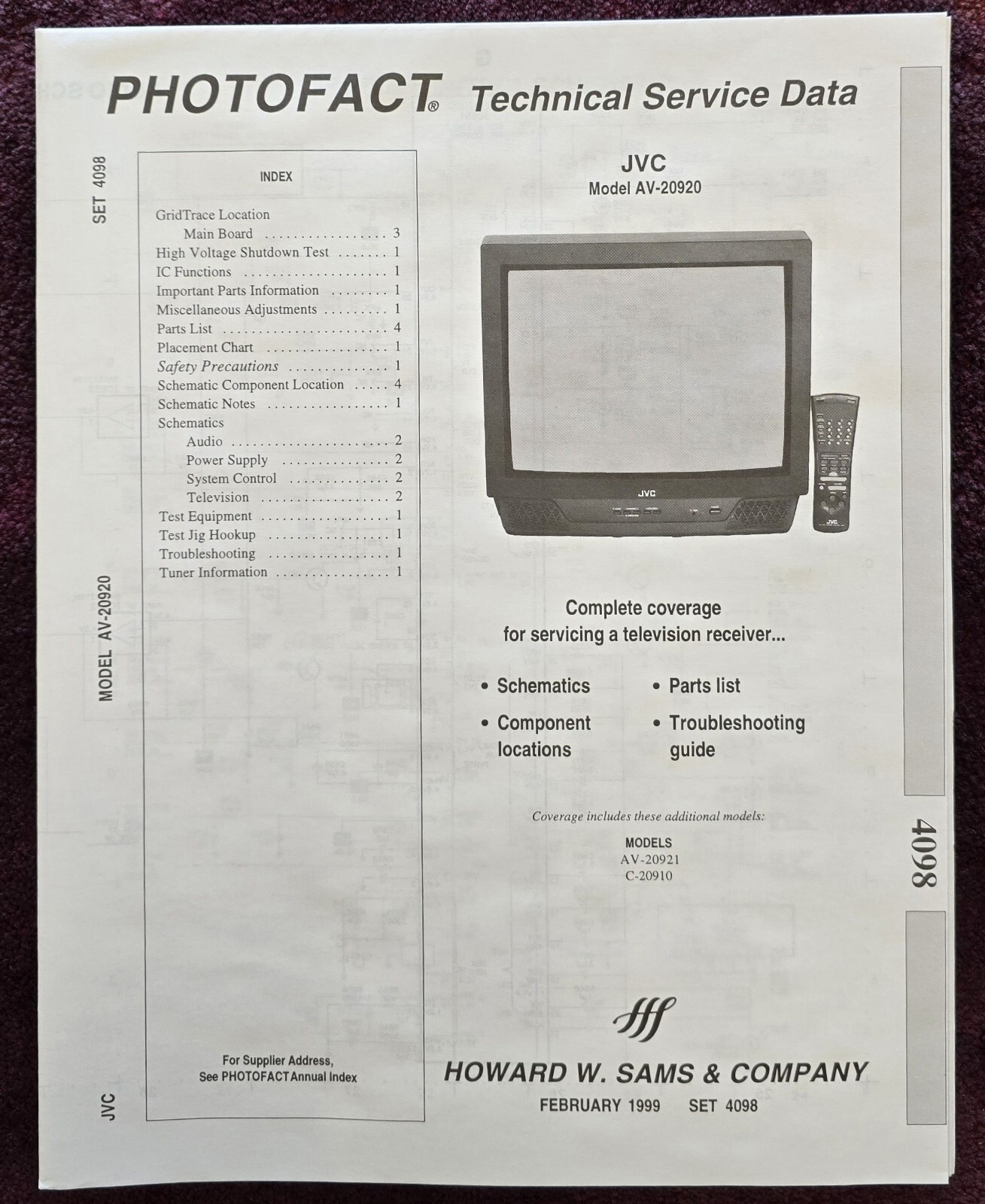

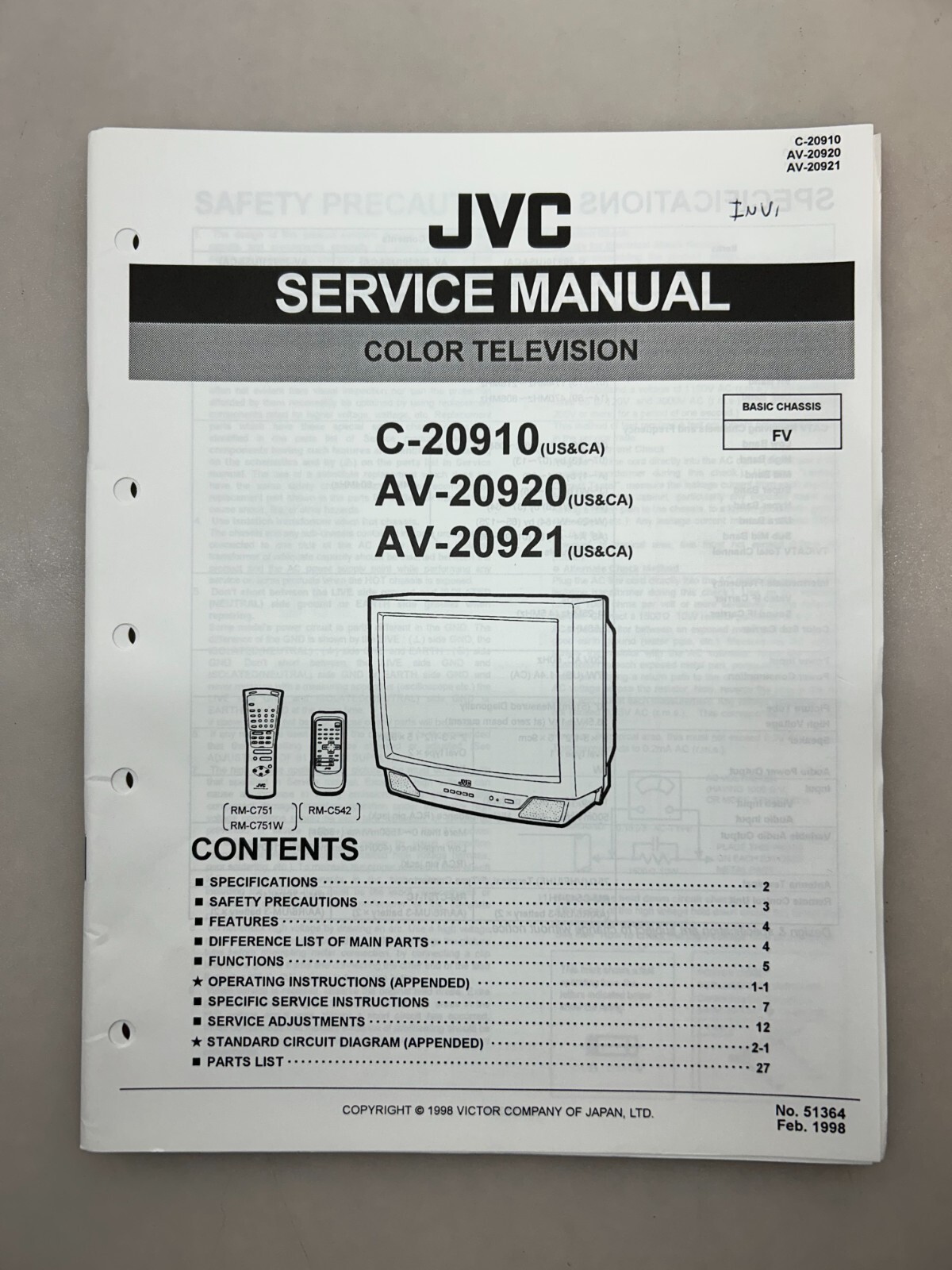

Manuals
Media & Promo Materials
Notes
This TV can be modded for RGB. However, due to the design of the jungle chip, brightness and contrast cannot be adjusted via the user menu.
Uses the same tube and yoke as the 20" D-Series.

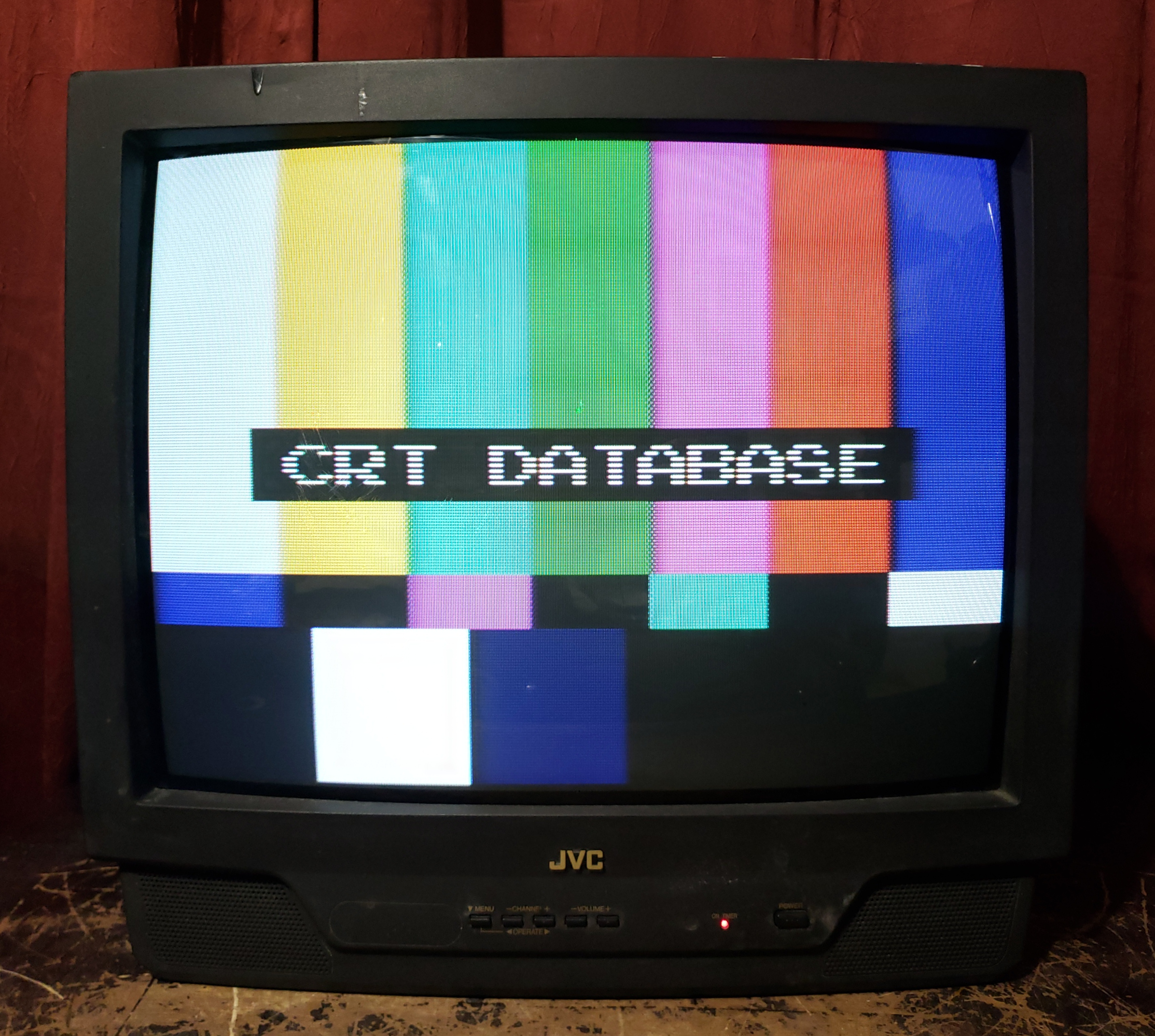

Gallery
| Specifications | |
|---|---|
| Brand: | JVC |
| Manufacturer: | JVC |
| Model: | AV-20920 |
| Series: | AV |
| Viewable Size: | 20" |

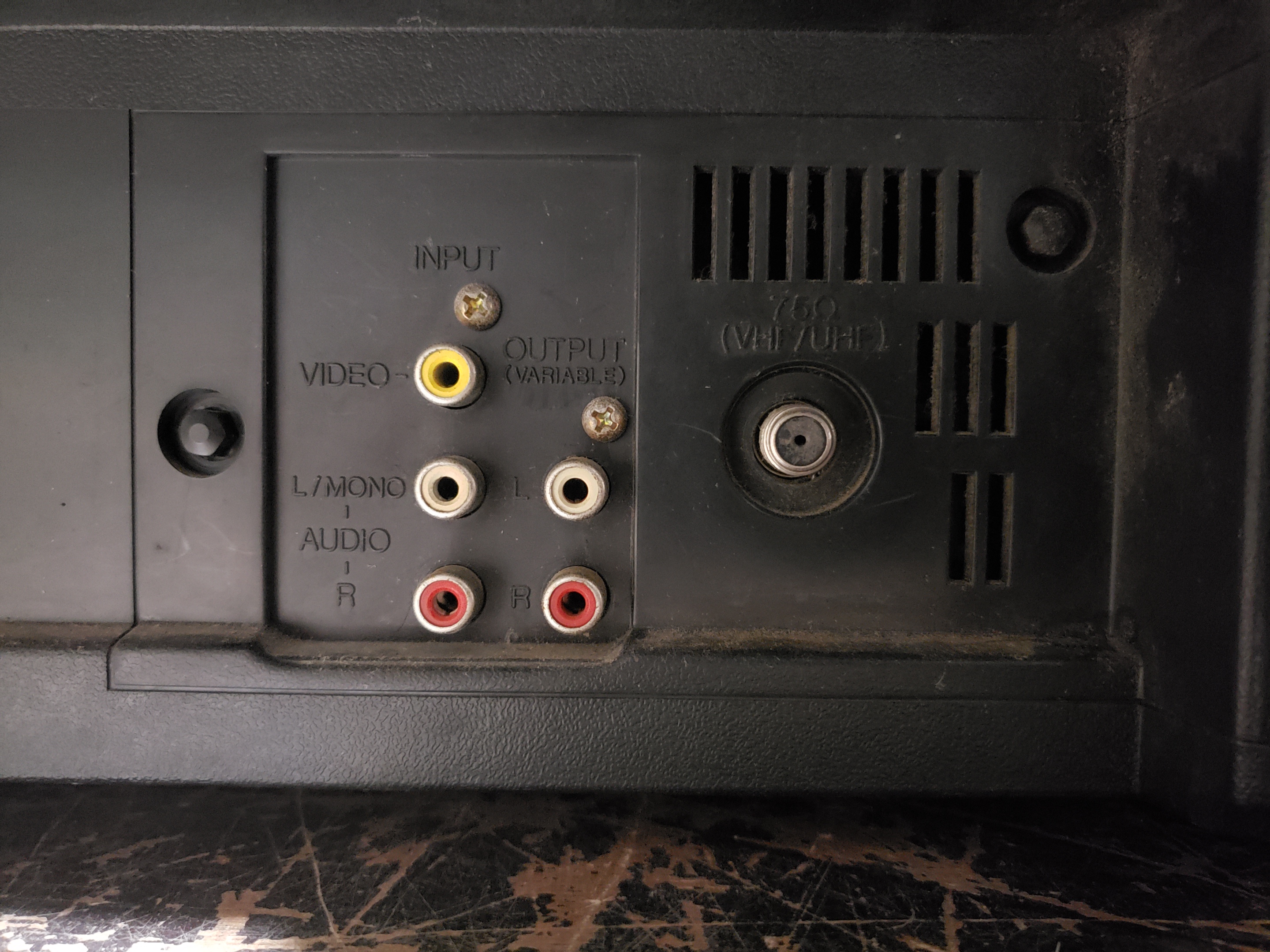

| Inputs: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Horz. Output Transistor: | 2SD1878 |
| Vertical Output IC: | LA7830 |
| Jungle IC: | TA1242N |
| Comb Filtering: | None |
| Flyback: | QQH0030-001 |
| Focus Type: | Single |
| Tube: | Samsung , A51KRE89X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Pitch: | .81 mm |
| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke: | QQD0011-001 |
| Yoke Horz. Inductance: | 2.83 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 17.0 mH (@ 100 Hz) |
| Speakers: | Stereo |
| Remote: | RM-C751 |
| Chassis: | FV |
| Weight: | 43.8 lbs (19.9 kg) |
| Dimensions (W/H/D): |
503 x 452 x 493 mm
(19.8 x 17.8 x 19.4") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1998 |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Mods: | RGB via Mux |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Service Manual |
