JVC AV-20D304
SegaSaturn94
December 26, 2025, 10:57 pm
December 27, 2025, 4:09 am
December 26, 2025, 10:57 pm
December 27, 2025, 4:09 am
Summary

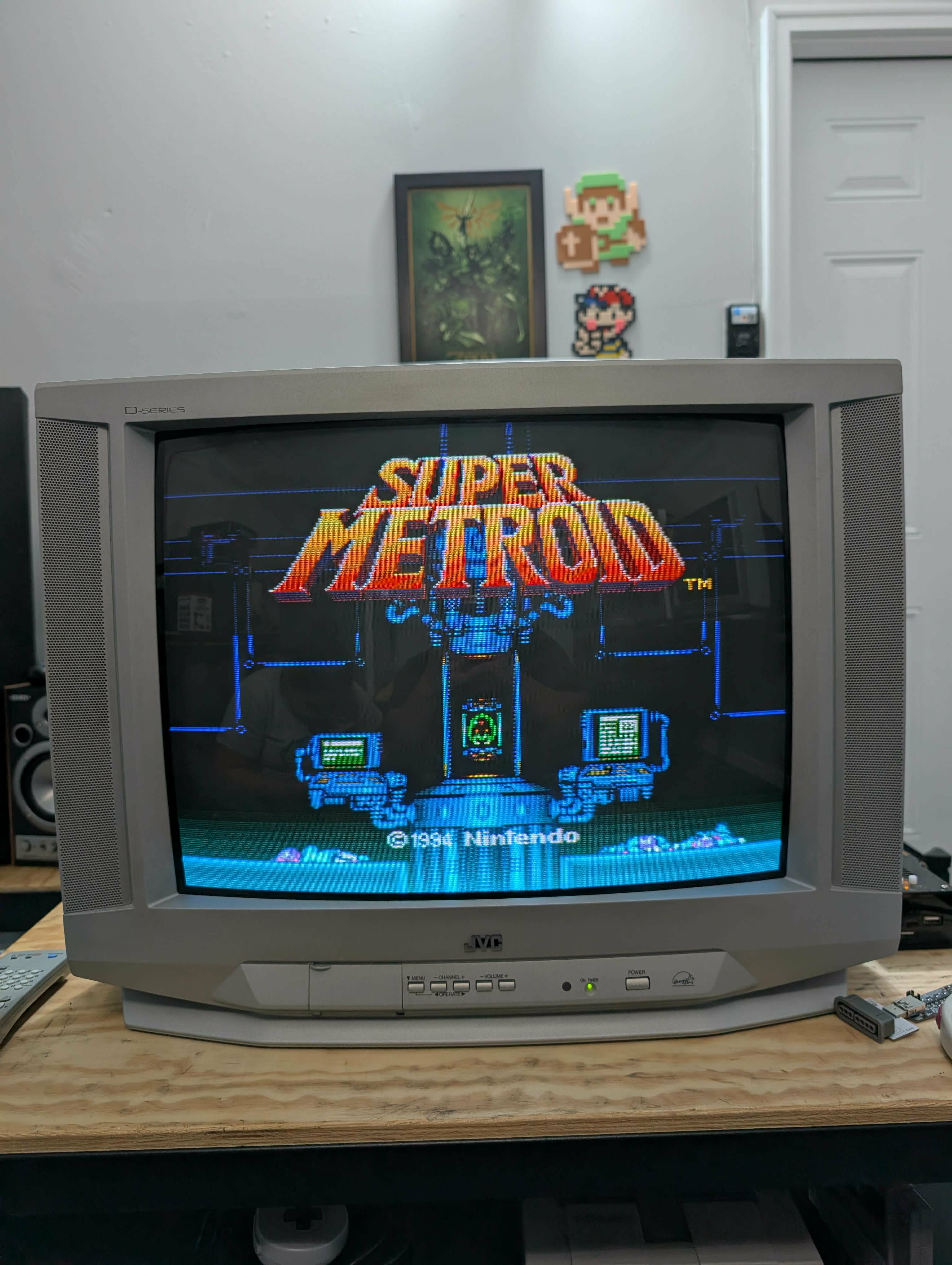

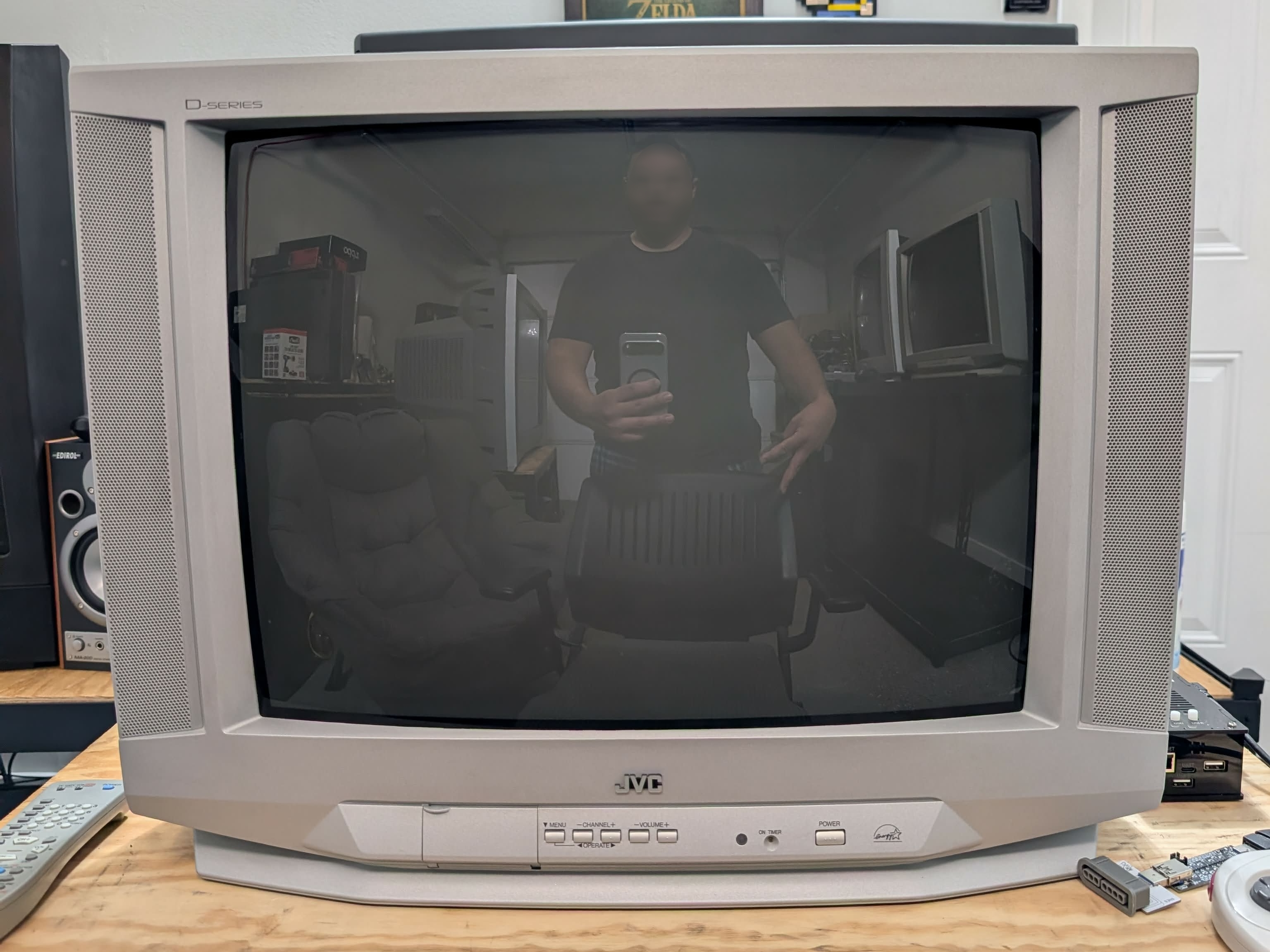

20" curved-screen CRT by JVC, made in Mexico. Has RF, composite, s-video and component inputs with stereo sound. This is the very last 20" D-Series model, released in 2003.
(Special thanks to Michael Lopez for the pics!)
Manuals
Promo Materials
Notes
Set cannot be RGB modded. Fortunately, the component video quality is excellent once you dial the set in.

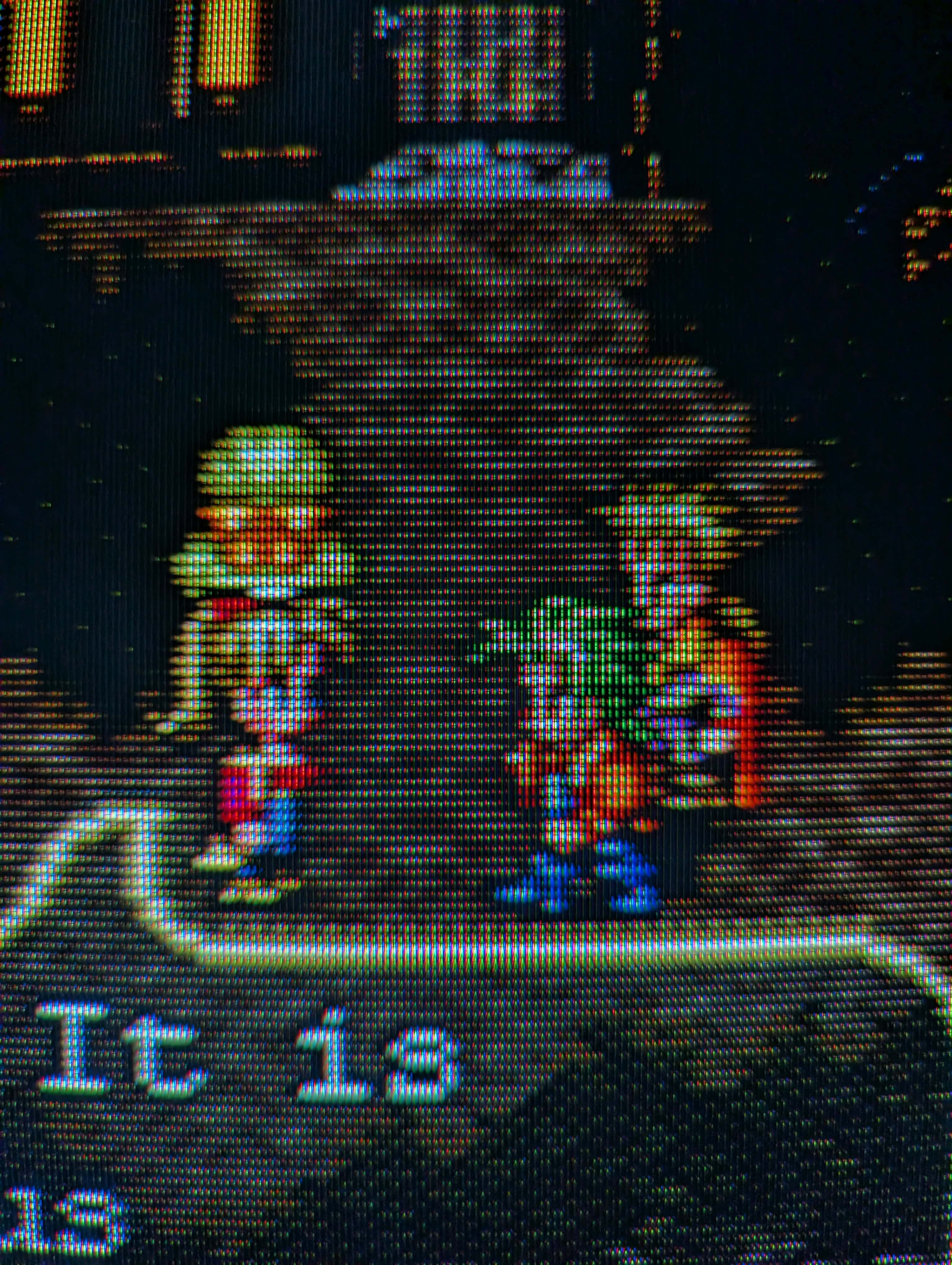

Gallery
| Specifications | |
|---|---|
| Brand: | JVC |
| Manufacturer: | JVC |

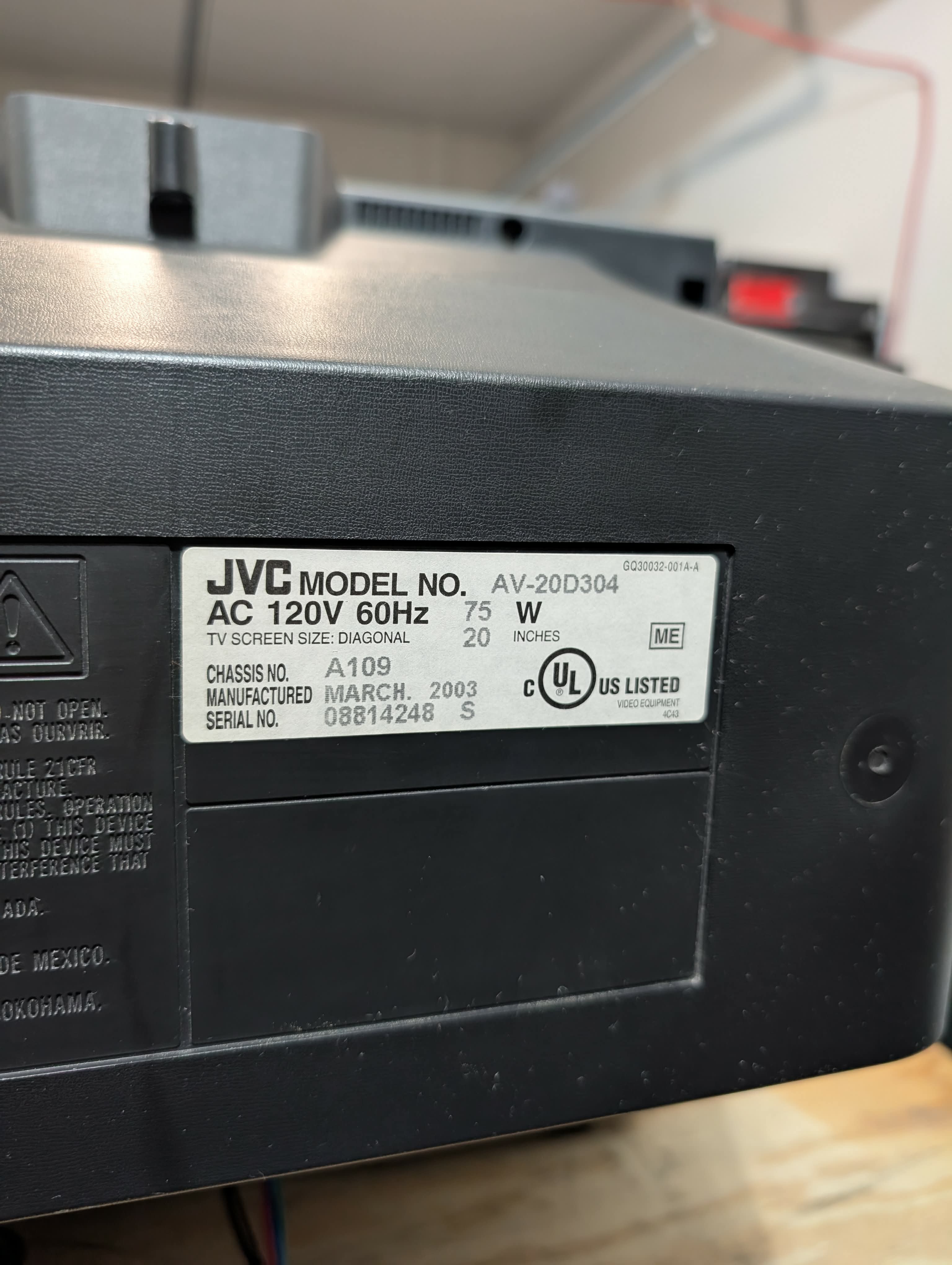

| Model: | AV-20D304 |
| Series: | D-Series |
| Viewable Size: | 20" |

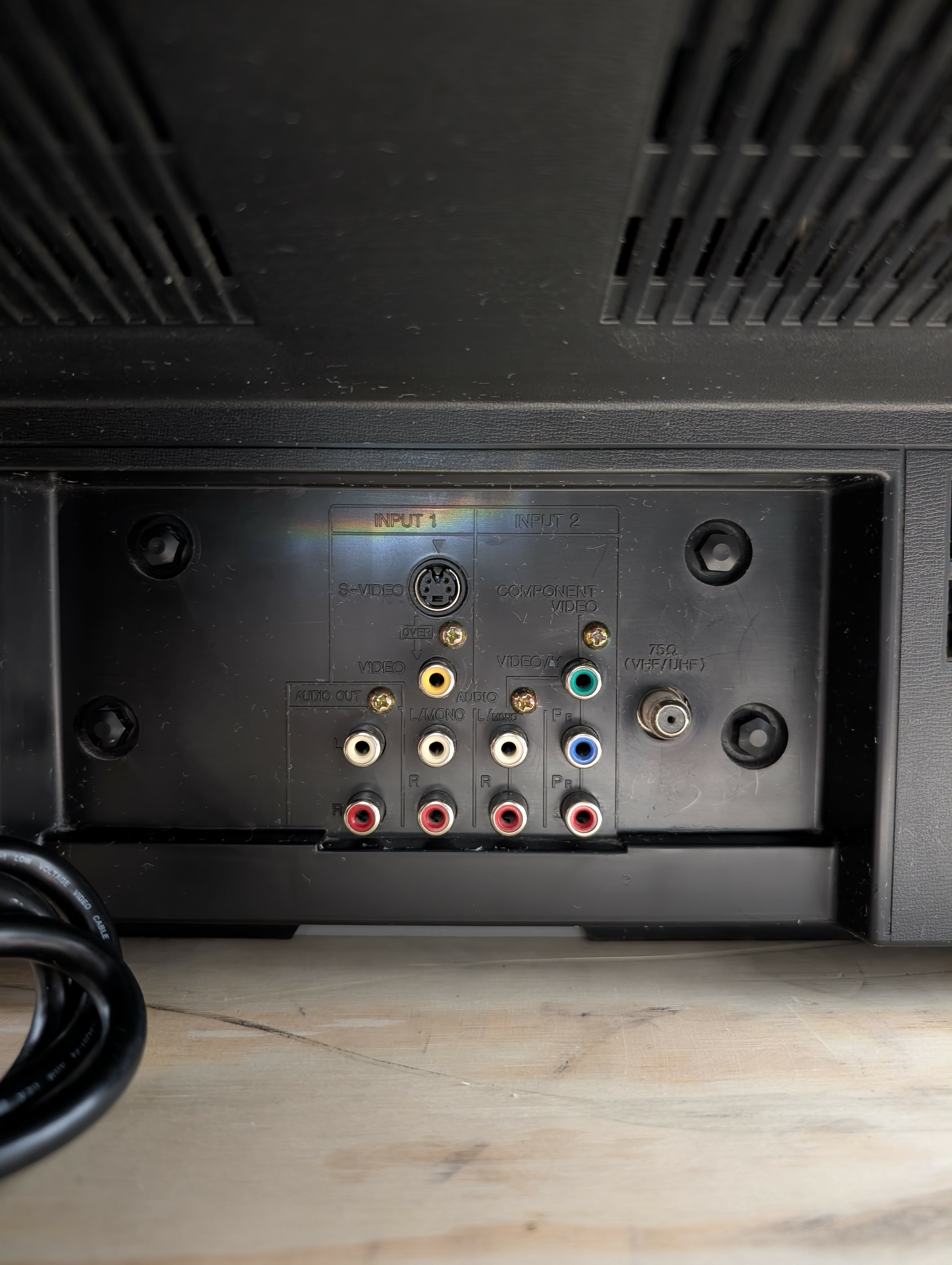

| Inputs: | Composite, S-Video, RF, Component YPbPr |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Vertical Output IC: | AN5522, Panasonic |
| Jungle IC: | Toshiba, TM8812C, TM8812CPDNG4N35 |
| Comb Filtering: | 3-Line Digital |
| Comb Filter IC: | Toshiba, TC90A49P |
| Flyback: | QQH0128-001 |
| Focus Type: | Single |
| Tube: | Samsung , A51KRE89X |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke: | QQD0011-001 |
| Speakers: | Stereo, 1.2W x 2 |

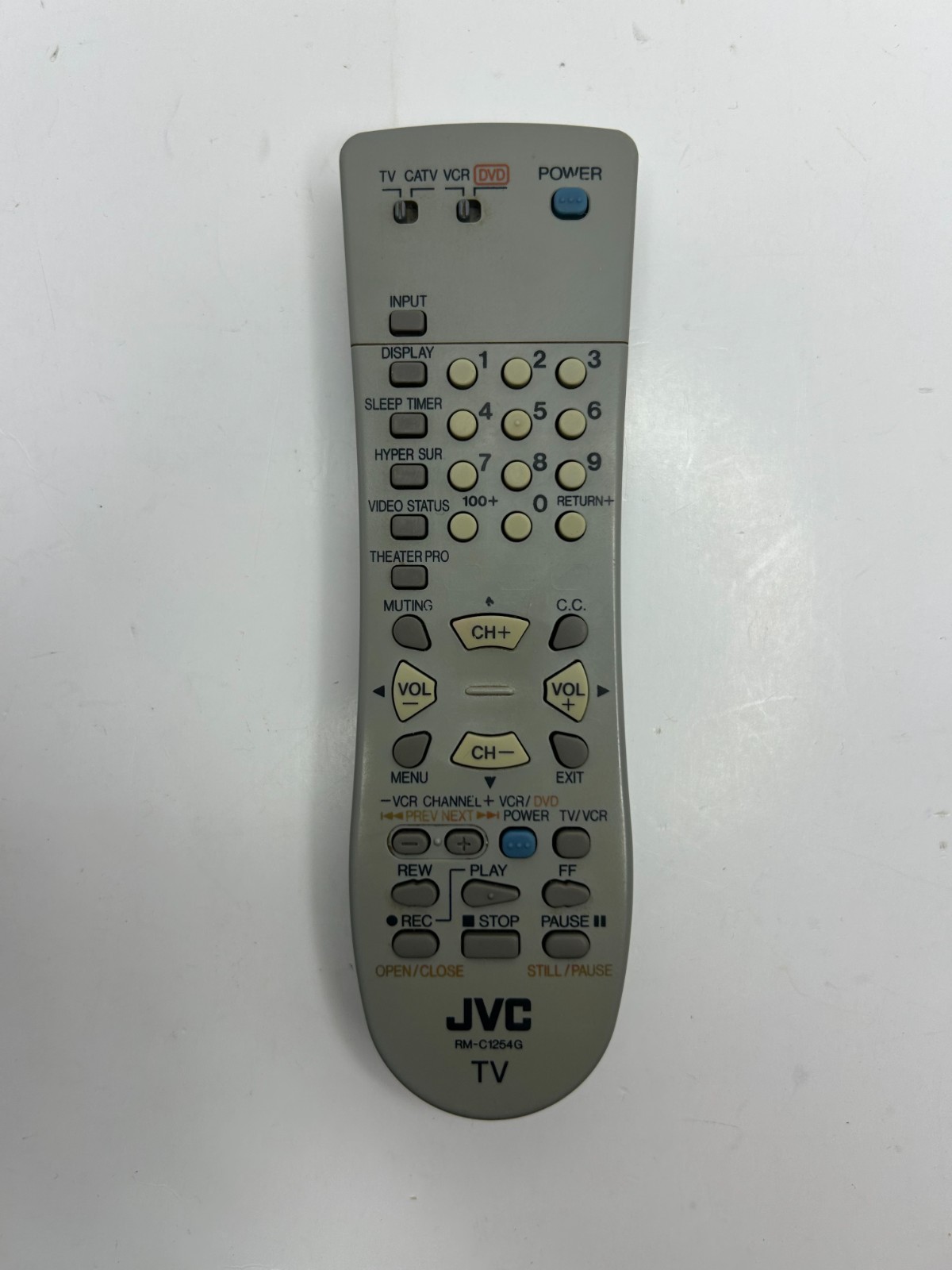

| Remote: | RM-C1254G |
| Chassis: | FE2 |
| Weight: | 45 lbs (20.4 kg) |
| Dimensions (W/H/D): |
592 x 456 x 487 mm
(23.3 x 17.9 x 19.1") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2003 |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
