Summary

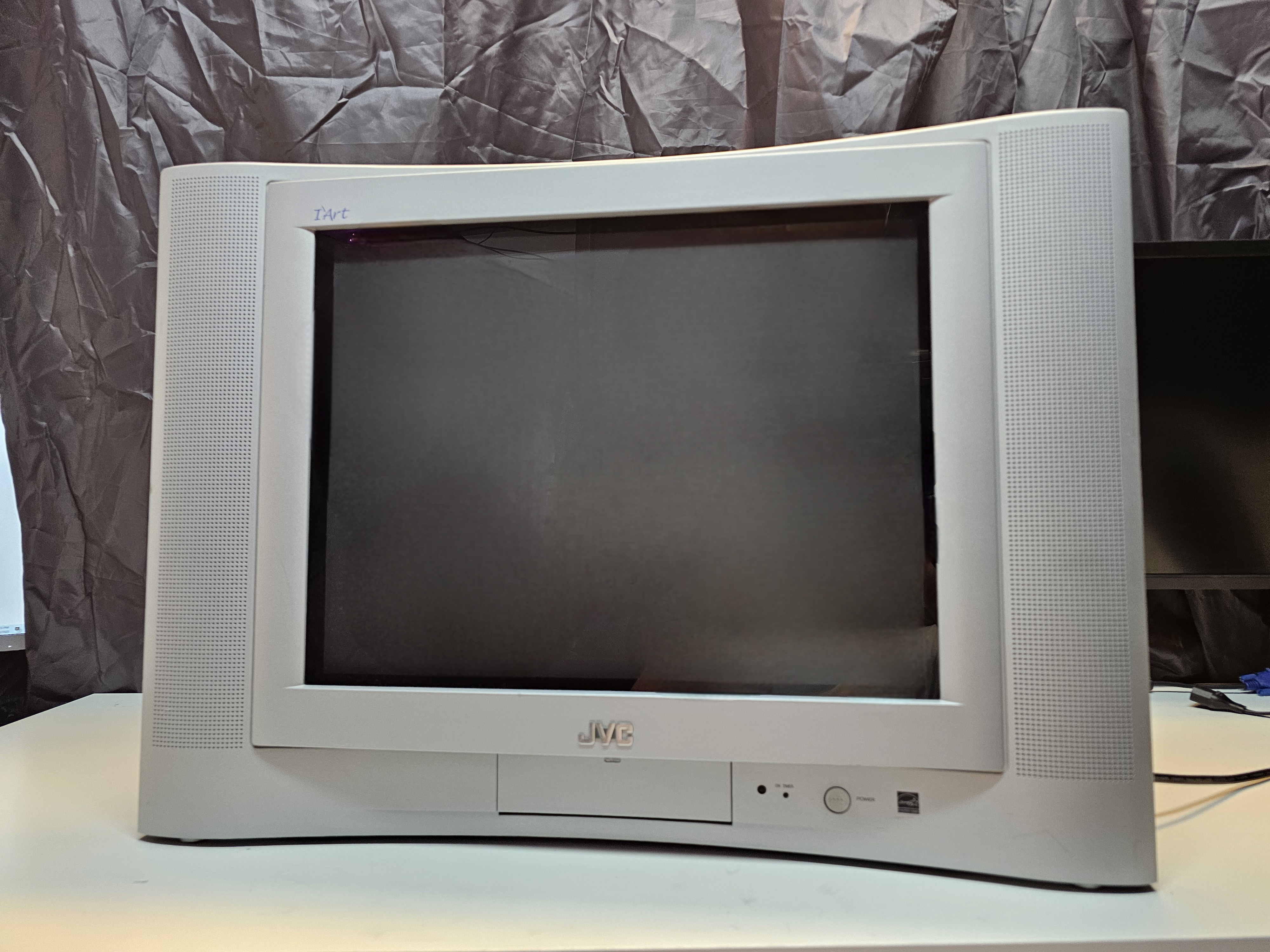

20" flat INVAR shadow mask CRT by JVC, unlike some I'Art's this TV was manufactured by JVC themselves. It uses the same tube as the Magnavox 20MS3442/17
Notes
This set uses a Toshiba jungle chip, and has great picture processing.
Sound quality on this set is amazing due to it's dual 12W rated speakers; It's an KV20FV300 killer in that regard.
Gallery
| Specifications | |
|---|---|
| Brand: | JVC |
| Manufacturer: | JVC |

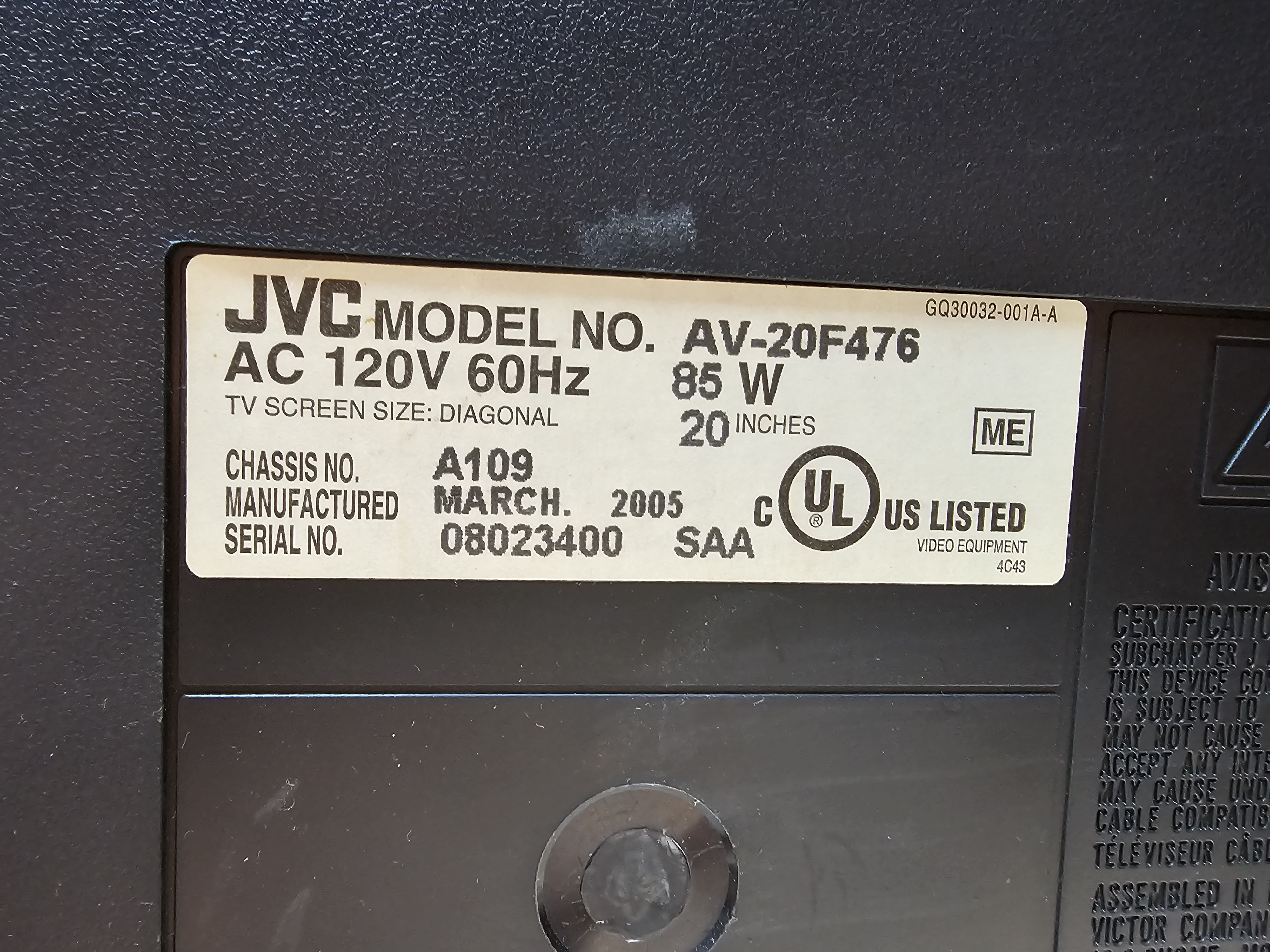

| Model: | AV-20F476 |
| Series: | I'Art |
| Viewable Size: | 20" |

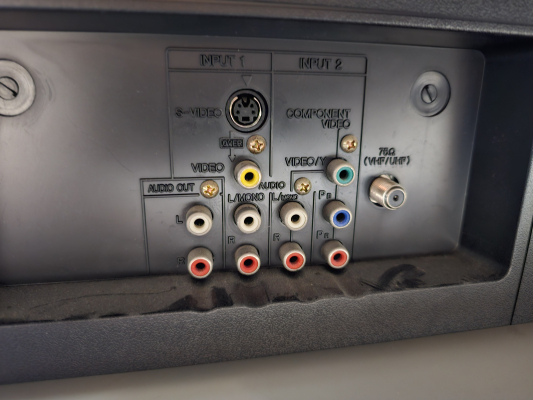

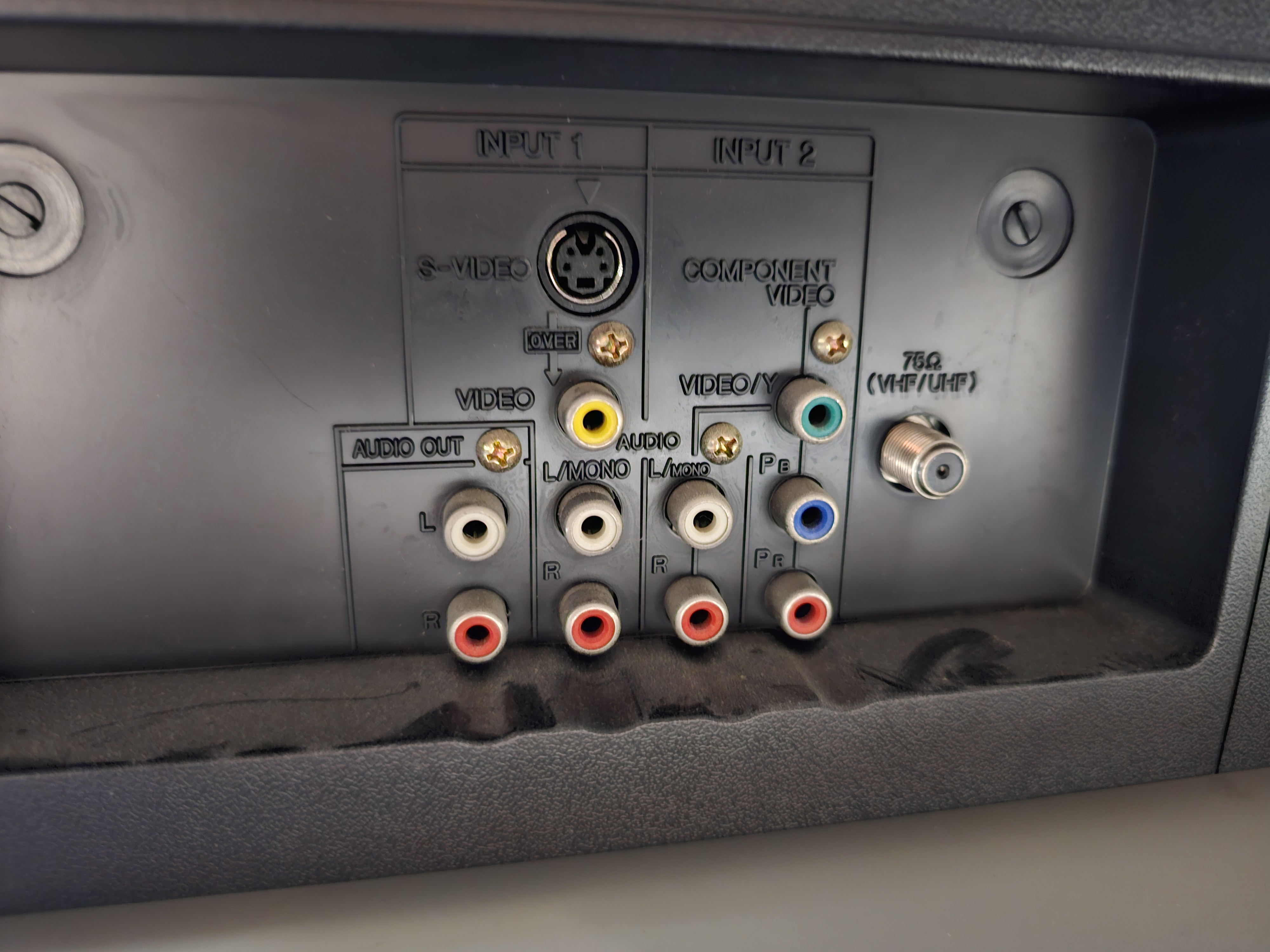

| Inputs: | Composite, S-Video, RF, Component YPbPr |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |

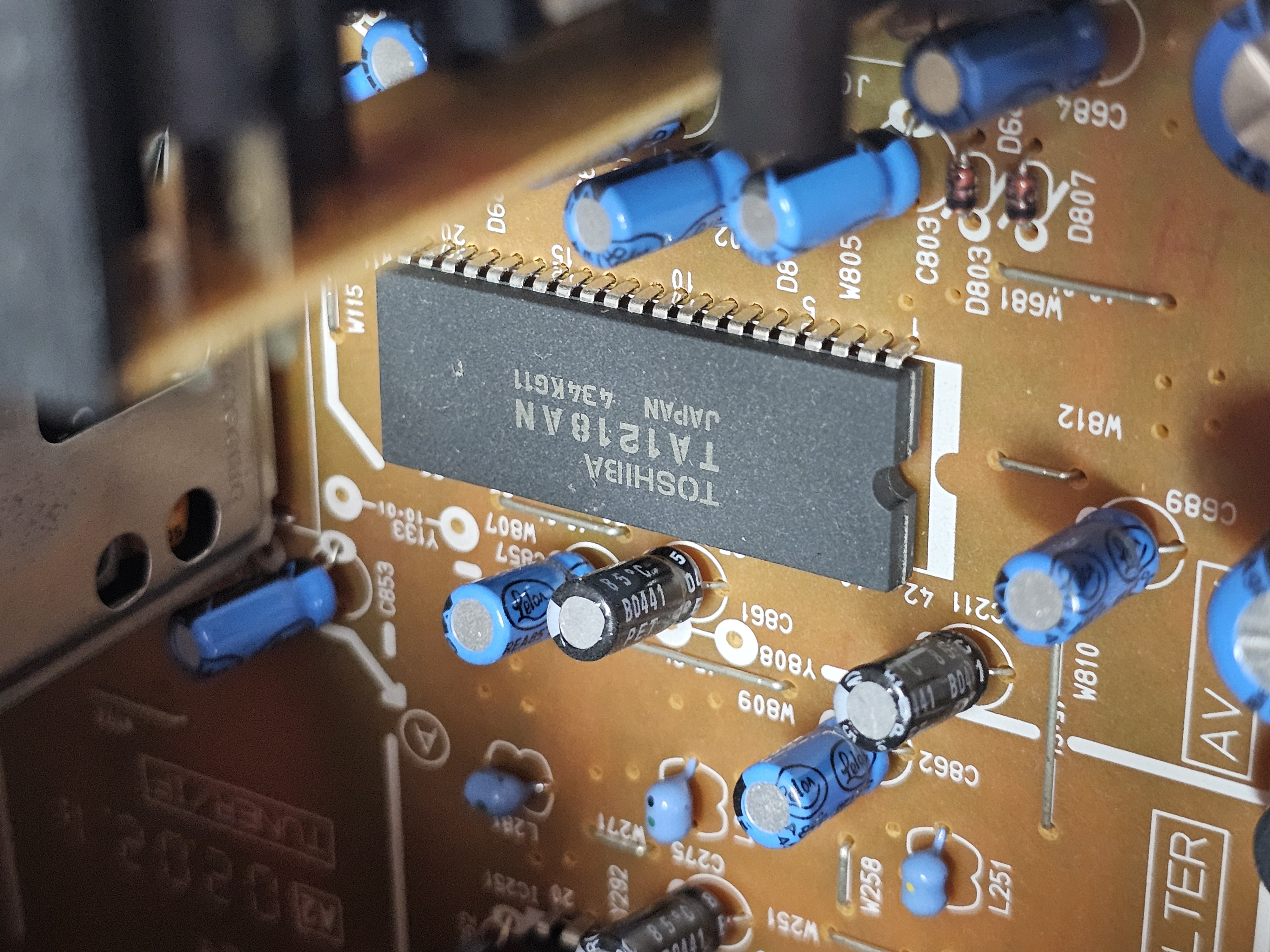

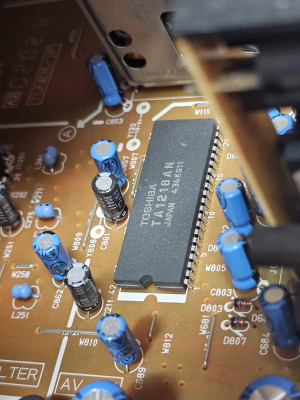

| Jungle IC: | Toshiba, TA1218AN |
| Comb Filtering: | 3-Line Digital |

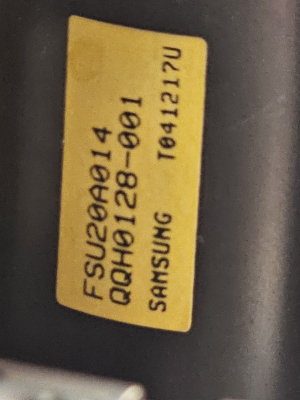

| Flyback: | Samsung, QQH0128-001 |
| Focus Type: | Single |

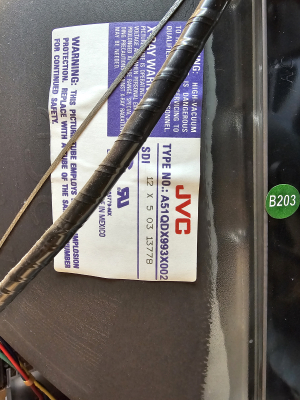

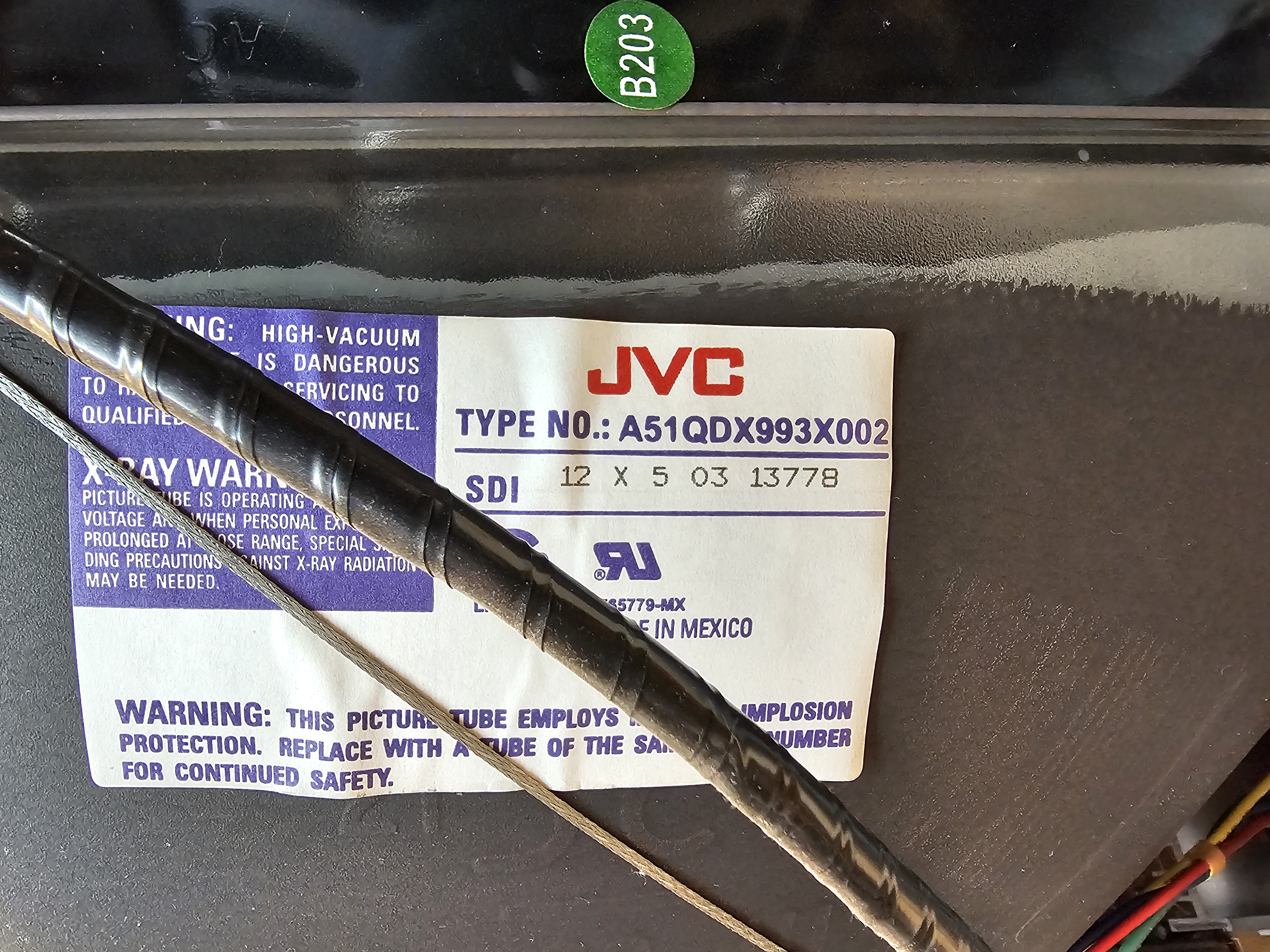

| Tube: | A51QDX993X002 |
| Mask: |
Shadow
|
| Tint: | Dark |
| Removable Glare Film: | No |

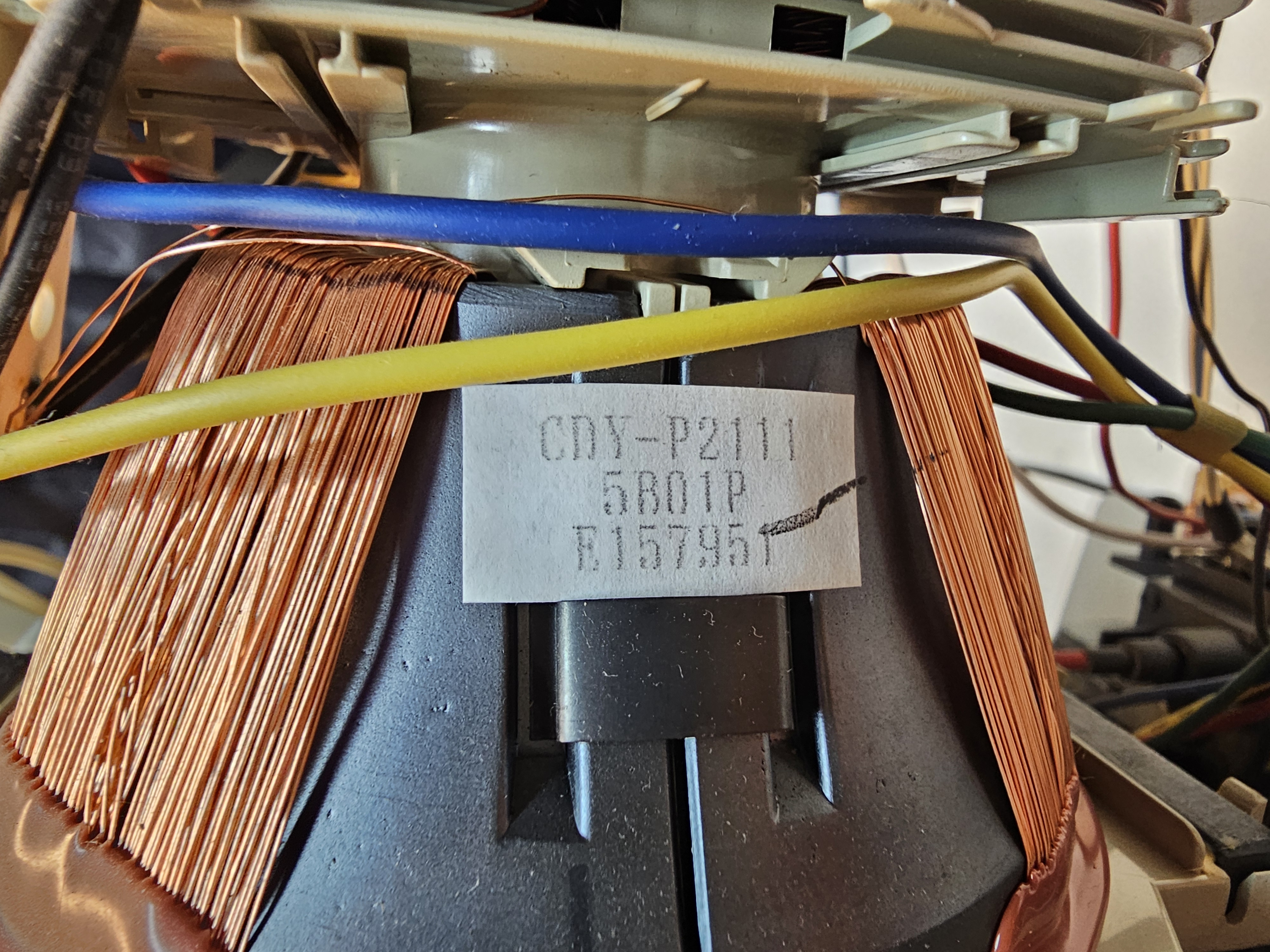

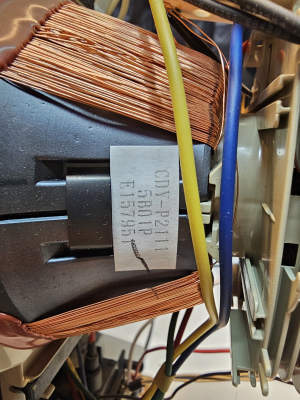

| Yoke: | CDY-P2111 |

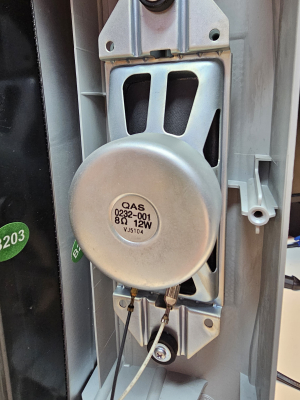

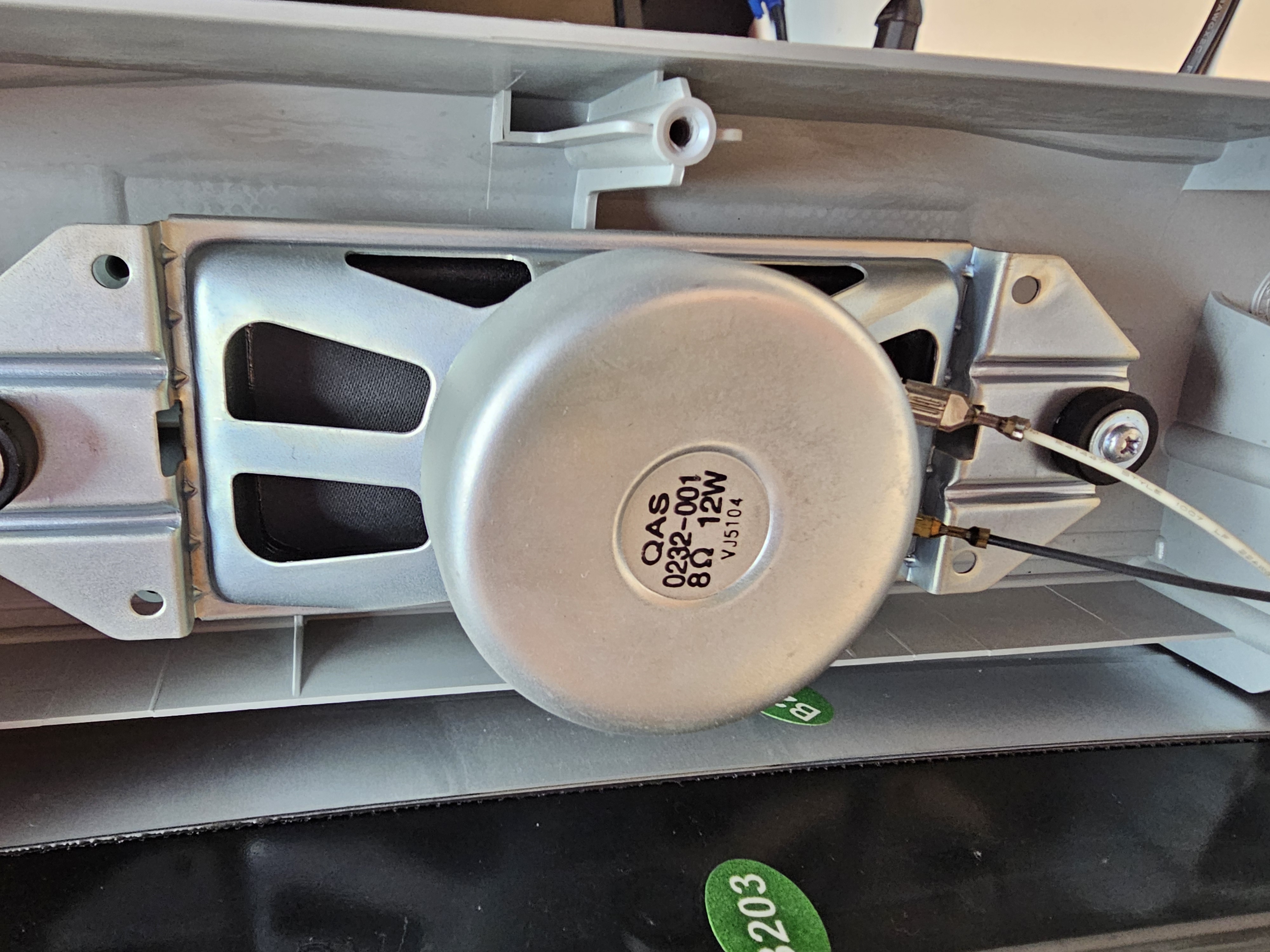

| Speakers: | Stereo, Headphone Jack, 12W x 2 |

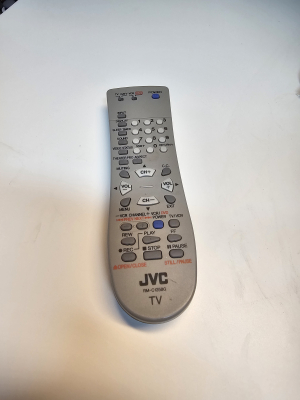

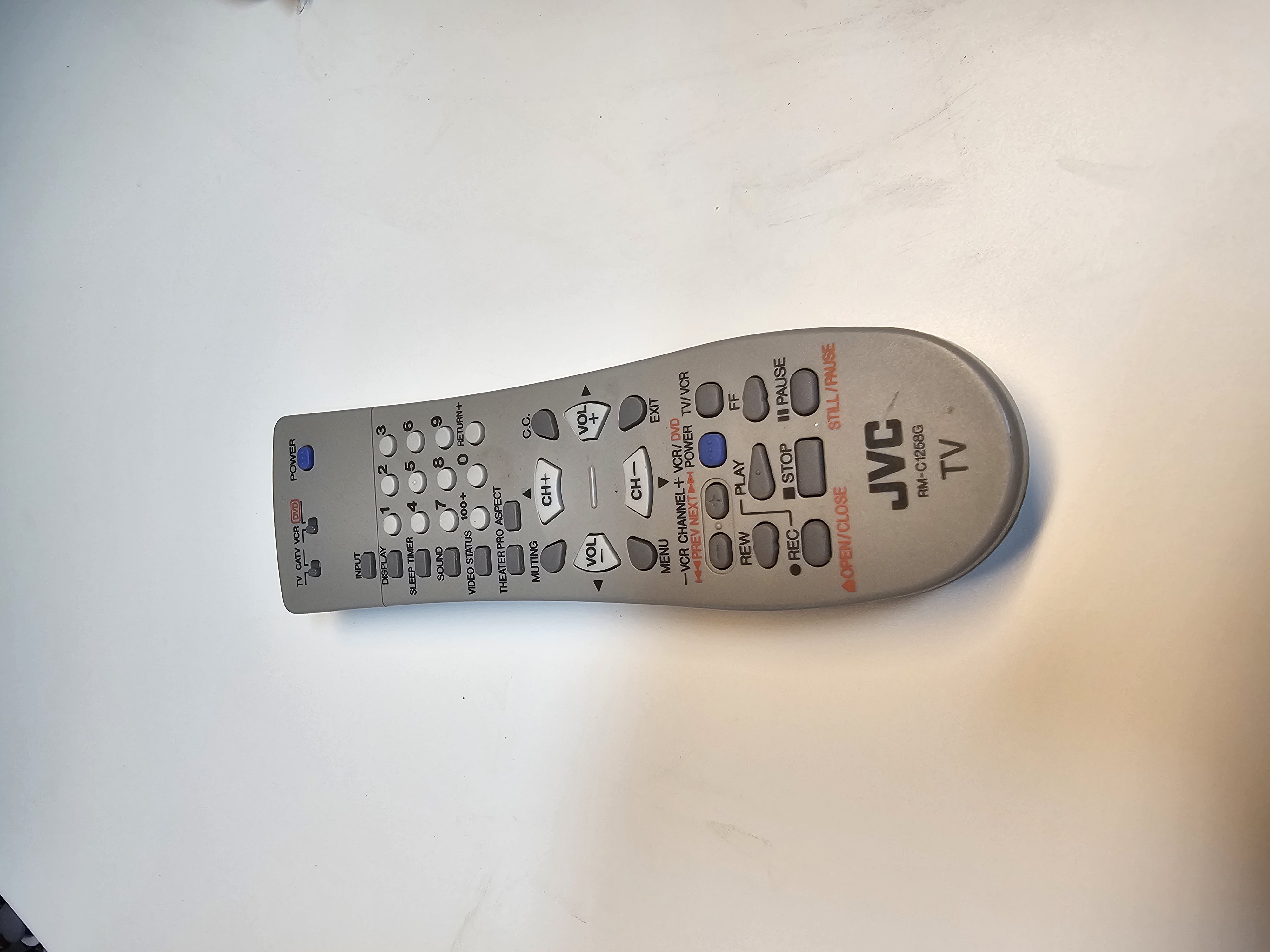

| Remote: | RM-C1258G |
| Weight: | 55 lbs (24.9 kg) |
| Dimensions (W/H/D): |
667 x 481 x 505 mm
(26.2 x 18.9 x 19.8") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2005 |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs Service Manual |
