JVC AV-20TP4
SegaSaturn94
December 11, 2024, 11:16 pm
August 6, 2025, 6:05 am
December 11, 2024, 11:16 pm
August 6, 2025, 6:05 am
Summary

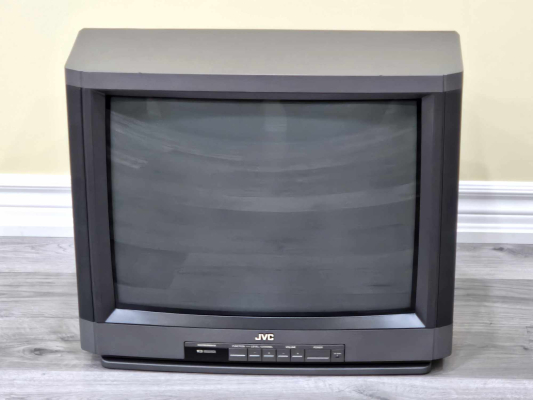

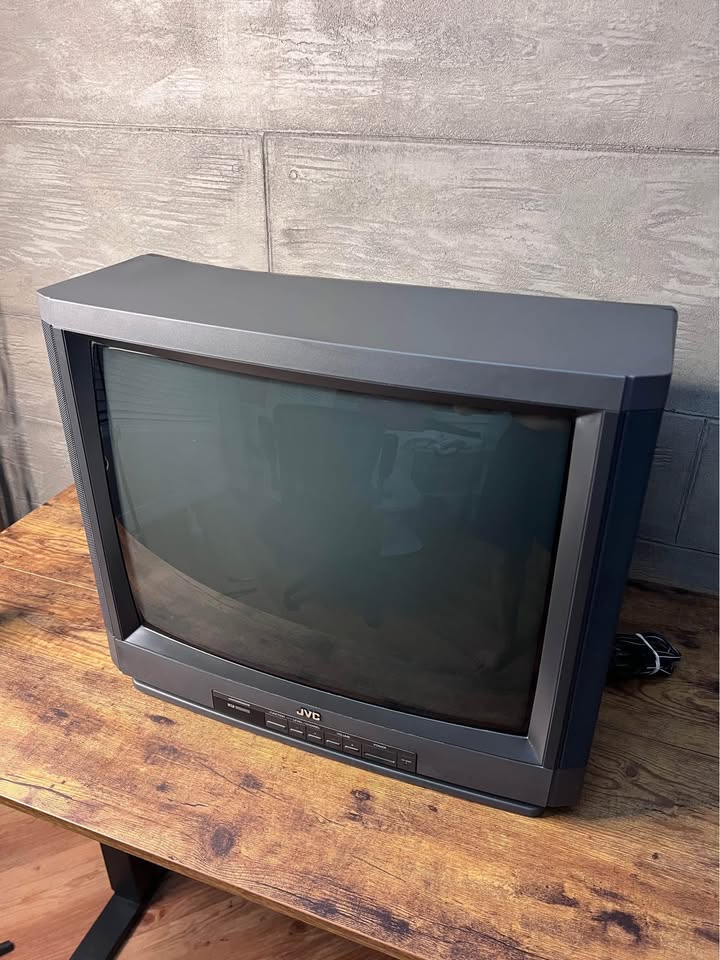

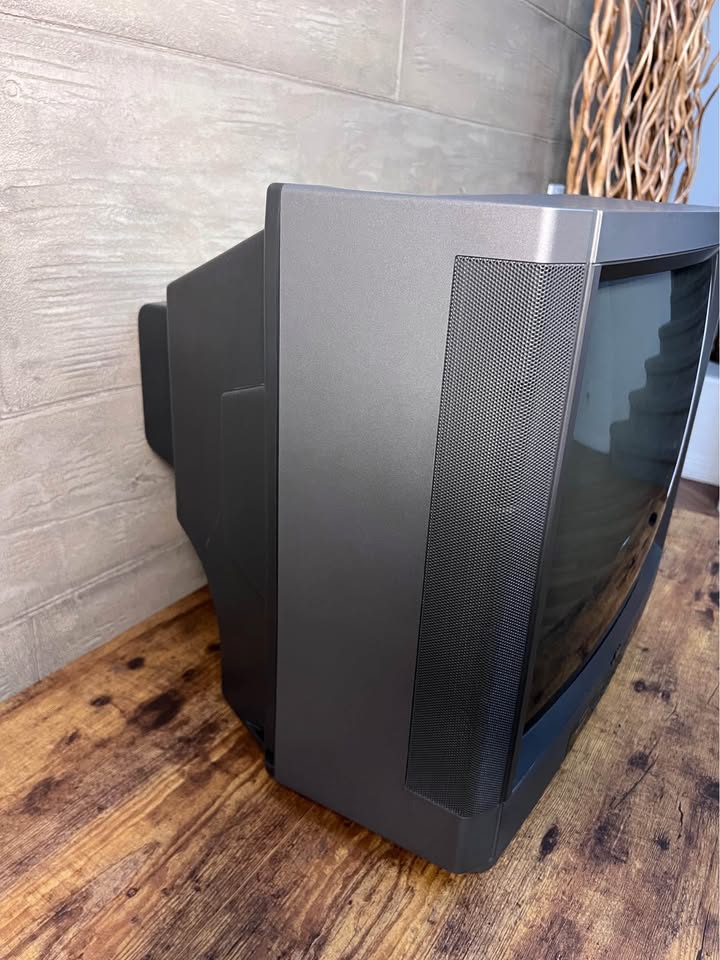

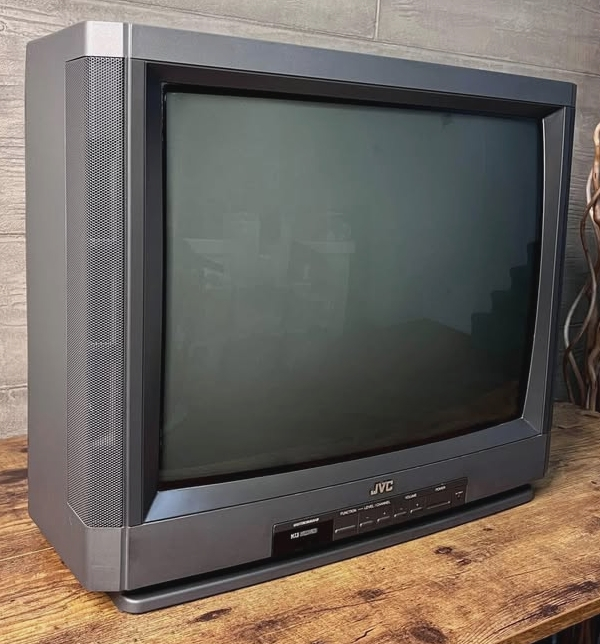

20" JVC with composite and s-video inputs, as well as amped stereo audio output. Originally manufactured in Thailand and released in 1993.
Manuals
No documentation is available online at this time.
Notes
This set has internal potentiometers to adjust RGB levels, vertical height, sub-contrast, and sub-brightness.
Jungle chip is by Toshiba, and it is a great performer.

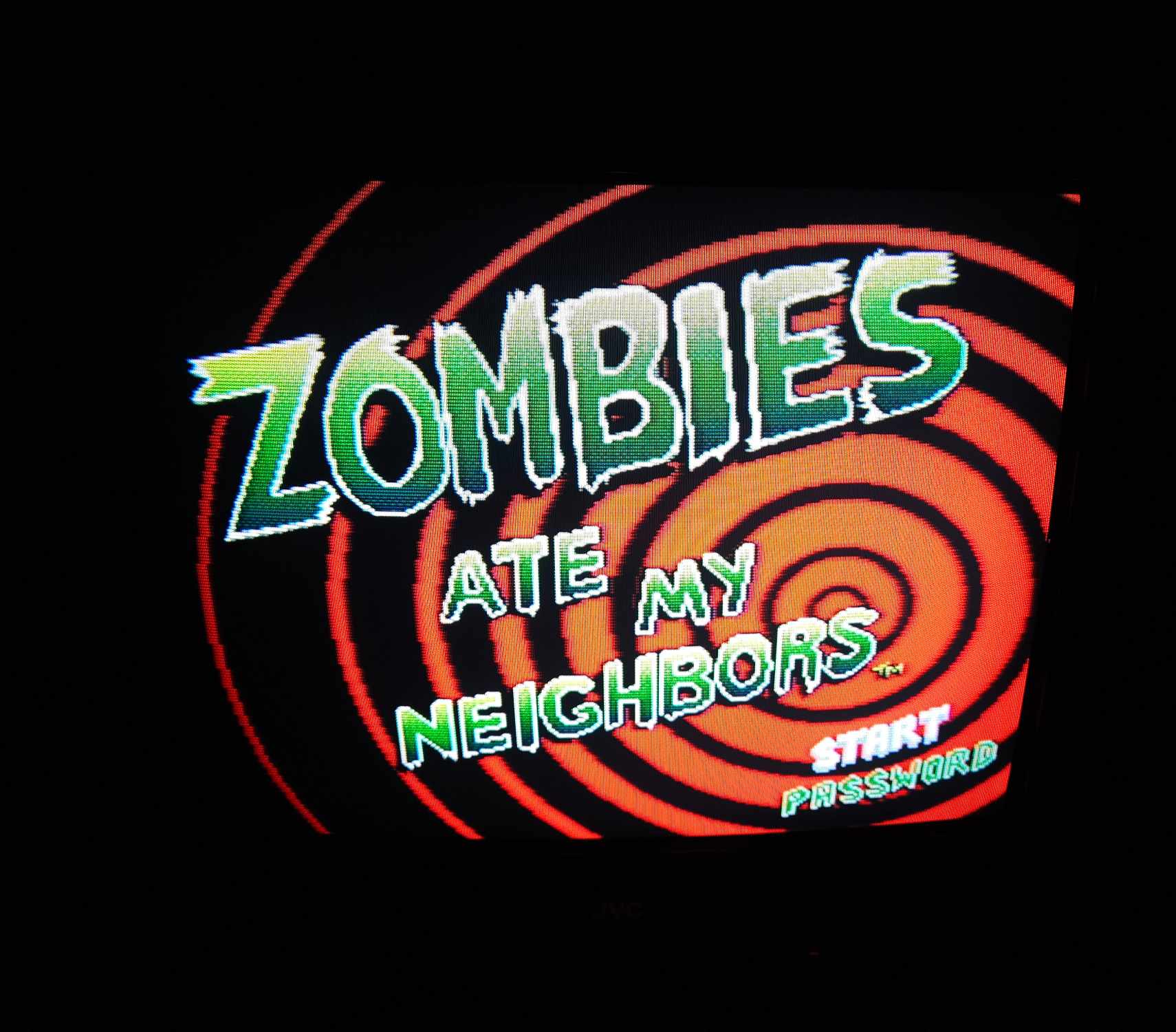

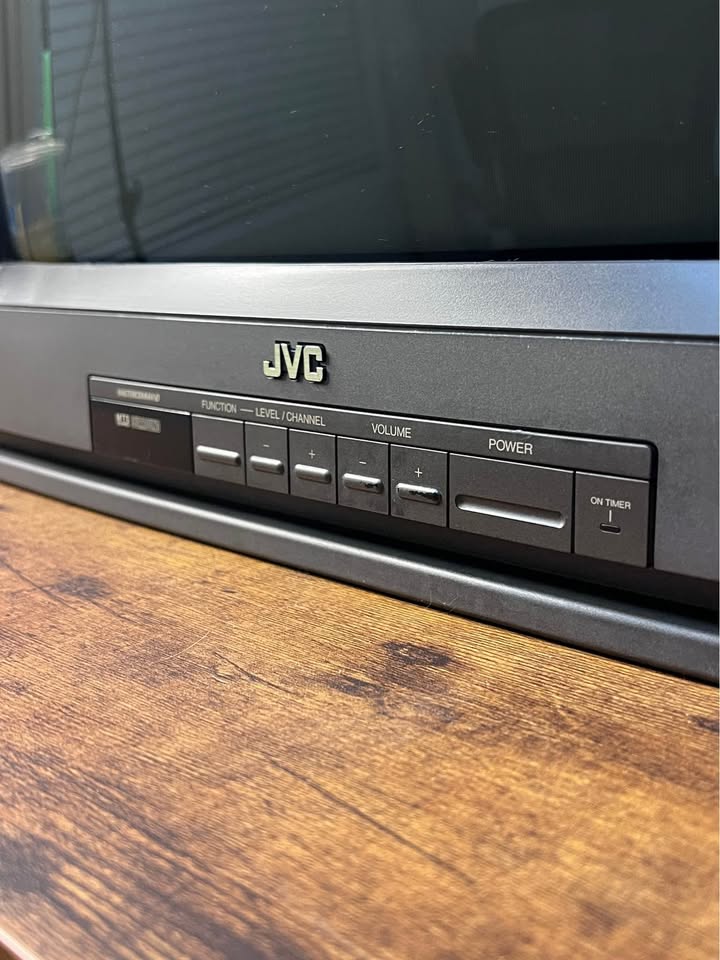

Gallery















Specifications | |
---|---|
Brand: | JVC |
Manufacturer: | JVC |

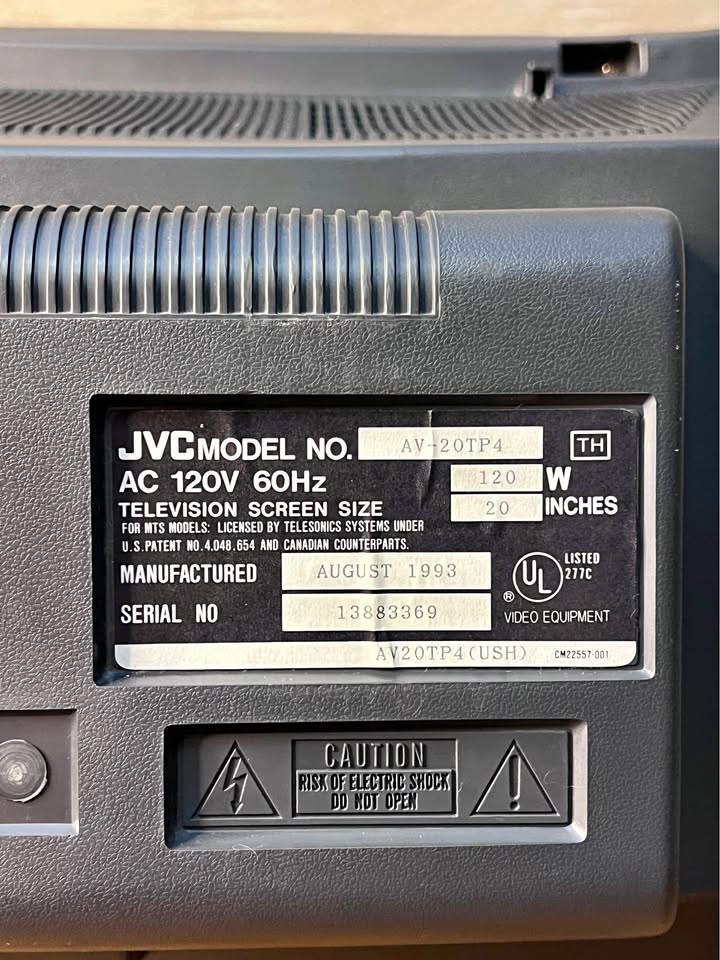

Model: | AV-20TP4 |
Series: | TP |
Viewable Size: | 20" |

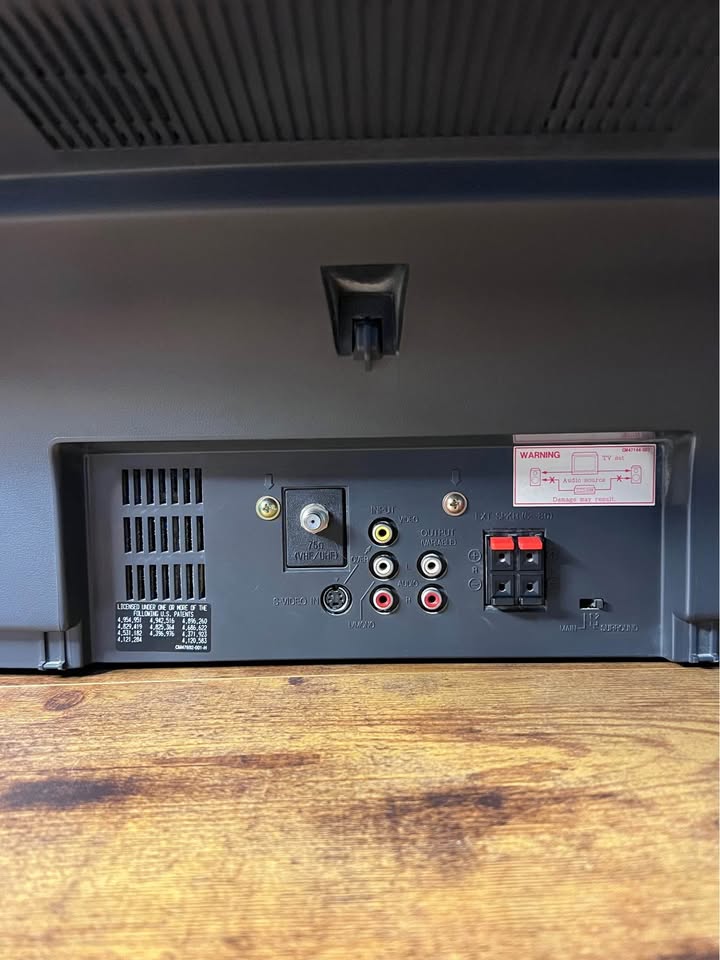

Inputs: | Composite, S-Video, RF |

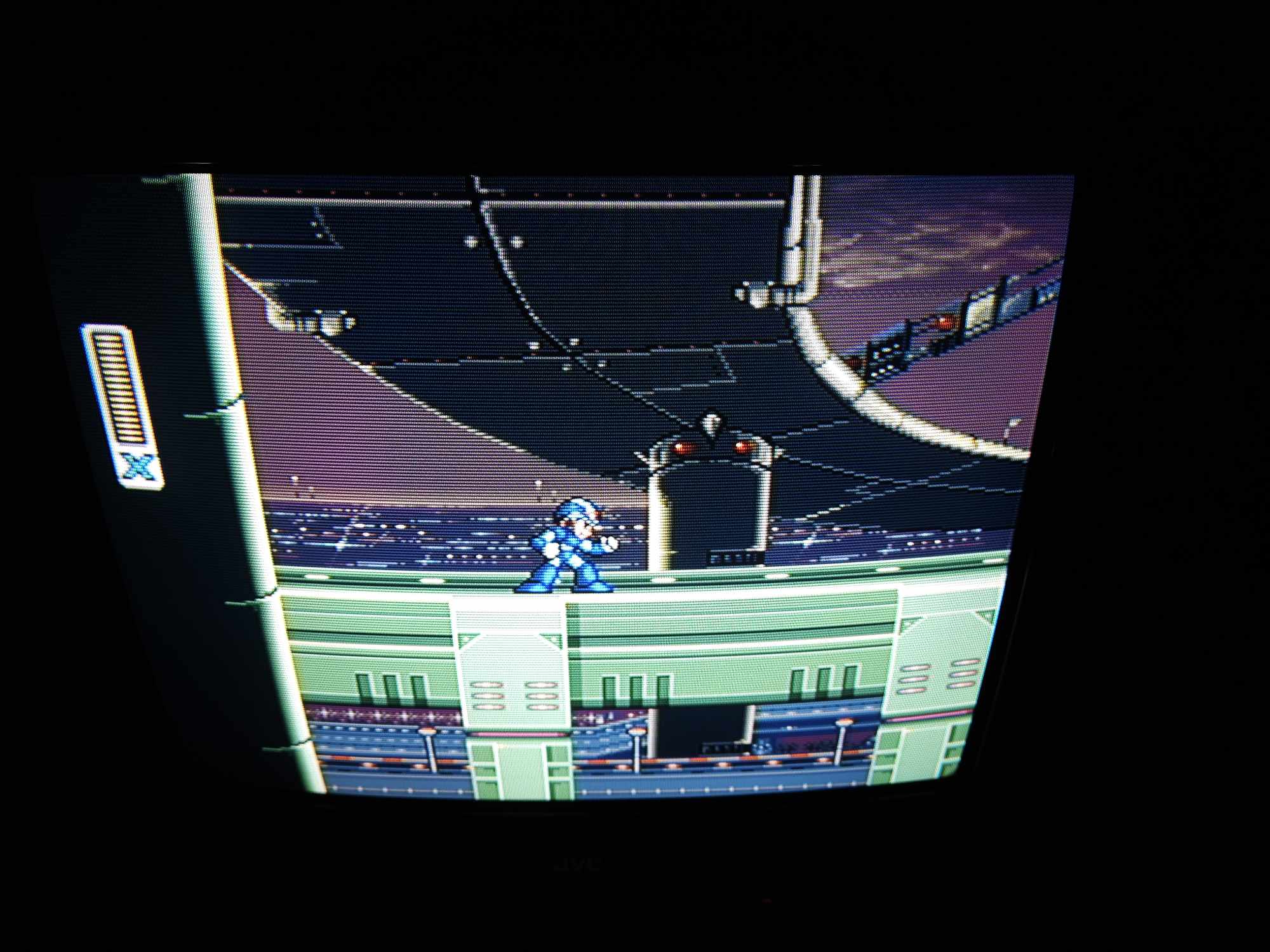

Native Resolutions: | 240p, 480i |
Horizontal Scan Range: | 15 kHz |
Vertical Scan Range: | 60 Hz |
Formats: | NTSC |
Aspect: | 4:3 |
Adjustments: | Internal Potentiometers, OSD Customer Controls |
Jungle: | Toshiba, TA8725AN |
Flyback: | CJ27940-00AJ1 |
Focus Type: | Single |

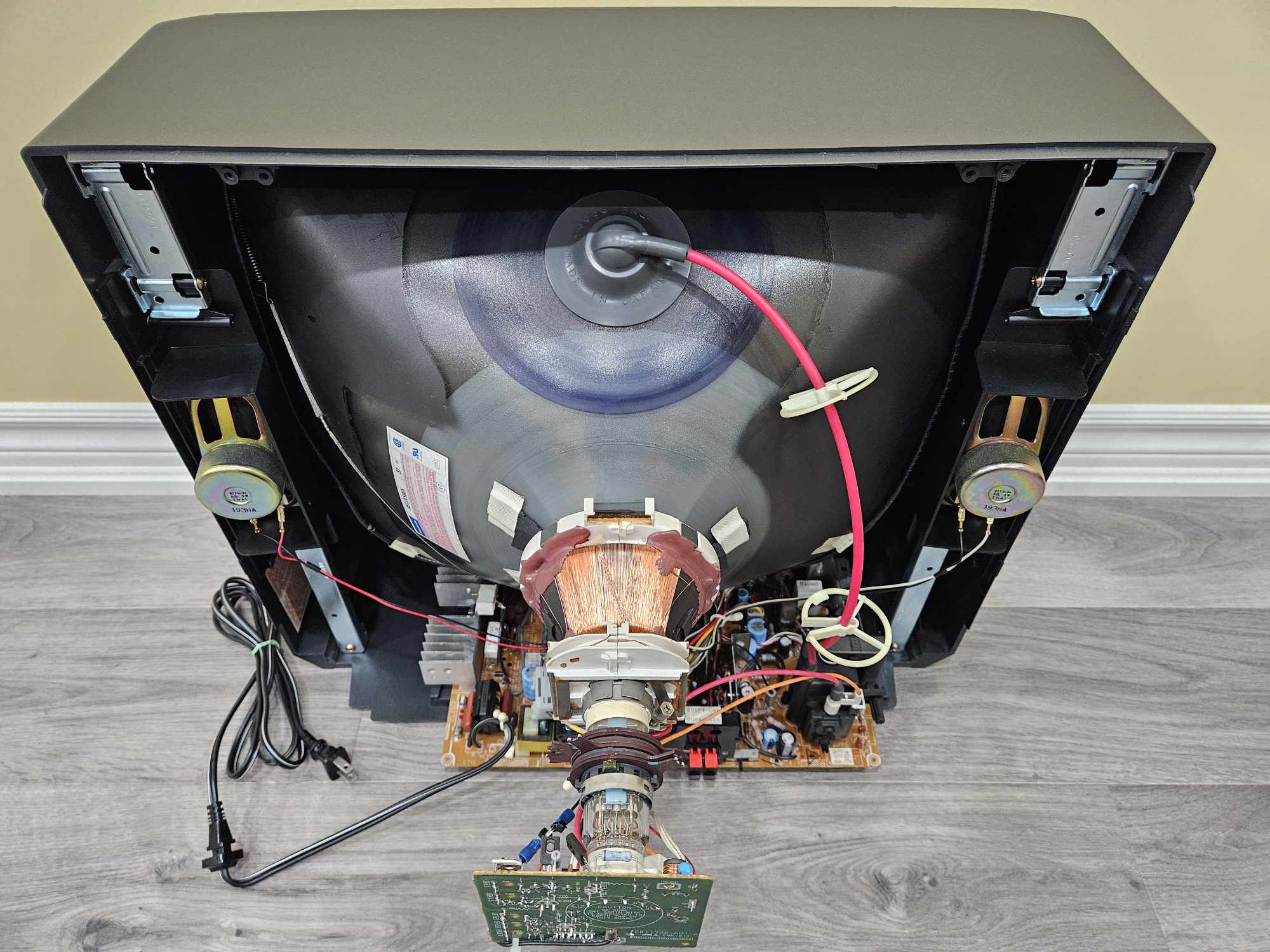

Tube: | Panasonic , A51JXS68X |
Heater Voltage: | 6.3v |
Mask: |
Slot
![]() |
Tint: | Dark |
Removable Glare Film: | No |

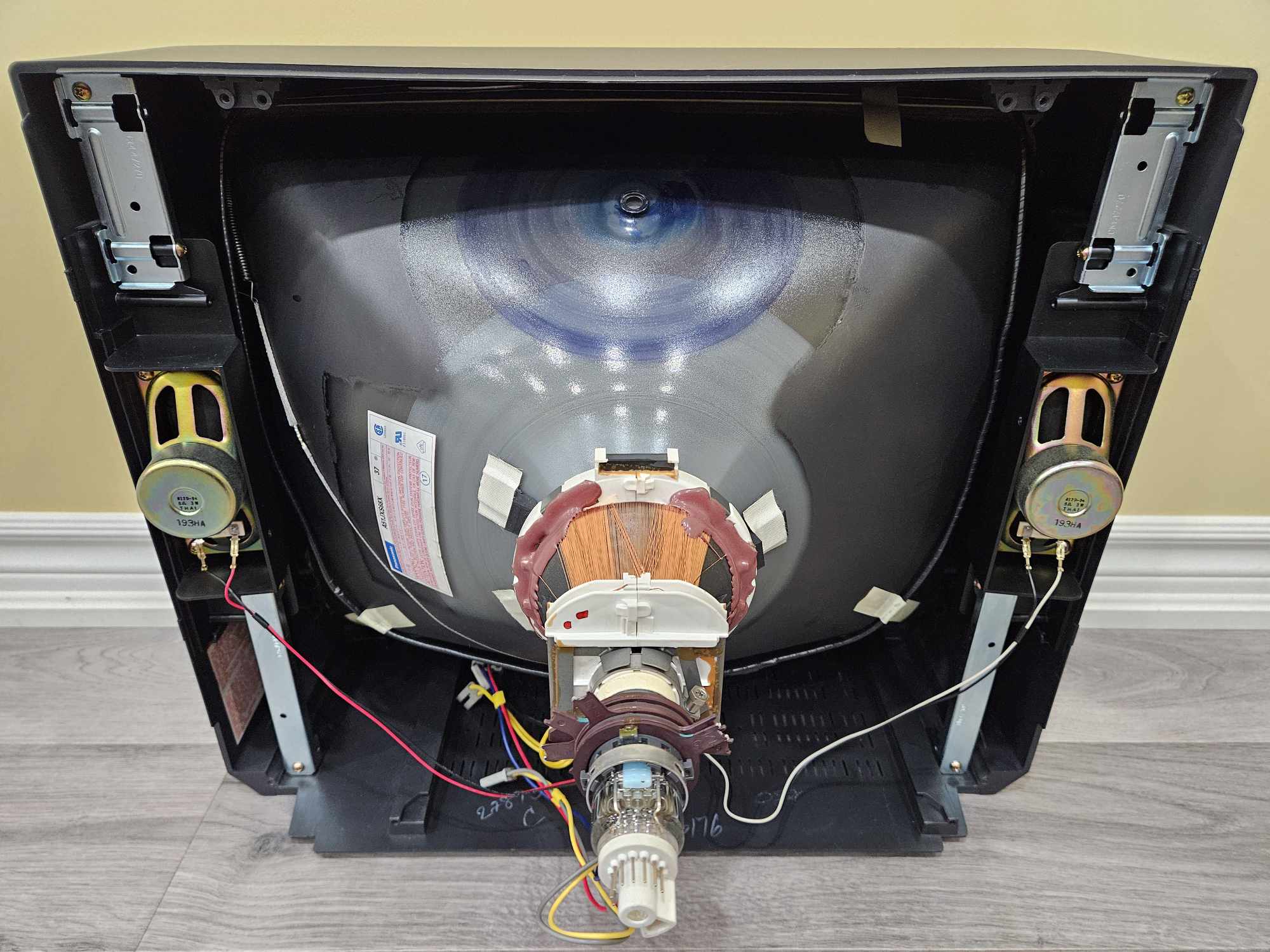

Yoke: | CE20261-00A |
Speakers: | Stereo |
Remote: | RM-C670 |

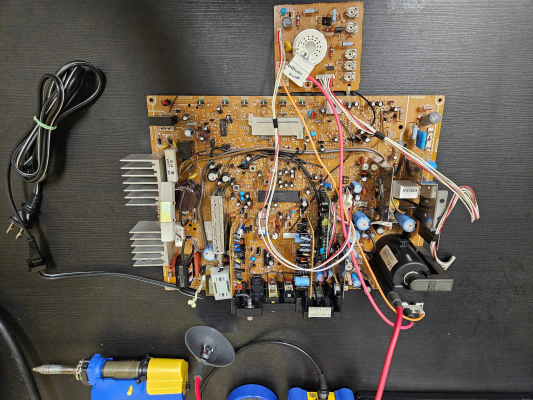

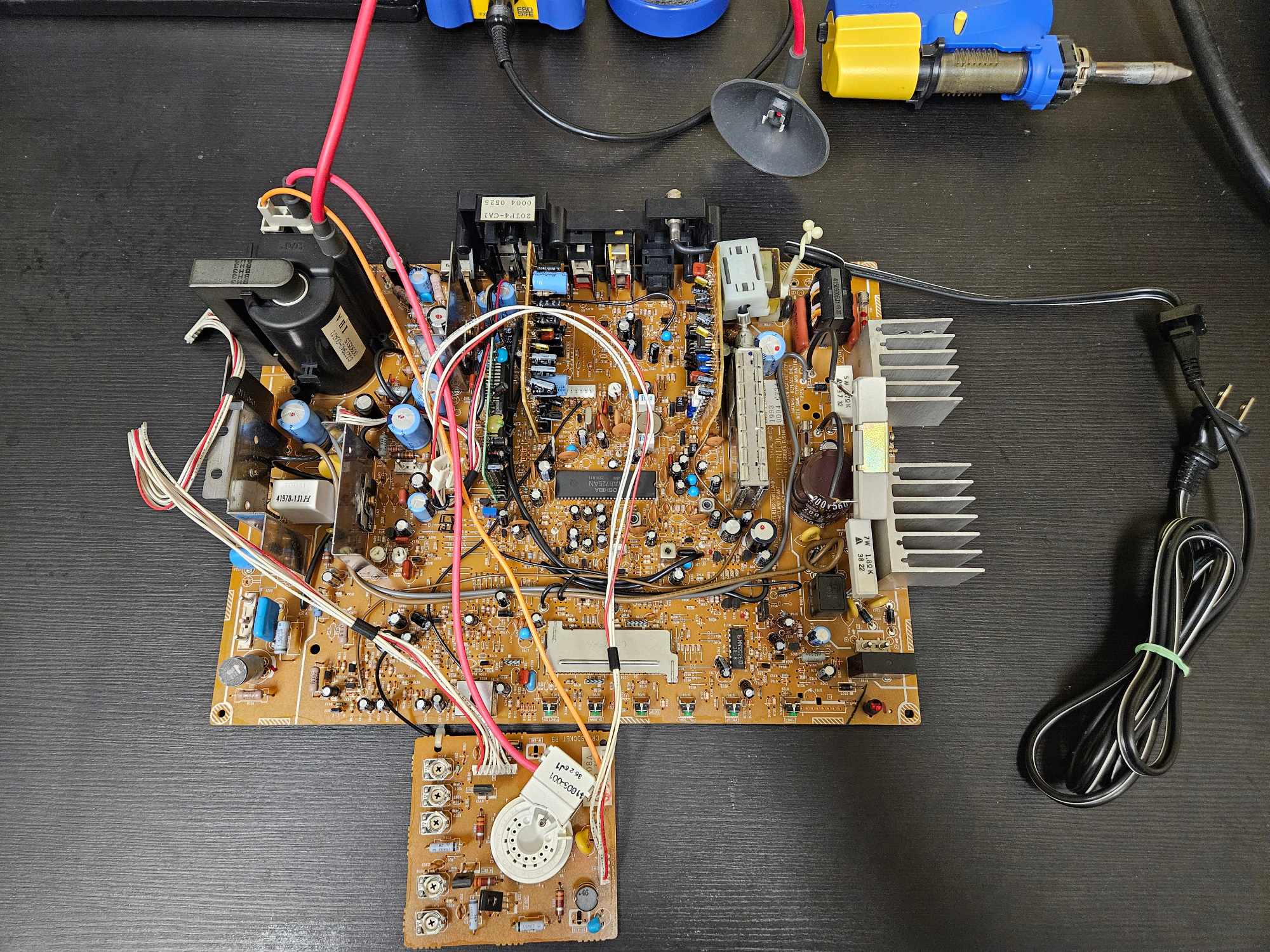

Chassis: | GY III |
Application: | Consumer |
Cabinet Material: | Plastic |
Launched: | 1993 |
MSRP: | 499 USD |
Country of Manufacture: | Thailand |
Market: | North America |
Power Standard: | 120v |
Mounting: | Table Surface (Standard) |
Degaussing: | Automatic on Power-on |
Tag: | Needs Owners Manual, Needs Service Manual |
