Summary

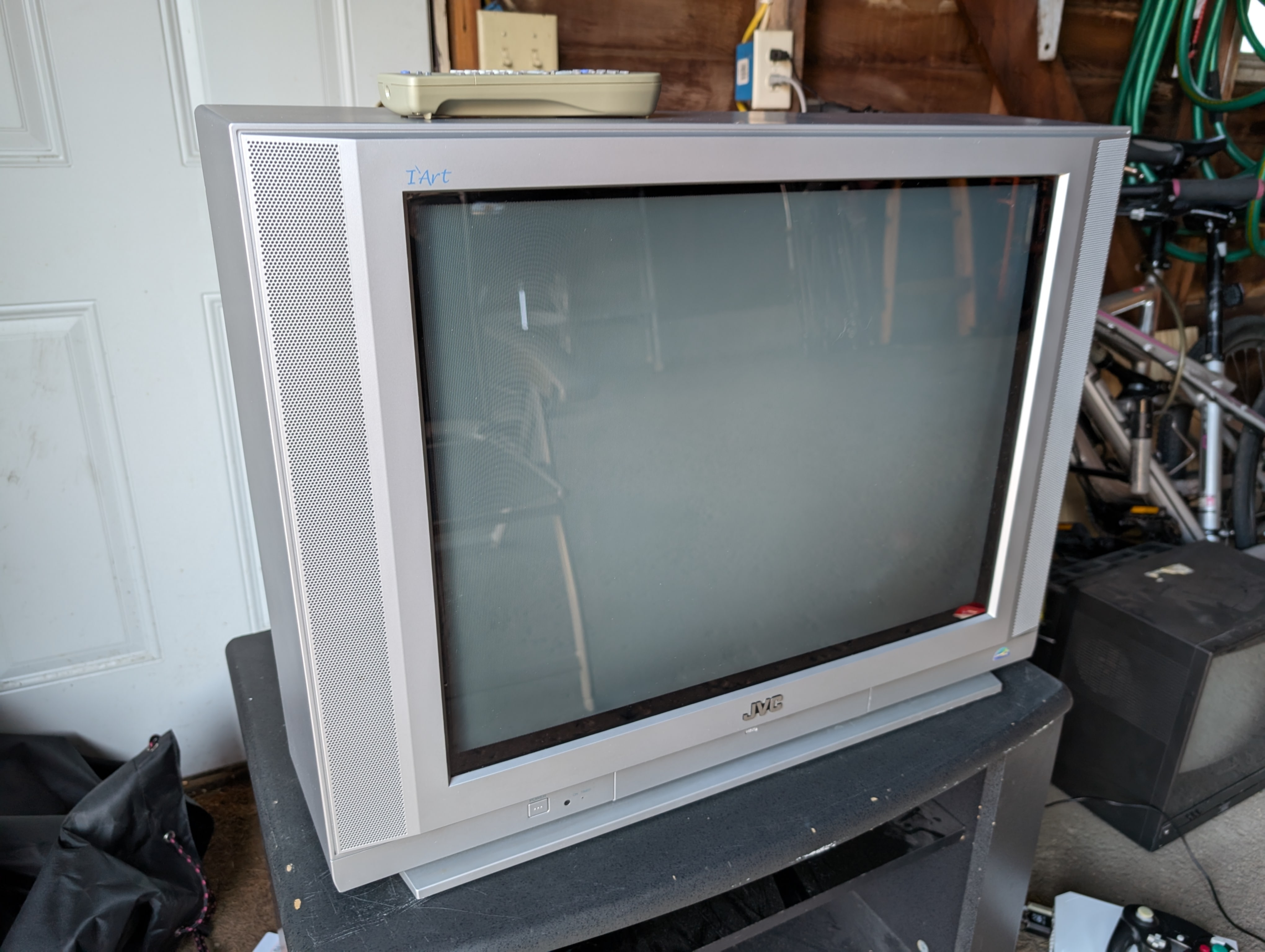

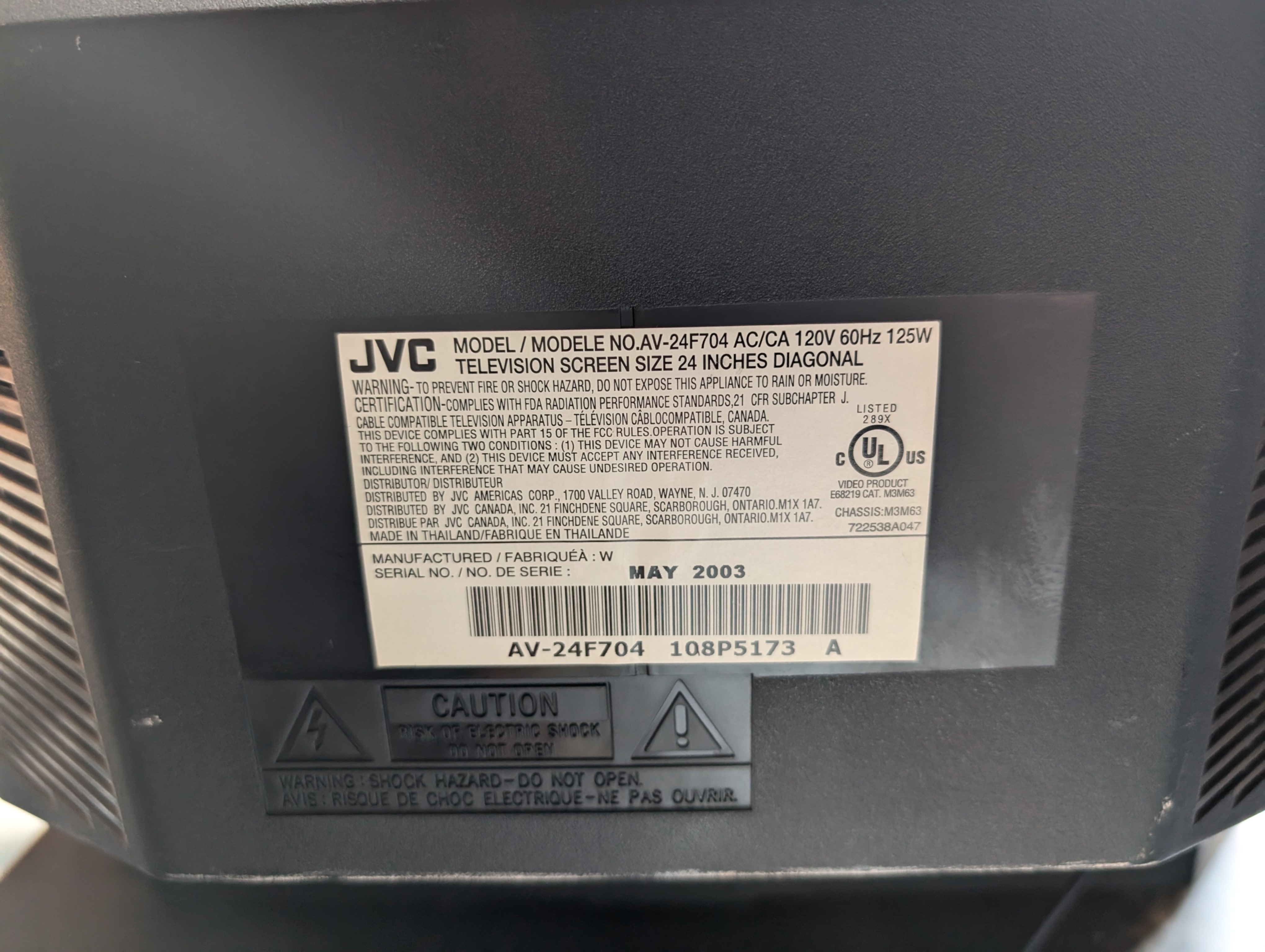

Midrange 24" flat JVC set from 2003. Originally manufactured by Orion in Thailand. Essentially a rebadged Toshiba 24AF43 but with compatibility with JVC remotes. The last 24" I'Art model.
(Special thanks to Kevin Radigan for the pics!)
Manuals
Notes

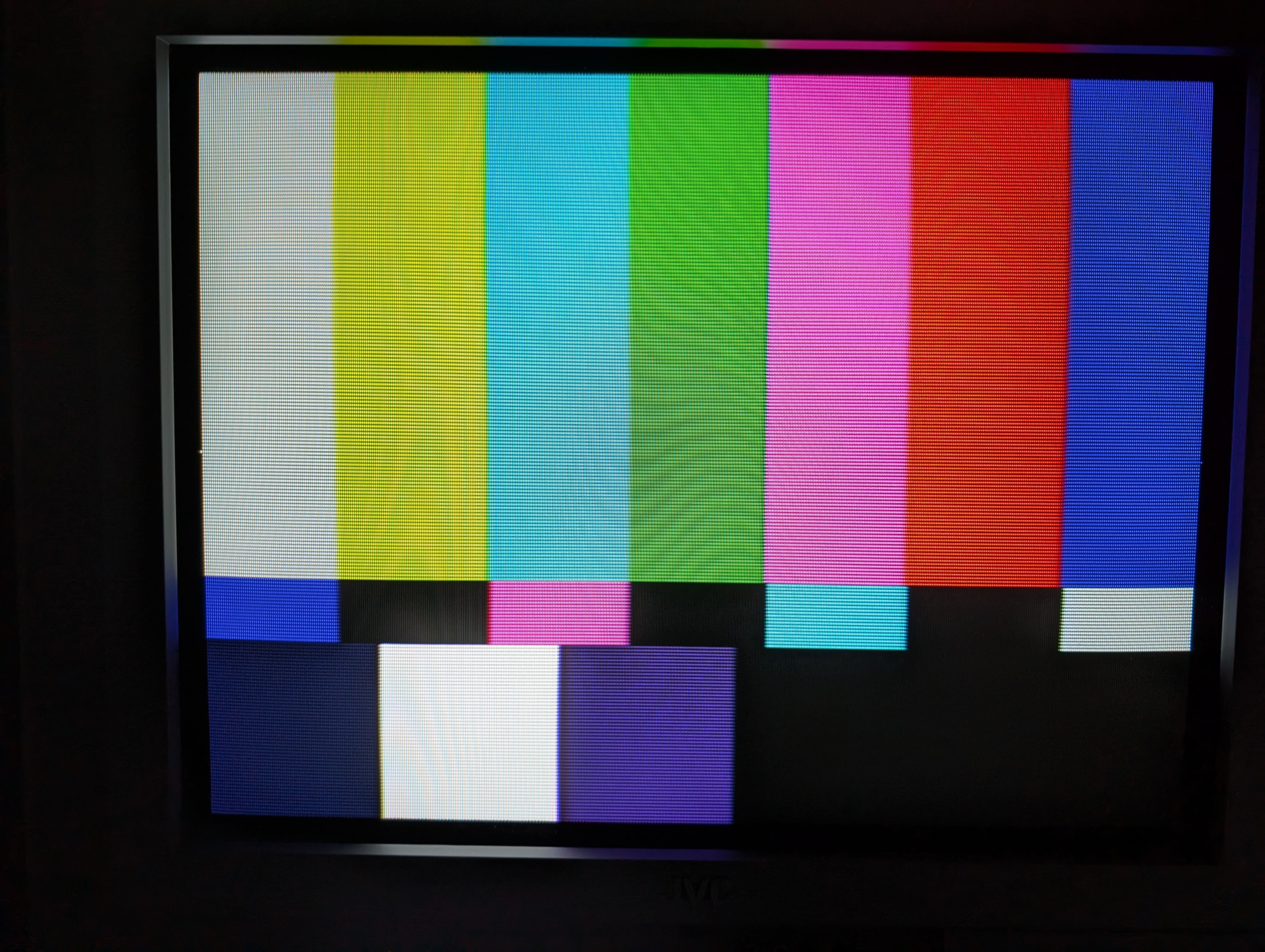

Unlike the previous year's Orion-made I'Art models, this one uses a Renesas Jungle chip which suffers from misaligned chroma, red push, and black crush. Worse yet, there's obnoxious VM you can't turn off.
To counteract the red push, turn down the color saturation in the standard menu. To reverse the black crush, turn up the RGB cutoffs in the service menu. Lastly, you can disable VM by unplugging a jumper from the neckboard.
As for the chroma misalignment, an RGB mod is the only solution to fix the issue and bypass all the processing in one fell swoop.

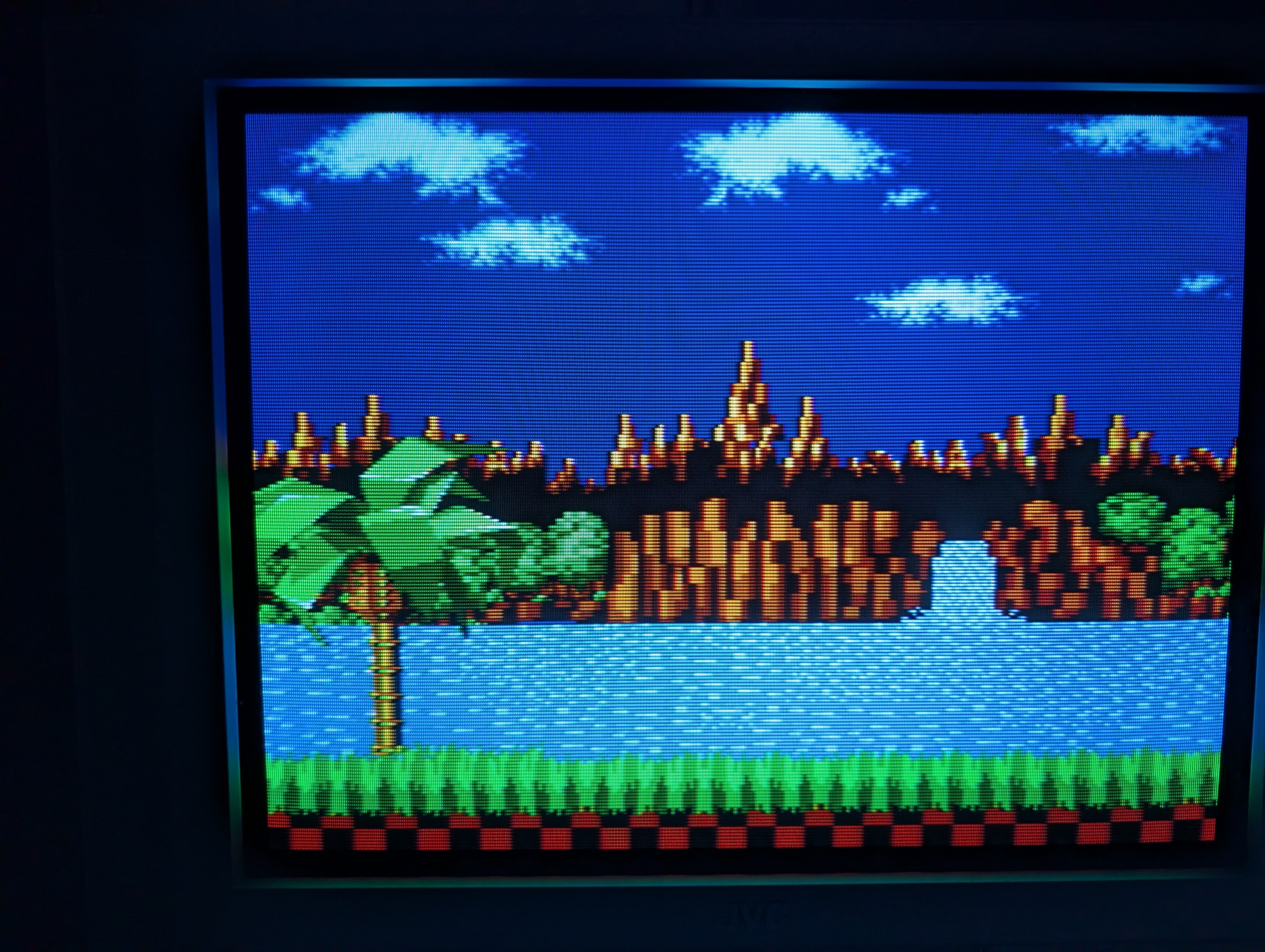

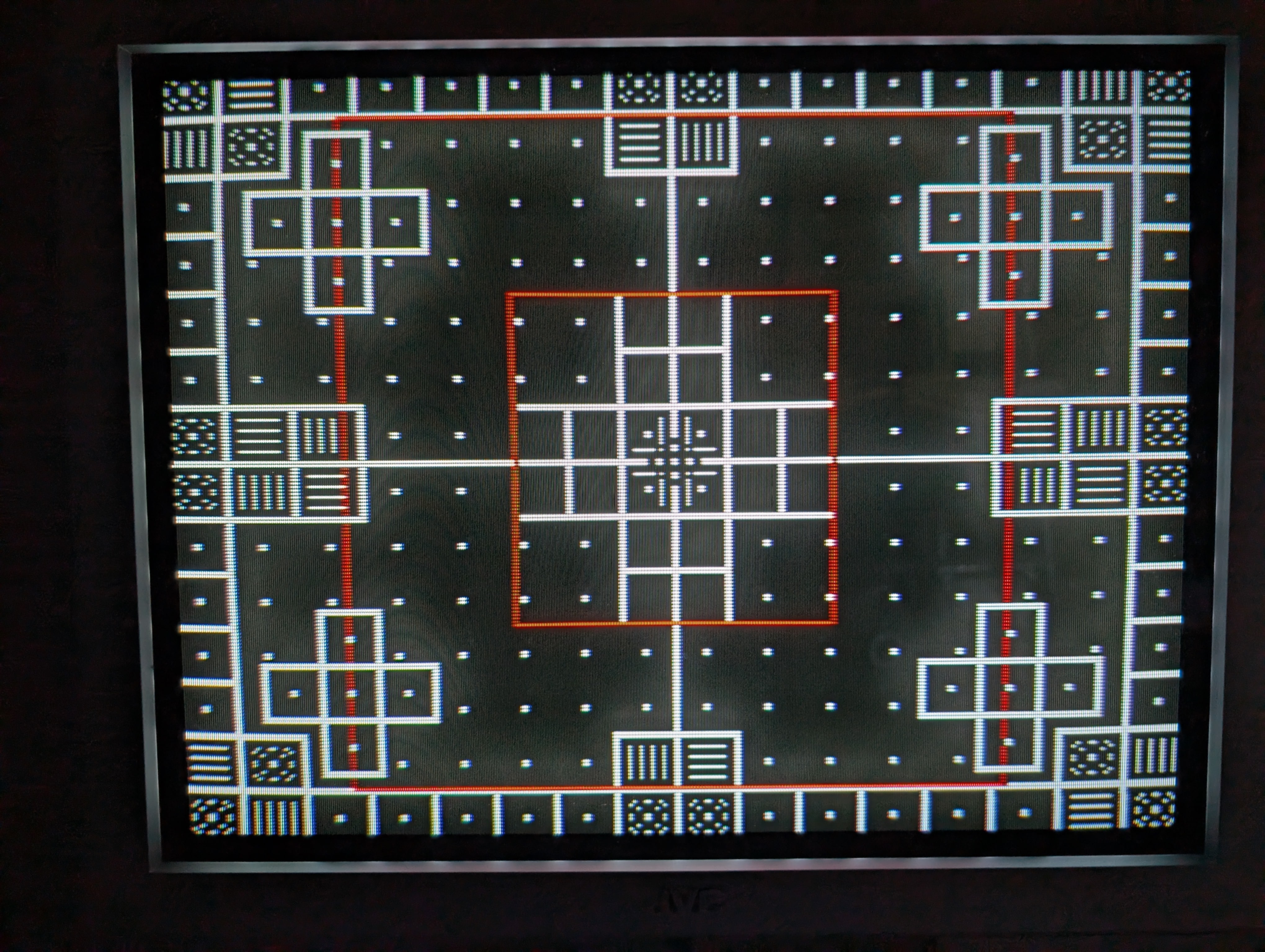

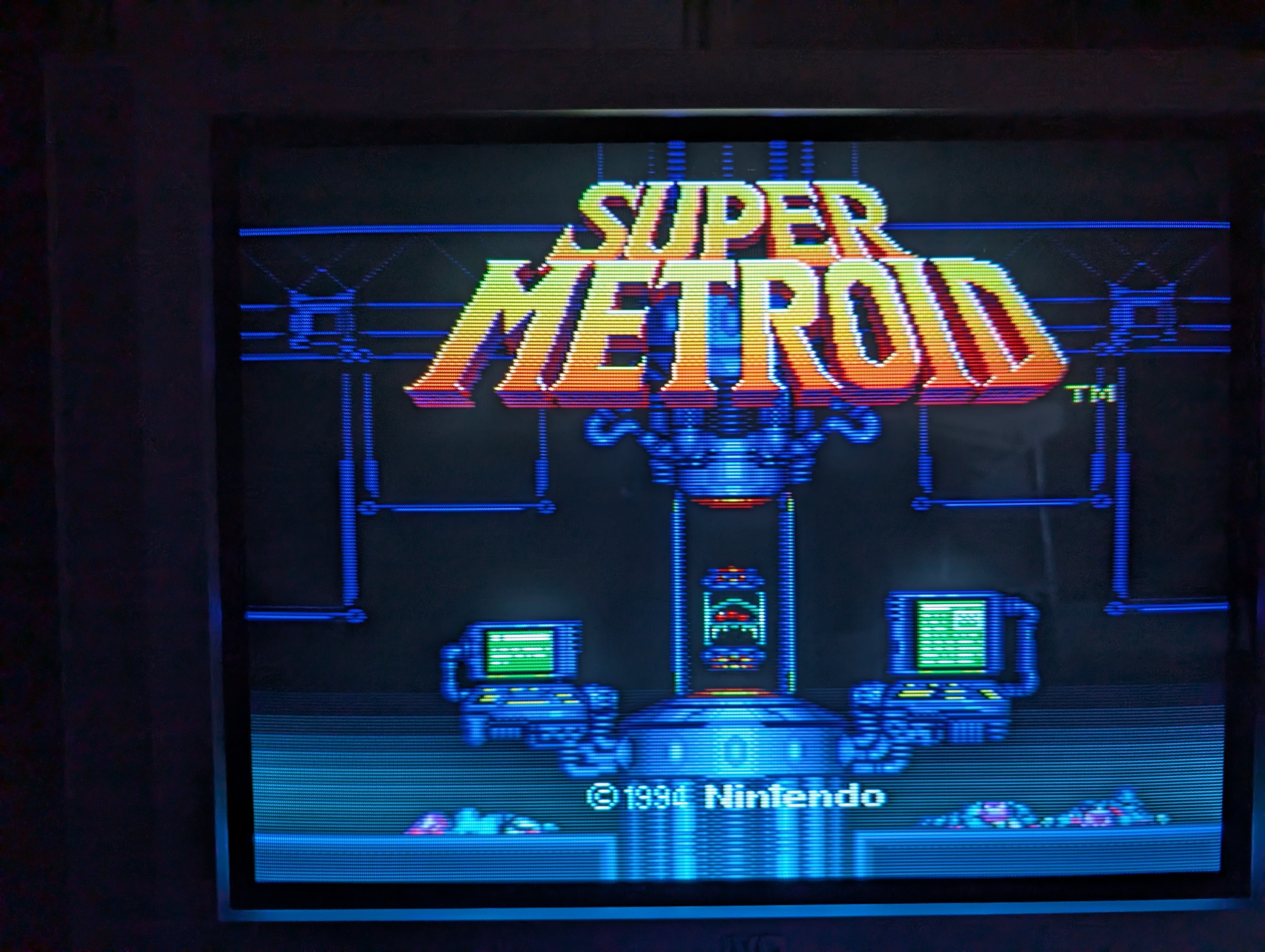

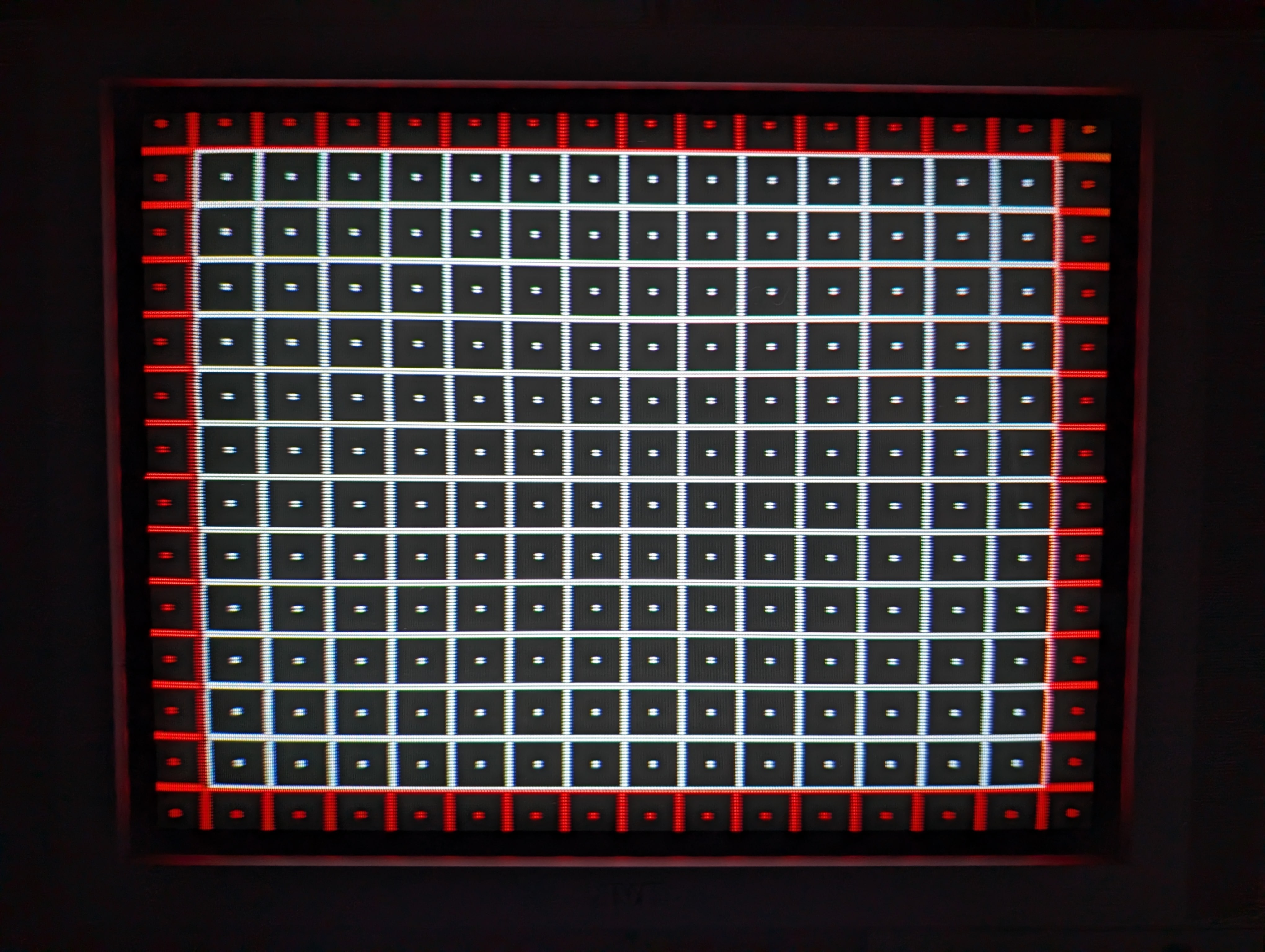

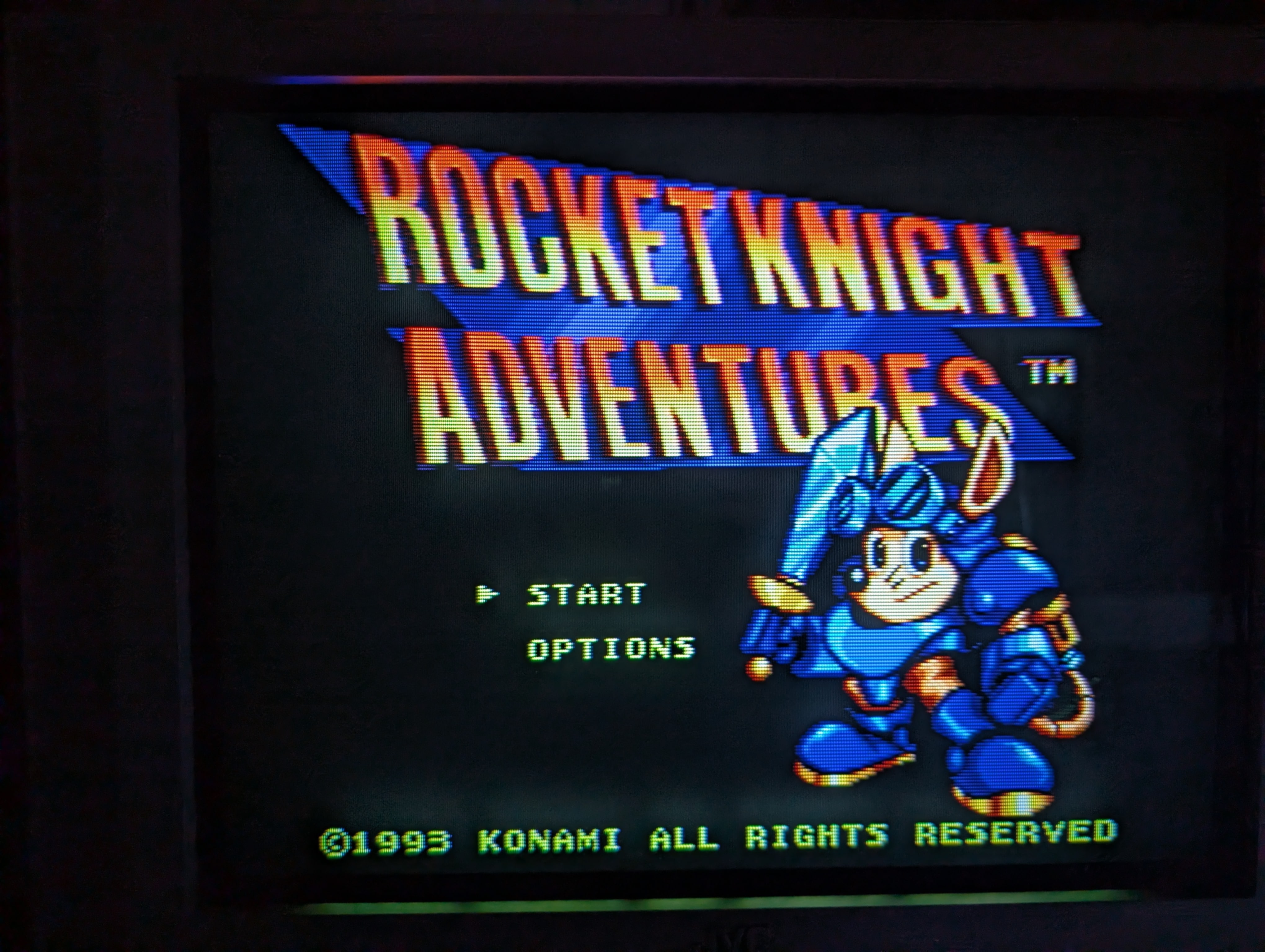

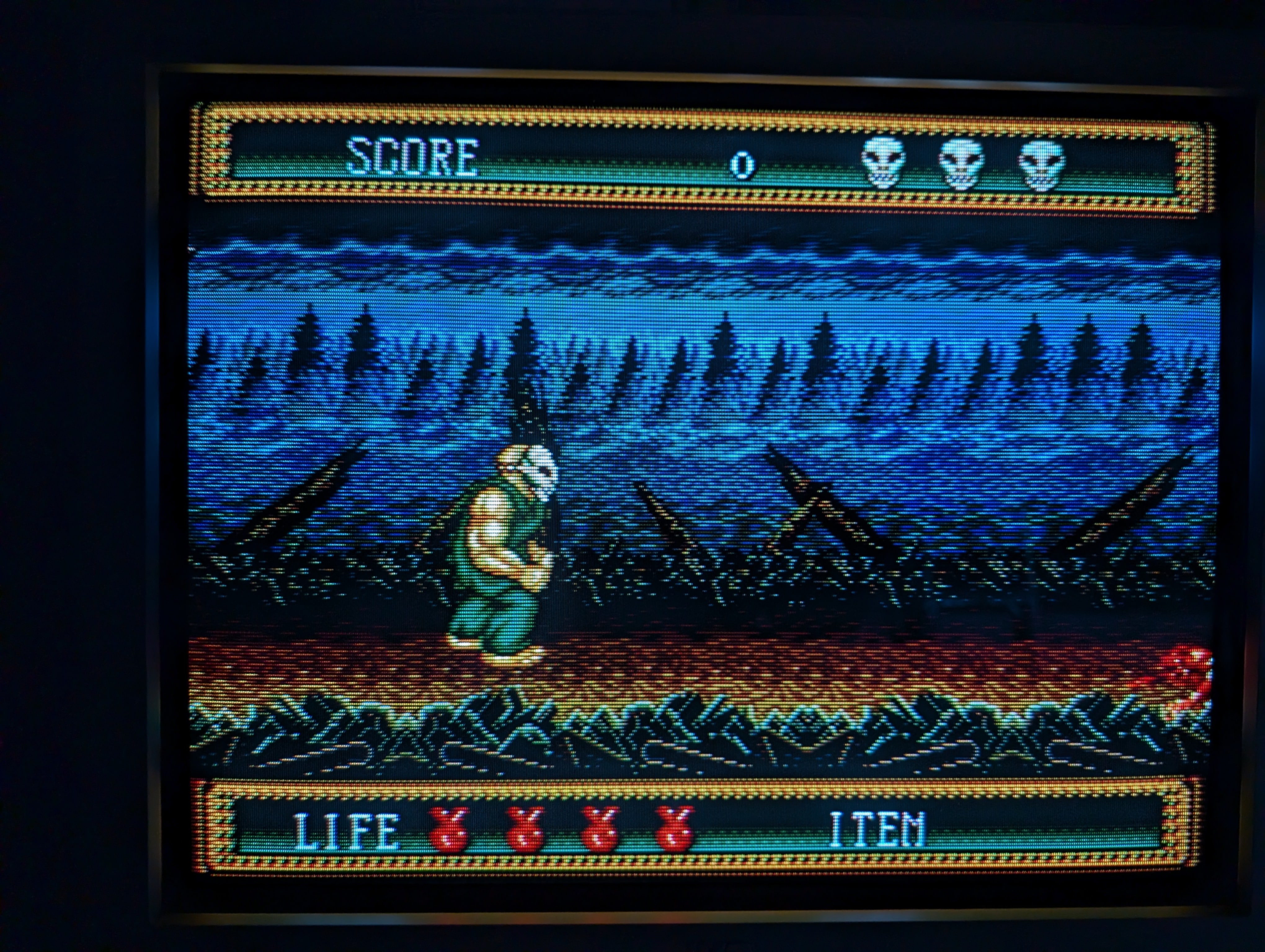

Gallery













Specifications | |
---|---|
Brand: | JVC |
Manufacturer: | JVC |
Model: | AV-24F704 |
Series: | I'Art |
Viewable Size: | 24" |

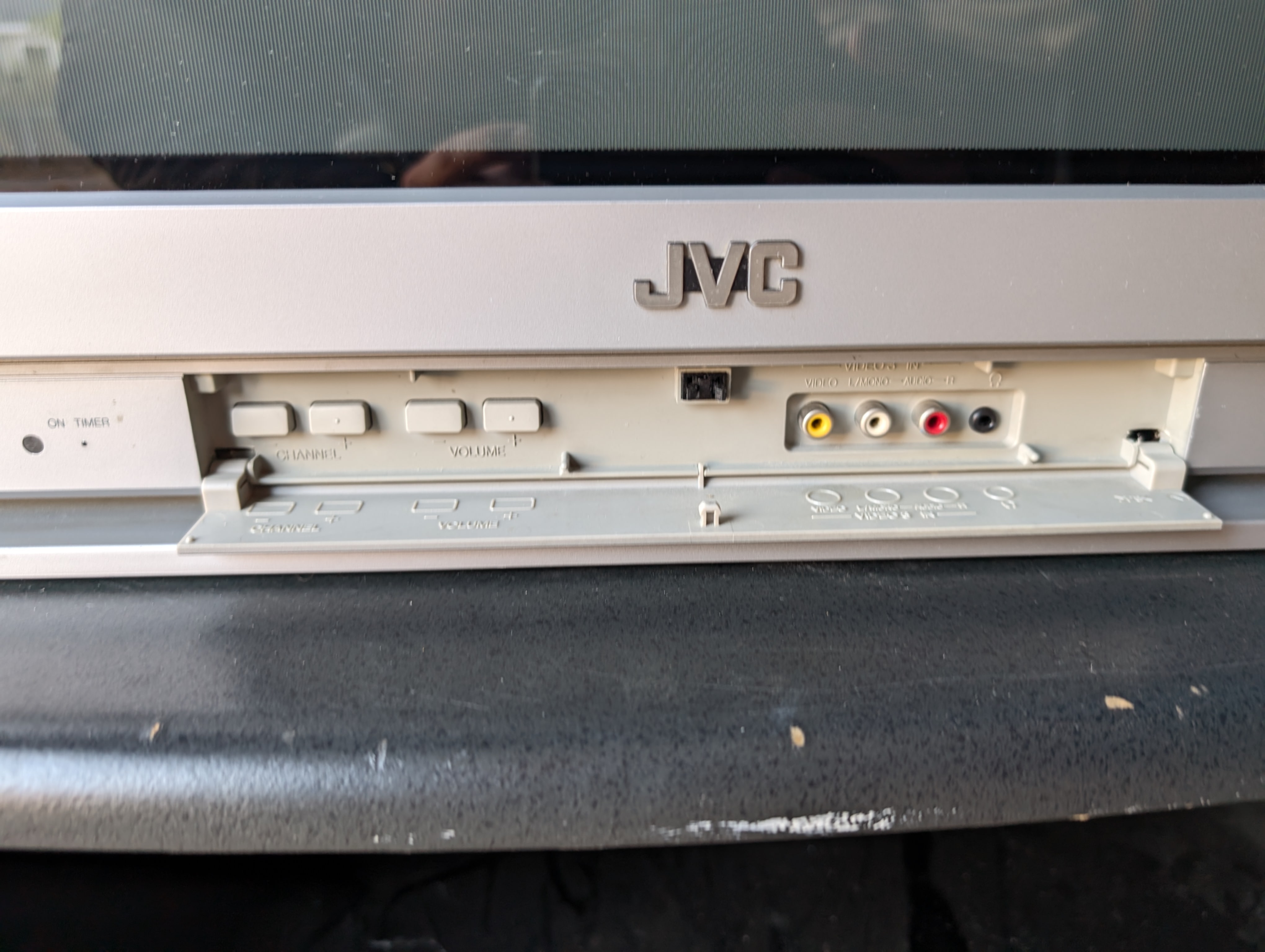

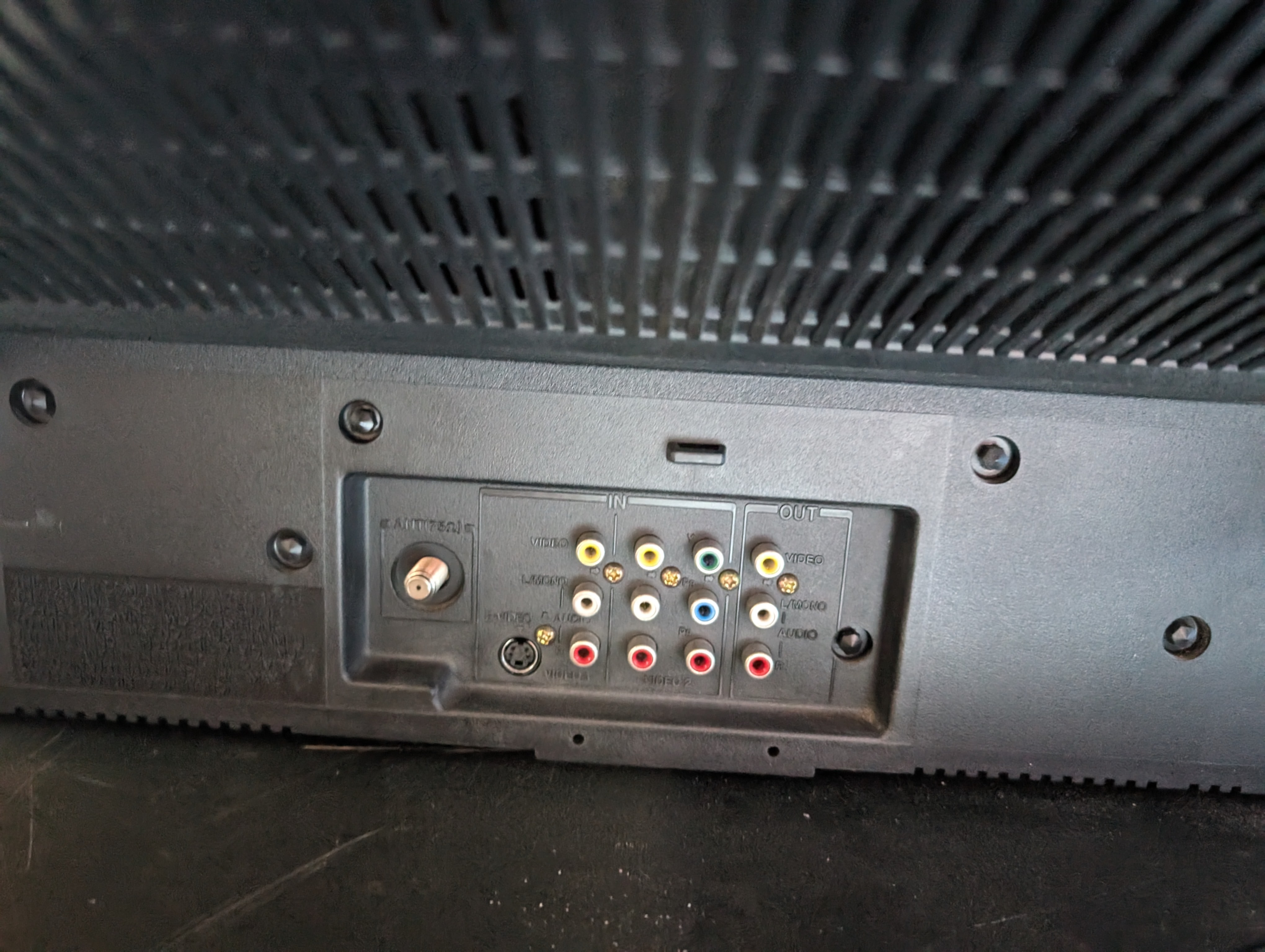

Inputs: | Composite, S-Video, RF, Component YPbPr |
Native Resolutions: | 240p, 480i |
Horizontal Scan Range: | 15 kHz |
Vertical Scan Range: | 60 Hz |
Formats: | NTSC |
Aspect: | 4:3 |
Adjustments: | OSD Customer Controls, OSD Service Menu |
Jungle: | Renesas |
Comb Filtering: | 3-Line Digital |
Flyback: | 3224003R |
Focus Type: | Single |
Tube: | Toshiba , A60LVY196X |
Heater Voltage: | 6.3v |
Mask: |
Slot
![]() |
Tint: | Dark |
Removable Glare Film: | No |
Speakers: | Stereo, 5W x 2 |
Weight: | 72.8 lbs (33 kg) |
Dimensions (W/H/D): |
670 x 484 x 509 mm
(26.3 x 19 x 20") |
Application: | Consumer |
Cabinet Material: | Plastic |
Launched: | 2003 |
Country of Manufacture: | Thailand |
Market: | North America |
Power Standard: | 120v |
Mounting: | Table Surface (Standard) |
Mods: | RGB via Mux |
Degaussing: | Automatic on Power-on |
