JVC AV-2676
SegaSaturn94
September 1, 2024, 1:43 pm
July 26, 2025, 5:21 pm
September 1, 2024, 1:43 pm
July 26, 2025, 5:21 pm
Summary

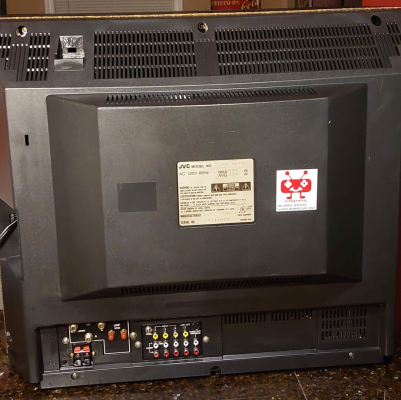

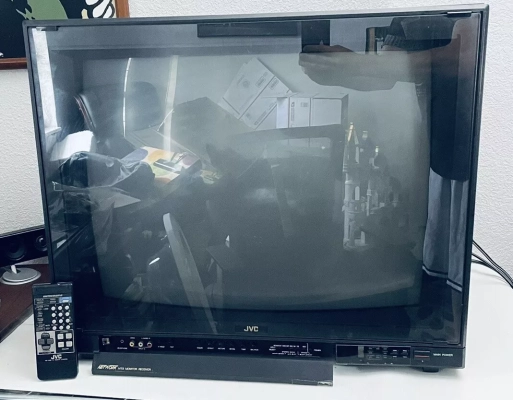

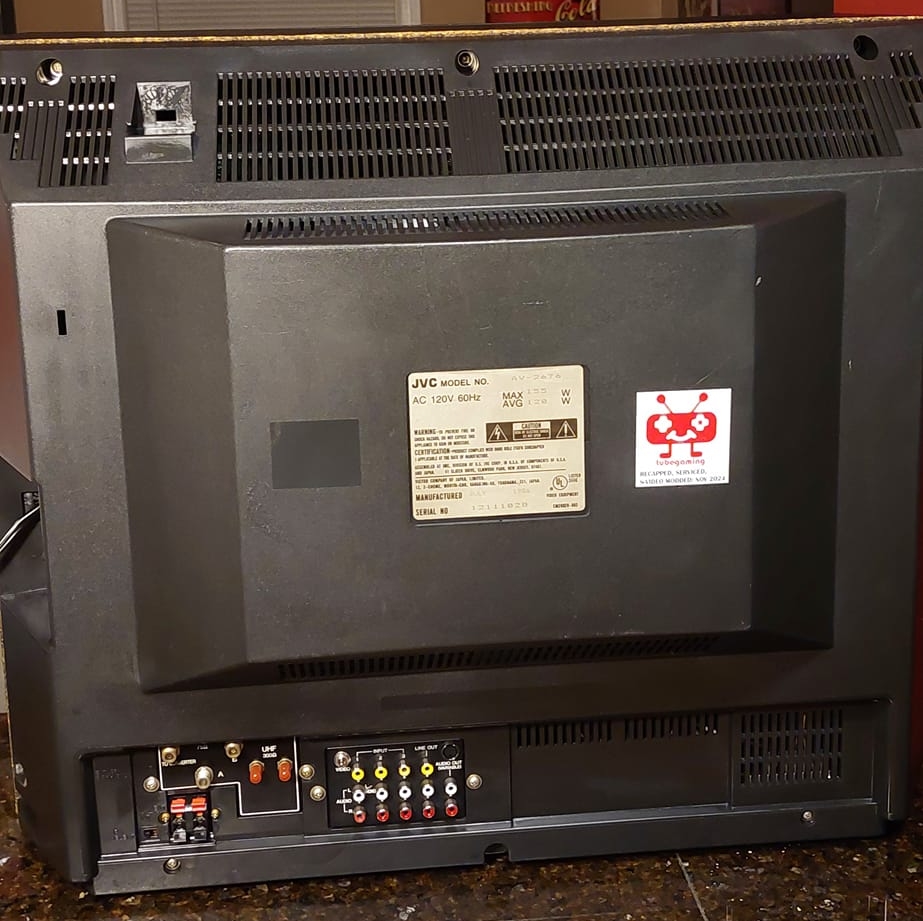

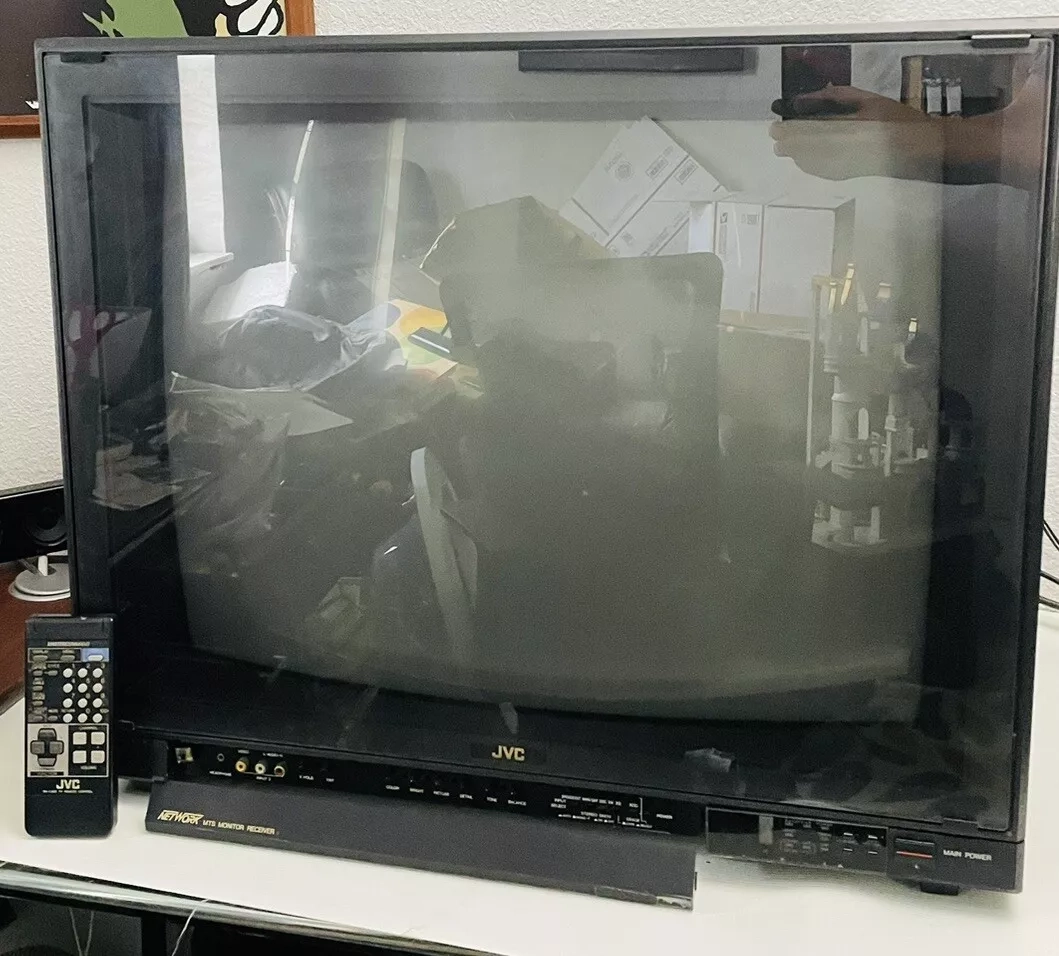

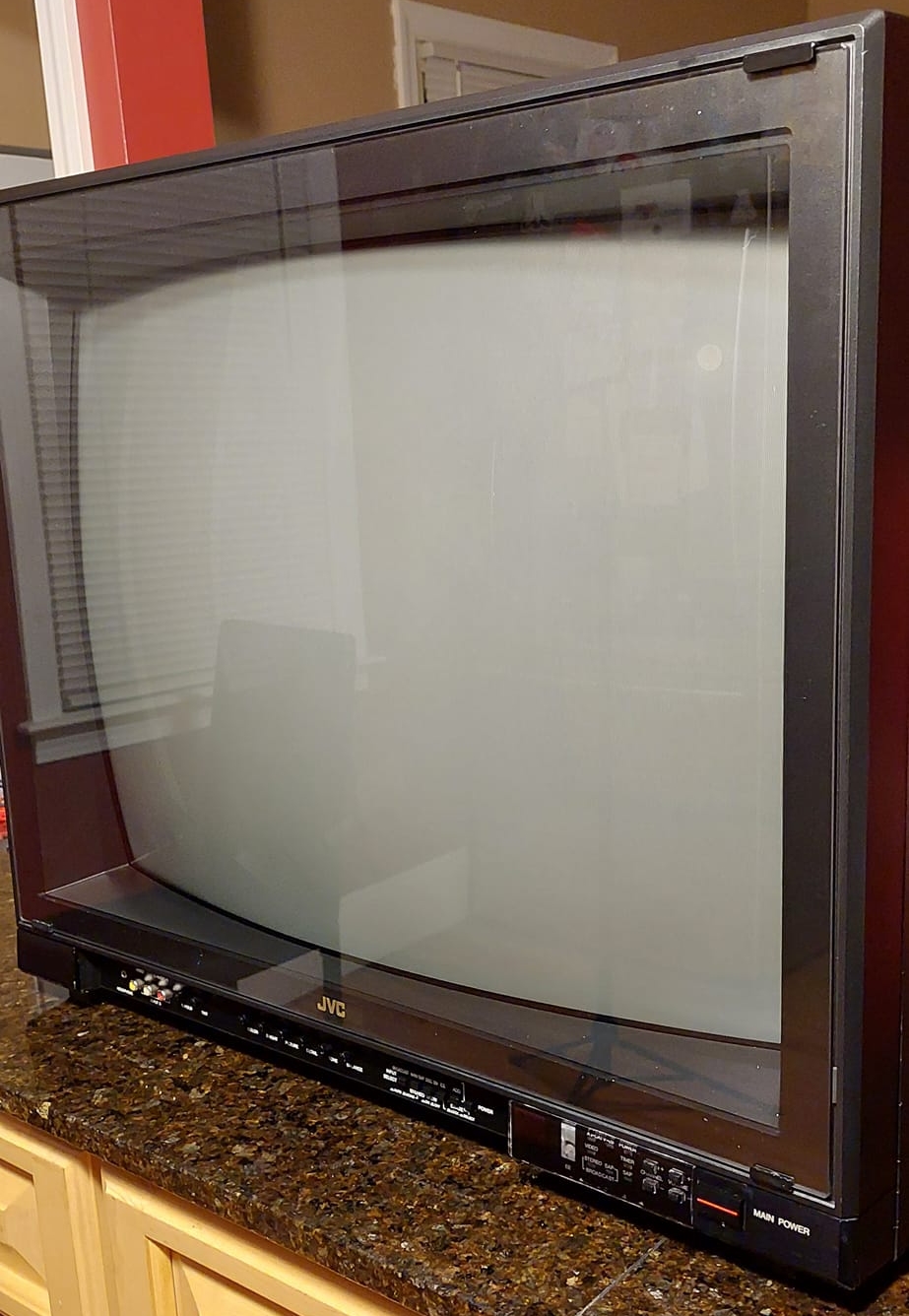

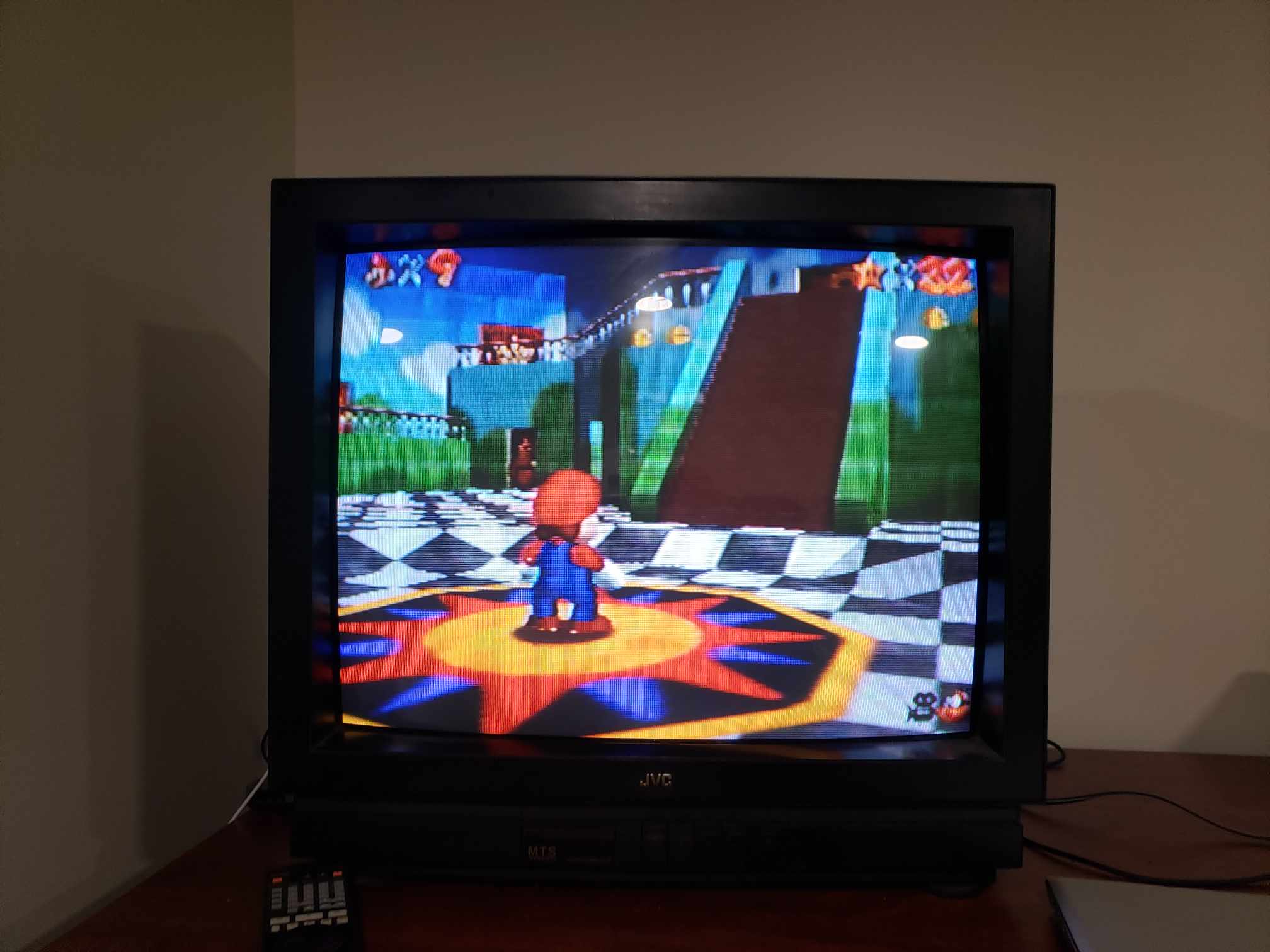

A higher-end JVC set for 1986, with several AV inputs and stereo sound options. Assembled in the USA from domestic and Japanese-made parts.
(Special thanks to Johnathan Passarette and Johnny Baez for the pics!)
Manuals
Notes

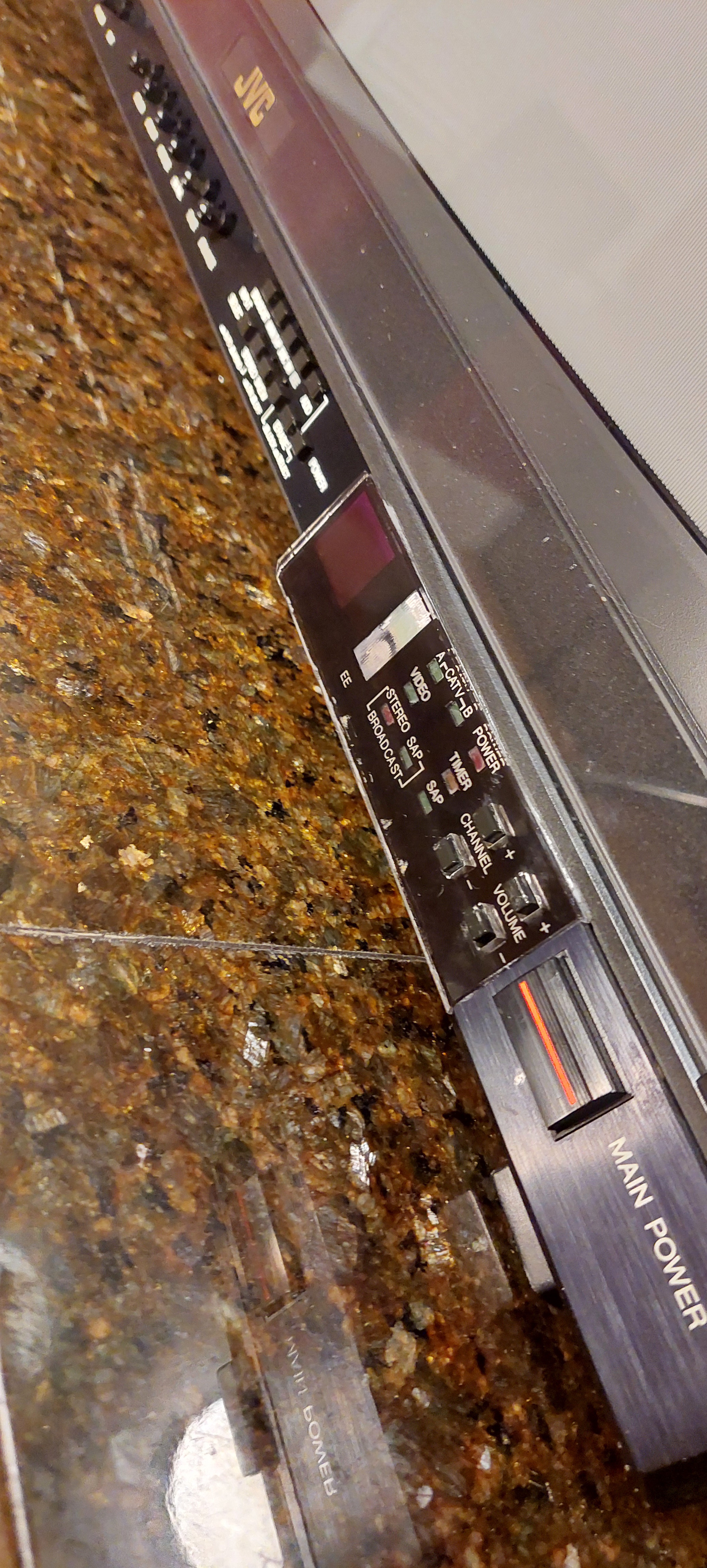

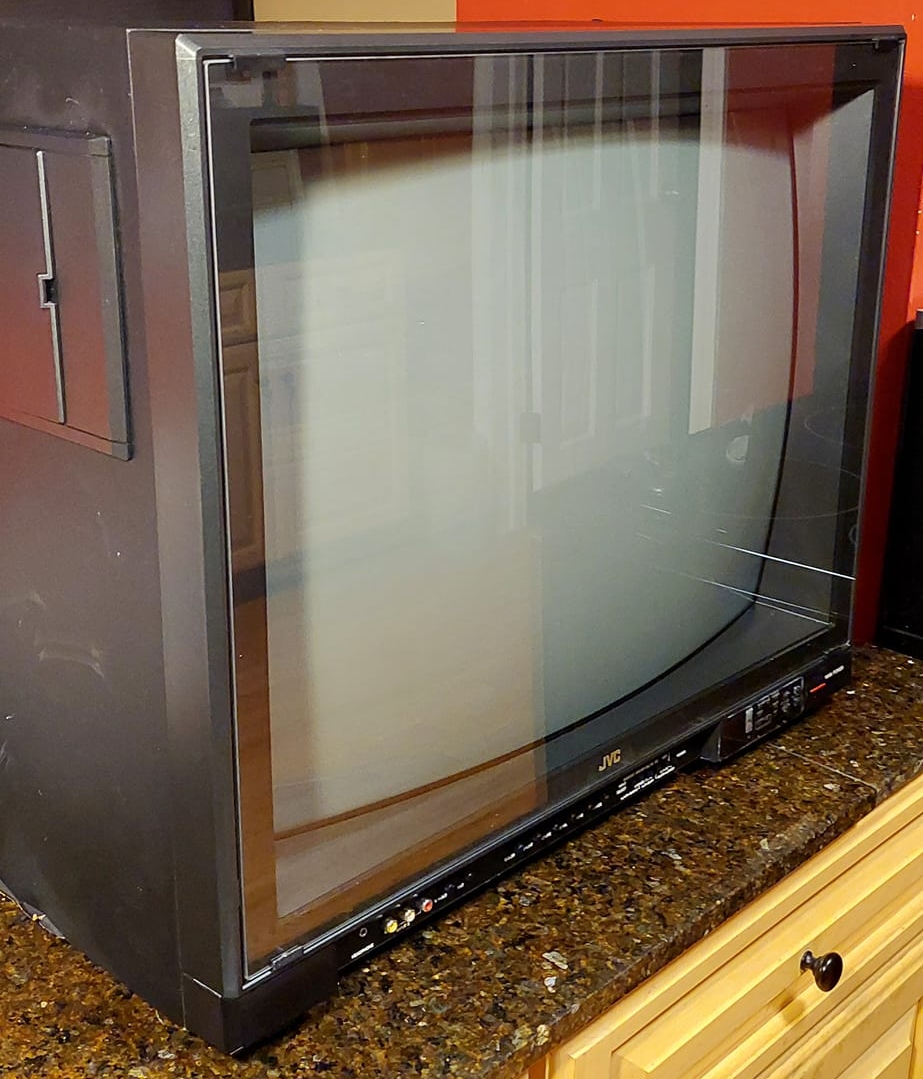

The built-in speakers have door flaps that open, which is a nice-looking touch.
The AV-2690 shares the same chassis, and that one has a digital RGB input. The chassis would later be further refined to accommodate the new SVHS input in 1987.
More pics of this set can be found HERE
S-Video Mod
This set can be modified for s-video. Its as simple as injecting without using any additional components:
- Luma line is injected at the pin for the video 1 input.
- Chroma is injected where the signal outputs from the transistor to the Load components into the jungle.
- After that, just choose a place for ground, and voila!
Link to mod HERE

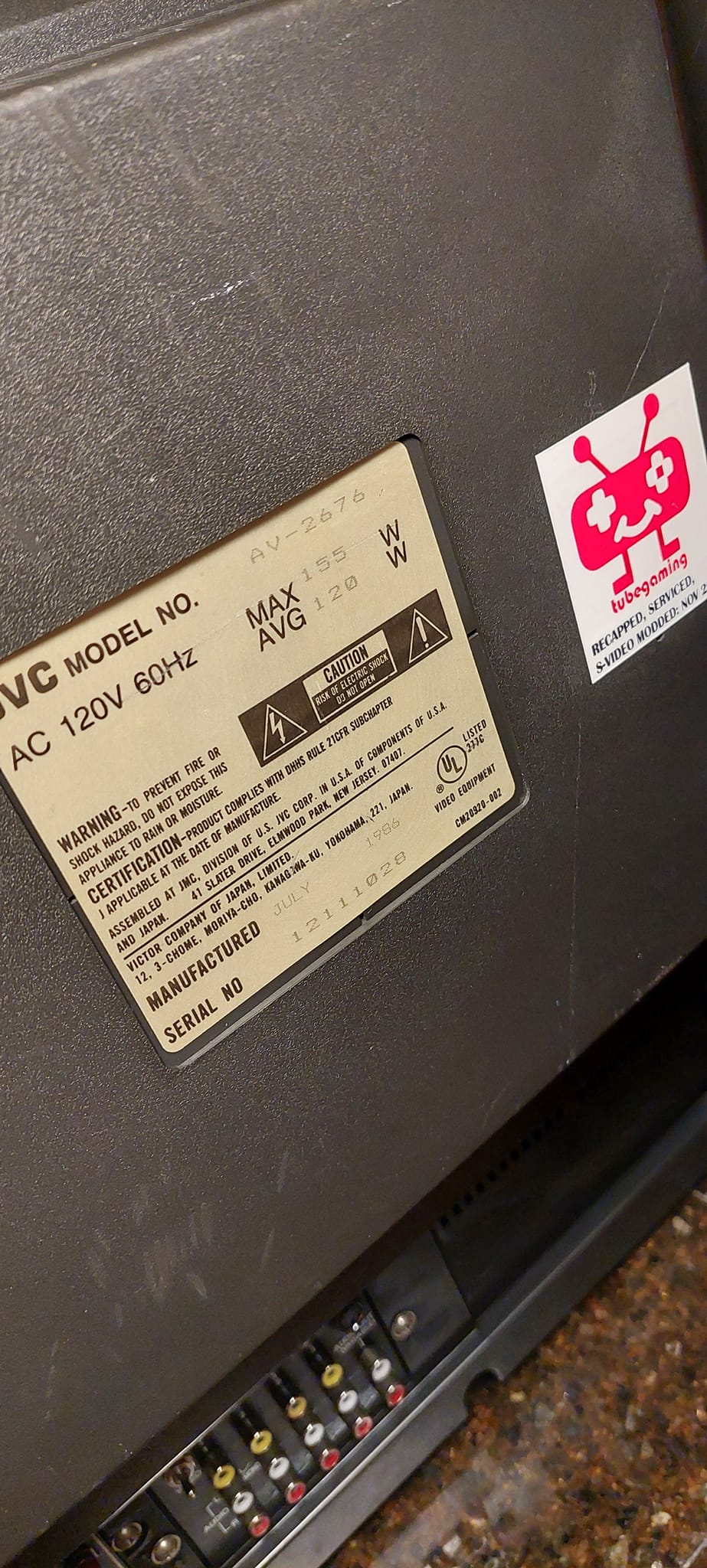

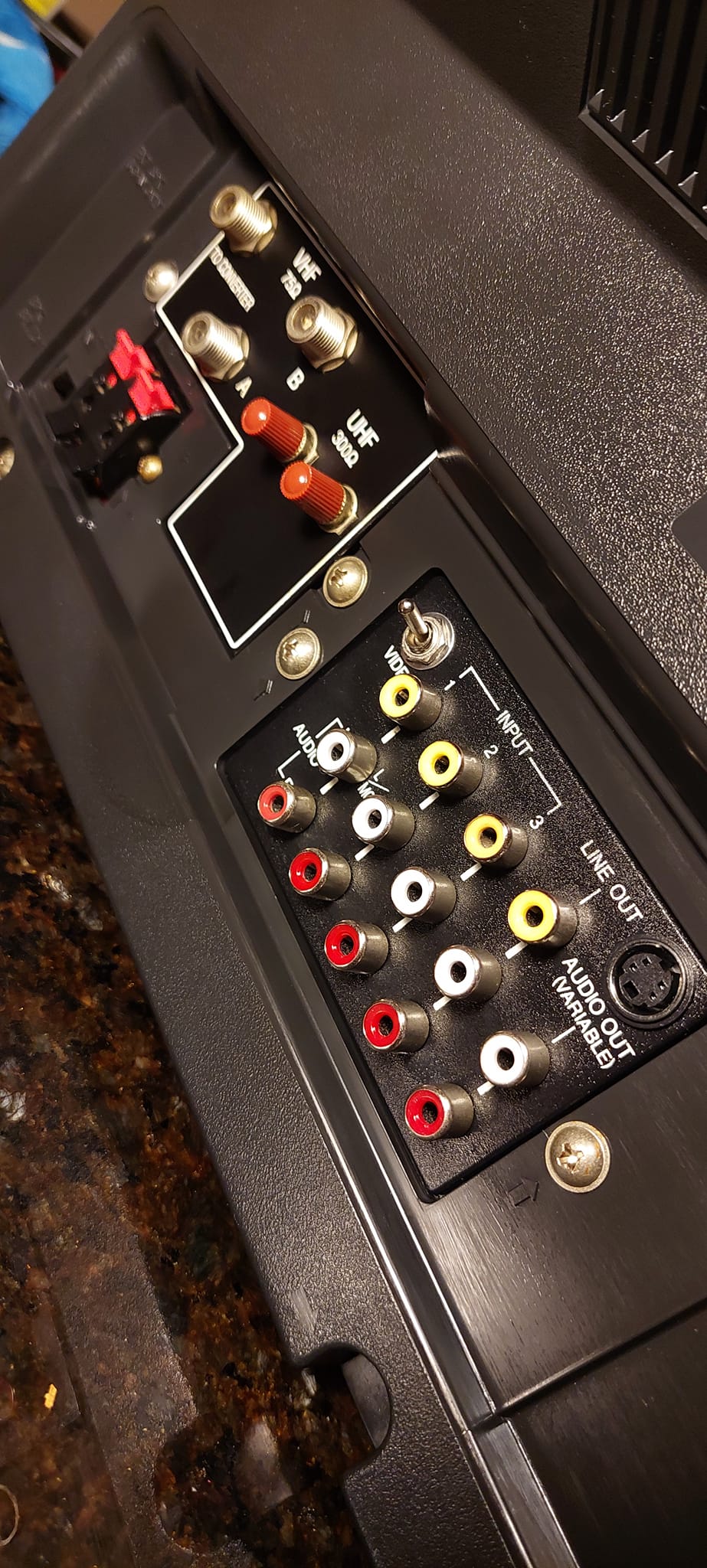

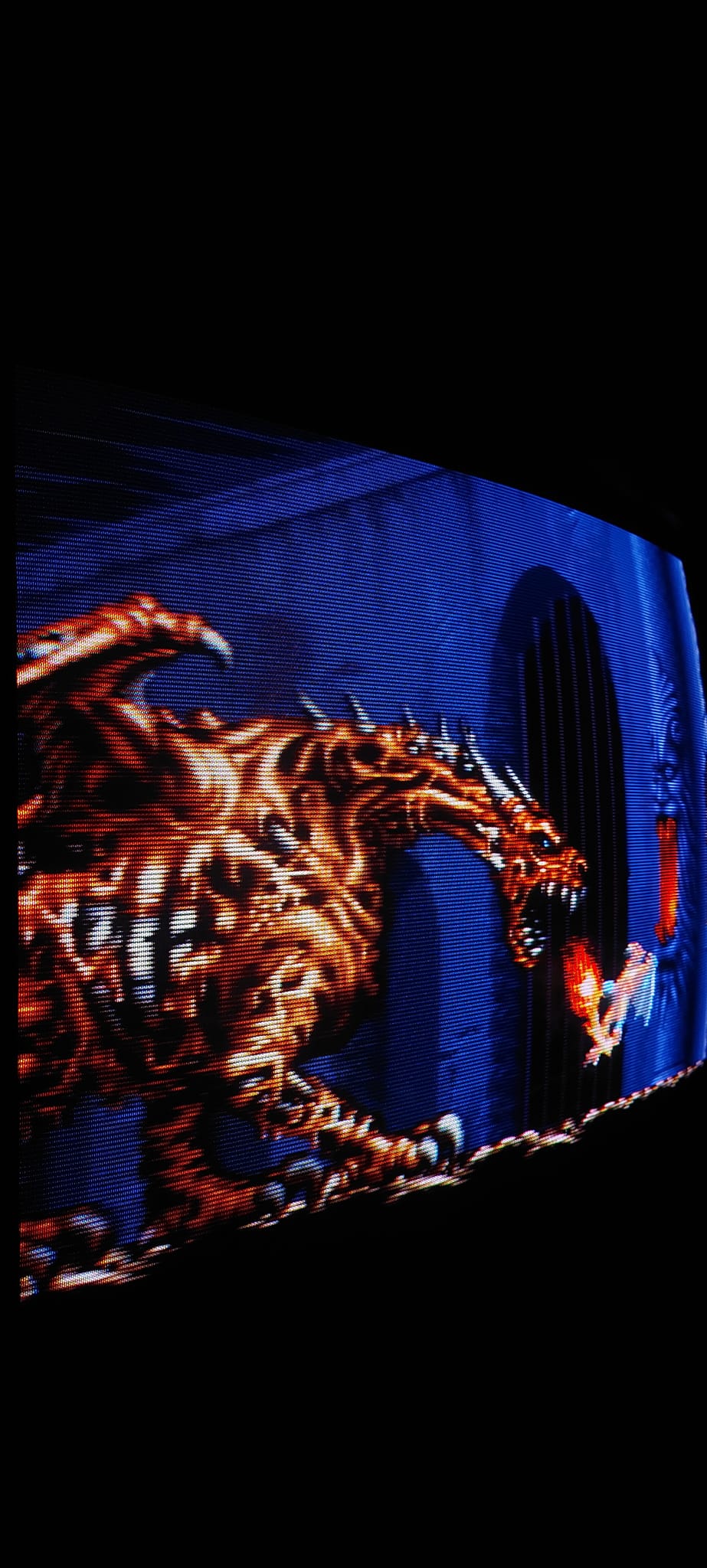

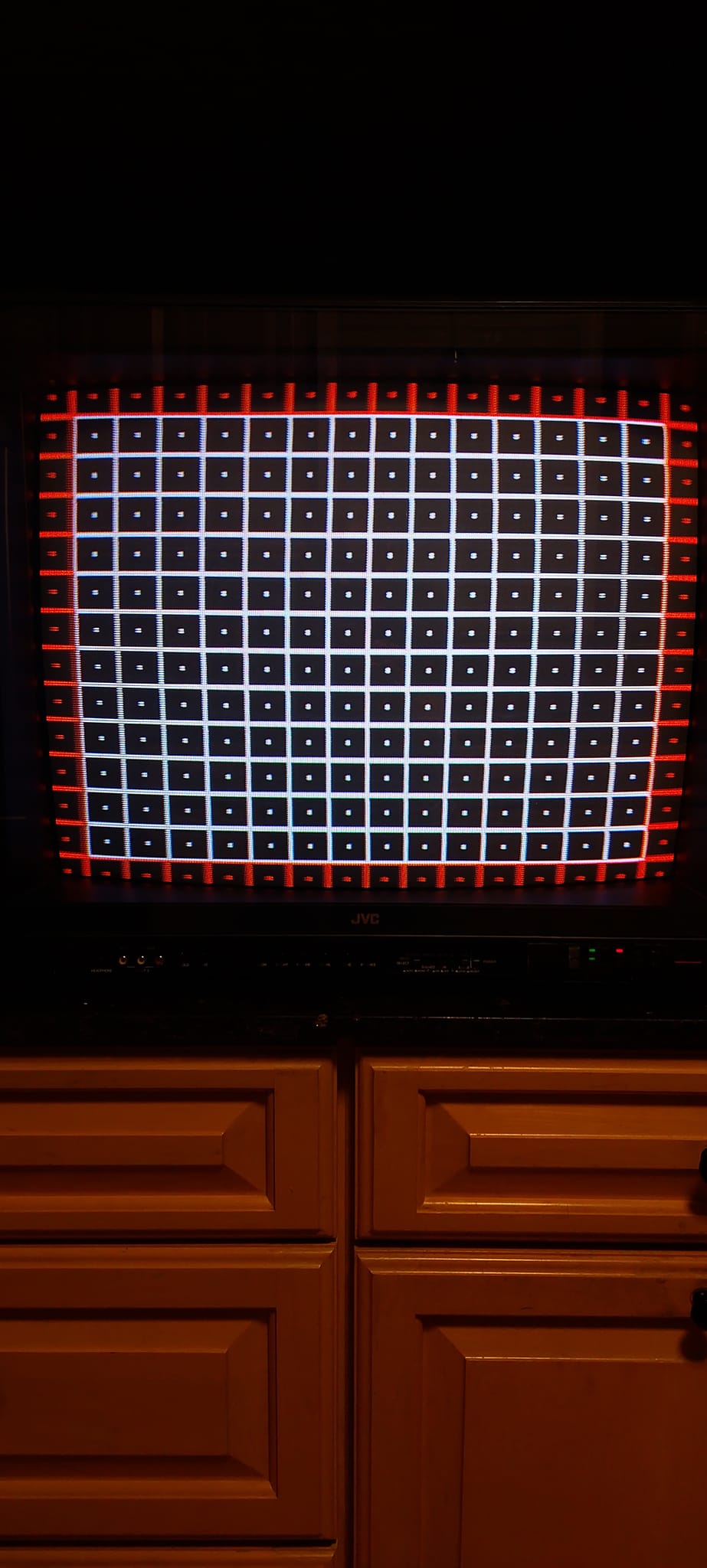

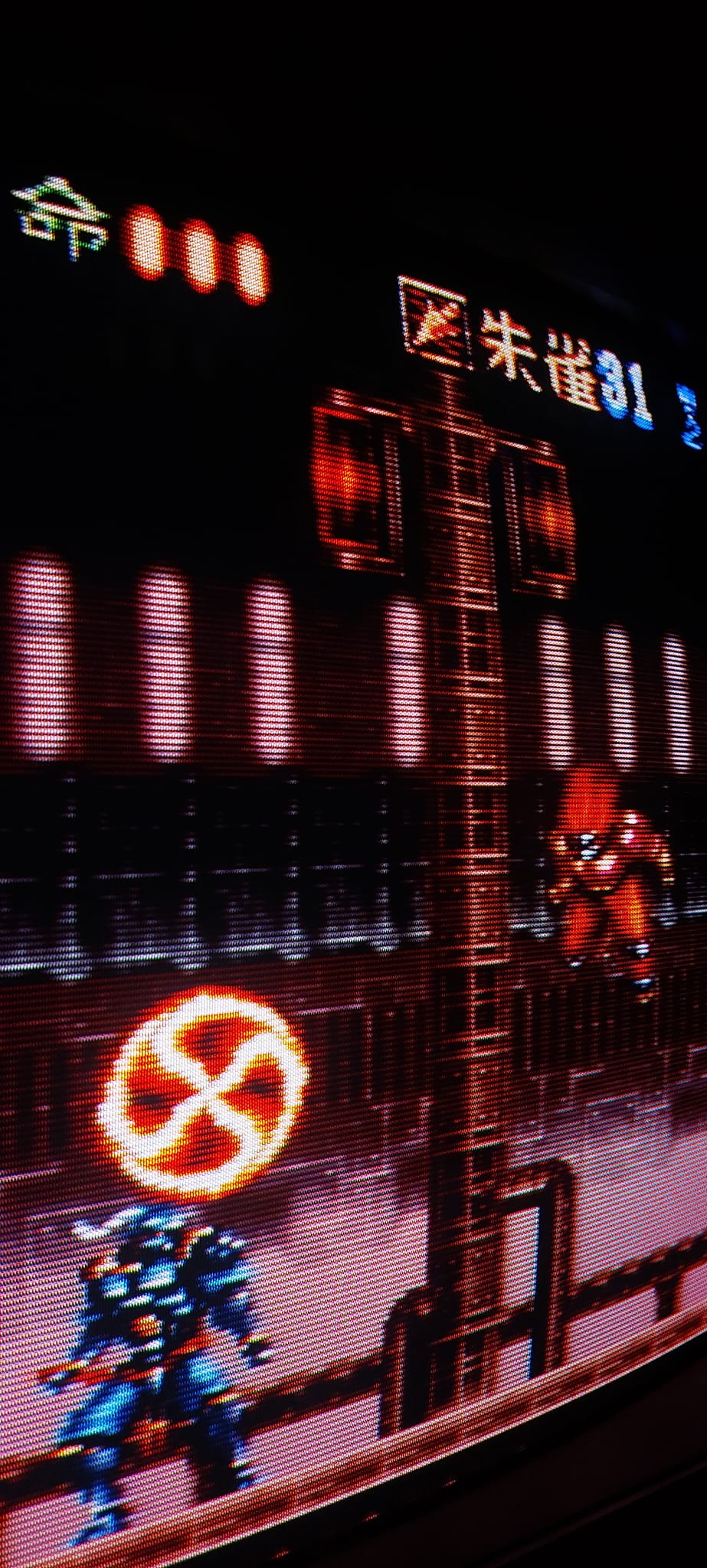

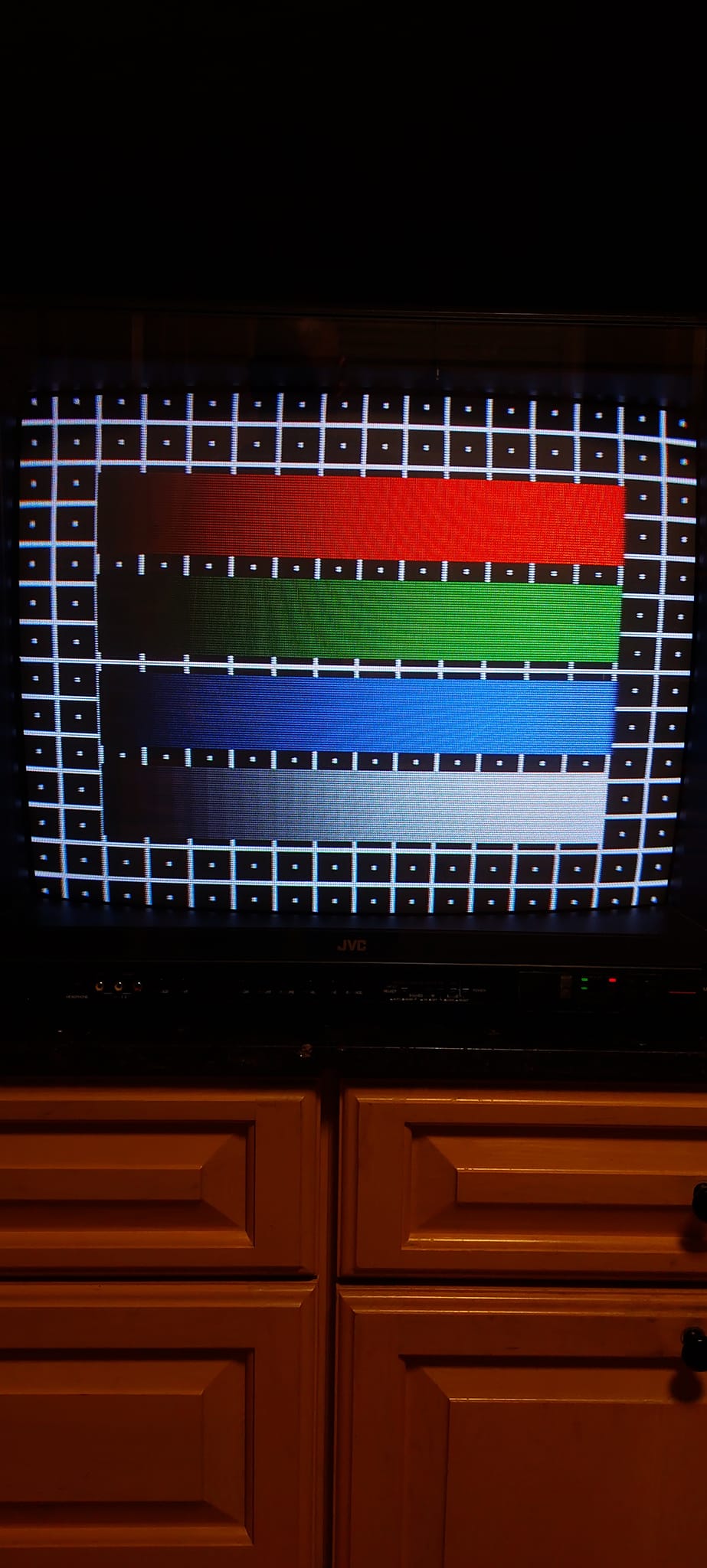

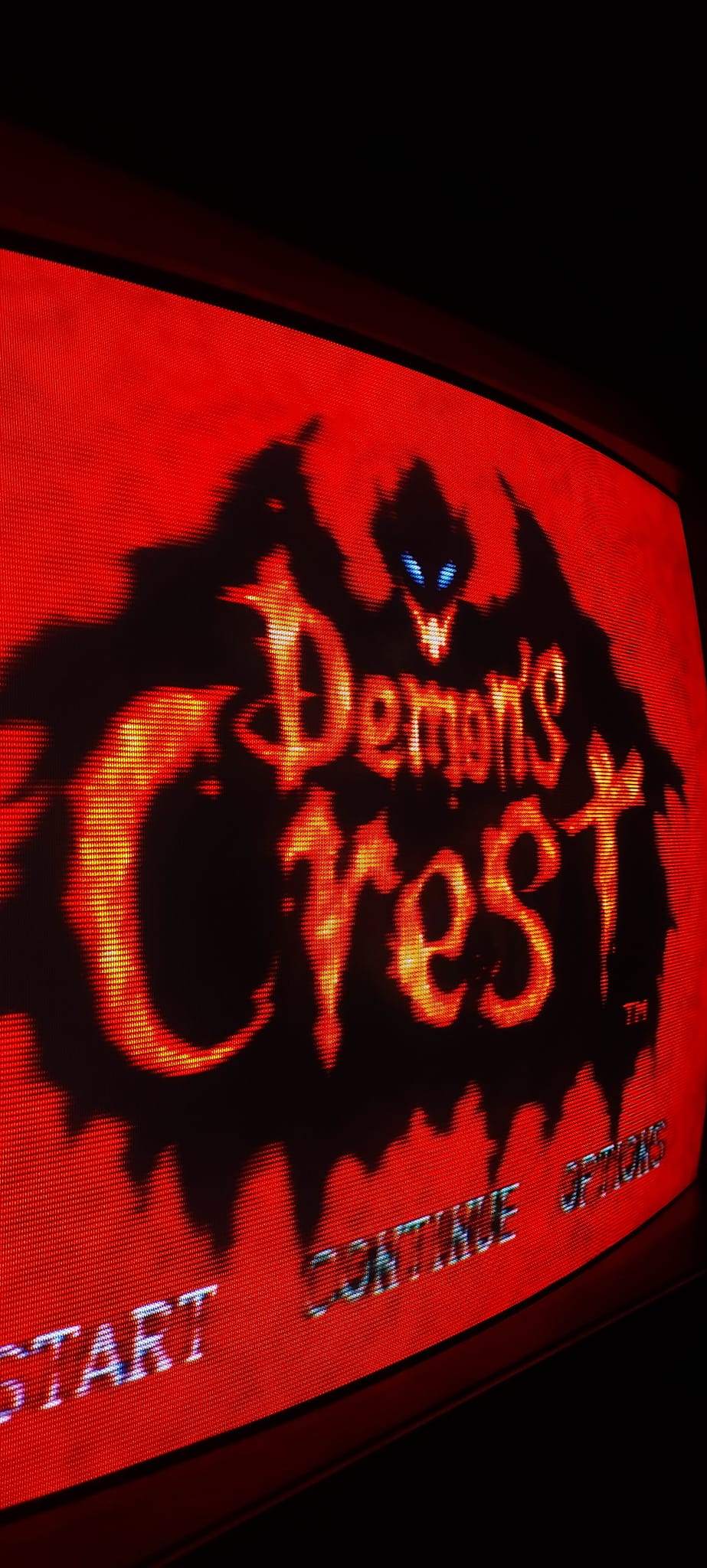

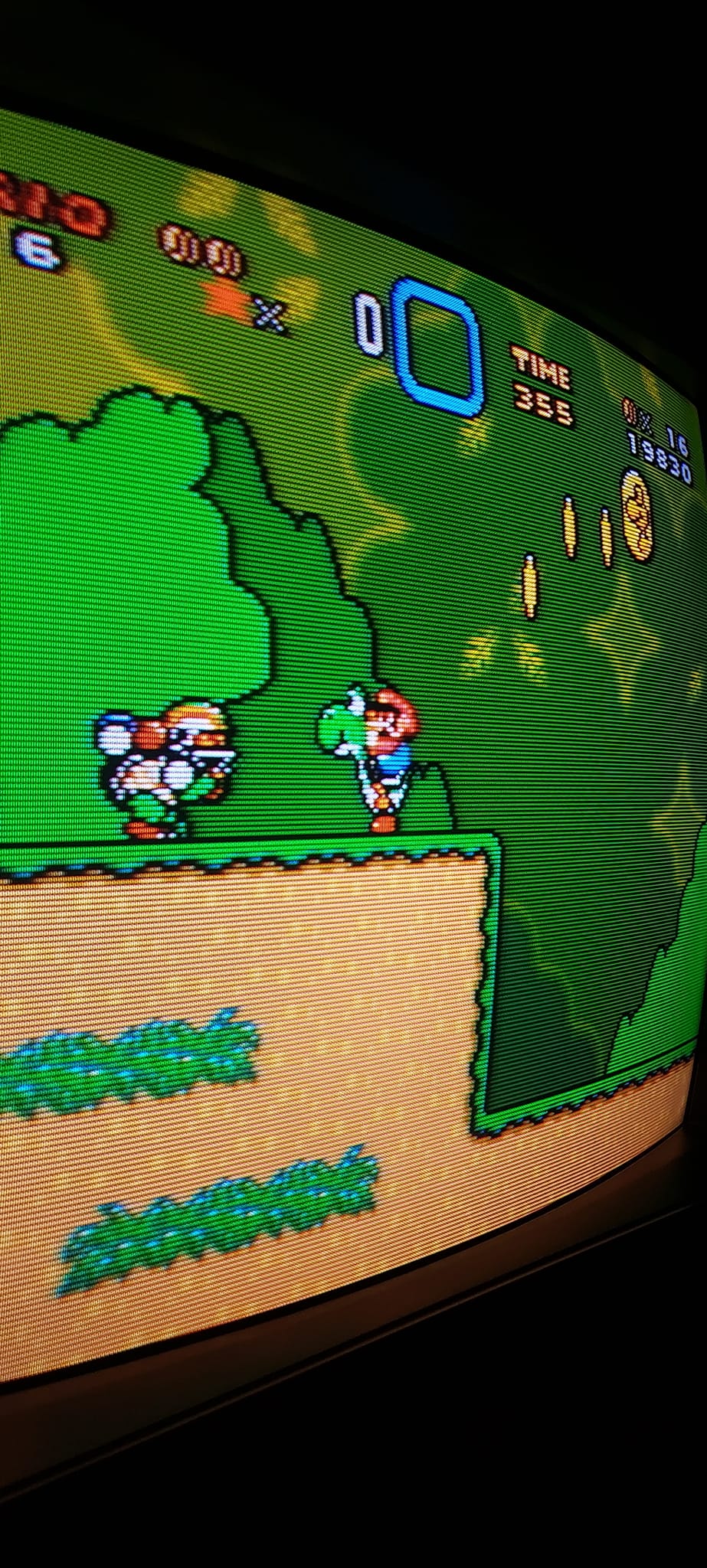

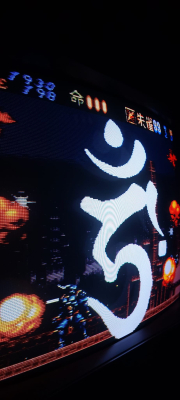

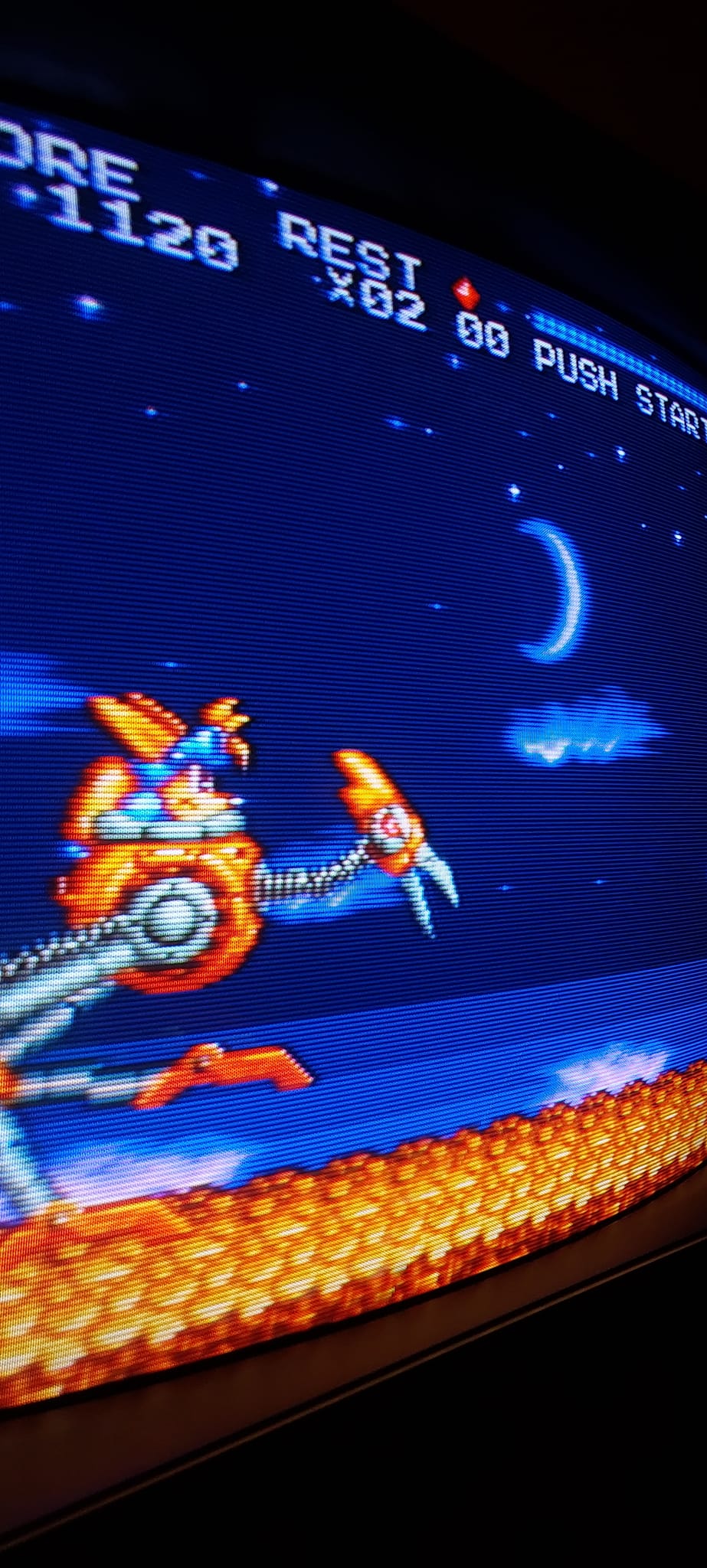

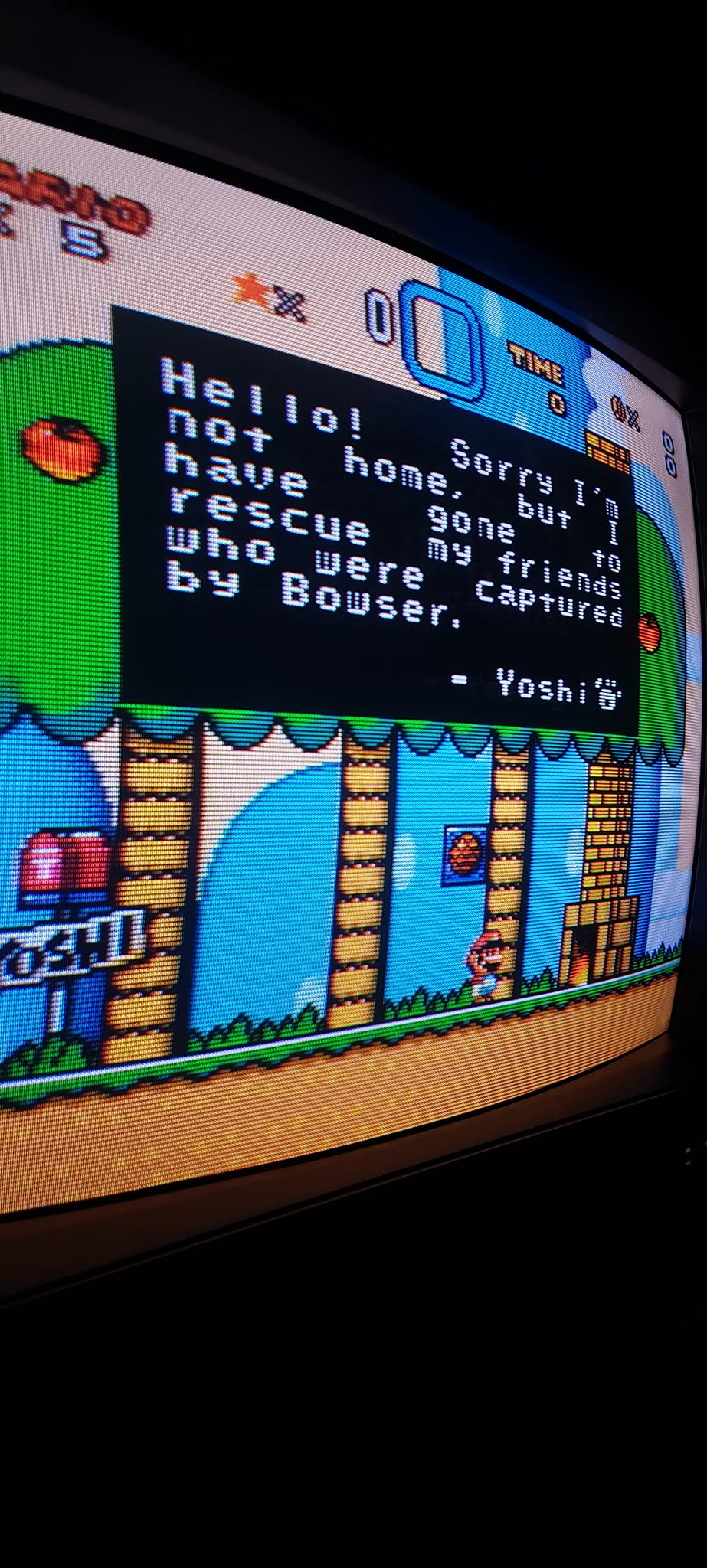

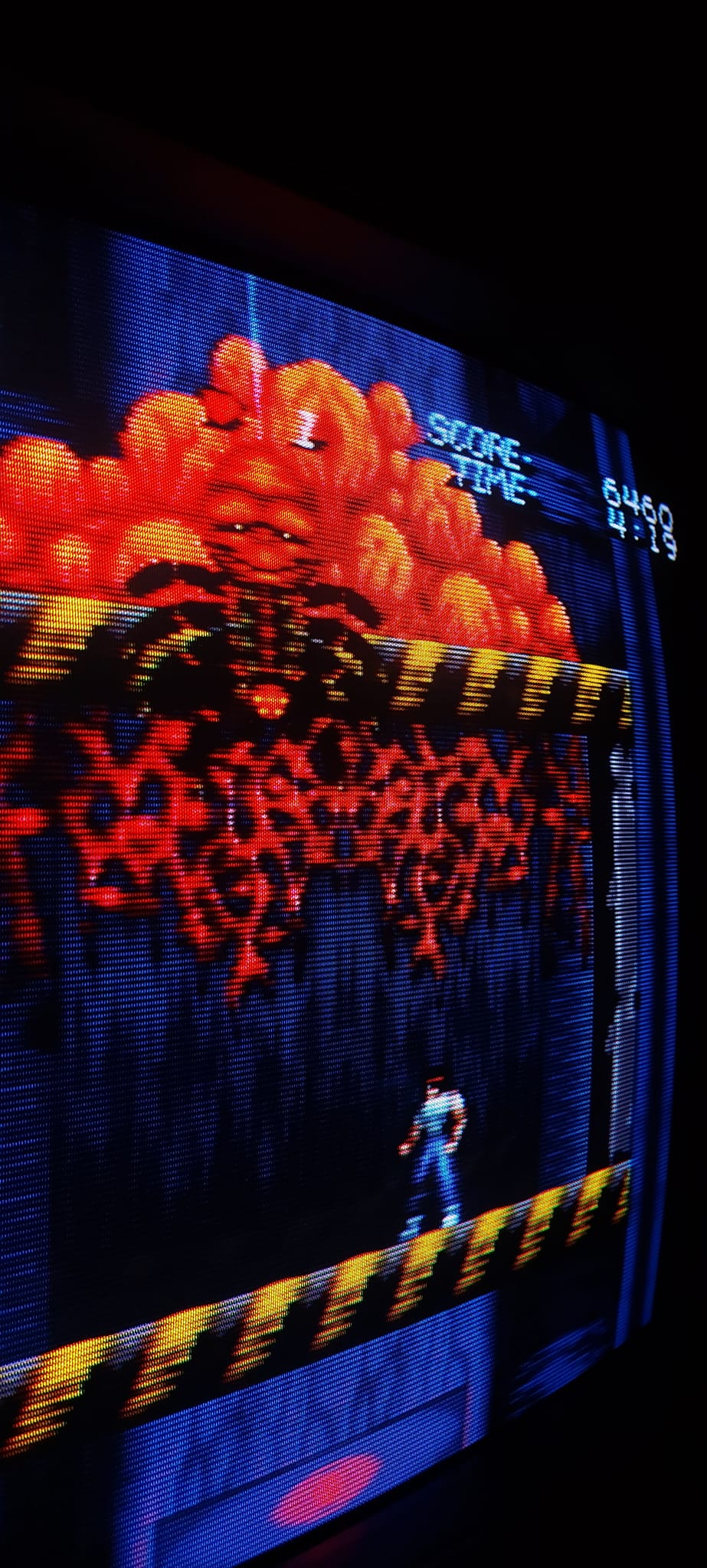

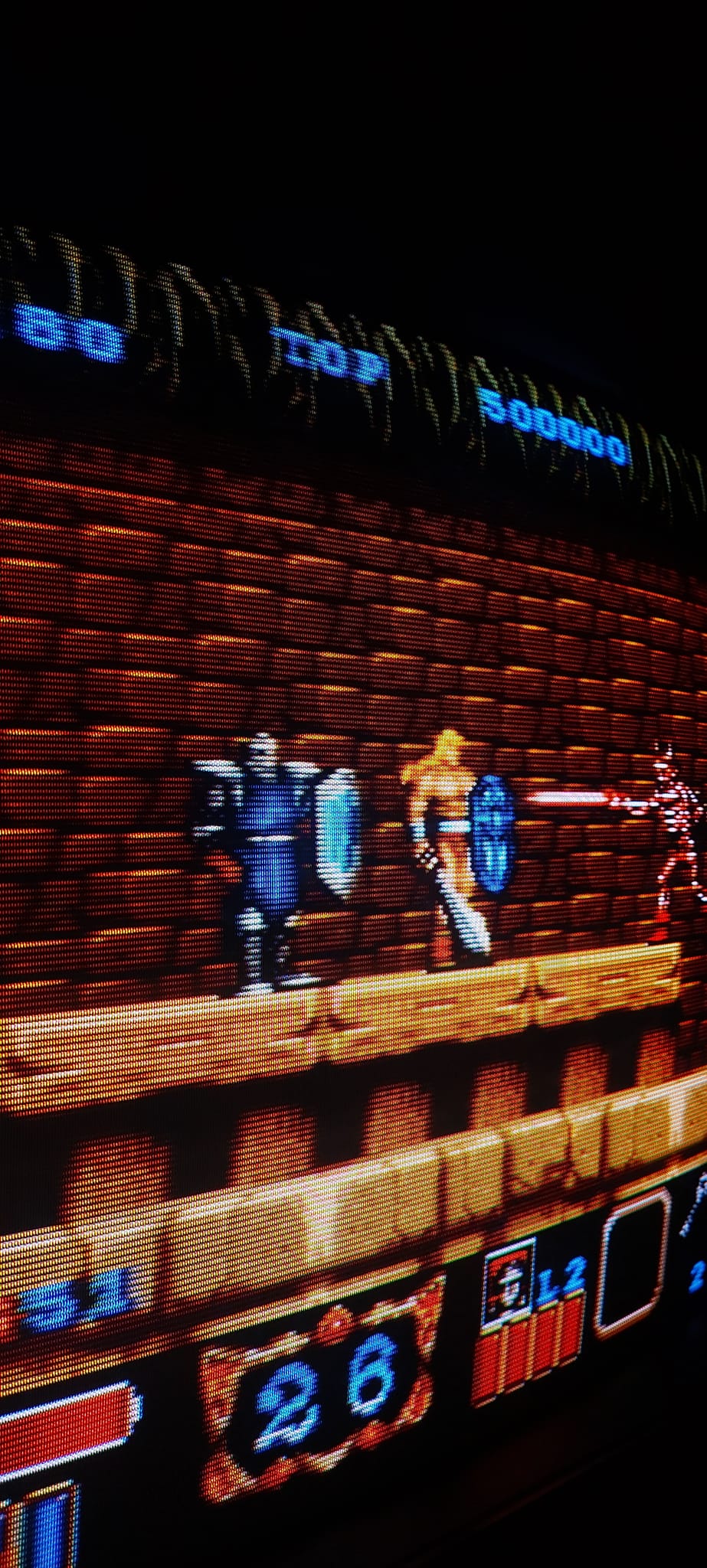

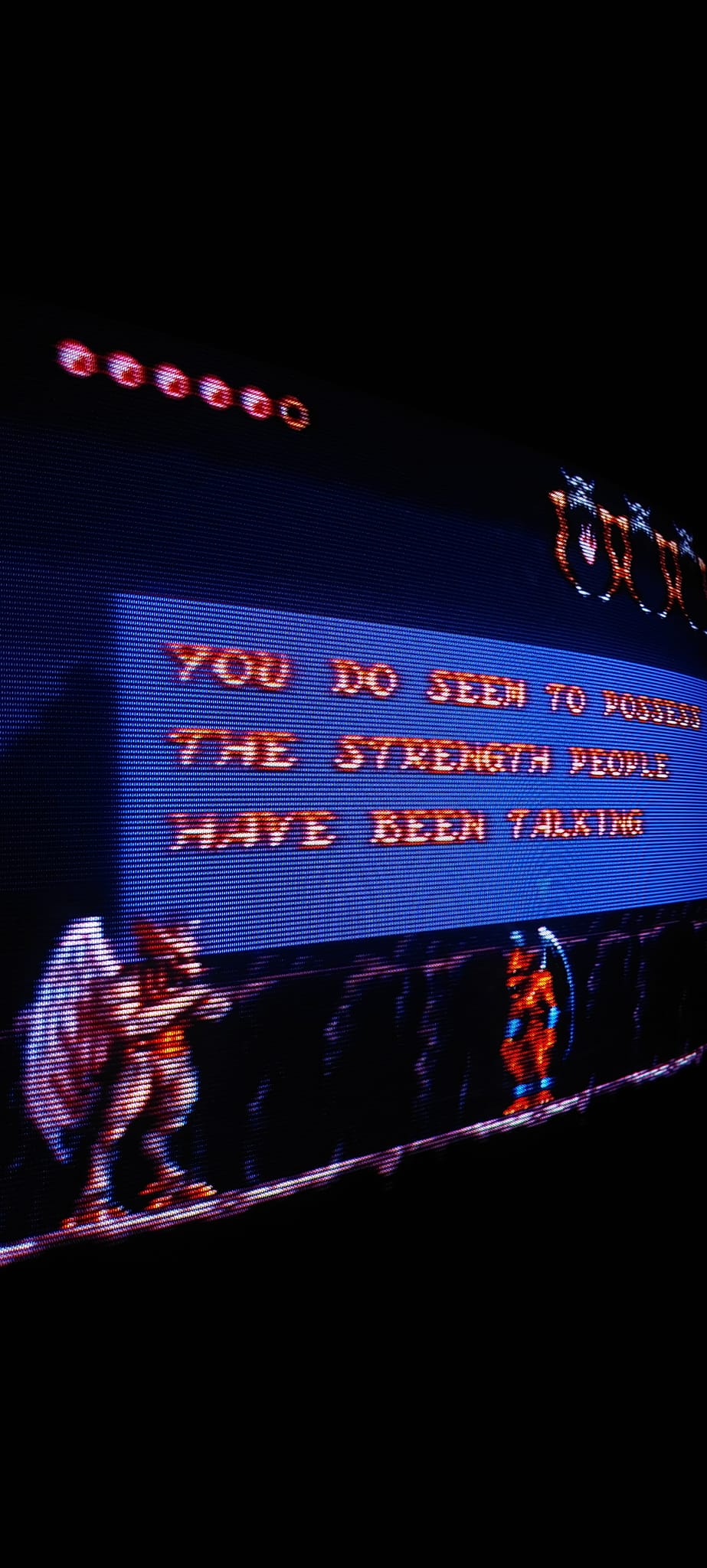

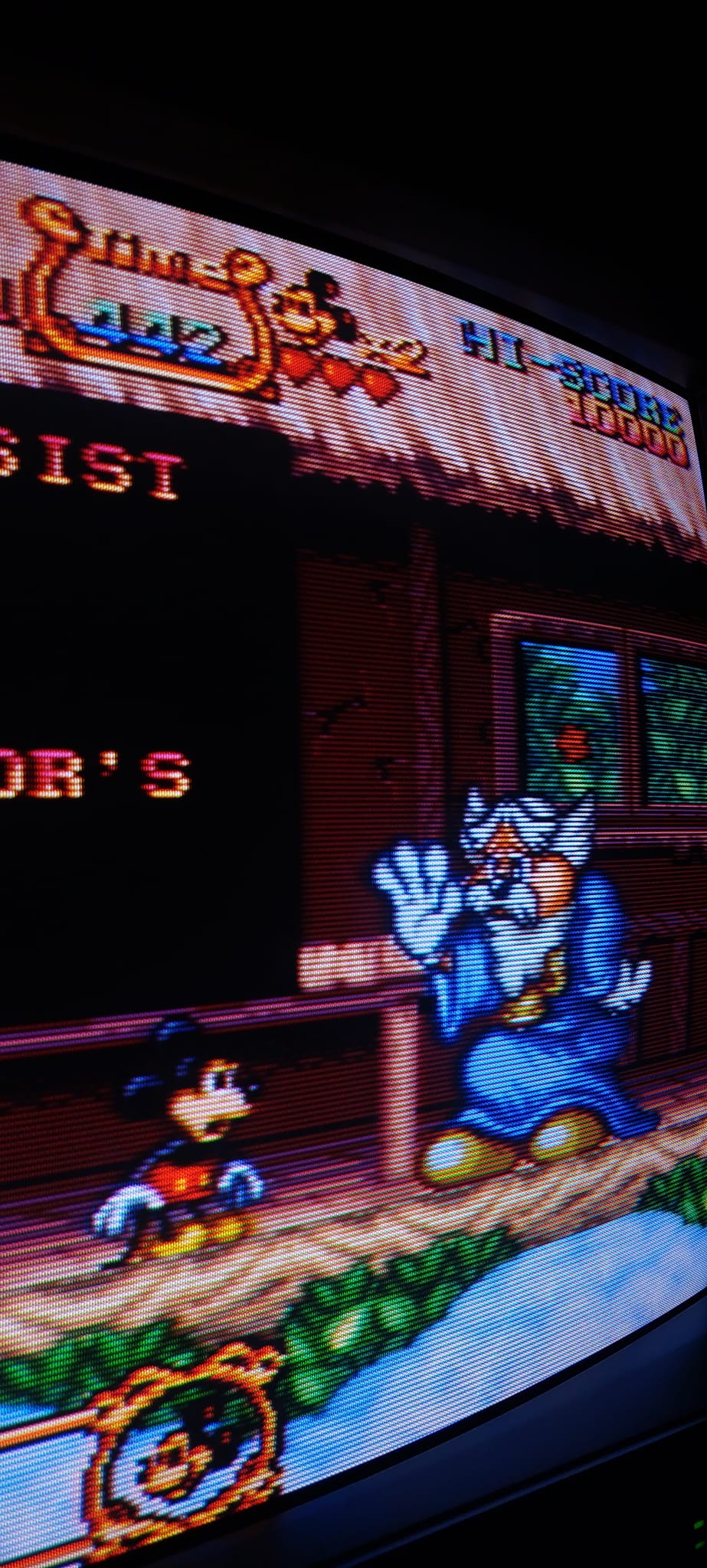

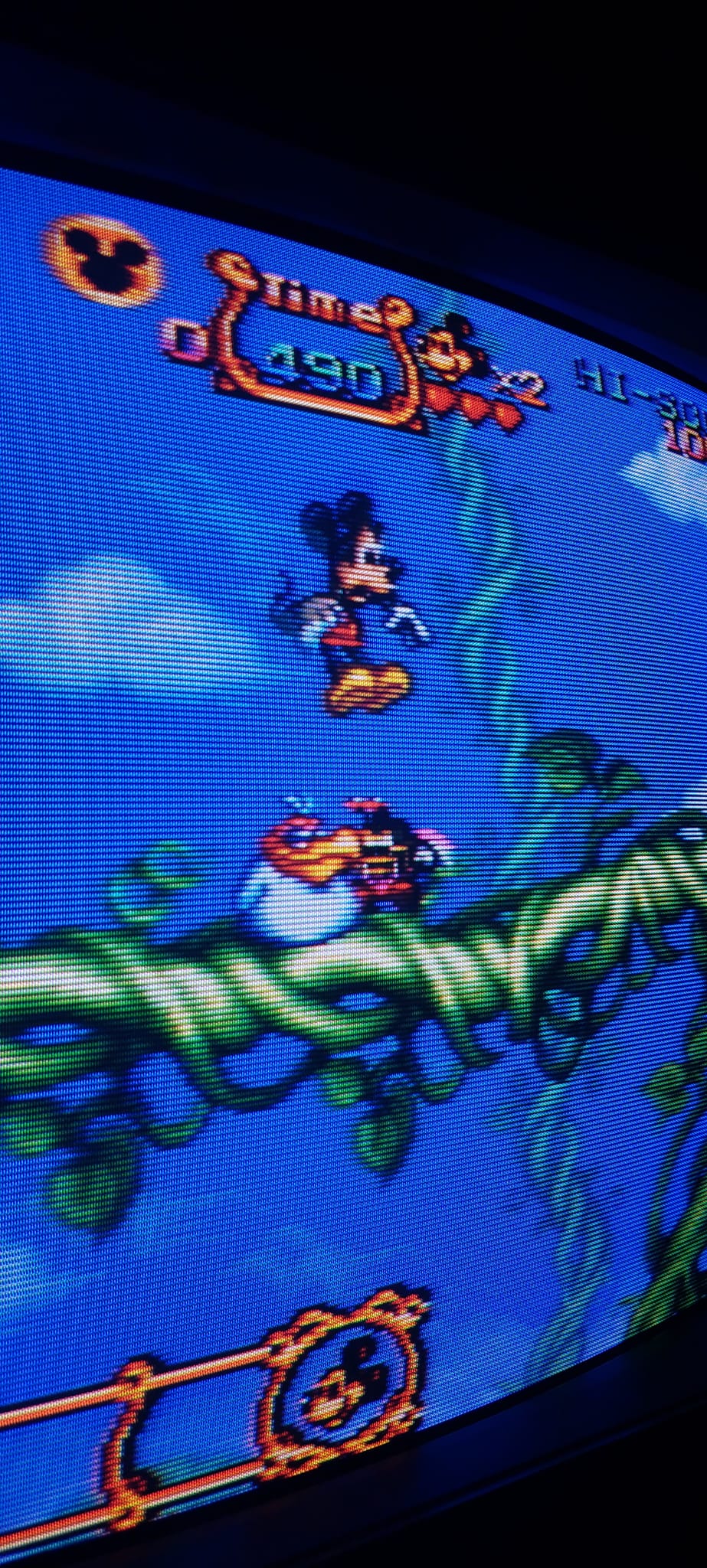

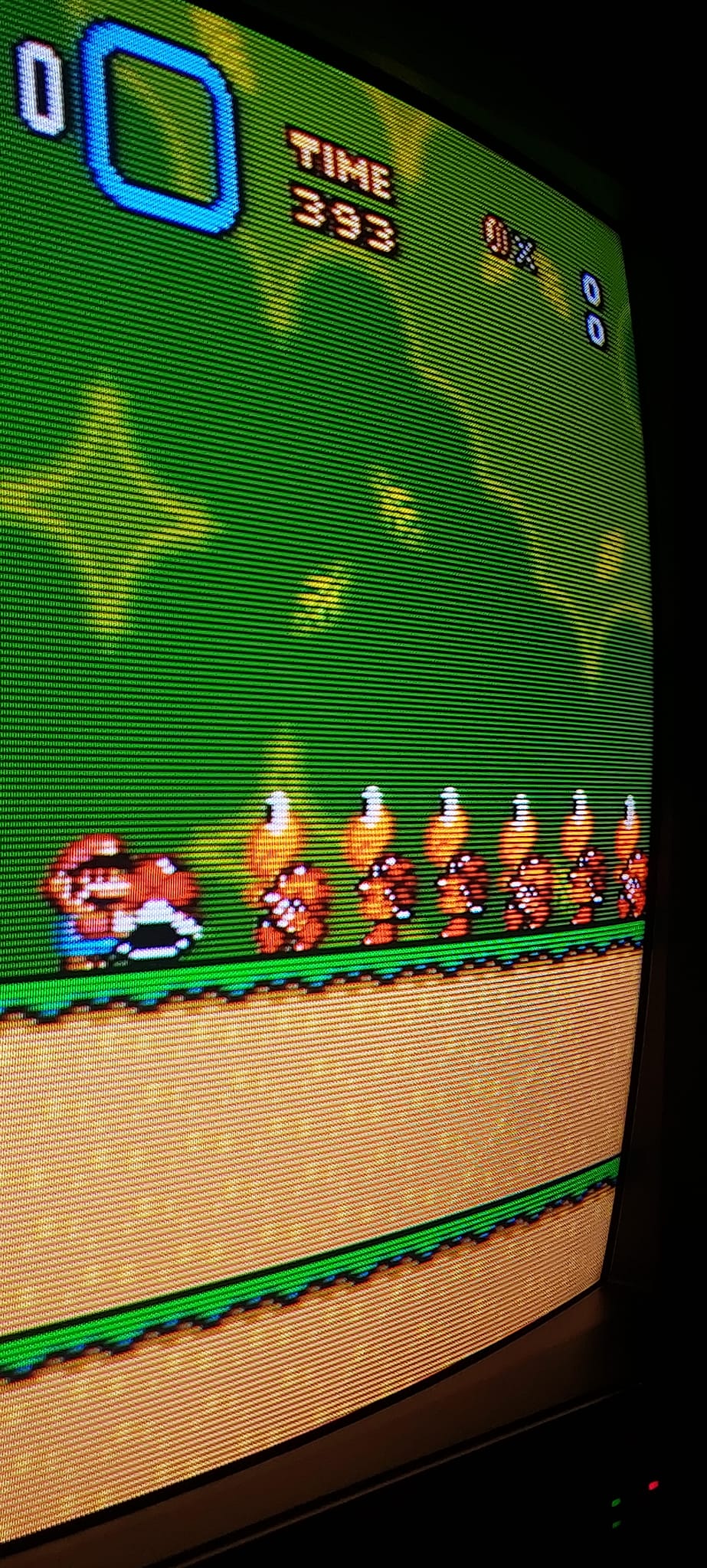

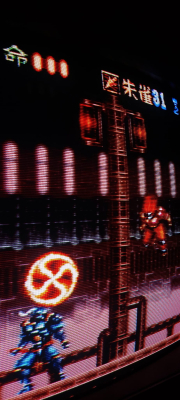

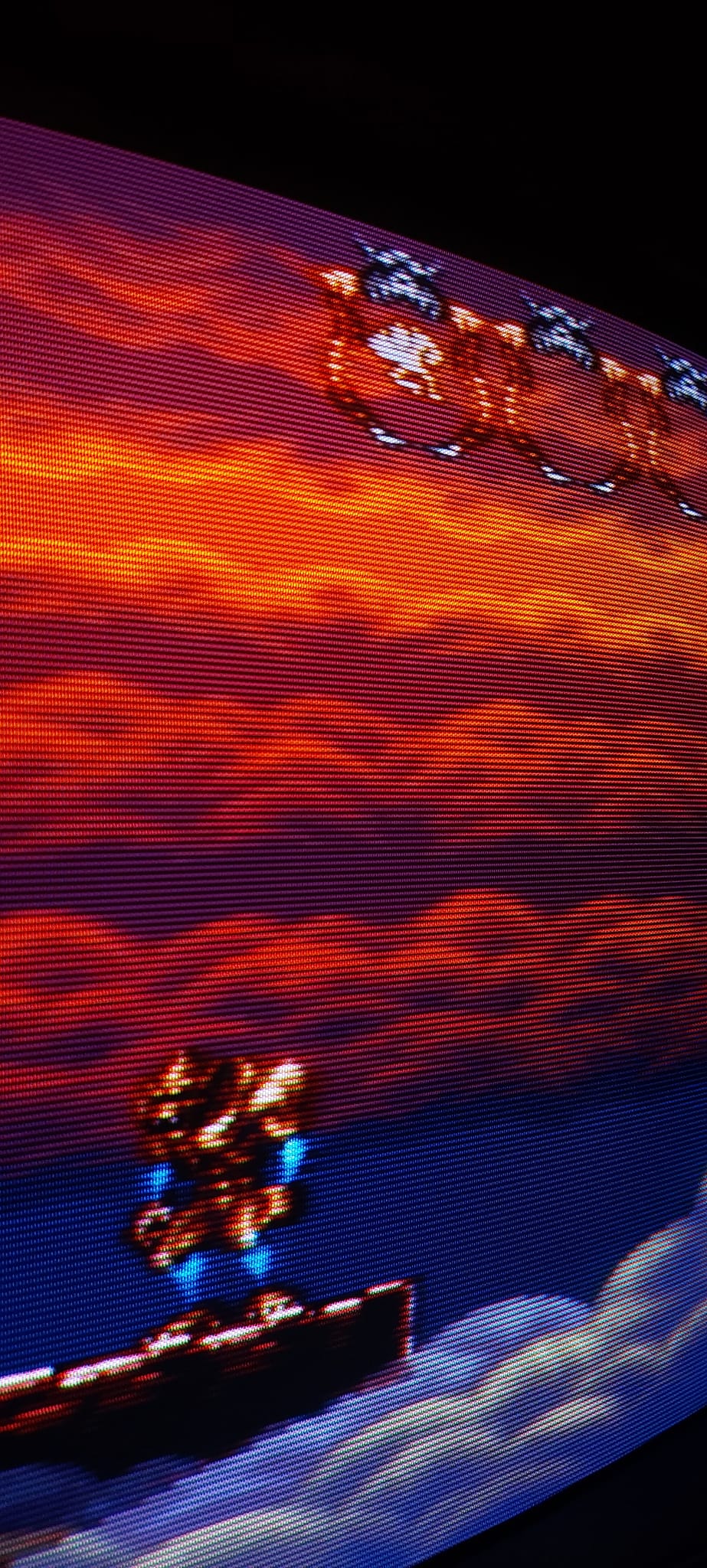

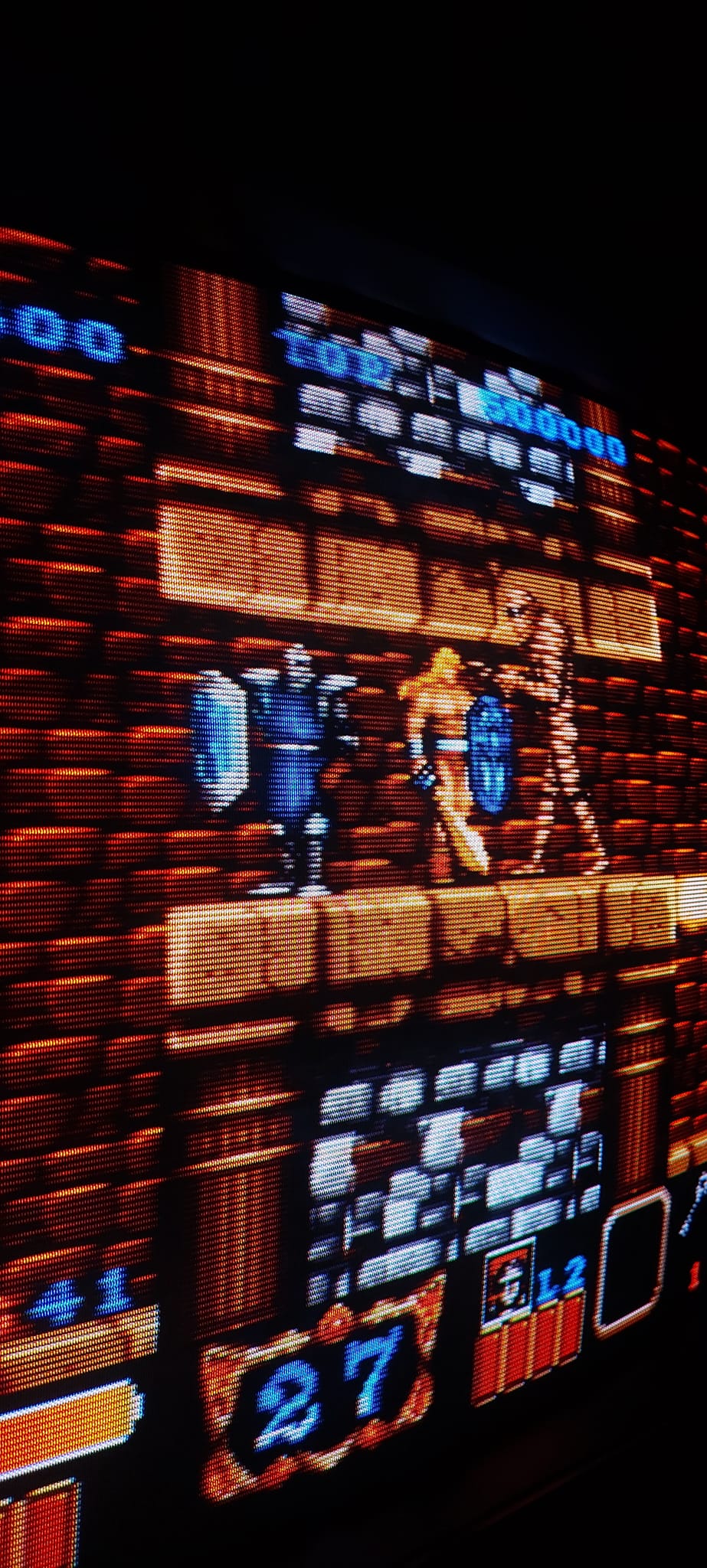

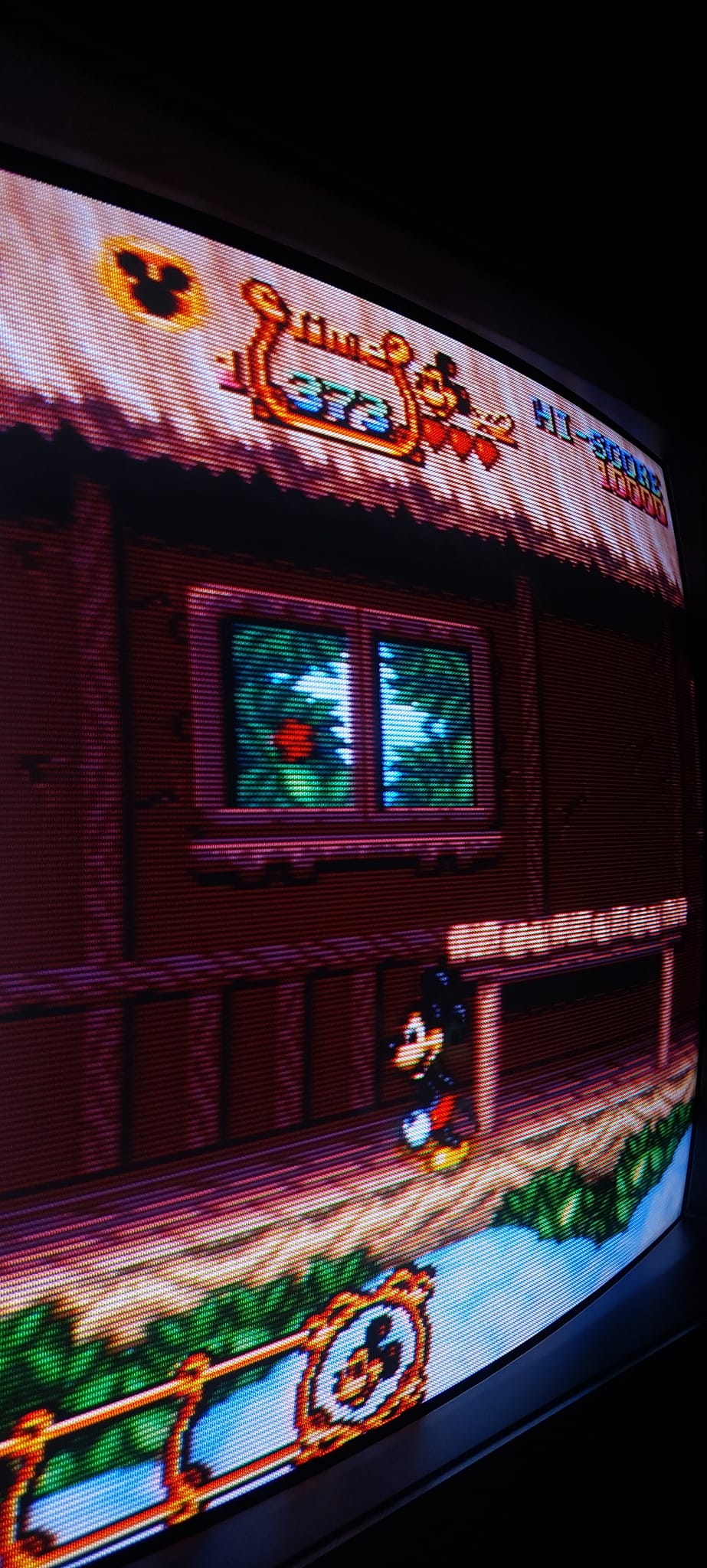

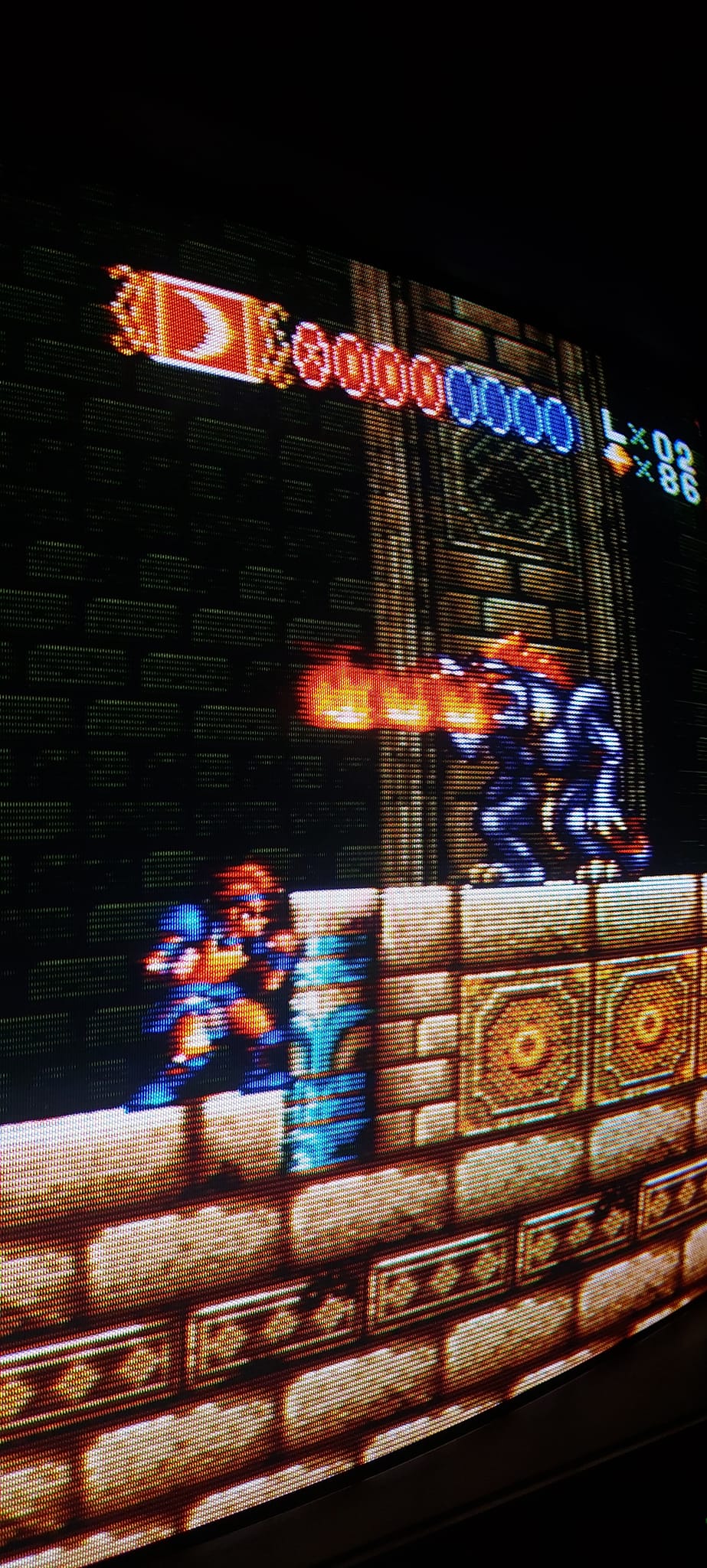

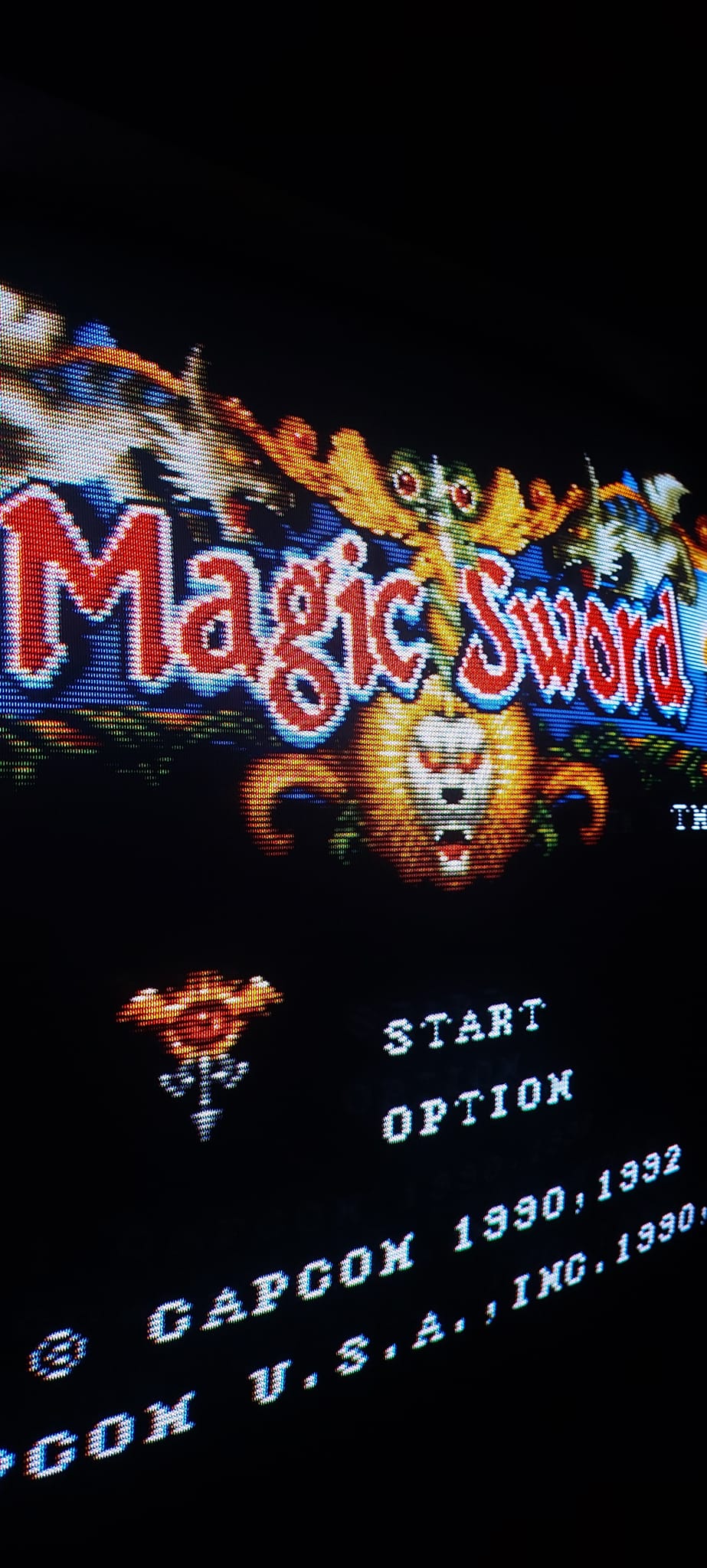

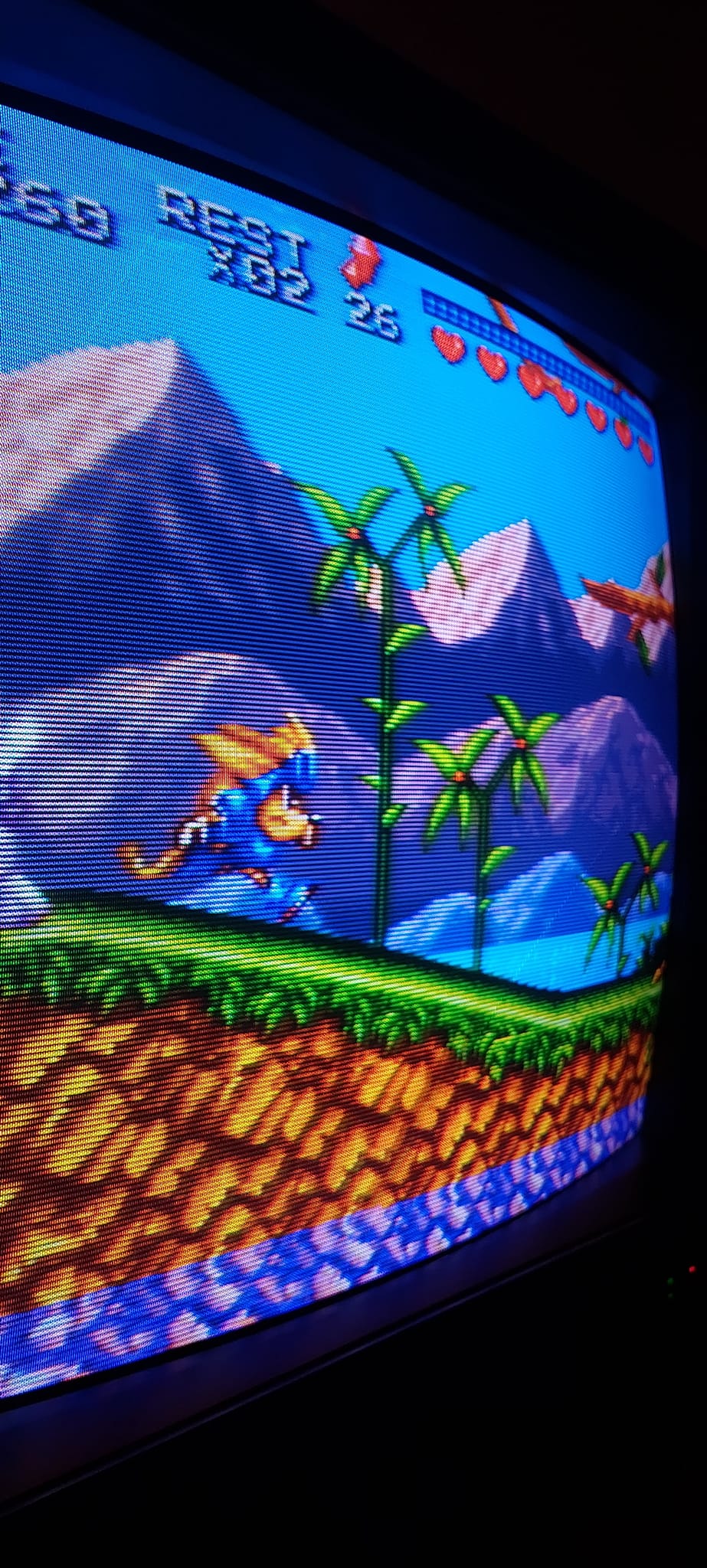

Gallery


































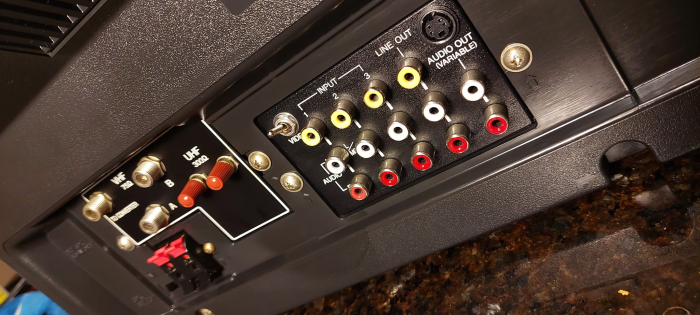

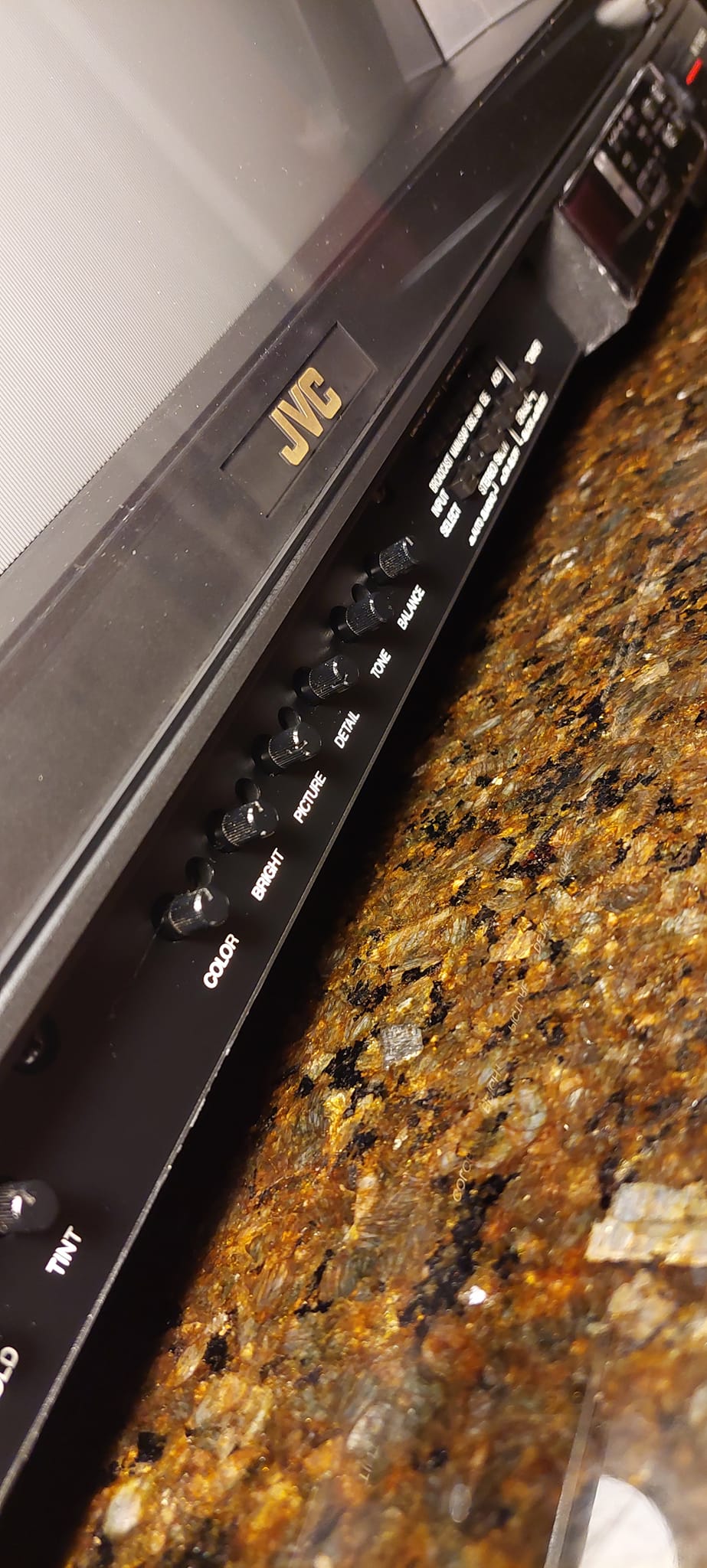

Specifications | |
---|---|
Brand: | JVC |
Manufacturer: | JVC |
Model: | AV-2676 |
Series: | AV |
Viewable Size: | 26" |
Inputs: | Composite, RF |
Native Resolutions: | 240p, 480i |
Linecount: | 560 TVL |
Horizontal Scan Range: | 15 kHz |
Vertical Scan Range: | 60 Hz |
Formats: | NTSC |
Aspect: | 4:3 |
Adjustments: | OSD Customer Controls, OSD Service Menu |
Vertical Output IC: | AN5521, Panasonic |
Jungle: | Toshiba, TA7717AP, TA7717 |
Comb Filtering: | Glass |
Comb Filter IC: | Panasonic, AN5322K |
Flyback: | CE40861-00A |
Focus Type: | Single |
Tube: | Panasonic , M66JHX30X |
Heater Voltage: | 6.3v |
Mask: |
Slot
![]() |
Tint: | Light, Detachable Sunshade |
Removable Glare Film: | No |
Speakers: | Stereo, 5W x 2 |

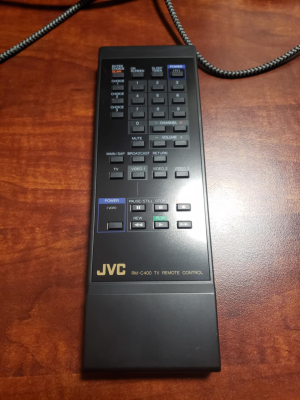

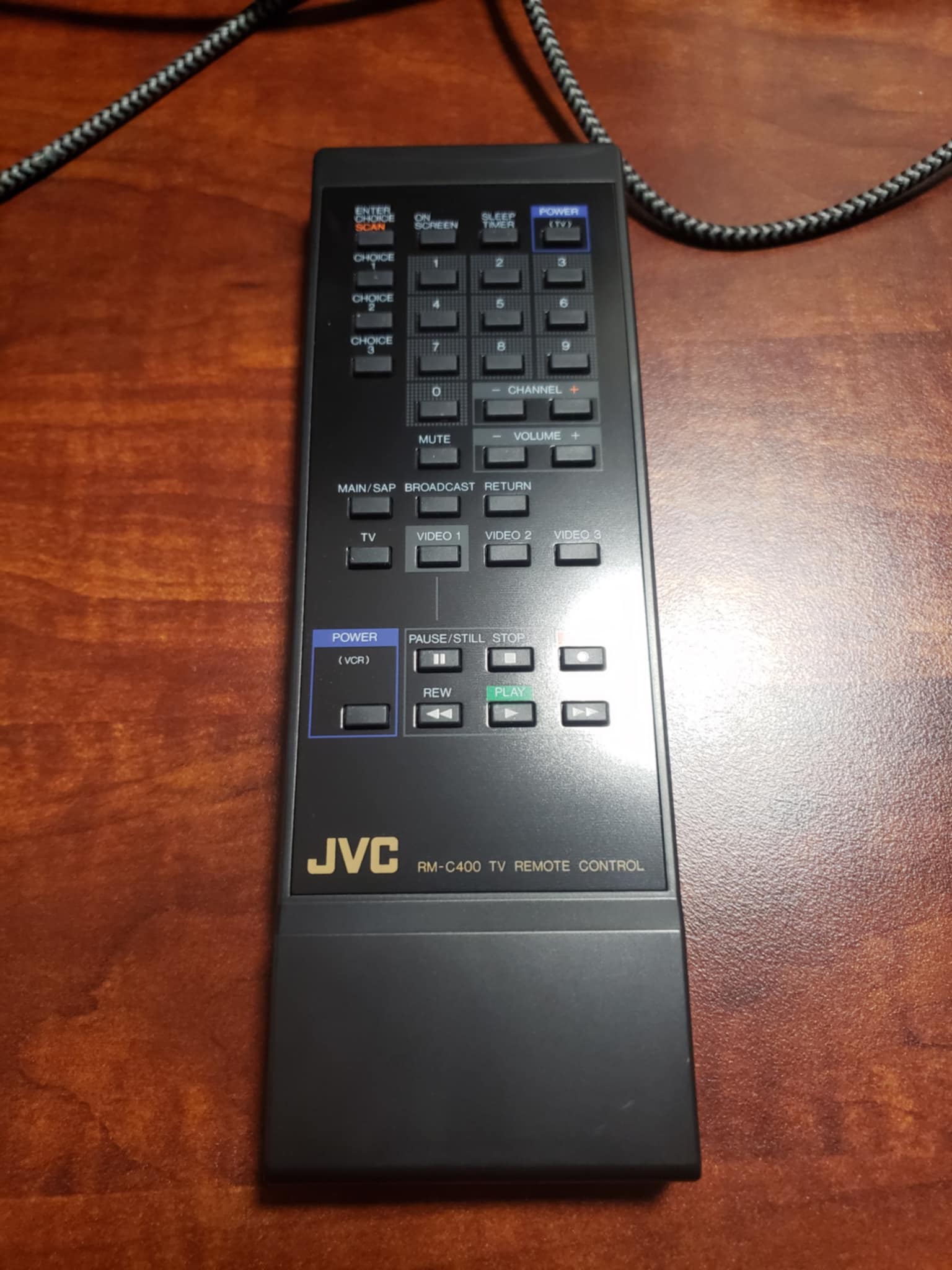

Remote: | RM-C400 |
Chassis: | S-MARK II |
Weight: | 104 lbs (47.2 kg) |
Dimensions (W/H/D): |
672 x 556.3 x 496 mm
(26.4 x 21.9 x 19.5") |
Application: | Consumer |
Cabinet Material: | Plastic |
Launched: | 1986 |
MSRP: | 1099 USD |
Country of Manufacture: | Japan, USA |
Market: | North America |
Power Standard: | 120v |
Mounting: | Table Surface (Standard) |
Mods: | S-Video |
Degaussing: | Automatic on Power-on |
Tag: | Needs Owners Manual |
