Summary

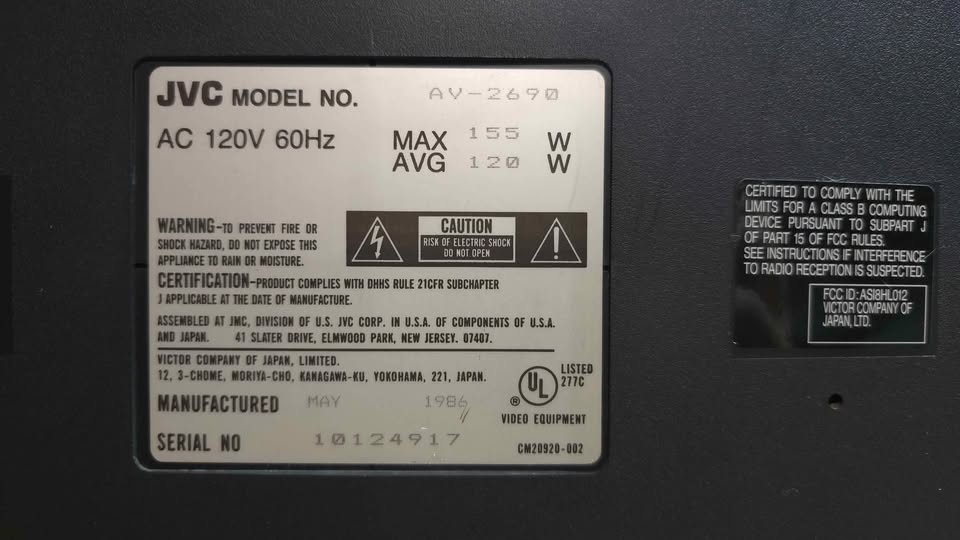

A higher-end 26" set by JVC from 1985. Has RF composite and digital RGB input. Assembled in the US from domestic and Japanese components.
(Special thanks to Cody J. for some of the pics!)
Manuals
(None at this time)
Notes

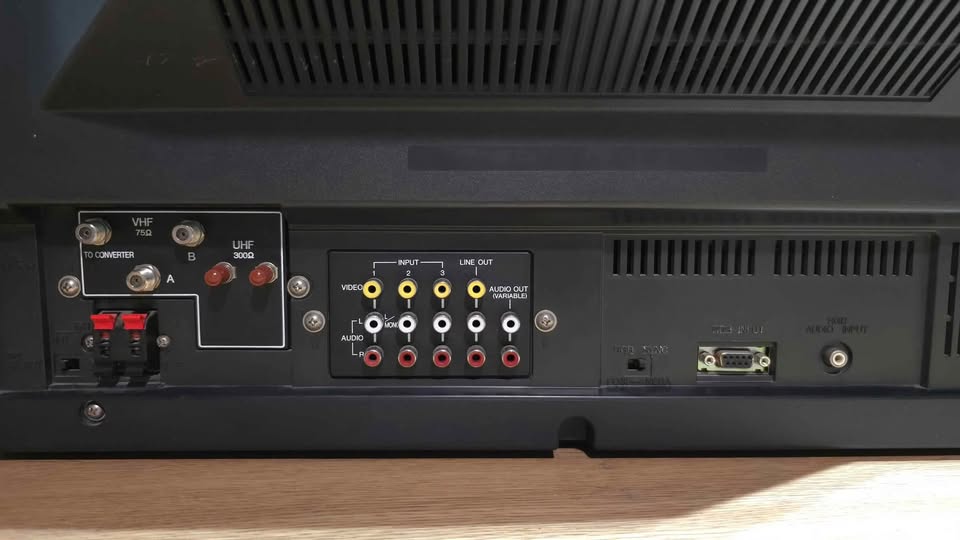

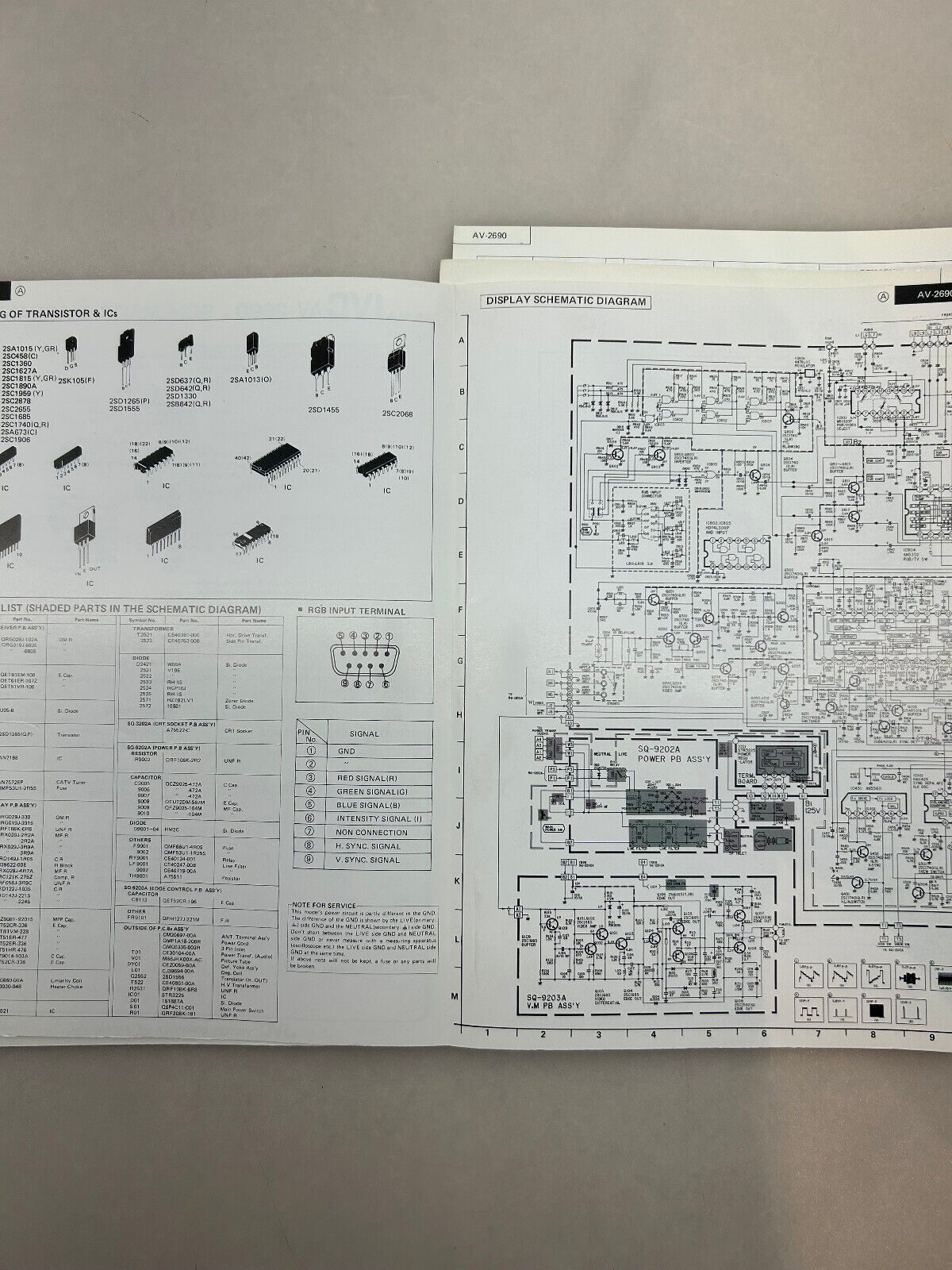

While the RGB input appears to be a DE-9 connection, it is digital, not analog. For those who don't know, digital RGB is for old computers that outputted EGA and CGA graphics.

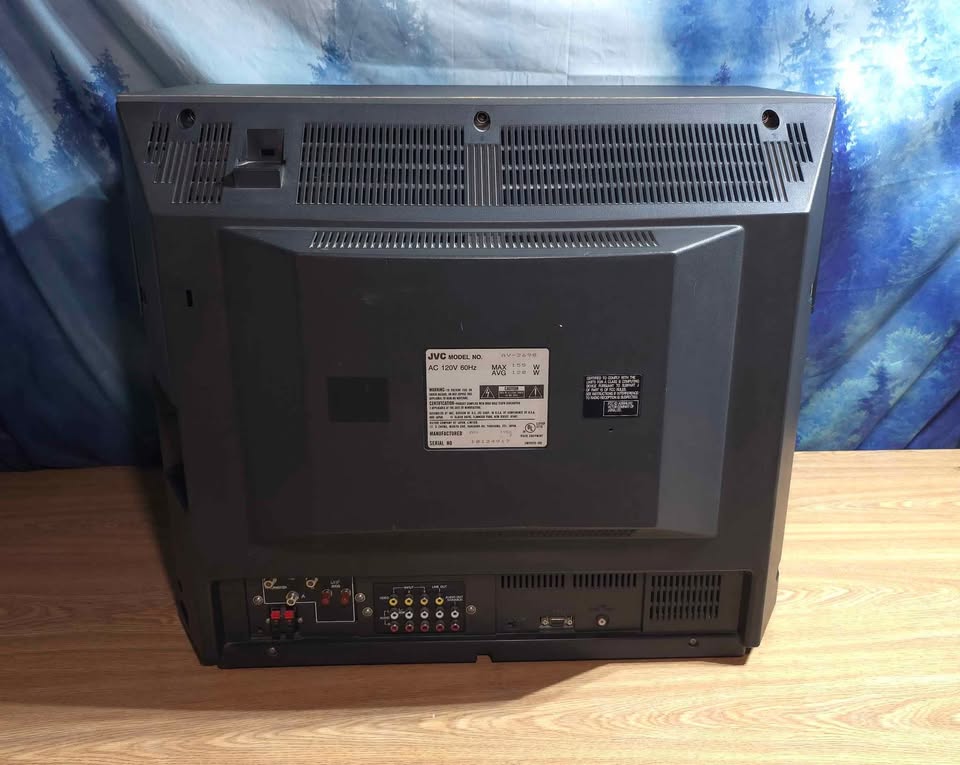

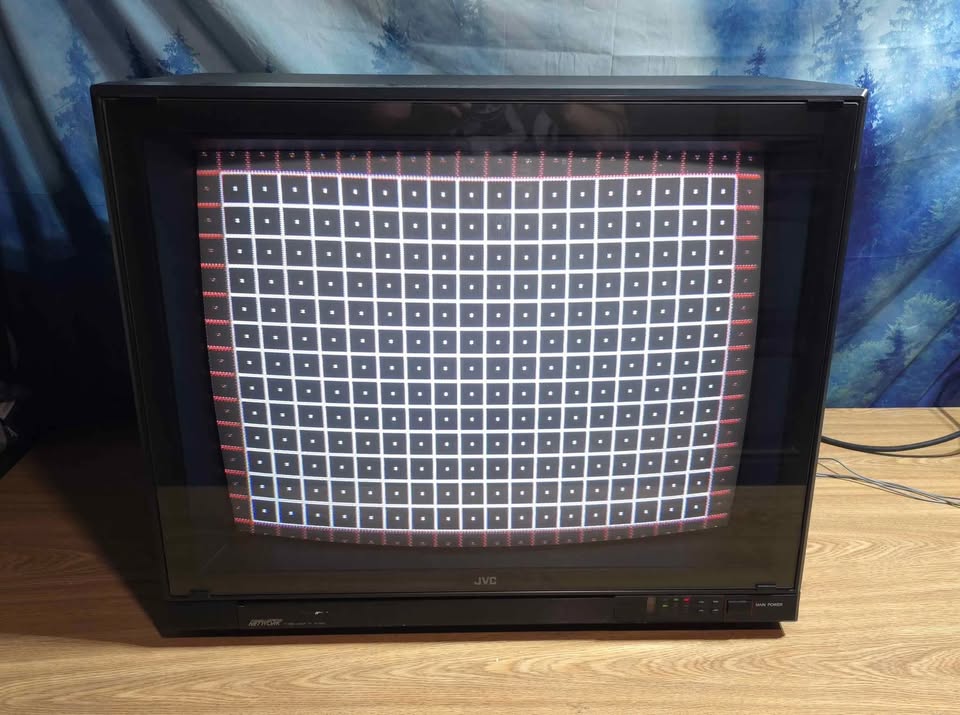

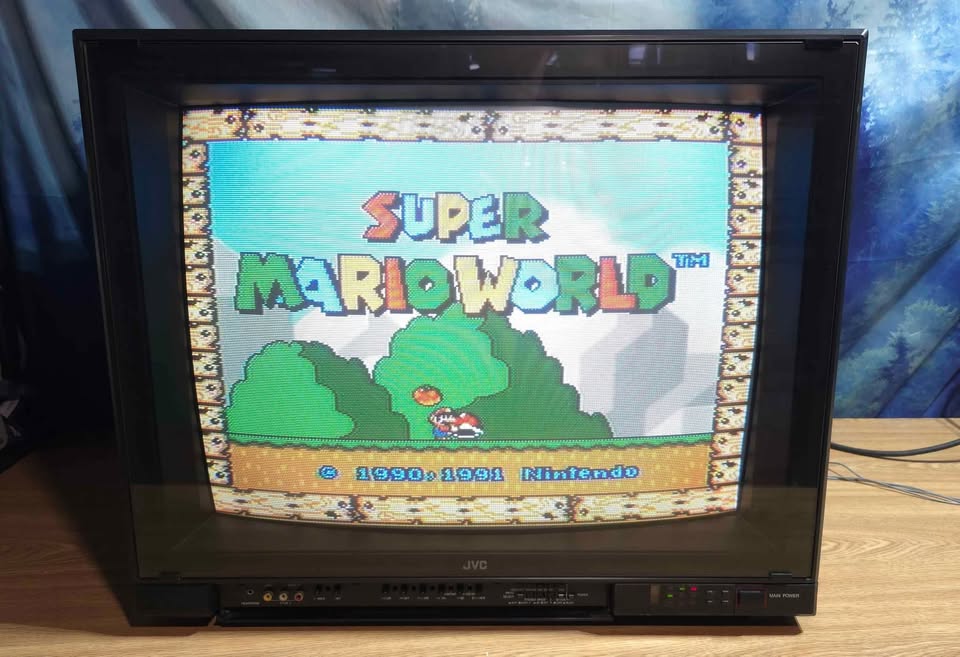

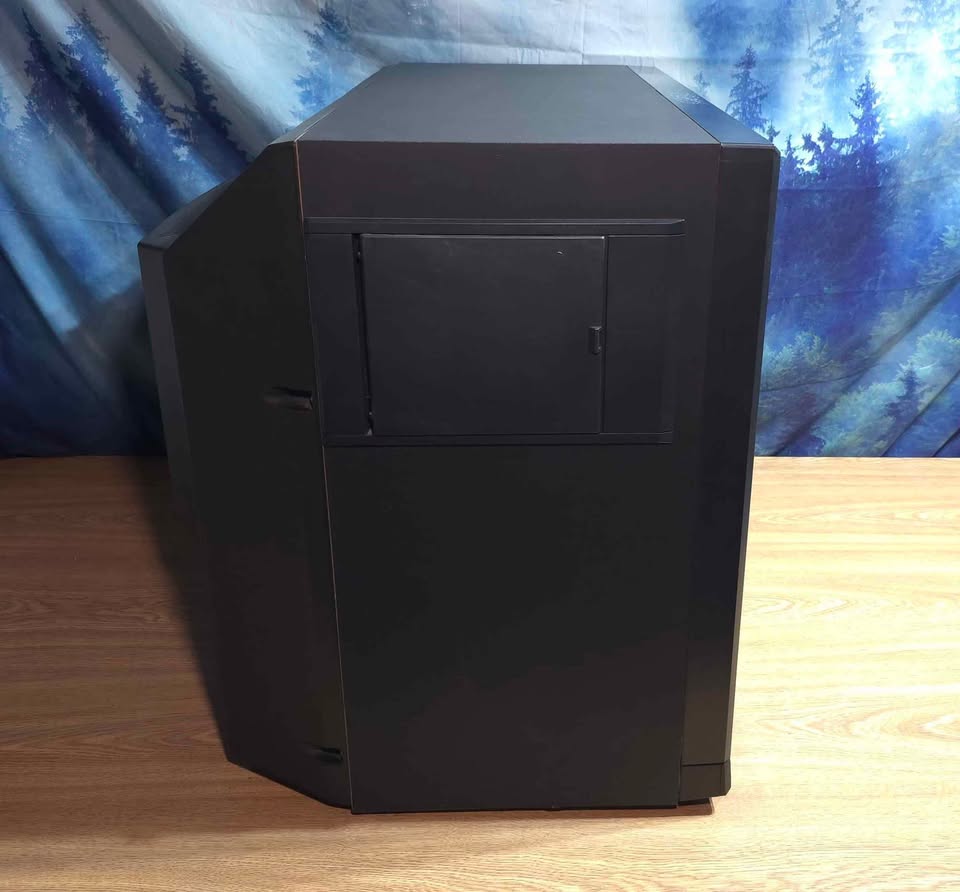

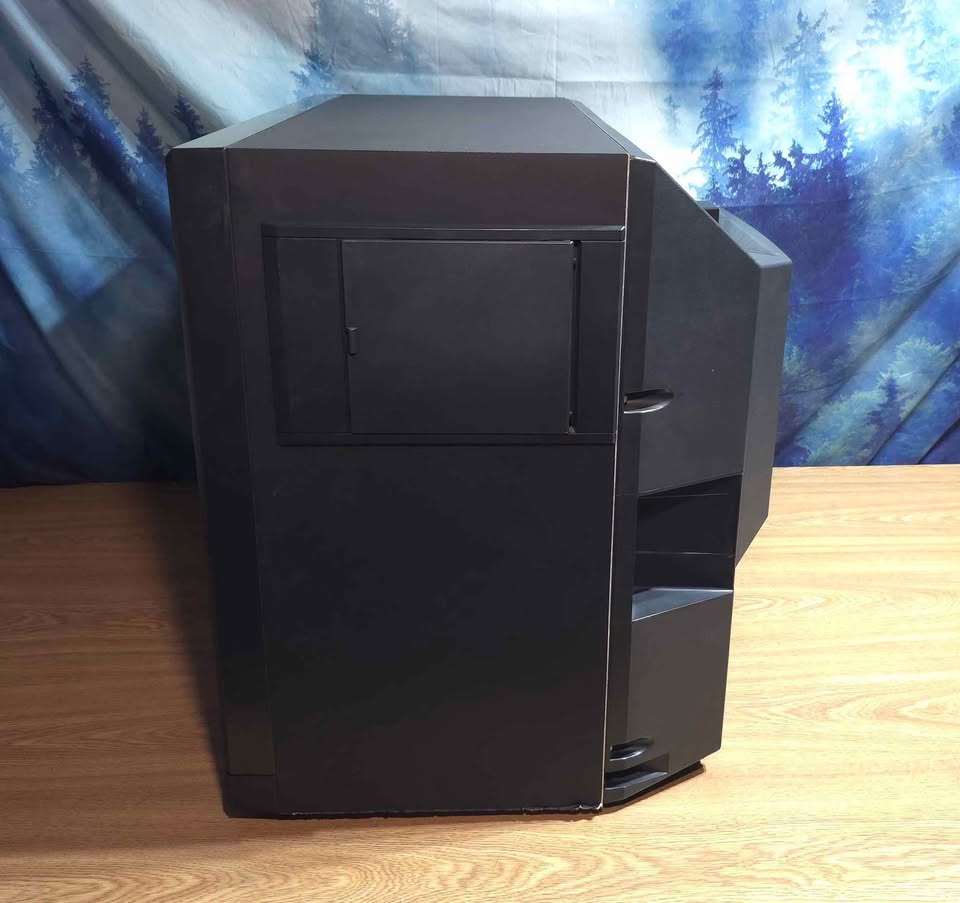

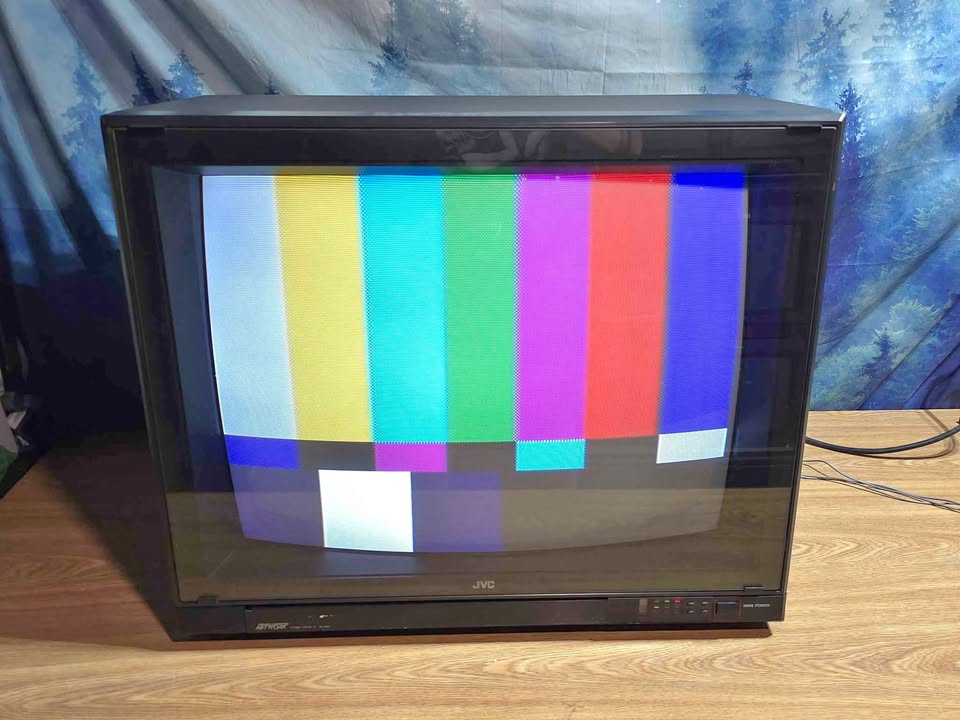

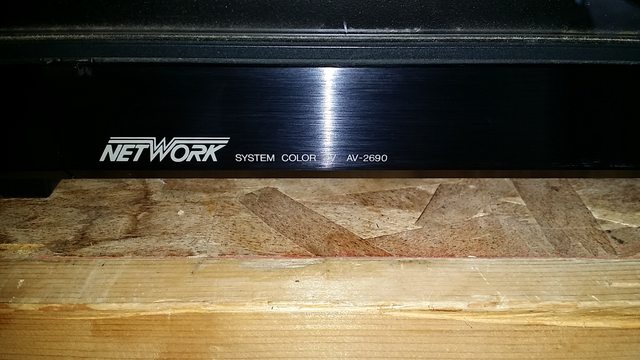

Gallery












Specifications | |
---|---|
Brand: | JVC |
Manufacturer: | JVC |
Model: | AV-2690 |
Series: | AV |
Viewable Size: | 26" |
Inputs: | Composite, RF, Digital RGB |
Native Resolutions: | 240p, 480i |
Horizontal Scan Range: | 15 kHz |
Vertical Scan Range: | 60 Hz |
Formats: | NTSC |
Aspect: | 4:3 |
Adjustments: | Internal Potentiometers, External Potentiometers |
Focus Type: | Single |
Heater Voltage: | 6.3v |
Mask: |
Slot
![]() |
Tint: | Matte Anti-Glare |
Removable Glare Film: | No |
Speakers: | Stereo |
Chassis: | S-MARK II |
Application: | Consumer |
Cabinet Material: | Plastic |
Country of Manufacture: | Japan, USA |
Market: | North America |
Power Standard: | 120v |
Mounting: | Table Surface (Standard) |
Degaussing: | Automatic on Power-on |
Tag: | Needs Owners Manual, Needs Service Manual |
