Summary

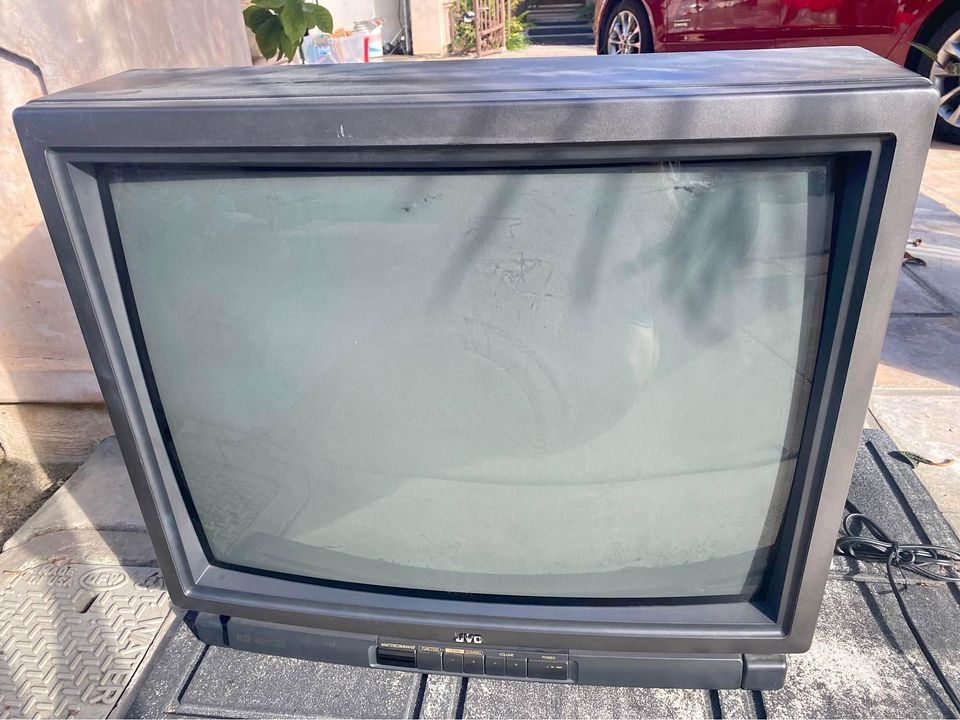

Higher-end 27" set by JVC from 1991. Originally manufactured in the USA.
(Special thanks to Brett Viker for the pics!)
Manuals
Notes

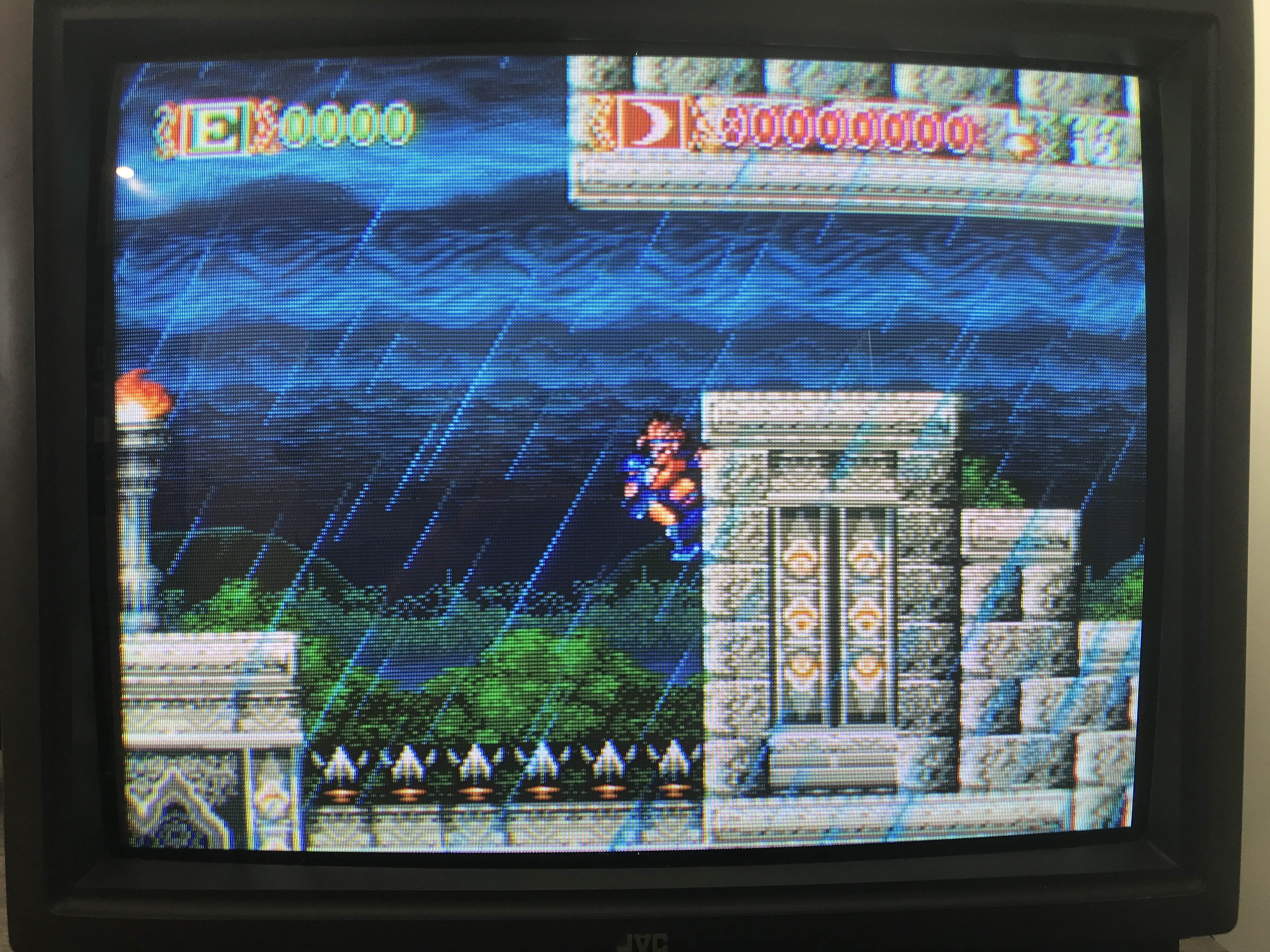

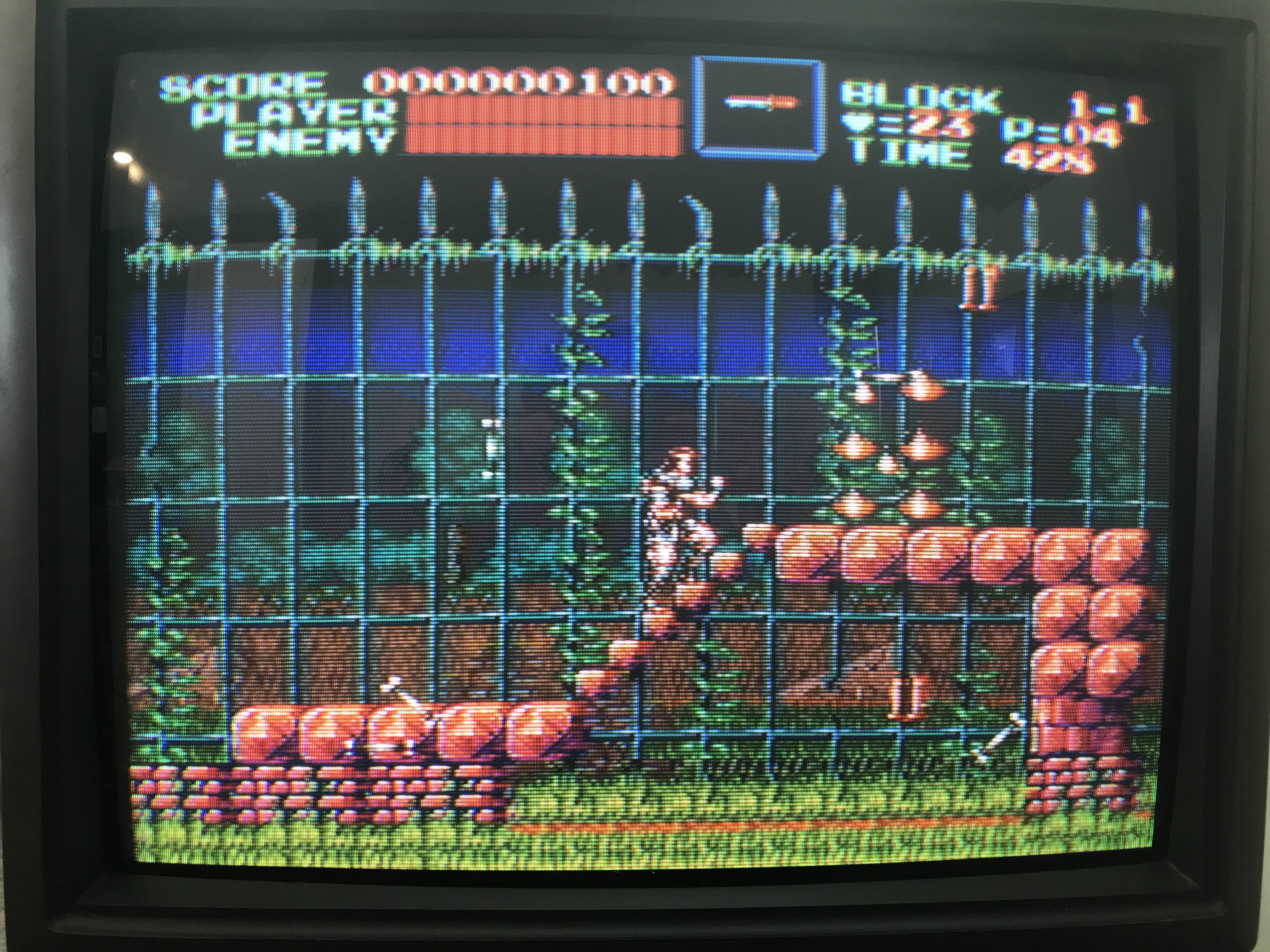

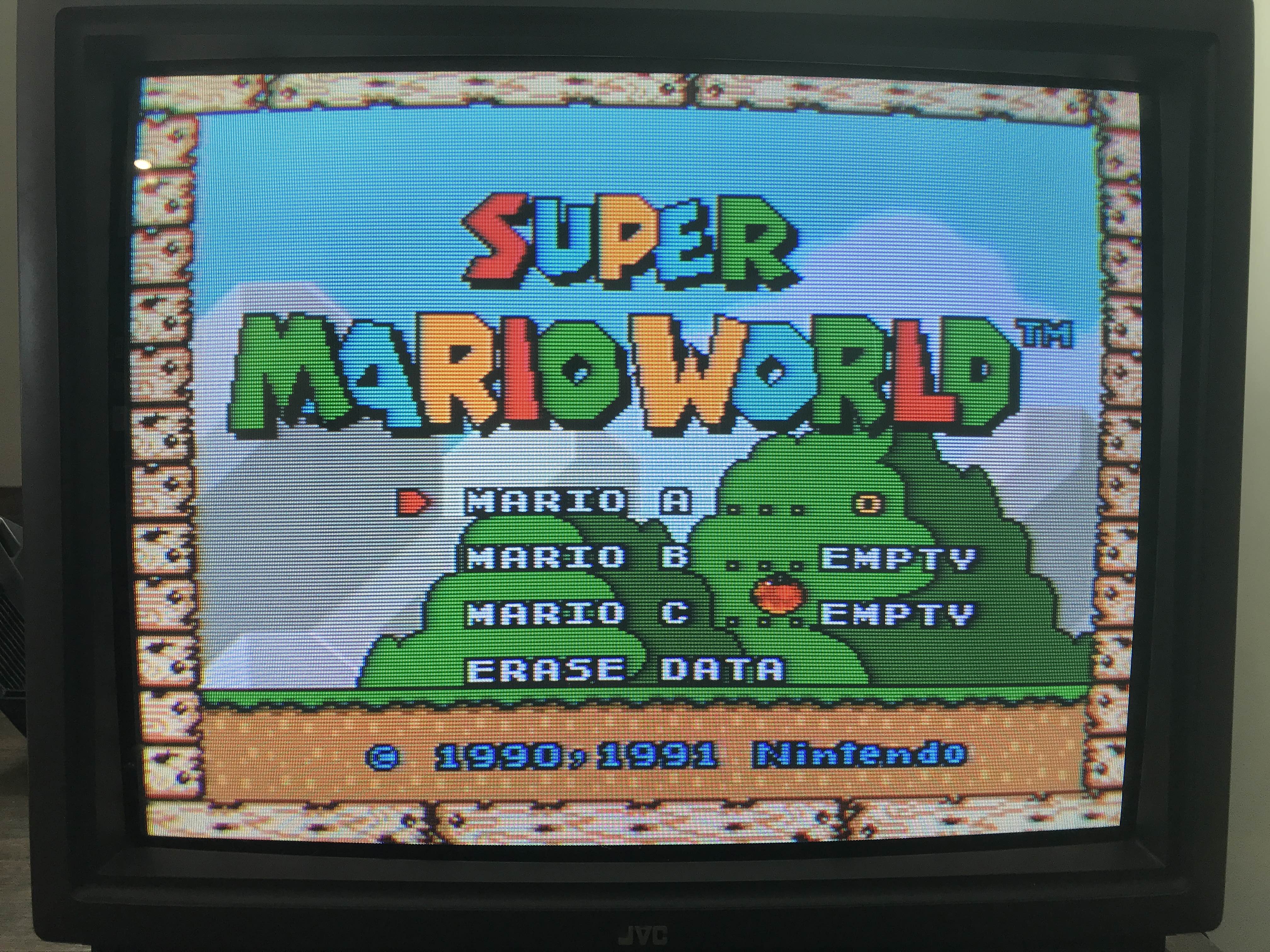

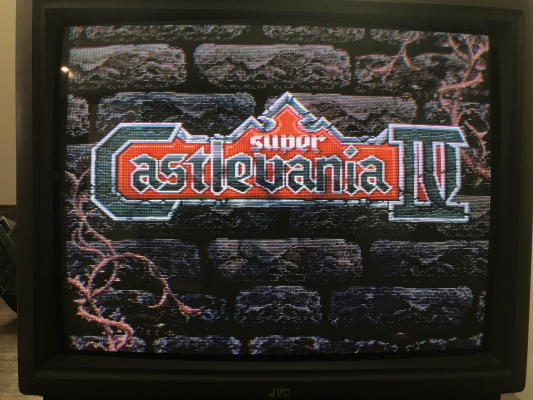

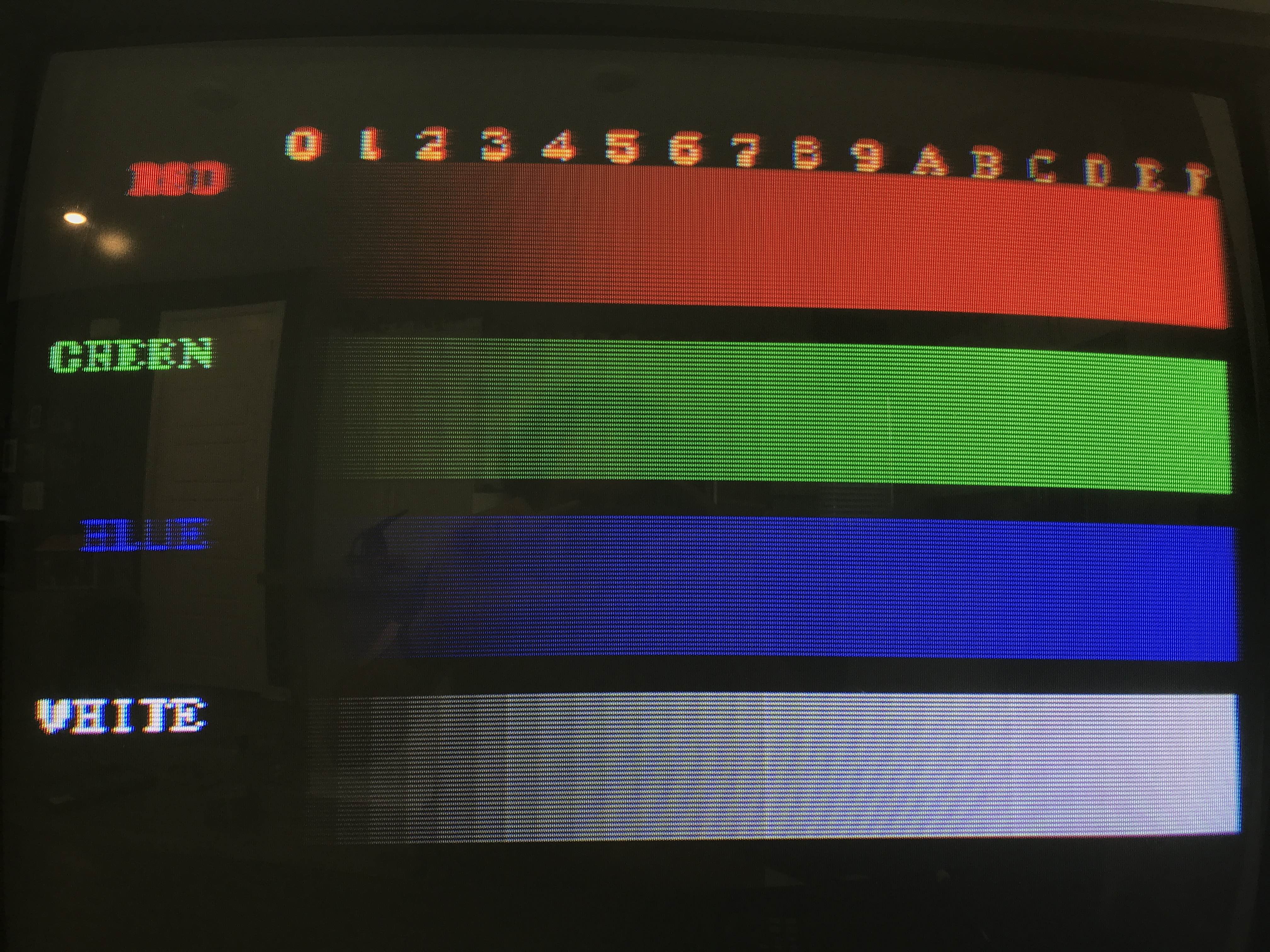

S-video quality is quite good. There is red push, but it's not too bad.
The comb filter for this set has no results that I can find anywhere online, I assume its a custom-made one by JVC.

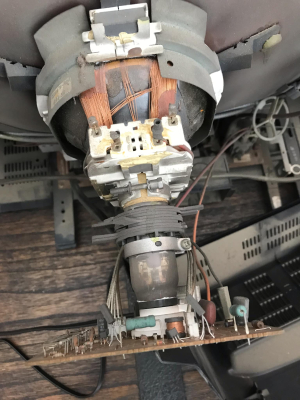

For adjusting the white balance, you must rotate potentiometers on the neckboard. However, there is no option to adjust blue cutoff.
Gallery













Specifications | |
---|---|
Brand: | JVC |
Manufacturer: | JVC |

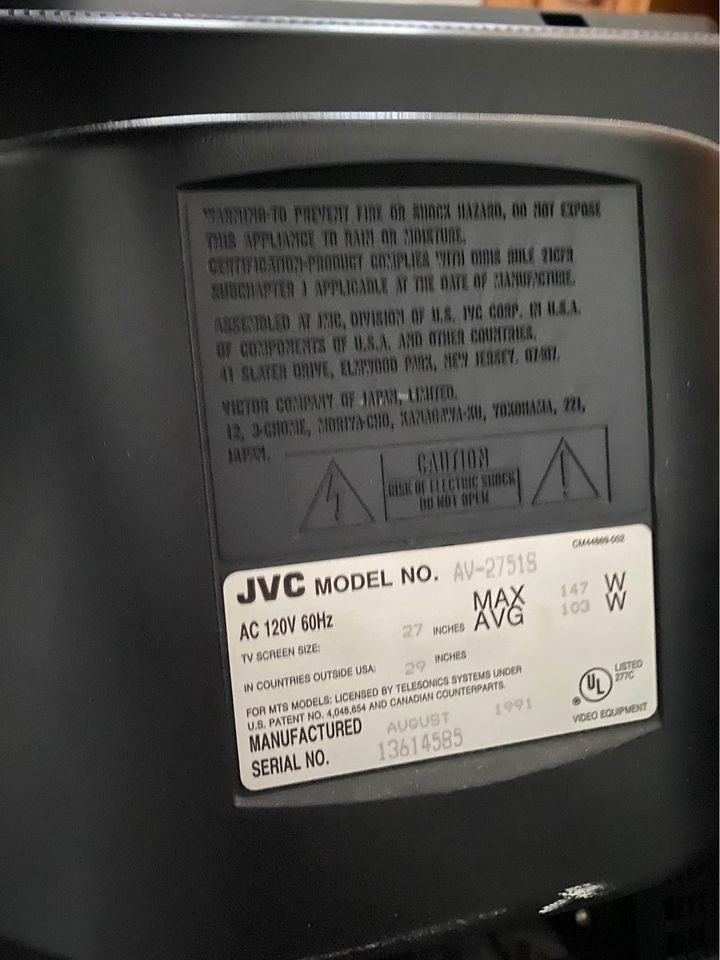

Model: | AV-2751S |
Series: | S |
Viewable Size: | 27" |

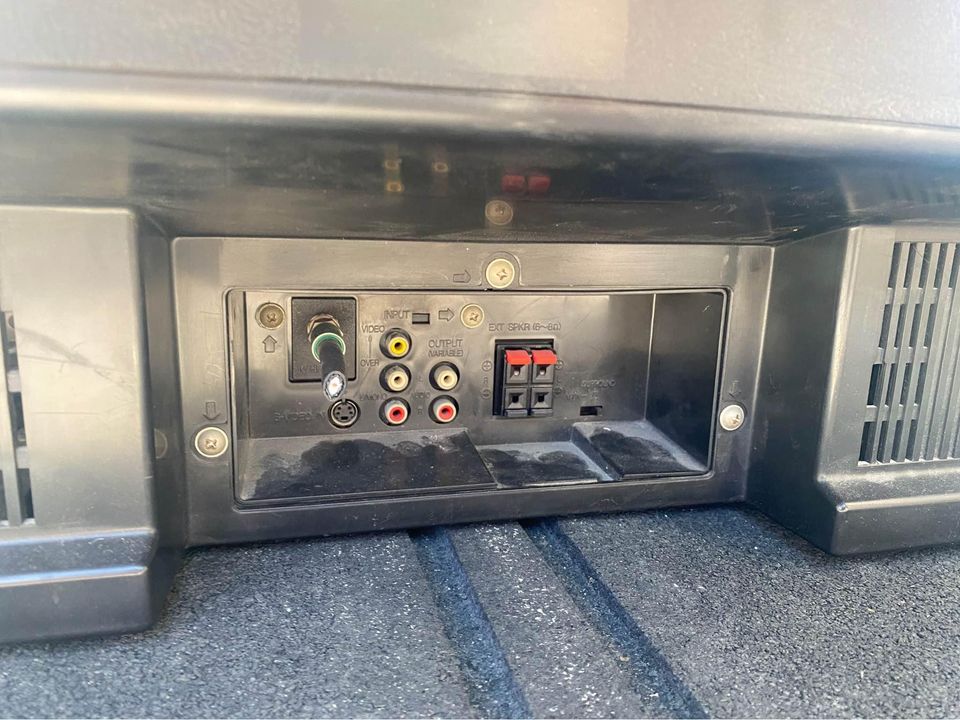

Inputs: | Composite, S-Video, RF |
Native Resolutions: | 240p, 480i |
Horizontal Scan Range: | 15 kHz |
Vertical Scan Range: | 60 Hz |
Formats: | NTSC |
Aspect: | 4:3 |
Adjustments: | OSD Customer Controls, OSD Service Menu |
Vertical Output IC: | Sanyo, LA7838, LA7835 |
Jungle: | Toshiba, TA8725AN, TA8725N |
Comb Filter IC: | JVC, CEX40675-001 |
Flyback: | CE41987-00A-KD |
Focus Type: | Single |

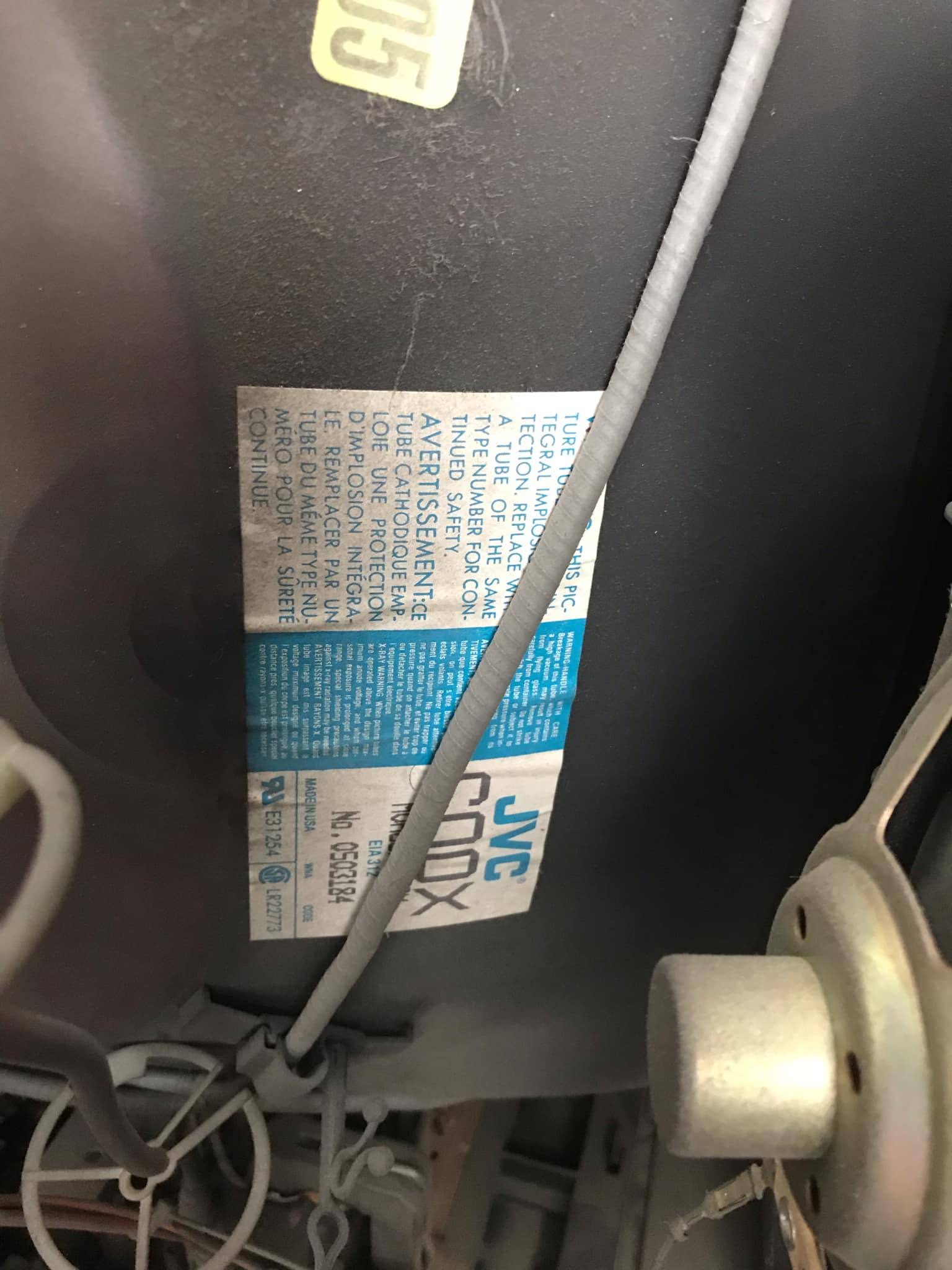

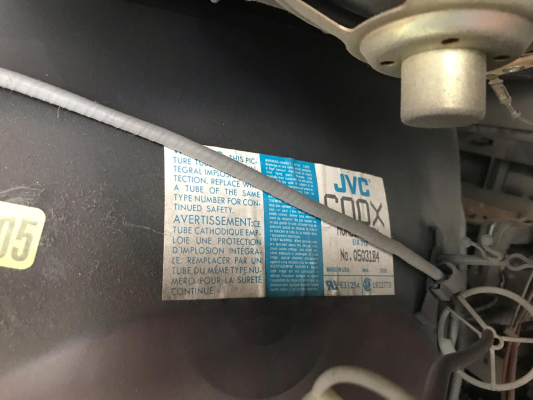

Tube: | Philips , A68AEC00X |
Heater Voltage: | 6.3v |
Mask: |
Slot
![]() |
Tint: | Dark |
Removable Glare Film: | No |
Yoke: | CE20179-A0AKJ1 |
Speakers: | Stereo, 1.2W x 2 |
Remote: | RM-C424 |
Chassis: | GY |
Weight: | 82 lbs (37.2 kg) |
Dimensions (W/H/D): |
651 x 575 x 520 mm
(25.6 x 22.6 x 20.4") |
Application: | Consumer |
Cabinet Material: | Plastic |
Launched: | 1991 |
MSRP: | 799 USD |
Country of Manufacture: | USA |
Market: | North America |
Power Standard: | 120v |
Mounting: | Table Surface (Standard) |
Degaussing: | Automatic on Power-on |
