Summary

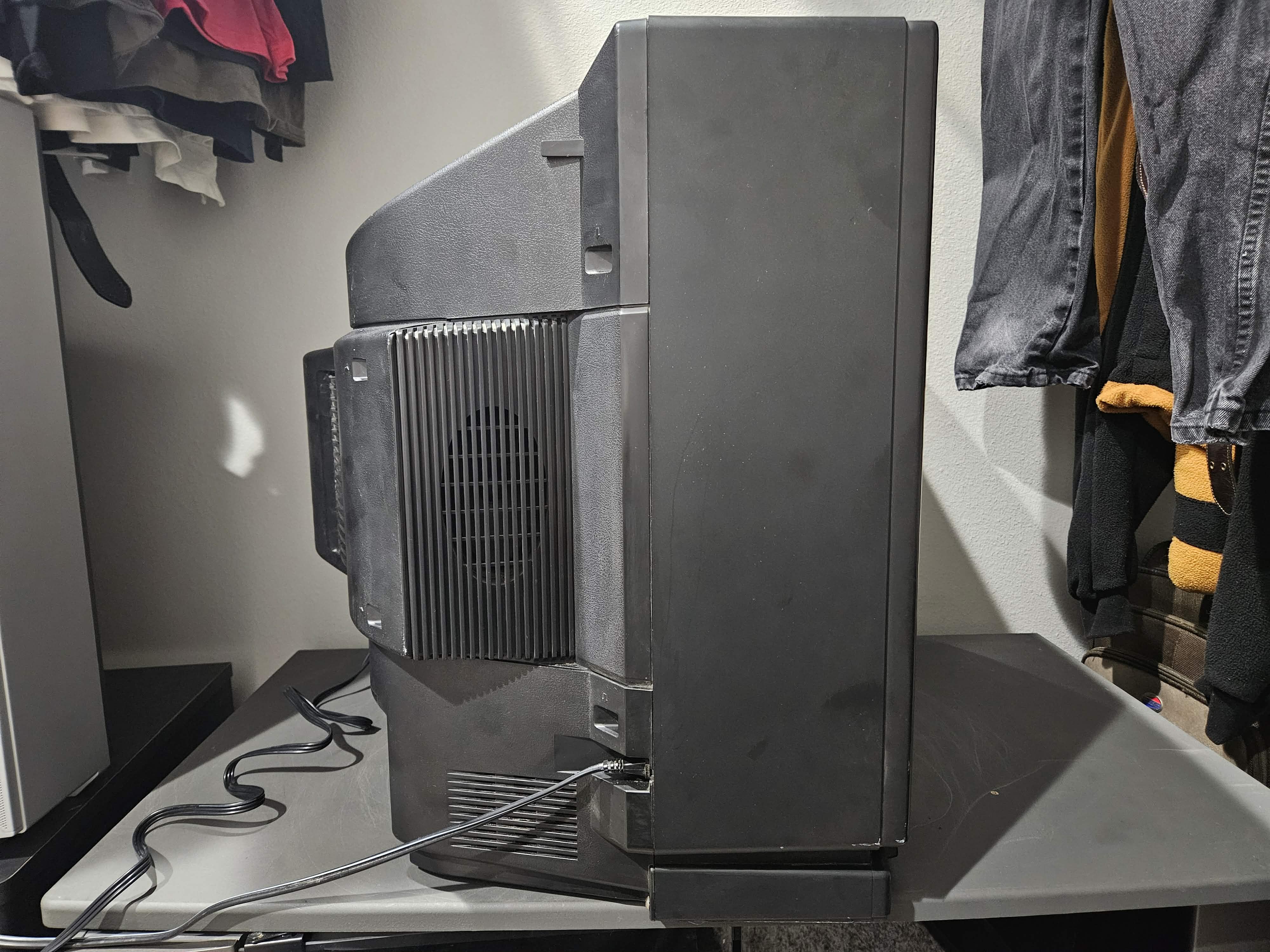

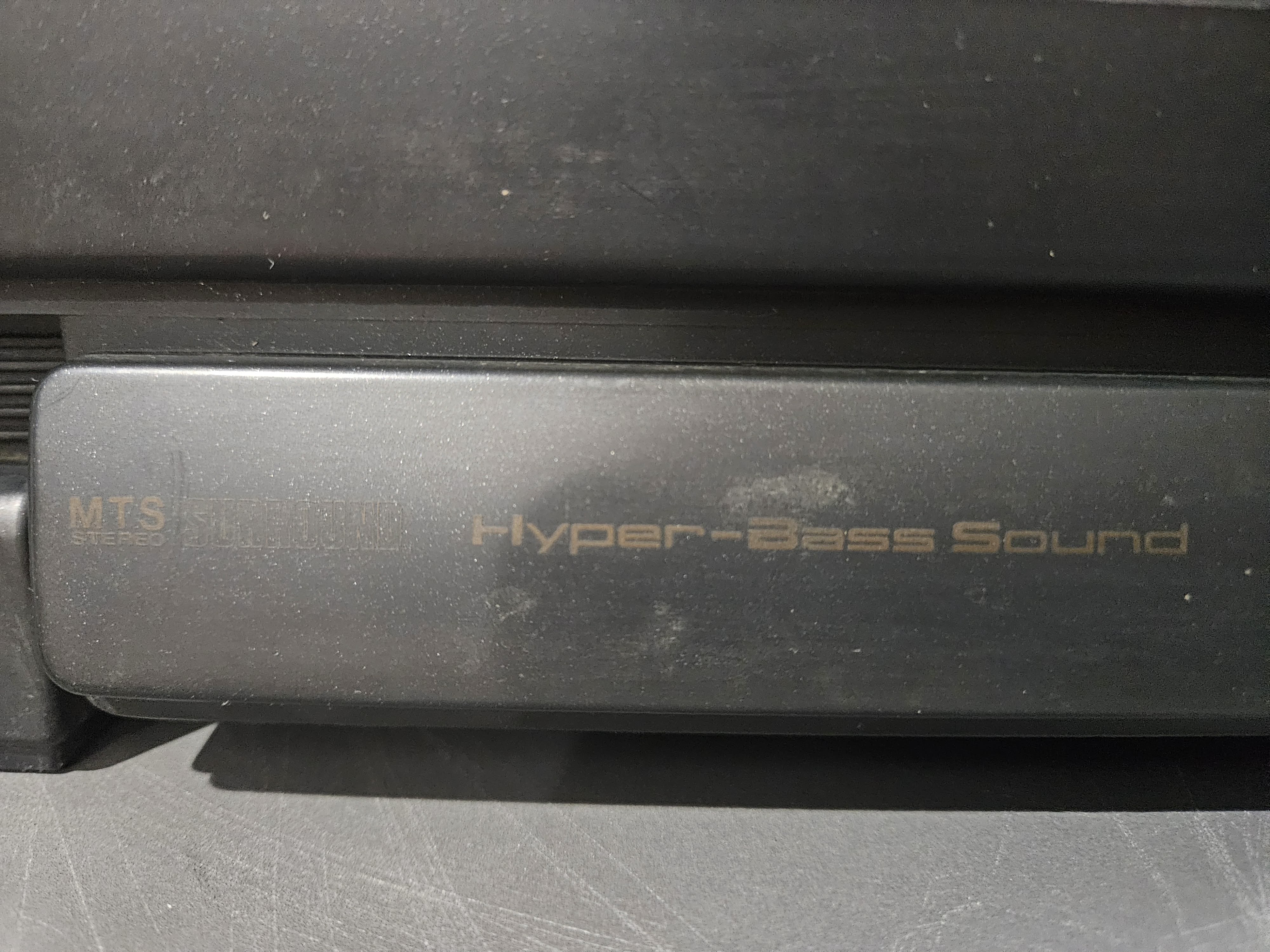

Higher-end 27" TV by JVC, made in the USA in 1989. Has RF, composite and s-video inputs as well as stereo inputs and outputs. Also features subwoofers for added bass.
(Special thanks to Gabriel Vazquez for the pics!)

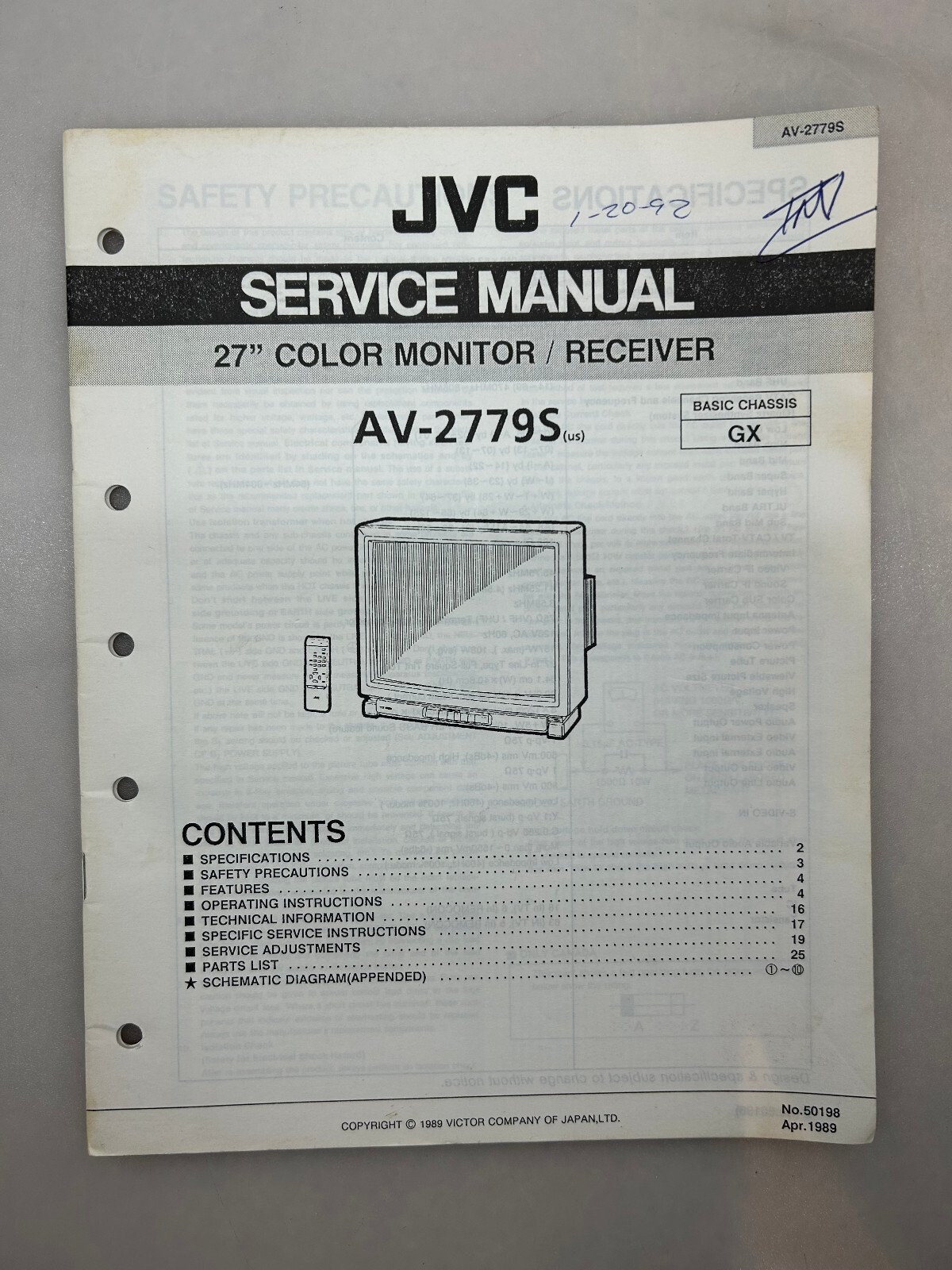

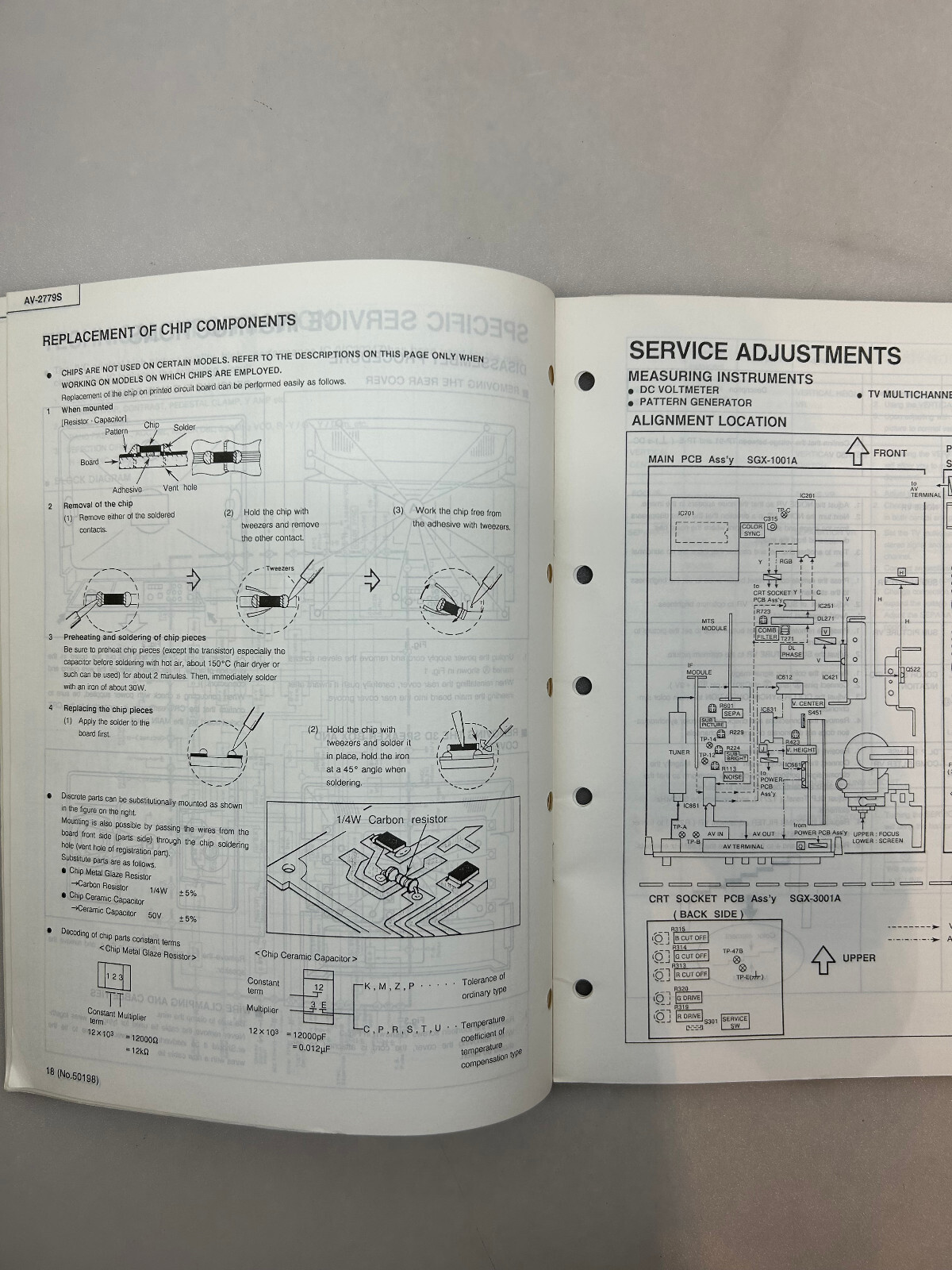

Manuals
Notes

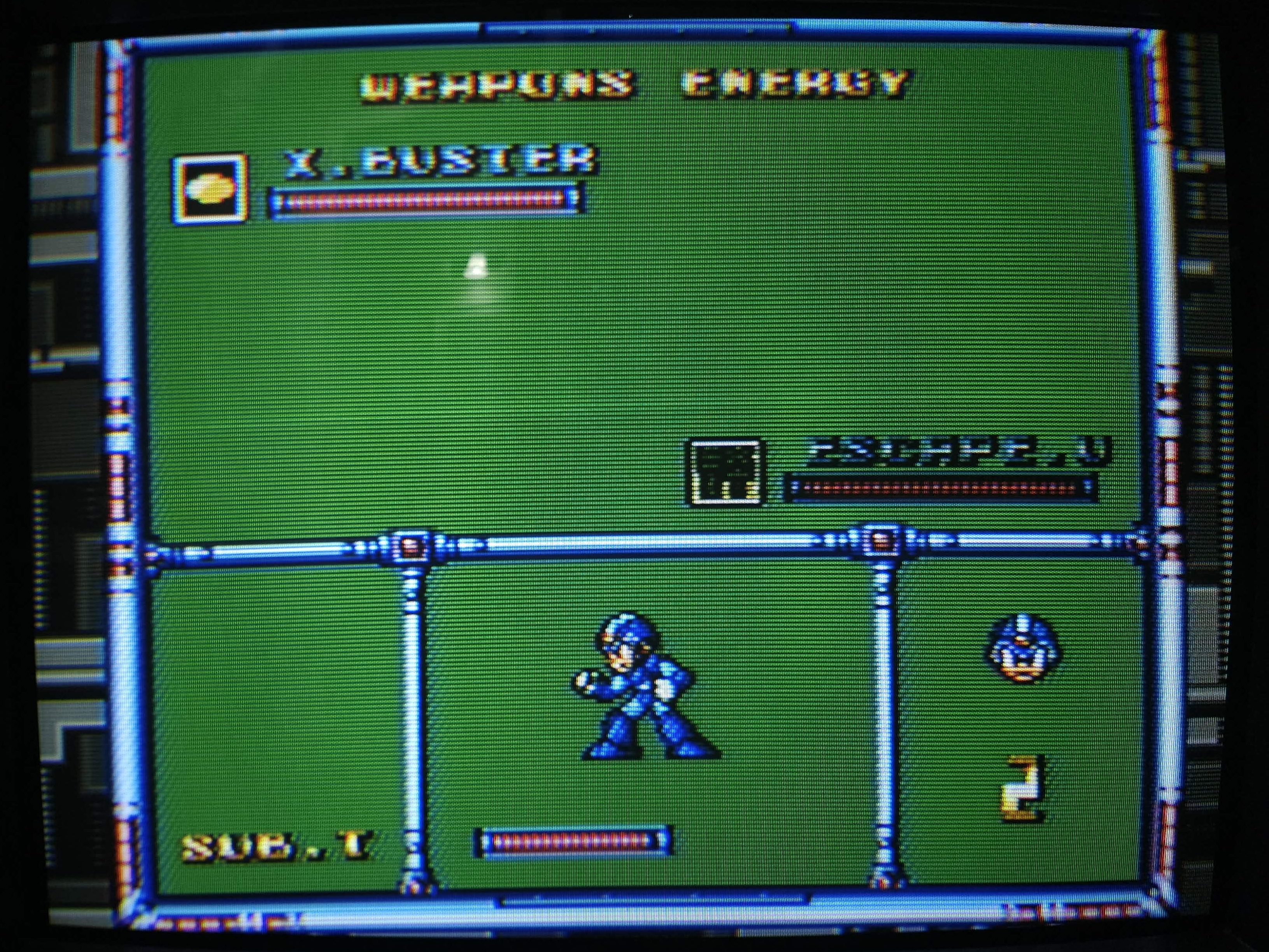

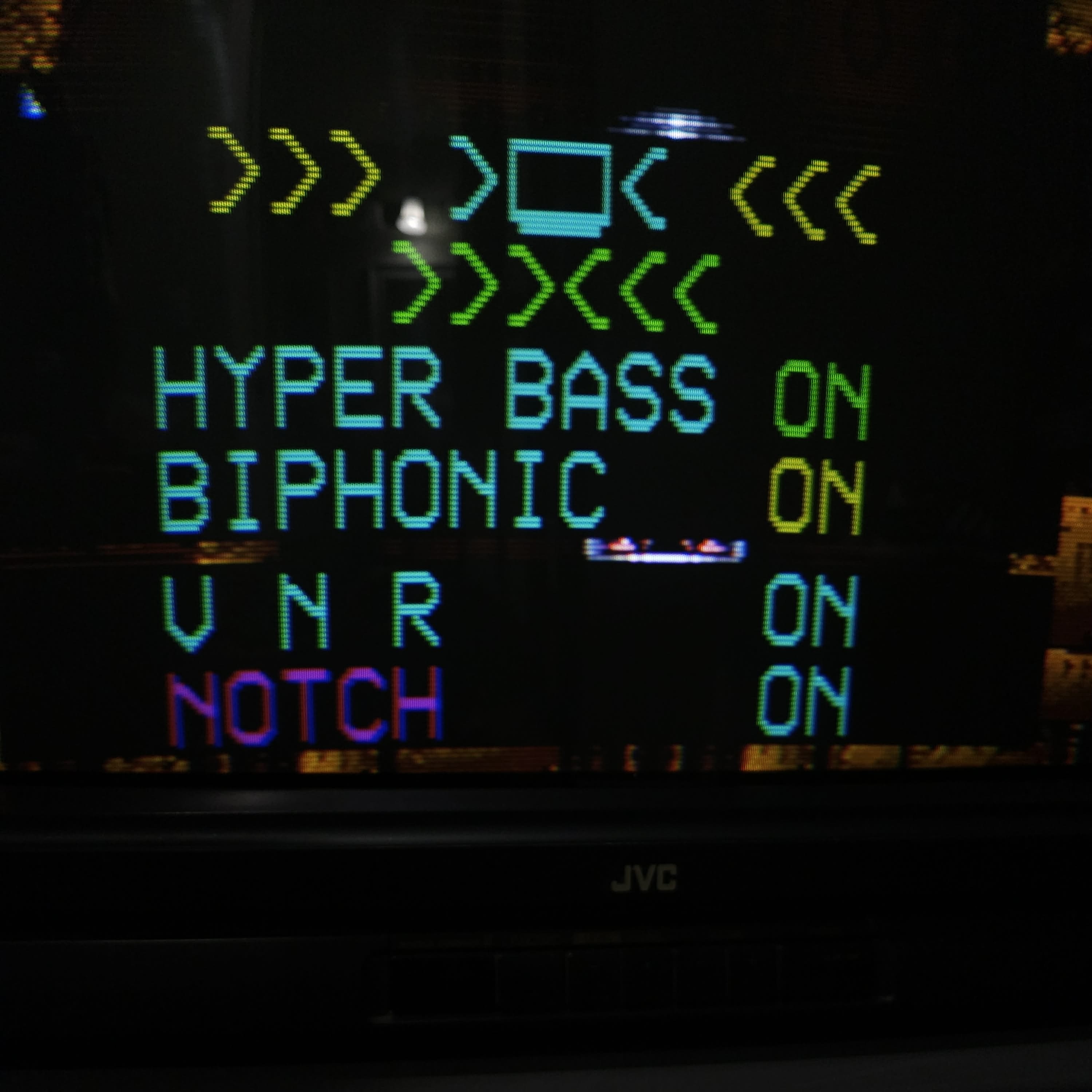

The menu has an option to toggle a notch filter to clean up composite video:
Gallery
| Specifications | |
|---|---|
| Brand: | JVC |
| Manufacturer: | JVC |
| Model: | AV-2779S |
| Series: | S |
| Viewable Size: | 27" |

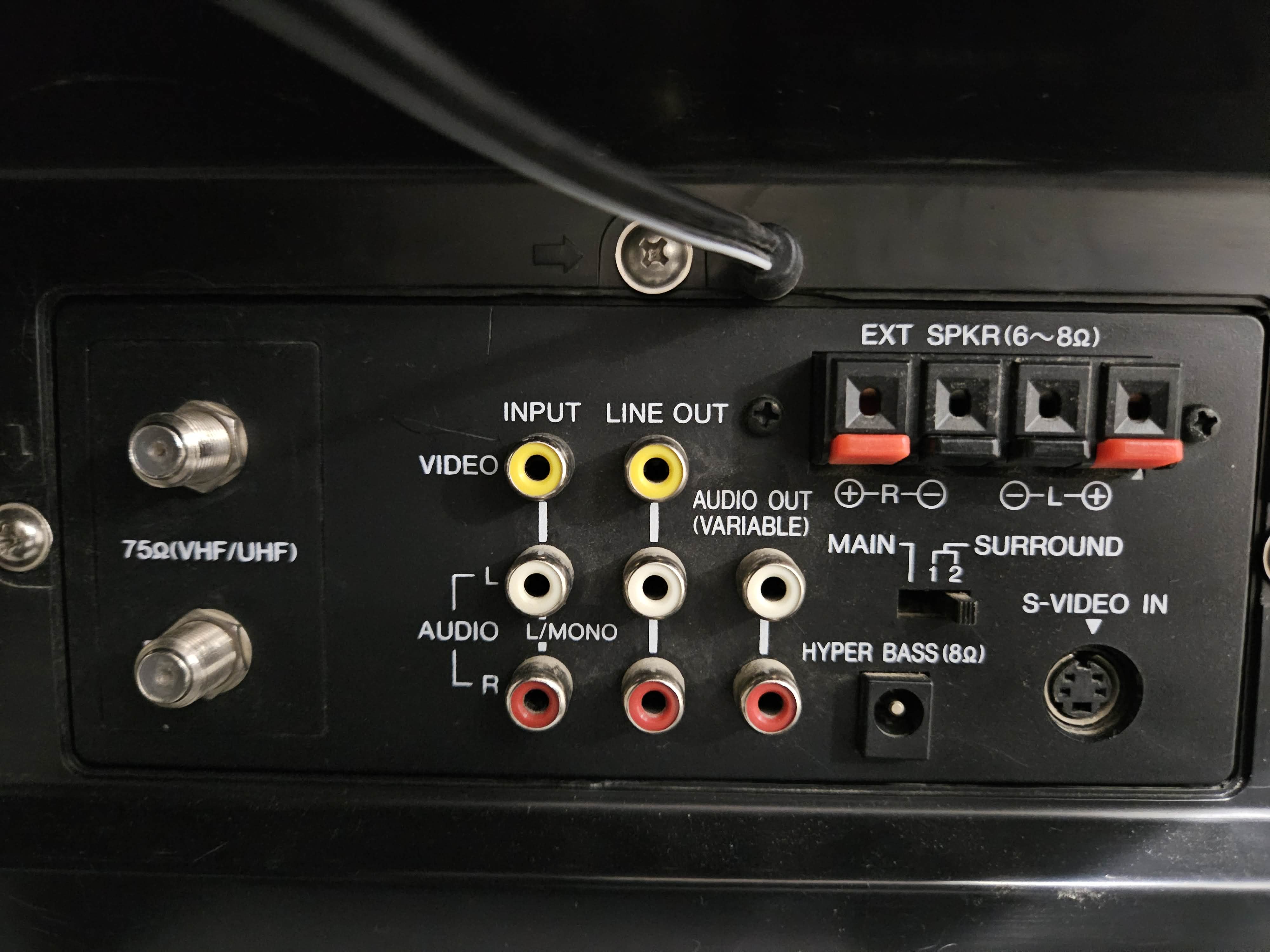

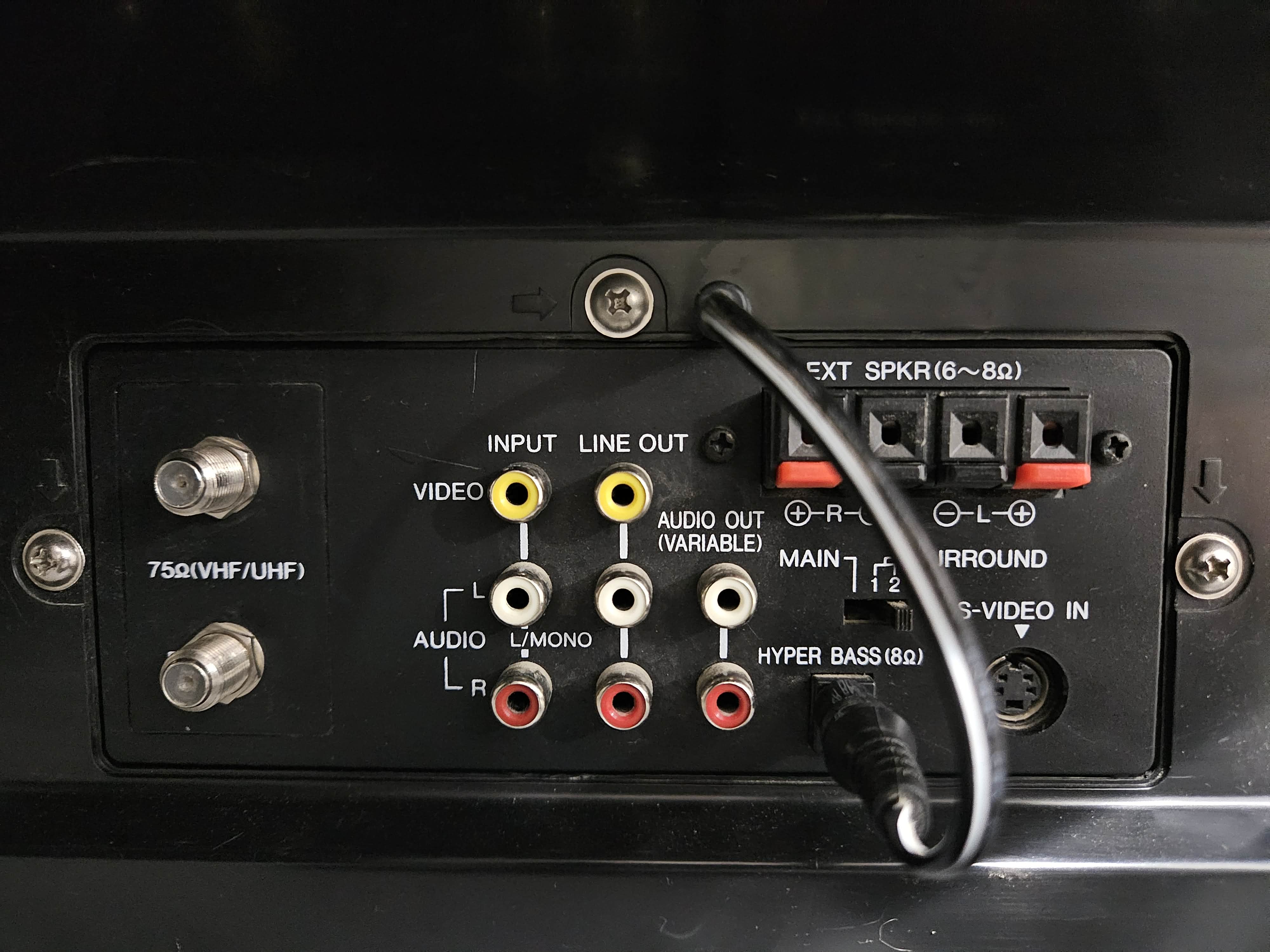

| Inputs: | Composite, S-Video, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, OSD Customer Controls |

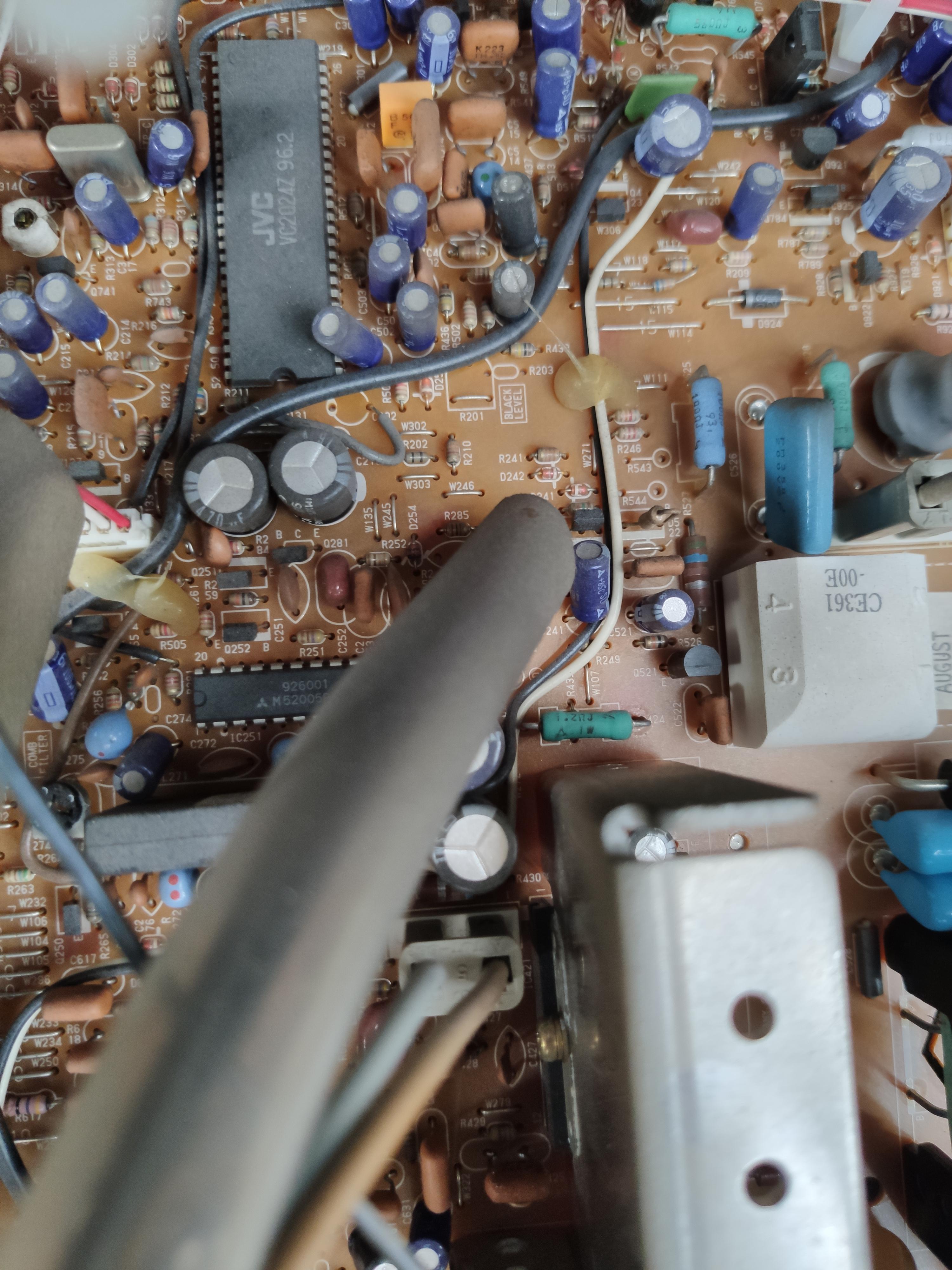

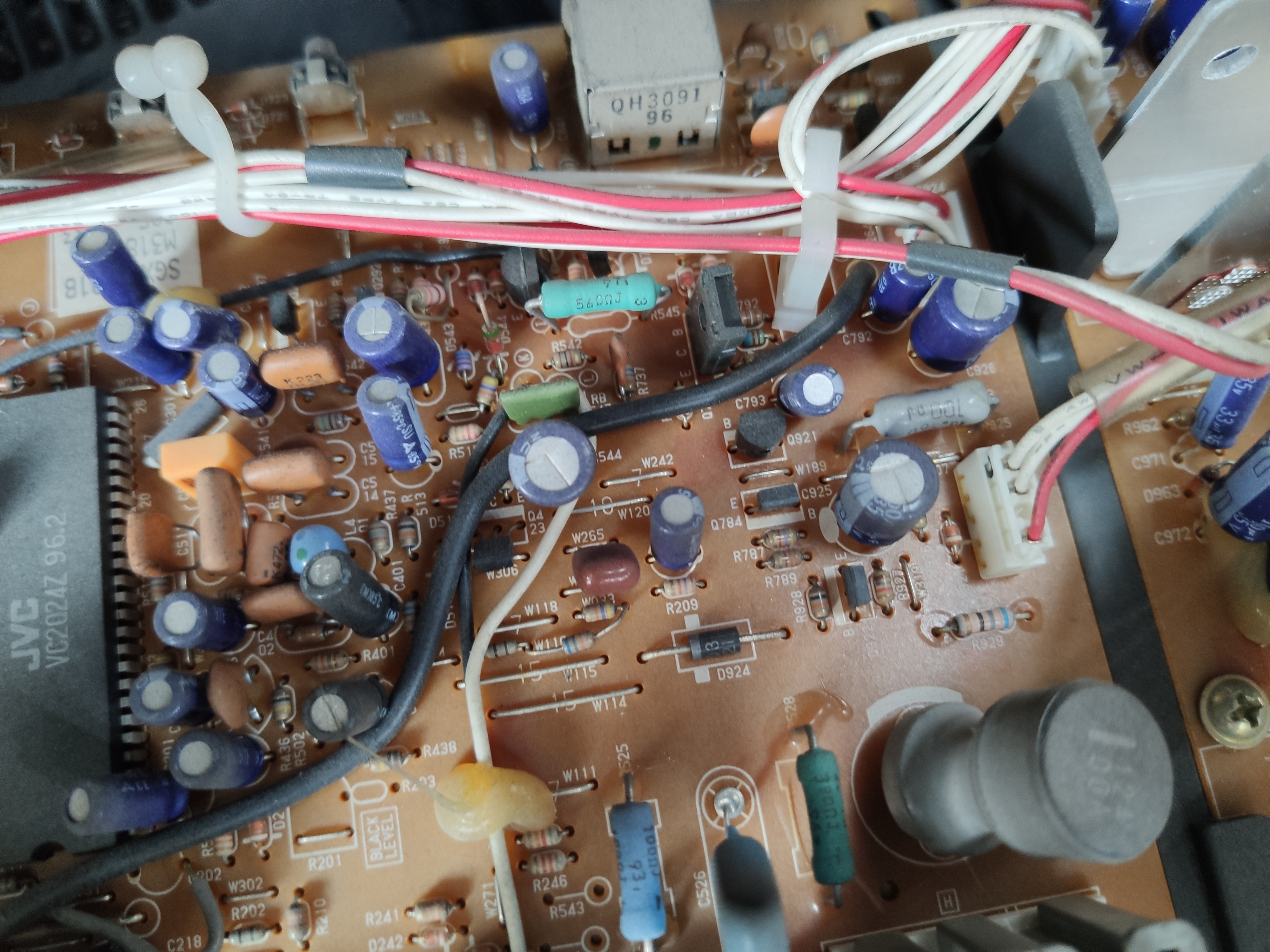

| Jungle IC: | JVC, VC2024Z |
| Comb Filtering: | Notch |
| Flyback: | CE4173500AKD |
| Focus Type: | Single |

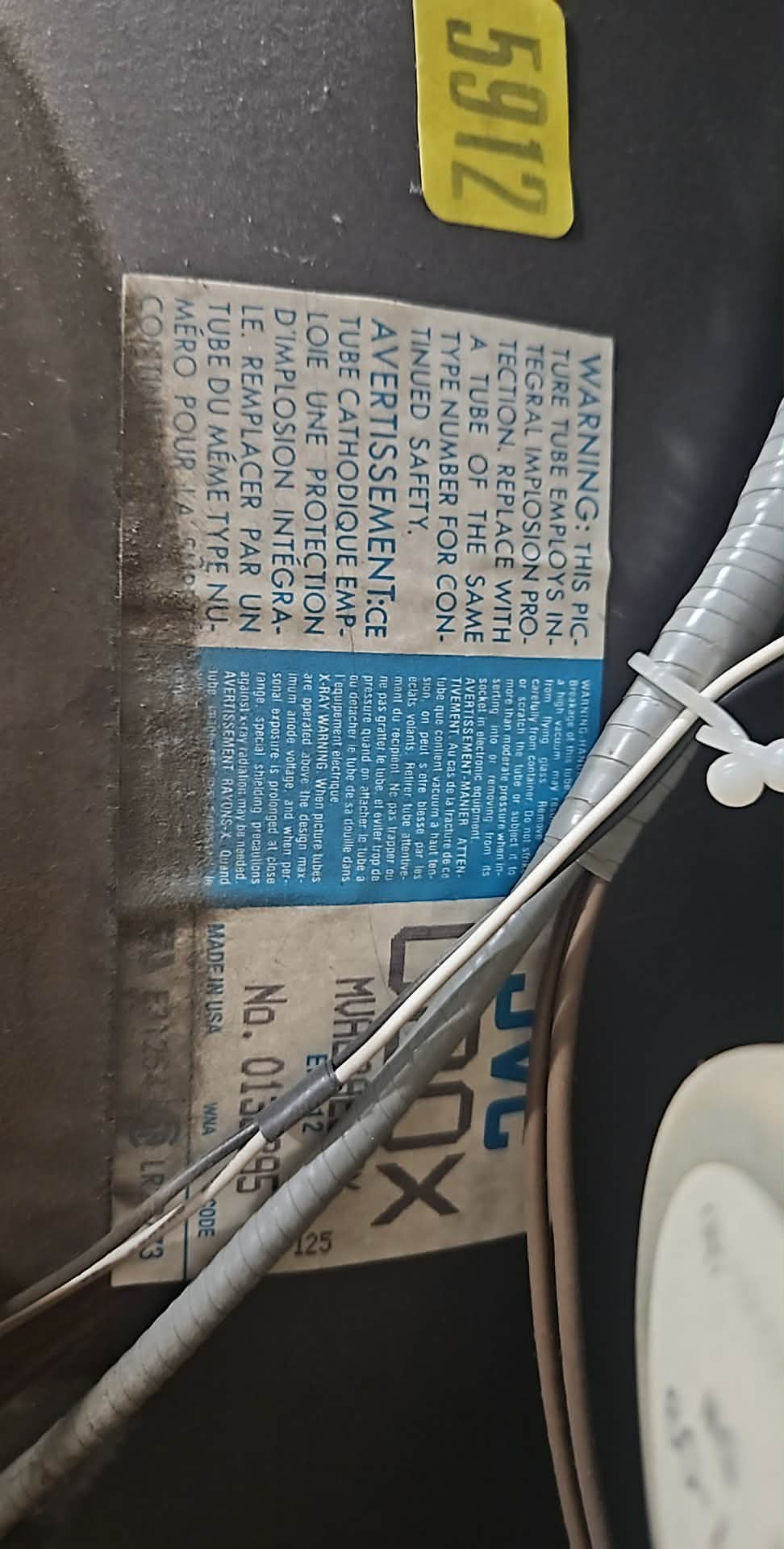

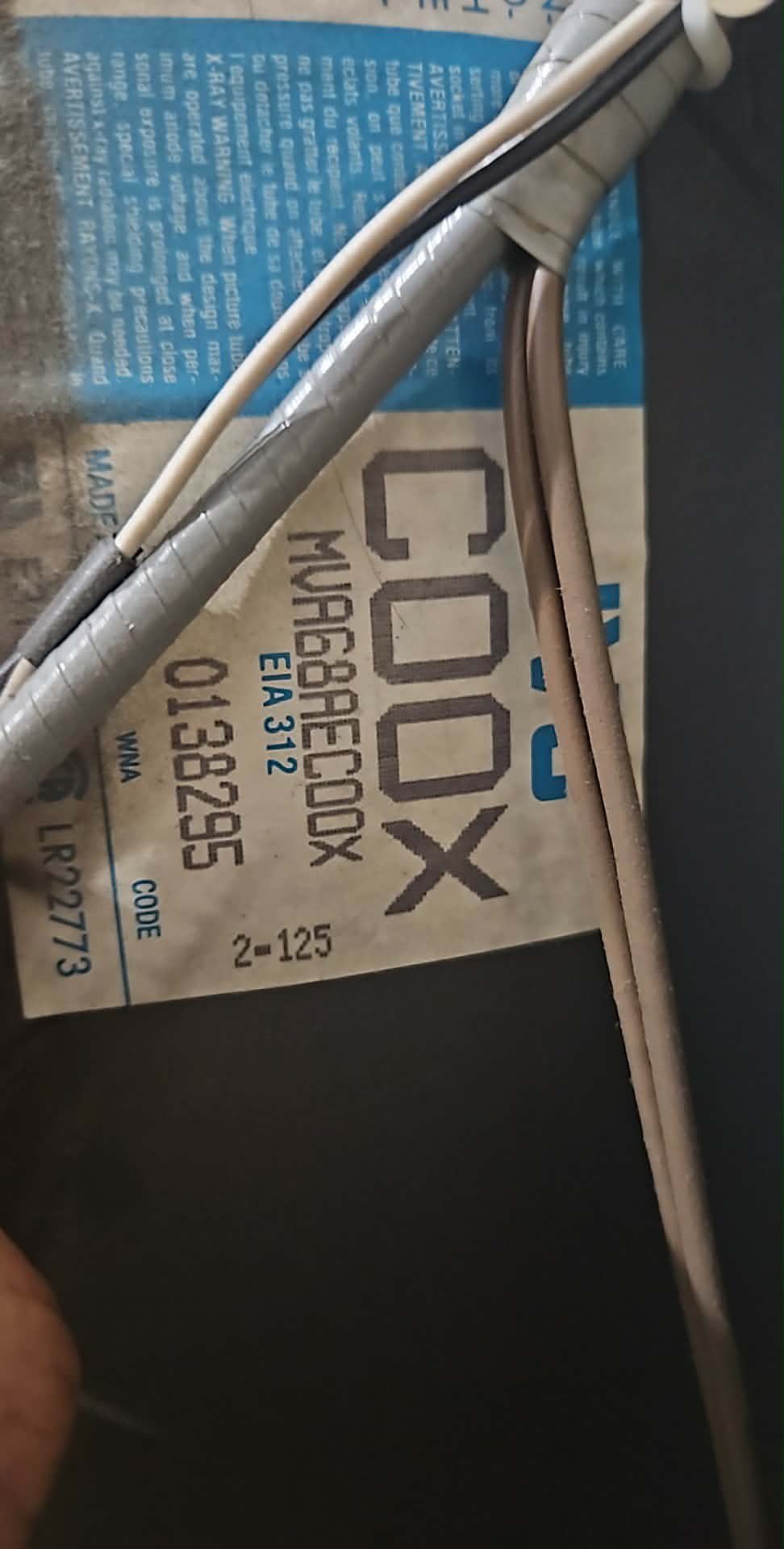

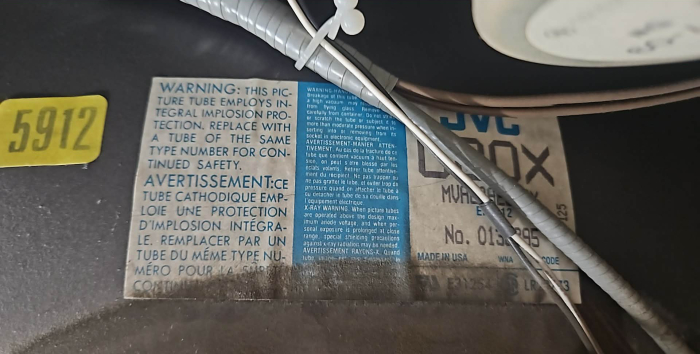

| Tube: | Philips , A68AEC00X |
| Heater Voltage: | 6.3v |
| Deflection: | 100° |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |

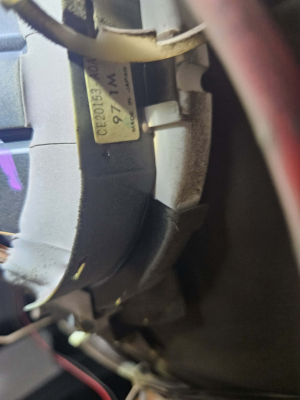

| Yoke: | CE20153-A0A-KD |

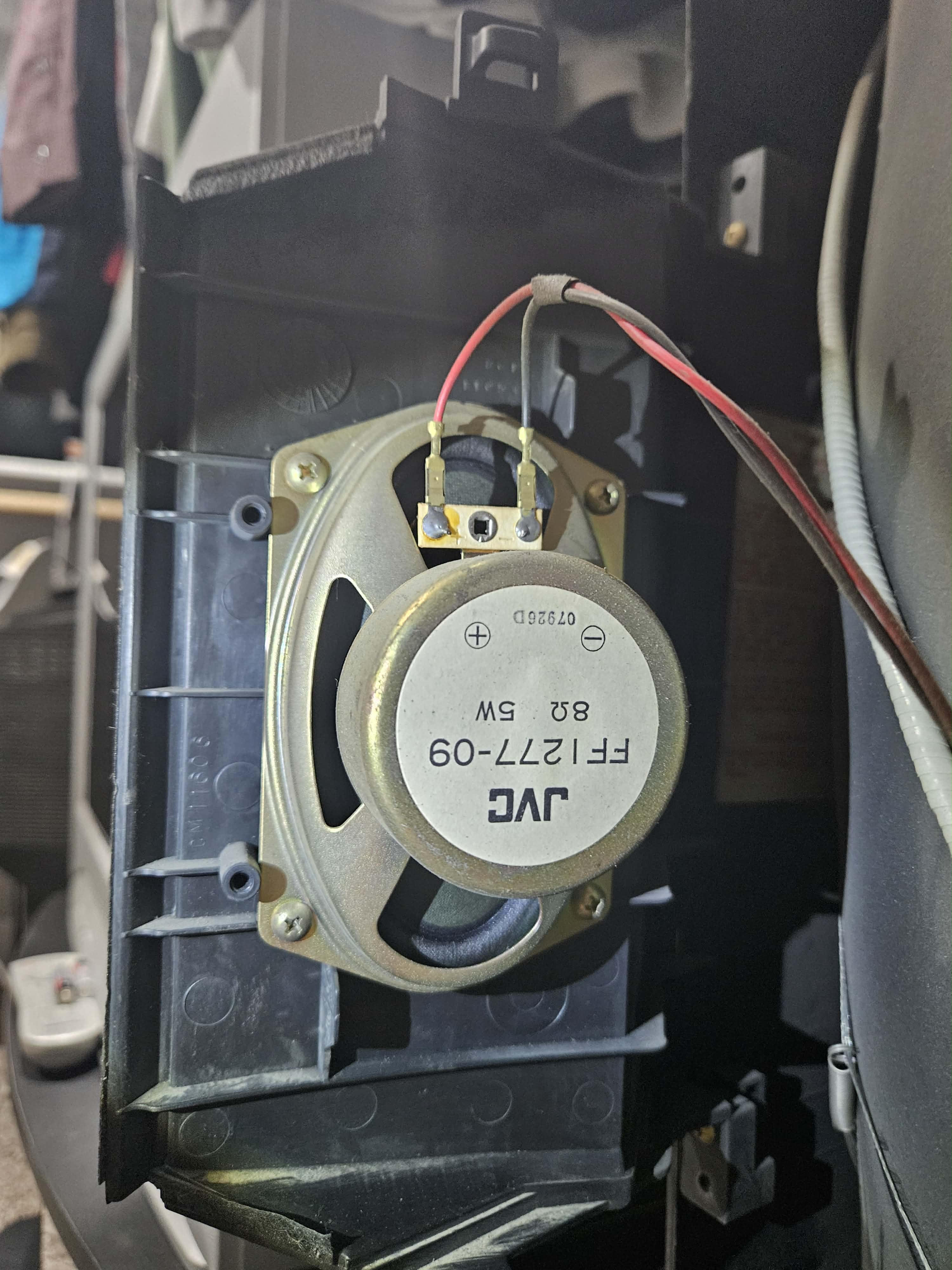

| Speakers: | Stereo, 5W x 2 |

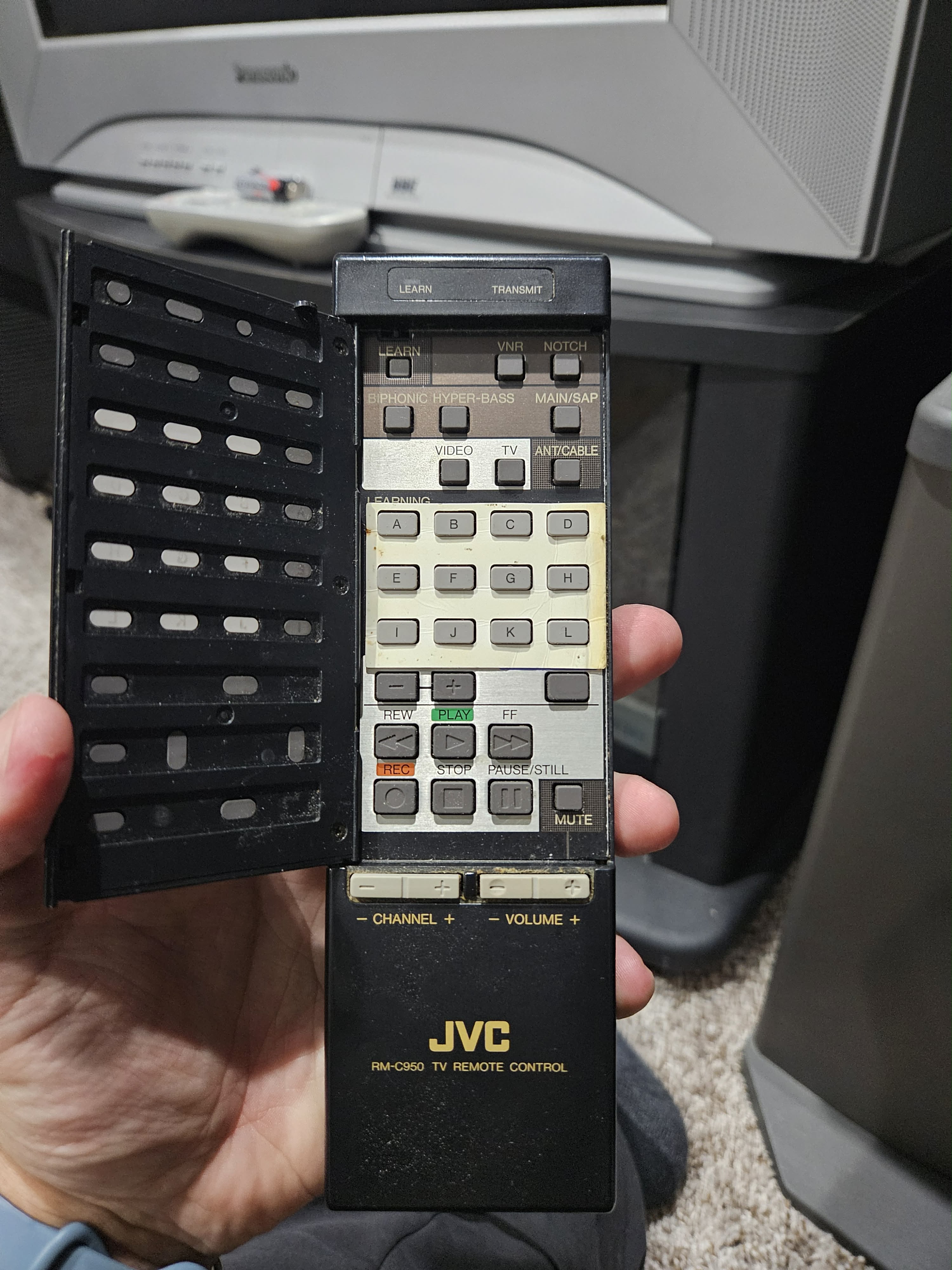

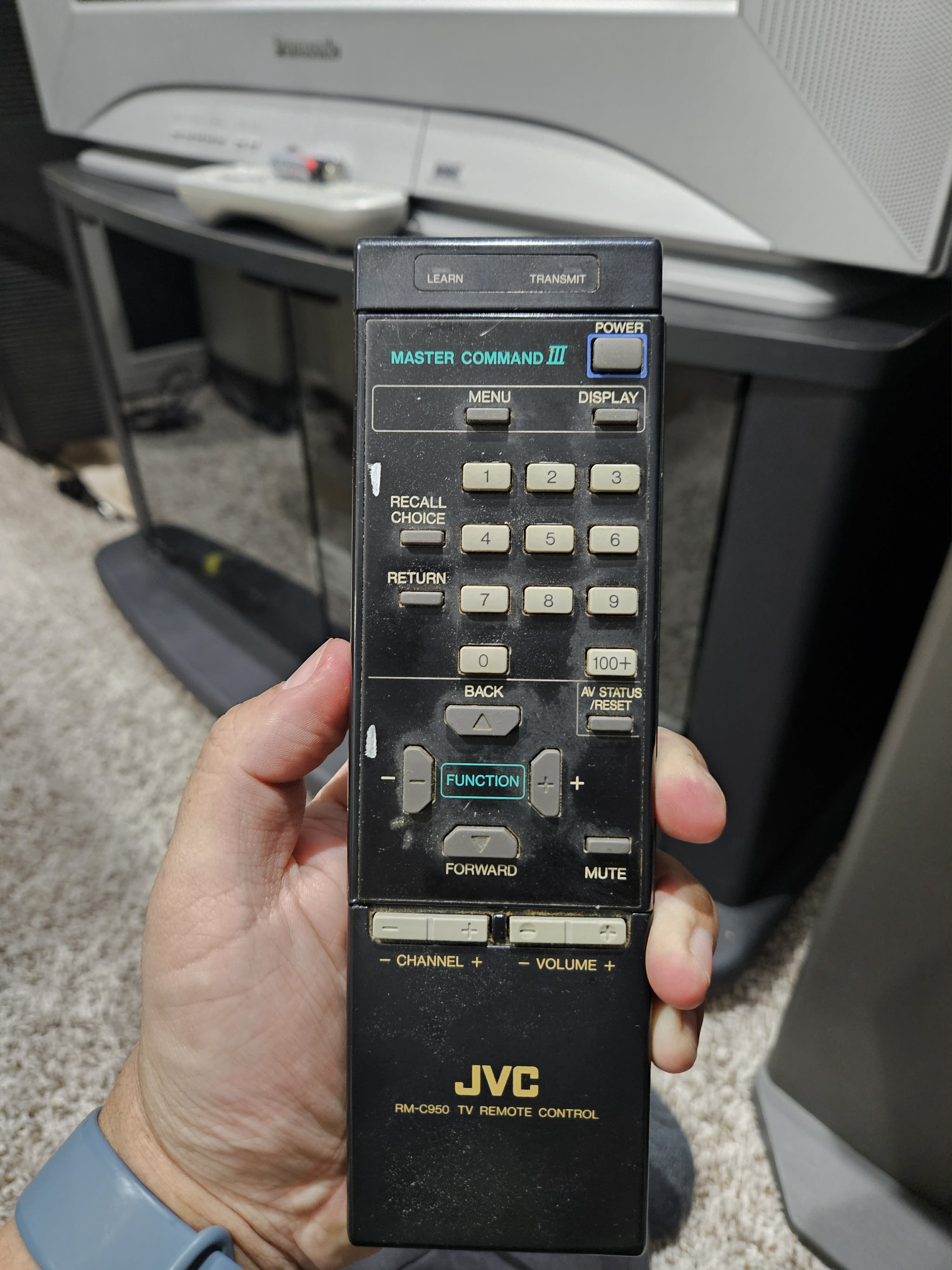

| Remote: | RM-C950 |
| Chassis: | GX |
| Weight: | 89.5 lbs (40.6 kg) |
| Dimensions (W/H/D): |
654 x 578 x 521 mm
(25.7 x 22.7 x 20.5") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1989 |
| MSRP: | 899 USD |
| Country of Manufacture: | USA |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs Service Manual |
