| Specifications | |
|---|---|
| Brand: | JVC |
| Manufacturer: | JVC |

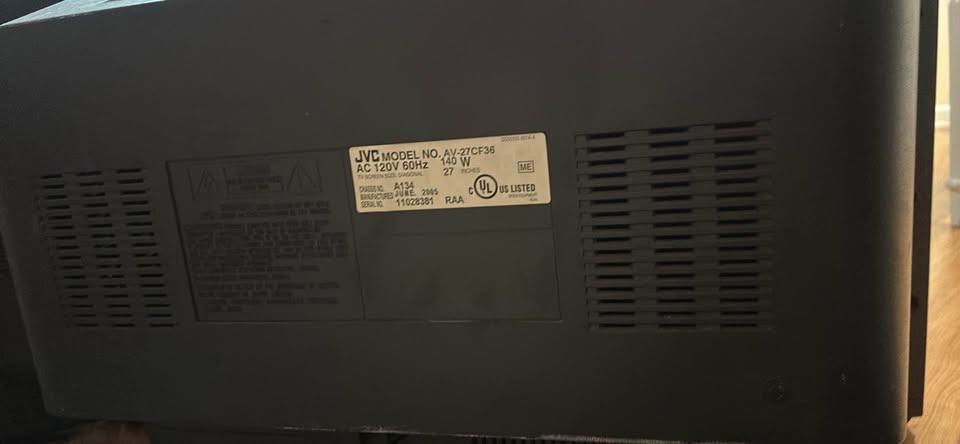

| Model: | AV-27CF36 |
| Series: | I'Art |
| Viewable Size: | 27" |

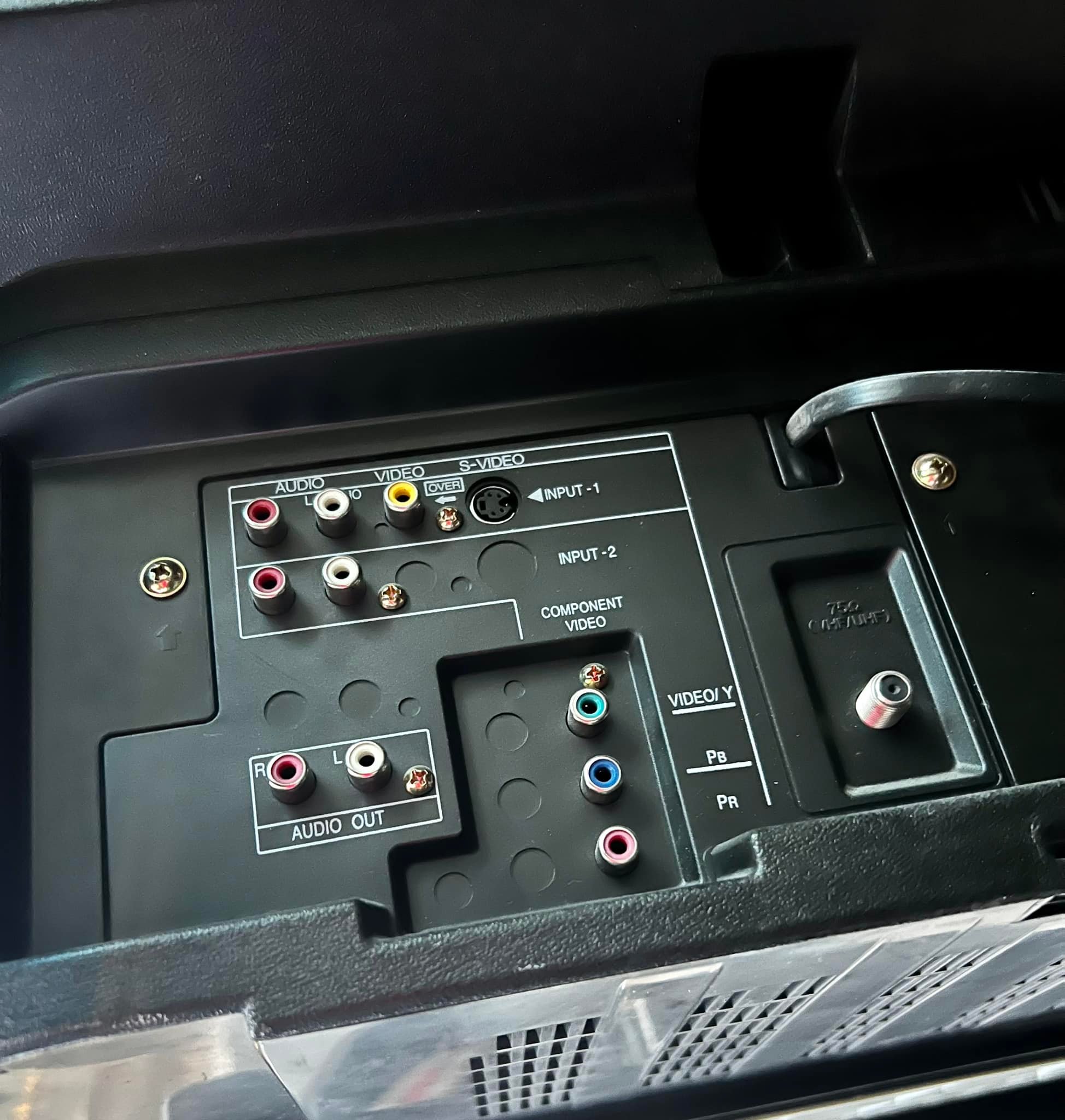

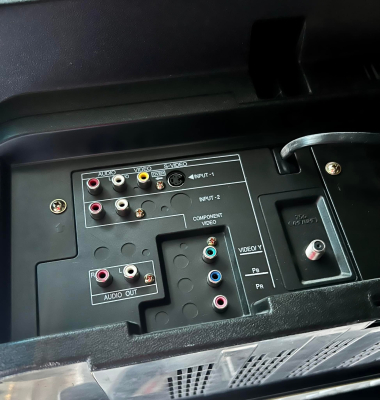

| Input Signals: | Composite, S-Video, RF, Component YPbPr |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Comb Filtering: | 3-Line Digital |
| Jungle IC: | Toshiba, TM8812C |
| Flyback: | QQH0175-001 |
| Focus Type: | Single |
| Tube: | Samsung , Thomson , A68ELH021X , A68QCP693X003 , A68QCP693X , A68ELH021X201 |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Speakers: | Stereo, 5W x 2 |
| Remote: | RM-C203G |
| Chassis: | GJ5 |
| Weight: | 94.6 lbs (42.9 kg) |
| Dimensions (W/H/D): |
759 x 594 x 502 mm
(29.8 x 23.3 x 19.7") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2005 |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
