JVC AV-27D800

SegaSaturn94
May 7, 2026, 11:00 am
May 9, 2026, 12:26 am

Summary

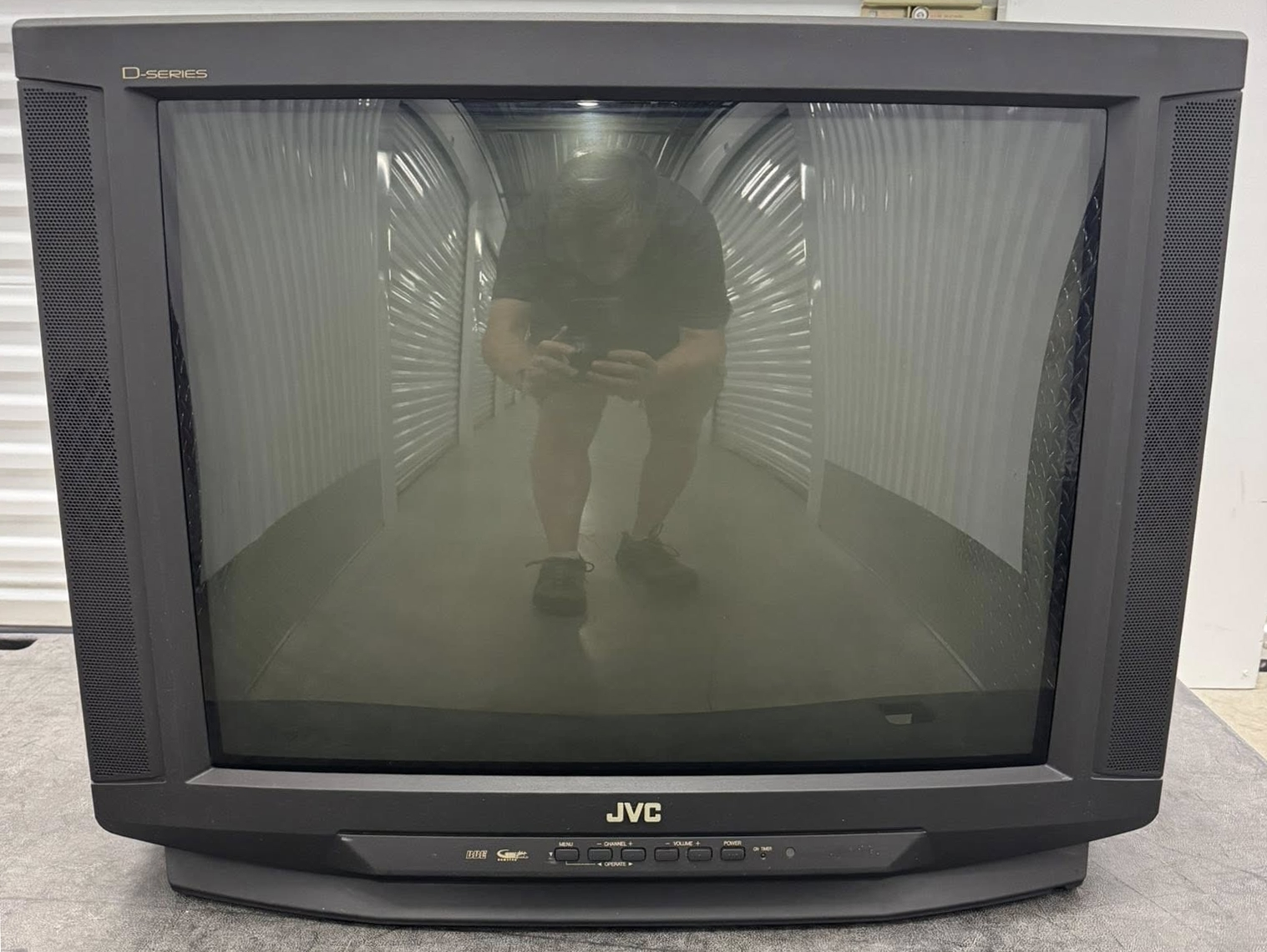

27" curved-screen CRT by JVC, made in Mexico in 1999. Slightly more advanced than the other D-series models in the lineup, featuring a built-in TV Guide and VCR Plus.

Manuals

Media & Promo Materials

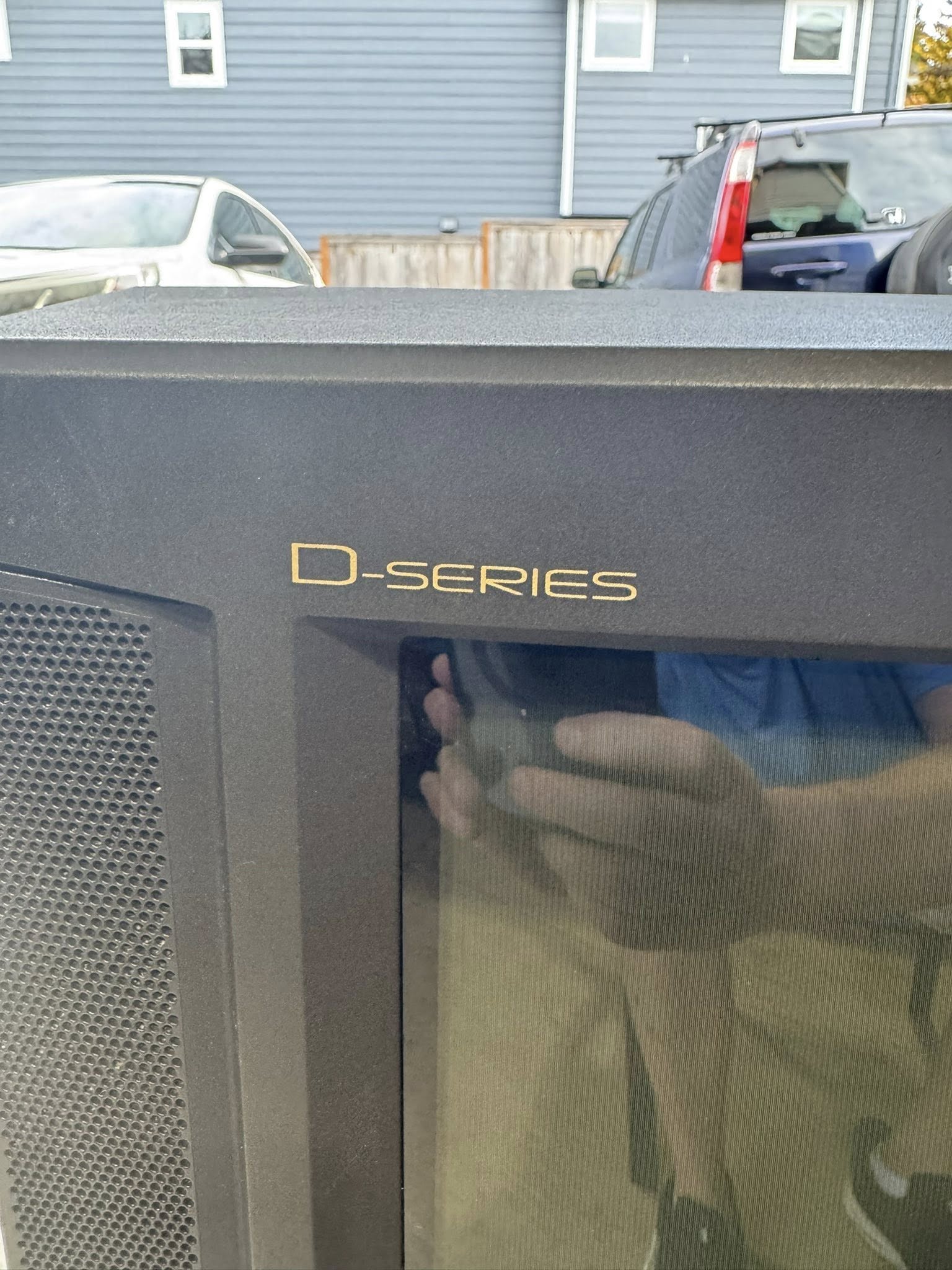

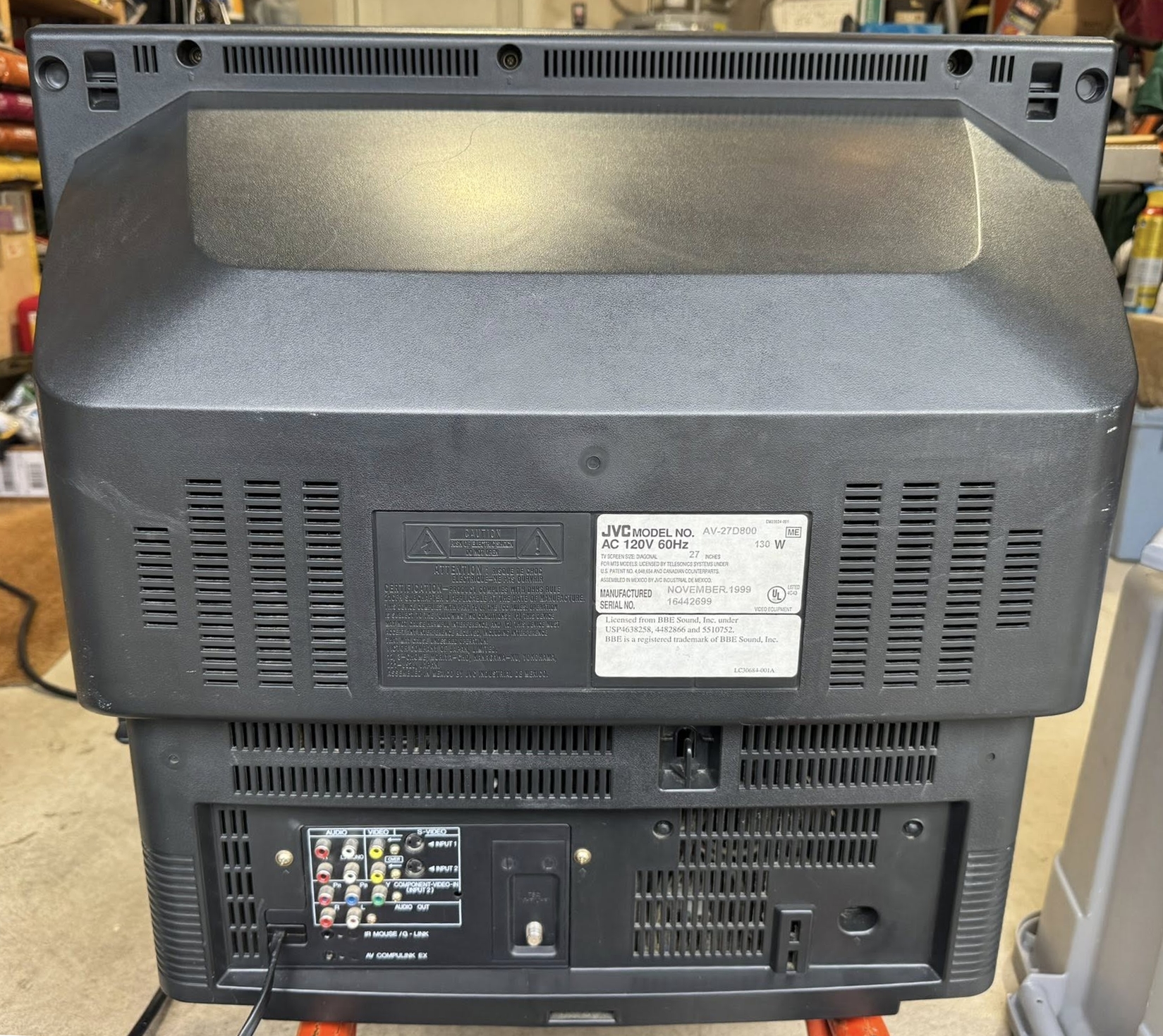

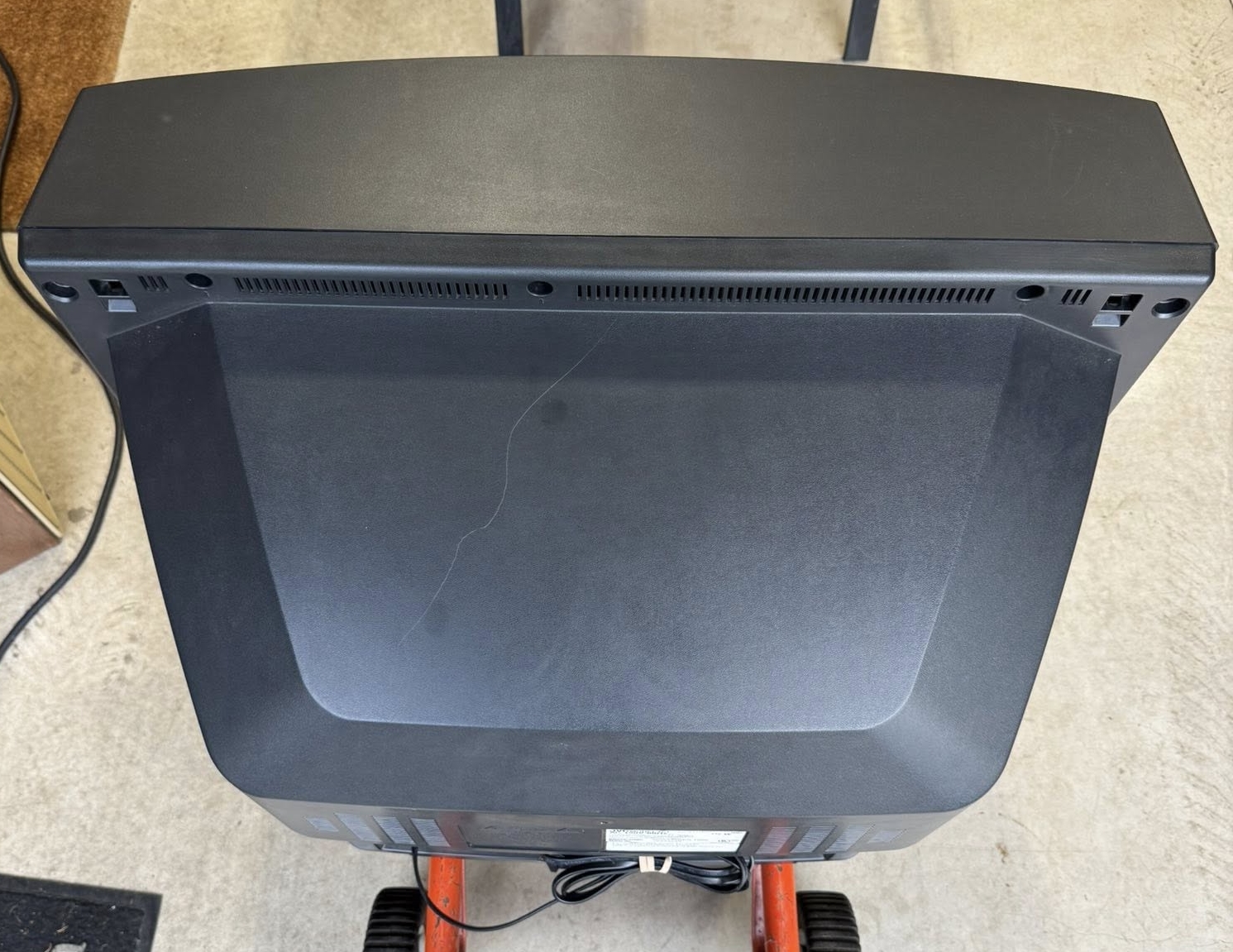

Gallery

JVC AV-27D800 JVC AV-27D800 JVC AV-27D800 JVC AV-27D800 JVC AV-27D800 JVC AV-27D800 JVC AV-27D800 JVC AV-27D800 JVC AV-27D800
Specifications
Brand: JVC
Manufacturer: JVC
Model: AV-27D800

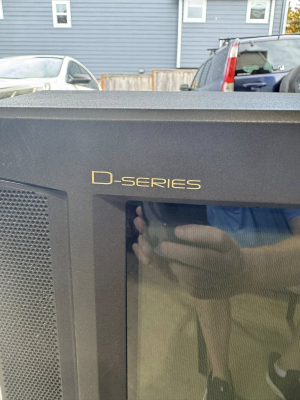

Series: D-Series
Viewable Size: 27"

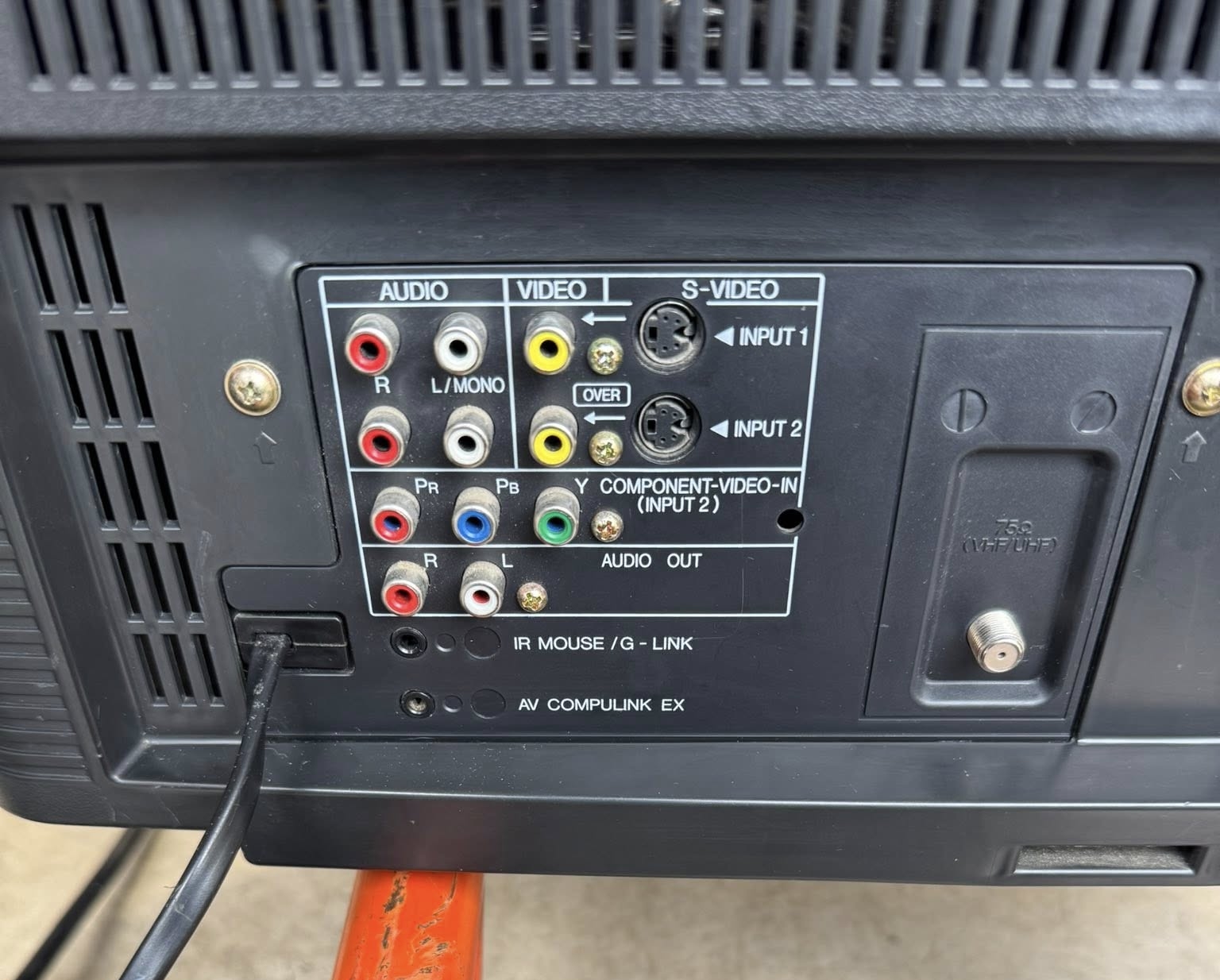

Input Signals: Composite, S-Video, RF, Component YPbPr
Native Resolutions: 240p, 480i
Horizontal Scan Range: 15 kHz
Vertical Scan Range: 60 Hz
Formats: NTSC
Aspect: 4:3

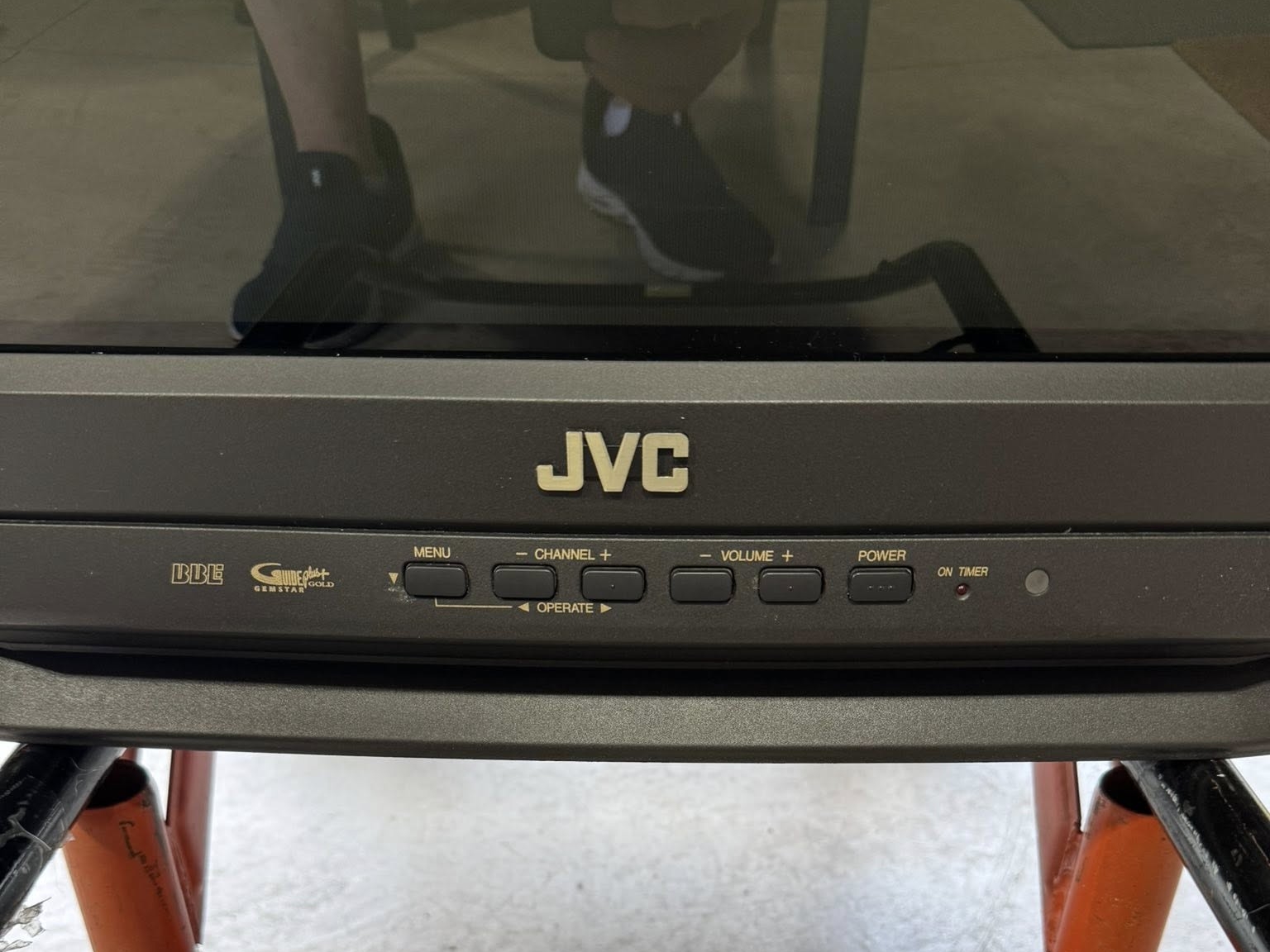

Adjustments: OSD Customer Controls, OSD Service Menu
Horz. Output Transistor: 2SD2499, 2SD2539-LB
Vertical Output IC: Sanyo, LA7841
Jungle IC: JVC, JCC1007A
Comb Filtering: 2-Line Digital
Comb Filter IC: Toshiba, TC90A45P
Flyback: QQH0051-001
Focus Type: Single
Tube: Thomson , RCA , A68AEG25X , A68AEG25X01
Heater Voltage: 6.3v
Deflection: 110°
Mask: Slot
Pitch: .83 mm, 0.83 mm
Tint: Dark
Removable Glare Film: No
Speakers: Stereo

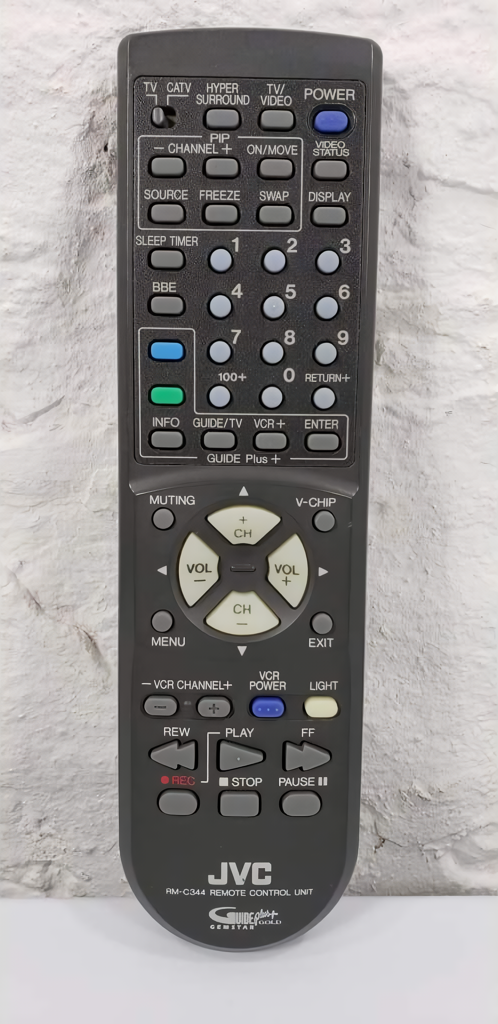

Remote: RM-C344
Chassis: GR
Weight: 78.1 lbs (35.4 kg)
Dimensions (W/H/D): 752 x 590 x 494 mm
(29.6 x 23.2 x 19.4")
Application: Consumer
Cabinet Material: Plastic
Launched: 1999
MSRP: 599 USD
Country of Manufacture: Mexico
Market: North America
Power Standard: 120v
Mounting: Table Surface (Standard)
Mods: RGB via Mux
Degaussing: Automatic on Power-on
Tag: Needs Service Manual
