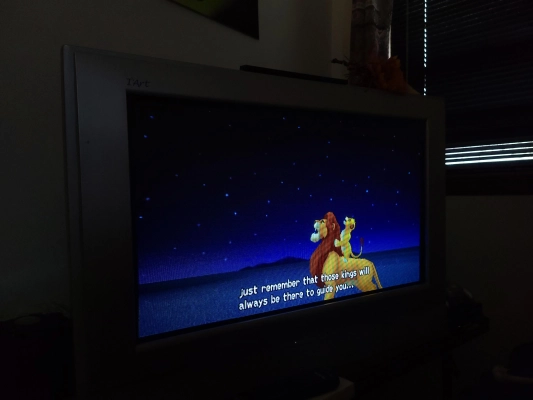

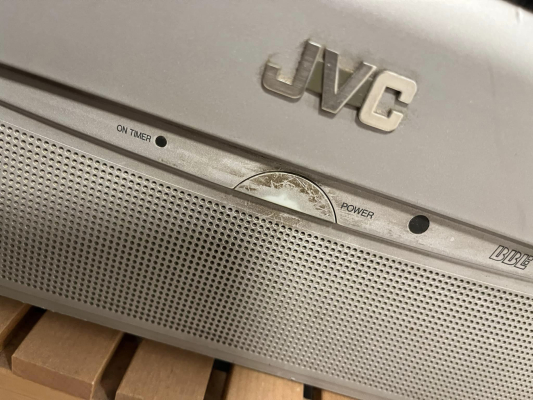

JVC AV-30W475
SegaSaturn94
September 2, 2024, 11:45 am
August 4, 2025, 4:57 am
September 2, 2024, 11:45 am
August 4, 2025, 4:57 am
Summary

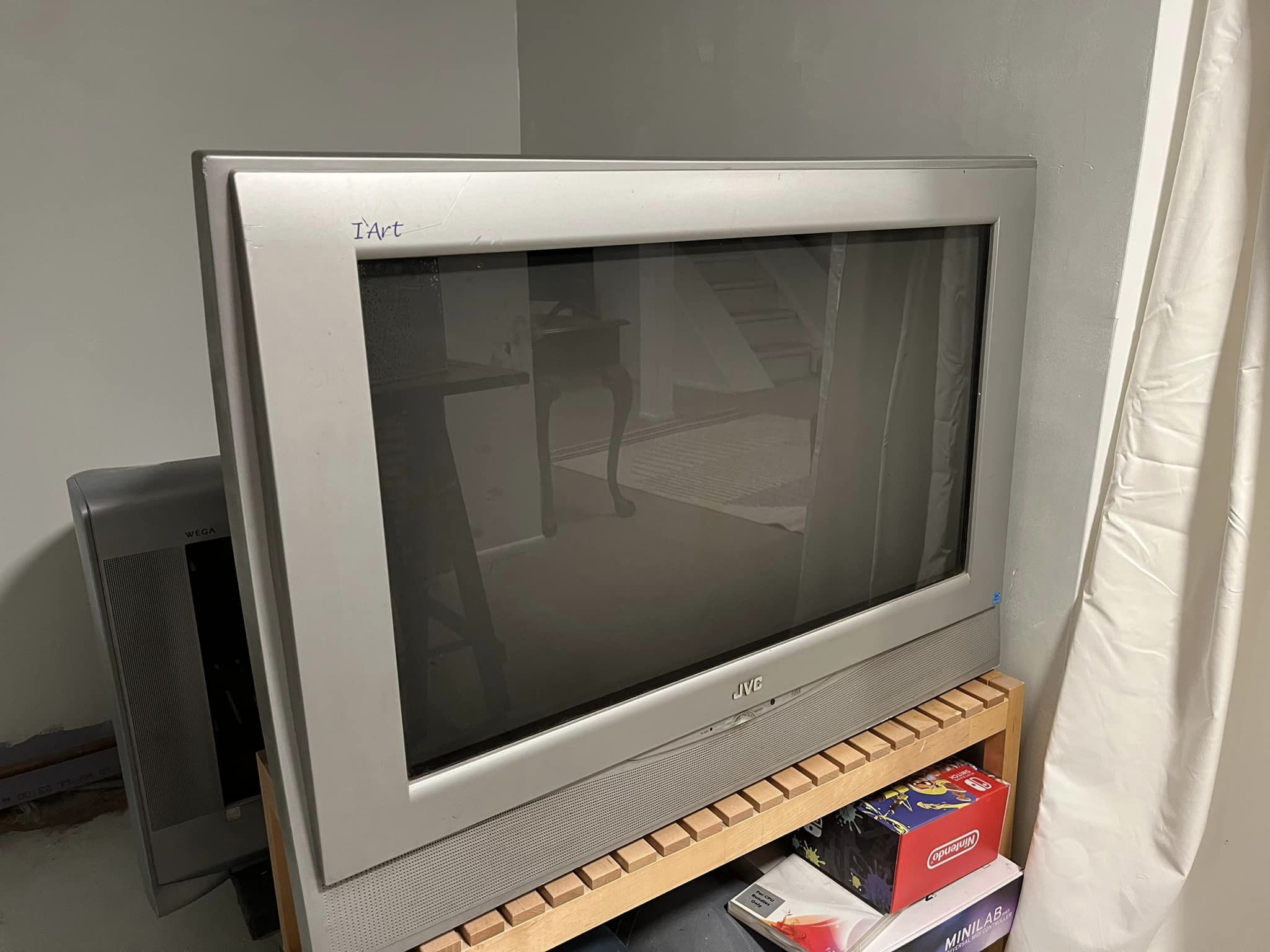

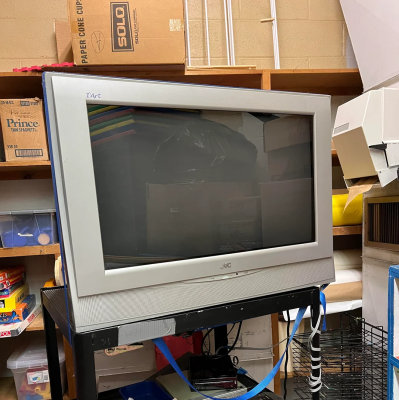

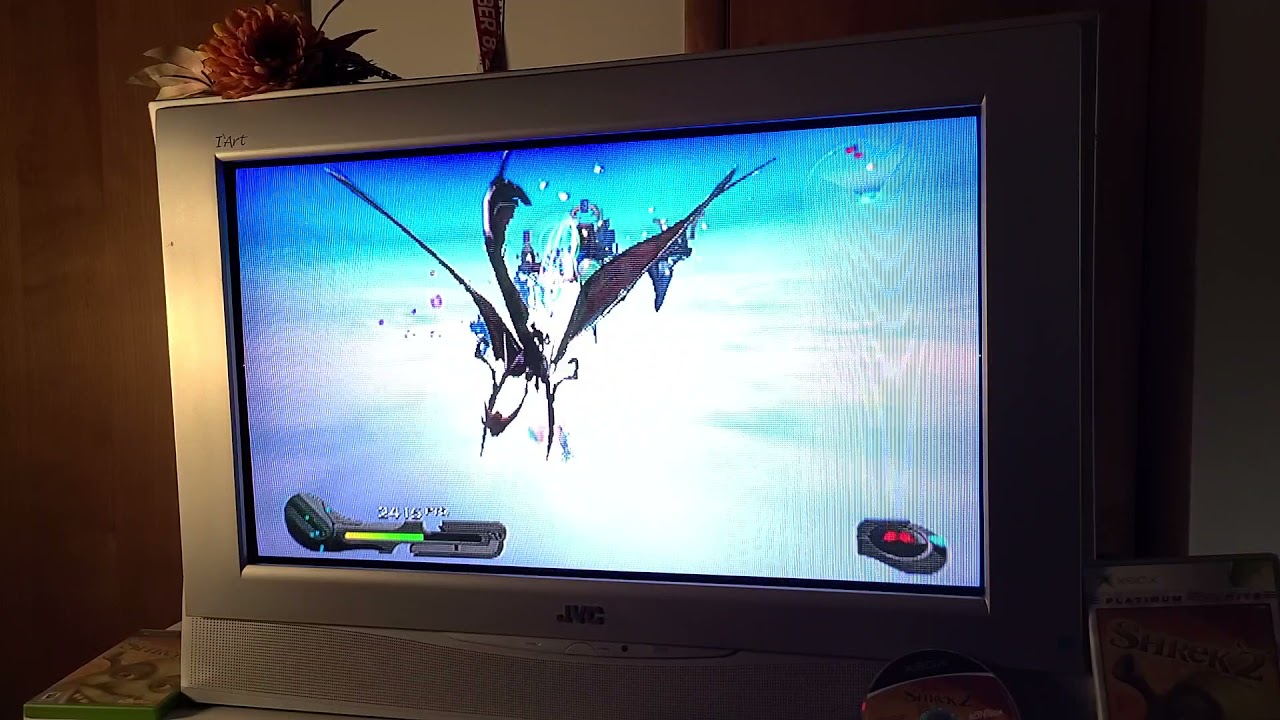

30" widescreen standard-definition CRT by JVC. Has a full set of inputs: RF, composite, s-video and component. A rare combination to see in North America. Manufactured in Mexico in 2004.
Manuals
Notes

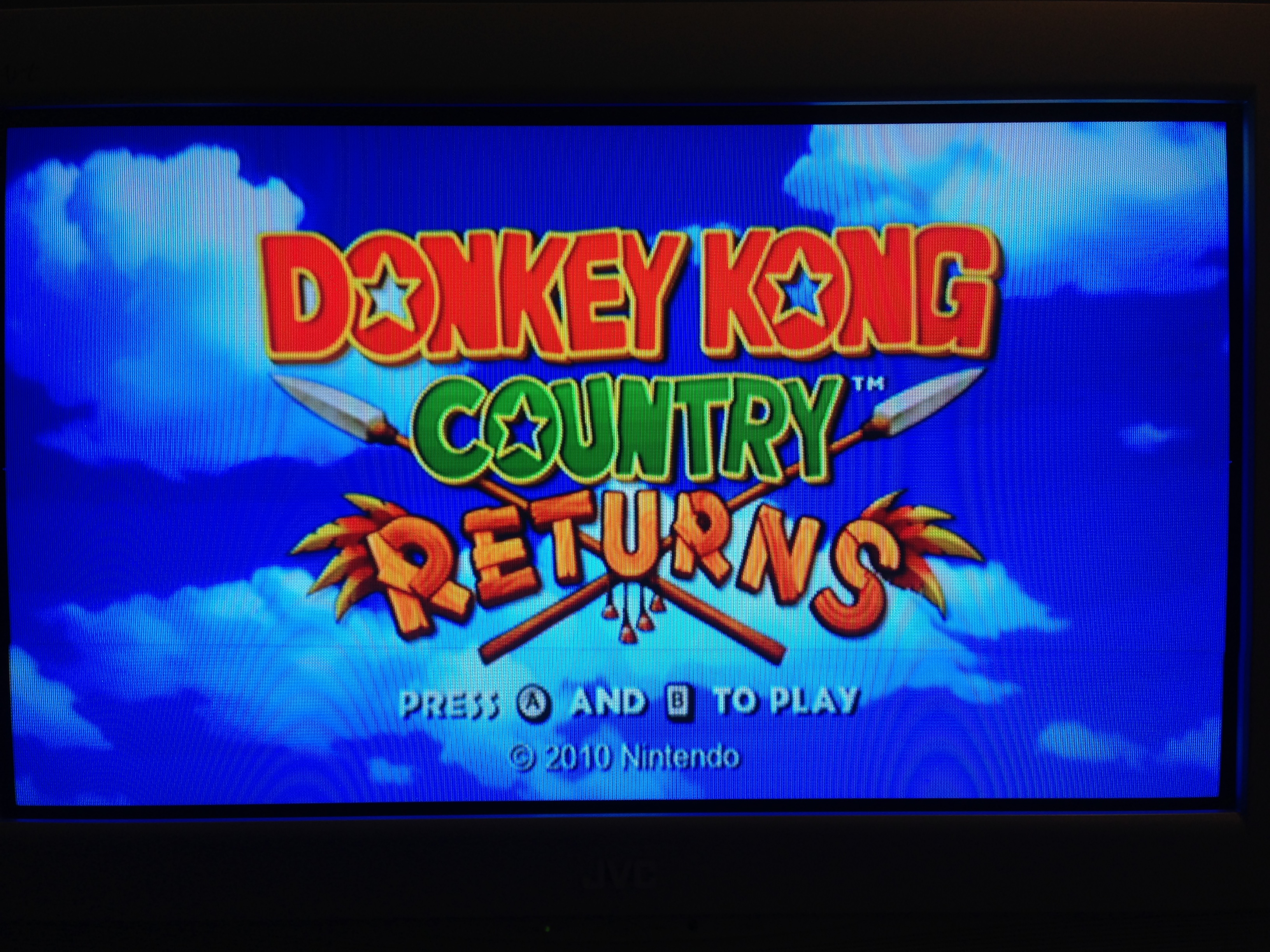

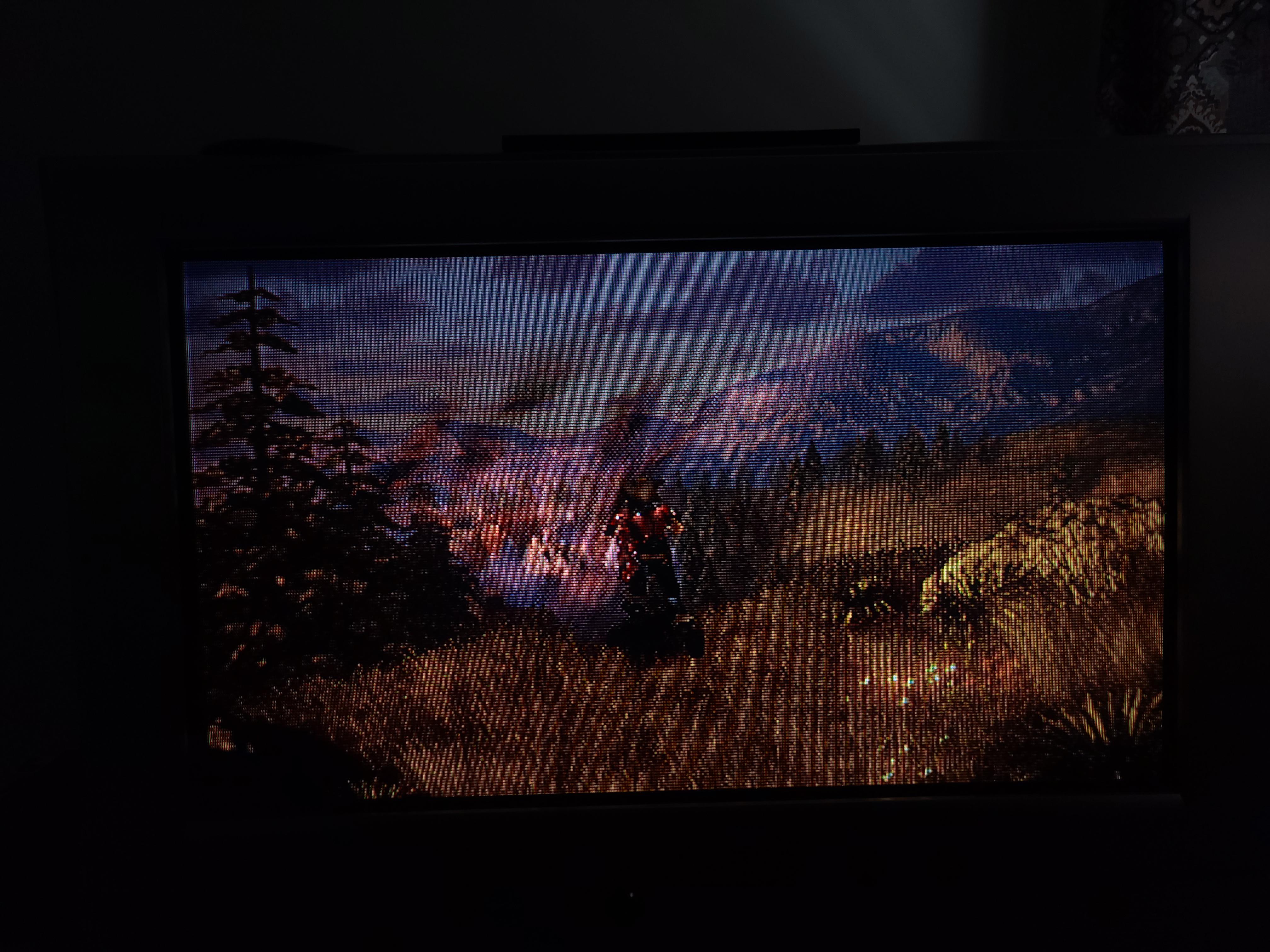

Picture quality is great over component. The Toshiba jungle chip this set uses can be found in many other I'Arts and D-Series sets. Sadly, RGB modification is not possible.

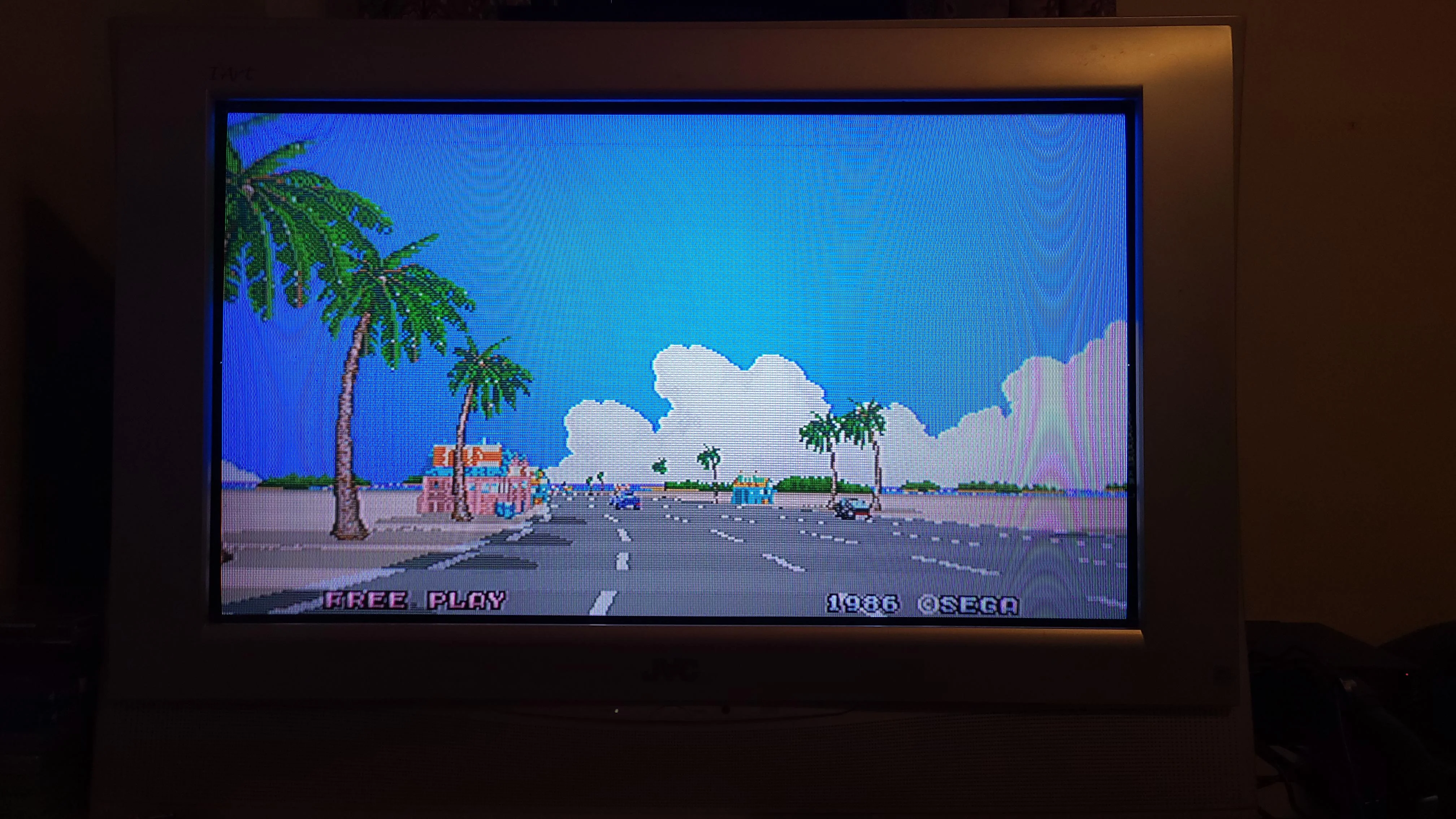

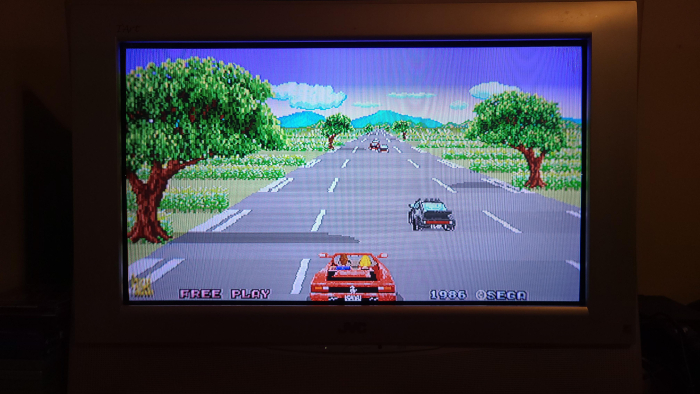

There are multiple screen options, like 4:3 and three widescreen modes.
Set uses a Samsung tube. There is also allegedly an M.T. tube this set uses, according the the service manual. But the part number is incorrect I think. I've included it anyway. (It may actually be W76LTR450X or W76MAG185X, but I am uncertain.)

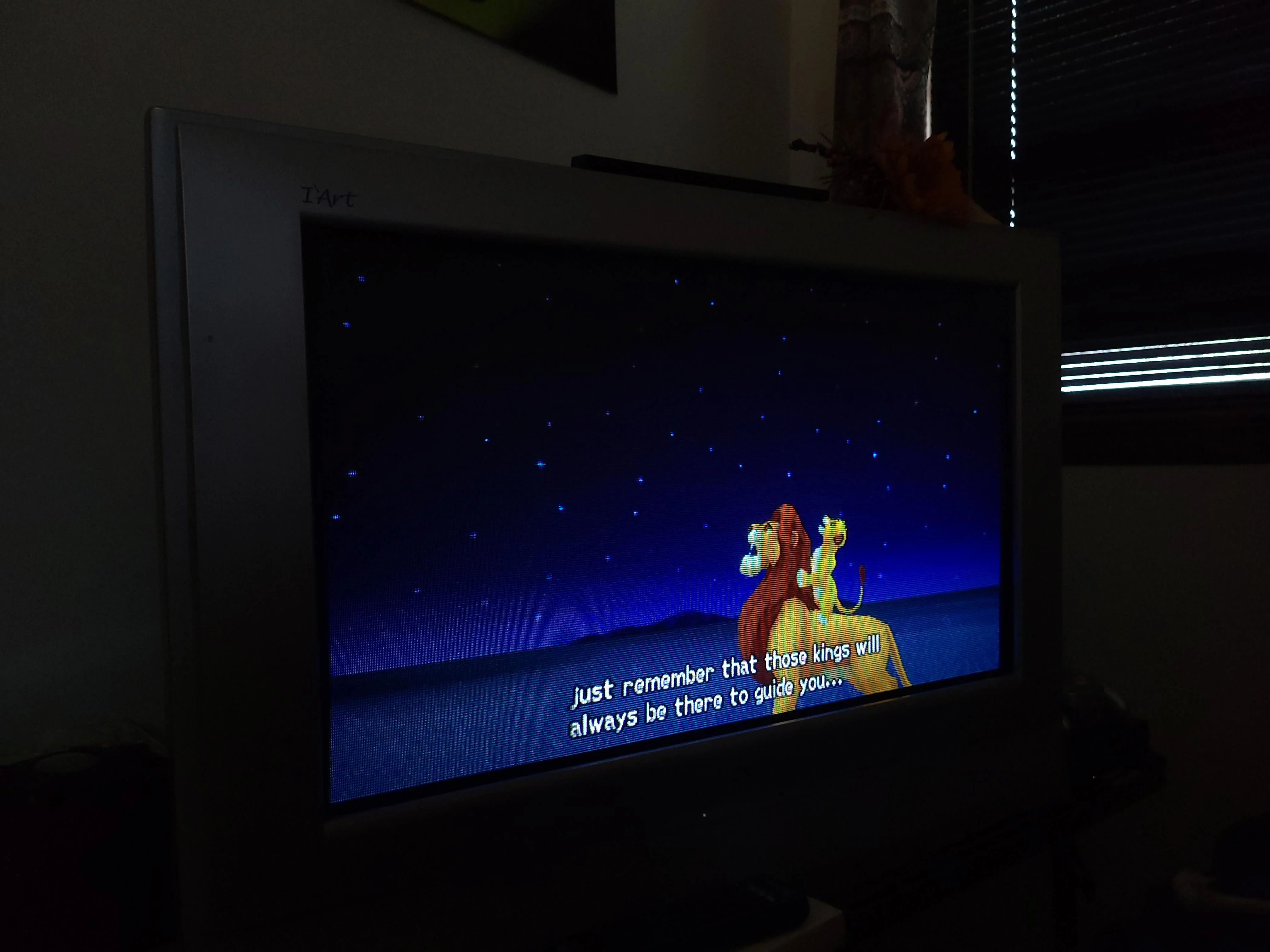

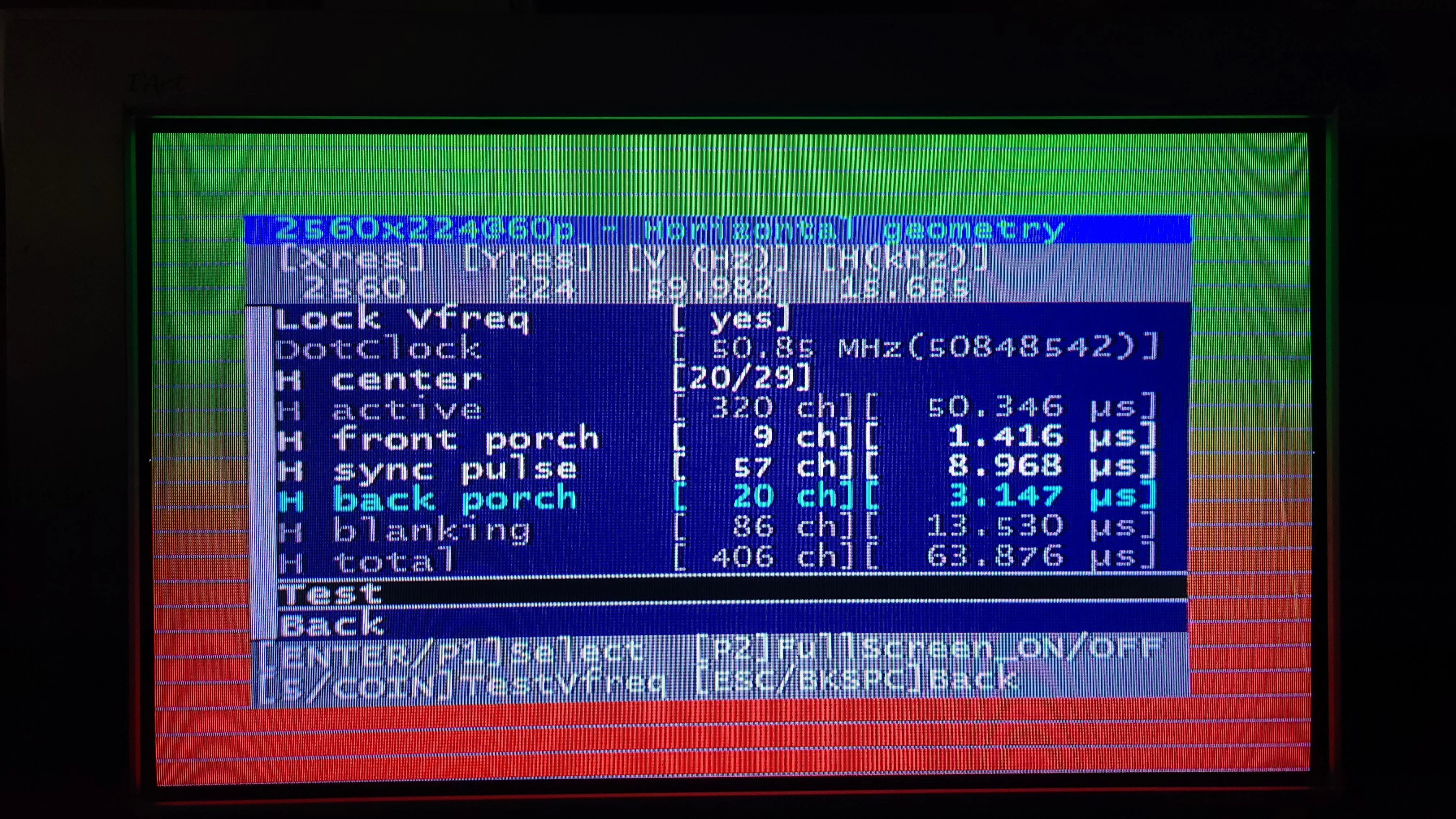

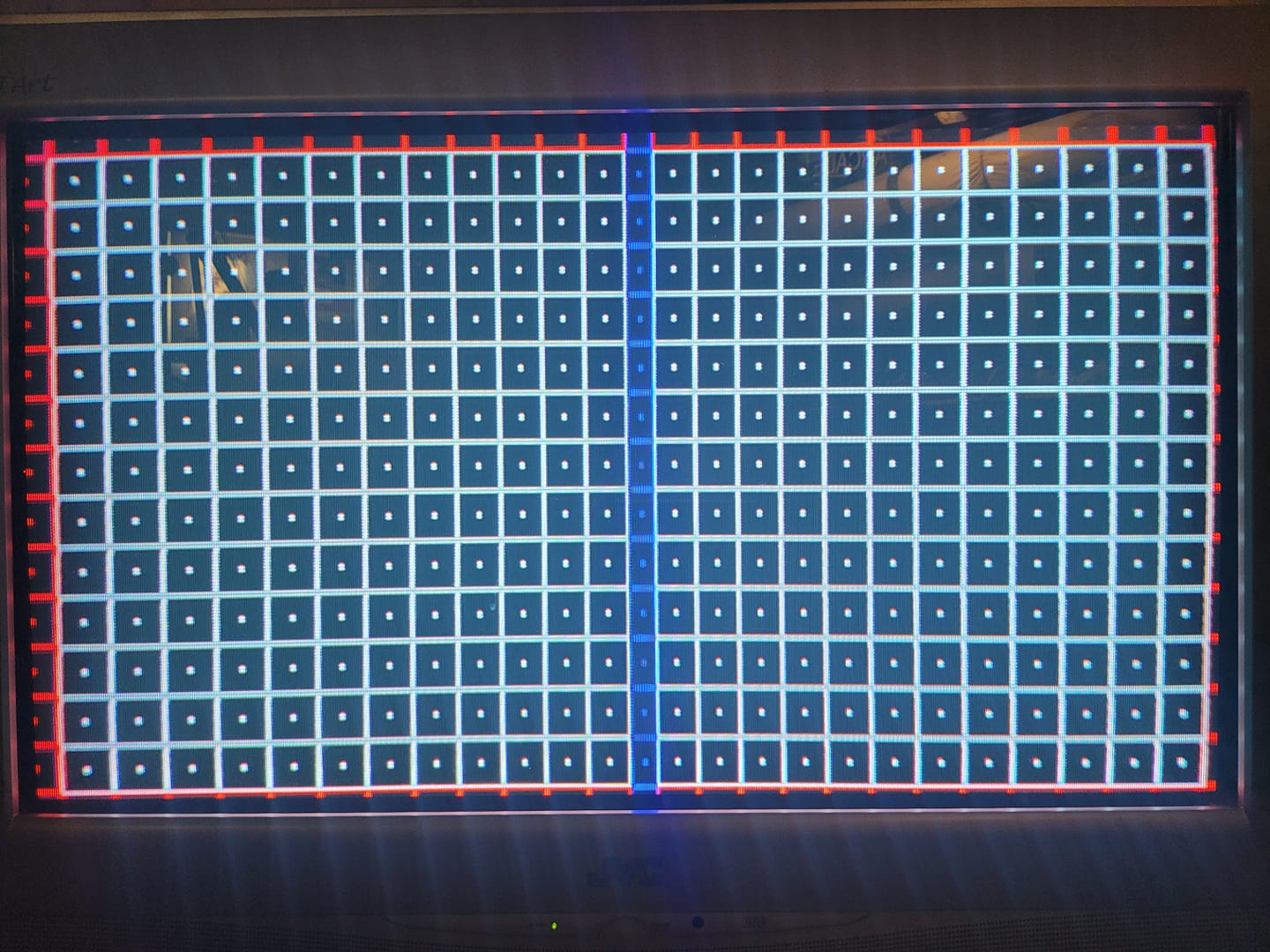

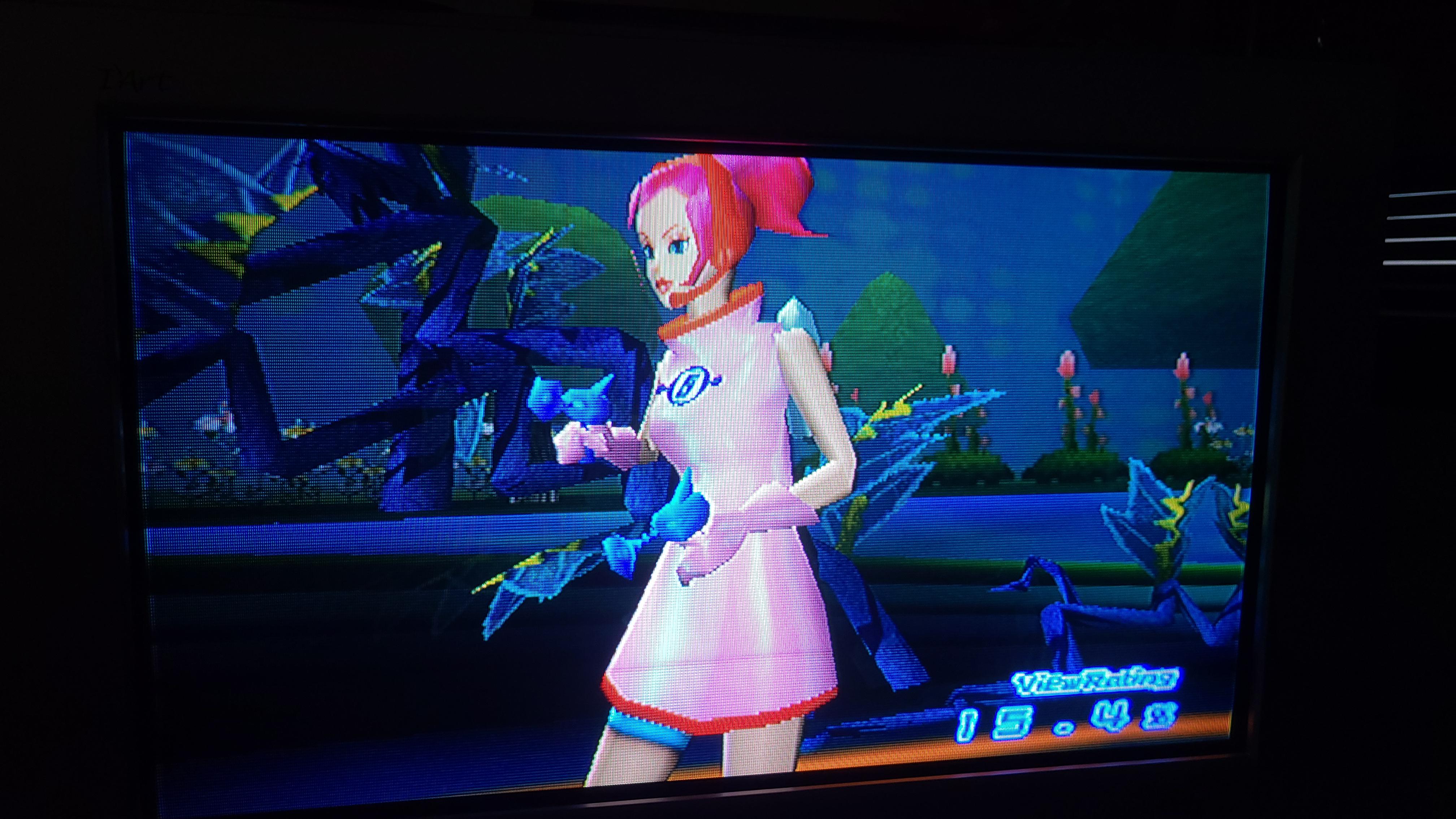

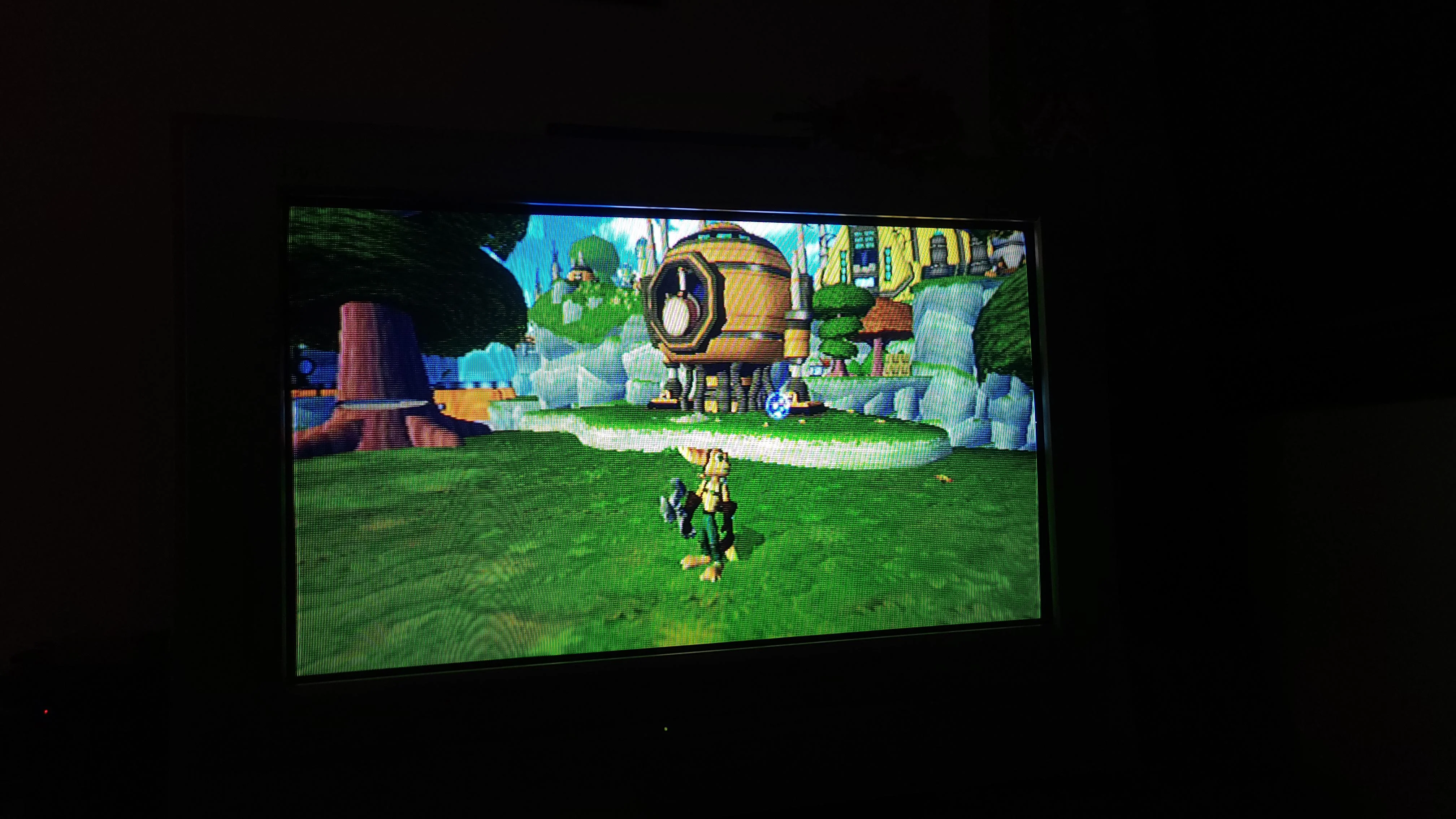

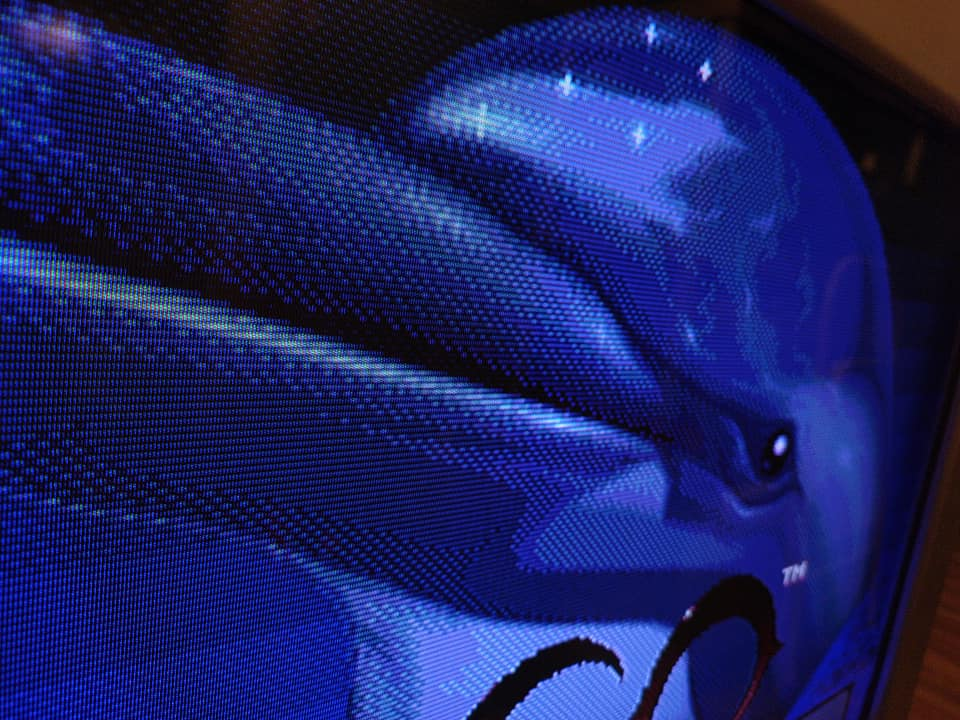

Gallery















Specifications | |
---|---|
Brand: | JVC |
Manufacturer: | JVC |
Model: | AV-30W475 |
Series: | I'Art |
Viewable Size: | 30" |
Inputs: | Composite, S-Video, RF, Component YPbPr |
Native Resolutions: | 240p, 480i |
Horizontal Scan Range: | 15 kHz |
Vertical Scan Range: | 60 Hz |
Formats: | NTSC |
Aspect: | 4:3 |
Adjustments: | OSD Customer Controls, OSD Service Menu |
Vertical Output IC: | Sanyo, LA78041 |
Jungle: | Toshiba, TM8812C, TM8812CSDNG5JB4 |
Comb Filtering: | 3-Line Digital |
Comb Filter IC: | Toshiba, TC90A49AP |
Flyback: | QQH0121-001 |
Focus Type: | Single |
Tube: | Samsung , W76QEN693X002 , W76QEN693X , Matushita-Toshiba , CHXJIM00032 |
Heater Voltage: | 6.3v |
Mask: |
Slot
![]() |
Tint: | Dark |
Removable Glare Film: | No |
Yoke: | (ITC) |
Speakers: | Stereo, 9W x 2 |
Remote: | RM-C1258G |
Chassis: | GW |
Weight: | 115.1 lbs (52.2 kg) |
Dimensions (W/H/D): |
838 x 596 x 554 mm
(32.9 x 23.4 x 21.8") |
Application: | Consumer |
Cabinet Material: | Plastic |
Launched: | 2004 |
MSRP: | 599 USD |
Country of Manufacture: | Mexico |
Market: | North America |
Power Standard: | 120v |
Mounting: | Table Surface (Standard) |
Degaussing: | Automatic on Power-on |
