Summary

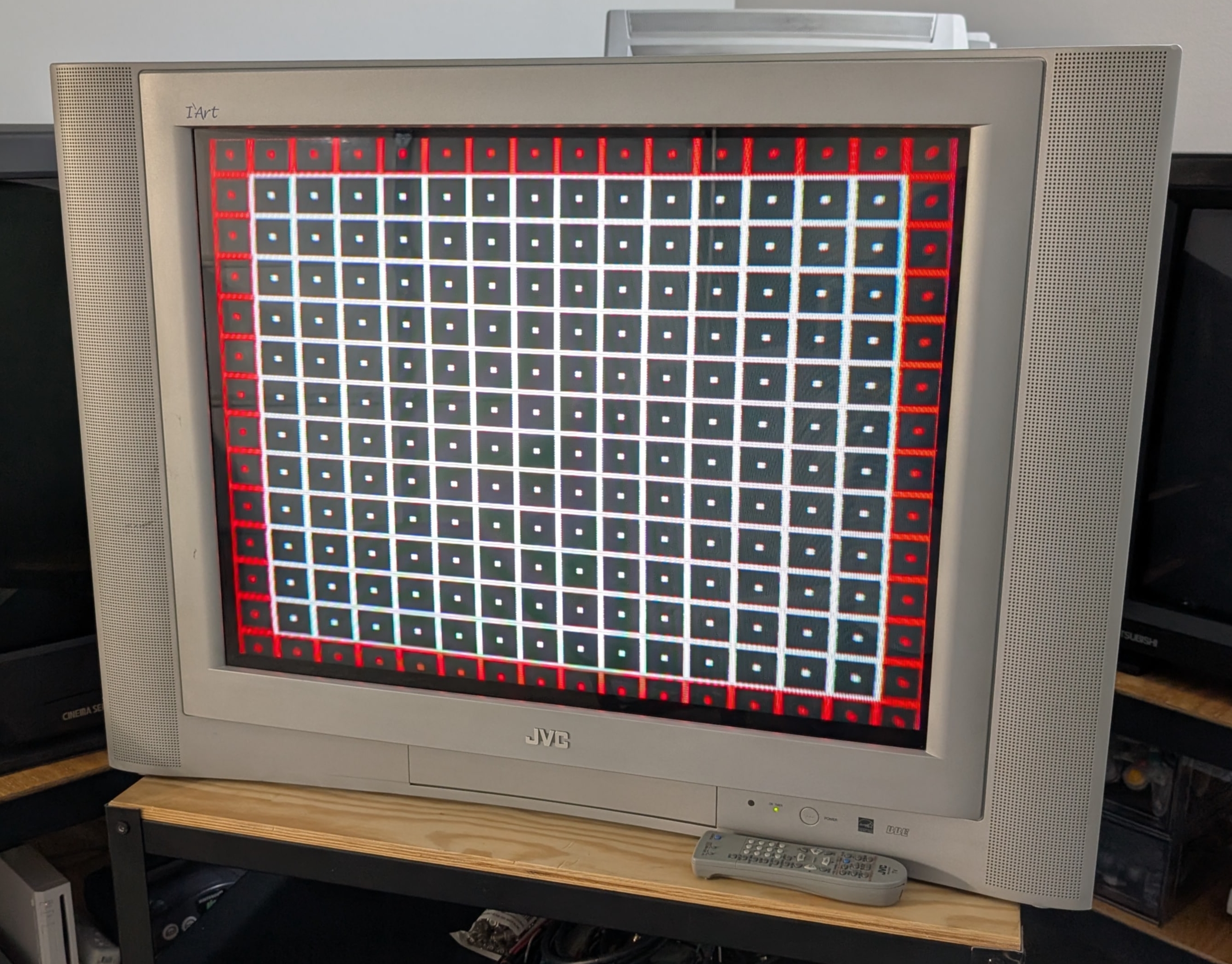

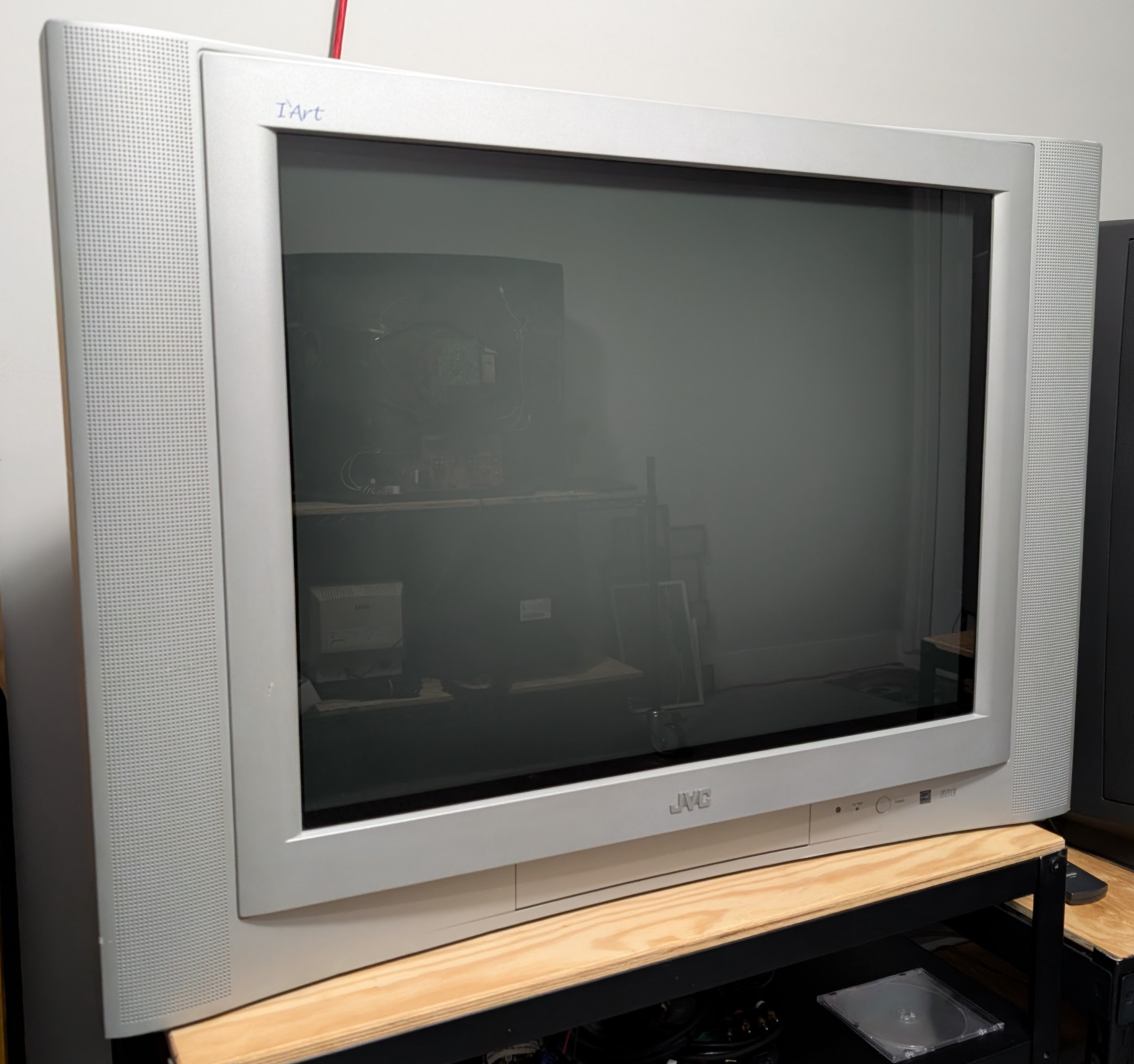

32" flat CRT by JVC. Has a full set of inputs. Made in Mexico in 2004.
Manuals
Notes
These I'Arts have very intense red-push. To get the image looking more balanced, I recommend to set service menu item "NTSC-MAT" to 0, turn down color saturation in the standard menu, and perform a white balance.

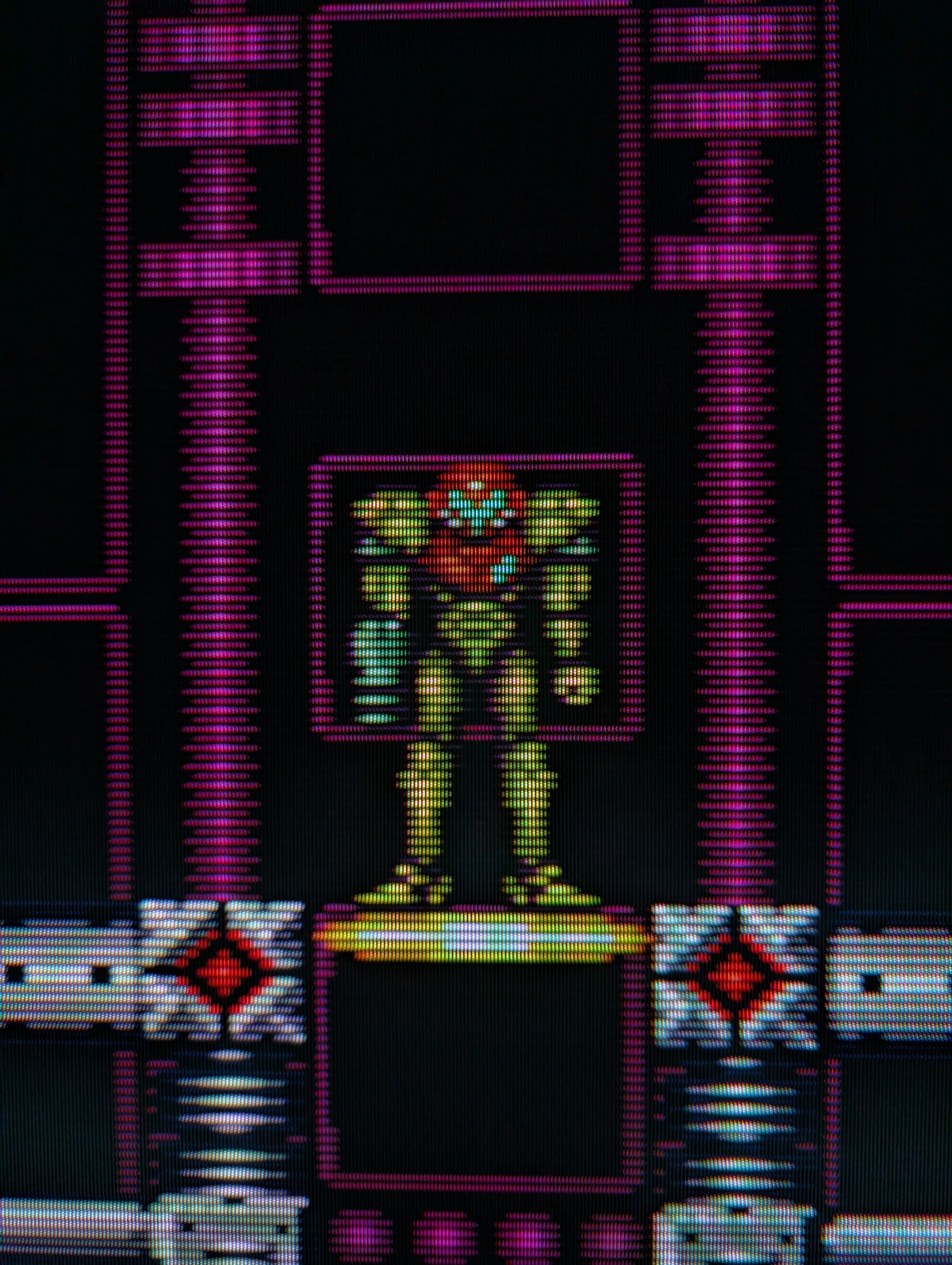

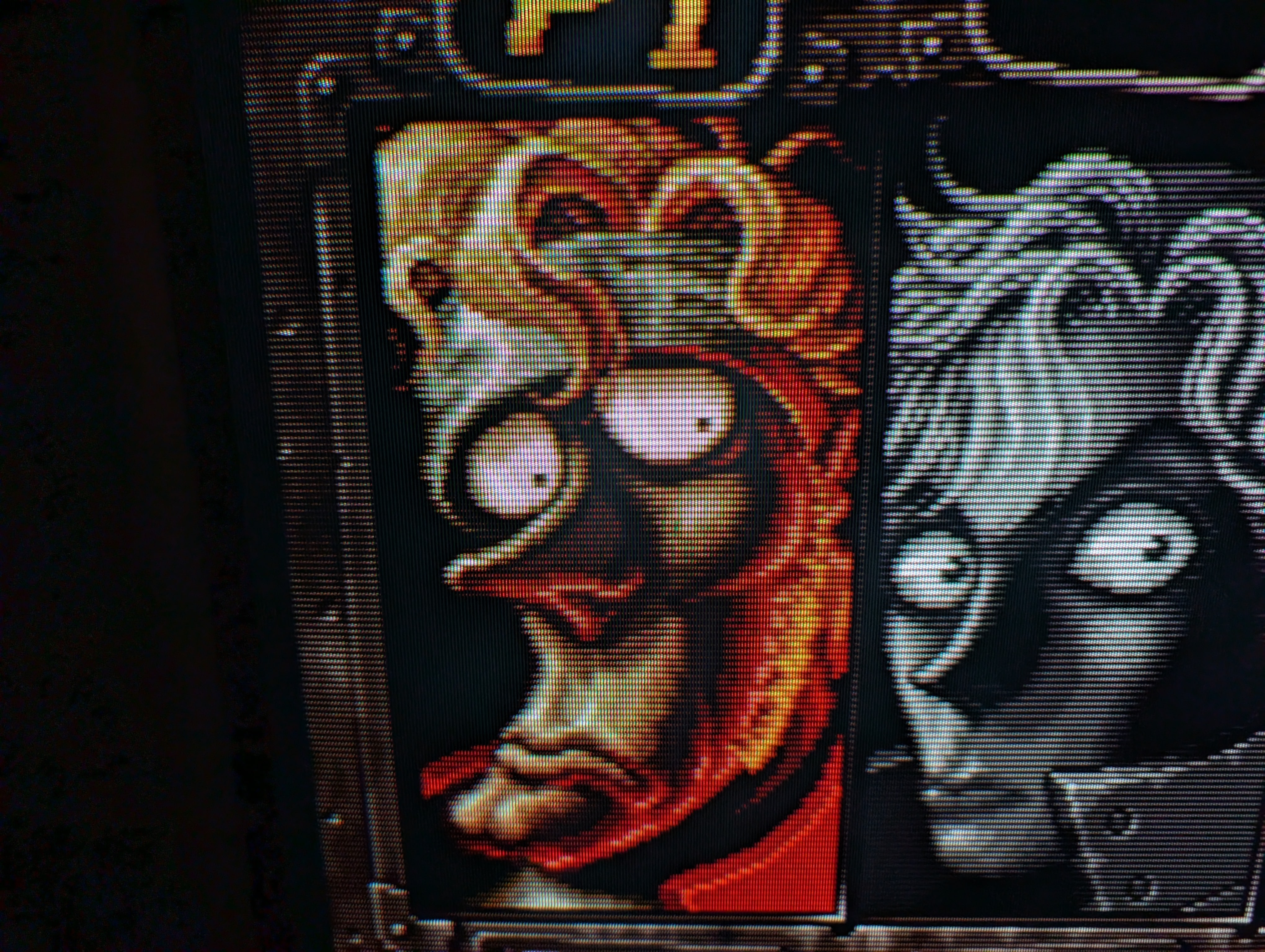

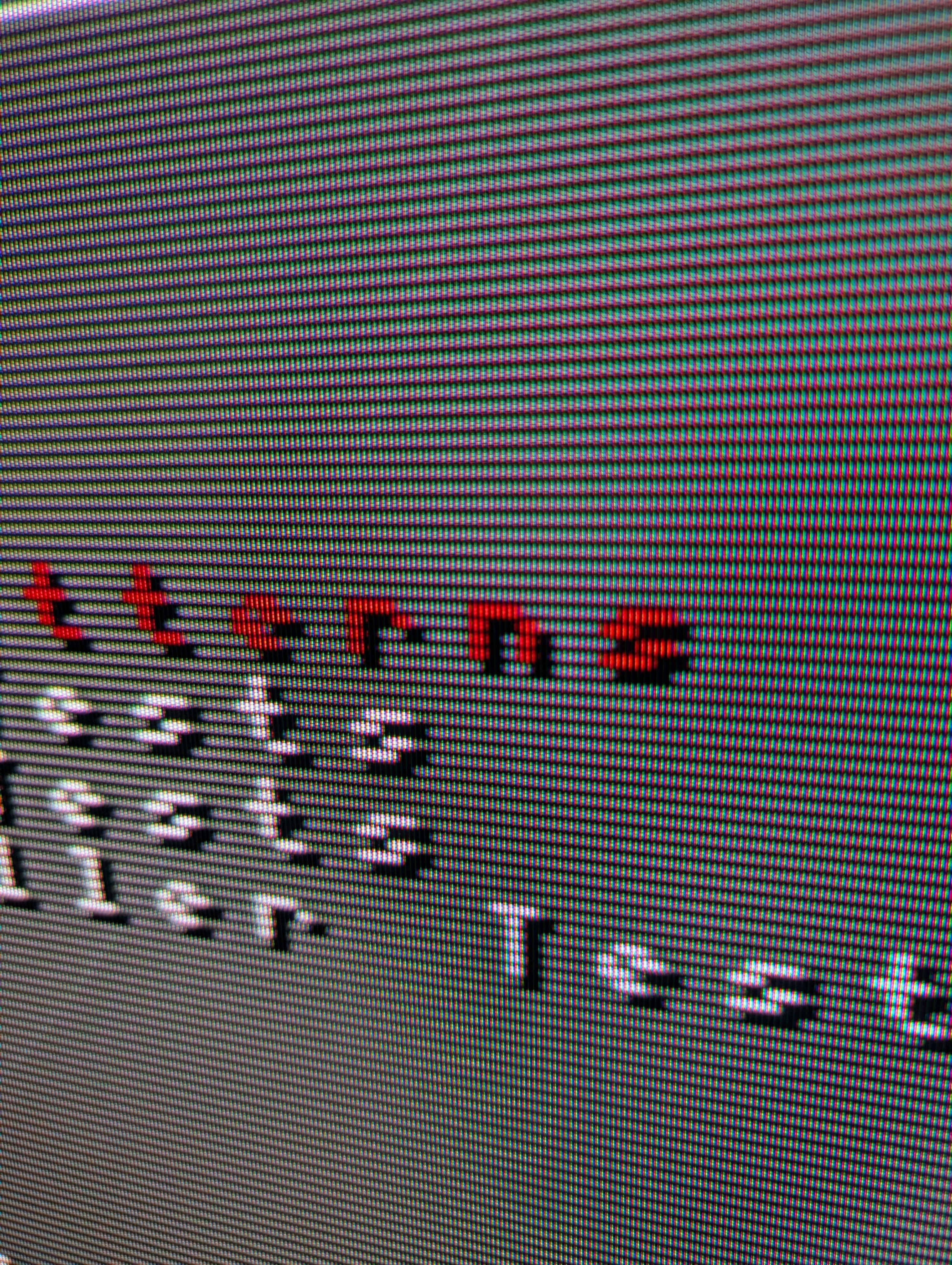

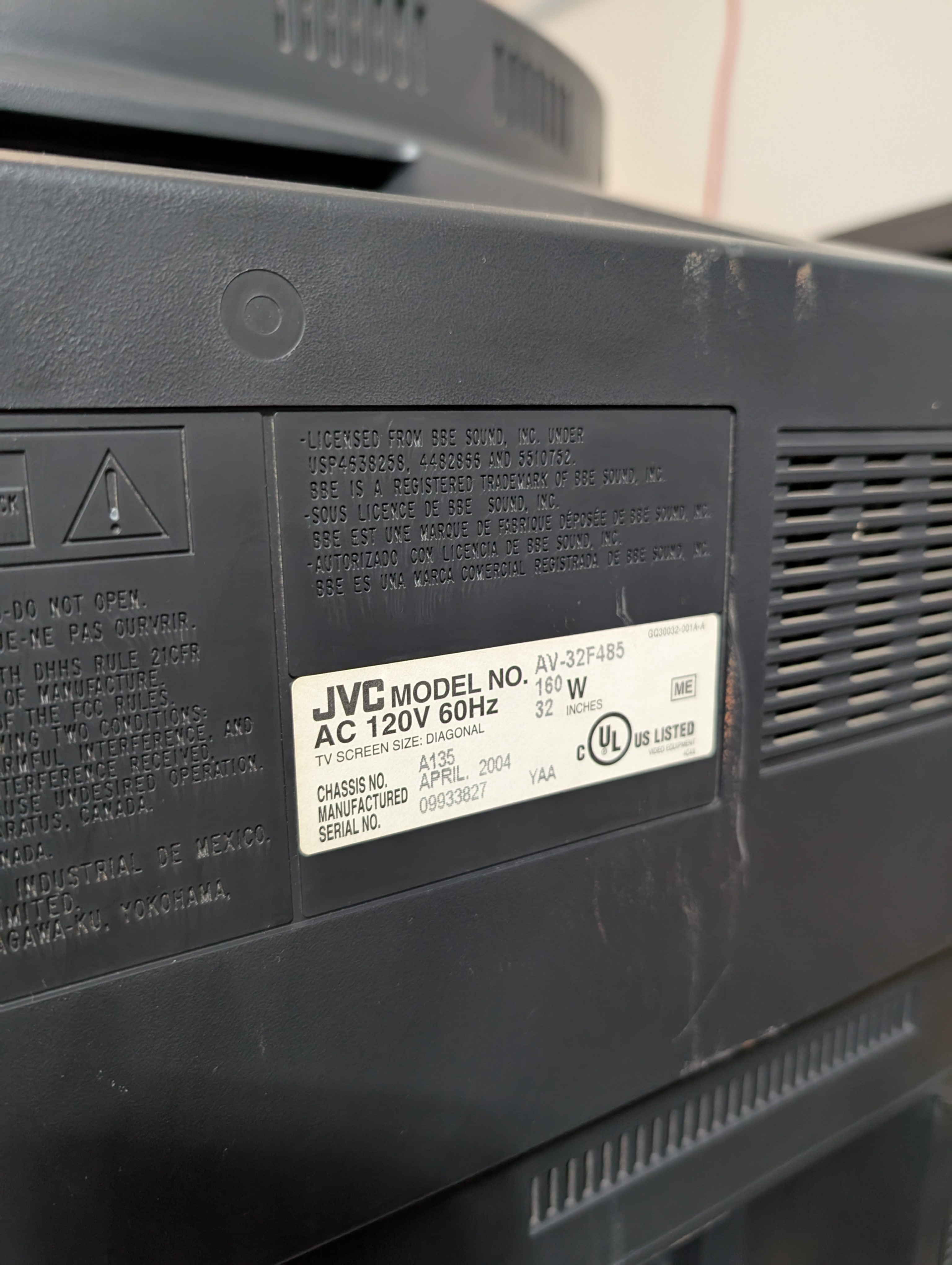

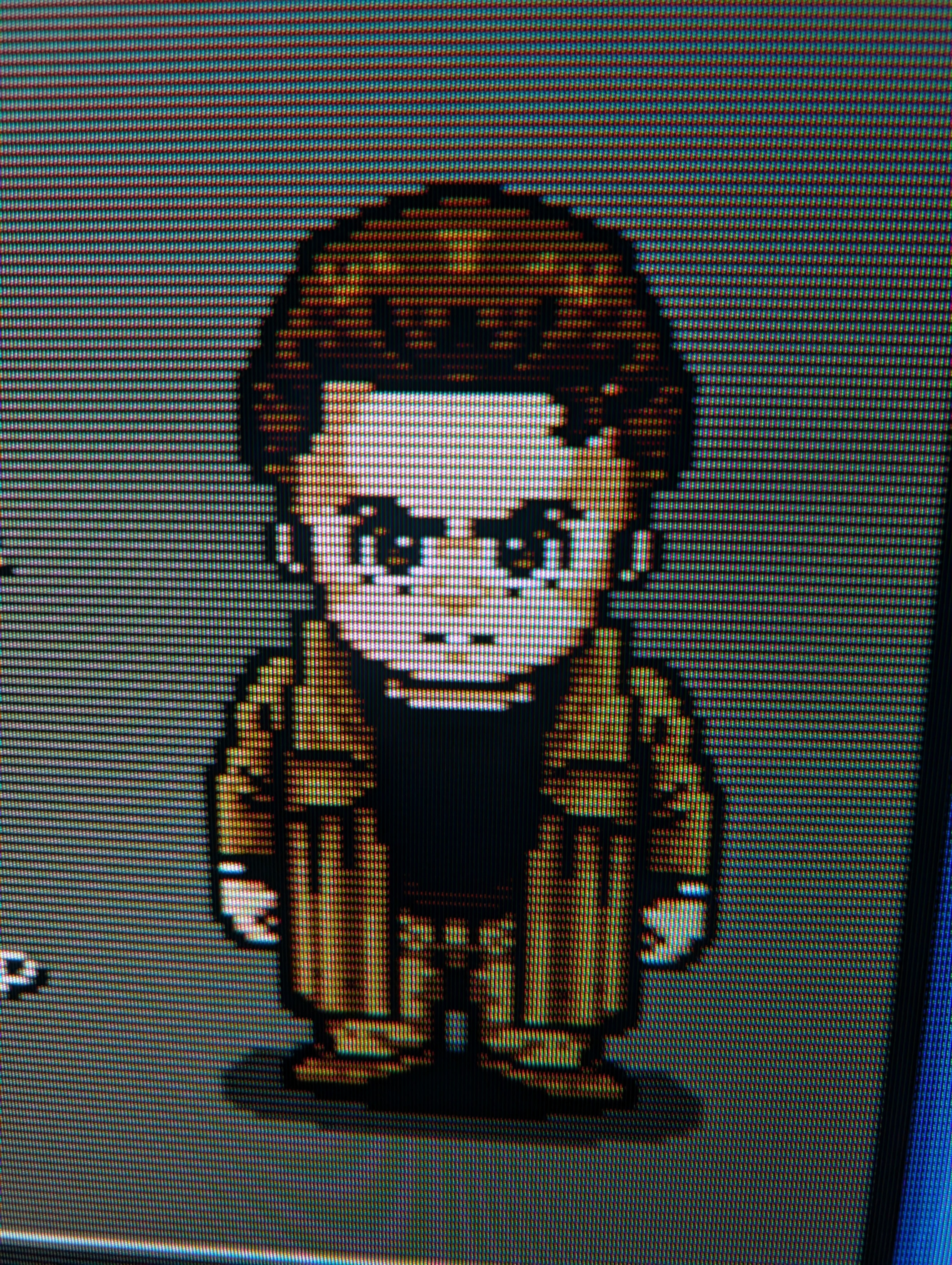

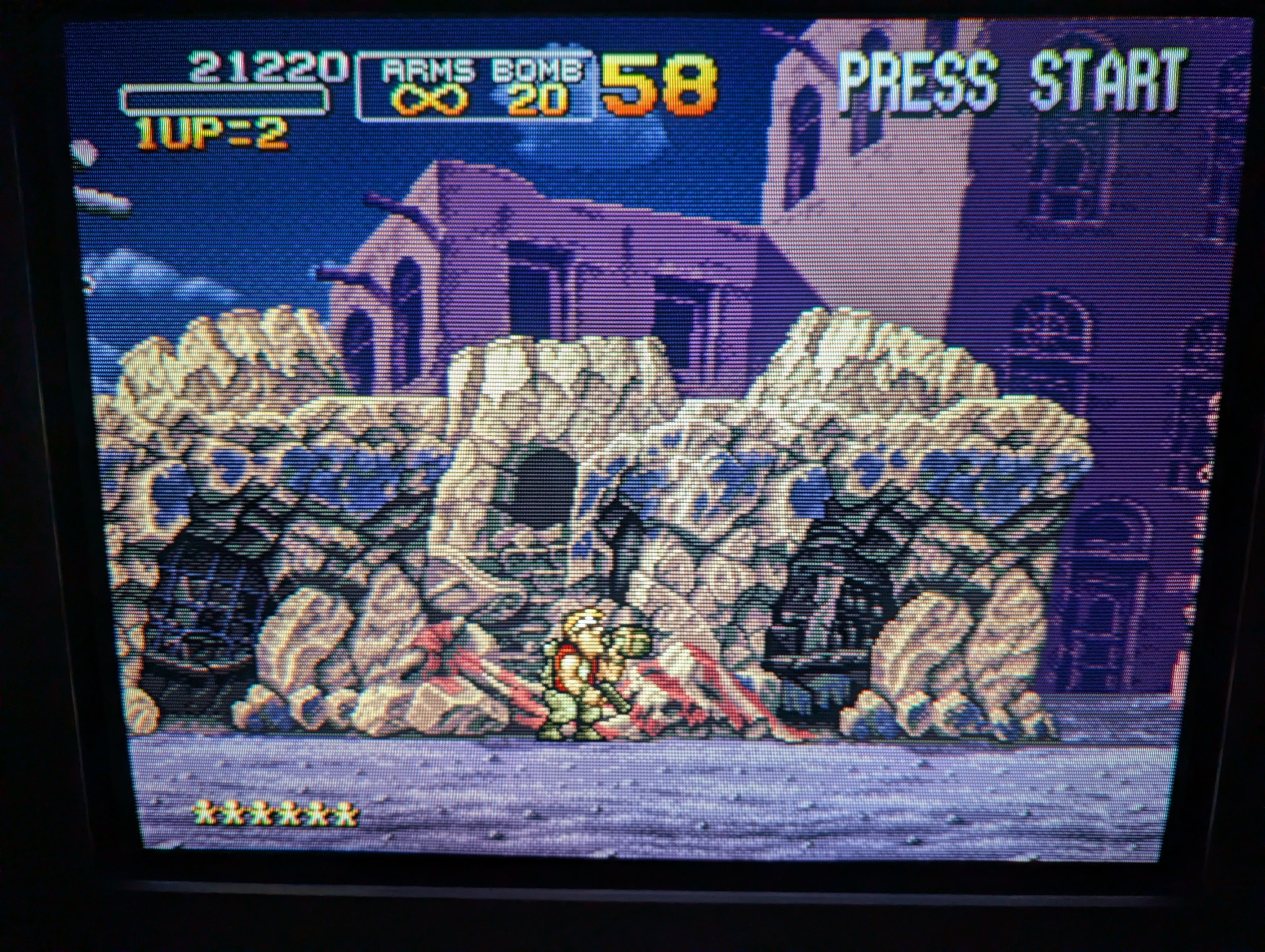

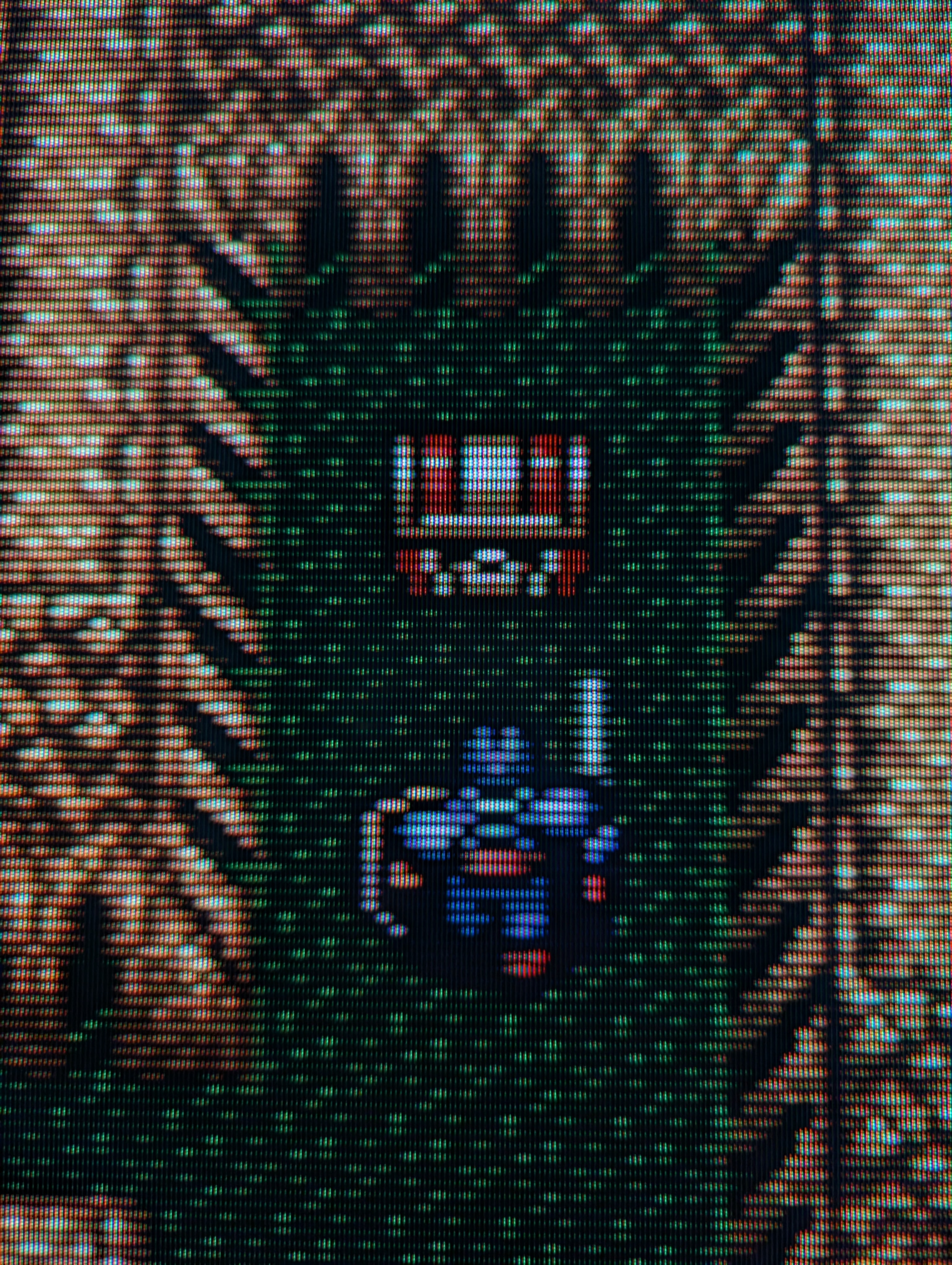

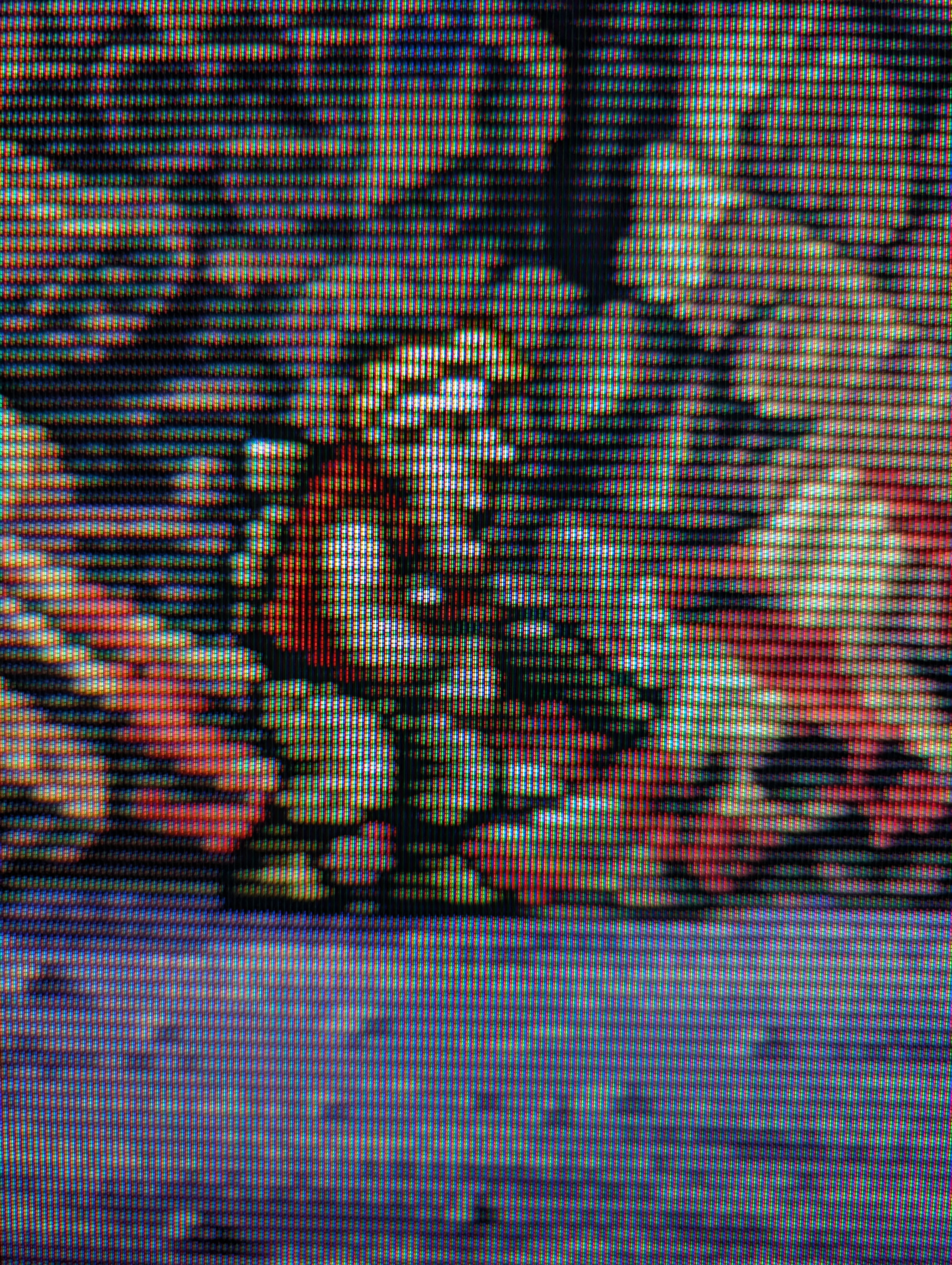

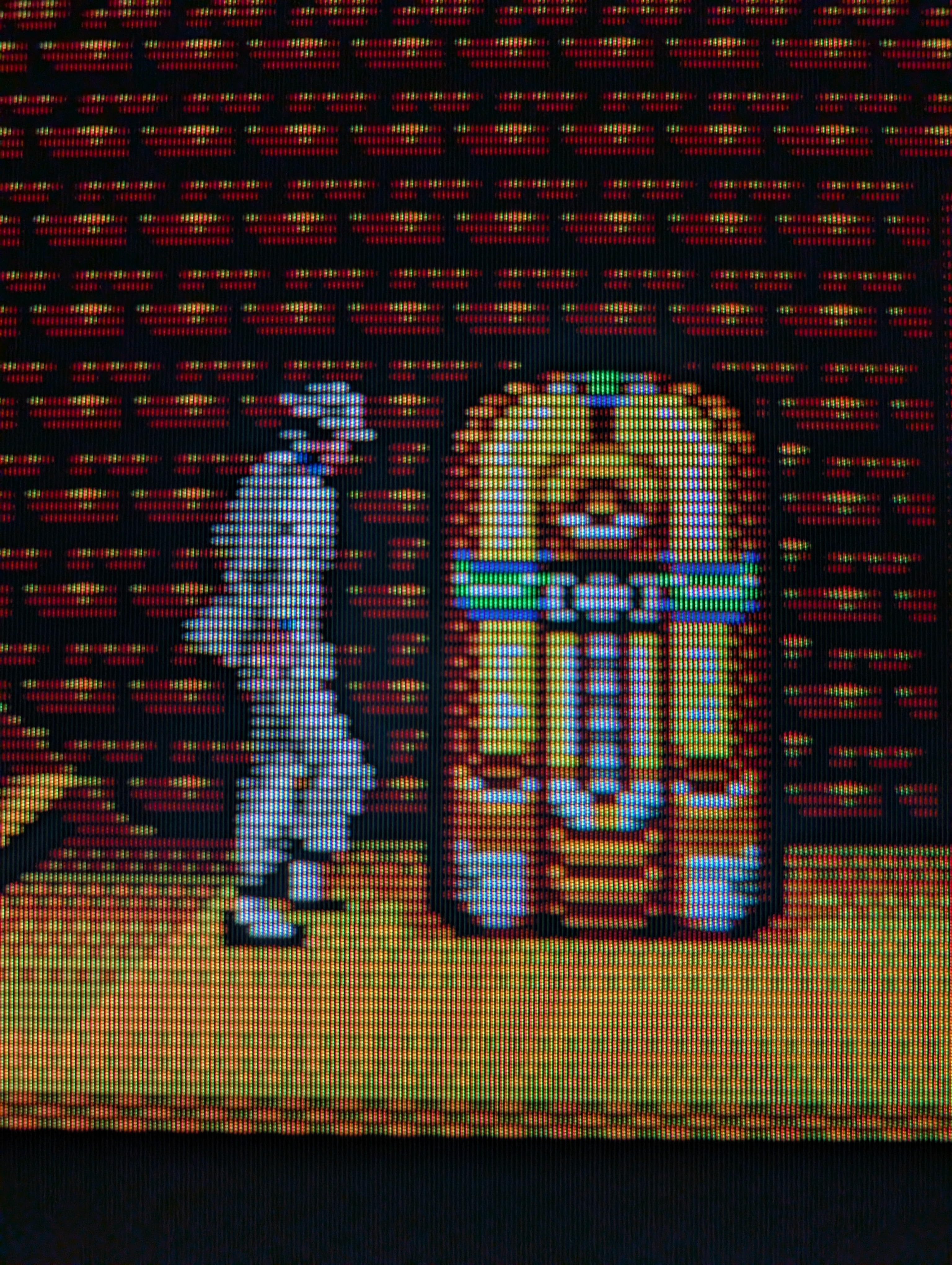

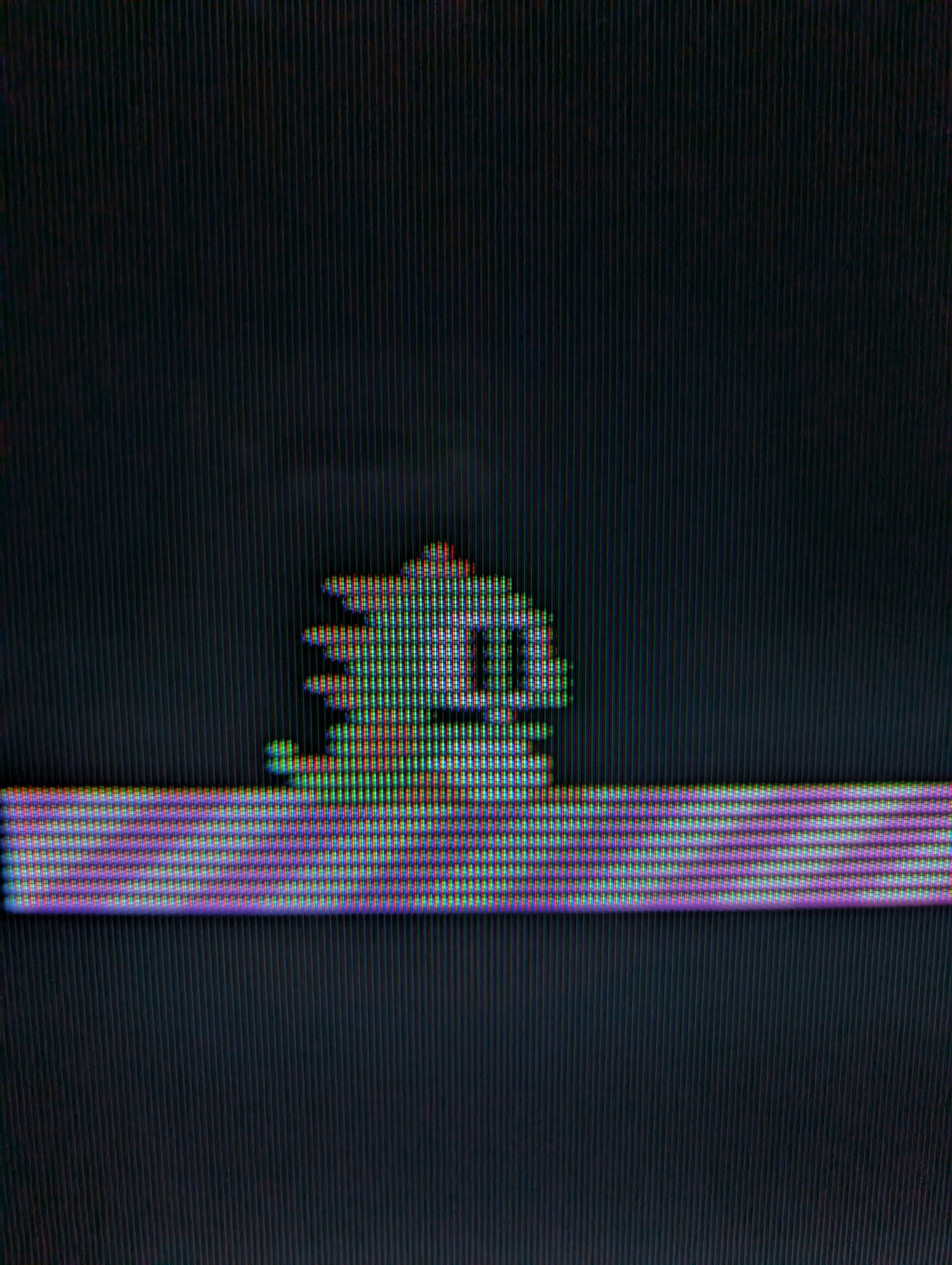

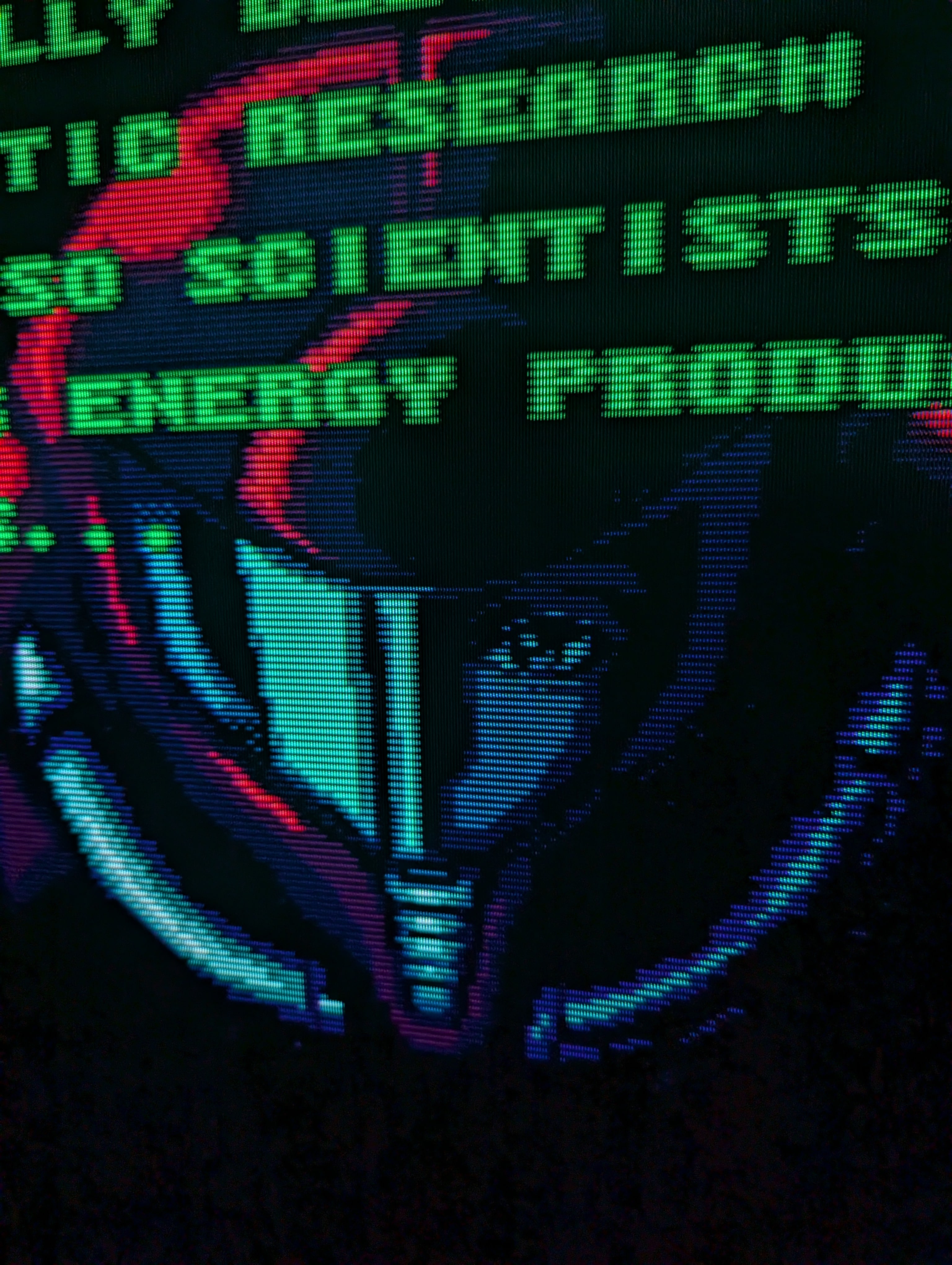

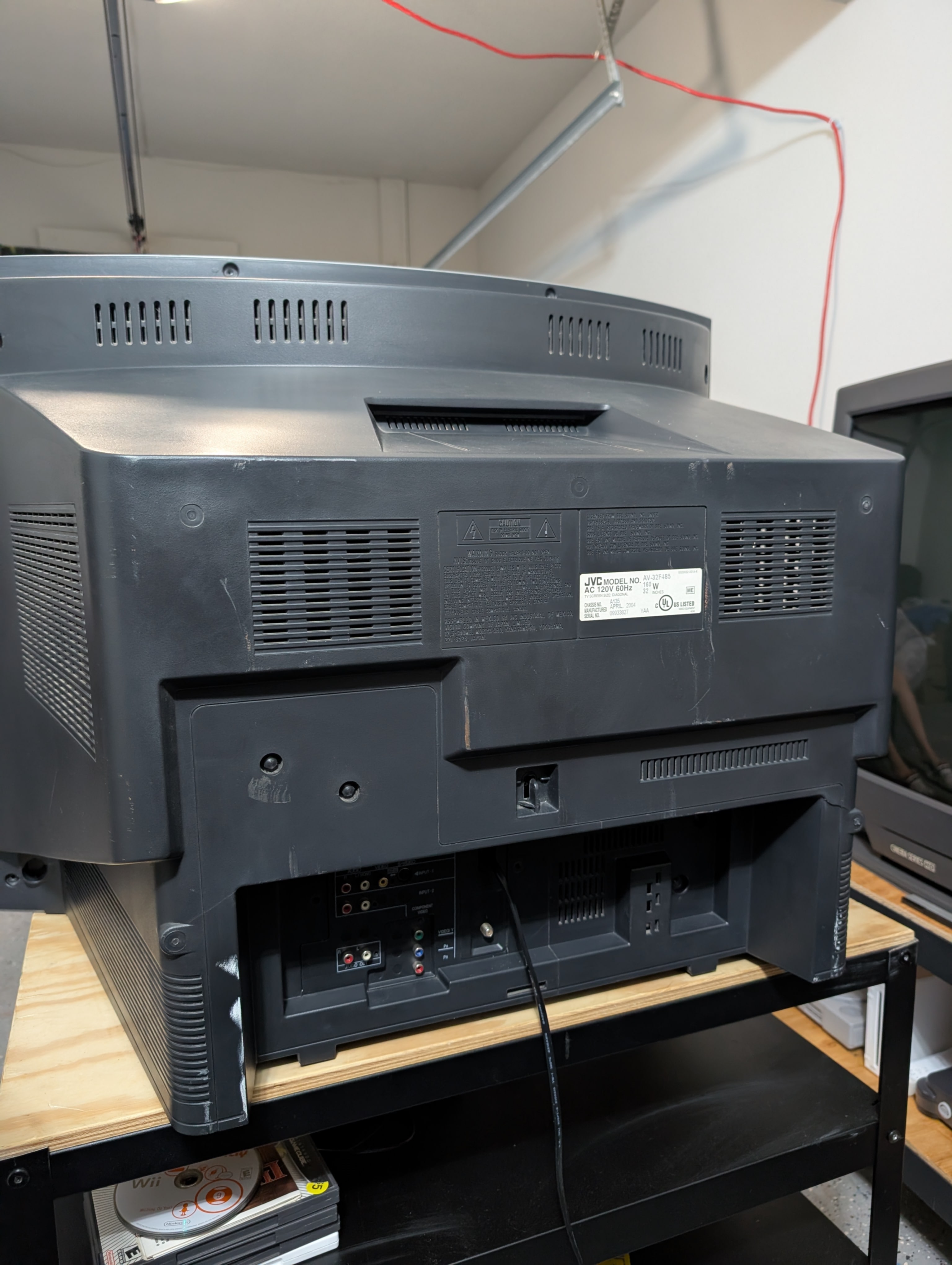

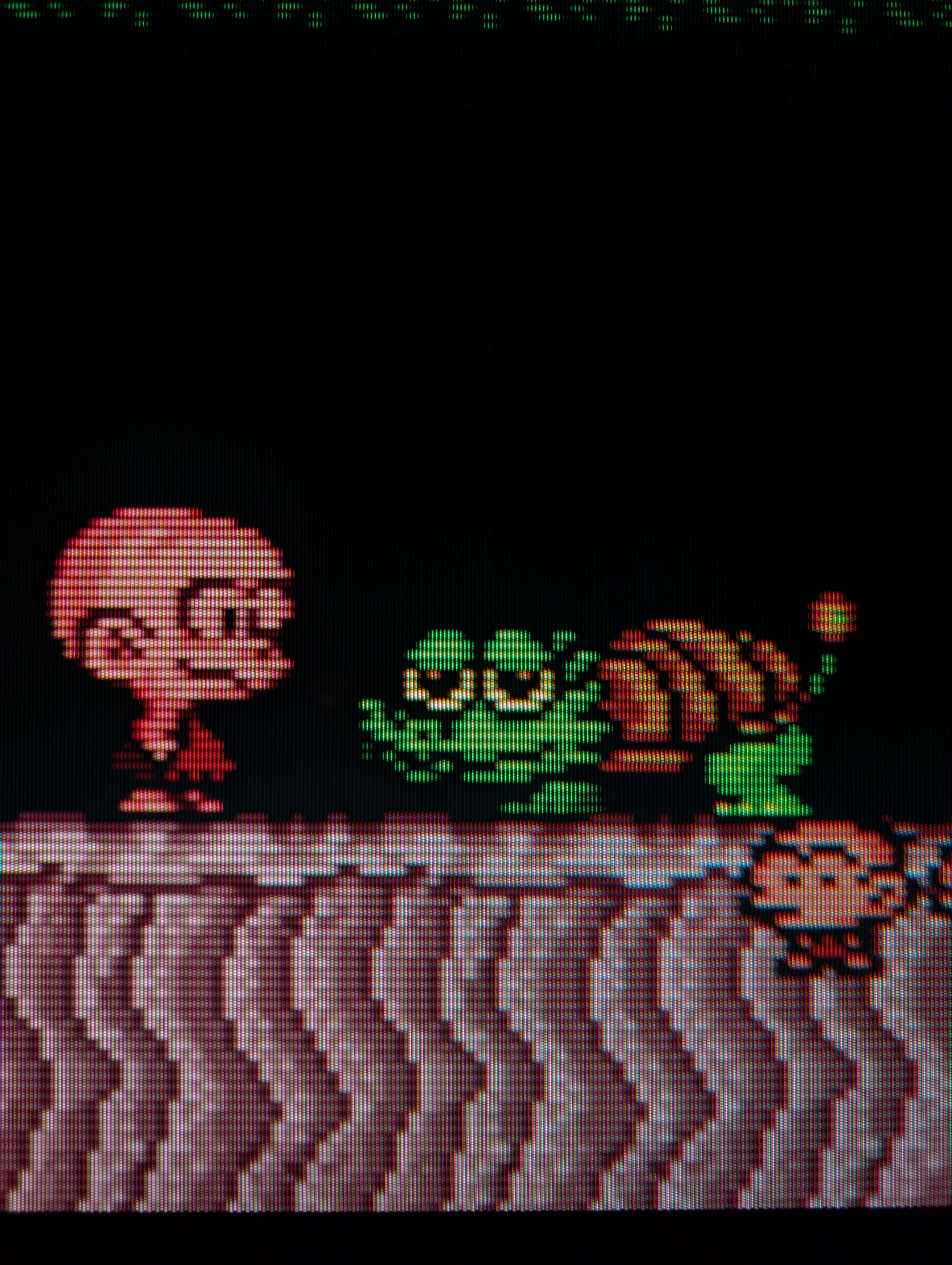

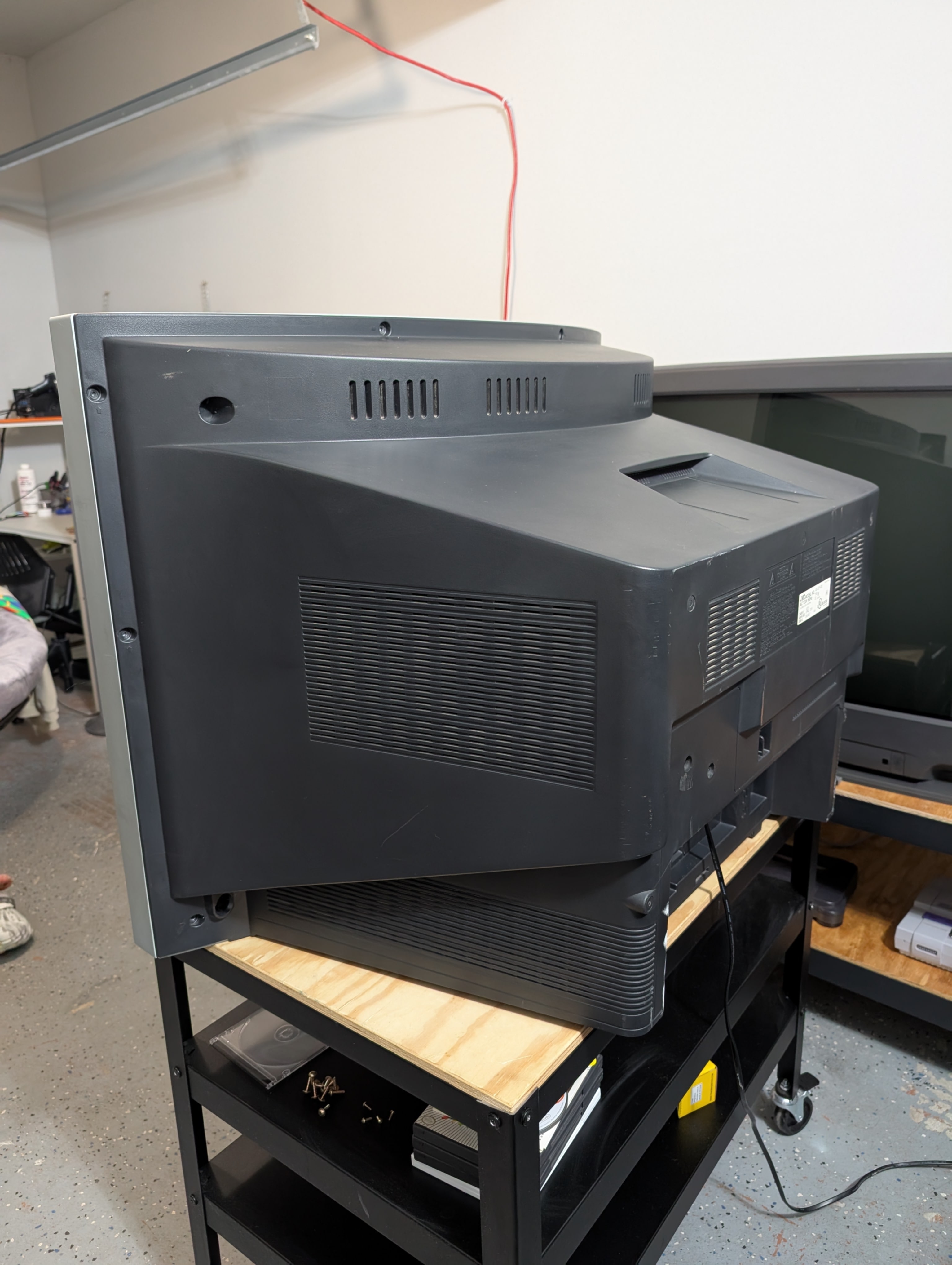

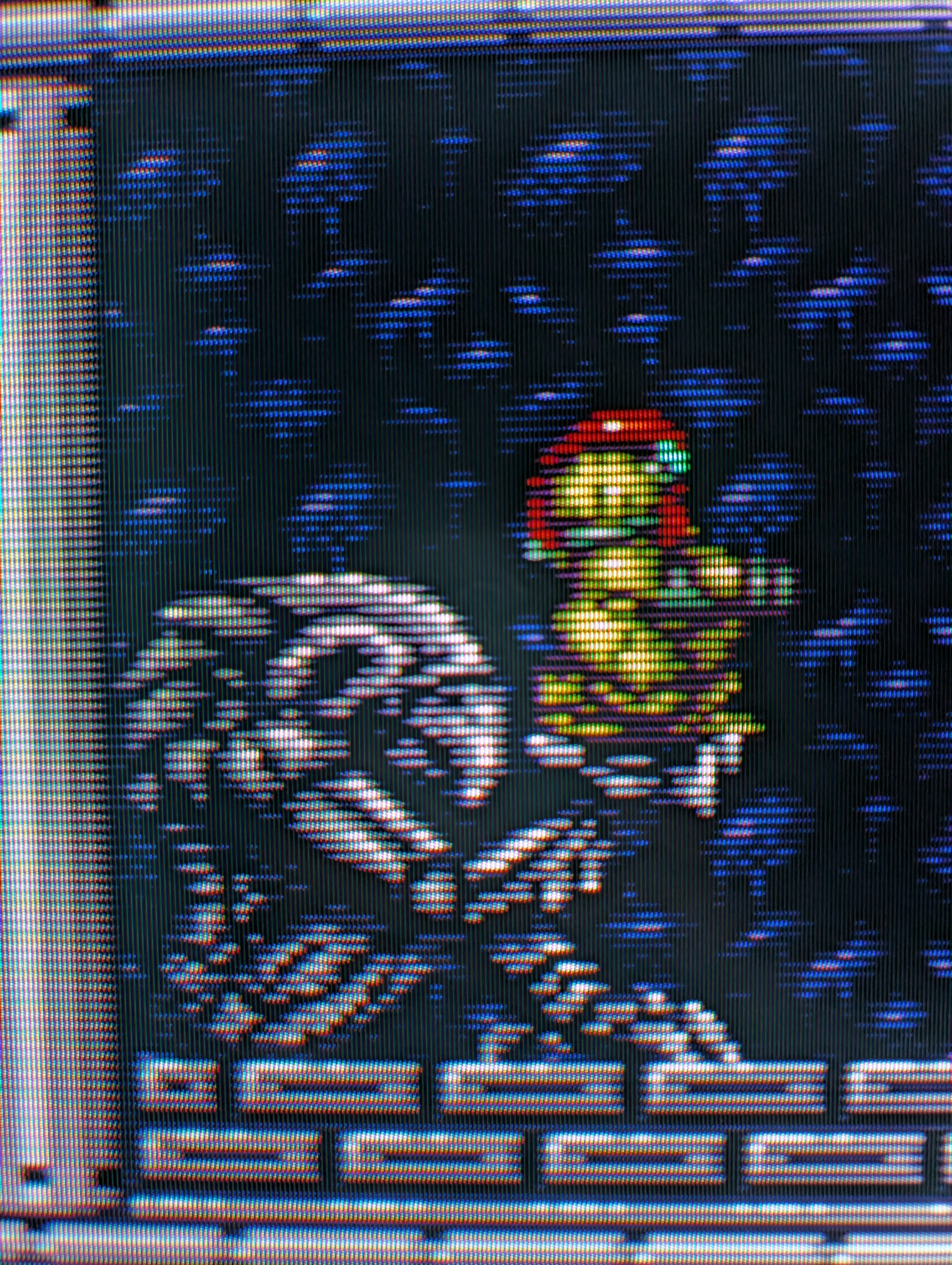

Gallery
| Specifications | |
|---|---|
| Brand: | JVC |
| Manufacturer: | JVC |
| Model: | AV-32F485 |
| Series: | I'Art |
| Viewable Size: | 32" |
| Inputs: | Composite, S-Video, RF, Component YPbPr |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Jungle IC: | Toshiba, TM8812CSDNG5DB9 |
| Focus Type: | Single |
| Tube: | LG.Philips , Matsushita-Toshiba , A80AKS90X03 , A80AKS90X , A80ERF082X17 , A80ERF082X |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke: | (ITC) |
| Speakers: | Stereo, 9W x 2 |
| Remote: | RM-1258G |
| Chassis: | GJ4 |
| Weight: | 140.8 lbs (63.9 kg) |
| Dimensions (W/H/D): |
37 x 27 x 22.5 mm
(1.5 x 1.1 x 0.9") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2004 |
| MSRP: | 449 USD |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
