Summary
A higher-end 35" set by JVC. Made in the USA in 1993.
Manuals
Notes

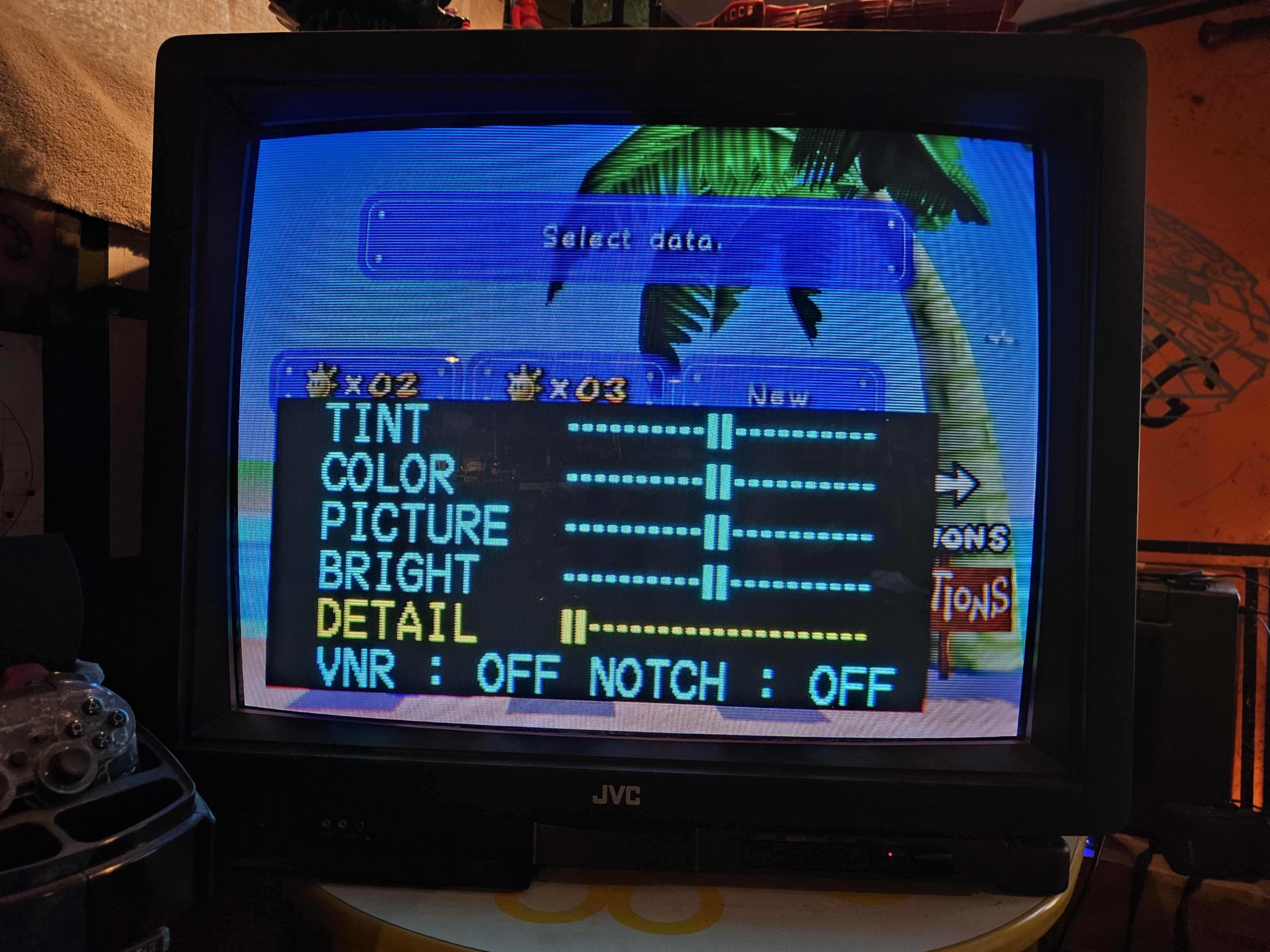

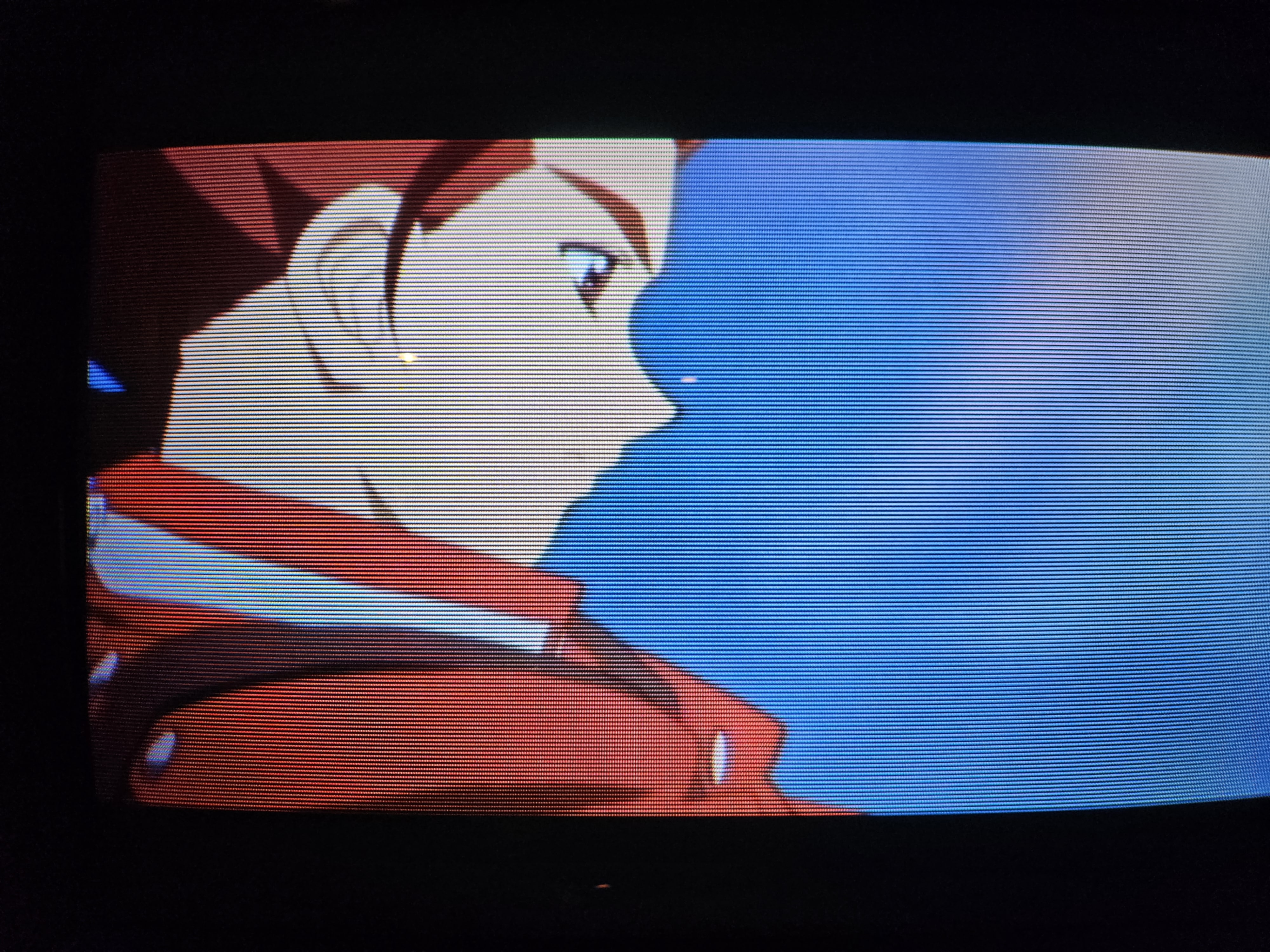

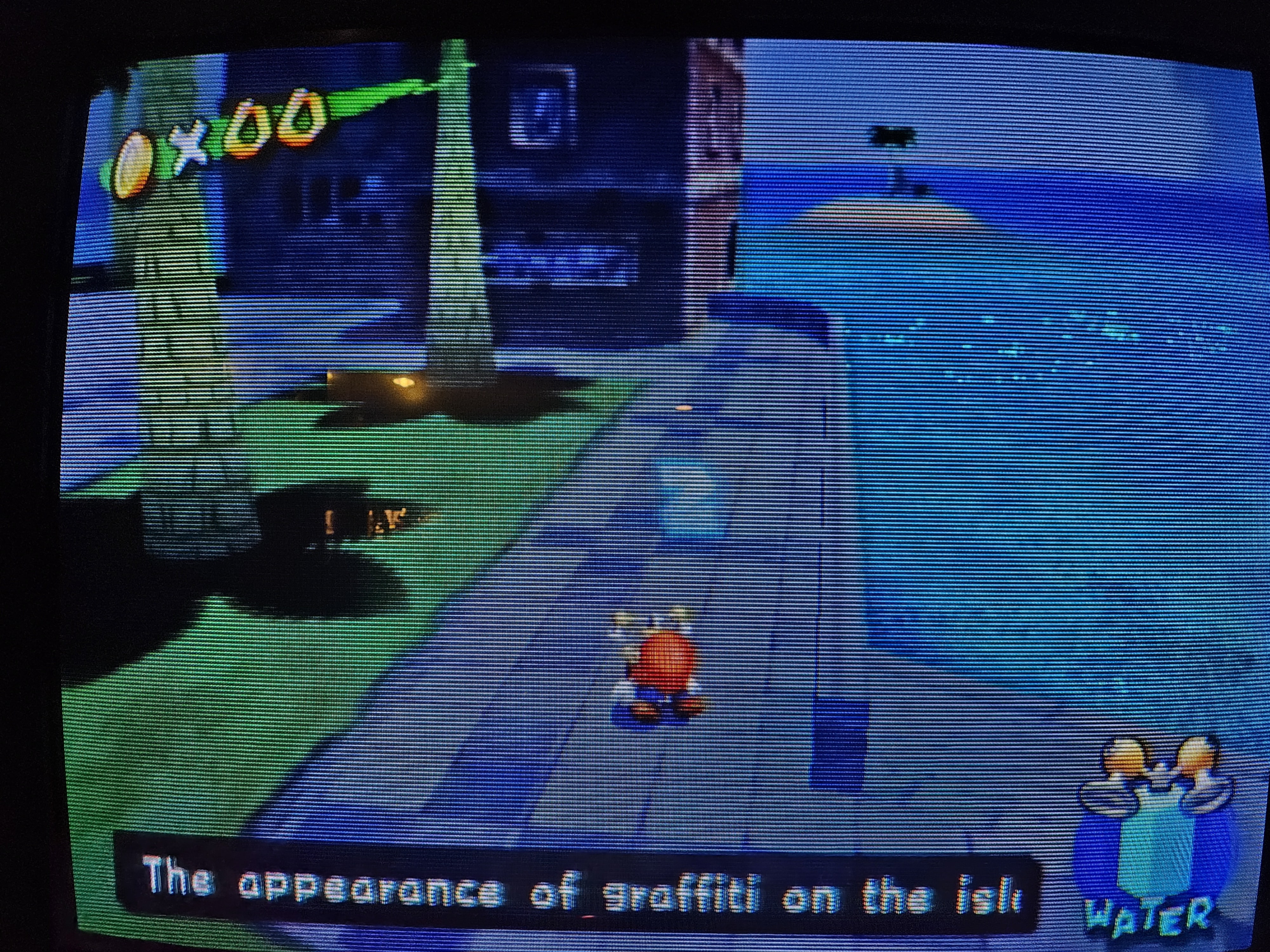

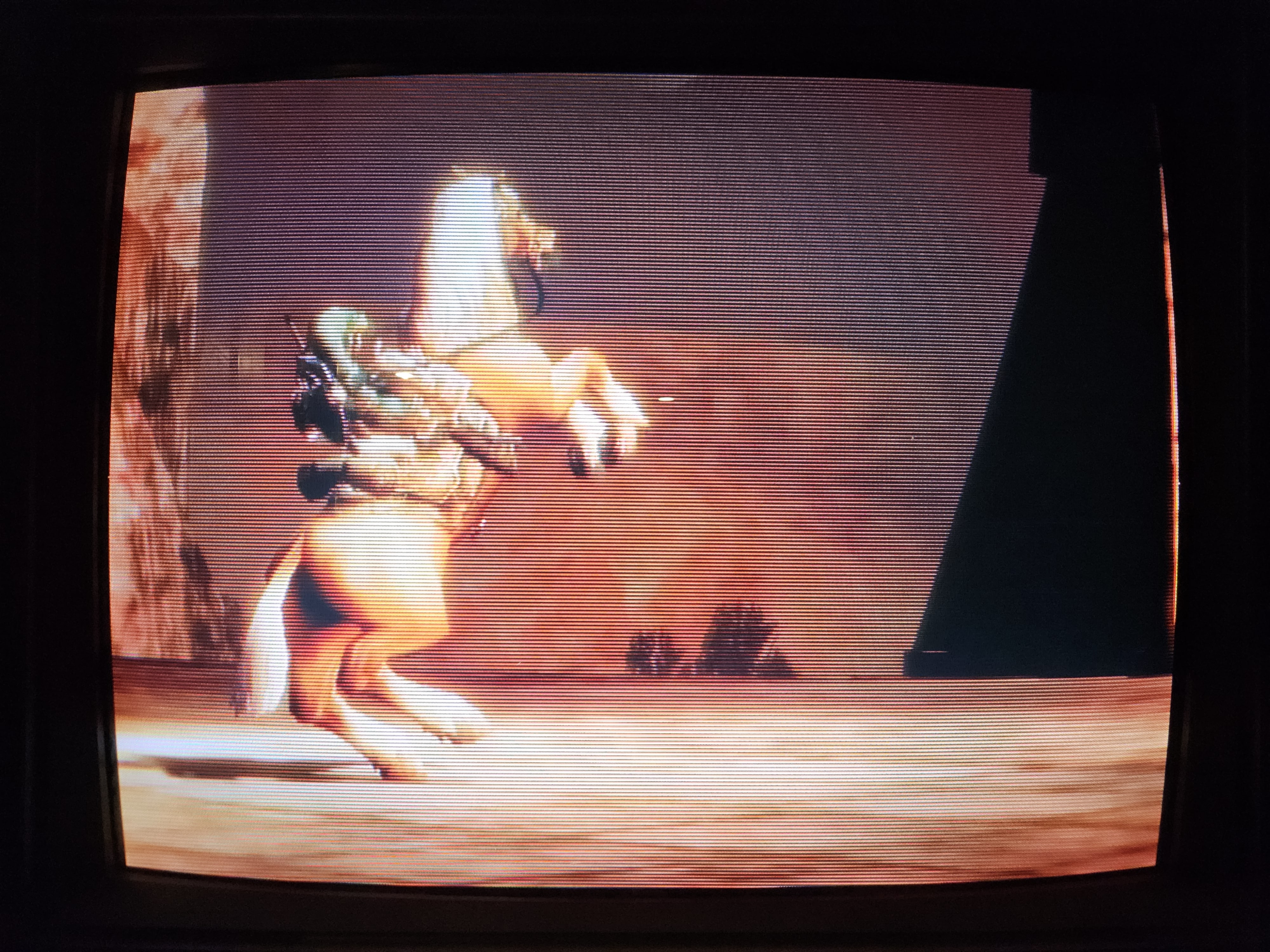

Uses a Toshiba picture tube. Jungle IC is by JVC, and the s-video quality is excellent. For composite you can enable a notch filter to clean up the signal a bit.

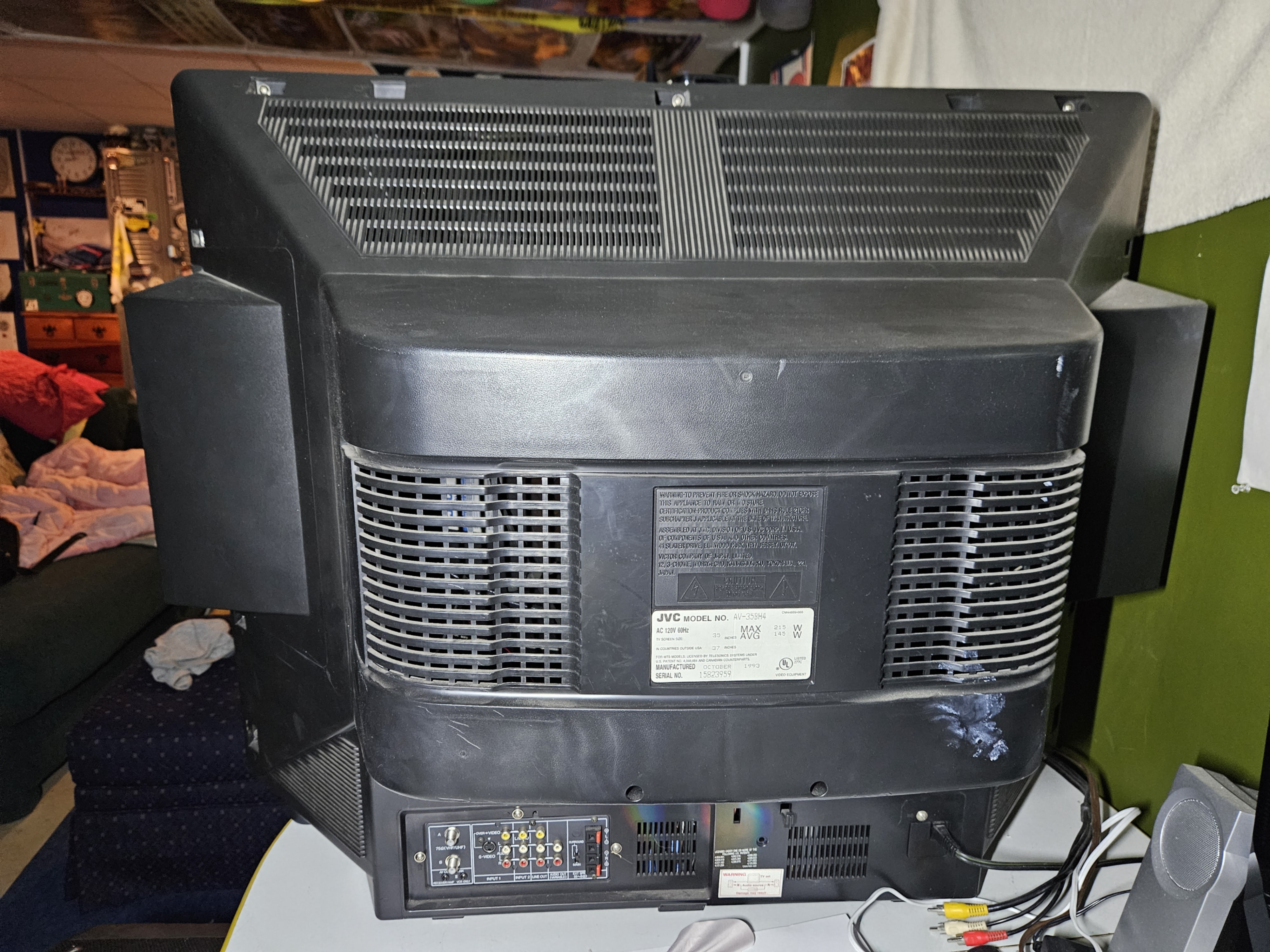

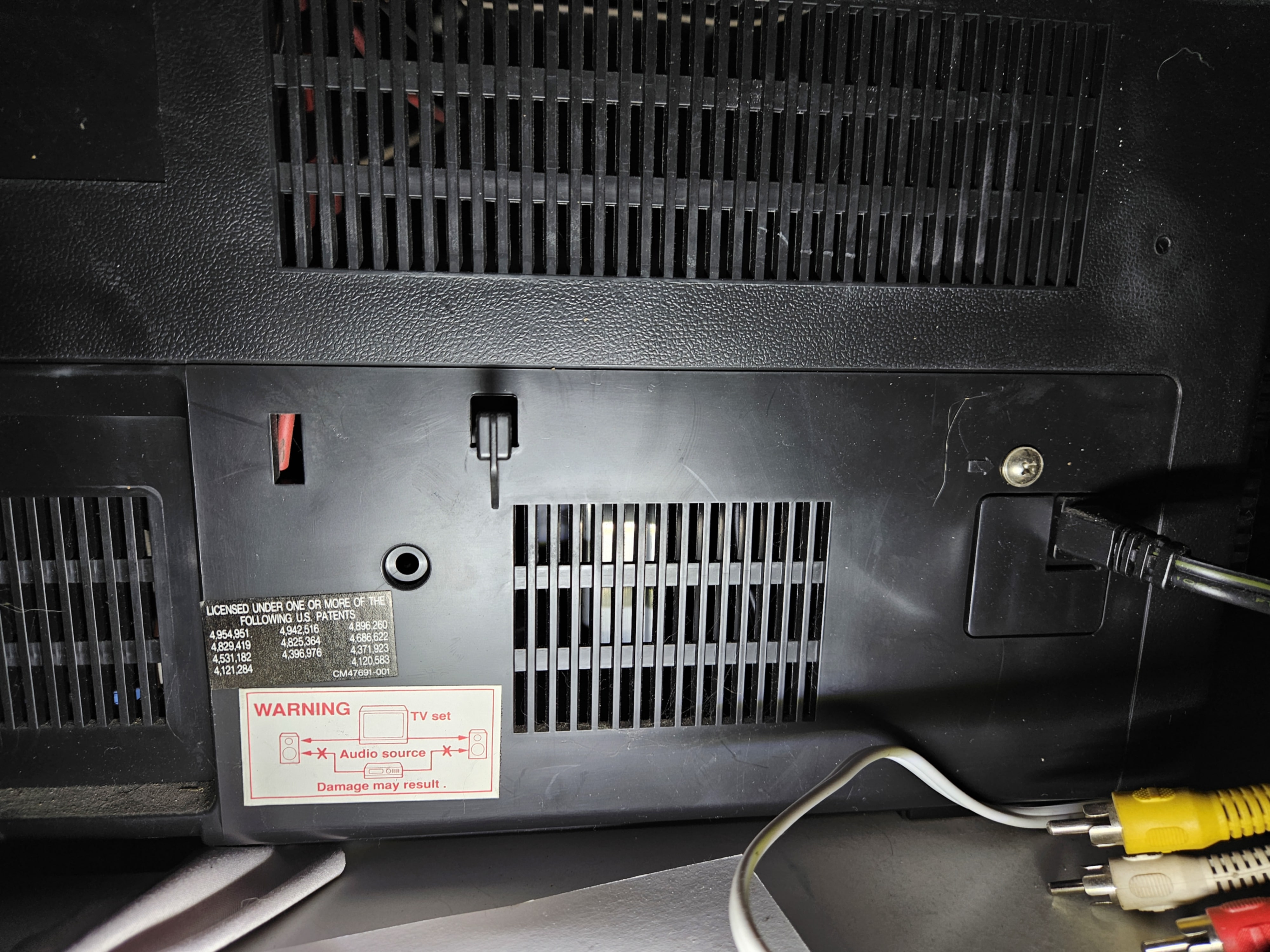

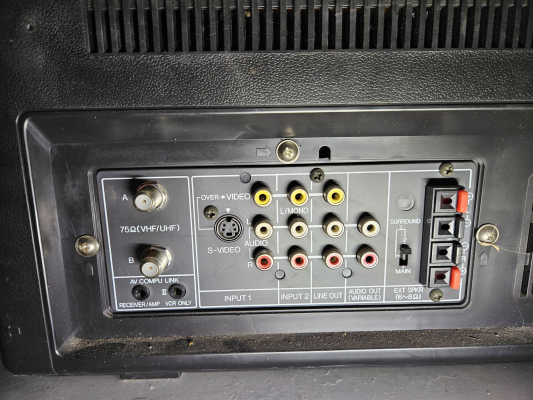

This set can operate as an amp for matrixed surround channel speakers by connecting them to the audio outputs on the back.
Gallery
| Specifications | |
|---|---|
| Brand: | JVC |
| Manufacturer: | JVC |
| Model: | AV-35BH4 |
| Series: | BH |
| Viewable Size: | 35" |
| Input Signals: | Composite, S-Video, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, OSD Customer Controls |
| Comb Filter IC: | Mitsubishi, M52005P |
| Jungle IC: | JVC, VC2024Z |
| Tube: | Toshiba , A89KPP50X |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Speakers: | Stereo, 5W x 2 |
| Remote: | RM-C672 |
| Chassis: | GXV |
| Weight: | 166.8 lbs (75.7 kg) |
| Dimensions (W/H/D): |
914.4 x 749.3 x 609.6 mm
(35.9 x 29.4 x 24") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1993 |
| MSRP: | 1999 USD |
| Country of Manufacture: | USA |
| Degaussing: | Automatic on Power-on |
