Summary

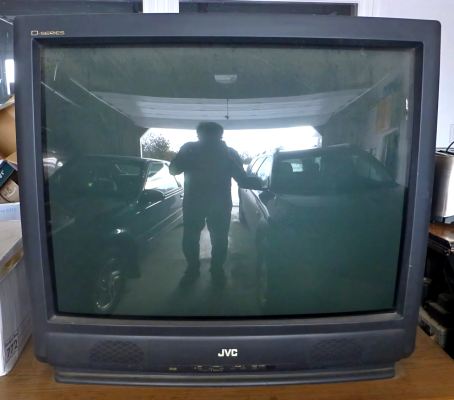

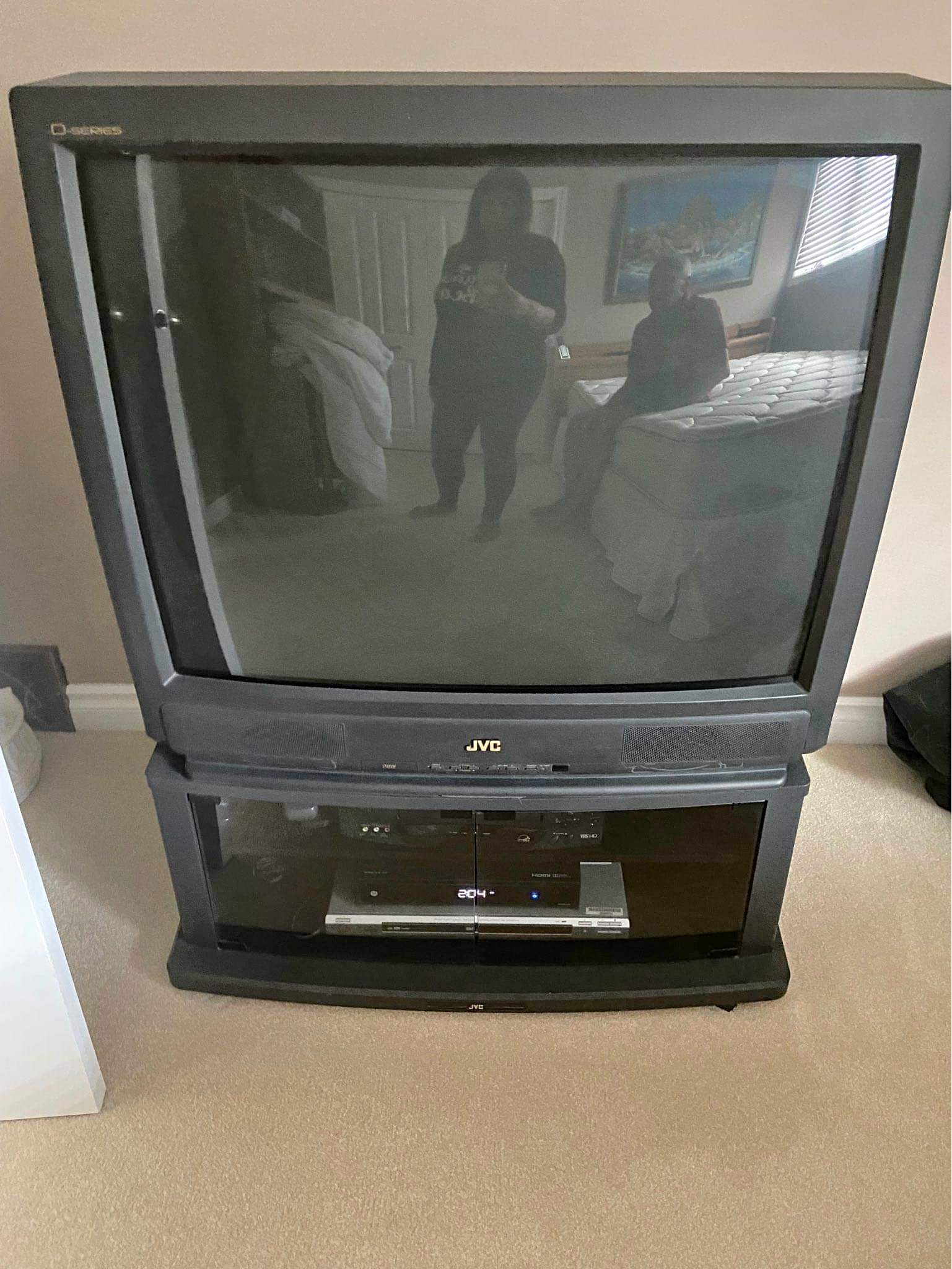

A fantastic set by JVC. The first 36" D-Series, introduced in 1999. Made in Mexico.
(Special thanks to Pejman Roozbeh for the pics!)

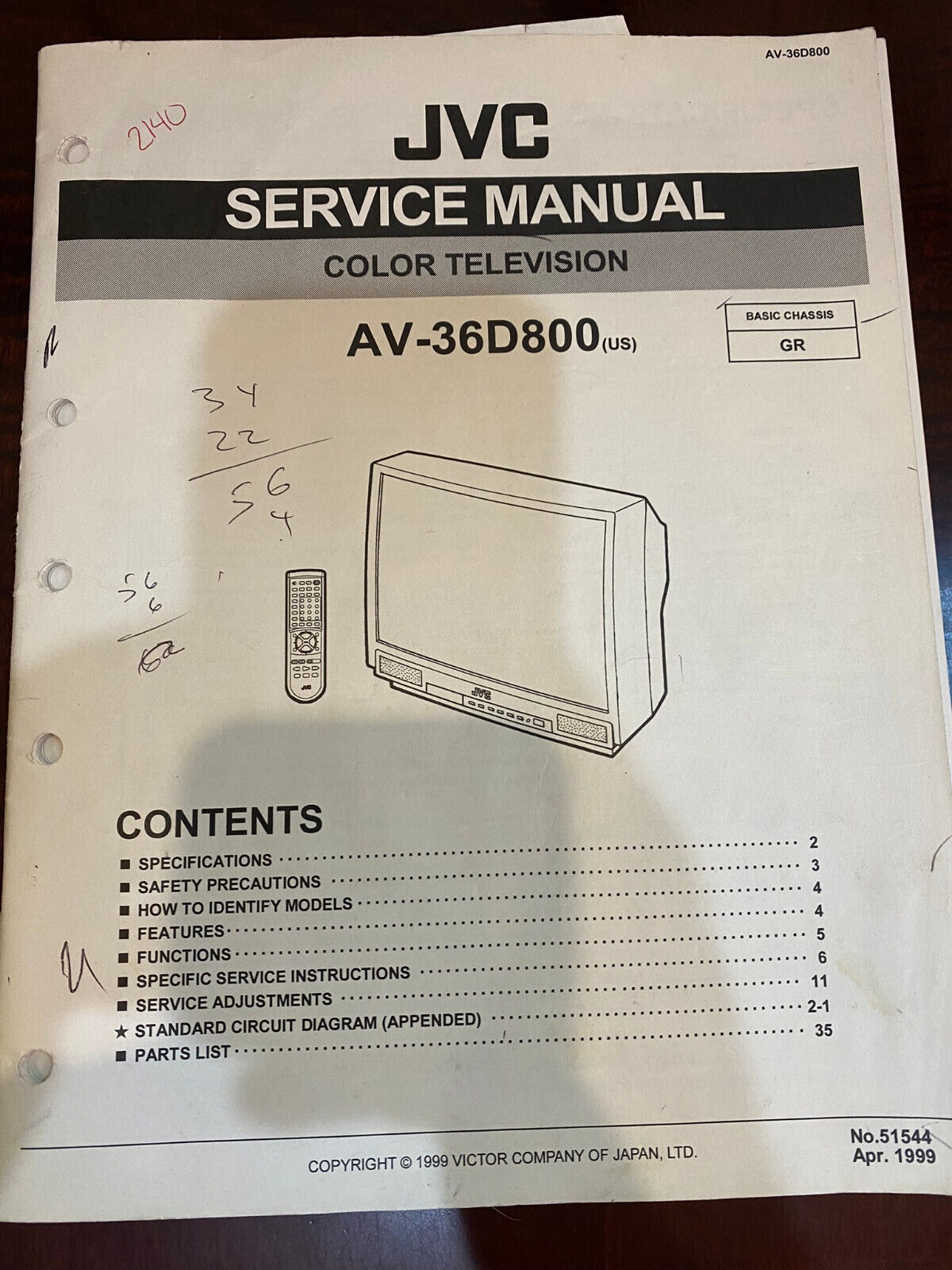

Manuals
Notes
Uses an older case design compared to the other D-Series model of the time.

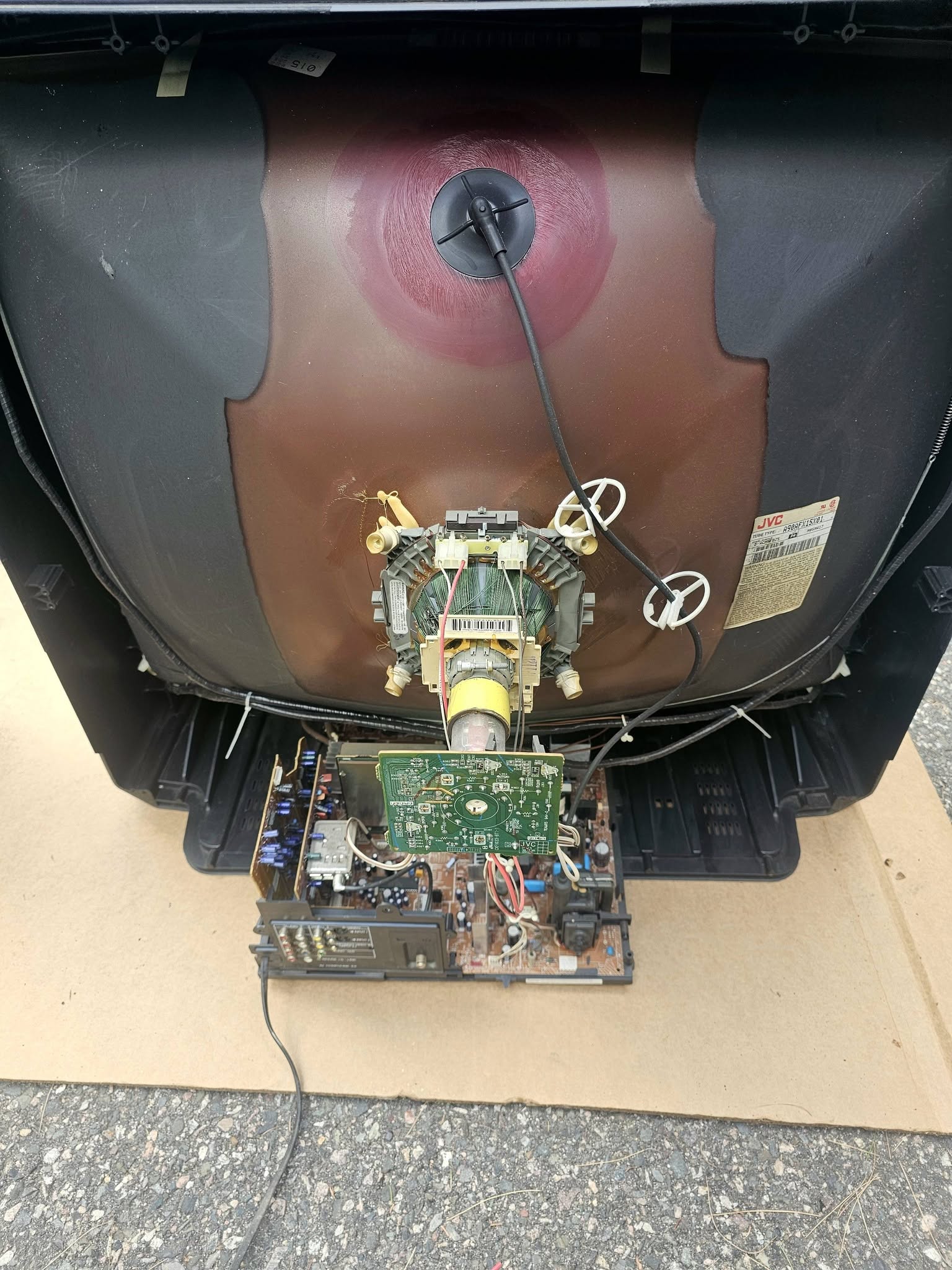

The tube in this set is a special model by RCA that uses a flatter curvature and invar shadow mask. It is one of RCA's better tubes, I'd say.
What made the 800 models kind of special was the TV Guide and VCR Plus features, not that those would be very useful nowadays.

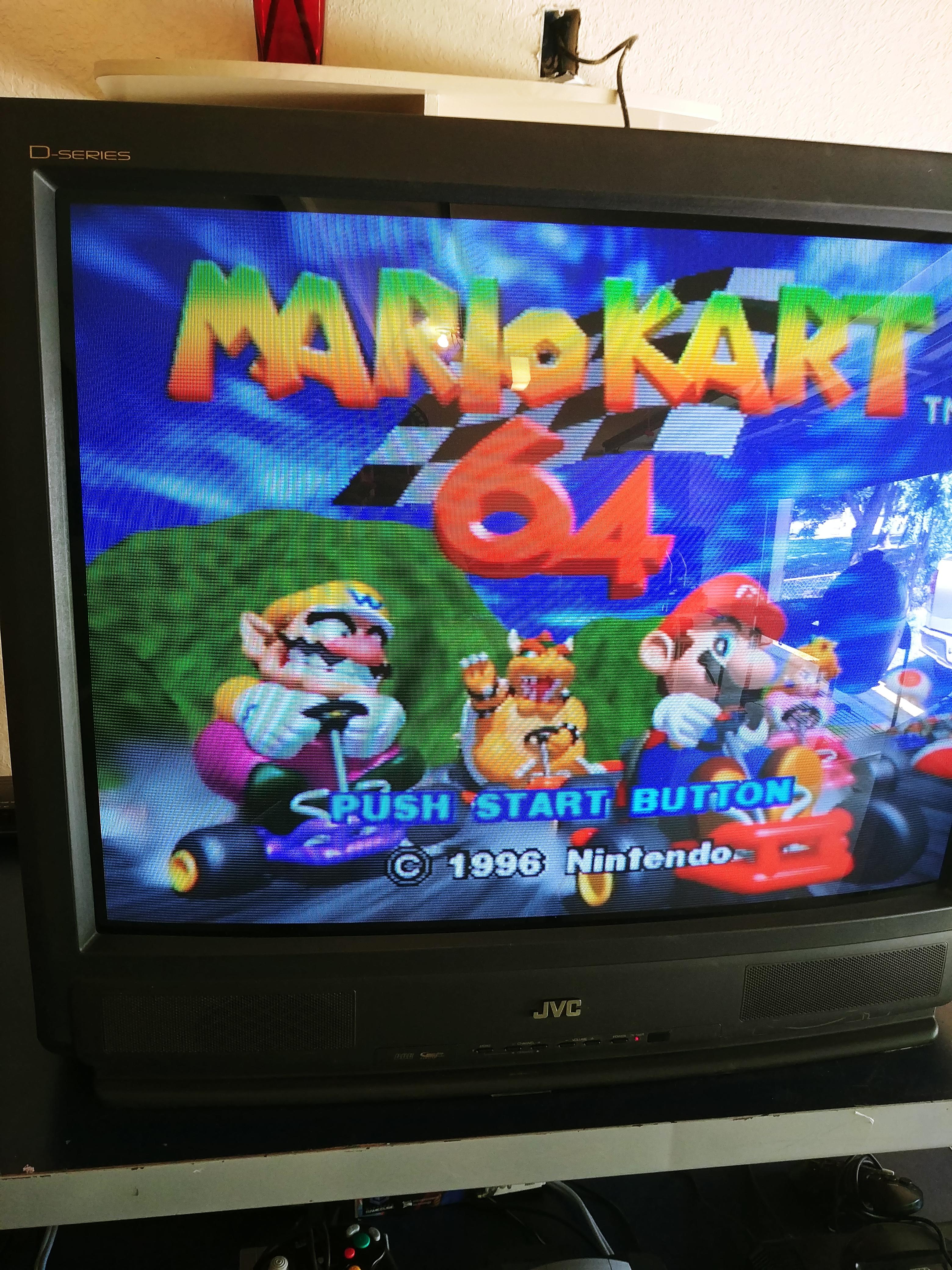

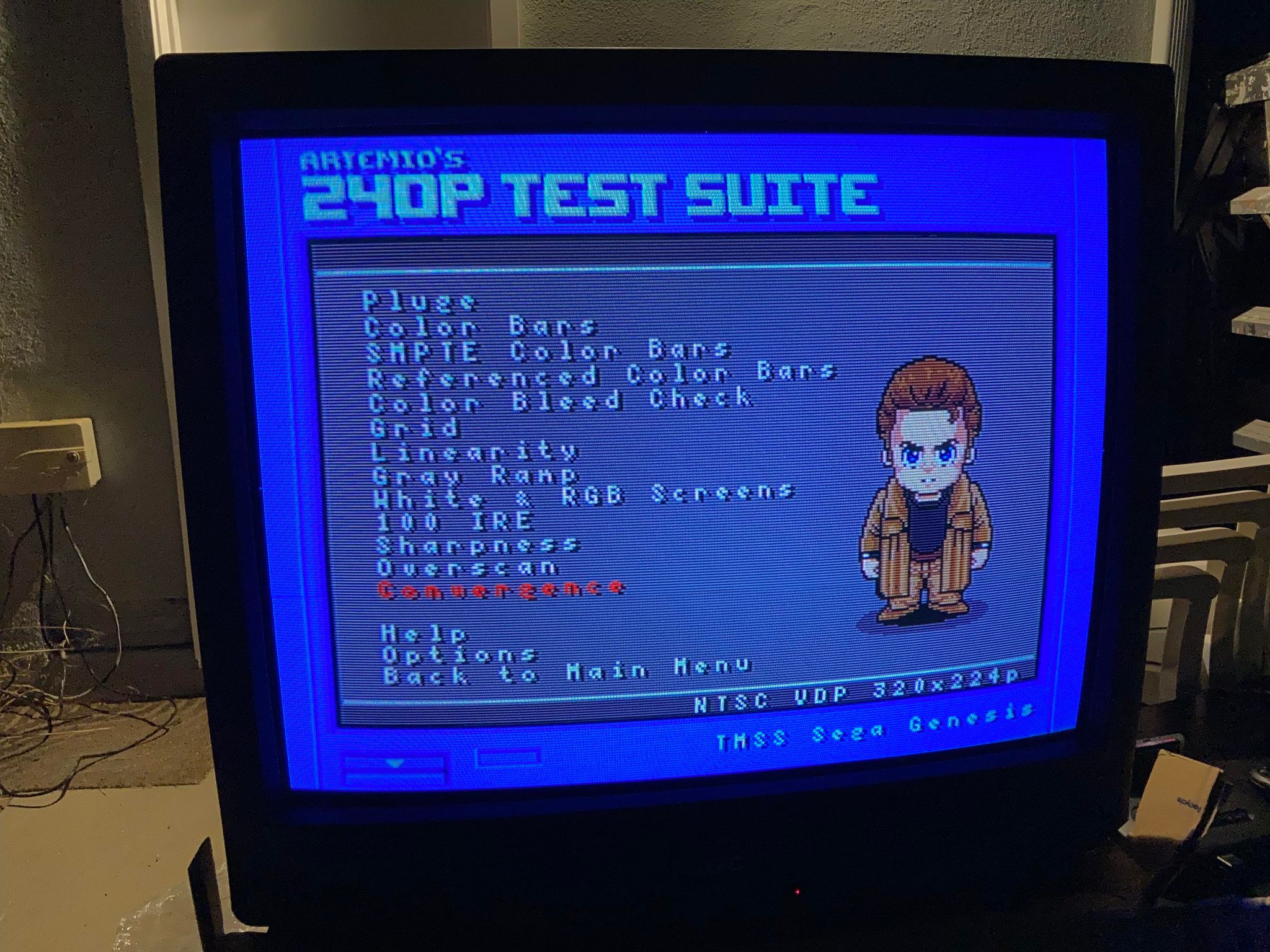

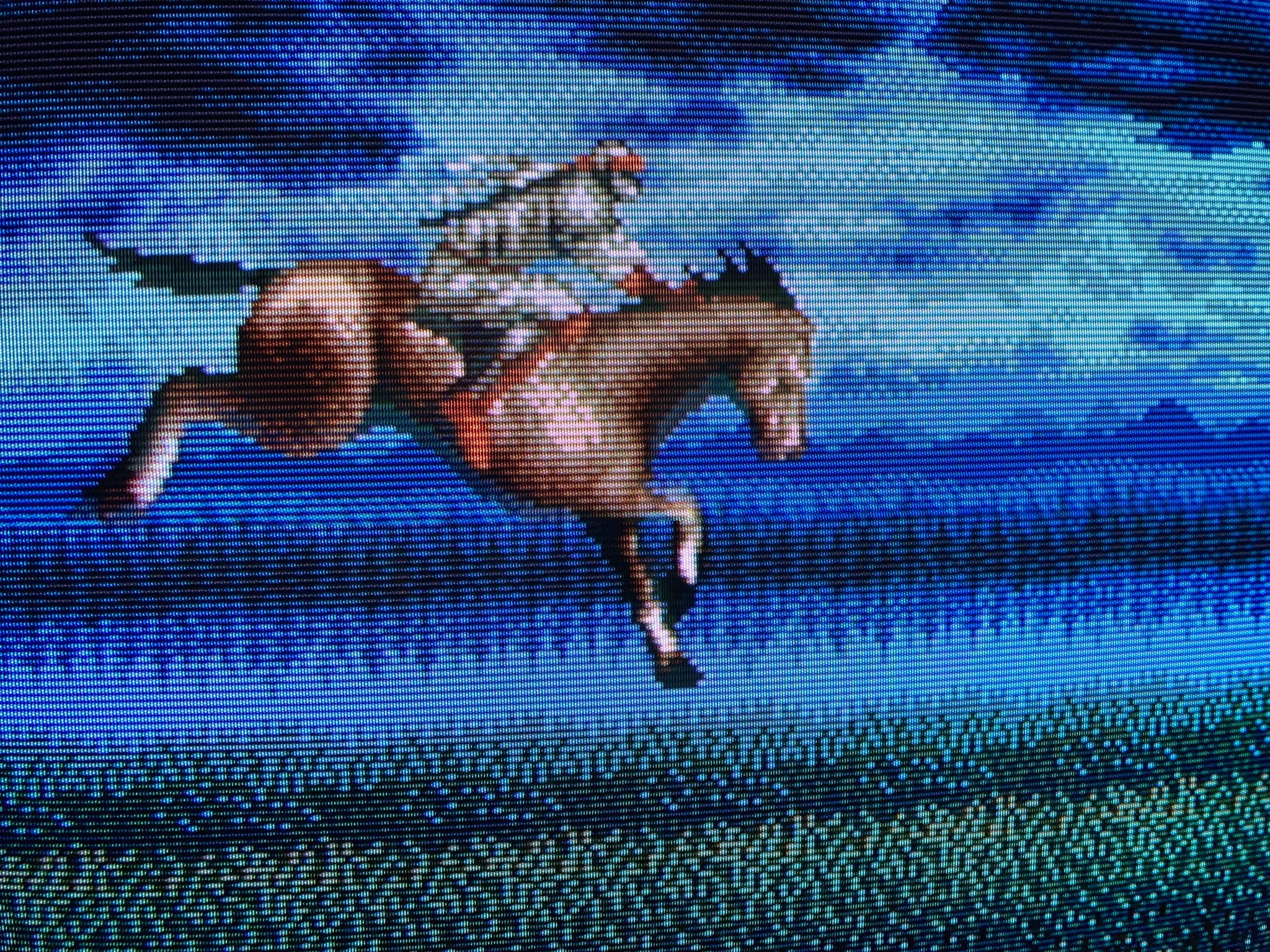

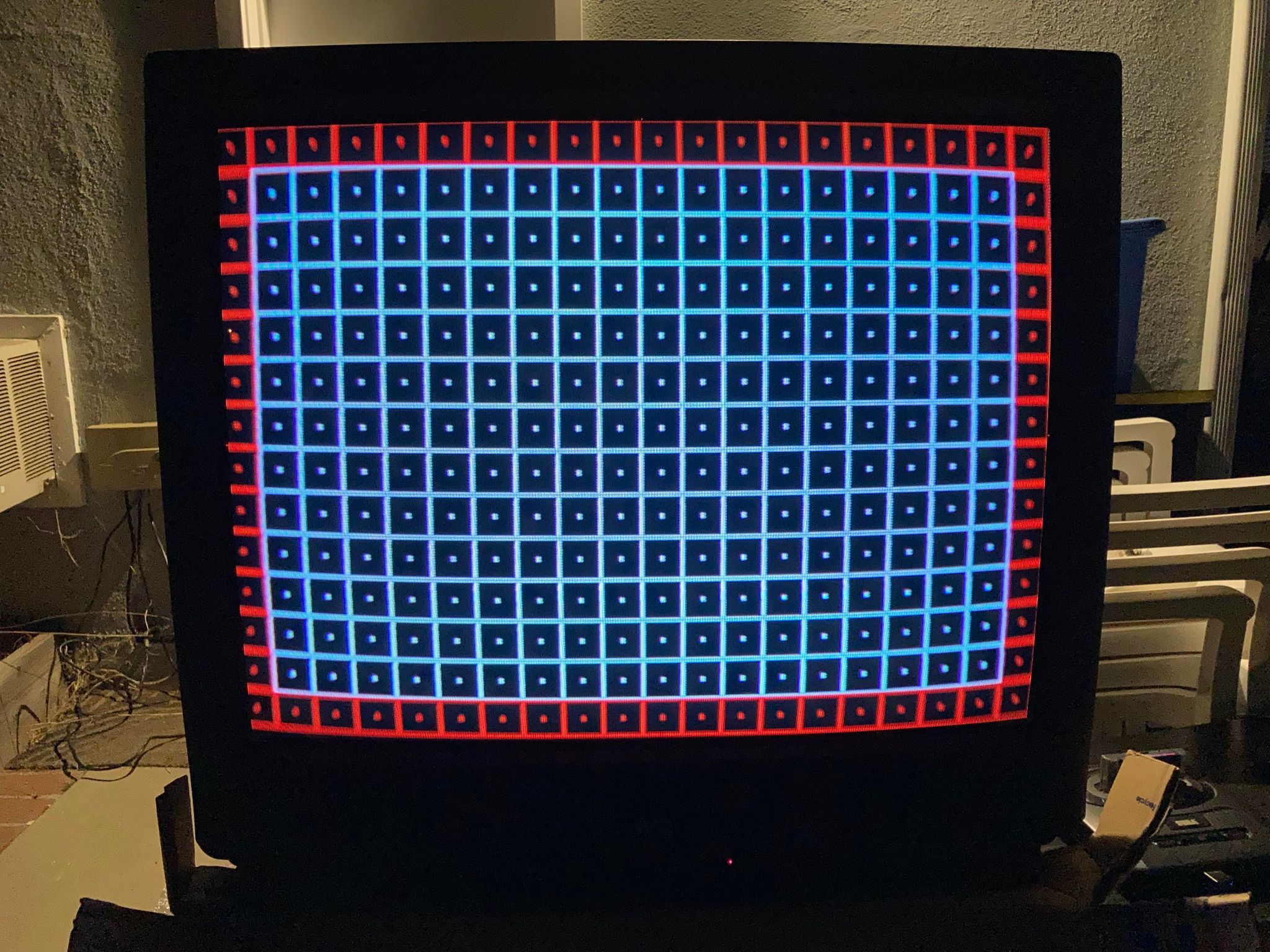

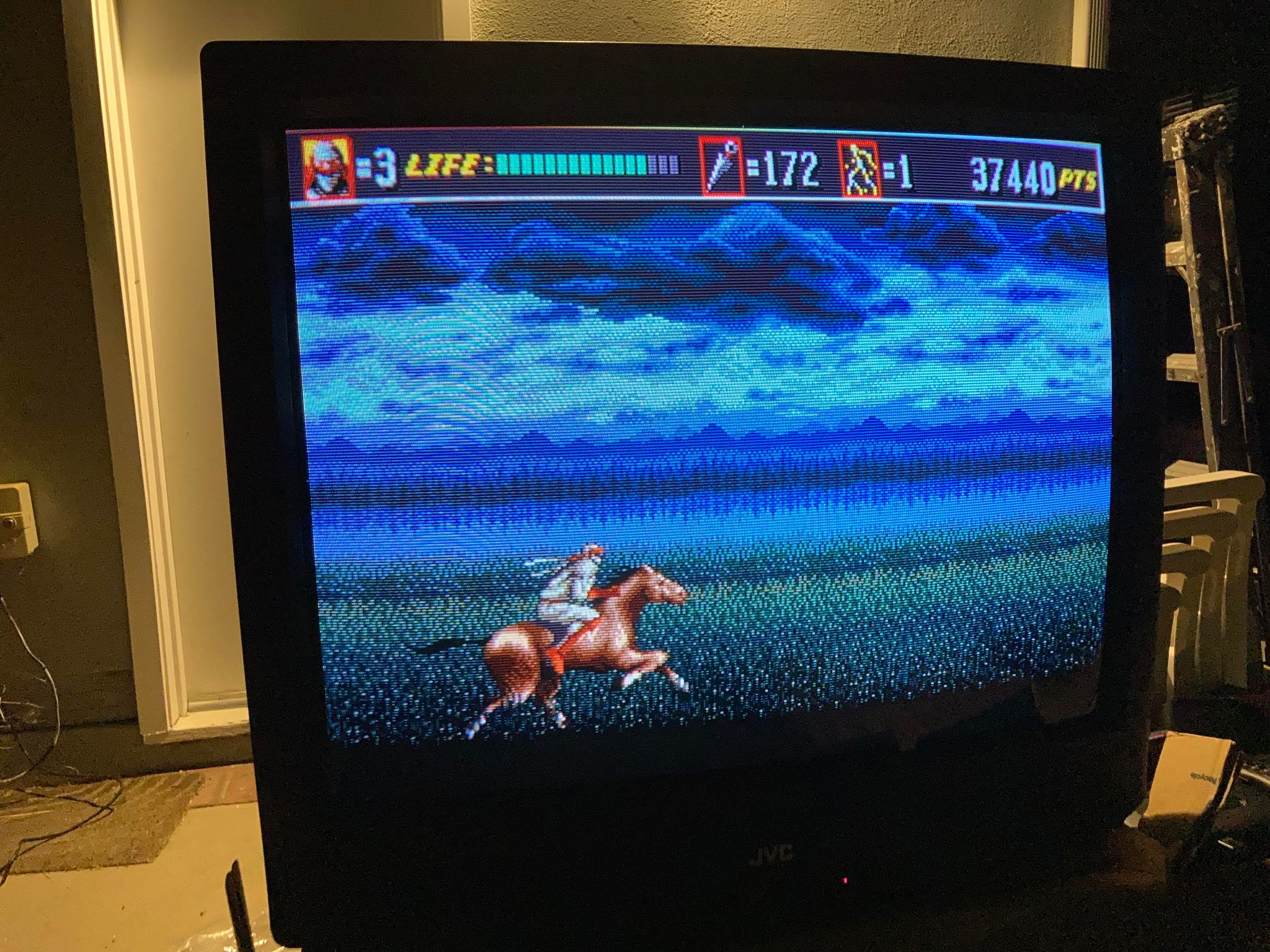

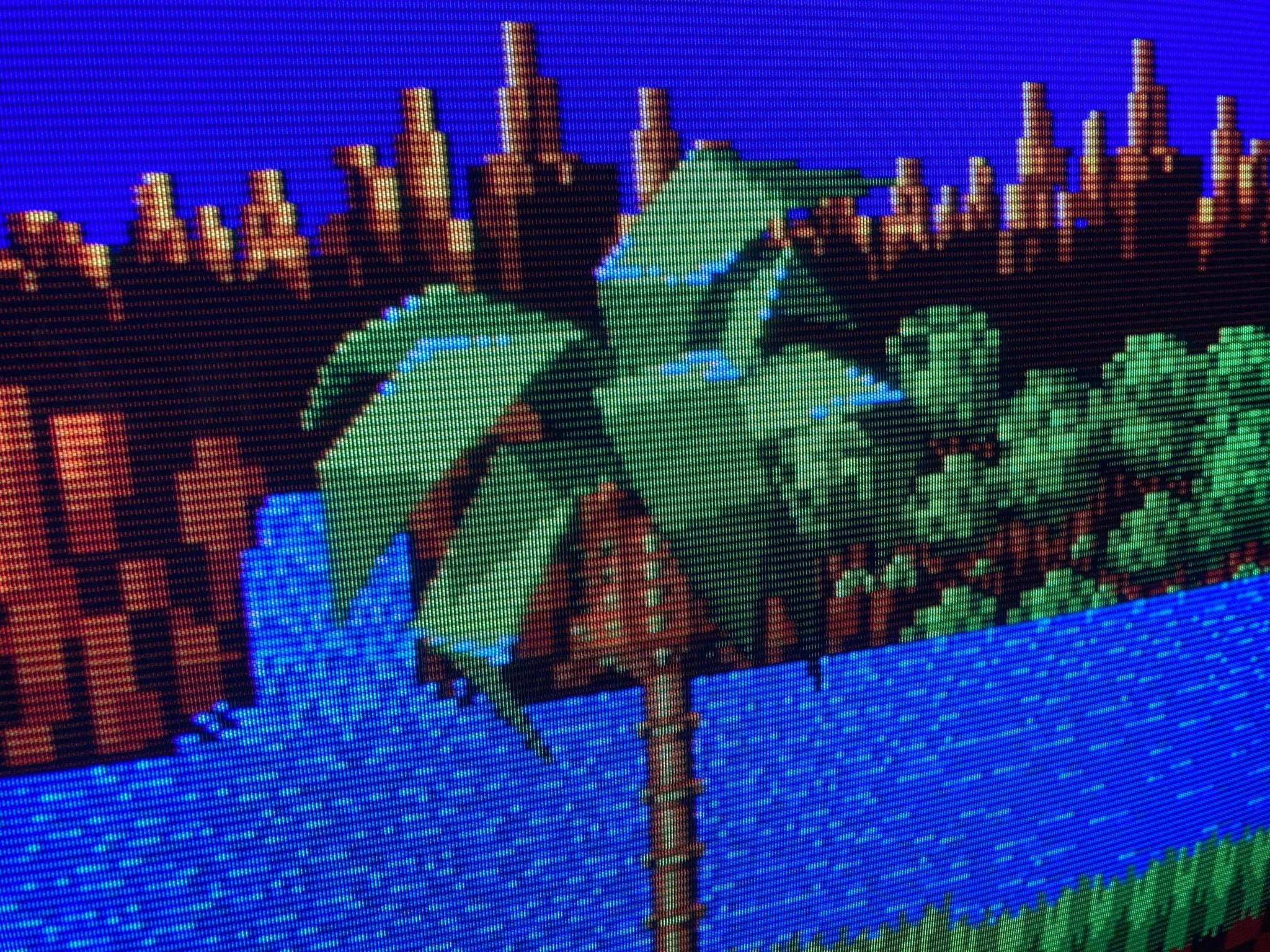

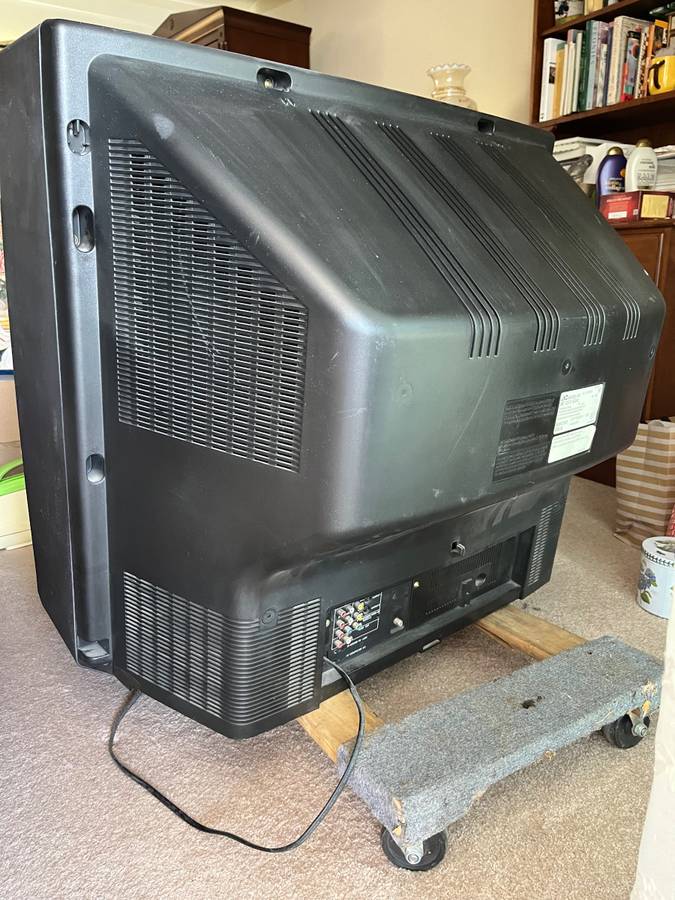

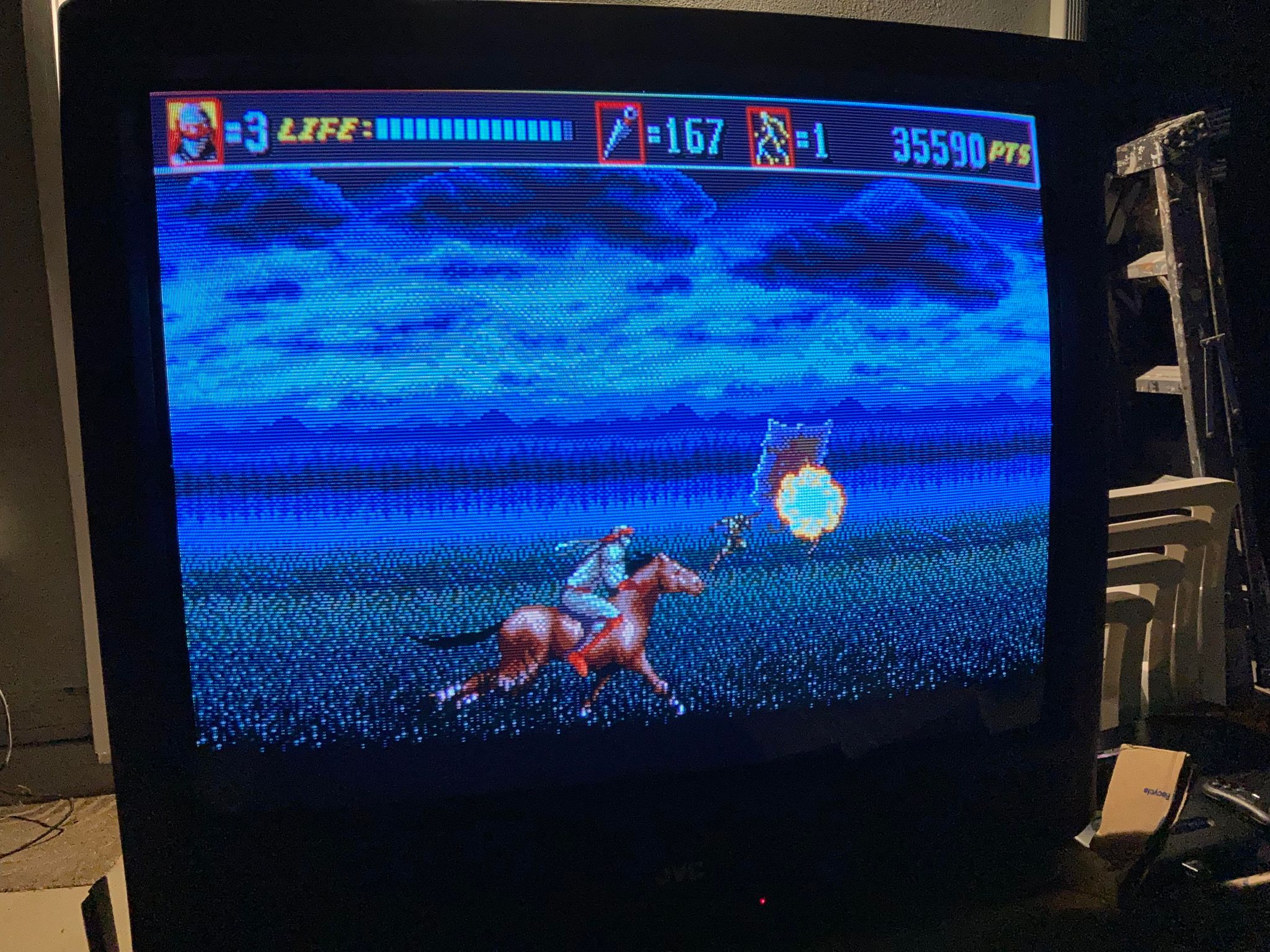

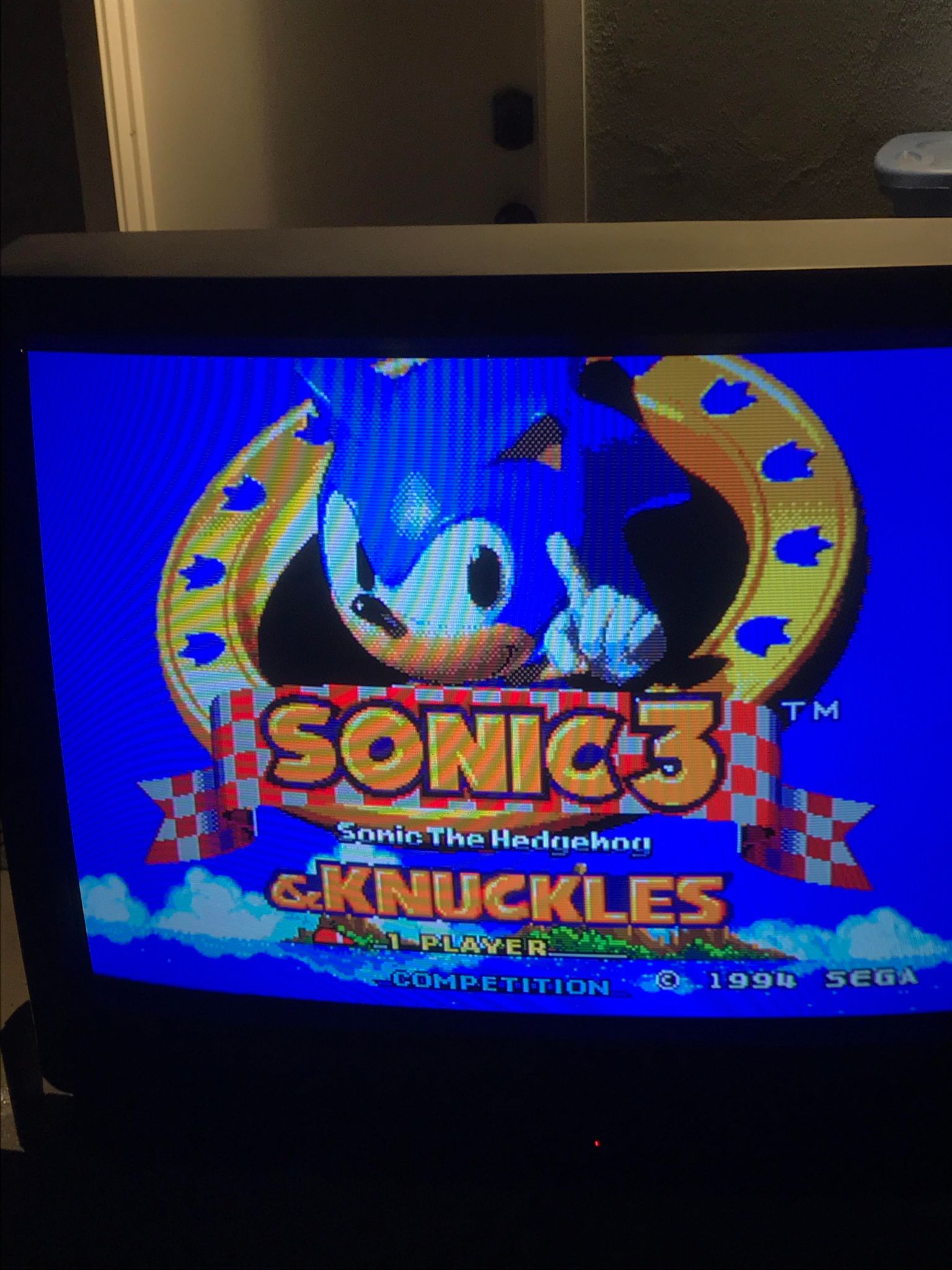

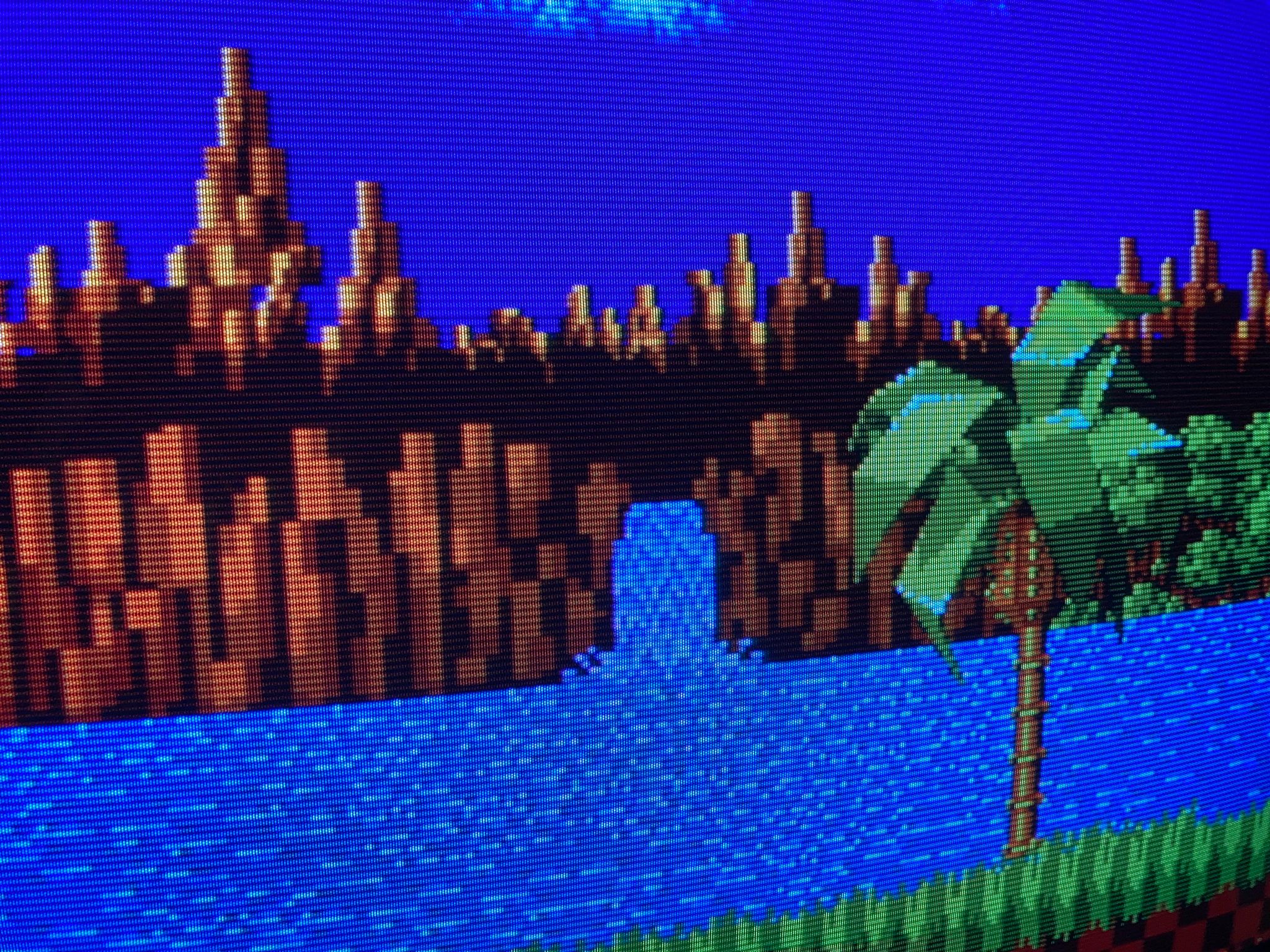

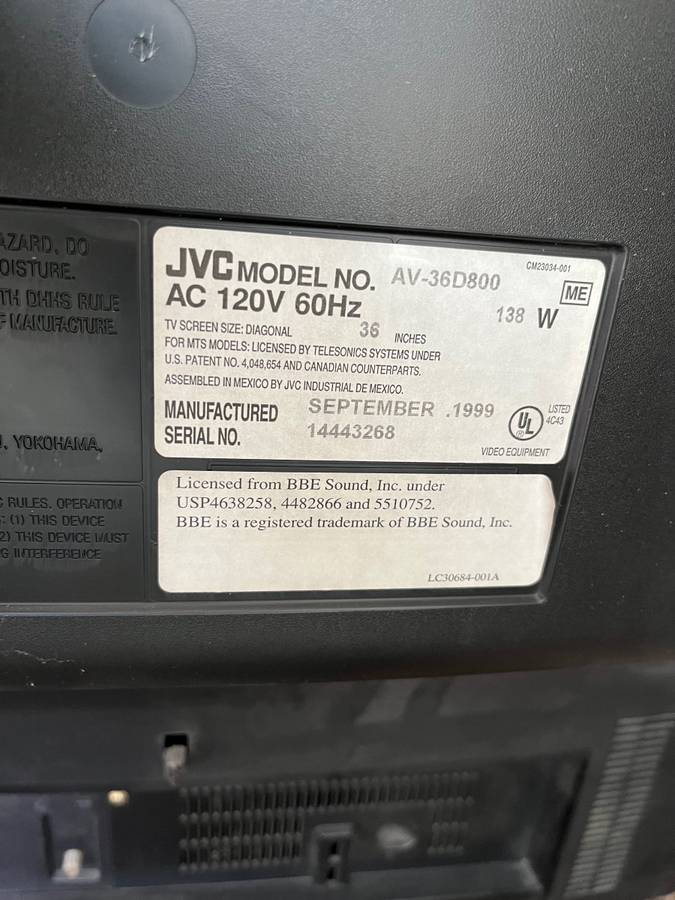

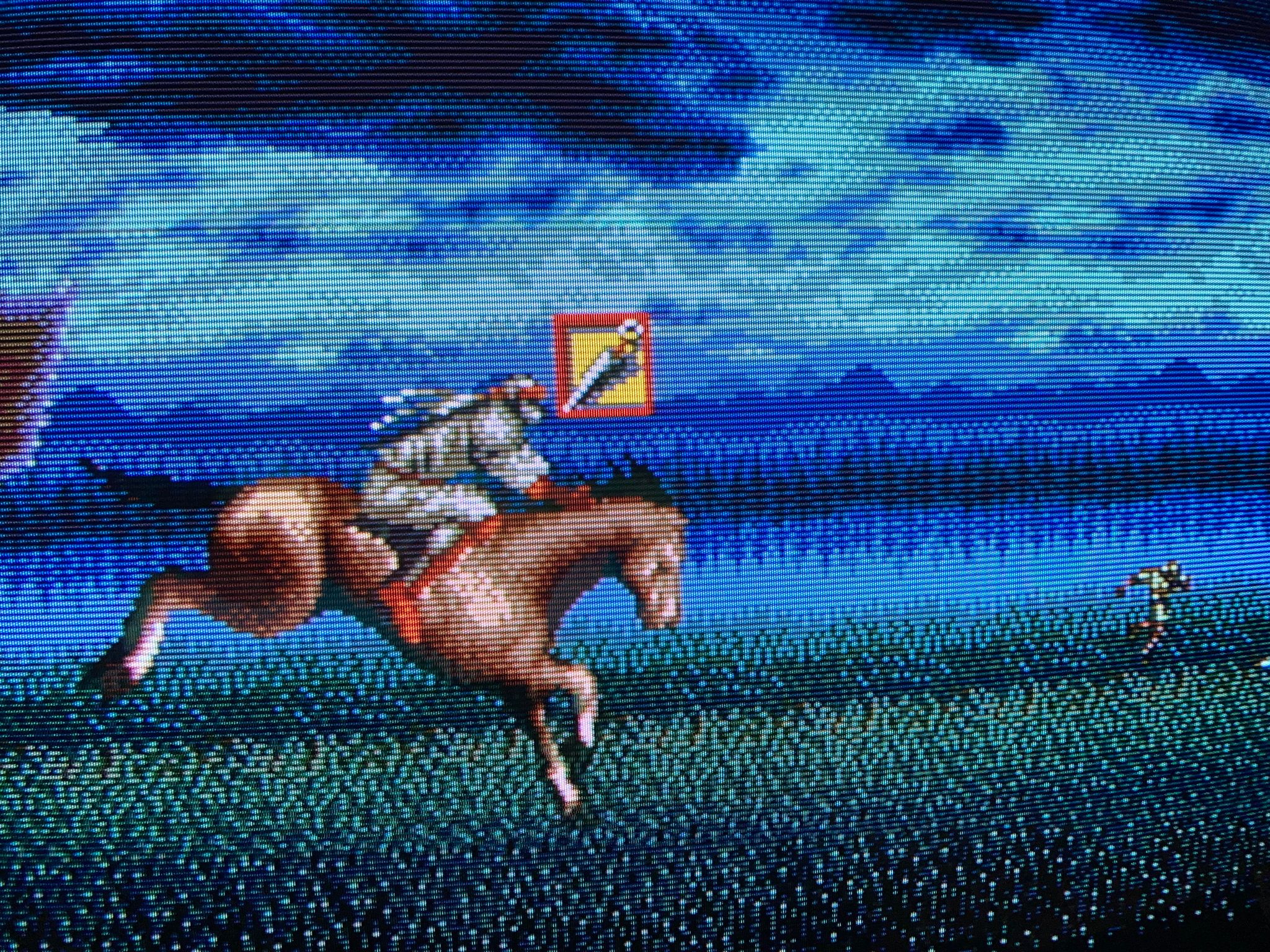

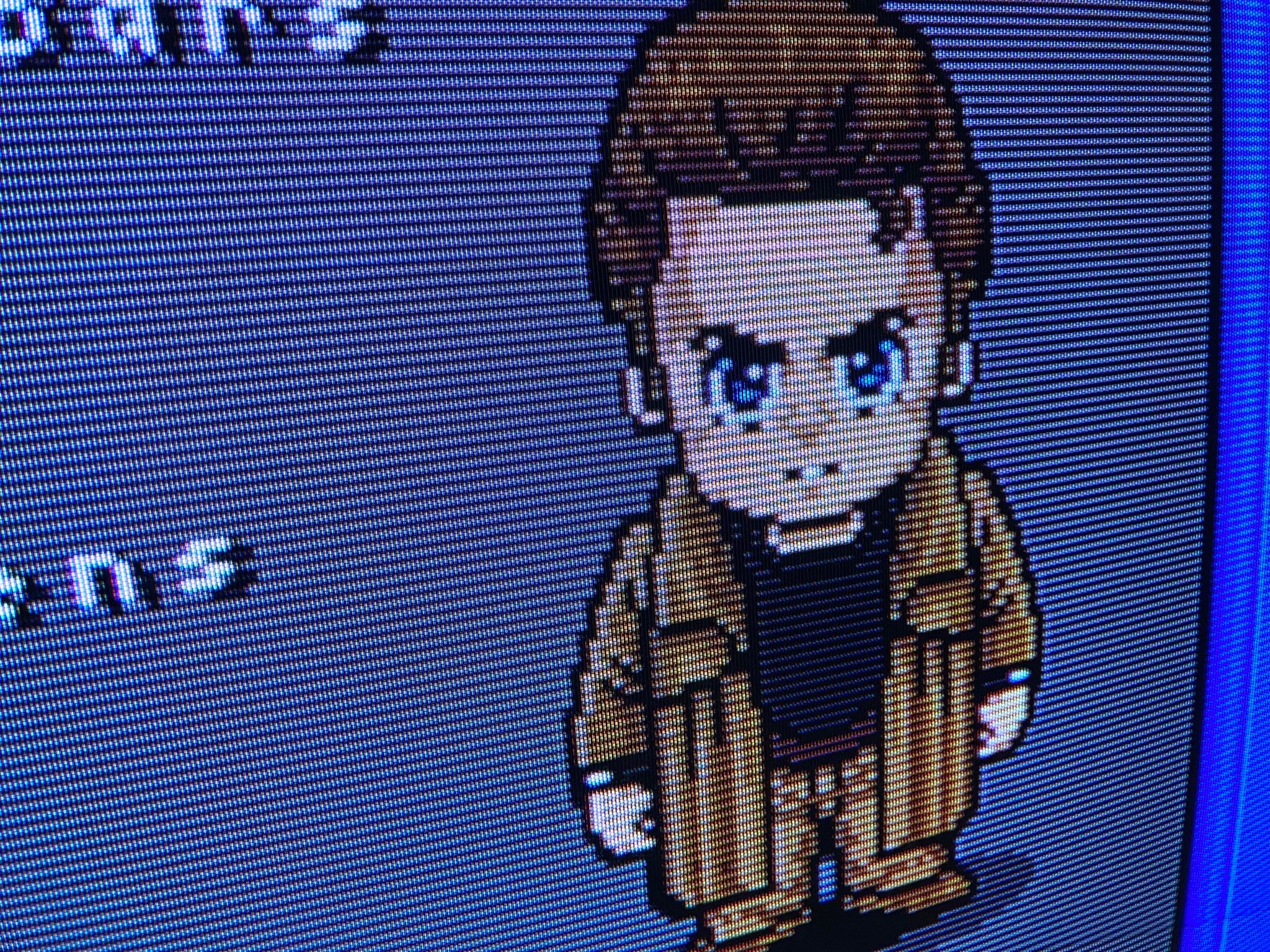

Gallery
















Specifications | |
---|---|
Brand: | JVC |
Manufacturer: | JVC |
Model: | AV-36D800 |
Series: | D-Series |
Viewable Size: | 36" |
Inputs: | Composite, S-Video, RF, Component YPbPr |
Native Resolutions: | 240p, 480i |
Horizontal Scan Range: | 15 kHz |
Vertical Scan Range: | 60 Hz |
Formats: | NTSC |
Aspect: | 4:3 |
Adjustments: | OSD Customer Controls, OSD Service Menu |
Jungle: | JVC, JCC1007A |
Focus Type: | Single |

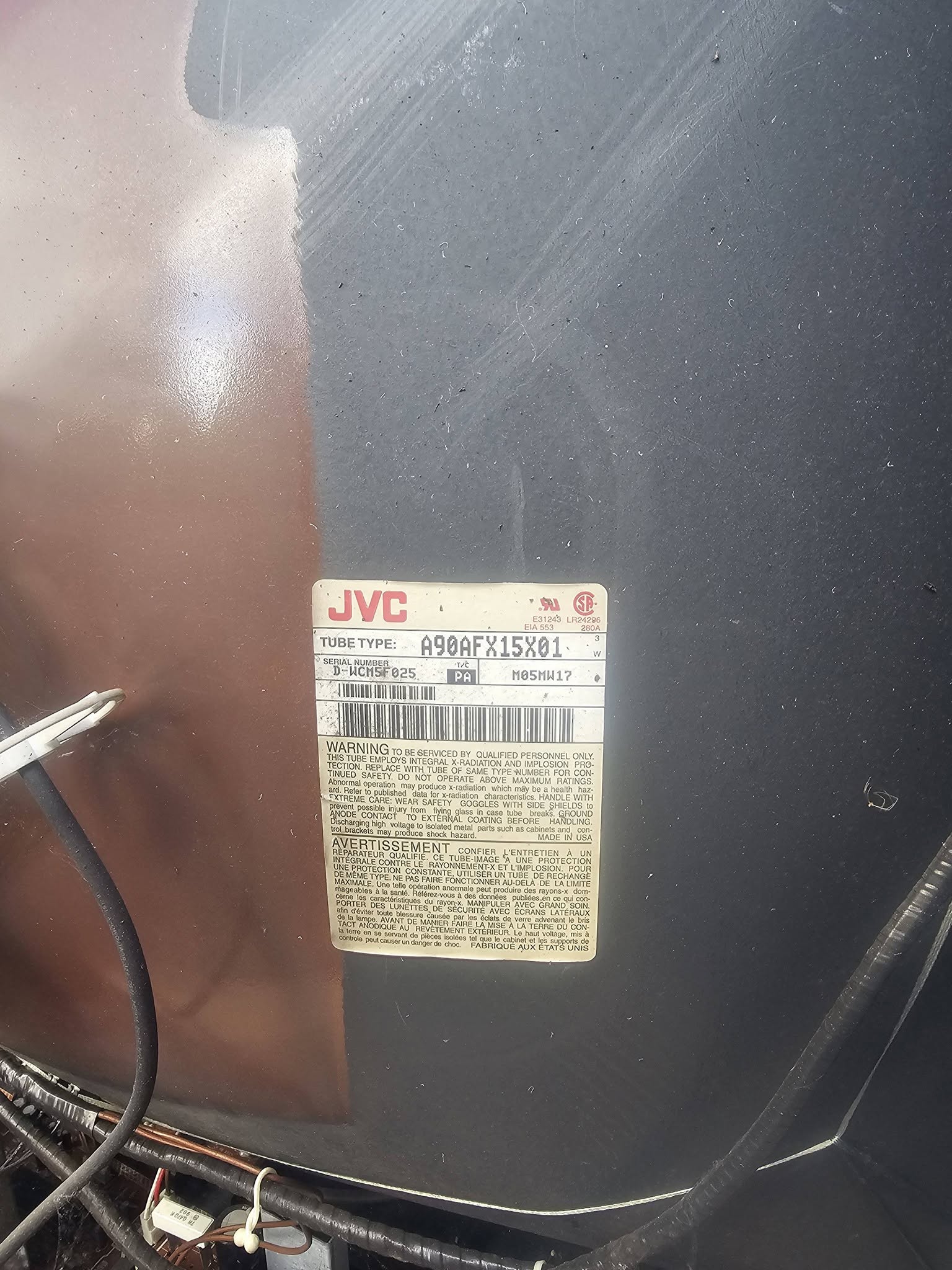

Tube: | Thomson , A90AFX15X |
Heater Voltage: | 6.3v |
Mask: |
Slot, Invar
![]() |
Tint: | Dark |
Removable Glare Film: | No |
Speakers: | Stereo, 5W x 2 |

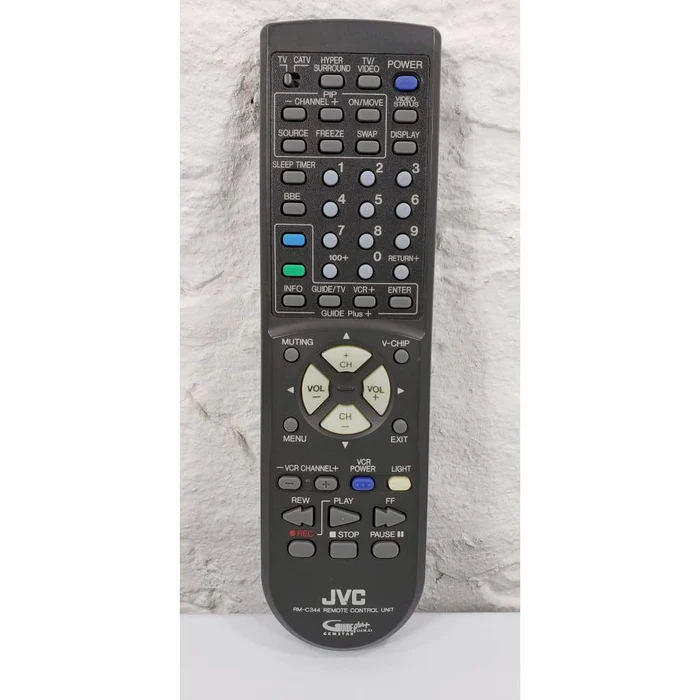

Remote: | RM-C344 |
Chassis: | GR |
Weight: | 149.2 lbs (67.7 kg) |
Dimensions (W/H/D): |
860 x 765 x 603 mm
(33.8 x 30.1 x 23.7") |
Application: | Consumer |
Cabinet Material: | Plastic |
Launched: | 1999 |
MSRP: | 1299 USD |
Country of Manufacture: | Mexico |
Market: | North America |
Power Standard: | 120v |
Mounting: | Table Surface (Standard) |
Mods: | RGB via Direct |
Degaussing: | Automatic on Power-on |
Tag: | Needs Service Manual |
