Summary
Excellent quality 13" broadcast monitor. There is a Panasonic rebrand of this monitor called the BT-H1390YN.
This monitor has beam current monitoring and supports all important types (RGB, Component, S-Video, Composite, and even SDI) as well as both NTSC and PAL.

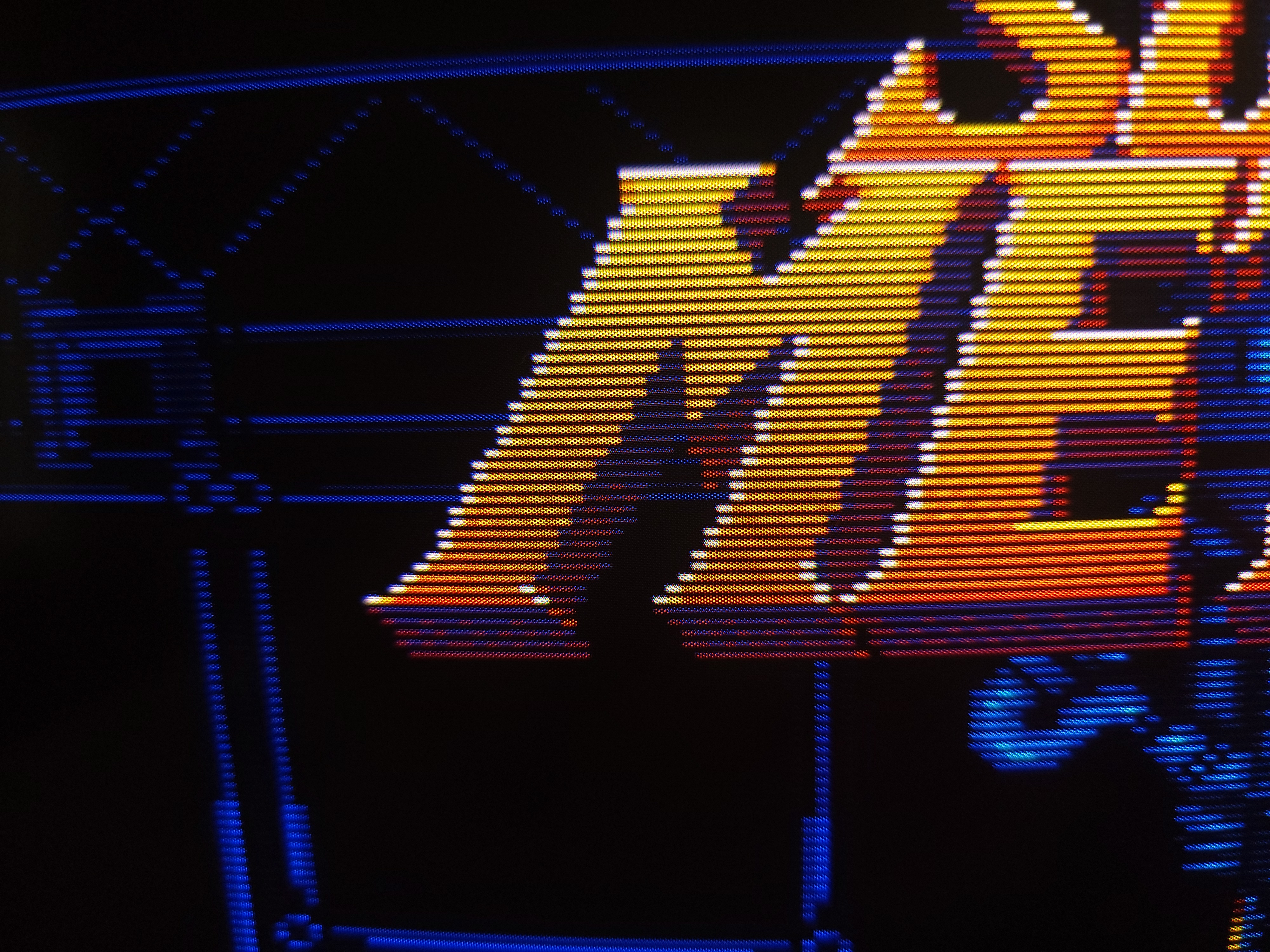

The Chunghwa tube inside is a stunning 750 TVL shadowmask (I have seen it referred to as 800 TVL elsewhere). It is a very, very good Chinese reproduction of the original Panasonic 750 TVL tube in the BM-H1300SU.
Literature
Notes
The service menu can be accessed by pressing Menu and Enter at the same time. The service menu has adjustments for H/V size and H/V position, as well as white balance adjustment.

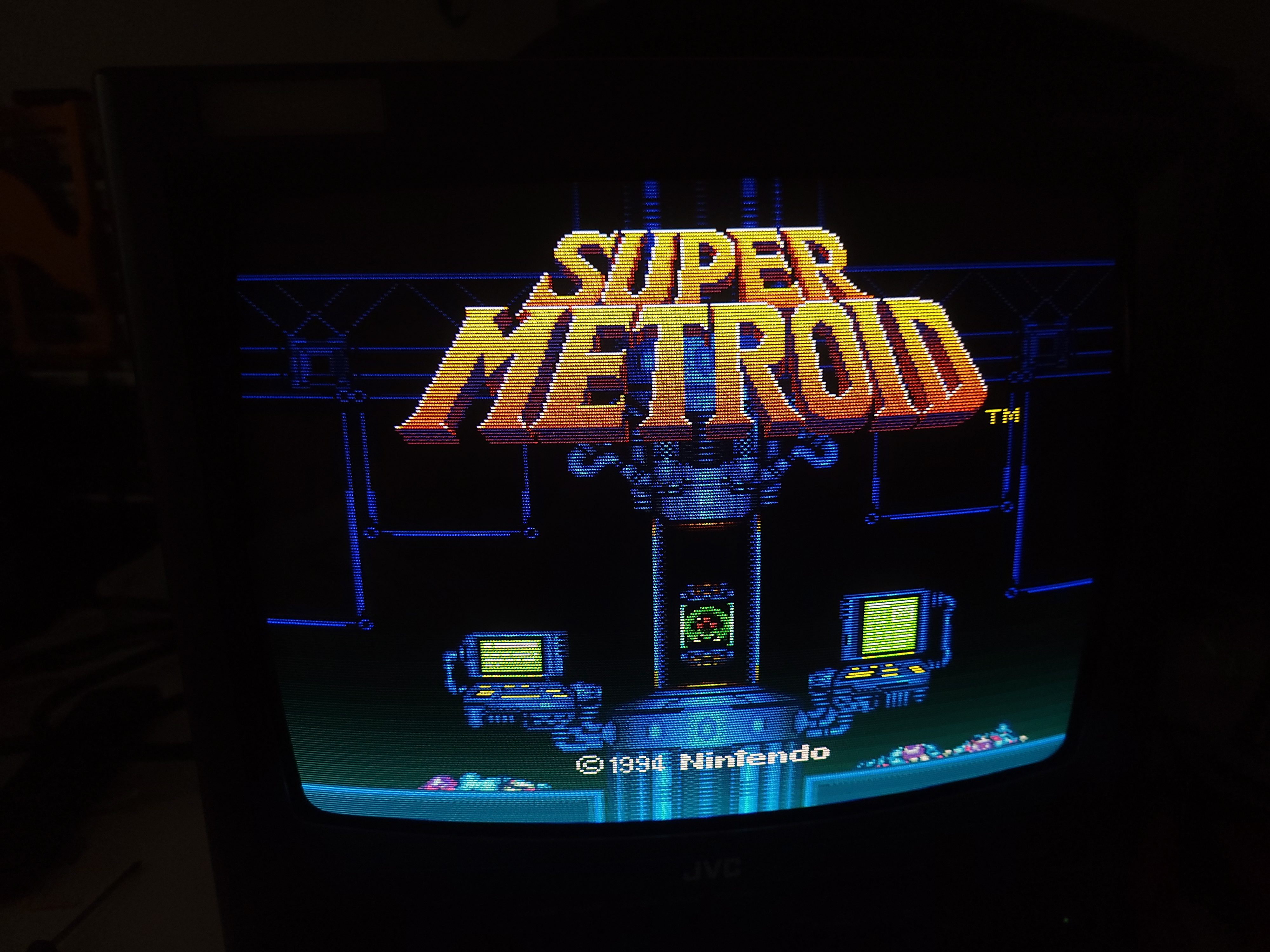

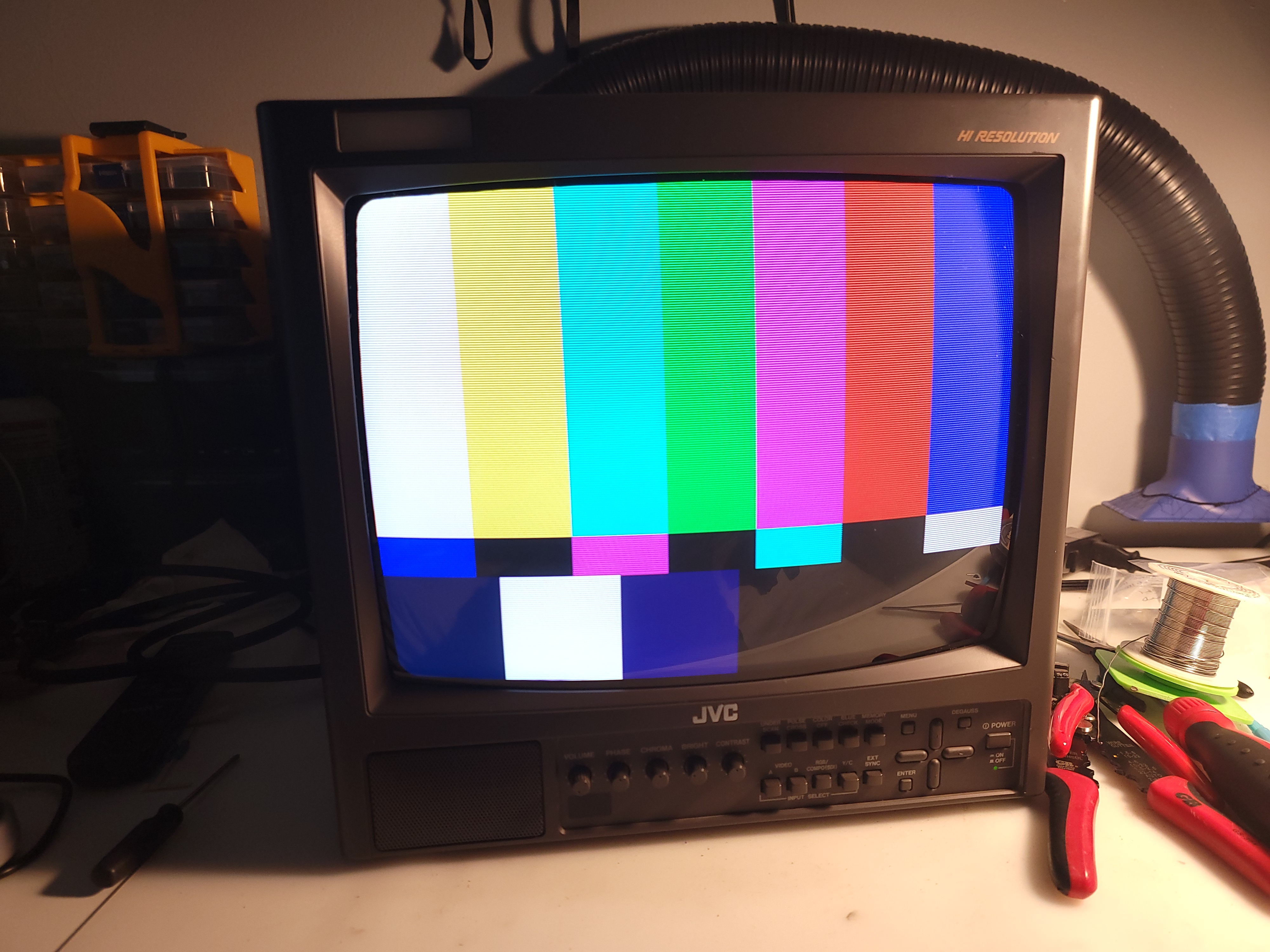

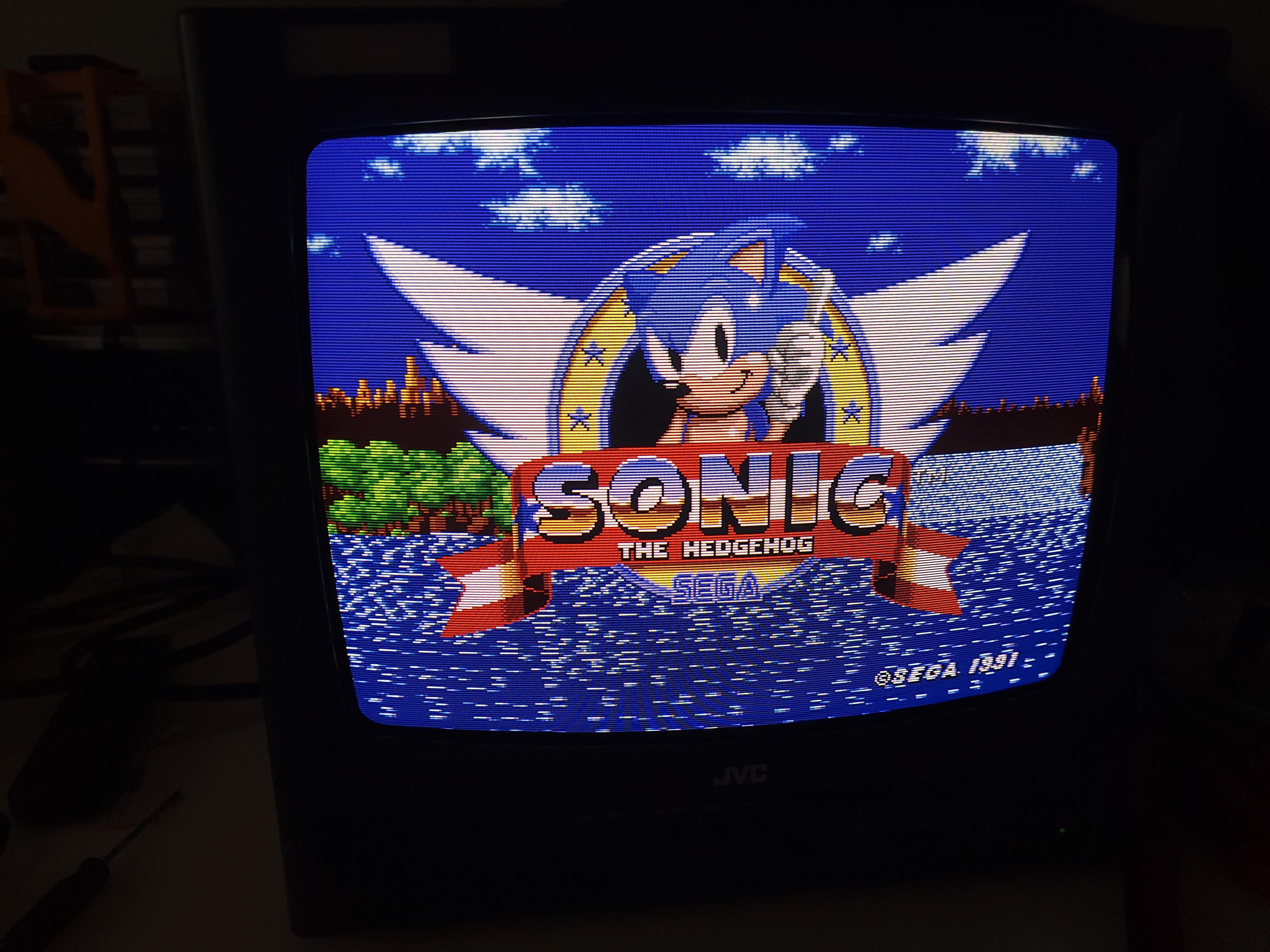

Gallery
| Specifications | |
|---|---|
| Brand: | JVC |
| Manufacturer: | JVC |
| Model: | BM-H1310SU |
| Series: | BM |
| Viewable Size: | 13" |

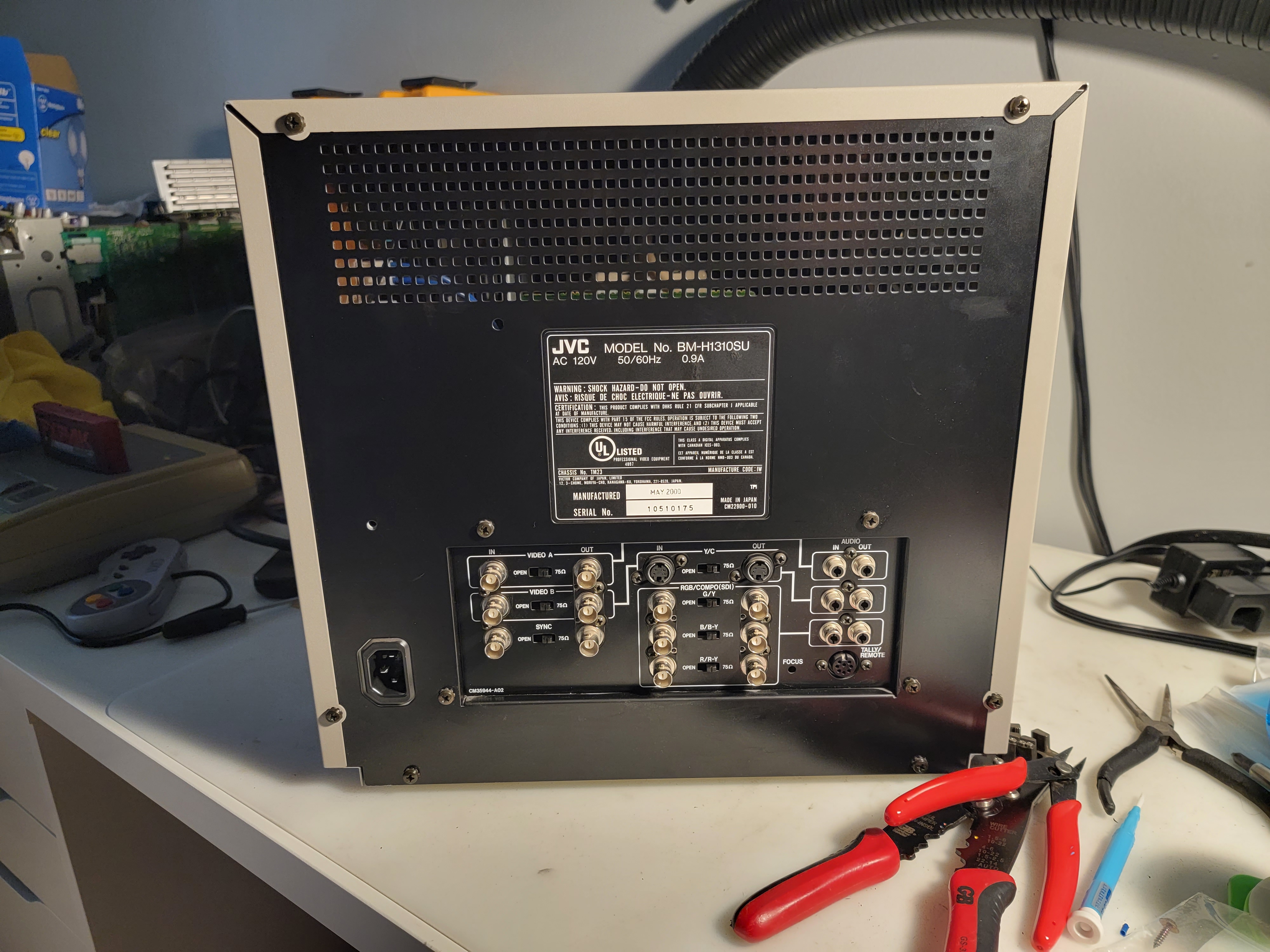

| Inputs: | Composite, S-Video, Component YPbPr, RGB, SDI |
| Sync: | CSYNC, Sync over Composite, Sync on Luma |
| Native Resolutions: | 240p, 480i |
| Linecount: | 750 TVL |
| Horizontal Scan Range: | 15 kHz |
| Formats: | NTSC, PAL |
| Aspect: | 4:3 |
| Expansions: | Input Cards |
| Adjustments: | Internal Potentiometers, OSD Customer Controls, OSD Service Menu |
| Tube: | Chunghwa , M34AFA13X02 , M34AFA13X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Shadow
|
| Pitch: | 0.28 mm, .28 mm |
| Removable Glare Film: | No |
| Speakers: | Mono |
| Weight: | 35 lbs (15.9 kg) |
| Application: | Professional |
| Cabinet Material: | Metal |
| Launched: | 1999 |
| Country of Manufacture: | Japan |
| Mounting: | Rackable |
| Degaussing: | Automatic on Power-on, Manual |
