JVC C-13010

John S
September 4, 2025, 9:11 am
April 14, 2026, 8:18 pm

Summary

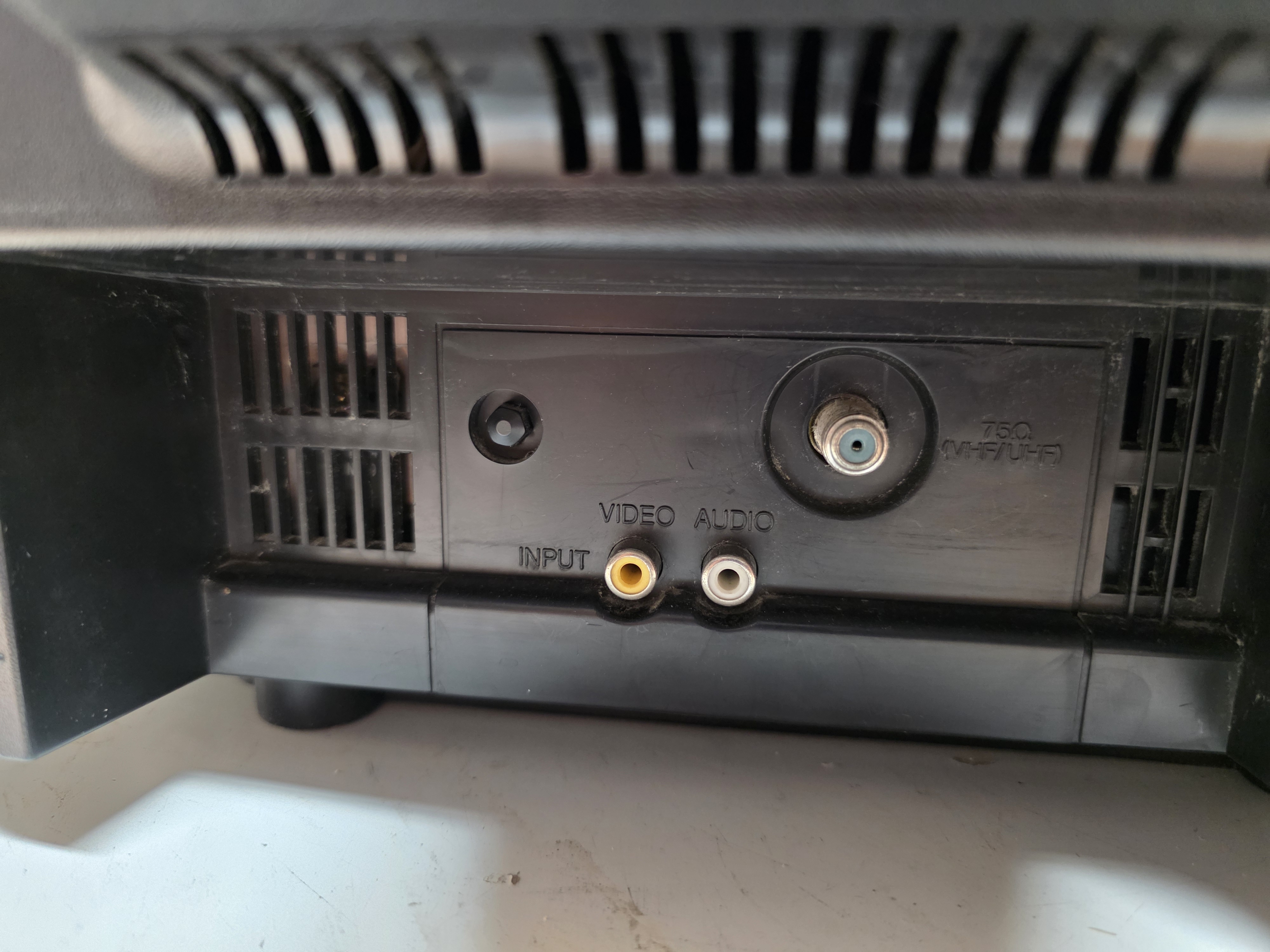

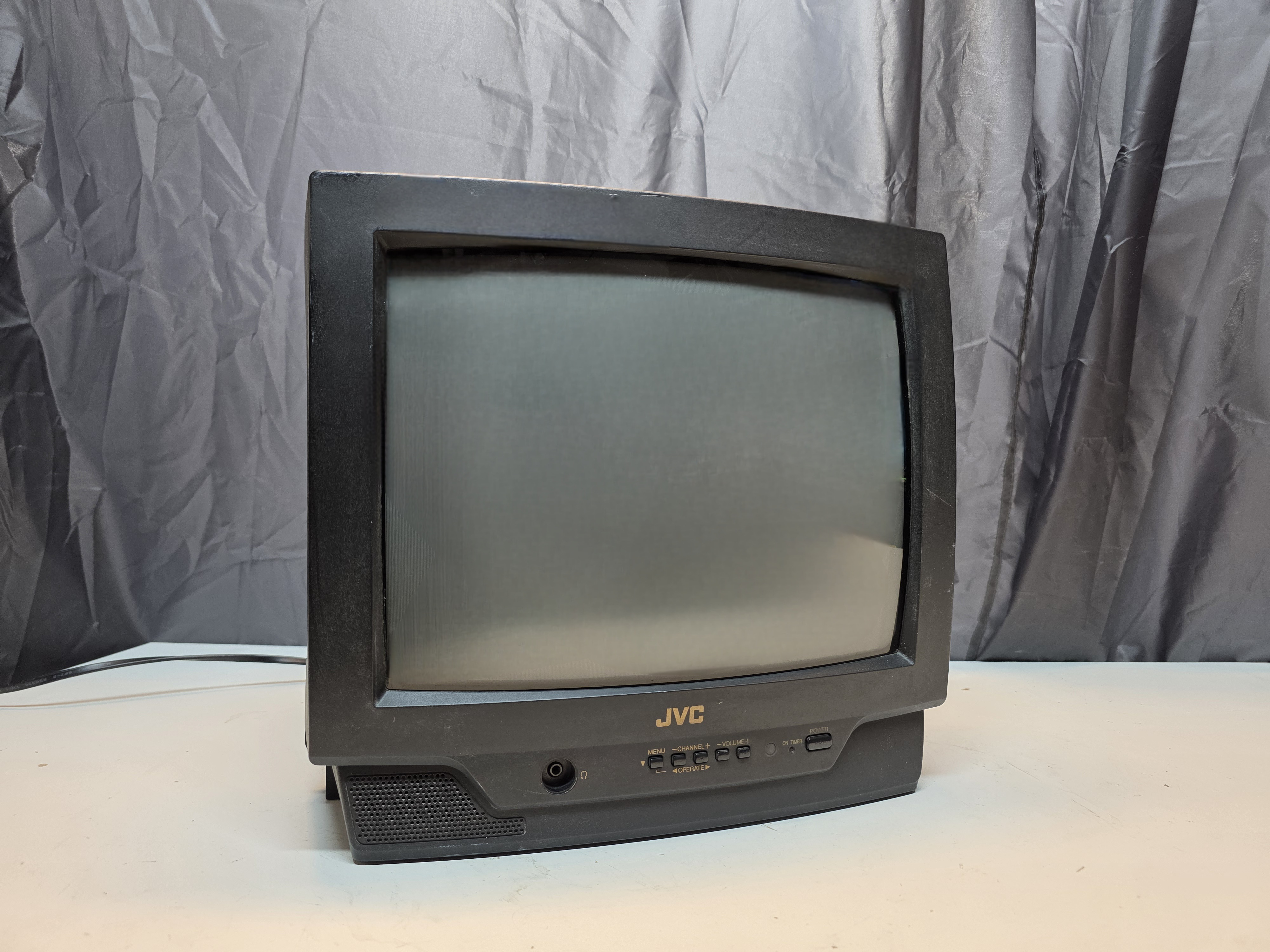

13" TV with coaxial and rear composite input.

Manuals

Notes

An RGB mod via mux is possible on this set. A white version, the C-13011 was also sold.

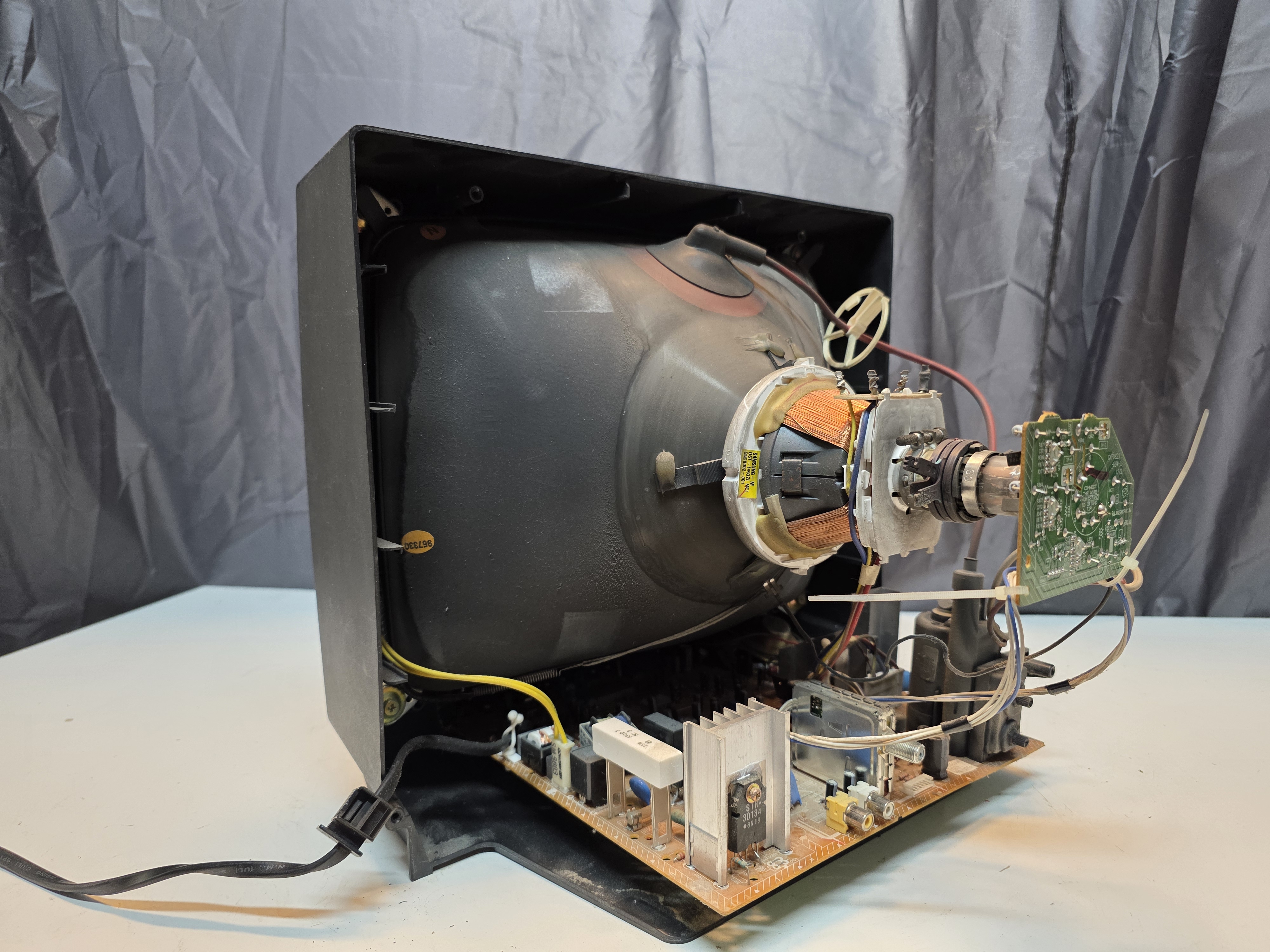

Gallery

JVC C-13010 JVC C-13010 JVC C-13010 JVC C-13010 JVC C-13010 JVC C-13010 JVC C-13010 JVC C-13010
Specifications
Brand: JVC
Manufacturer: JVC

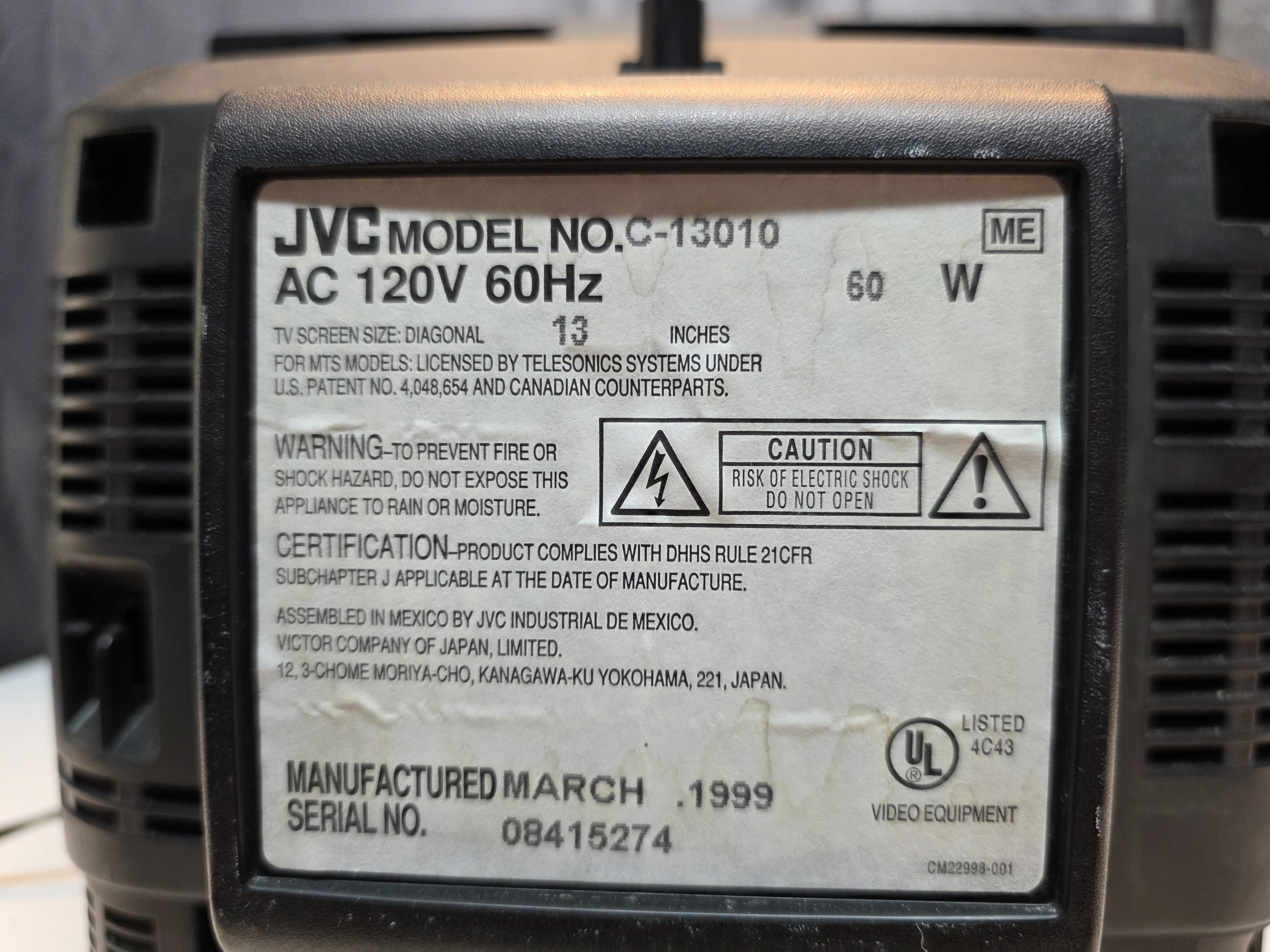

Model: C-13010
Series: C
Viewable Size: 13"
Input Signals: Composite, RF
Native Resolutions: 240p, 480i
Horizontal Scan Range: 15 kHz
Vertical Scan Range: 60 Hz
Formats: NTSC
Aspect: 4:3
Adjustments: OSD Customer Controls

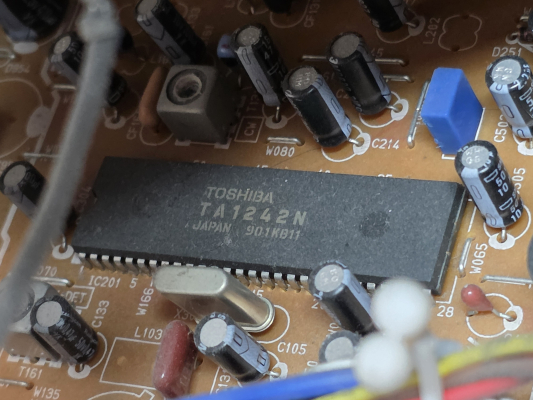

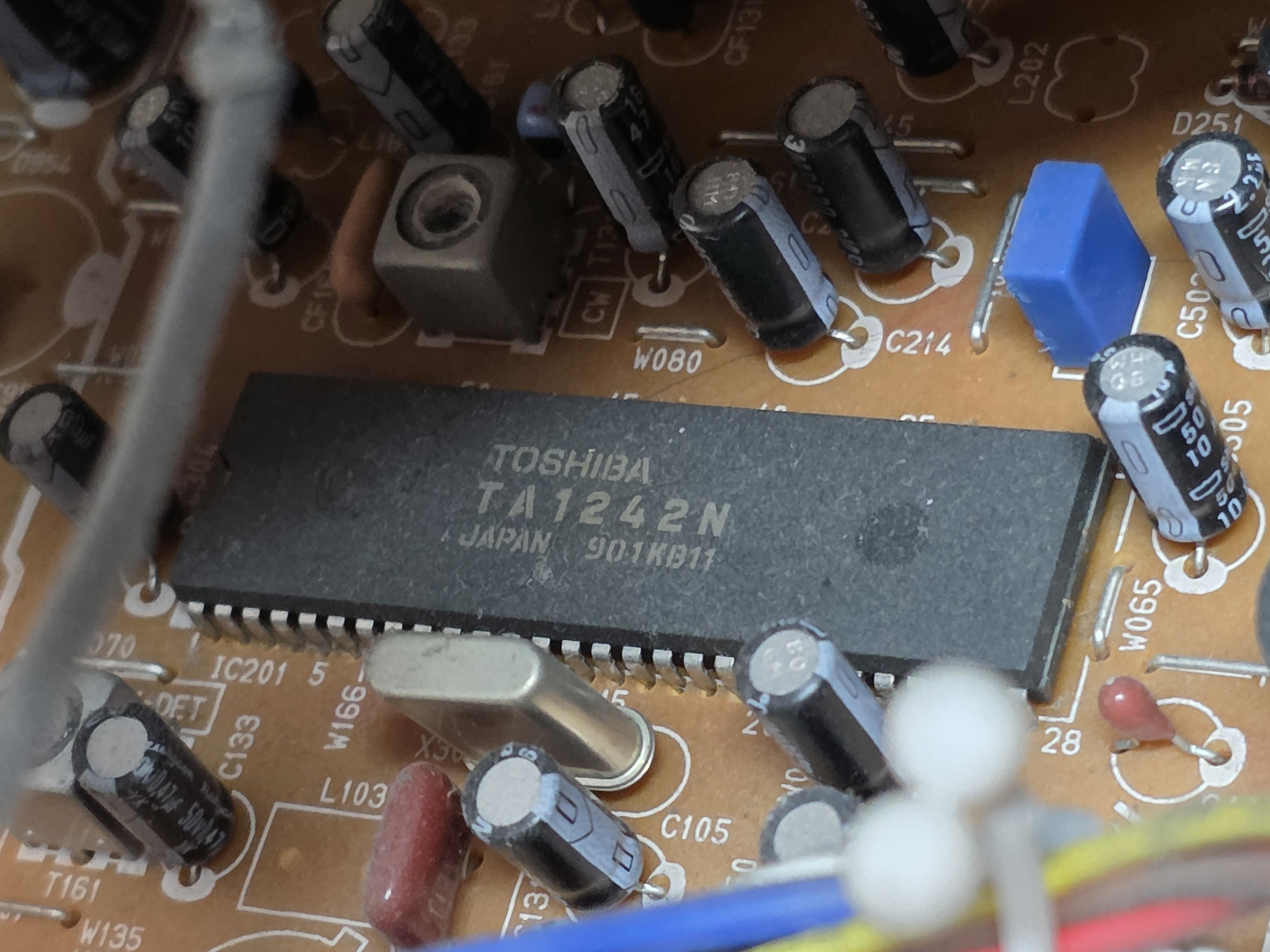

Jungle IC: Toshiba, TA1242N
Comb Filtering: Notch

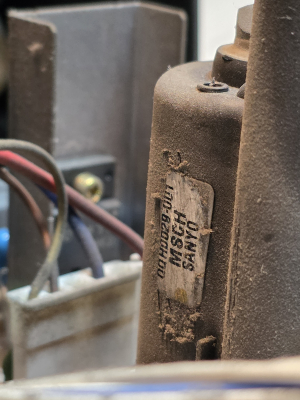

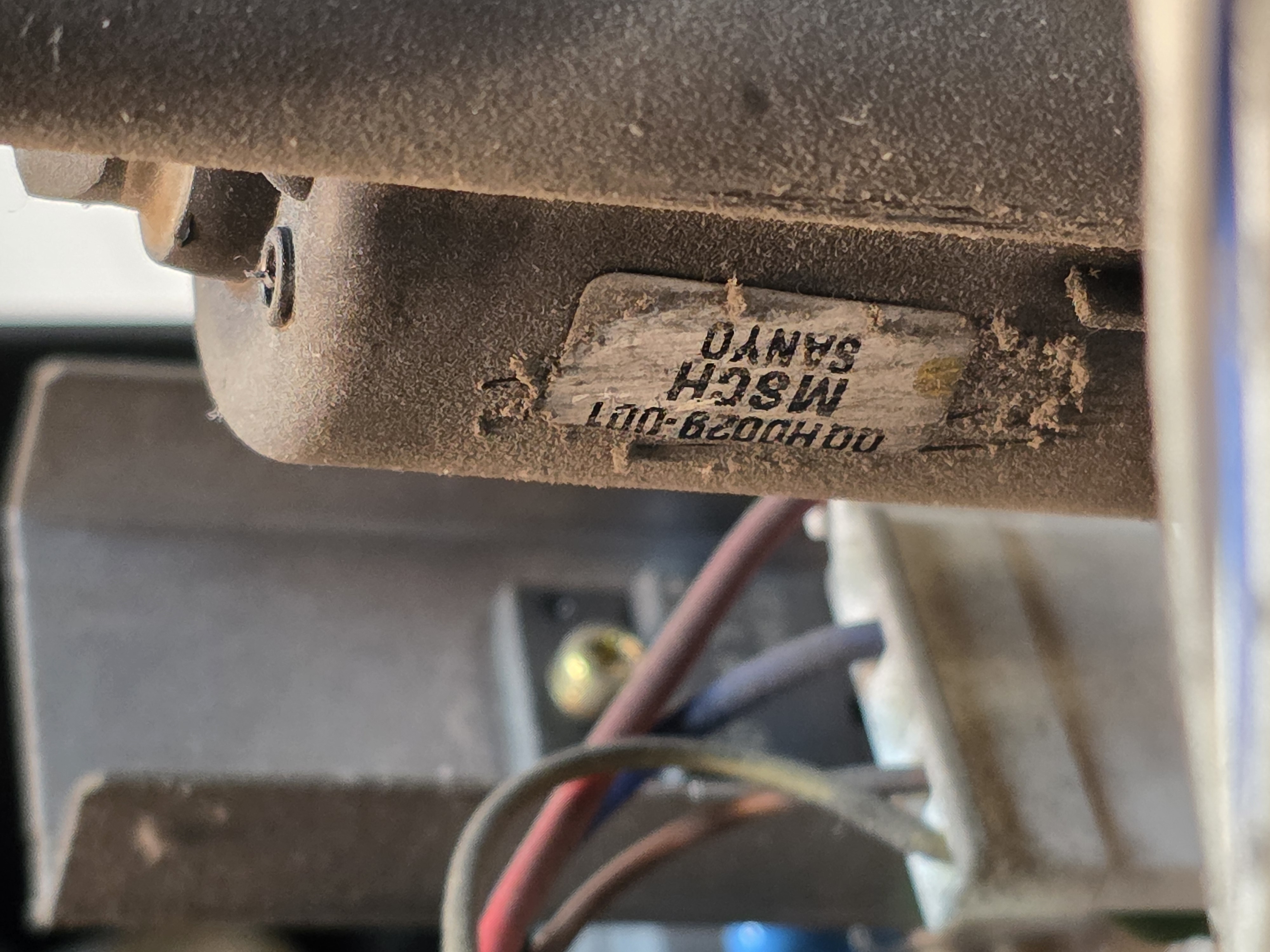

Flyback: QQH0029-001
Focus Type: Single

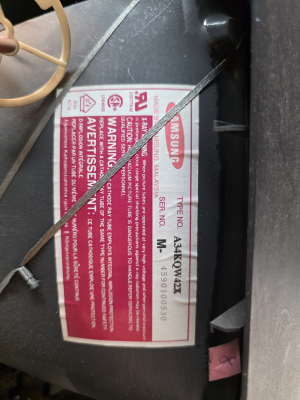

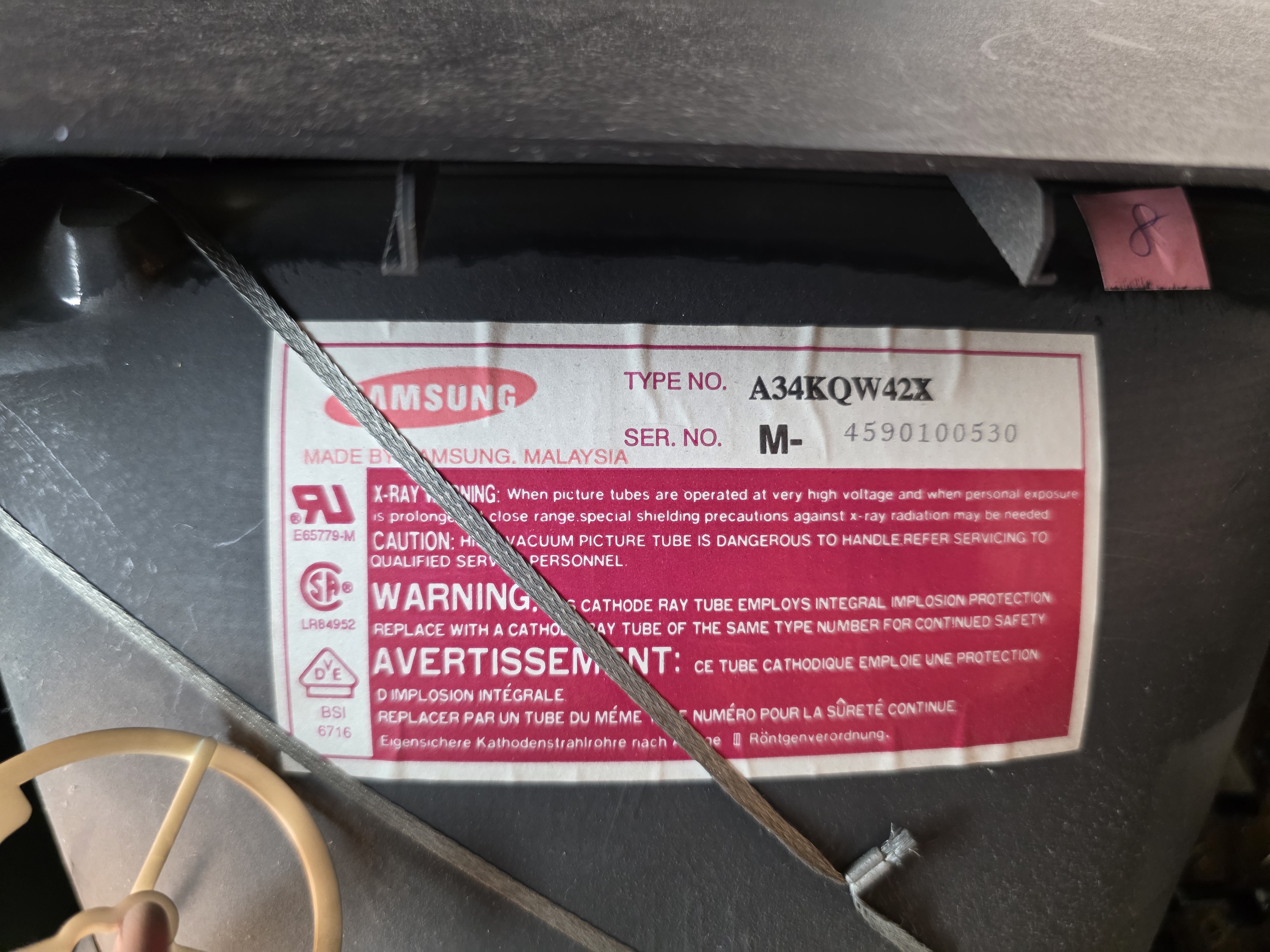

Tube: Samsung , A34KQW42X
Deflection: 90°
Tint: Dark

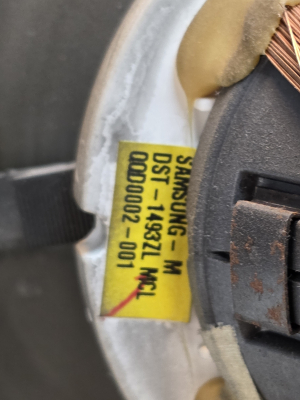

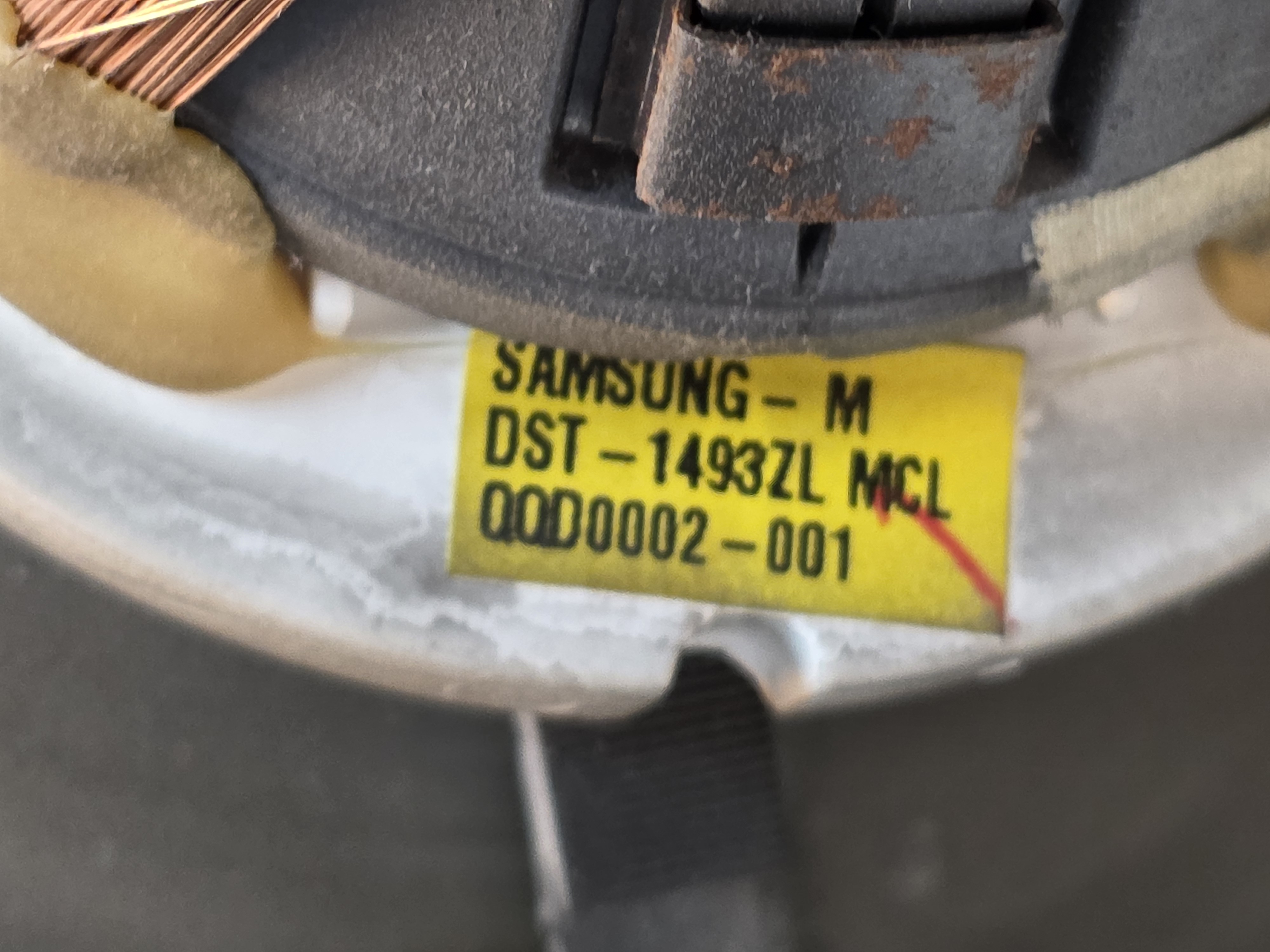

Yoke: Samsung, DST-1493ZL MCL
Speakers: Mono, Headphone Jack, 1W
Remote: RM-C241
Weight: 19.8 lbs (9 kg)
Dimensions (W/H/D): 454 x 416 x 464 mm
(17.8 x 16.3 x 18.2")
Application: Consumer
Cabinet Material: Plastic
Launched: 1999
Country of Manufacture: Thailand
Market: North America
Power Standard: 120v
Mounting: Table Surface (Standard)
Degaussing: Automatic on Power-on
Tag: Needs Owners Manual, Needs Service Manual, Needs Pictures
