JVC C-1312

Eli Krause
April 25, 2025, 11:07 am
May 29, 2025, 1:06 am

Summary

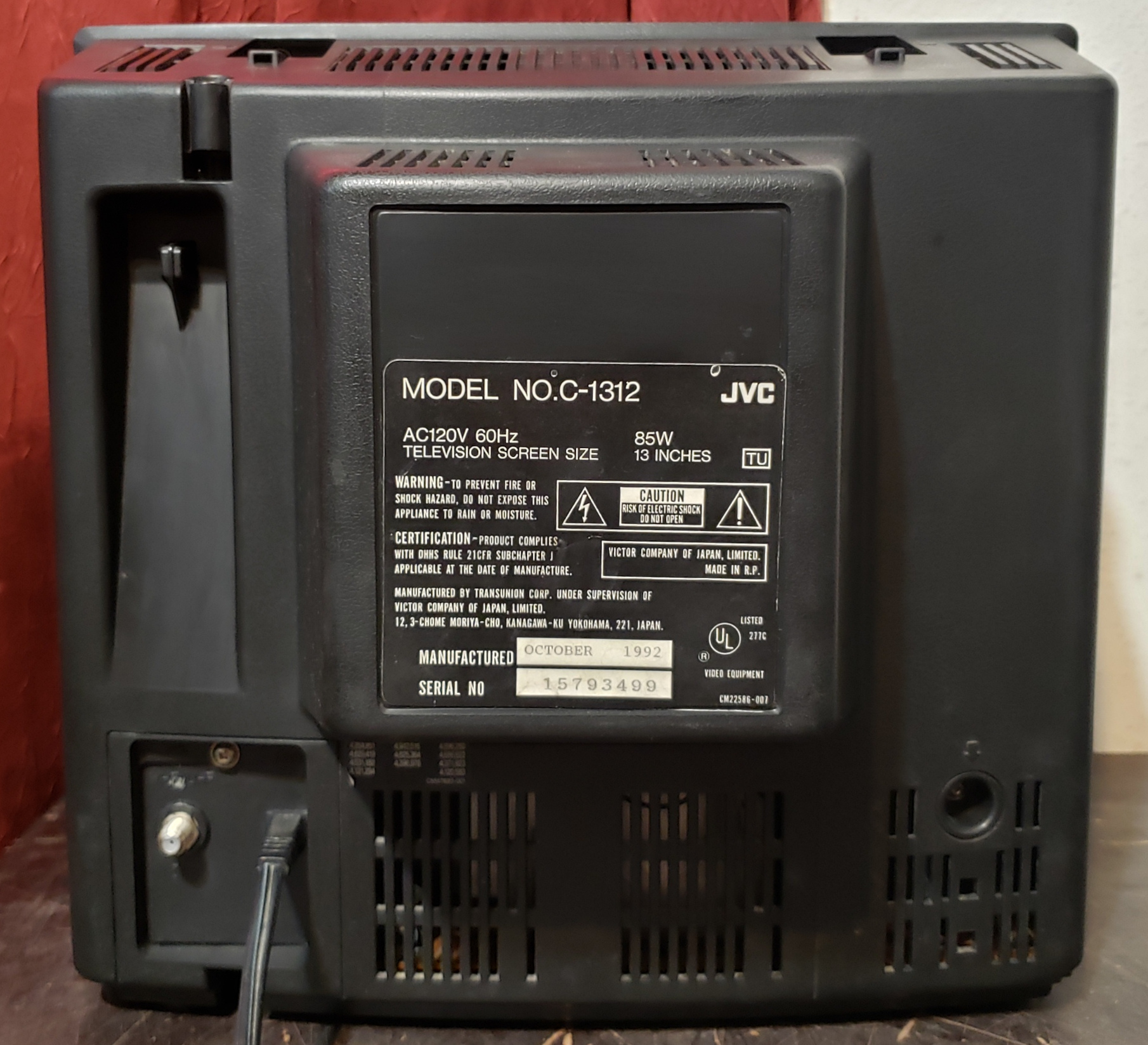

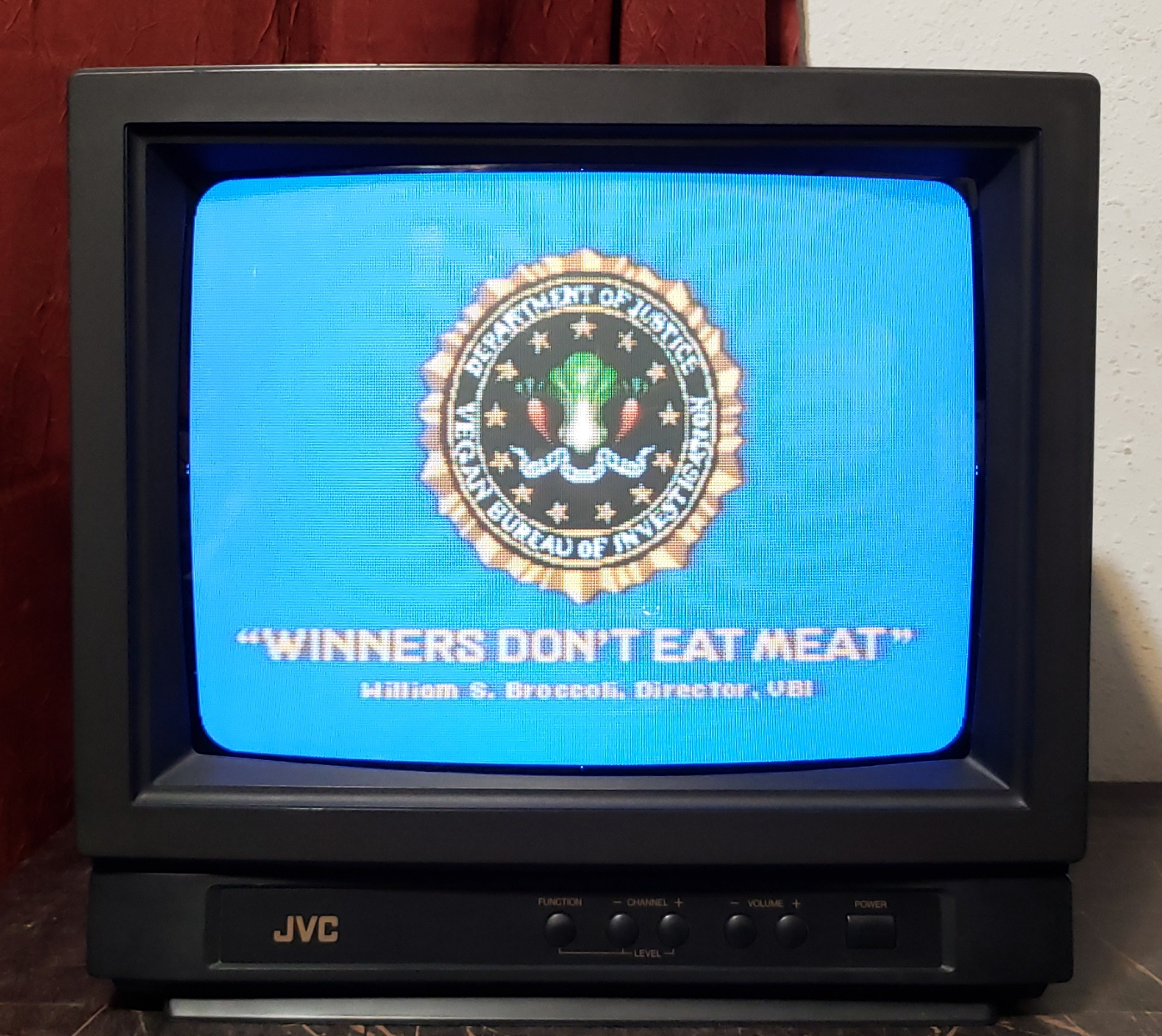

13" TV with coaxial input.

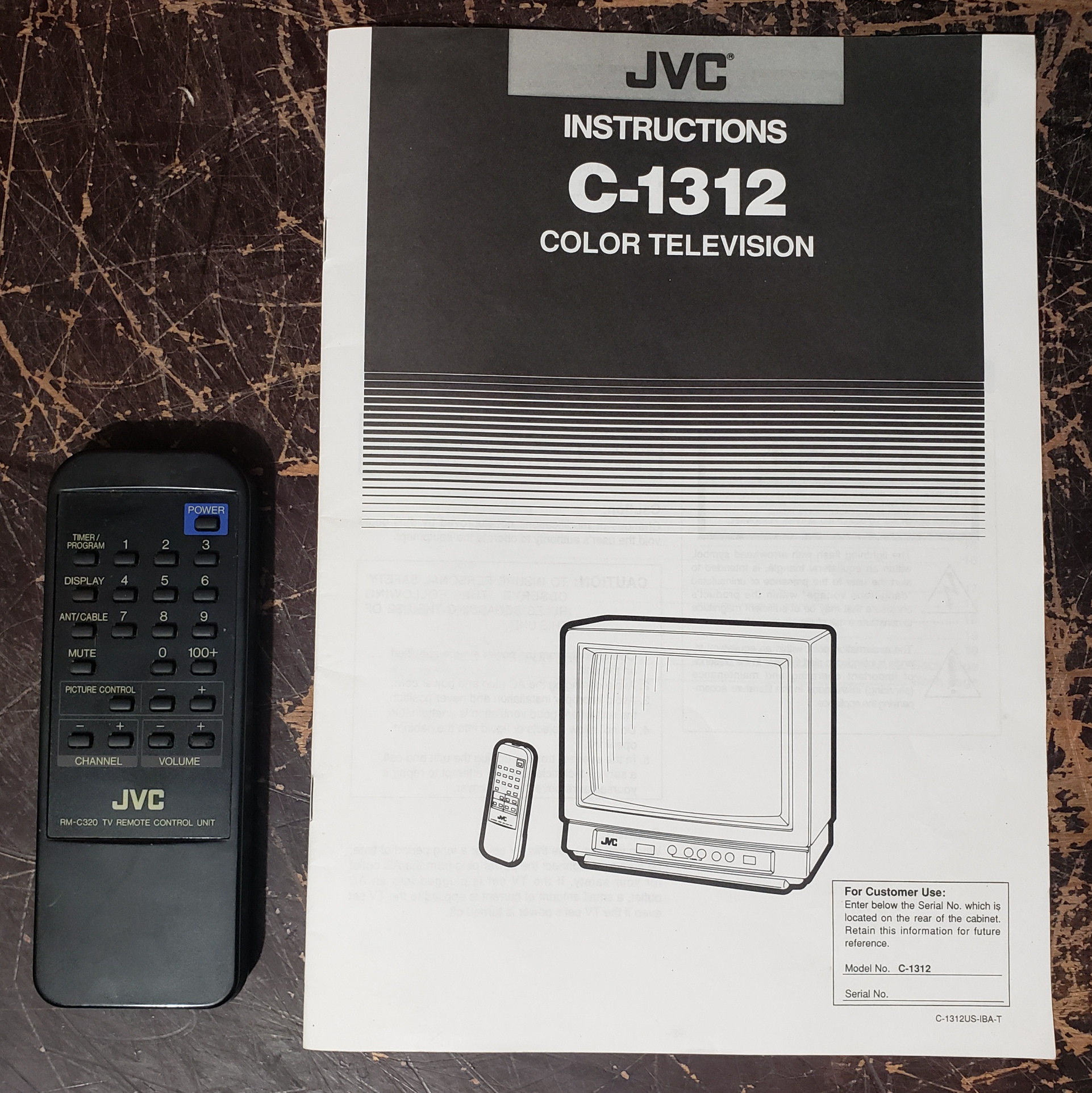

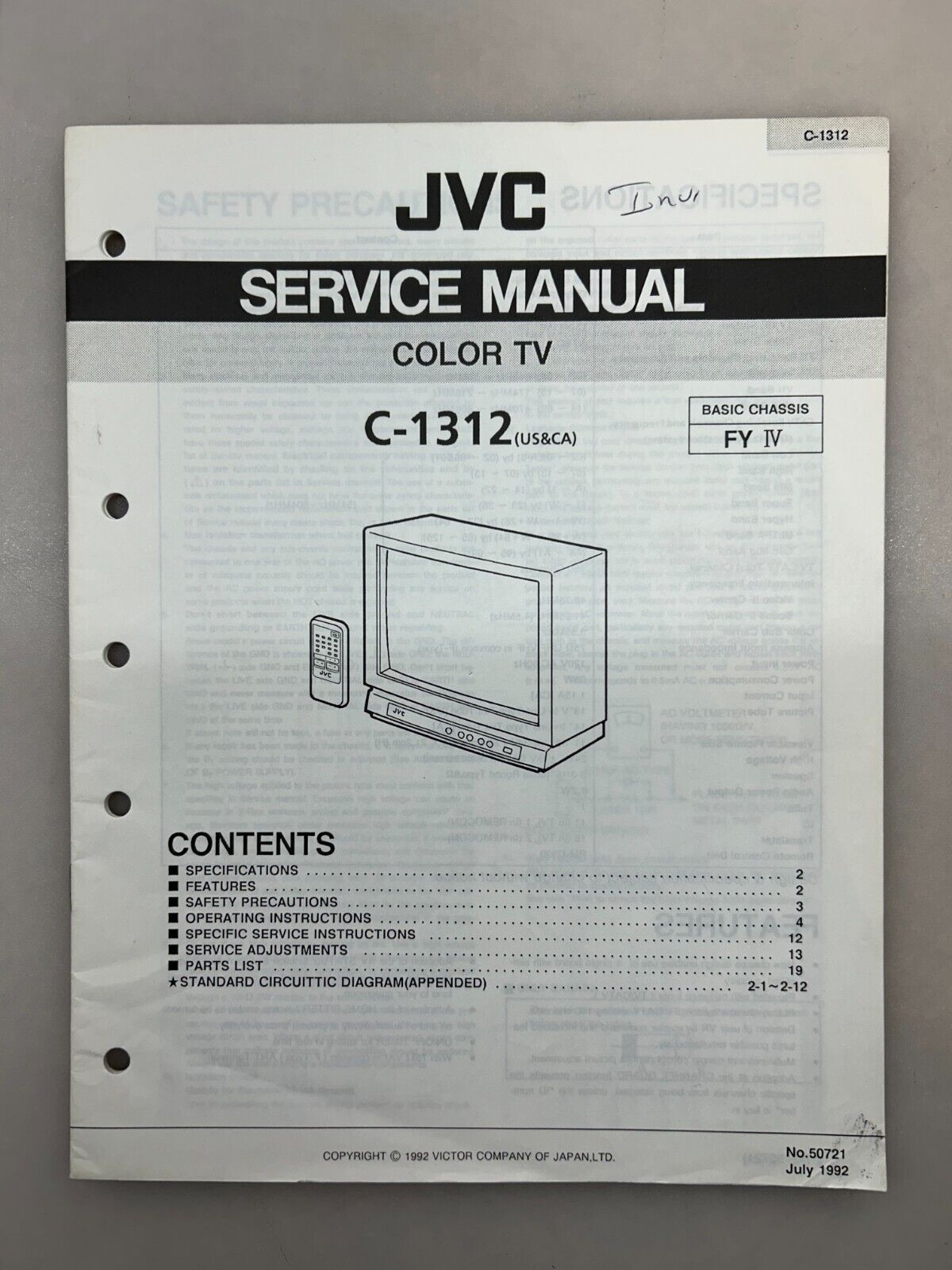

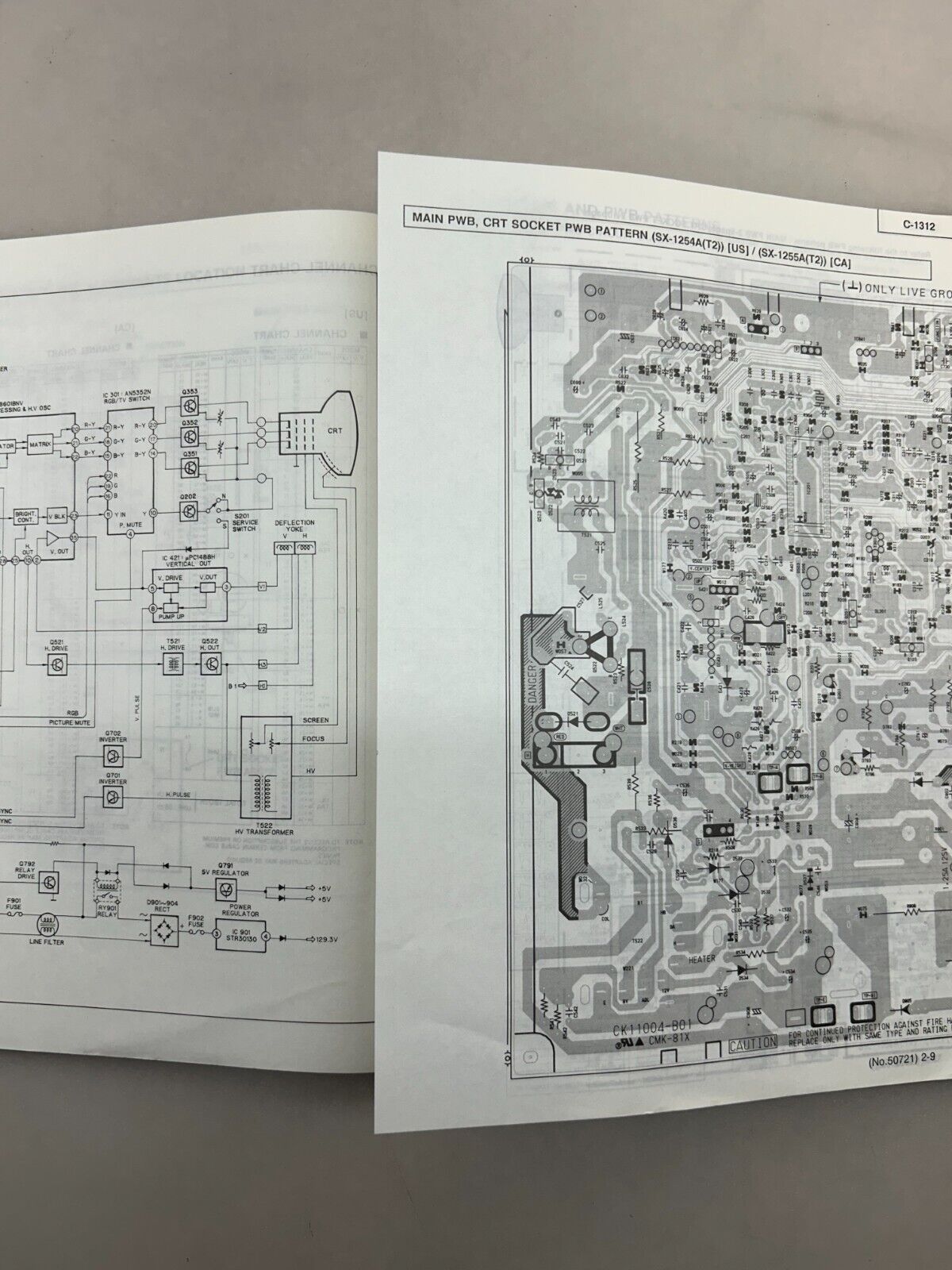

Manuals

Notes

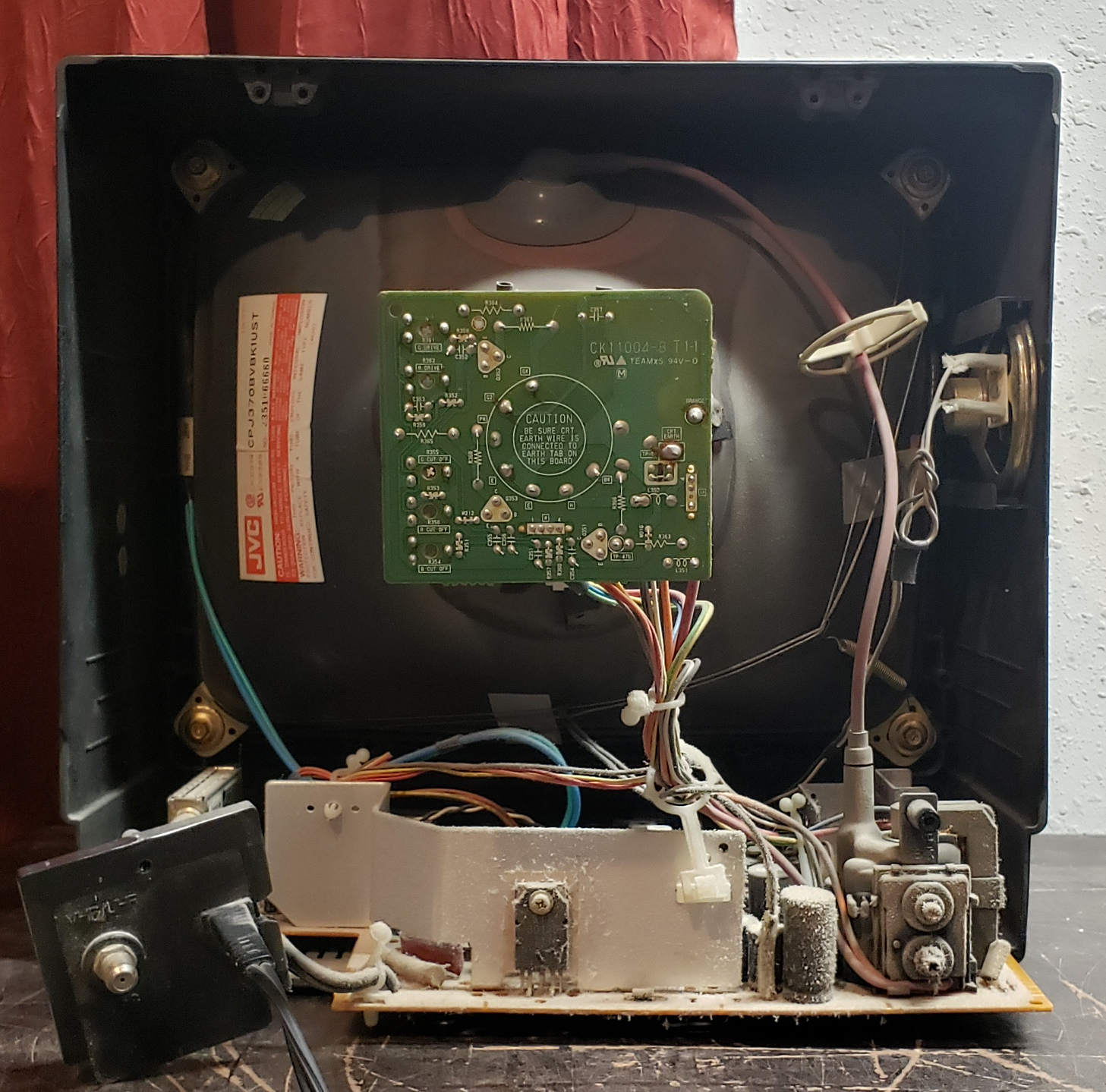

This set has internal potentiometers to adjust vertical height, sub-contrast, and sub-brightness in addition to the internal RGB level adjustments on the neck board.

Repair Notes

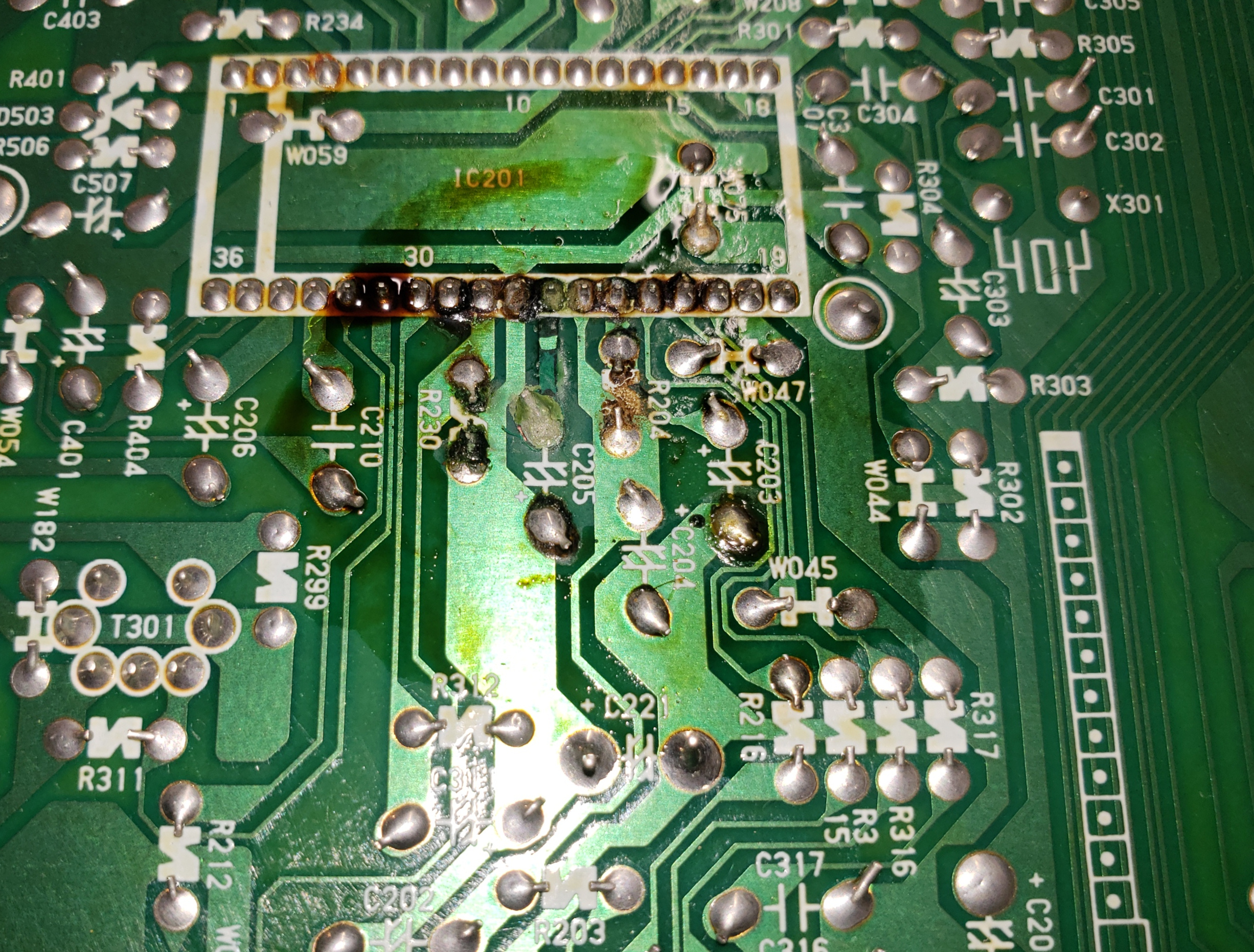

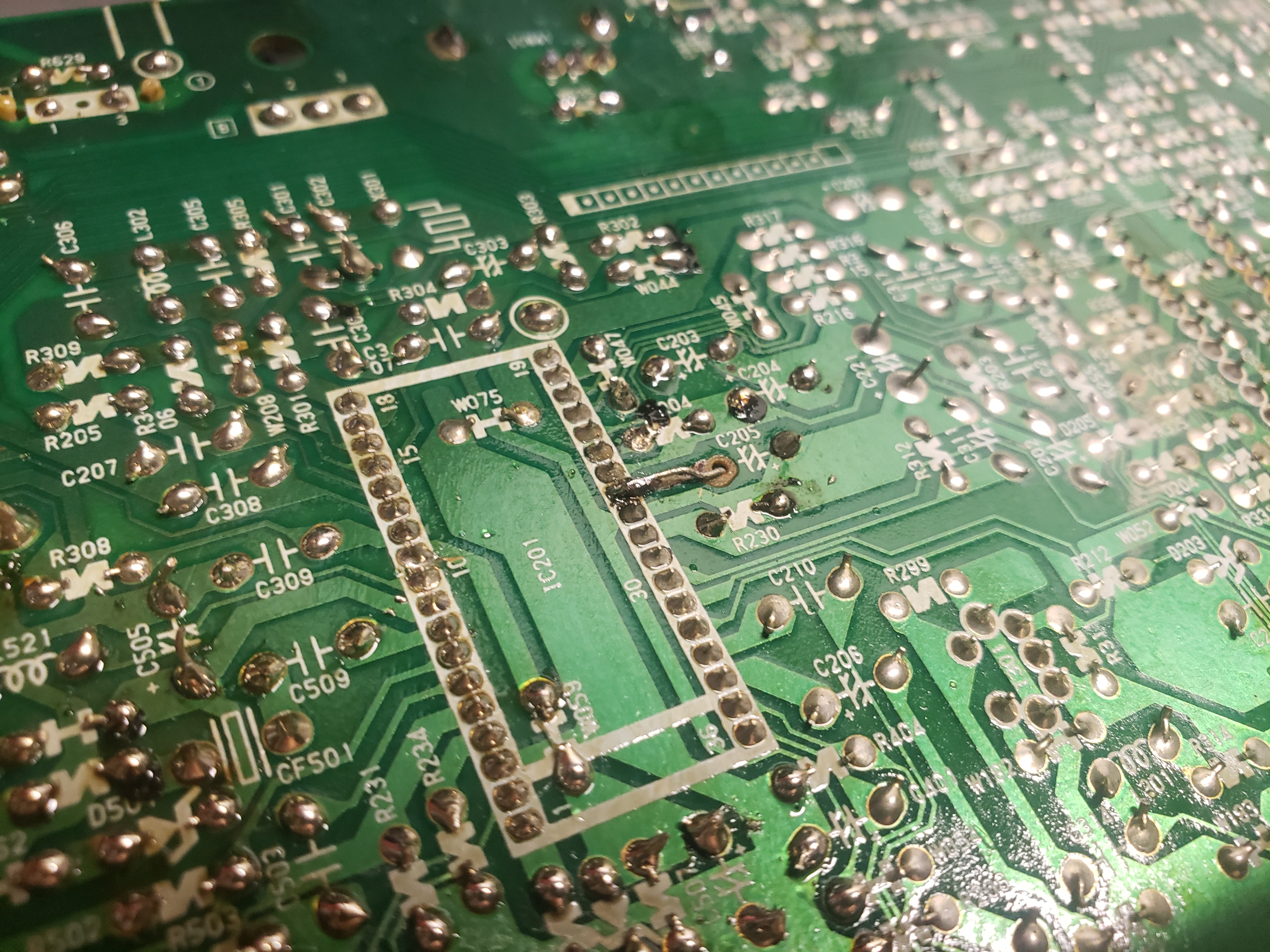

Unit pictured had exhibited smearing and would start off showing only B&W and then gradually color would come in. C205 10uF 25V next to the jungle chip had gone open and leaked electrolytic fluid which corroded traces as well. Another unit also had C205 leak and break a solder joint despite the set appearing to have been used minimally.

Gallery

JVC C-1312 JVC C-1312 JVC C-1312 JVC C-1312 JVC C-1312 JVC C-1312 JVC C-1312 JVC C-1312 JVC C-1312 JVC C-1312 JVC C-1312 JVC C-1312 JVC C-1312 JVC C-1312 JVC C-1312 JVC C-1312 JVC C-1312 JVC C-1312 JVC C-1312 JVC C-1312
