JVC C-1328
Eli Krause
August 28, 2025, 11:07 am
August 28, 2025, 8:40 pm
August 28, 2025, 11:07 am
August 28, 2025, 8:40 pm
Summary

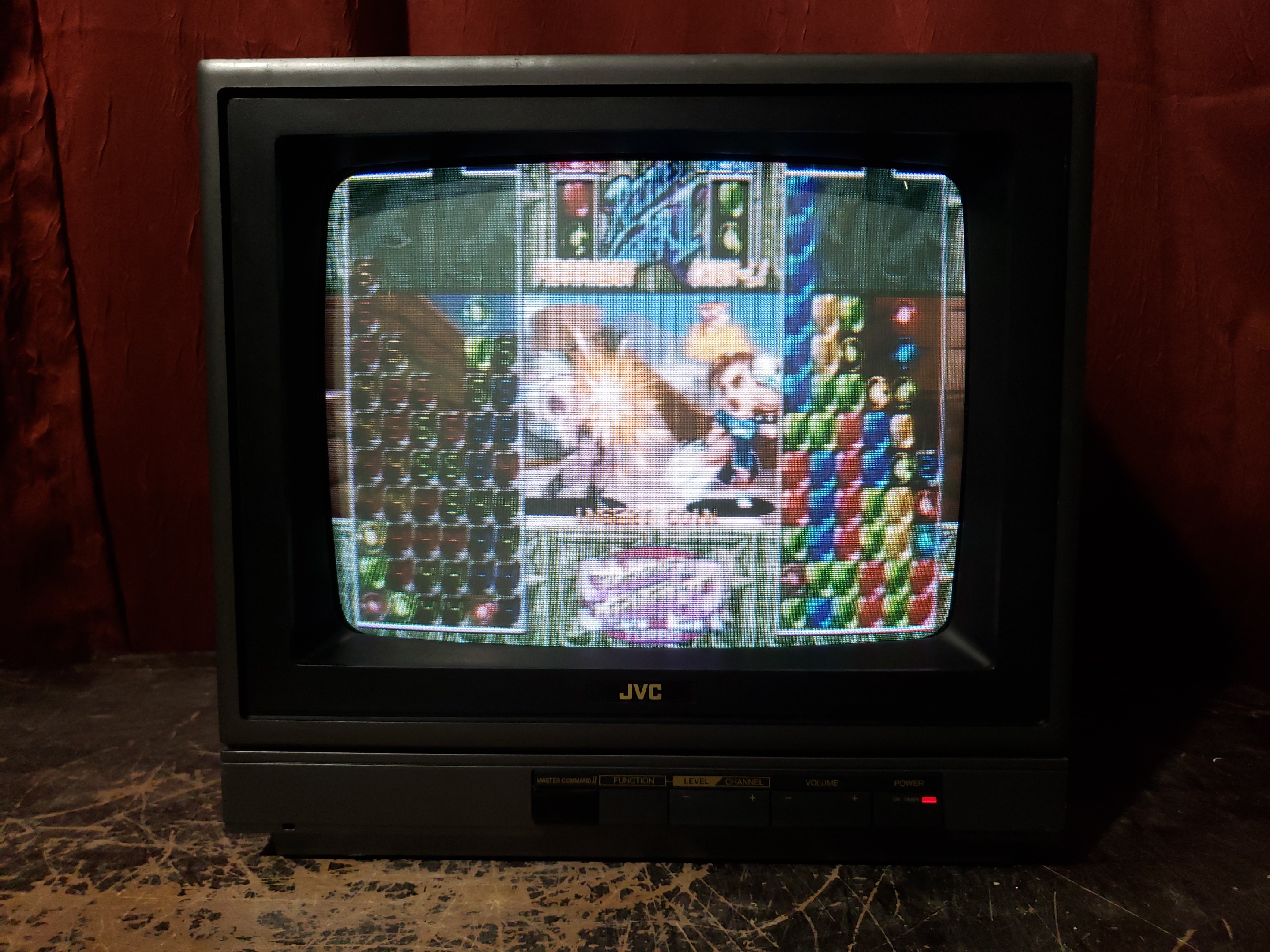

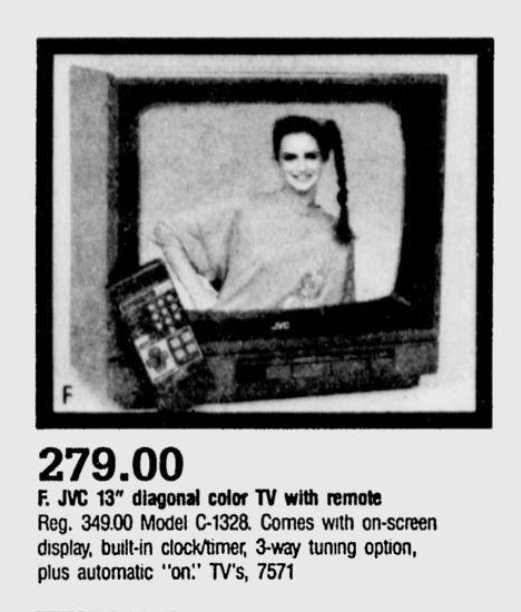

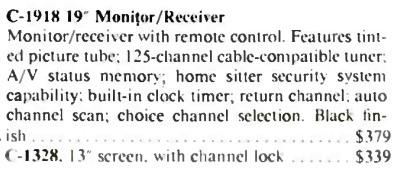

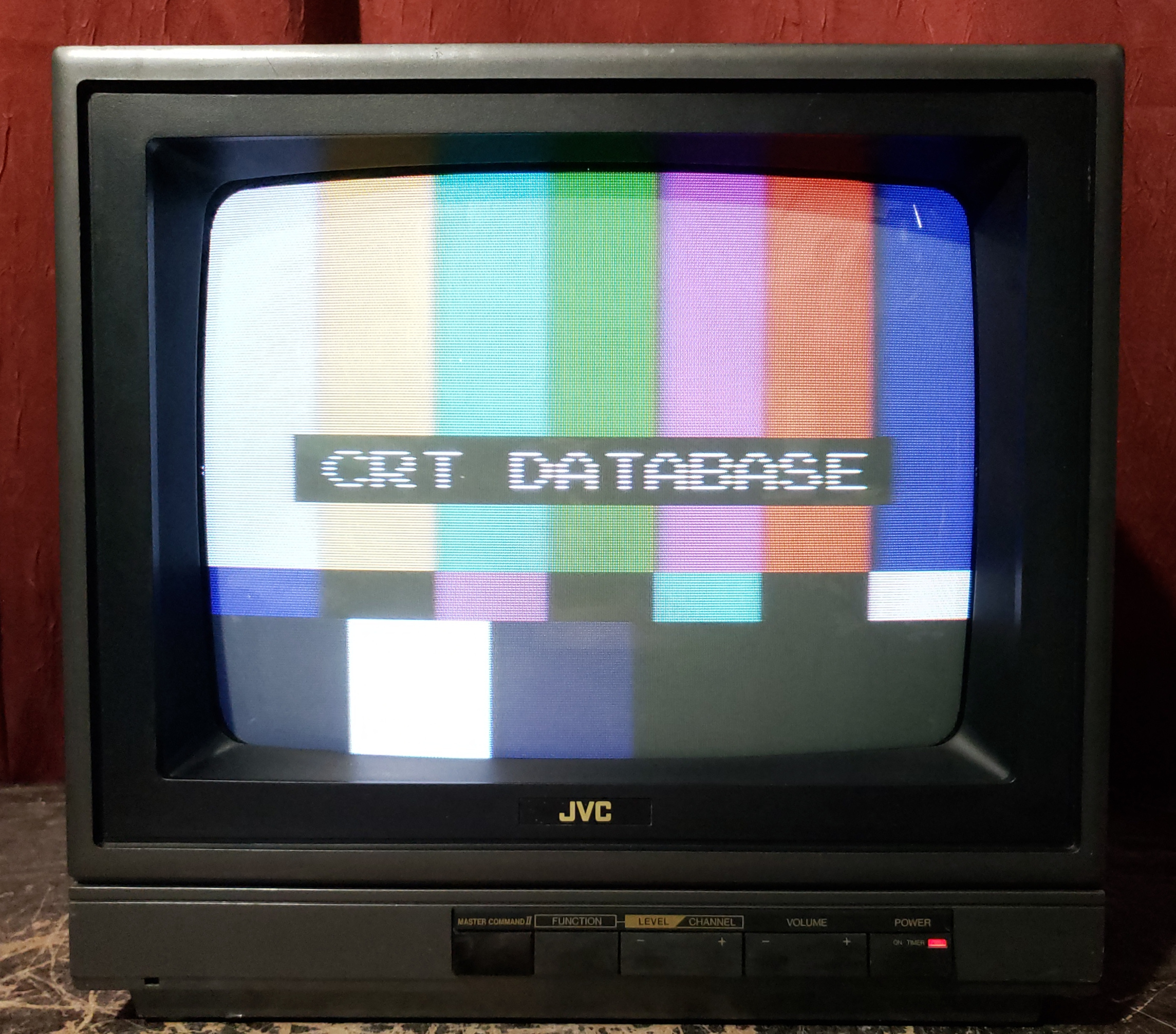

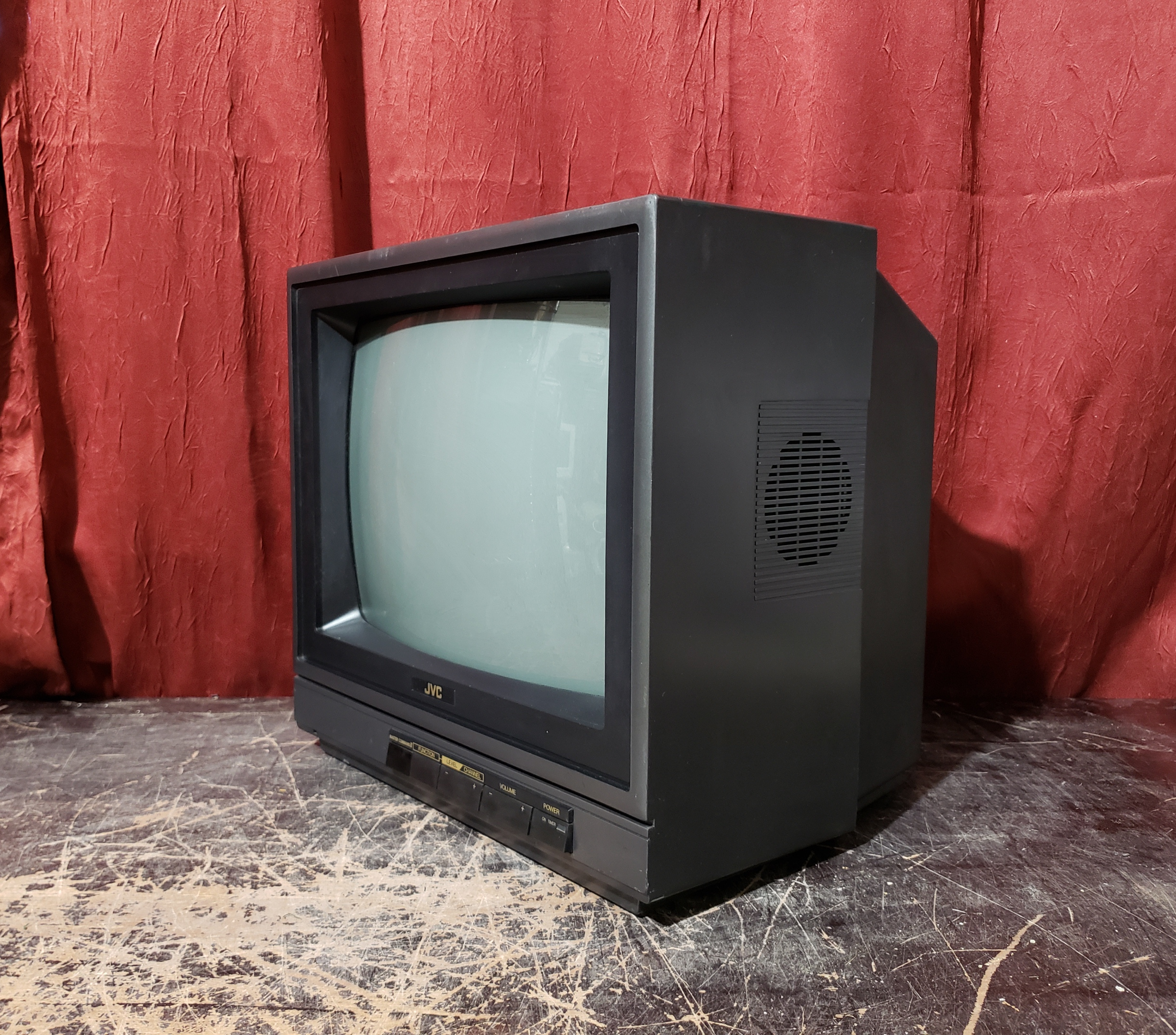

Monitor/receiver with remote control. Features tinted picture tube. Black finish.
13" set with coax input.
Manuals

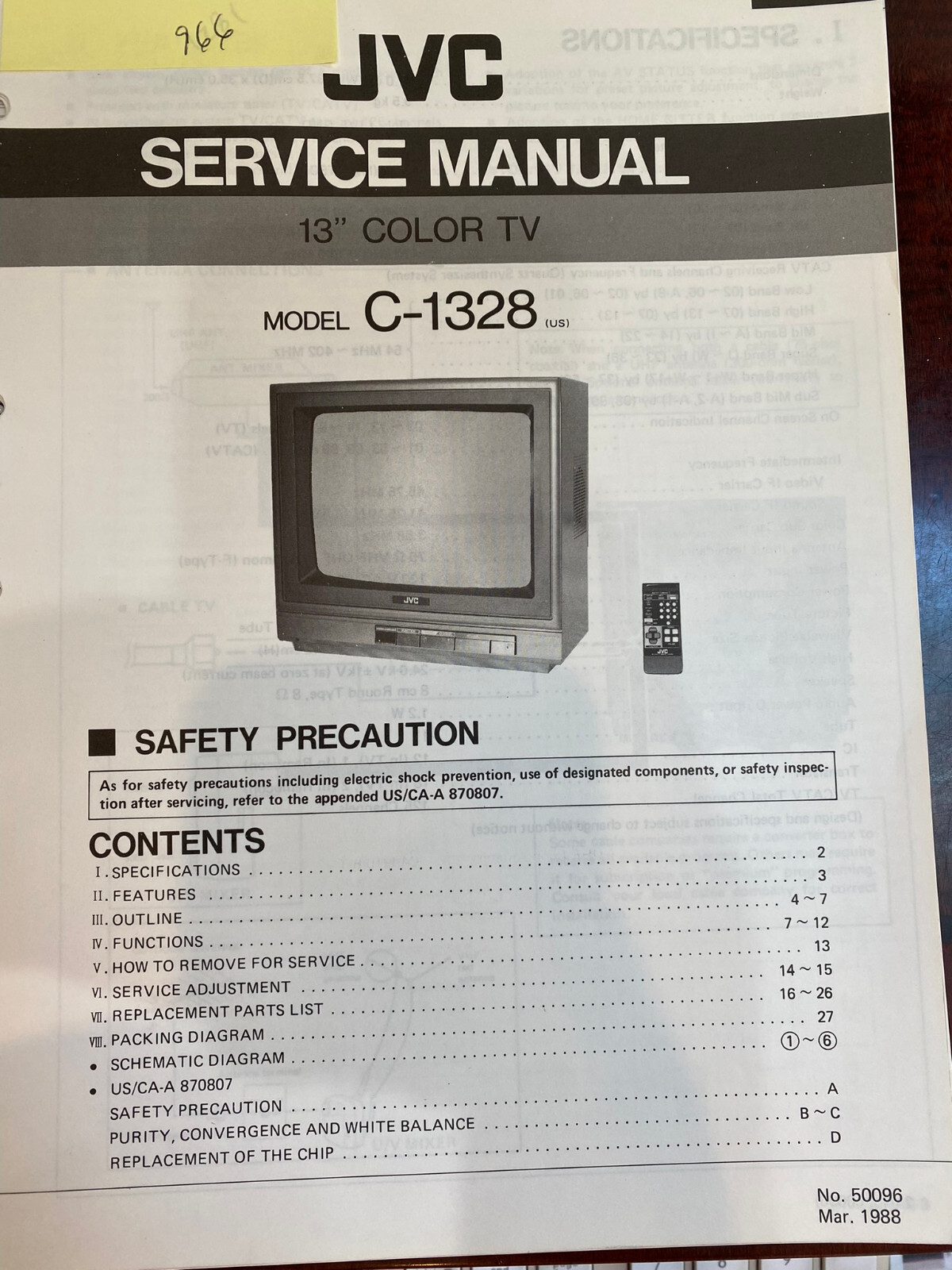

- Service Manual for a similar model
Notes
This set has internal potentiometers to adjust vertical height, sub-contrast, and sub-brightness in addition to the internal RGB level adjustments on the neck board.
Repair Notes

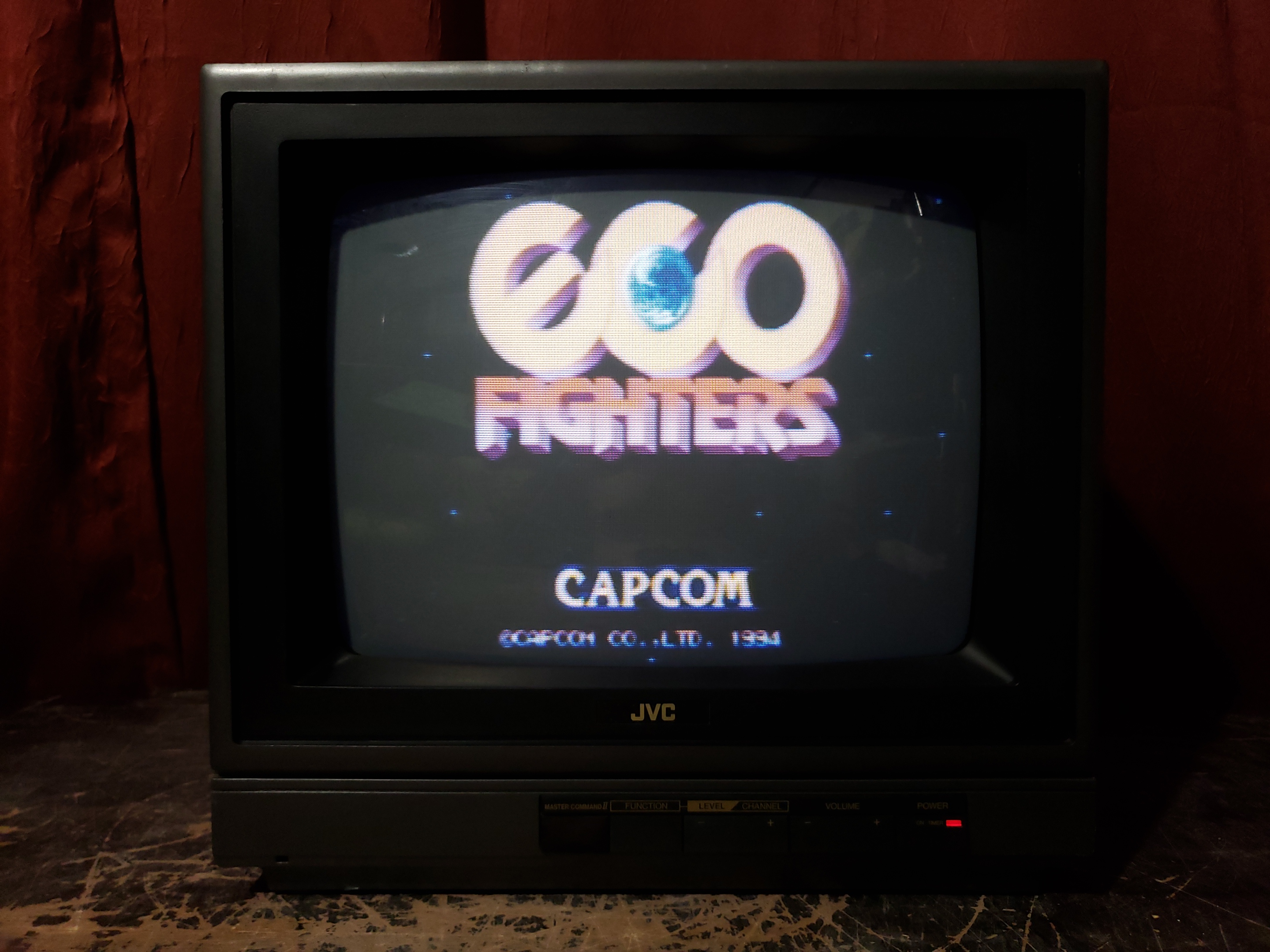

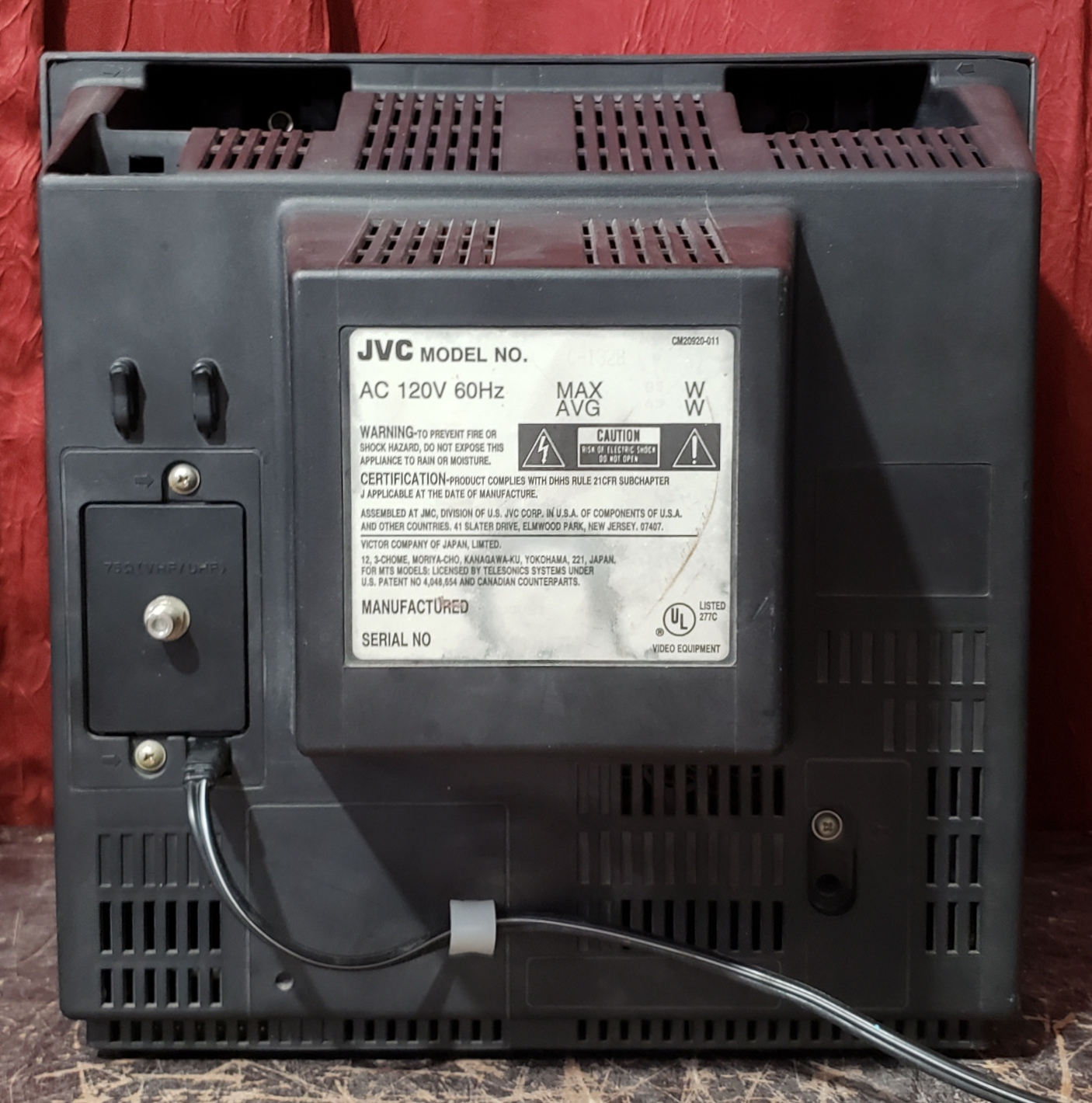

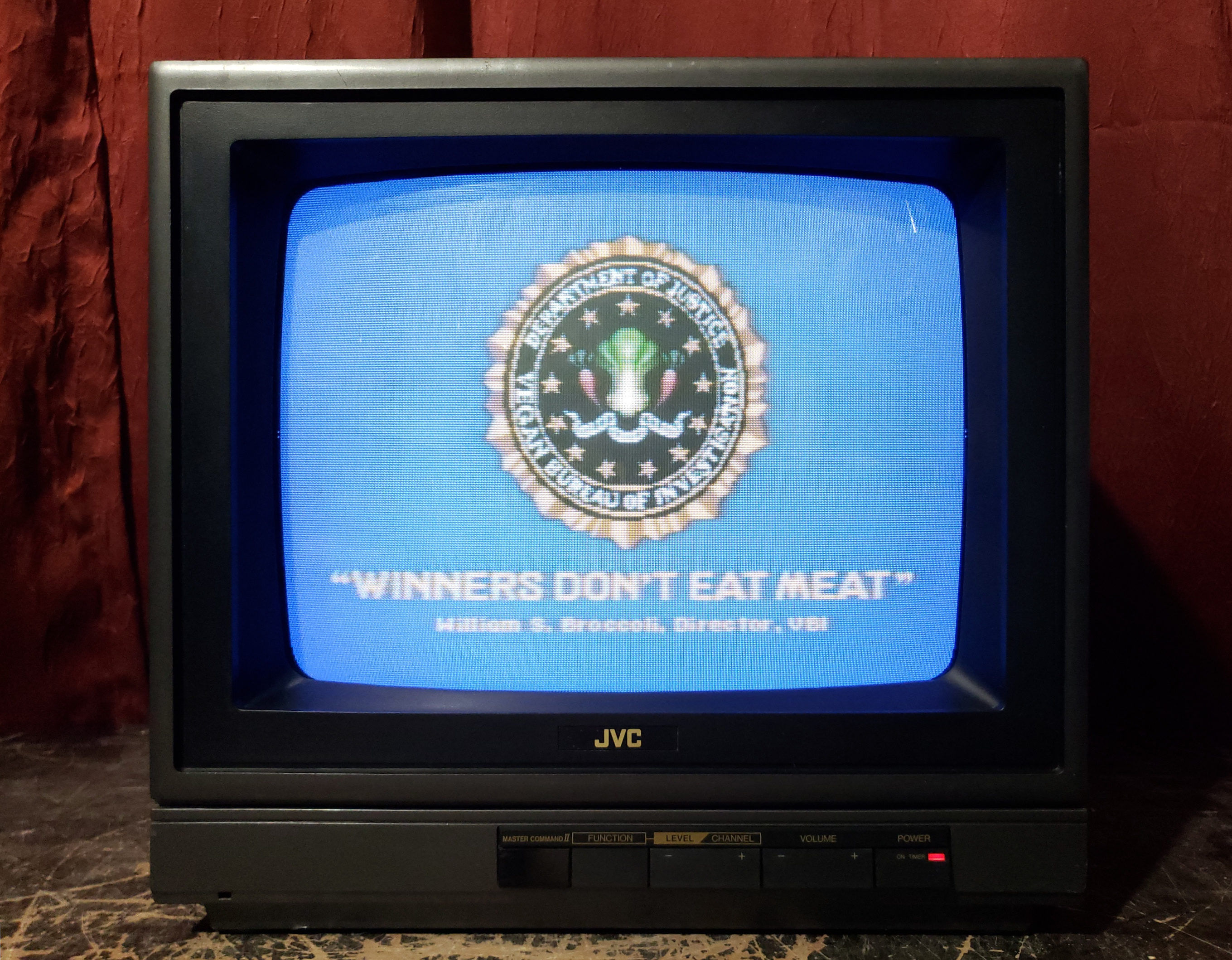

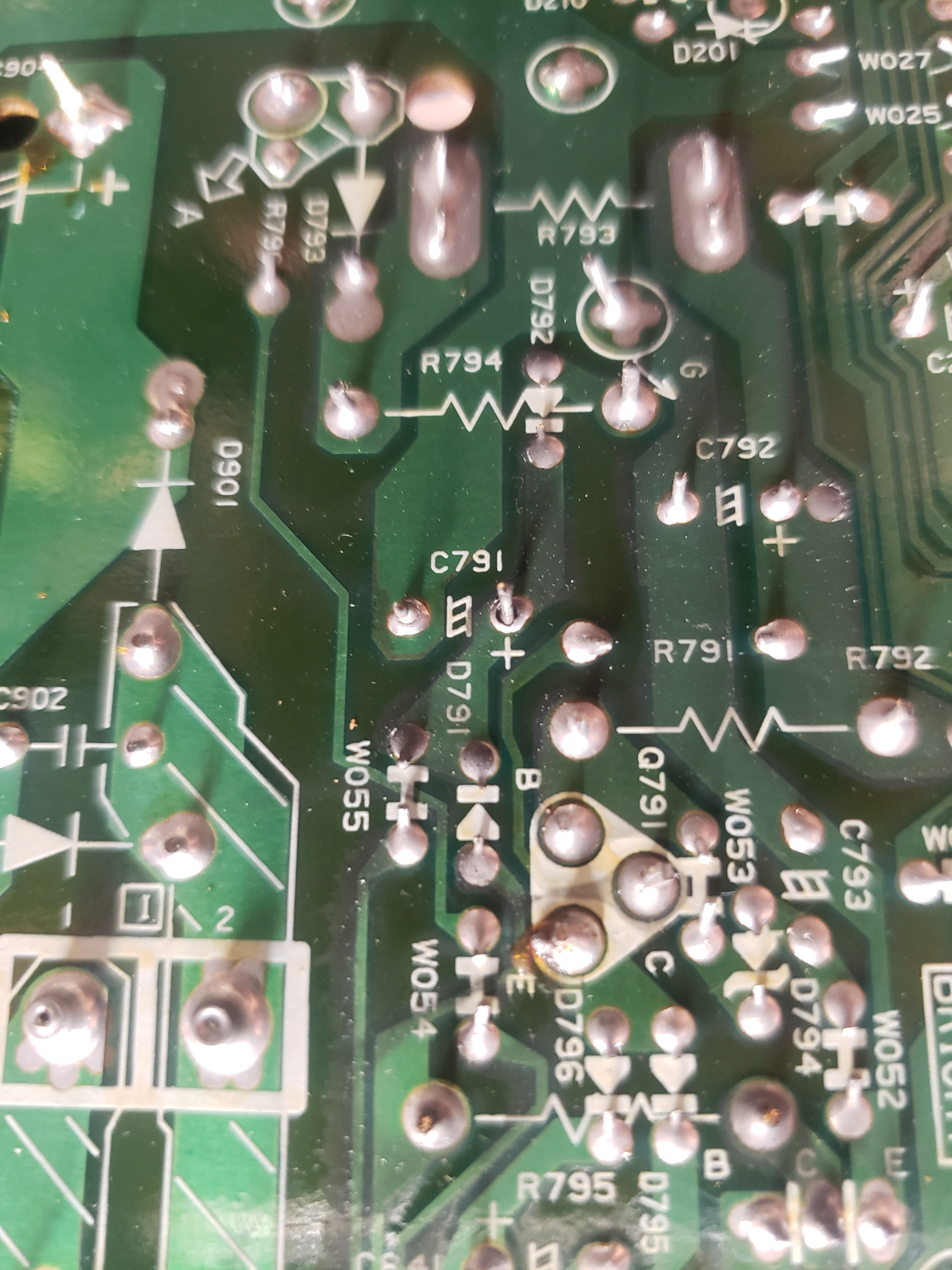

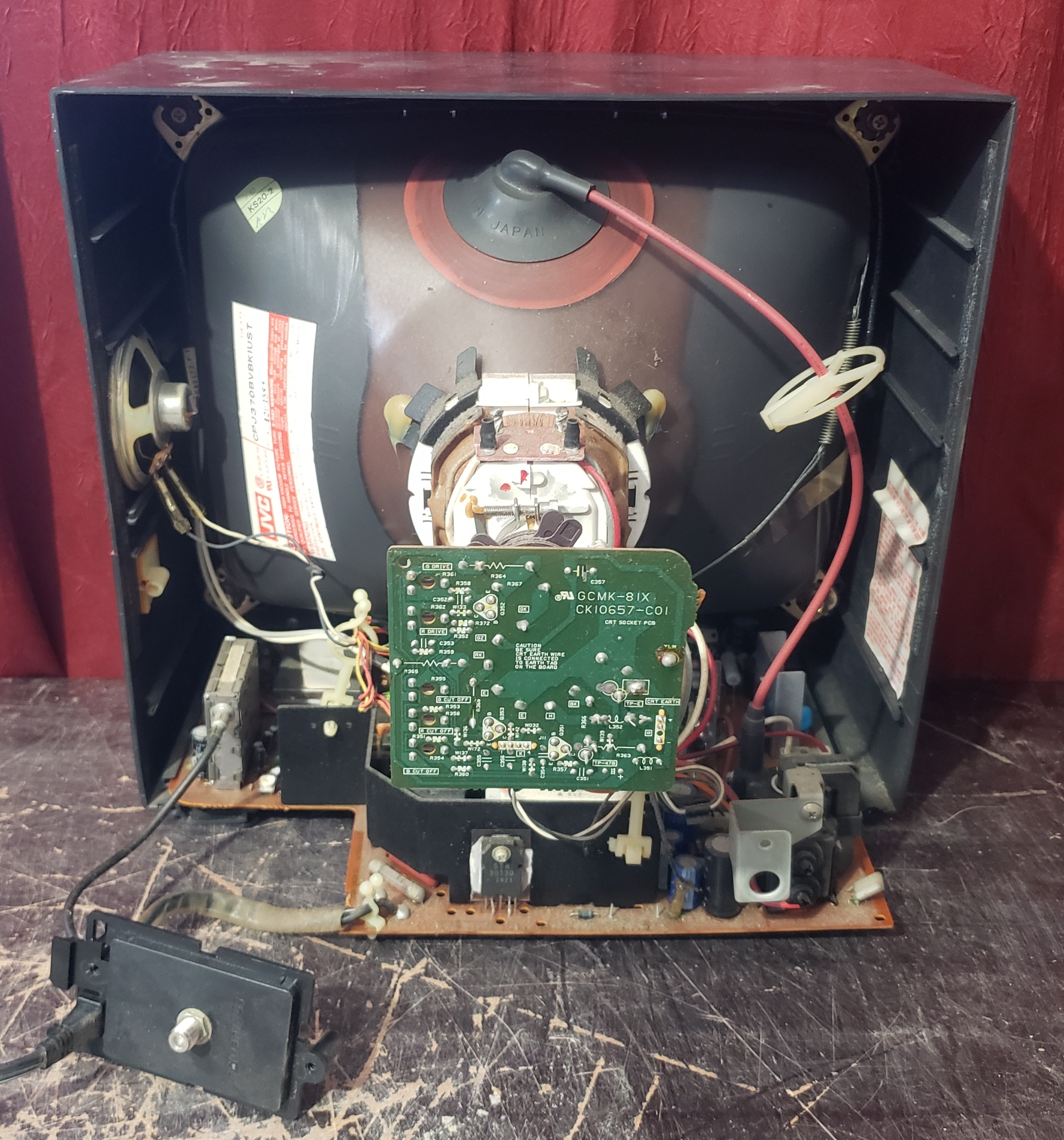

Unit pictured would not turn on due to C791 470uF 35V having gone high ESR as well as having cold solder joints.
Unit would then turn on but not display any video or snow, just the OSD. C205 10uF 25V next to the jungle chip was leaking DC current despite testing correctly with an ESR meter. Replacing fixed the issue.
This CRT is confirmed to be a hot chassis, possibly with very slow high voltage bleeding.
Hot Chassis means that "ground" on the chassis is tied to one side of the AC input from the wall, and touching it with your hand will complete a live circuit through your body to earth ground if the CRT is plugged into an AC outlet. The proper way to avoid this danger is to use an isolation transformer to isolate the CRT from earth ground and prevent electrocuting yourself.
Very slow high voltage bleeding means the picture tube itself retains a considerable amount of energy until manually discharged with an appropriate tool. Once discharged, remove the anode cap to prevent any static electricity recharging capacitors on the main board. There also may be stored energy on any capacitors near the flyback - look for 200v+ rated capacitors which are directly on the screen/G2 circuit and short them safely with a cheap set of discharge probes off Amazon. Repeat the same process for any large-diameter power supply filter capacitors to ensure the board is completely drained of energy.
Hot Chassis means that "ground" on the chassis is tied to one side of the AC input from the wall, and touching it with your hand will complete a live circuit through your body to earth ground if the CRT is plugged into an AC outlet. The proper way to avoid this danger is to use an isolation transformer to isolate the CRT from earth ground and prevent electrocuting yourself.
Very slow high voltage bleeding means the picture tube itself retains a considerable amount of energy until manually discharged with an appropriate tool. Once discharged, remove the anode cap to prevent any static electricity recharging capacitors on the main board. There also may be stored energy on any capacitors near the flyback - look for 200v+ rated capacitors which are directly on the screen/G2 circuit and short them safely with a cheap set of discharge probes off Amazon. Repeat the same process for any large-diameter power supply filter capacitors to ensure the board is completely drained of energy.

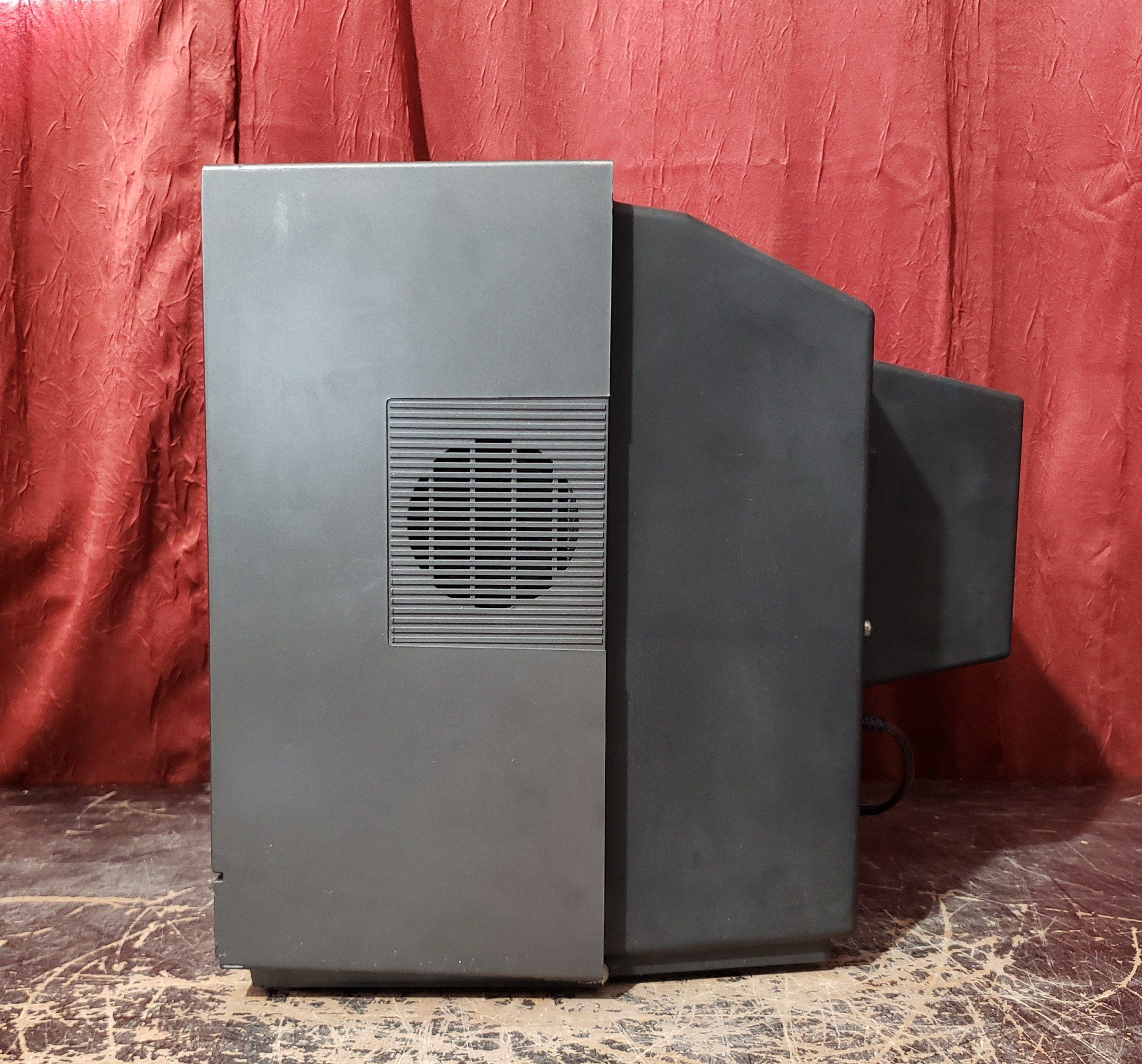

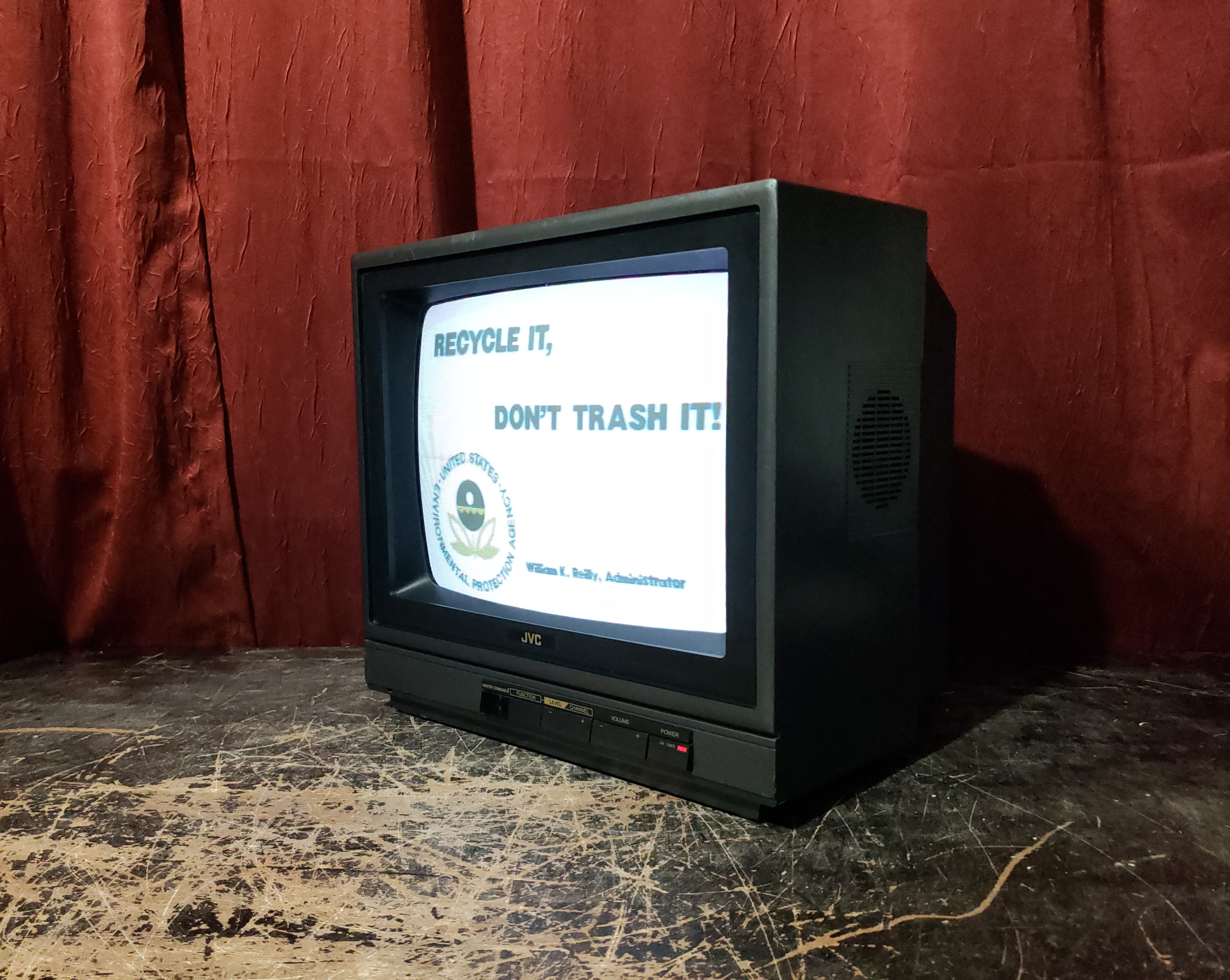

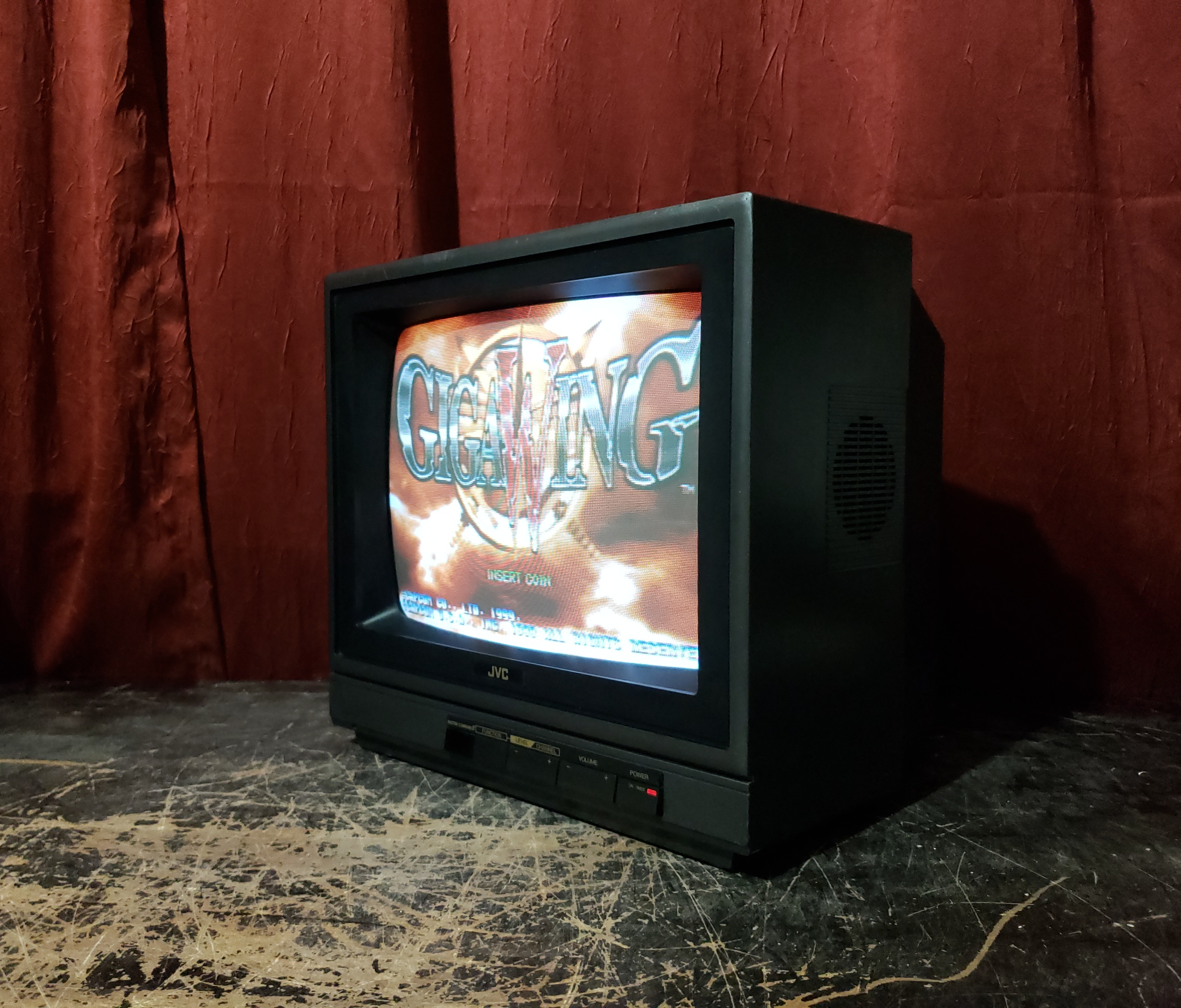

Gallery


















Specifications | |
---|---|
Brand: | JVC |
Manufacturer: | JVC |
Model: | C-1312 |
Series: | MasterCommand |
Viewable Size: | 13" |
Inputs: | RF |
Native Resolutions: | 240p, 480i |
Formats: | NTSC |
Aspect: | 4:3 |
Adjustments: | Internal Potentiometers, OSD Customer Controls |
Horz. Output Transistor: | 2SD1554 |
Vertical Output IC: | AN5515 |
Jungle: | Toshiba, TA8601AN |
Comb Filtering: | None |

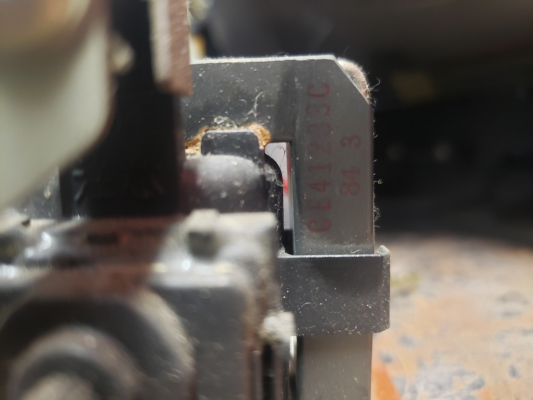

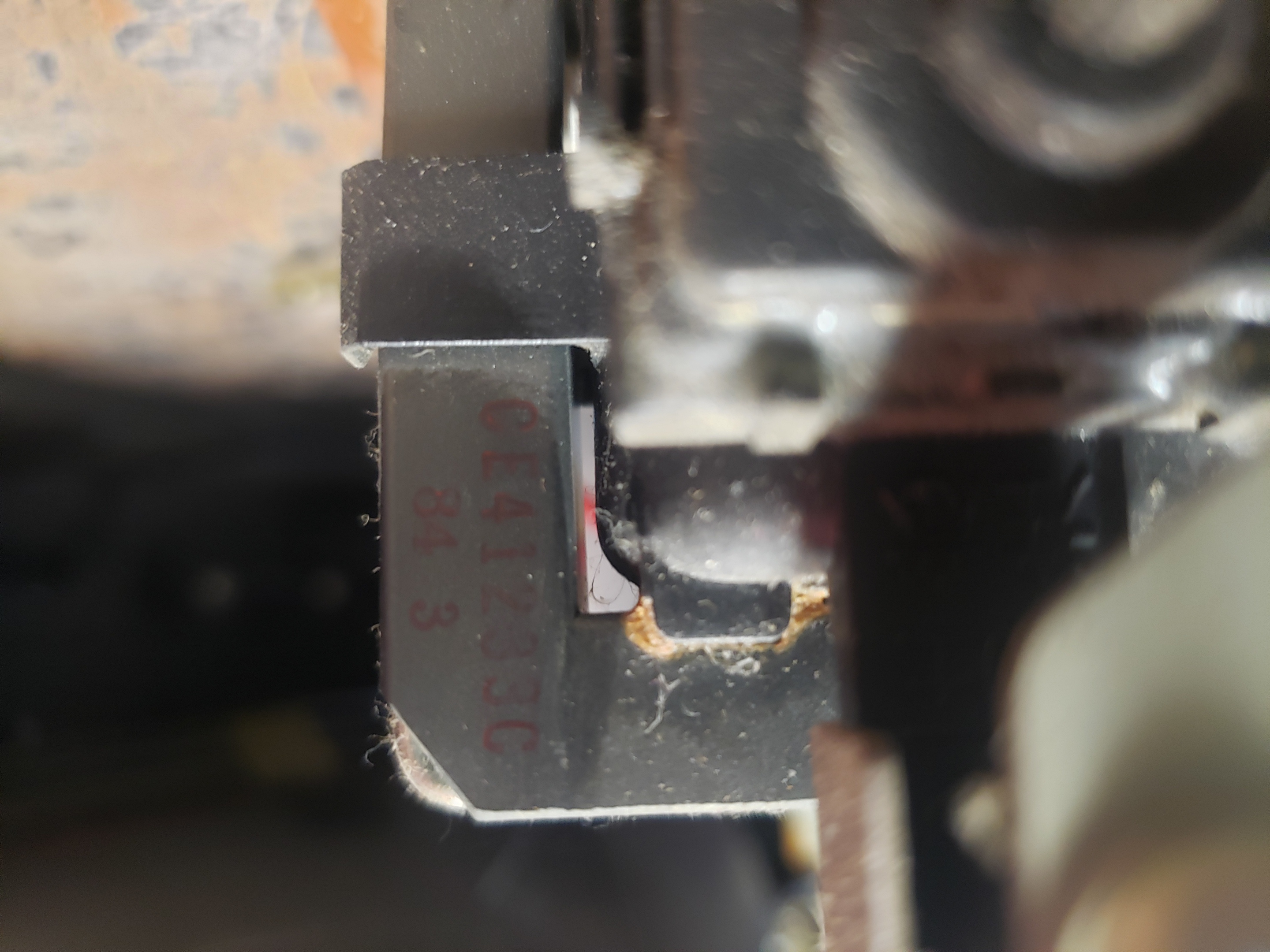

Flyback: | CE41233C |
Focus Type: | Single |

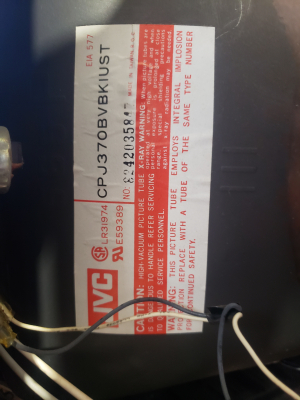

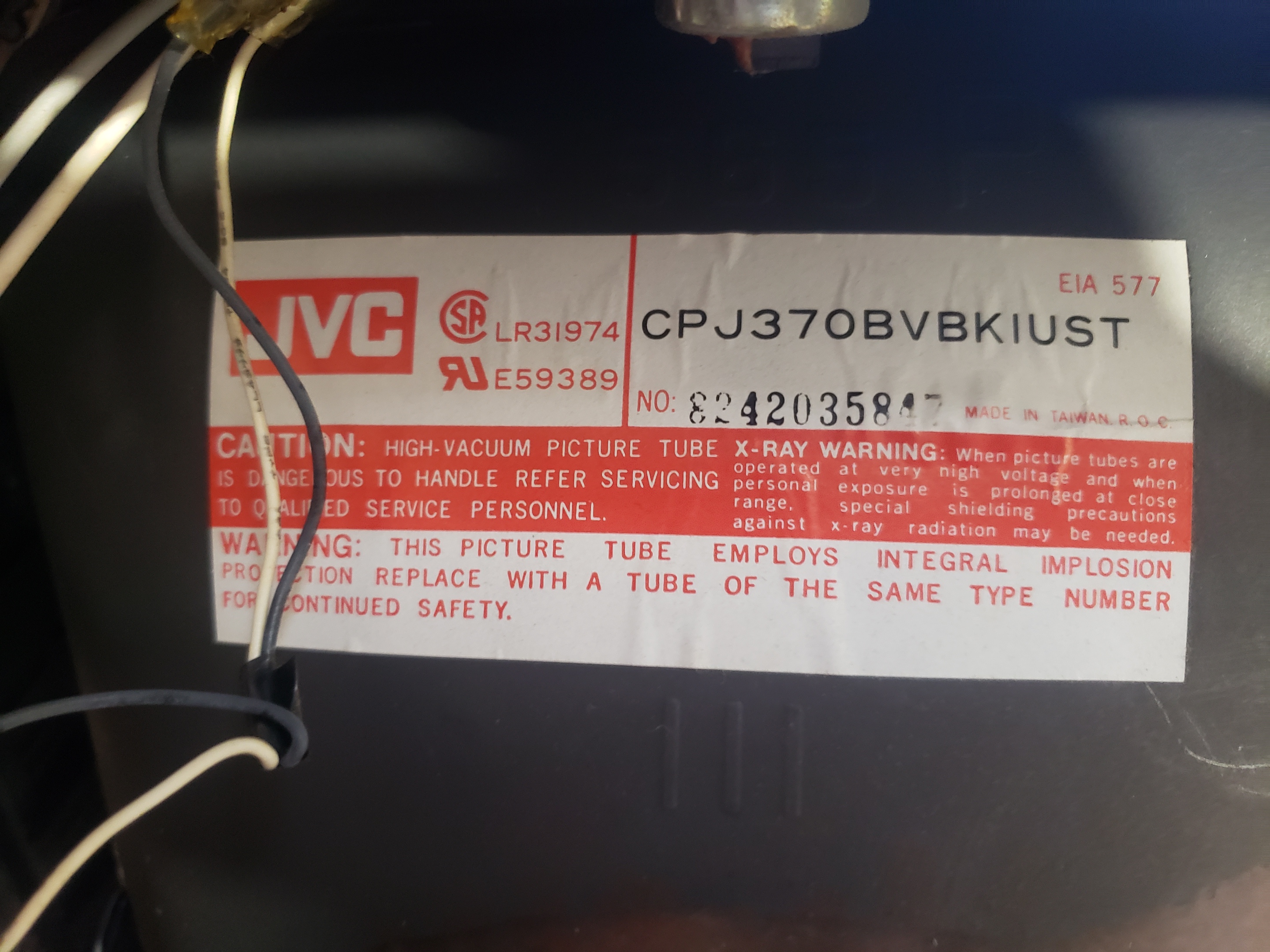

Tube: | CPJ370BVBK1UST |
Heater Voltage: | 6.3v |
Deflection: | 90° |
Mask: |
Slot
![]() |
Tint: | Dark |

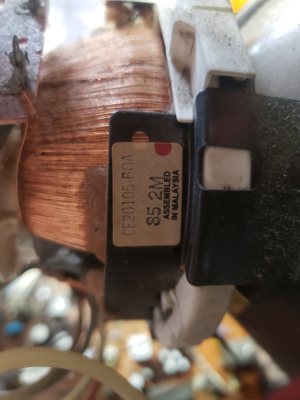

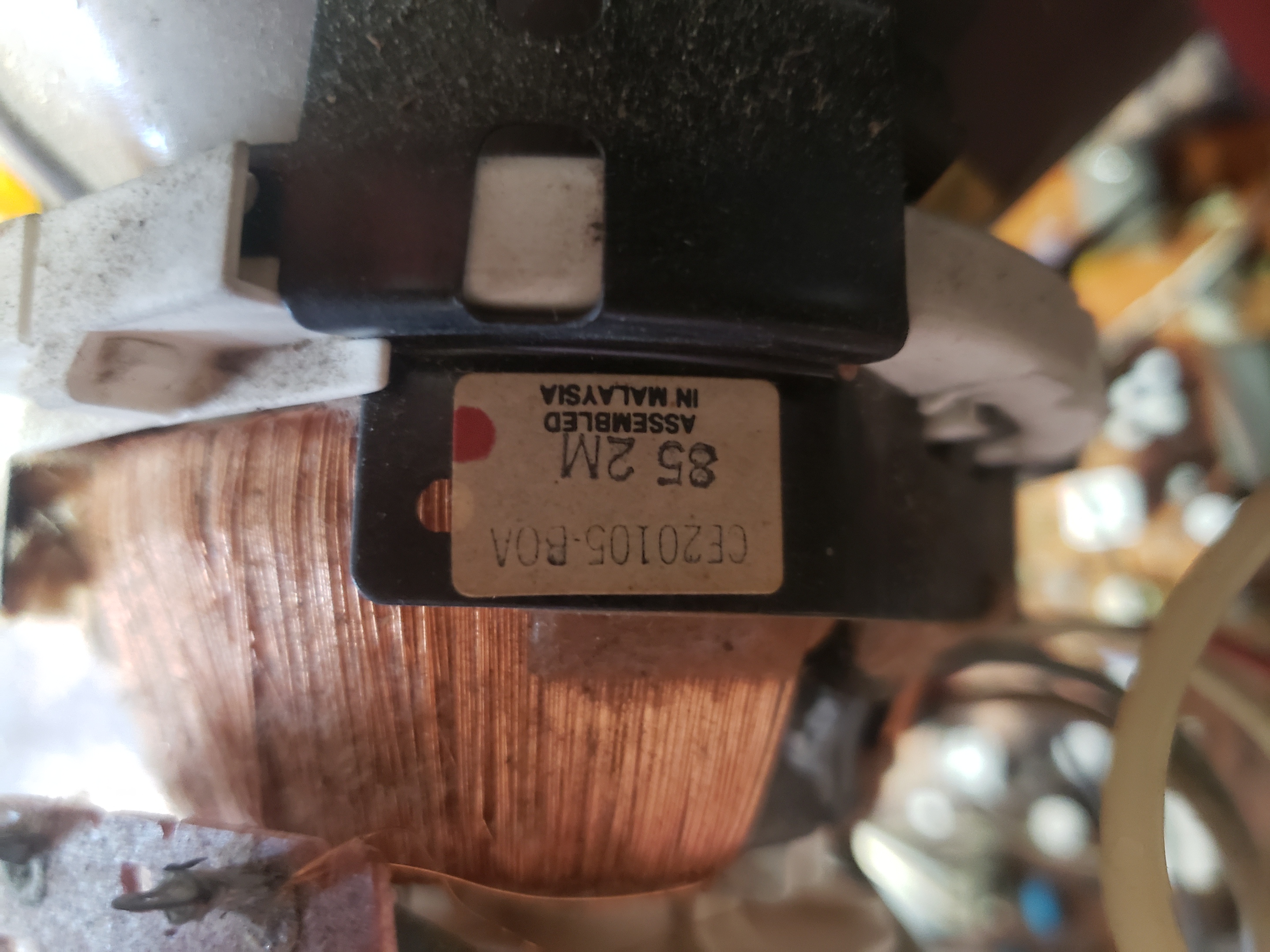

Yoke: | CE20105-B0A |
Speakers: | Mono, 1.2W |
Remote: | RM-C415 |
Application: | Consumer |
Cabinet Material: | Plastic |
Launched: | 1988 |
MSRP: | 349 USD |
Country of Manufacture: | USA |
Market: | North America |
Power Standard: | 120v |
Mounting: | Table Surface (Standard), Carrying Handle |
Degaussing: | Automatic on Power-on |
Tag: | Needs Service Manual, Needs Measurements, Repair Log |
