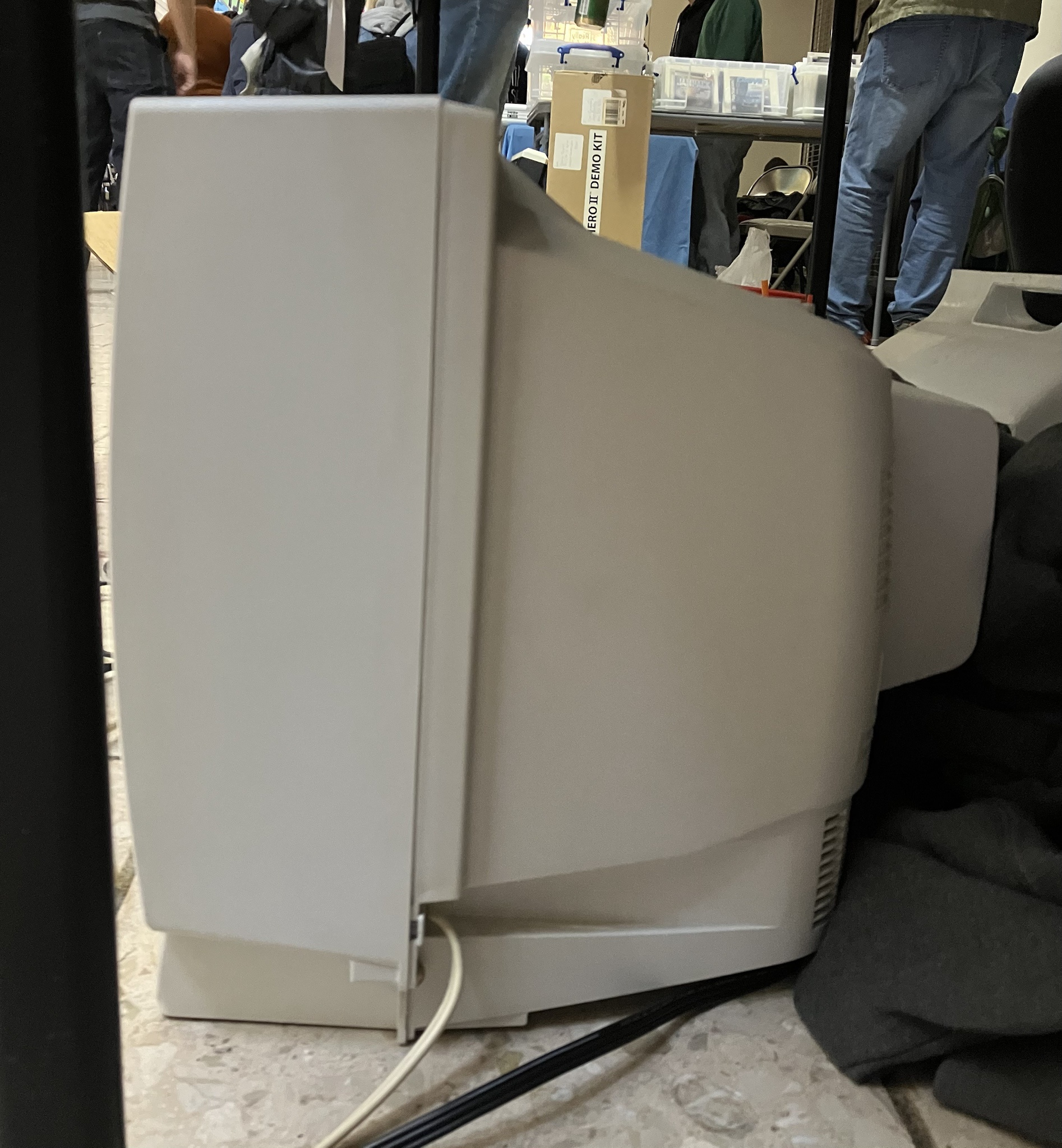

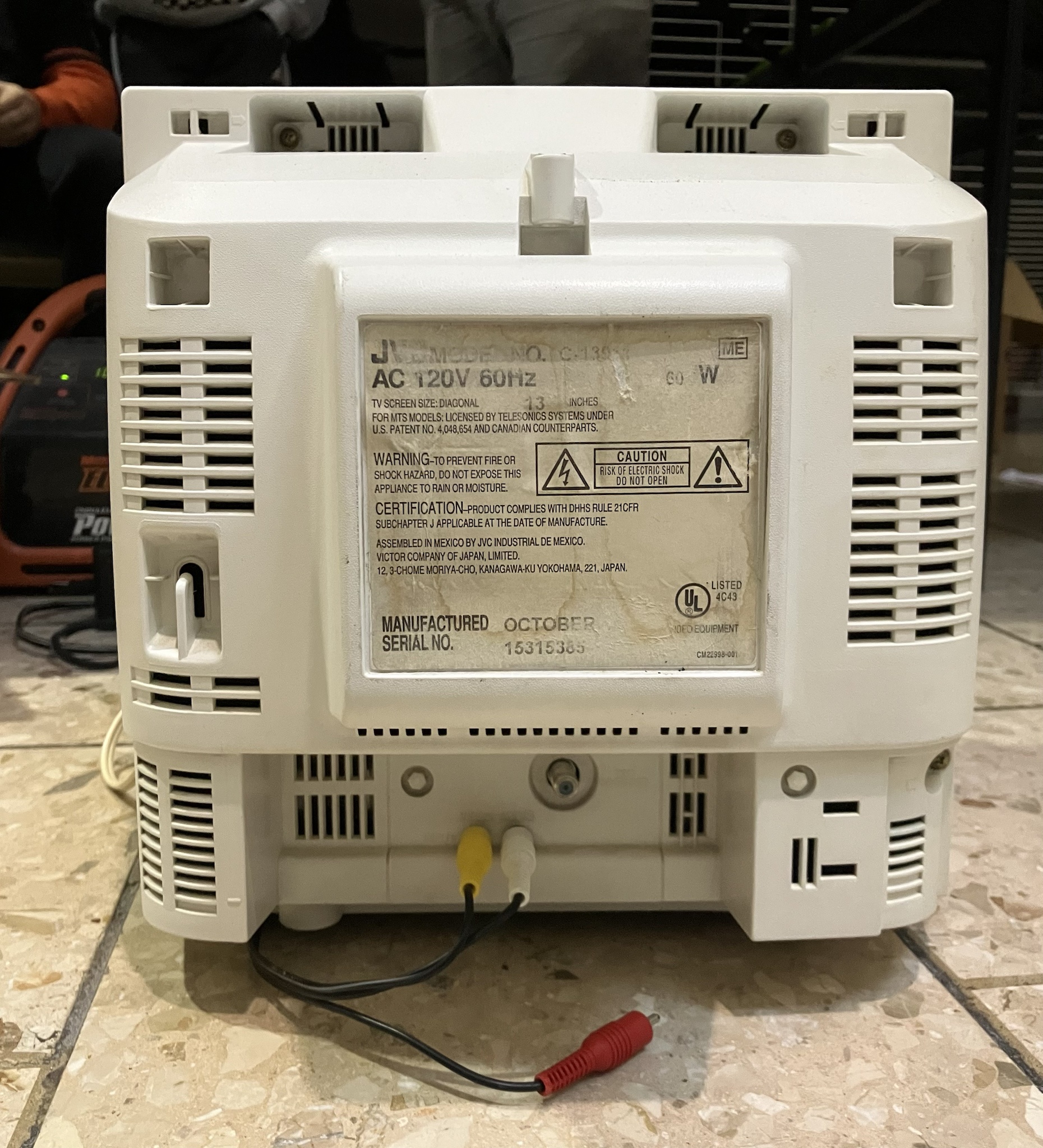

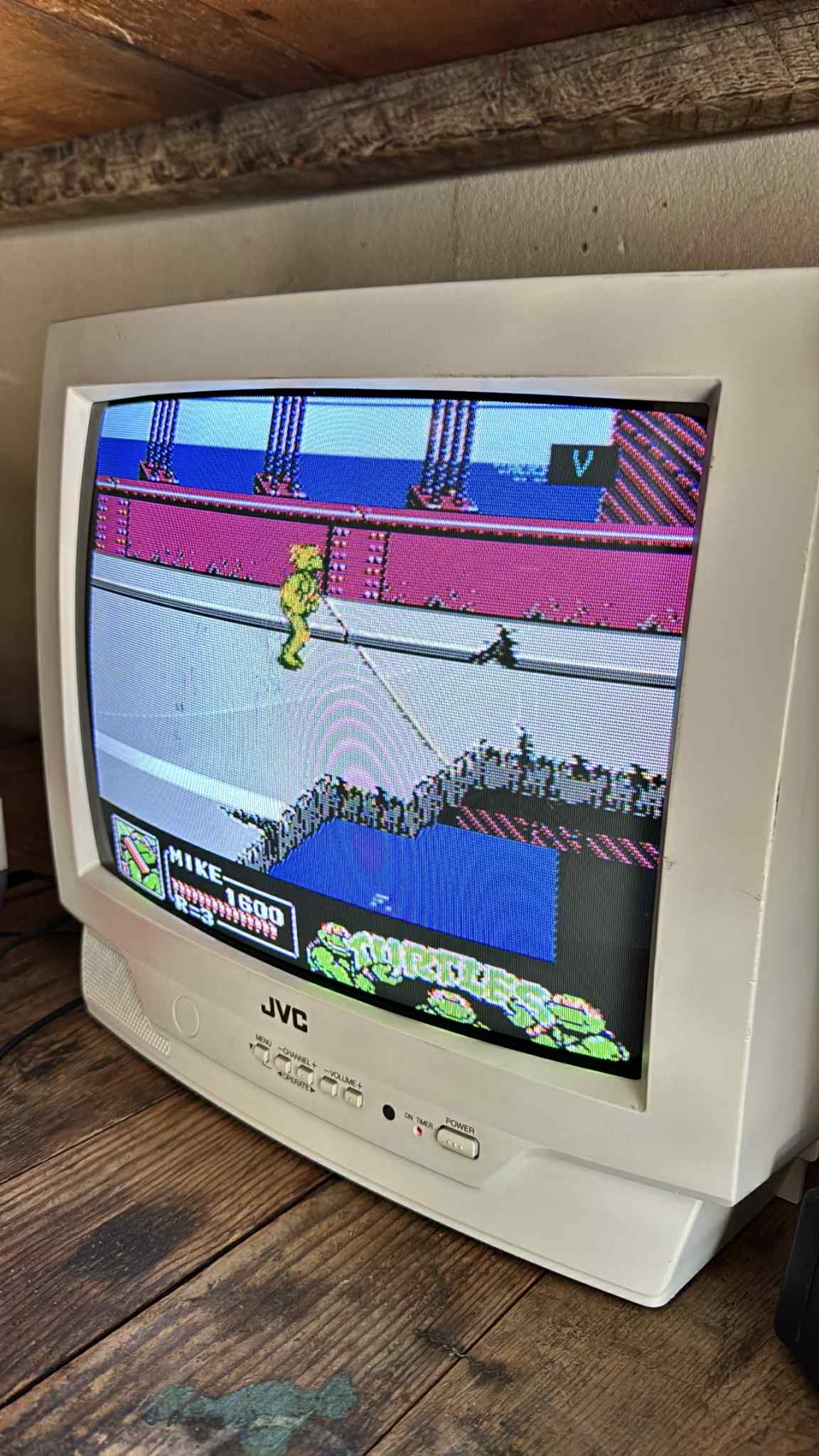

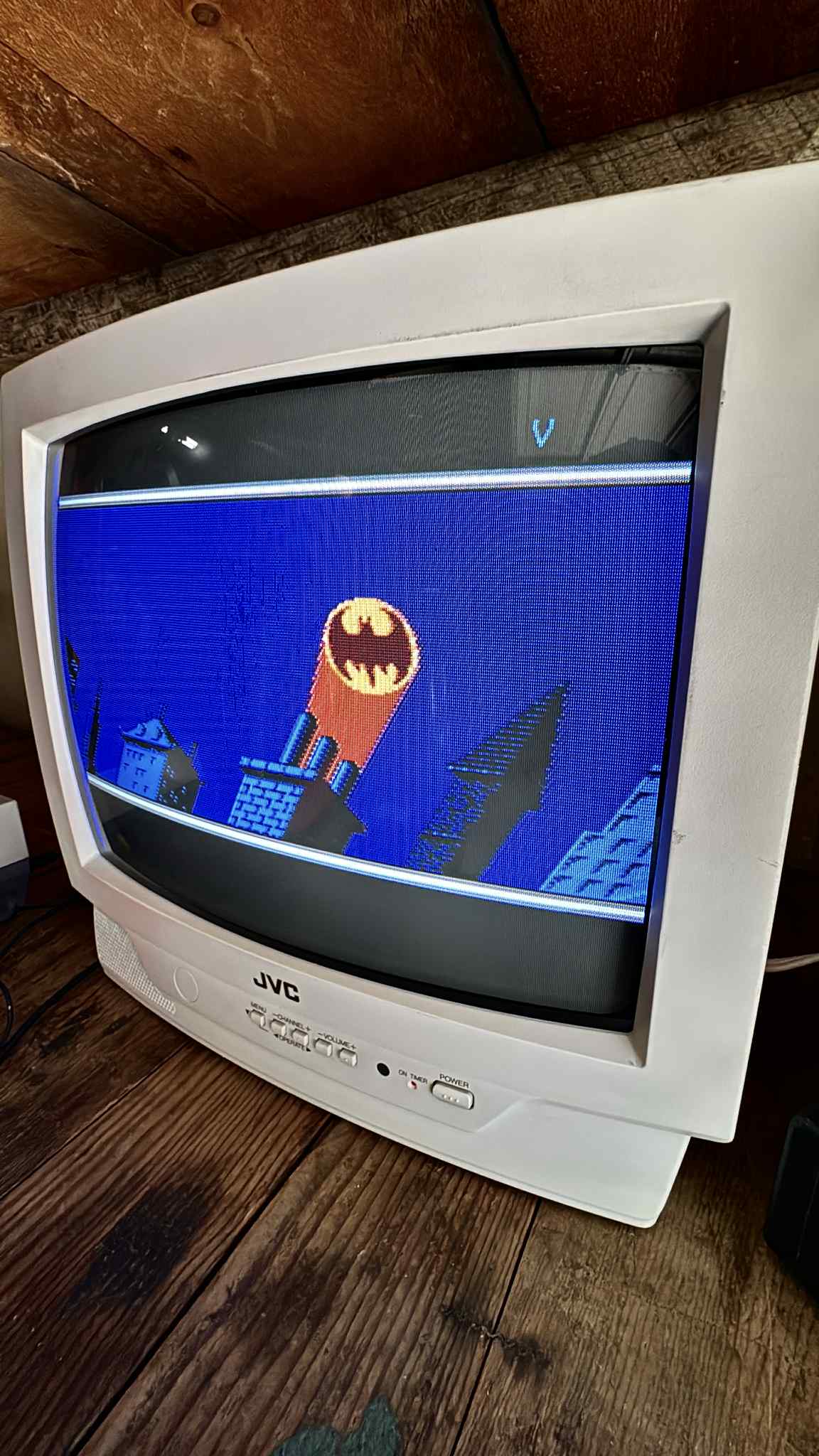

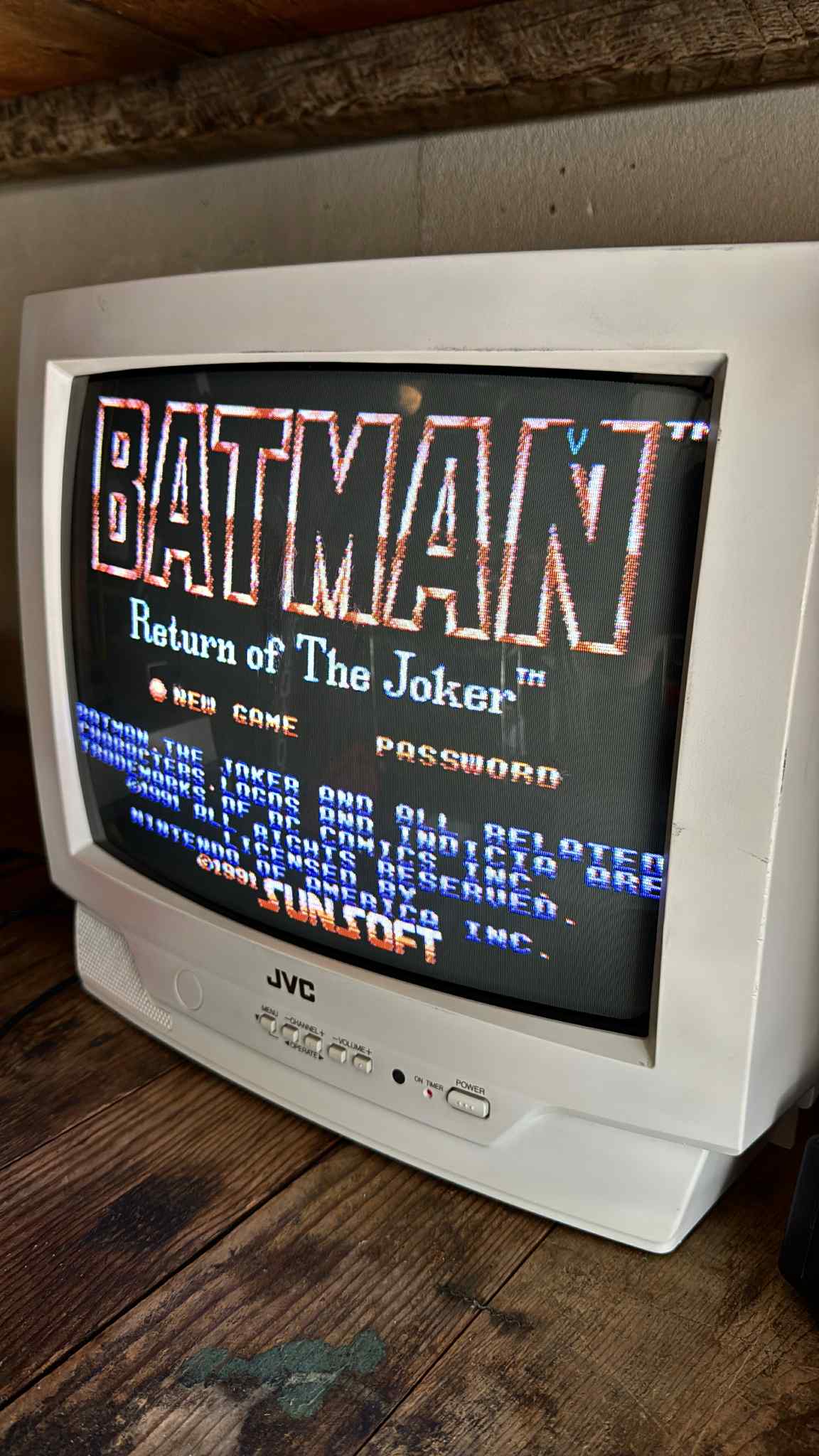

Gallery
| Specifications | |
|---|---|
| Brand: | JVC |
| Manufacturer: | JVC |
| Model: | C-13911 |
| Series: | C |
| Viewable Size: | 13" |
| Inputs: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Horz. Output Transistor: | 2SD1876-YD |
| Vertical Output IC: | LA7830 |
| Jungle IC: | TA1242N |
| Flyback: | QQH0029-001 |
| Focus Type: | Single |

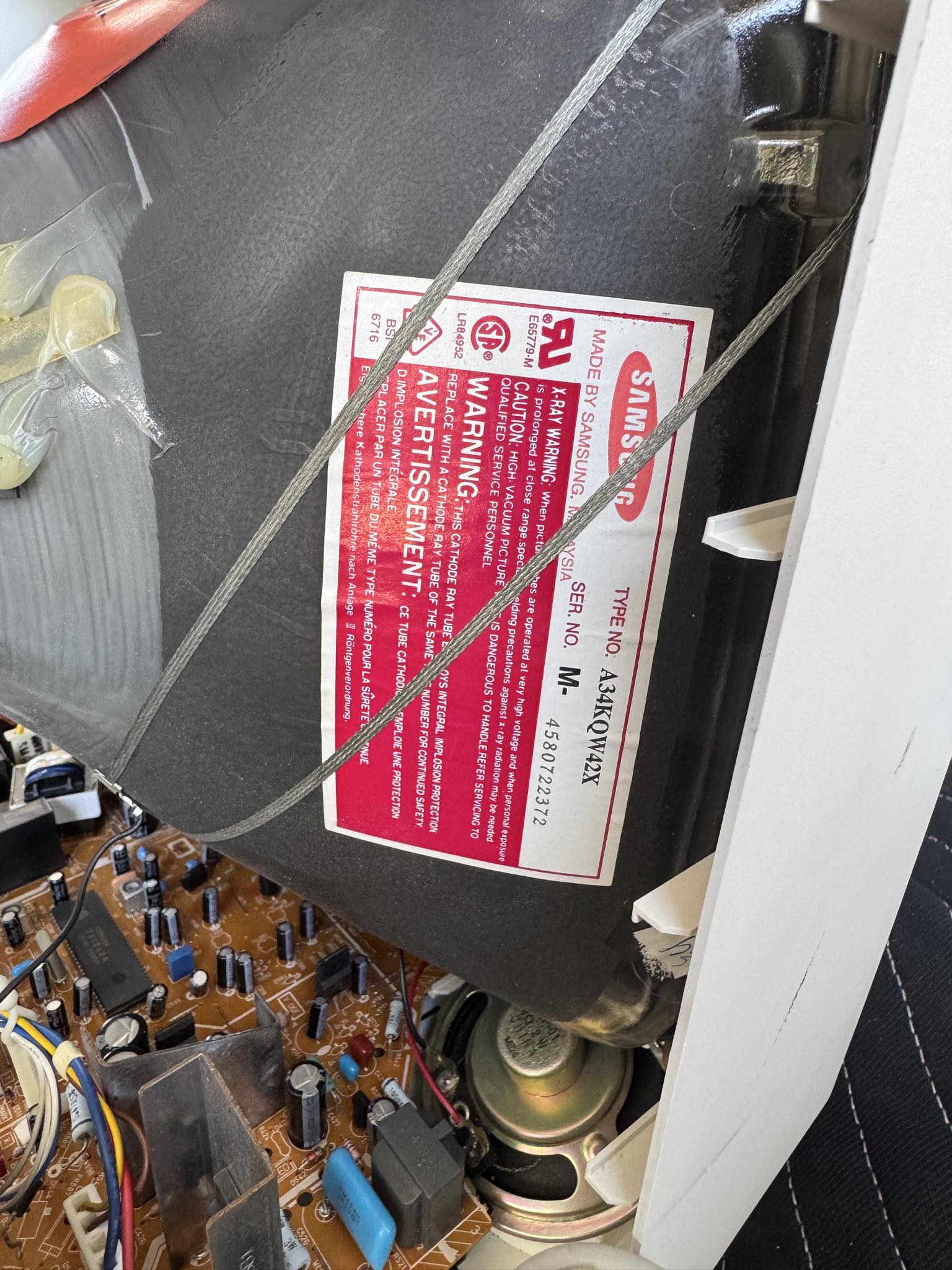

| Tube: | A34KQW42X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke: | QQD0002-001 |
| Speakers: | 1.0W |

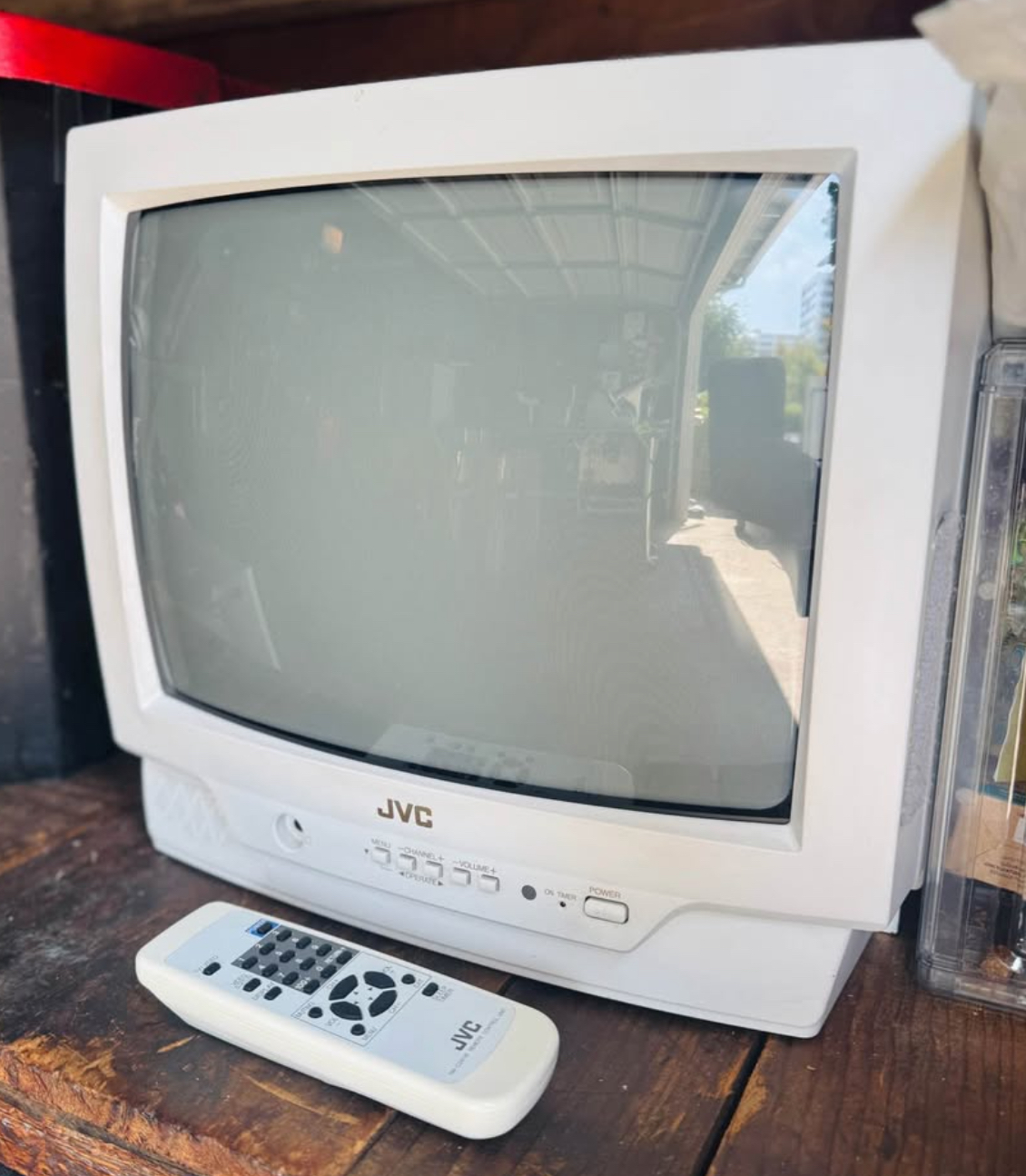

| Remote: | RM-C542 |
| Chassis: | FV |
| Weight: | 19.8 lbs (9 kg) |
| Dimensions (W/H/D): |
364 x 334 x 374 mm
(14.3 x 13.1 x 14.7") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1998 |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Yoke Info, Community Submission |
