Summary
Basic 20" consumer TV from JVC. Similar to the AV-20020 and AV-20120, but with mono audio instead of stereo.
Manuals
Notes
This TV can be modded for RGB. However, due to the design of the jungle chip, brightness and contrast cannot be adjusted via the user menu, making it less functional than other models.

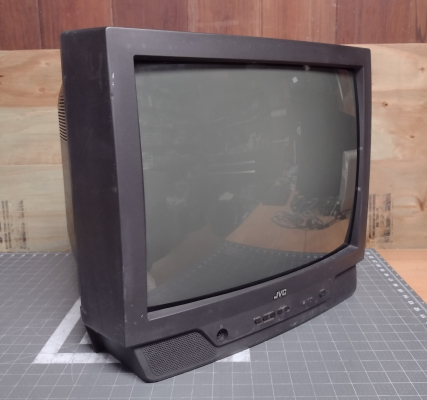

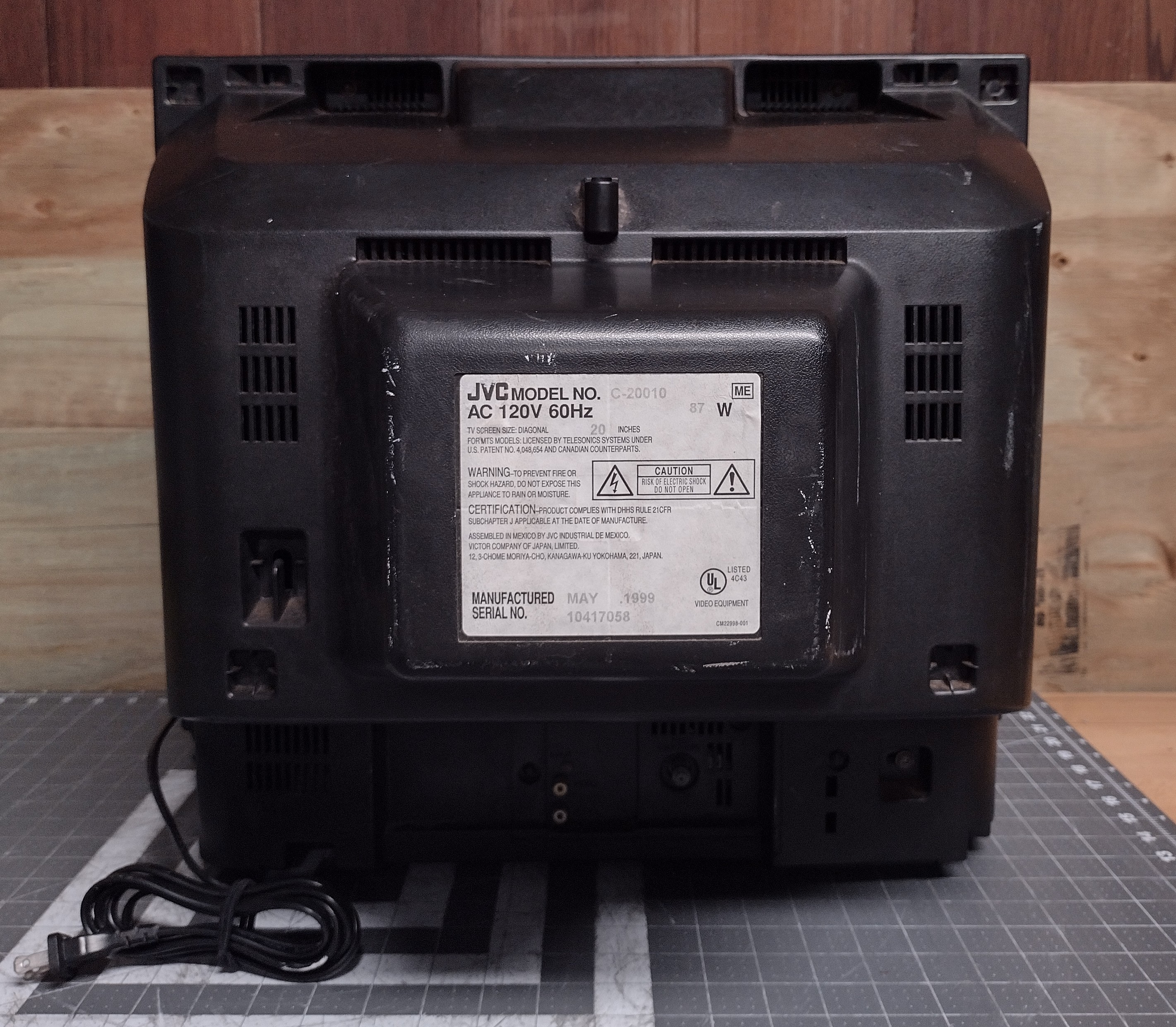

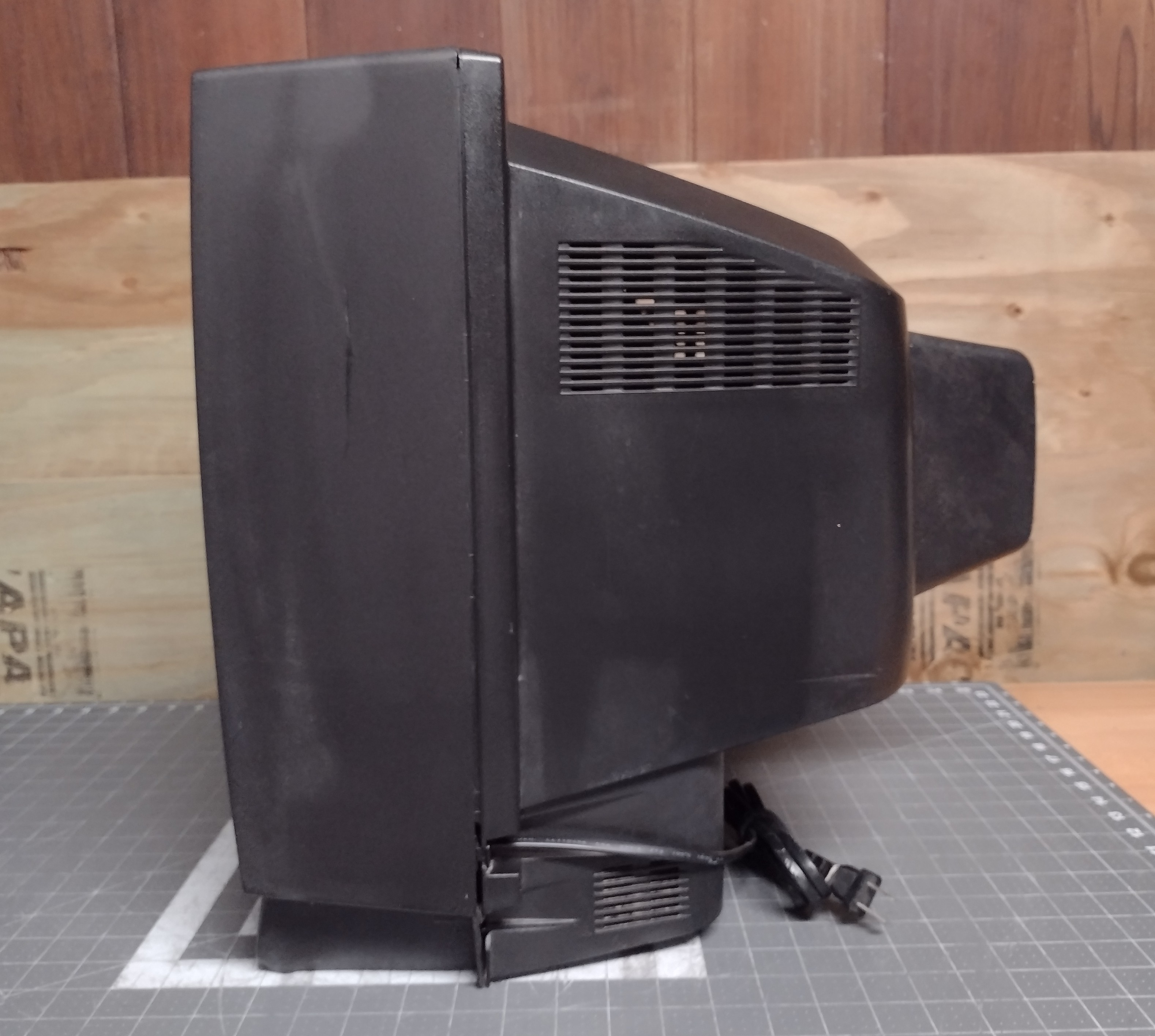

Gallery
| Specifications | |
|---|---|
| Brand: | JVC |
| Manufacturer: | JVC |
| Model: | C-20010 |
| Series: | C |
| Viewable Size: | 20" |
| Inputs: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Comb Filtering: | None |
| Tube: | Samsung , A51KRE89X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke: | QQD0011-001 |
| Speakers: | Mono |
| Remote: | RM-C241 |
| Weight: | 43.2 lbs (19.6 kg) |
| Dimensions (W/H/D): |
503 x 452 x 493 mm
(19.8 x 17.8 x 19.4") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1999 |
| Country of Manufacture: | Mexico |
| Mods: | RGB via Mux |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Service Manual, Needs Pictures |
