Summary
Entry level 20" set by JVC with RF input.
Manuals

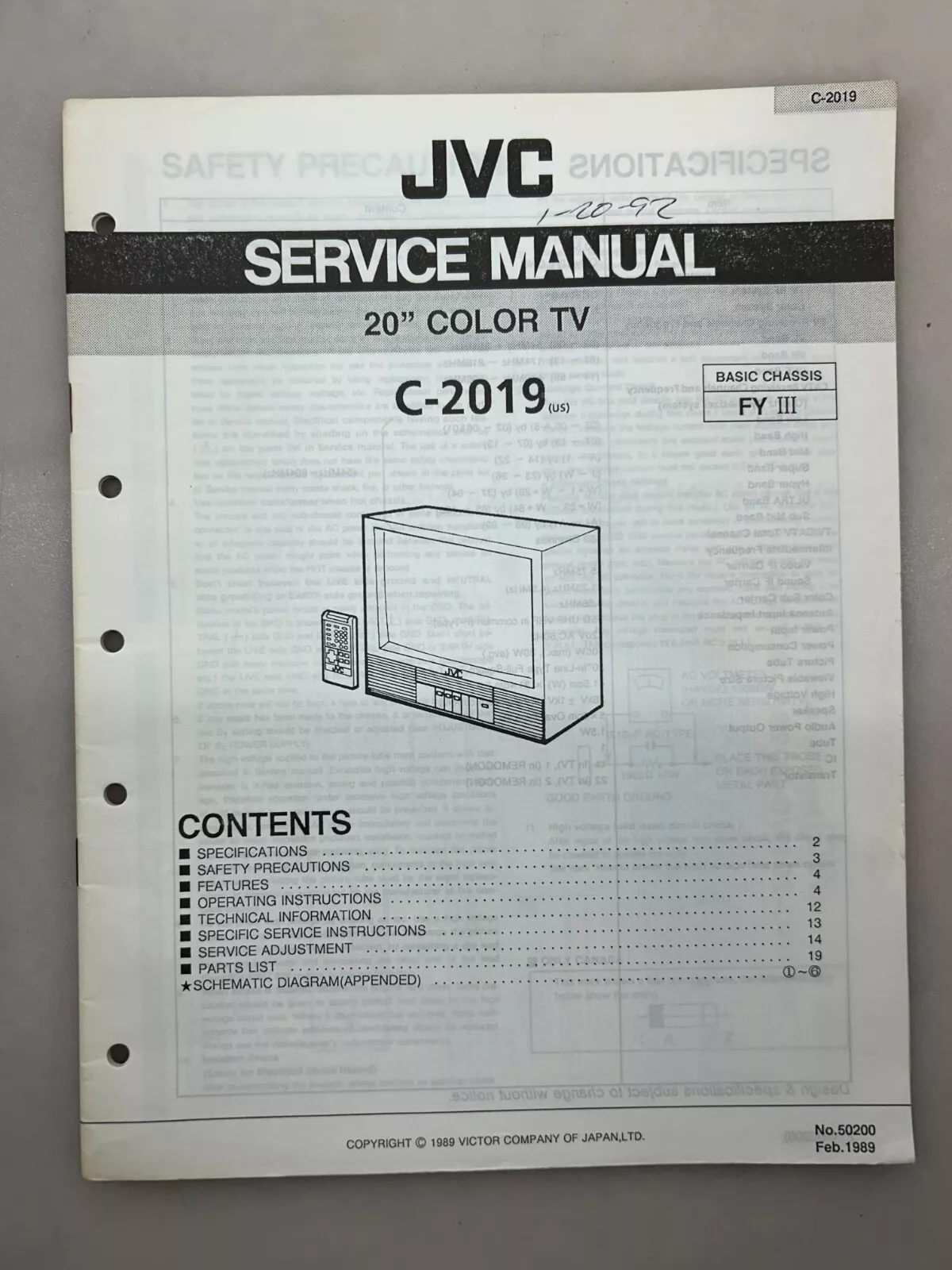

- Service manual closest available with the FY III chassis.
Notes
We've included a partial service manual of the same chassis, mostly just a parts list. There are hard copies of the correct service manual on eBay, but none scanned at this time.

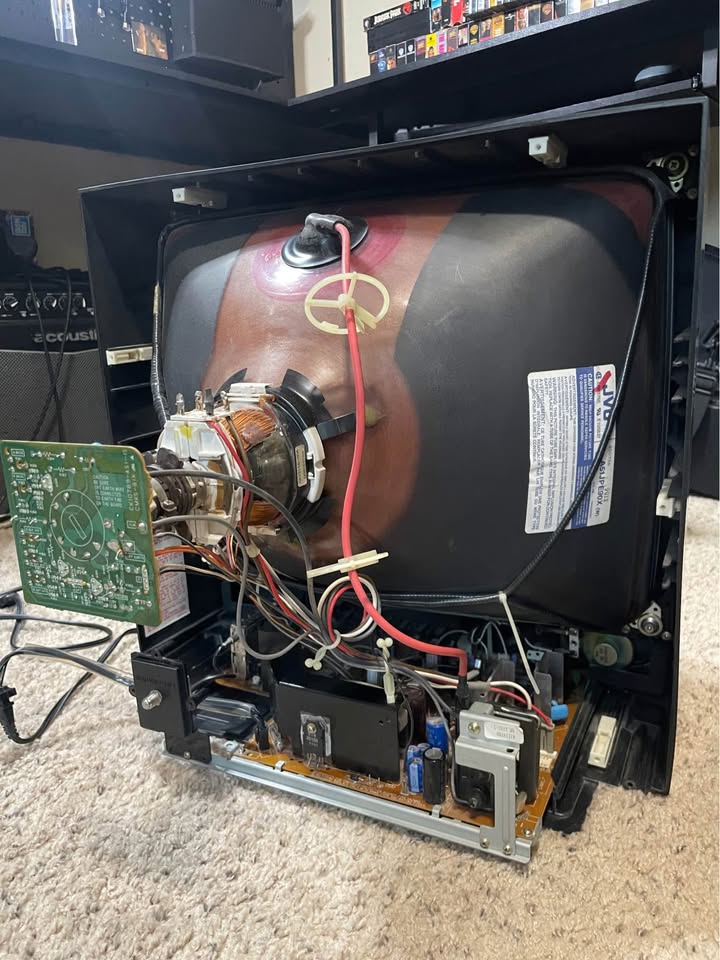

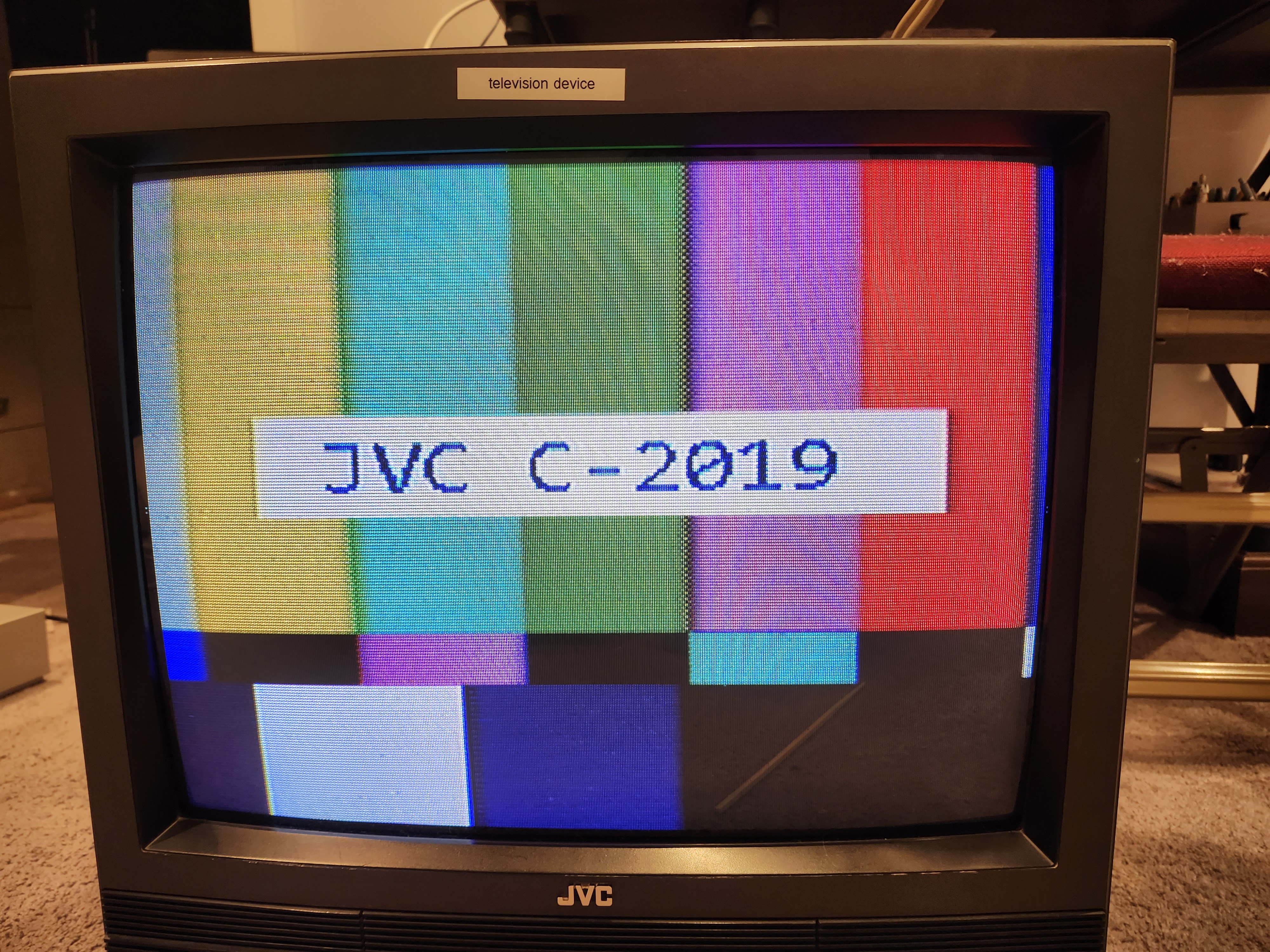

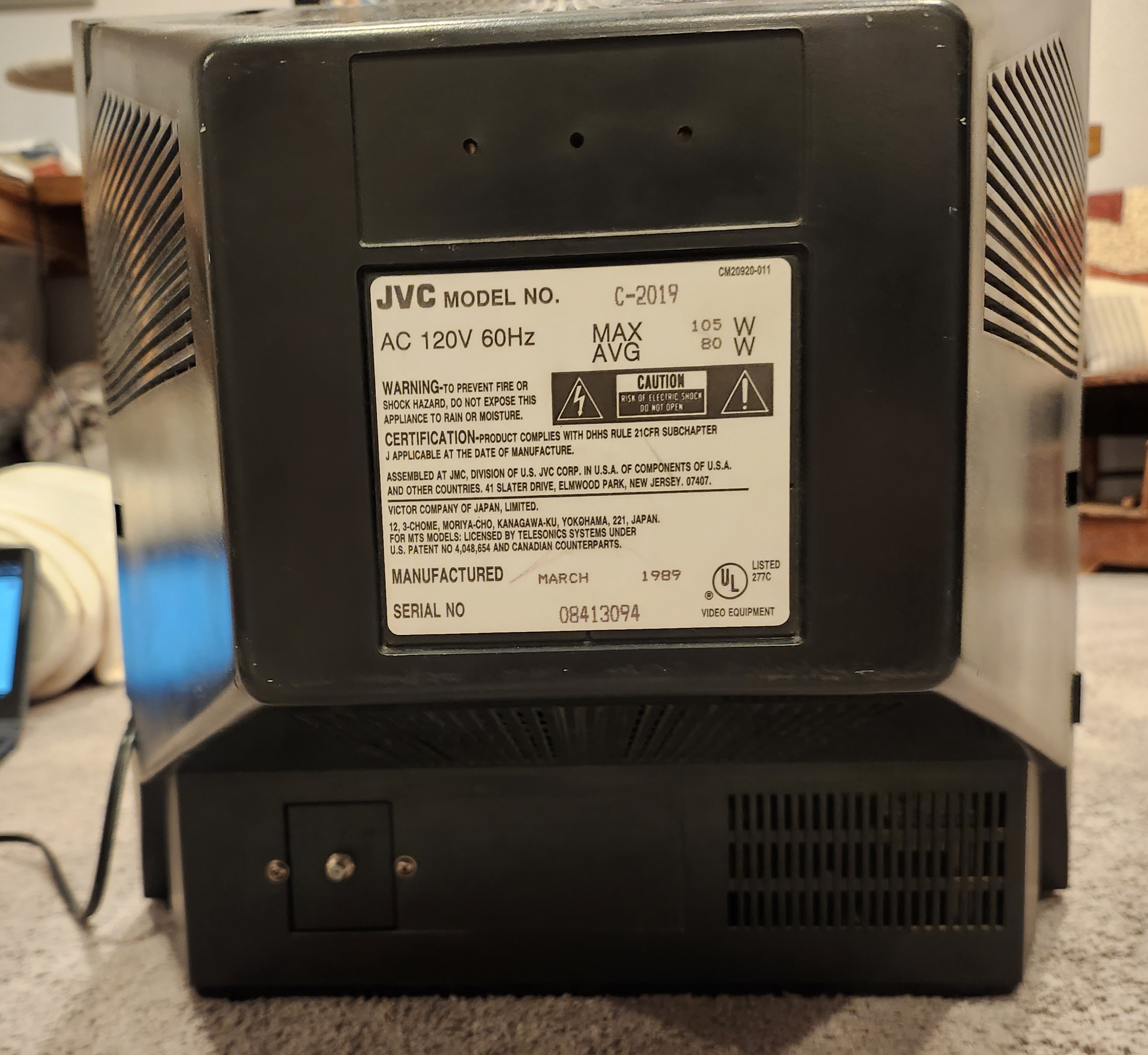

Gallery
| Specifications | |
|---|---|
| Brand: | JVC |
| Manufacturer: | JVC |
| Model: | C-2019 |
| Series: | MasterCommand |
| Viewable Size: | 20" |
| Inputs: | RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers |
| Horz. Output Transistor: | D1554, 2SD1554, 2SD1426 |
| Vertical Output IC: | UCP1488H |
| Jungle IC: | TA8601BN |
| Flyback: | CE41194-OOC-KD |
| Focus Type: | Single |
| Tube: | A51JPE90X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Pitch: | .81 mm |
| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke: | CE20156-00AKJ1 |
| Yoke Horz. Inductance: | 2.98 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 18.1 mH (@ 100 Hz) |
| Speakers: | Mono, 3W |
| Remote: | RM-C421 |
| Chassis: | FY III |
| Weight: | 46.1 lbs (20.9 kg) |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1989 |
| Country of Manufacture: | USA |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs Service Manual, Needs Measurements, Community Submission |
