Summary

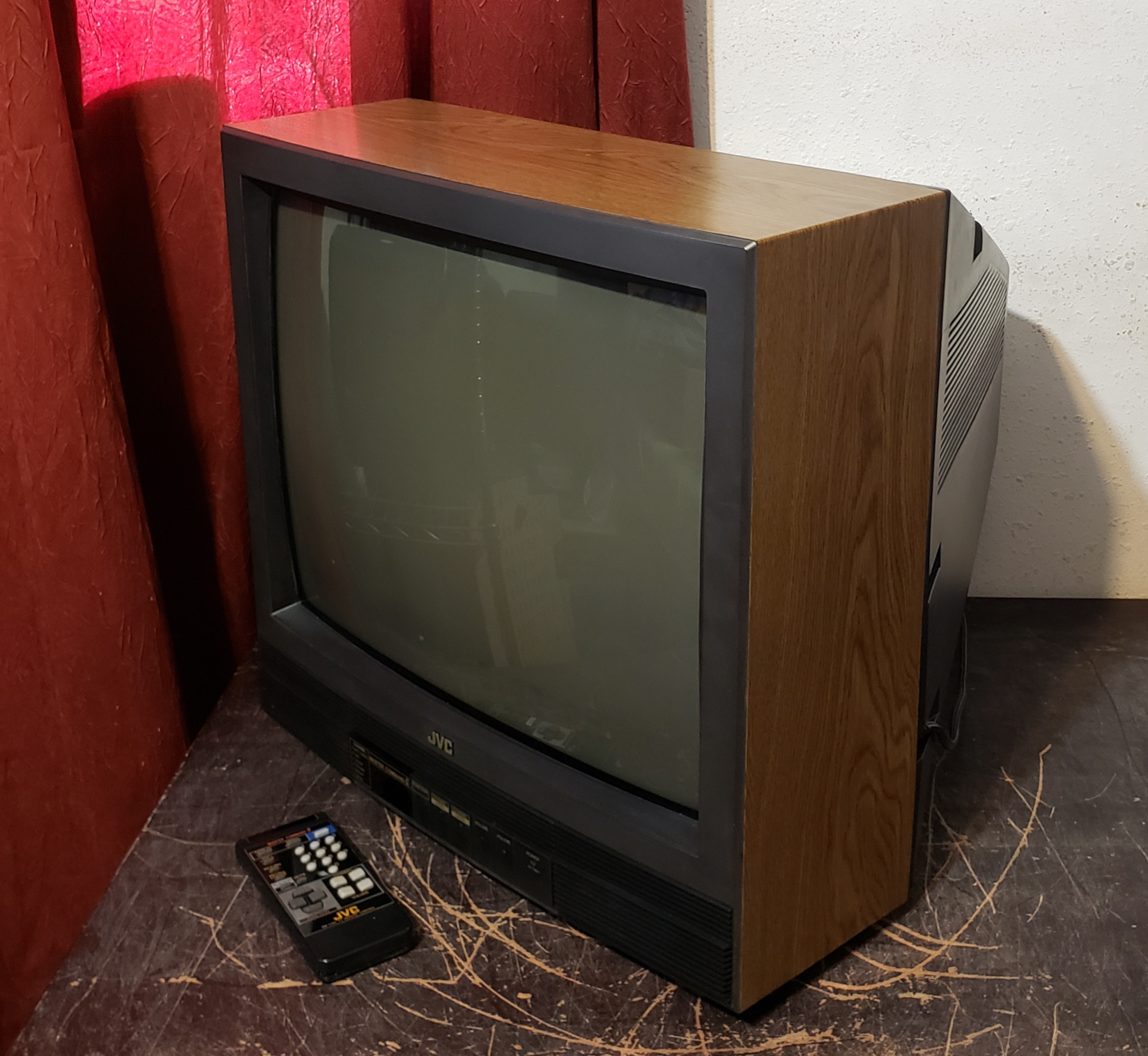

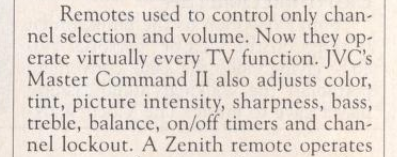

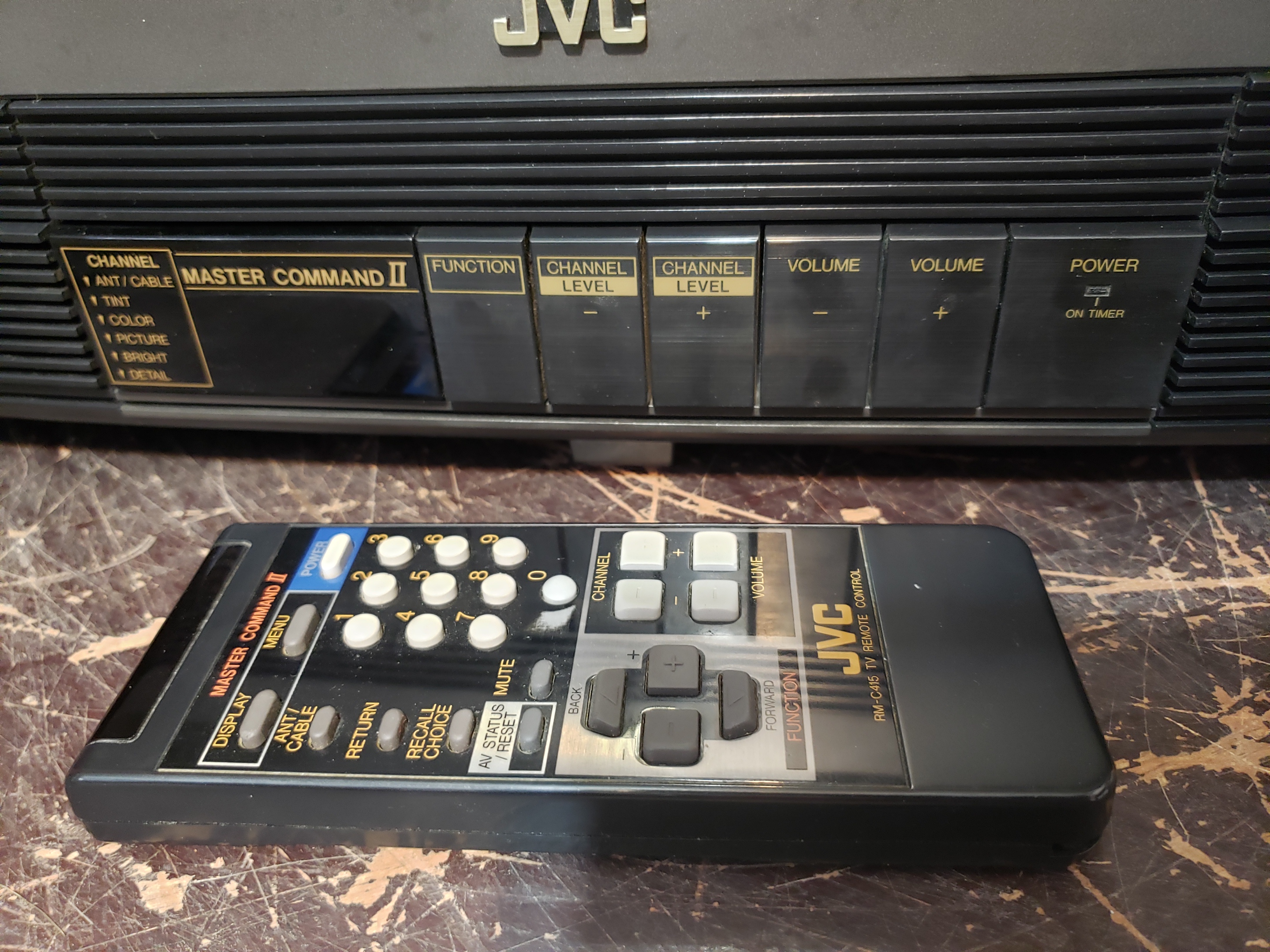

20" TV with coaxial input. "Master Command II" entails being able to control picture settings, etc. with an on-screen menu using the remote.
Manuals

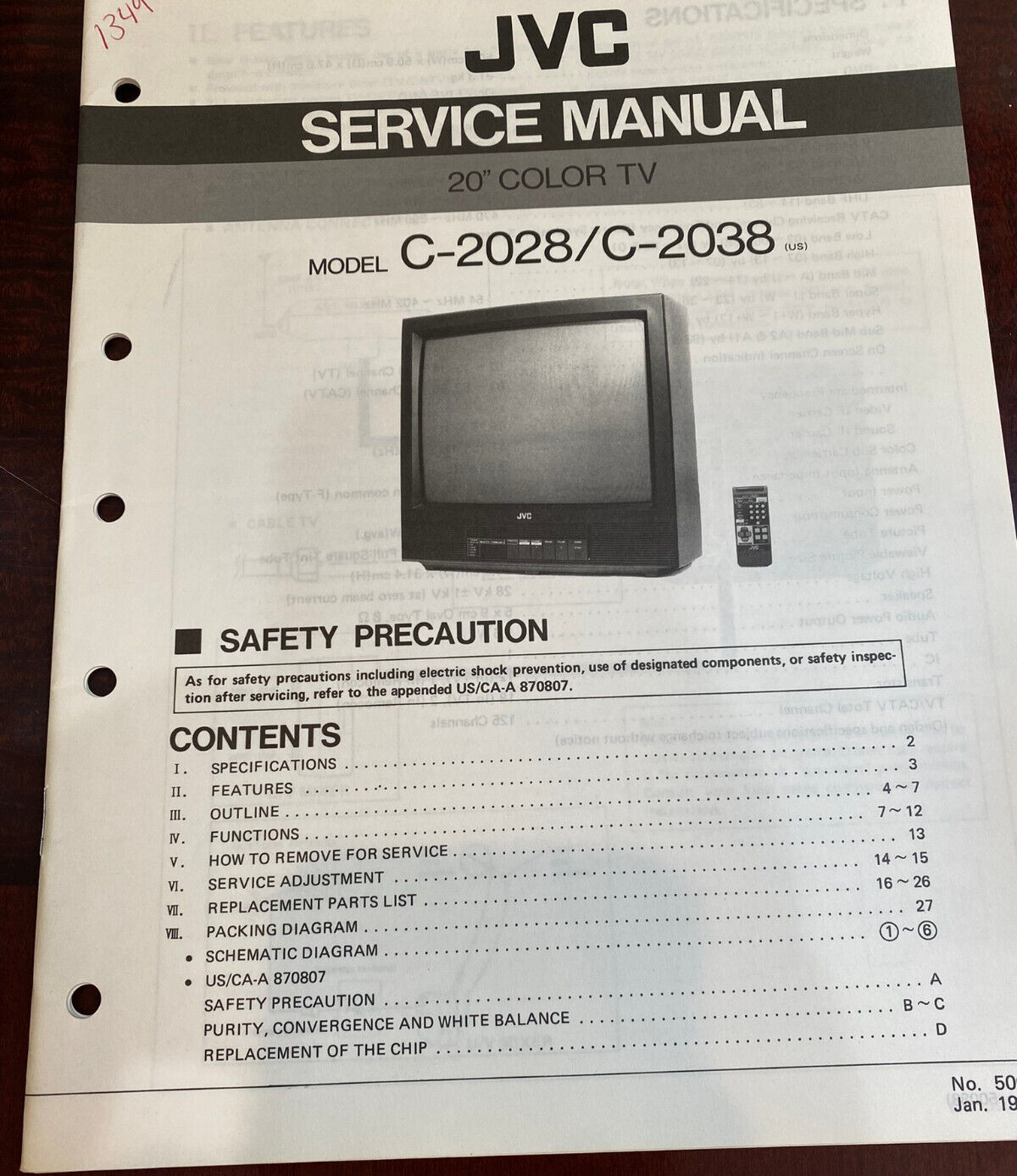

- Service Manual for a set with a similar FY III chassis
Notes
This set has internal potentiometers to adjust vertical height, sub-contrast, and sub-brightness in addition to the RGB level adjustments.
Repair Notes

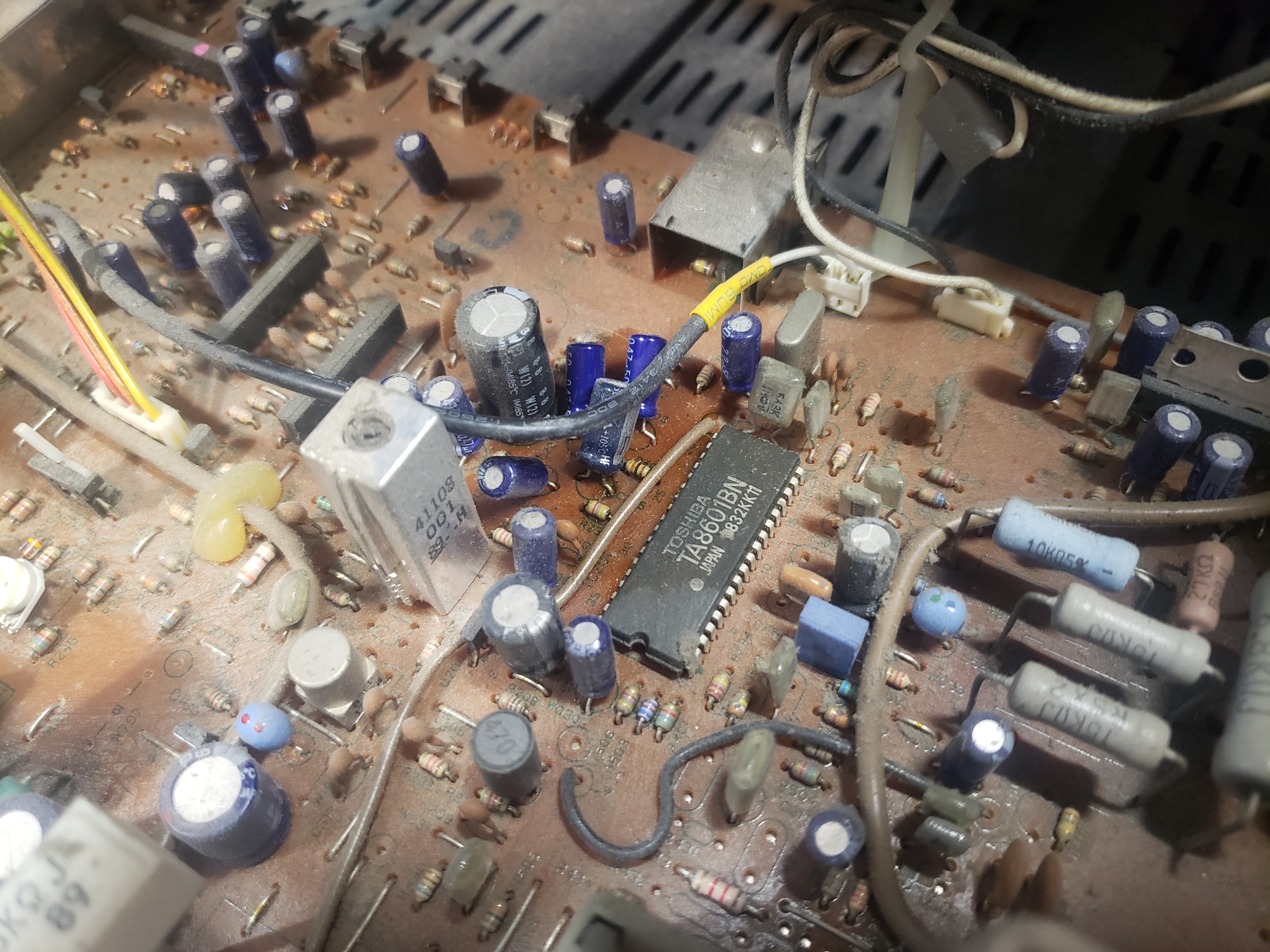

- Electrolytic capacitor C205 near the jungle chip went open and leaked out on to the board. C505 had high ESR.

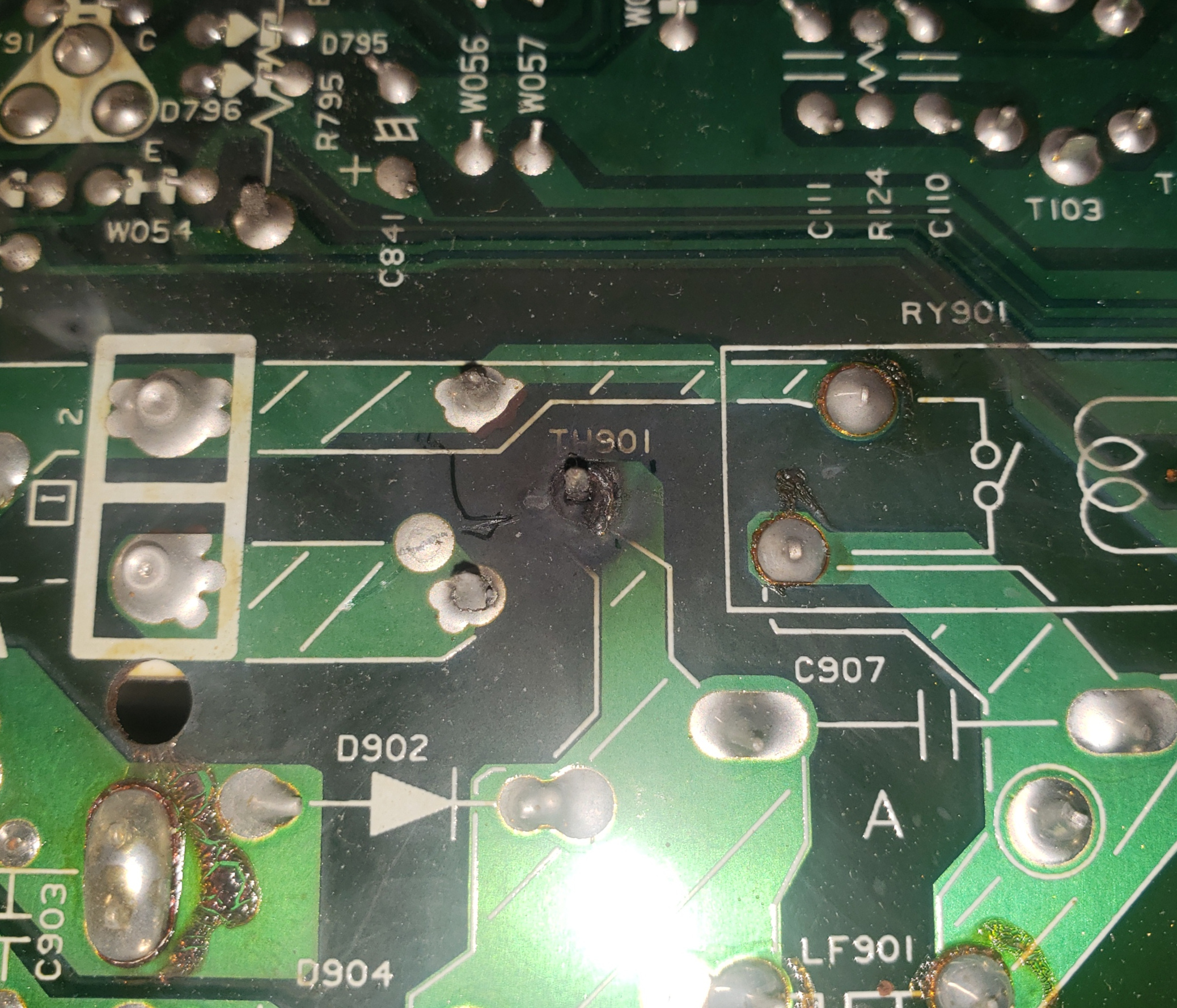

- Degauss was not working due to cold solder joints on thermistor TH901.

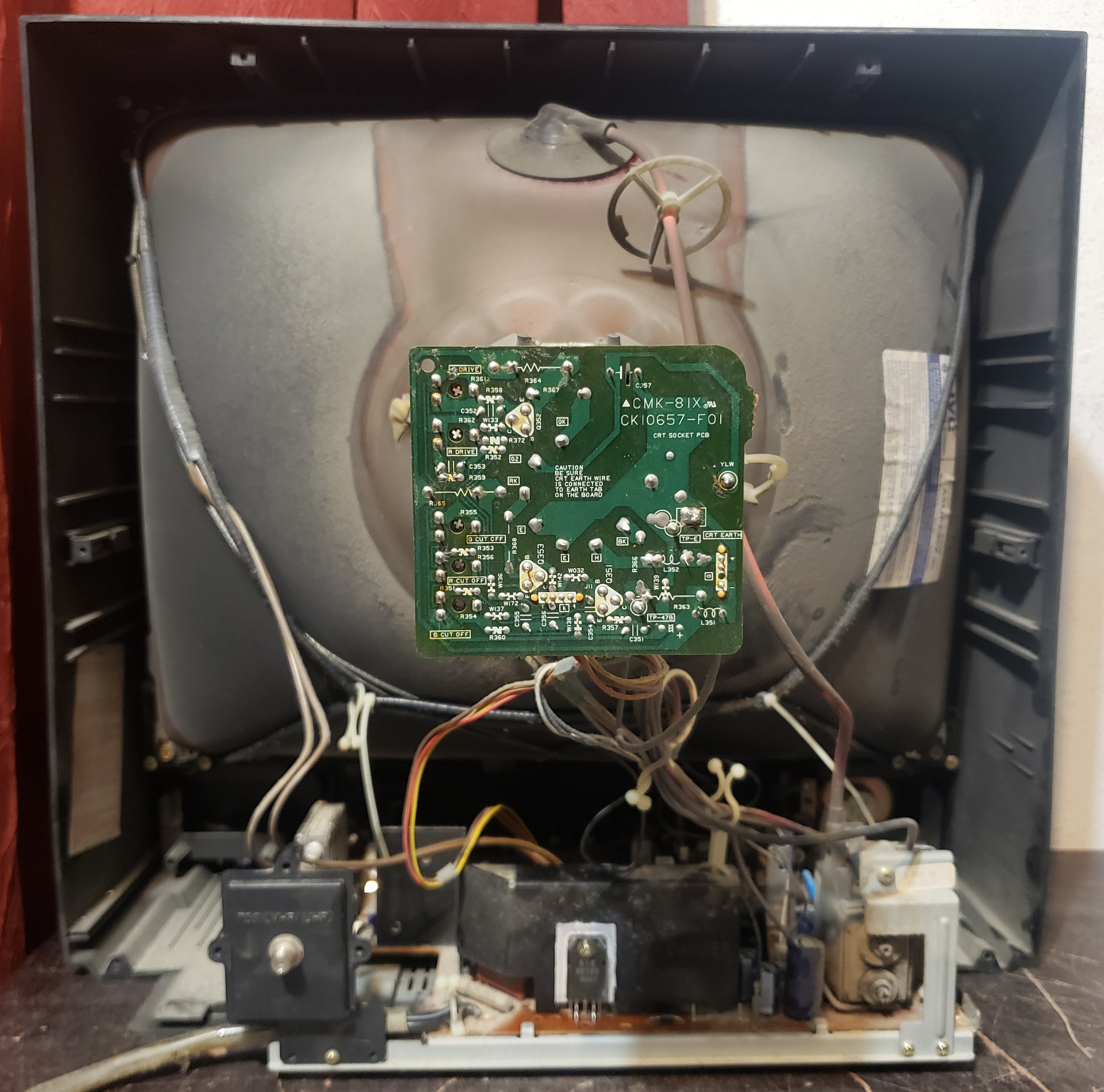

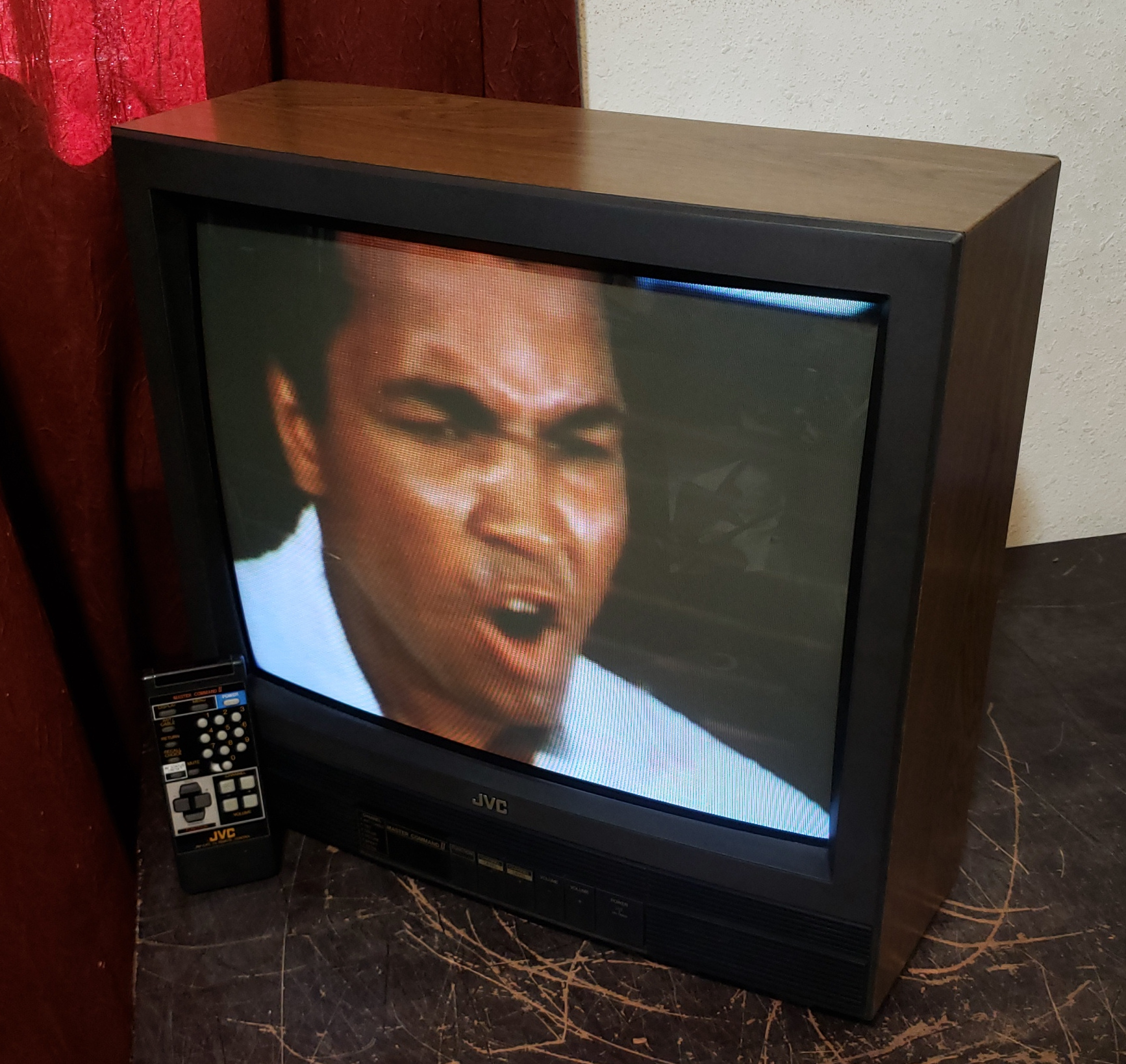

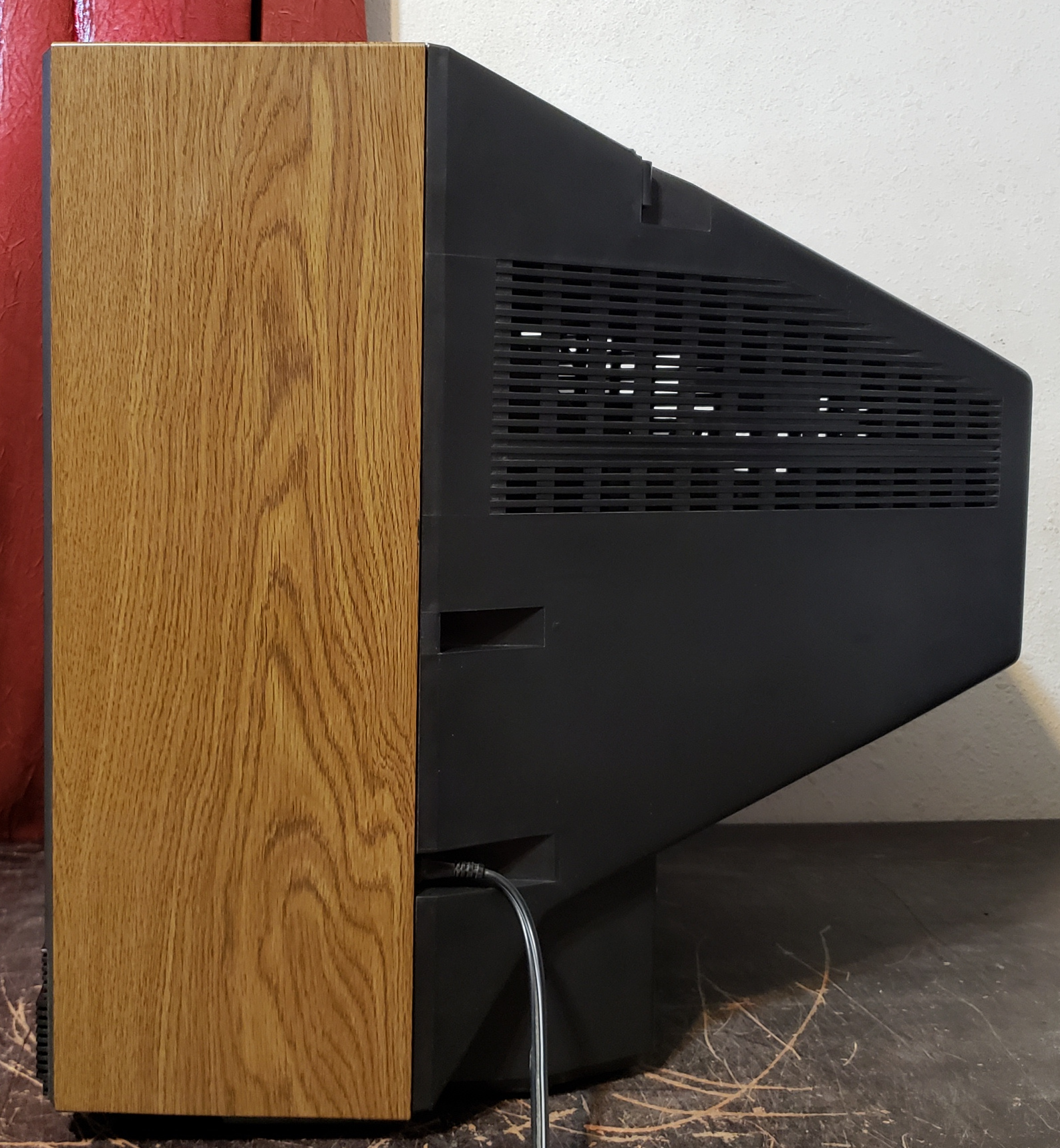

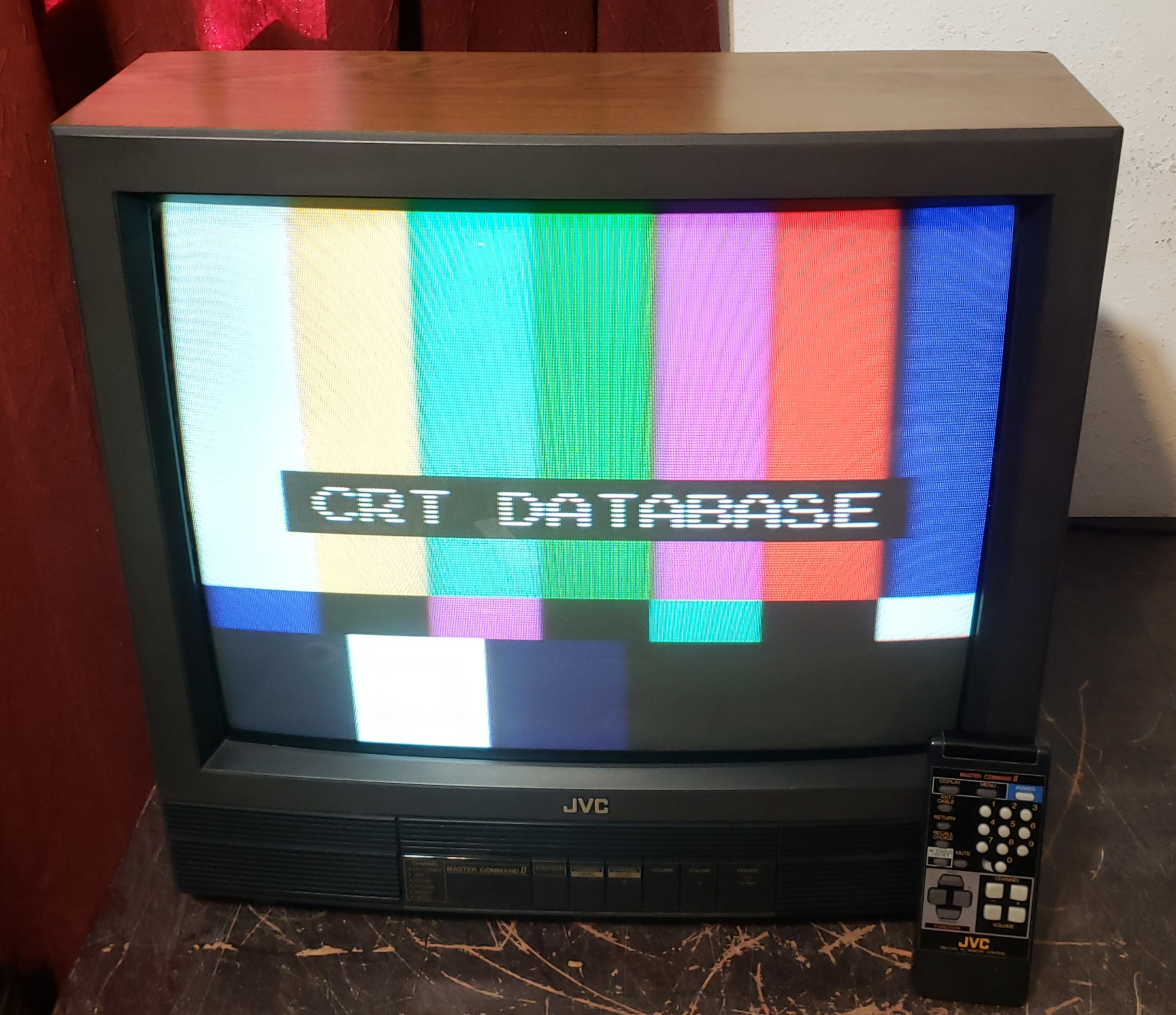

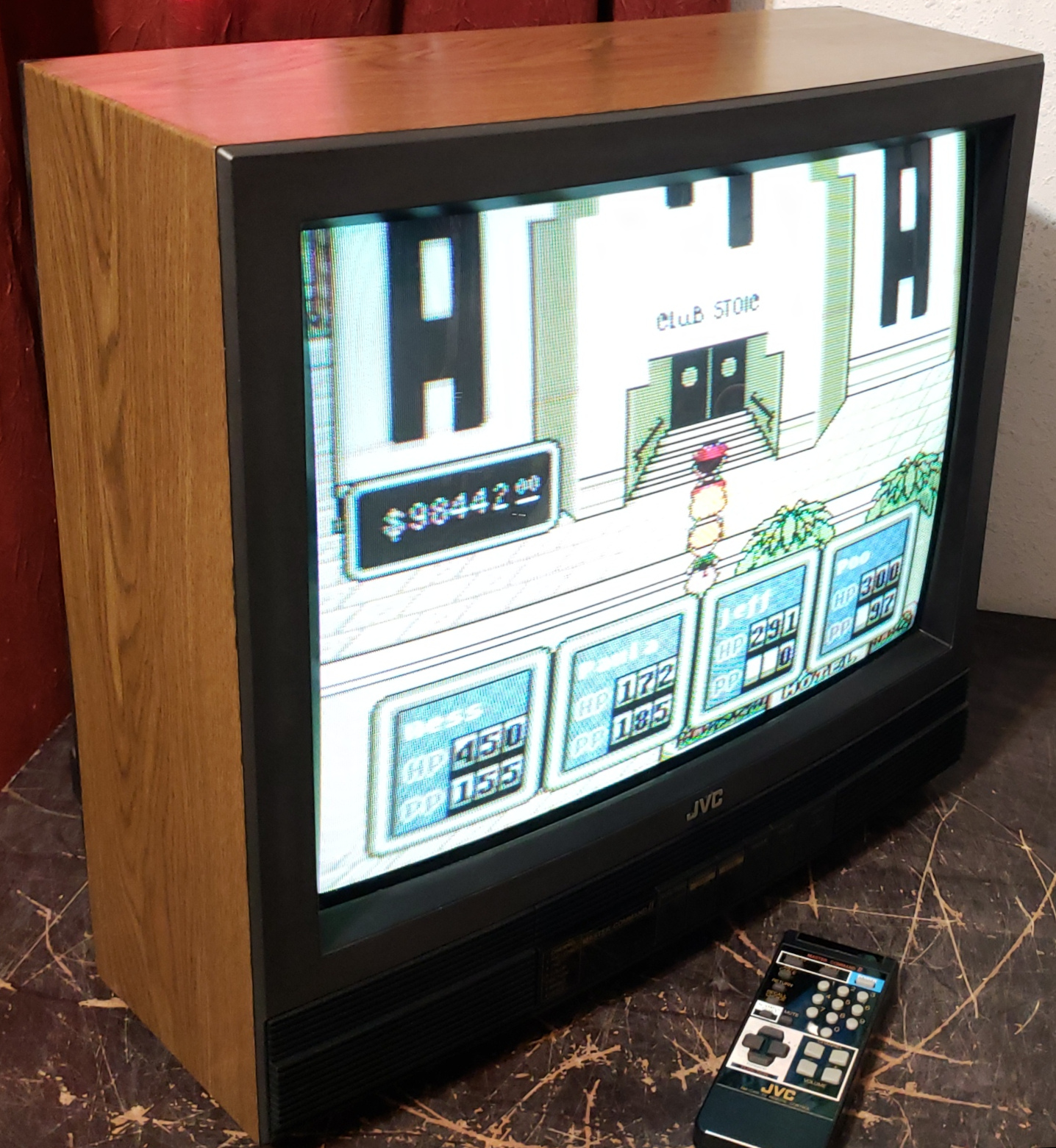

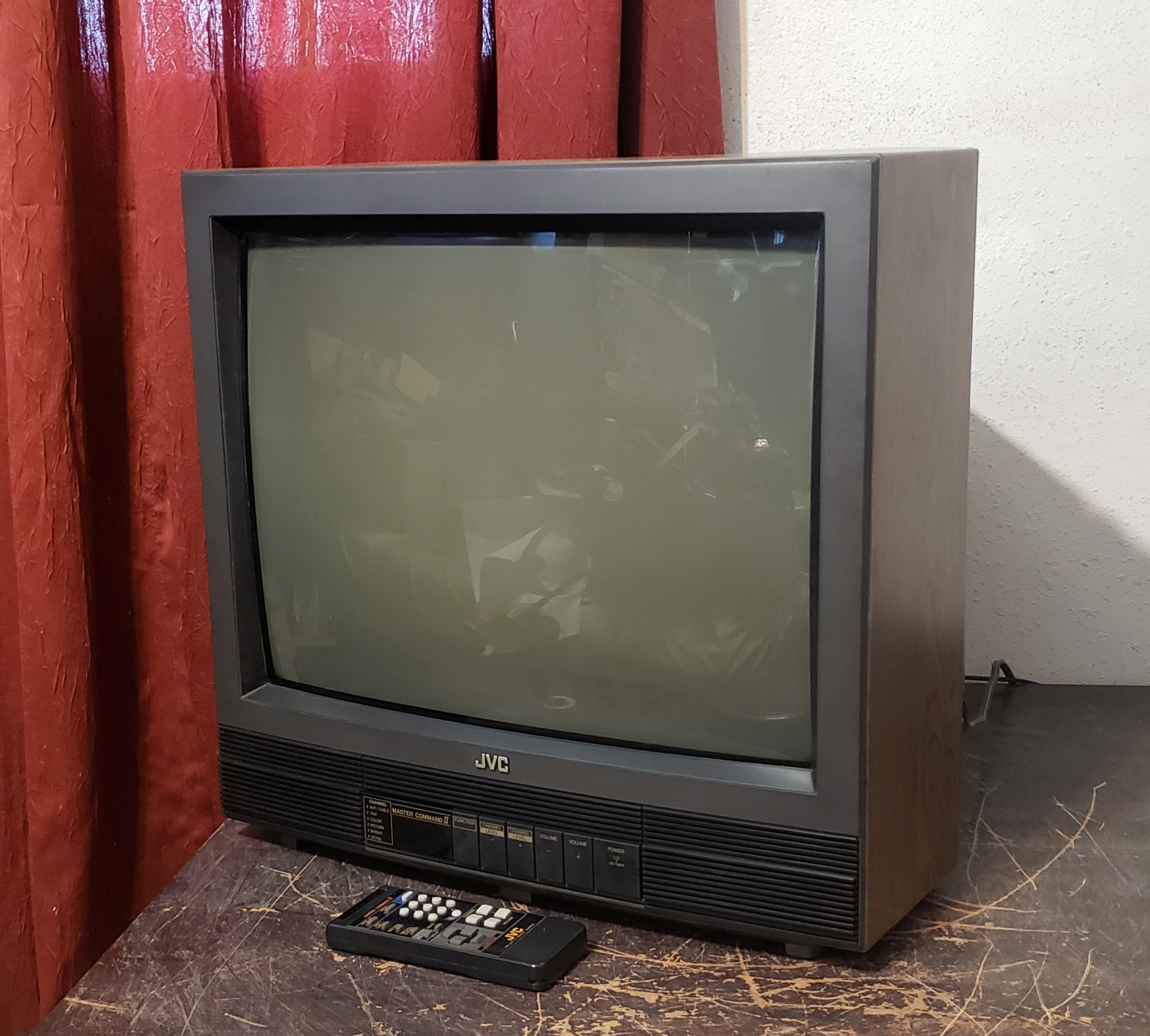

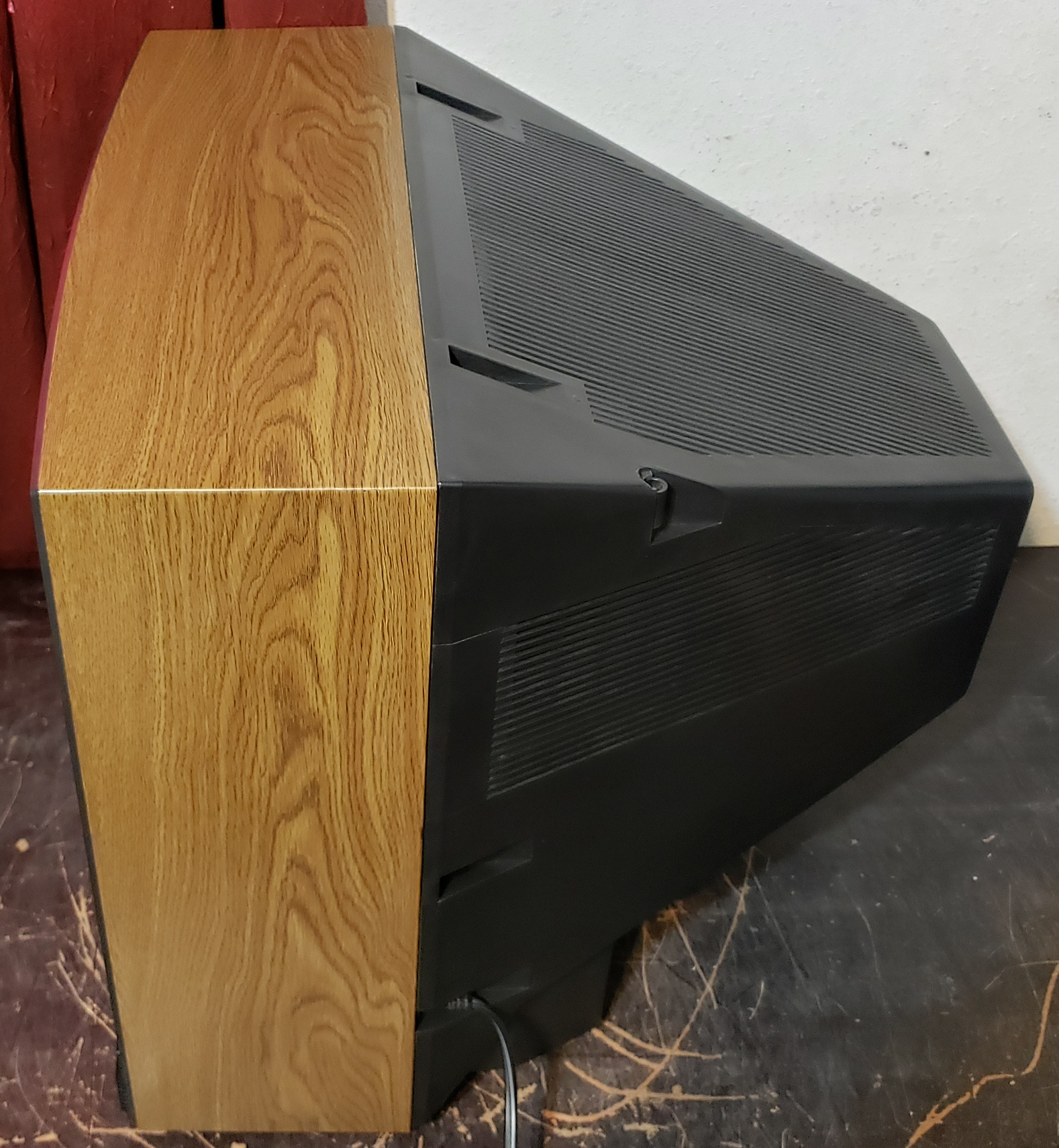

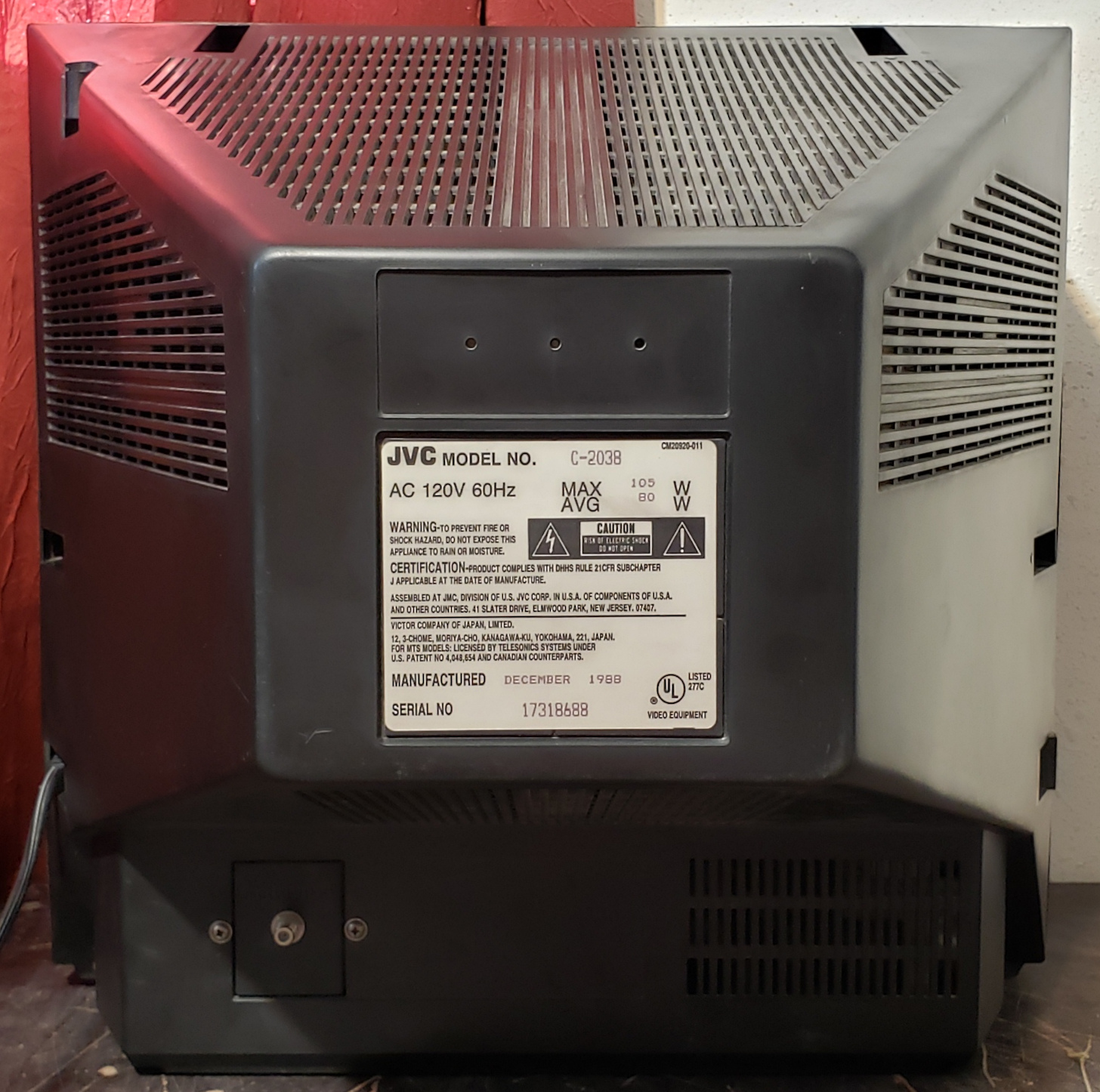

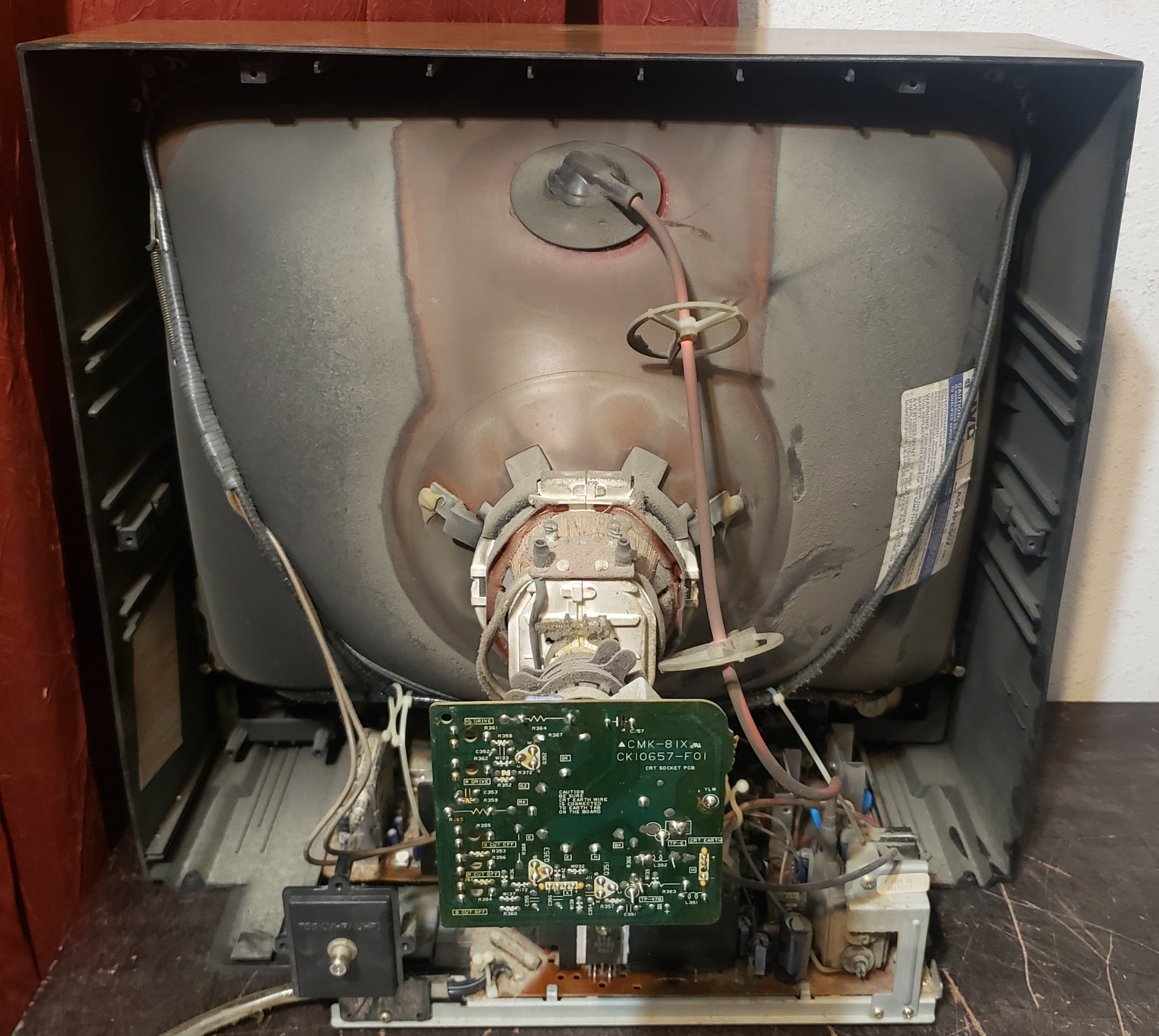

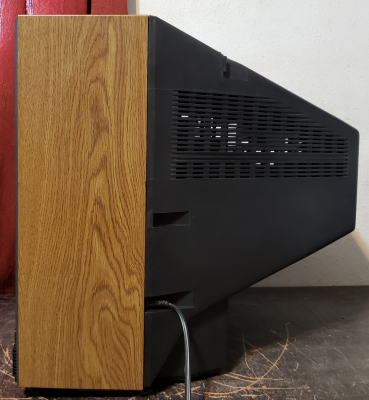

Gallery
| Specifications | |
|---|---|
| Brand: | JVC |
| Manufacturer: | JVC |
| Model: | C-2038 |
| Series: | MasterCommand |
| Viewable Size: | 20" |
| Input Signals: | RF |
| Native Resolutions: | 240p, 480i |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, OSD Customer Controls |
| Horz. Output Transistor: | D1554 |
| Vertical Output IC: | AN5515 |
| Jungle IC: | Toshiba, TA8601BN |
| Comb Filtering: | Notch |
| Flyback: | CE41194-00C |
| Focus Type: | Single |

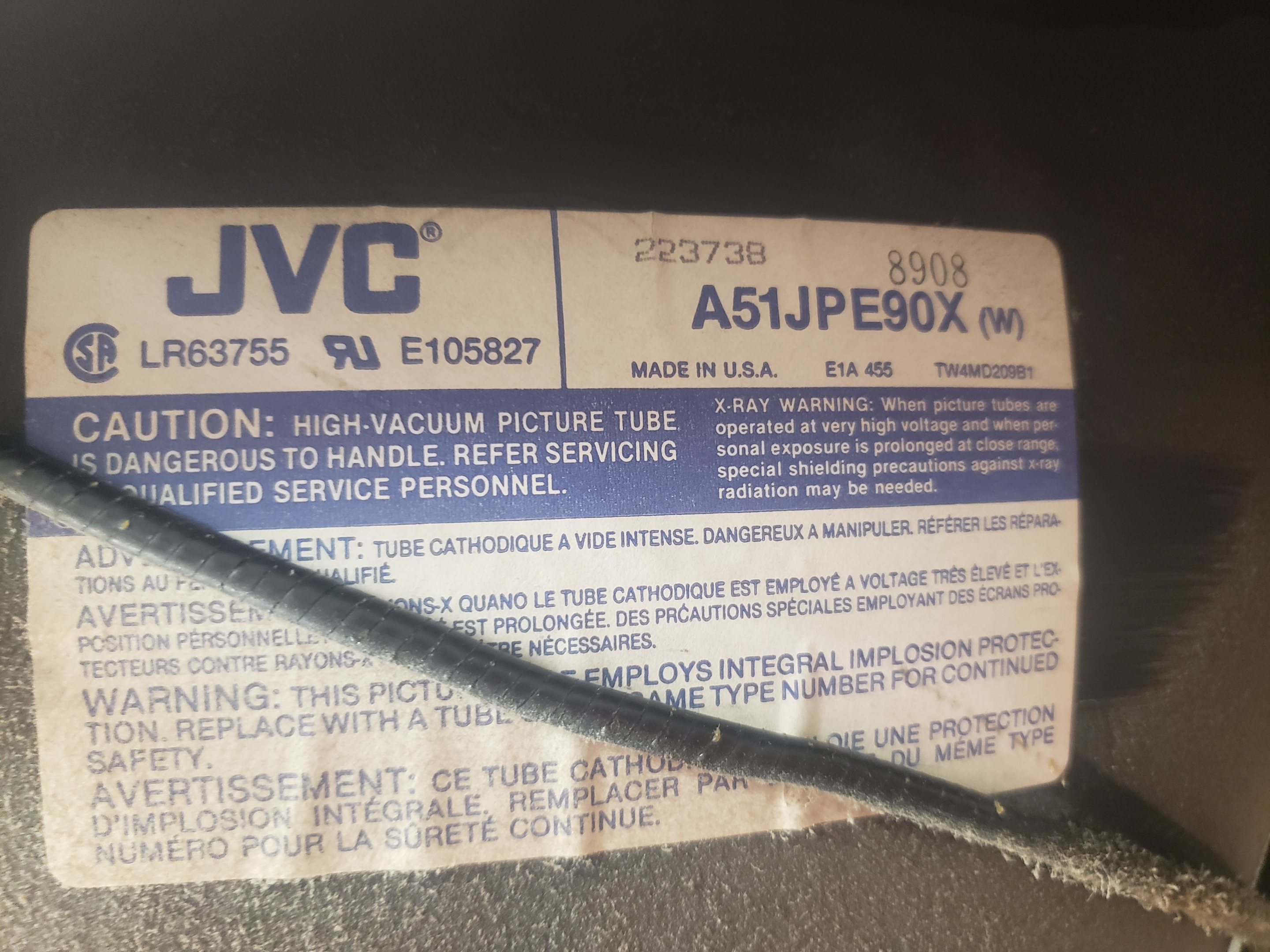

| Tube: | A51JPE90X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|

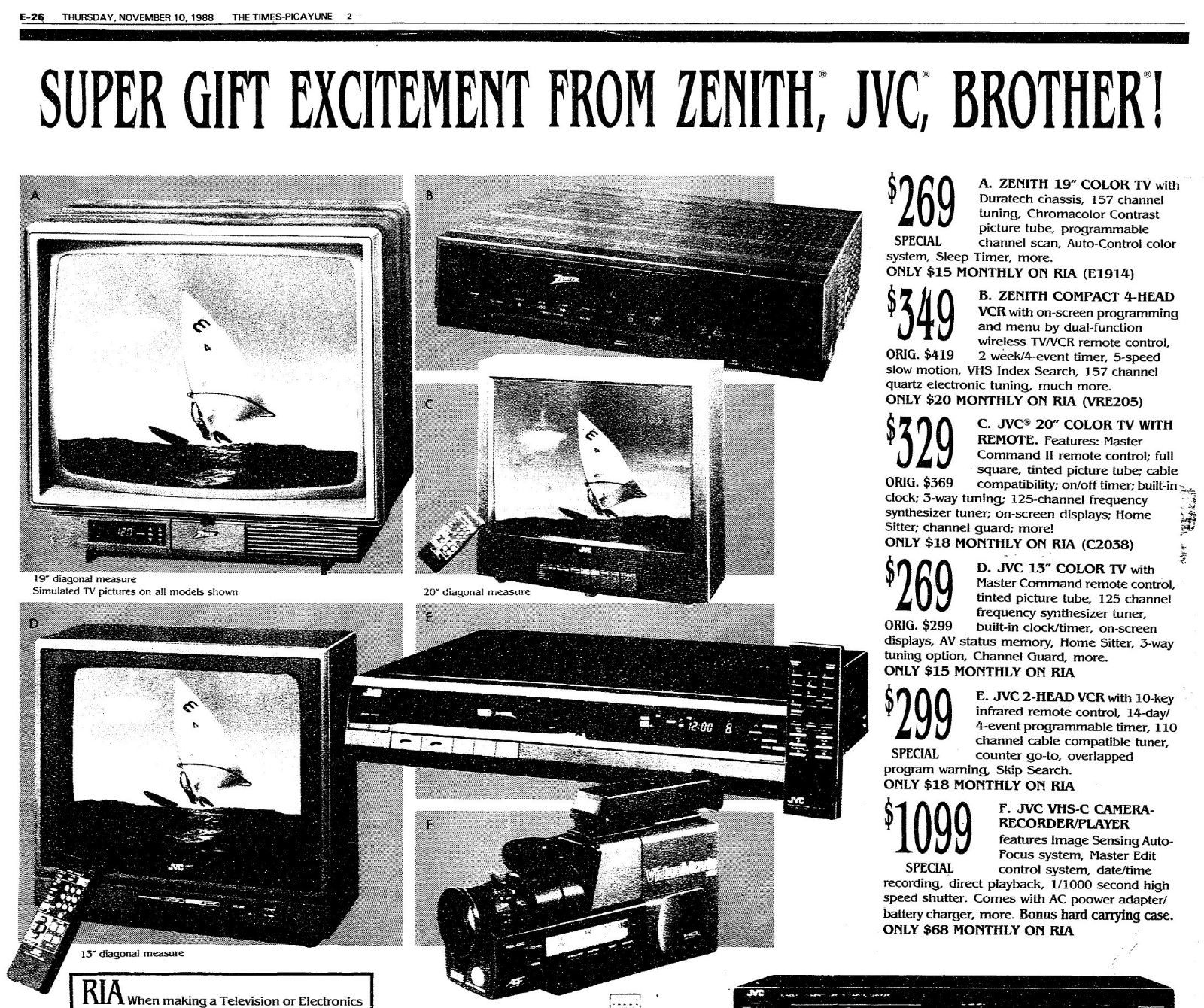

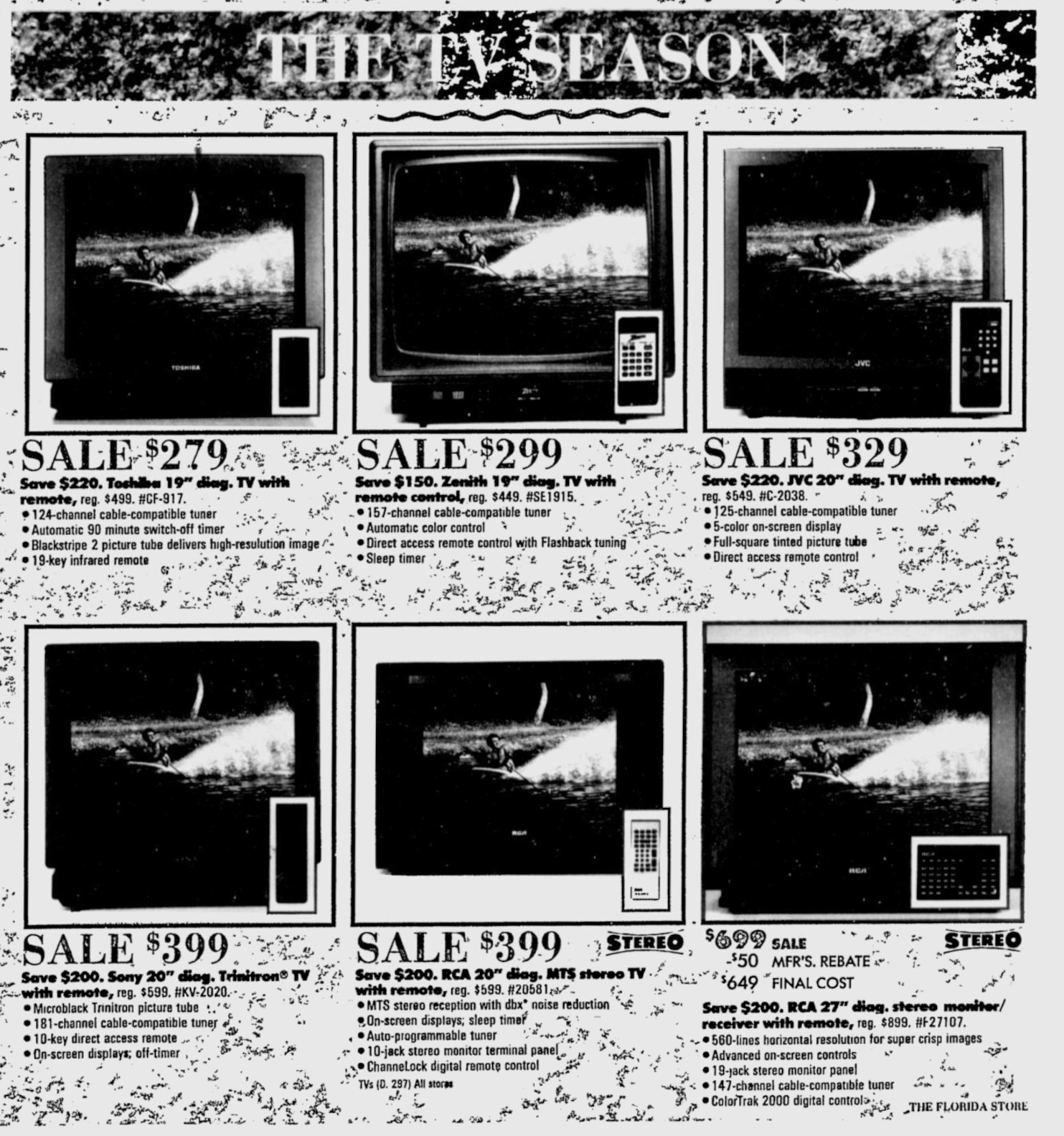

| Tint: | Dark |
| Yoke: | CE20107-COA |
| Yoke Horz. Resistance: | 3.9 ohm |
| Yoke Vert. Resistance: | 9.5 ohm |
| Speakers: | Mono |
| Remote: | RM-C415 |
| Chassis: | FY |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1988 |
| MSRP: | 379 USD |
| Country of Manufacture: | USA |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs Service Manual, Needs Measurements, Repair Log |
