Summary
Basic 20" consumer TV from JVC, with a single mono A/V input.
Manuals
Notes

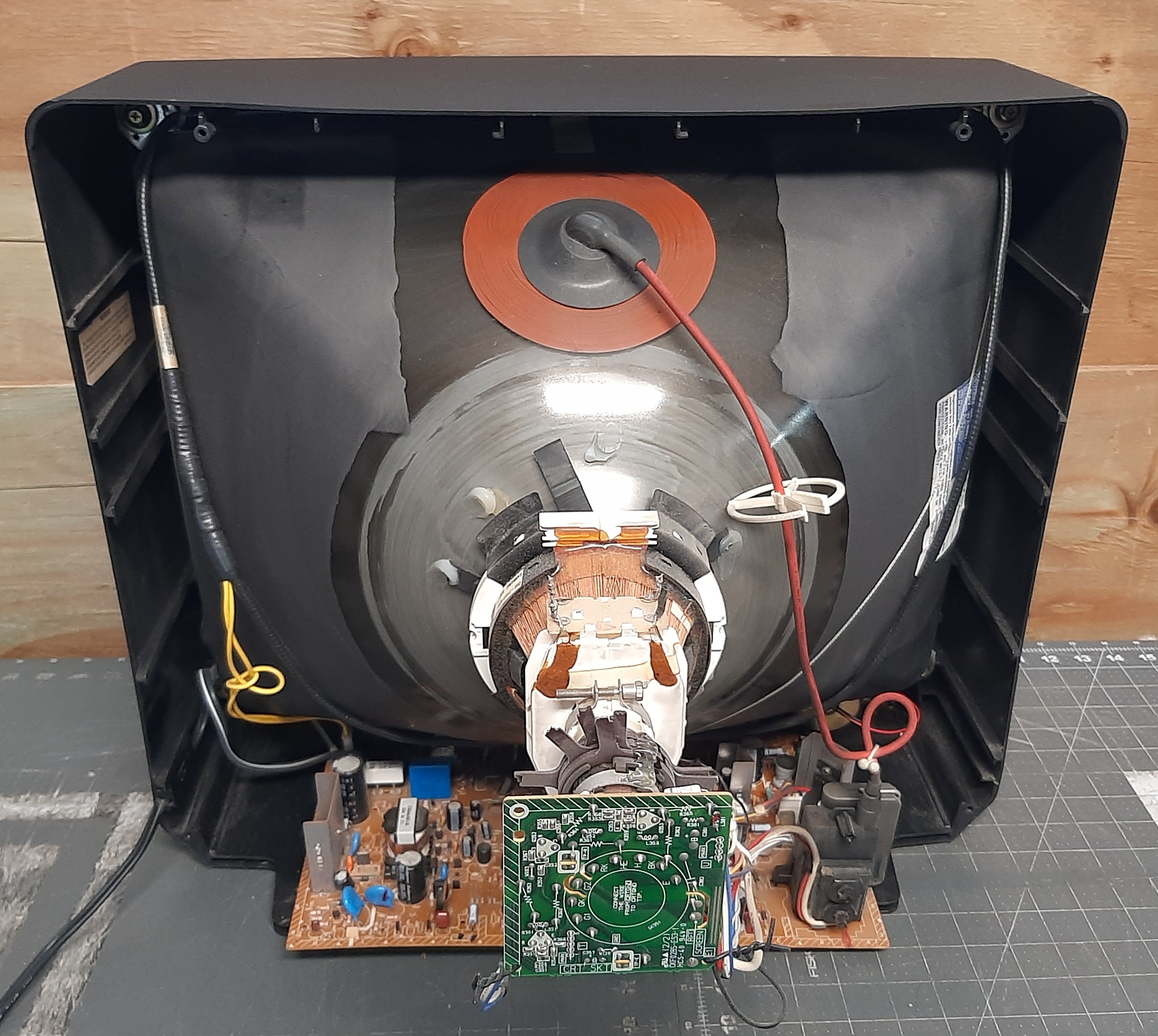

Although it uses the same Samsung tube as later JVC models like the D series, the yoke has lower inductance and is not compatible.
This TV can be modded for RGB. However, due to the design of the jungle chip, brightness and contrast cannot be adjusted via the user menu, making it less functional than other models.

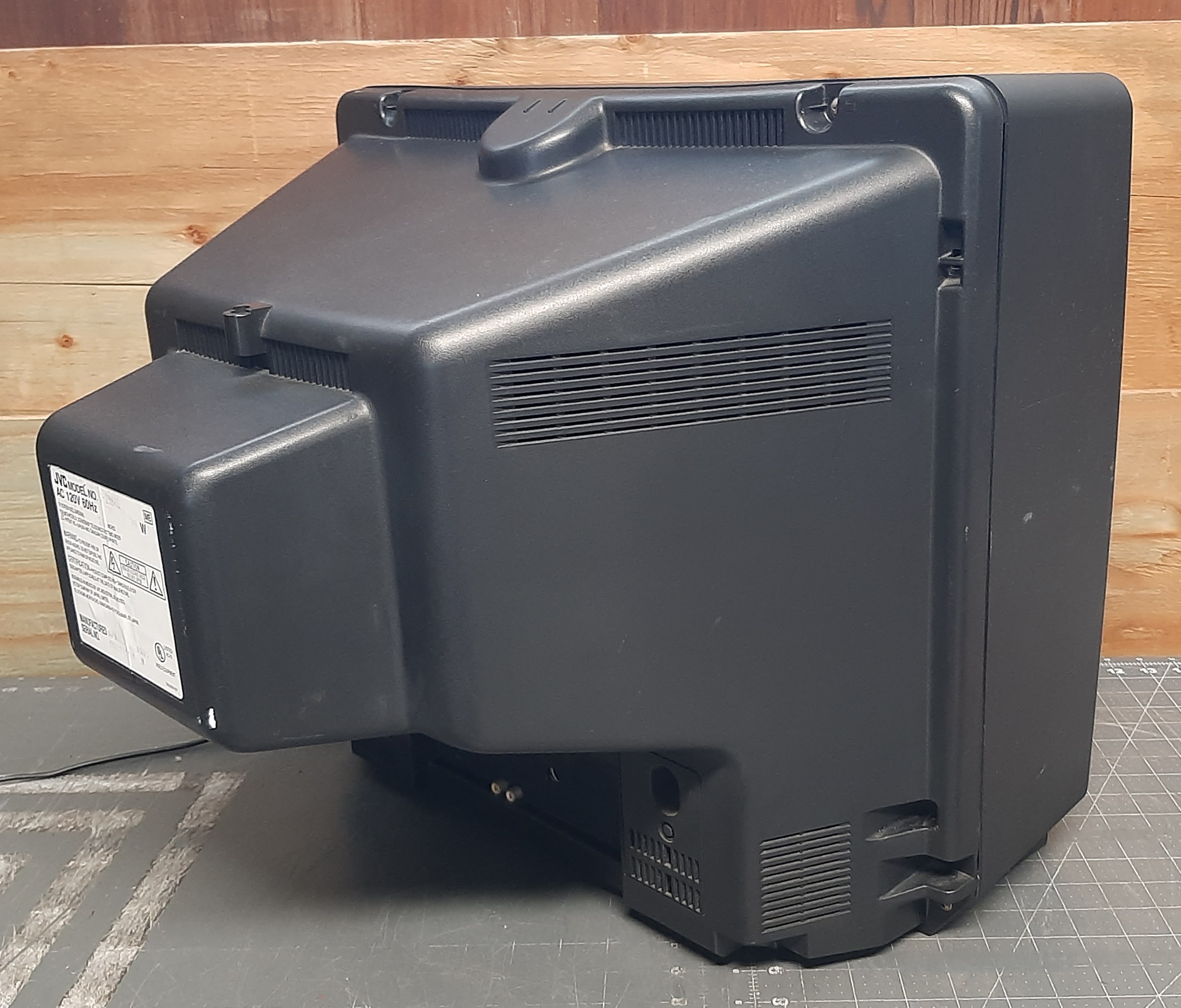

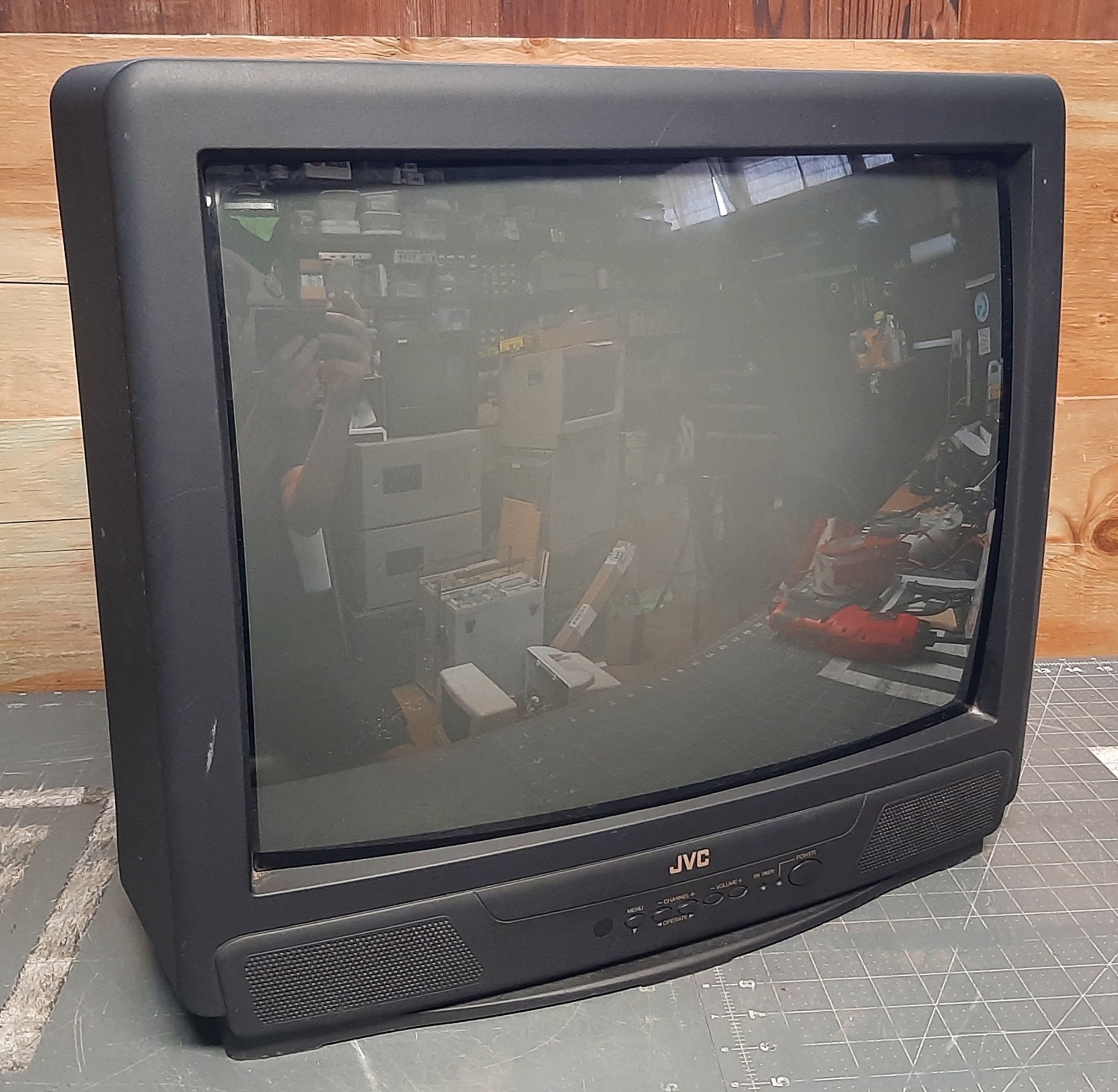

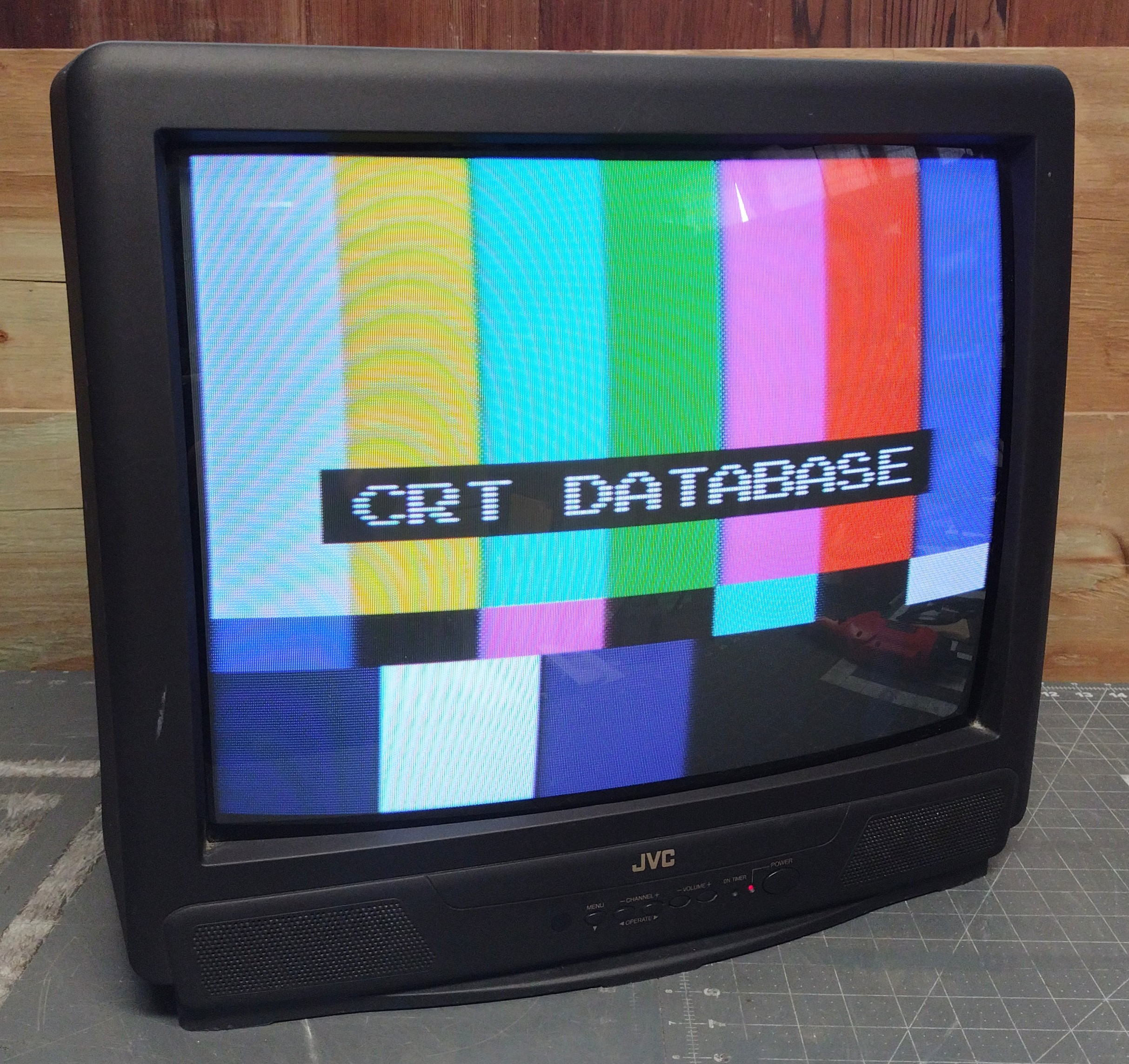

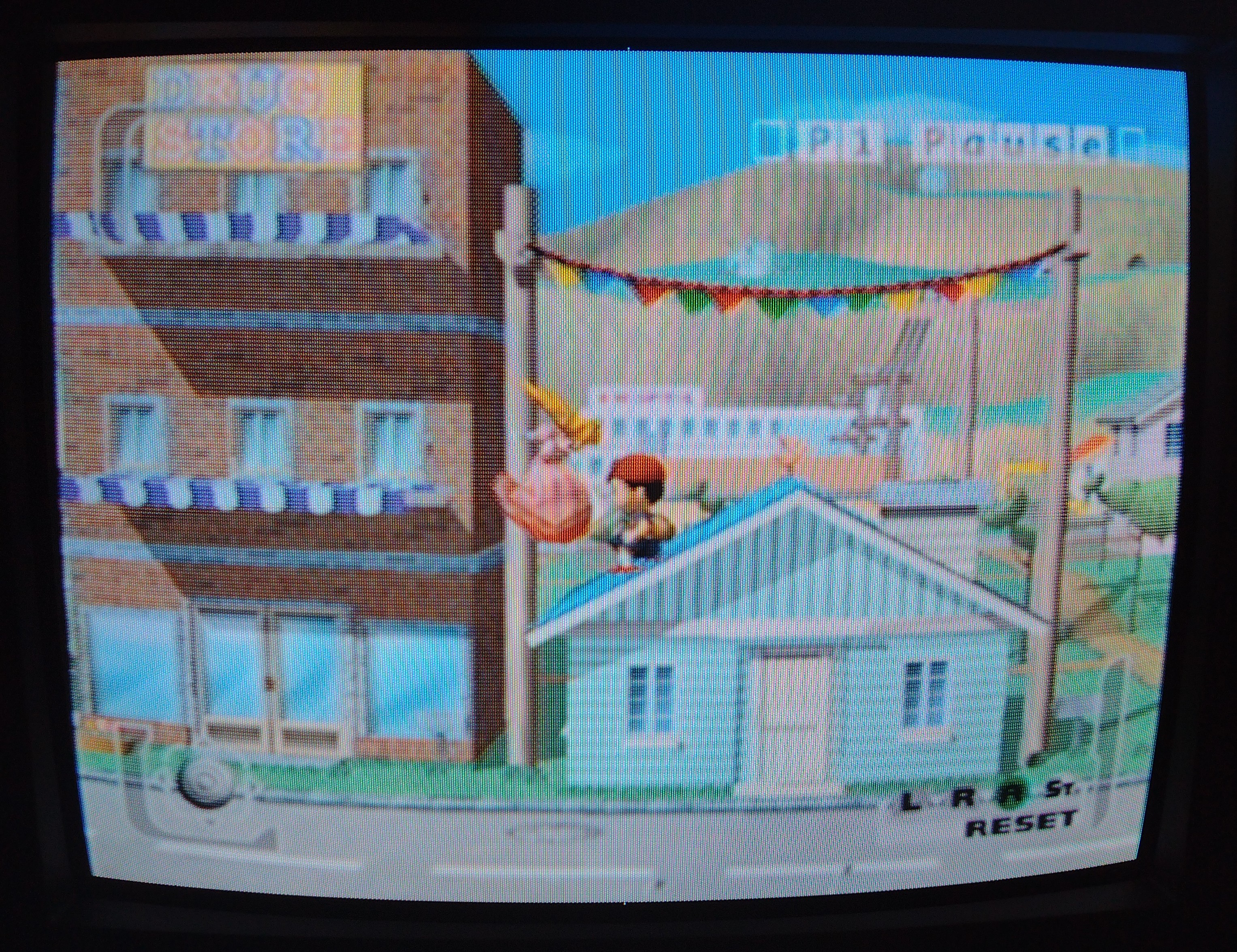

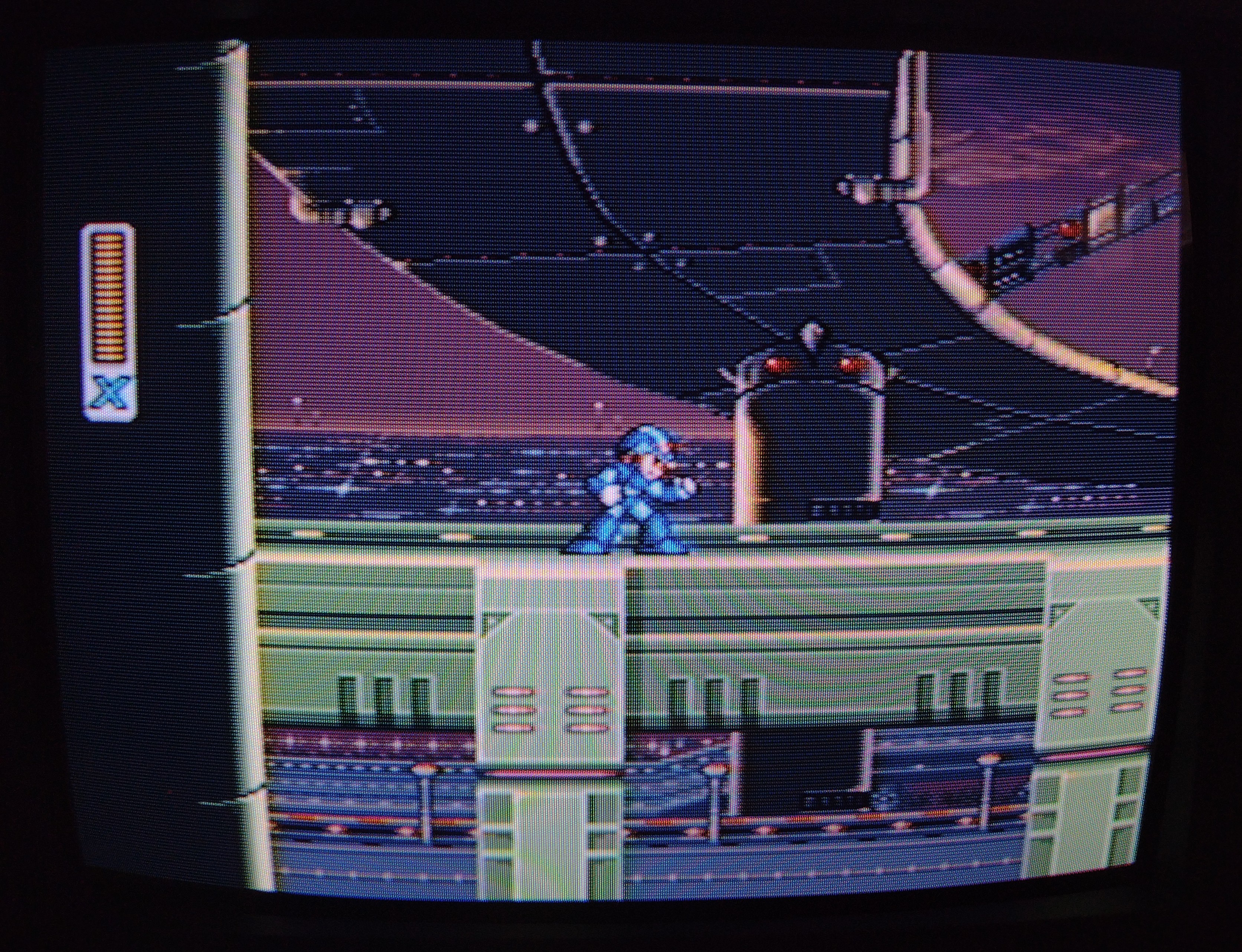

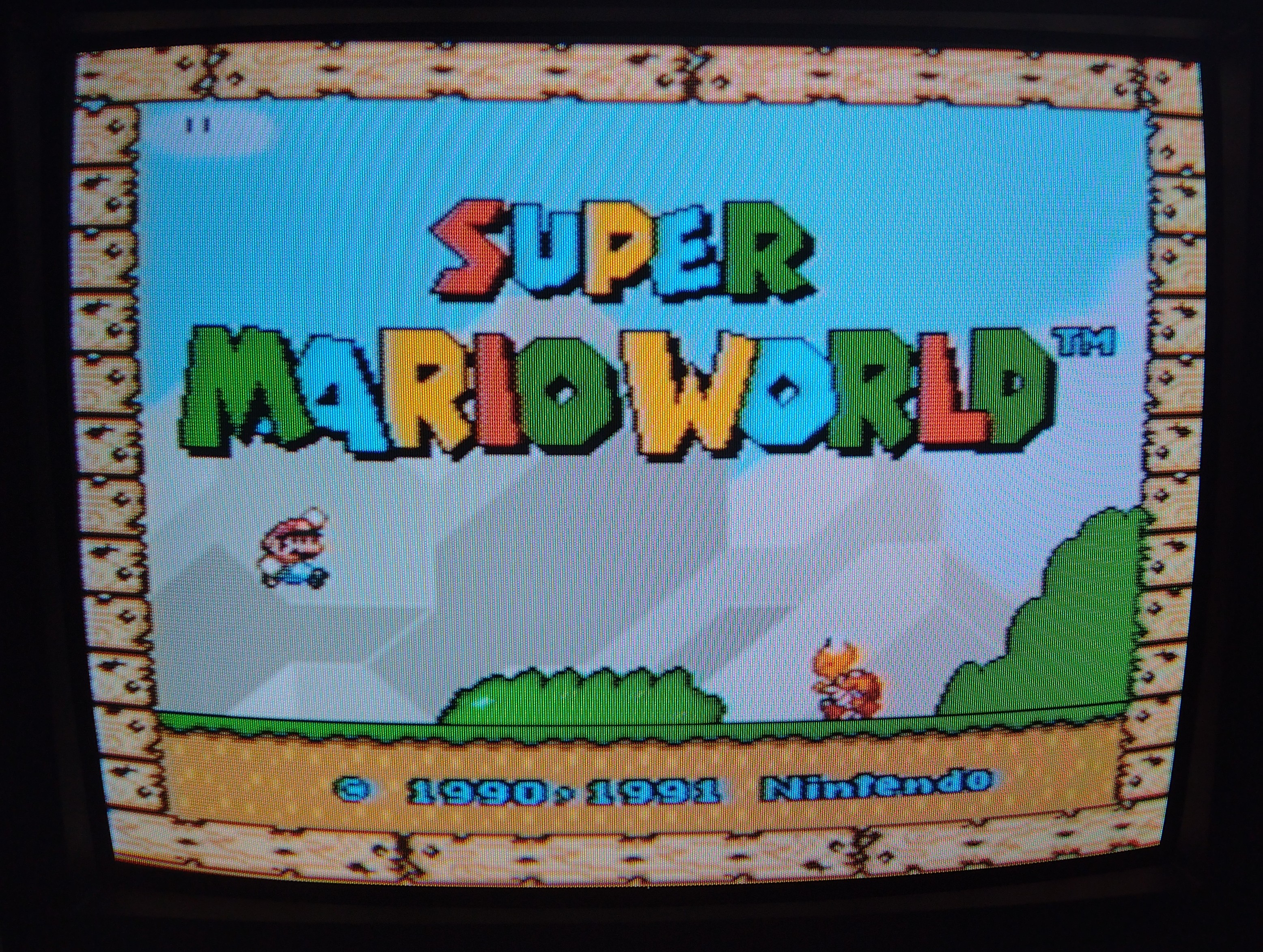

Gallery





Specifications | |
---|---|
Brand: | JVC |
Manufacturer: | JVC |
Model: | C-20810 |
Series: | C |
Viewable Size: | 20" |

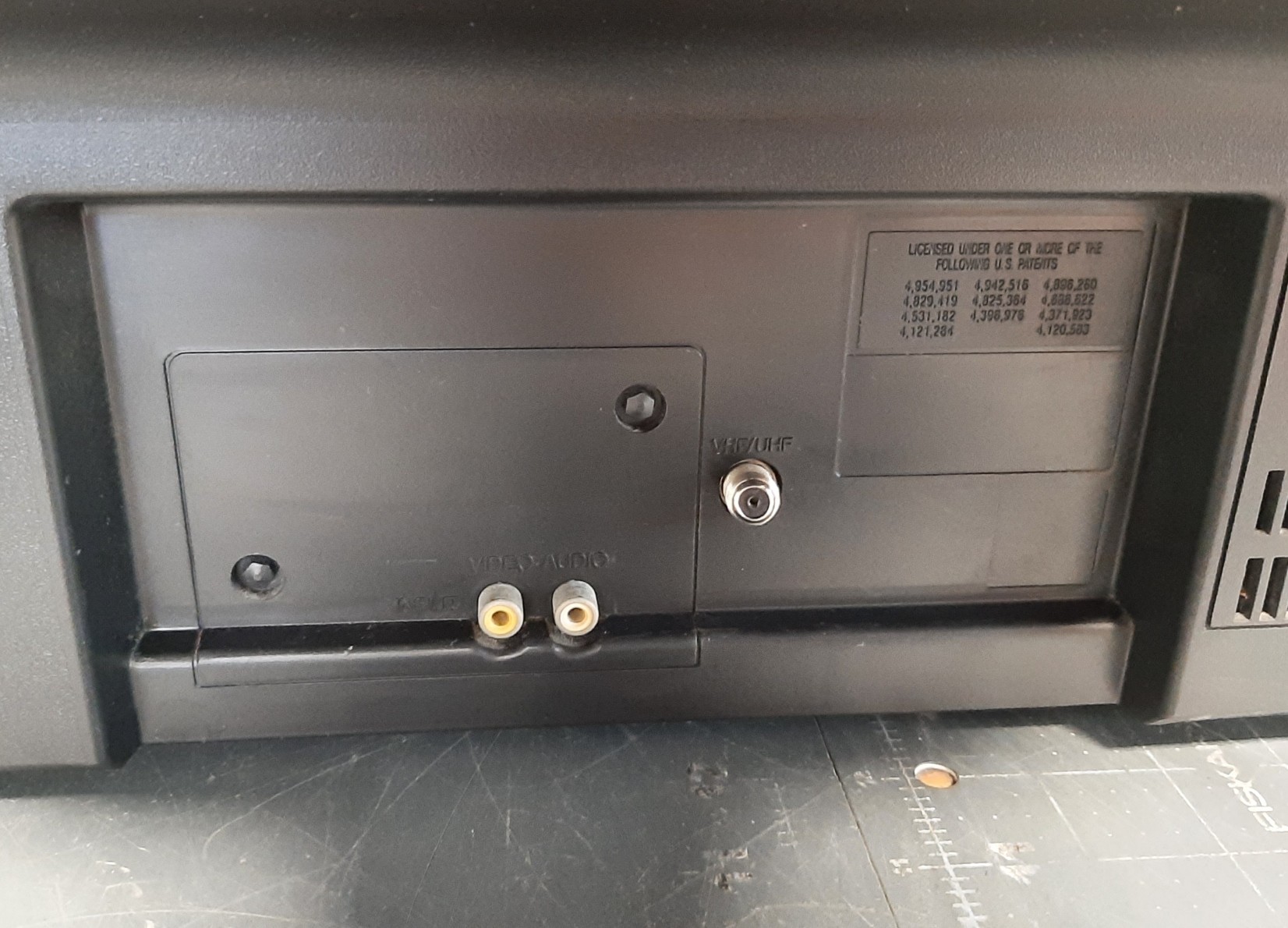

Inputs: | Composite, RF |
Native Resolutions: | 240p, 480i |
Horizontal Scan Range: | 15 kHz |
Vertical Scan Range: | 60 Hz |
Formats: | NTSC |
Aspect: | 4:3 |
Adjustments: | OSD Customer Controls, OSD Service Menu |
Horz. Output Transistor: | 2SD1878 |
Vertical Output IC: | LA7830 |
Jungle: | TA1242N |
Comb Filtering: | None |
Flyback: | CE42586-001J1 |
Focus Type: | Single |
Tube: | Samsung , A51KRE89X |
Heater Voltage: | 6.3v |
Deflection: | 90° |
Mask: |
Slot
![]() |
Tint: | Dark |
Removable Glare Film: | No |
Yoke: | DSE-2192FA |
Yoke Horz. Inductance: | 2.084 mH (@ 10 kHz) |
Yoke Vert. Inductance: | 17.980 mH (@ 100 Hz) |
Yoke Horz. Resistance: | 2.53 ohm |
Yoke Vert. Resistance: | 9.56 ohm |
Speakers: | Mono |
Remote: | RM-540 |
Weight: | 46.6 lbs (21.1 kg) |
Dimensions (W/H/D): |
502 x 445 x 457 mm
(19.7 x 17.5 x 18") |
Application: | Consumer |
Cabinet Material: | Plastic |

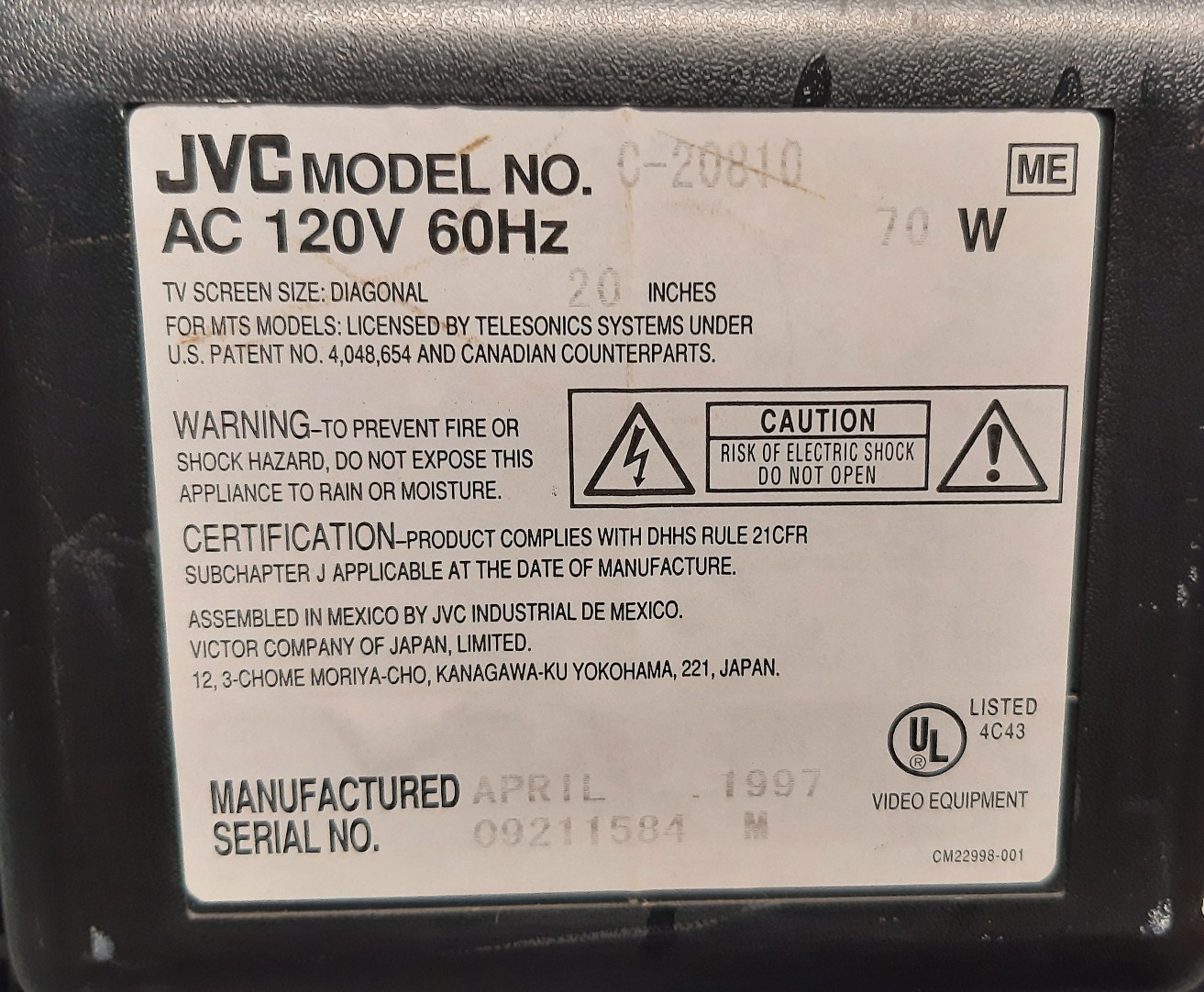

Launched: | 1997 |
Country of Manufacture: | Mexico |
Market: | North America |
Power Standard: | 120v |
Mods: | RGB via Mux |
Degaussing: | Automatic on Power-on |
Tag: | Needs Owners Manual |
