JVC TM-910SU
Andy King, Eli Krause
May 21, 2022, 9:47 pm
May 27, 2025, 5:14 am
May 21, 2022, 9:47 pm
May 27, 2025, 5:14 am
Summary
9" pro monitor with S-Video.
Manuals

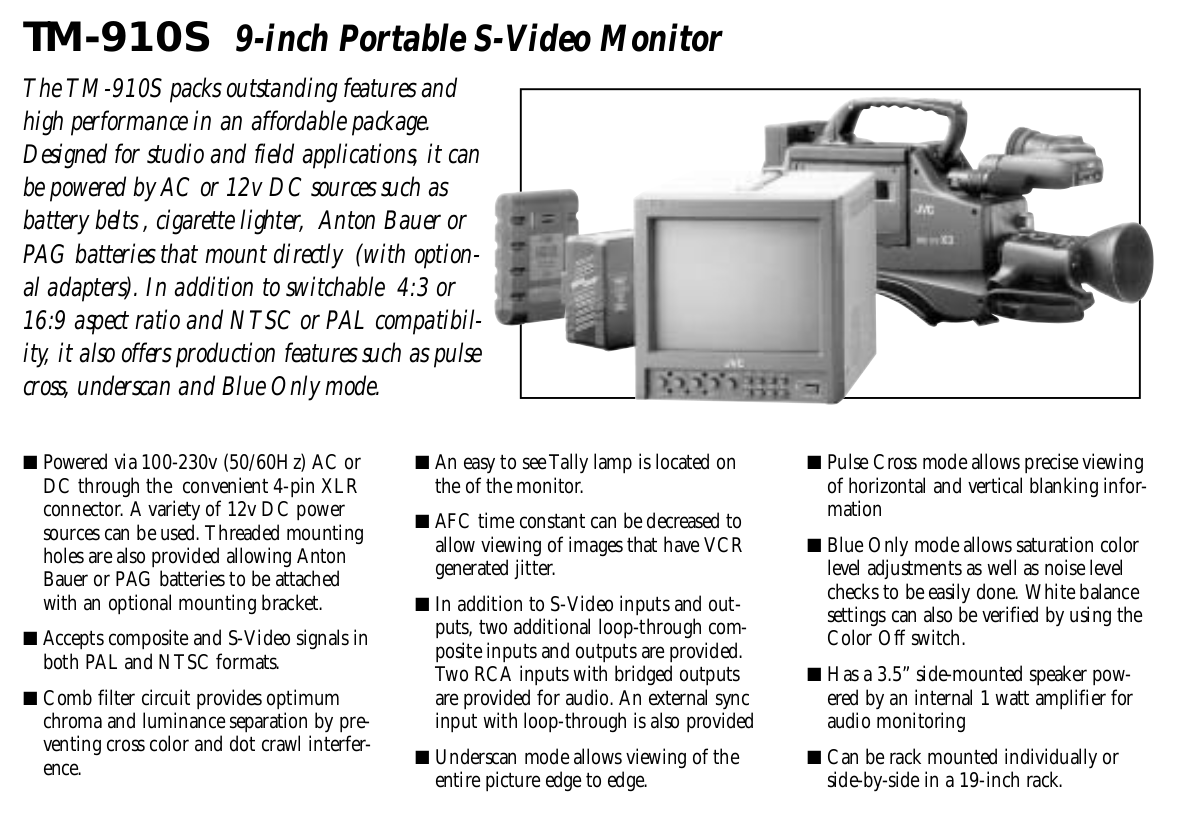

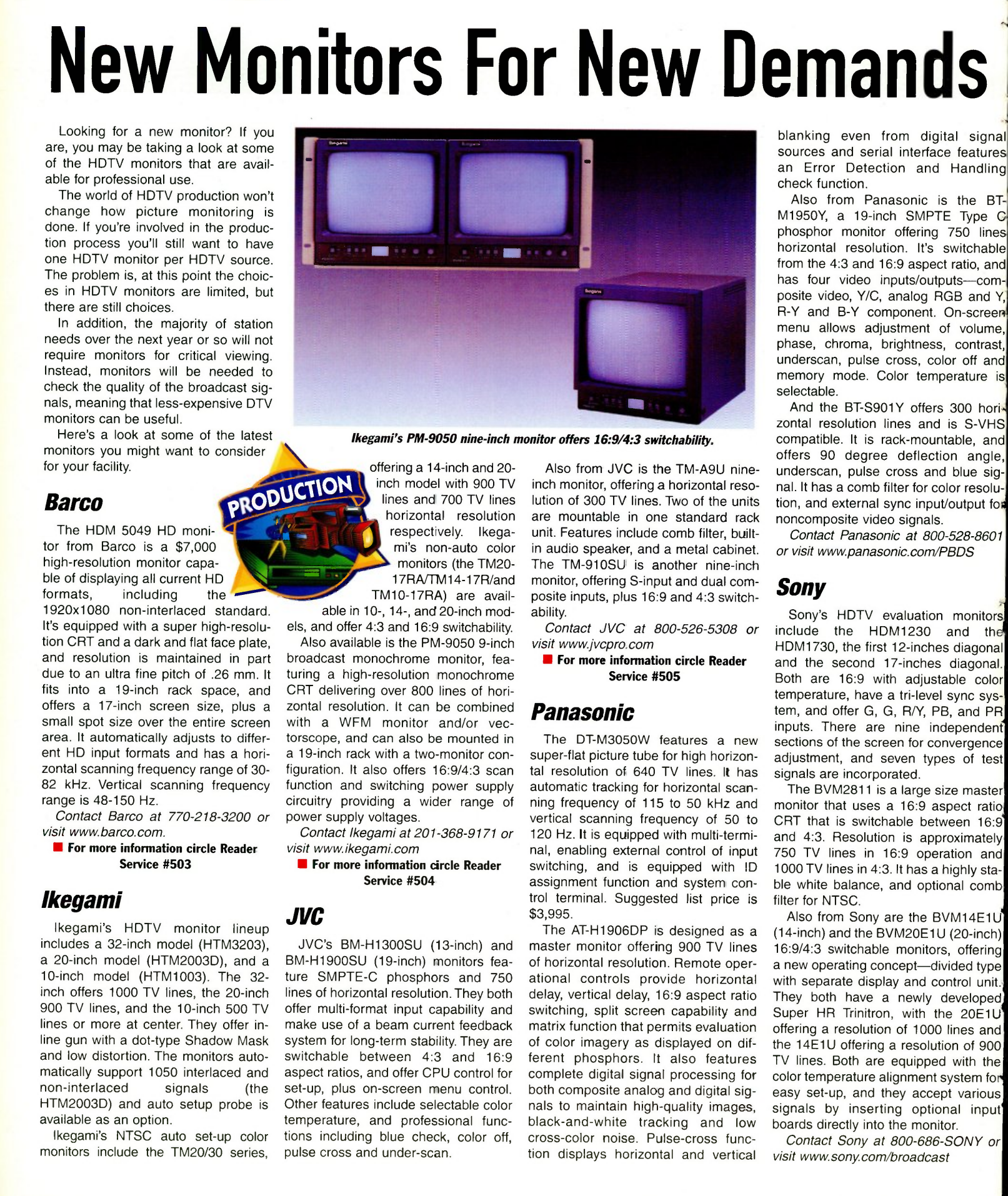

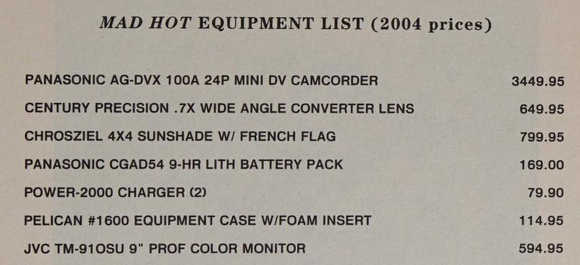

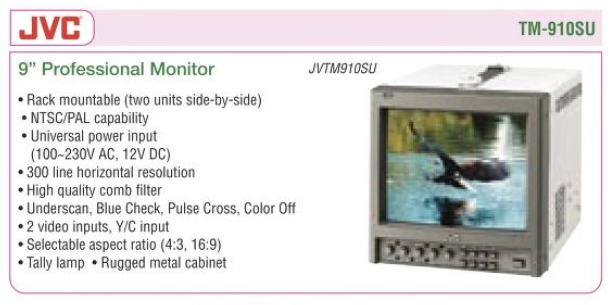

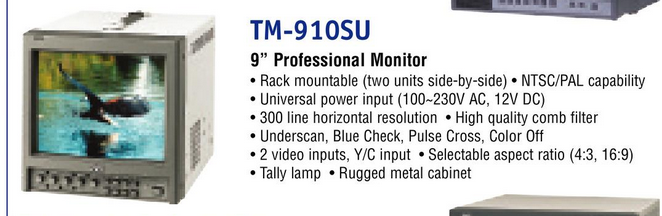

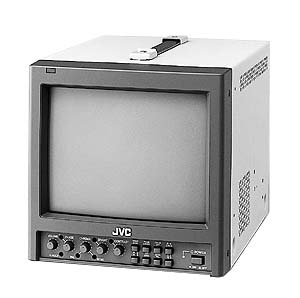

Media & Promo Materials
Notes
The jungle chip used on this monitor does not have RGB inputs. See the Ikegami TM9-1 for additional repair notes.
It has been speculated that the JVC TM series uses some prefix and suffix letters to denote what features the monitor has:
- A ??
- H indicates monitor has a high-TVL M-class tube. For JVC this usually means > 750 TVL Chunghwa tubes.
- C indicates the monitor has one or more option card slots on the back for input expansion.
- G indicates global signal compatibility, which simply means the monitor supports both NTSC and PAL formats, as well as 120/240 volt AC input.
- SU indicates the monitor has multiple additional features for video production such as external sync input, support for 16:9 mode, underscan, blue only, and other front panel toggles. In some cases all of these features are present on the monitor while in other cases only one or two.
- CV may abbreviate "Color Video". Generally indicates the monitor is designed for CCTV applications (24/7 operation).

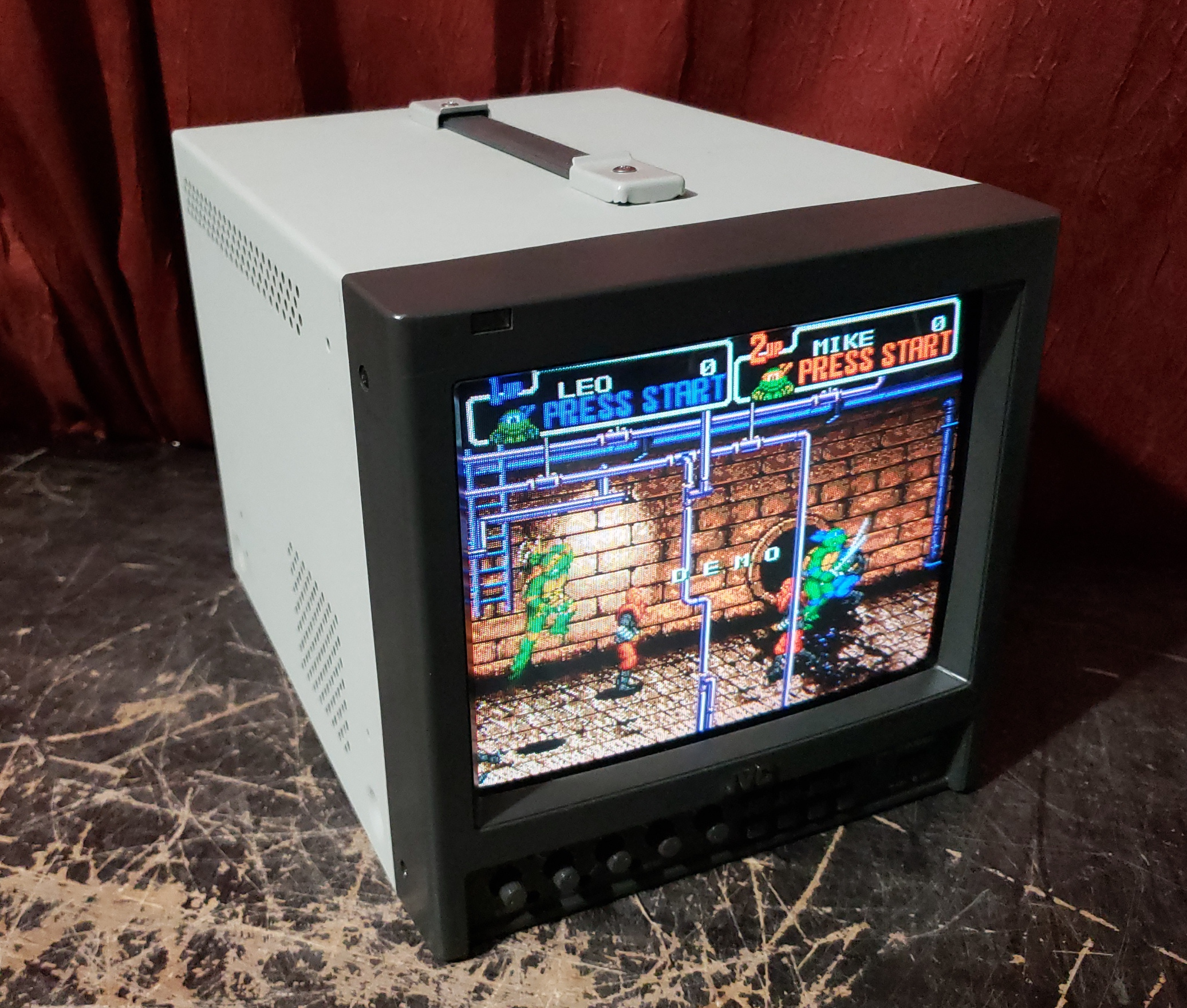

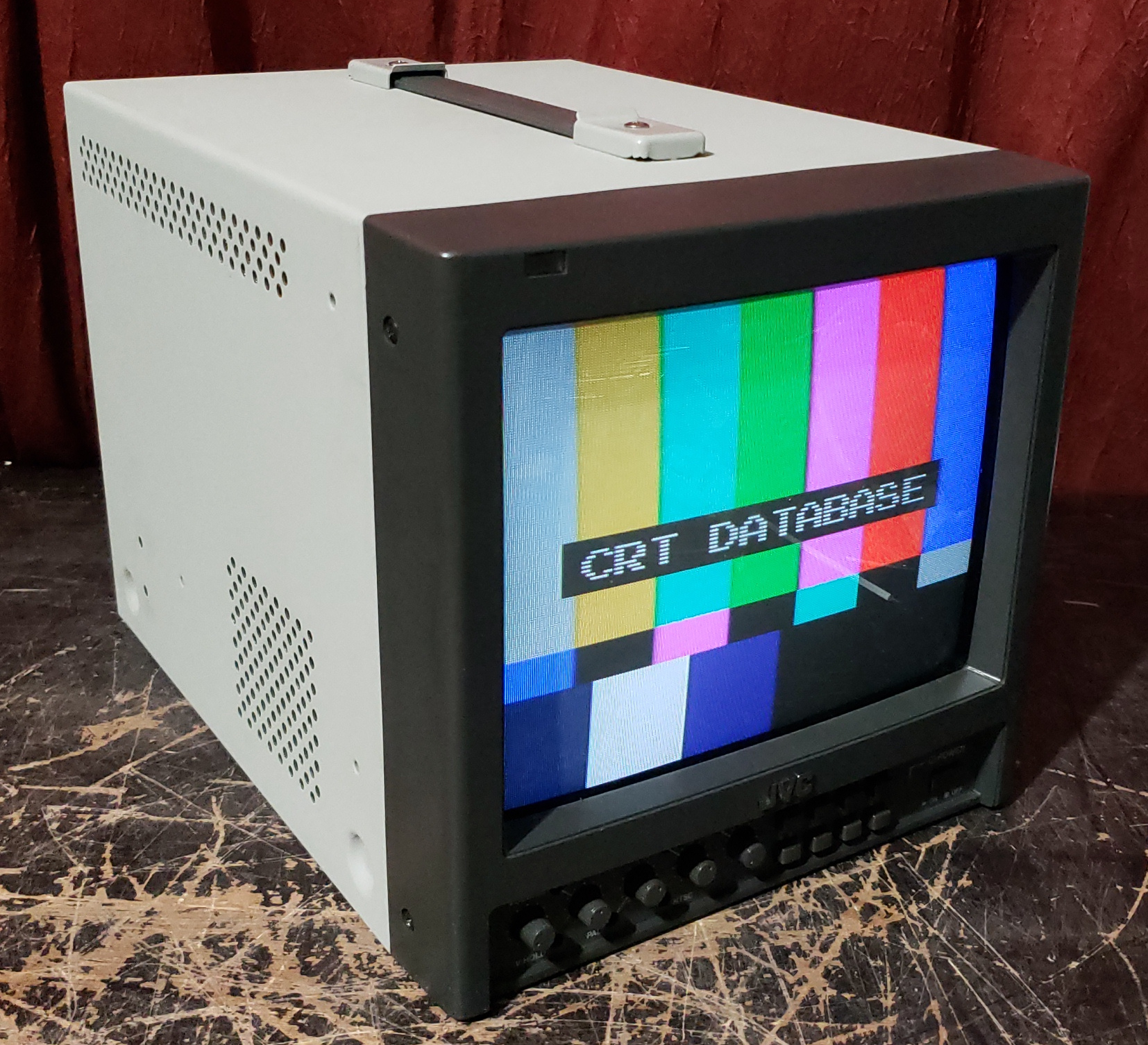

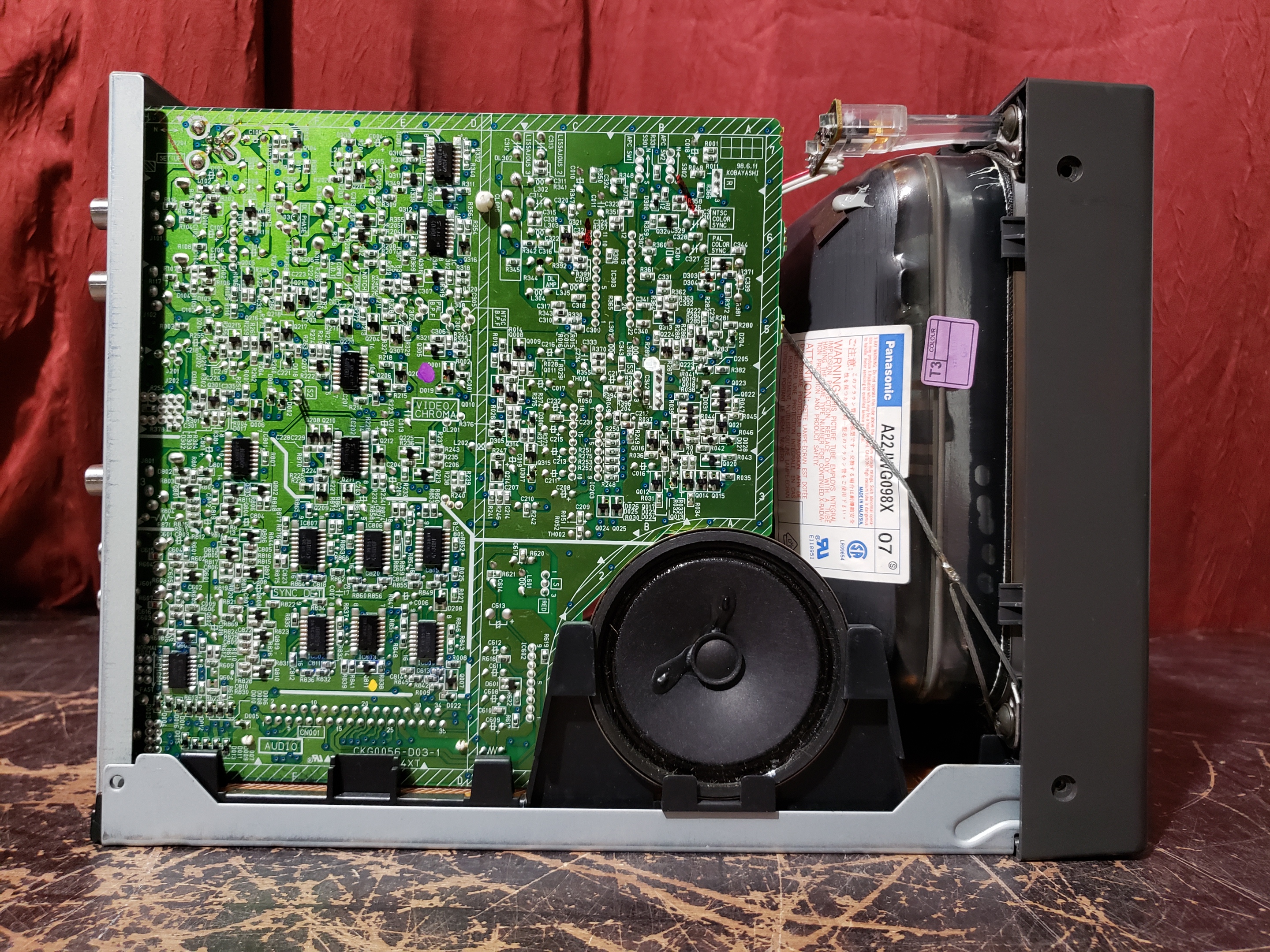

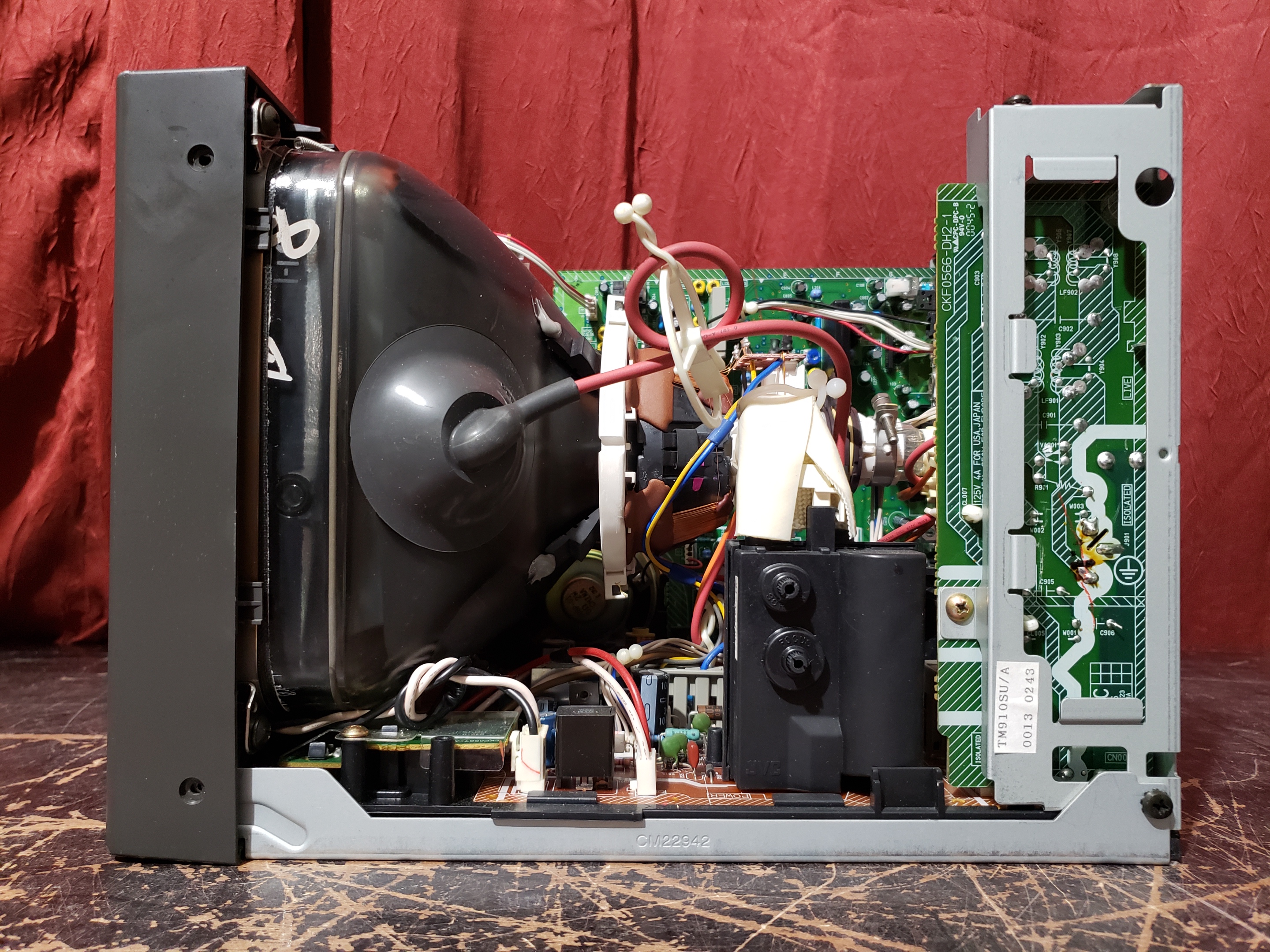

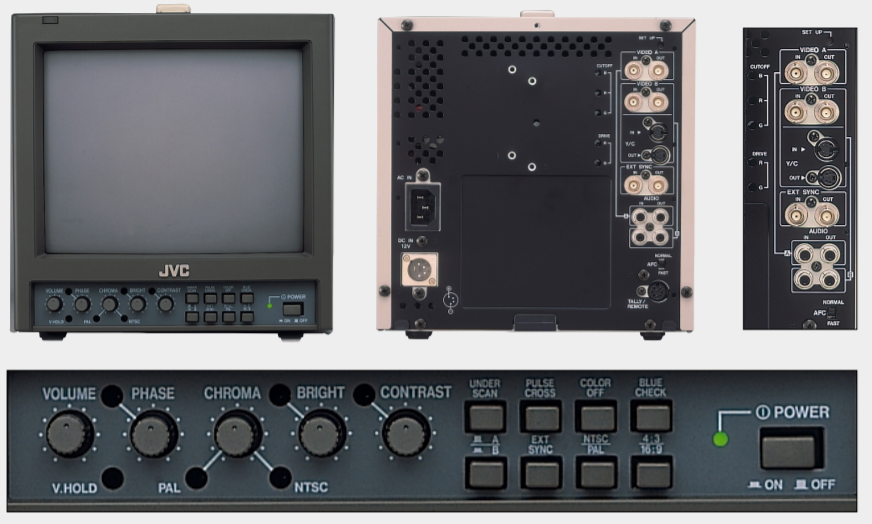

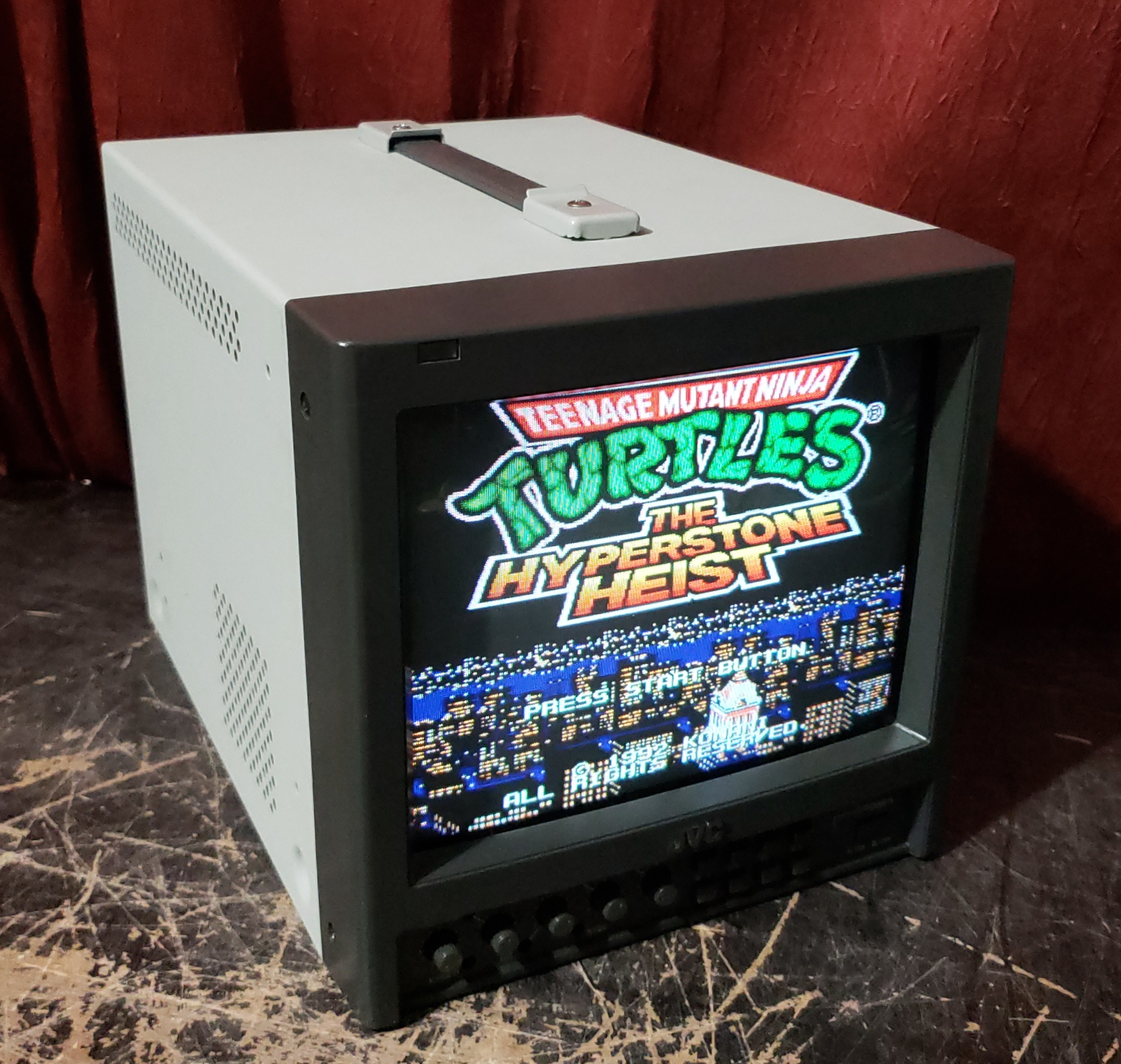

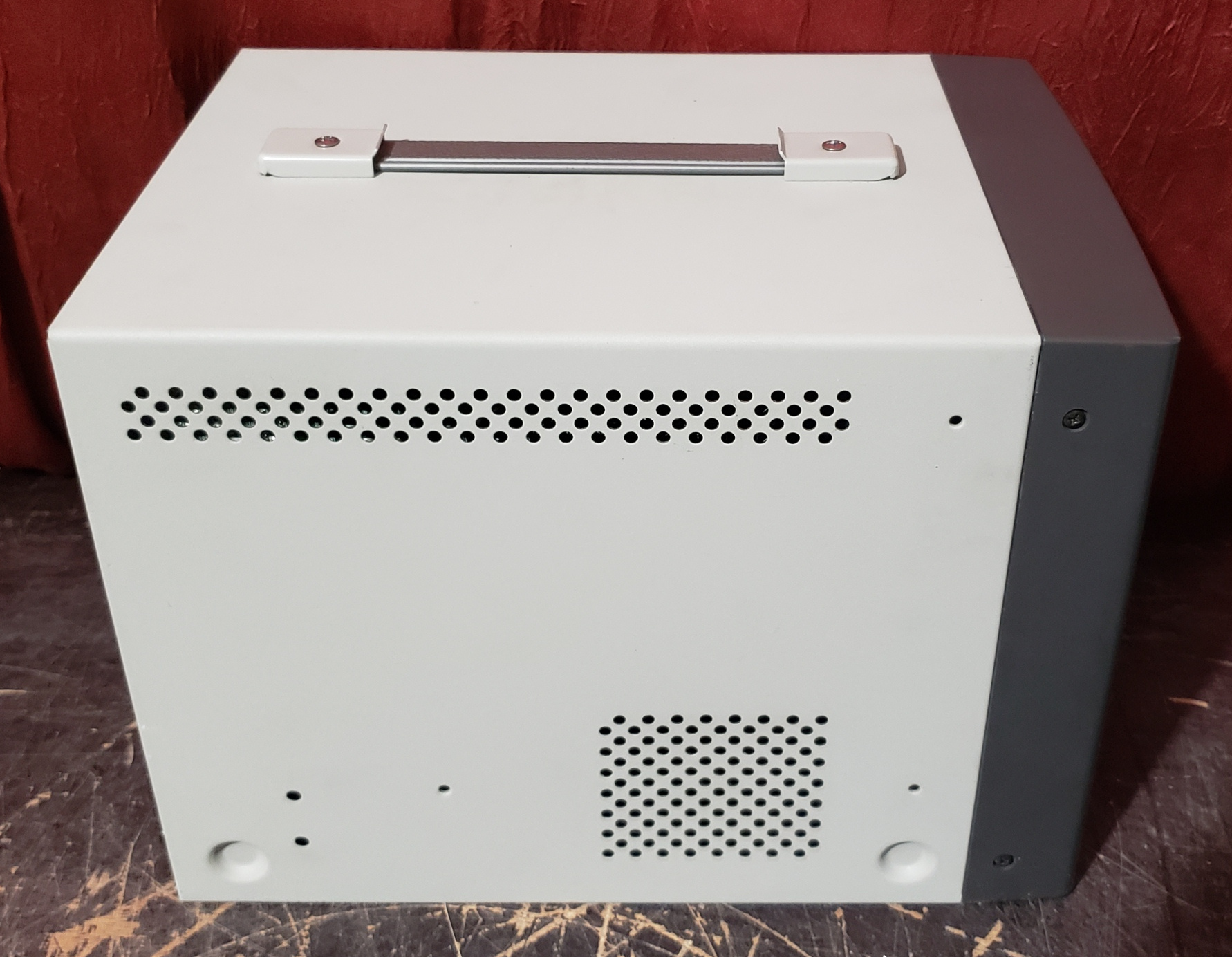

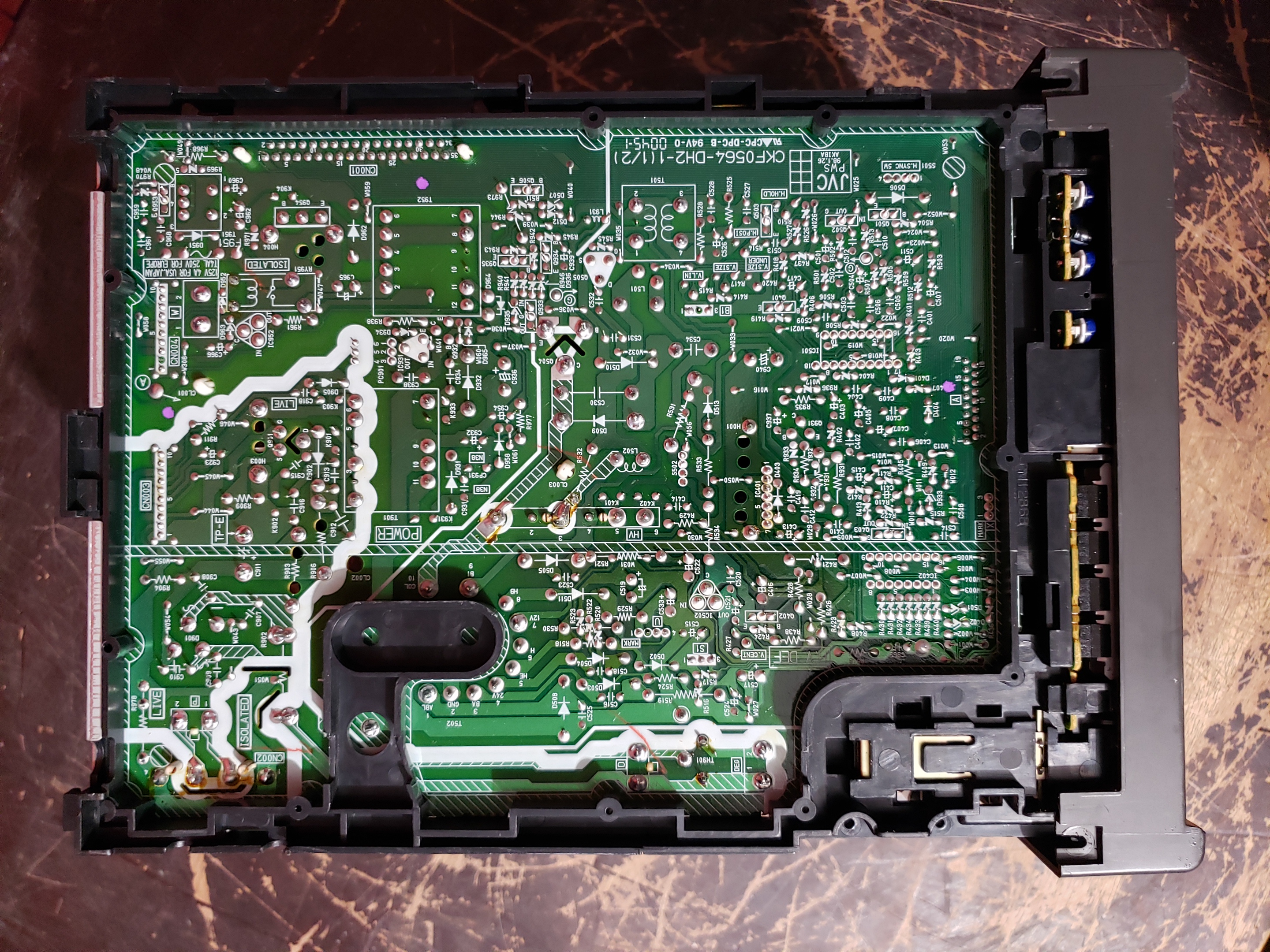

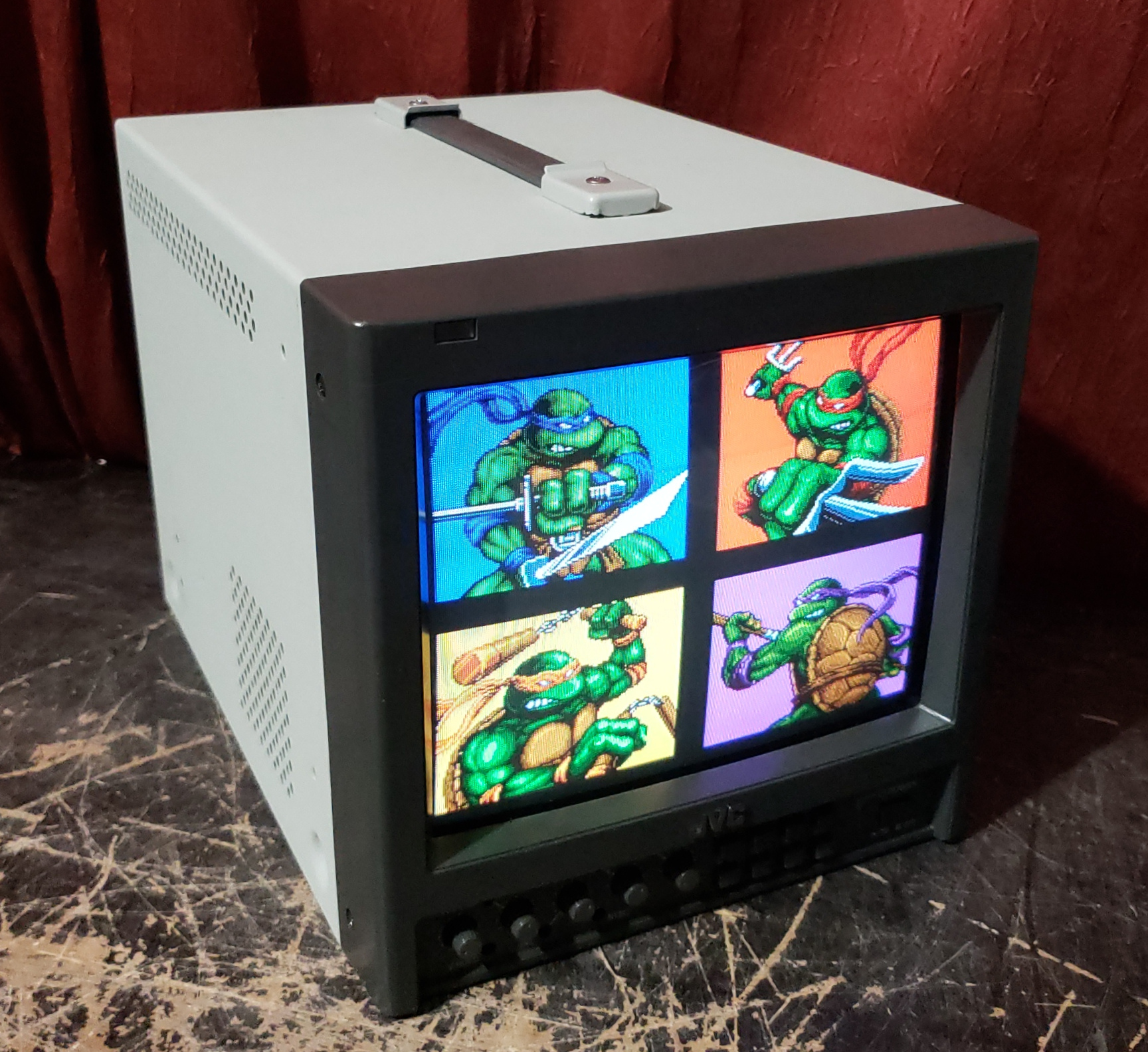

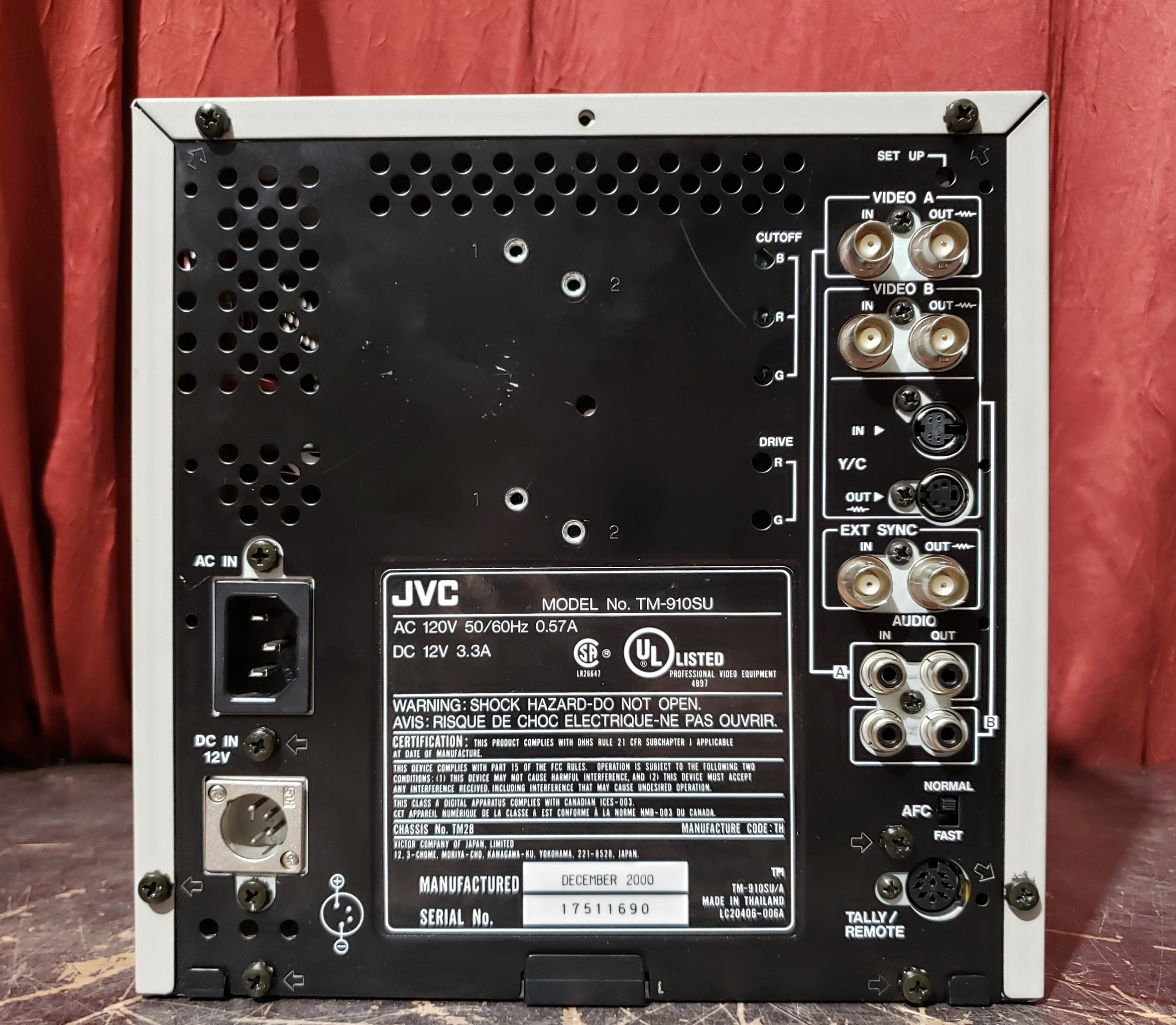

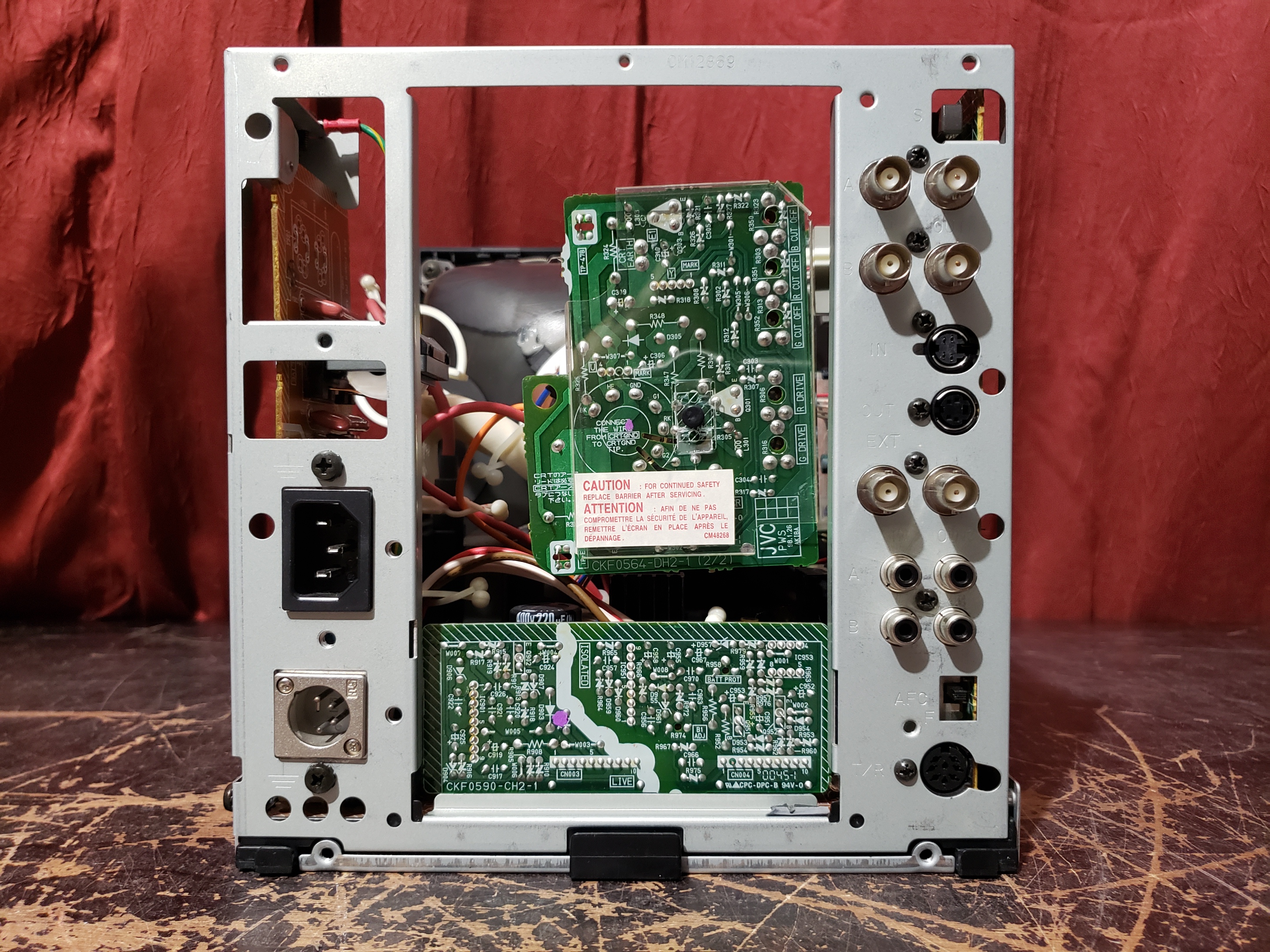

Gallery





Specifications | |
---|---|
Brand: | JVC |
Manufacturer: | JVC |
Model: | TM-910SU |
Series: | TM |
Viewable Size: | 9" |
Inputs: | Composite, S-Video |
Sync: | CSYNC, Sync over Composite, Sync on Luma |
Native Resolutions: | 240p, 480i, 288p, 576i |
Linecount: | 280 TVL |
Horizontal Scan Range: | 15 kHz |
Vertical Scan Range: | 60 Hz |
Formats: | NTSC, PAL |
Aspect: | 4:3 |
Adjustments: | Internal Potentiometers, External Potentiometers, Front Mounted Buttons |
Horz. Output Transistor: | 2SD1878-YD |
Vertical Output IC: | LA7830 |
Jungle: | Panasonic, AN5613 |
Comb Filtering: | Glass |
Flyback: | CJ28347-00B |
Focus Type: | Single |
Tube: | Panasonic , A22JWG098X |
Deflection: | 90° |
Mask: |
Slot
![]() |
Pitch: | 0.5 mm |
Tint: | Dark |
Yoke: | CE20300-00A |
Yoke Horz. Resistance: | 5.5 ohm, 5.50 ohm |
Yoke Vert. Resistance: | 15.1 ohm |
Speakers: | Mono, 1W |
Chassis: | B10 |
Weight: | 16 lbs (7.3 kg) |
Dimensions (W/H/D): |
222 x 236 x 317 mm
(8.7 x 9.3 x 12.5") |
Application: | Professional |
Cabinet Material: | Metal |
Launched: | 1996 |
MSRP: | 859 USD |
Country of Manufacture: | Thailand |
Power Standard: | 120v, 12VDC |
Mounting: | Carrying Handle, Rackable |
Degaussing: | Automatic on Power-on |
Tag: | Needs Pictures |
