Summary
The TM-H140PN is a high-resolution professional monitor, 14" viewable with 750 TVL. Designed for broadcast and industrial video monitoring. Has optional 16:9 aspect ratio mode support.
Manuals
Owner's Manual (Closest Match)
Notes
This is the European equivalent of the JVC TM-H1375SU hence the 230V power supply requirement.
RGB via Direct (based on other TM series and the near identical North American JVC TM-H1375SU) And also this source here

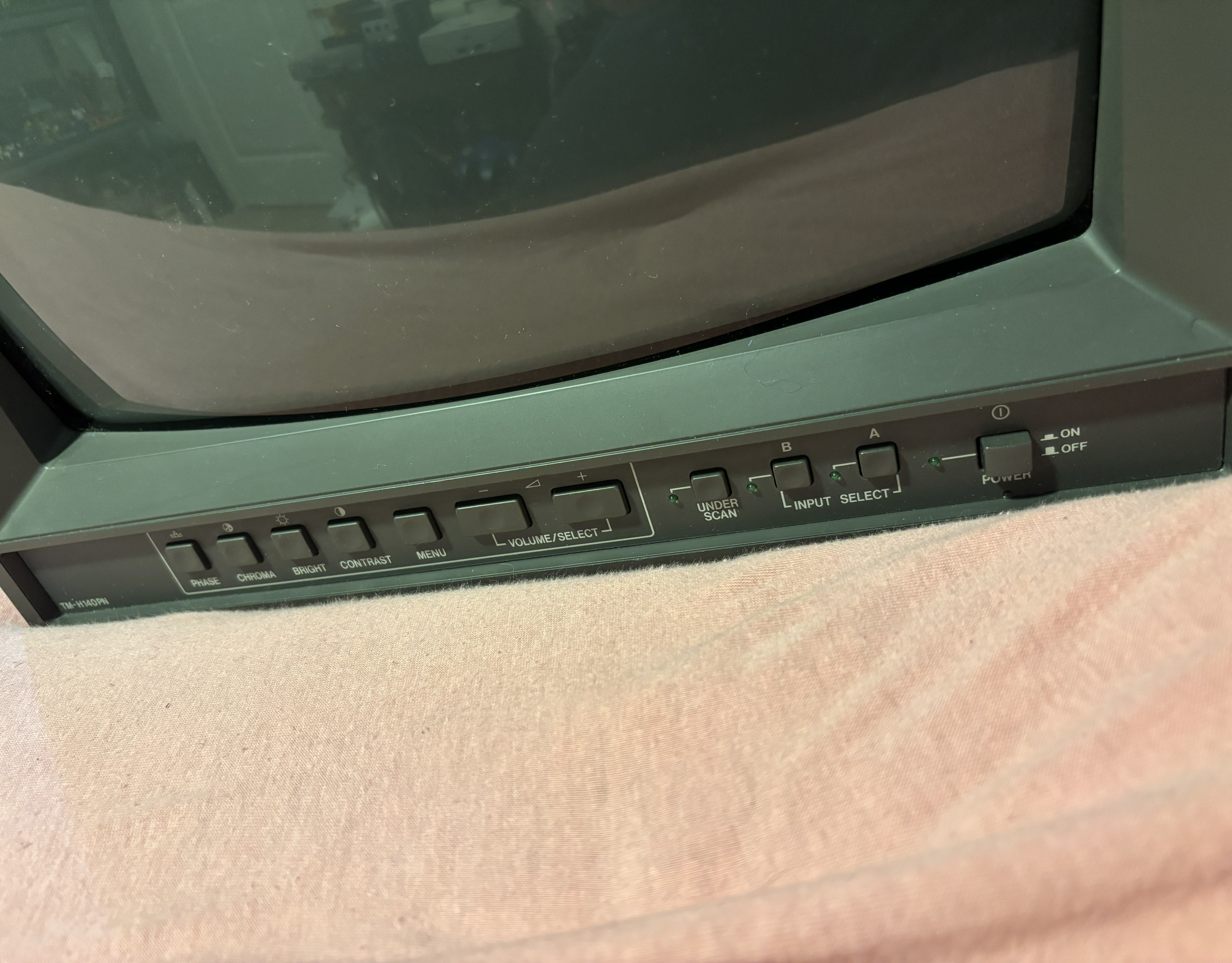

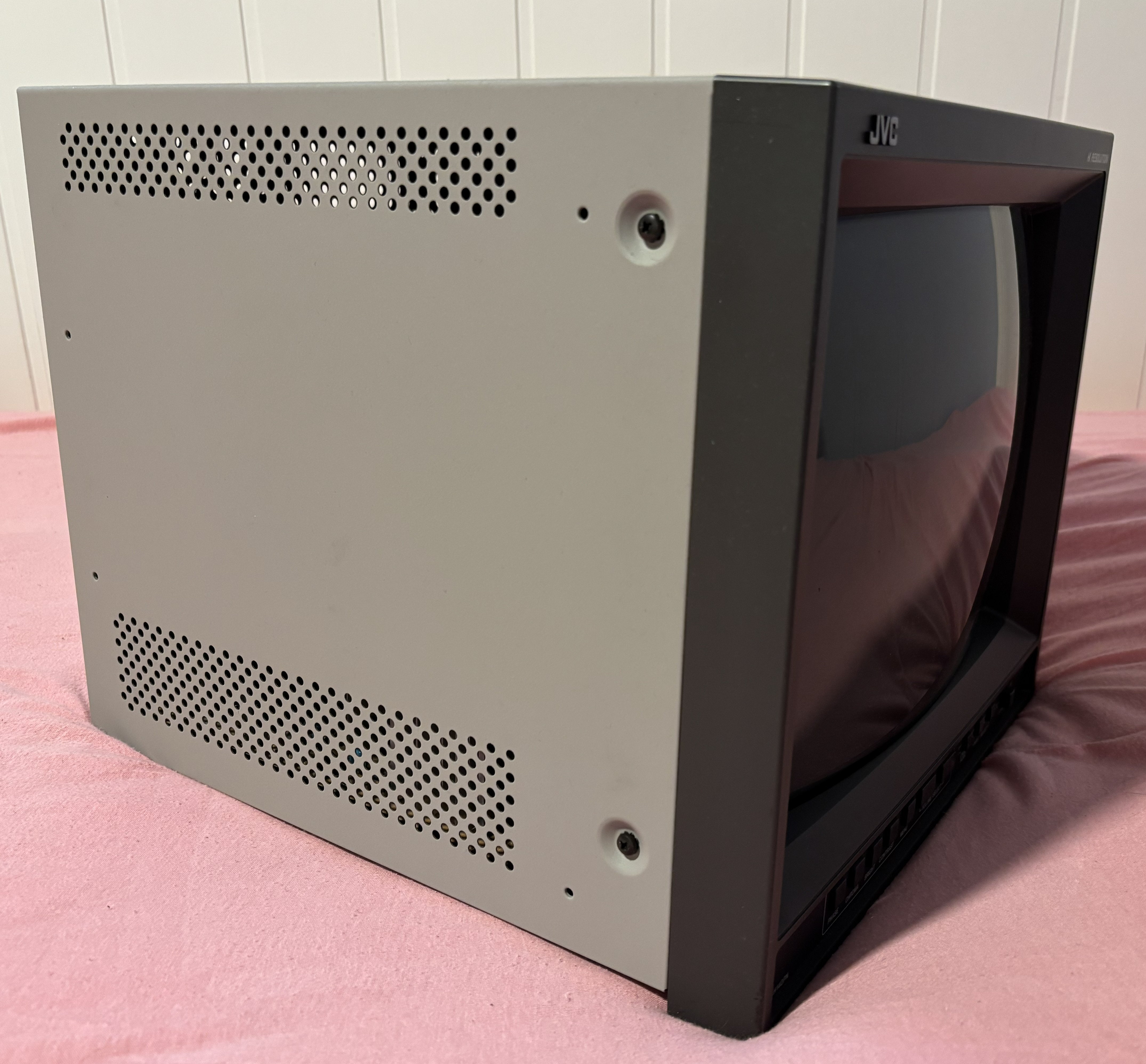

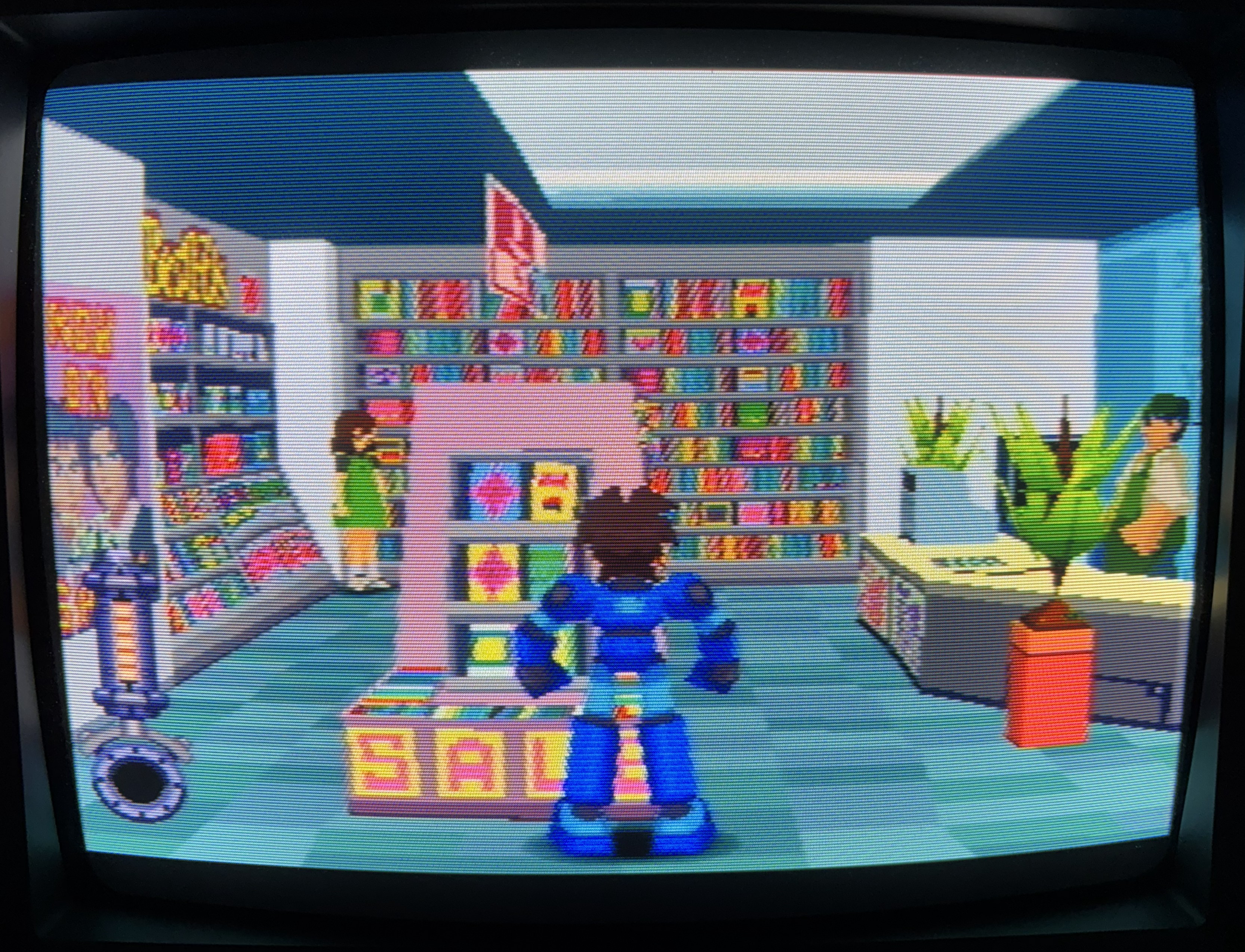

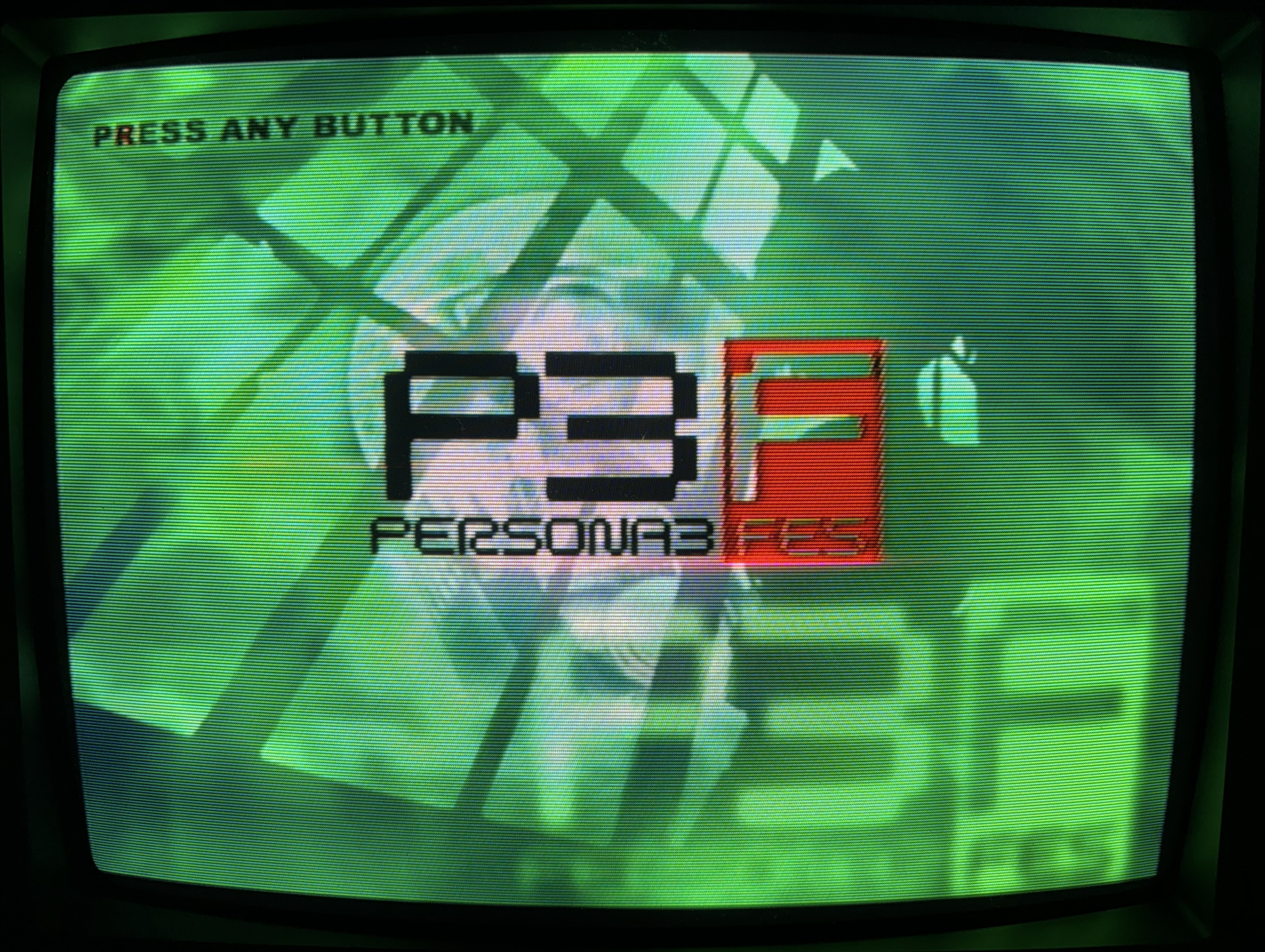

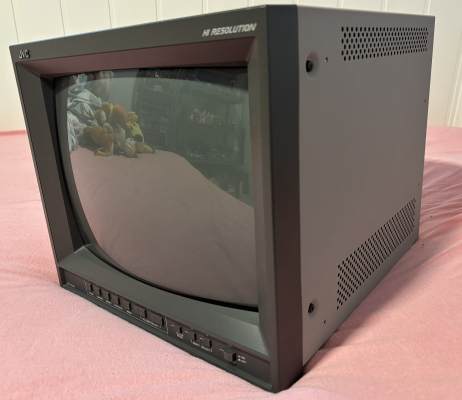

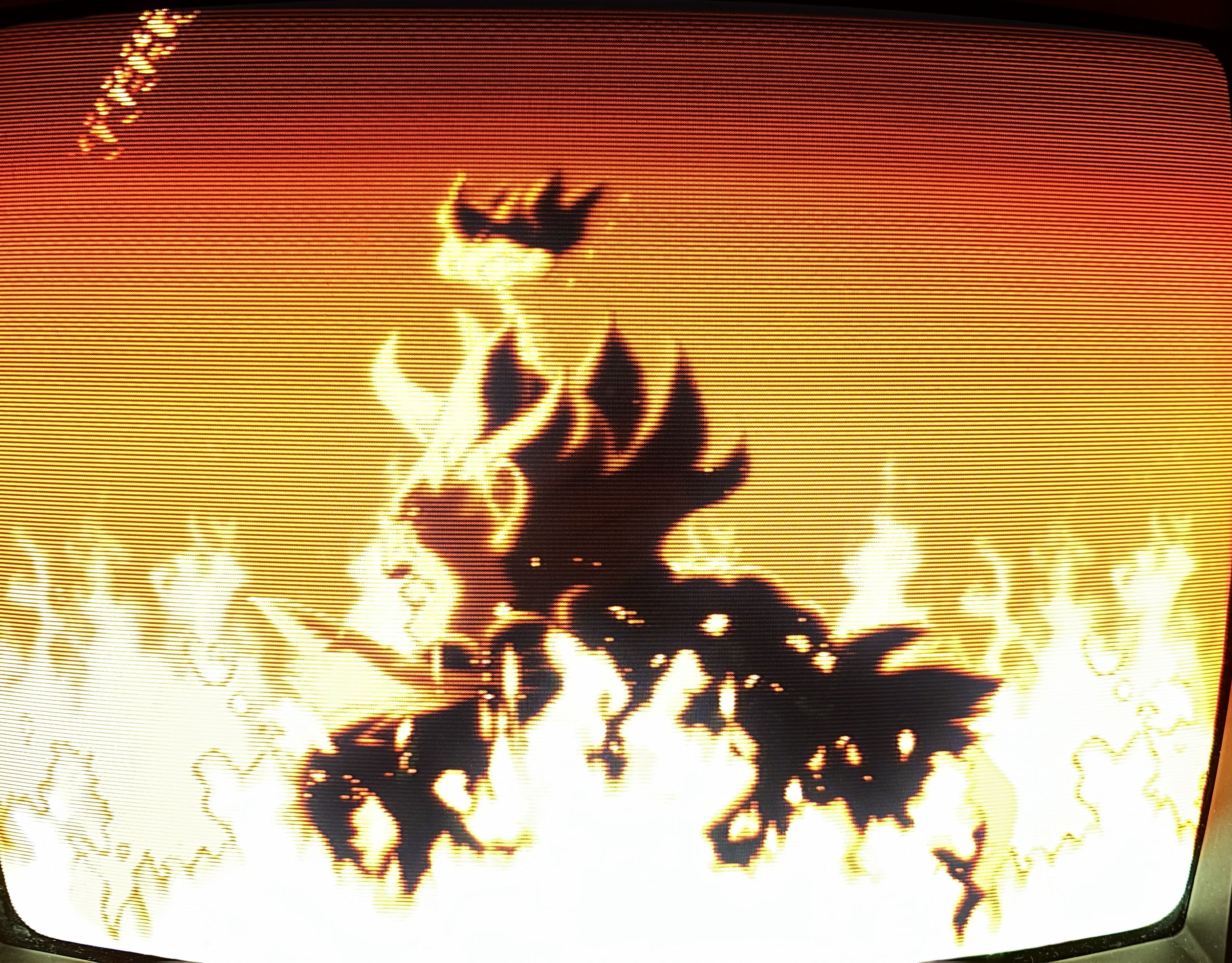

Gallery
| Specifications | |
|---|---|
| Brand: | JVC |
| Manufacturer: | JVC |
| Model: | TM-H140PN |
| Series: | TM |
| Viewable Size: | 14" |

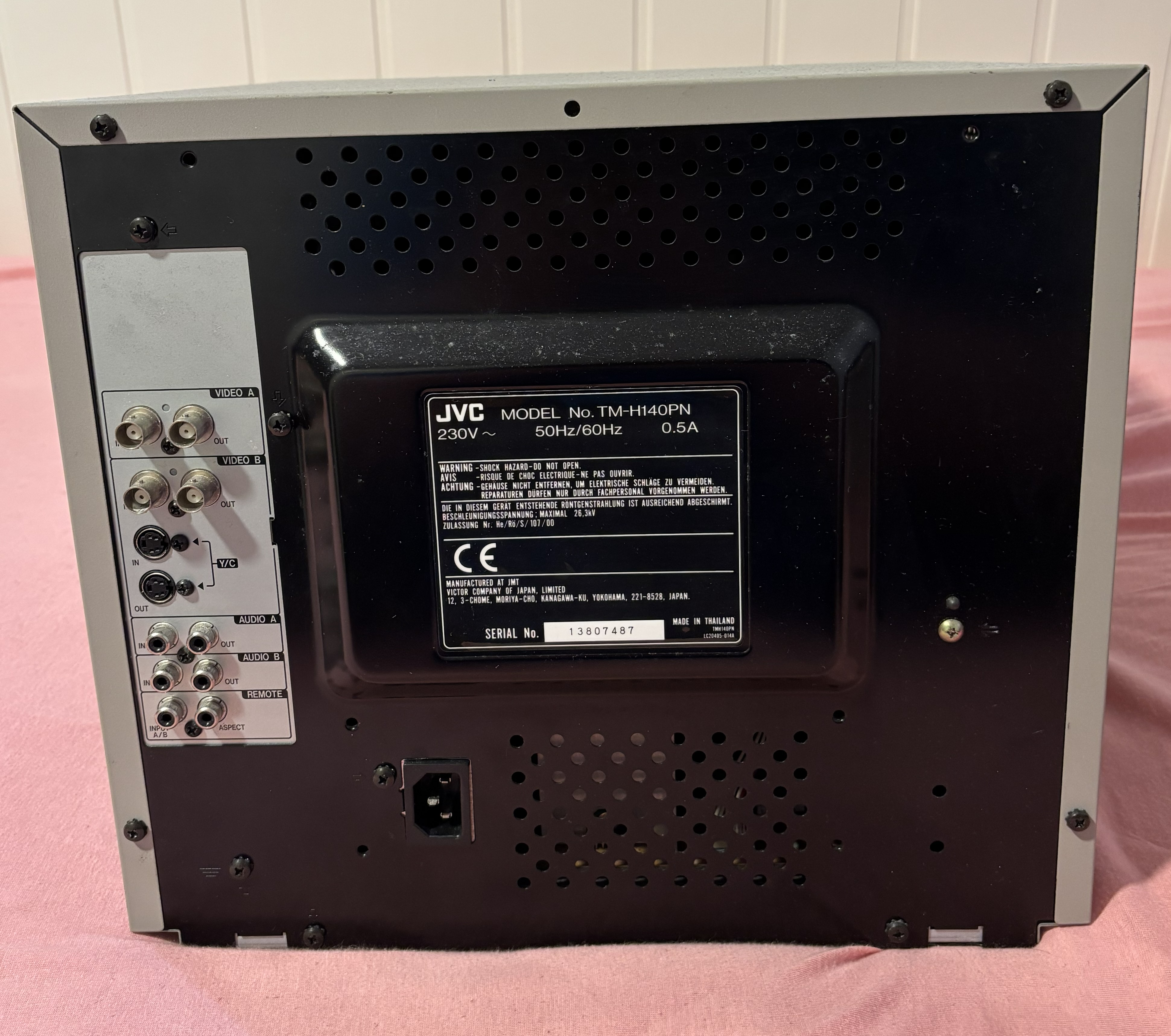

| Input Signals: | S-Video, BNC |
| Native Resolutions: | 240p, 480i, 288p, 576i |
| Linecount: | 750 TVL |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 50 Hz, 60 Hz |
| Formats: | NTSC, PAL, PAL60 |
| Aspect: | 4:3 |

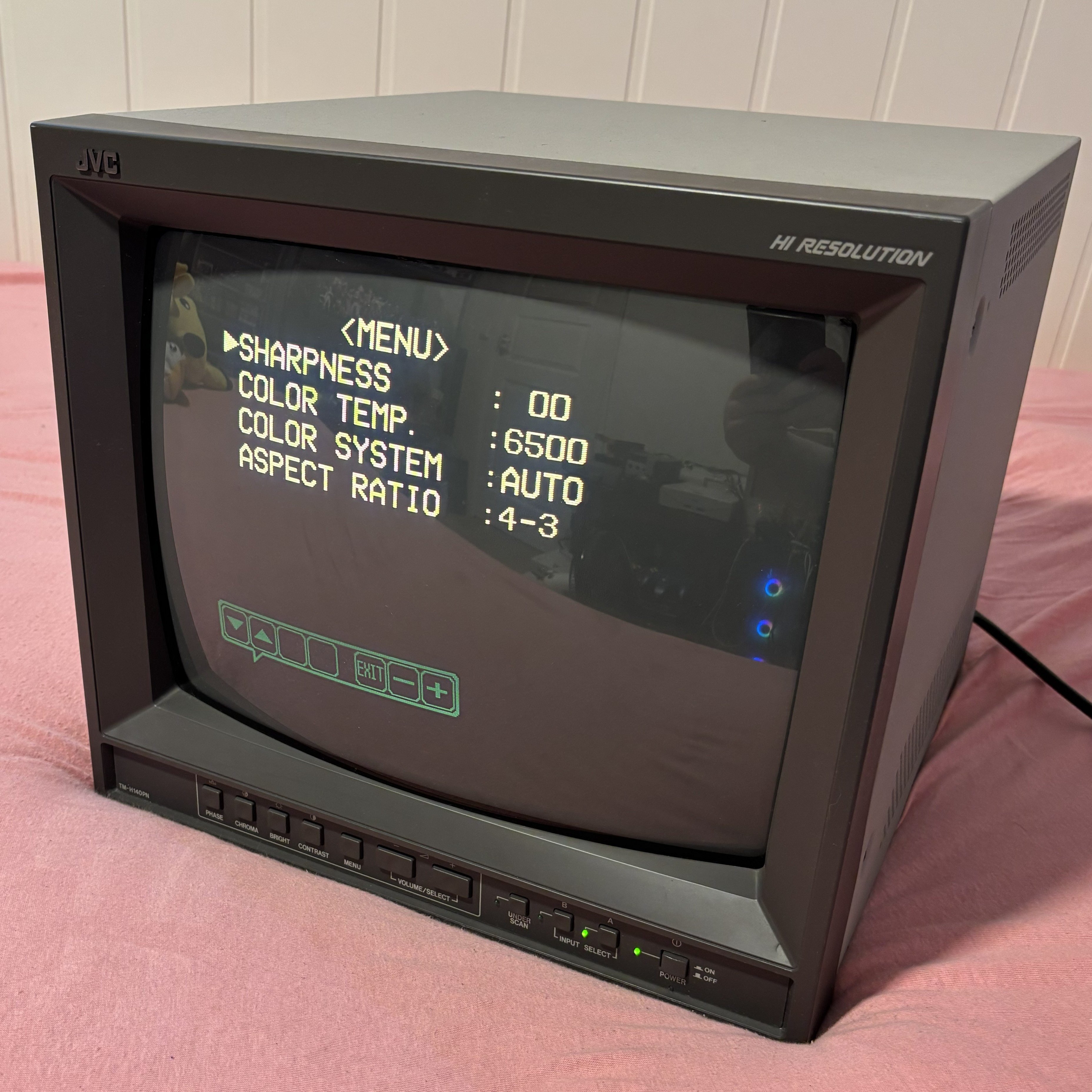

| Adjustments: | OSD Service Menu |
| Focus Type: | Single |
| Tube: | Chunghwa M34AFA13X02/U |
| Heater Voltage: | 6v |
| Deflection: | 90° |
| Mask: |
Shadow
|
| Pitch: | 0.28 mm, .28 mm |
| Tint: | Dark |
| Removable Glare Film: | No |
| Speakers: | 1.0W |
| Weight: | 30 lbs (13.6 kg) |
| Dimensions (W/H/D): |
346 x 310 x 375 mm
(13.6 x 12.2 x 14.7") |
| Application: | Professional |
| Cabinet Material: | Metal |
| Launched: | 2000 |
| Country of Manufacture: | Thailand |
| Market: | Europe |
| Power Standard: | 230v |
| Mounting: | Rackable |
| Mods: | RGB via Direct |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs Yoke Info, Community Submission |
