JVC TV-20240
Eli Krause
May 13, 2025, 10:14 pm
May 13, 2025, 6:24 pm
May 13, 2025, 10:14 pm
May 13, 2025, 6:24 pm
Summary
Back by popular demand with a whole new contemporary lifestyles look, JVC's TV/VCR Combos are well on their way to become our most popular TV/VCR combos yet. Each TV VCR Combo comes equipped with the most important features of a high quality TV and VCR. Standard AV Inputs mean you can hook up your camcorder and watch your favorite home movies too!
Manuals
Media & Promo Materials
Notes
Switching between the antenna and front AV input is done in the user menu, which can be accessed with the menu button beneath the front flap.
Picture settings will be reset to their default values if the 'Video Status' button is pressed on the remote.
The default sharpness ('Detail') level caused ringing which was only resolved after turning the sharpness all the way down.

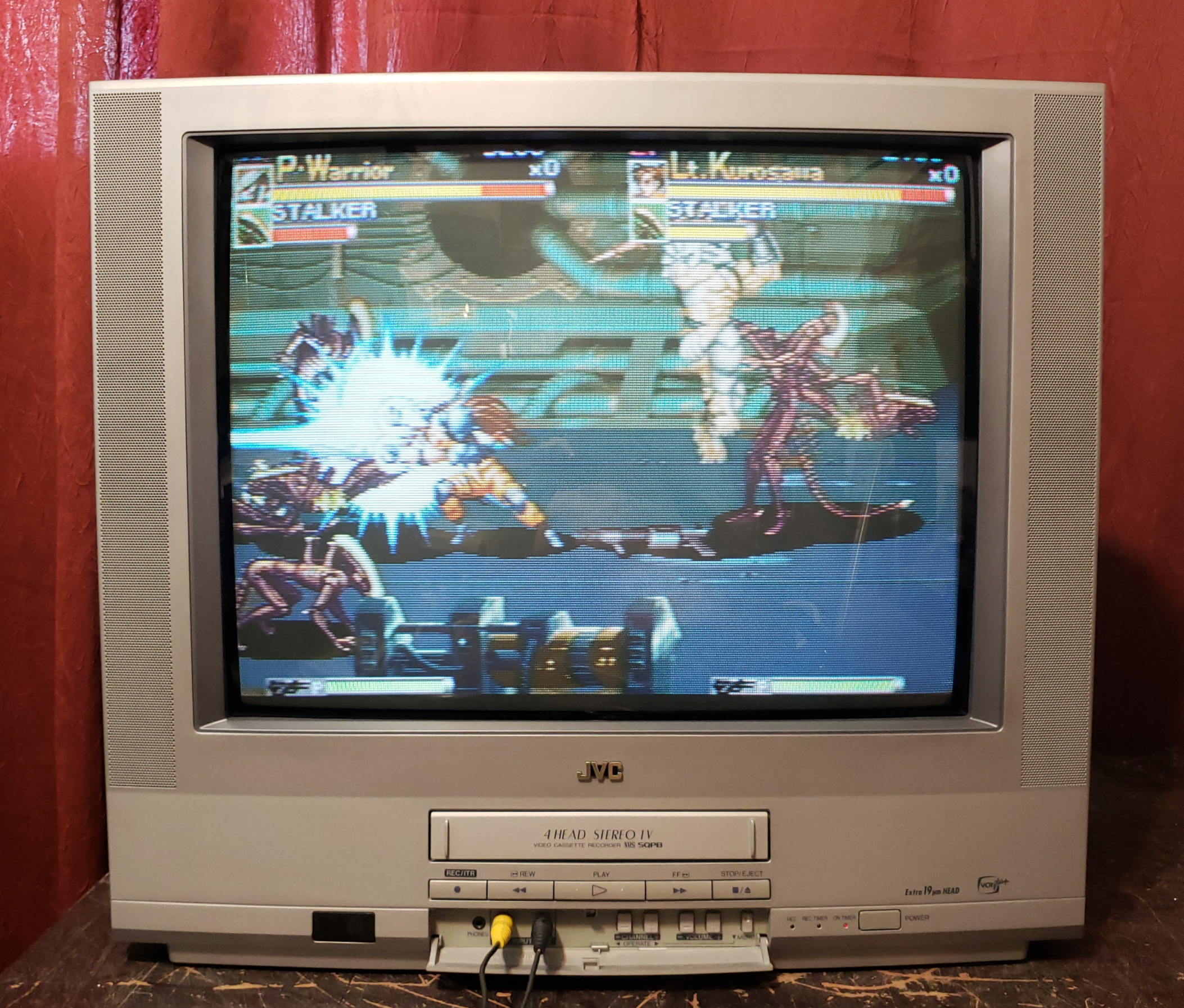

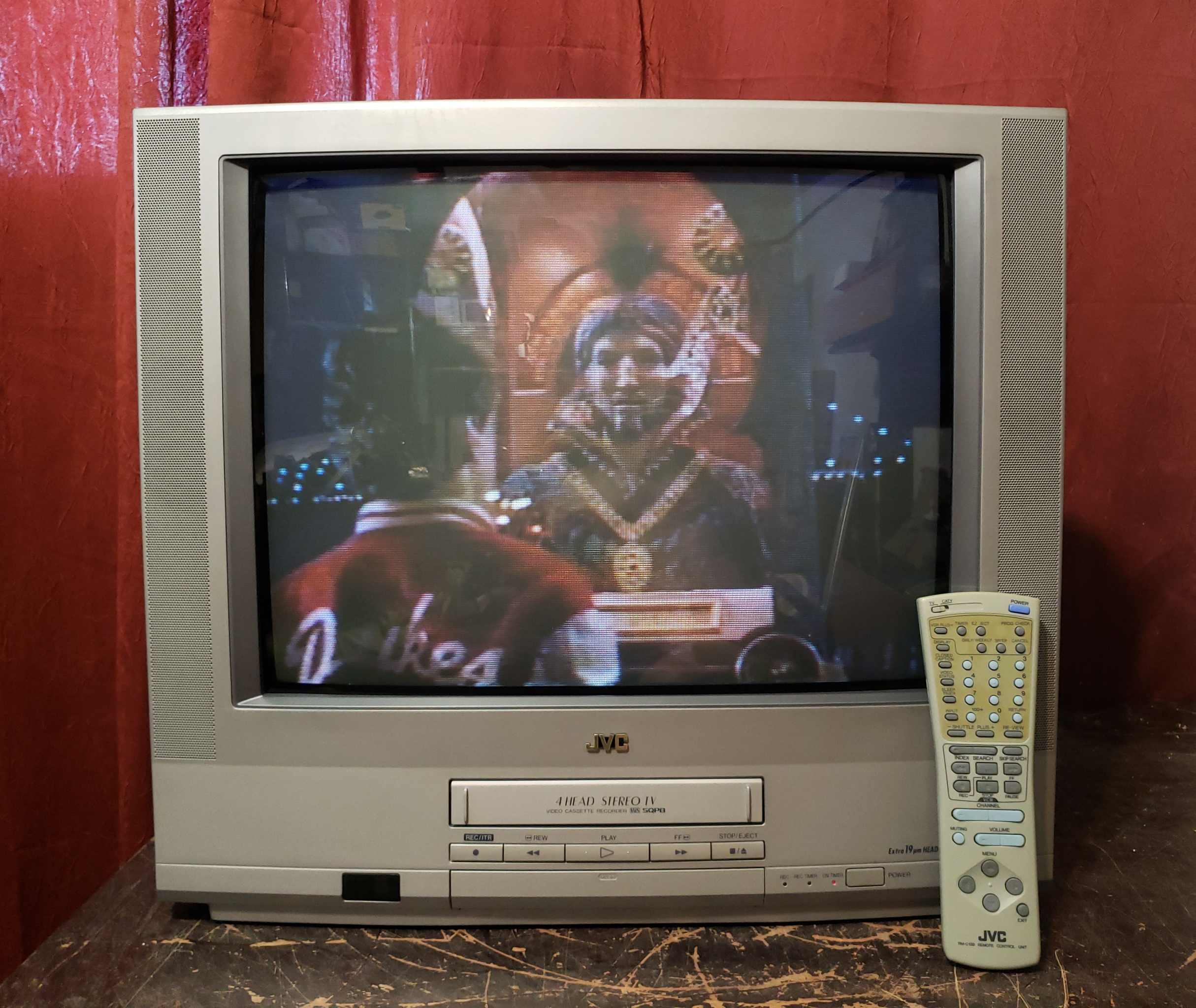

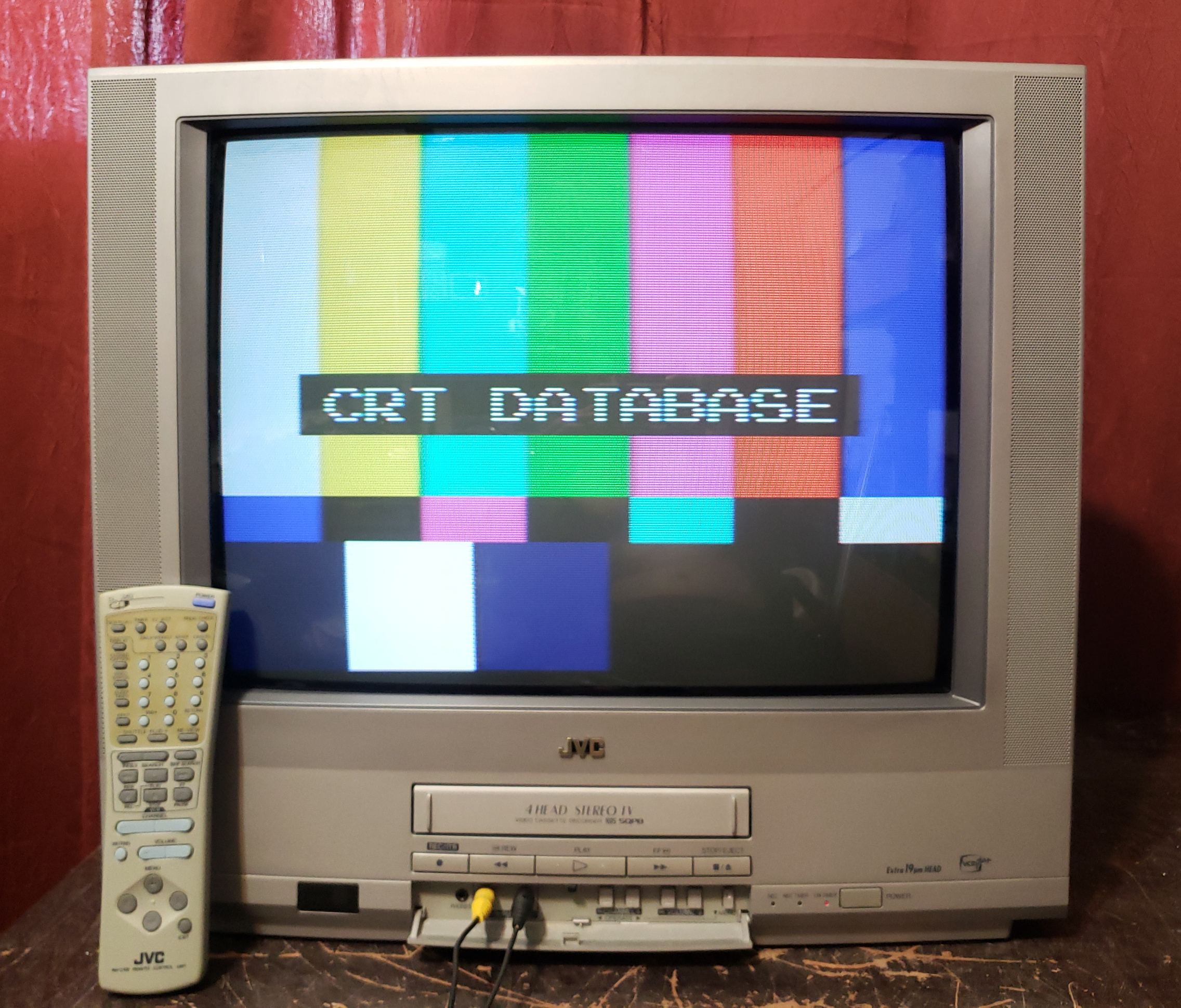

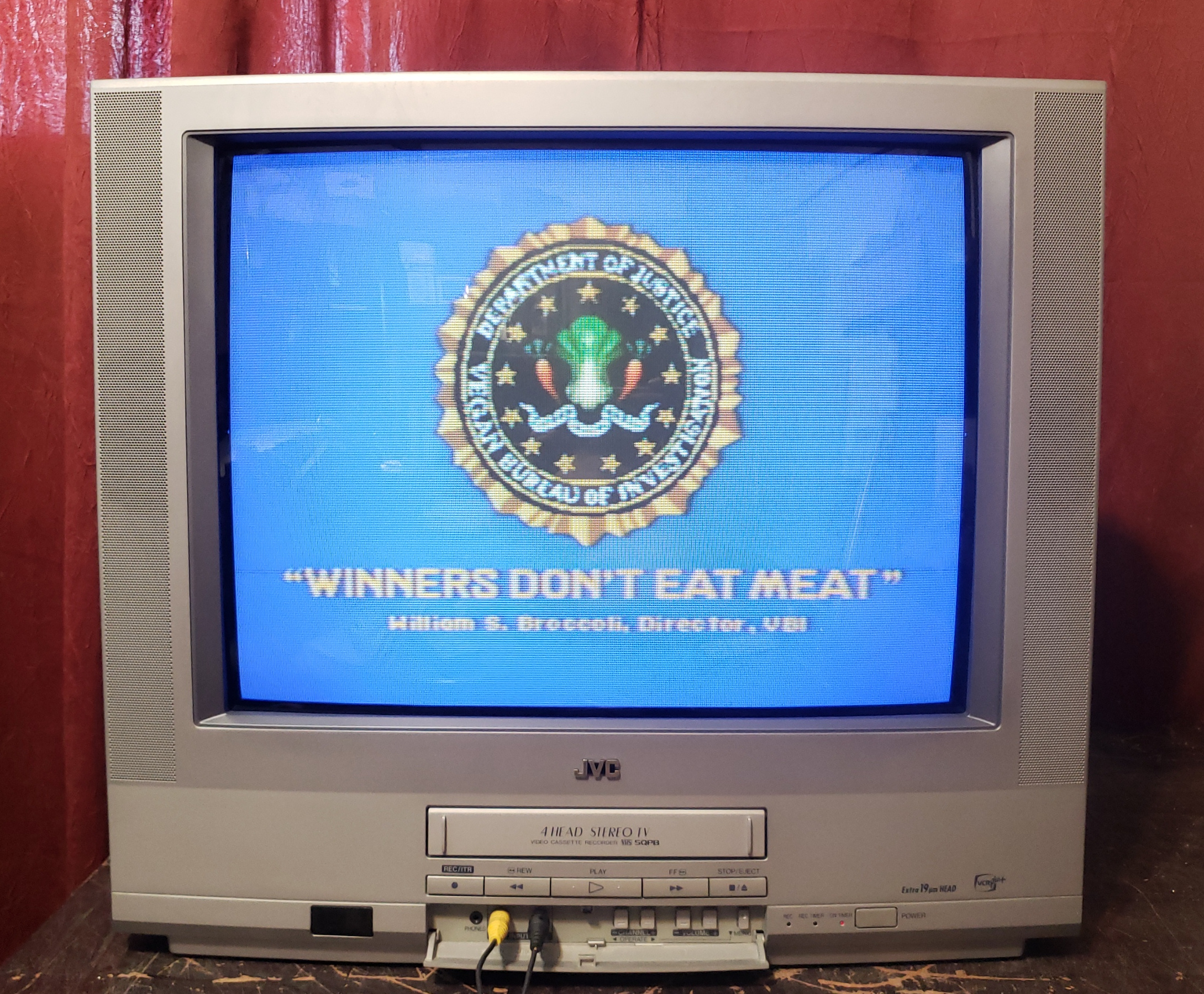

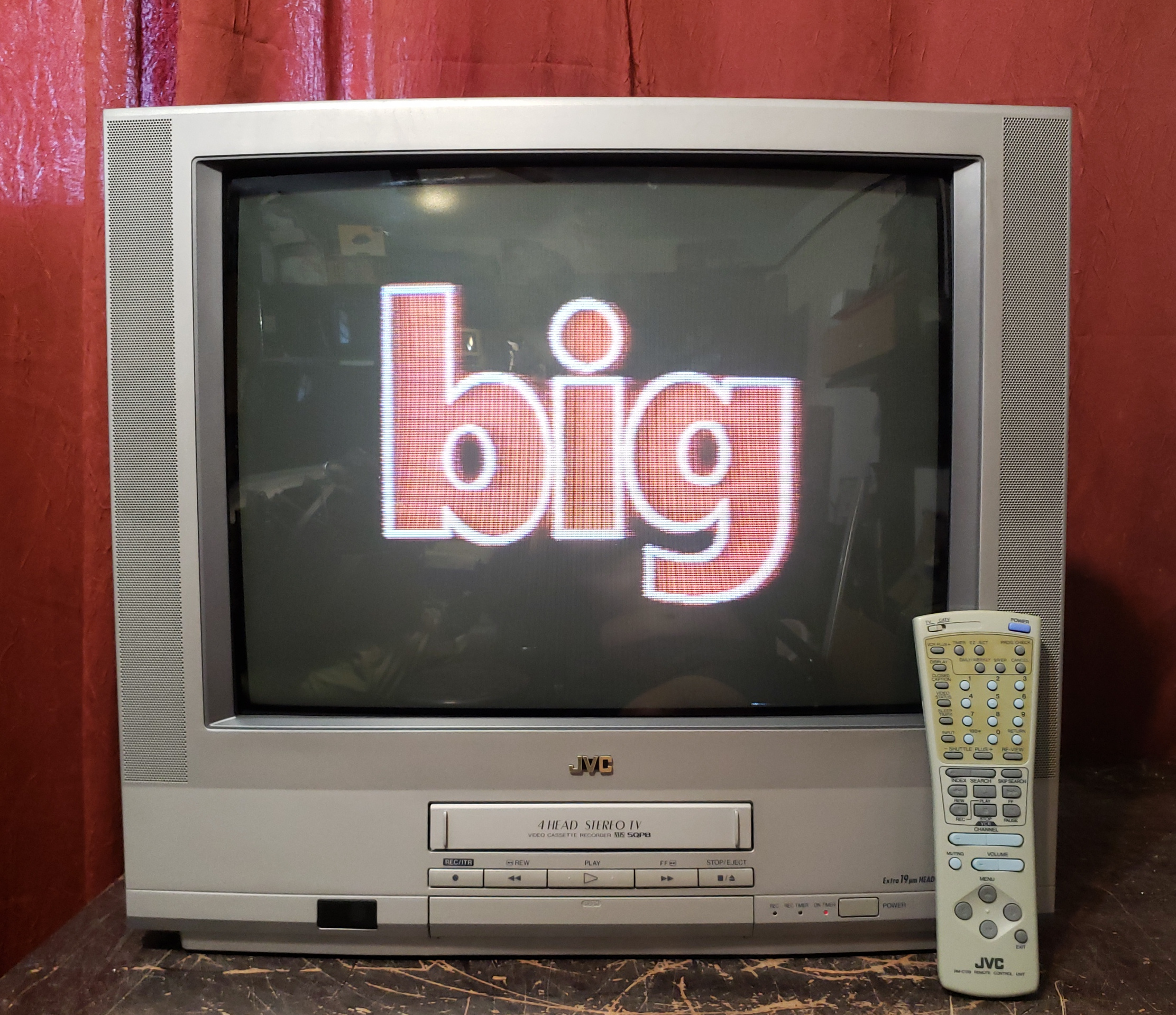

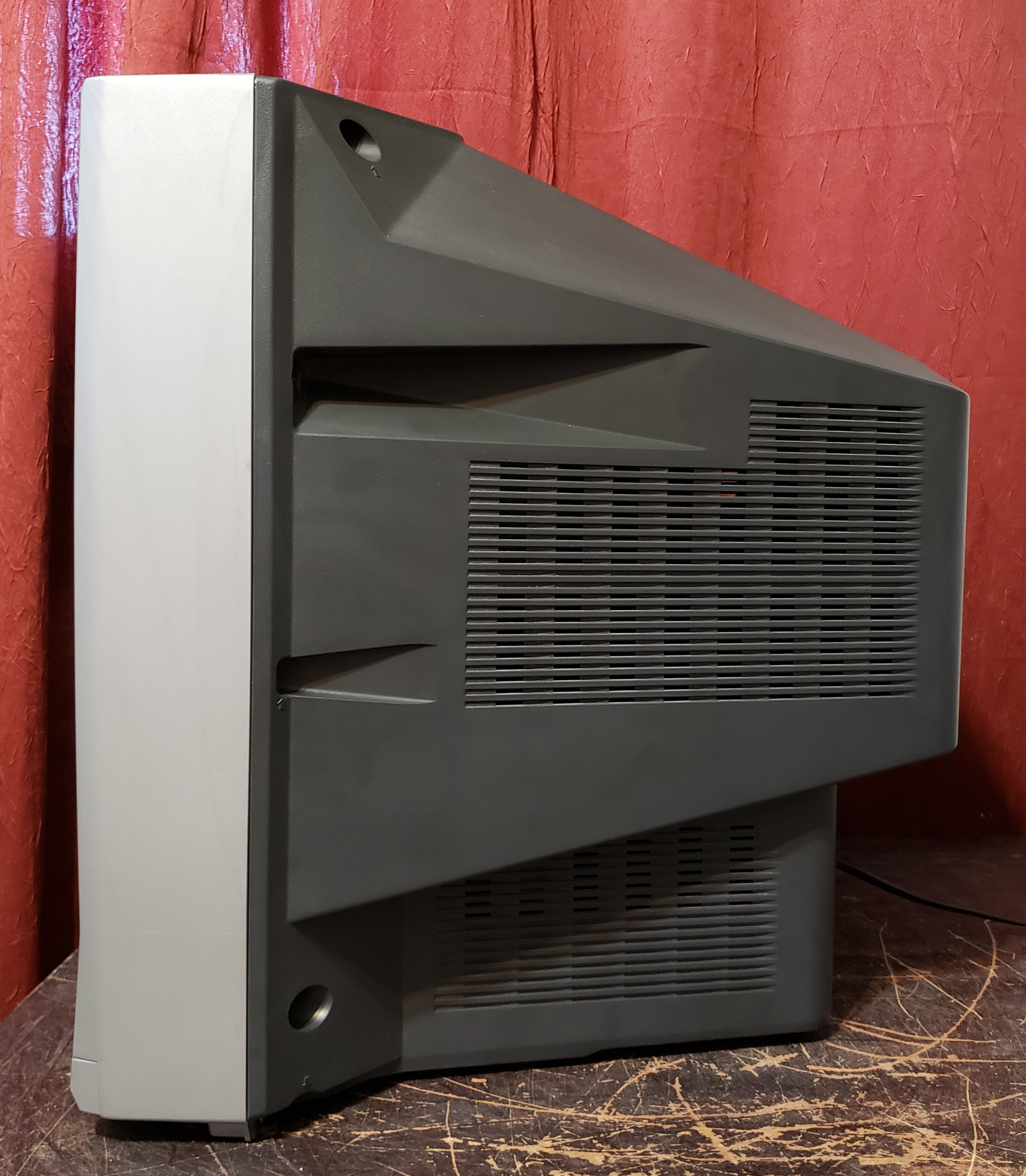

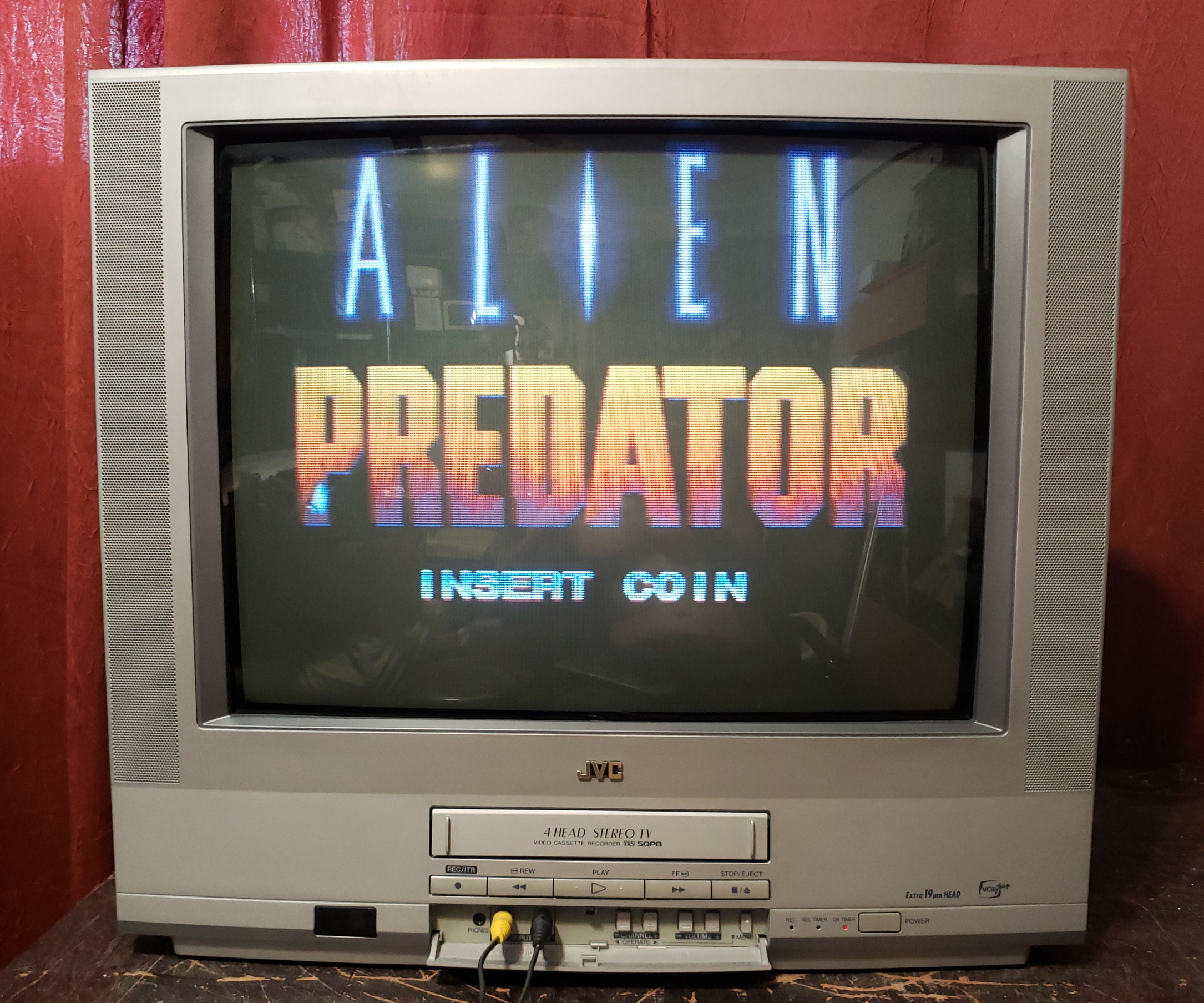

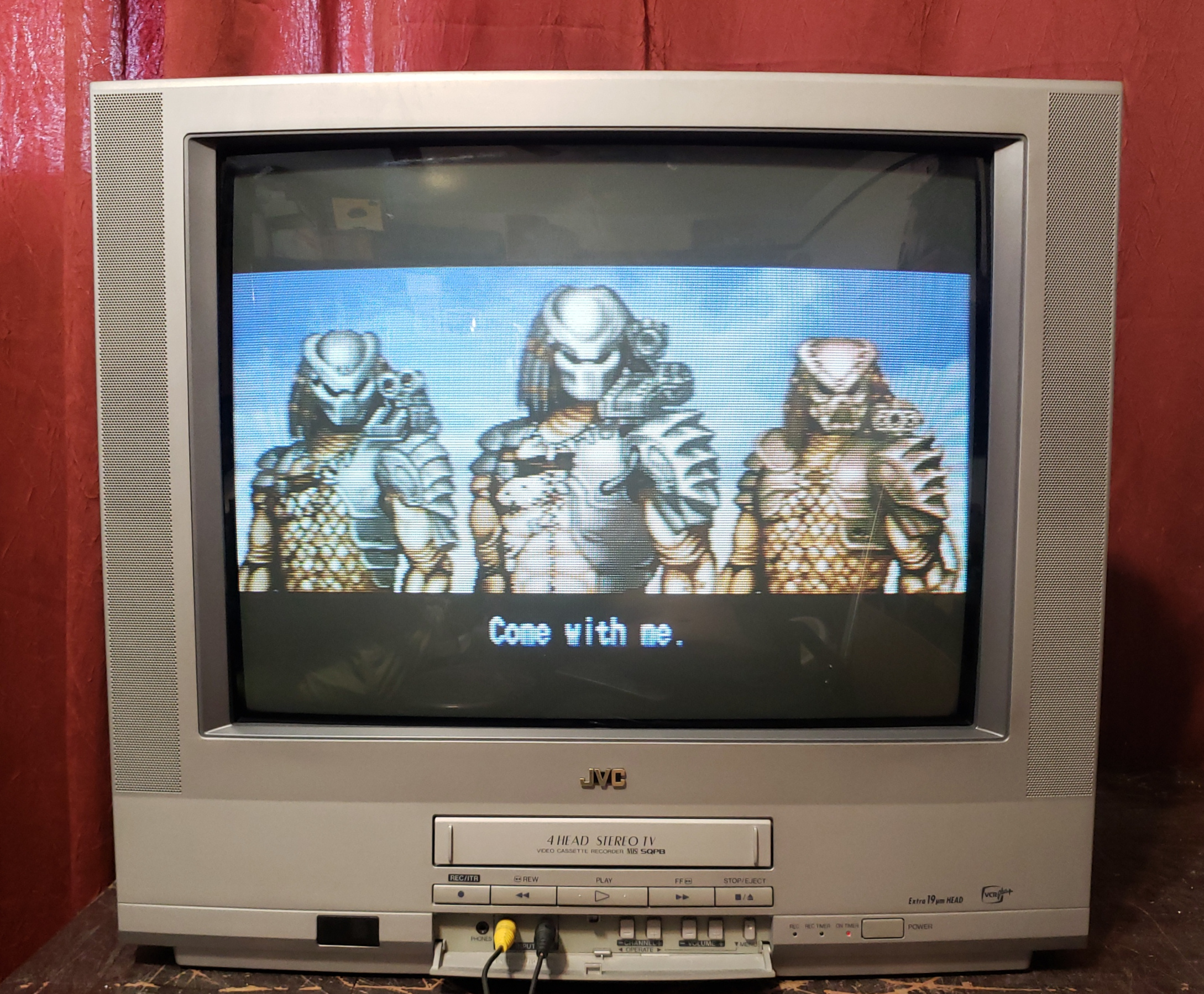

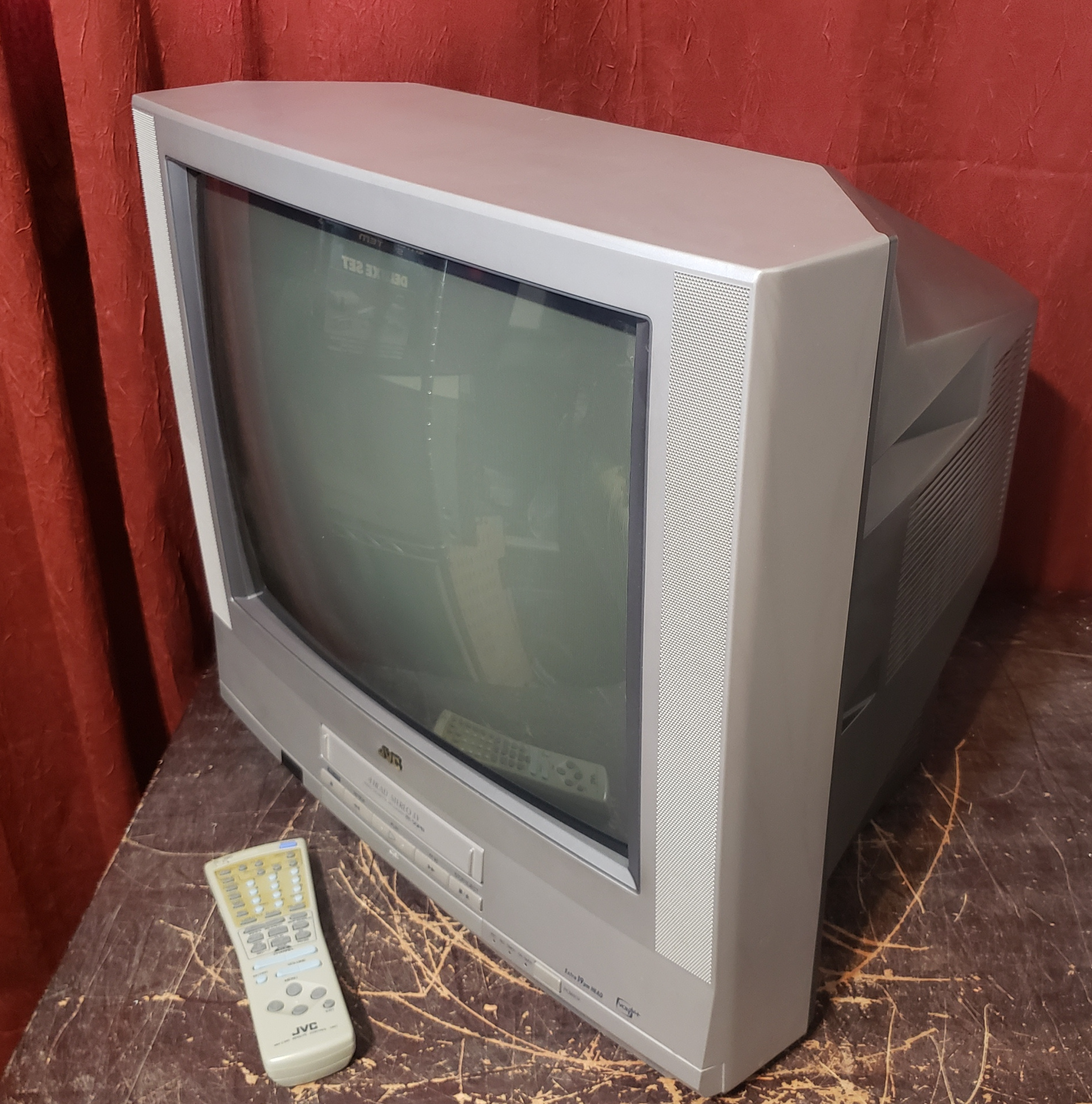

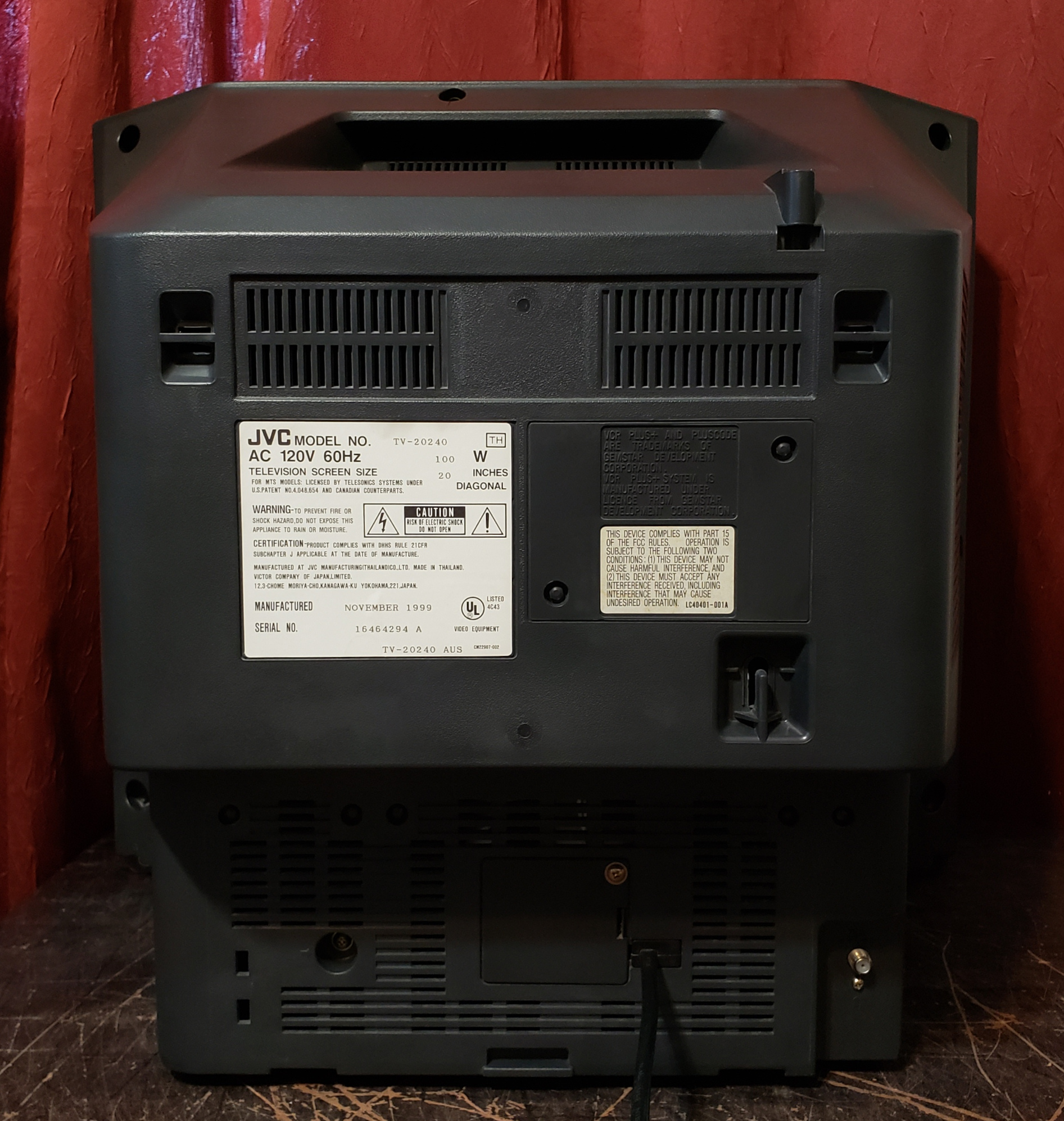

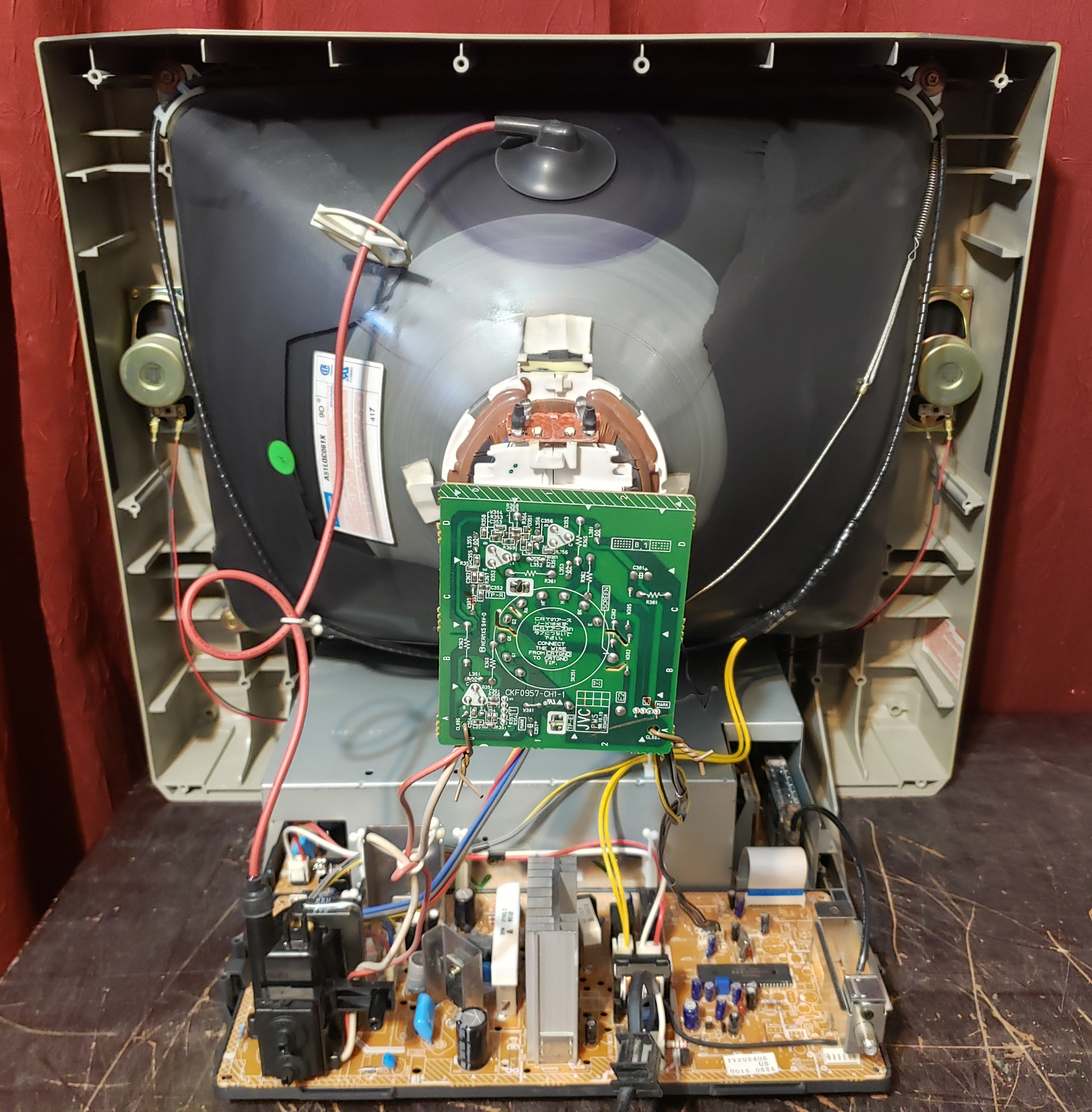

Gallery











Specifications | |
---|---|
Brand: | JVC |
Manufacturer: | JVC |
Model: | TV-20240 |
Series: | TV/VCR Combo |
Viewable Size: | 20" |
Inputs: | Composite, RF |
Native Resolutions: | 240p, 480i |
Horizontal Scan Range: | 15 kHz |
Vertical Scan Range: | 60 Hz |
Formats: | NTSC |
Aspect: | 4:3 |
Adjustments: | OSD Customer Controls, OSD Service Menu |
Horz. Output Transistor: | 2SD2499-LB |
Vertical Output IC: | LA7830 |
Jungle: | Toshiba, TA1242N |
Flyback: | QQH0047-001 |
Focus Type: | Single |

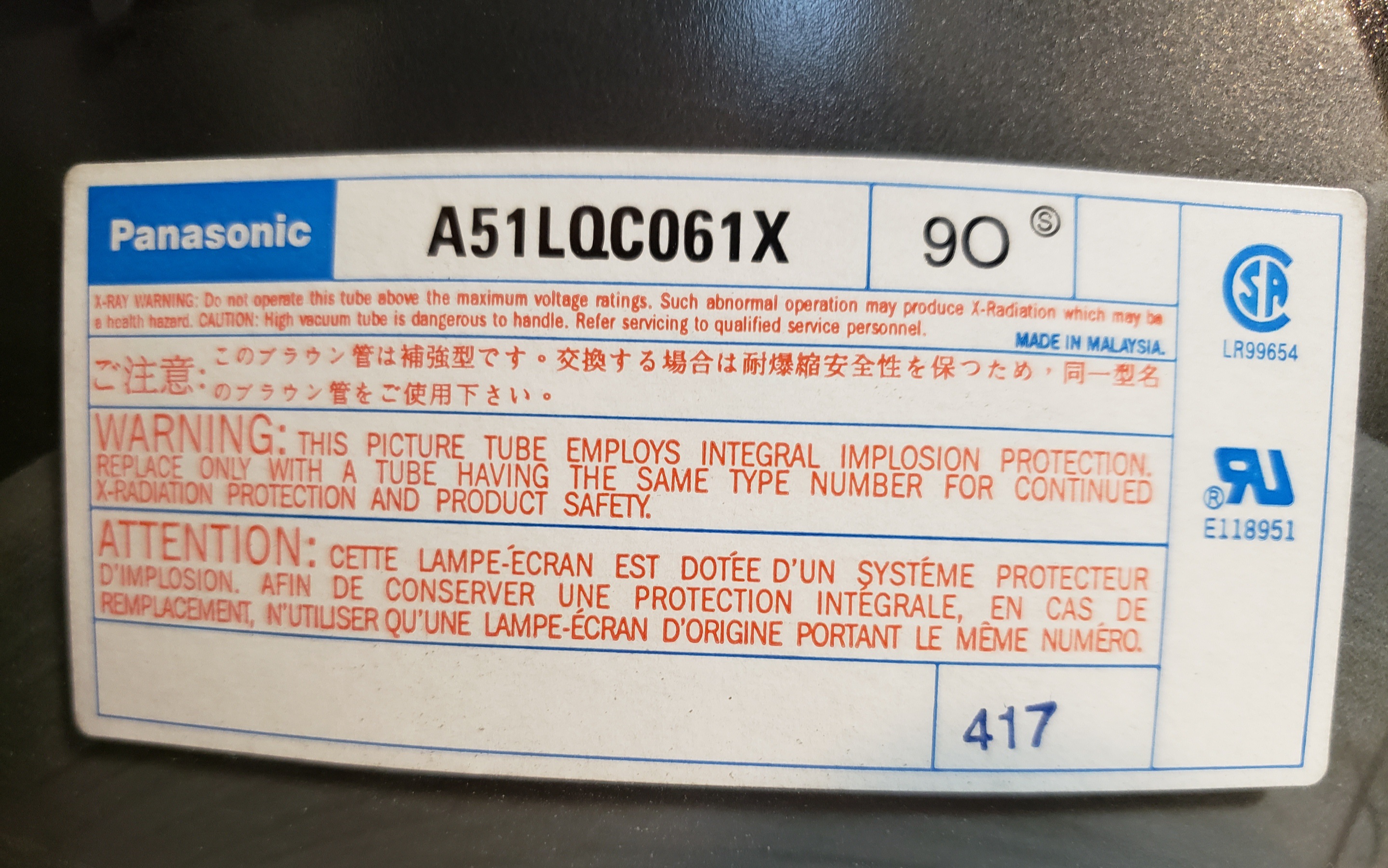

Tube: | Panasonic , A51LQC061X |
Heater Voltage: | 6.3v |
Deflection: | 90° |
Mask: |
Slot
![]() |
Tint: | Dark |
Yoke: | QQD0024-001 |
Yoke Horz. Resistance: | 3.9 ohm |
Yoke Vert. Resistance: | 9.5 ohm |
Speakers: | Mono |
Remote: | RM-C139 |
Chassis: | FC |
Weight: | 52.4 lbs (23.8 kg) |
Dimensions (W/H/D): |
572 x 503 x 483 mm
(22.5 x 19.8 x 19") |
Application: | Consumer |
Cabinet Material: | Plastic |
Launched: | 1999 |
MSRP: | 429 USD |
Country of Manufacture: | Thailand |
Market: | North America |
Power Standard: | 120v |
Mods: | RGB via Mux, S-Video |
Degaussing: | Automatic on Power-on |
