Summary

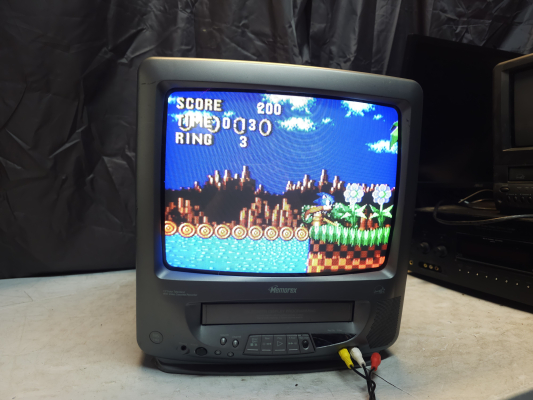

13" TV/VCR combo, made by Orion.
Manuals
Notes
Unlike many Orion TVs, the AV input can be selected with the channel buttons. However, a remote with Menu, Enter, and navigation buttons is required to access and make adjustments in the user menu. This TV is a clone of the JVC TV-13143 and likely others.

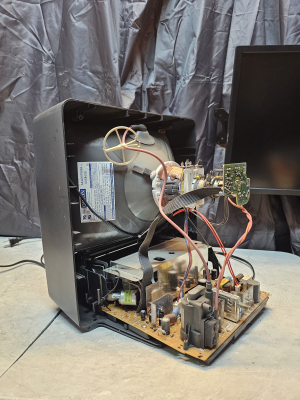

Gallery
| Specifications | |
|---|---|
| Brand: | Memorex |
| Manufacturer: | Orion |

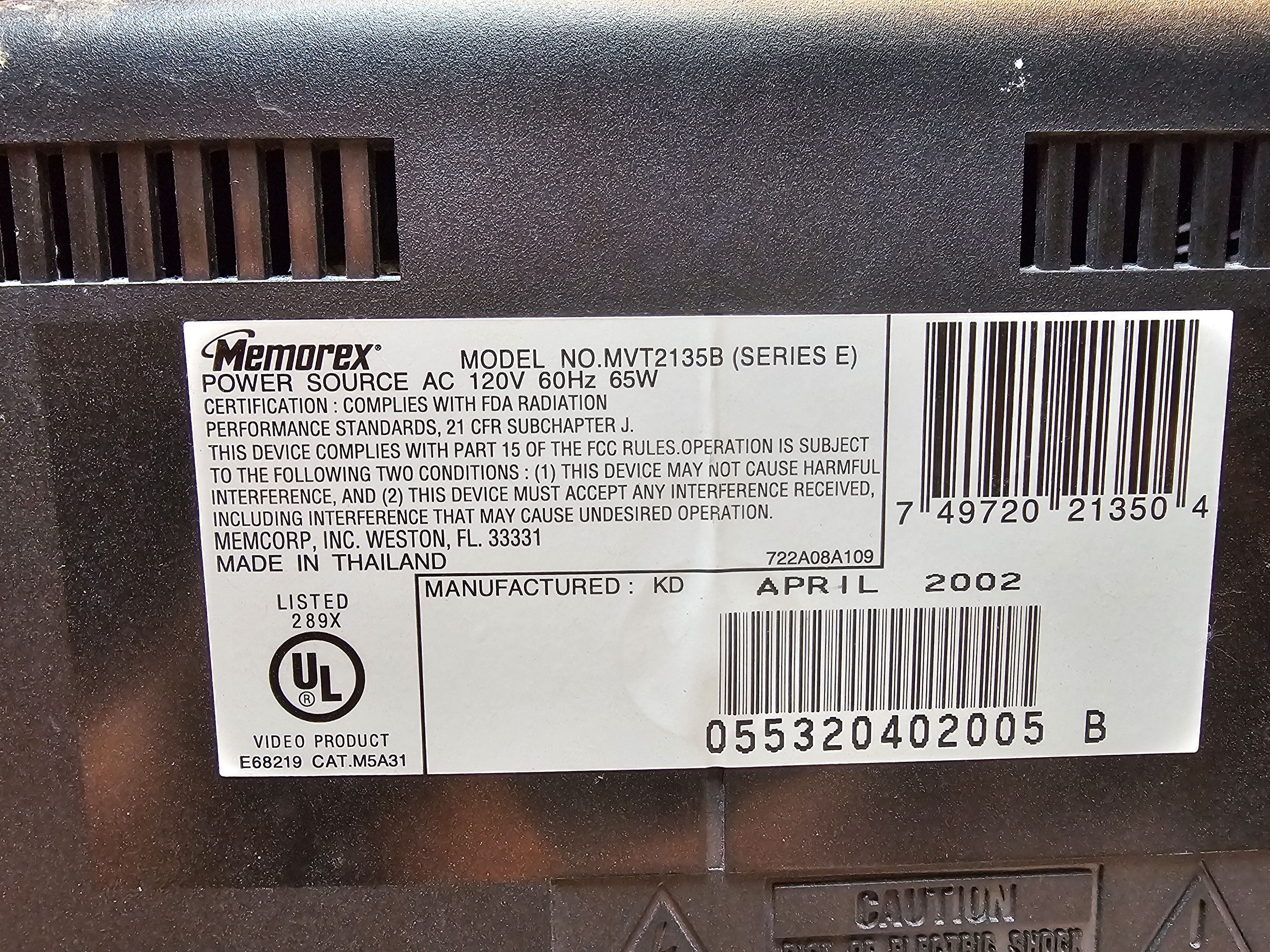

| Model: | MVT2135B |
| Series: | TV/VCR Combo |
| Viewable Size: | 13" |
| Inputs: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Focus Type: | Single |

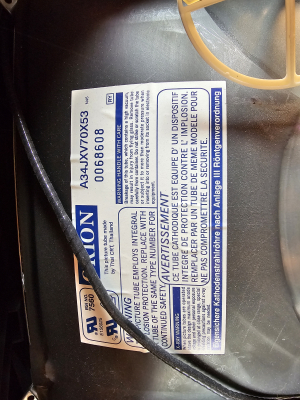

| Tube: | A34JXV70X53 , Thai CRT Co. |
| Deflection: | 90° |
| Mask: |
Slot
|

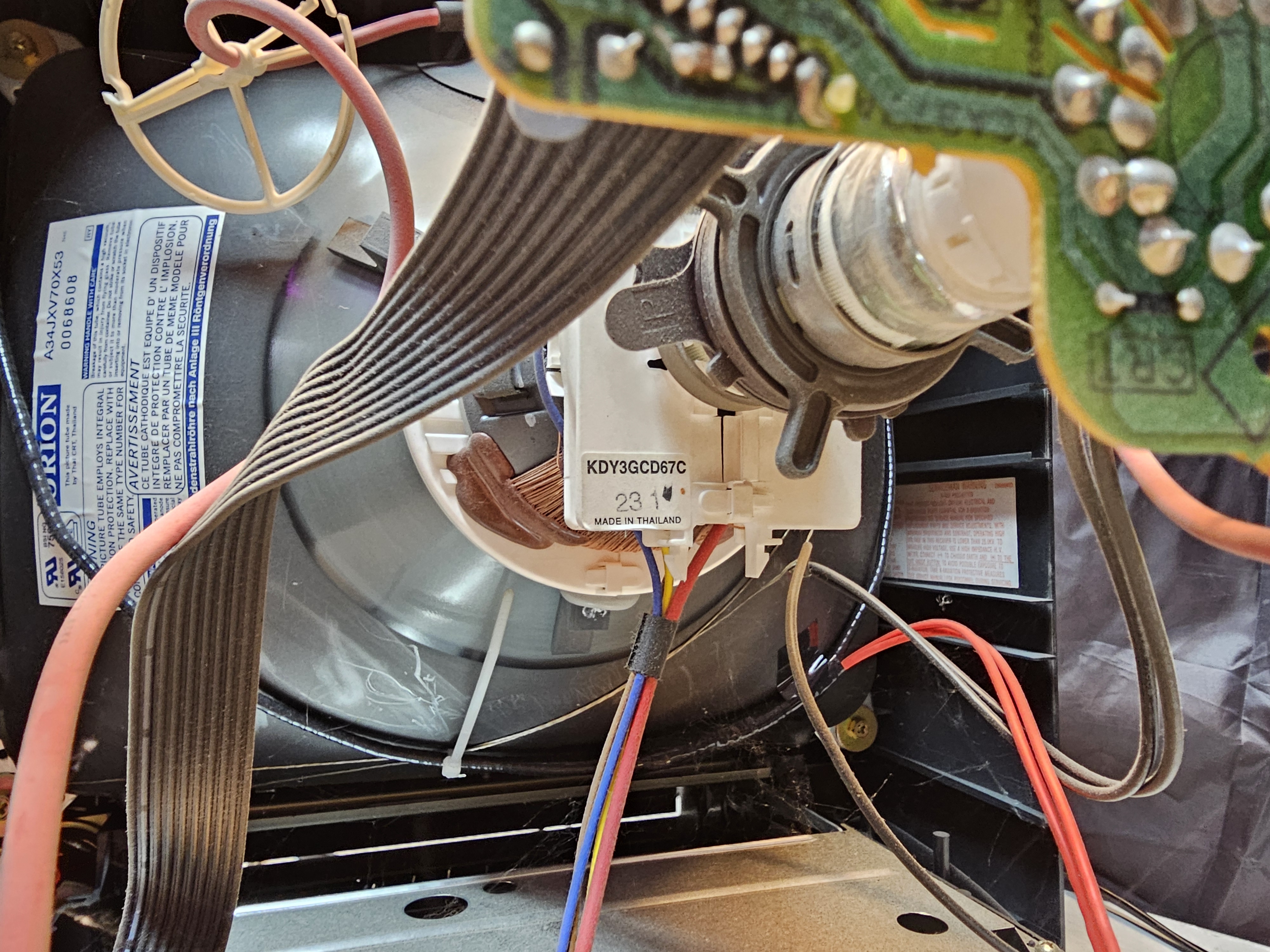

| Yoke: | KDY3GCD67C |
| Speakers: | Mono, 1.5W |
| Remote: | RM-C388 |
| Weight: | 27.6 lbs (12.5 kg) |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2002 |
| Country of Manufacture: | Thailand |
| Market: | North America |
| Power Standard: | 120v |
| Degaussing: | Automatic on Power-on |
