Summary

A fairly low-end 16" Trinitron monitor by KDS. Bandwidth maxes out at 110Mhz. Originally manufactured in Korea in 1999.

Manuals

(None at this time.)

Promo Materials

Gallery

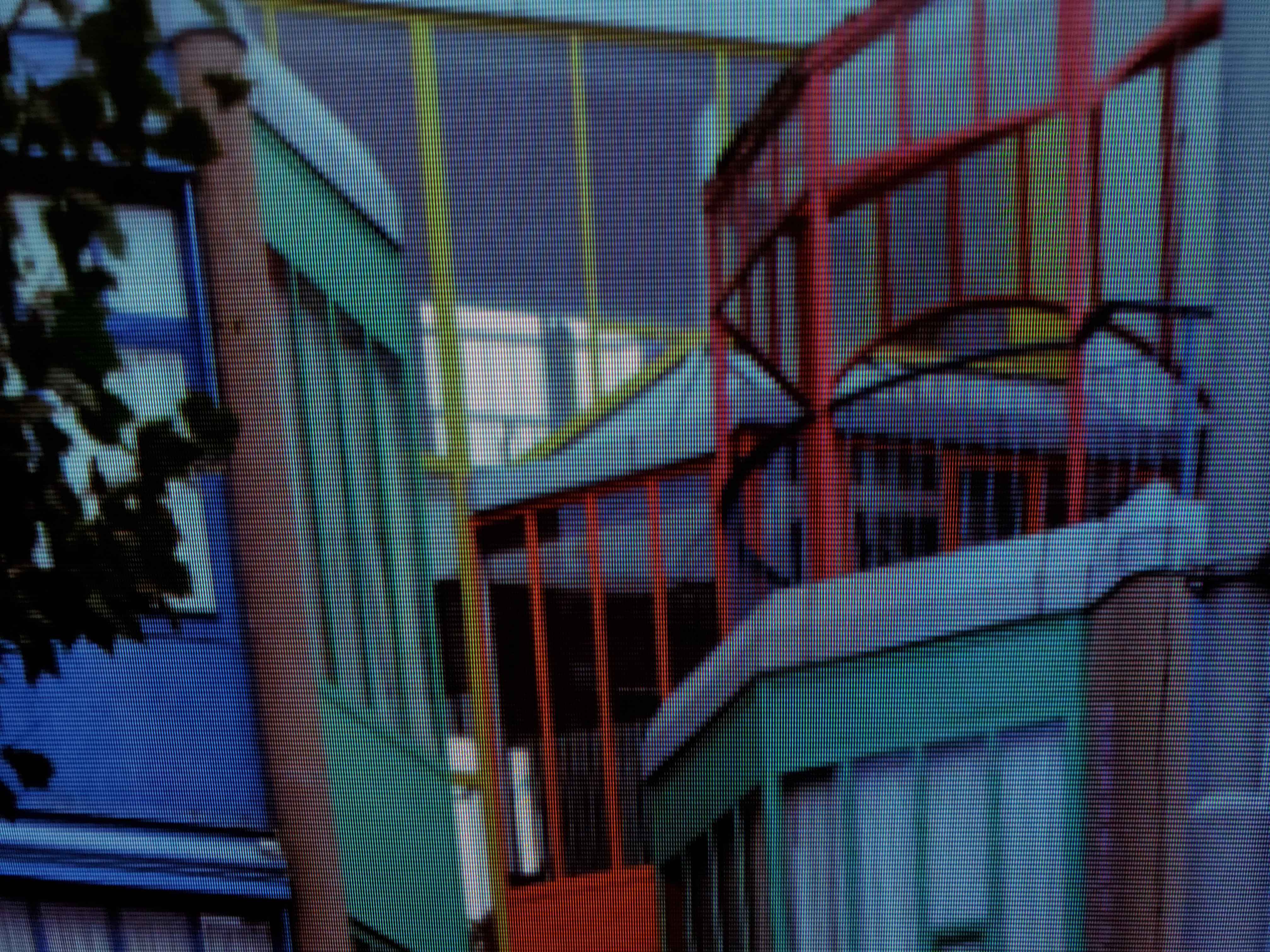

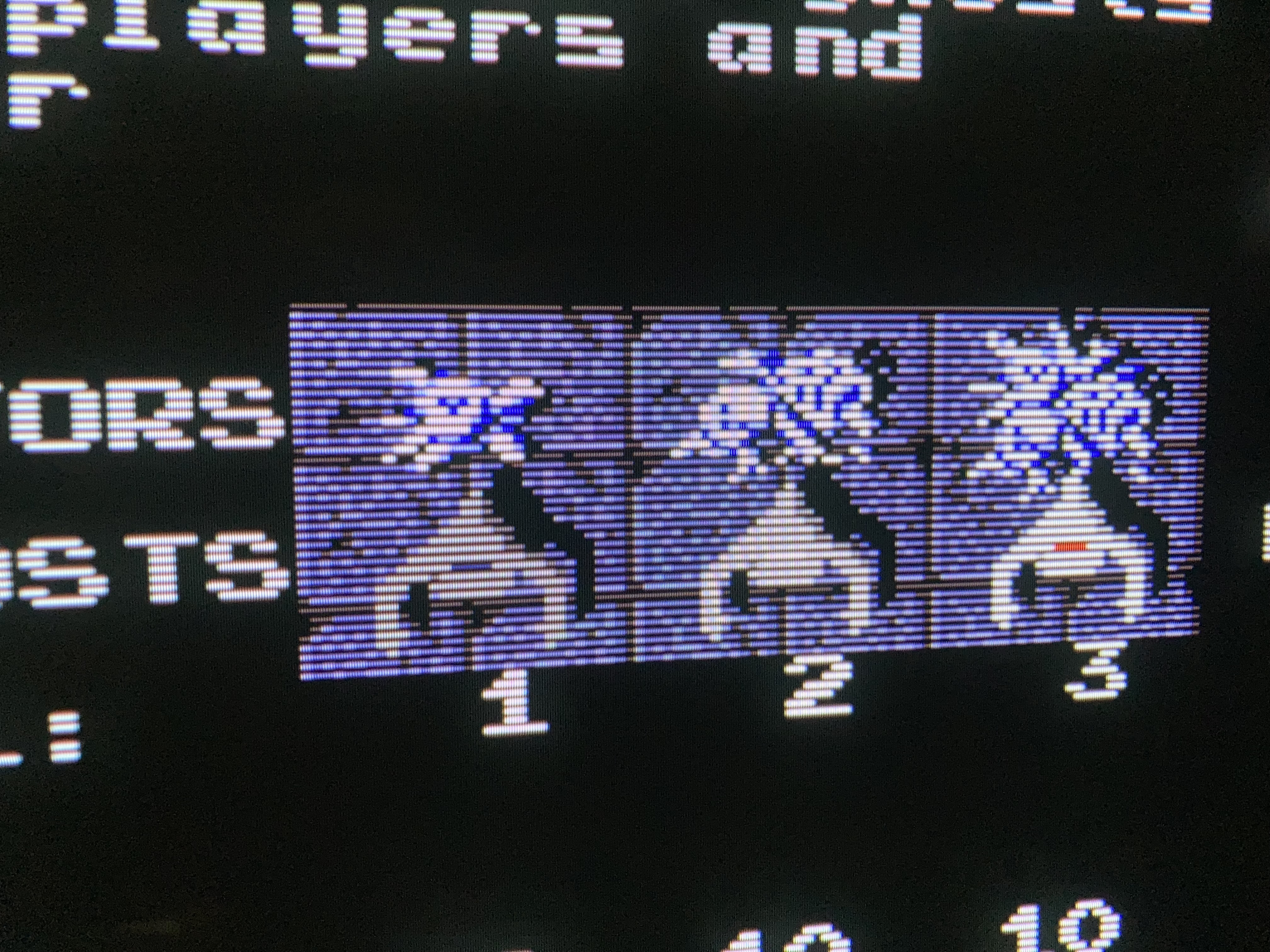

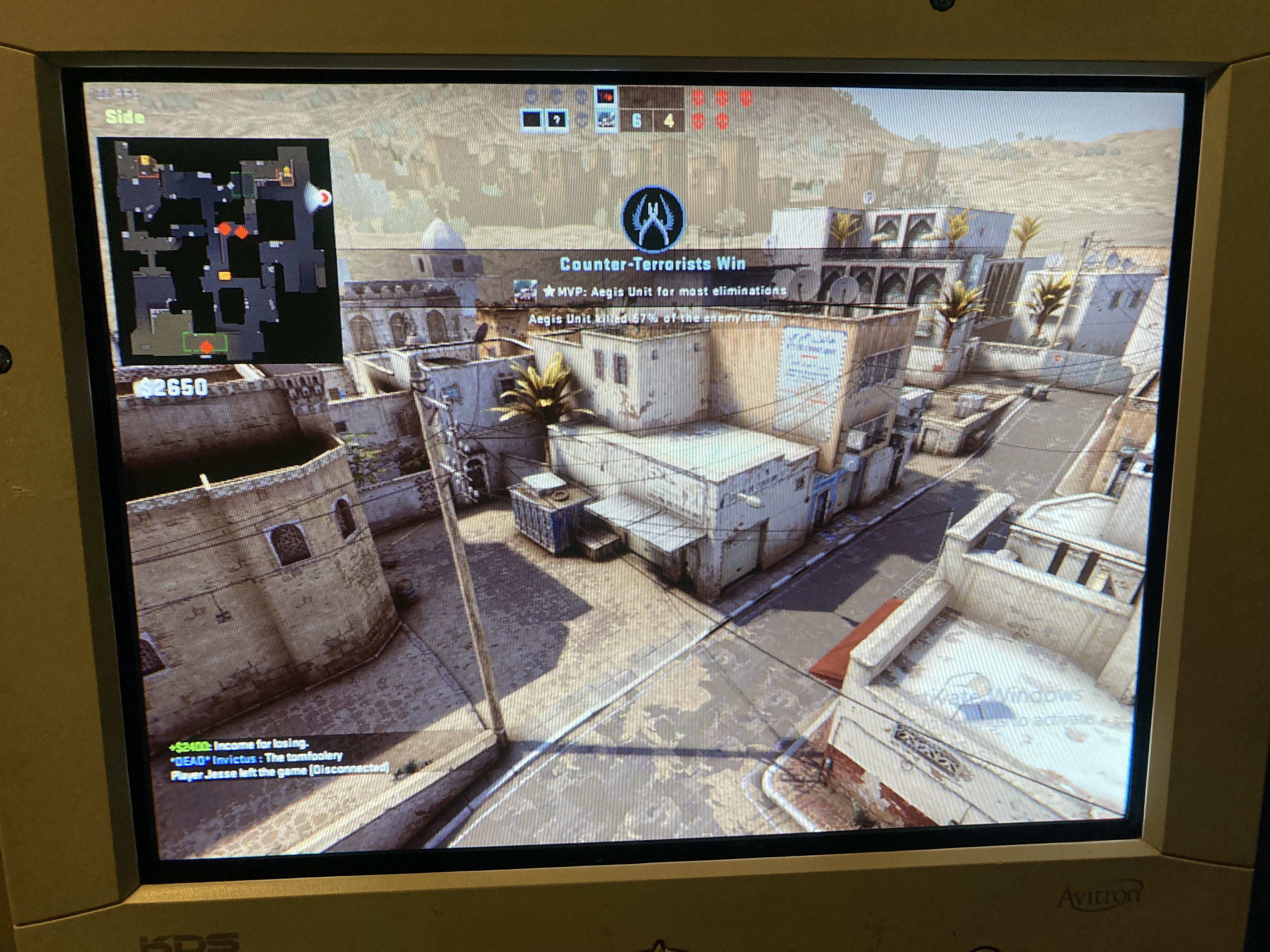

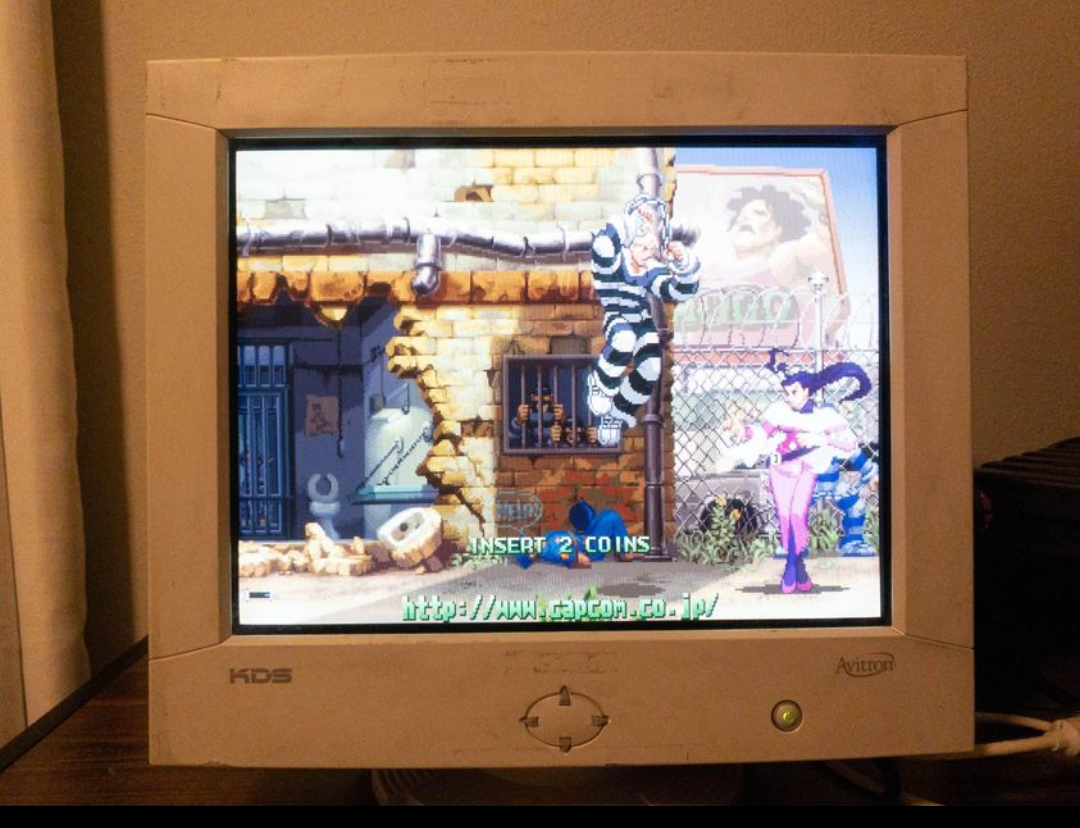

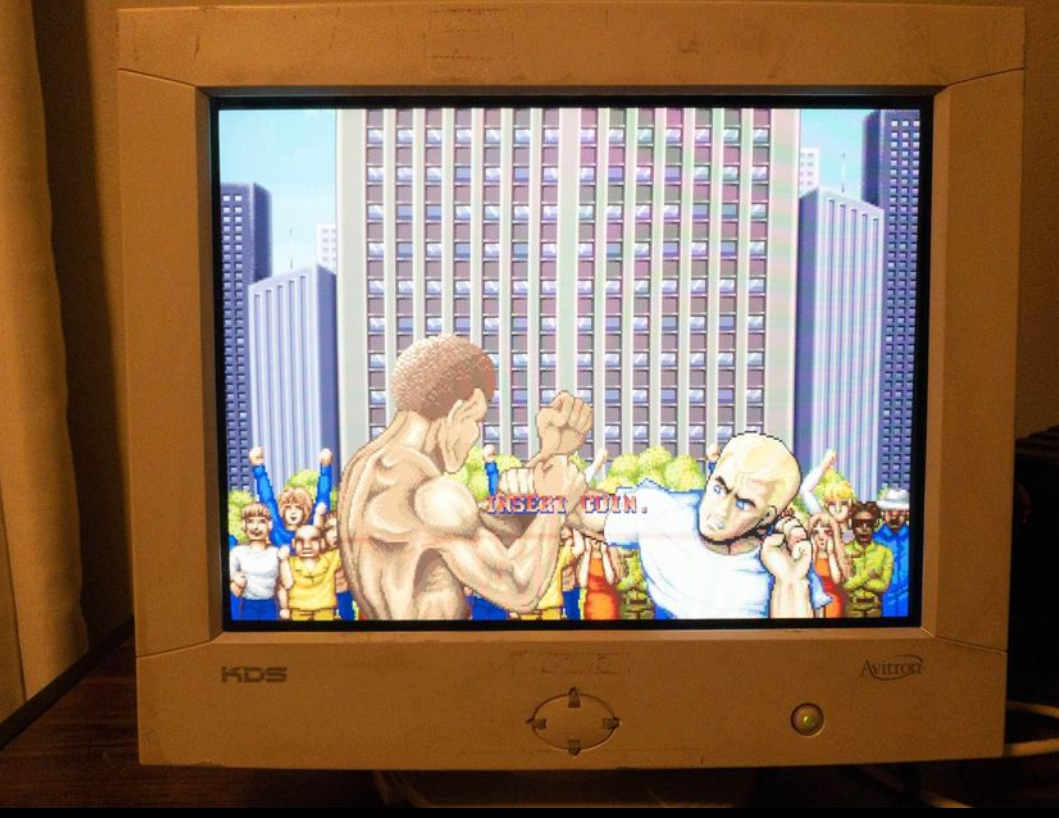

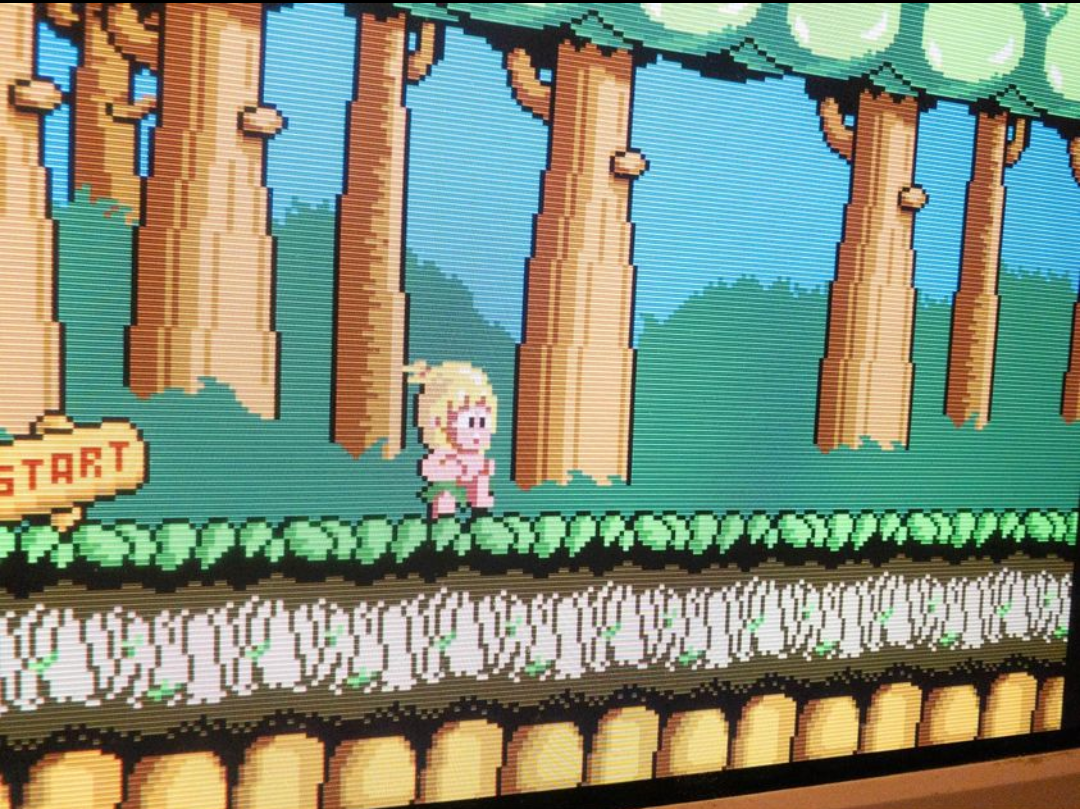

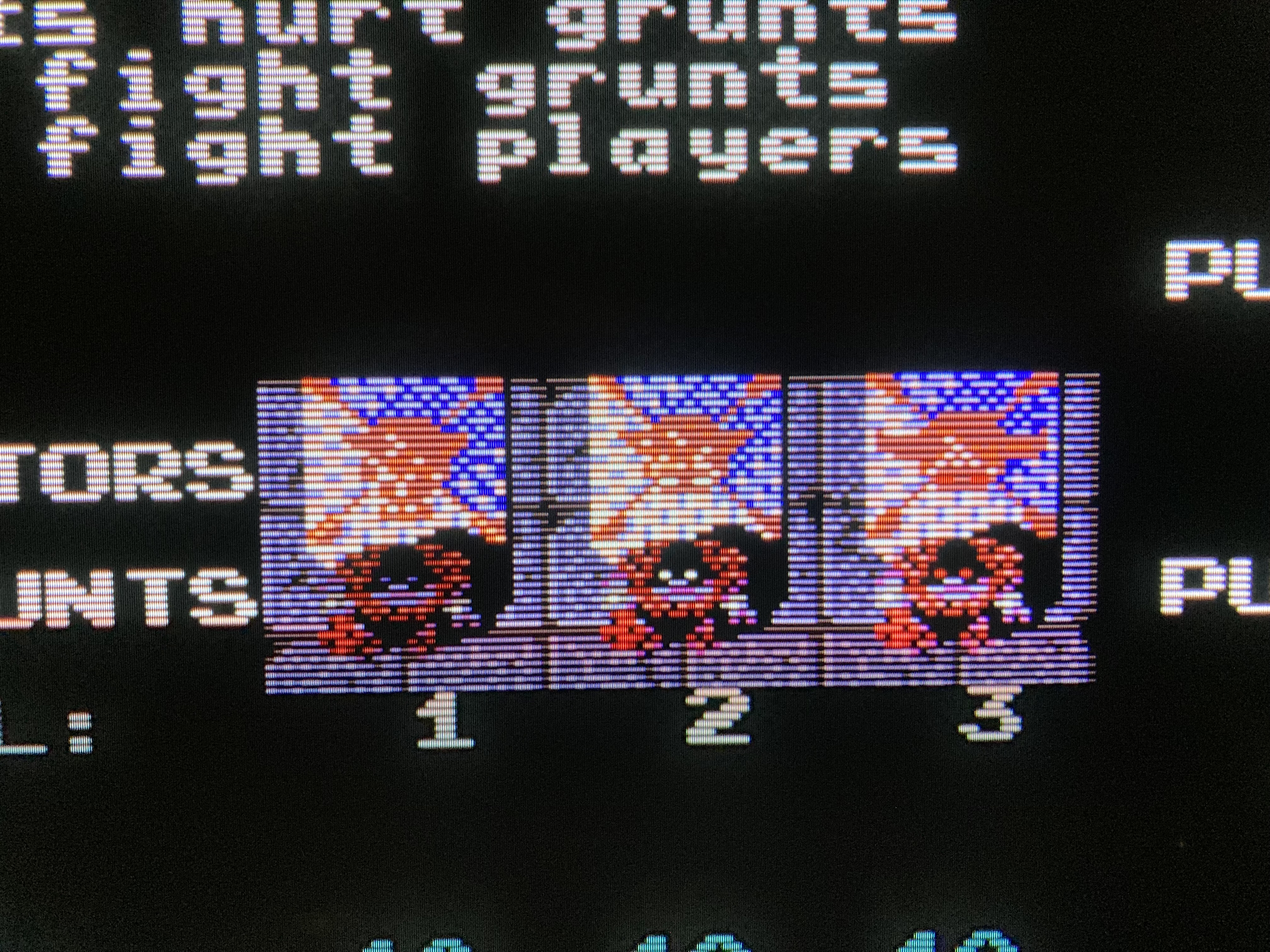

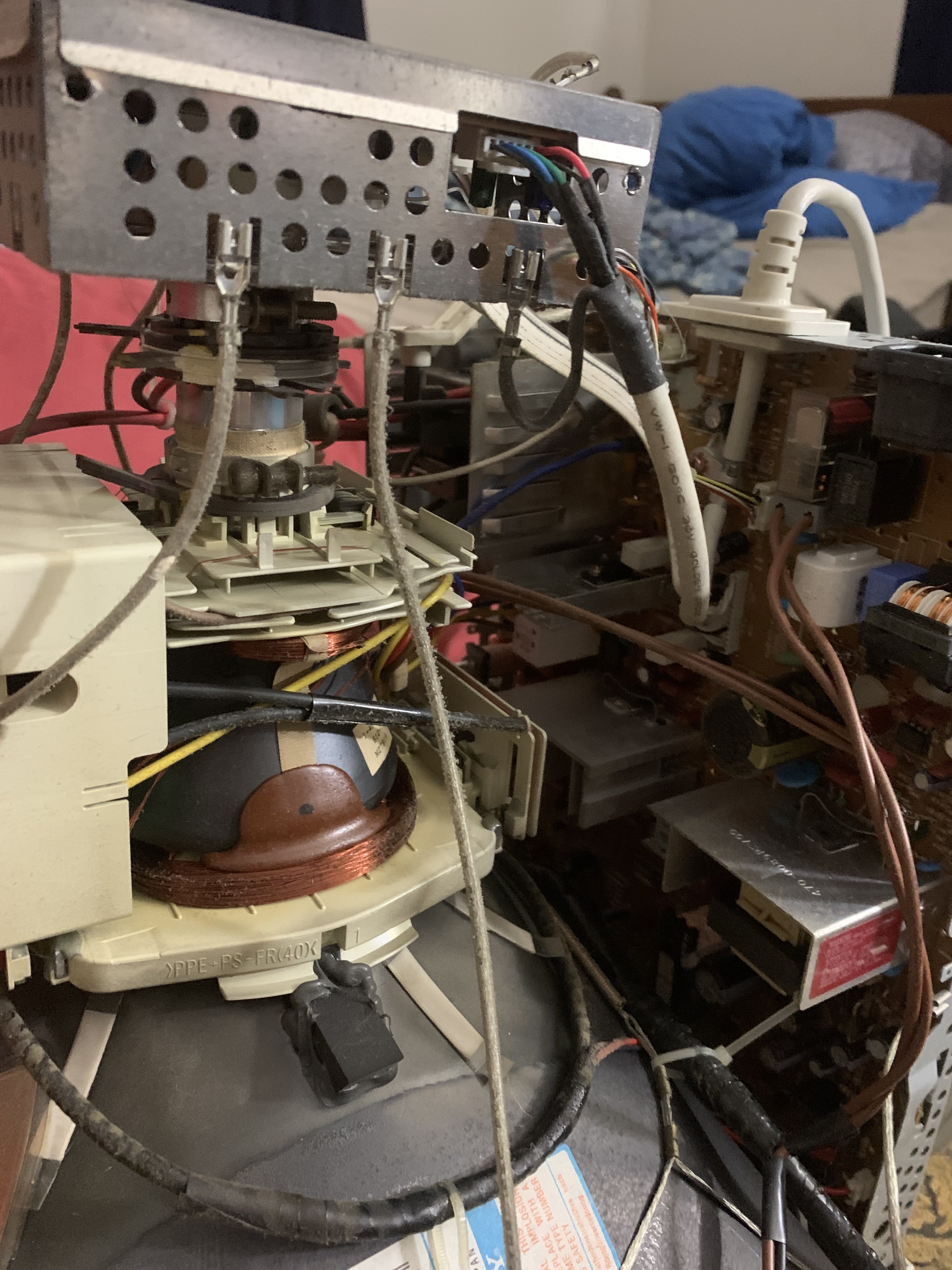

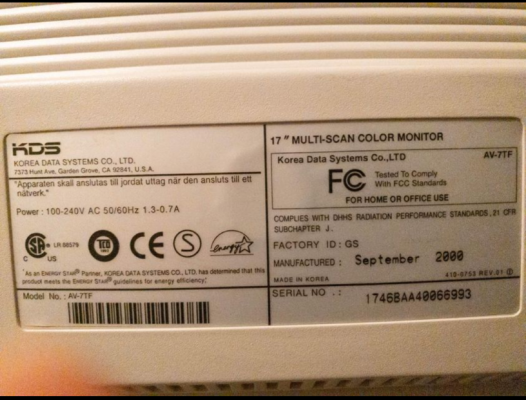

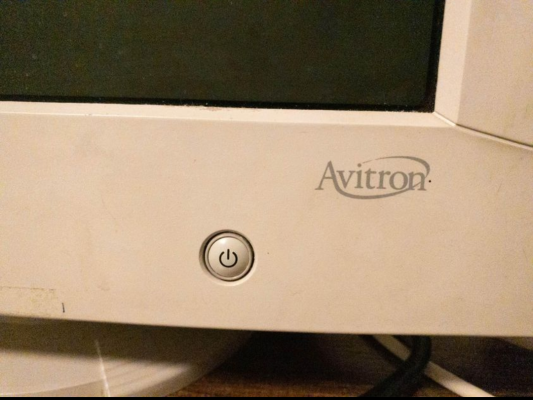

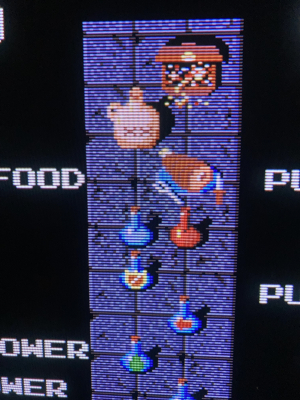

KDS AV-7TF KDS AV-7TF KDS AV-7TF KDS AV-7TF KDS AV-7TF KDS AV-7TF KDS AV-7TF KDS AV-7TF KDS AV-7TF KDS AV-7TF KDS AV-7TF KDS AV-7TF KDS AV-7TF KDS AV-7TF KDS AV-7TF
Specifications
Brand: KDS
Manufacturer: KDS
Model: AV-7TF

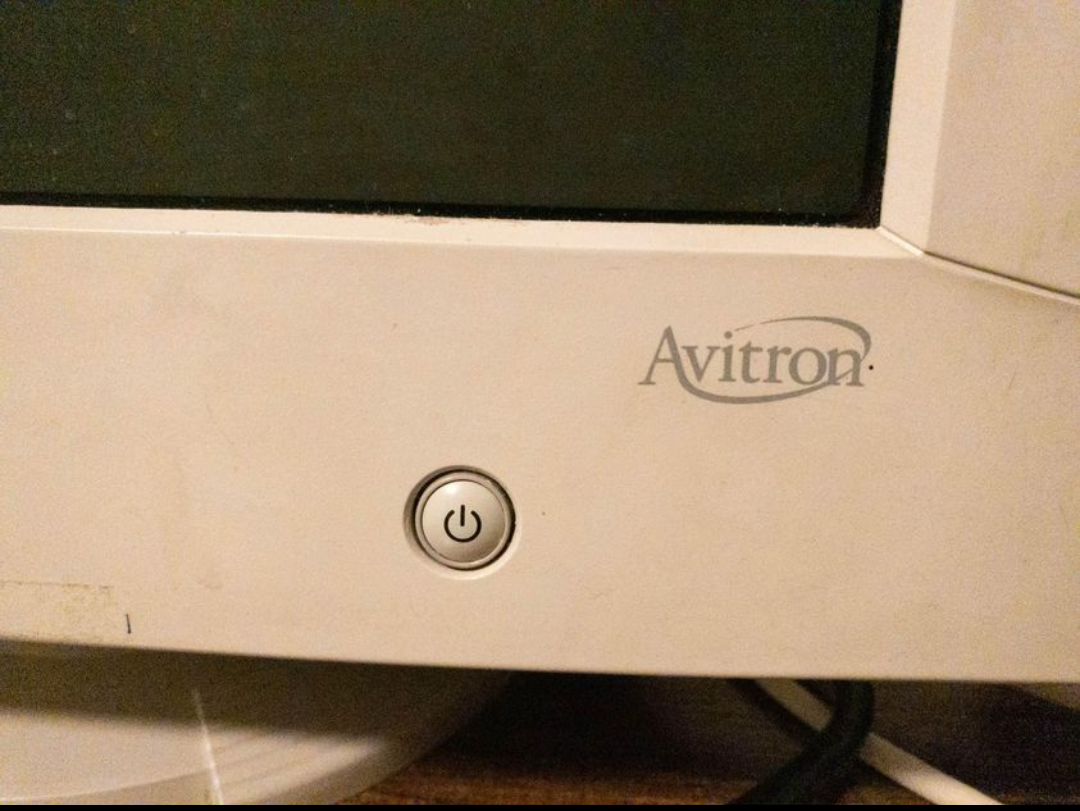

Series: Avitron
Viewable Size: 16"
Input Signals: VGA
Sync: HV Sync
Native Resolutions: VGA, SVGA, XGA, MAC
Horizontal Scan Range: 30 kHz, 70 kHz
Vertical Scan Range: 50 Hz, 160 Hz
Aspect: 4:3
Adjustments: OSD Customer Controls
Focus Type: Dual

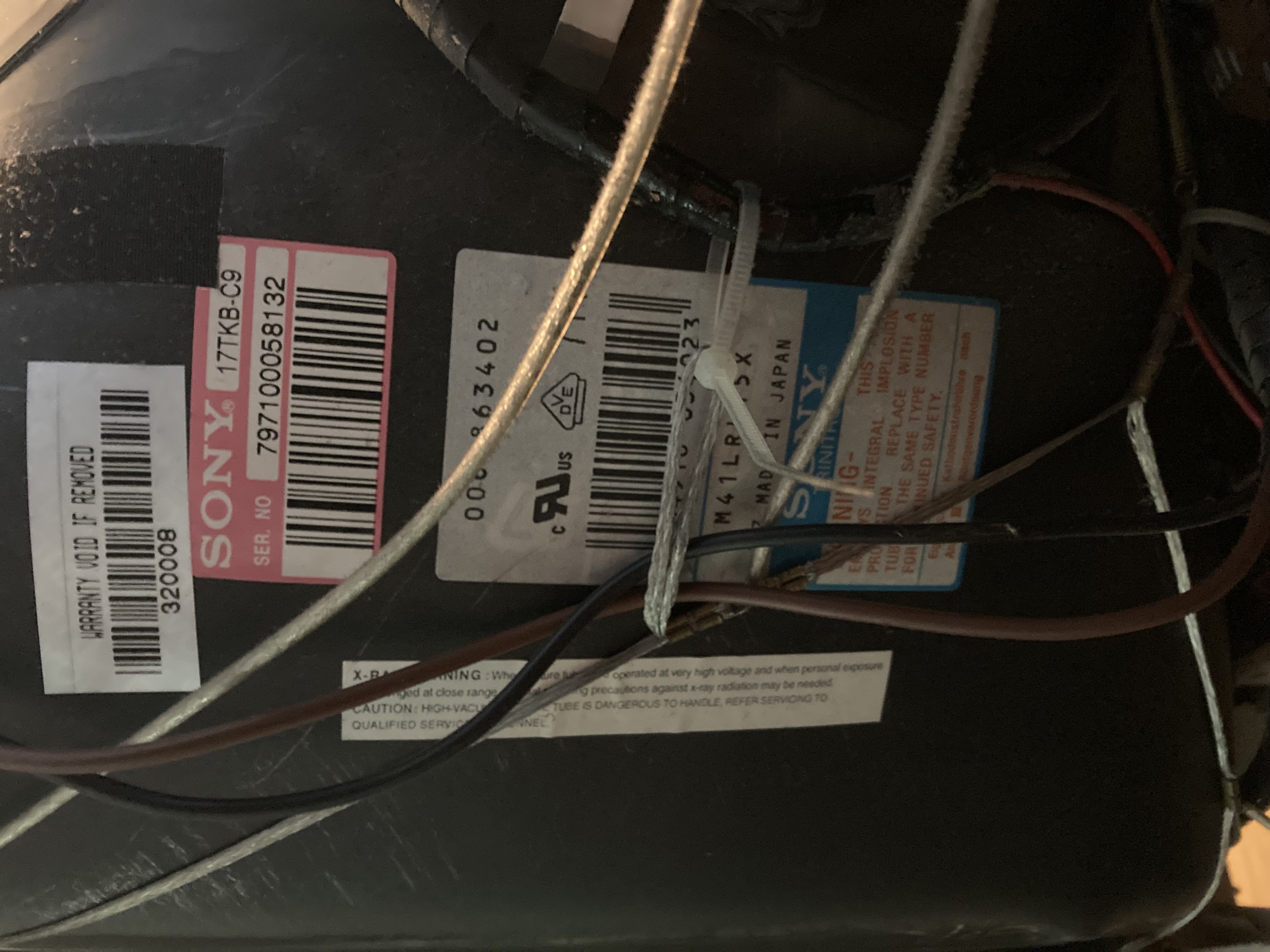

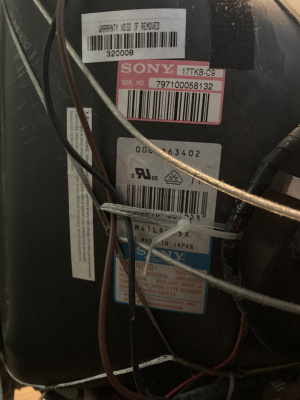

Tube: Sony Trinitron , M41LRL15X
Mask: Aperture Grille
Pitch: .24 mm, 0.24 mm
Tint: Dark
Removable Glare Film: Yes
Speakers: None
Weight: 38.5 lbs (17.5 kg)
Dimensions (W/H/D): 410 x 405 x 430 mm
(16.1 x 15.9 x 16.9")
Application: Computer Monitor
Cabinet Material: Plastic
Launched: 1999
MSRP: 299 USD
Country of Manufacture: Korea
Market: Worldwide
Power Standard: Universal
Mounting: Table Surface (Standard)
Degaussing: Automatic on Power-on
Tag: Needs Owners Manual, Needs Service Manual
