KDS KD-7300

Matt Ross
September 16, 2024, 11:29 pm
December 28, 2024, 8:18 am

Summary

Standard 70 kHz PC monitor, manufactured & sold by KDS. There are no identifying marks on the front of the monitor.

Manuals

No documentation is available online at this time.

Gallery

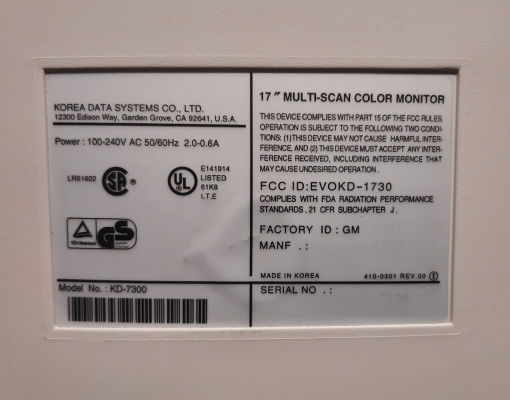

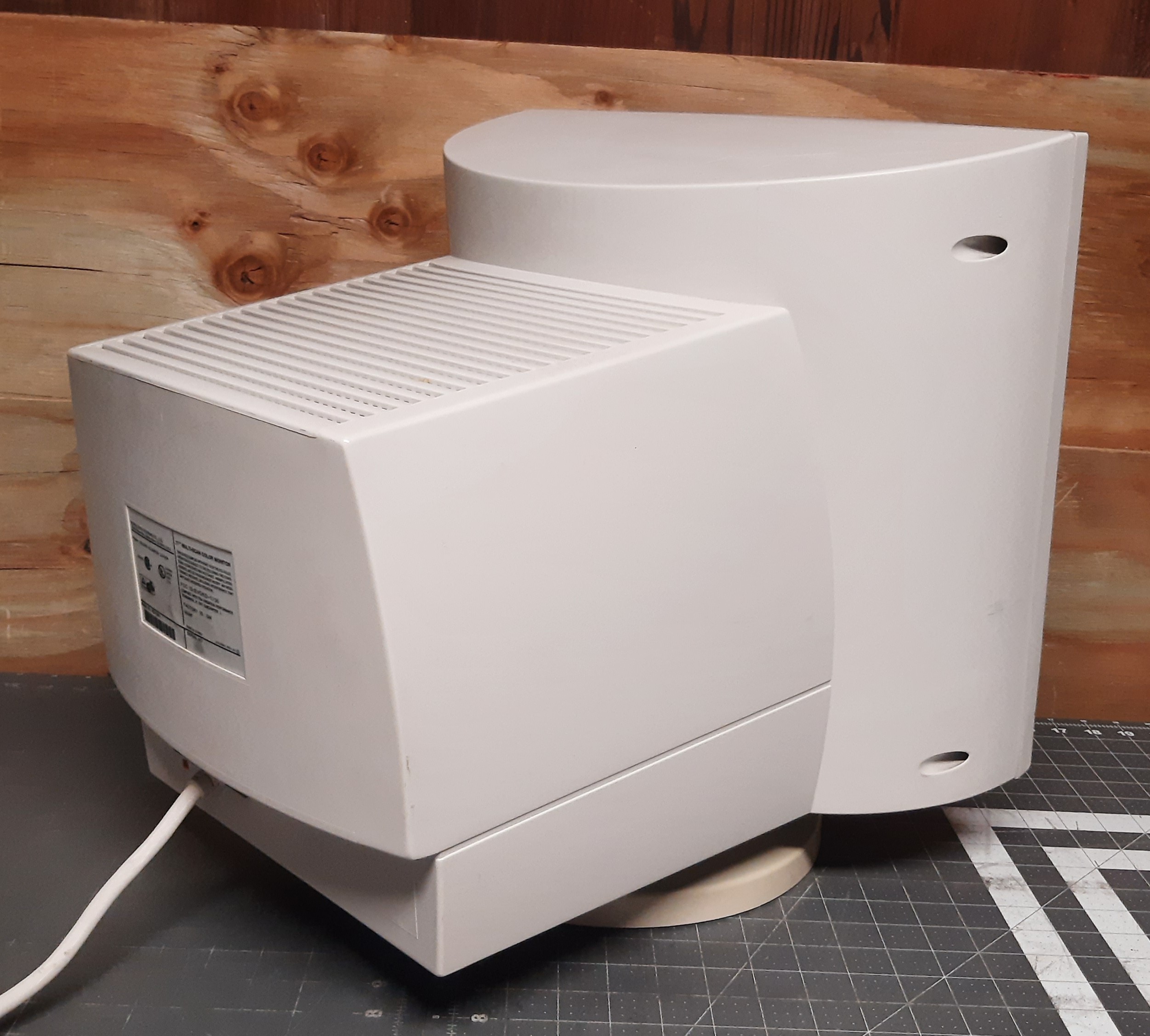

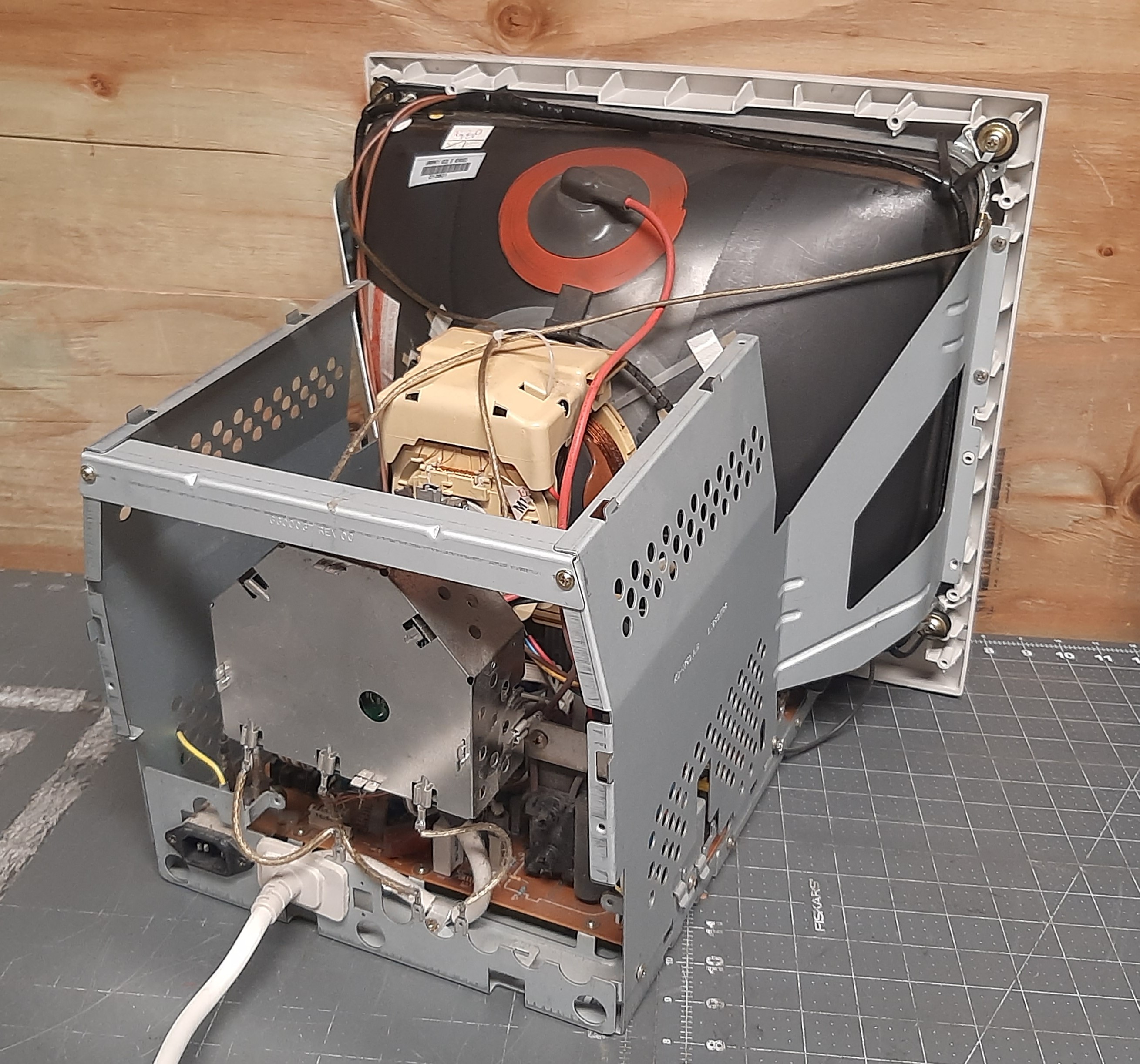

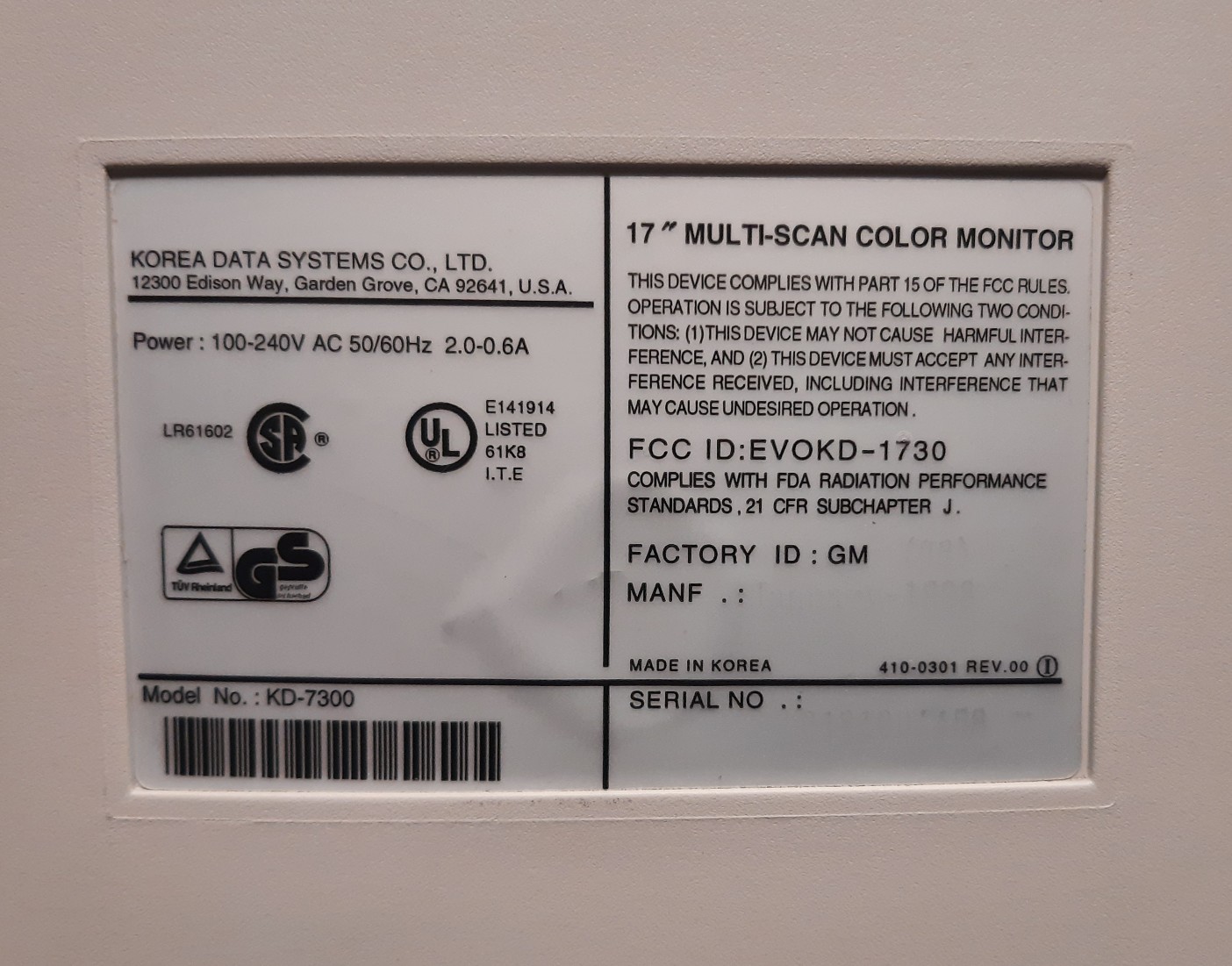

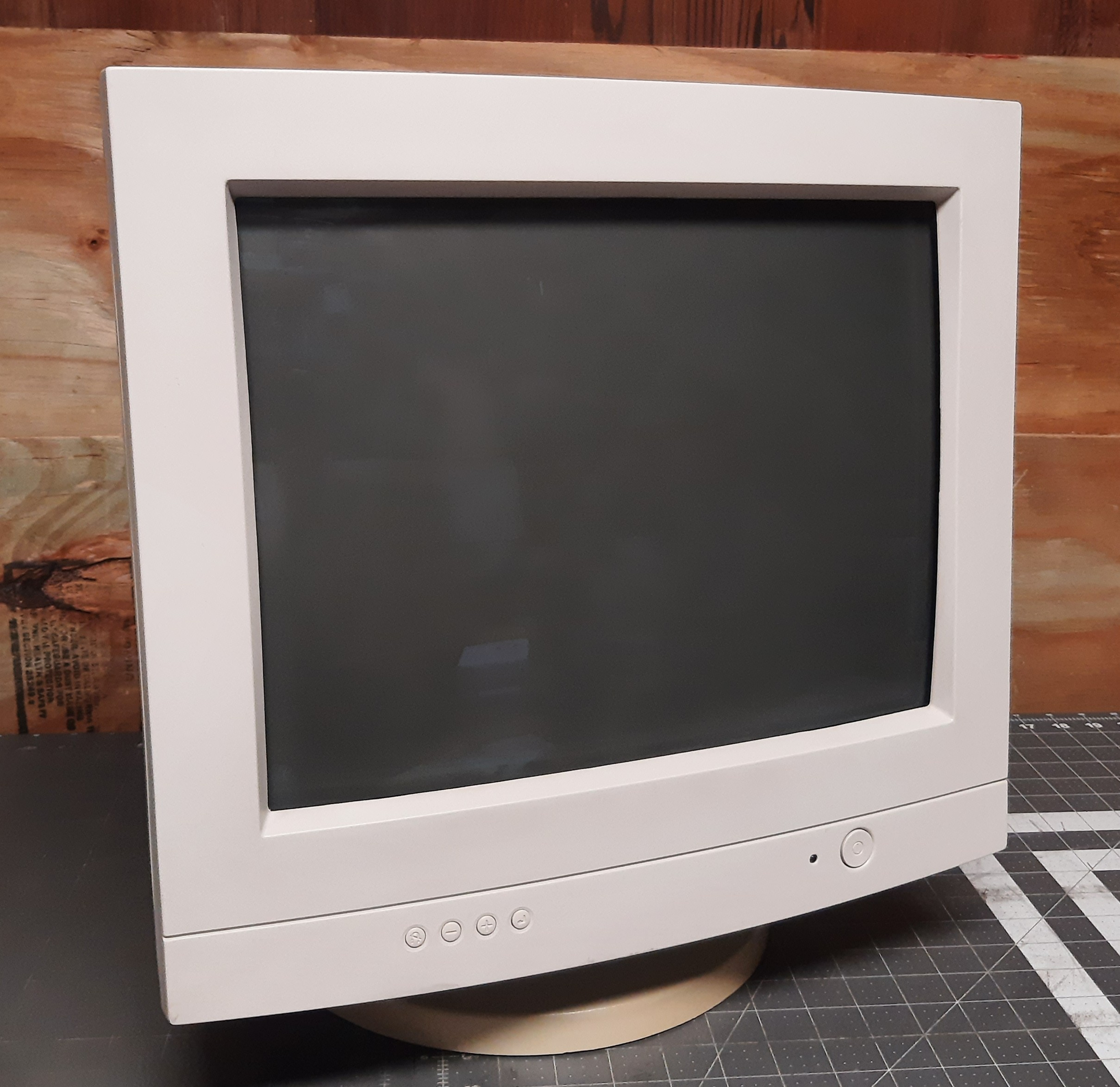

KDS KD-7300 KDS KD-7300 KDS KD-7300
Specifications
Brand: KDS
Manufacturer: KDS
Model: KD-7300
Series: KD
Viewable Size: 16"
Inputs: VGA
Sync: HV Sync
Native Resolutions: VGA, SVGA, XGA, SXGA
Horizontal Scan Range: 30 kHz, 70 kHz
Aspect: 4:3
Adjustments: OSD Customer Controls
Vertical Output IC: TDA8172
Flyback: LR87861
Tube: M41AGE93X , M41AGE93X80
Heater Voltage: 6.3v
Deflection: 90°
Mask: Shadow
Pitch: 0.27 mm
Tint: Dark, Matte Anti-Glare
Removable Glare Film: No
Yoke: JRY-7901
Yoke Horz. Inductance: 0.14259 mH (@ 10 kHz)
Yoke Vert. Inductance: 6.257 mH (@ 100 Hz)
Yoke Horz. Resistance: 0.52 ohm
Yoke Vert. Resistance: 9.67 ohm
Speakers: None
Weight: 40.4 lbs (18.3 kg)
Application: Computer Monitor
Cabinet Material: Plastic
Launched: 1996
Country of Manufacture: Korea
Degaussing: Automatic on Power-on
Tag: Needs Owners Manual, Needs Service Manual, Needs Measurements, Needs Pictures
