Summary

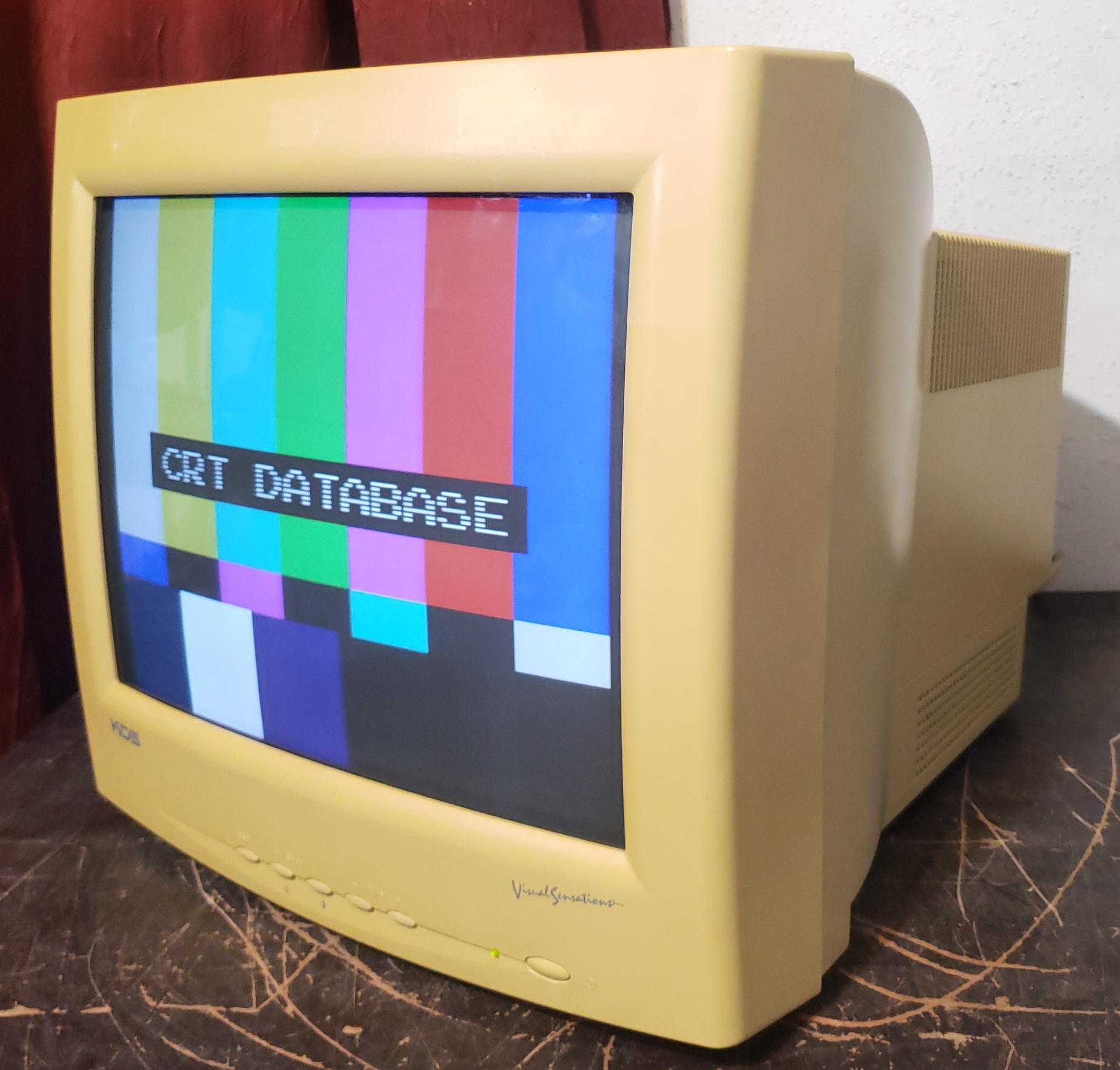

Professional business color monitor designed and built to meet the needs of mainstream business management, the VS-7p is perfect for today's SOHO environment. With unprecendented image quality in a 17-inch design, the new VS-7p is unquestionably the monitor of choice for home users and business professionals. With a .23(H)mm dot pitch for crisp images and high refresh rates that eliminate eye strain, the VS-7p is the ideal solution for the home or office.
Manuals
No documentation is available online at this time.
Media & Promo Materials
Notes
"Visual Sensations" means the monitor is equipped with an FST shadow mask tube.

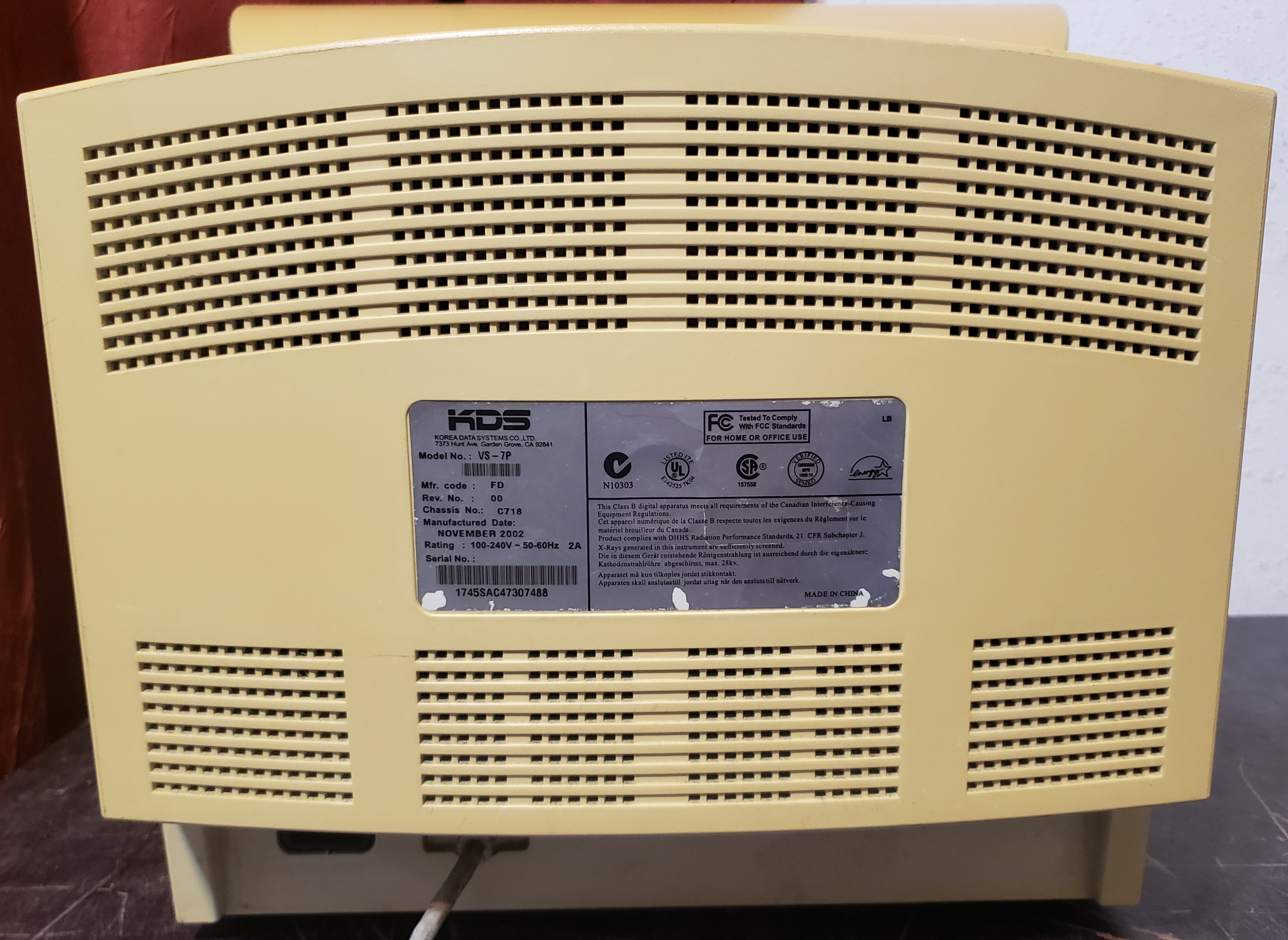

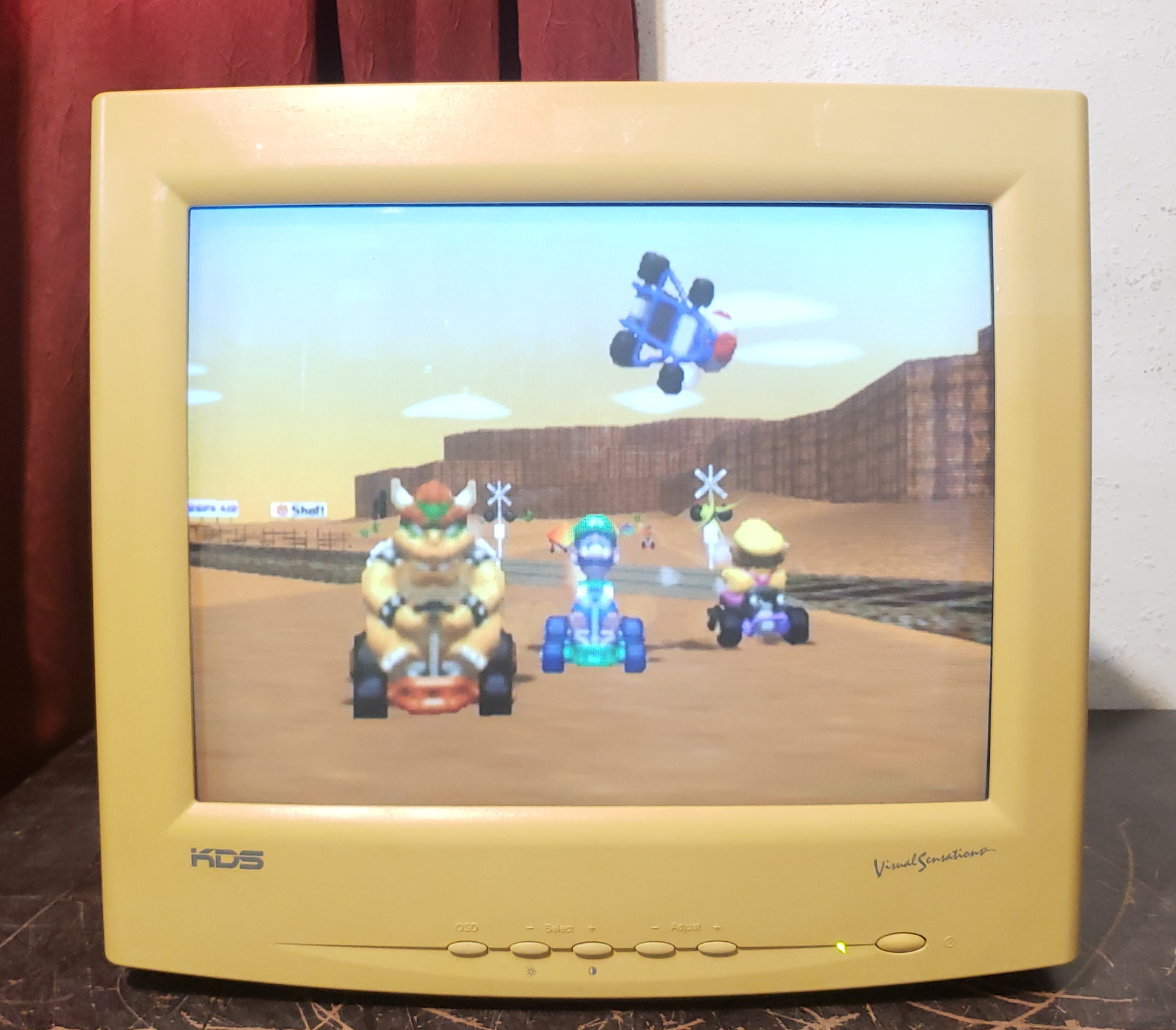

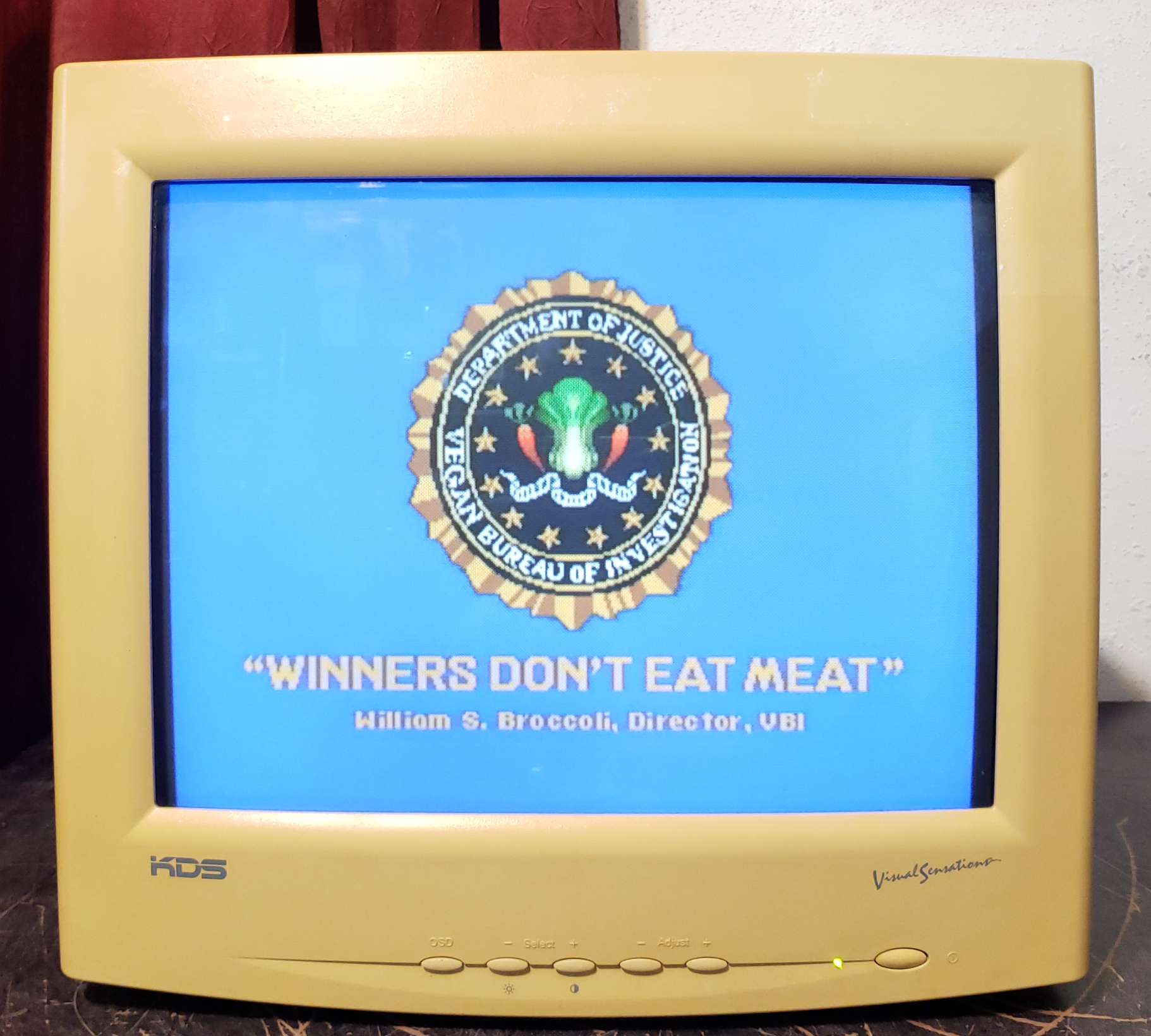

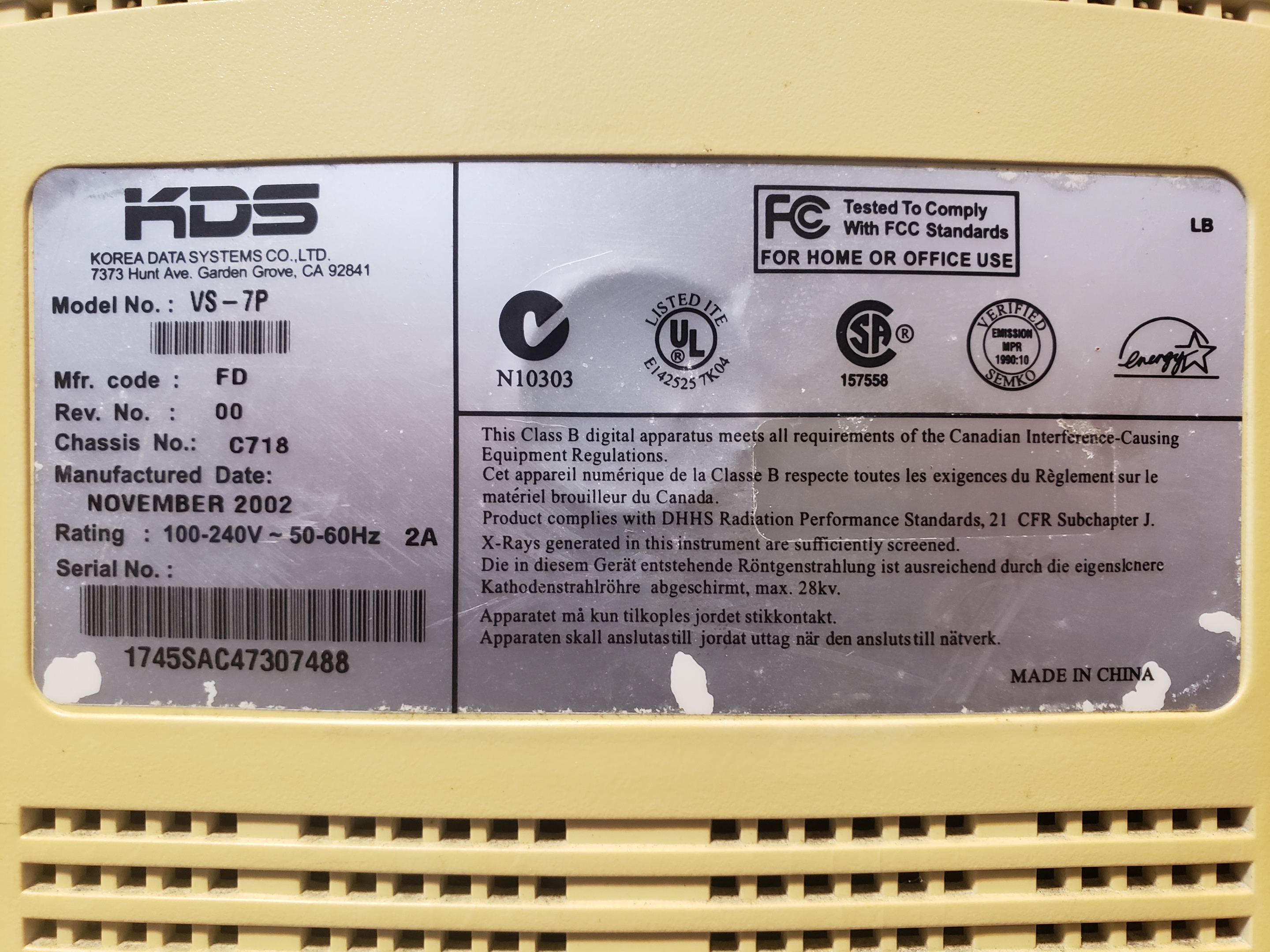

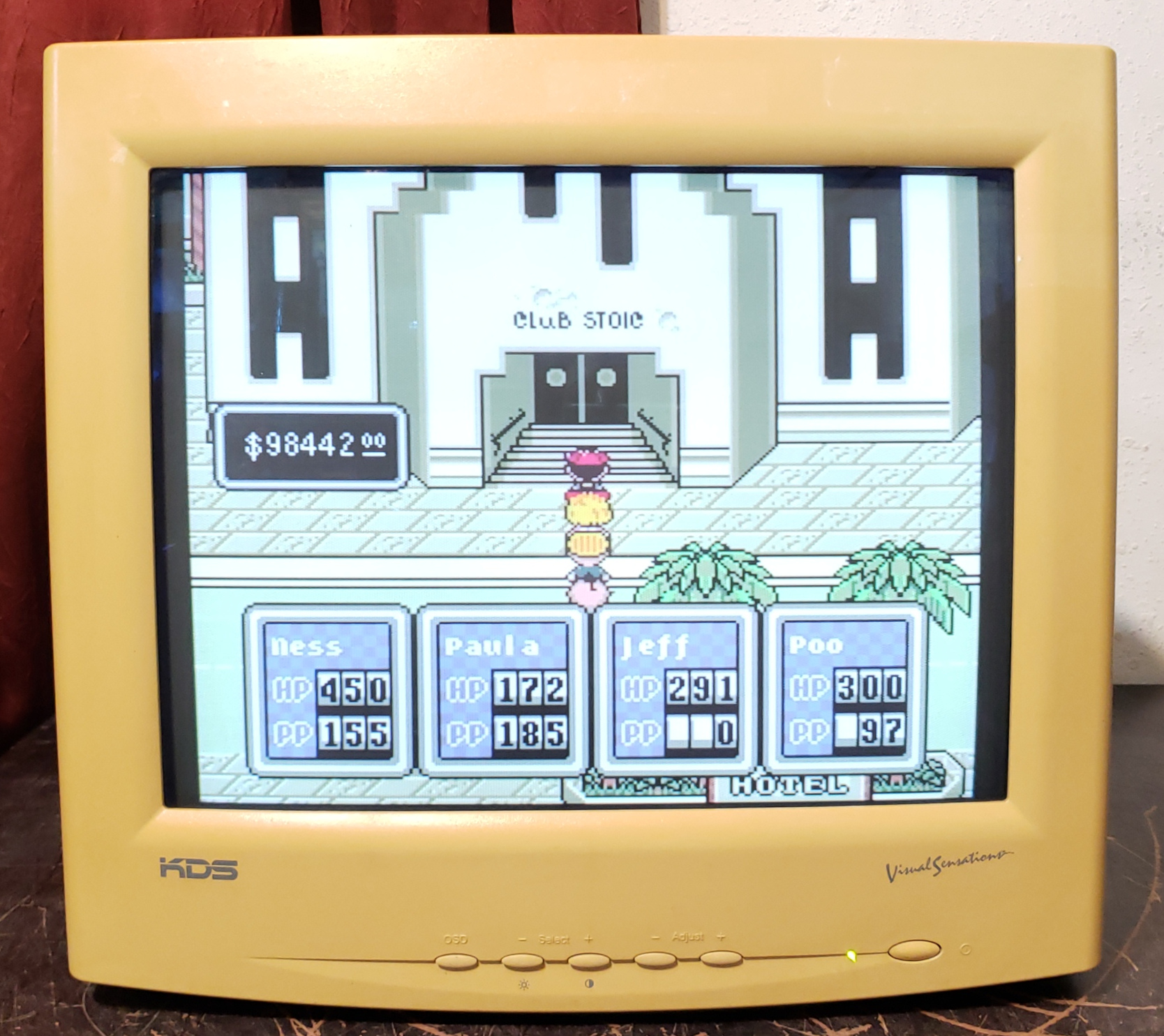

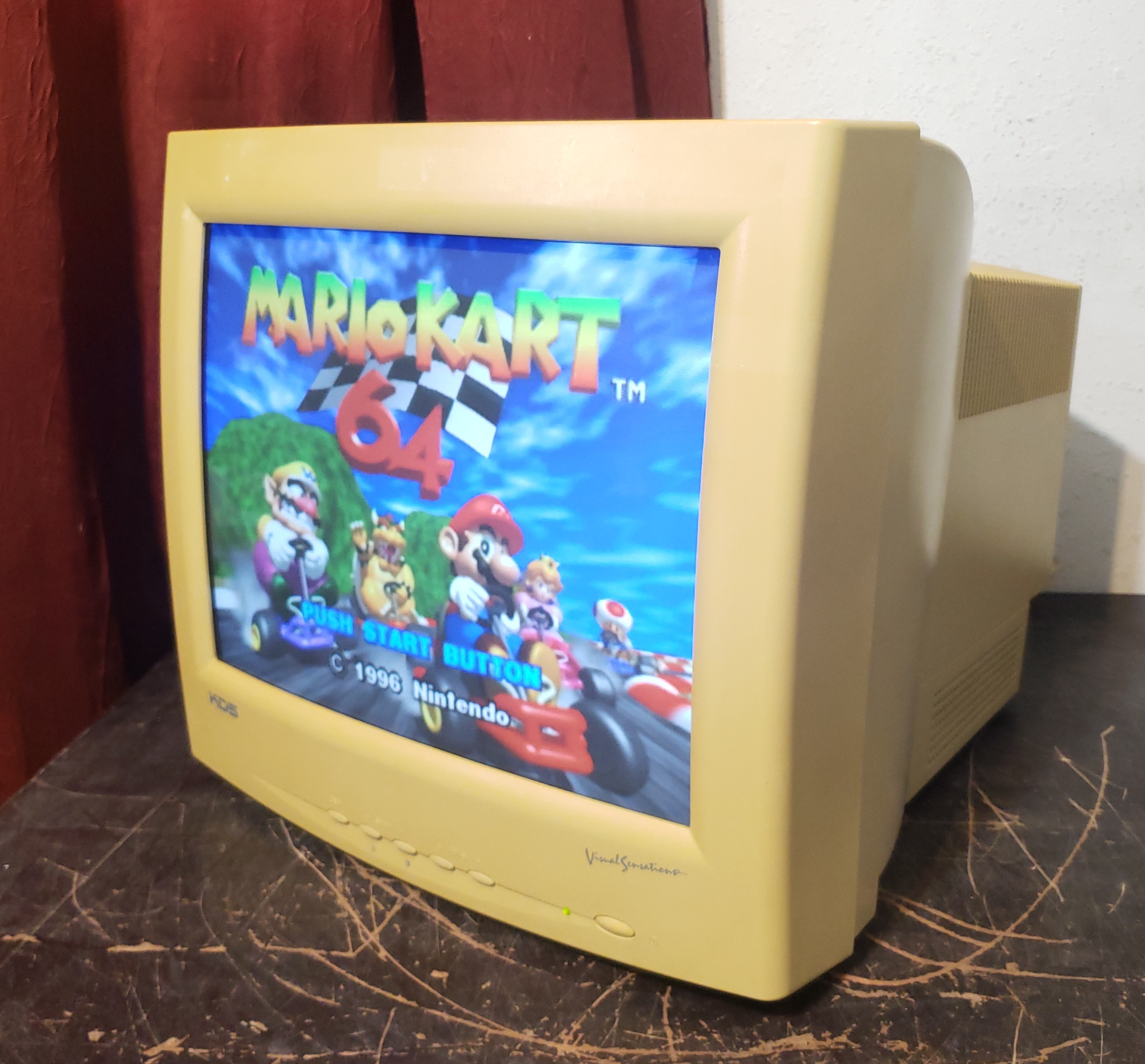

Gallery
The Martlet, vol. 55, no. 04 (August 22, 2002).png "Click to view image in new tab")
| Specifications | |
|---|---|
| Brand: | KDS |
| Manufacturer: | KDS |
| Model: | VS-7P |
| Series: | Visual Sensations |
| Viewable Size: | 16" |
| Inputs: | VGA |
| Sync: | HV Sync |
| Native Resolutions: | VGA, SVGA, XGA, SXGA |
| Horizontal Scan Range: | 30 kHz, 70 kHz |
| Vertical Scan Range: | 50 Hz, 160 Hz |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, OSD Customer Controls |

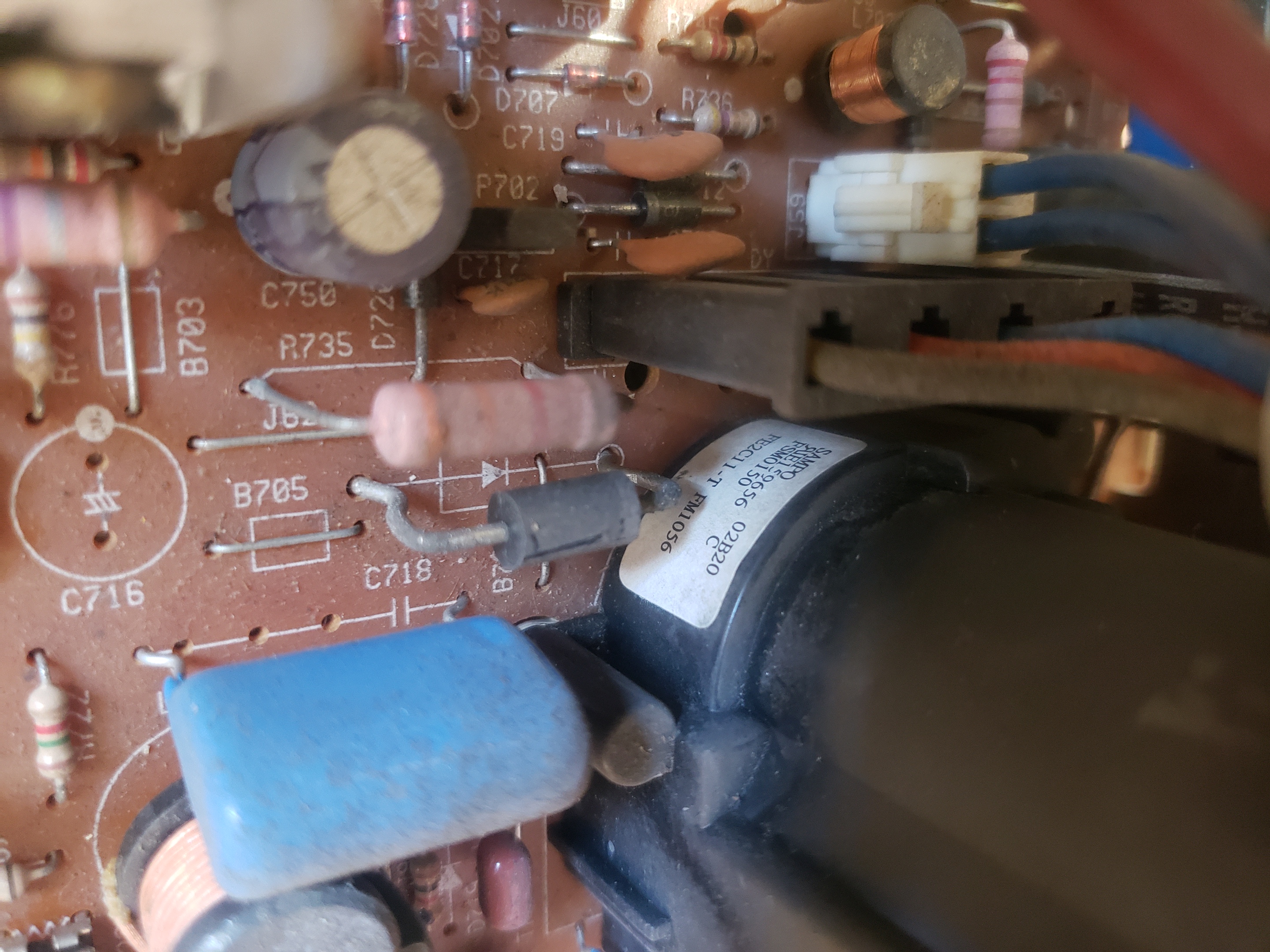

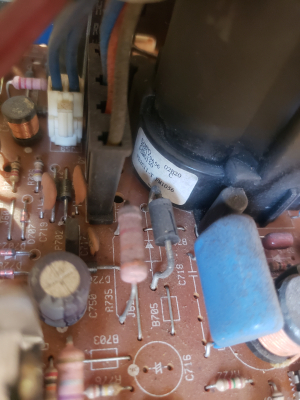

| Flyback: | FE2C11-T, FM1056 |

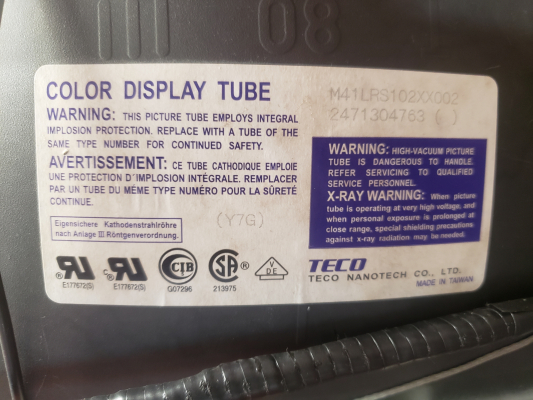

| Tube: | FST , M41LRS102XX002 , M41LRS102XX |
| Deflection: | 90° |
| Mask: |
Shadow
|
| Pitch: | 0.25 mm, .25 mm |
| Tint: | Dark, Matte Anti-Glare |
| Removable Glare Film: | No |

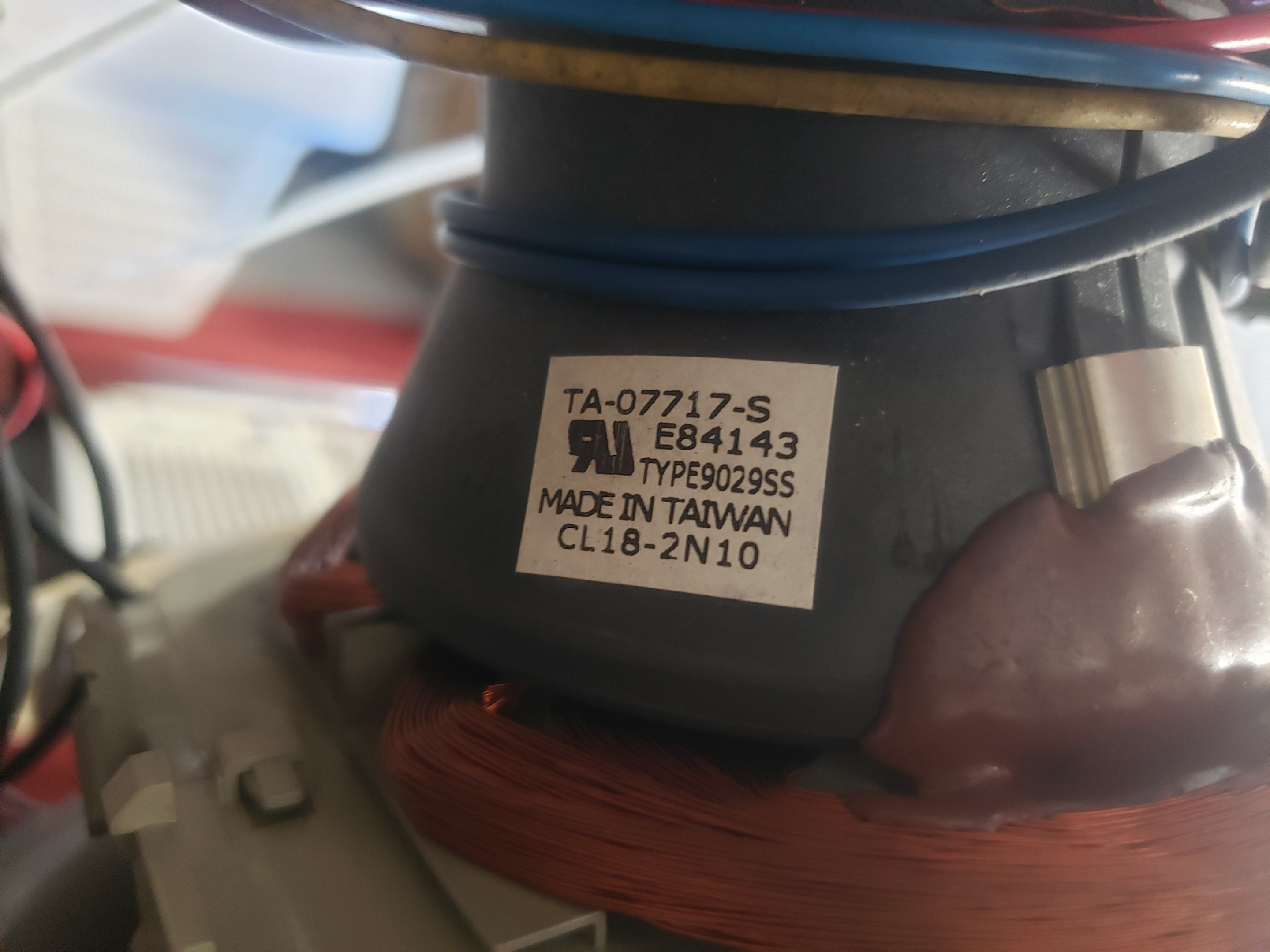

| Yoke: | TA-07717-S, E84143 |
| Yoke Horz. Resistance: | 0.500 ohm, 0.5 ohm, 0.50 ohm |
| Yoke Vert. Resistance: | 8.0 ohm |
| Speakers: | None |
| Chassis: | C718 |
| Weight: | 36.3 lbs (16.5 kg) |
| Dimensions (W/H/D): |
406 x 435 x 413 mm
(16 x 17.1 x 16.2") |
| Application: | Computer Monitor |
| Cabinet Material: | Plastic |
| Launched: | 2001 |
| MSRP: | 172 USD |
| Country of Manufacture: | China |
| Power Standard: | Universal |
| Mounting: | Desk Stand |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs Service Manual |
