Shrek KSK7501
October 5, 2024, 12:39 am
January 6, 2025, 4:45 am
Summary

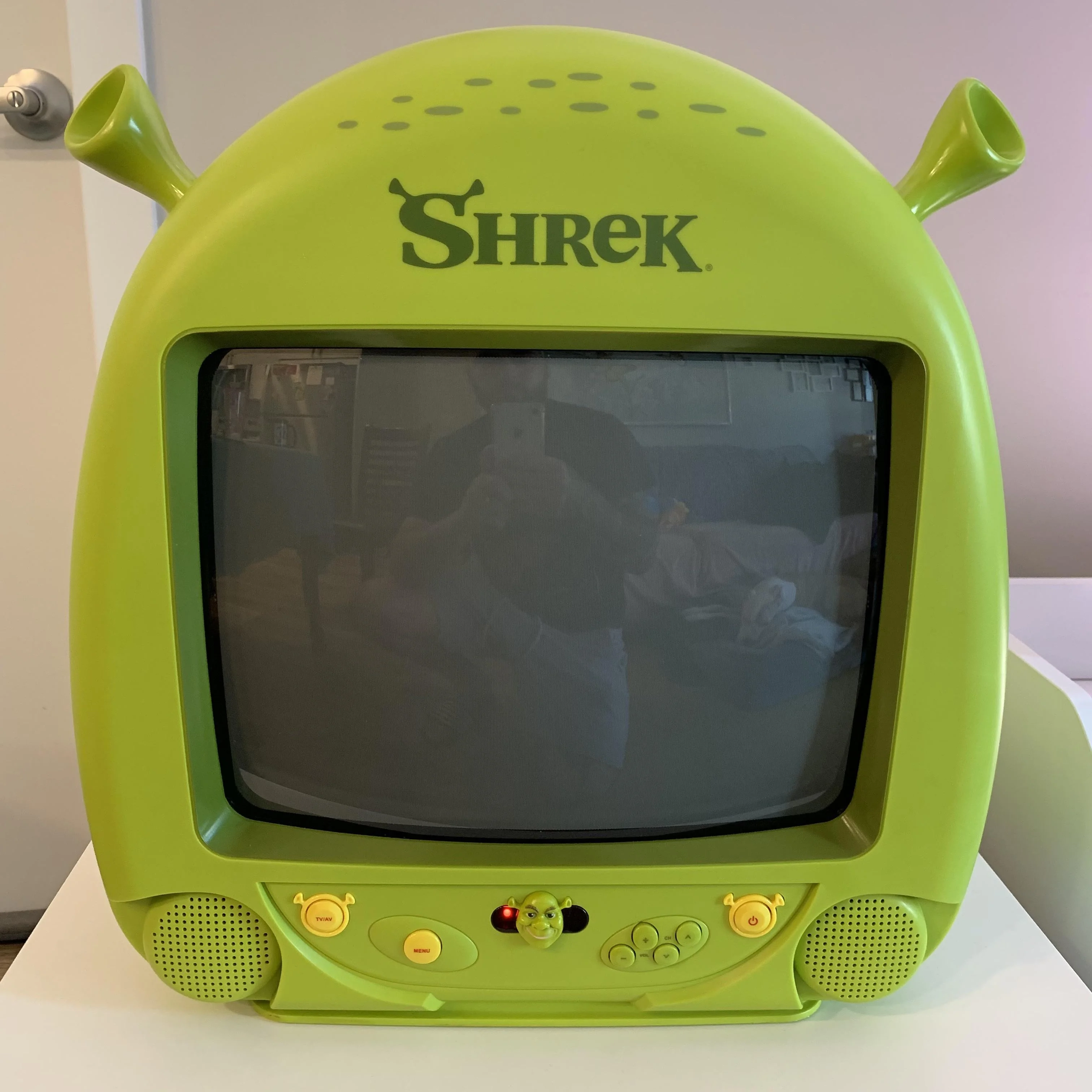

The most overpriced, overrated, overblown CRT ever. It is essentially a very basic universal chassis from China shoved into a green plastic case in the shape of Shrek's head. That'll be 3000 dollars, please! The chassis was originally made by some no-name manufacturer in China.
Manuals
No documentation is available online at this time.
Notes
In all seriousness, this TV does have a few things going for it.
For one, it has s-video input, which is rare to see on 13" sets in North America. Stereo sound is also nice too.
But what's really cool is the PAL video support. You can switch between video standards in the user menu, and each time you do, you will need to adjust the brightness.

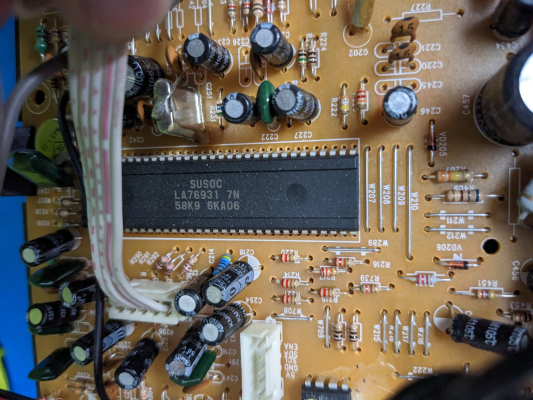

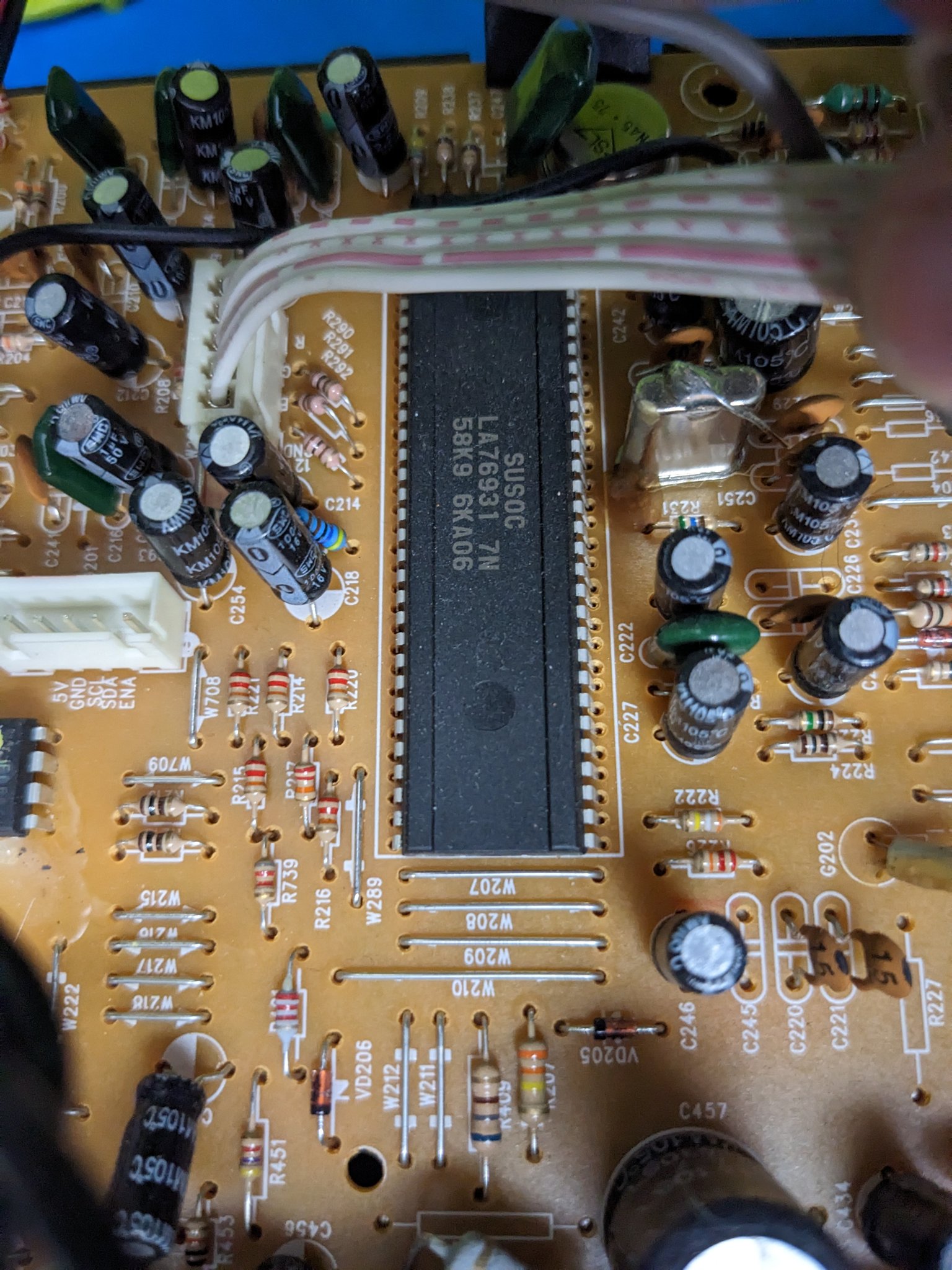

The Sanyo jungle chip has pins for YPbPr, so a component mod is possible. Unfortunately, it is unknown how to get into the service menu.
Gallery
Specifications | |
---|---|
Brand: | Kids Station Toys |
Manufacturer: | Unknown |
Model: | KSK7501 |
Series: | Shrek |
Viewable Size: | 13" |

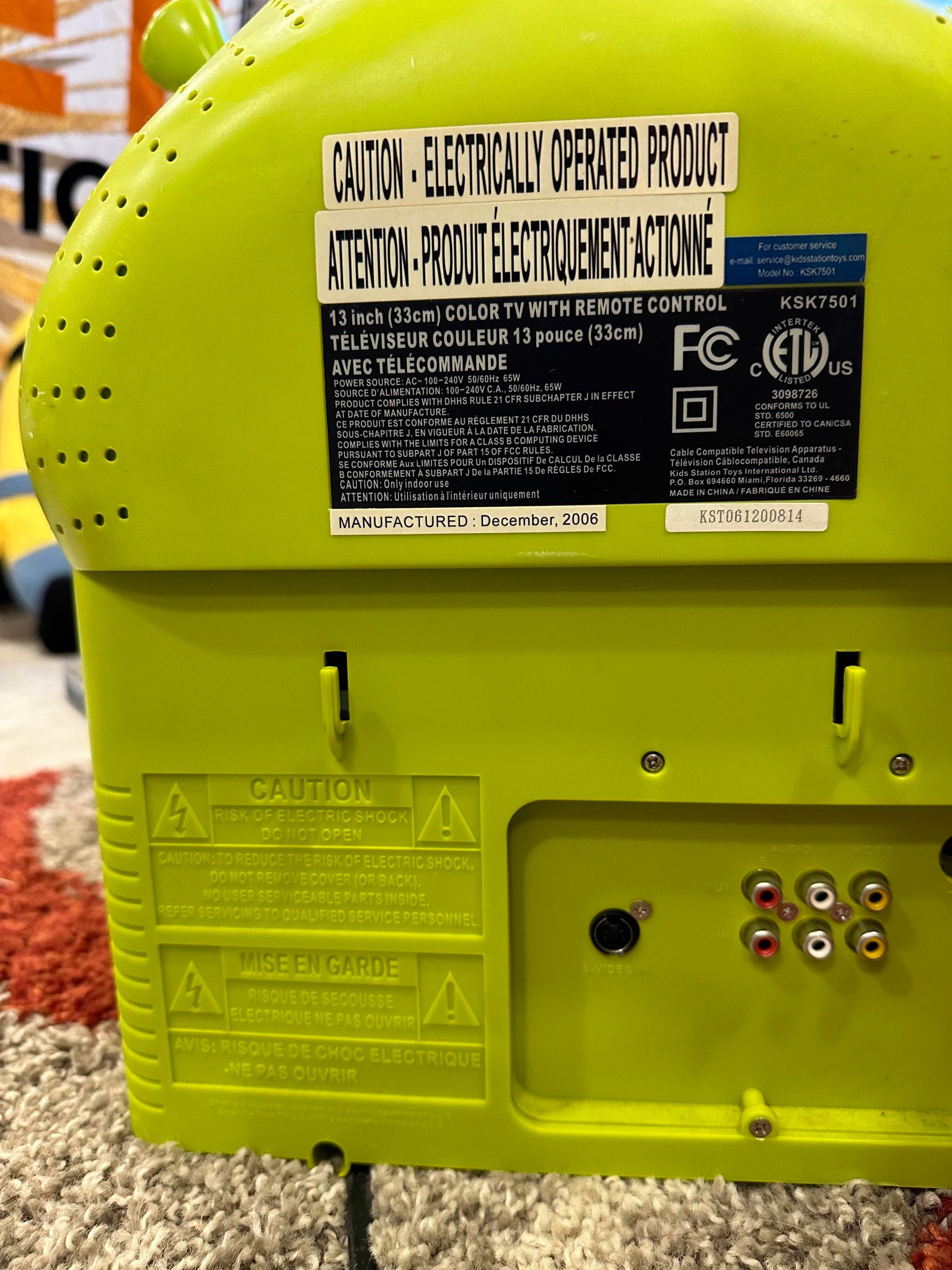

Inputs: | Composite, S-Video, RF |
Native Resolutions: | 240p, 480i, 288p, 576i |
Horizontal Scan Range: | 15 kHz |
Vertical Scan Range: | 50 Hz, 60 Hz |
Formats: | NTSC, PAL |
Aspect: | 4:3 |
Adjustments: | OSD Customer Controls |
Jungle: | Sanyo, LA76931 |

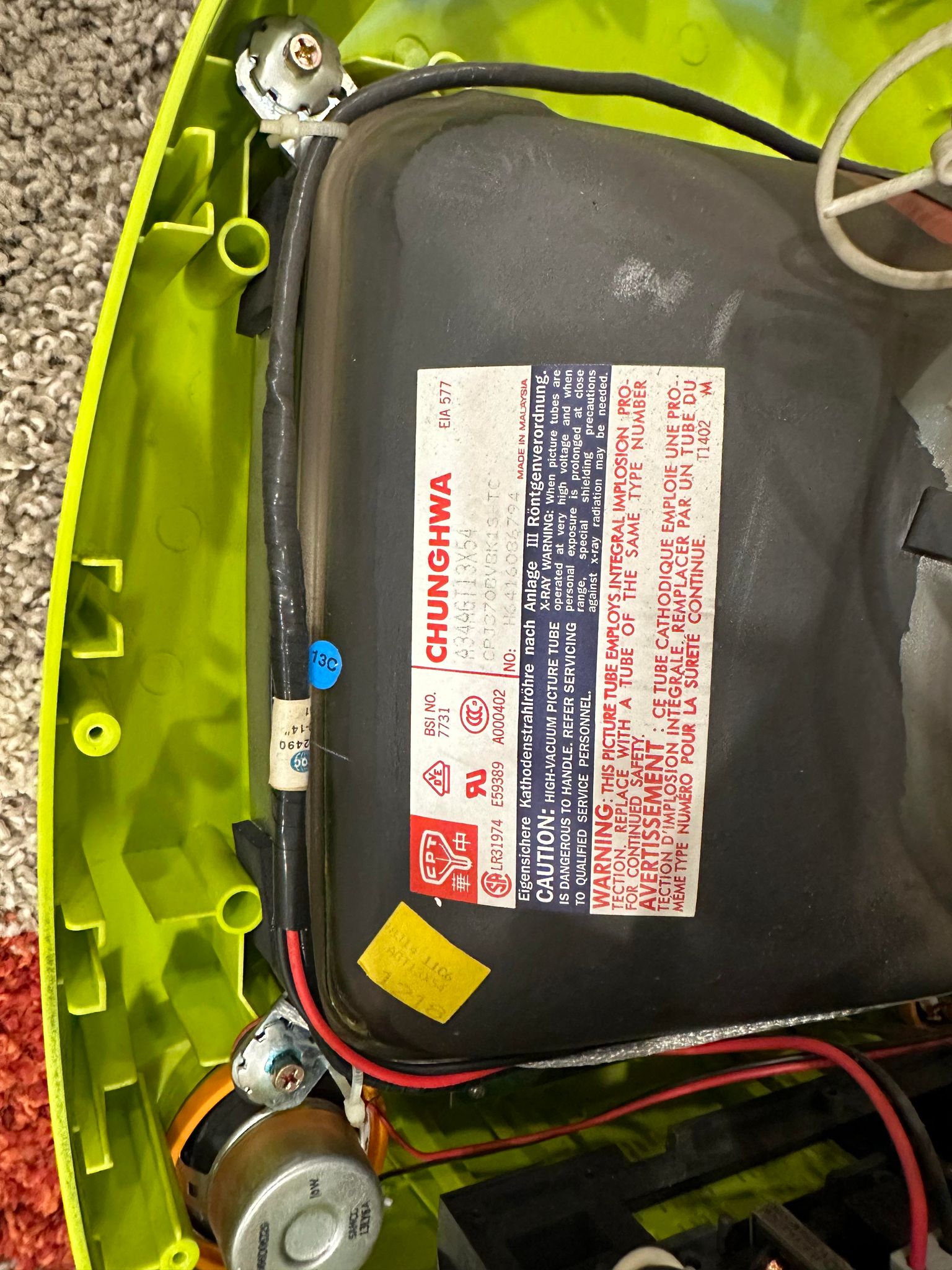

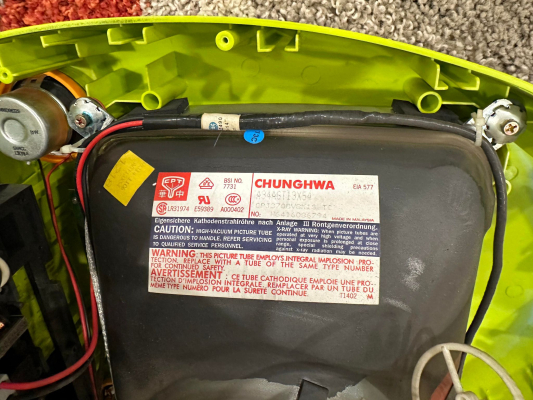

Tube: | Chunghwa , A34AGT13X , A34AGT13X54 |
Mask: | Slot |
Removable Glare Film: | No |
Speakers: | Stereo |
Application: | Consumer |
Launched: | 2006 |
Country of Manufacture: | China |
Degaussing: | Automatic on Power-on |
Tag: | Needs Owners Manual, Needs Service Manual |
