| Specifications | |
|---|---|
| Brand: | KMC |
| Manufacturer: | Goldstar |

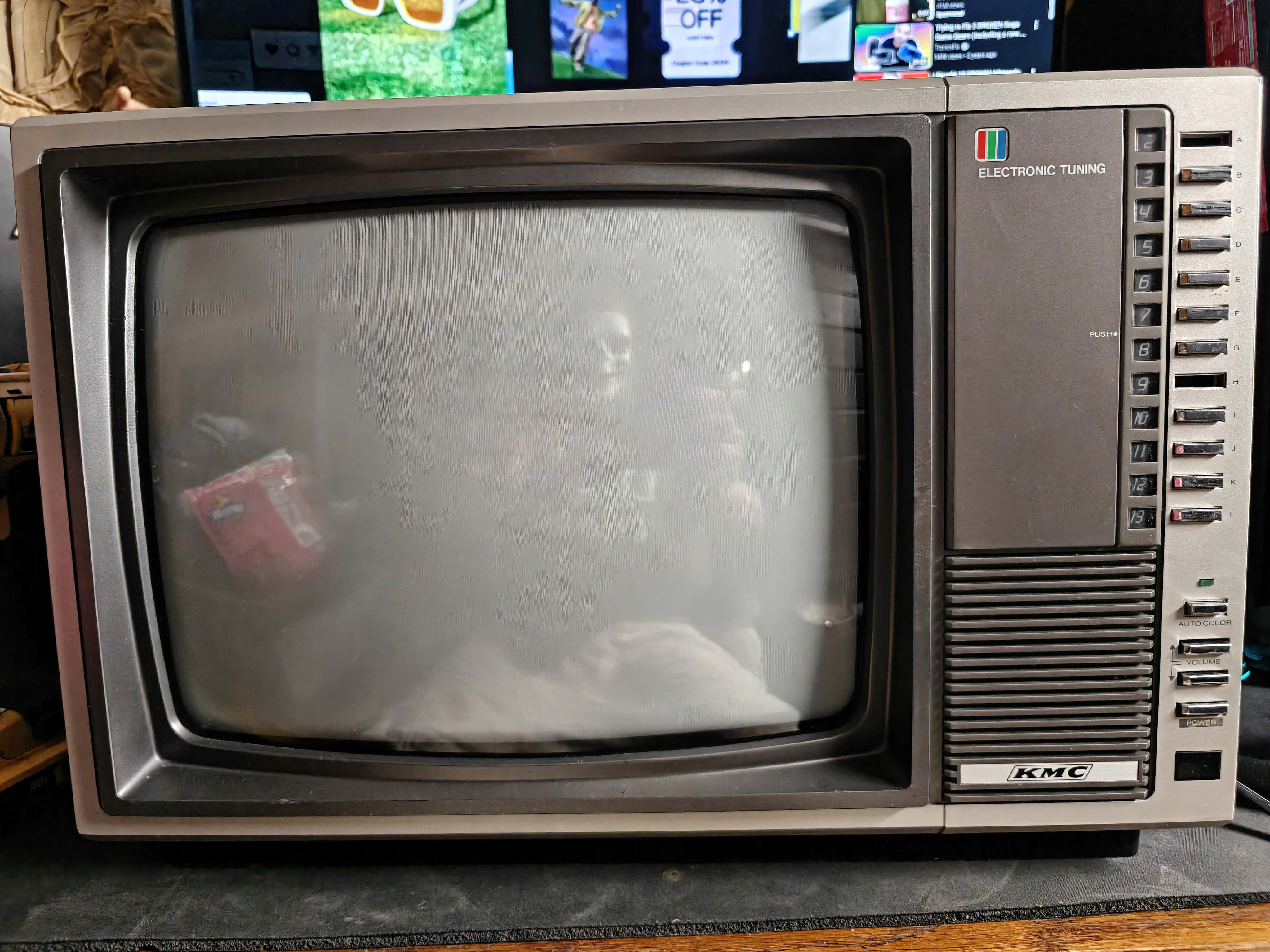

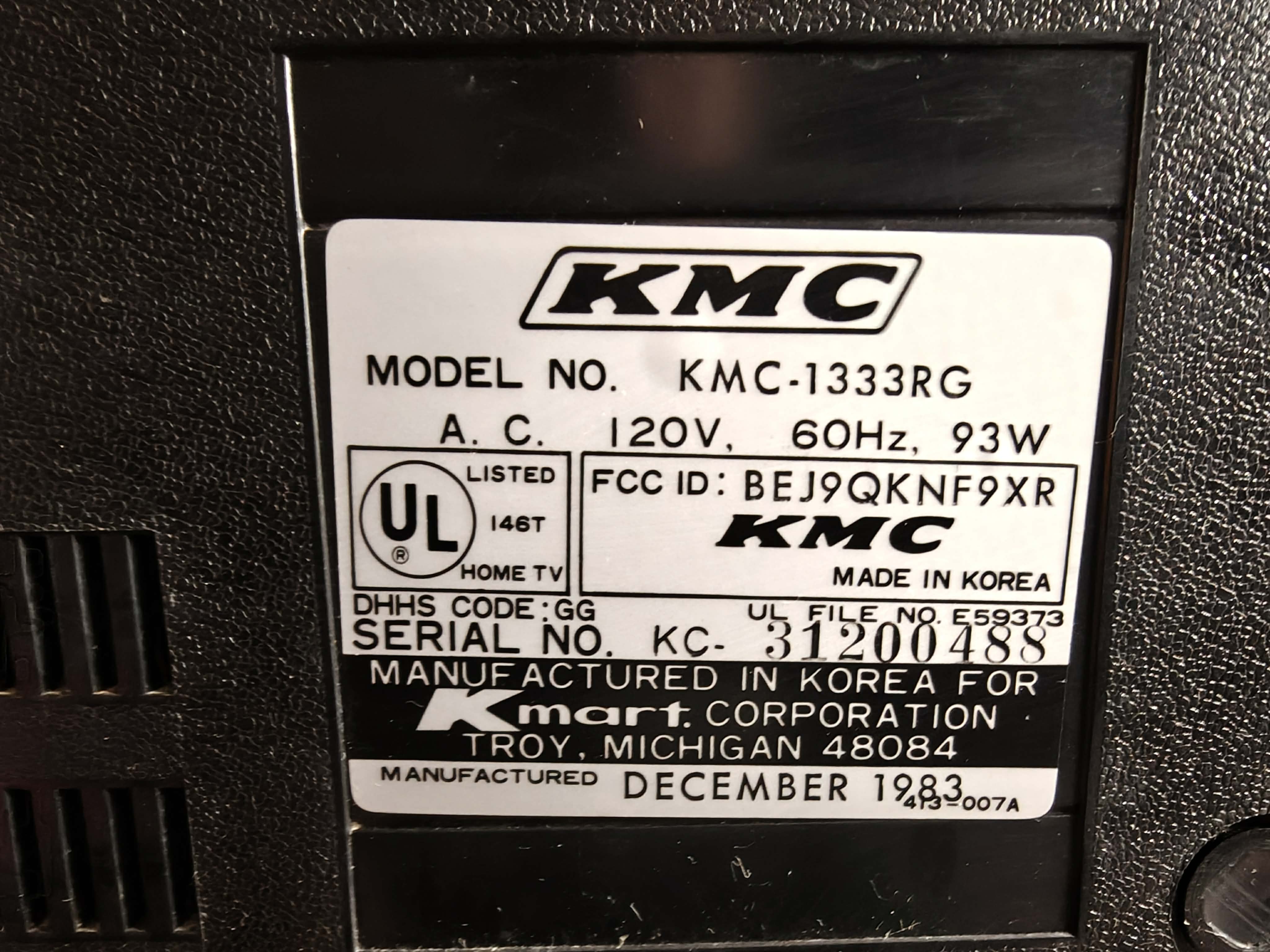

| Model: | KMC-1333RG |
| Series: | KMC |
| Viewable Size: | 13" |

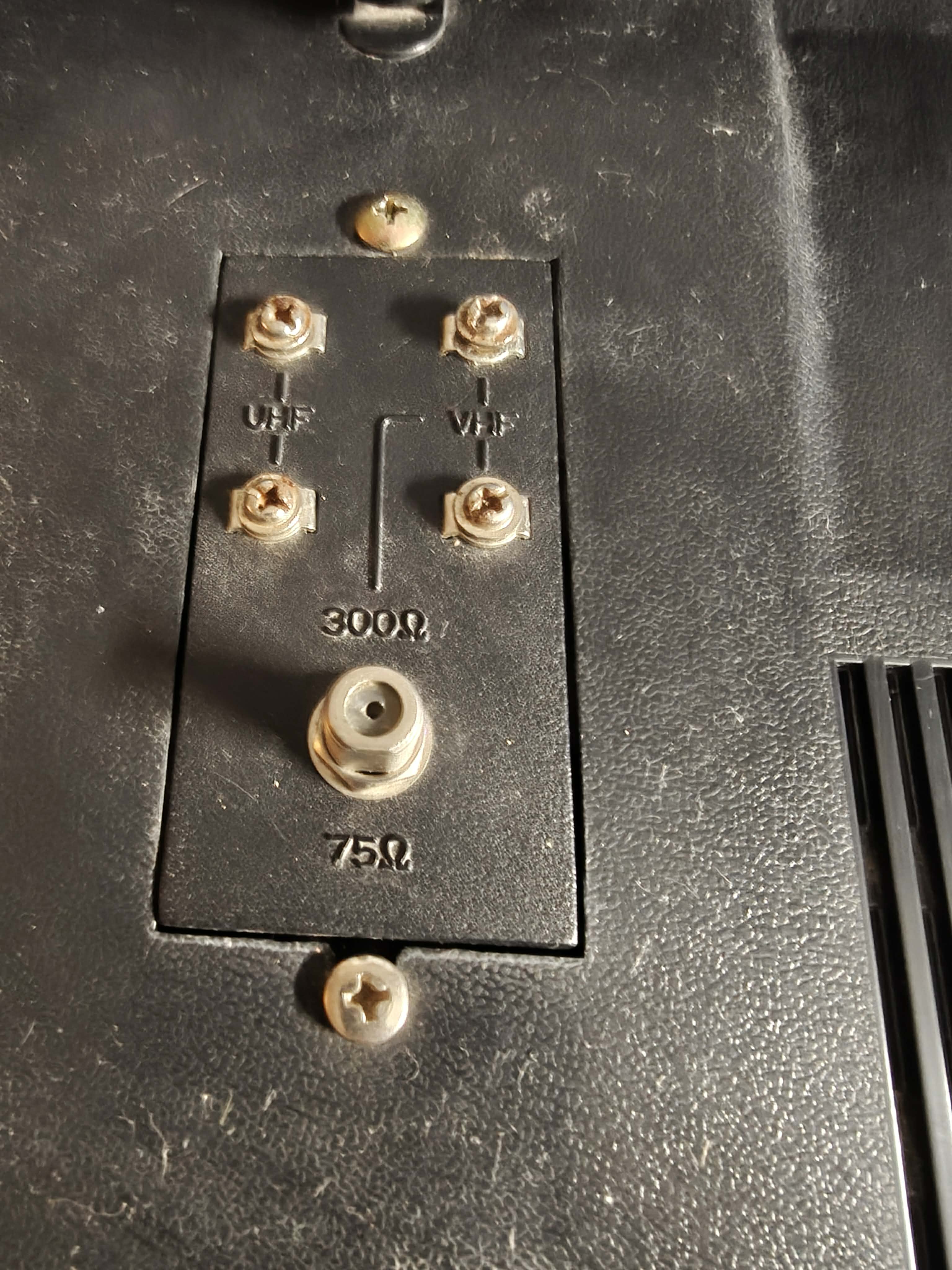

| Input Signals: | RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |

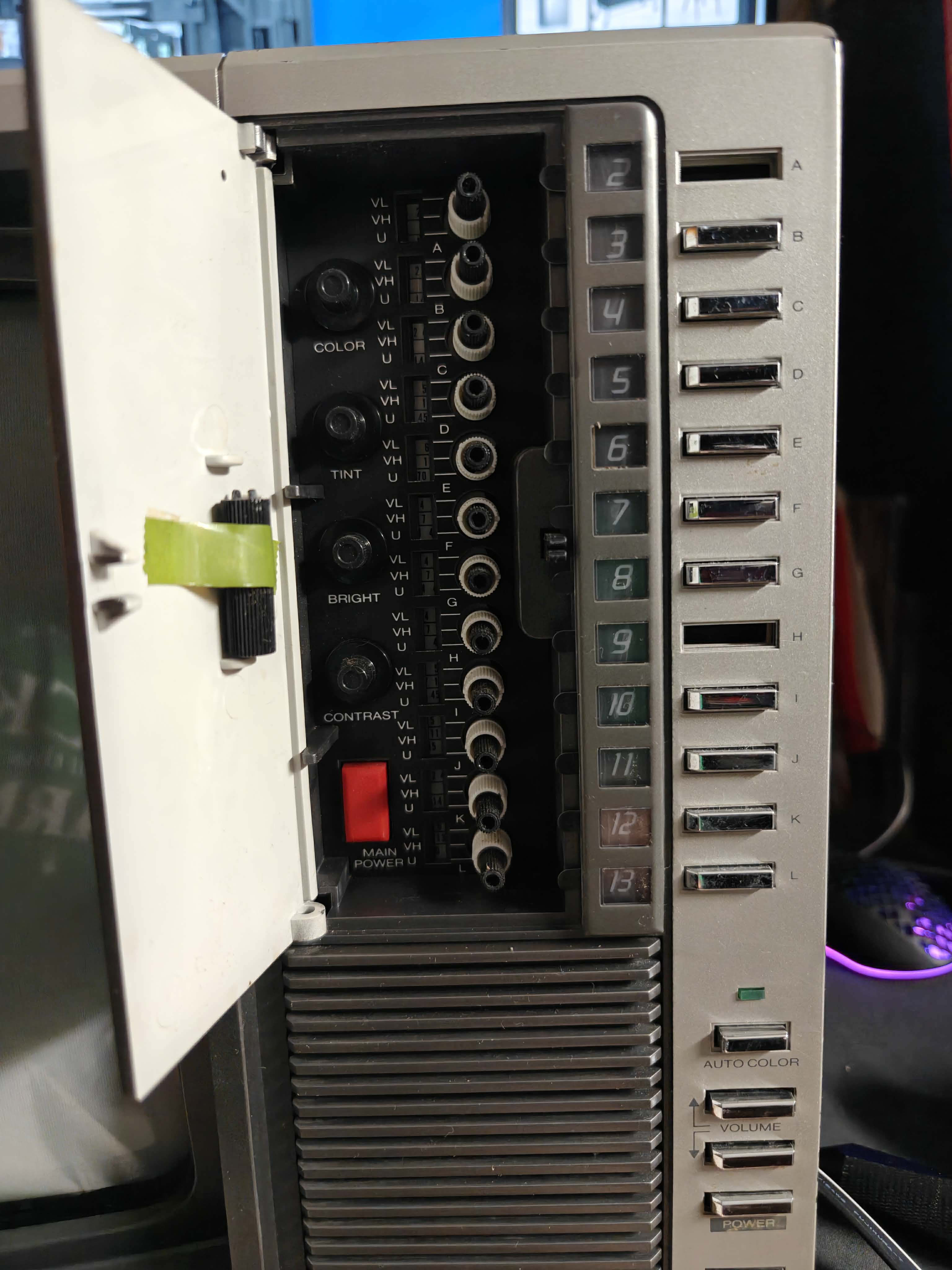

| Adjustments: | Internal Potentiometers, External Potentiometers |

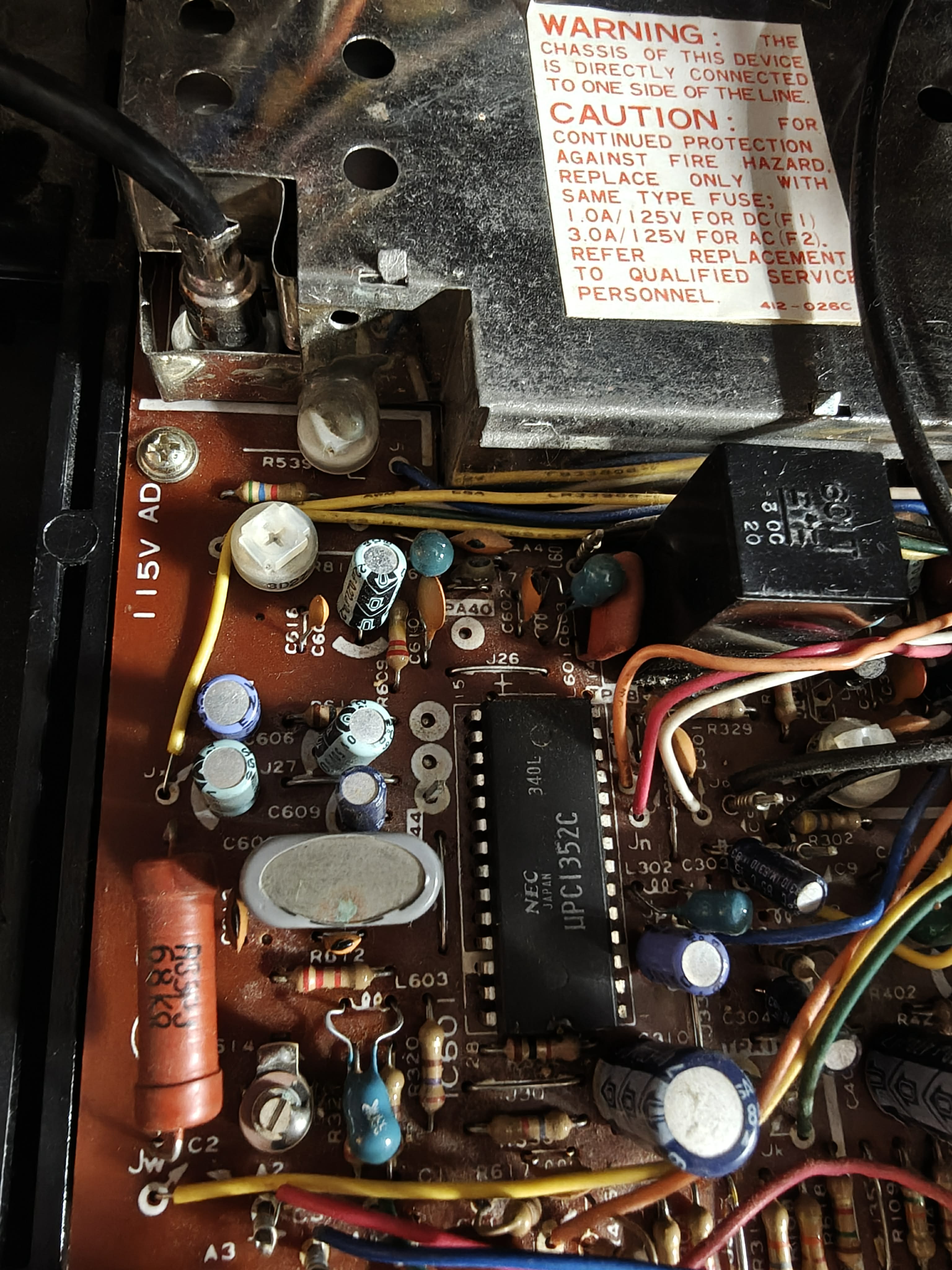

| Jungle IC: | NEC, UPC1352C |
| Comb Filtering: | None |

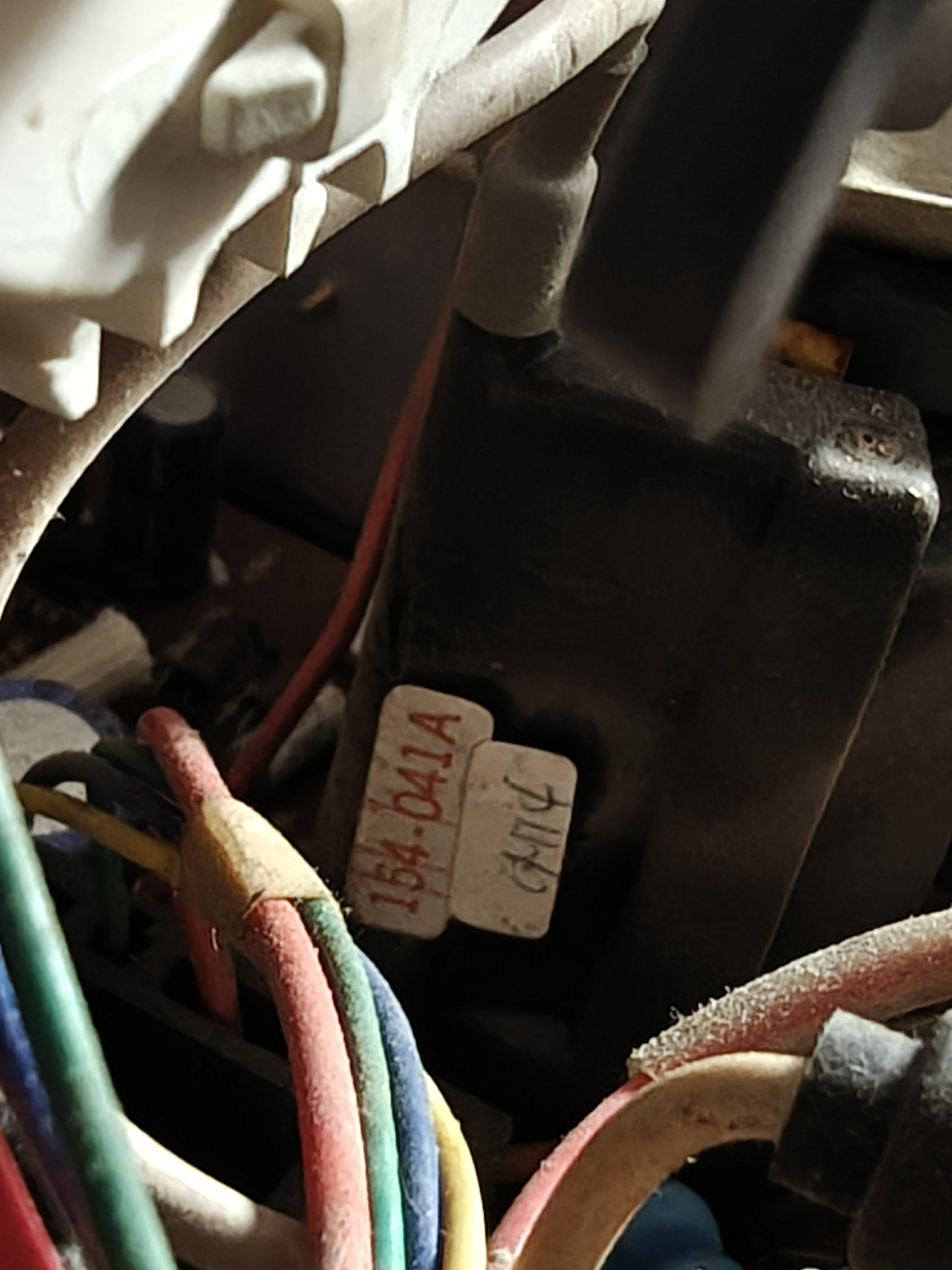

| Flyback: | 154-041A |
| Focus Type: | Single |

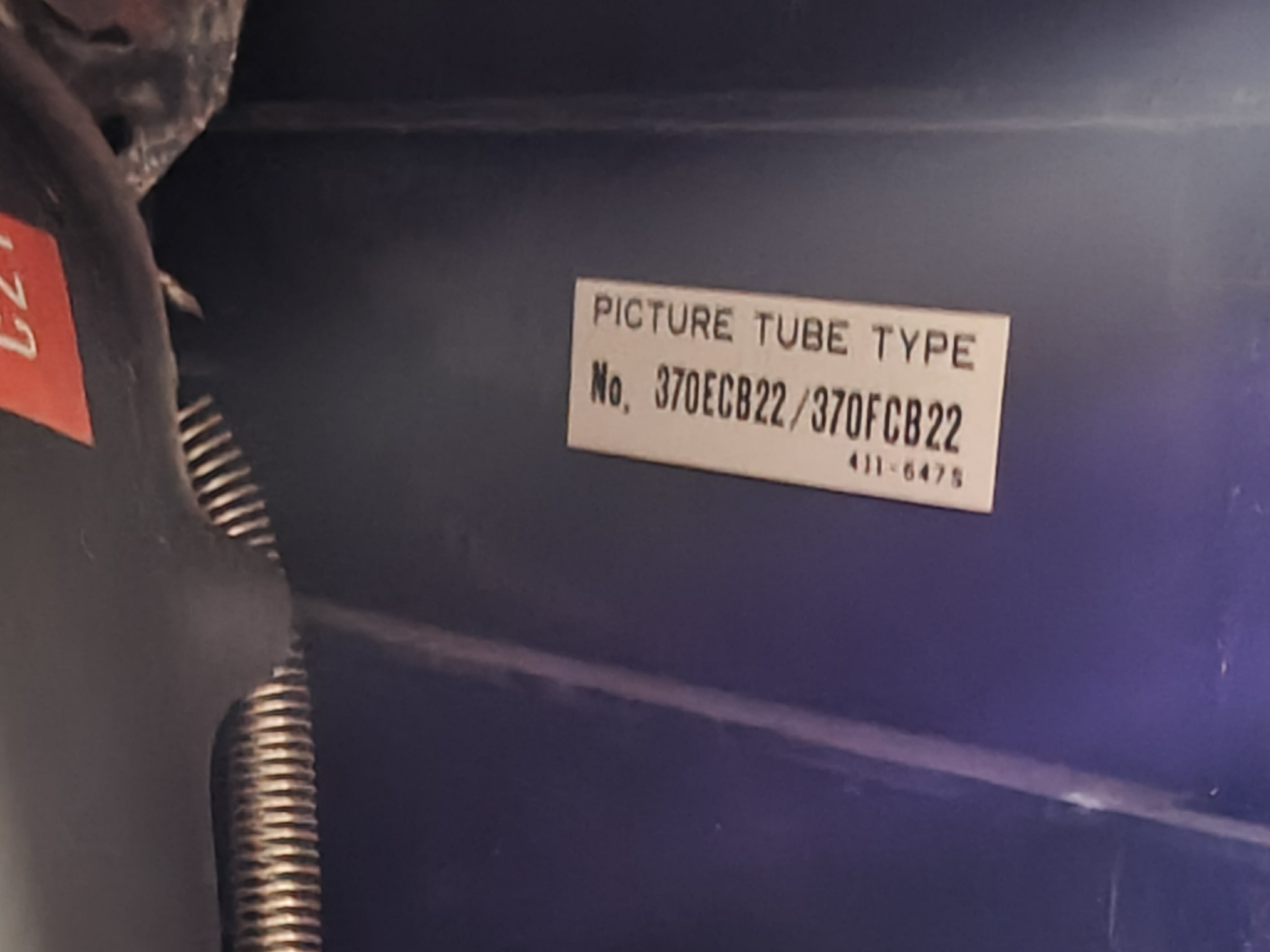

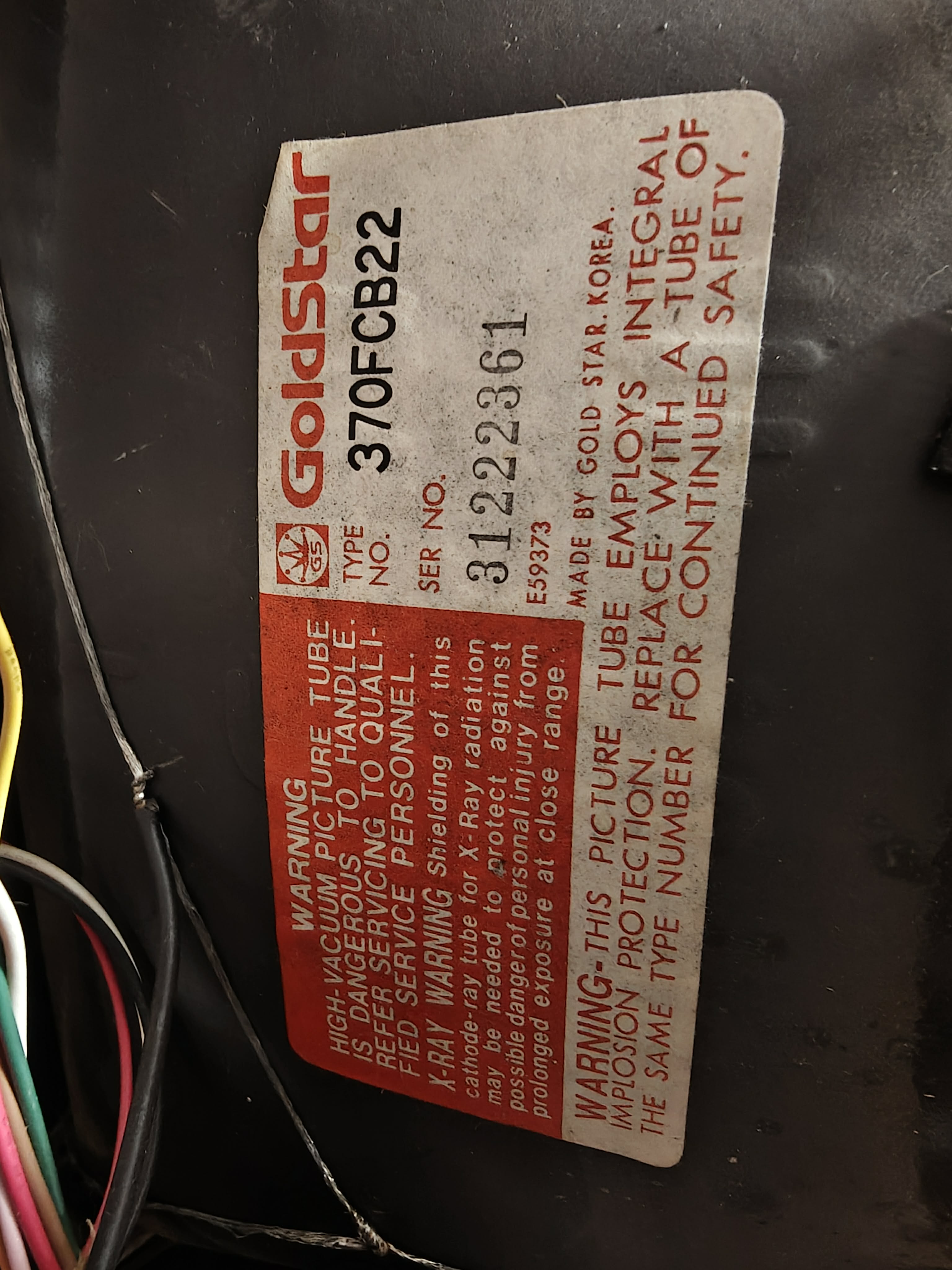

| Tube: | Hitachi , Goldstar , 370FCB22 , 370ECB22 |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |

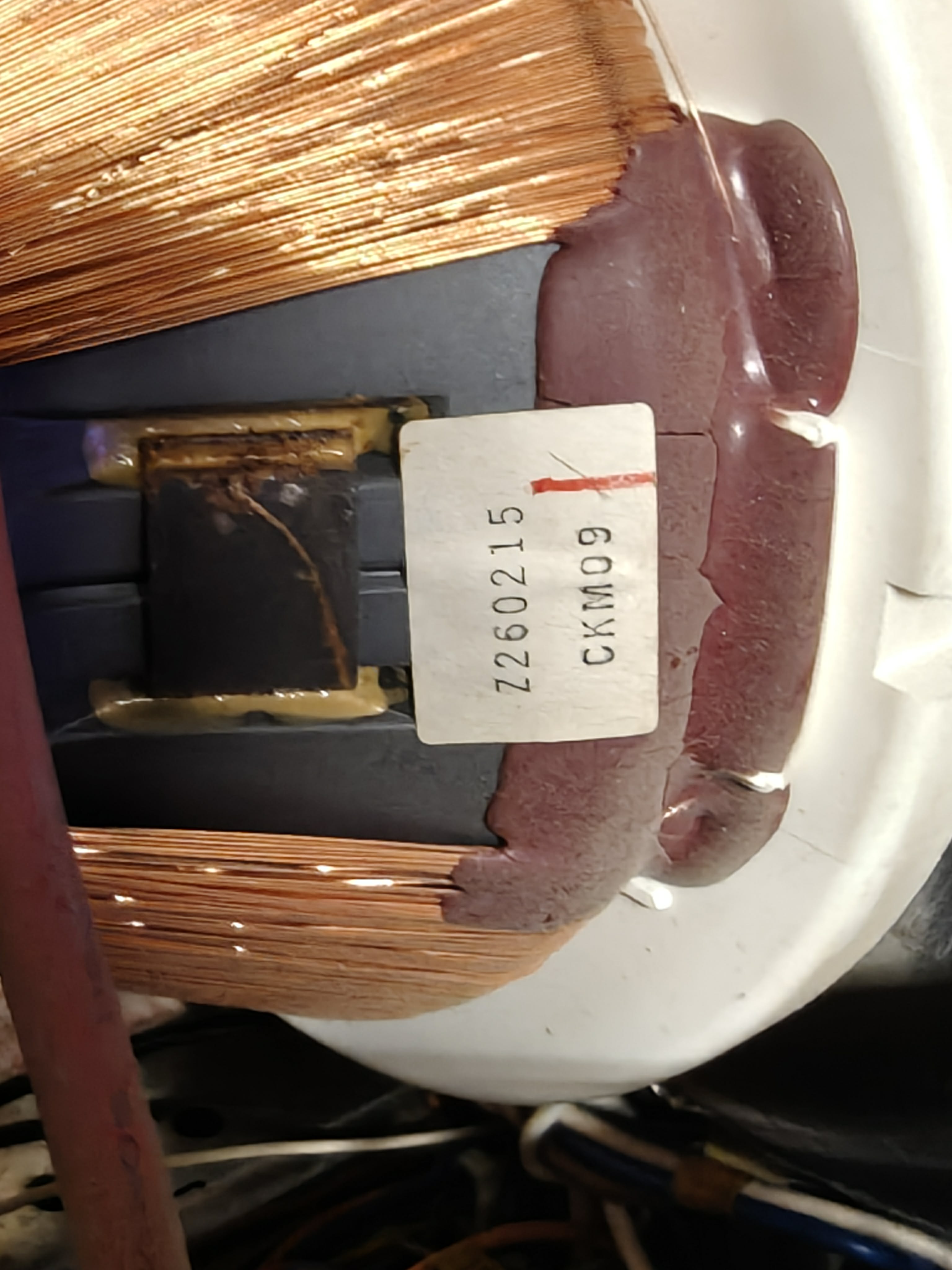

| Yoke: | Z260215, CKM09 |
| Speakers: | Mono, Headphone Jack |

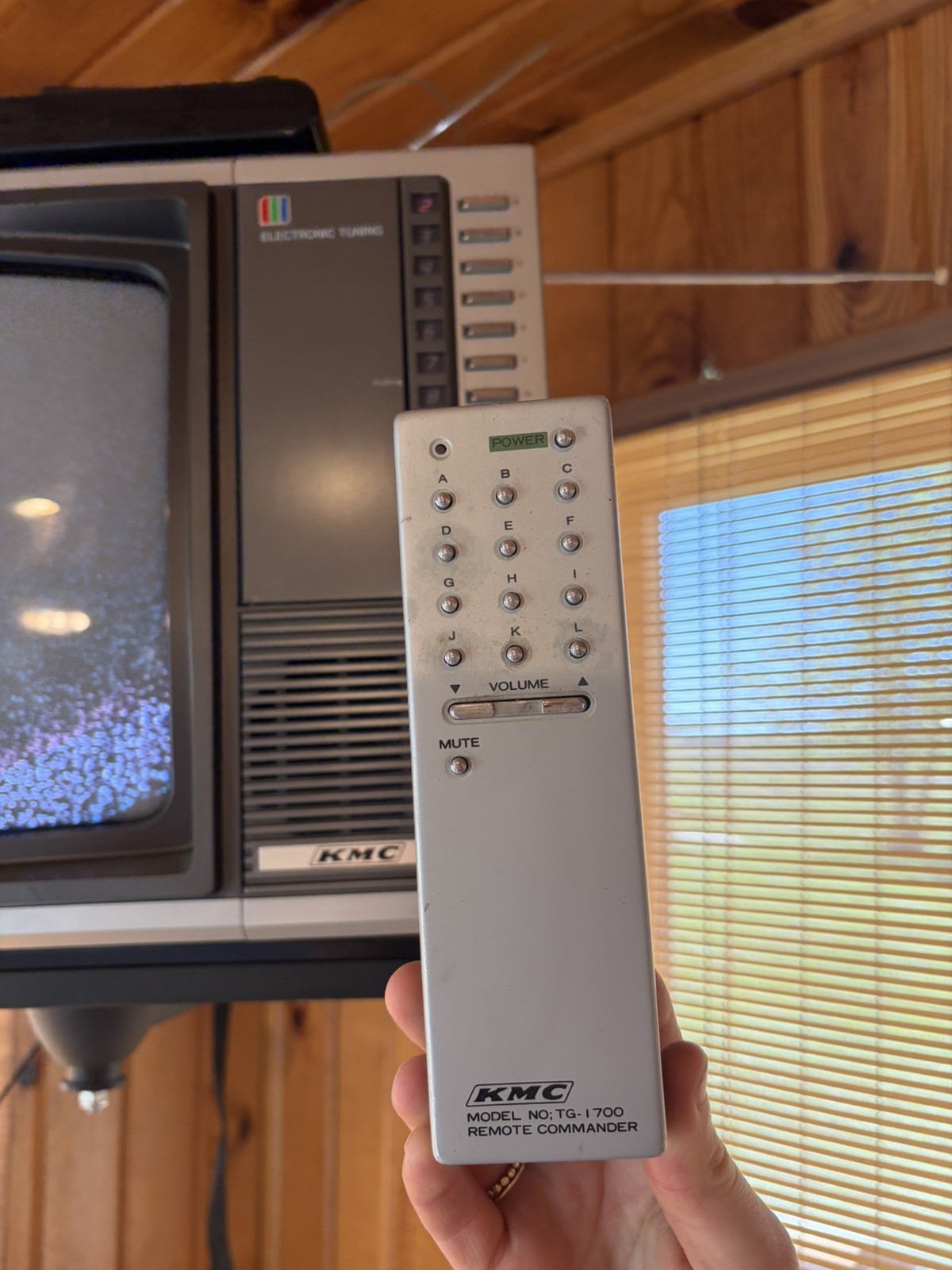

| Remote: | TG-1700 |

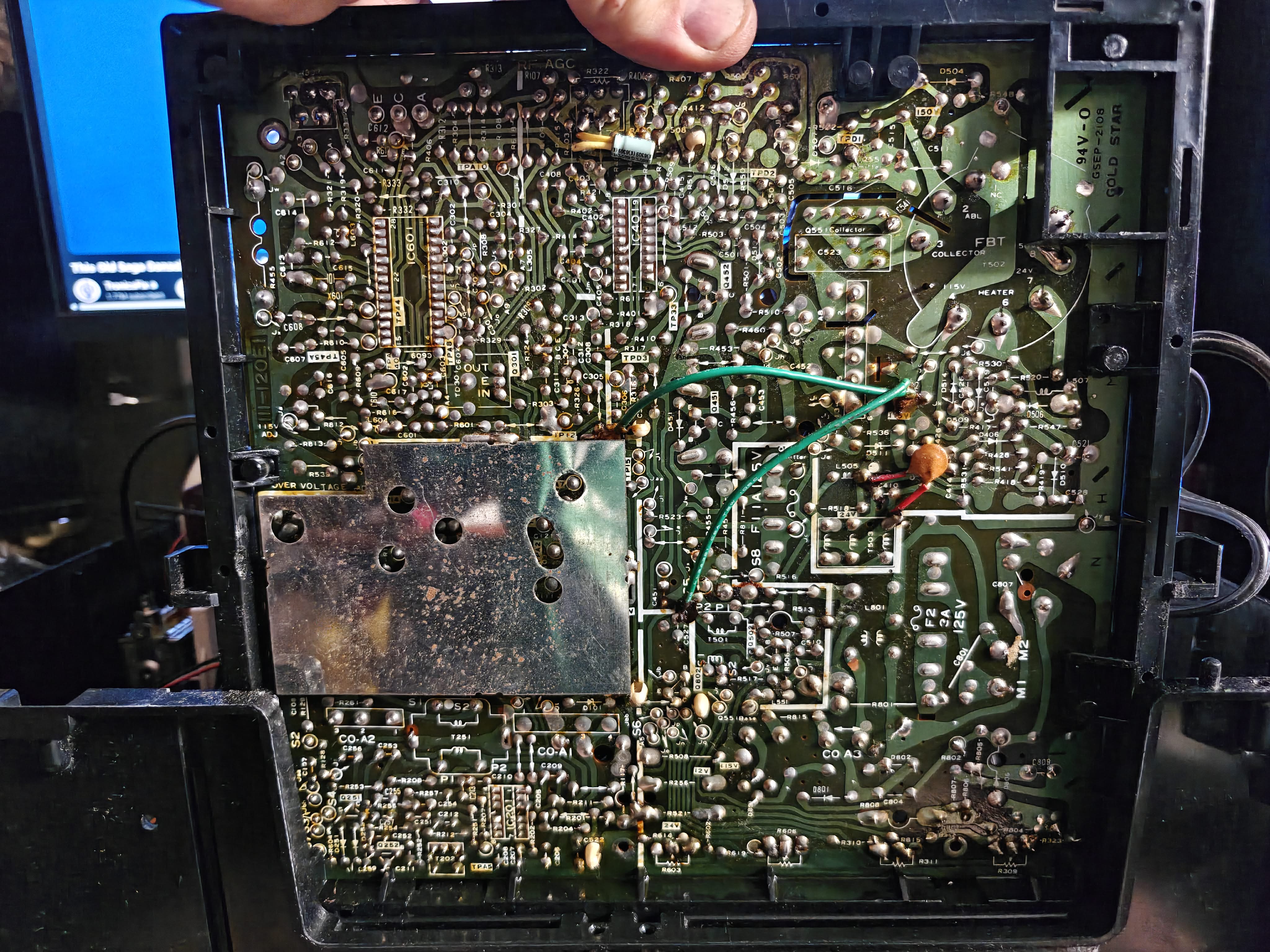

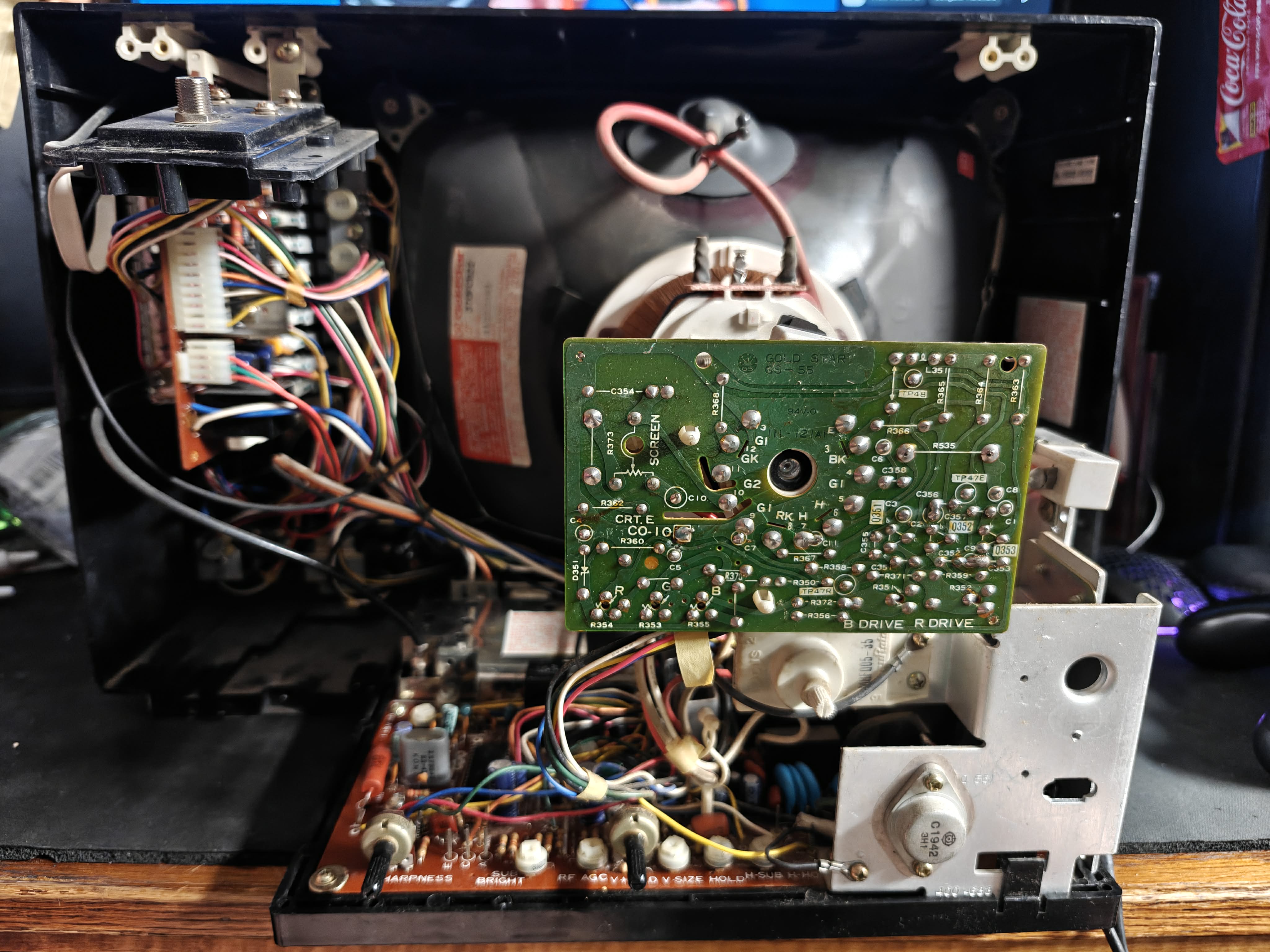

| Chassis: | NF9X |
| Weight: | 29.98 lbs (13.6 kg) |
| Dimensions (W/H/D): |
475 x 317 x 317 mm
(18.7 x 12.5 x 12.5") |
| Application: | Consumer |

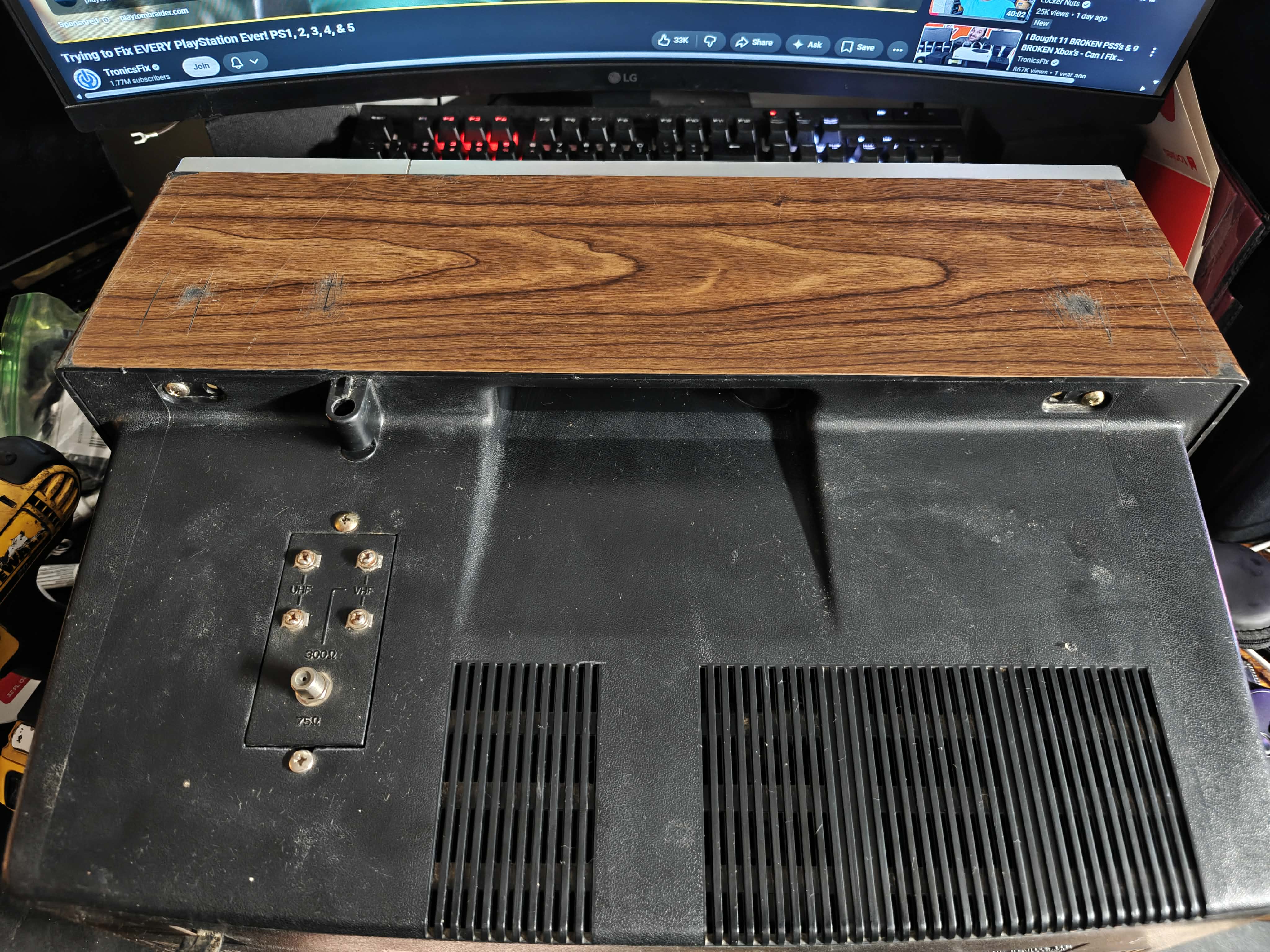

| Cabinet Material: | Plastic, Simulated Woodgrain |
| Launched: | 1983 |
| MSRP: | 279 USD |
| Country of Manufacture: | Korea |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs Service Manual |
