Summary

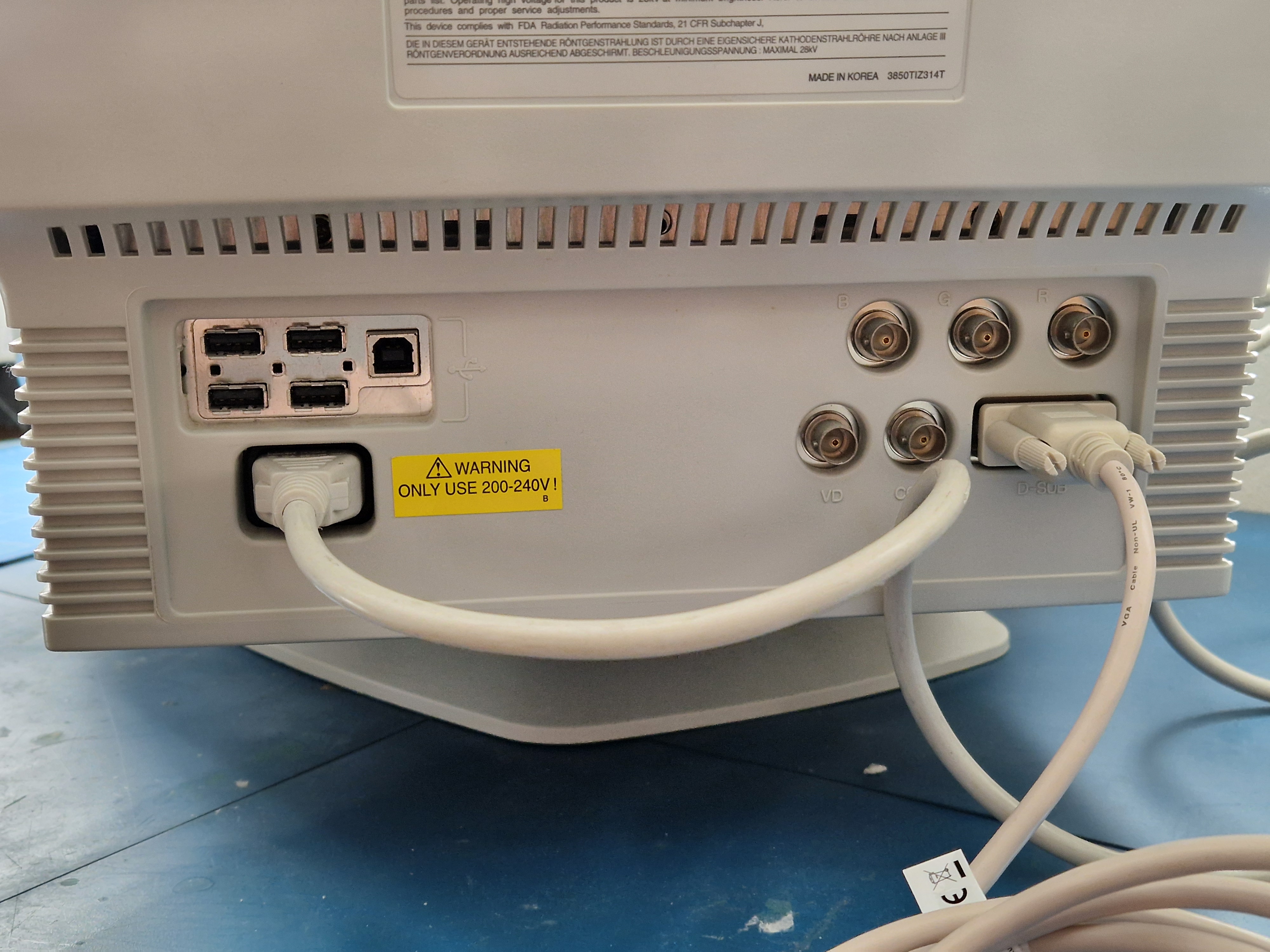

A highly capable 19" (18" viewable) flat screen CRT monitor from LG's Flatron line. Includes both VGA and BNC inputs, as well as a USB hub. The CRT uses a slot mask, as opposed to the more common shadow mask or aperture grille designs. Impressive 107kHz horizontal and 200Hz vertical scan ranges. Maximum resolution of 1600x1200 @85Hz
Manuals
Gallery
| Specifications | |
|---|---|
| Brand: | LG |
| Manufacturer: | LG |
| Model: | Flatron 915FT Plus |
| Series: | Flatron |
| Viewable Size: | 18" |
| Input Signals: | VGA, RGBHV |
| Sync: | HV Sync, Sync on Green |
| Native Resolutions: | VGA, SVGA, SXGA, QXGA |
| Horizontal Scan Range: | 30 kHz, 107 kHz |
| Vertical Scan Range: | 50 Hz, 200 Hz |
| Aspect: | 4:3 |

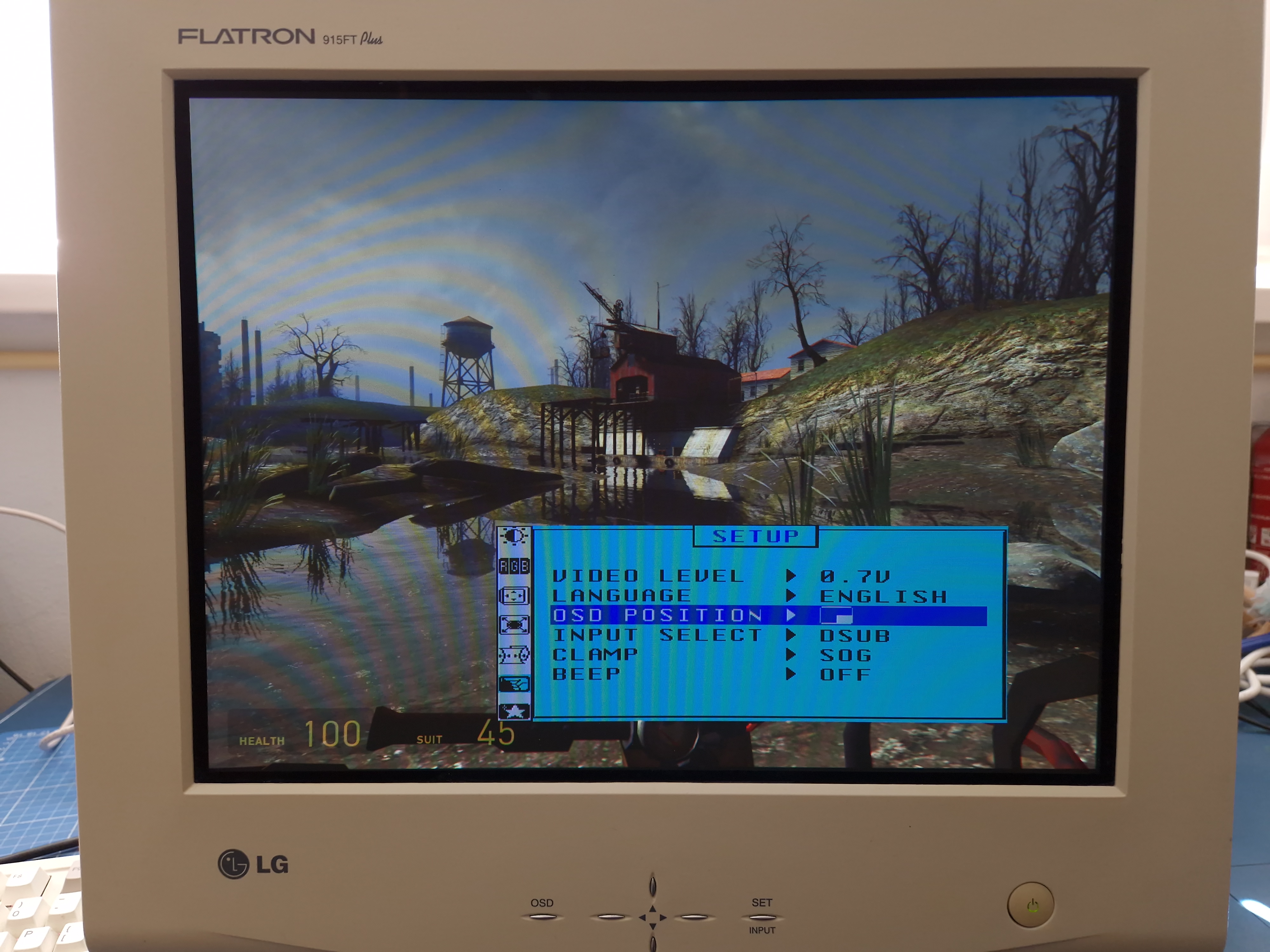

| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Tube: | LG , M46QDG423X01N6LD |
| Deflection: | 90° |
| Mask: |
Slot
|
| Pitch: | .24 mm, 0.24 mm |
| Speakers: | None |
| Remote: | None |
| Chassis: | CA-72 |
| Weight: | 58.8 lbs (26.7 kg) |
| Dimensions (W/H/D): |
470 x 470 x 409 mm
(18.5 x 18.5 x 16.1") |
| Application: | Computer Monitor |
| Cabinet Material: | Plastic |
| Launched: | 2000 |
| Country of Manufacture: | Korea |
| Market: | Europe |
| Power Standard: | 200-240V AC |
| Mounting: | Swivel Base |
| Degaussing: | Automatic on Power-on, Manual |
| Tag: | Needs Yoke Info, Community Submission |
