Loewe Aconda 30 (ACO 9303 S)
November 10, 2025, 12:49 pm
November 13, 2025, 1:53 am
Summary
High-end HD CRT by Loewe, made in Germany and launched in North America in January 2001. Has RF, composite, s-video, component, and VGA input. It can natively scan 480p/960i, 540p/1080i, and upconverts NTSC and PAL signals.
In 1999, Loewe partnered with Sensory Science Corporation (formerly Go-Video) for distribution of their sets in the USA. They were sold in limited numbers and were very expensive for the time. This set is among their very first flatscreen models.
(Special thanks to Josh Casey for the pics!)
Sensory Science’s Loewe digital televisions combine an unsurpassed level of video performance with a distinctive European design for a dynamic viewing experience. The picture yields a clearer, brighter and sharper image with unique features that offer numerous advantages over analog televisions. The units come in several different models and screen sizes, setting them apart from the rest of the industry. Loewe televisions also feature a highly intuitive on-screen operating system that effectively replaces the need for a traditional owner’s manual and offers retailers demonstrable points of differentiation from other brands.
Manuals
A year or so after the model's introduction, Loewe revised the chassis, likely to address the power supply issues:
Promo Materials
- Loewe Product Line 2001 Brochure
- Official US Webpage
- Sound and Vision Article
- Loewe AG 2001 Annual Report
Notes

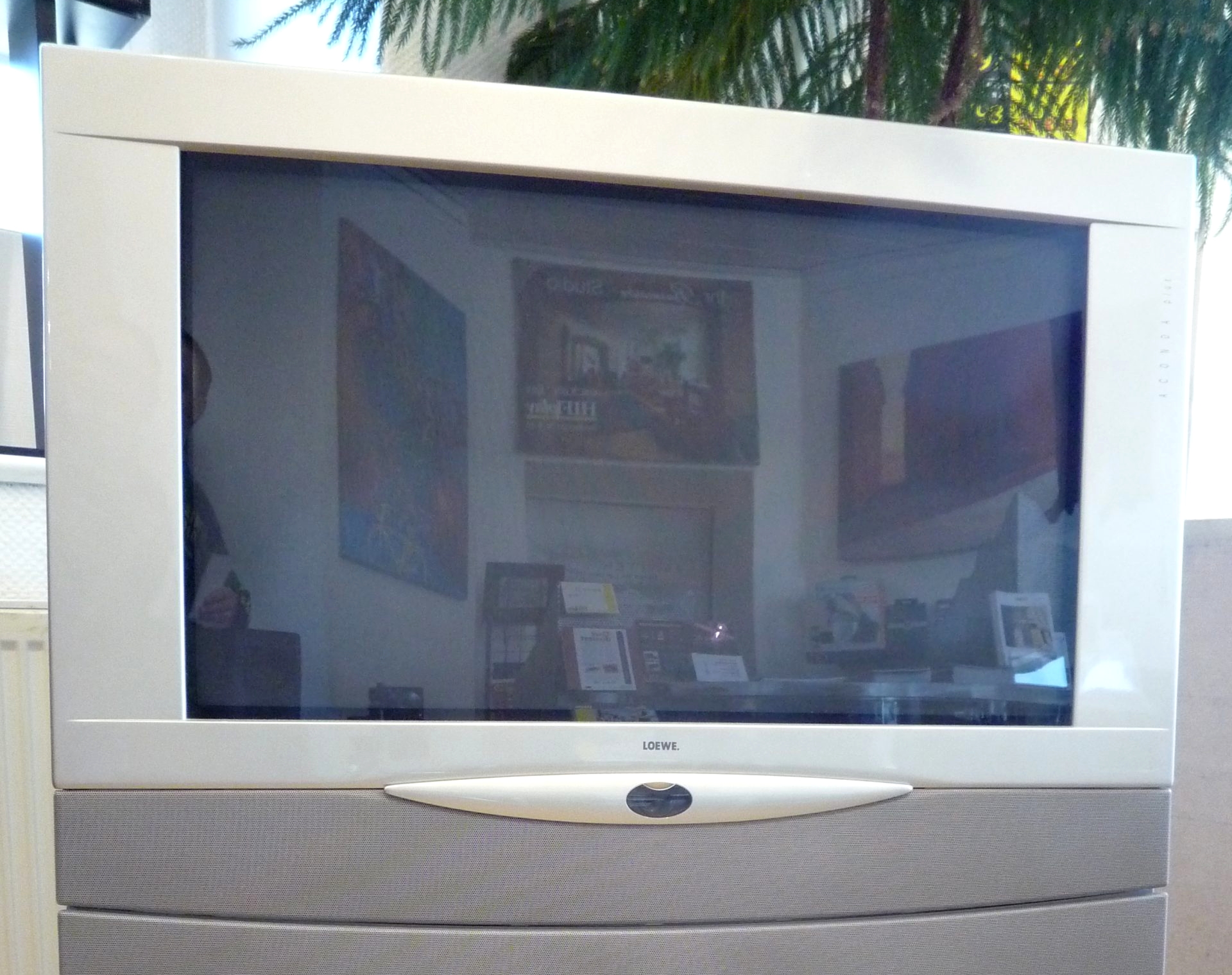

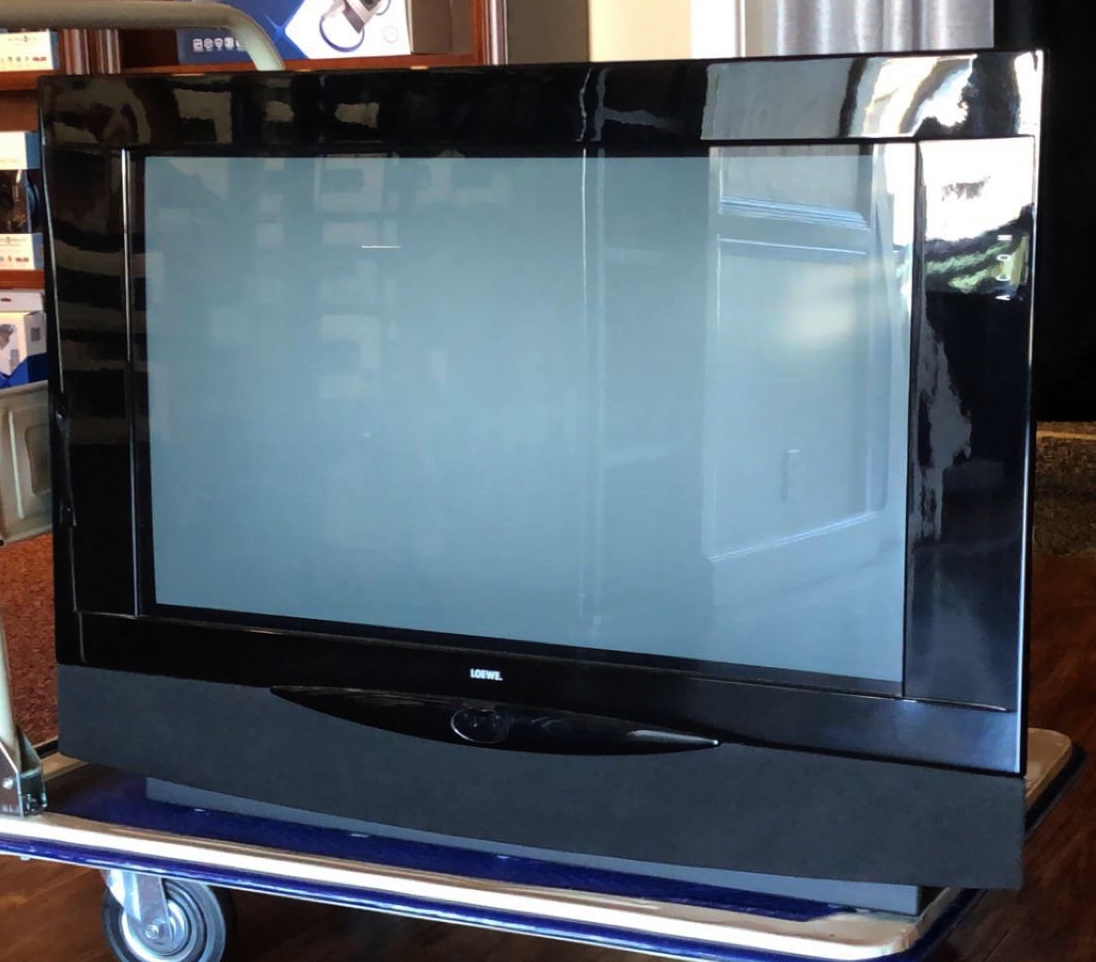

The "S" at the end of the model number stands for "Stratos Metallic" finish. There were Light Silver (LS) and Piano Black (PB) finish variants as well:


Over the years there have been reports of power supply failure and relay faults with these sets. It is advised that if you do find one of these models, be aware it may need servicing at some point in the future.
The VGA input accepts higher resolutions, but the component input is SD only.

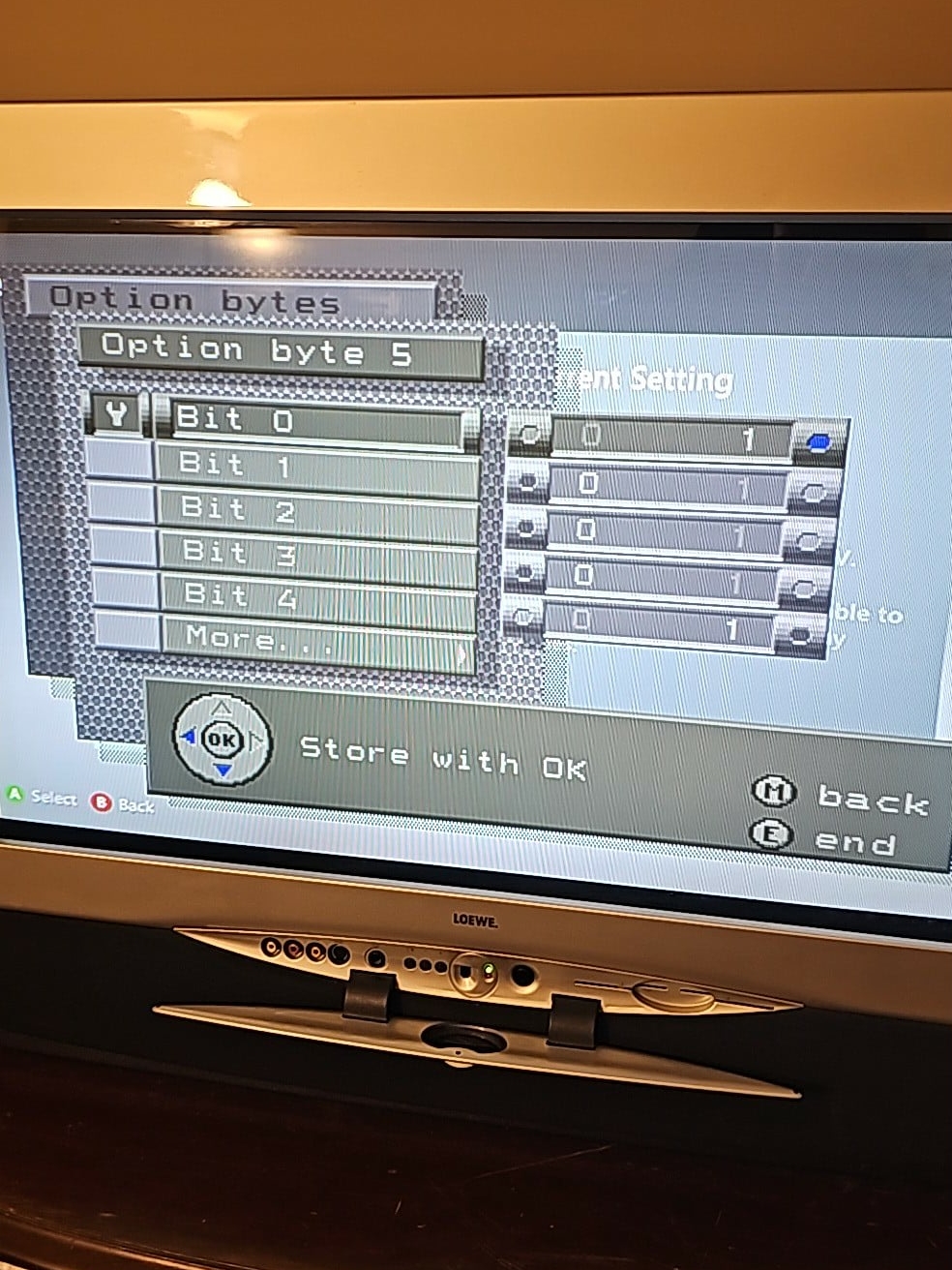

This set has velocity modulation. To disable it, go into the service menu and set option byte 5, bit 1 to "0":

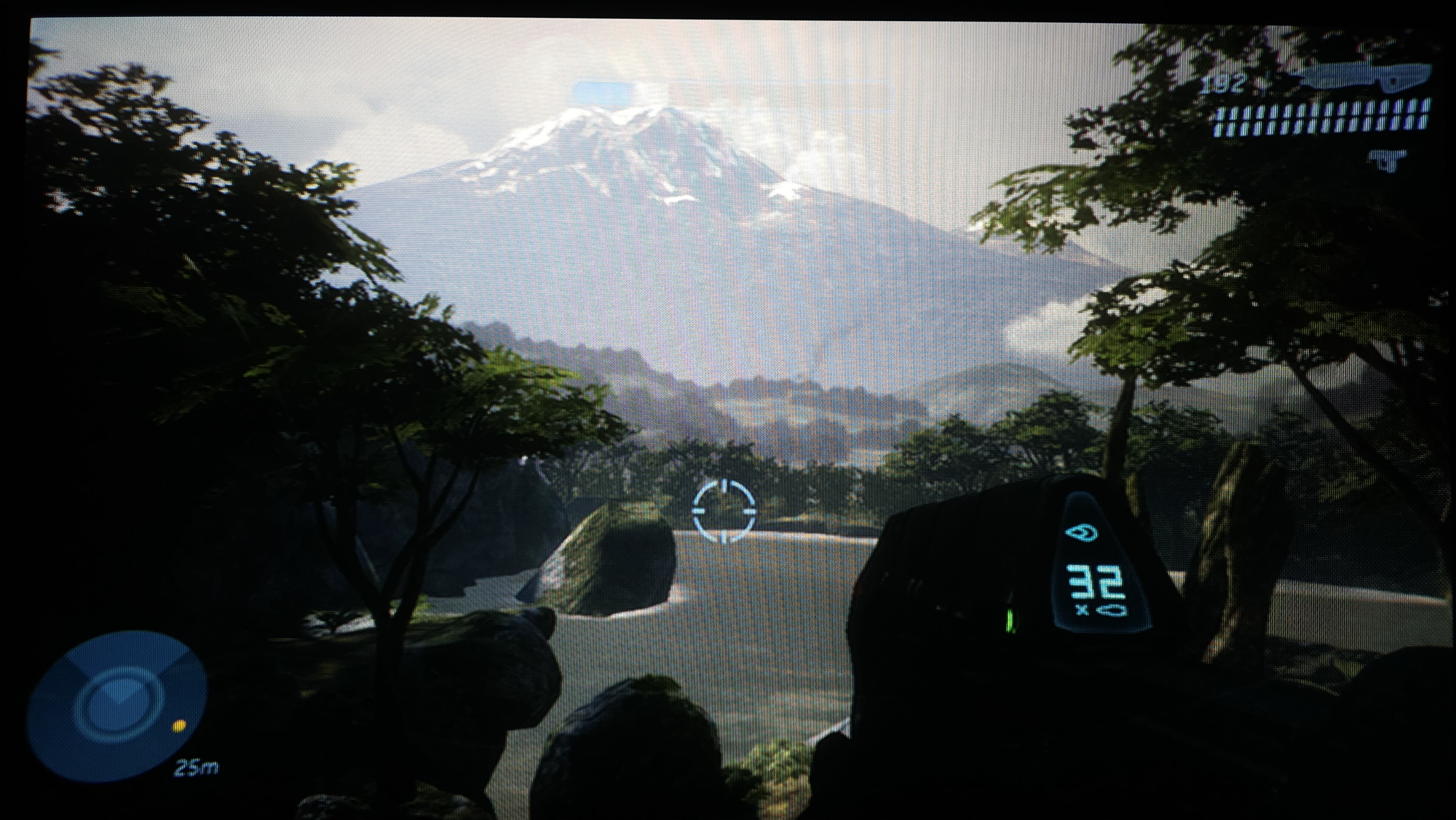

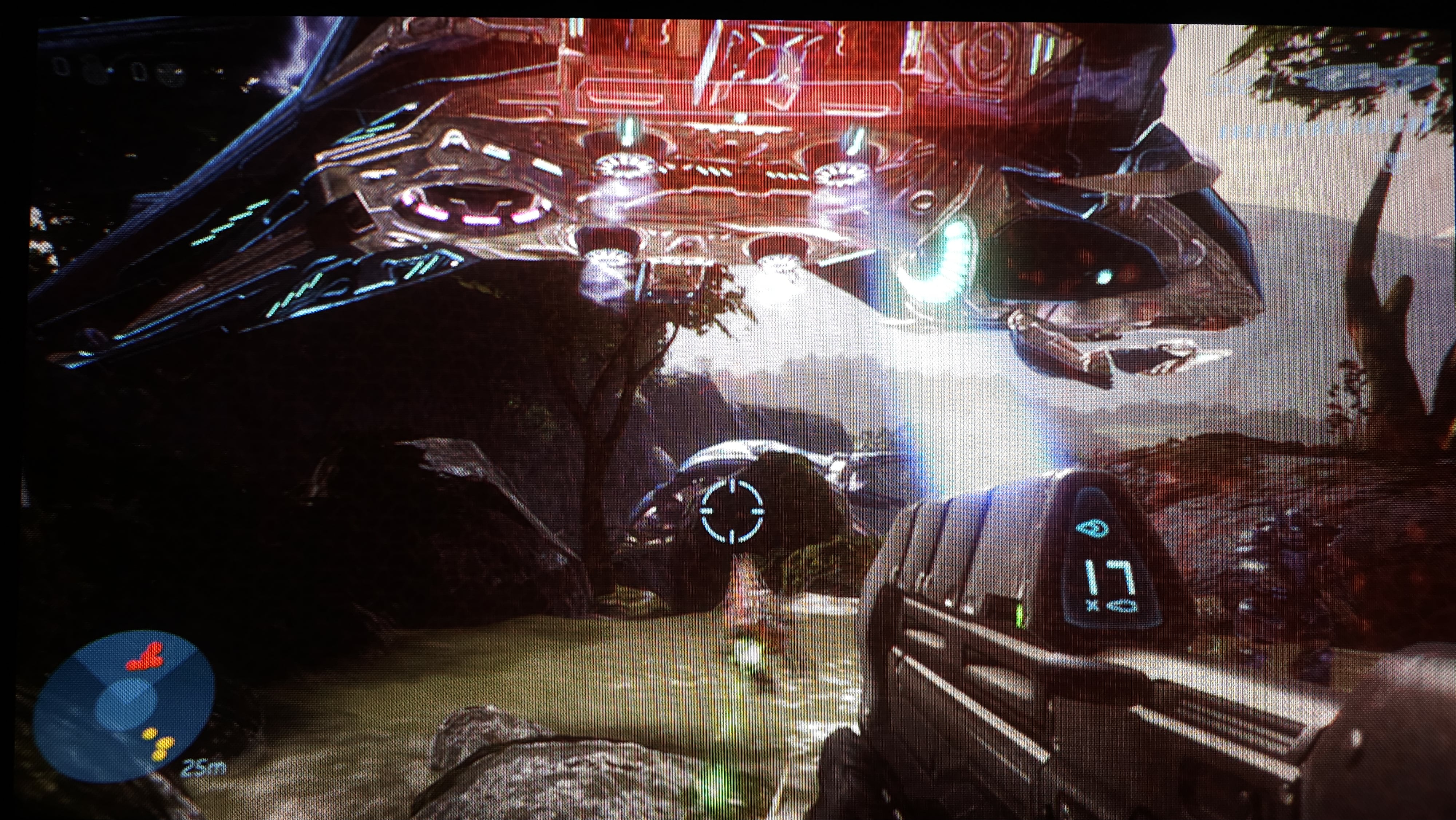

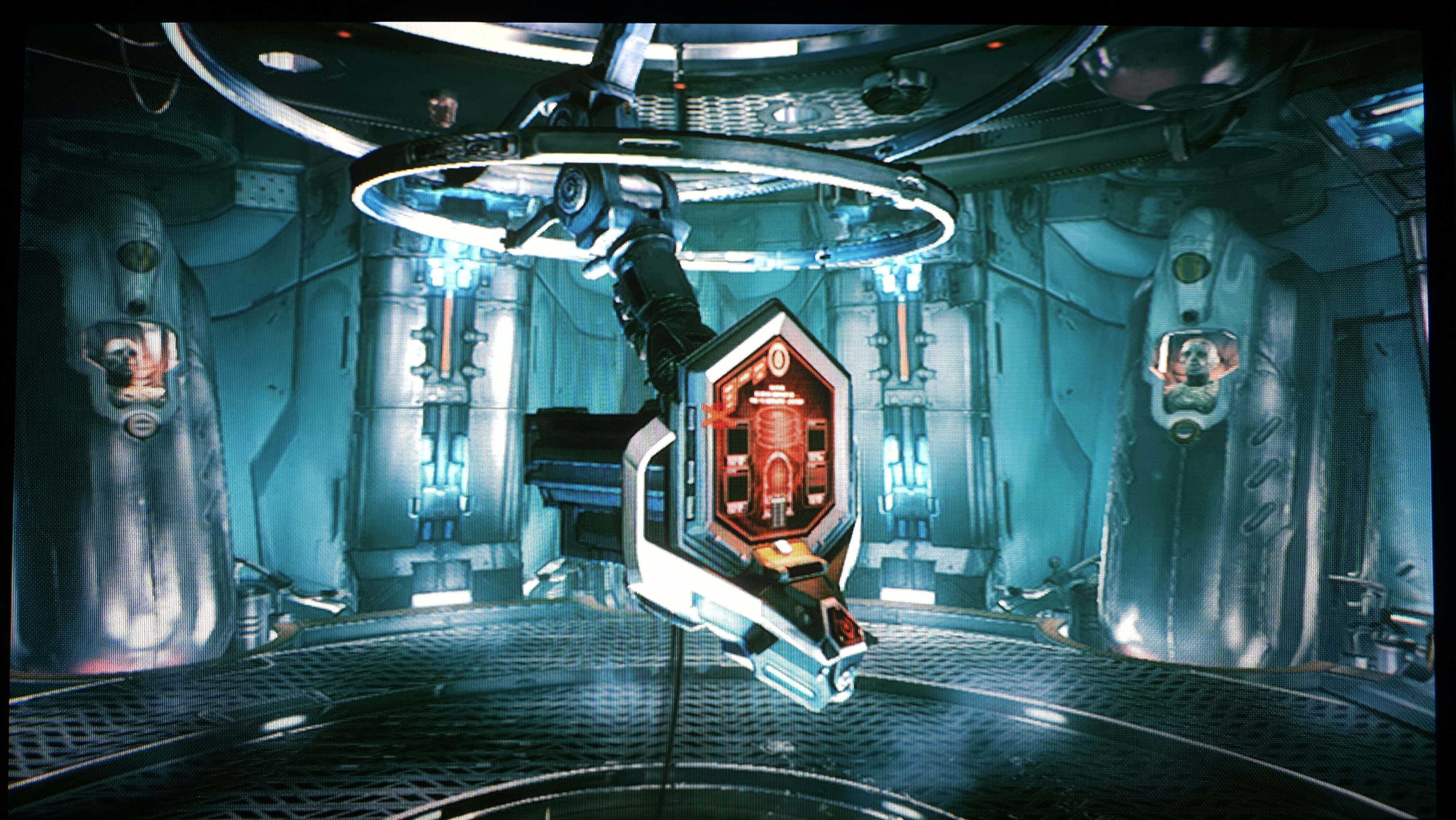

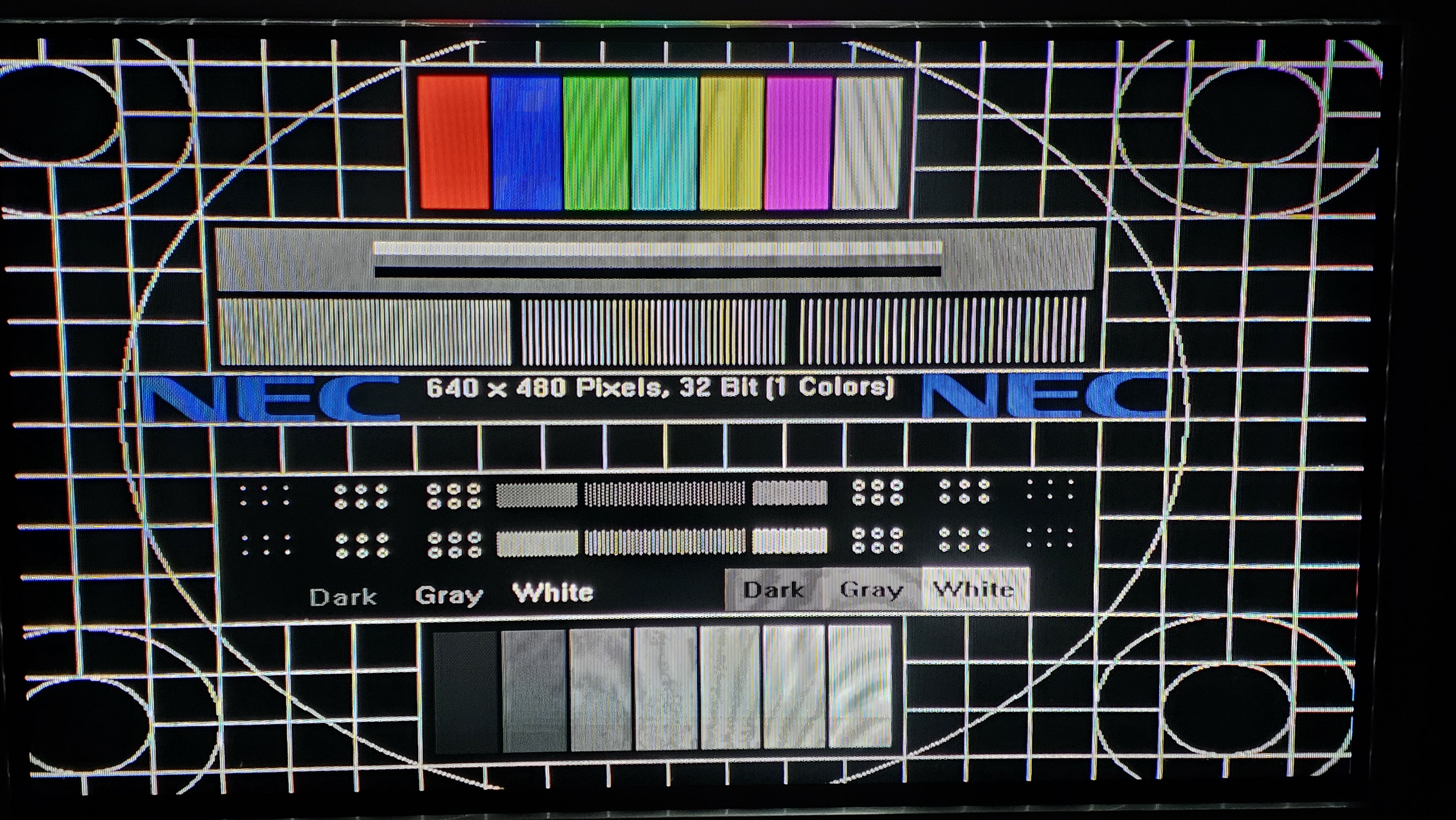

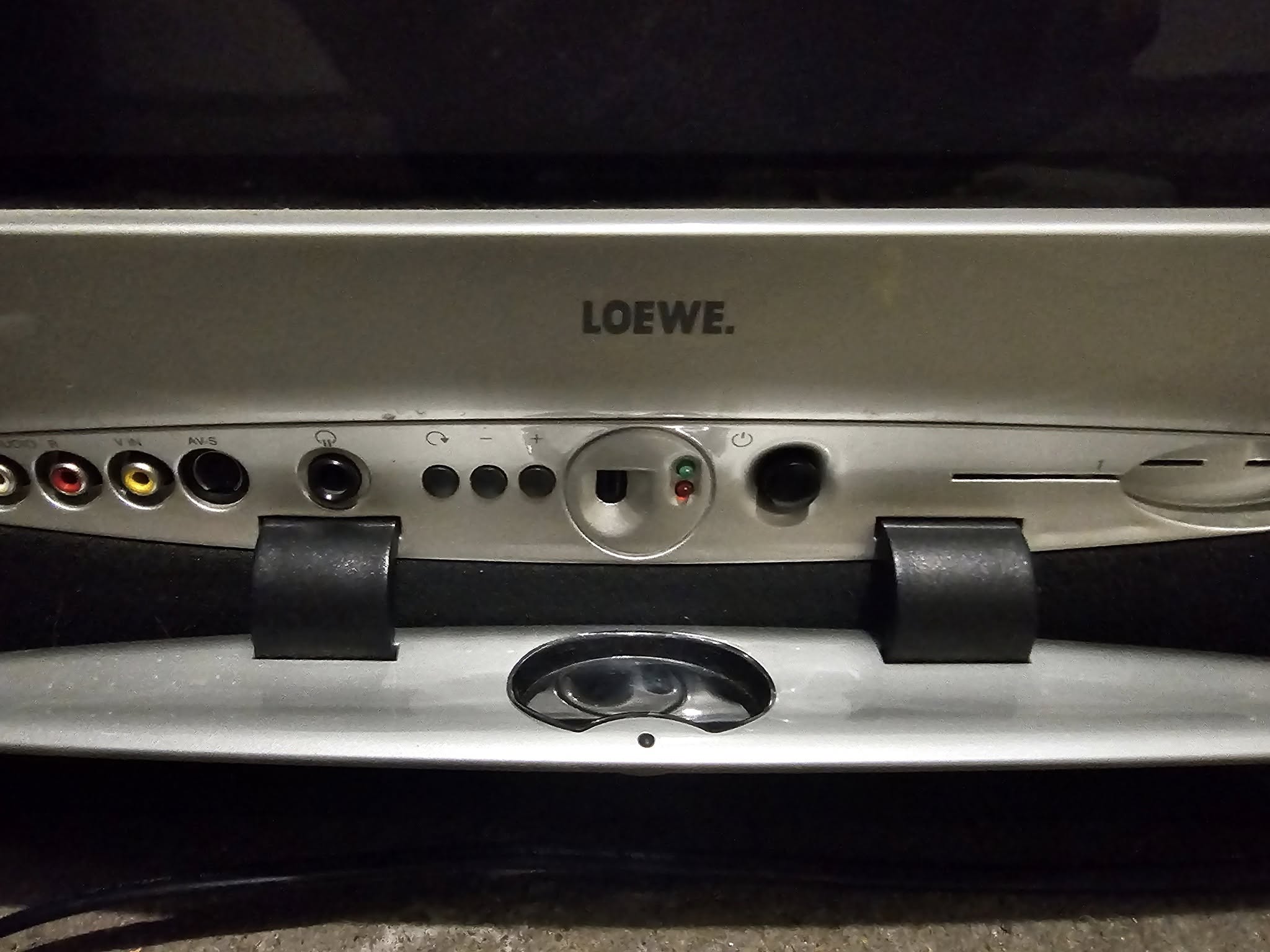

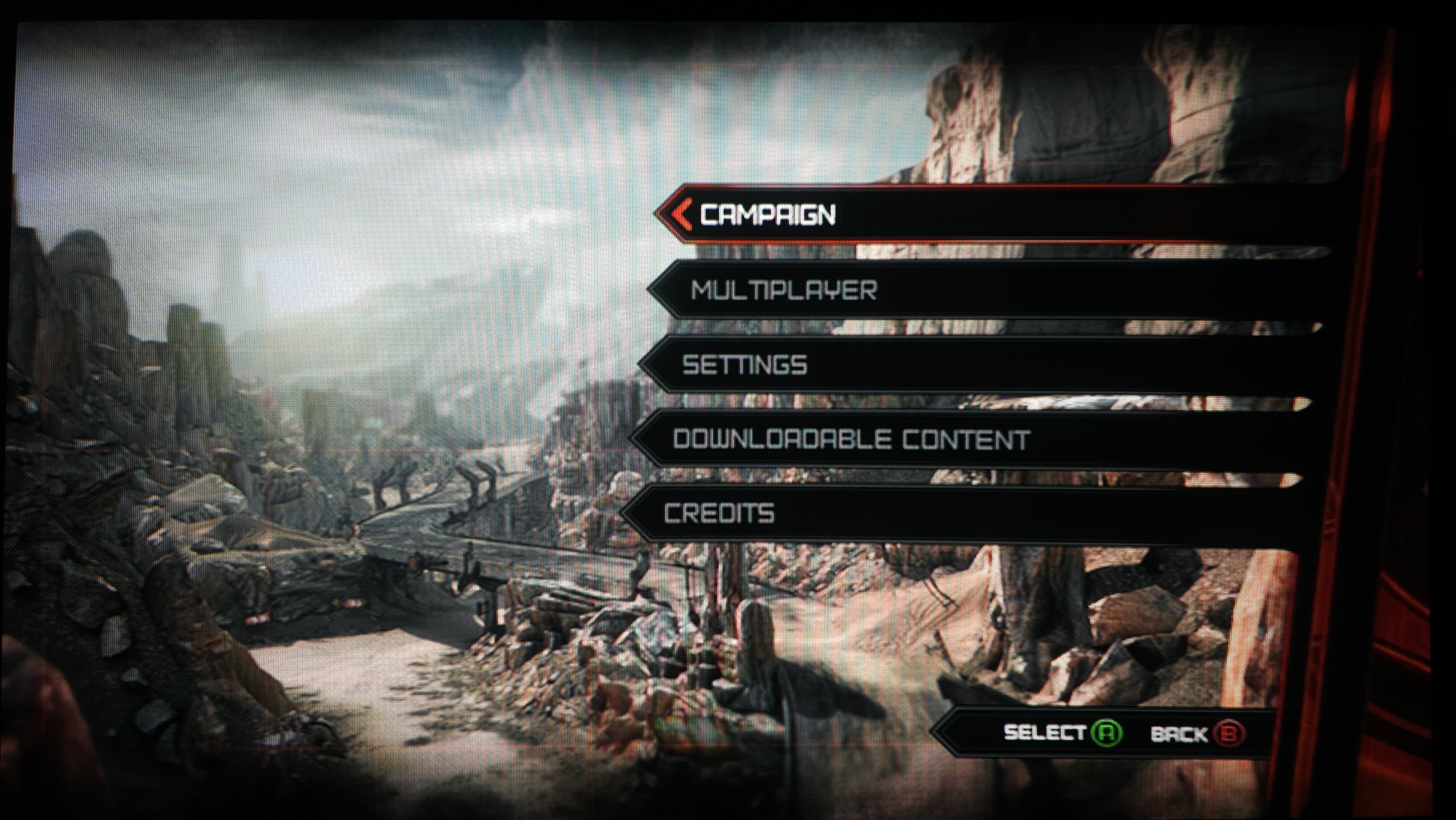

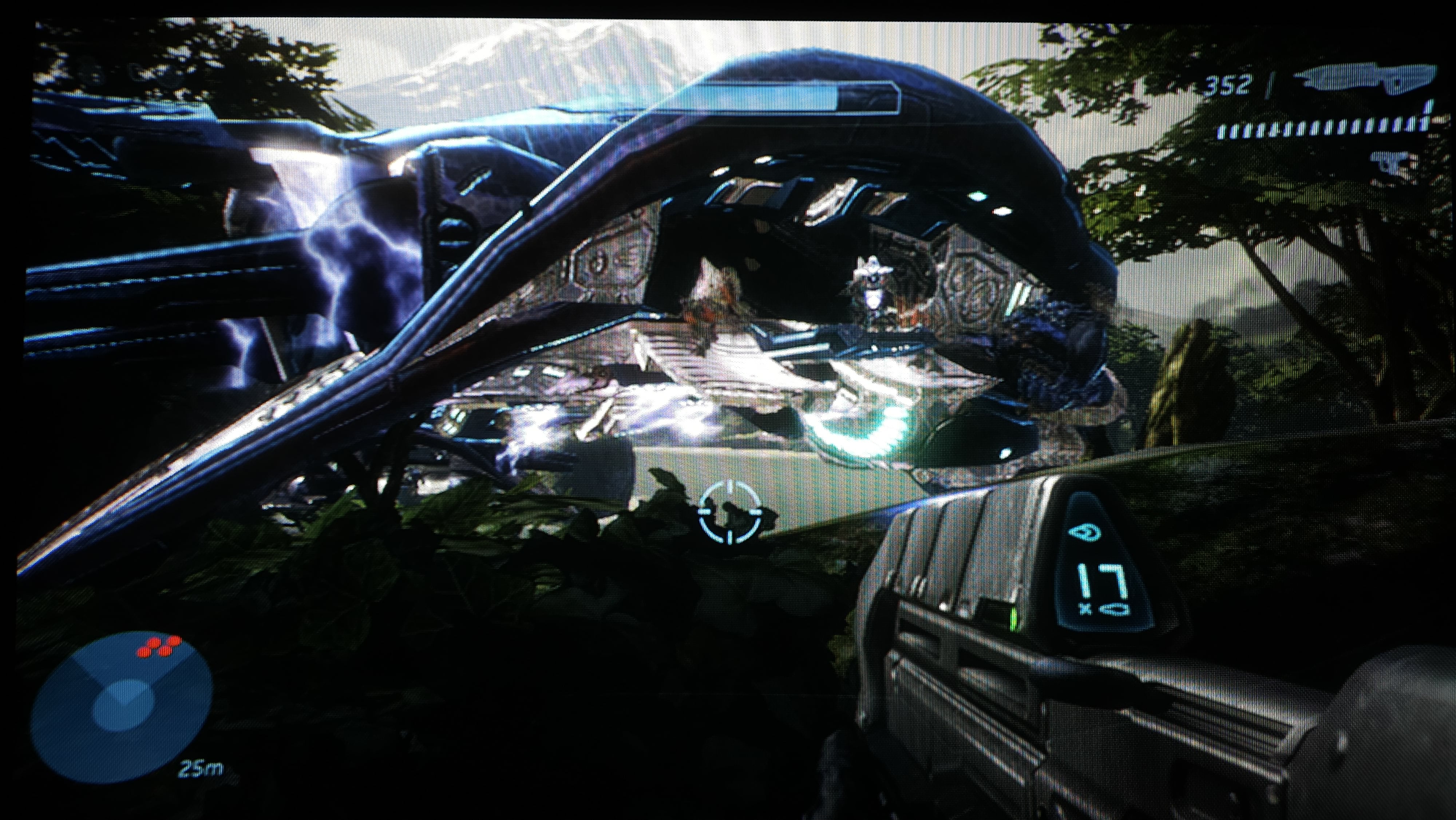

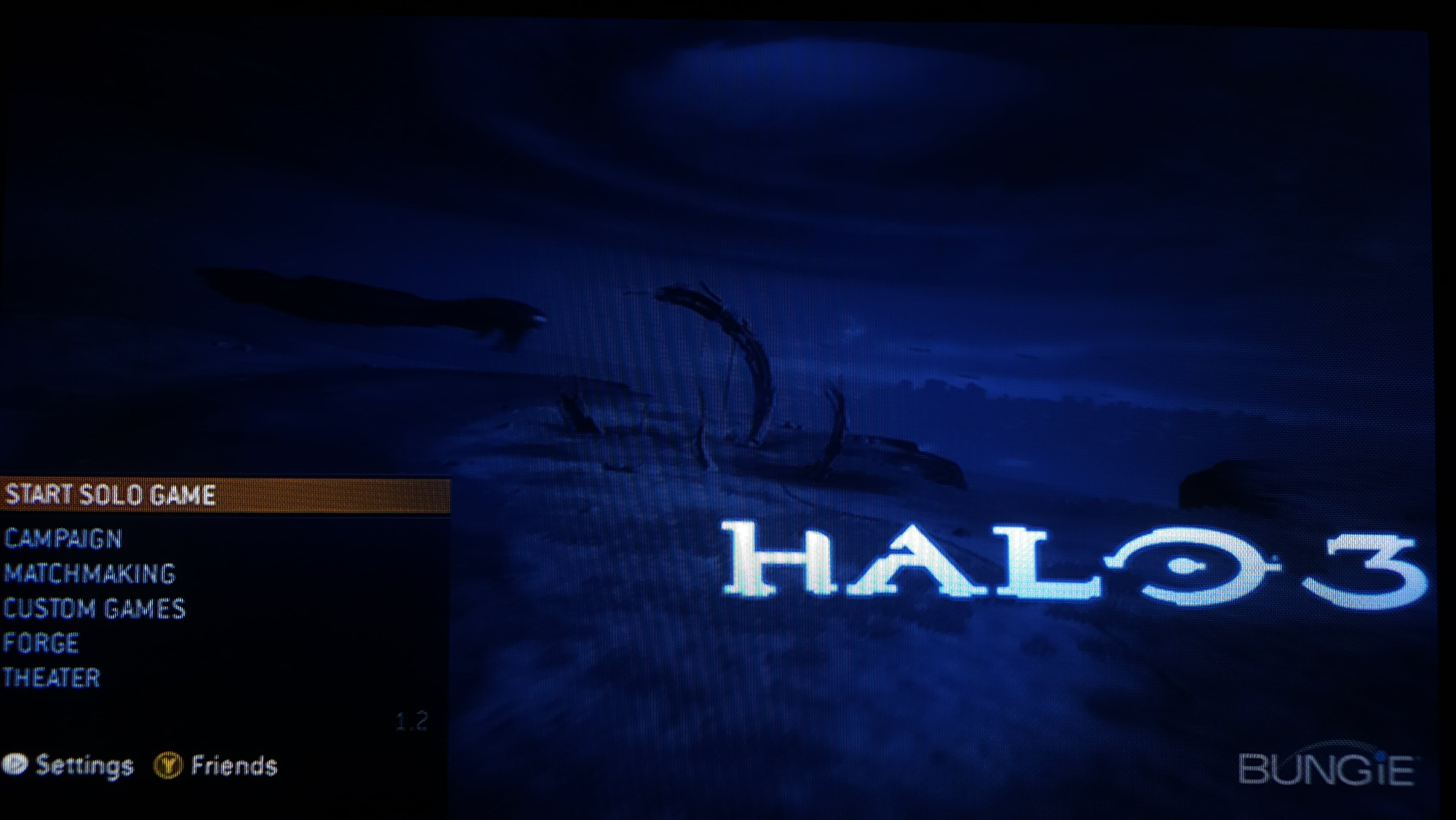

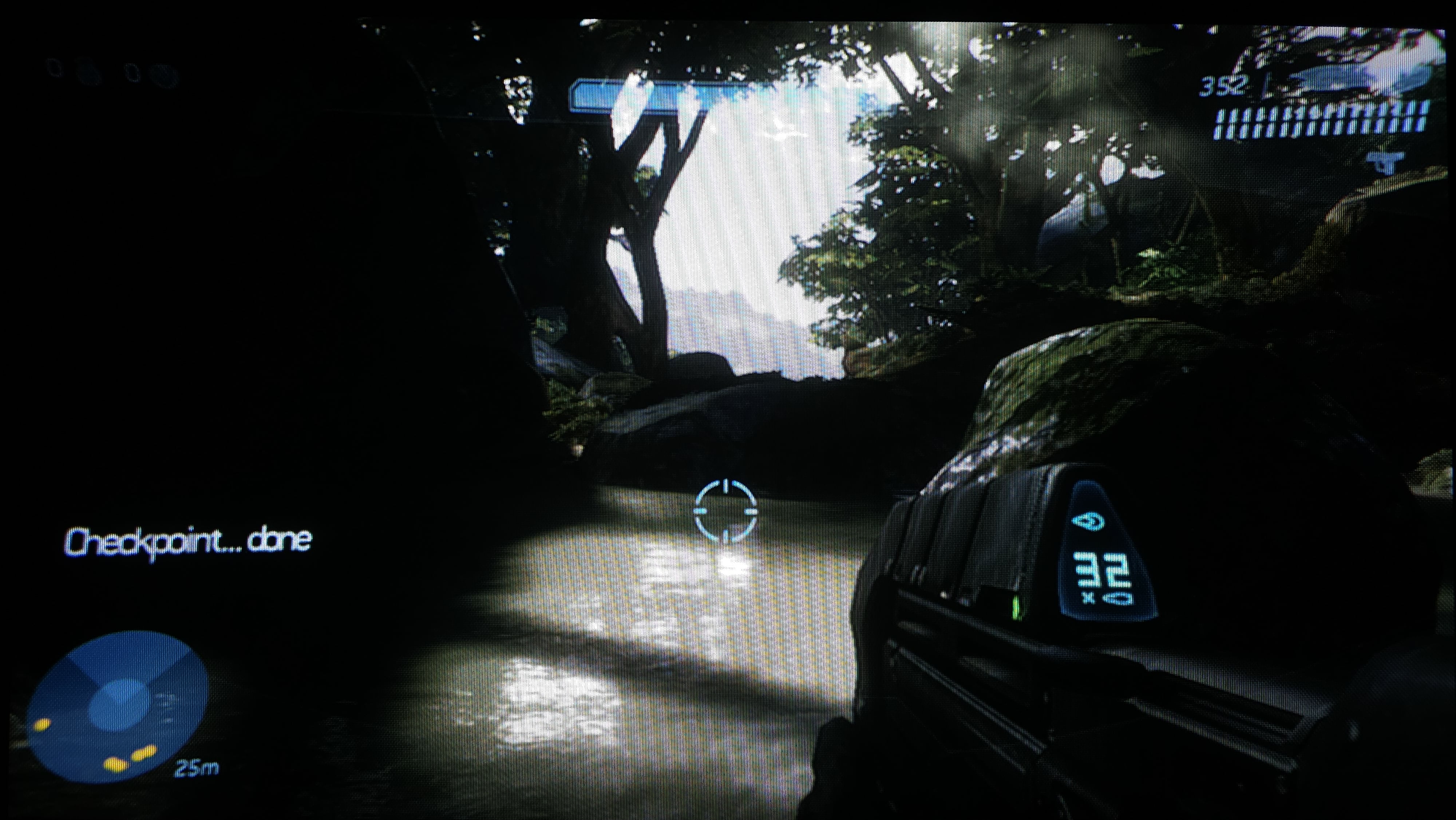

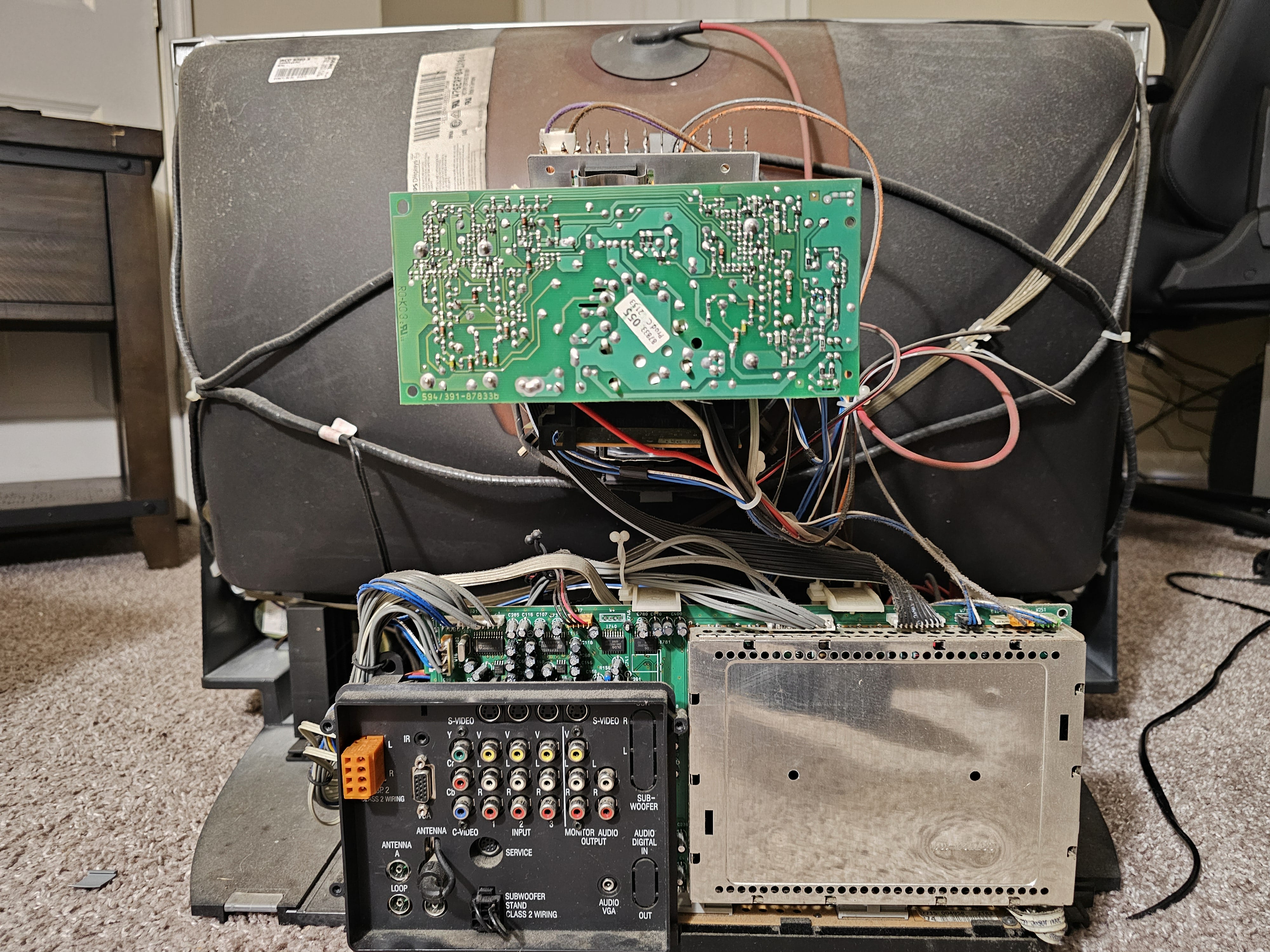

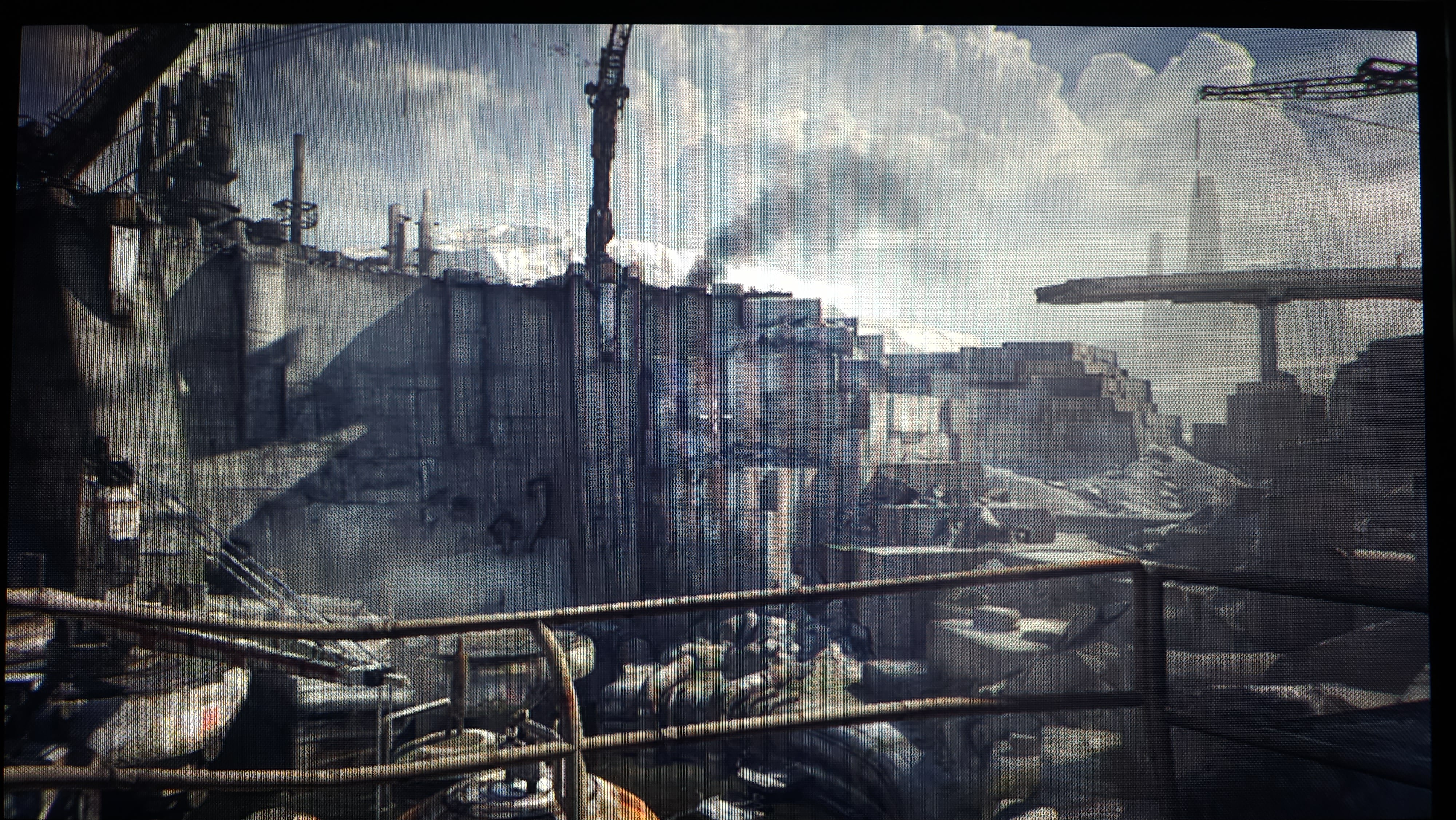

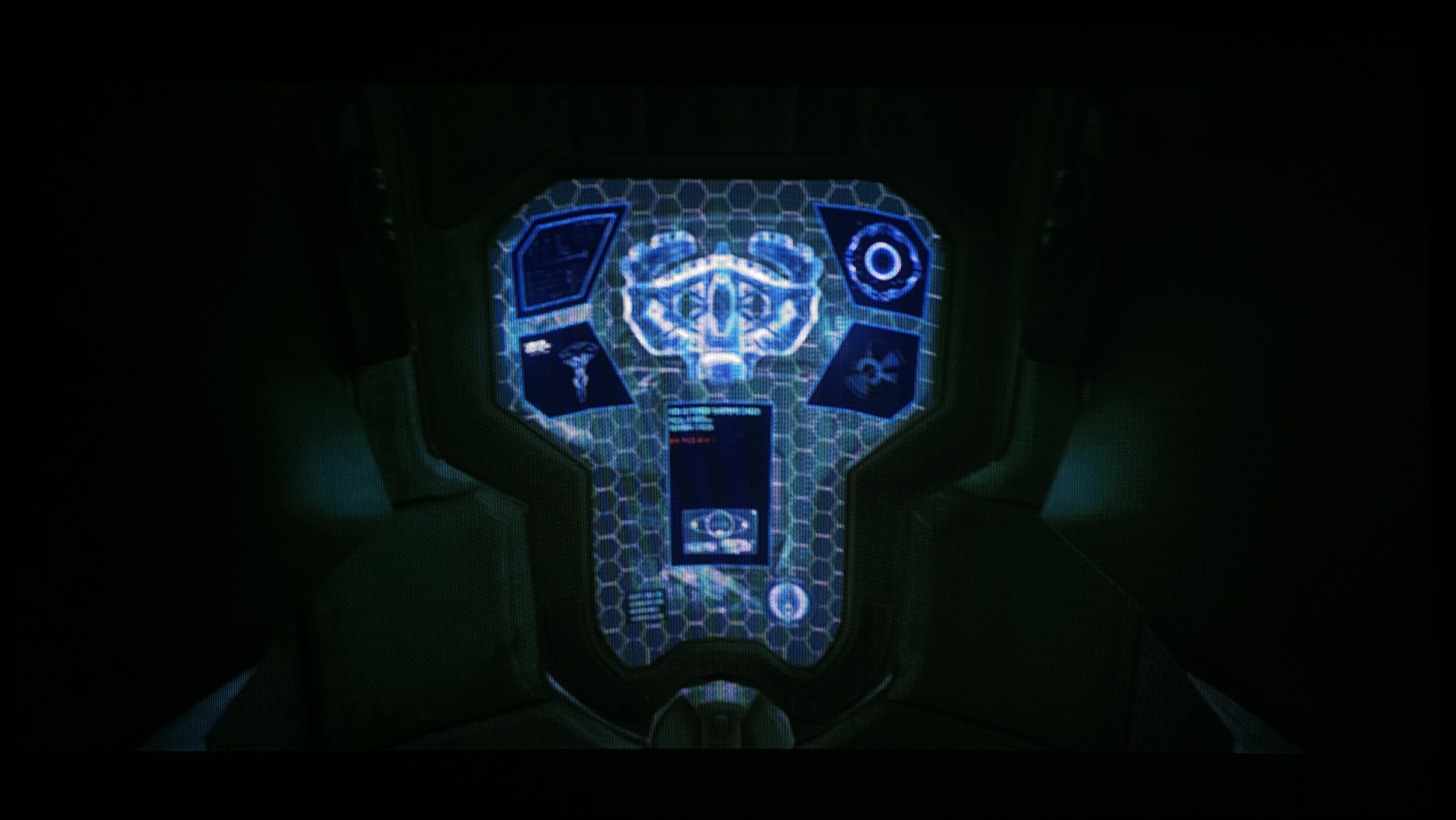

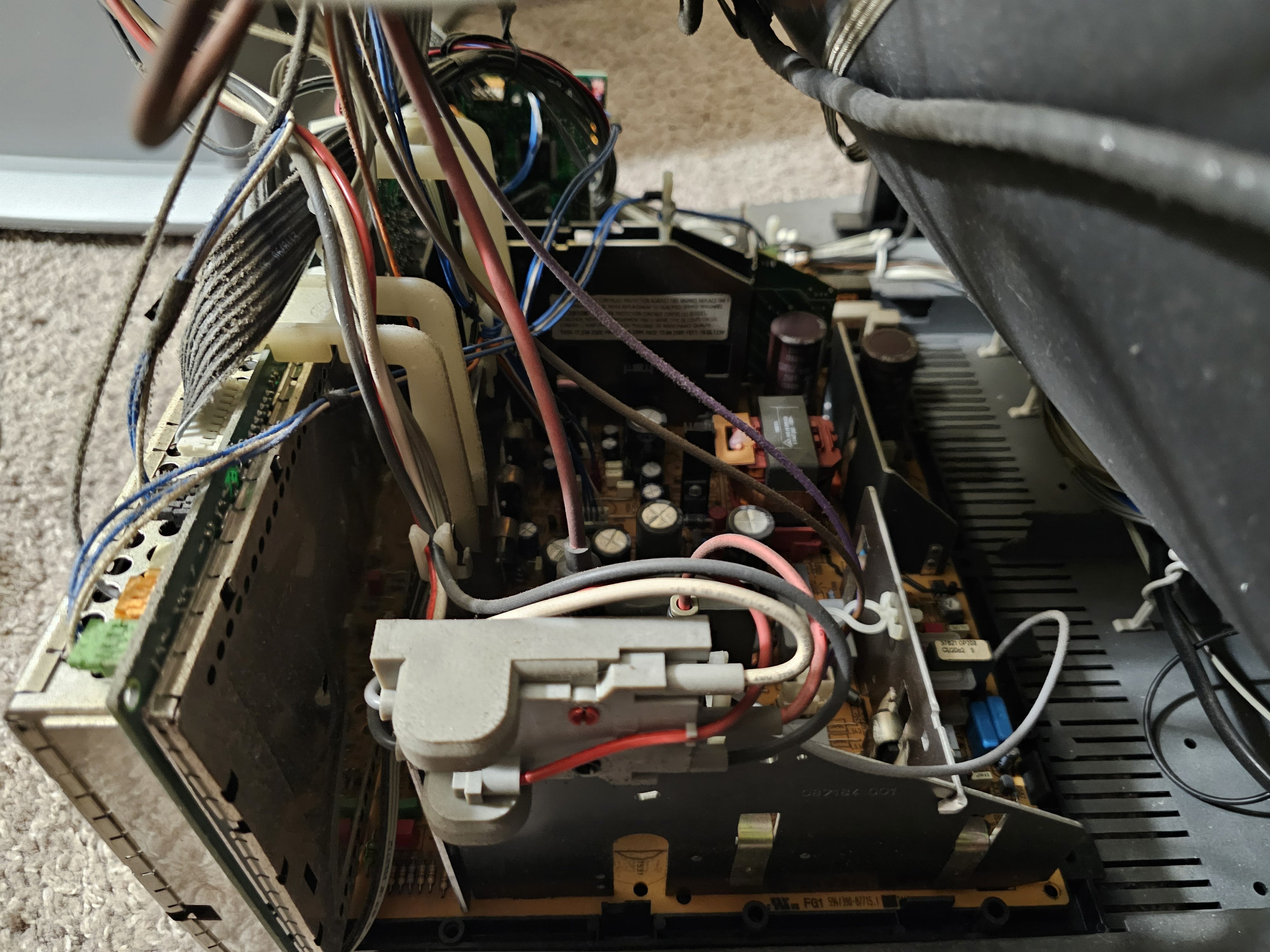

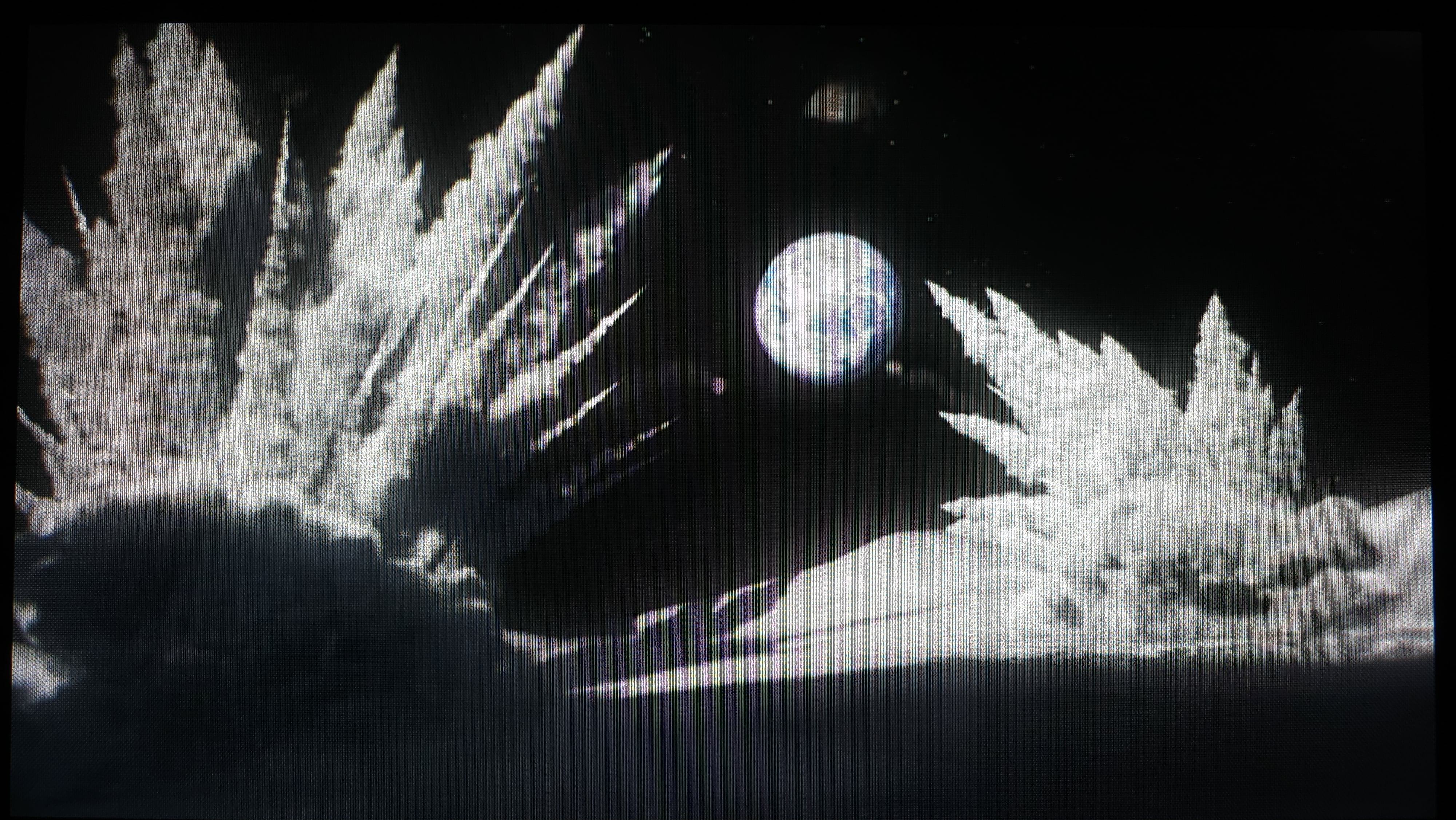

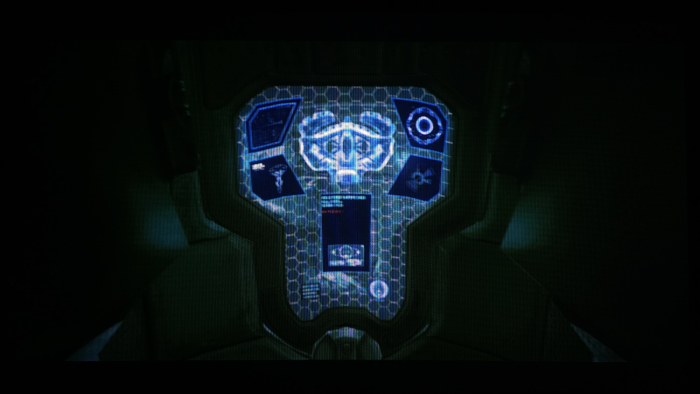

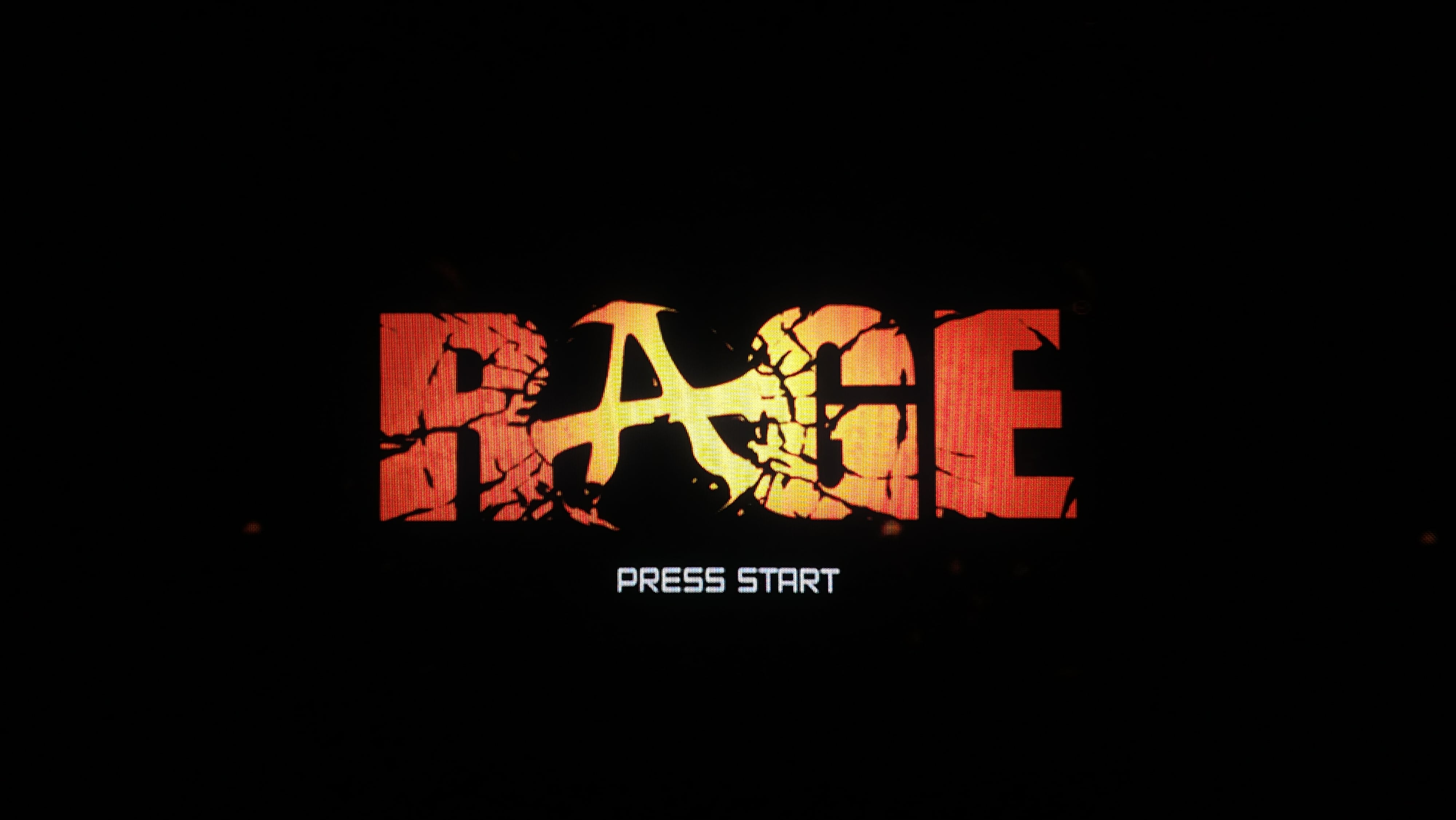

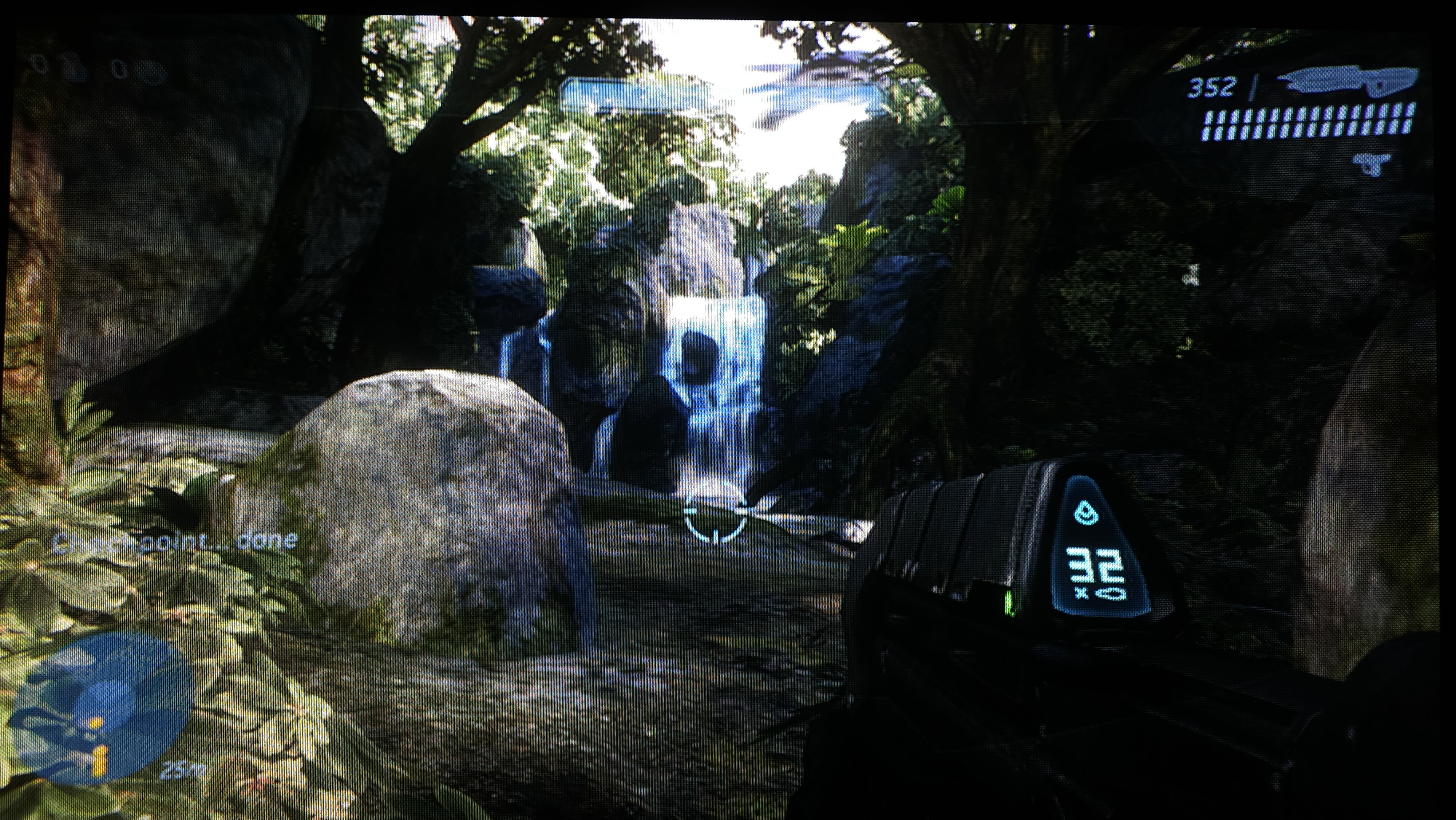

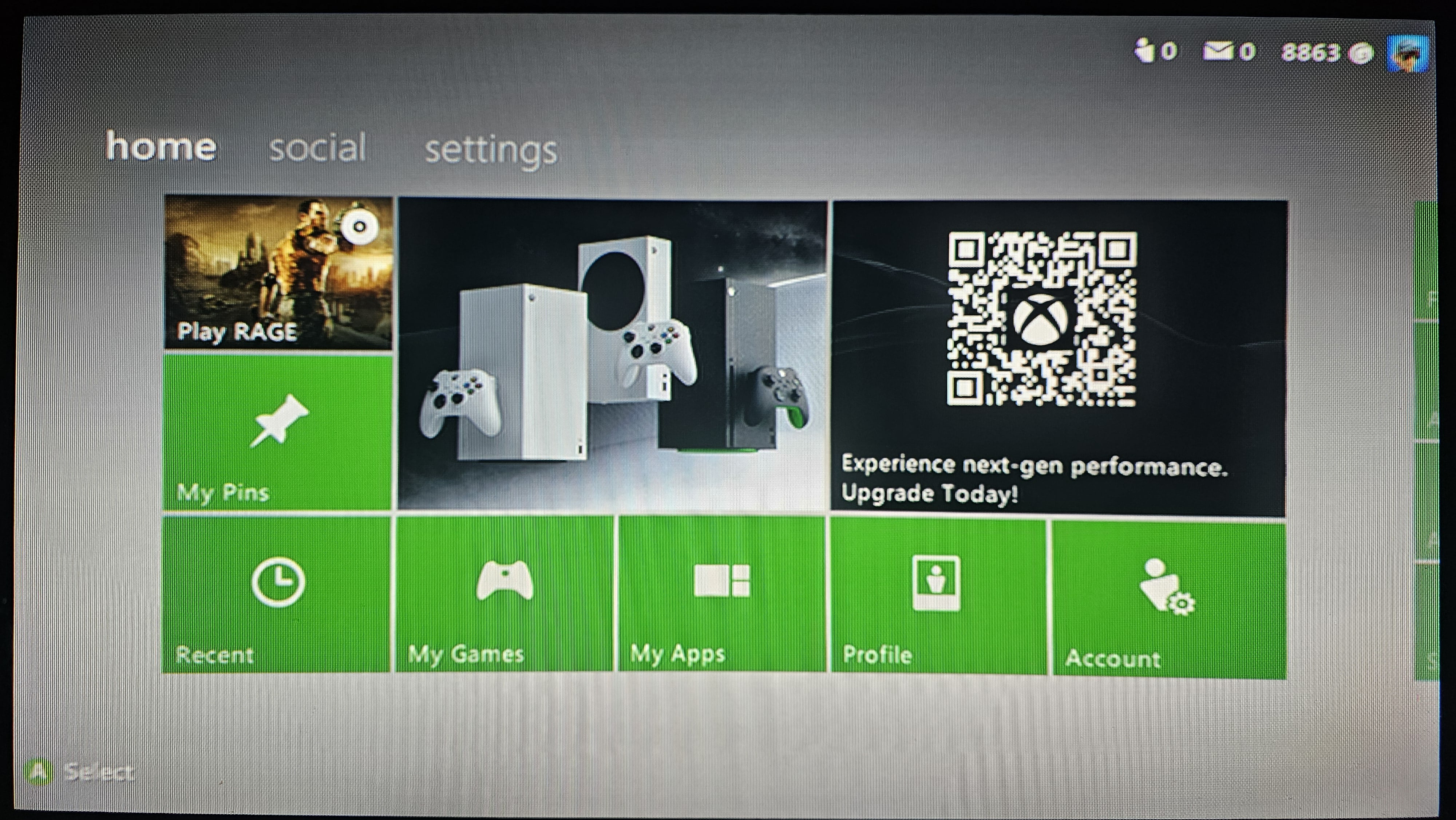

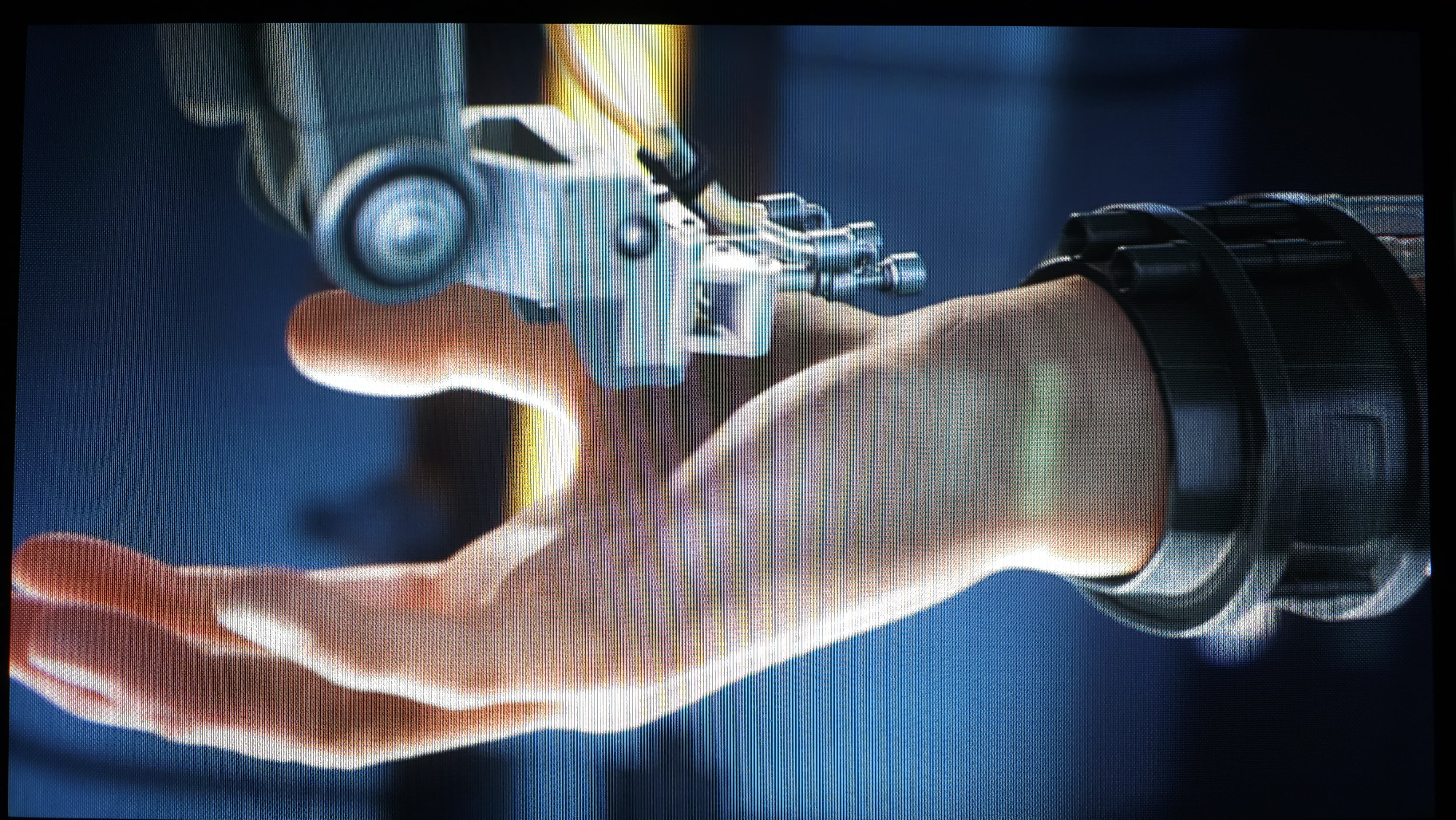

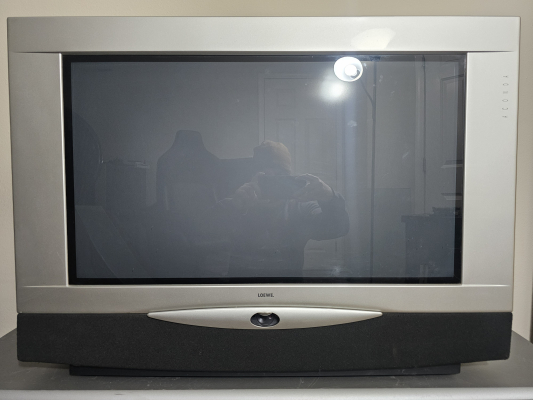

Gallery
| Specifications | |
|---|---|
| Brand: | Loewe |
| Manufacturer: | Loewe |
| Model: | ACO 9303 S |
| Series: | Aconda |
| Viewable Size: | 30" |

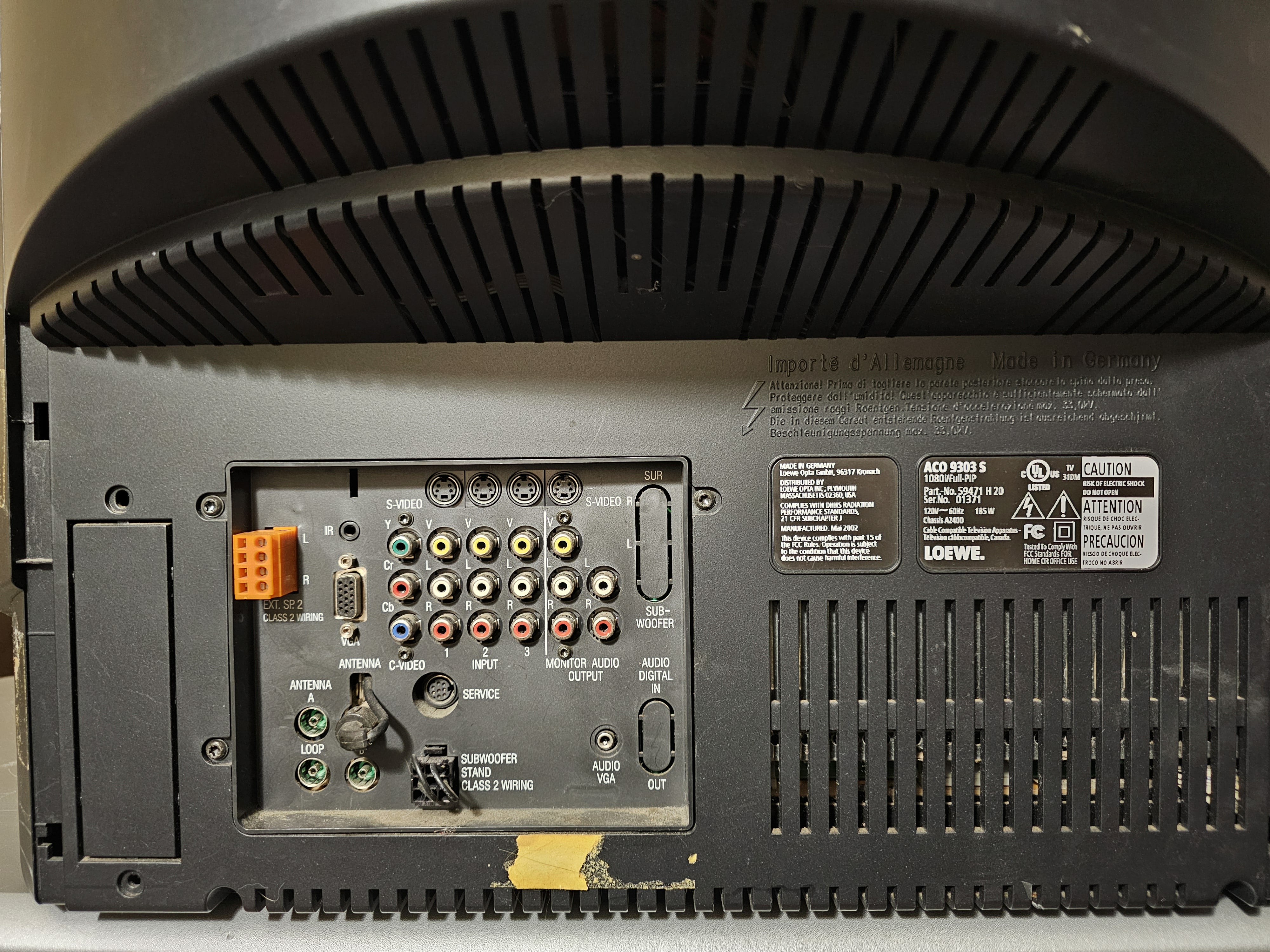

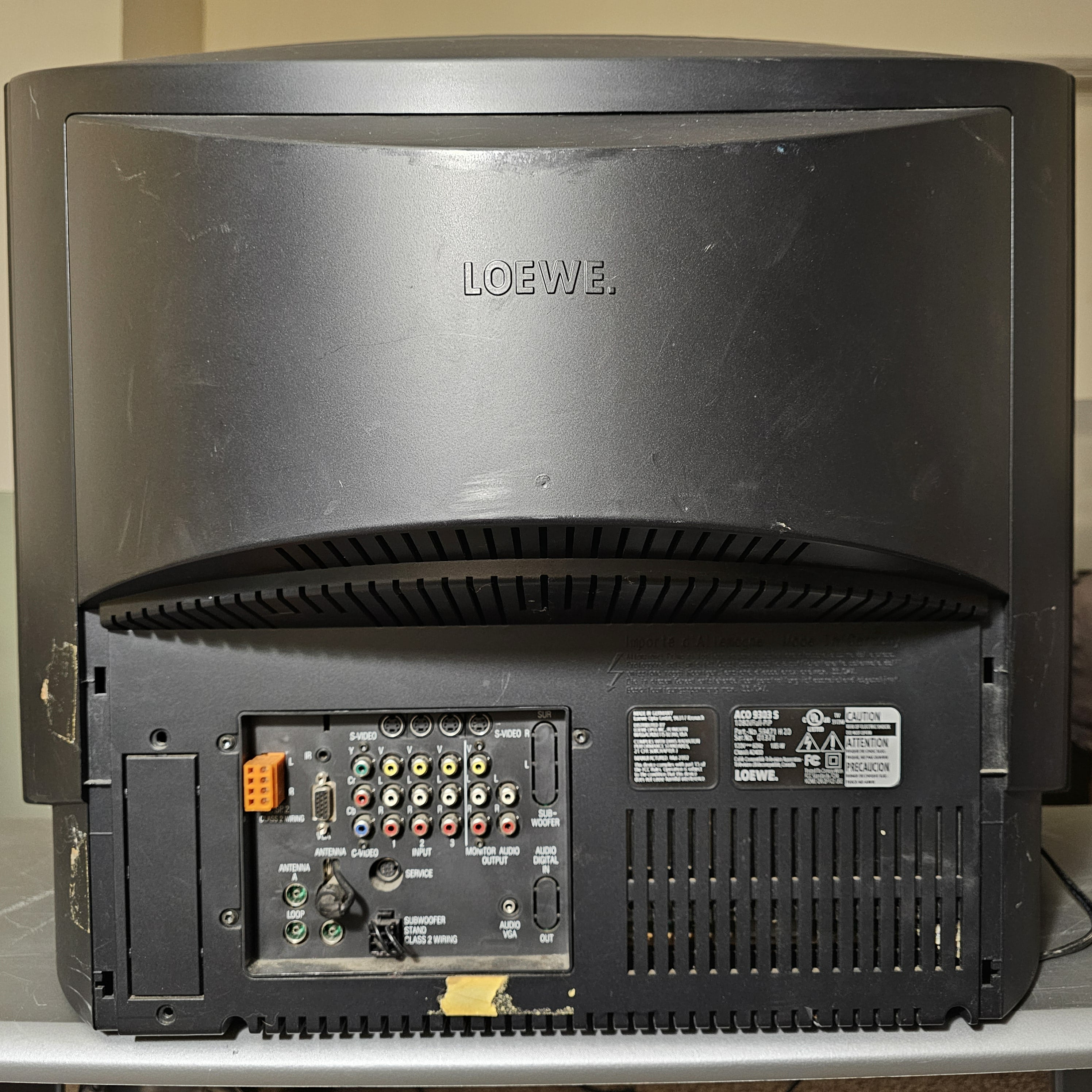

| Inputs: | VGA, Composite, S-Video, RF, Component YPbPr |
| Sync: | HV Sync |
| Native Resolutions: | 1080i, 480p, 540p, 960i |
| Scaled Resolutions: | 240p, 480i, 288p, 576i |
| Horizontal Scan Range: | 33.75 kHz, 31.5 kHz |
| Vertical Scan Range: | 50 Hz, 60 Hz |
| Formats: | NTSC, PAL |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Jungle IC: | Sony, CXA2101AQ |
| Comb Filtering: | 3D Digital |
| Flyback: | 276-27397 |
| Focus Type: | Dual |

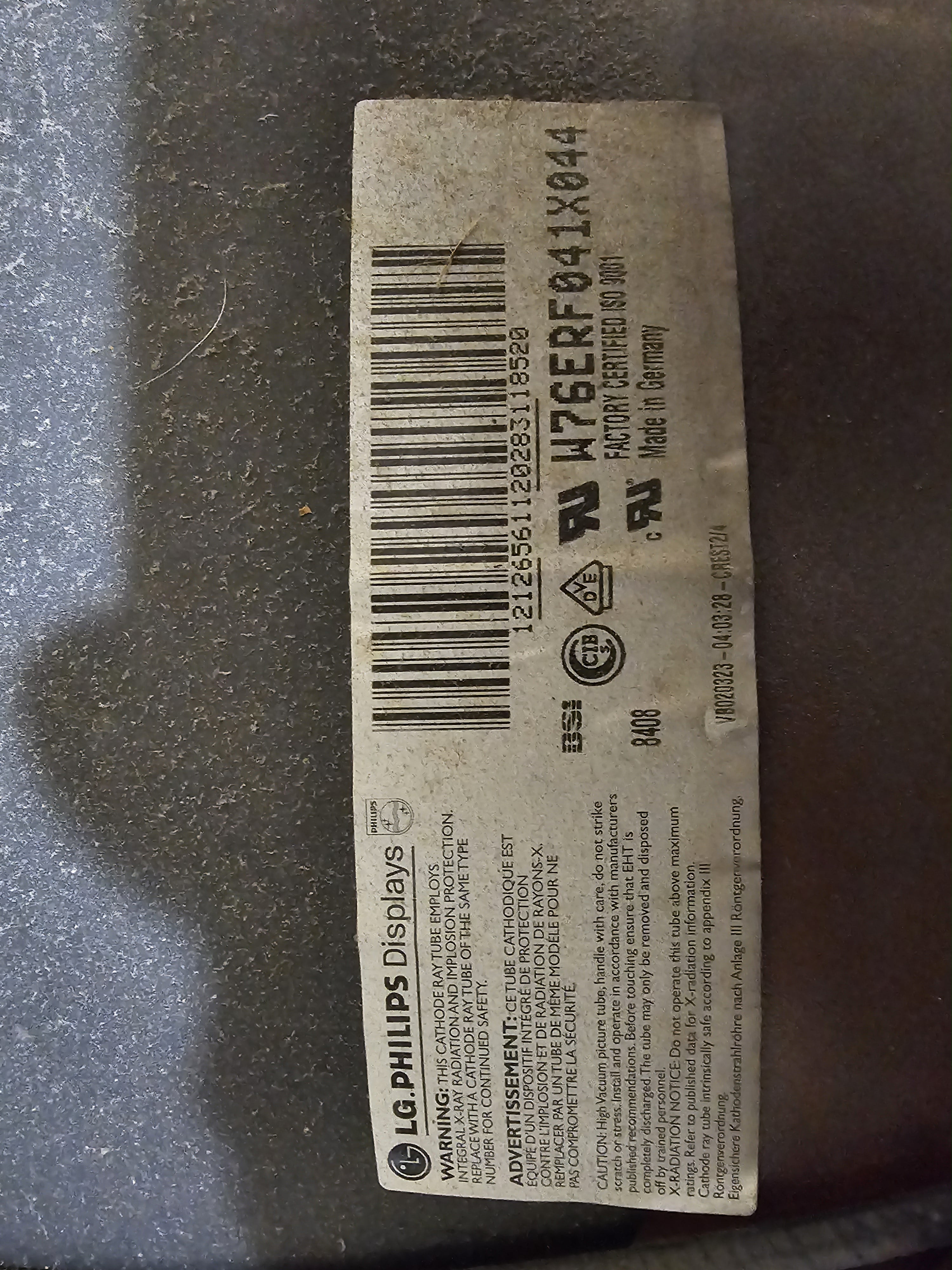

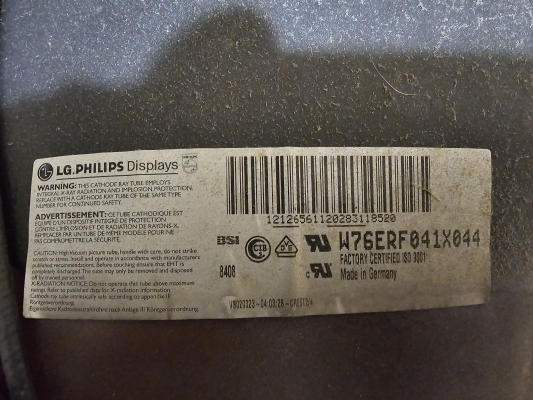

| Tube: | Philips , W76ERF041X044 , W76ERF041X , W76ERF031X , W76ERF031X044 |
| Heater Voltage: | 6.3v |
| Deflection: | 110° |
| Mask: |
Slot
|
| Tint: | Dark |
| Speakers: | Stereo, 12W x 4, Subwoofer |

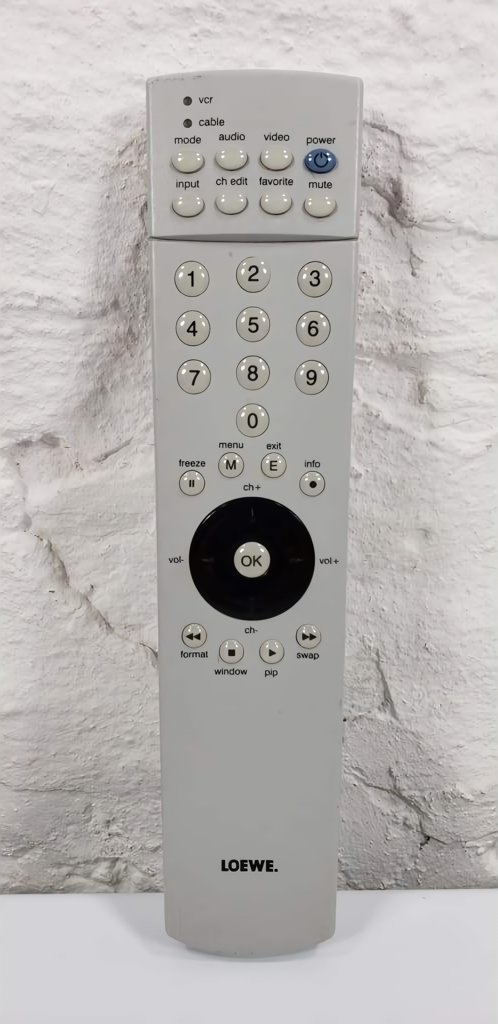

| Remote: | 87000.063 |
| Chassis: | A2400, A2440 |
| Weight: | 116 lbs (52.6 kg) |
| Dimensions (W/H/D): |
851 x 625 x 625 mm
(33.4 x 24.6 x 24.6") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2001 |
| MSRP: | 3599 USD |
| Country of Manufacture: | Germany |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard), OEM Stand |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual |
