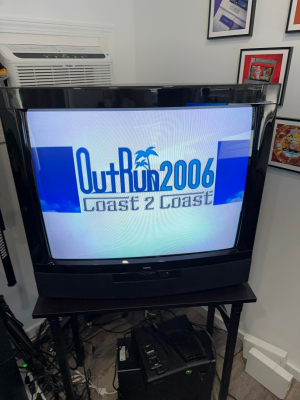

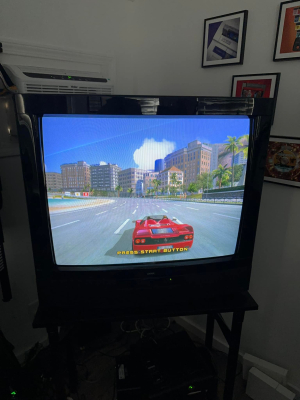

Loewe Arcada 32 (ARC 332 PB)
November 23, 2025, 2:57 am
November 23, 2025, 8:58 am
Summary
High-end 32" HD CRT by Loewe, made in Germany and launched in North America in 1999. Has RF, composite, s-video, component, and VGA input. It can natively scan 480p/960i, 540p/1080i, and upconverts NTSC and PAL signals.
In 1999, Loewe partnered with Sensory Science Corporation (formerly Go-Video) for distribution of their sets in the USA. They were sold in limited numbers and were very expensive for the time. This set is one of their earliest models released stateside.

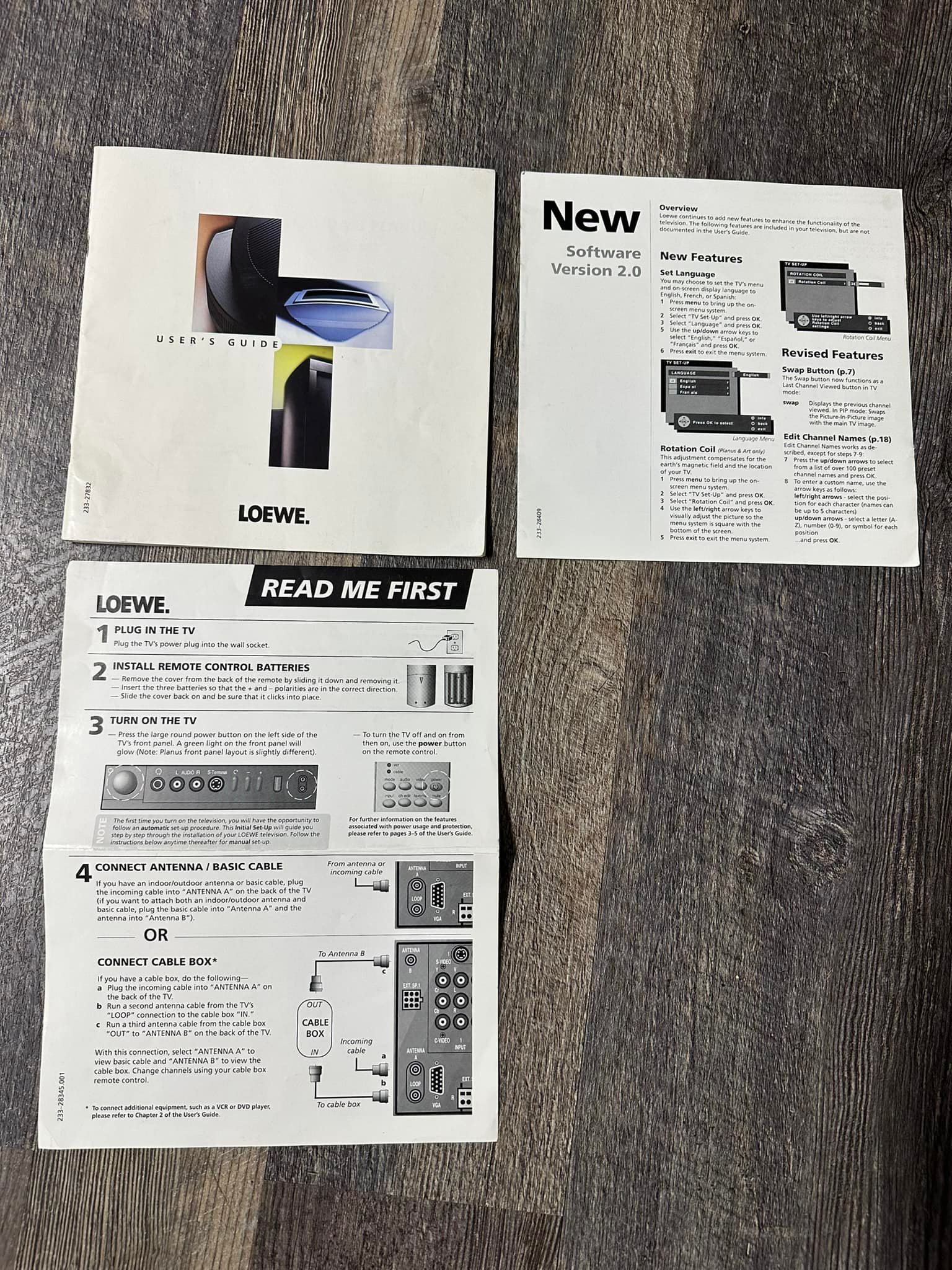

Manuals
- Euro Q2300 Chassis (Closest Equivalent)

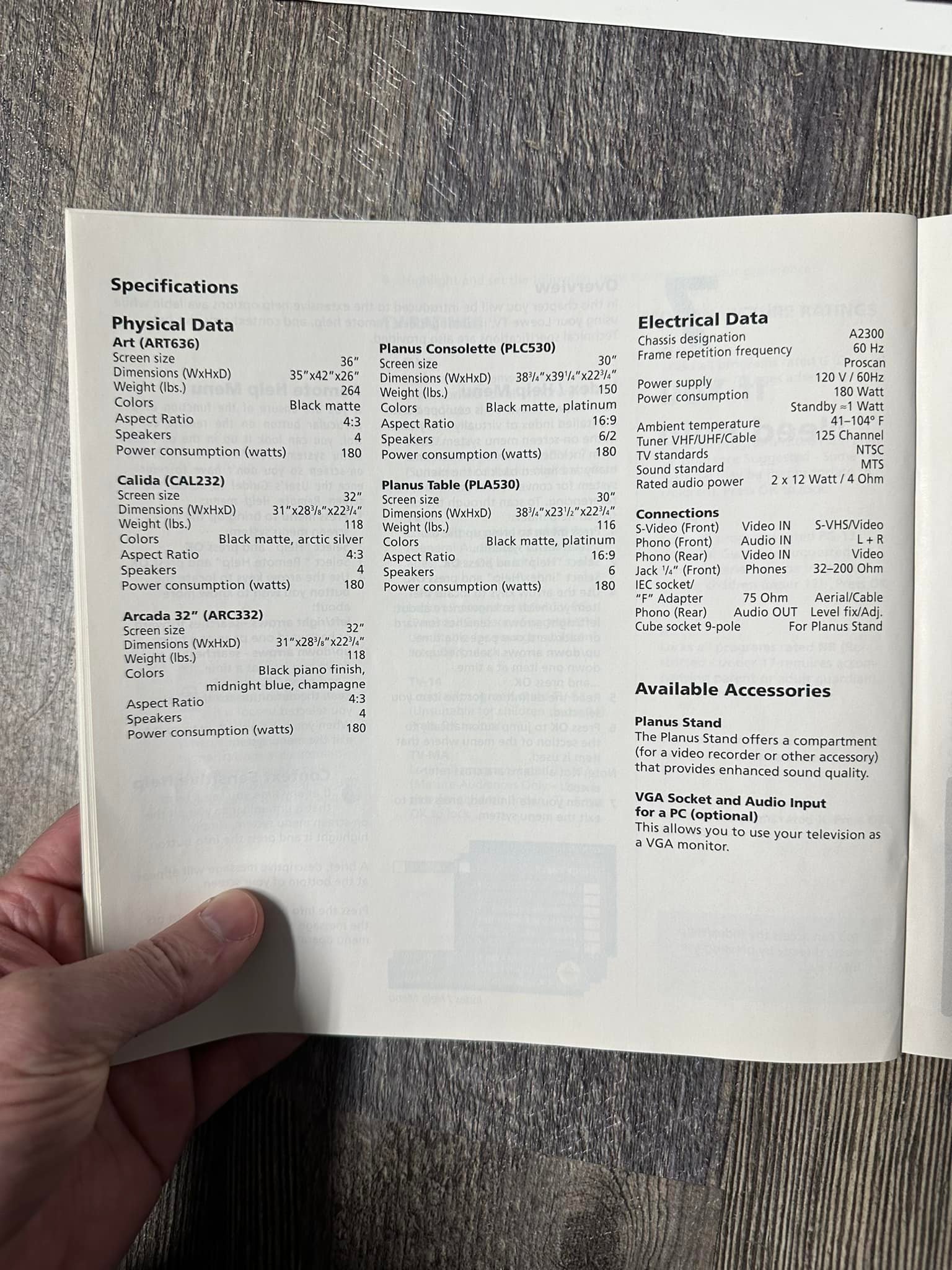

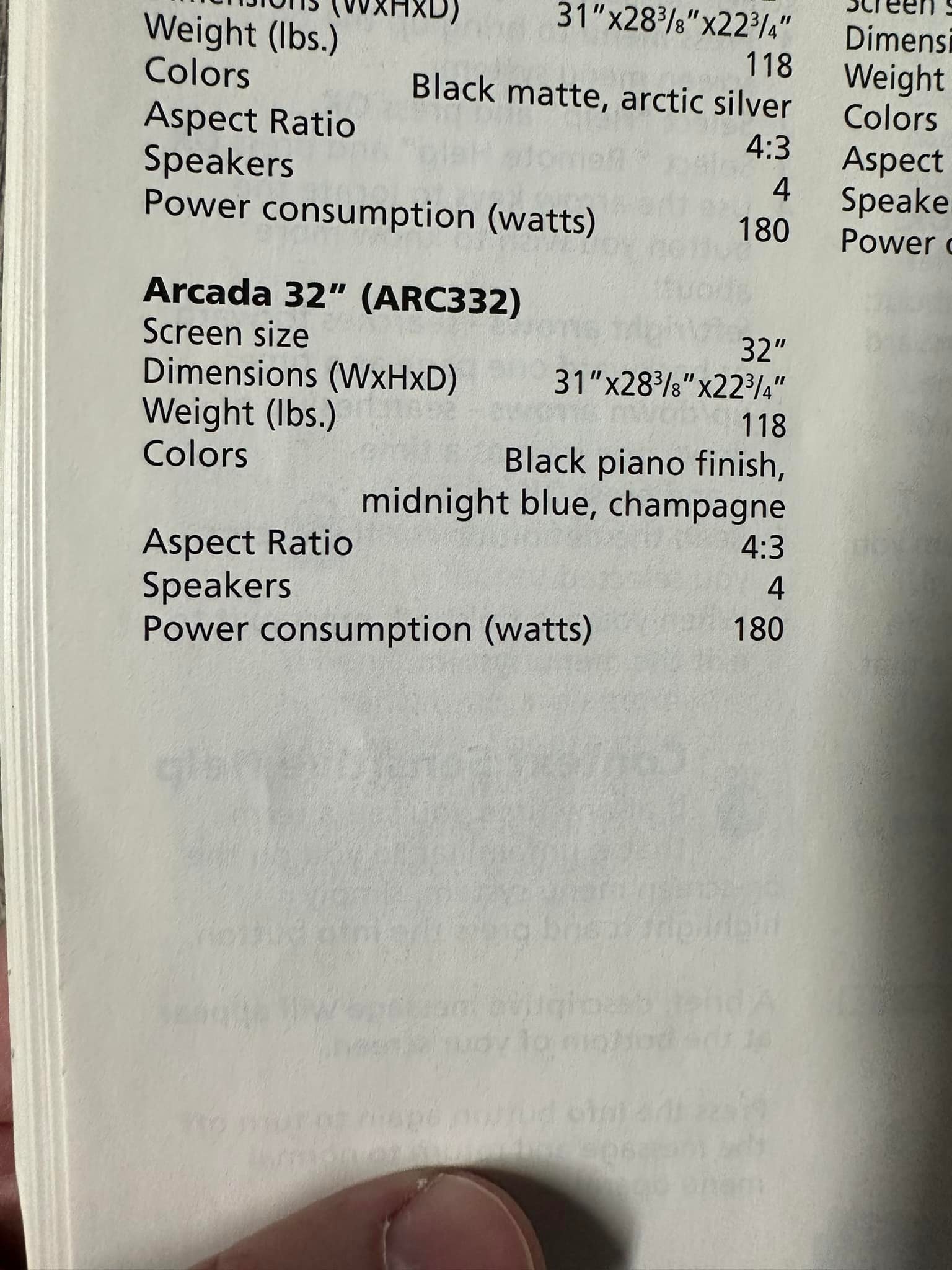

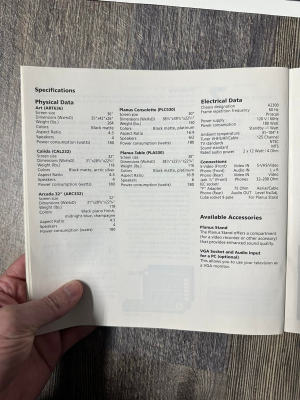

Promo Materials
Notes

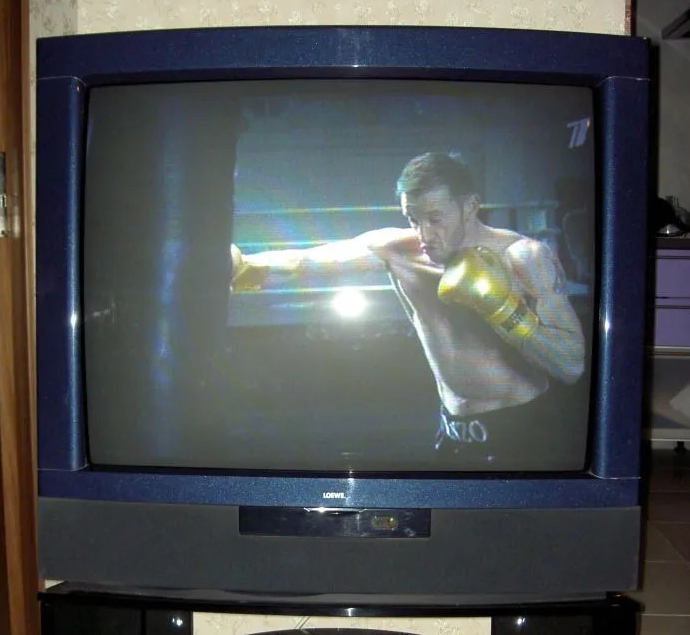

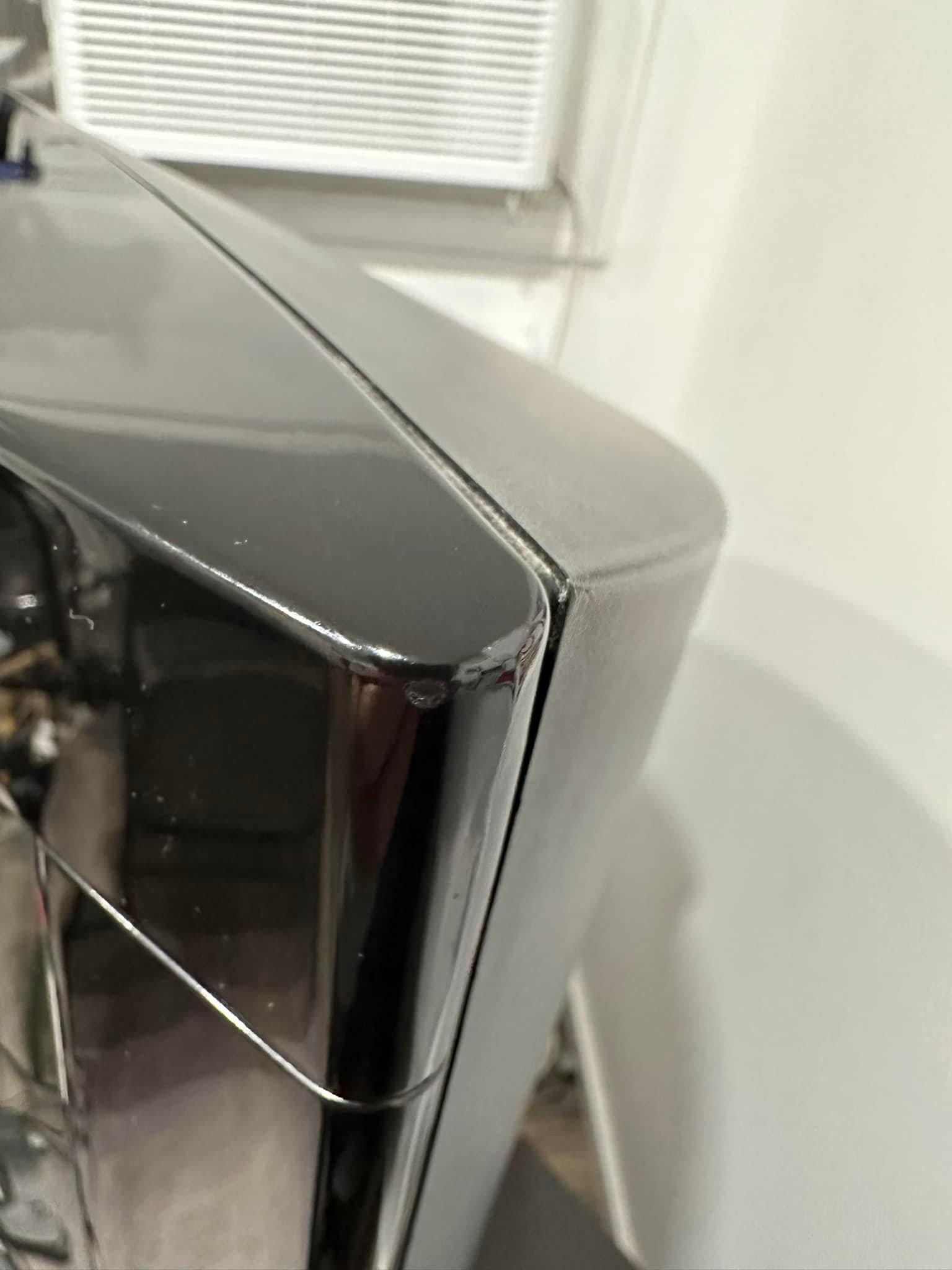

The "PB" at the end of the model number stands for "Piano Black" finish. There were Midnight Blue (MB) and Champagne (C) finish variants as well:


Over the years there have been reports of power supply failure and relay faults with these sets. It is advised that if you do find one of these models, be aware it may need servicing at some point in the future.

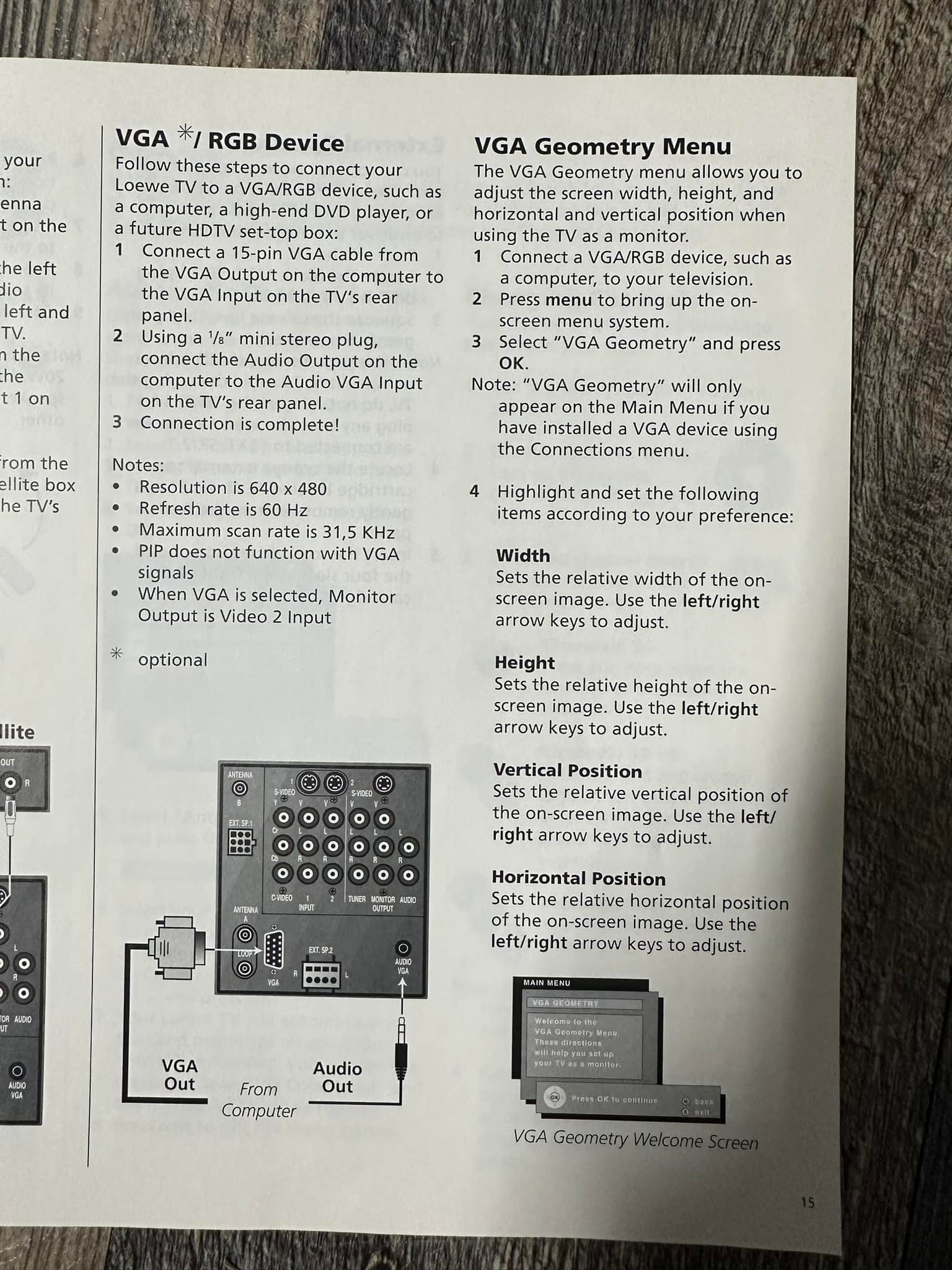

The VGA input accepts higher resolutions, but the component input is SD only.

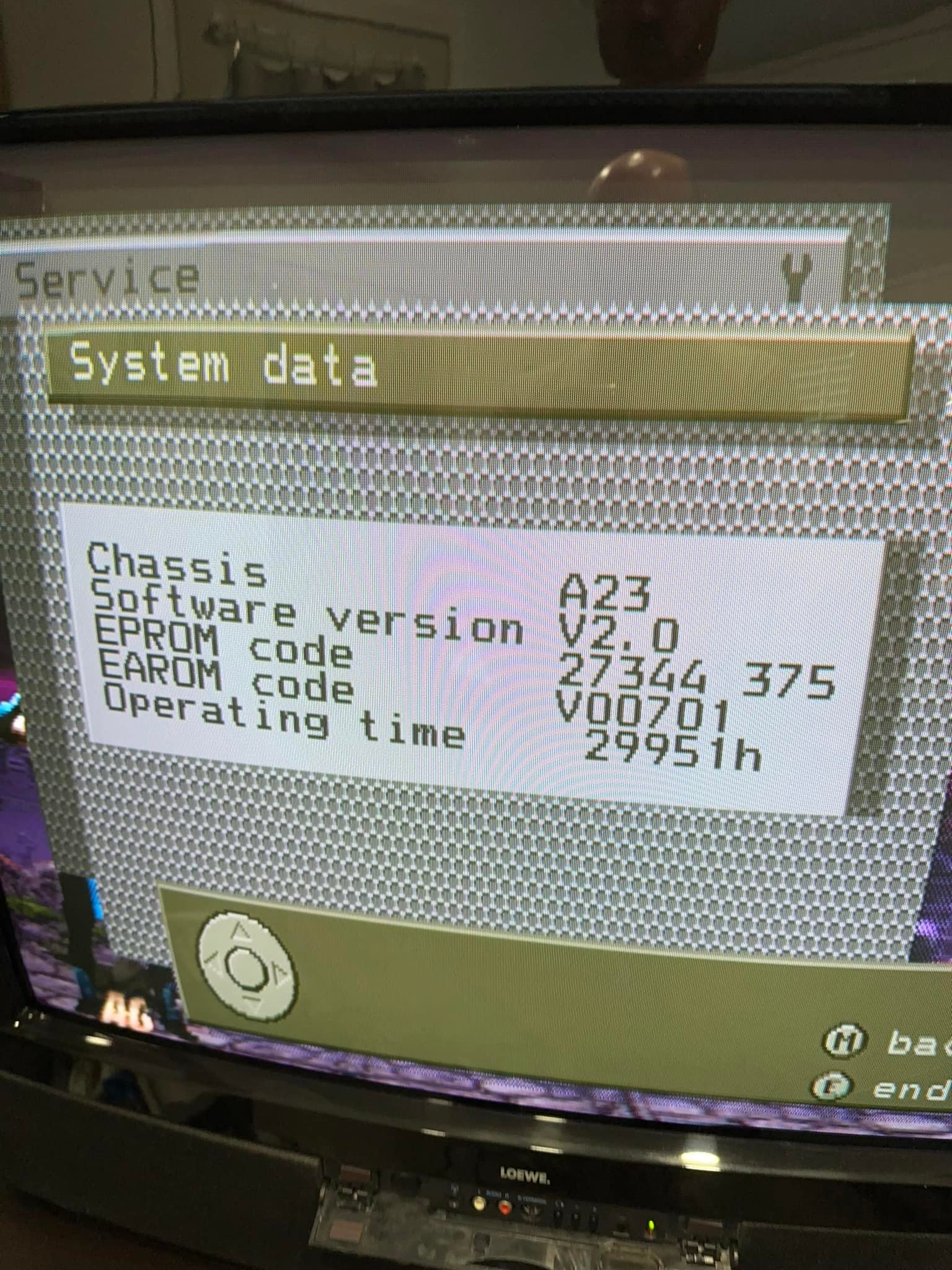

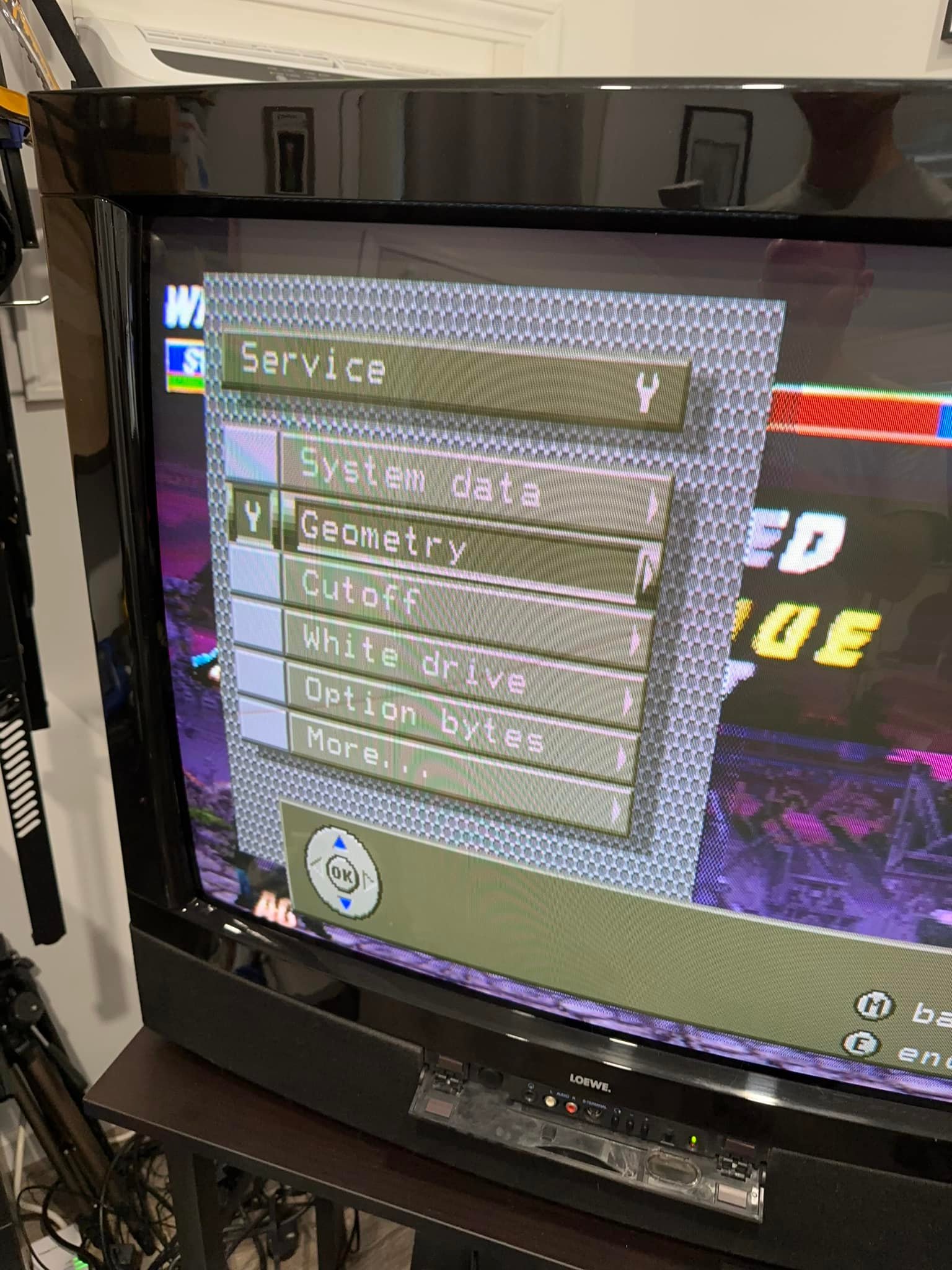

This set has velocity modulation. To disable it, go into the service menu and set option byte 5, bit 1 to "0".

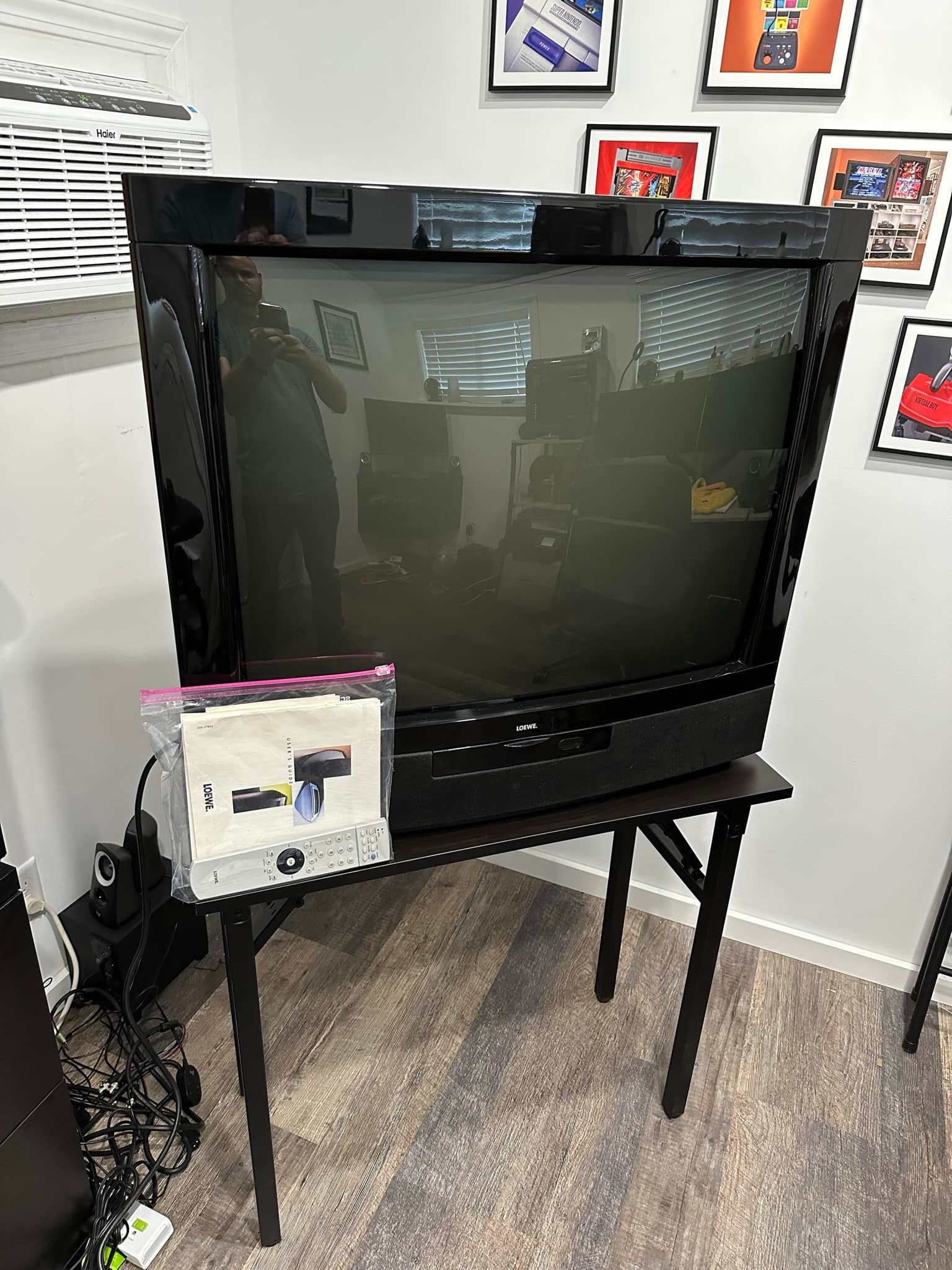

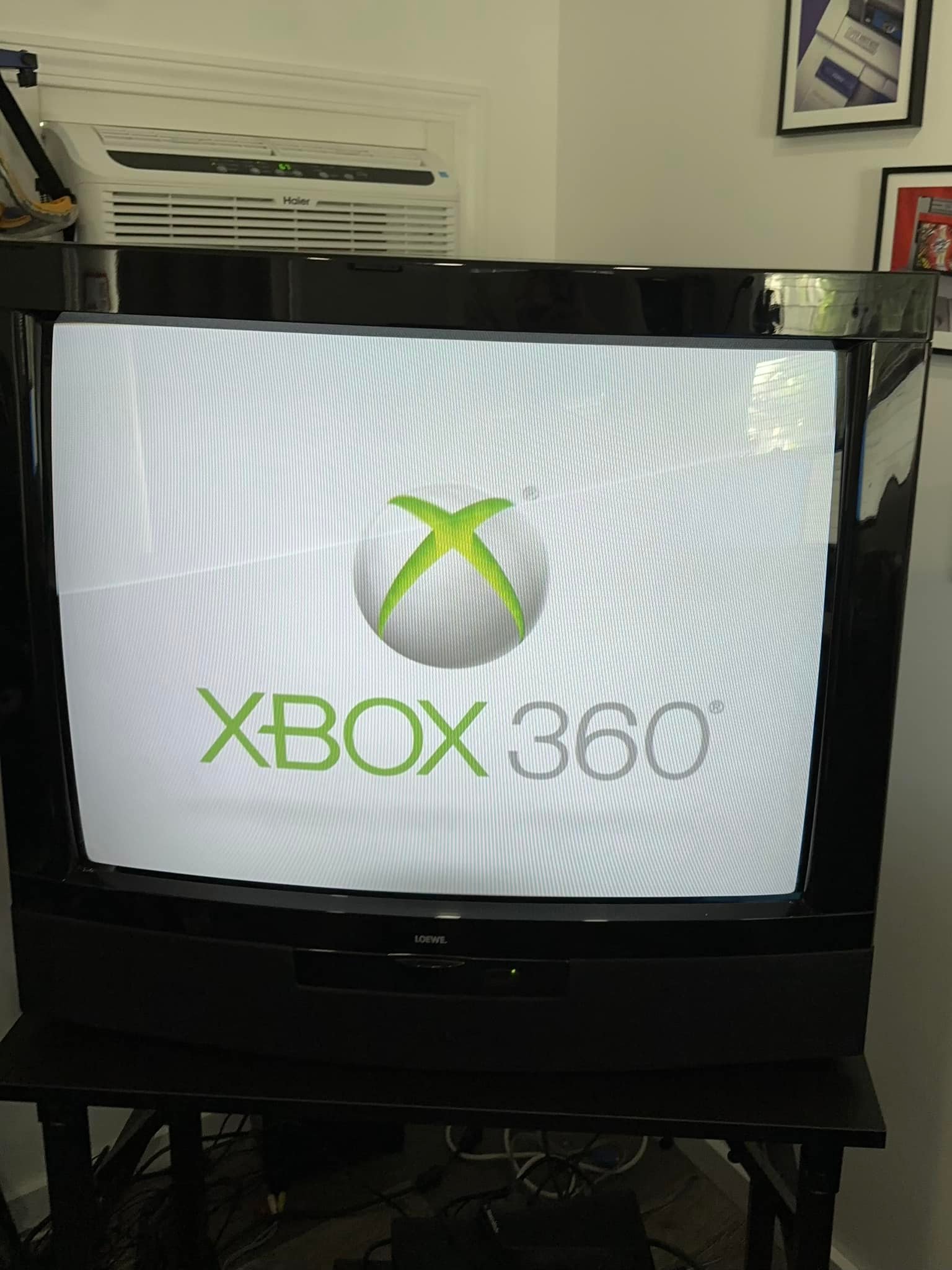

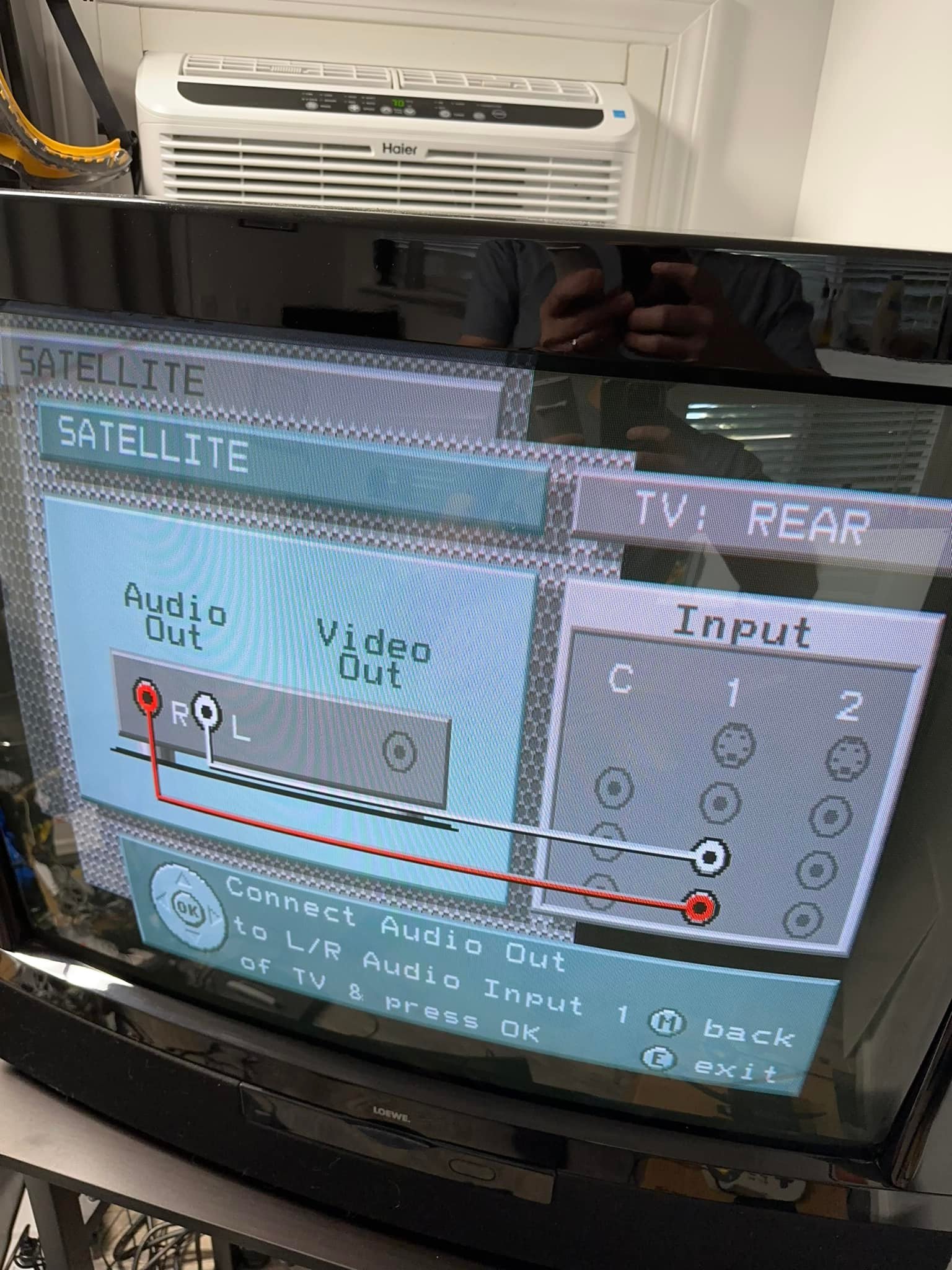

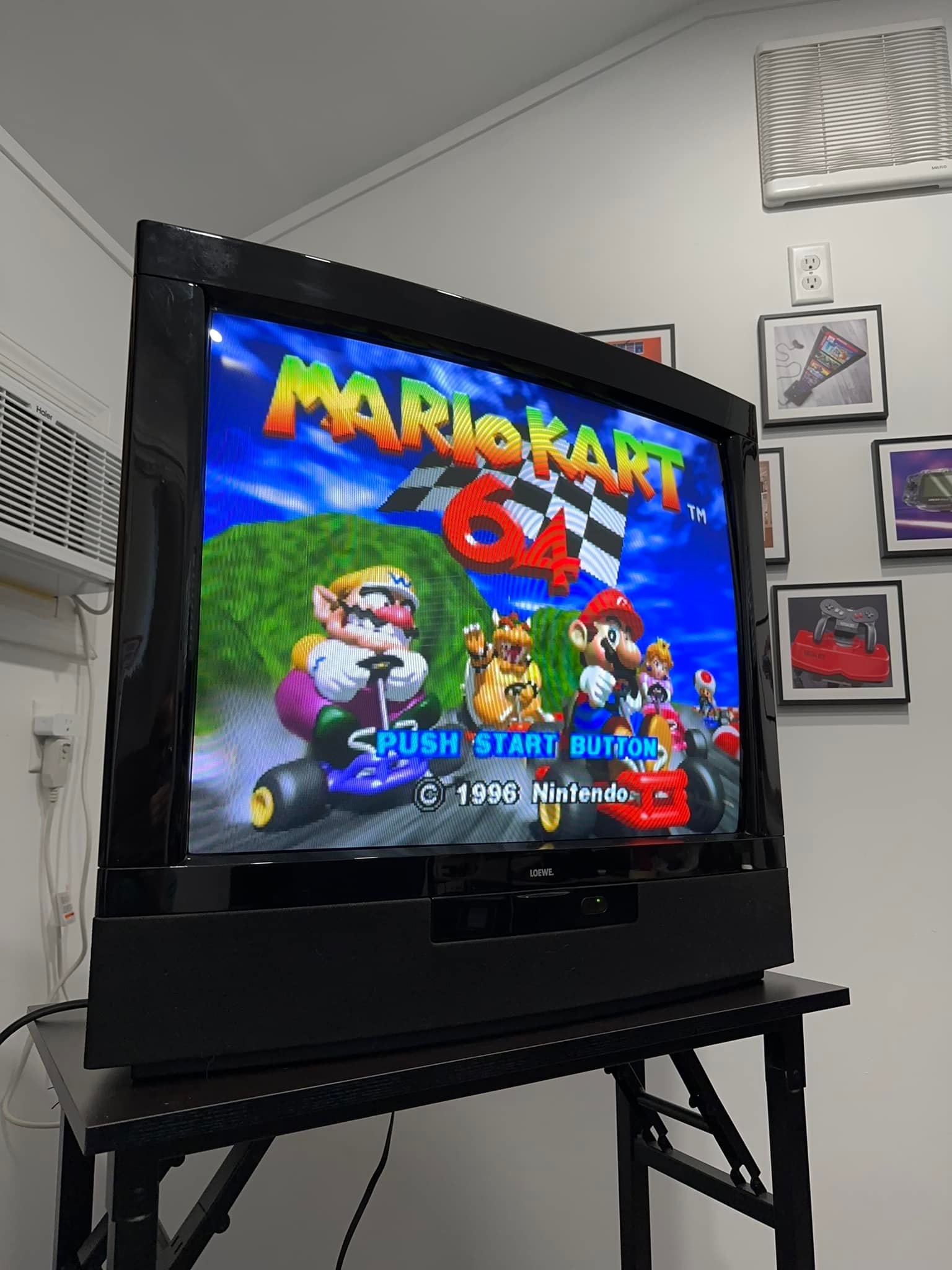

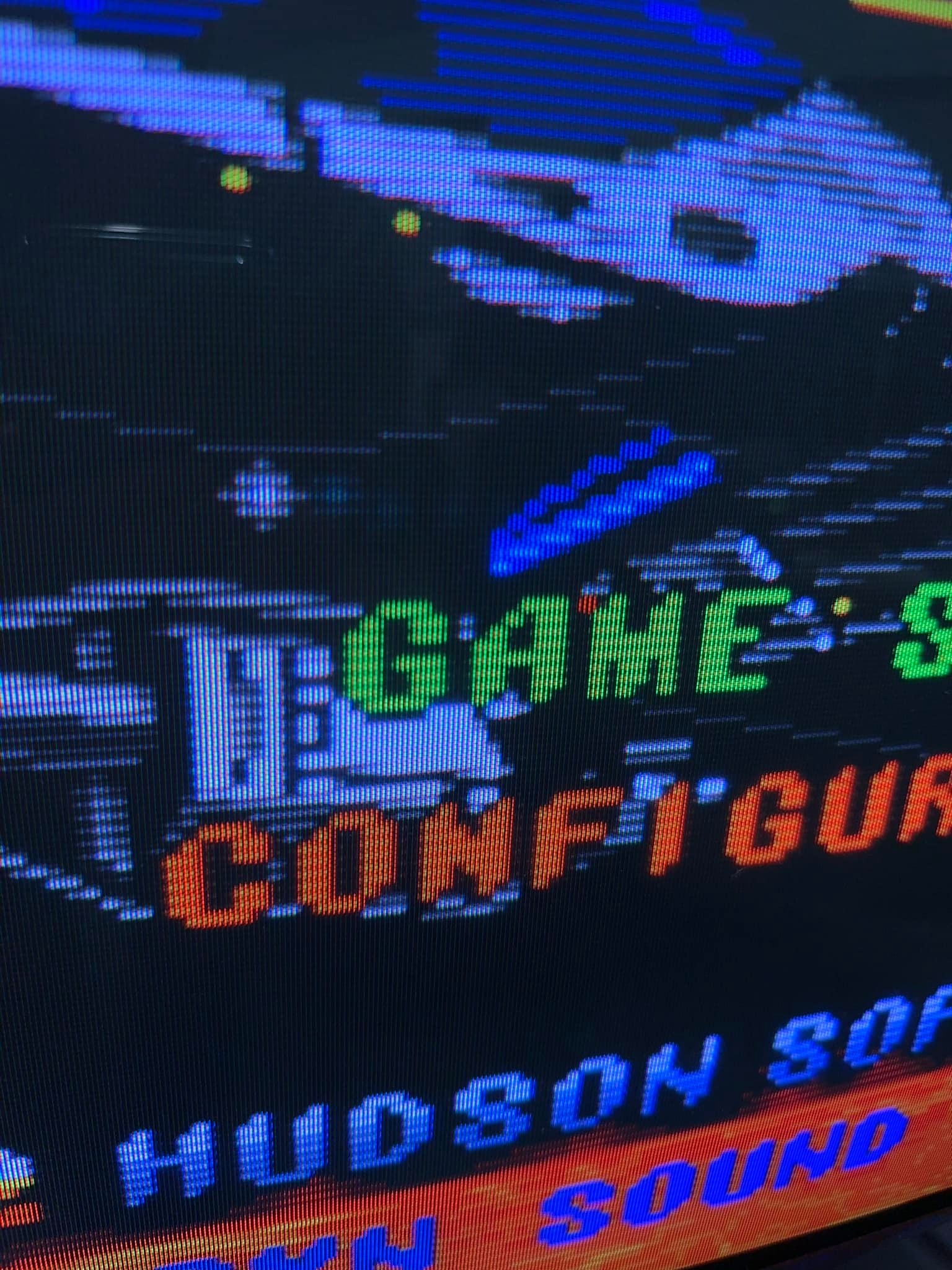

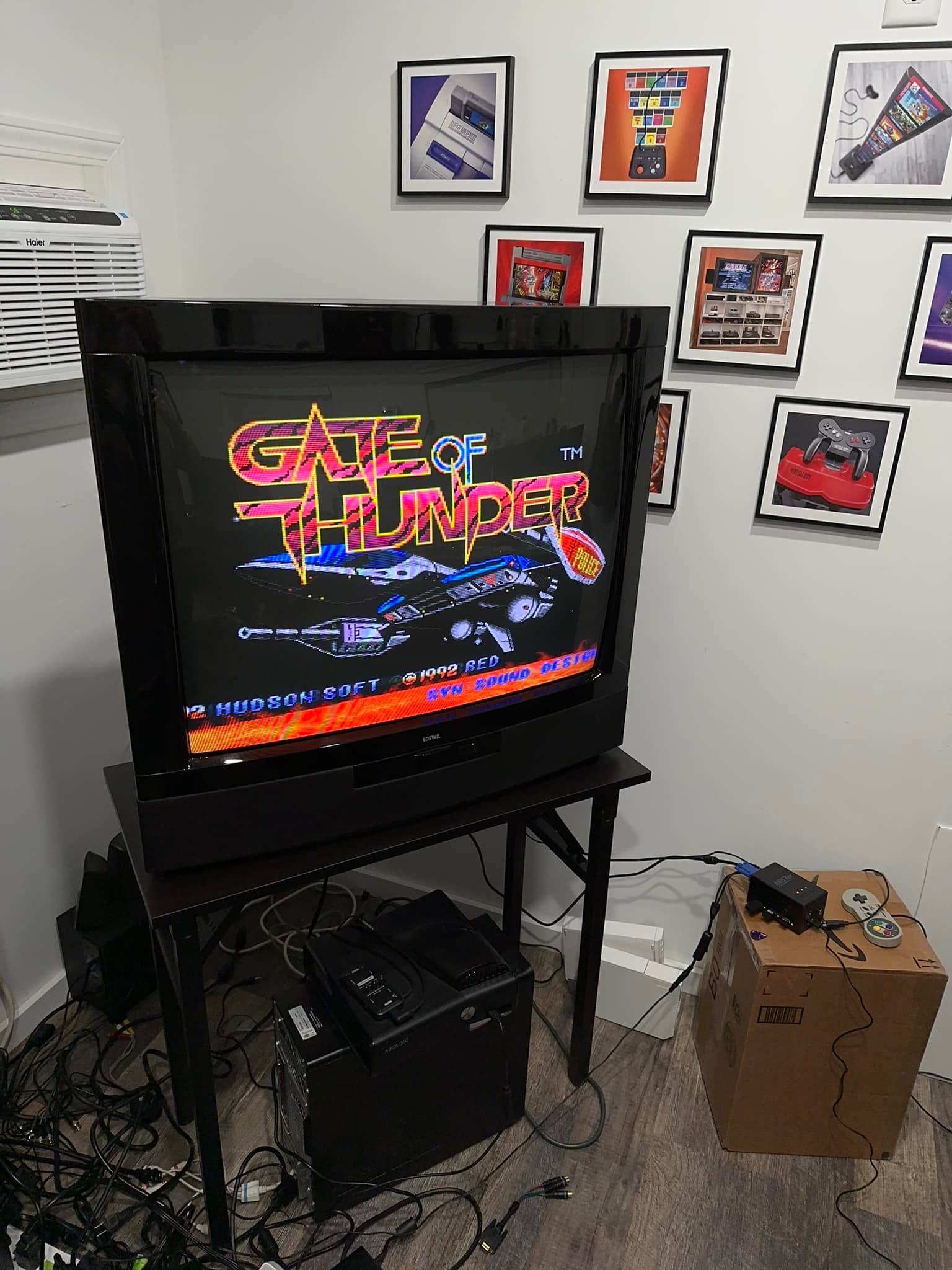

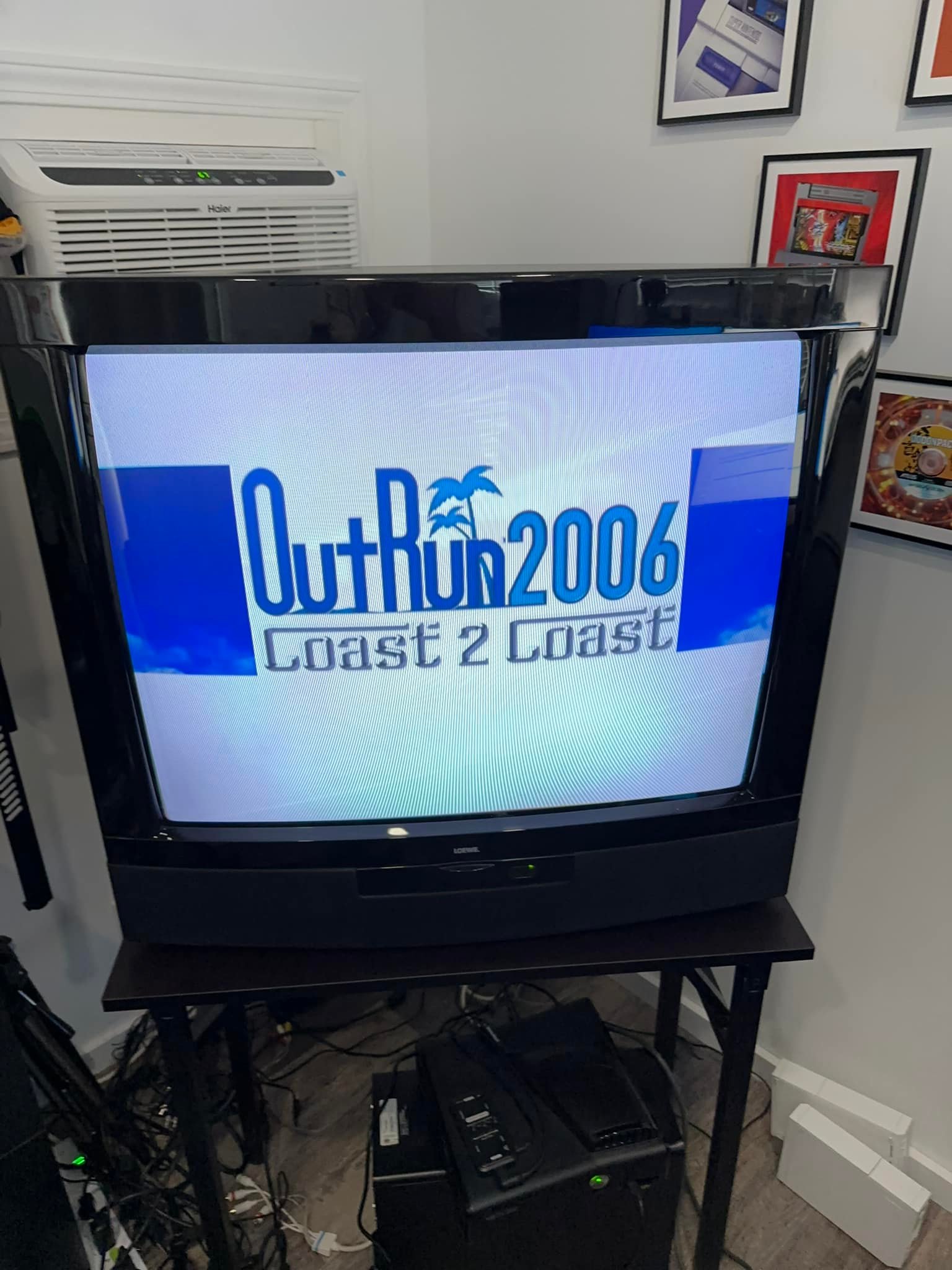

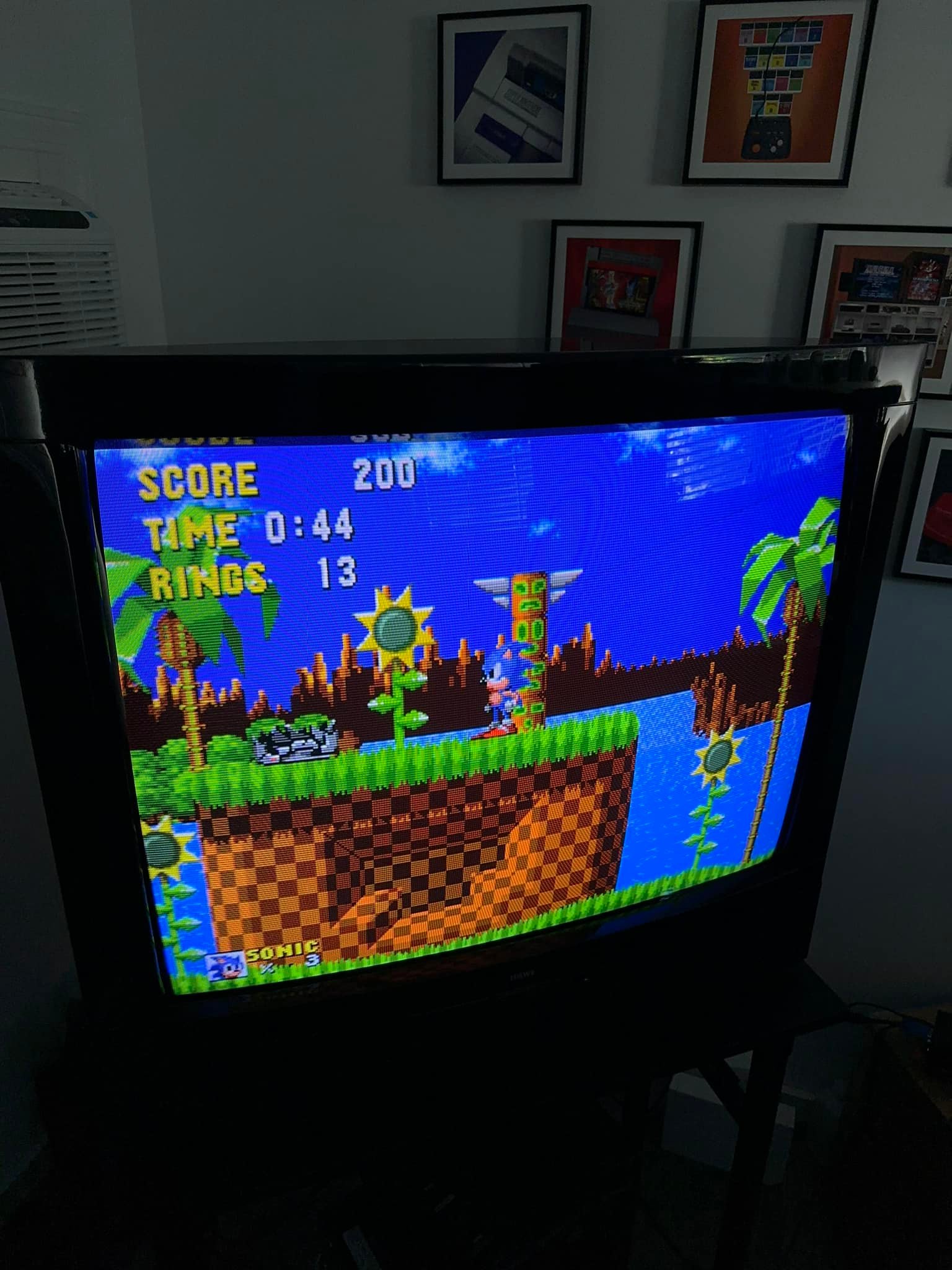

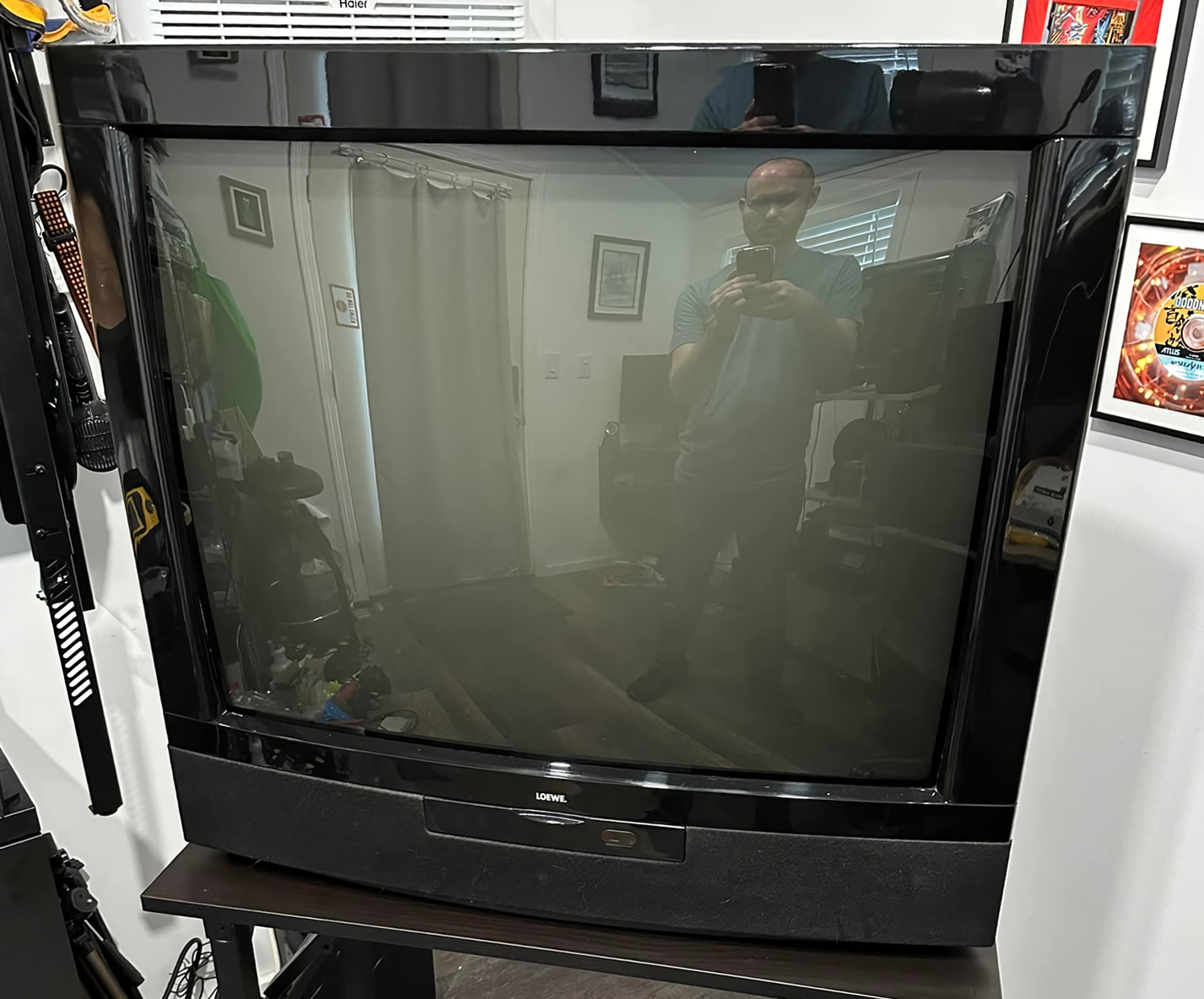

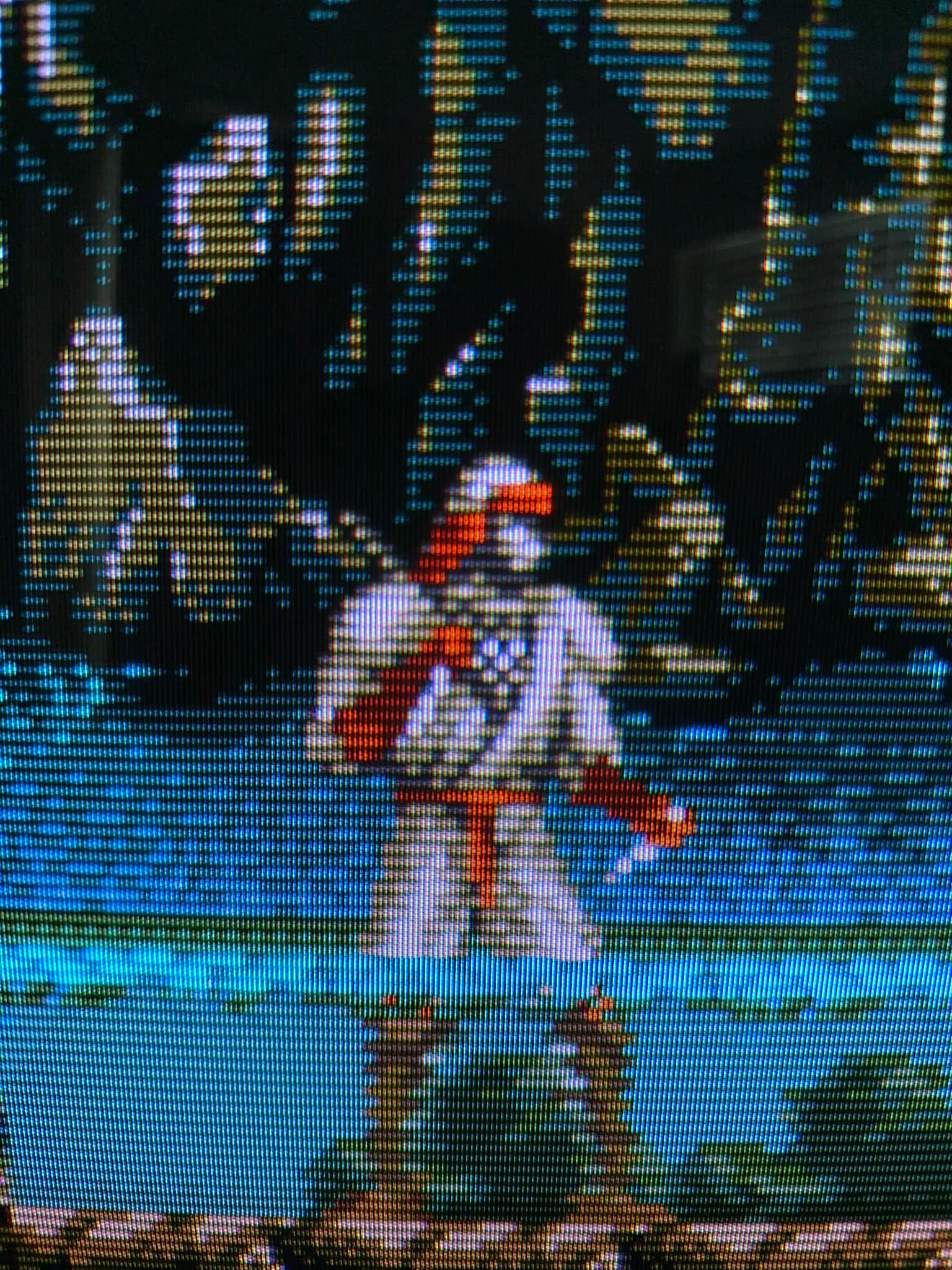

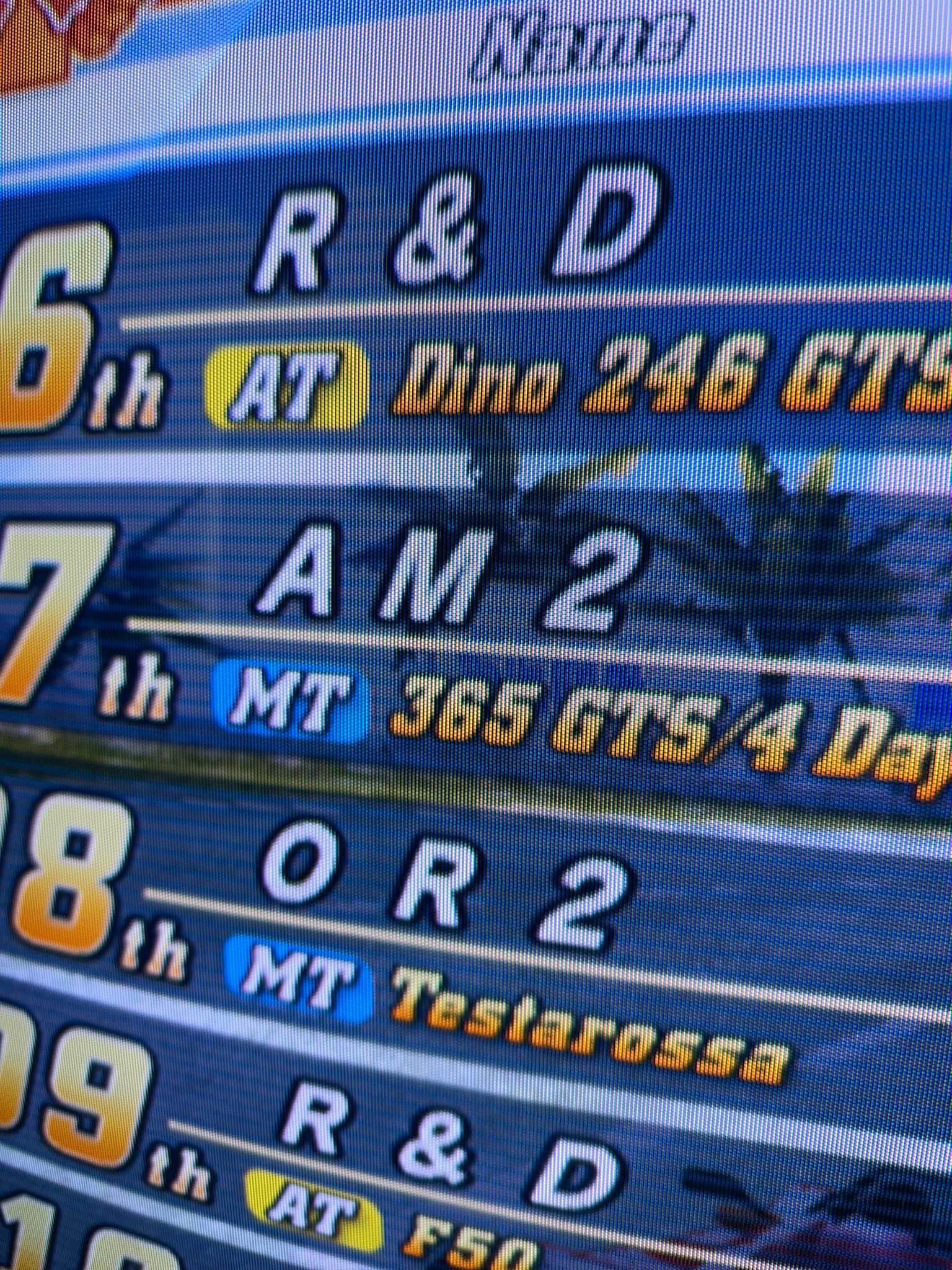

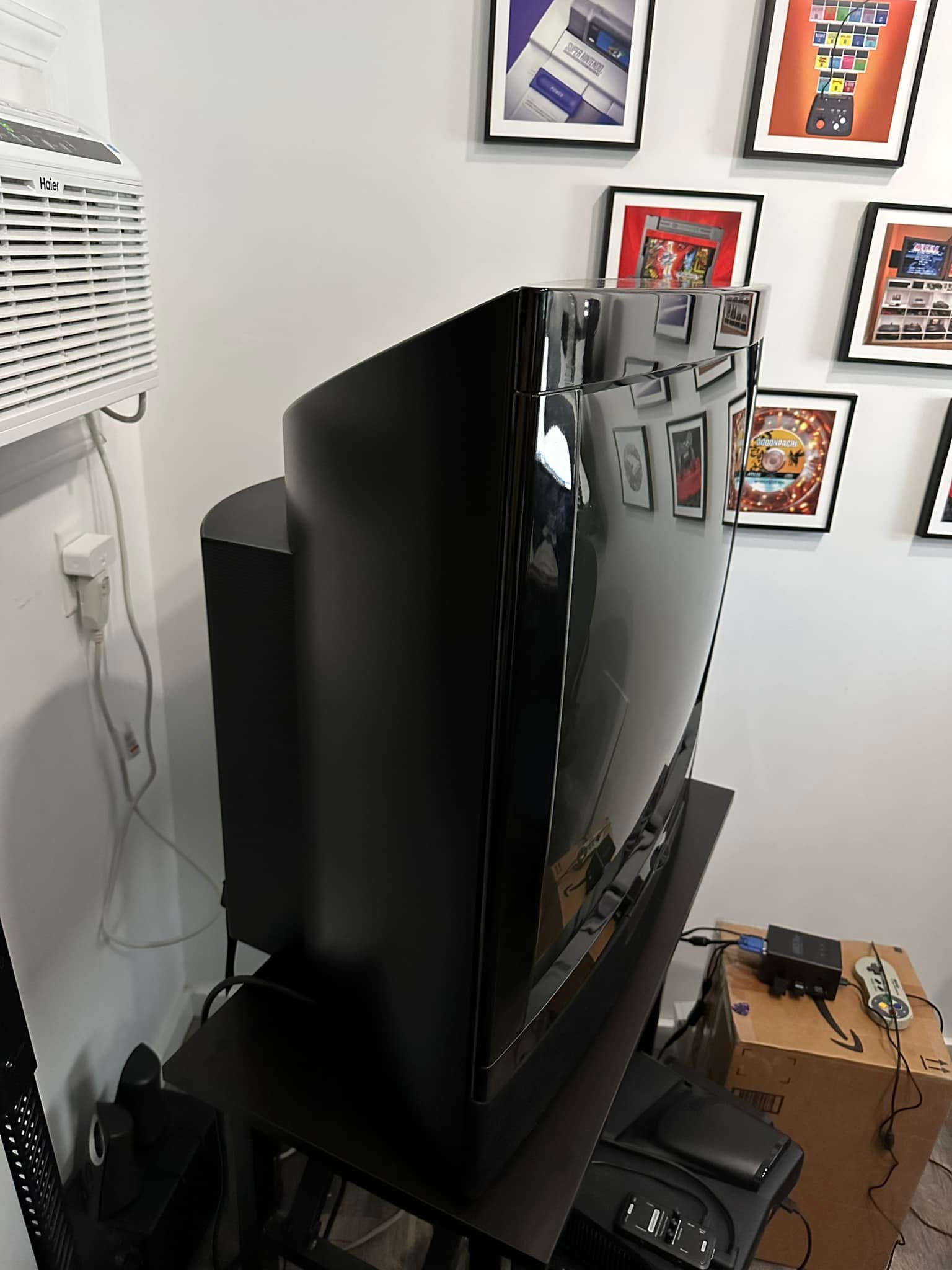

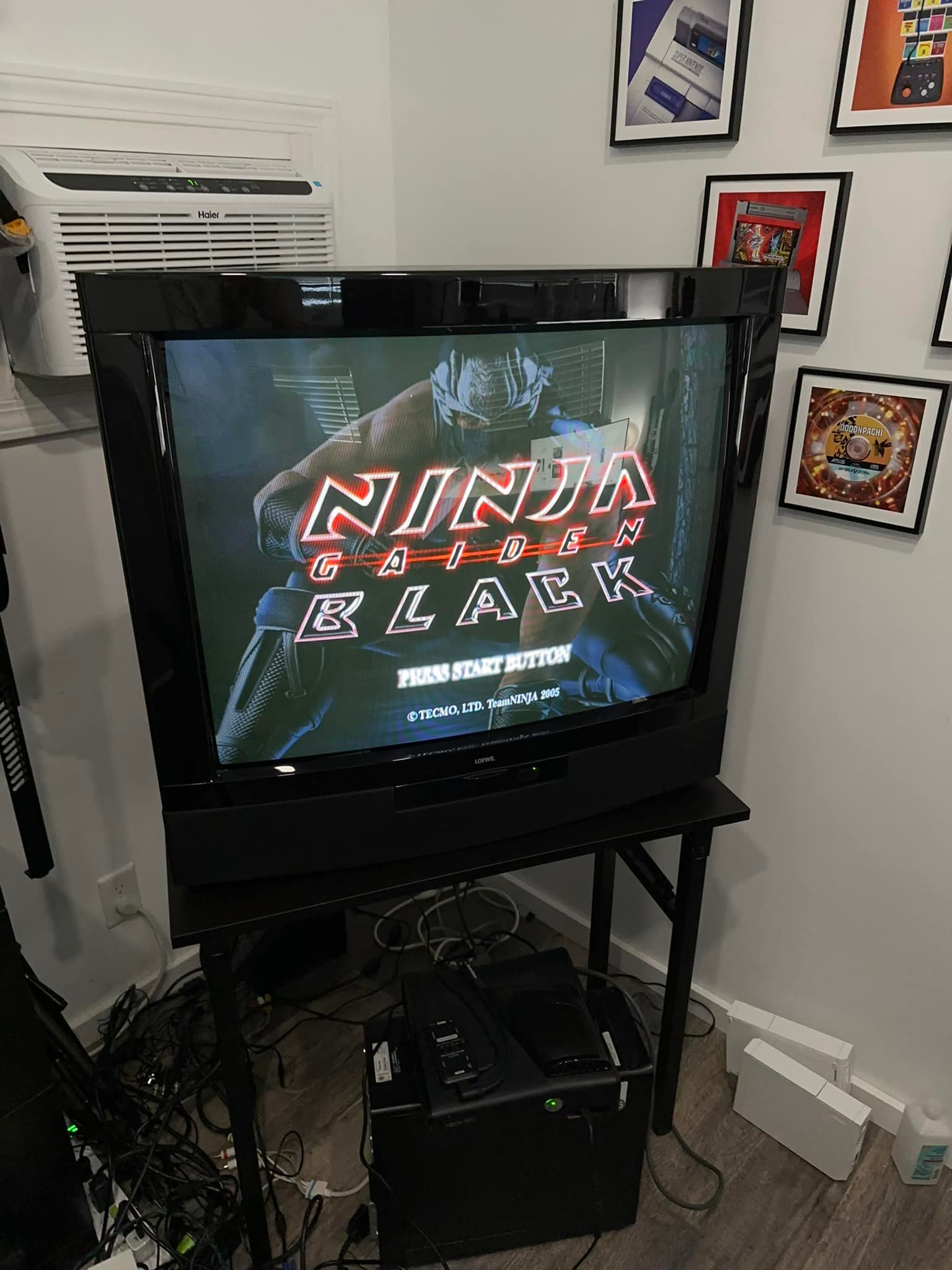

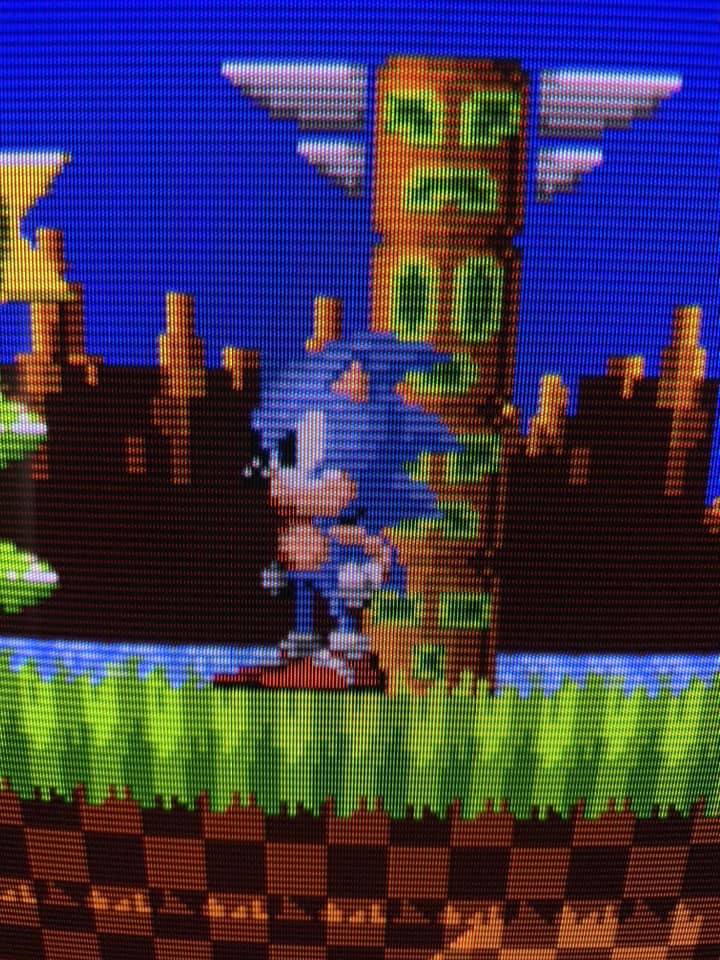

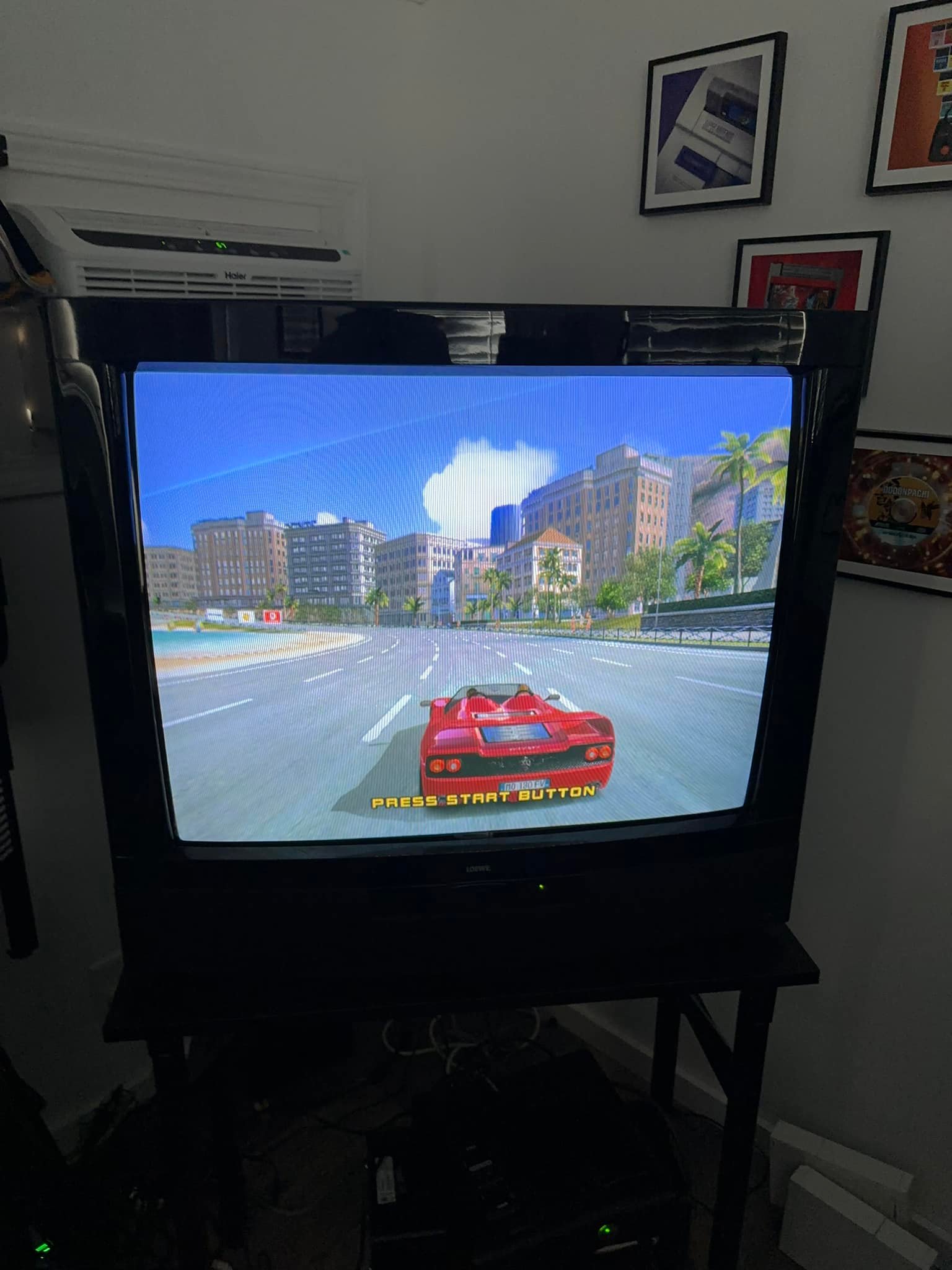

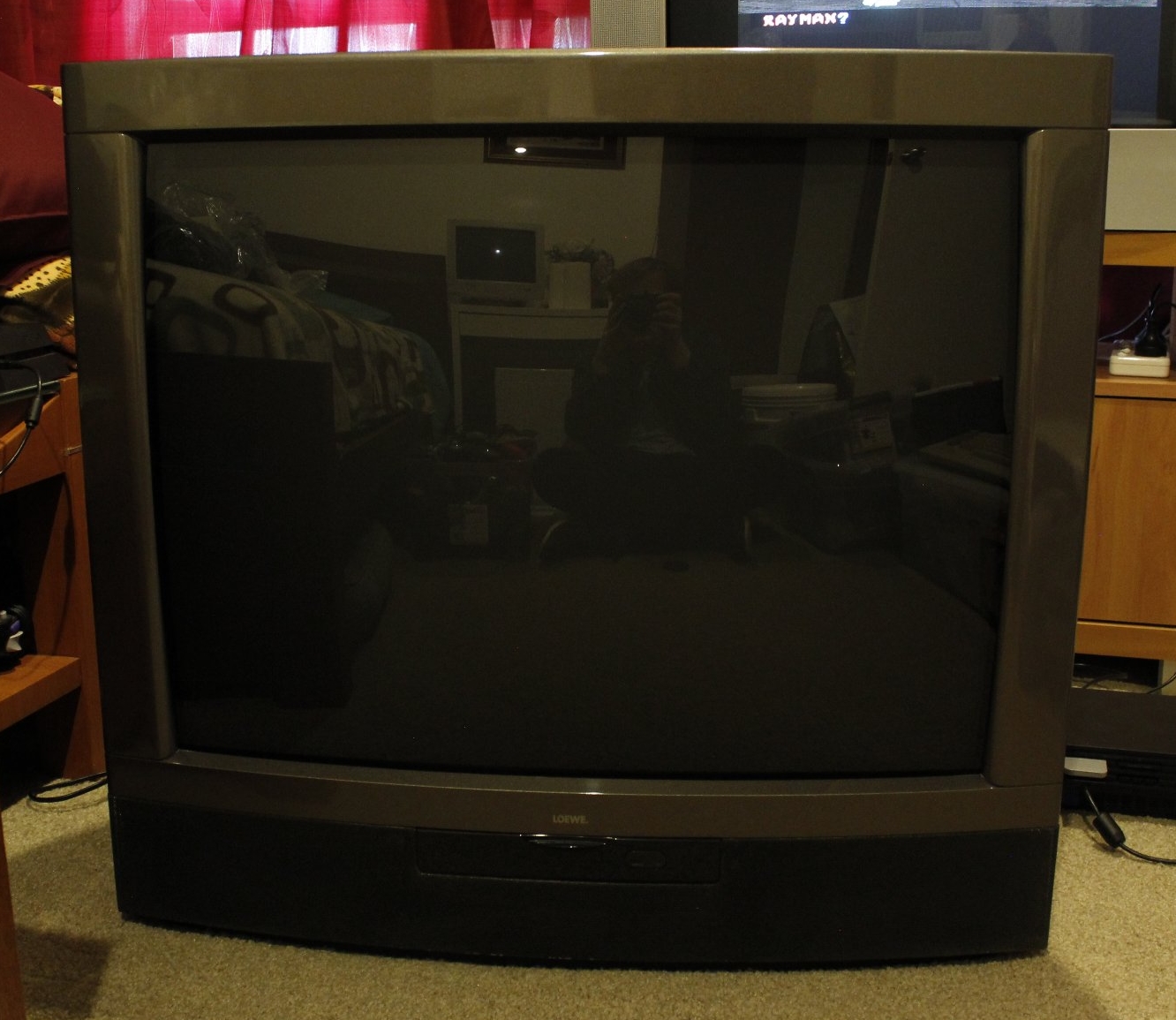

Gallery
| Specifications | |
|---|---|
| Brand: | Loewe |
| Manufacturer: | Loewe |

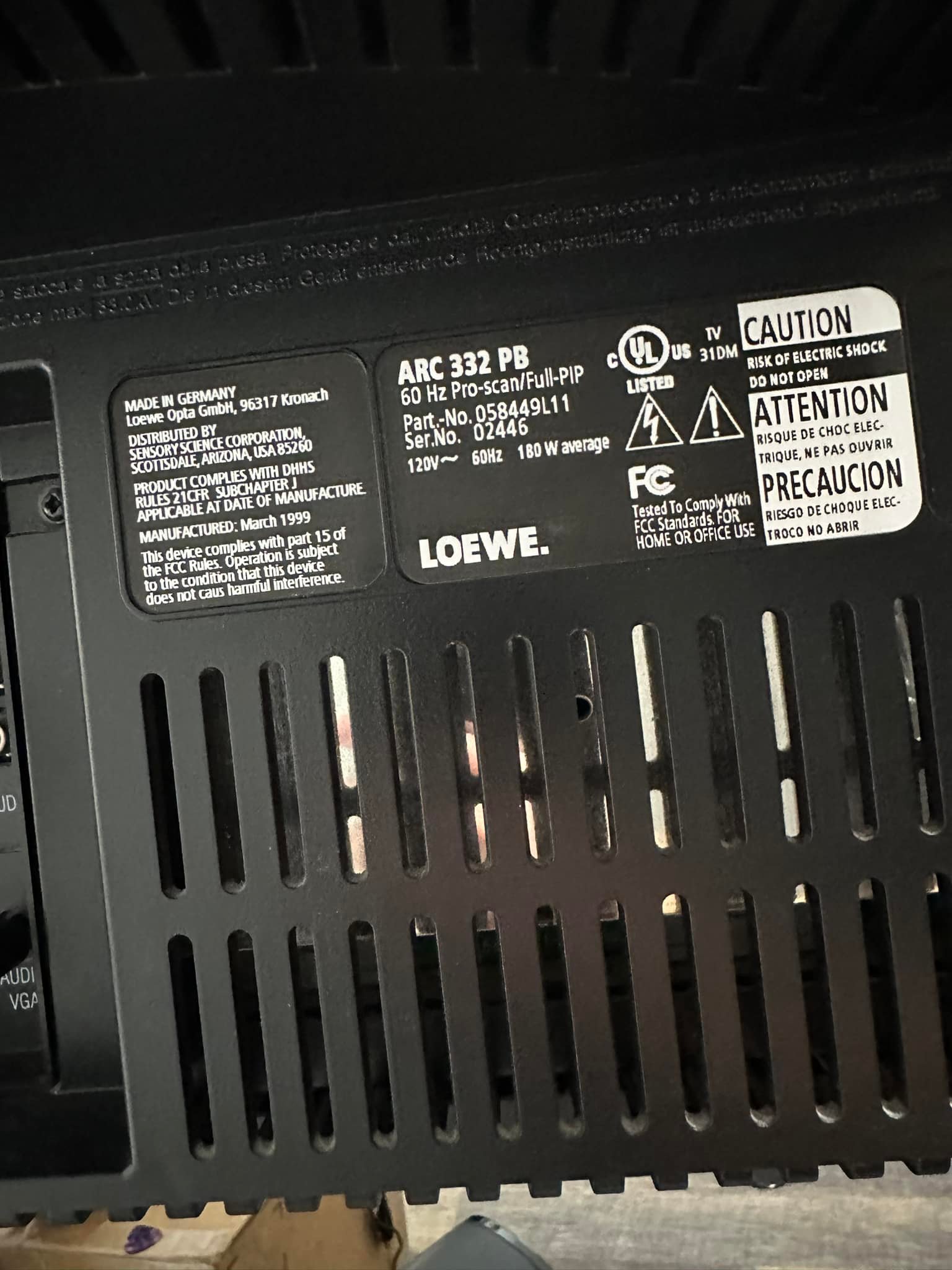

| Model: | ARC 332 PB |
| Series: | Arcada |
| Viewable Size: | 32" |

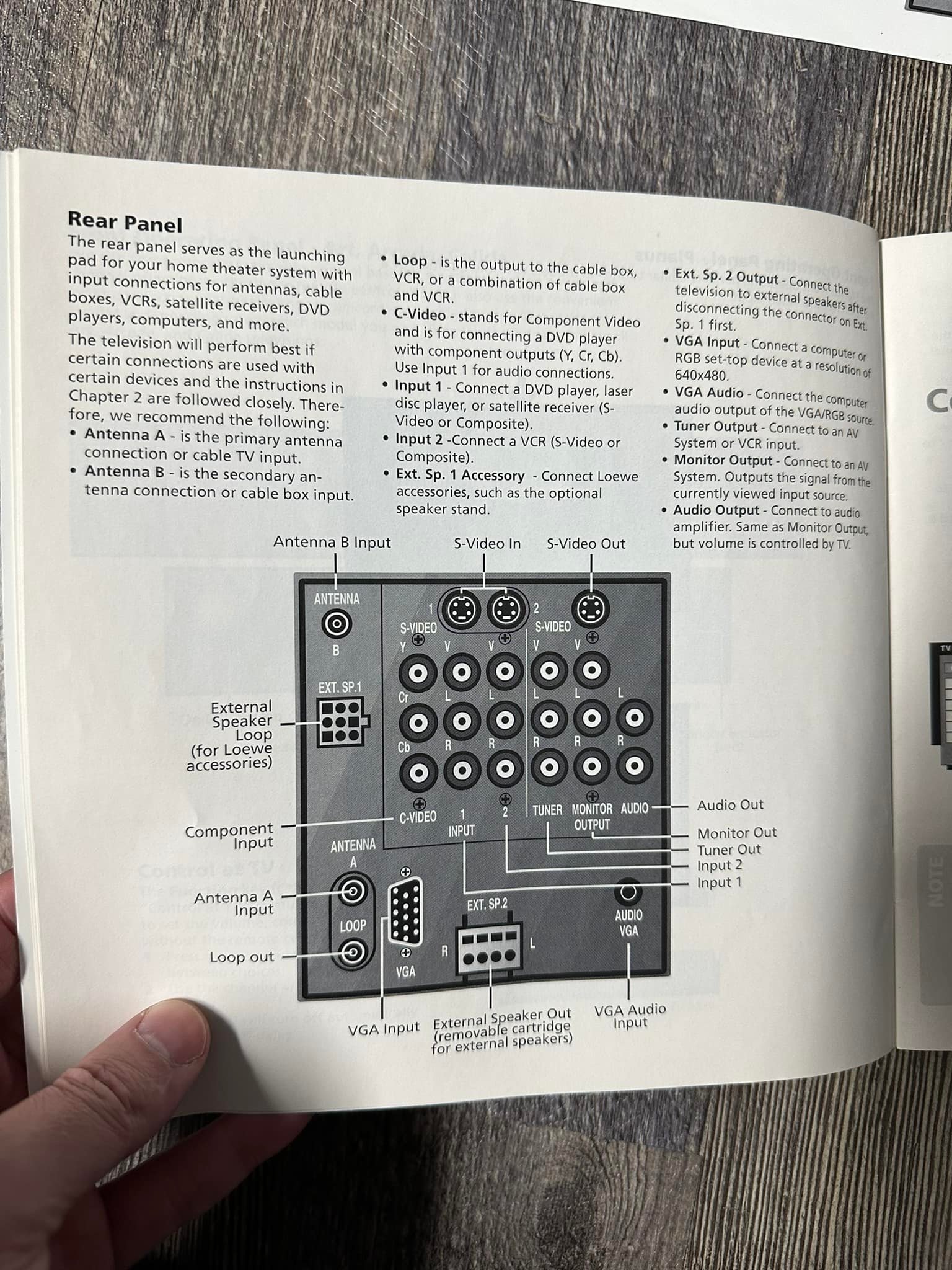

| Inputs: | VGA, Composite, S-Video, Component YPbPr |
| Native Resolutions: | VGA, 1080i, 480p, 540p, 960i |
| Scaled Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 50 Hz, 60 Hz |
| Formats: | NTSC, PAL |
| Aspect: | 4:3 |

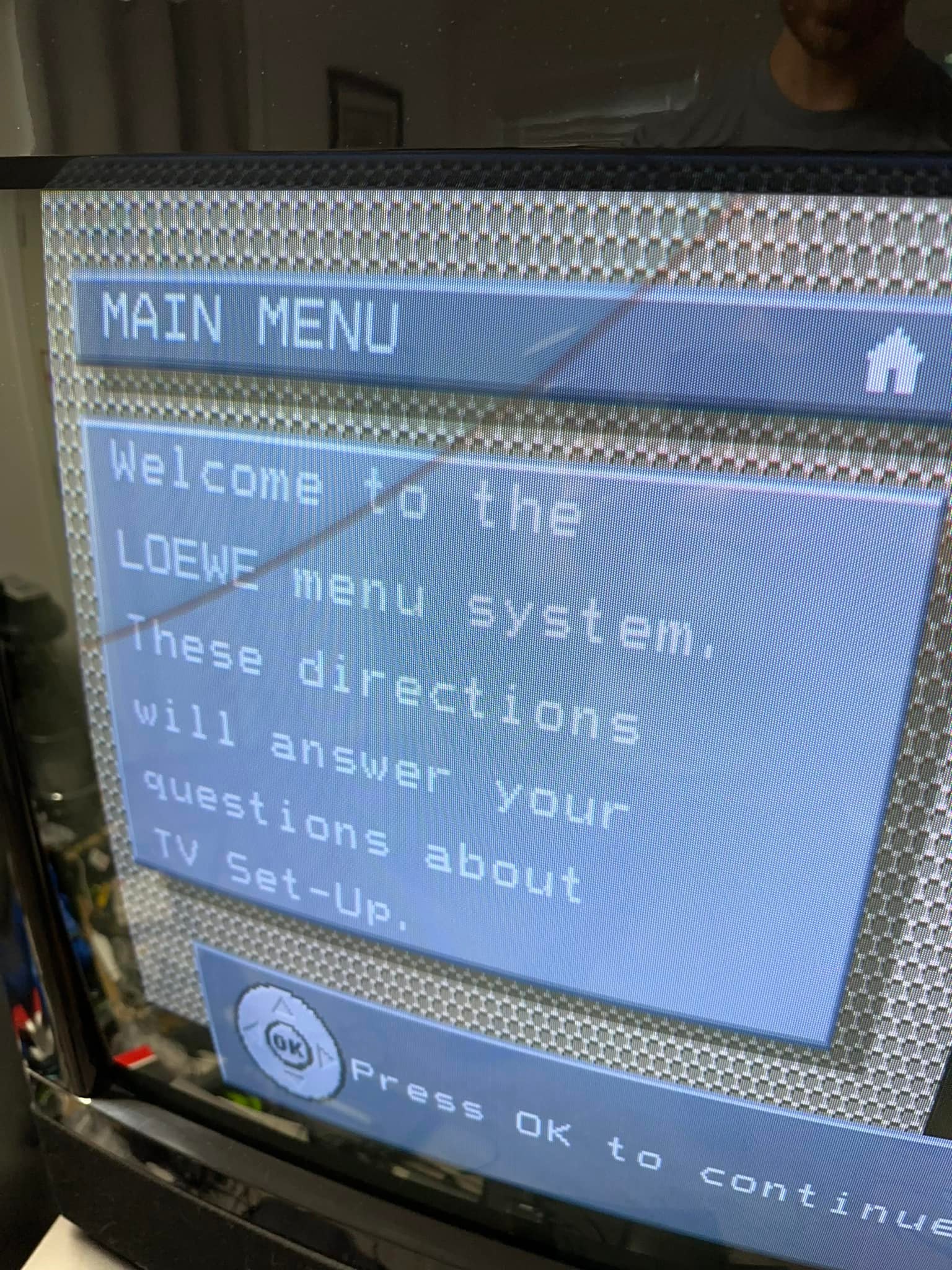

| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Jungle IC: | Micronas, VPC3215C, VPC3215 |
| Comb Filtering: | 3D Digital |
| Tube: | Philips , A80EFF002X43 , A80EFF002X |
| Heater Voltage: | 6.3v |
| Mask: |

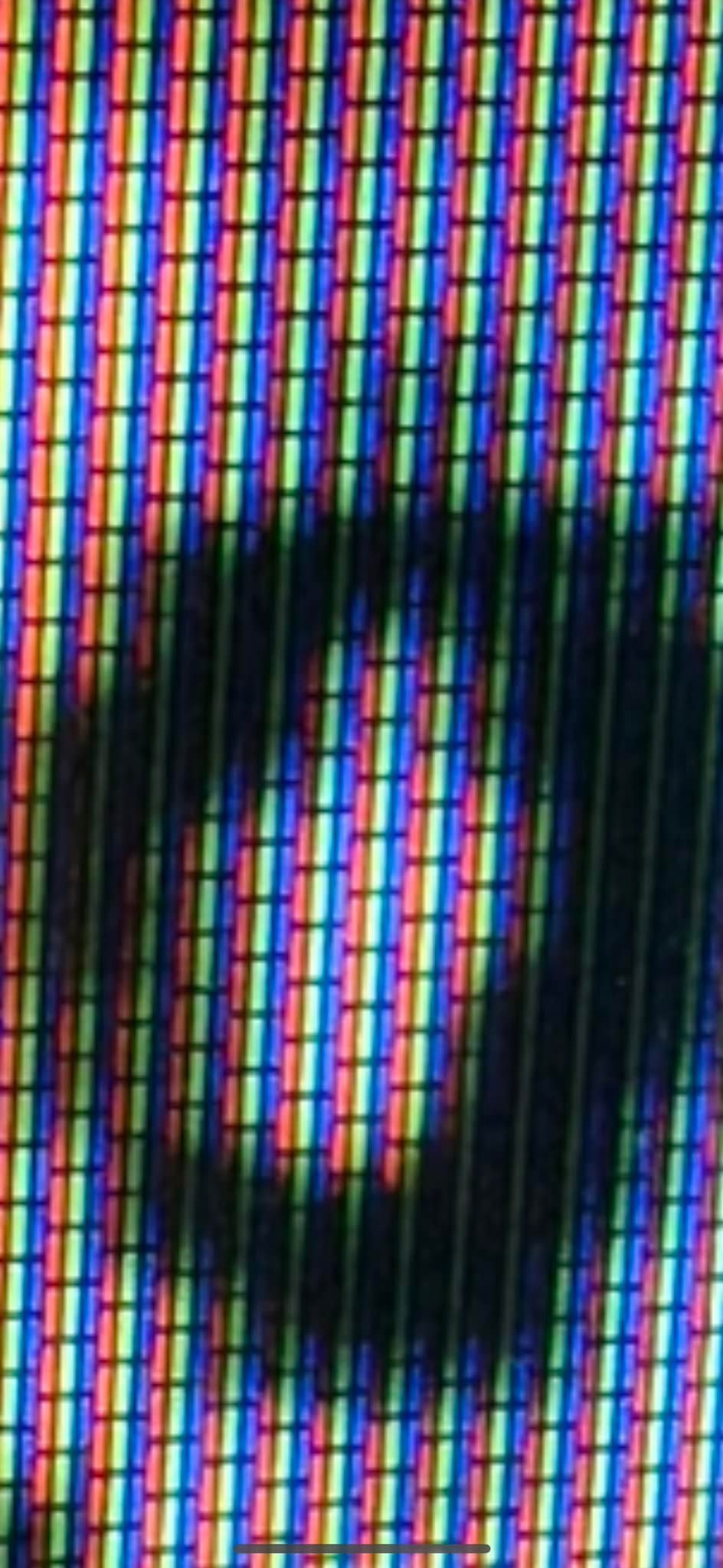

Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Speakers: | Stereo, 12W x 2 |

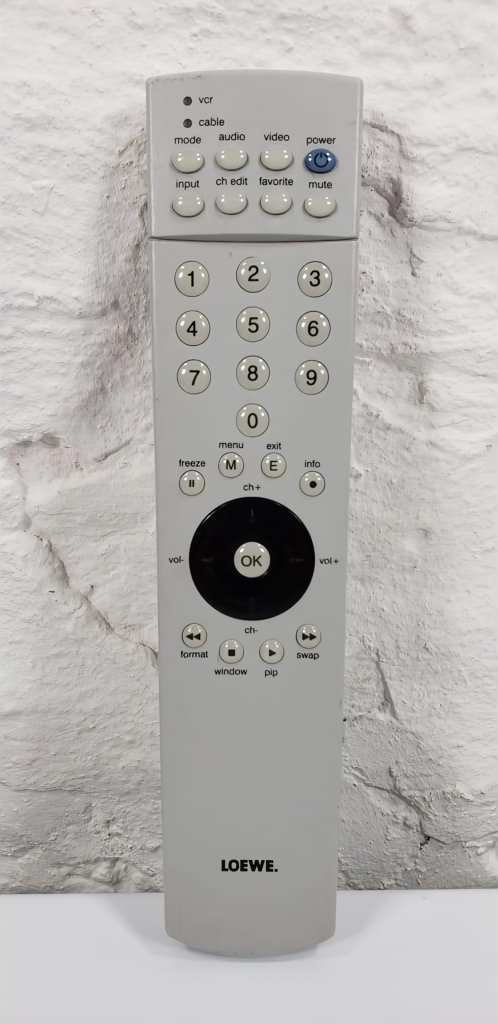

| Remote: | 87000.063 |
| Chassis: | A2300 |
| Weight: | 99 lbs (44.9 kg) |
| Dimensions (W/H/D): |
787 x 721 x 578 mm
(30.9 x 28.3 x 22.7") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1999 |
| MSRP: | 3999 USD |
| Country of Manufacture: | Germany |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual |
