Loewe Calida 32 (CAL 2323 MB)
December 5, 2025, 1:14 pm
December 5, 2025, 11:47 pm
Summary
High-end 32" HD CRT by Loewe, made in Germany and launched in North America in 2001. Has RF, composite, s-video, component, and VGA input. It can natively scan 480p/960i, 540p/1080i, and upconverts NTSC and PAL signals. Came in a Matte Black (MB) finish. This model is a bit of a successor to the Arcada 32, in that it uses the newer A2400 chassis.
In 1999, Loewe partnered with Sensory Science Corporation (formerly Go-Video) for distribution of their sets in the USA. Then in 2001 SonicBlue acquired Sensory Science. Later that same year, it was announced that Loewe and SonicBlue would end their partnership: Loewe, SonicBlue End U.S. TV Agreement
These sets were sold in limited numbers and were very expensive for the time.

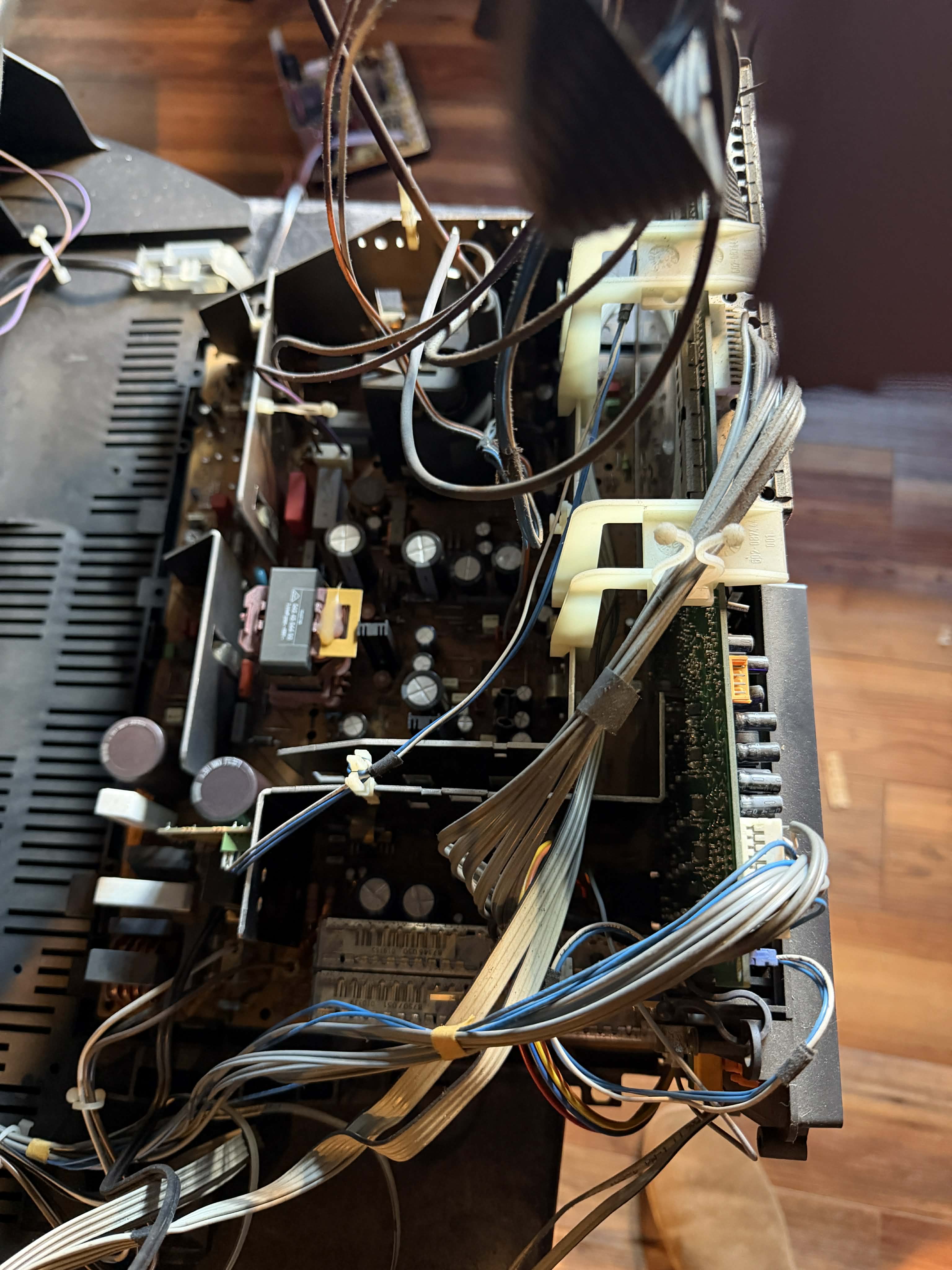

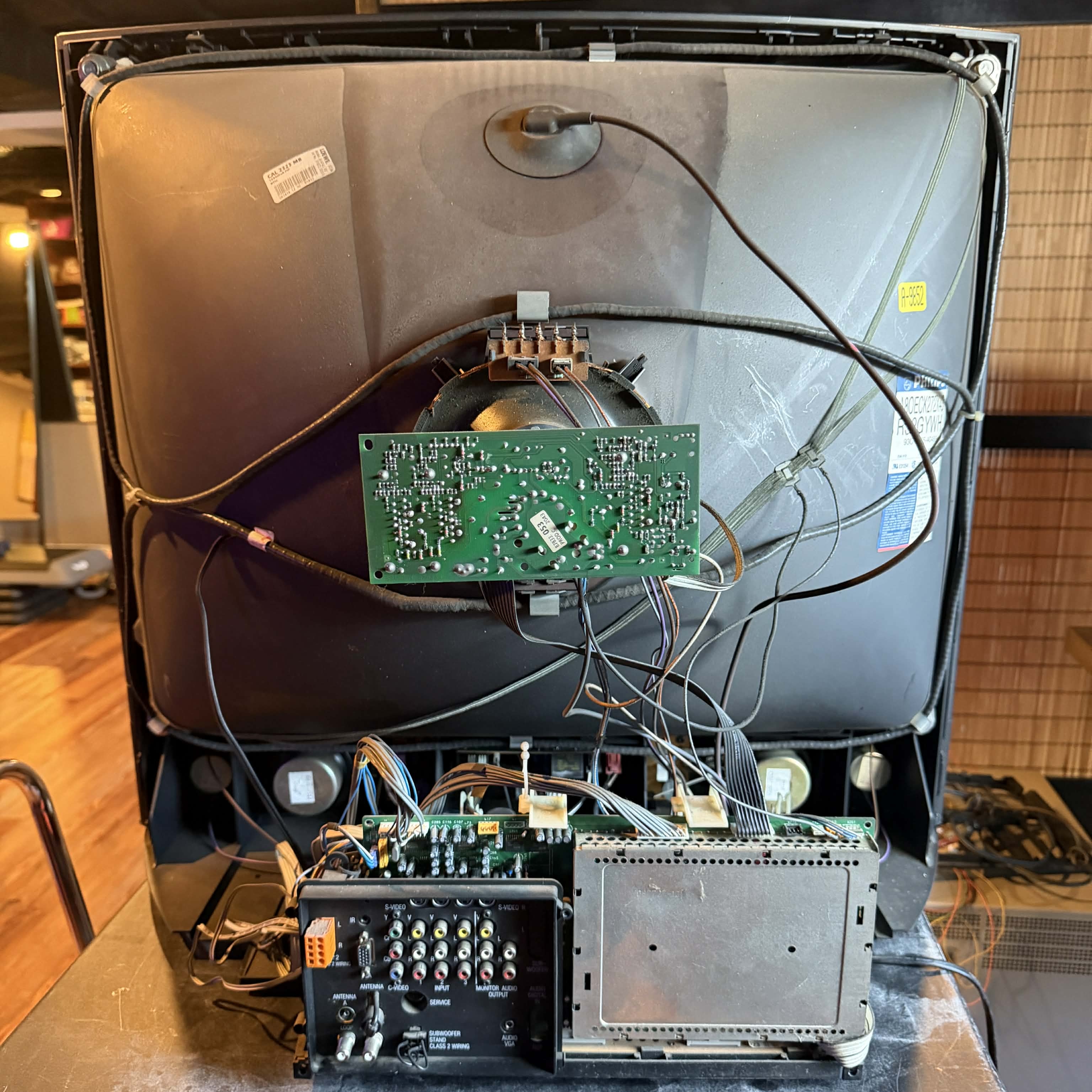

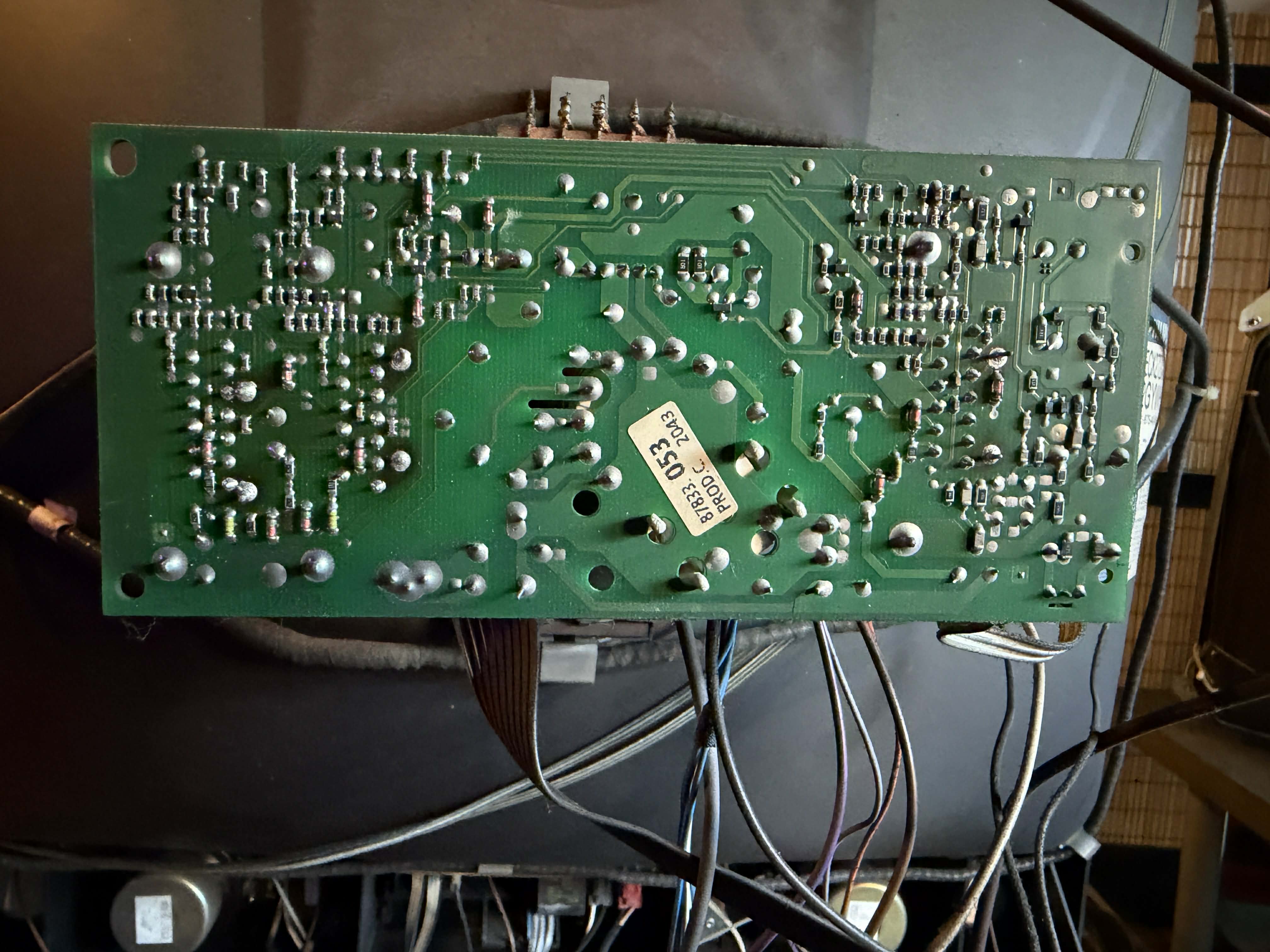

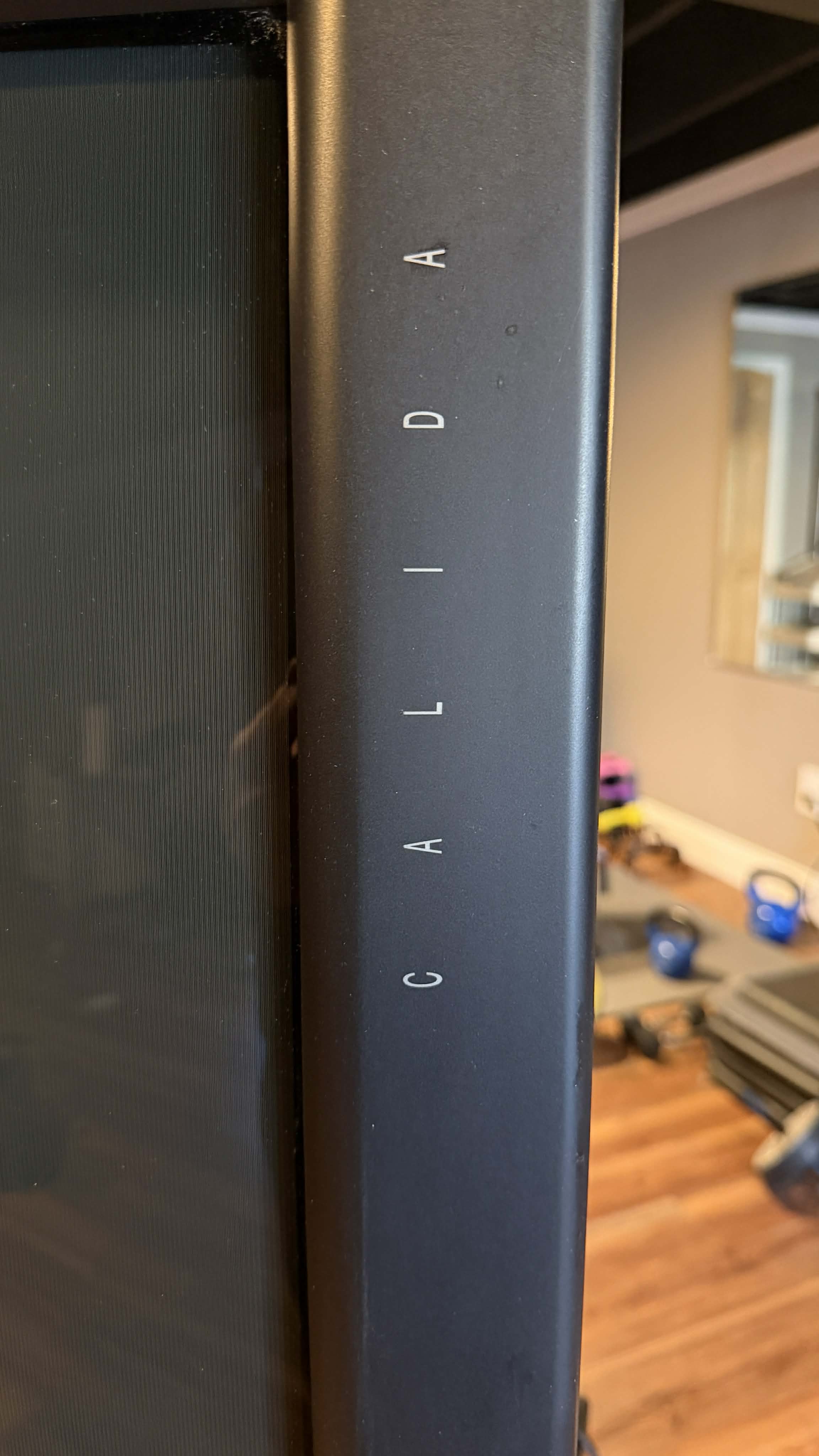

(Special thanks to Anthony Meo for the pics!)
Manuals
A year or so after the model's introduction, Loewe revised the chassis, likely to address the power supply issues:
Promo Materials
Notes
Over the years there have been reports of power supply failure and relay faults with these sets. It is advised that if you do find one of these models, be aware it may need servicing at some point in the future. Later on Loewe made further refinements with the A2440 chassis.
The VGA input accepts higher resolutions, but the component input is SD only.

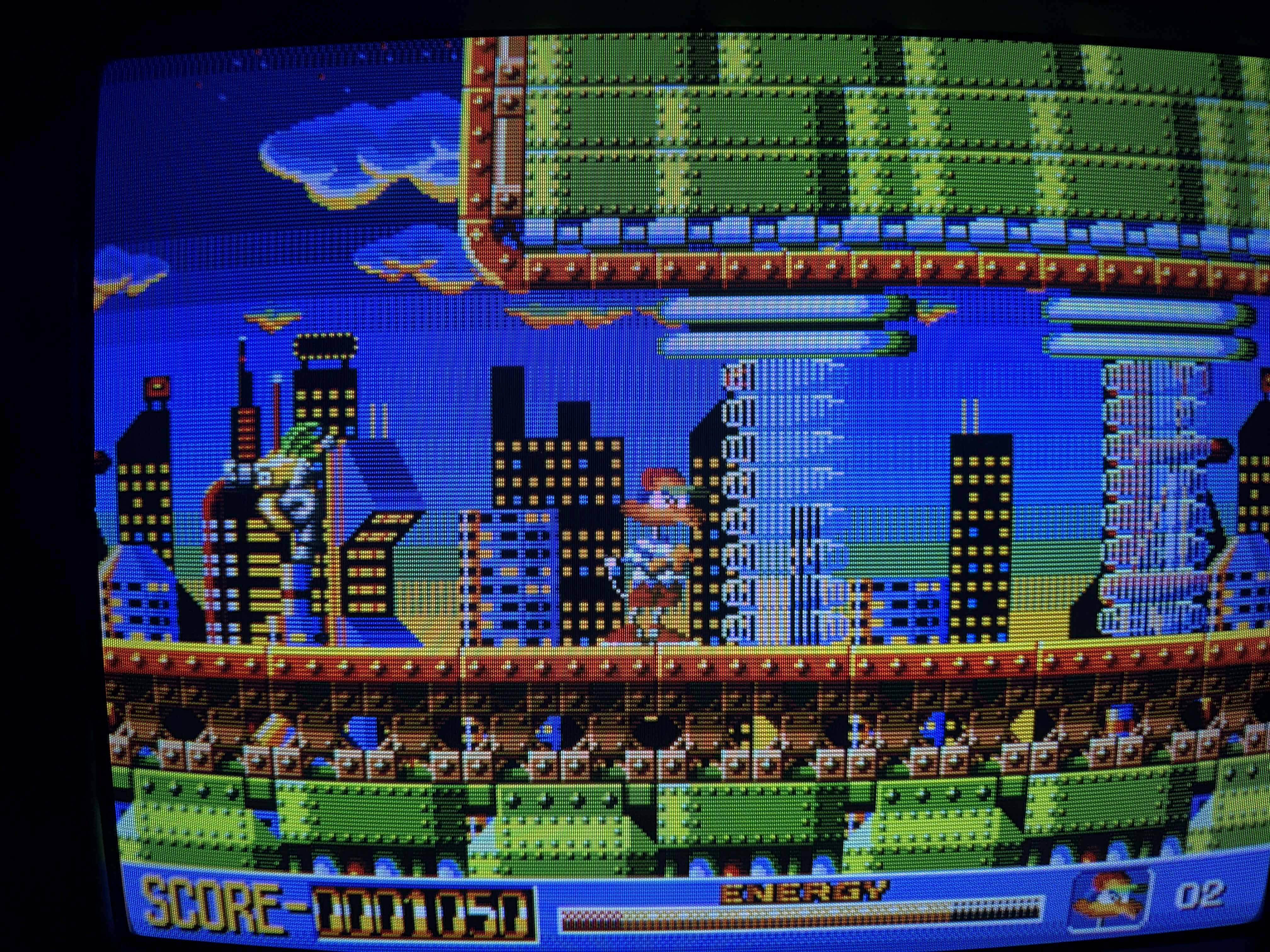

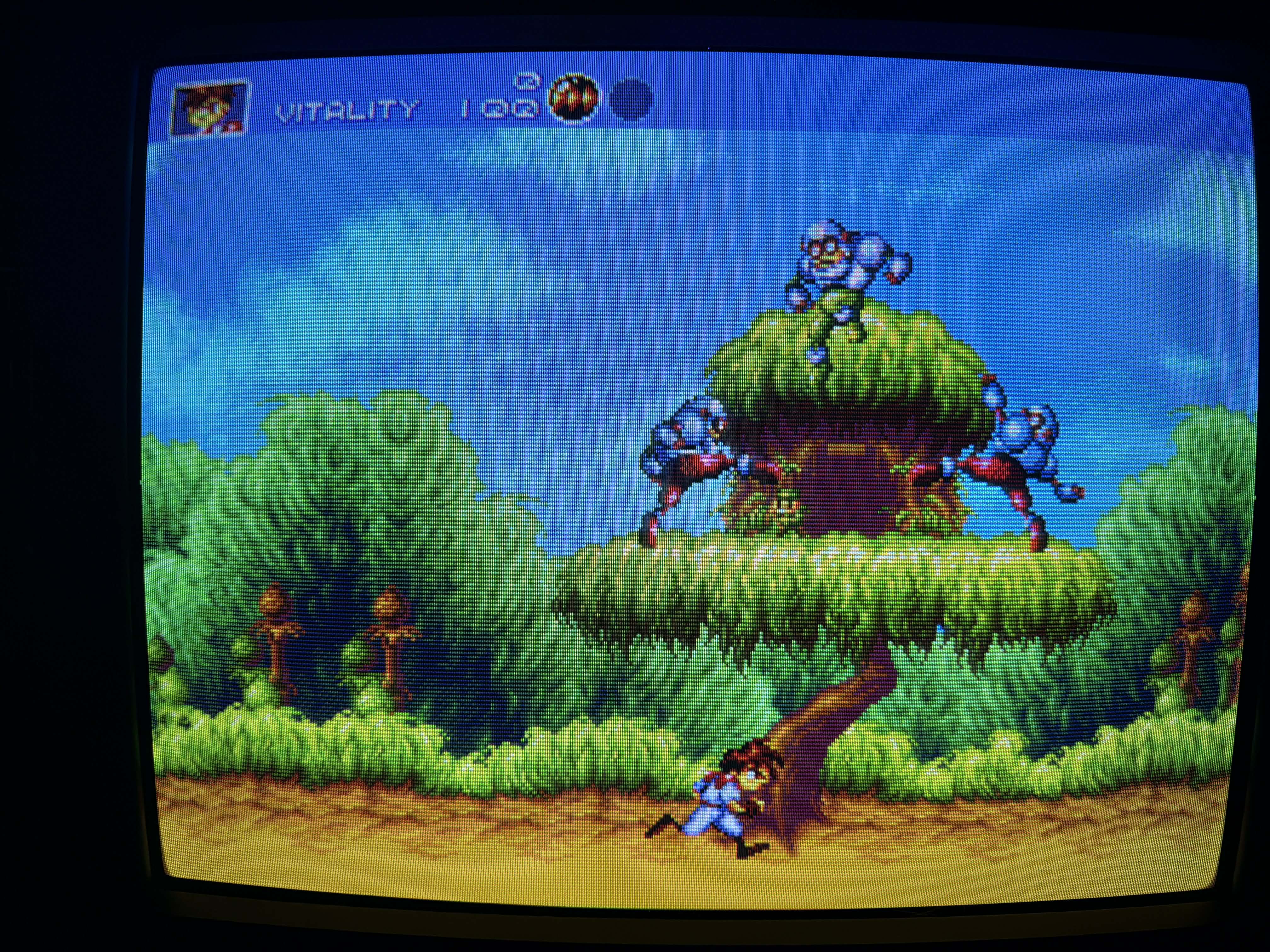

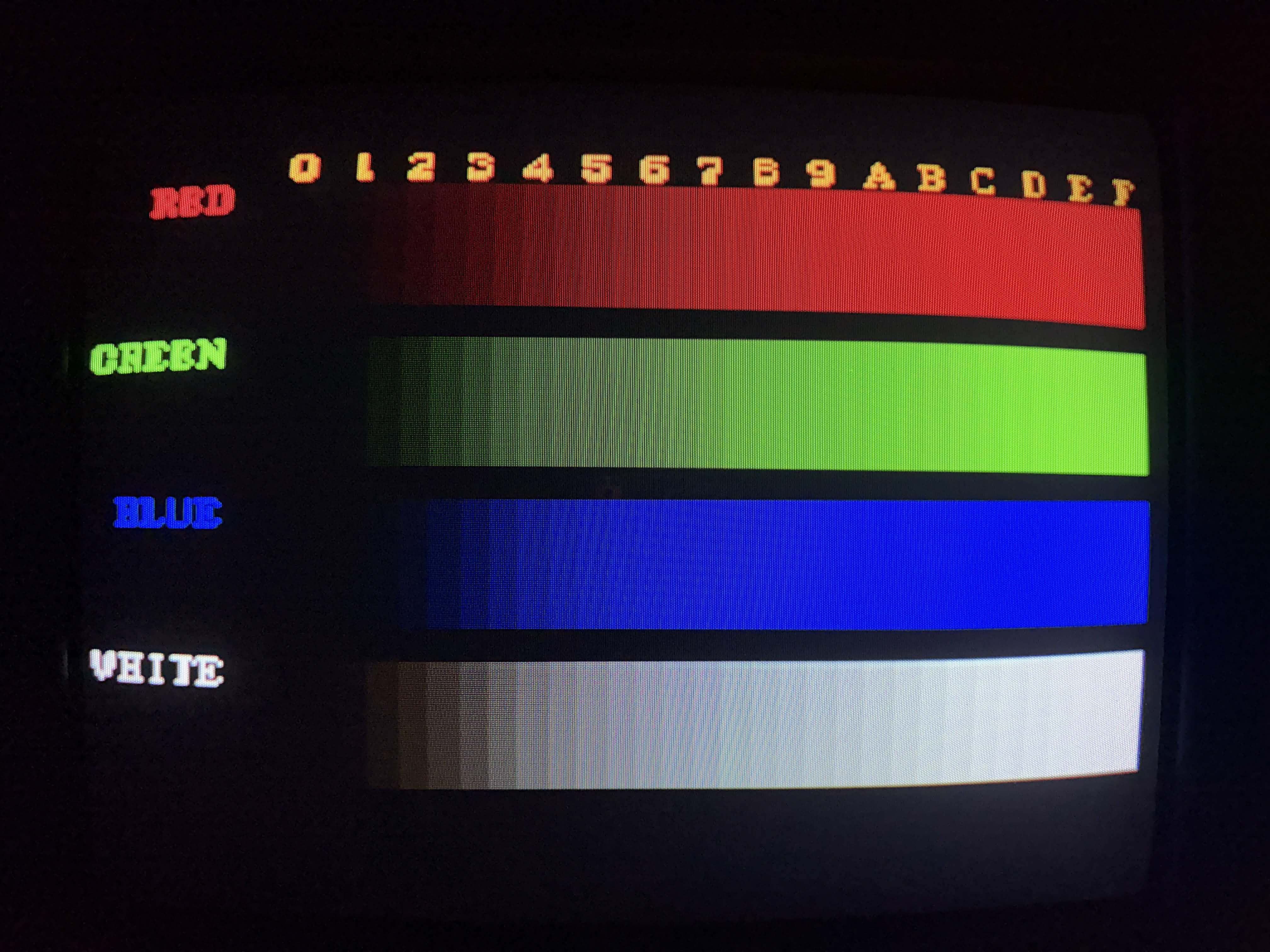

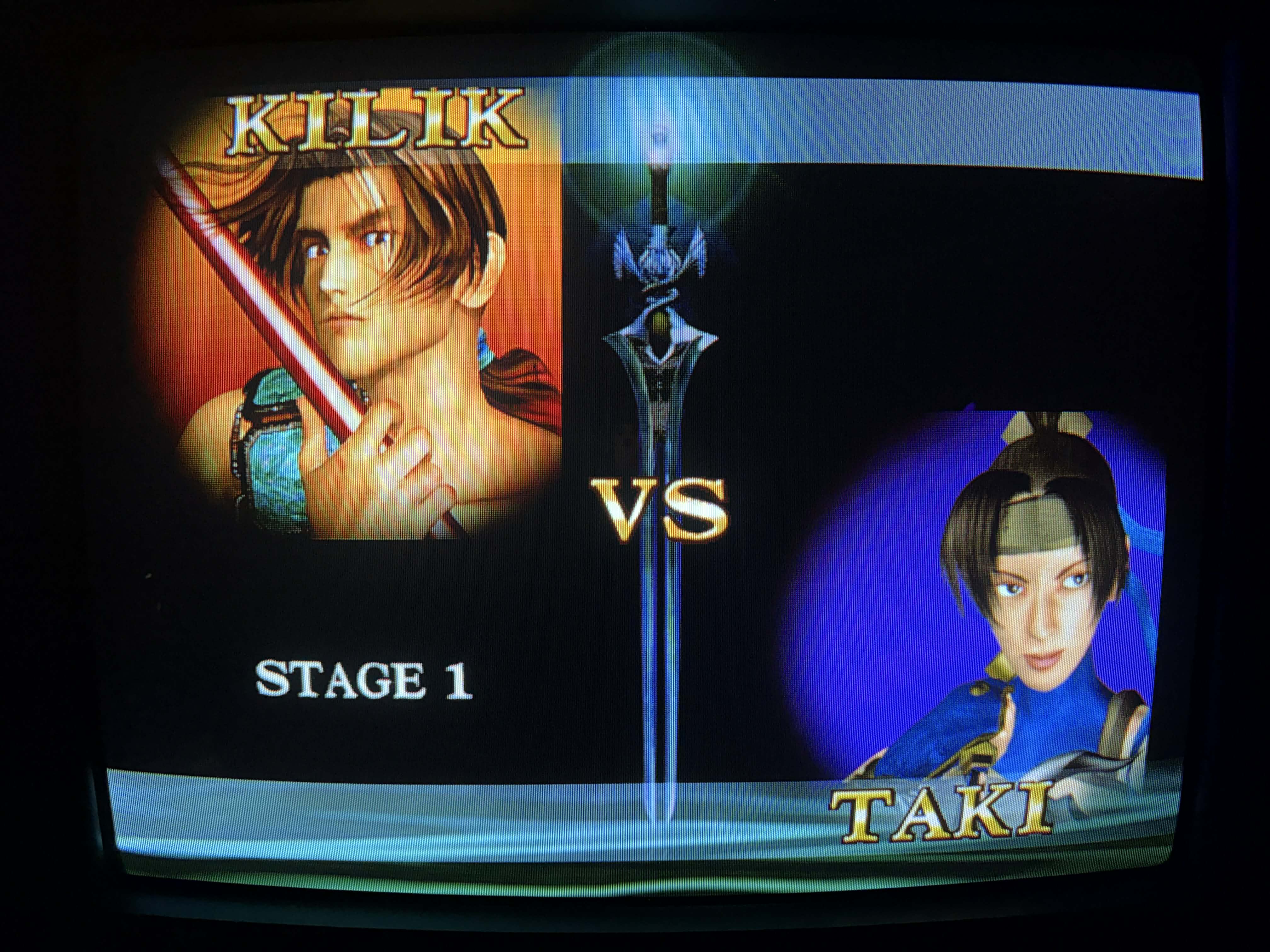

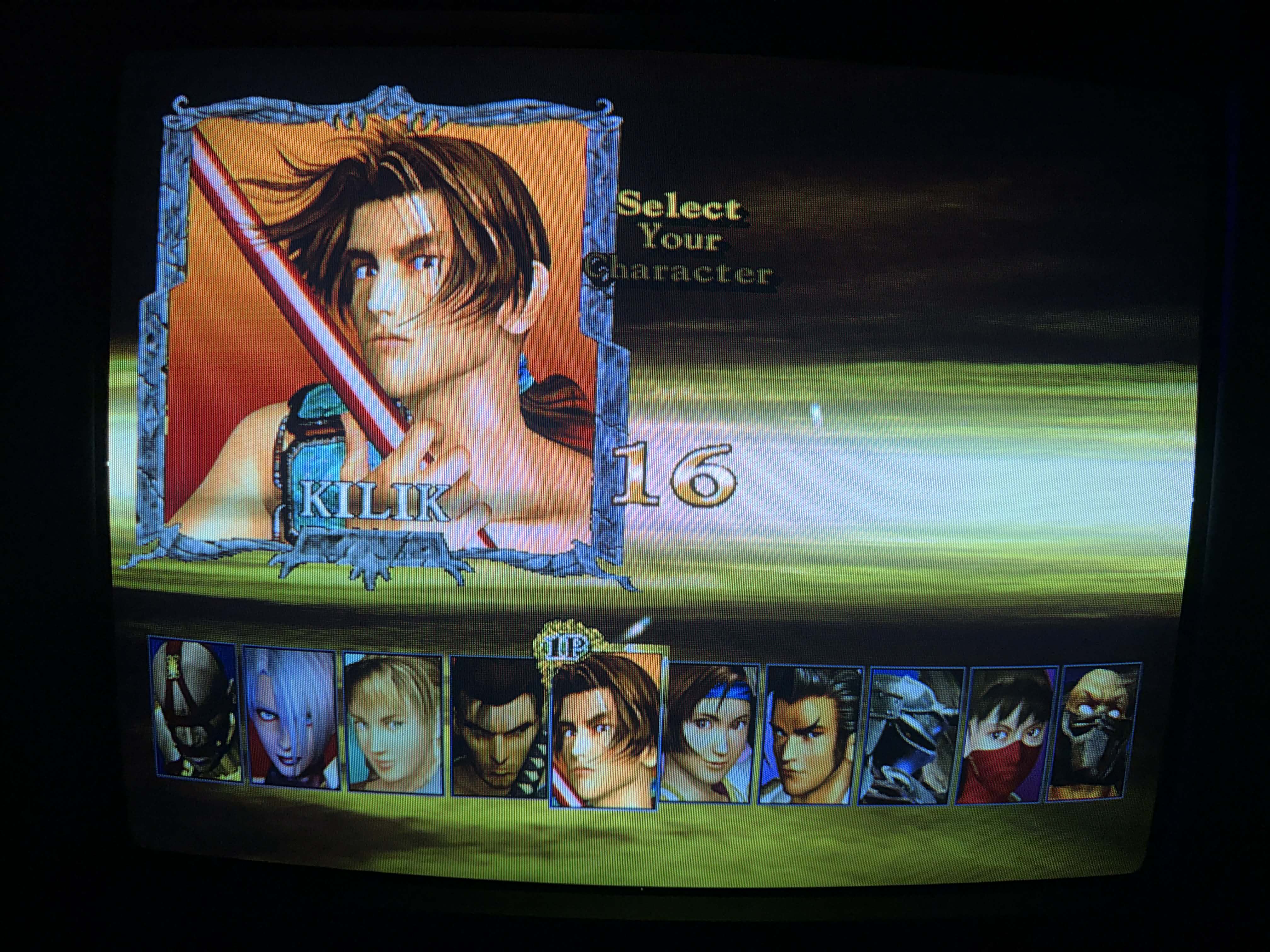

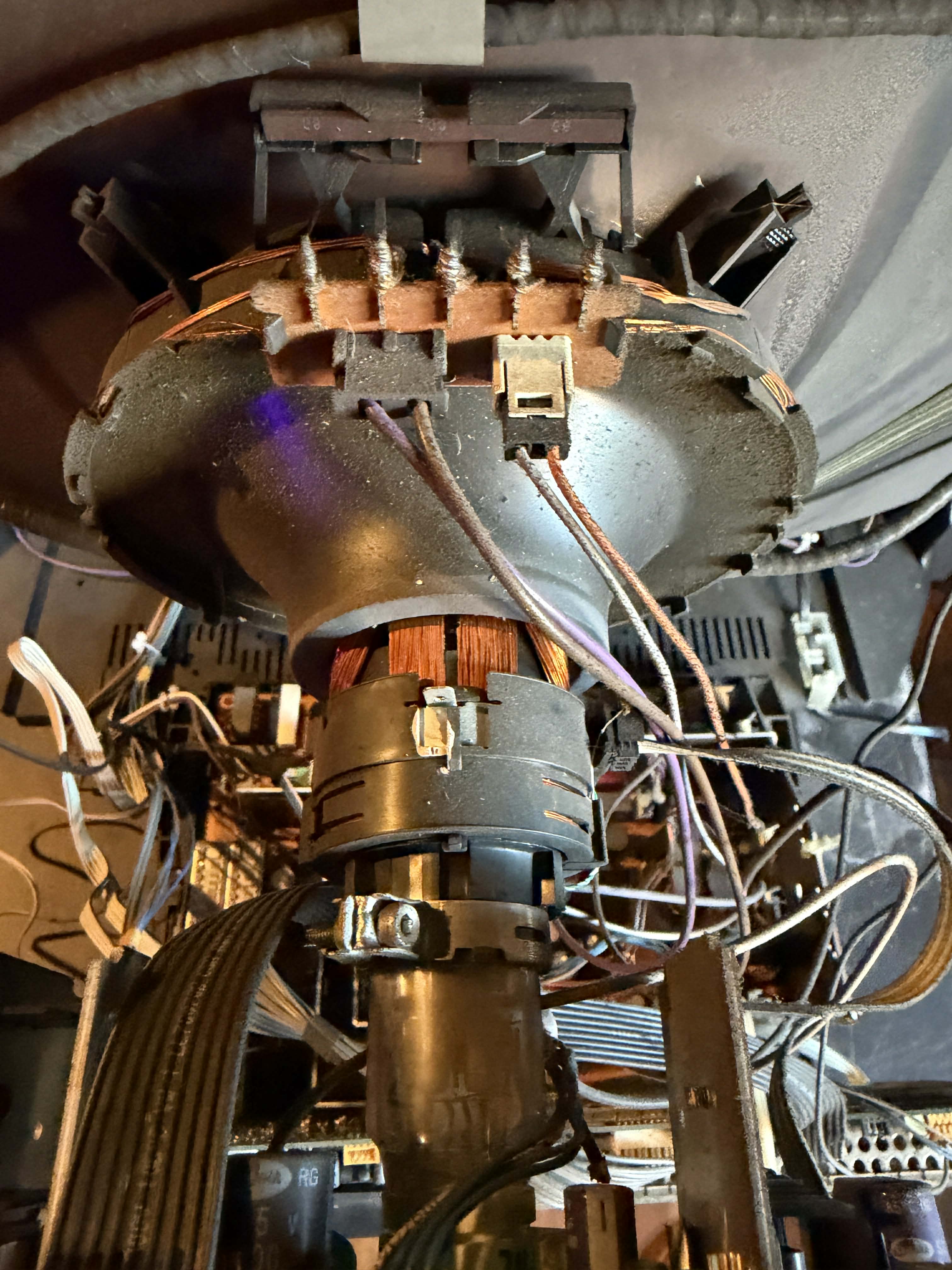

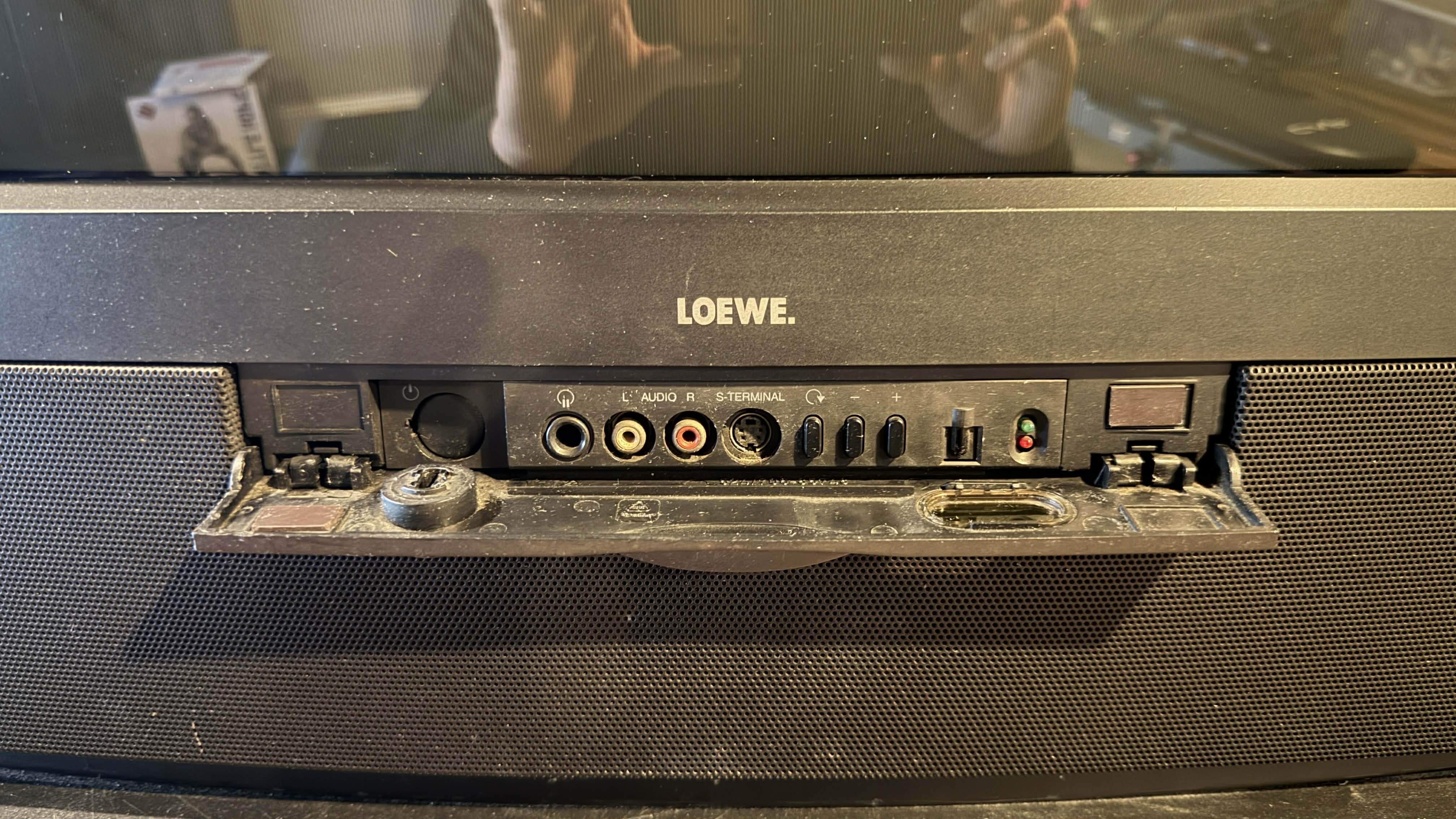

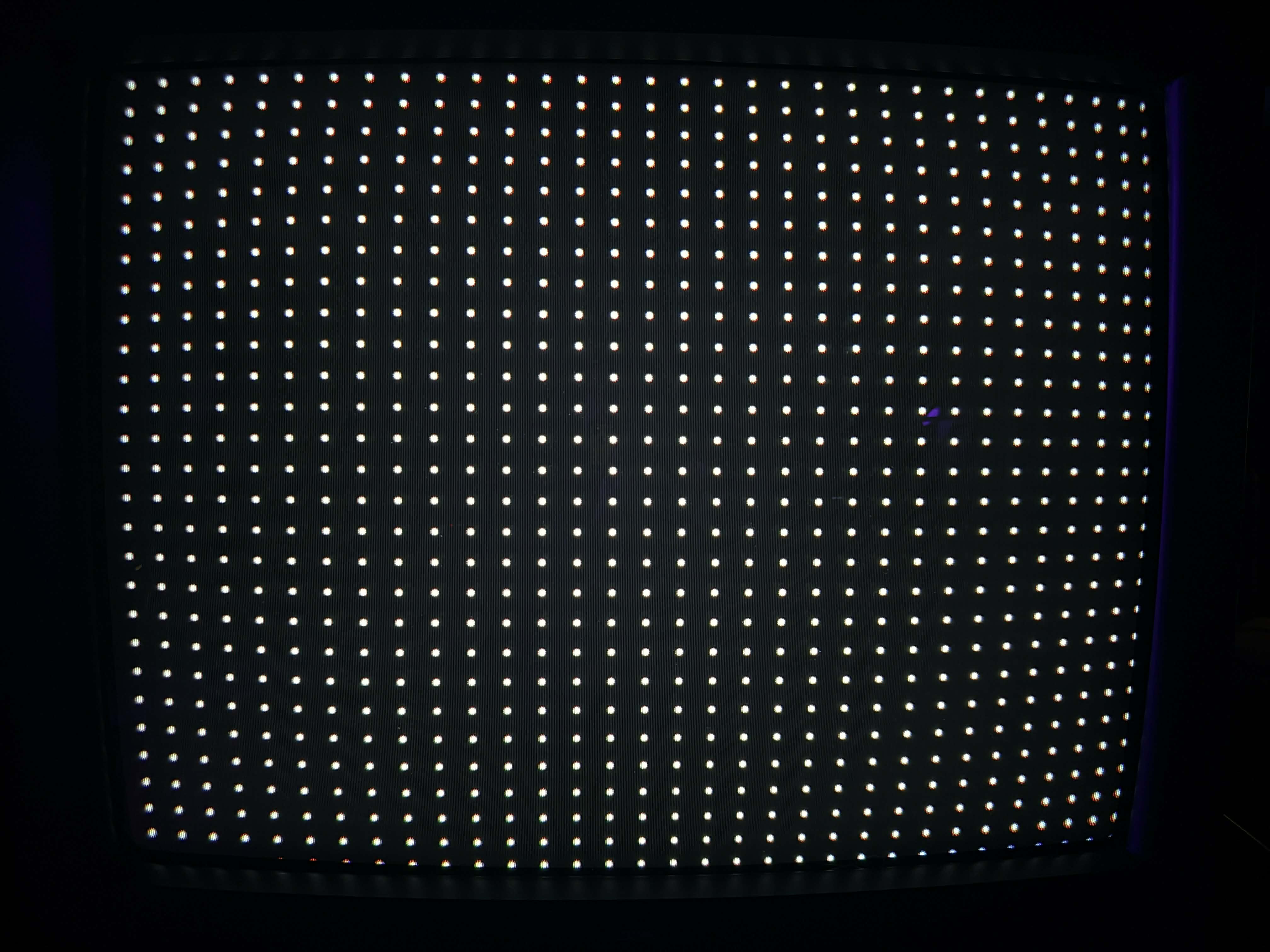

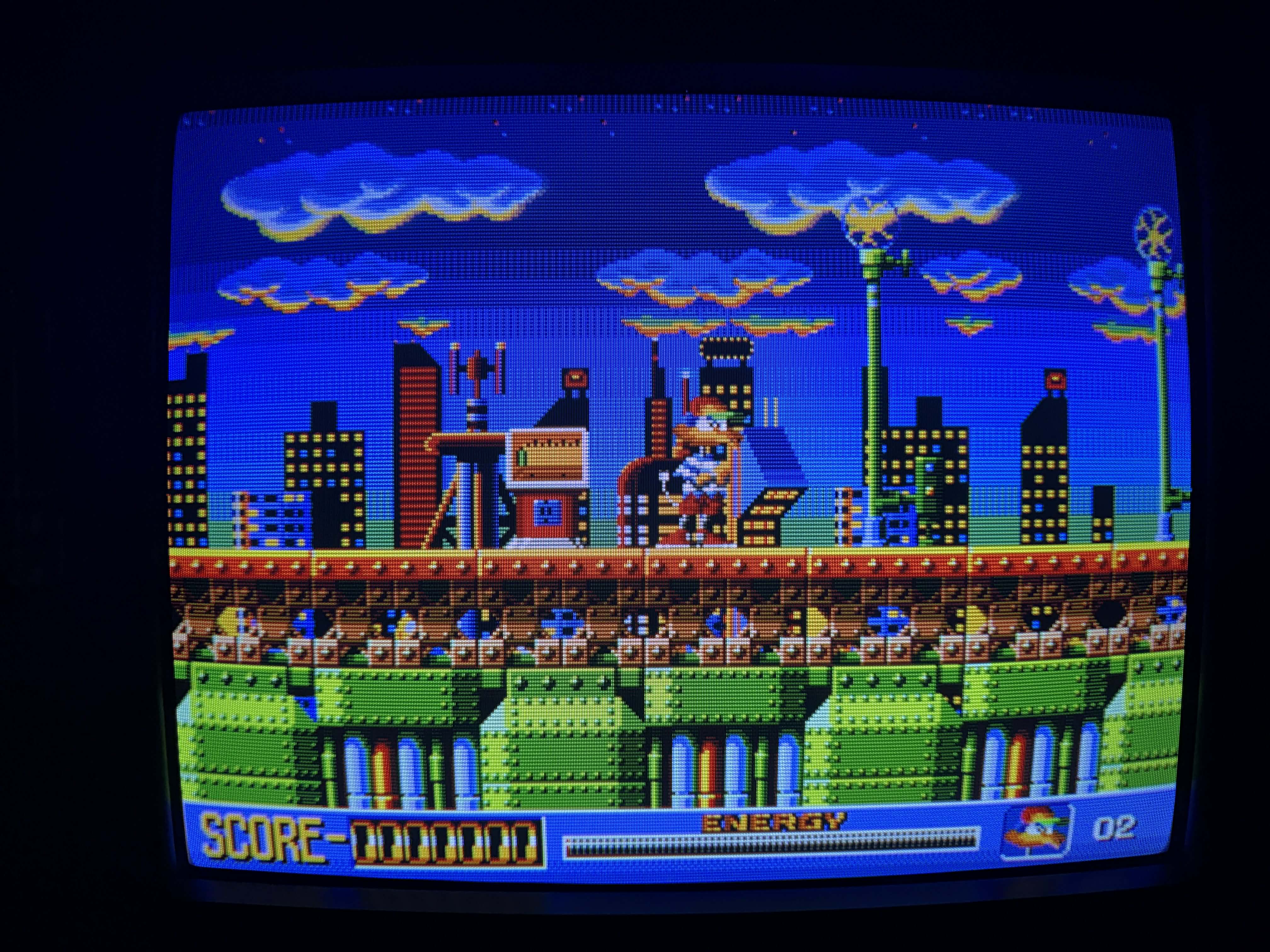

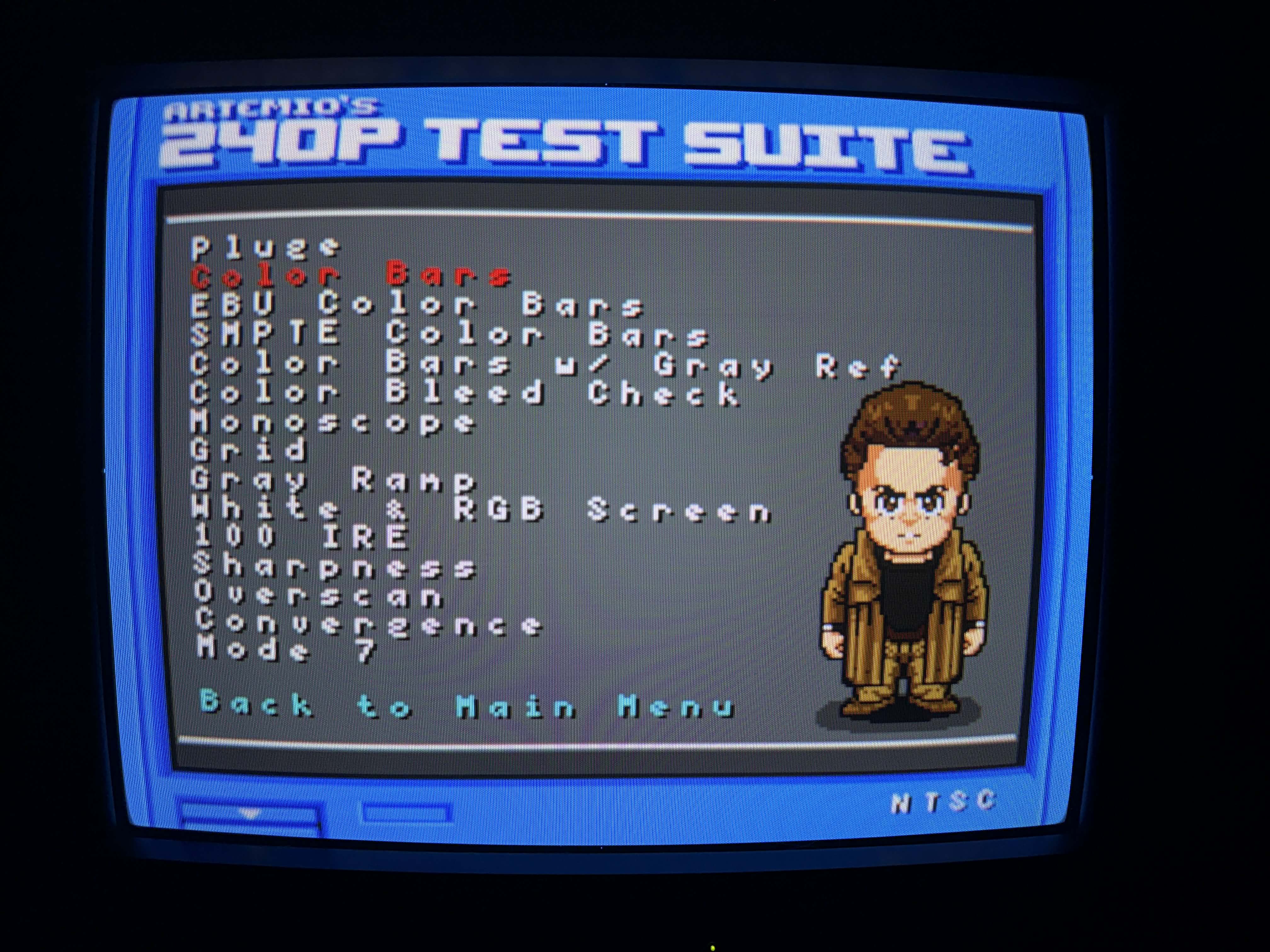

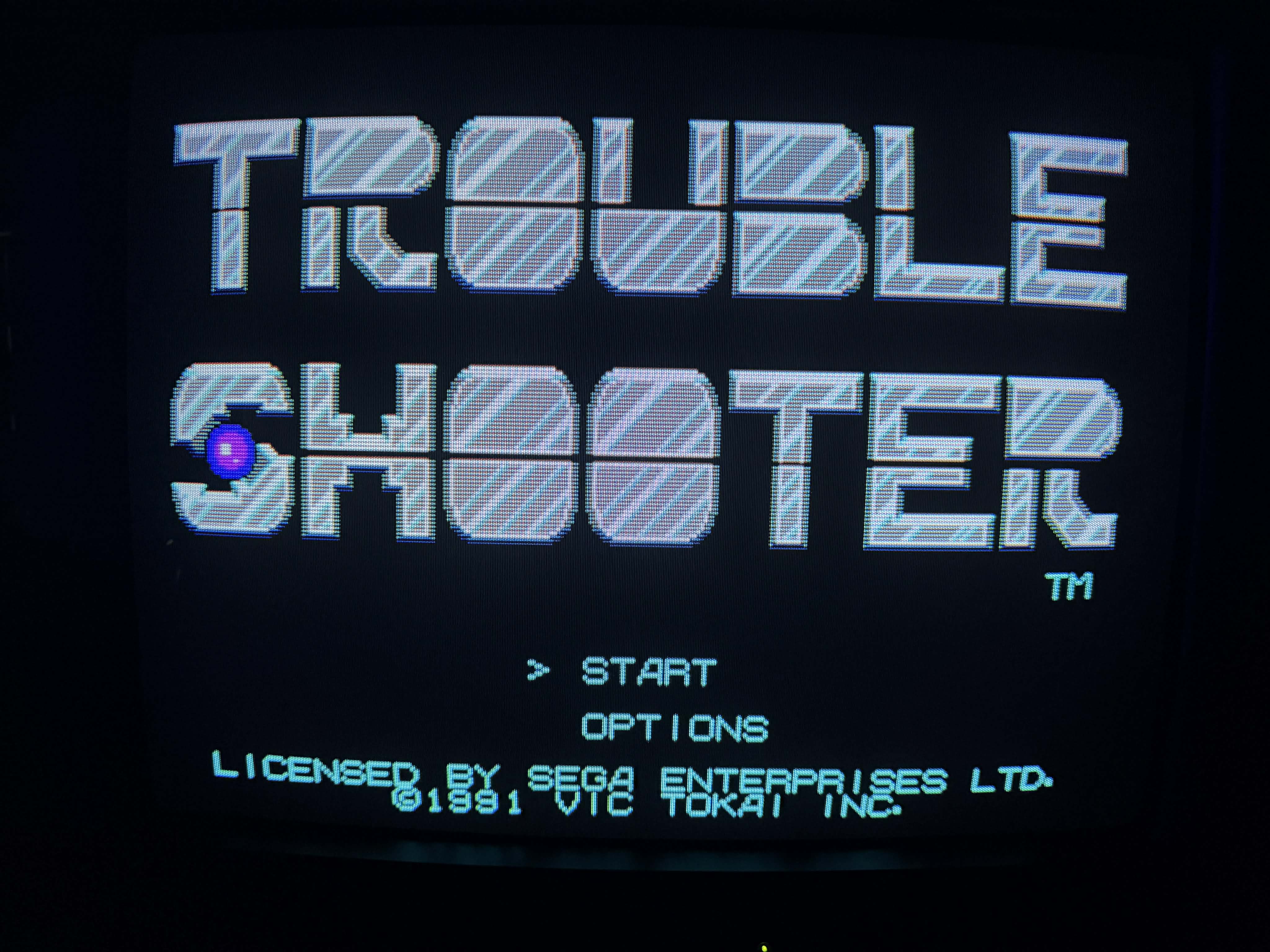

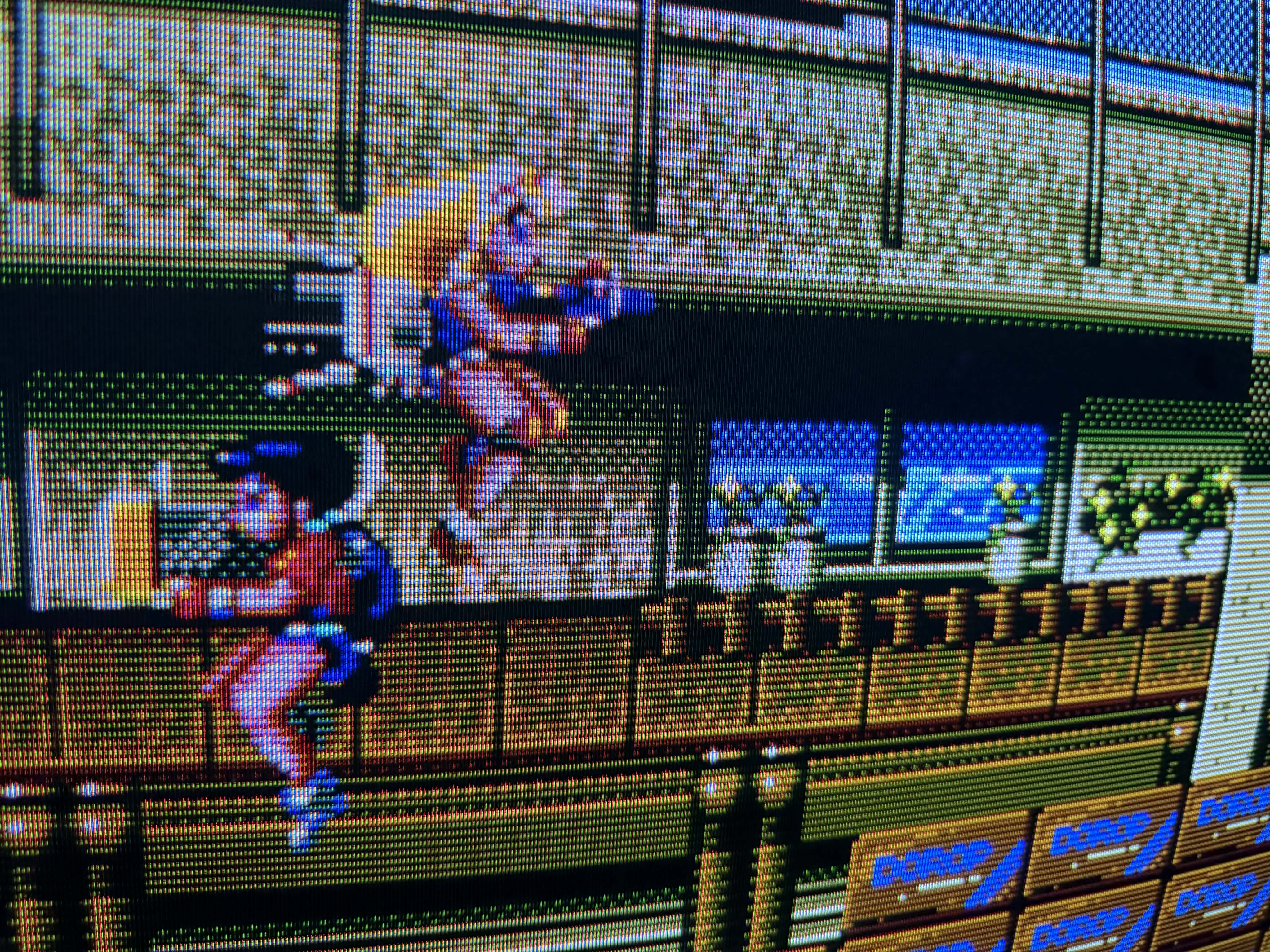

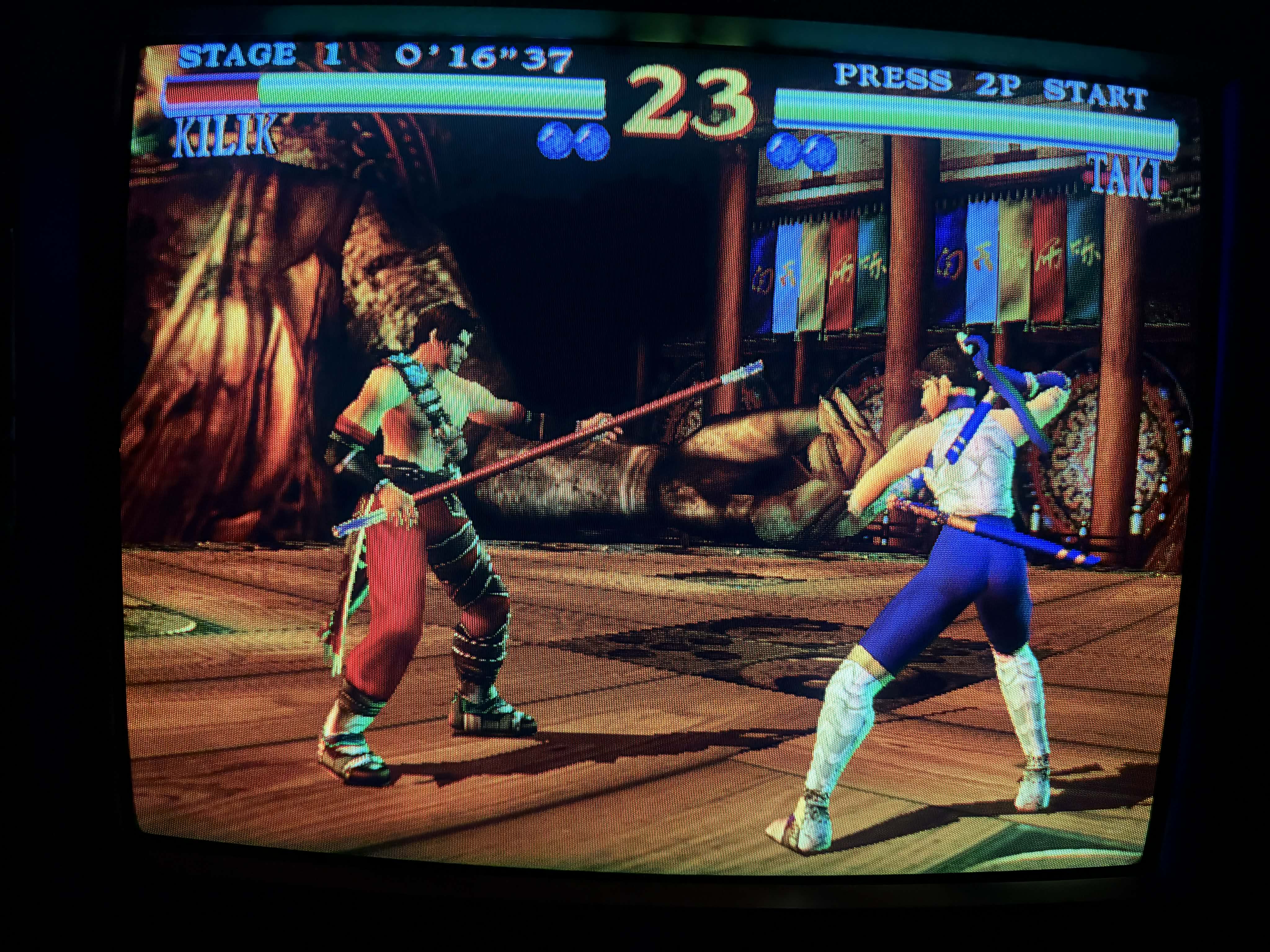

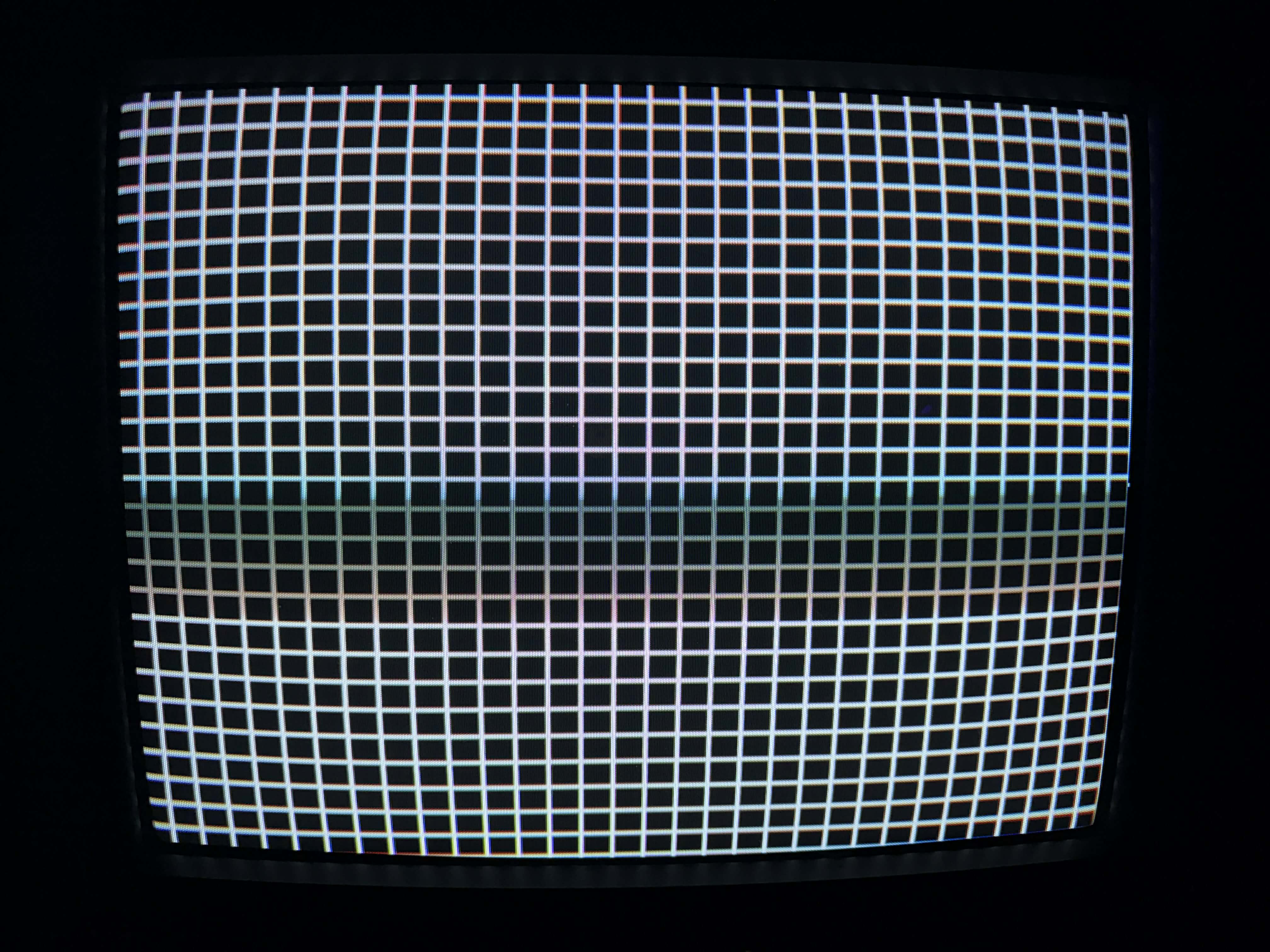

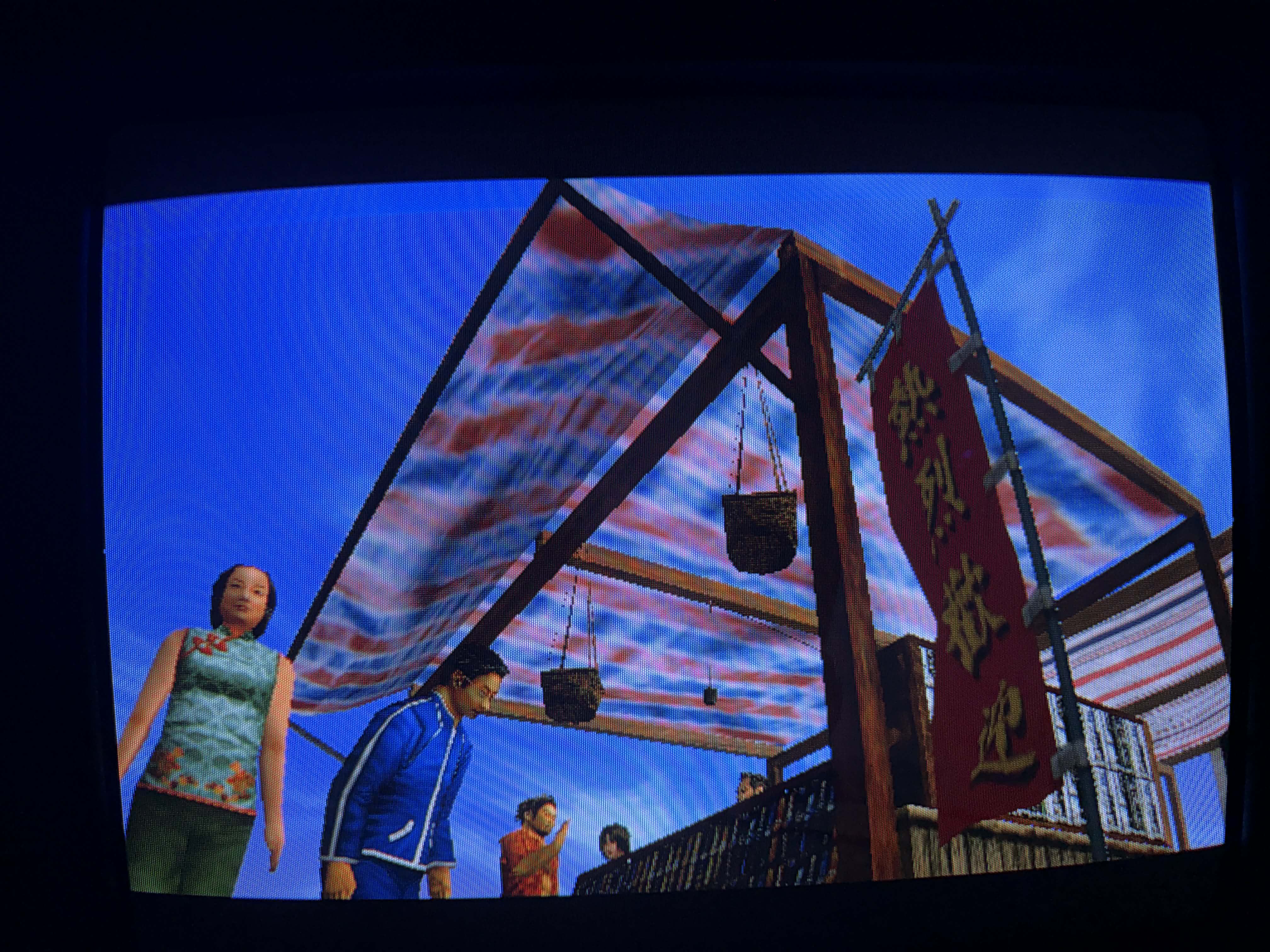

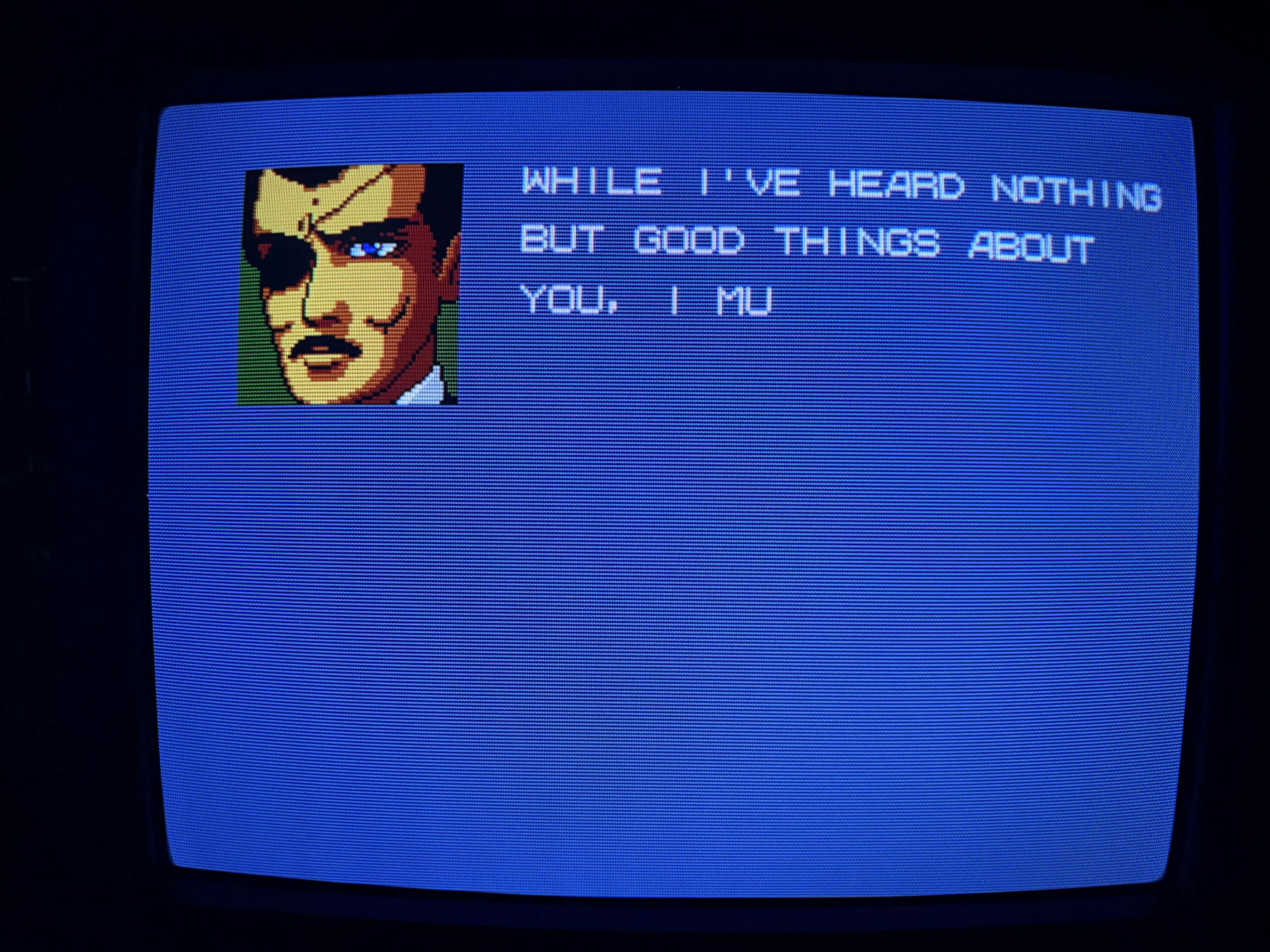

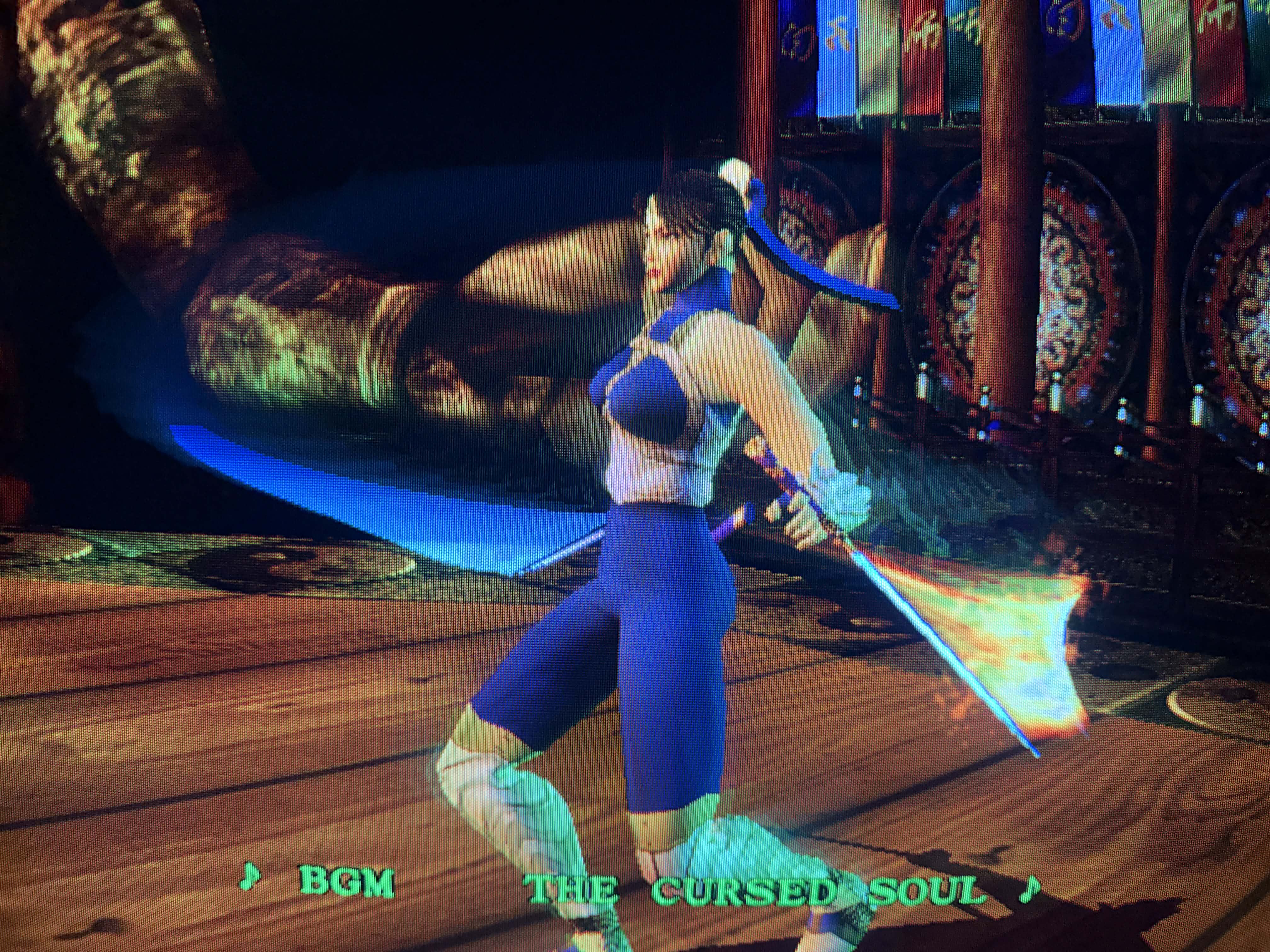

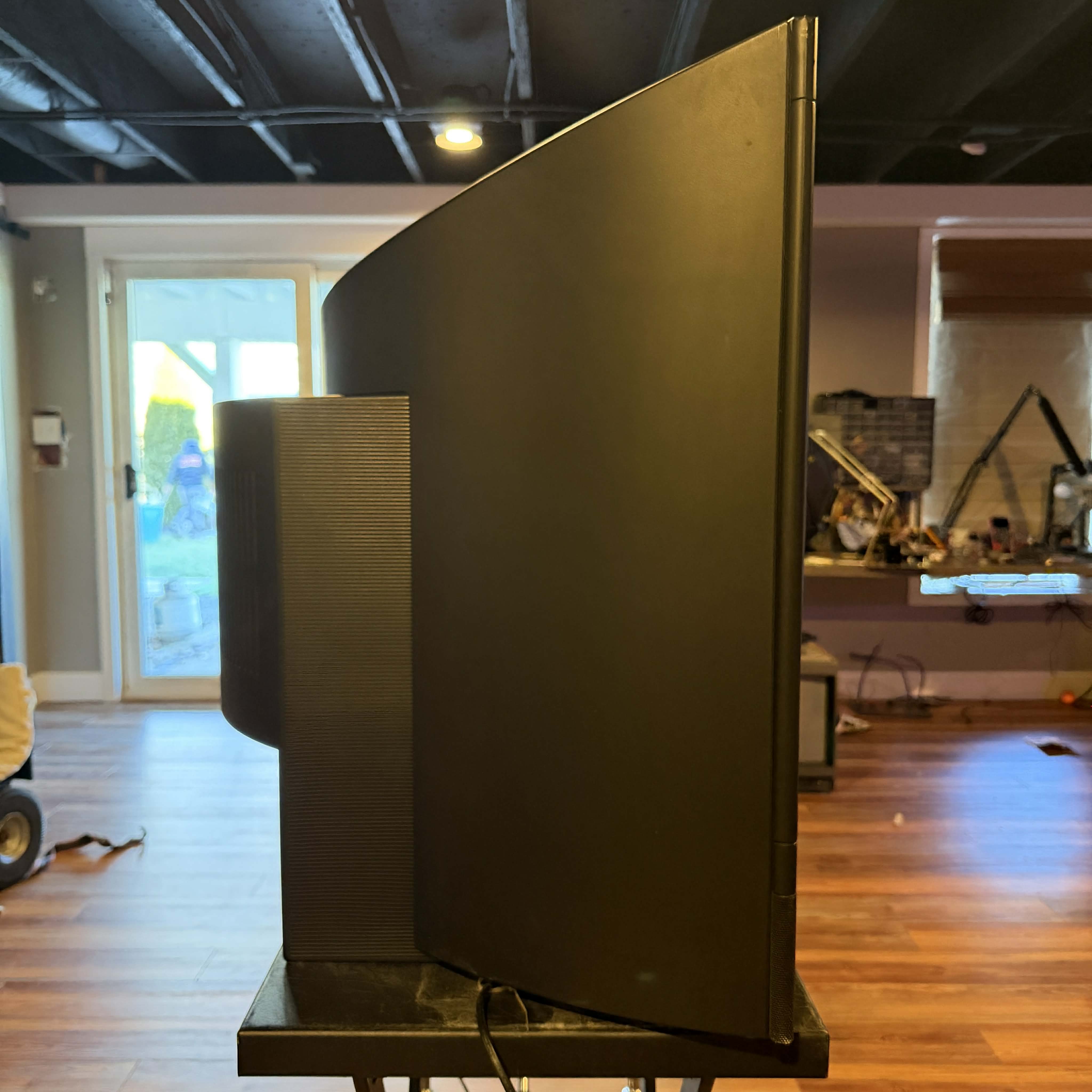

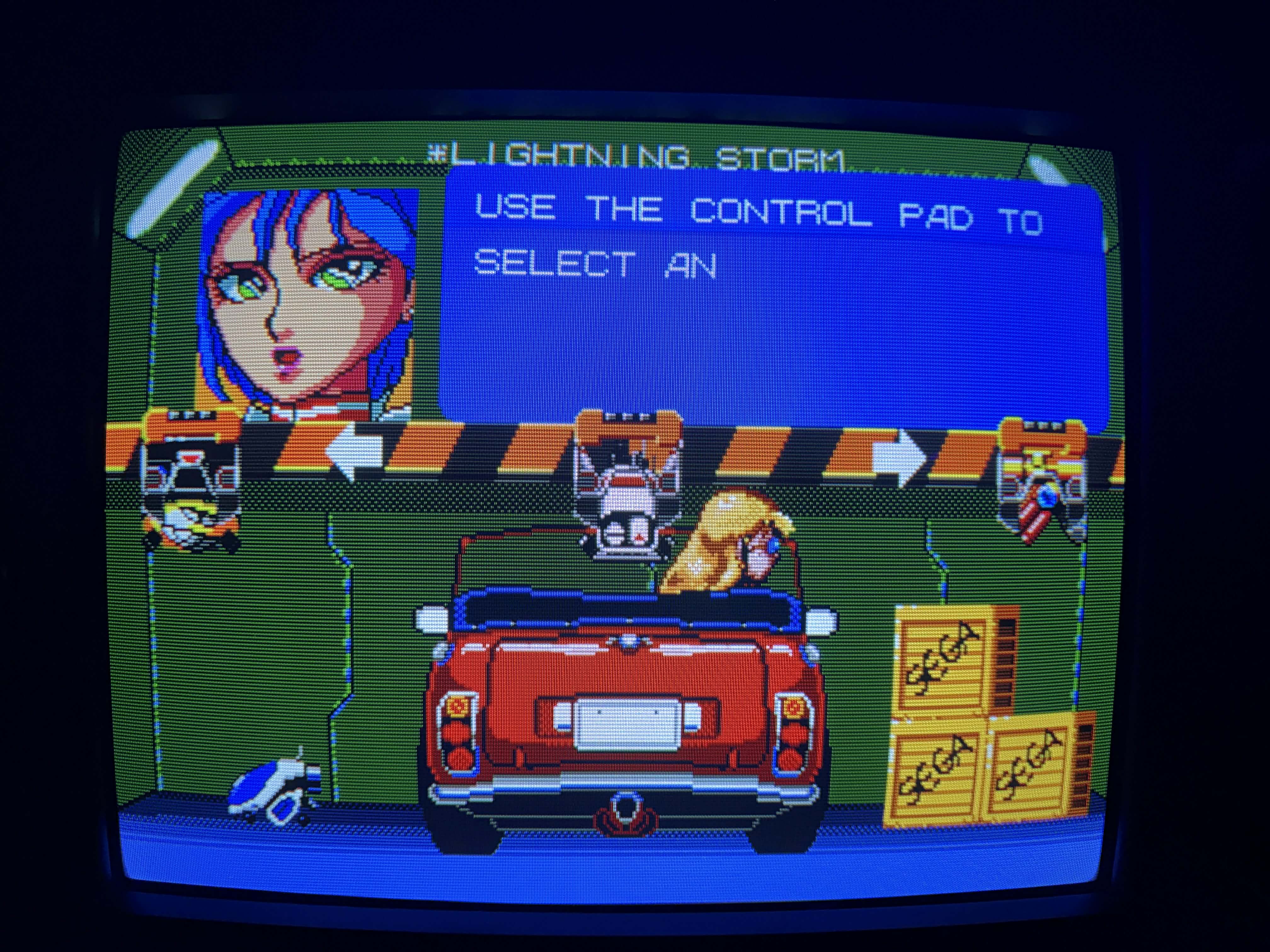

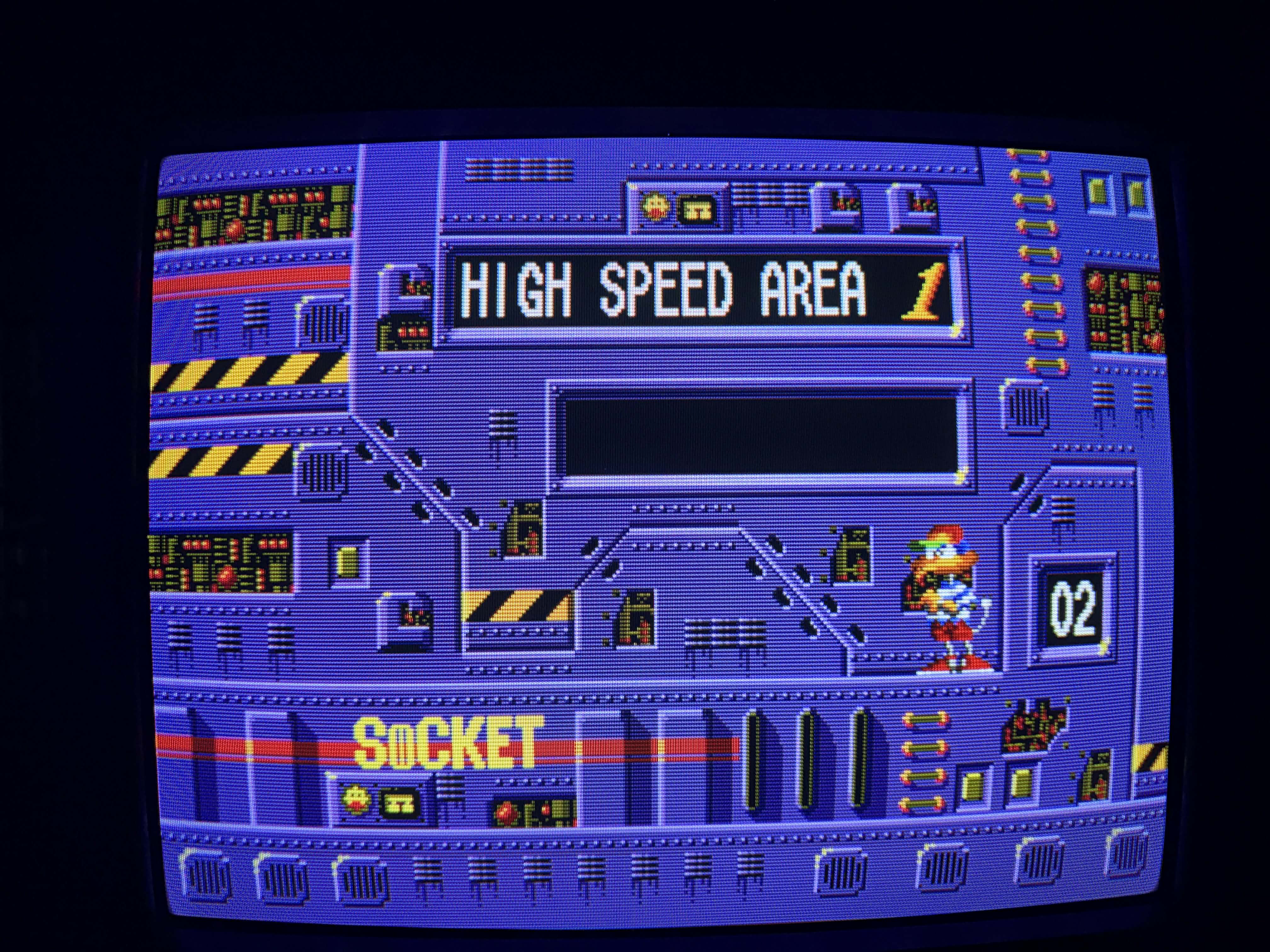

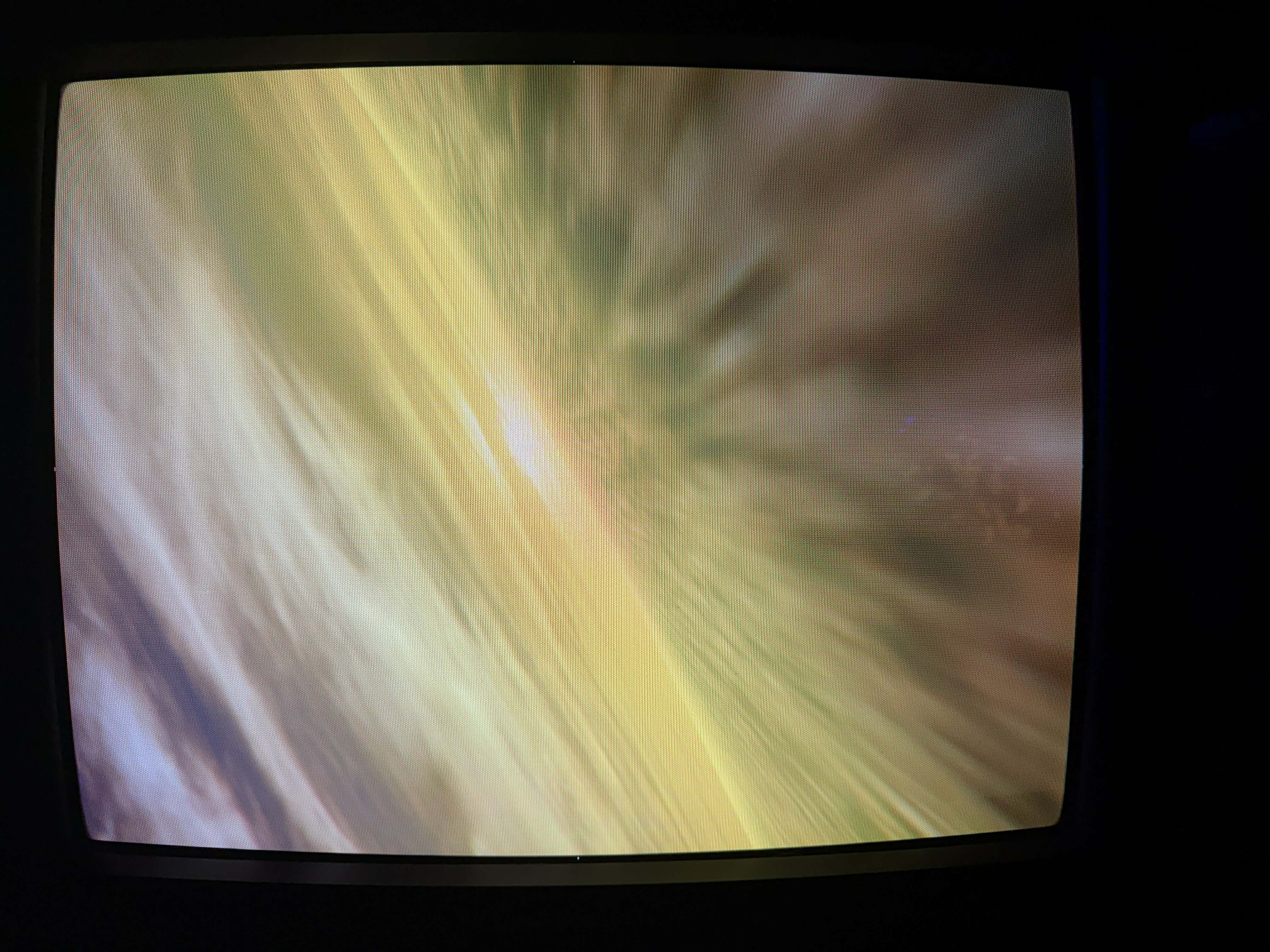

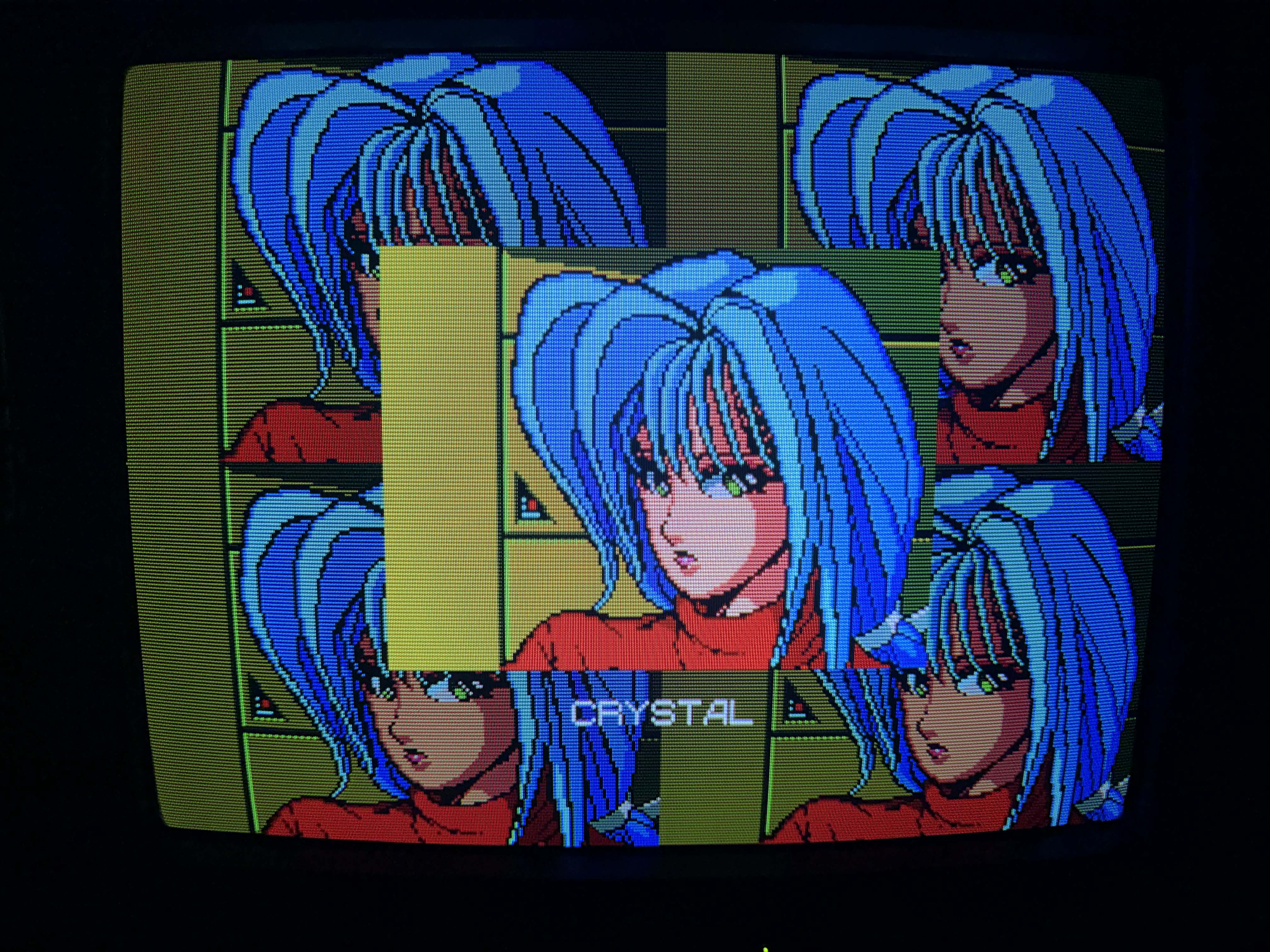

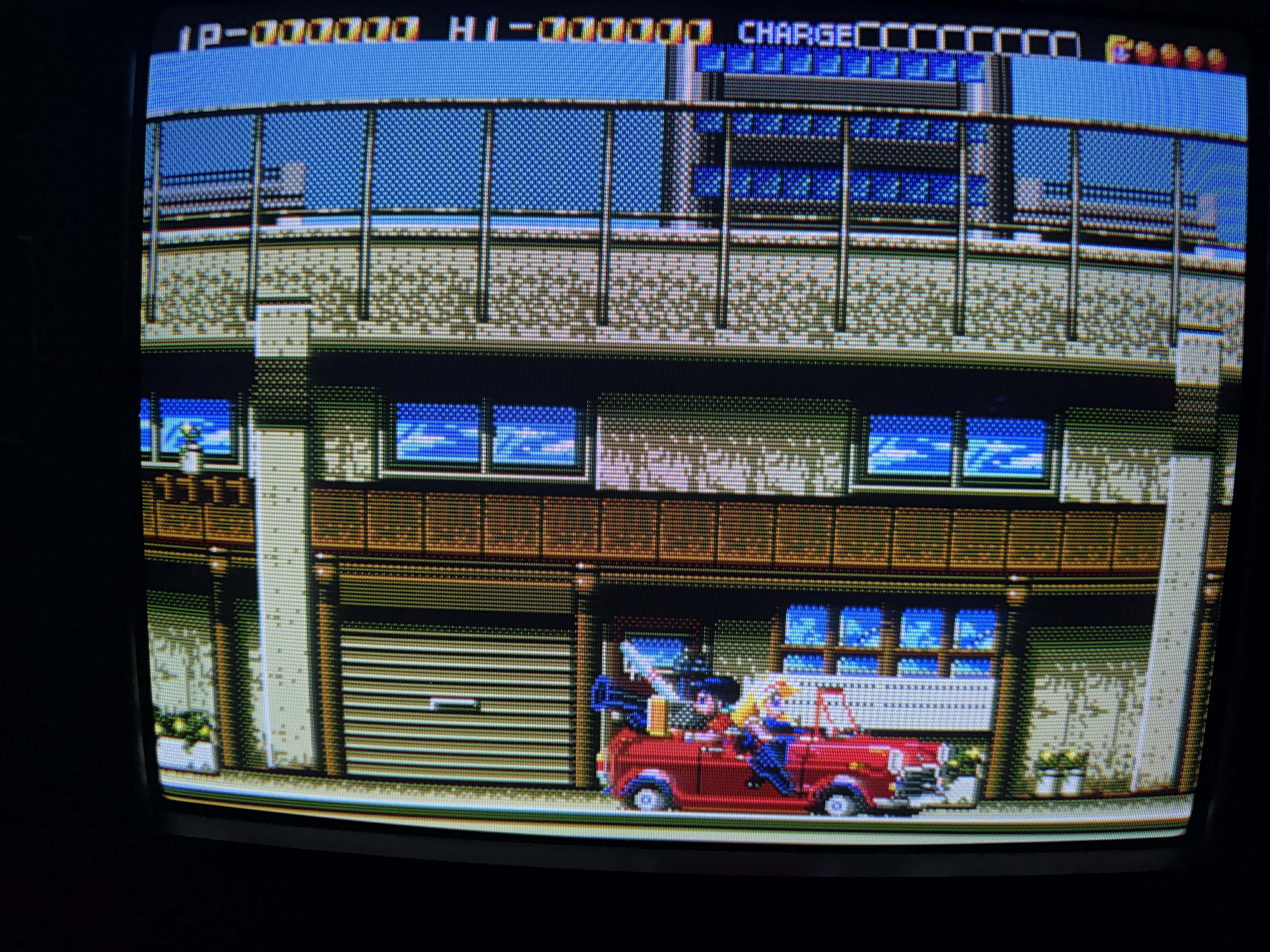

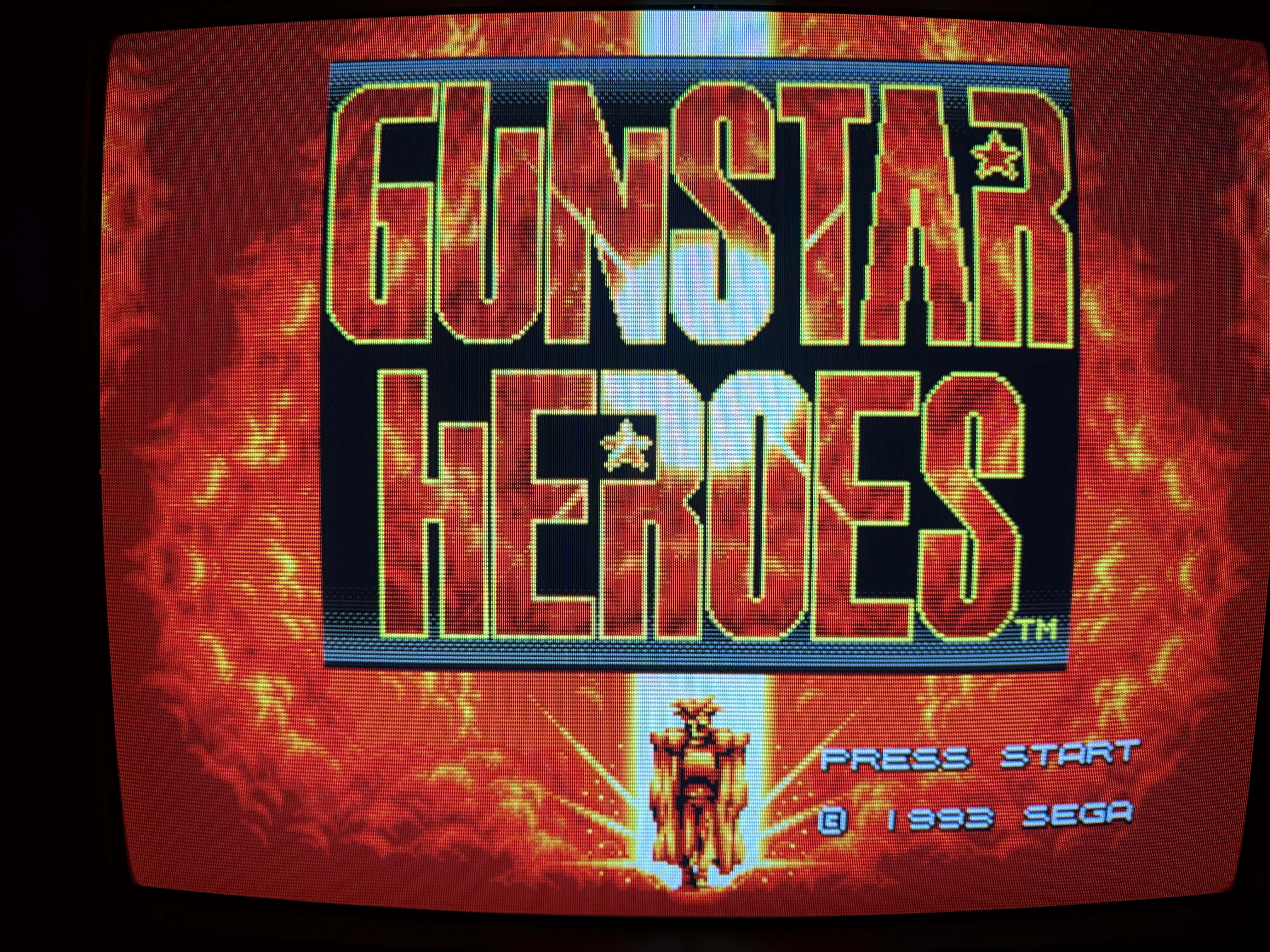

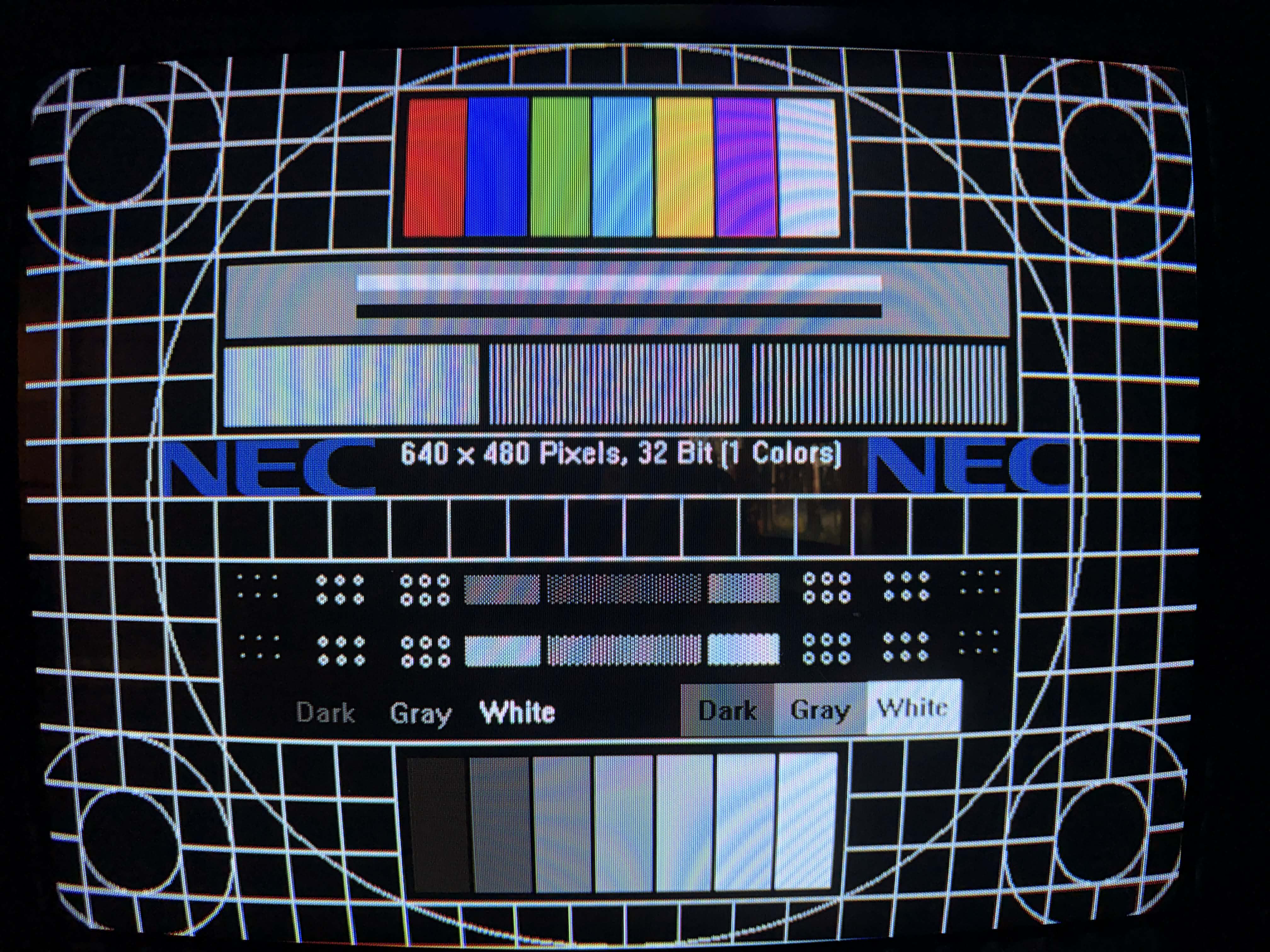

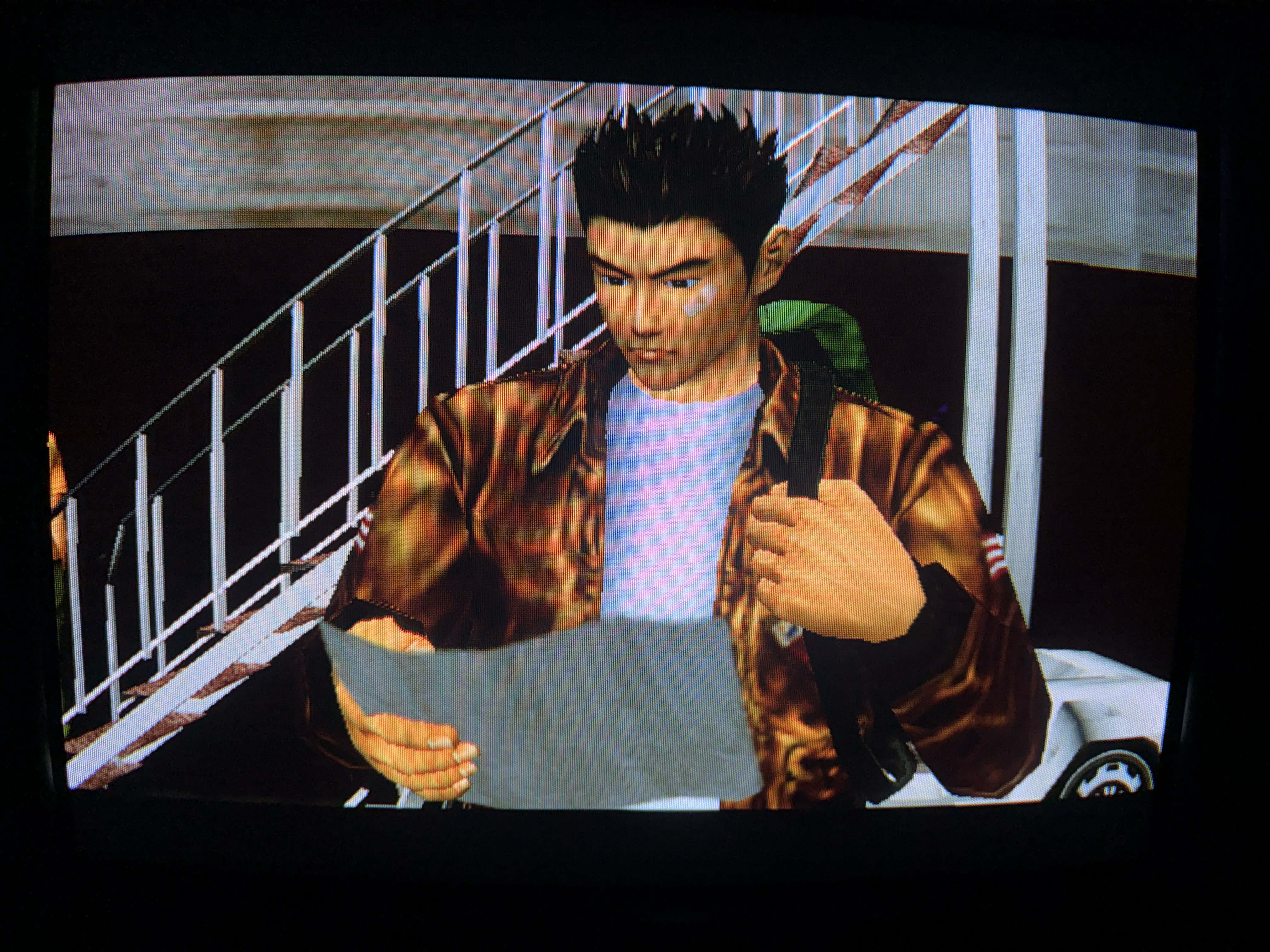

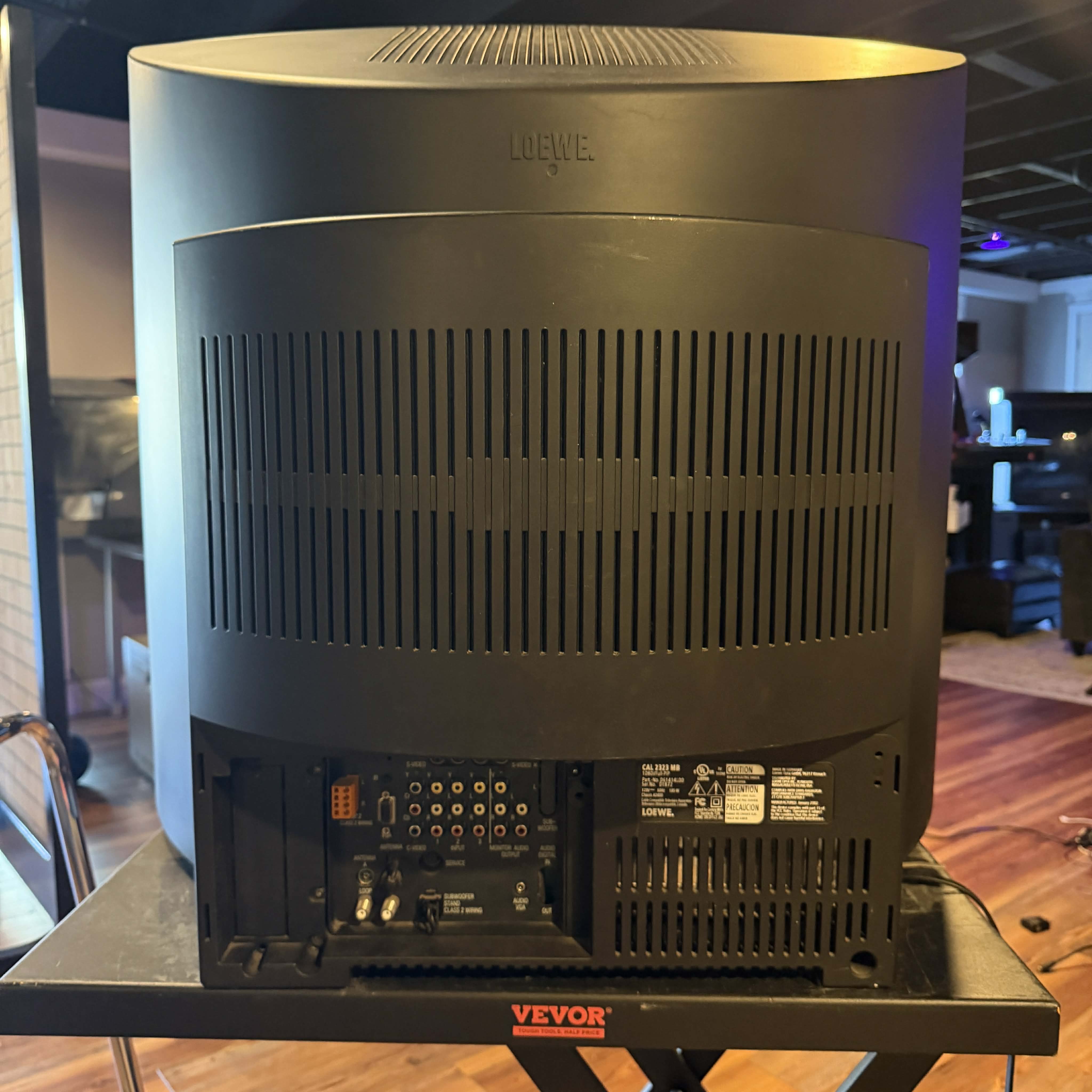

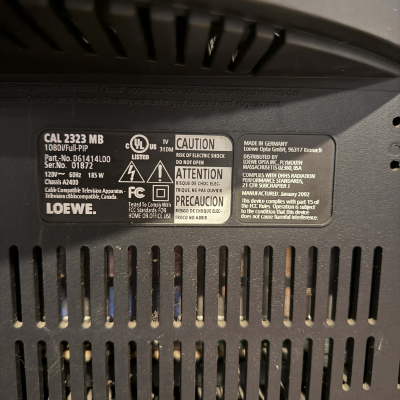

Gallery
| Specifications | |
|---|---|
| Brand: | Loewe |
| Manufacturer: | Loewe |
| Model: | CAL 2323 MB |
| Series: | Calida |
| Viewable Size: | 32" |

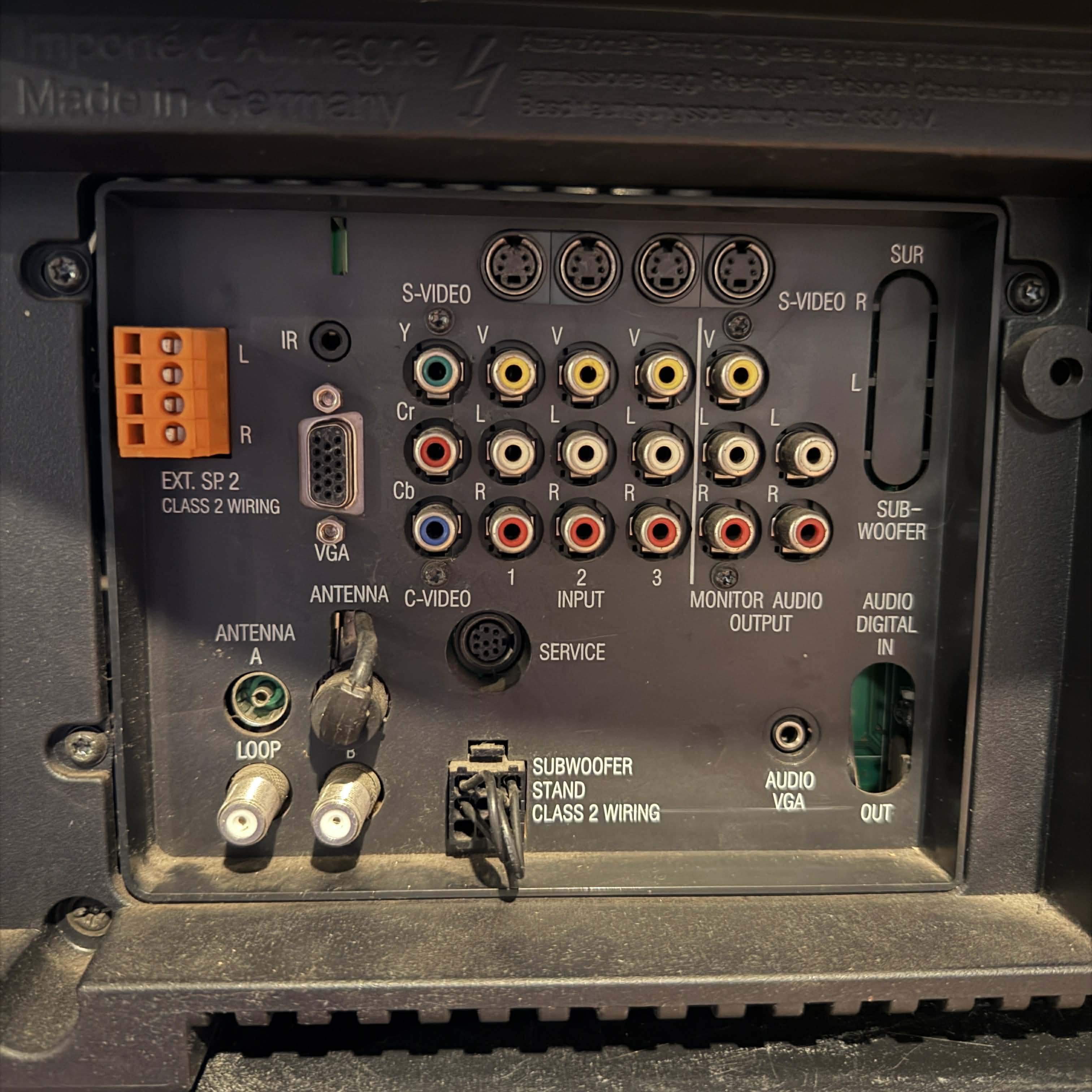

| Inputs: | VGA, Composite, S-Video, RF, Component YPbPr |
| Sync: | HV Sync |
| Native Resolutions: | VGA, 1080i, 480p, 540p, 960i |
| Scaled Resolutions: | 240p, 480i, 288p, 576i |
| Horizontal Scan Range: | 33.75 kHz, 31.5 kHz |
| Vertical Scan Range: | 50 Hz, 60 Hz |
| Formats: | NTSC, PAL |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Jungle IC: | Micronas, VPC3230D, VPC3230D-B3 |
| Comb Filtering: | 3D Digital |
| Focus Type: | Single |

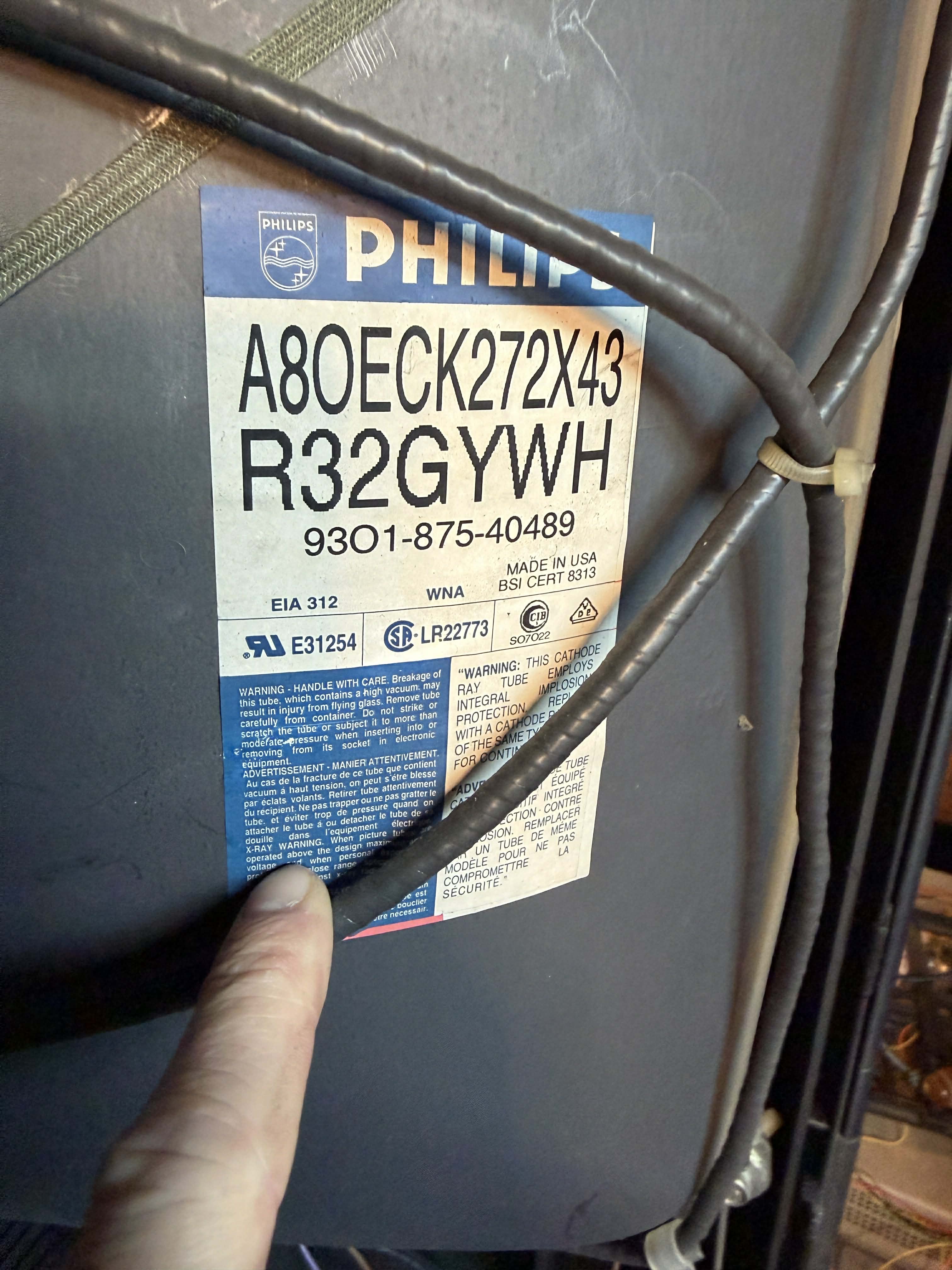

| Tube: | Philips , A80ECK272X , A80ECK272X43 |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Speakers: | Stereo, 12W x 2, Subwoofer |

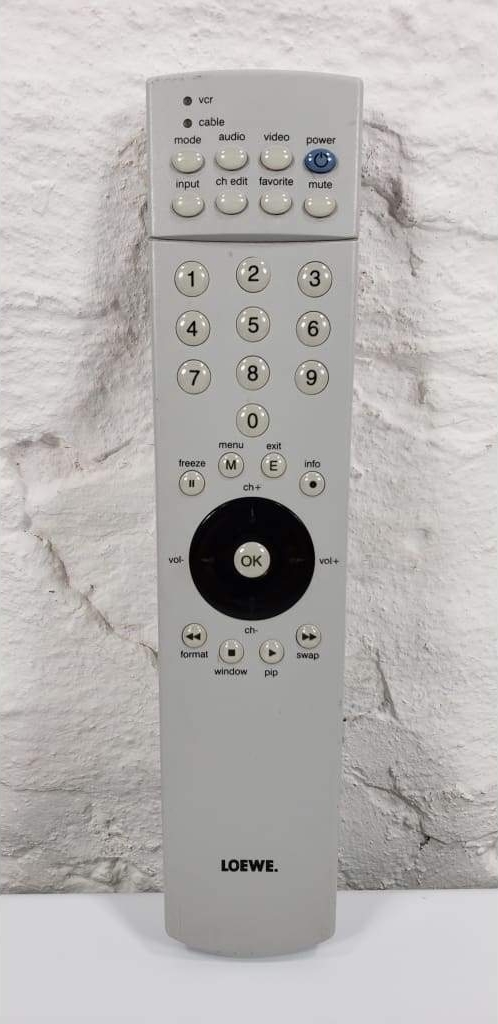

| Remote: | 87000.063 |
| Chassis: | A2400, A2440 |
| Weight: | 118 lbs (53.5 kg) |
| Dimensions (W/H/D): |
787 x 721 x 578 mm
(30.9 x 28.3 x 22.7") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2001 |
| MSRP: | 2400 USD |
| Country of Manufacture: | Germany |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual |
